36" AG-PANEL METFORM 20 STAND X 4" X 48" ROLLFORMING LINE: STOCK #15740

Overview

COMPLETE ROLLFORMING LINE
TOOLED FOR "GRANDRIB 3 PANEL" - SEE VIDEO AND PICTURES

LINE CONSISTS OF:
- 10,000 LBS METFORM UNCOILER

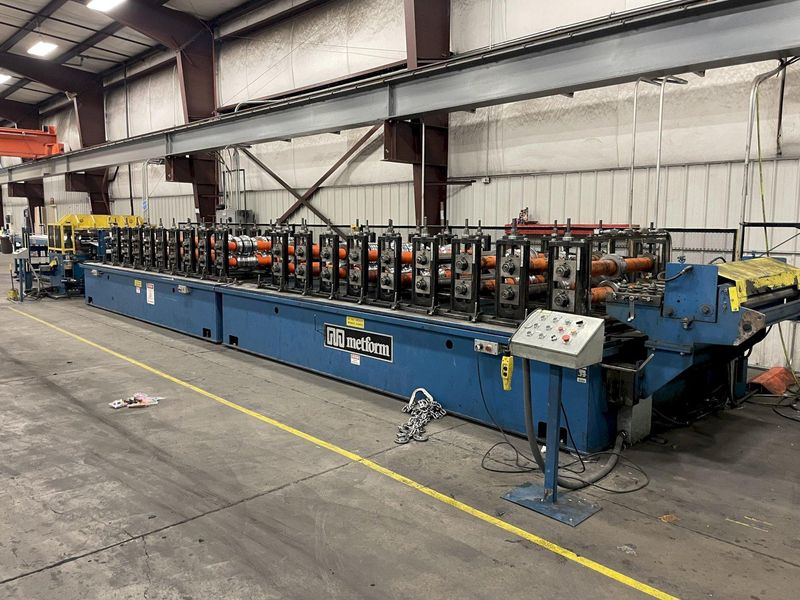

- 20 STAND METFORM ROLLFORMER
- AMS XL200CL OPERATING CONTROLS
- 60 TON METFORM CUTOFF PRESS
- SERVO DRIVEN METFORM FLYING CUTOFF DIE
- ENTRY GUIDE STAND & ROLLS
- 15' POWERED BELT RUN-OUT CONVEYOR

METFORM UNCOILER:
YEAR NEW .................. 1996
MODEL ..................... MCO 1384-1
CAPACITY .................. 10,000 LBS
COIL WIDTH ................ 48" (MANDREL LENGTH)
COIL I.D. ................. 18-1/2" TO 21"
COIL O.D. ................. 60"
JOG FEATURE ............... YES, FWD & REV
POWERED ROTATION .......... YES
DANCER ARM LOOP CONTROL ... YES
TRAVERSING BASE ........... YES, 6"
HYDRAULIC EXPANSION ....... YES, HYDRAULIC
OVER-ARM HOLD DOWN ........ YES, HYDRAULIC
COIL KEEPERS .............. YES
E-STOP BUTTON ............. YES

METFORM ROLLFORMER:
SERIAL .................... C11018
YEAR NEW .................. 1996
TYPE ...................... M3 UNIVERSAL
MODEL ..................... MCO 1384-2
LINE SPEED ................ 50 TO 225 FPM

NUMBER OF STANDS .......... 20

ARBOR DIAMETER ............ 4"

ROLL SPACE ................ 48"

HORIZONTAL SPACING ........ 16"

VERTICAL ADJUSTMENT ....... 6-1/4" TO 10-1/4"
BASE TO LOWER SHAFT ....... 8-1/4"
SEPERATE GEARBOXES ........ YES, UNIVERSAL
DRIVE COUPLINGS ........... KWIKCONNECT
STAND HOLD DOWN CLAMPS .... YES, QUIK RELEASE
2 PIECE BASE .............. YES
COOLANT ................... YES
ENTRY GUIDE TABLE ......... YES

MOTOR ..................... 75 HP

AMS OPERATING CONTROLS:
SERIAL .................... #8064
MODEL ..................... XL200CL
VERSION ................... 3.66.04
YEAR NEW & UPADTED ........ 2005 & 2015
TOUCH SCREEN CONTROLLER ... YES
LIGHT CURTAINS ............ YES

METFORM CUT-OFF PRESS:

SERIAL .................... C11020
YEAR NEW .................. 1996
MODEL ..................... MCO 1384-3
TONNAGE CAPACITY .......... 60 TON

STROKE .................... 2"
SPEED ..................... 50 SPM
SHUT HEIGHT ............... 8-1/2" TO 12-1/2"

CRANKSHAFT SPEED .......... 260 RPM
AIR CLUTCH ................ YES
AUTO LUBE ................. YES
BASE ADJUSTMENT ........... YES
BASE HOLDDOWN SYSTEM ...... ENERPAC HYDRAULIC

METFORM CUT-OFF DIE
ORDER # ................... 2248-1
DIE ACCELERATOR ........... SERVO DRIVEN
ACCELERATOR DESIGN ........ RACK & PINION
ACCELERATOR SPEED ......... 240 FPM MAX
DIE RETURN ................ AIR CYLINDER
SPEED ..................... 30 CUTS/MINUTE MAX

METFORM RUN-OUT CONVEYOR:
BELT DRIVE ................ VARISPEED 60/300 FPM
LENGTH .................... 15'
WIDTH OF BELT ............. 42"
HEIGHT OF CONVEYOR ........ ADJUSTABLE
HOLD DOWN BAR ............. YES
ON/OFF SWITCH ............. YES
ON ROLLER CASTERS ......... YES

MANUALS & DRAWINGS INCLUDED:
- OWNERS & OPERATING MANUALS
- ORIGINAL DRAWINGS FOR EACH COMPONENT
- DIMENSIONAL DRAWINGS
- ELECTRICAL SCHEMATICS & DRAWINGS
- AMS XL200 CONTROLS MANUALS
- GRAND RIB III TOOLING LAYOUT DRAWINGS
- CUT-OFF DIE DRAWINGS
