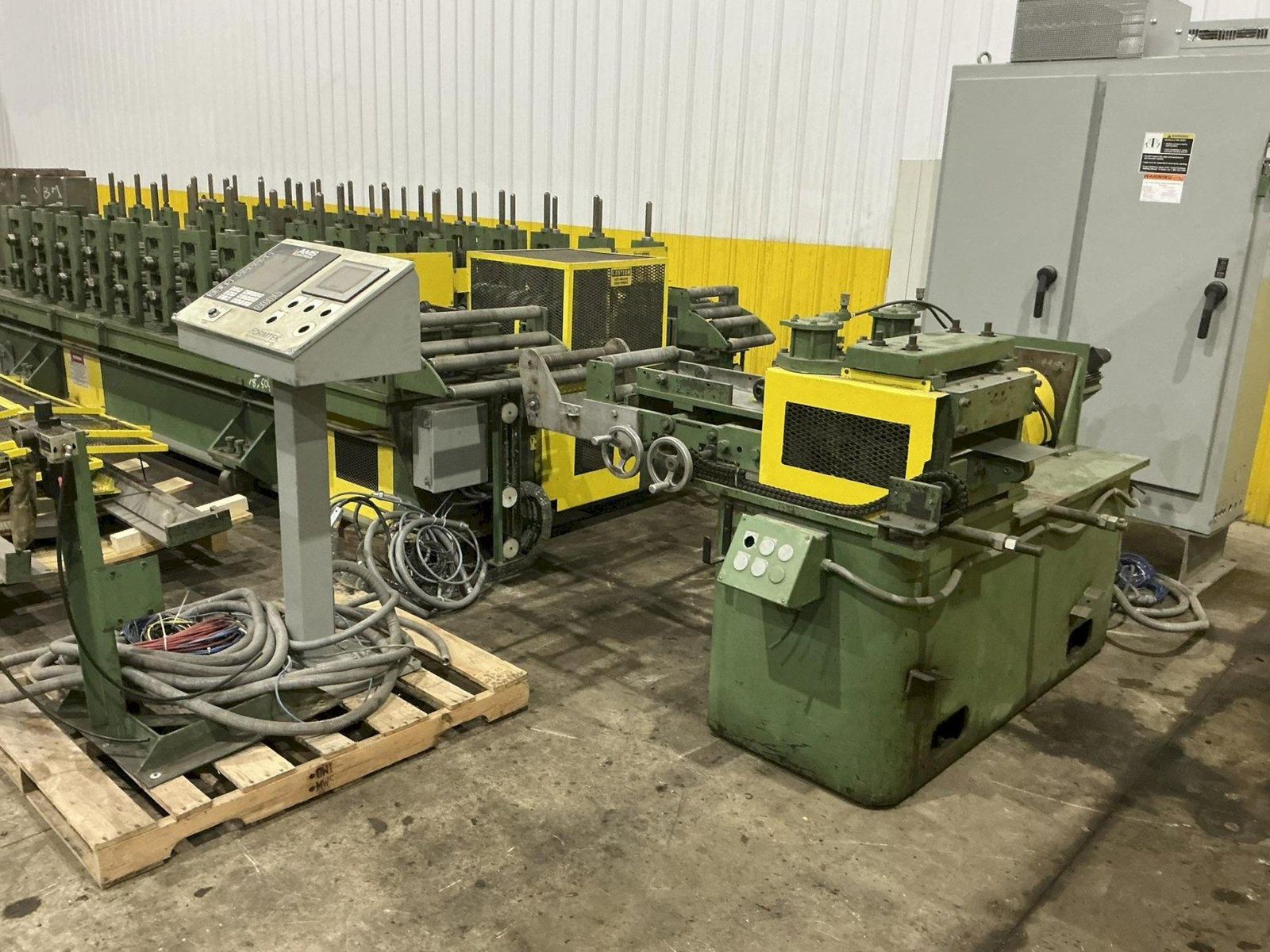

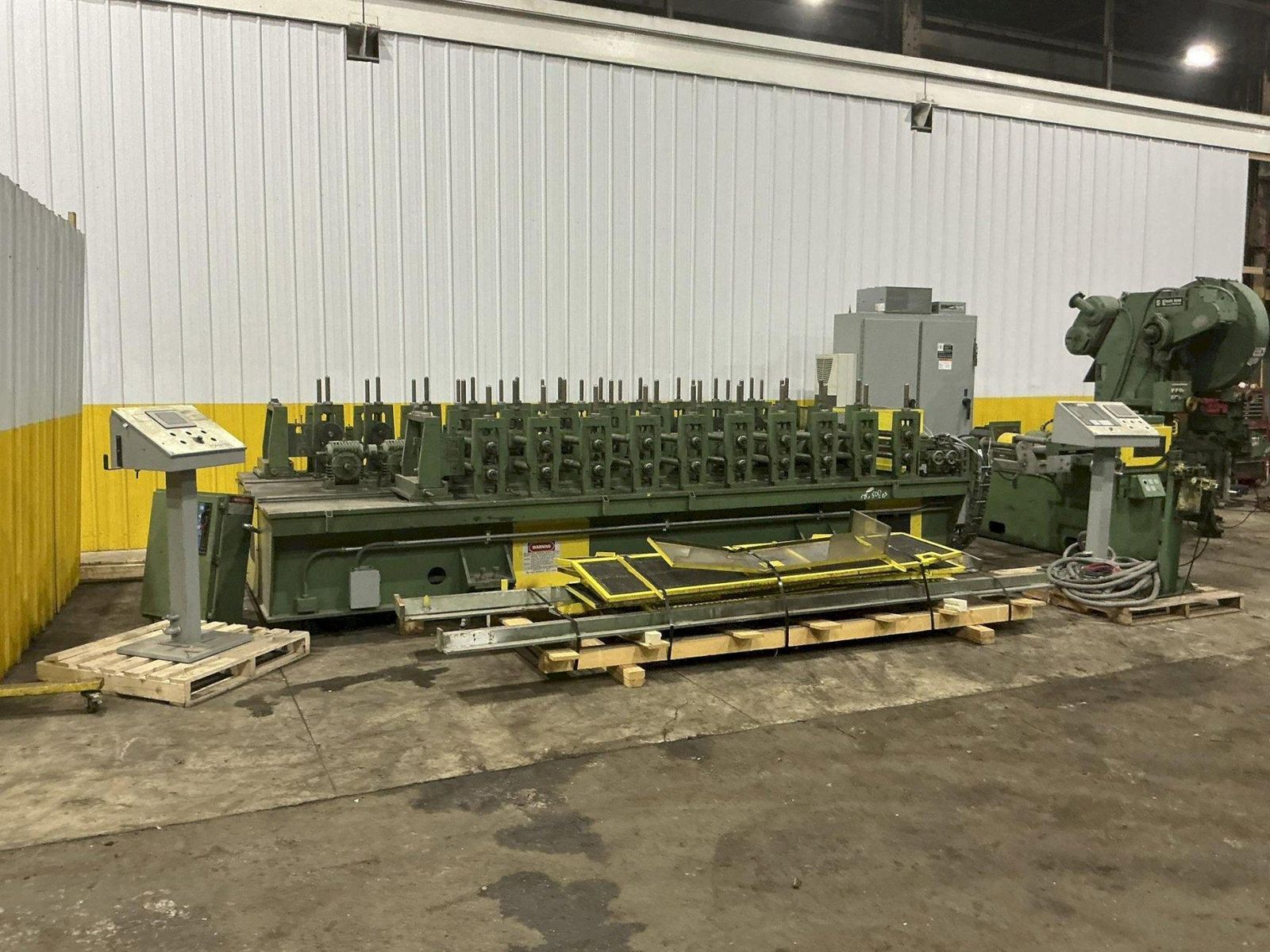

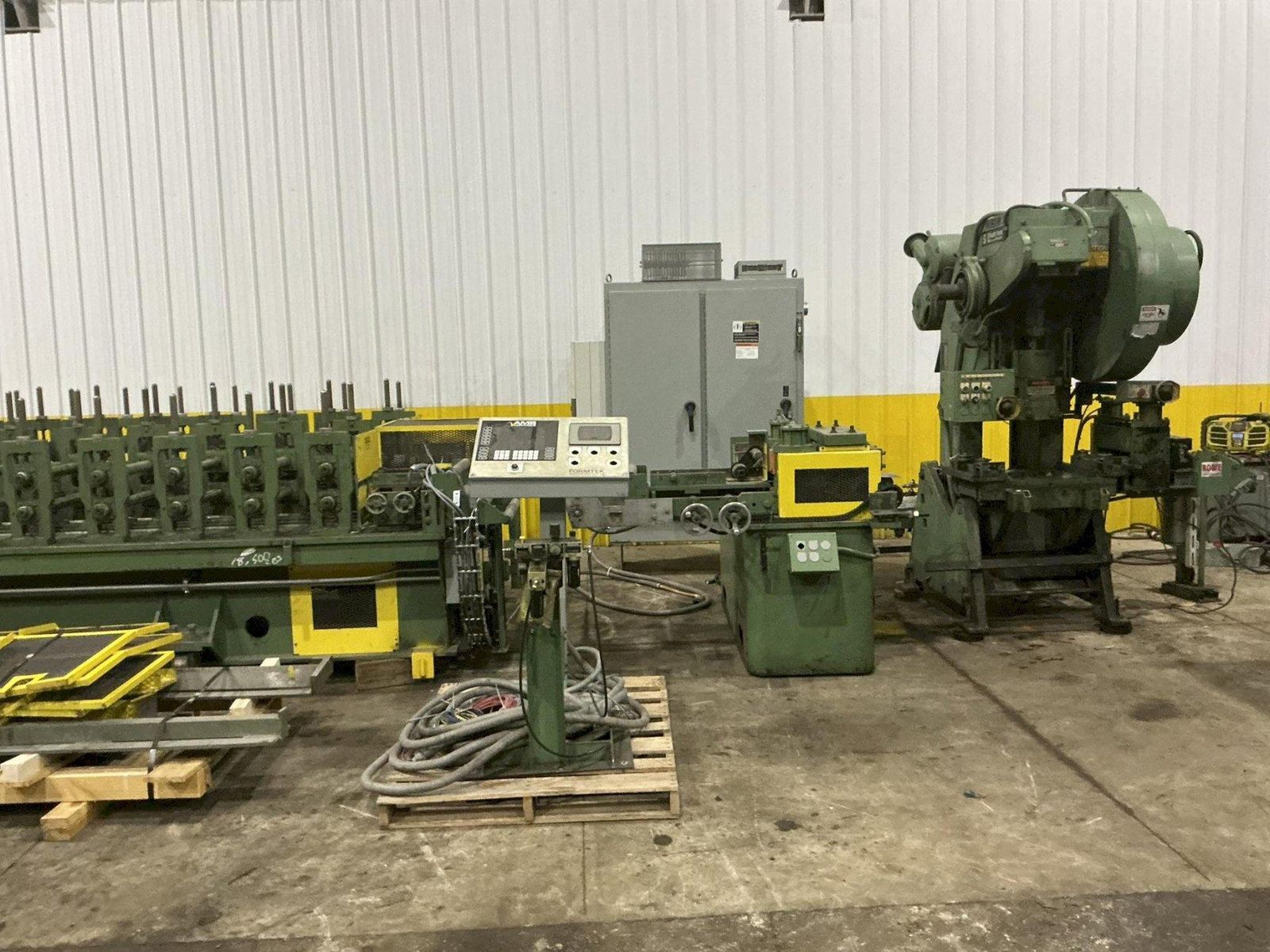

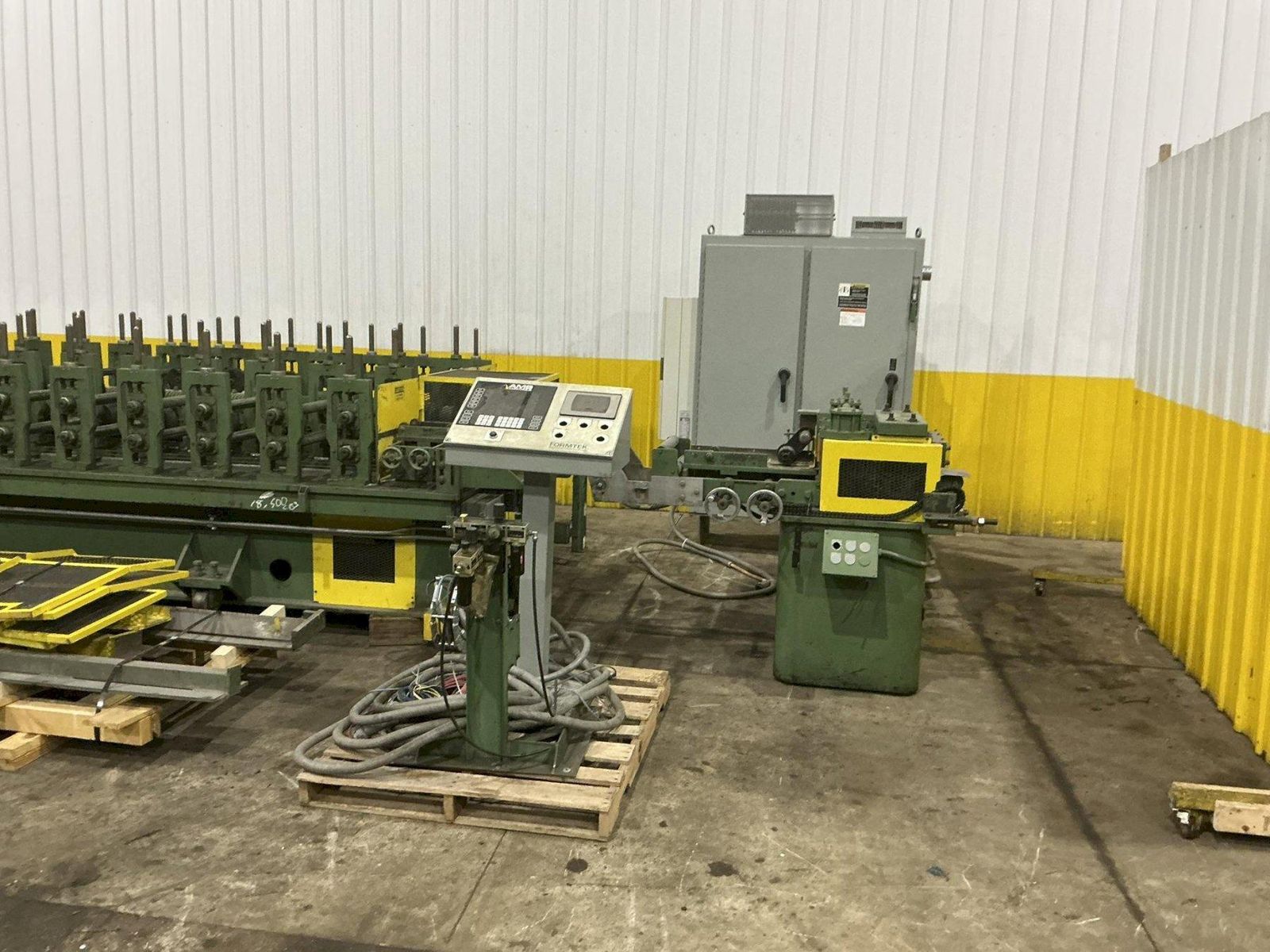

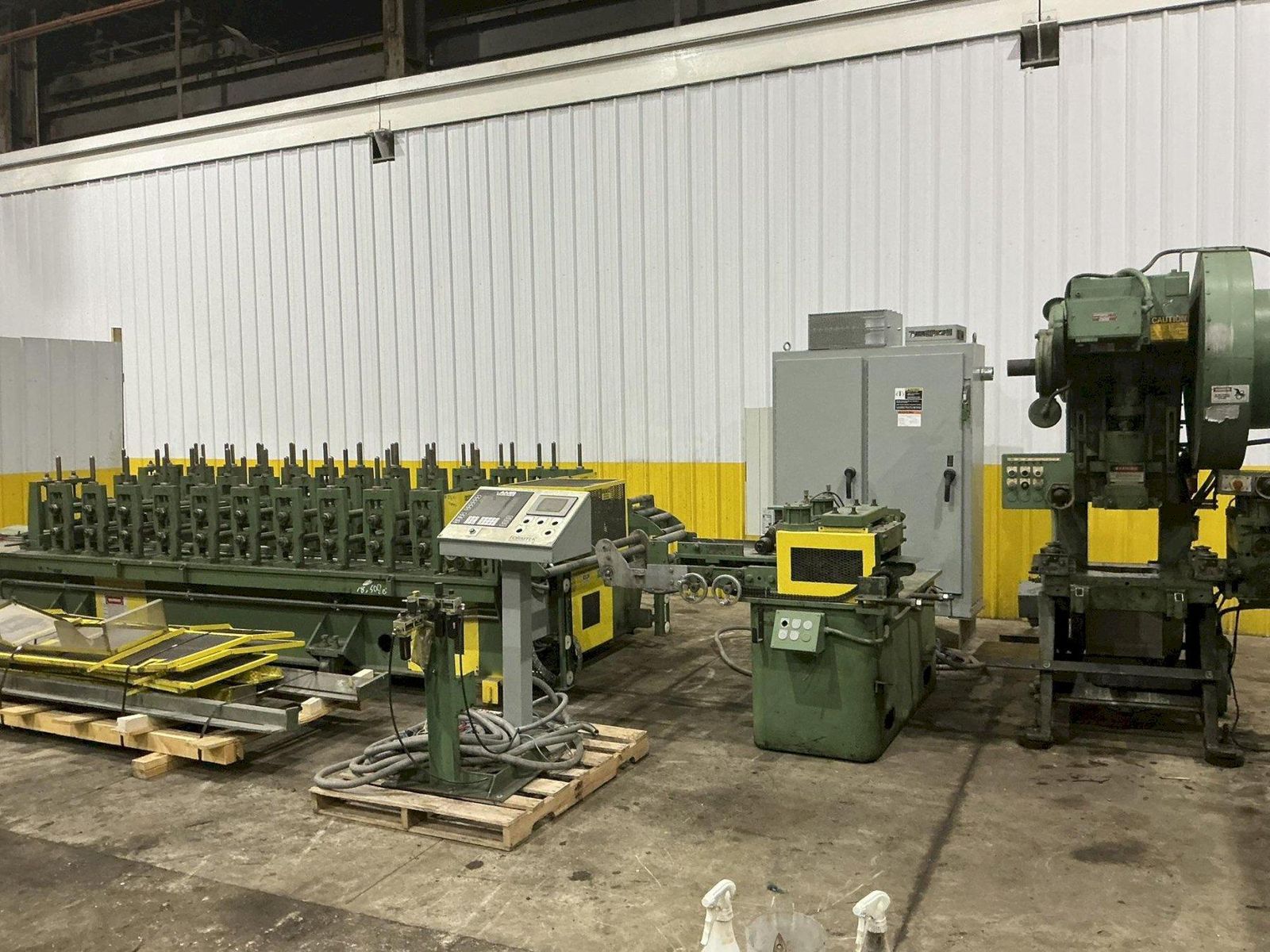

10/12 STAND BRADBURY ROLLFORMING LINE, COIL REEL, SERVO FEED, PREPUNCH, ROLLFORMER, CUTOFF PRESS : YOBRO 25086

Overview

5,000 LB X 24" X 60" OD BRADBURY MOTORIZED COIL REEL UNCOILER: YOBRO #24950

SERIAL ................. 13010
MODEL .................. 300 24 S-R
CAPACITY ............... 5,000 LBS
COIL WIDTH ............. 24"
COIL OD ................ 60"
COIL ID ................ 15.5" TO 21"
EXPANSION .............. MANUAL
MOTORIZED .............. YES
AC MOTOR ............... 2 HP

45 TON SOUTH BEND JOHNSON MODEL #45FW-AC OBI STAMPING PRESS: YOBRO #24949

SERIAL ................ 83021
MODEL ................. 45 FW-AC
CAPACITY .............. 45 TON
STROKE ................ 3"
SHUT HEIGHT ........... 11-1/4"
ADJUSTMENT ............ 3"
STROKES PER MINUTE .... 75 TO 125
BED AREA .............. 28 X 18"
RAM AREA .............. 11-3/8" X 11-13/16"

12" X 18 GAUGE BRADBURY SERVO FEED COIL STRIP FEEDER: YOBRO 25085

SERIAL 13011-443
MATERIAL WIDTH 12"
CAPACITY 12" X 18 GAUGE
ENTRY GUIDES
PINCH ROLLS DIAMETER 5"
STRAIGHTENING ROLLS 5
STRAIGHTENING ROLL DIAMETER 3"
CHROMED ROLLS
MOTORIZED
CONTROLS INDRAMAT

10 & 12 STAND X 2" BRADBURY SIDE BY SIDE U JOINT DRIVE ROLLFORMER: YOBRO #24947

SERIAL 13015
WORK ORDER 16030
NEW 1983
DIRECTION LEFT TO RIGHT

12 STAND SIDE
ARBORS 2"
ROLLSPACE 12"
HORIZONTALS 13.5"
VERTICALS 4" TO 7"
EQUAL GEARED
RAFTED 2 RAFTS OF 6
ENTRY GUIDE

10 STAND SIDE
ARBORS 2"
ROLLSPACE 18"
HORIZONTALS 13.5"
VERTICALS 4" TO 7"
EQUAL GEARED
ENTRY GUIDE
NON RAFTED SIDE

CENTER DRIVE W/ U JOINT
GEAR BOXES 20:1 RATIO
SPEEDS 20 TO 60 FPM
DRIVE MOTOR 15 HP

CAPACITY 18 GAUGE COIL THICKNESS
TRAVERSING BASE

30 TON BRADBURY TISHEN 4 POST CUTOFF WITH DIE ACCELORATOR: YOBRO #24948

SERIAL .......... 13017-69
MODEL ........... 30T C.O.S
CAPACITY ........ 30 TON
AJUSTMENT ....... VERTICAL & HORIZONTAL

10/12 STAND BRADBURY ROLLFORMING LINE, COIL REEL, SERVO FEED, PREPUNCH, ROLLFORMER, CUTOFF PRESS : YOBRO 25086
