SERIAL .................... 21939-299
YEAR NEW .................. 2000

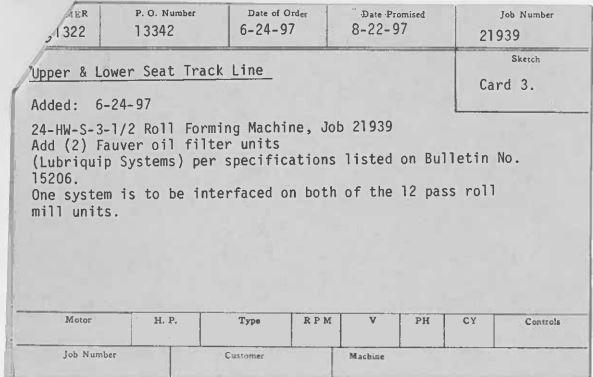

MODEL ..................... 24-HW-S-3-1/2
NUMBER OF STANDS .......... 22 (ON 24 STAND BASE)
ARBOR SHARFT DIAMETER ..... 3-1/2"
ROLL SPACE ................ 21"
HORIZONTAL CENTERS ........ 14"
VERTICAL ADJUSTMENT ....... 6-1/2" TO 8-3/8"
LOWER SPINDLE TO BASE ..... 6"
GEARING ................... EQUAL
DIRECTION OF TRAVEL ....... LEFT TO RIGHT
FLOOR TO PASS LINE ........ 46"
OPERATOR CONTROLS ......... ALLEN BRADLEY PLC
OPERATIING MODES .......... FORWARD/REVERSE/JOG
AIR CLUTCH ................ YES
ENTRY GUIDE ............... YES
SINGLE POINT ADJUSTMENT ... YES
READOUTS FOR ADJUSTMENT ... YES
COOLANT SYSTEM ............ YES
LUBRICATION / COOLANT ..... YES, TRABON
ZERO BACKLASH FEATURE ..... YES
E-STOP BUTTON ............. YES
VARIABLE SPEED DRIVE ...... YES
MOTOR DRIVE ............... QUANTOM III
MOTOR ..................... 75 HP
Brand

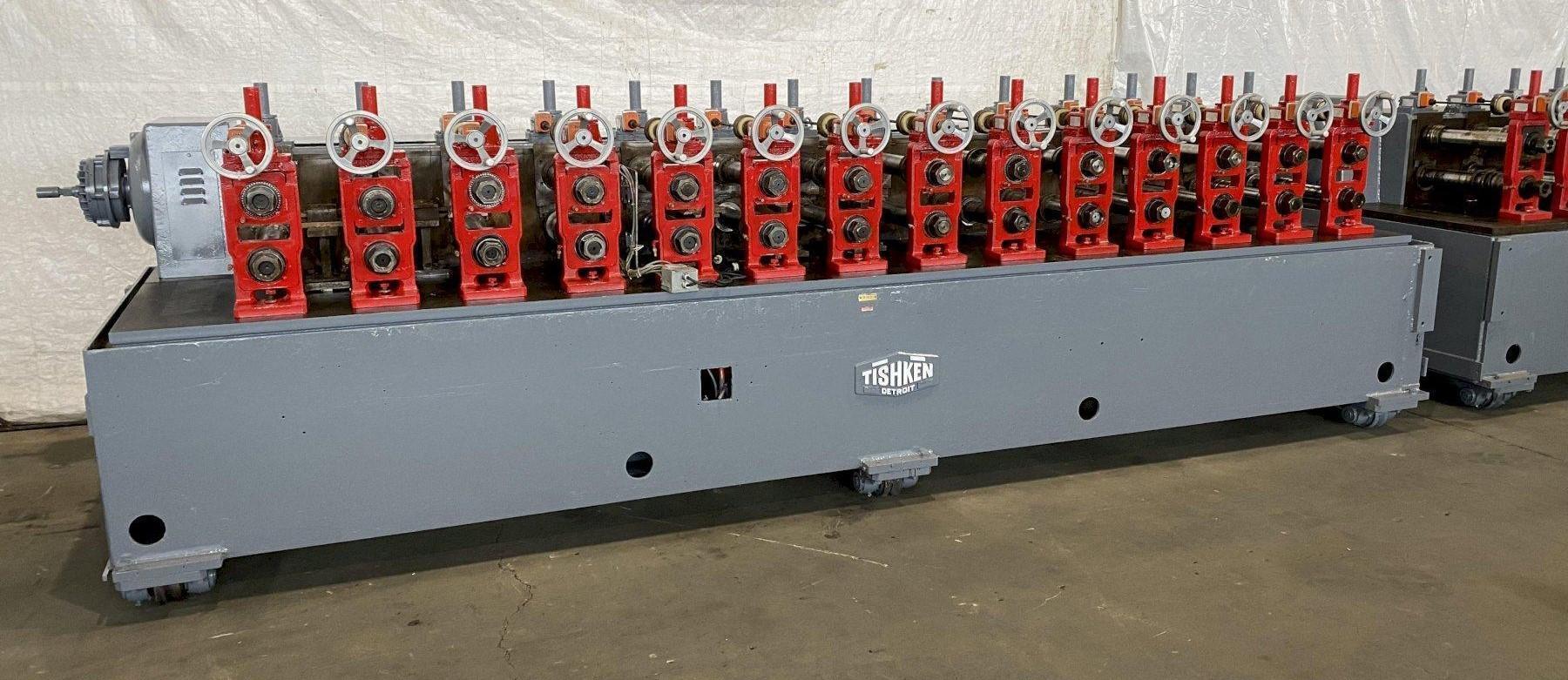

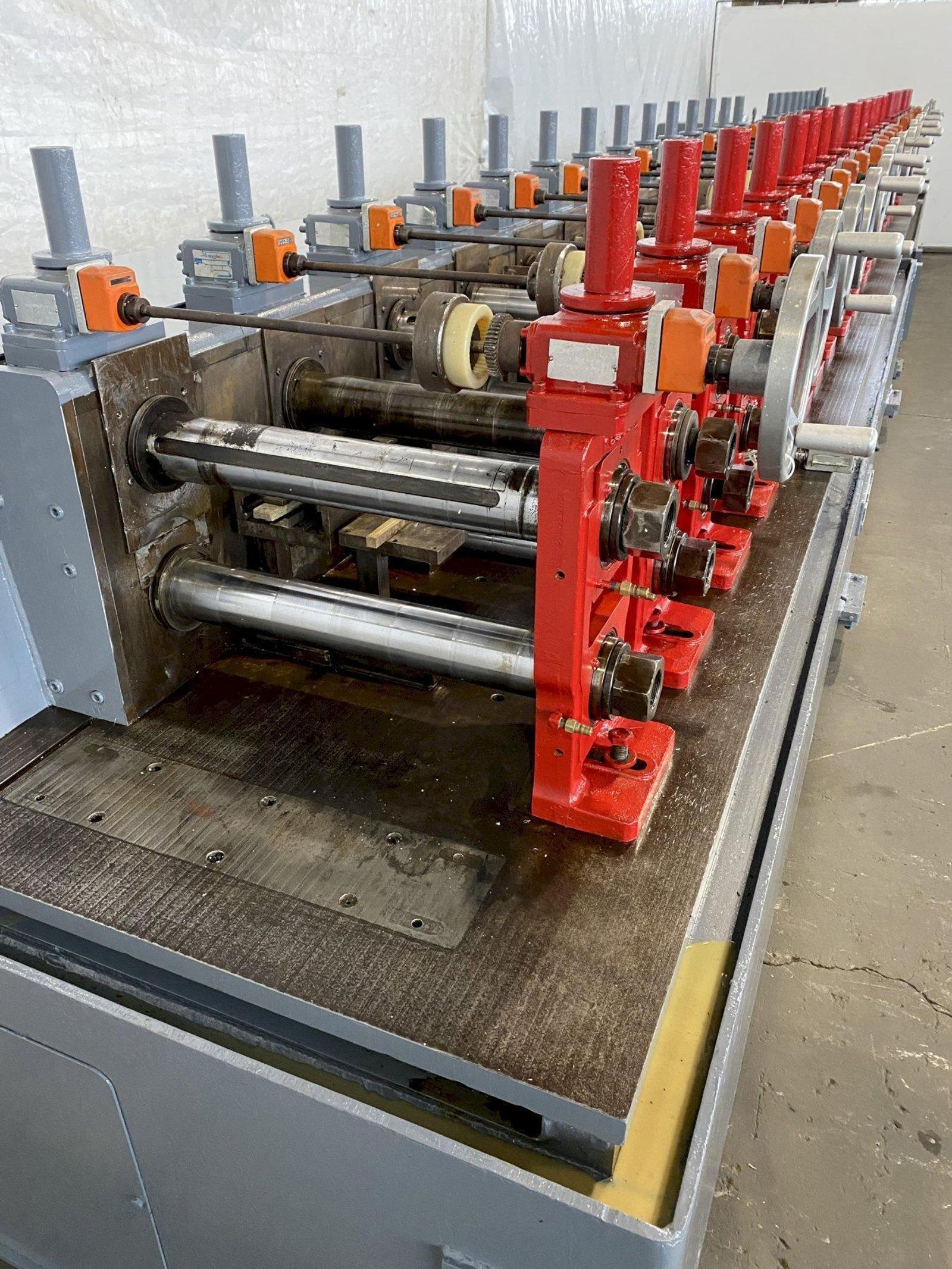

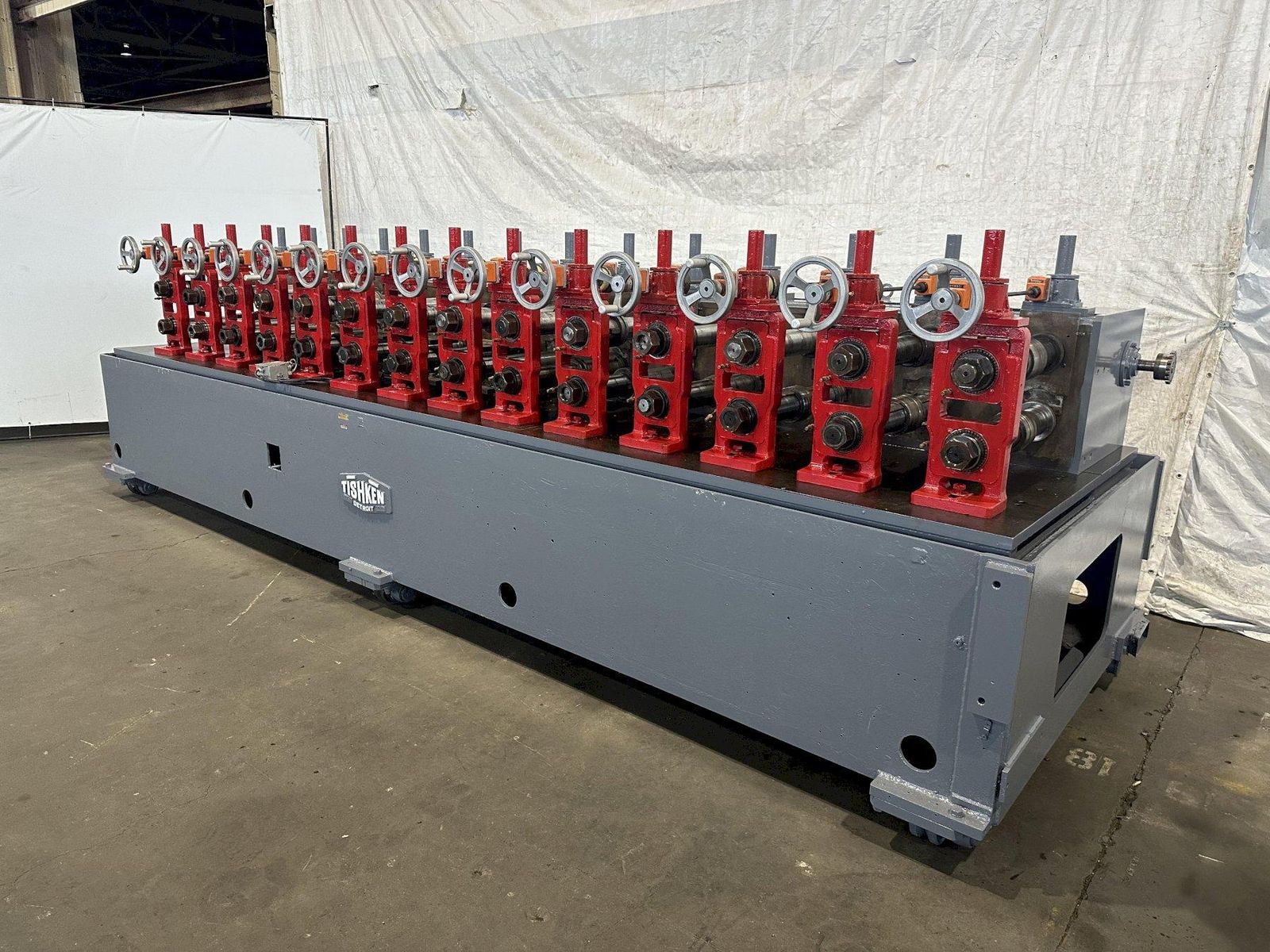

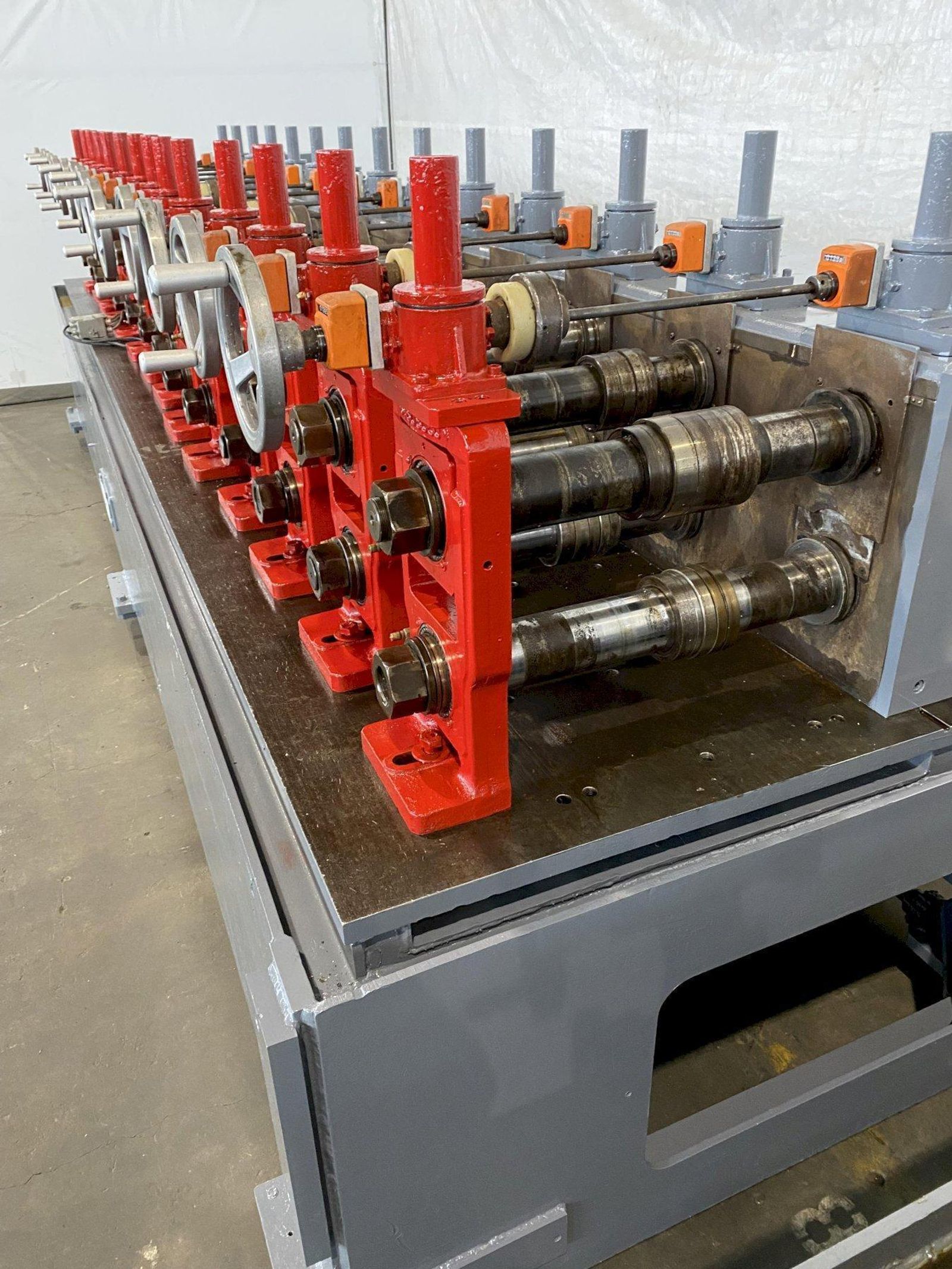

TISHKEN
Type
Roll Formers
Stock No.
15343
 |
419-269-2000 |
Stock #: 15343
SERIAL .................... 21939-299
YEAR NEW .................. 2000
MODEL ..................... 24-HW-S-3-1/2
NUMBER OF STANDS .......... 22 (ON 24 STAND BASE)
ARBOR SHARFT DIAMETER ..... 3-1/2"
ROLL SPACE ................ 21"
HORIZONTAL CENTERS ........ 14"
VERTICAL ADJUSTMENT ....... 6-1/2" TO 8-3/8"
LOWER SPINDLE TO BASE ..... 6"
GEARING ................... EQUAL
DIRECTION OF TRAVEL ....... LEFT TO RIGHT
FLOOR TO PASS LINE ........ 46"
OPERATOR CONTROLS ......... ALLEN BRADLEY PLC
OPERATIING MODES .......... FORWARD/REVERSE/JOG
AIR CLUTCH ................ YES
ENTRY GUIDE ............... YES
SINGLE POINT ADJUSTMENT ... YES
READOUTS FOR ADJUSTMENT ... YES
COOLANT SYSTEM ............ YES
LUBRICATION / COOLANT ..... YES, TRABON
ZERO BACKLASH FEATURE ..... YES
E-STOP BUTTON ............. YES
VARIABLE SPEED DRIVE ...... YES
MOTOR DRIVE ............... QUANTOM III
MOTOR ..................... 75 HP
