16 STAND x 3.5" x 44" X 20,000 LBS B&K "R-PANEL" RAFTED ROLLFORMER PANEL LINE: STOCK #16208
Overview

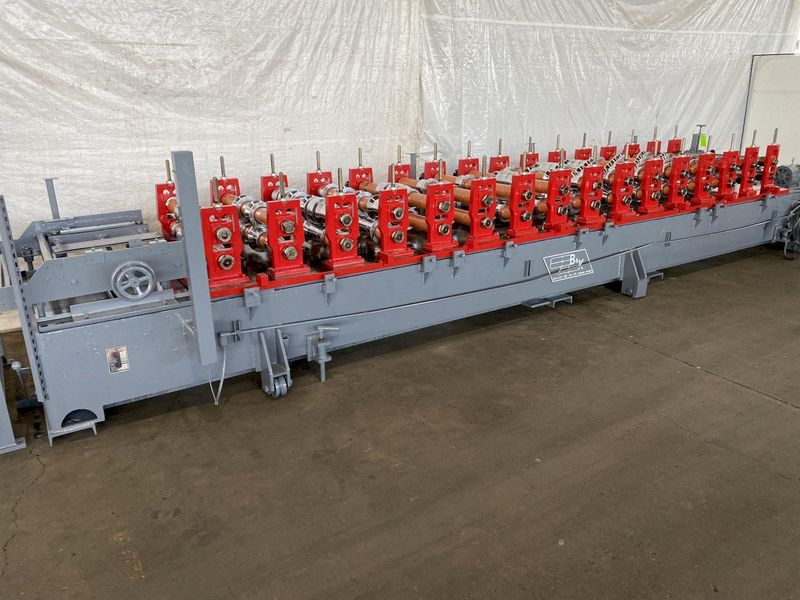

16 STAND B&K “R-PANEL” ROLLFORMER LINE
- 3.5” ARBOR DIAMETER
- 44" ROLLSPACE
- TOOLED FOR “R-PANEL”
- B&K UNCOILER
- B&K COIL CAR
- B&K ROLLFORMER
- B&K POST CUT SHEAR
- EXIT BELT CONVEYOR
- CONTROLS
UNCOILER:
MAKE.................................: B&K
SERIAL...............................: 118
MODEL................................: 20UMKII
CAPACITY.............................: 20,000 LBS
MAX LENGTH...........................: 48"
MAX COIL O.D.........................: 60"
COIL I.D.............................: 14" - 20"
DRIVE MOTOR HP.......................: 3 HP
DRIVE MOTOR RPM......................: 1750
DRIVE REDUCTION RATIO................: 60:1
COIL CAR.............................: YES
ROLLFORMER:
MAKE.................................: B&K
SERIAL...............................: 100
MODEL................................: 2-1/2 BU
# OF STANDS..........................: 16
ARBOR DIAMETER.......................: 3-1/2"
ROLL SPACING.........................: 44"
HORIZONTAL CENTERS...................: 18"
VERTICAL ADJUSTMENT..................: 5" - 10"
EQUAL GEARING........................: YES
HP...................................: 50
MOTOR RPM............................: 0:1700
SPINDLE GEAR RATIO...................: 1:1
DRIVE HOUSING REDUCTION RATIO........: 7.2:1
BASE TO BOTTOM OF SPINDLE............: 6"
RAFTED:
4 SETS OF 4
FLYING SHEAR WITH AC SERVO ACCELERATOR
MACHINE IS SET UP FOR 36" R PANEL
BRADBURY TOOLING
16 STAND x 3.5" x 44" X 20,000 LBS B&K "R-PANEL" RAFTED ROLLFORMER PANEL LINE: STOCK #16208
