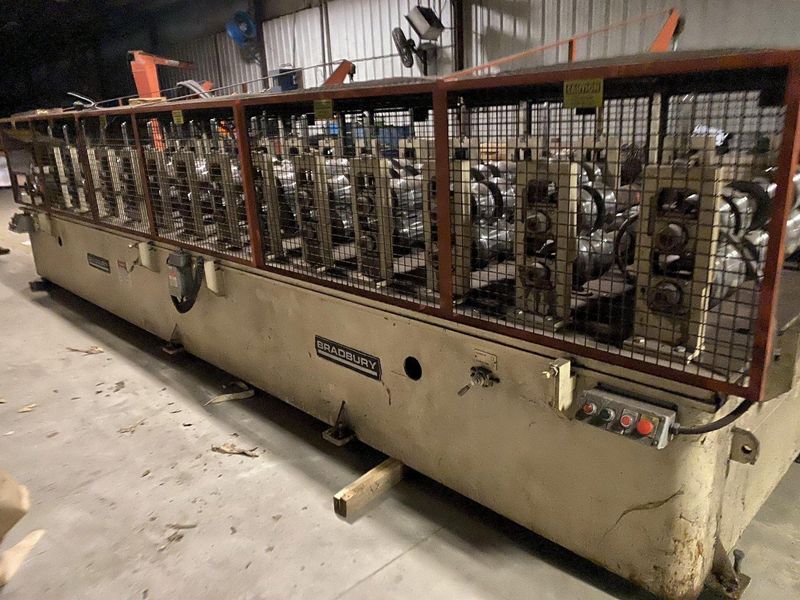

BRADBURY ROLLFORMER:
SERIAL .................... B003887
MODEL ..................... 320-RAFTED
YEAR NEW .................. 2008
NUMBER OF STANDS .......... 14
RAFTED DESIGN ............. YES
ARBOR DIAMETER ............ 3"
ROLL SPACE ................ 44"
VERTICAL ROLL ADJUSTMENT .. 4-1/2" TO 9-1/2"
HORIZONTAL CENTERS ........ 18"
PASSLINE HEIGHT ........... 37-1/2"
LINE SPEED................. 80-200 FPM
LINE DIRECTION ............ LEFT TO RIGHT
ENTRY GUIDE STATION ....... YES, ADJUSTABLE
MOTOR ..................... 60 HP, 1785 RPM
GEARBOXES:
SERIAL .................... 08494959-300-4
MODEL ..................... FHO60B769-4
NUMBER OF GEARBOXES ....... 2
CONE DRIVE ................ YES
GEARBOX RATIO ............. 10:1
CURRENLTY TOOLED FOR MULTI-RIB / "U" PANEL
WIDTH OF COIL STRIP ....... 43"
WIDTH OF PANEL FINSIHED ... 36"
NUMBER OF RIBS ............ 7
RIB CENTERS ............... 6"
DEPTH OF RIBS ............. 1"
| Specifications | ||
|---|---|---|
| Dimensions | 24' LONG X 94" WIDE | |
| Weight | 14500 pounds | |
Brand
BRADBURY
Type
Roll Formers
Stock No.
16966
 |
419-269-2000 |
Stock #: 16966
BRADBURY ROLLFORMER:
SERIAL .................... B003887
MODEL ..................... 320-RAFTED
YEAR NEW .................. 2008
NUMBER OF STANDS .......... 14
RAFTED DESIGN ............. YES
ARBOR DIAMETER ............ 3"
ROLL SPACE ................ 44"
VERTICAL ROLL ADJUSTMENT .. 4-1/2" TO 9-1/2"
HORIZONTAL CENTERS ........ 18"
PASSLINE HEIGHT ........... 37-1/2"
LINE SPEED................. 80-200 FPM
LINE DIRECTION ............ LEFT TO RIGHT
ENTRY GUIDE STATION ....... YES, ADJUSTABLE
MOTOR ..................... 60 HP, 1785 RPM
GEARBOXES:
SERIAL .................... 08494959-300-4
MODEL ..................... FHO60B769-4
NUMBER OF GEARBOXES ....... 2
CONE DRIVE ................ YES
GEARBOX RATIO ............. 10:1
CURRENLTY TOOLED FOR MULTI-RIB / "U" PANEL
WIDTH OF COIL STRIP ....... 43"
WIDTH OF PANEL FINSIHED ... 36"
NUMBER OF RIBS ............ 7
RIB CENTERS ............... 6"
DEPTH OF RIBS ............. 1"
