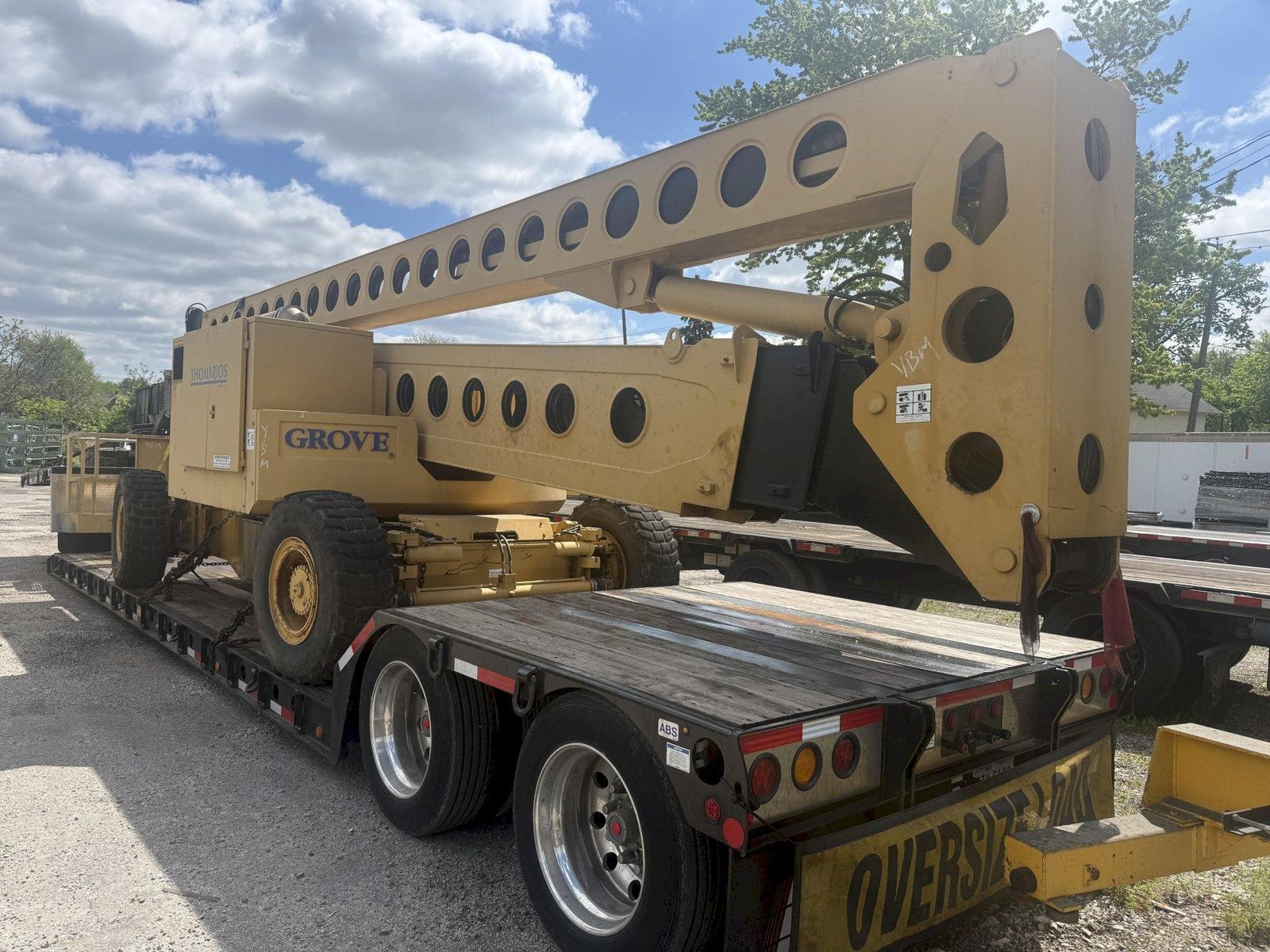

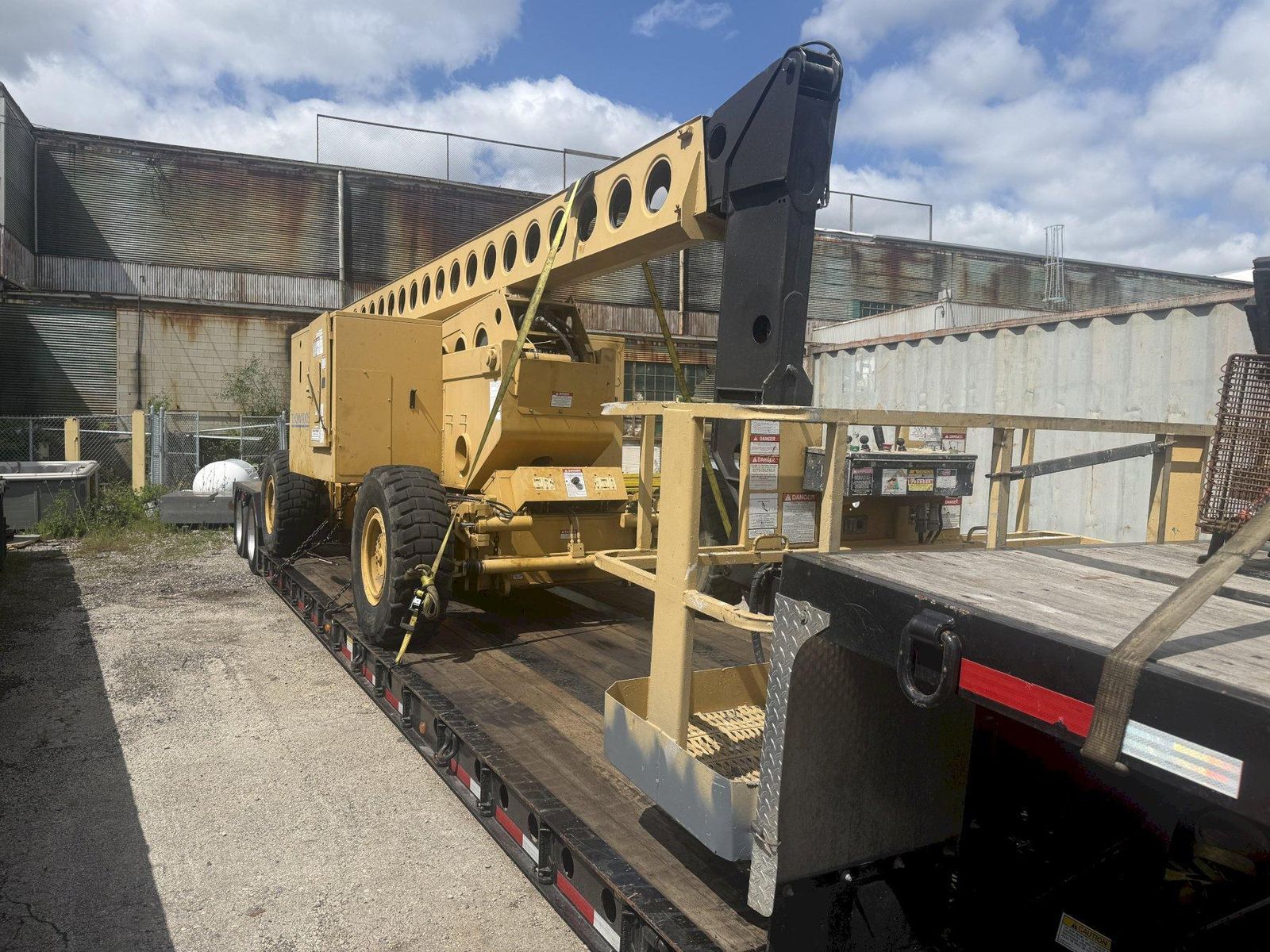

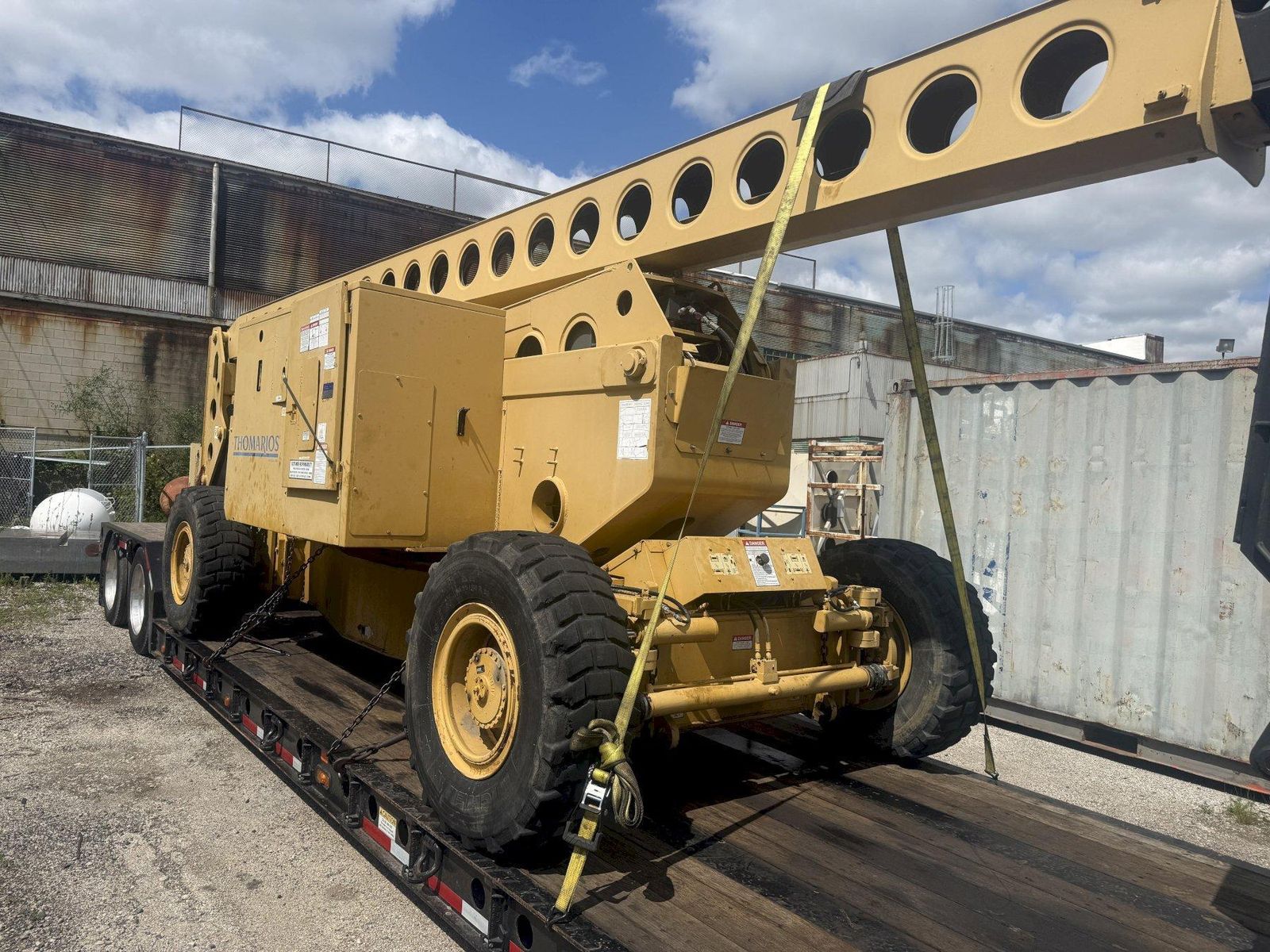

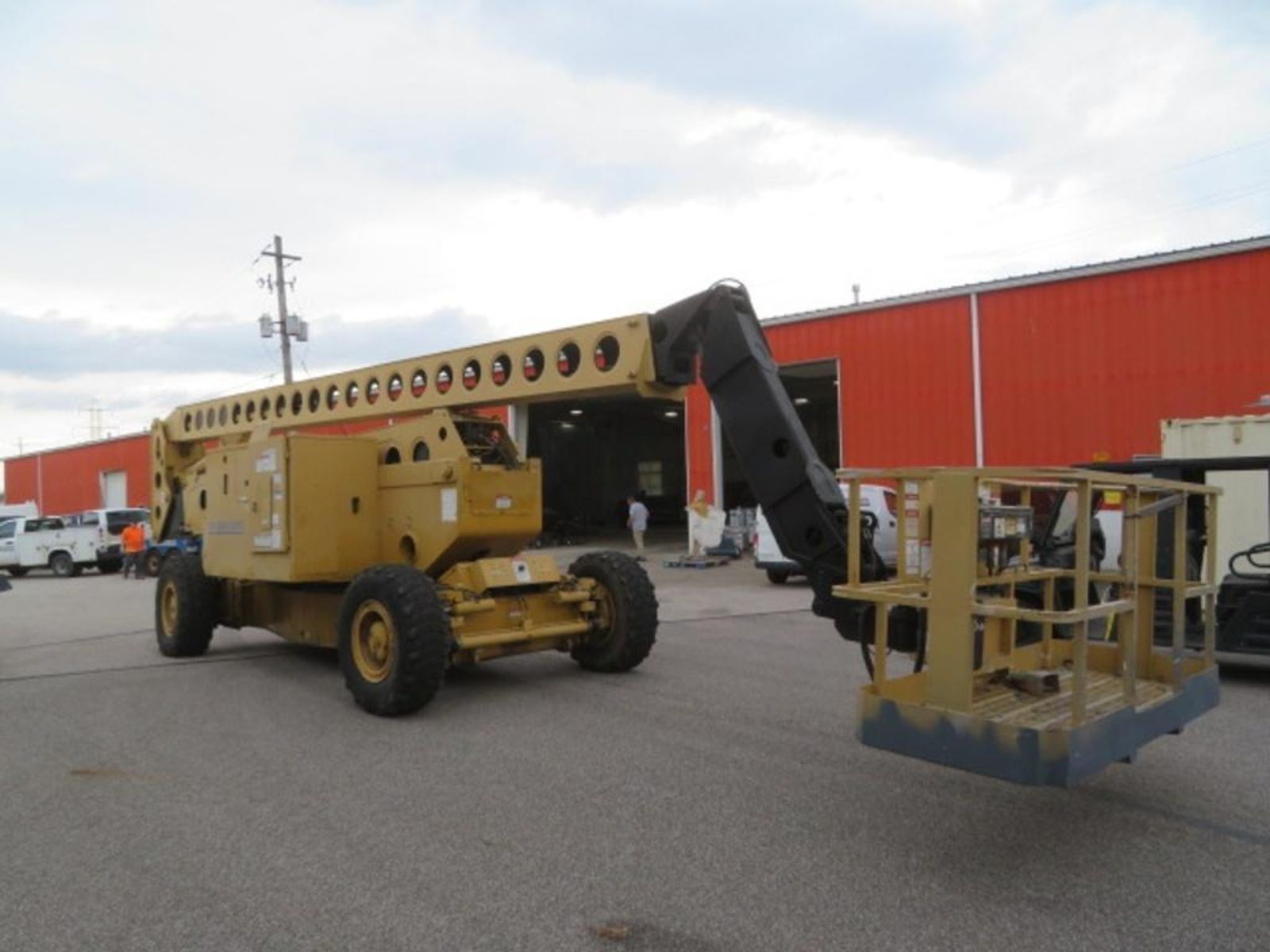

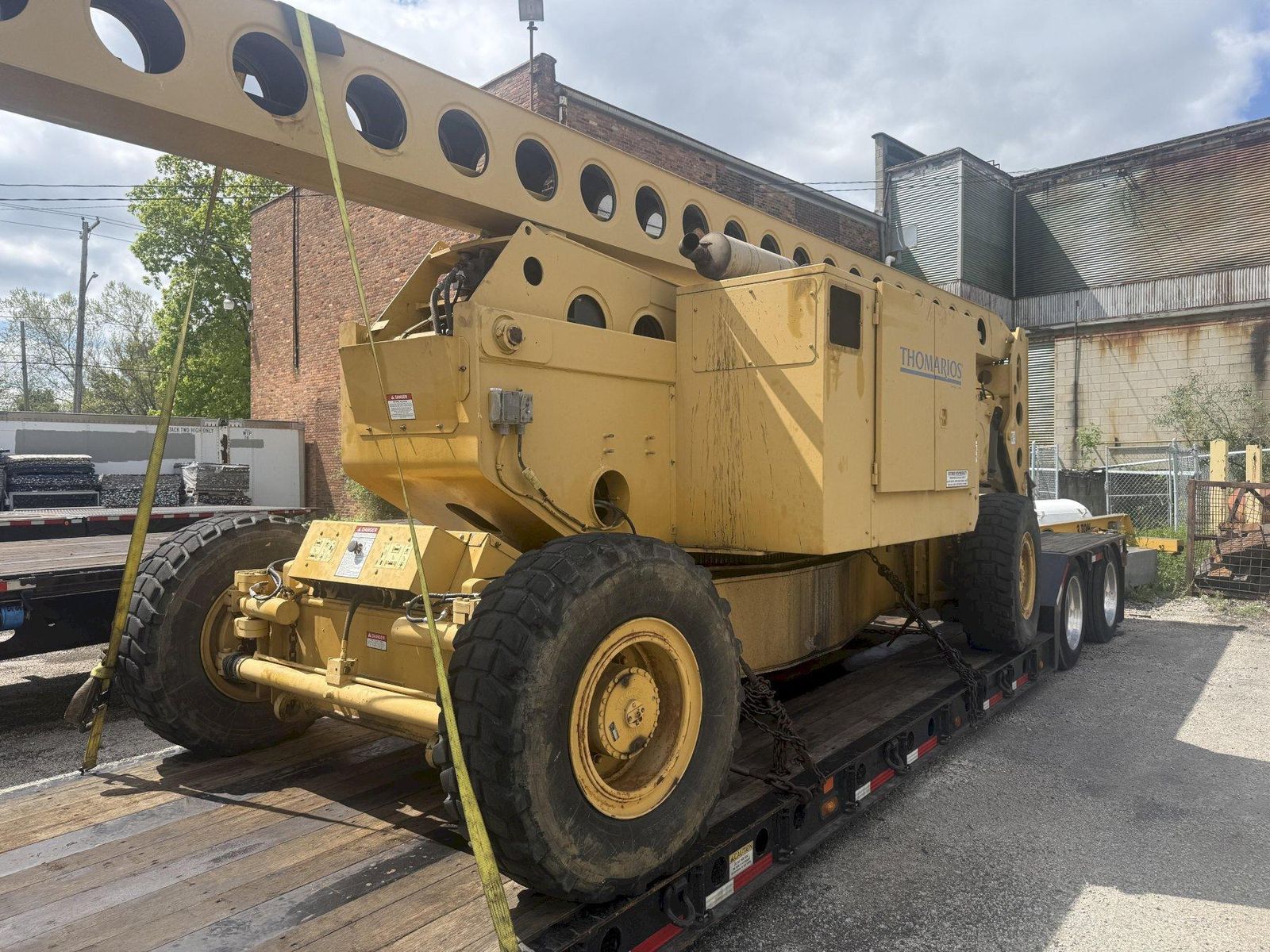

125' GROVE MODEL AMZ-131XT DIESEL POWERED OFF-ROAD MANLIFT: YOBRO #25206
Overview
SERIAL 42588
NEW 1997

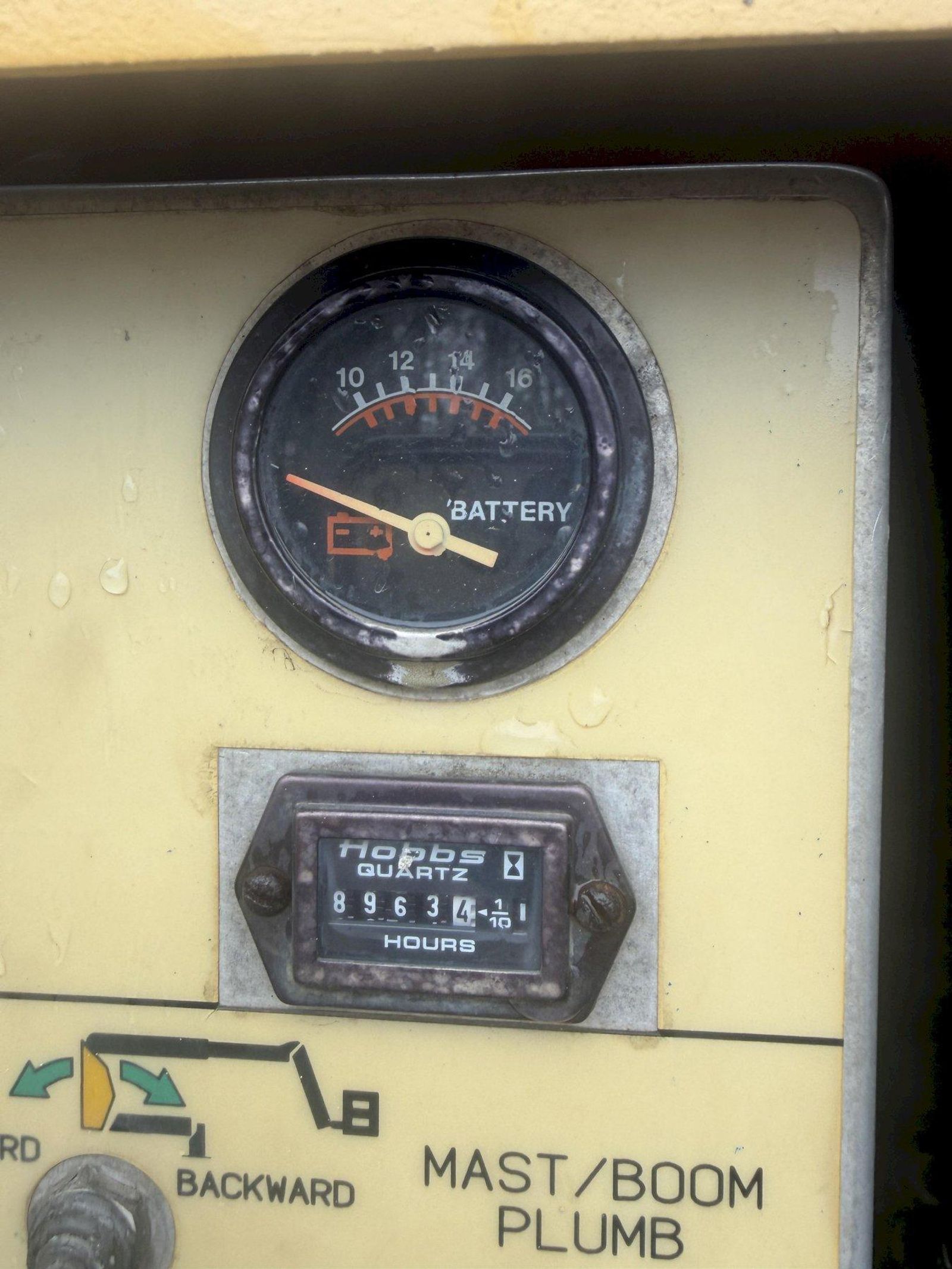

HOURS 8,963
MODEL AMZ131XT

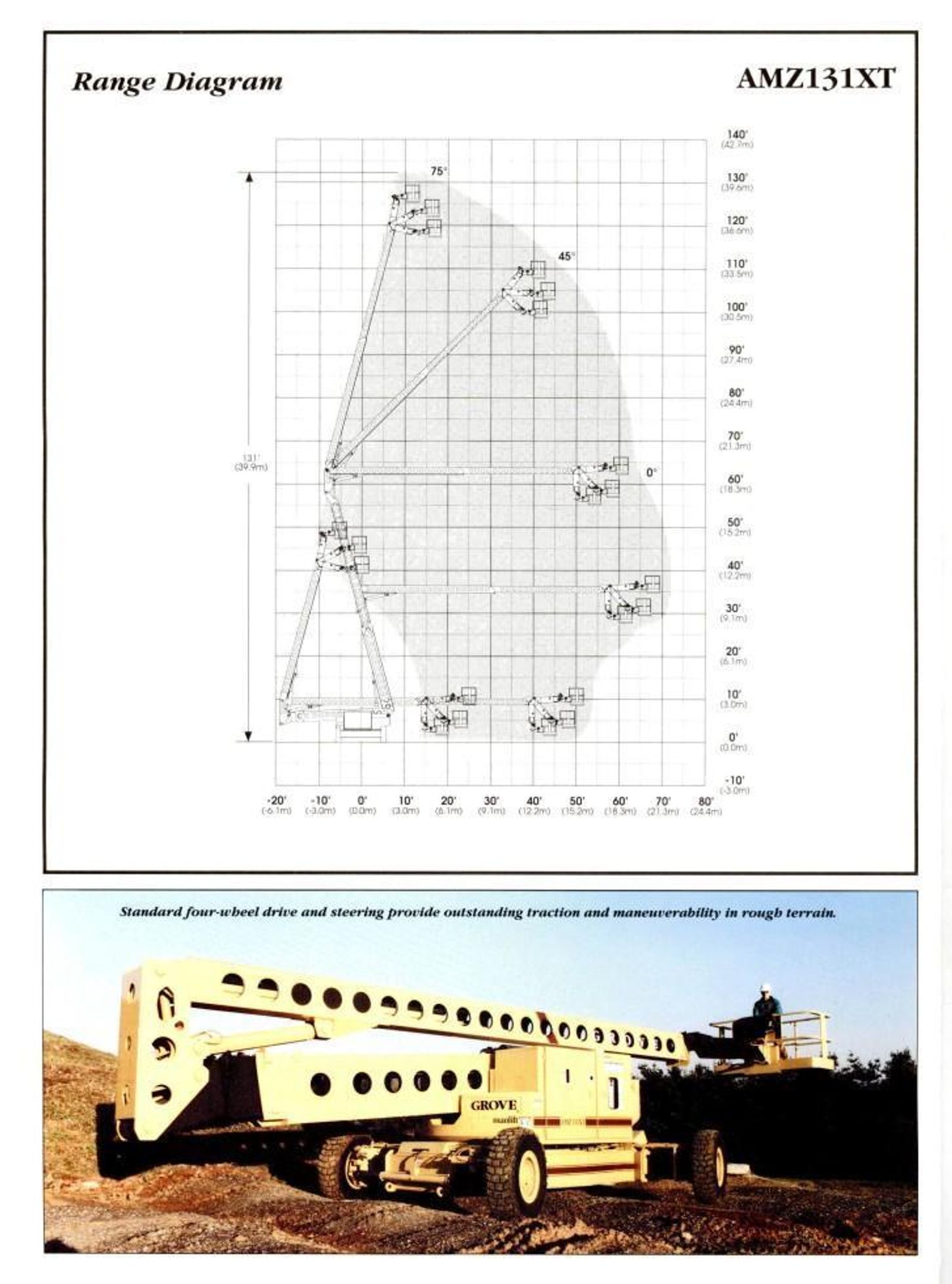

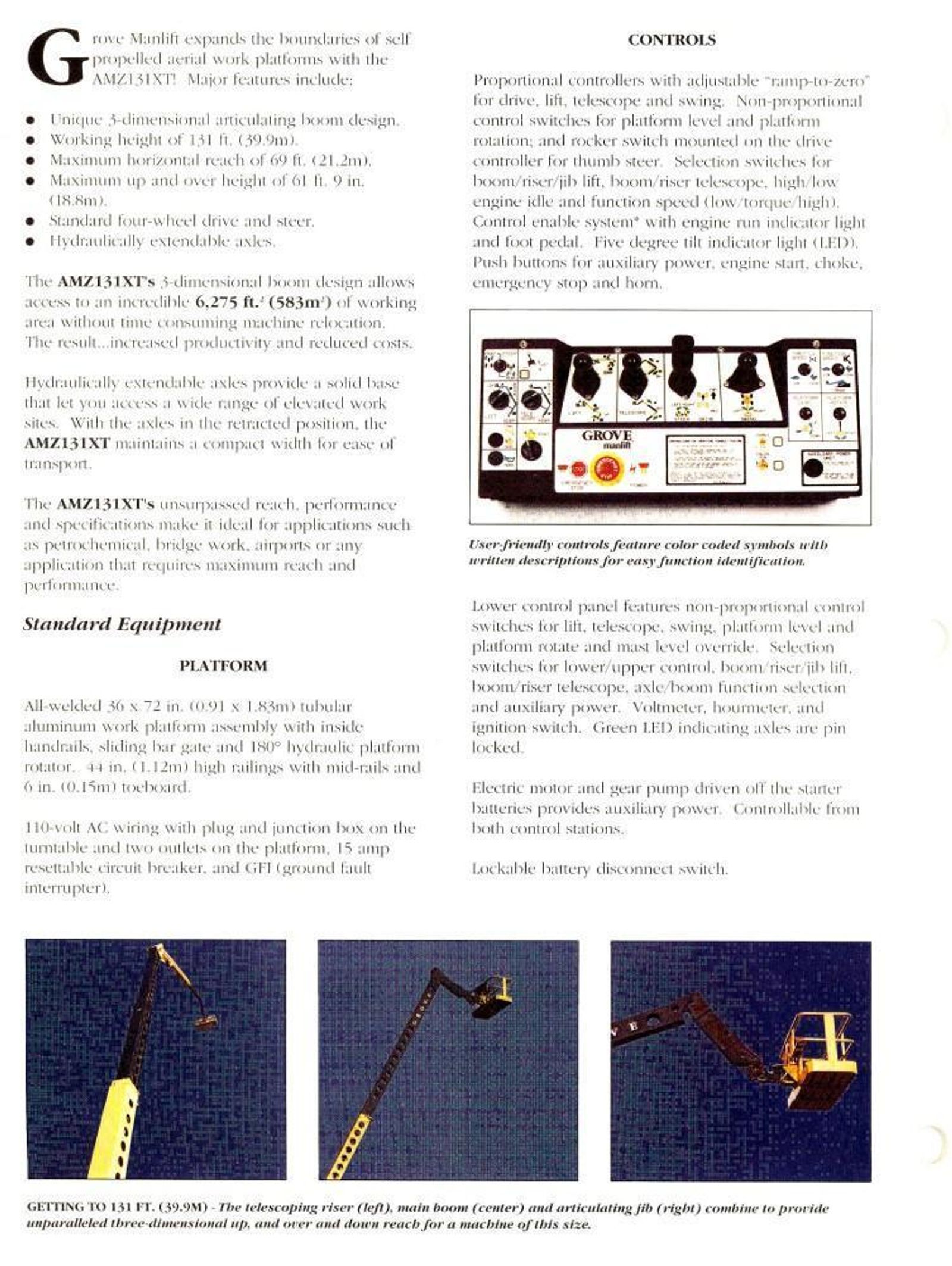

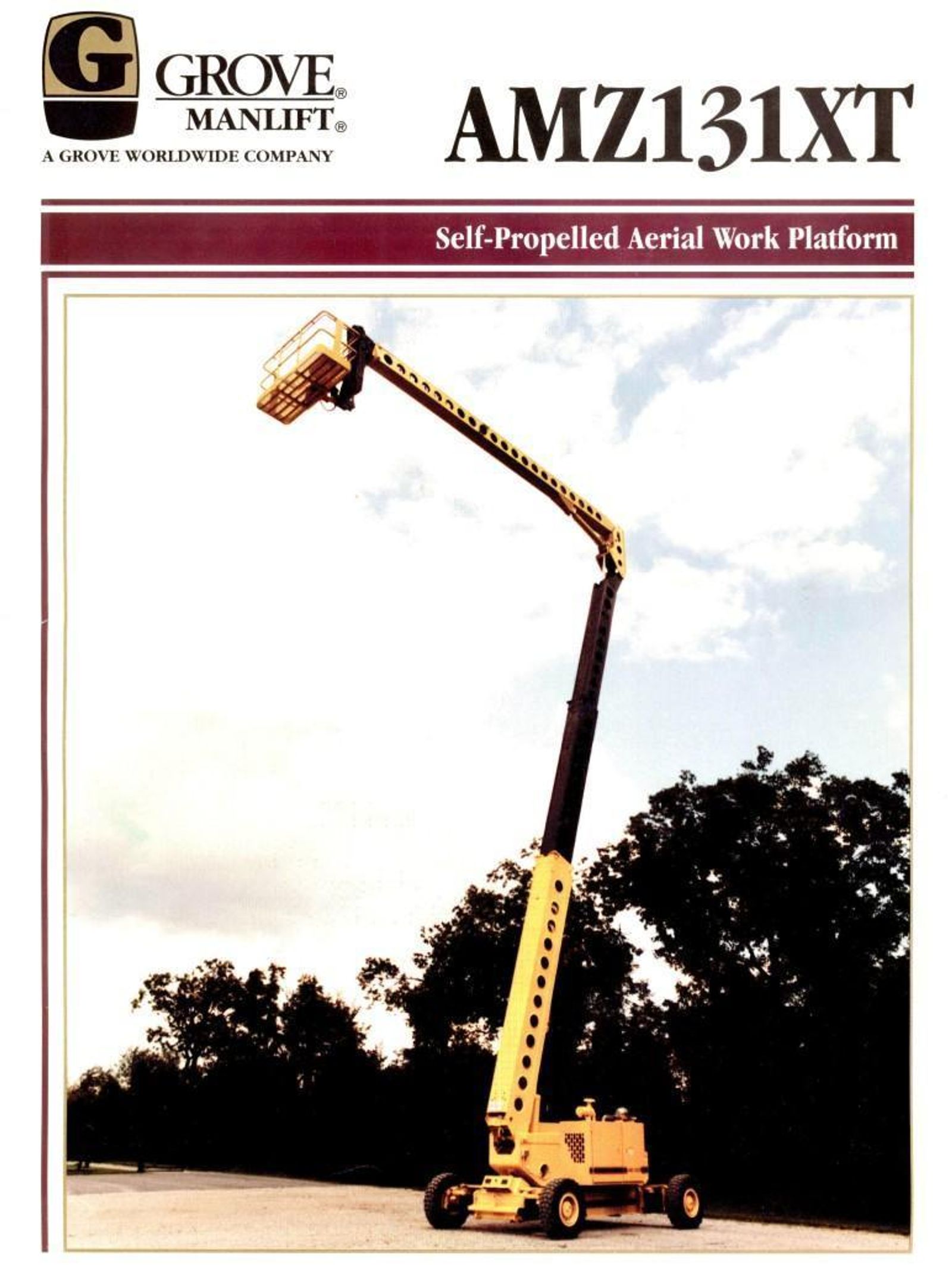

The Grove AMZ-131XT is an articulating boom lift capable of a 131 ft (39.9m) working height and a maximum horizontal reach of 69 ft 8 in (21.2m). Its unique 3-dimensional boom design provides a massive 6,273 sq ft (583 m²) working area without needing to relocate the machine.

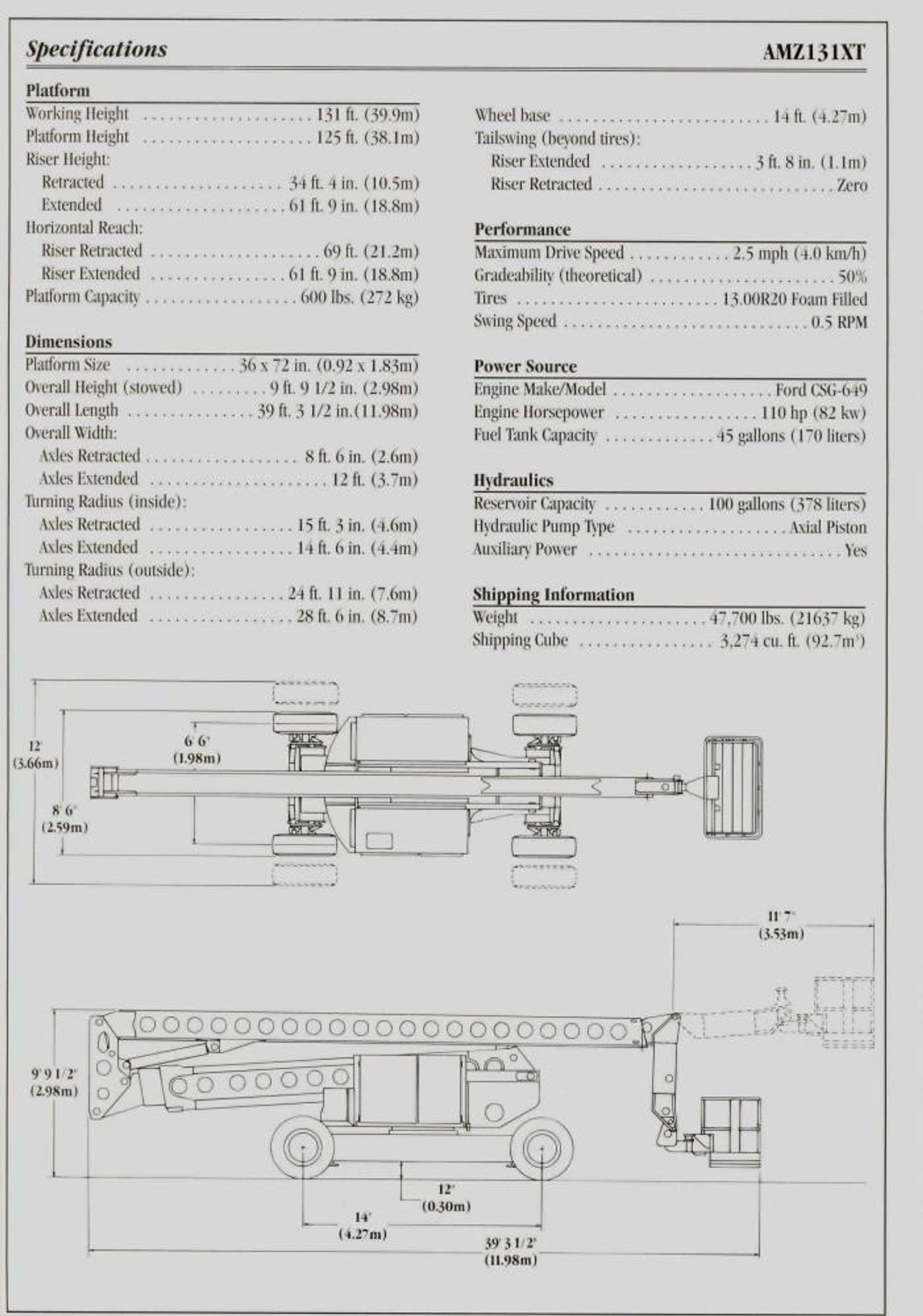

Core Specifications
- Working Height: 131 ft (39.9 m).
- Platform Height: 125 ft (38.1 m).
- Horizontal Reach: 69 ft 8 in (21.2 m).
- Up and Over Height: 61 ft 9 in (18.8 m).

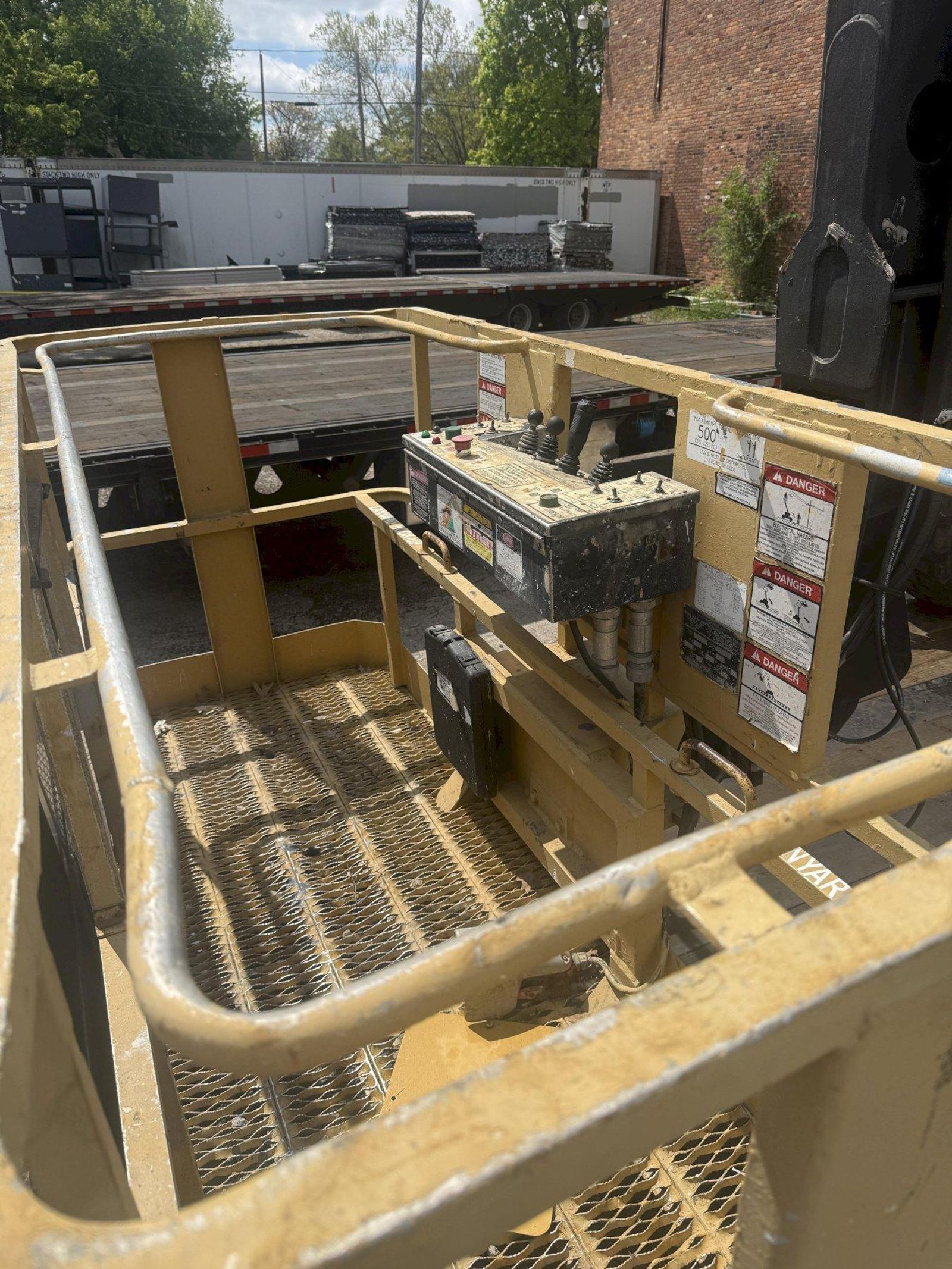

- Platform Capacity: 600 lbs (272 kg).

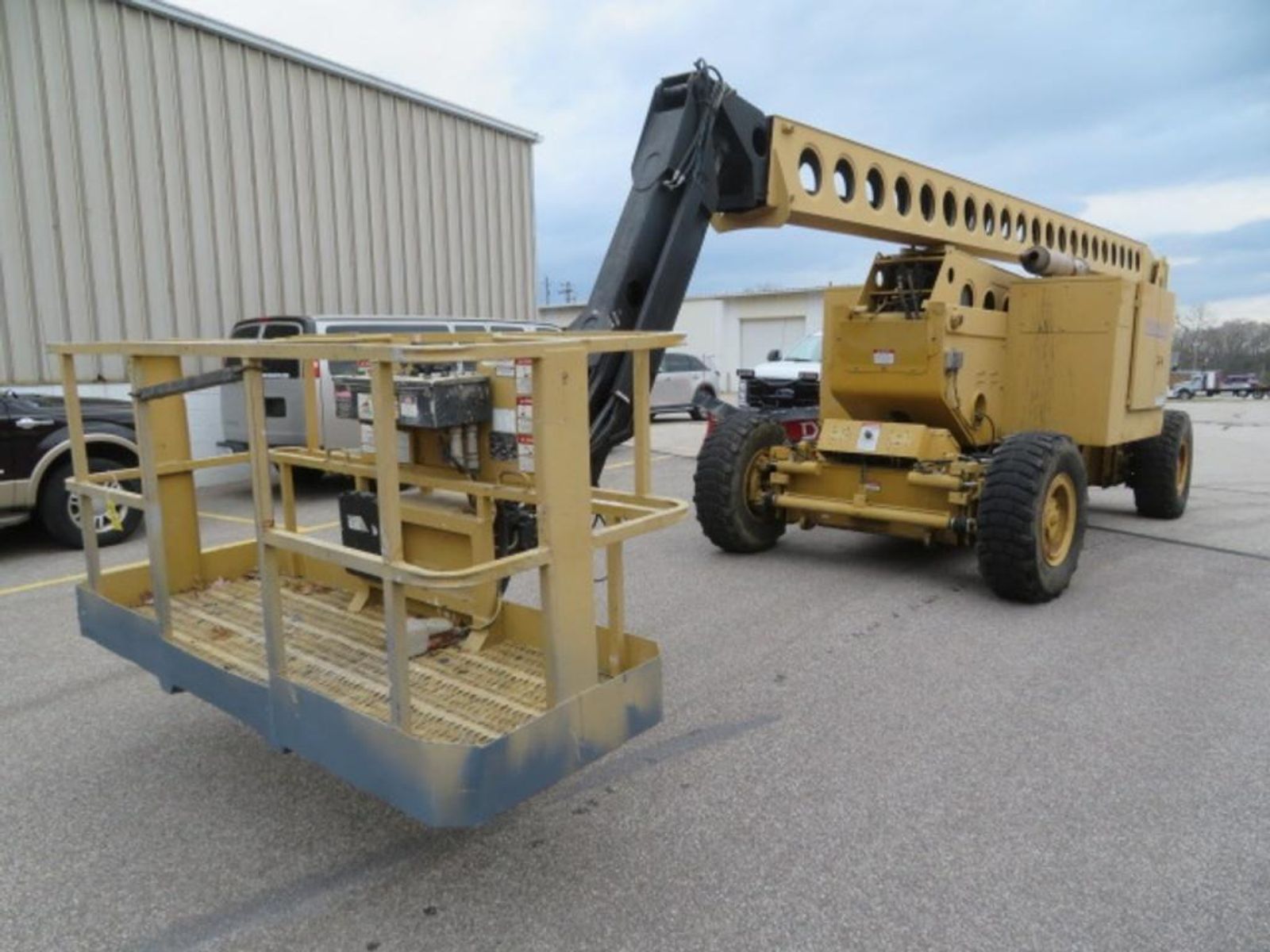

- Platform Size: Standard 36 in x 72 in (0.91 m x 1.83 m); 96-inch options available.
Performance & Chassis
- Drive System: Standard four-wheel drive (4WD) with two-speed planetary drive hubs.
- Steering: Four-wheel coordinated and crab steering for tight maneuverability.

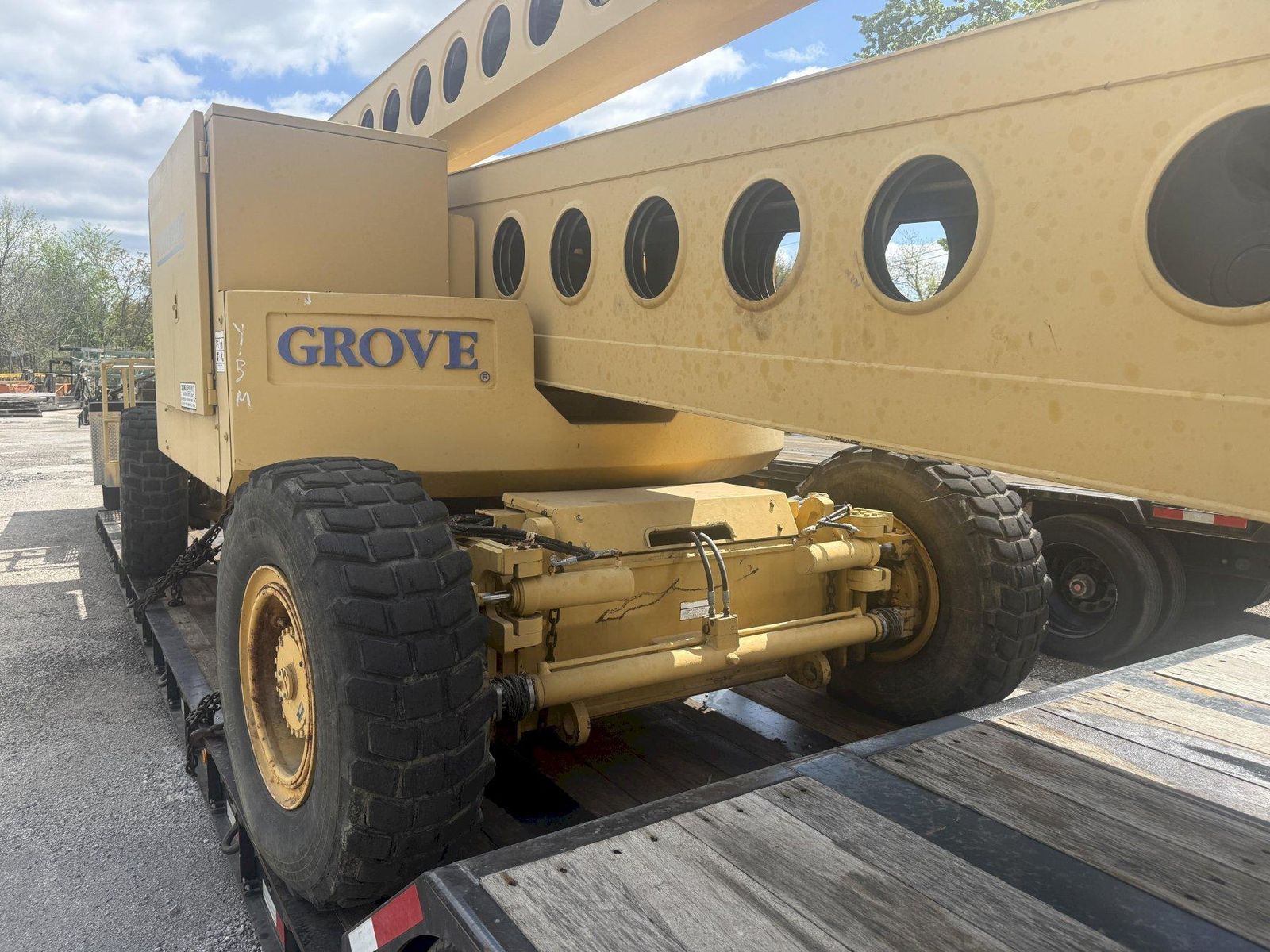

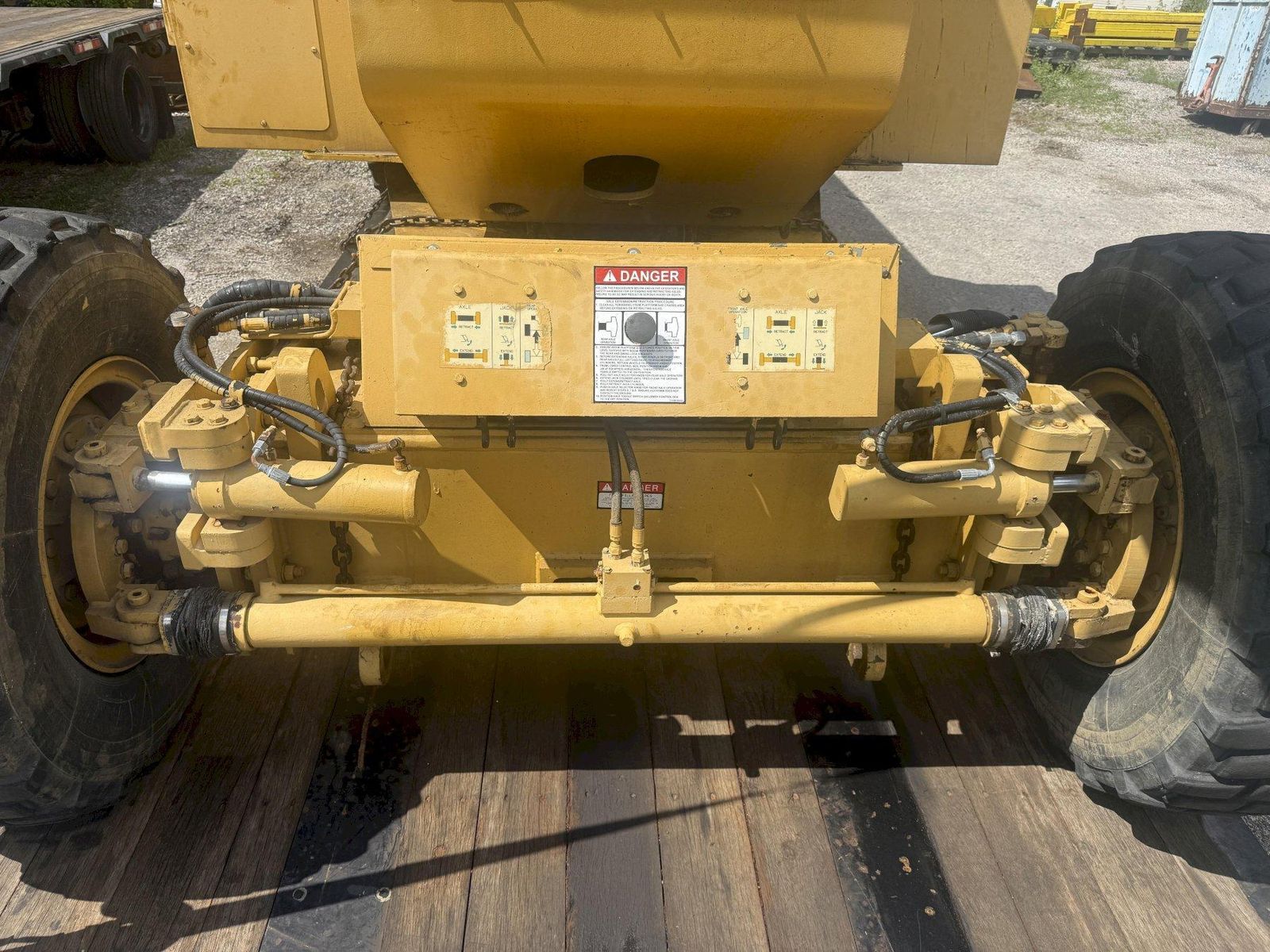

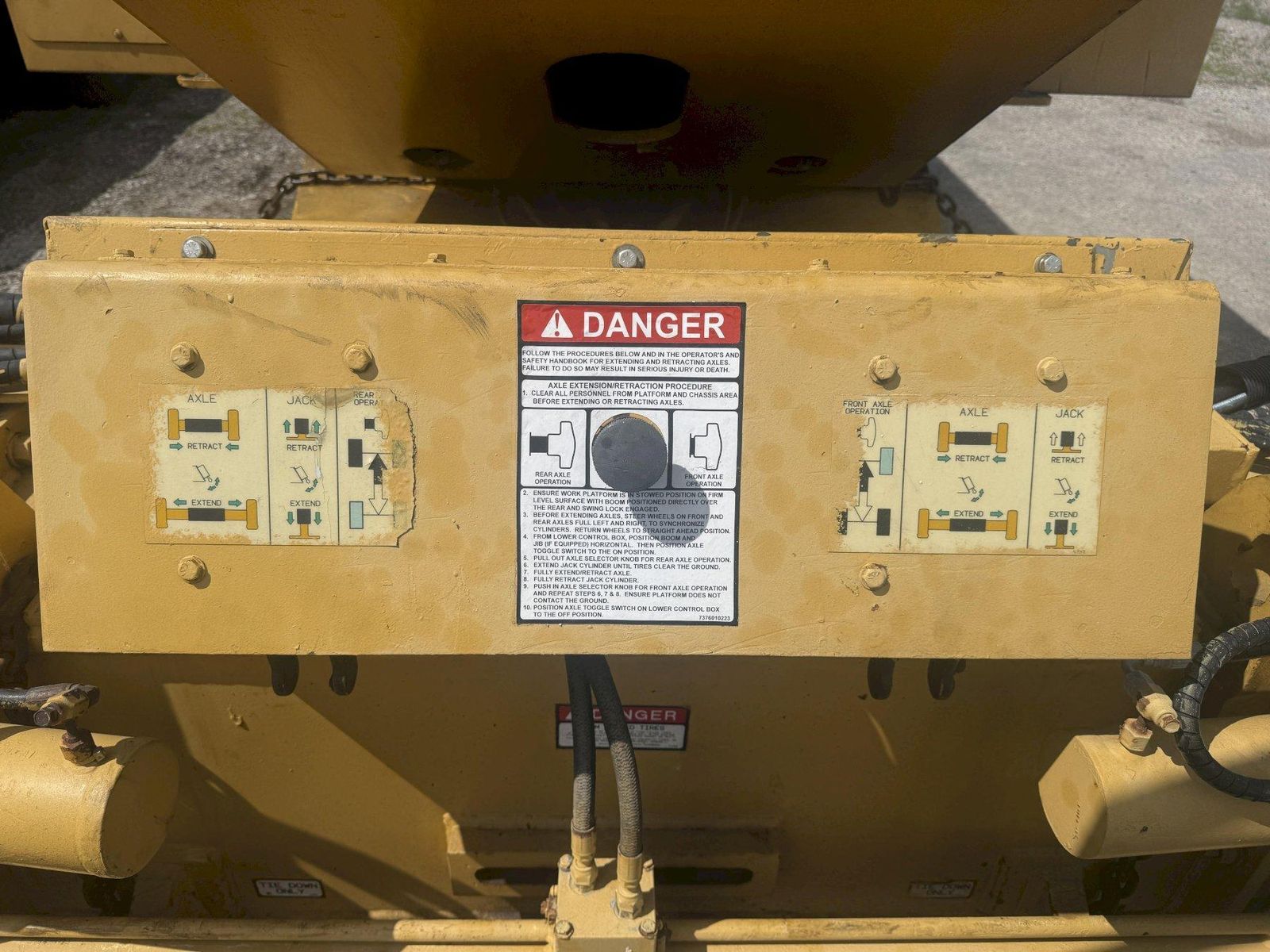

- Axles: Hydraulically extendable front and rear axles with automatic locking cylinders for stability during operation.
- Drive Speed: 2.5 mph (4.0 km/h) when stowed.
- Gradeability: 50% theoretical.
- Weight: Approximately 47,900 lbs (21,727 kg).

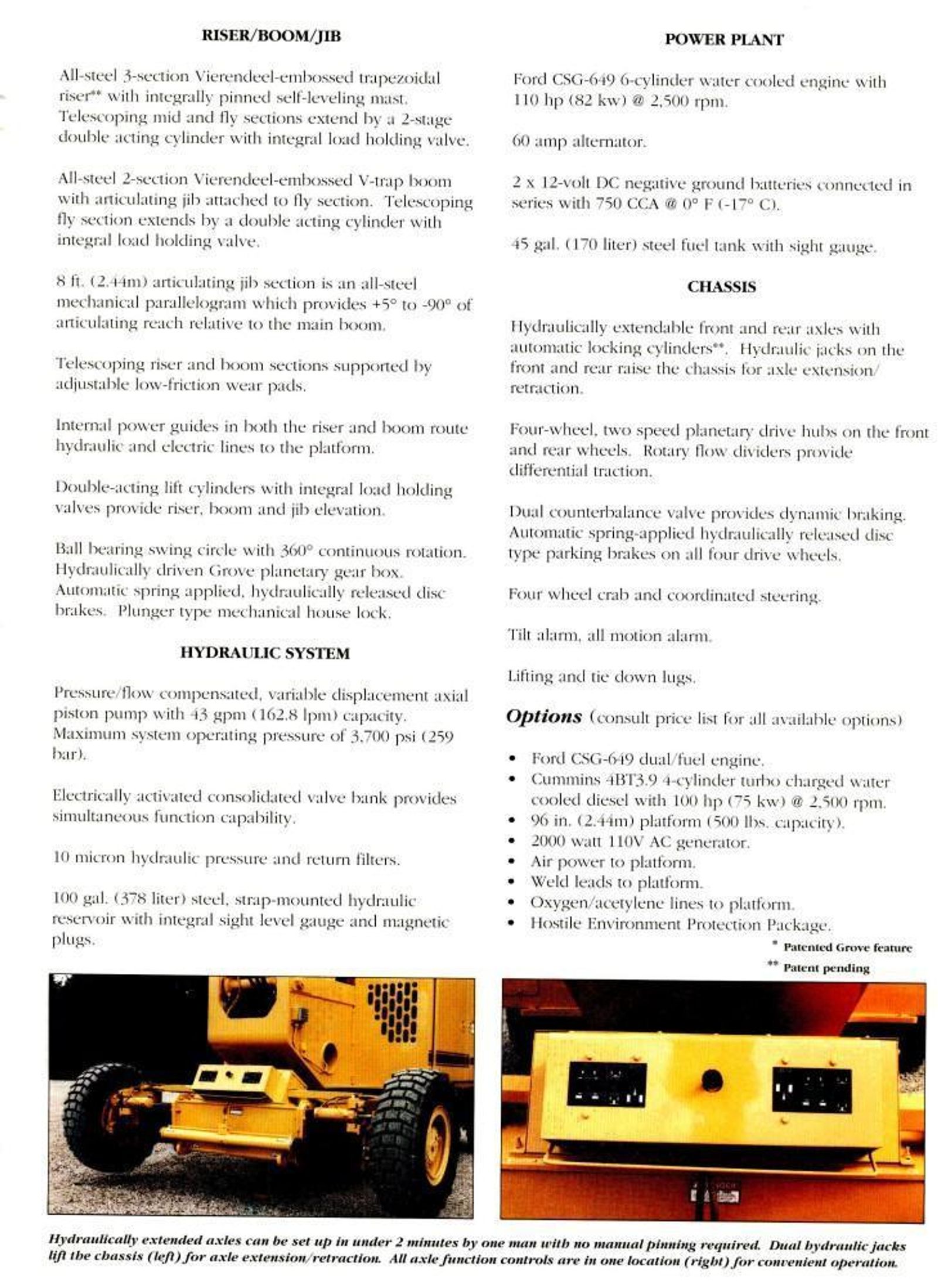

Power & Hydraulics

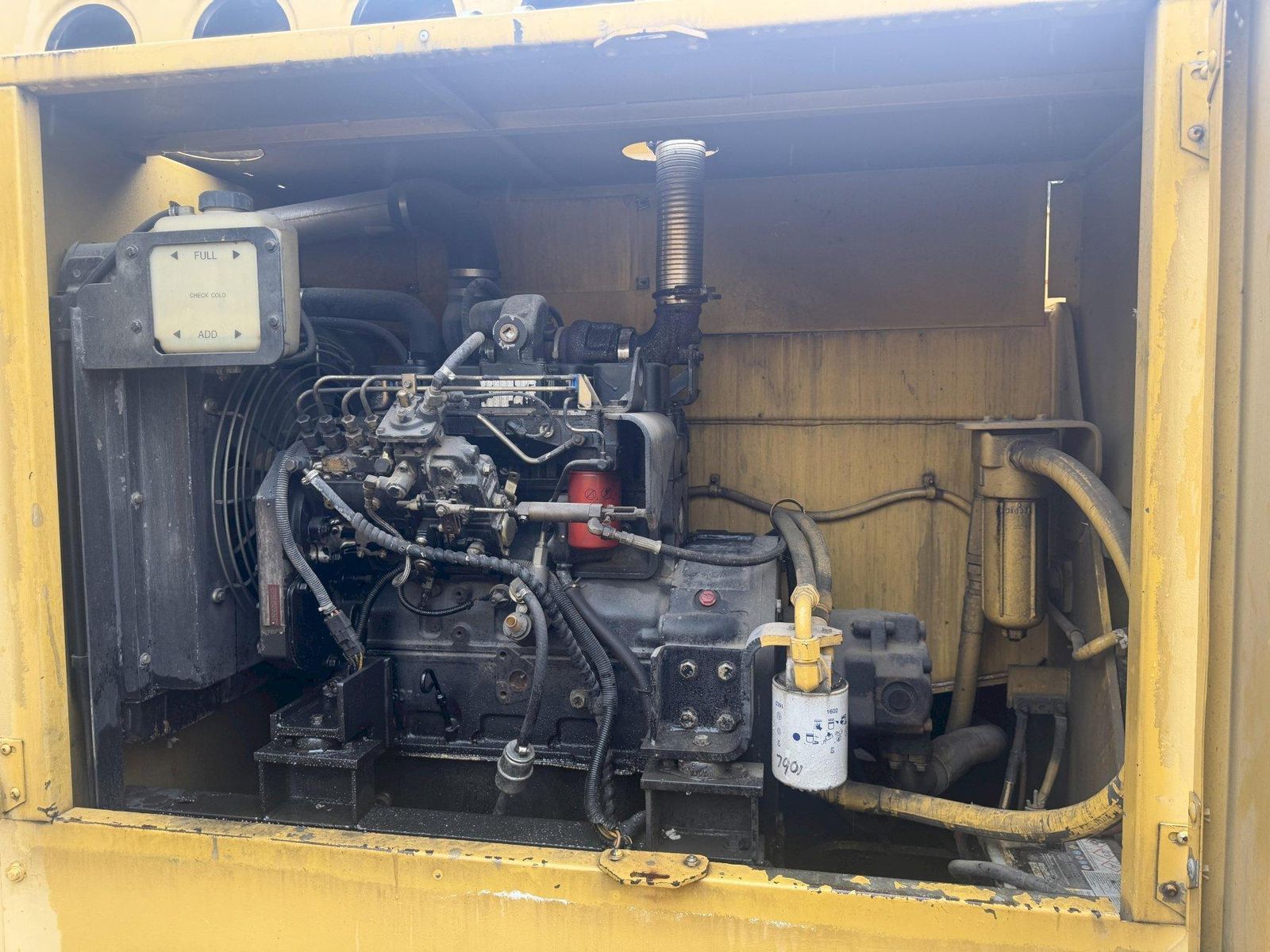

- Standard Engine: Cummins 4BT3.9 4-cylinder turbocharged diesel, providing 100 hp (75 kw) at 2,500 rpm.
- Optional Engine: Ford CSG-649 6-cylinder water-cooled engine with 110 hp (82 kw).
- Fuel Capacity: 45 gallons (170 liters).
- Hydraulic System: Axial piston pump with a maximum operating pressure of 3,700 psi (259 bar) and a 100–102 gallon reservoir.
Physical Dimensions (Stowed)
- Length: 39 ft 3.5 in (11.98 m).
- Width: 8 ft 6 in (2.6 m) with axles retracted; 13 ft (3.96 m) with axles extended.
- Height: 9 ft 9.5 in (2.98 m).
