CAPACITY ..................... 200 TON

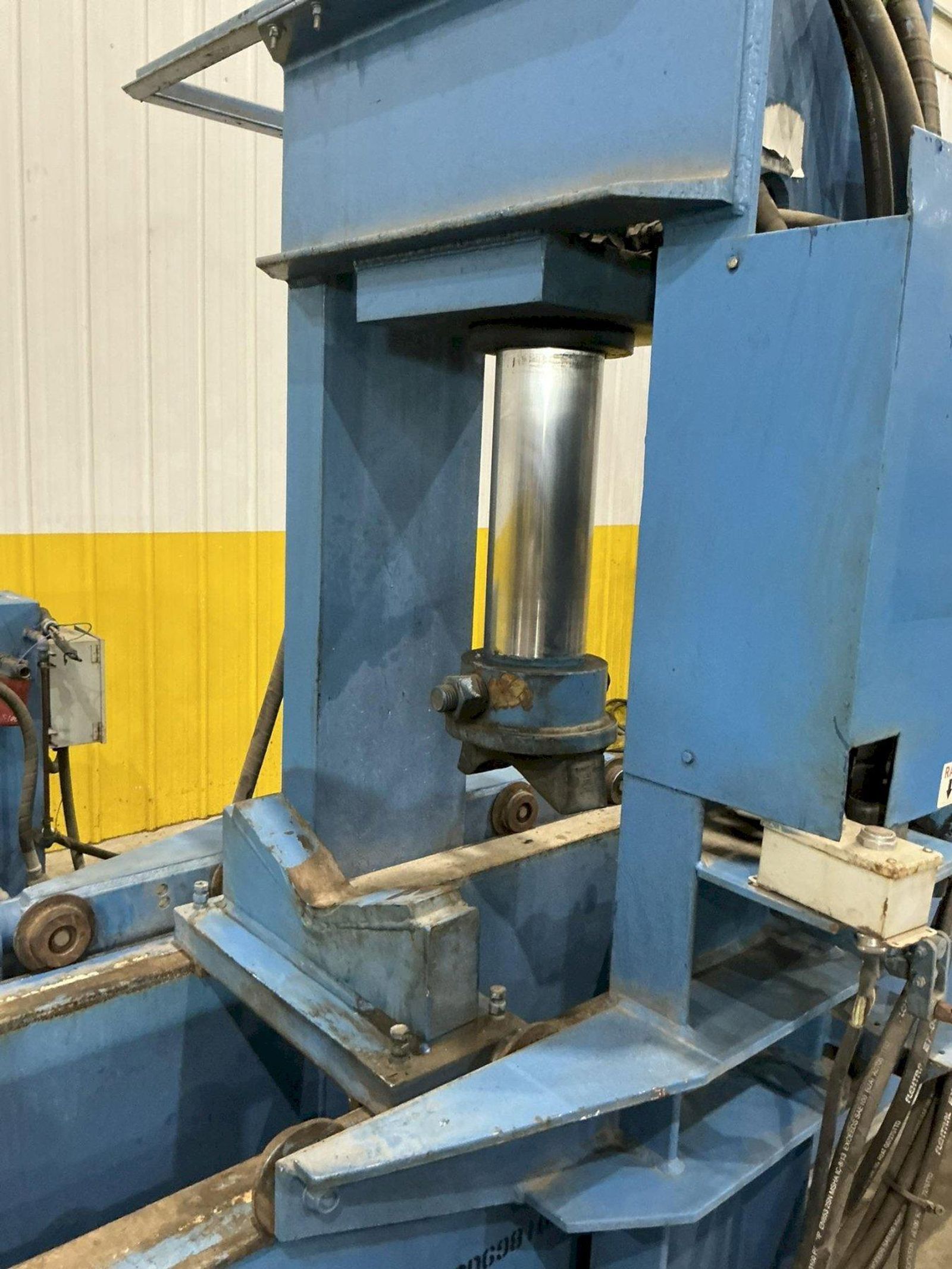

STROKE OF RAM ................ 16"
RAM BORE DIAMETER ............ 6"
DAYLIGHT RAM TO BED .......... 26" MAX
LENGTH OF TABLE .............. 15 FT)
WIDTH OF TABLE ............... 24-1/2"
DISTANCE BETWEEN POSTS ....... 25-1/2"
TABLE HEIGHT FROM FLOOR ...... 33"
PRESS HEAD TRAVERSE .......... 12'

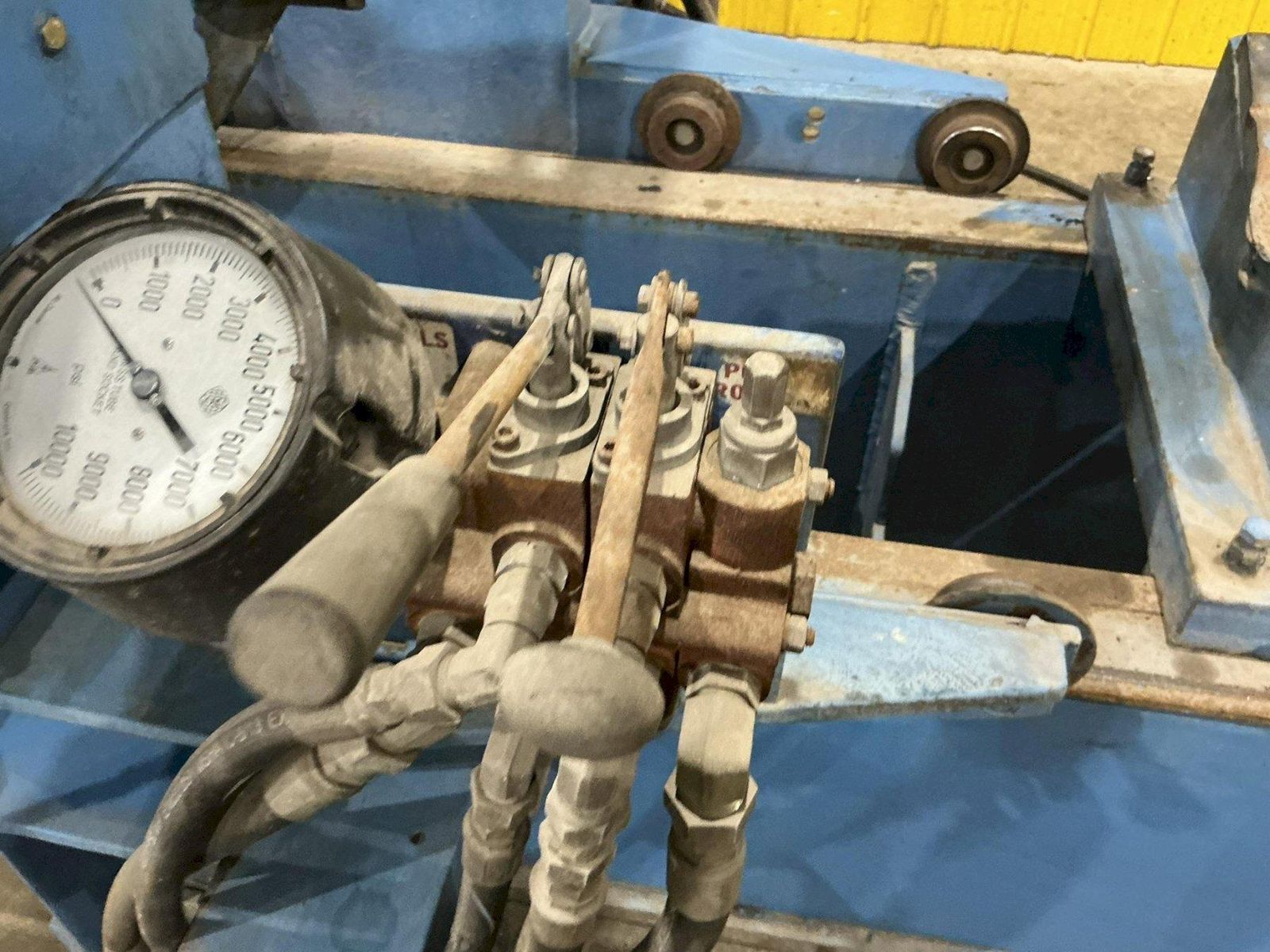

TONNAGE CONTROL .............. HAND LEVER

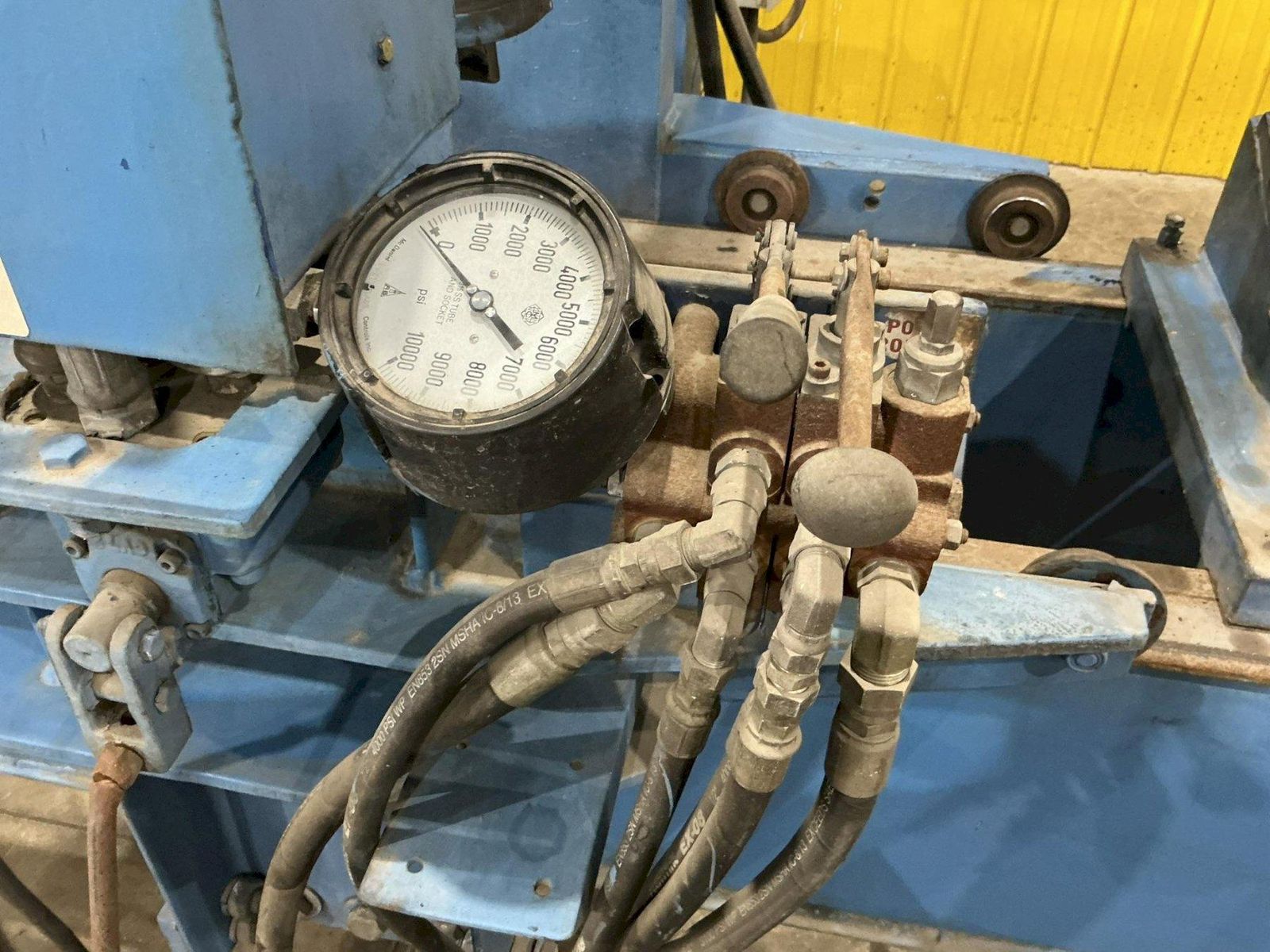

TONNAGE PRESSURE GAUGE ....... YES

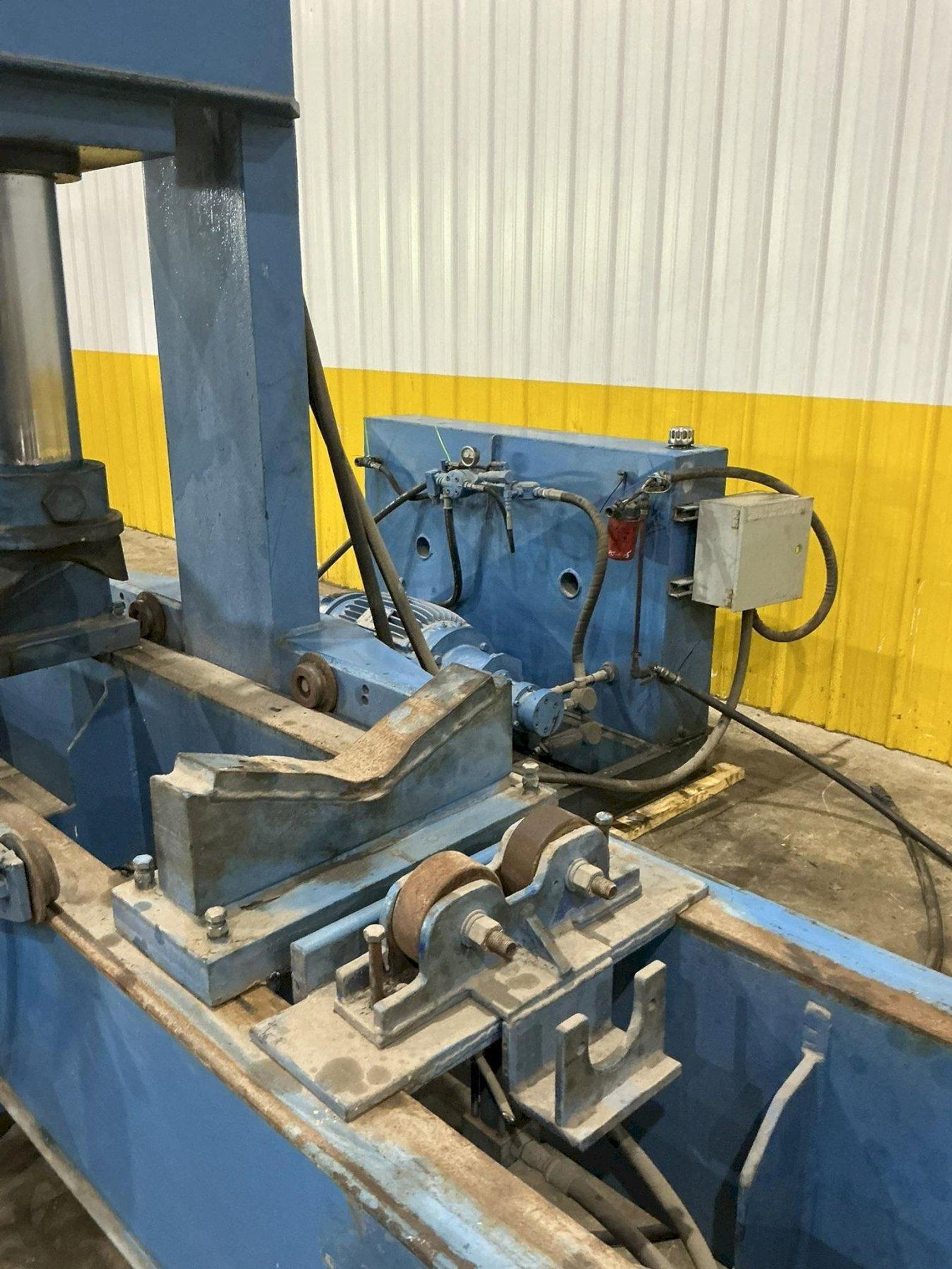

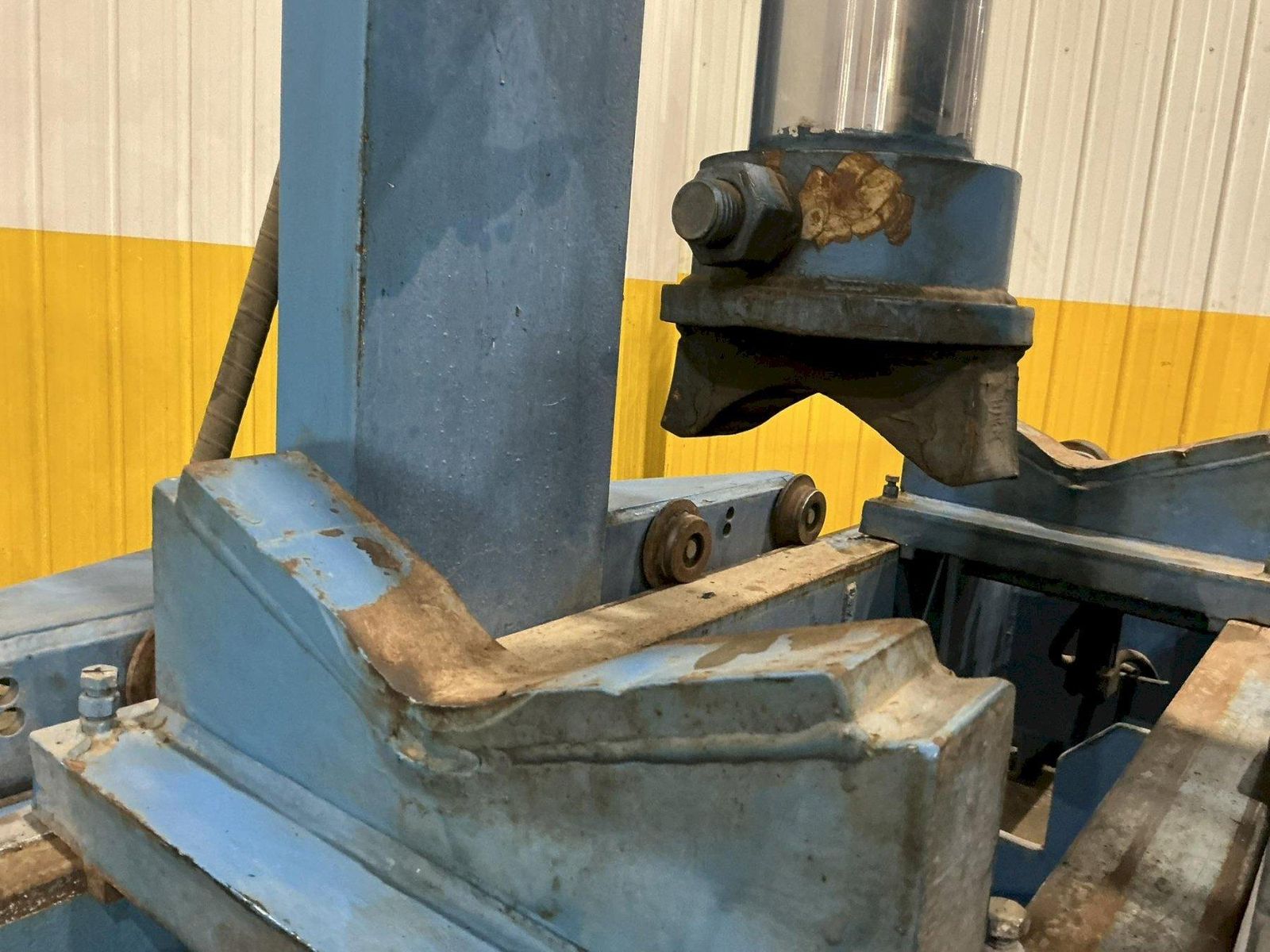

"V" STYLE PUSH BLOCKS ........ YES, MOVABLE ON BED

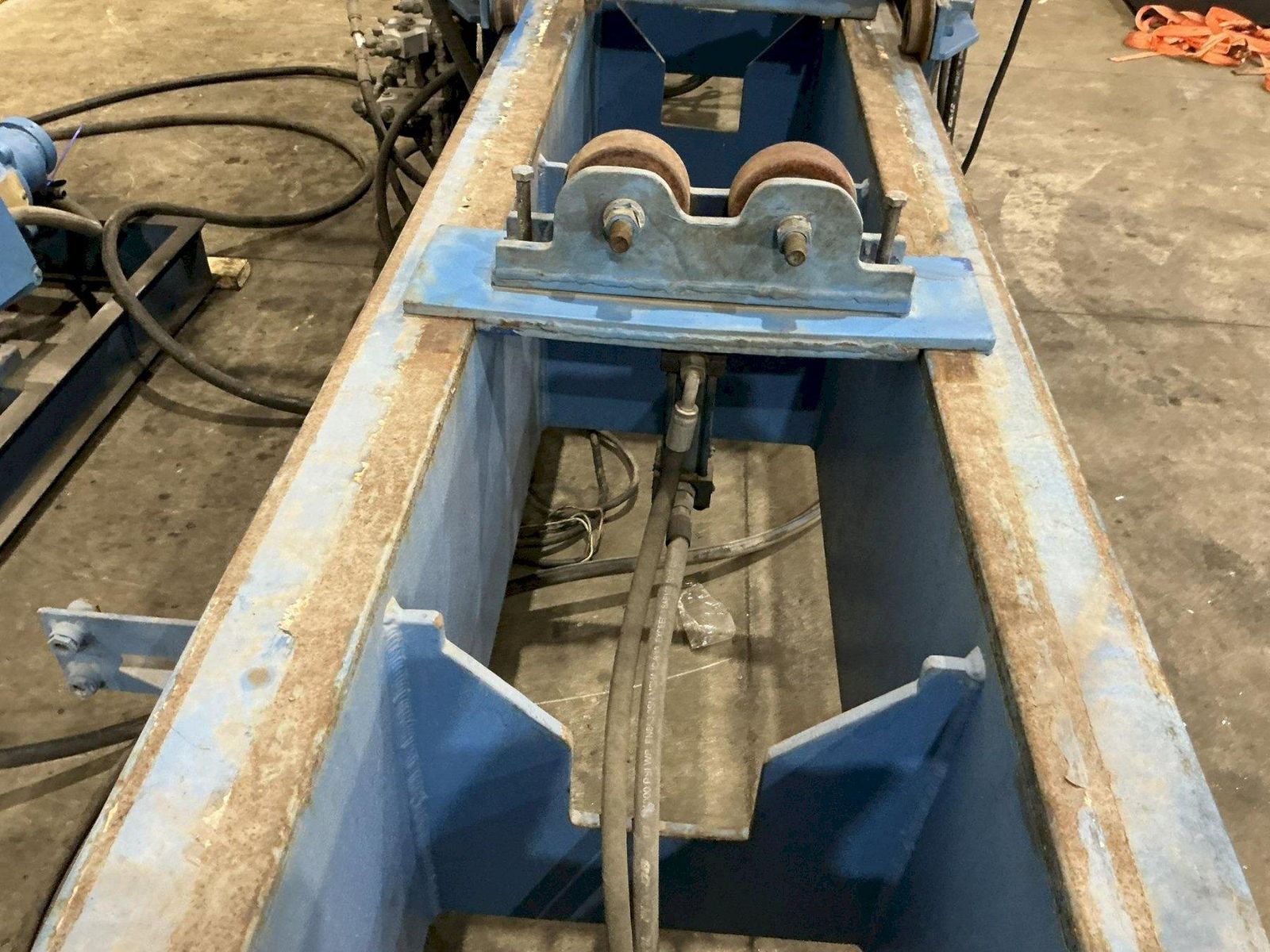

MATERIAL LIFT WHEELS ......... YES, MOVABLE ON BED
LIFT BLOCK HYD CYL STROKE .... 5"

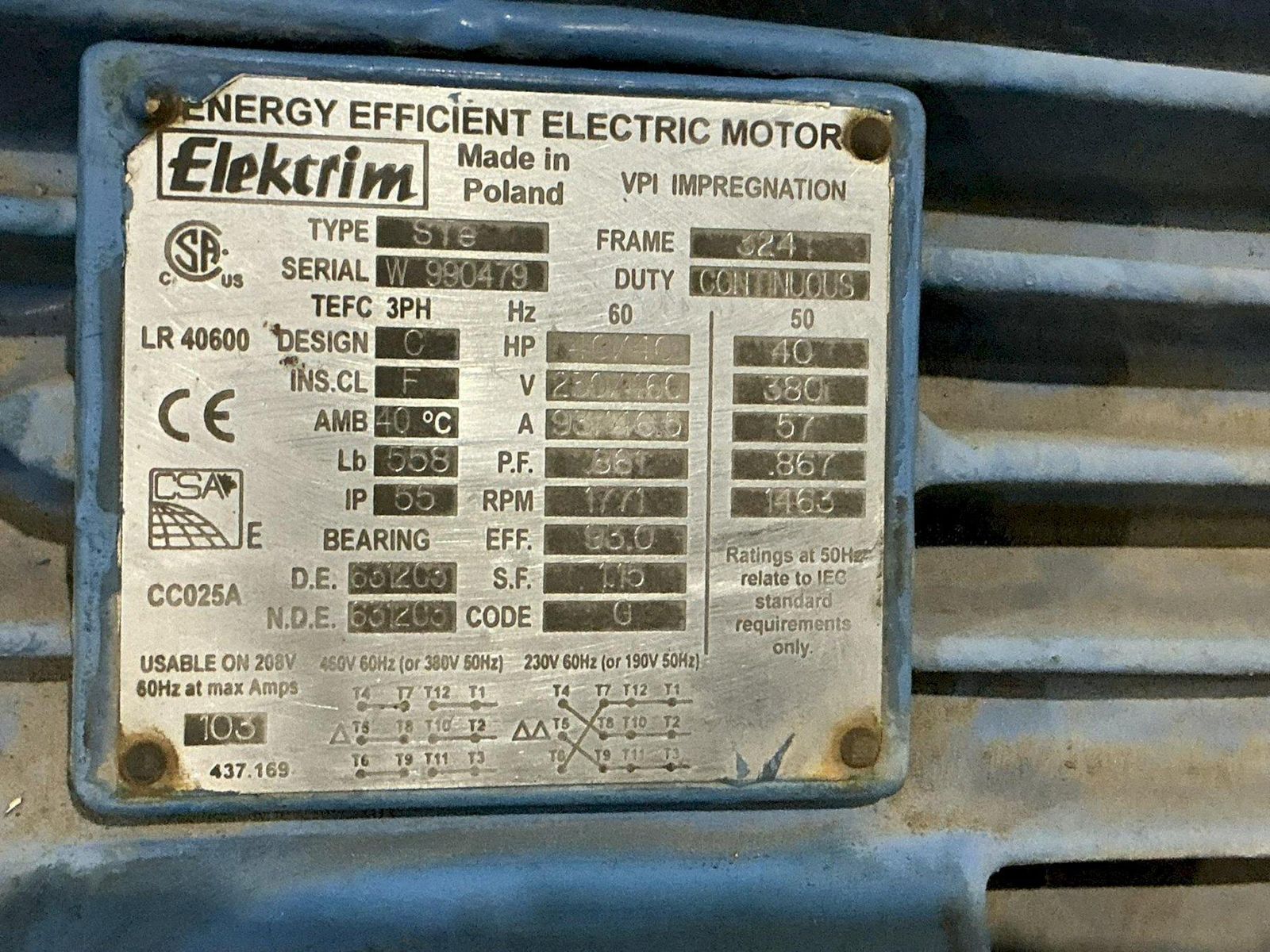

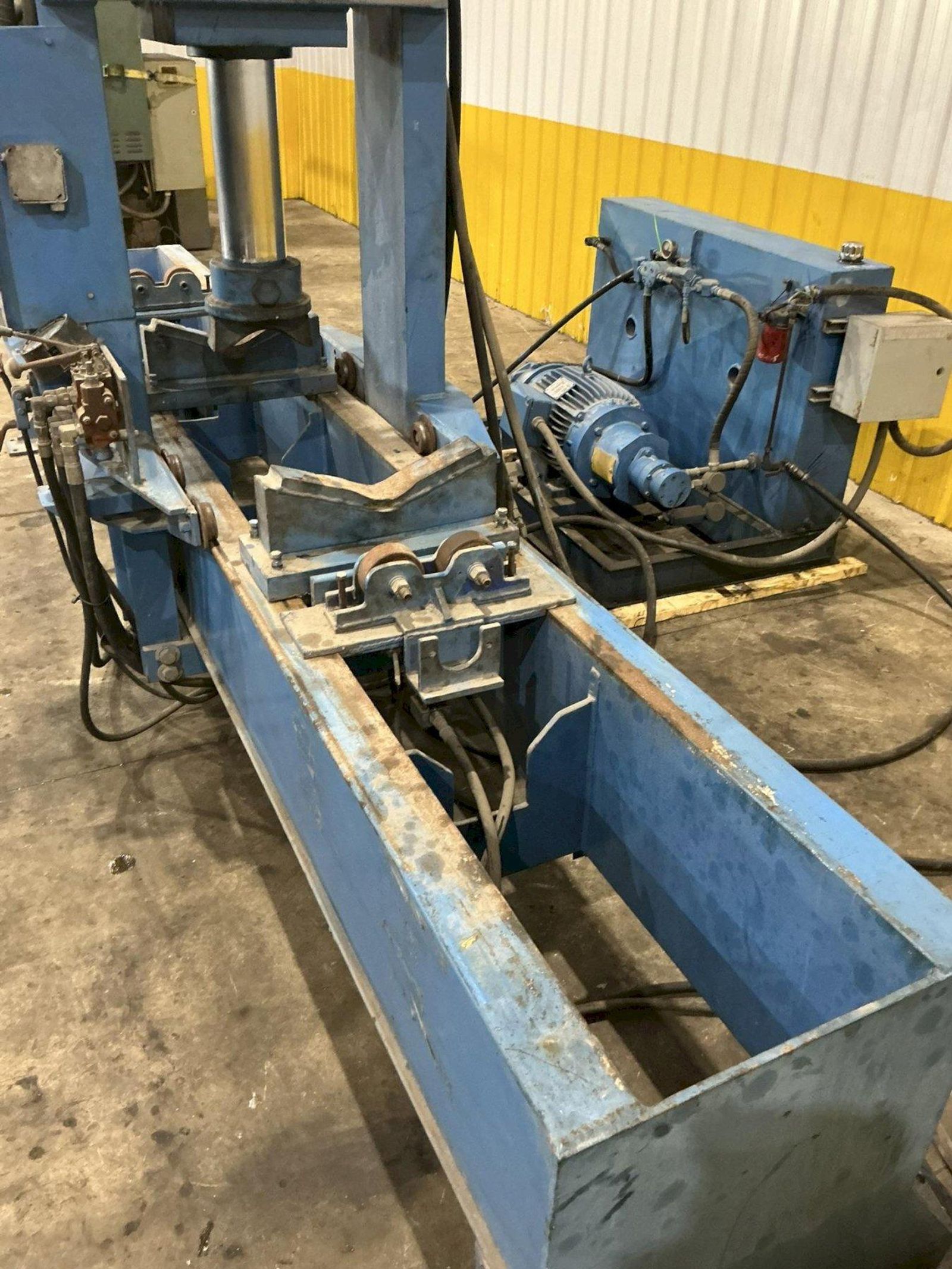

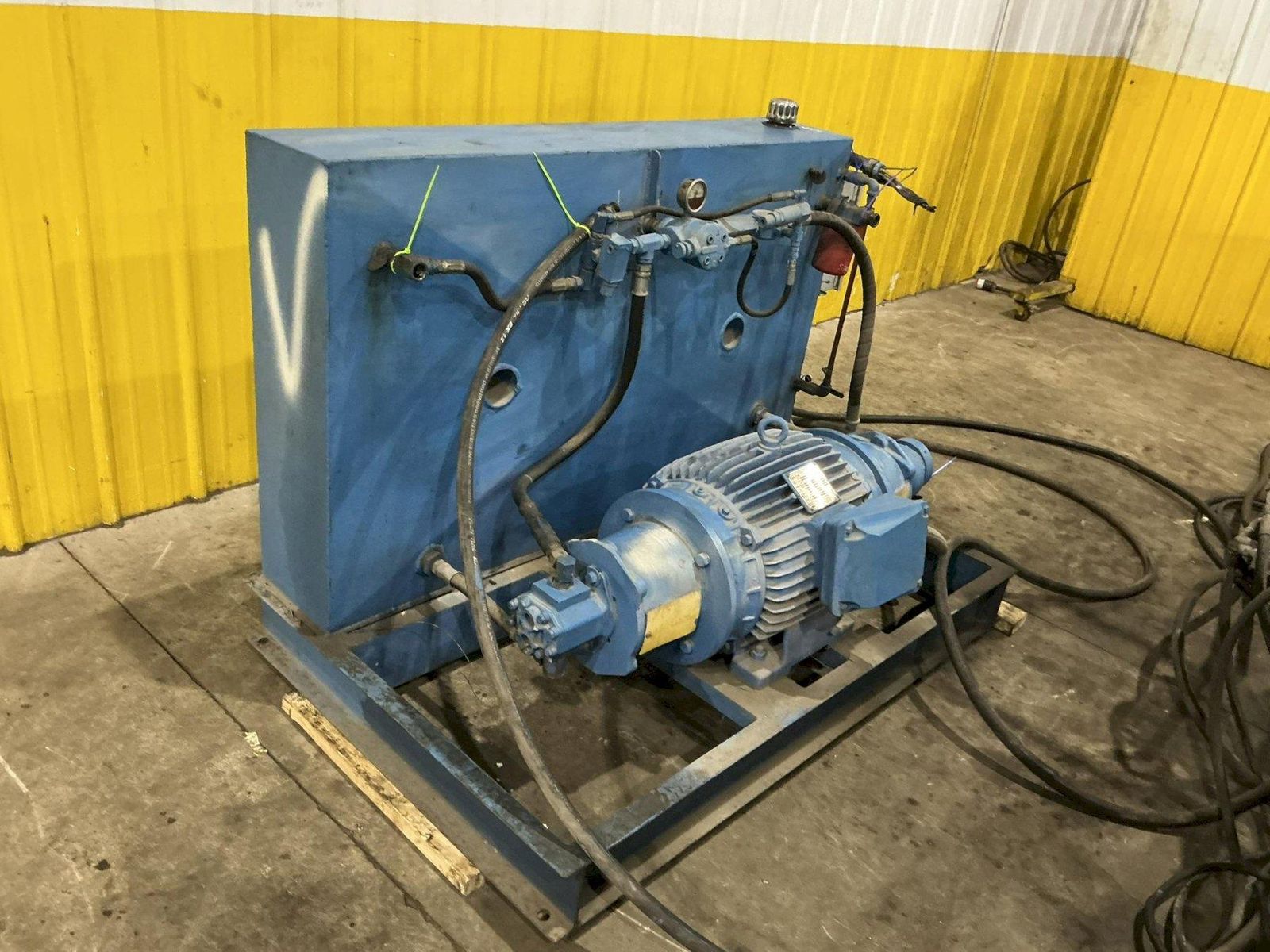

HYDRAULIC UNIT - FOR PRESS ... 40 HP
Brand
Not Specified
Type
Presses, Straightening
Stock No.
25136
 |
419-269-2000 |
Stock #: 25136
CAPACITY ..................... 200 TON
STROKE OF RAM ................ 16"
RAM BORE DIAMETER ............ 6"
DAYLIGHT RAM TO BED .......... 26" MAX
LENGTH OF TABLE .............. 15 FT)
WIDTH OF TABLE ............... 24-1/2"
DISTANCE BETWEEN POSTS ....... 25-1/2"
TABLE HEIGHT FROM FLOOR ...... 33"
PRESS HEAD TRAVERSE .......... 12'
TONNAGE CONTROL .............. HAND LEVER
TONNAGE PRESSURE GAUGE ....... YES
"V" STYLE PUSH BLOCKS ........ YES, MOVABLE ON BED
MATERIAL LIFT WHEELS ......... YES, MOVABLE ON BED
LIFT BLOCK HYD CYL STROKE .... 5"
HYDRAULIC UNIT - FOR PRESS ... 40 HP
