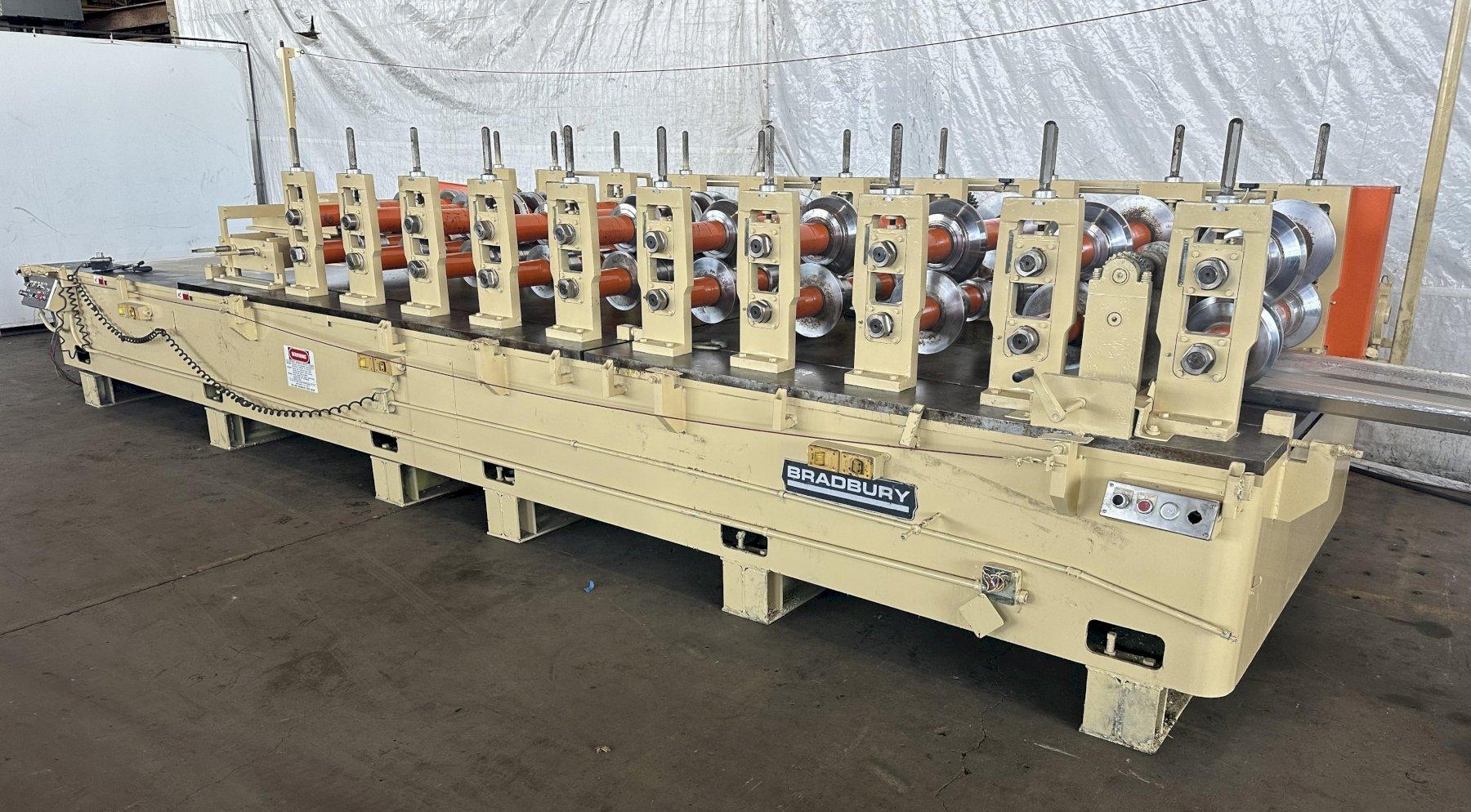

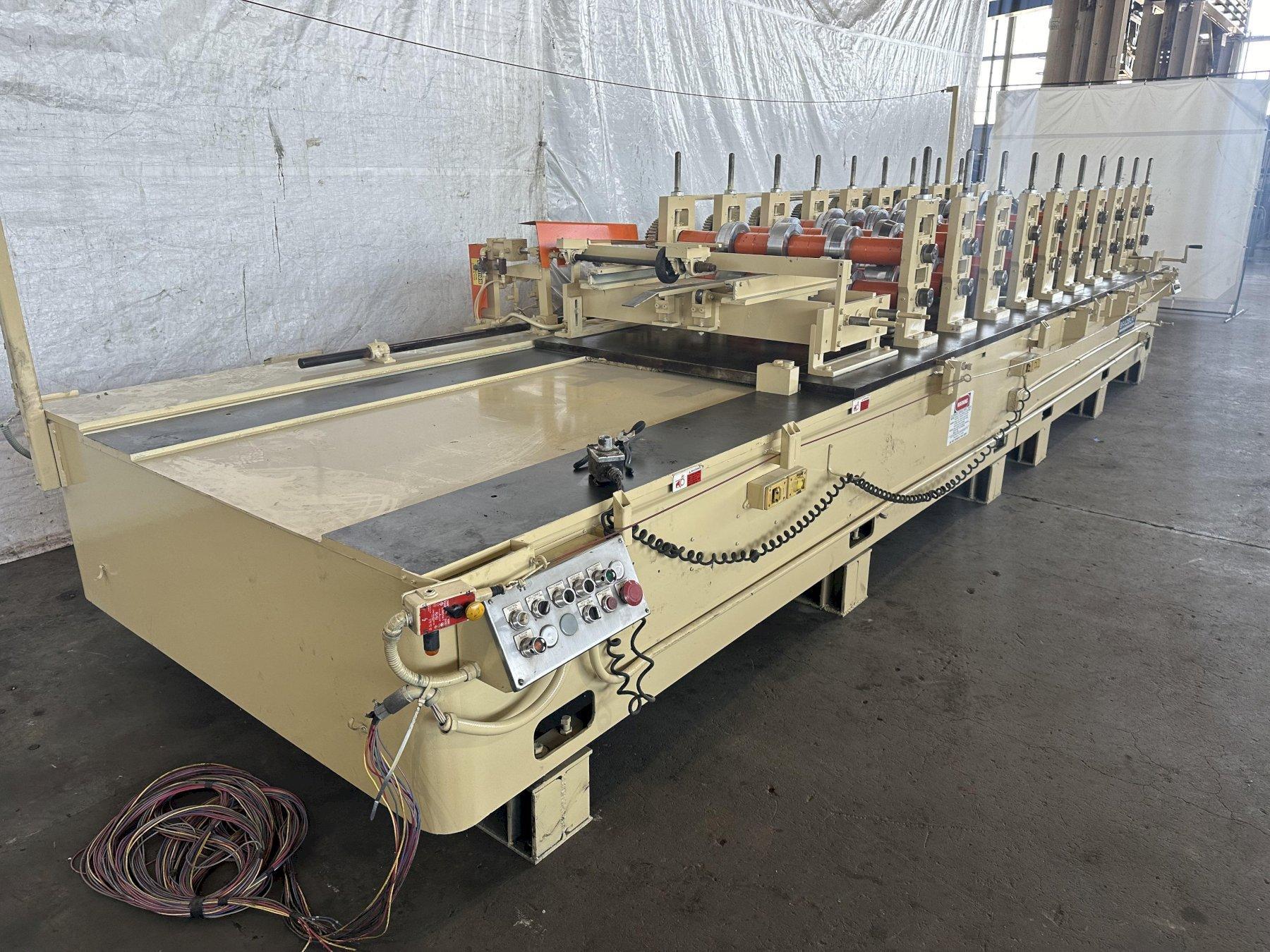

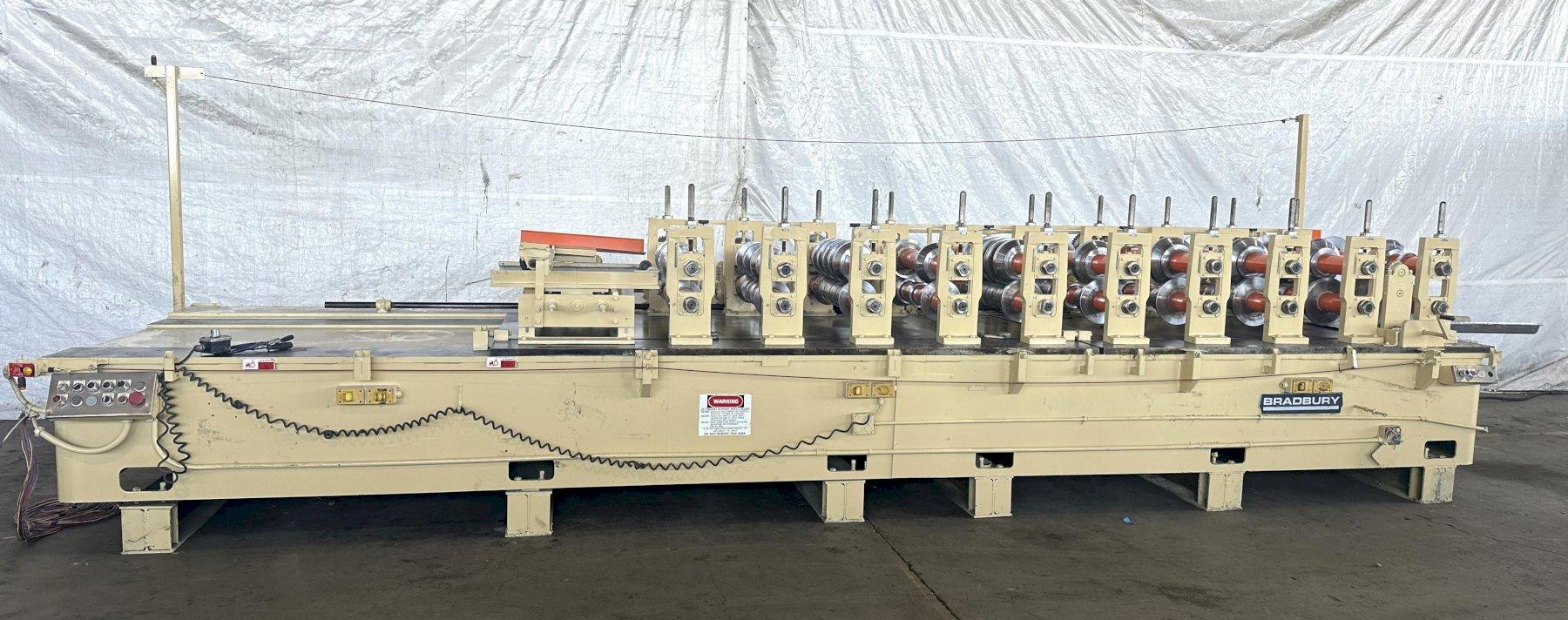

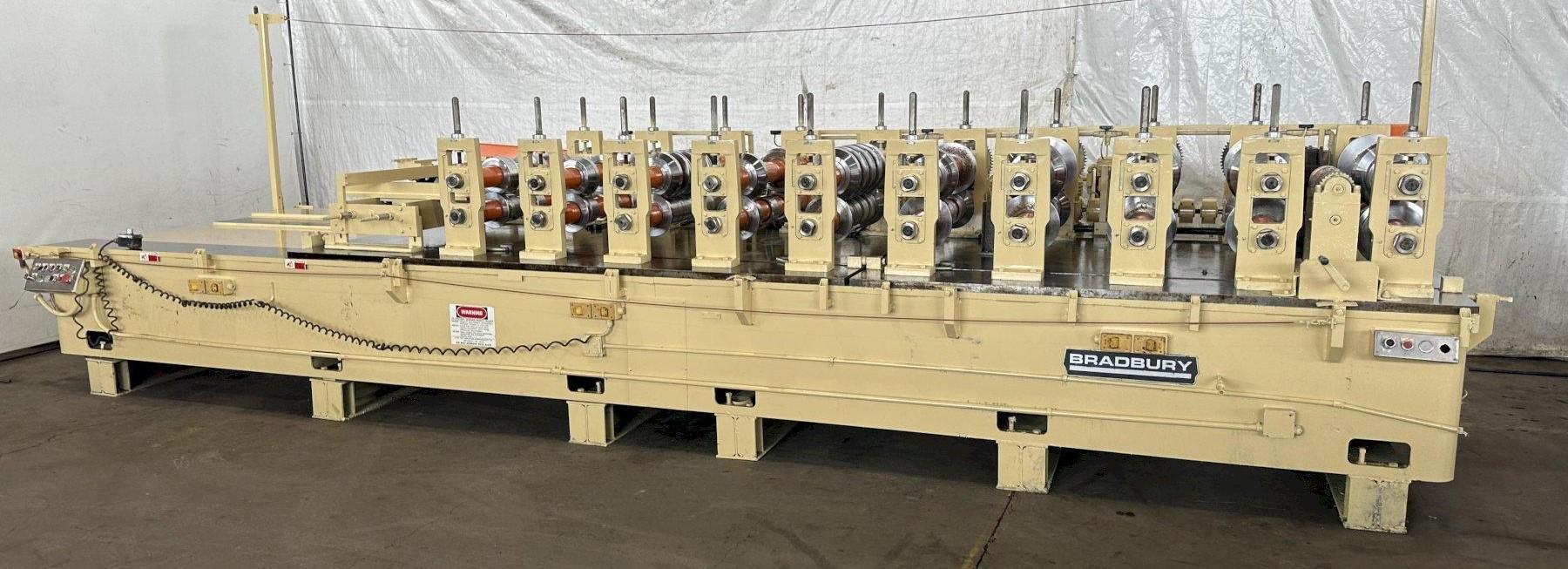

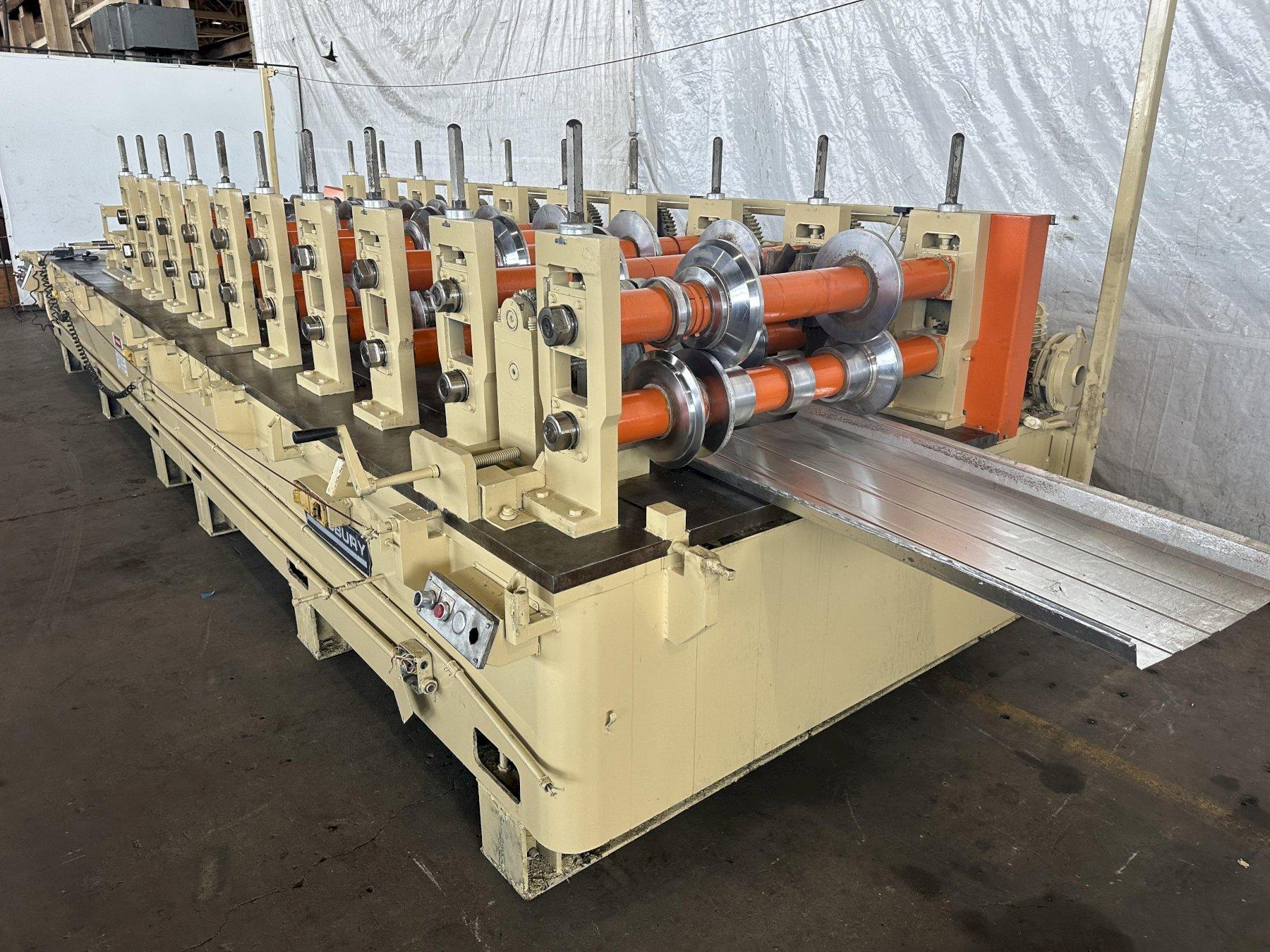

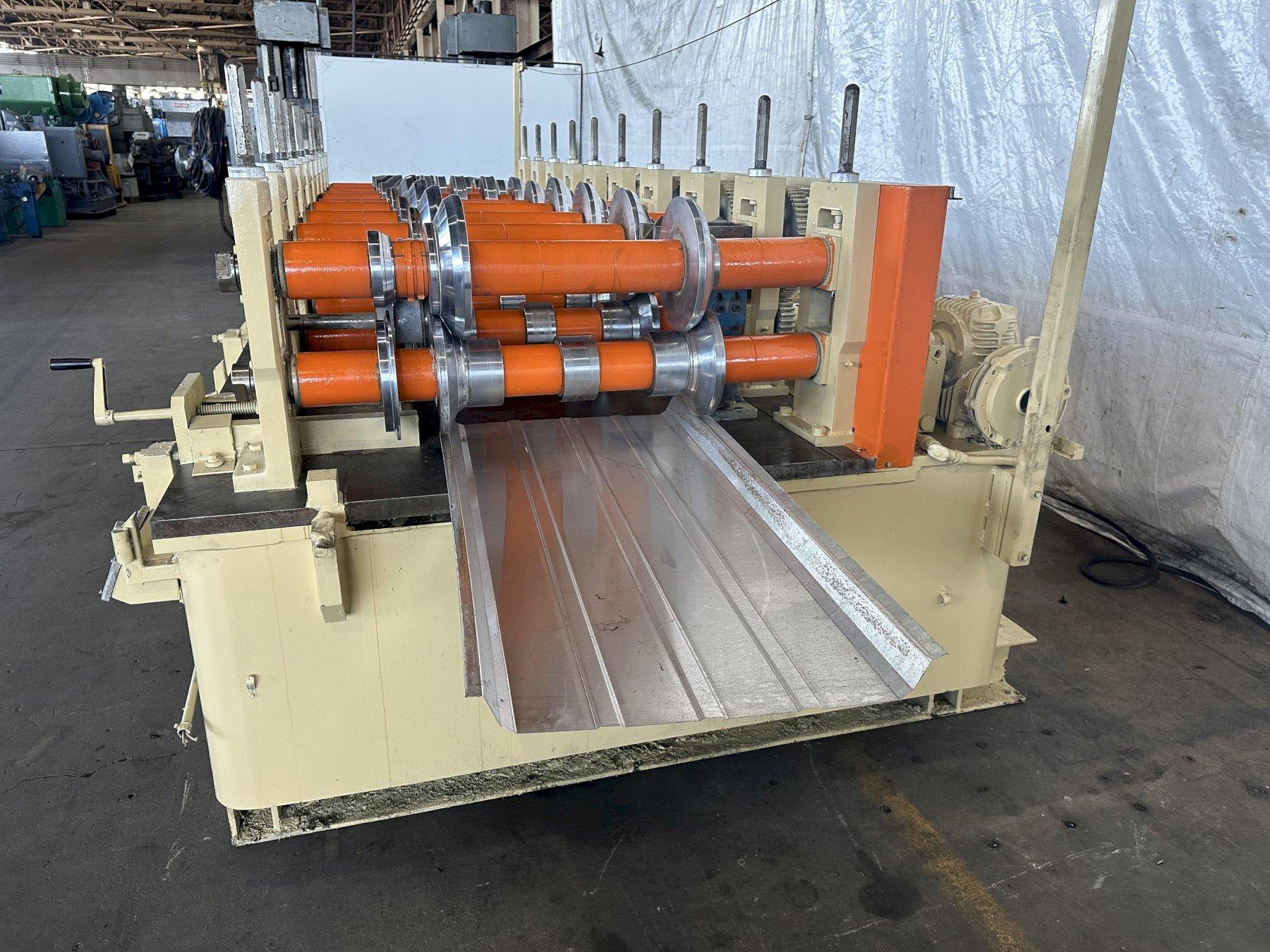

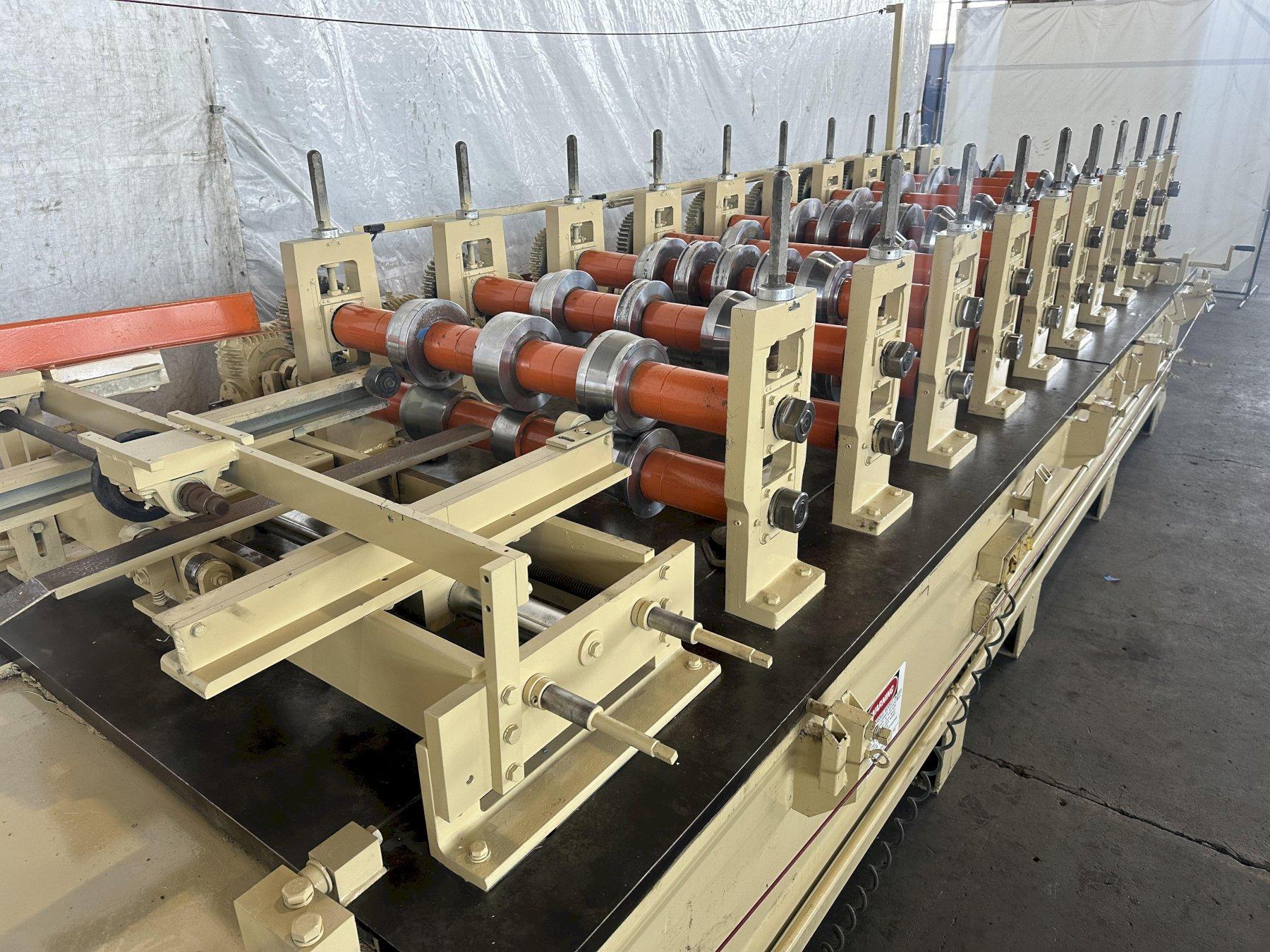

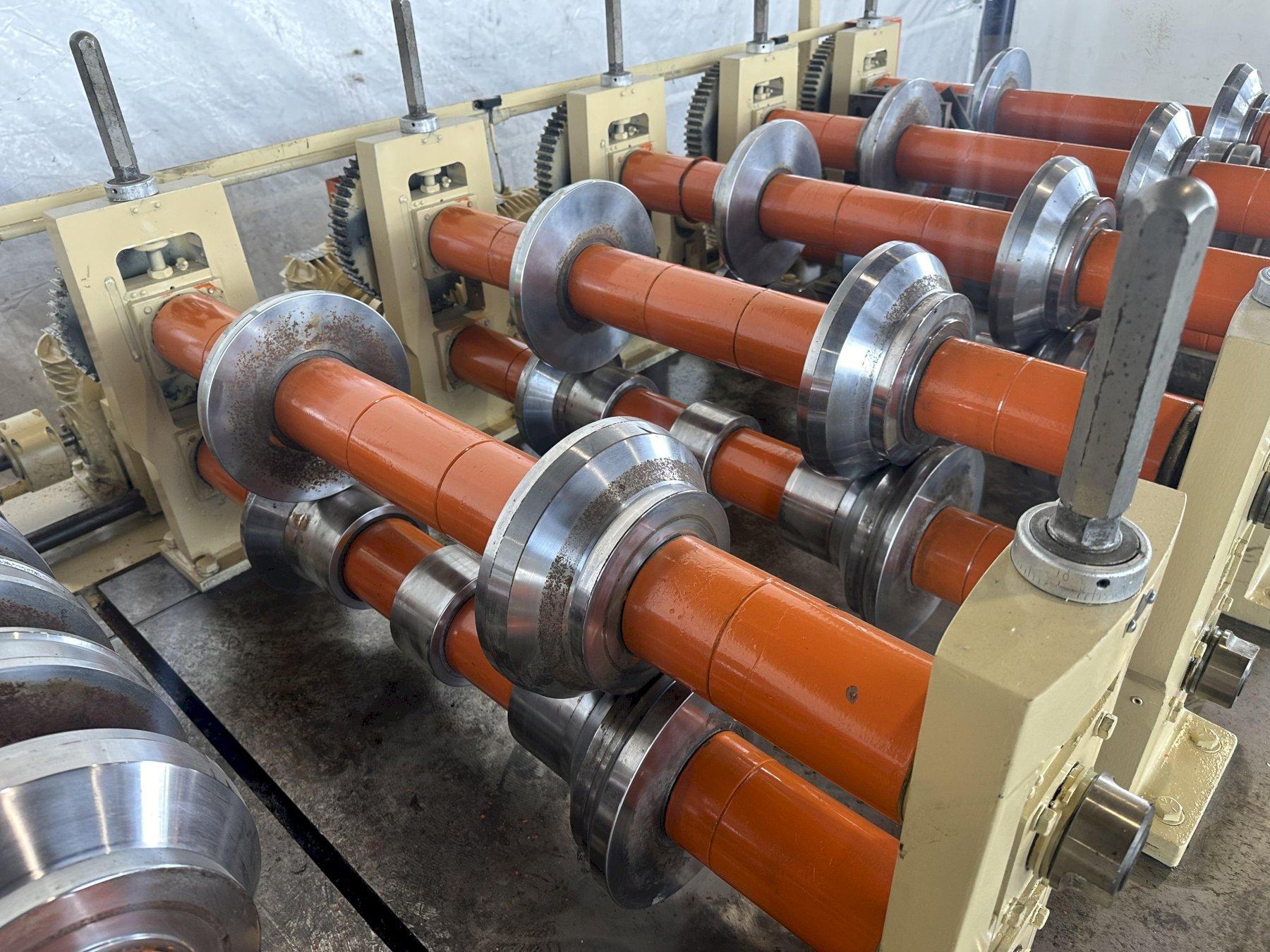

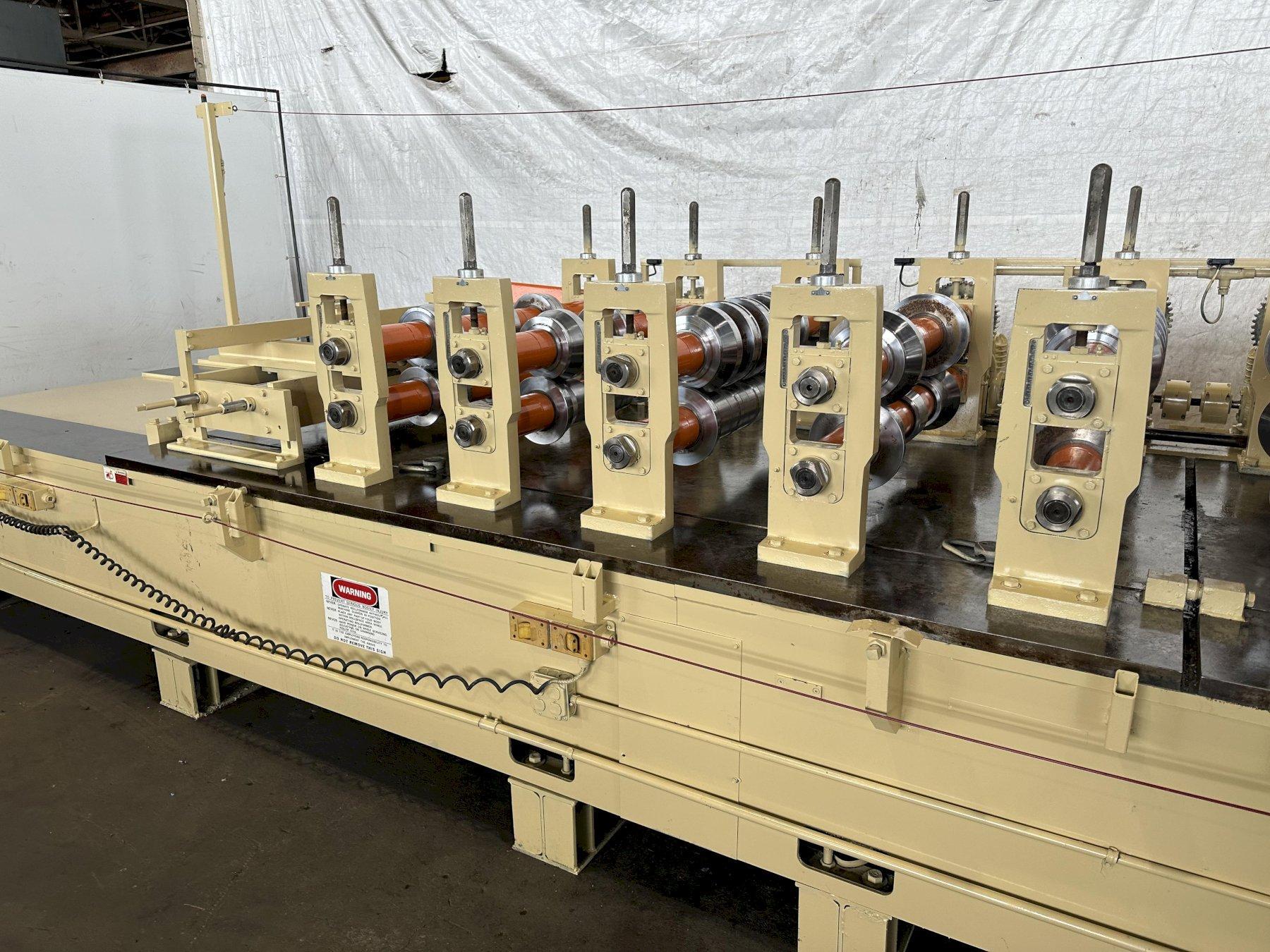

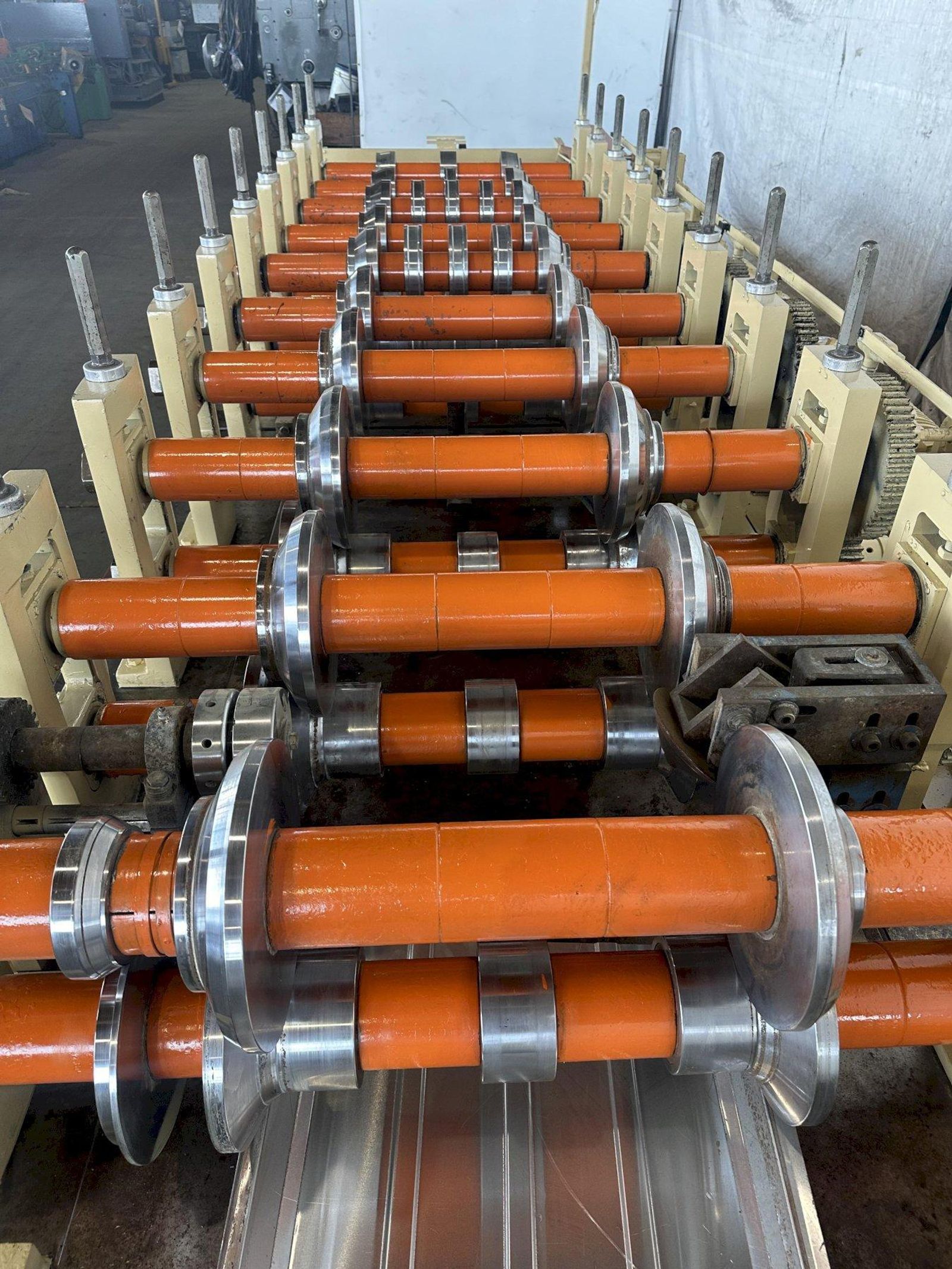

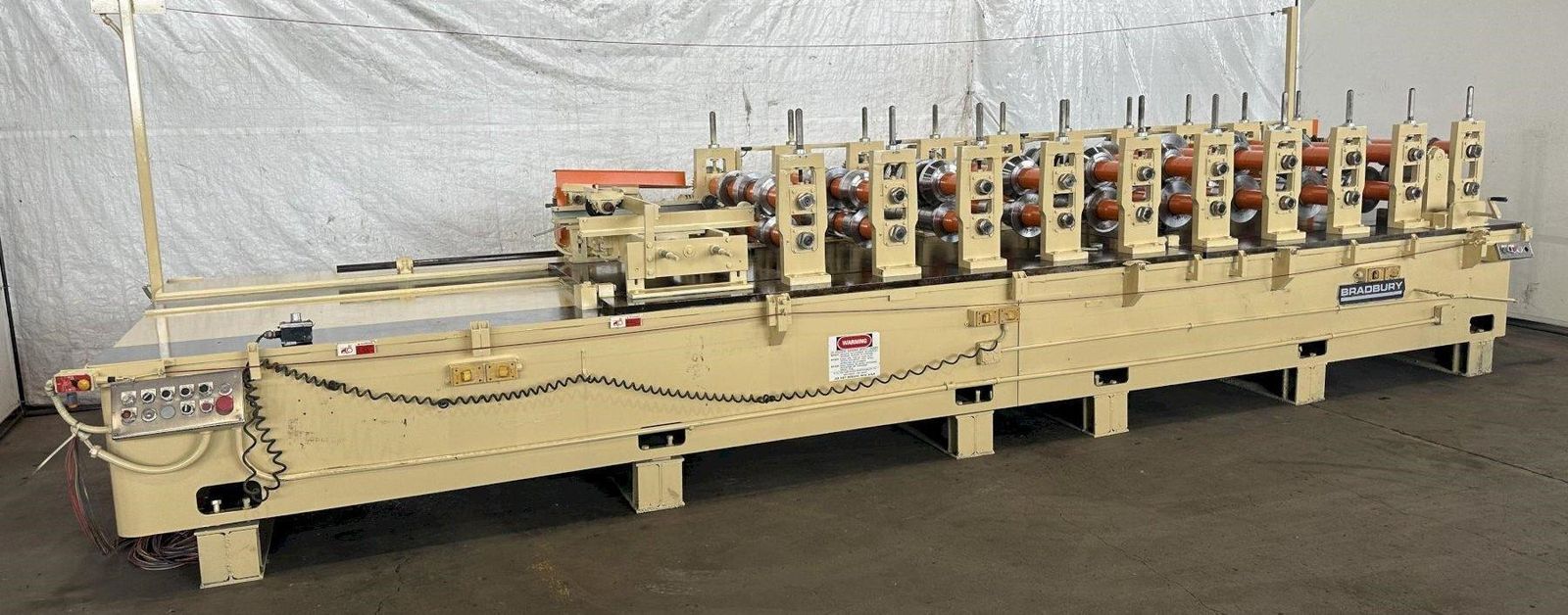

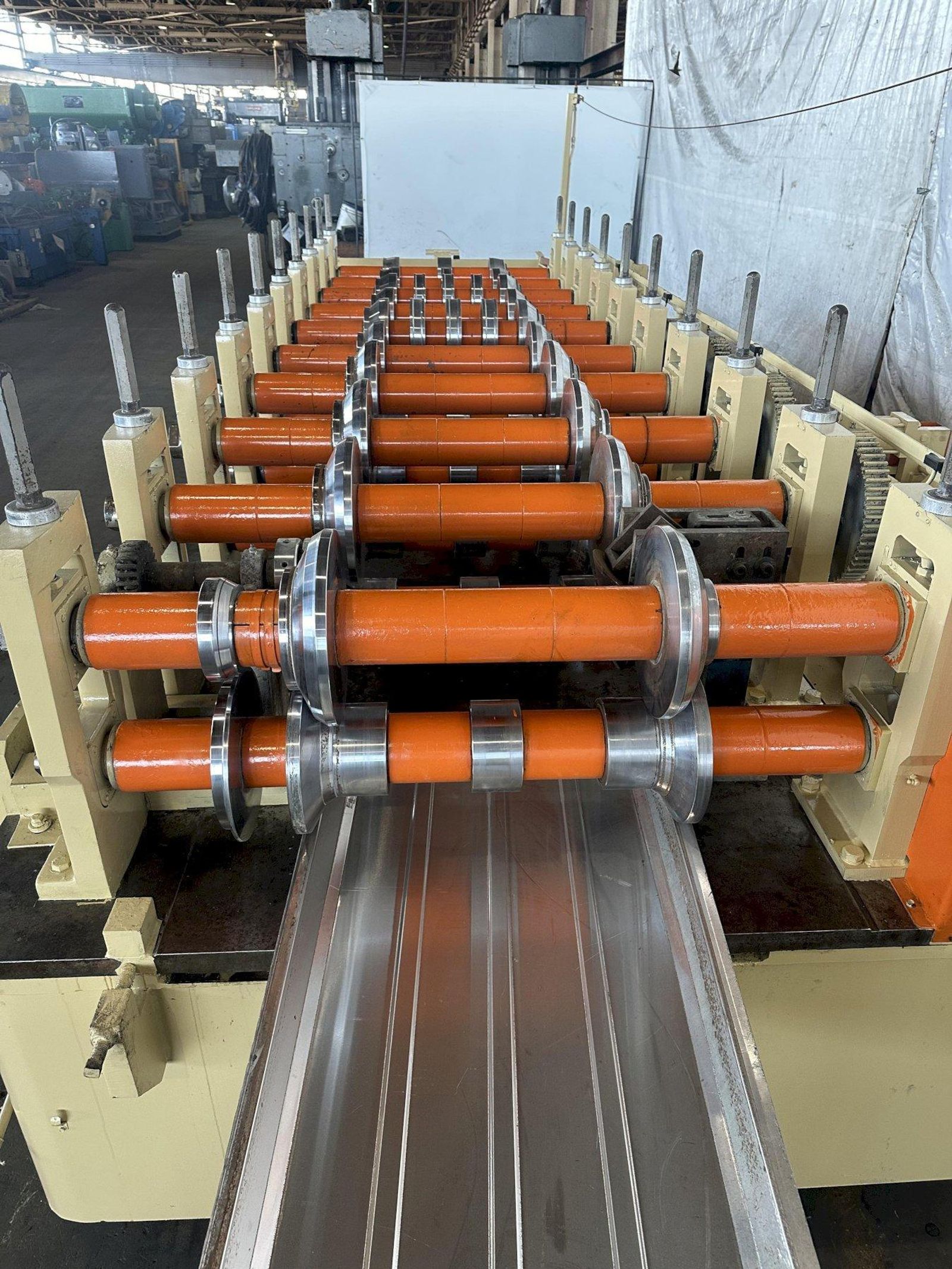

MODEL.......................... 320

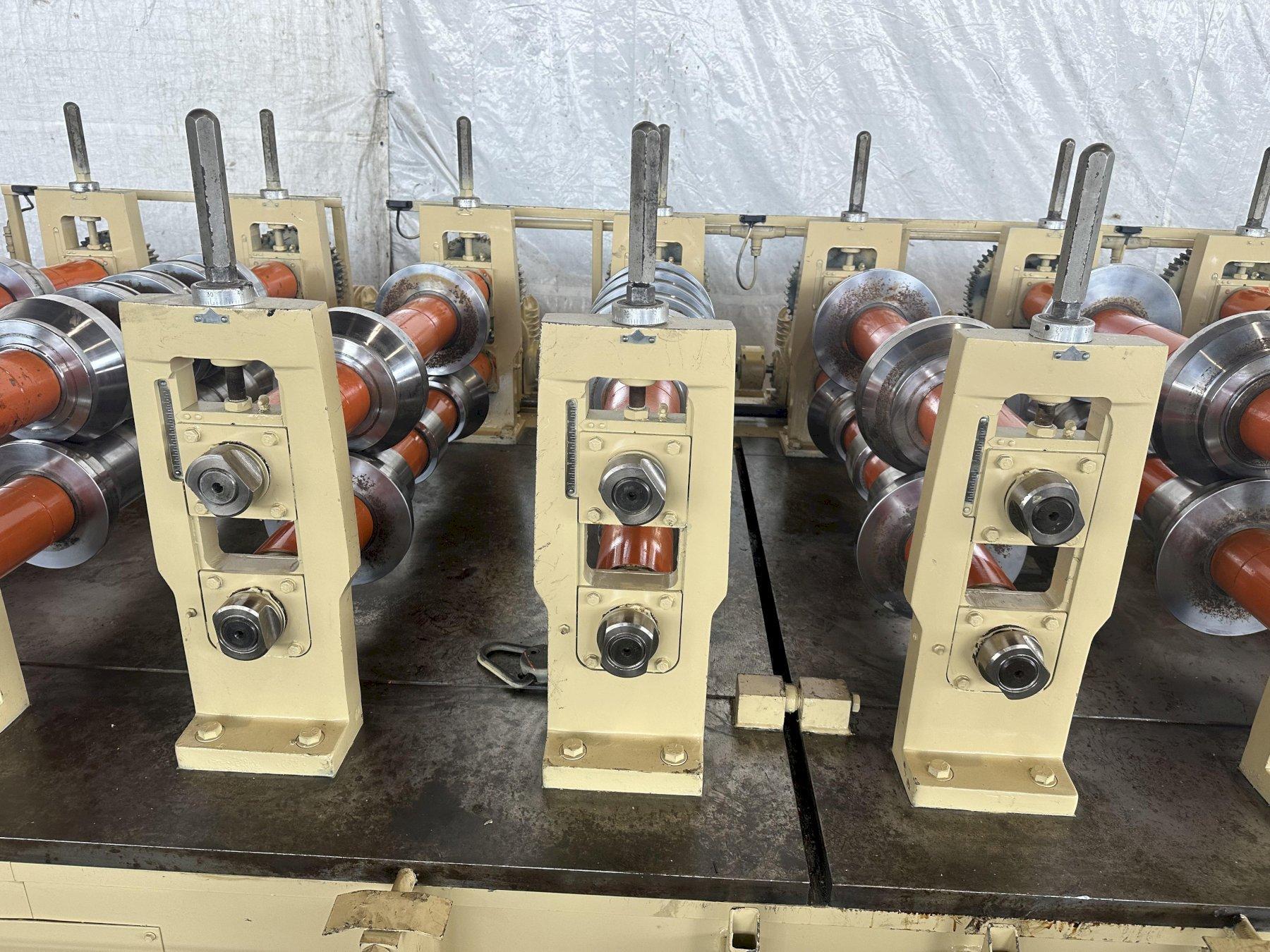

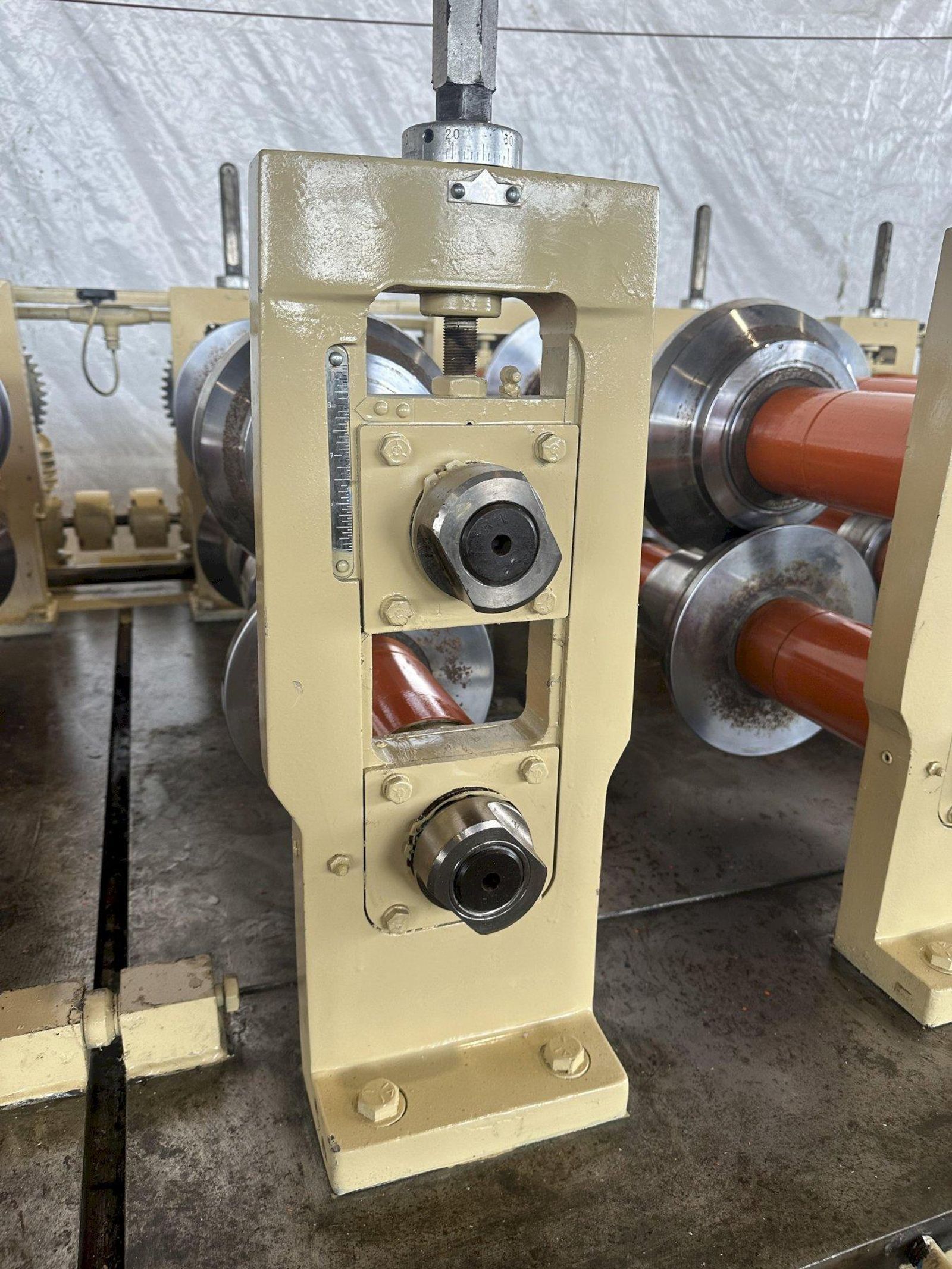

NUMBER OF STANDS............... 10 (ON 14 BASE)

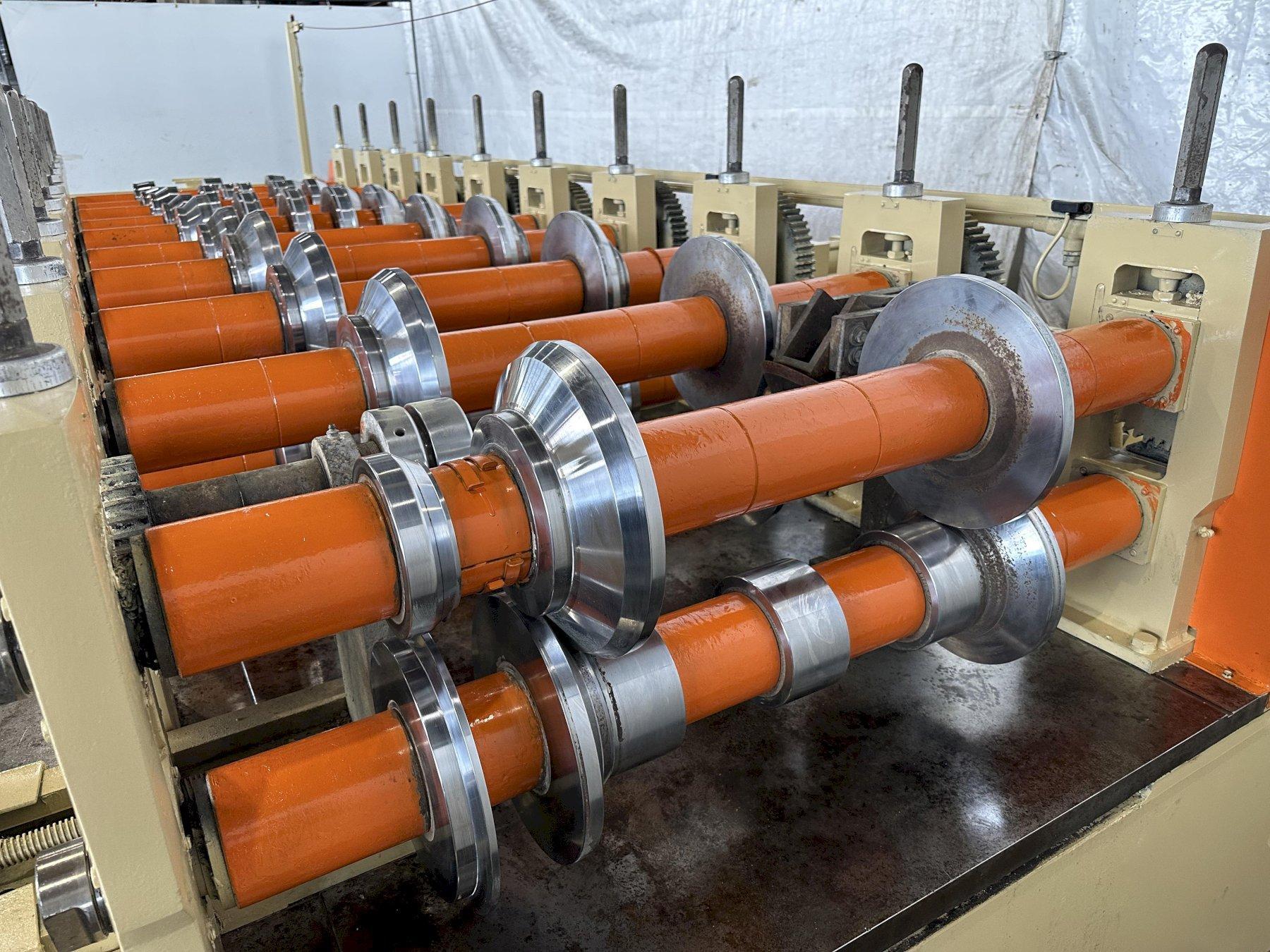

ARBOR DIAMETER................. 3.5"
MAX ROLL WIDTH................. 44"

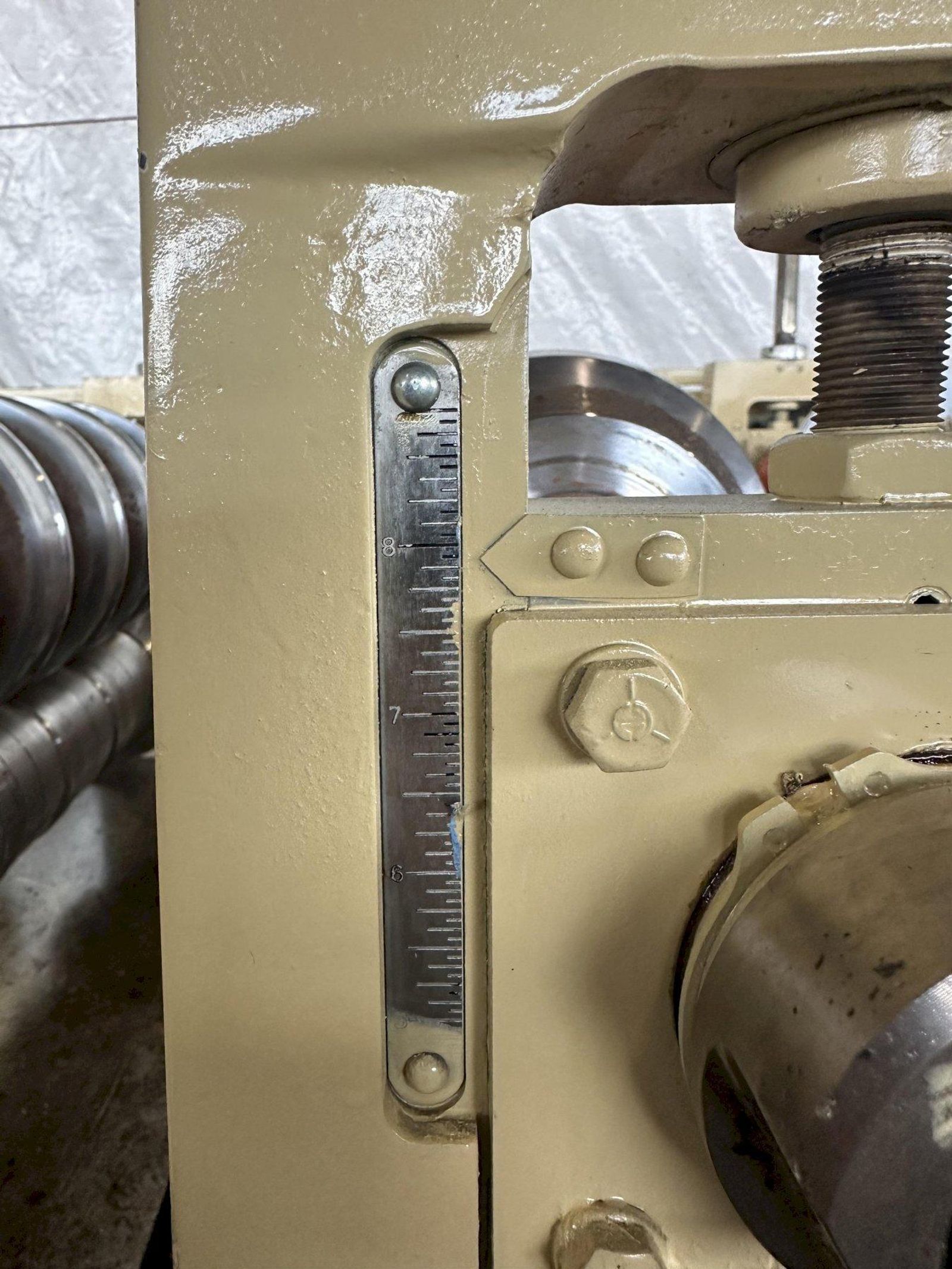

VERTICAL ADJUSTMENT............ 4-7/8" - 8-7/8"
HORIZONTAL CENTERS............. 18"
LINE SPEED..................... 150 FPM

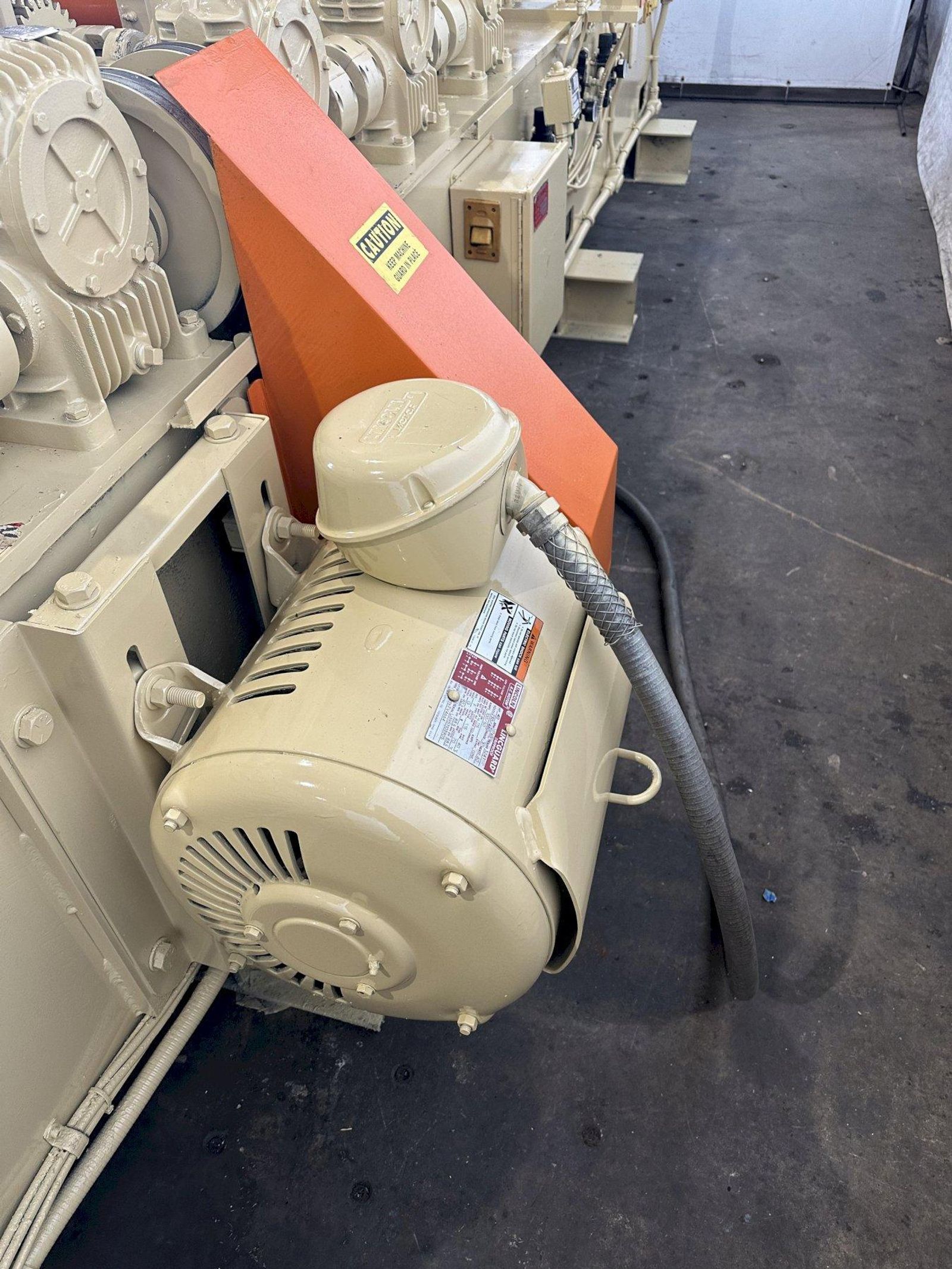

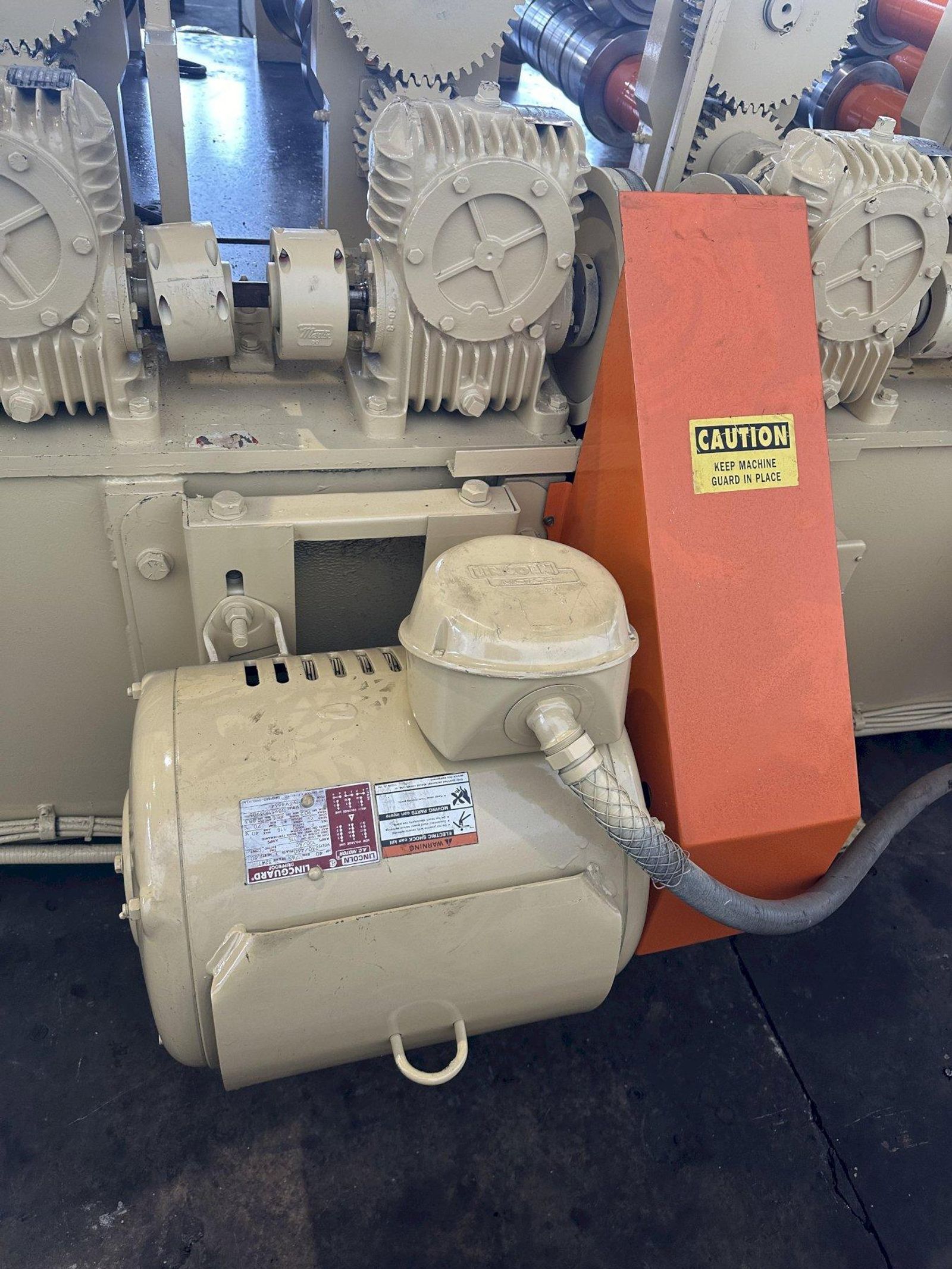

HP............................. 50

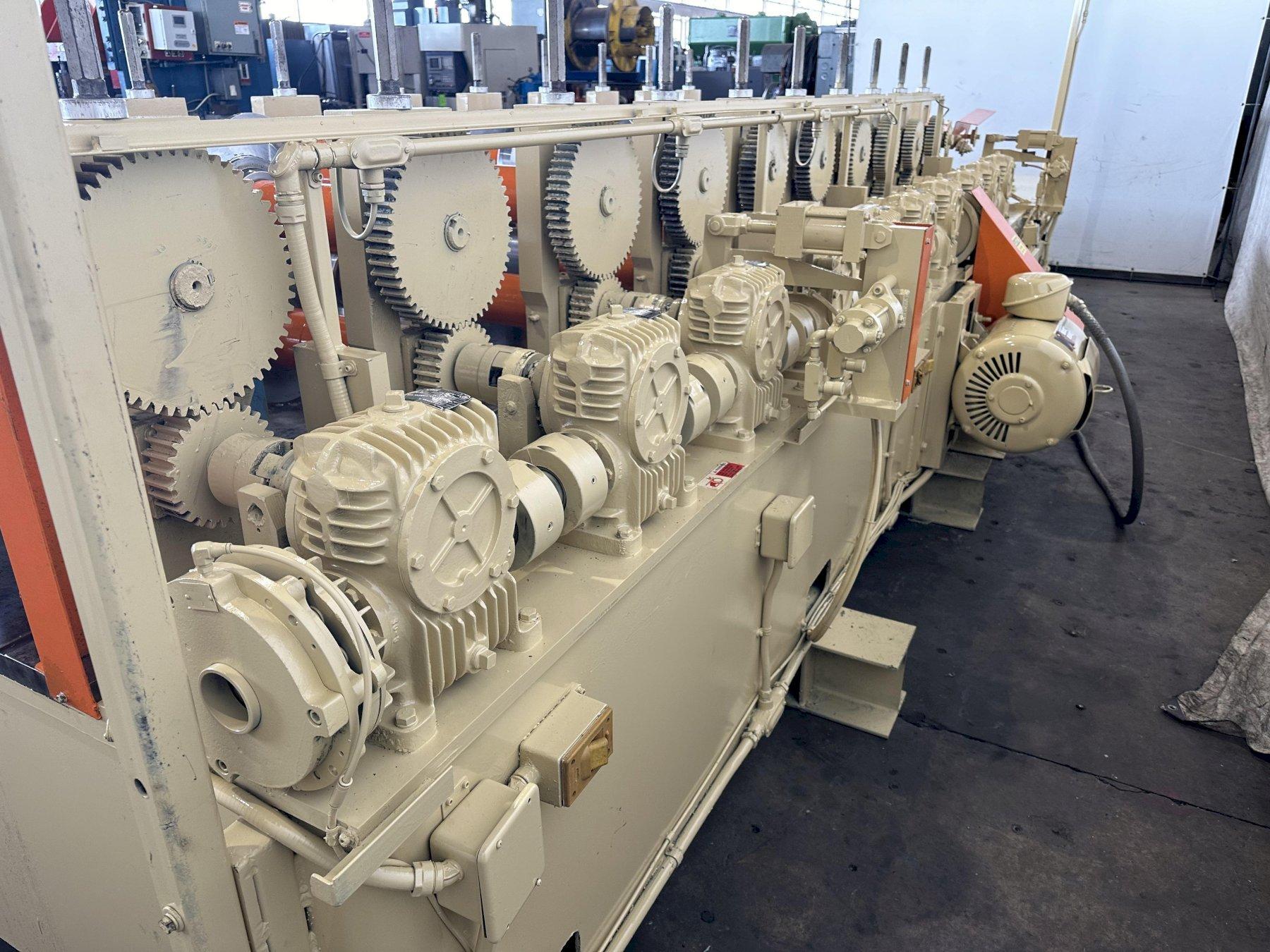

GEAR BOX RATIO................. 10:1
GEAR BOX RPM................... 1750
INCLUDES:

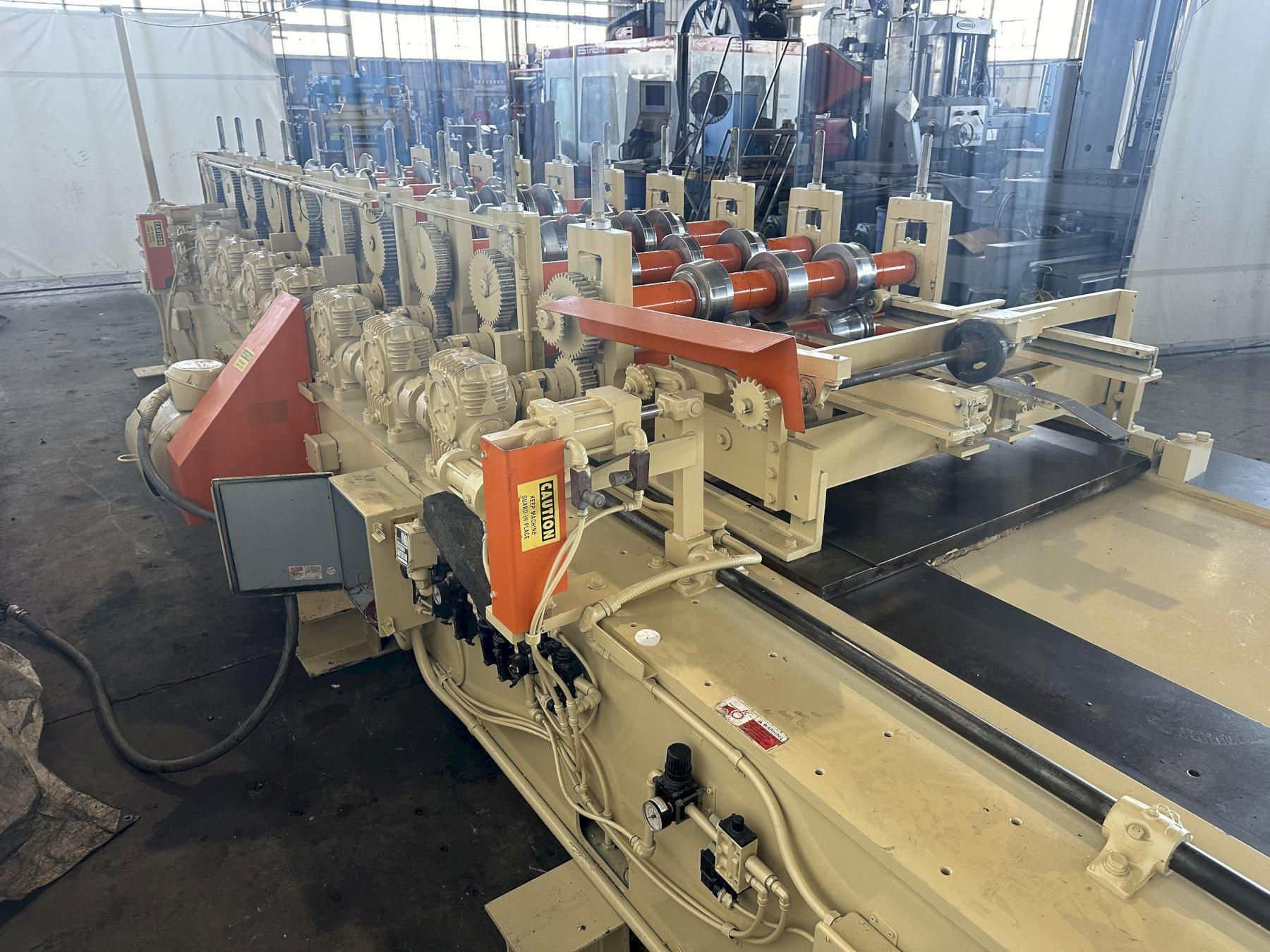

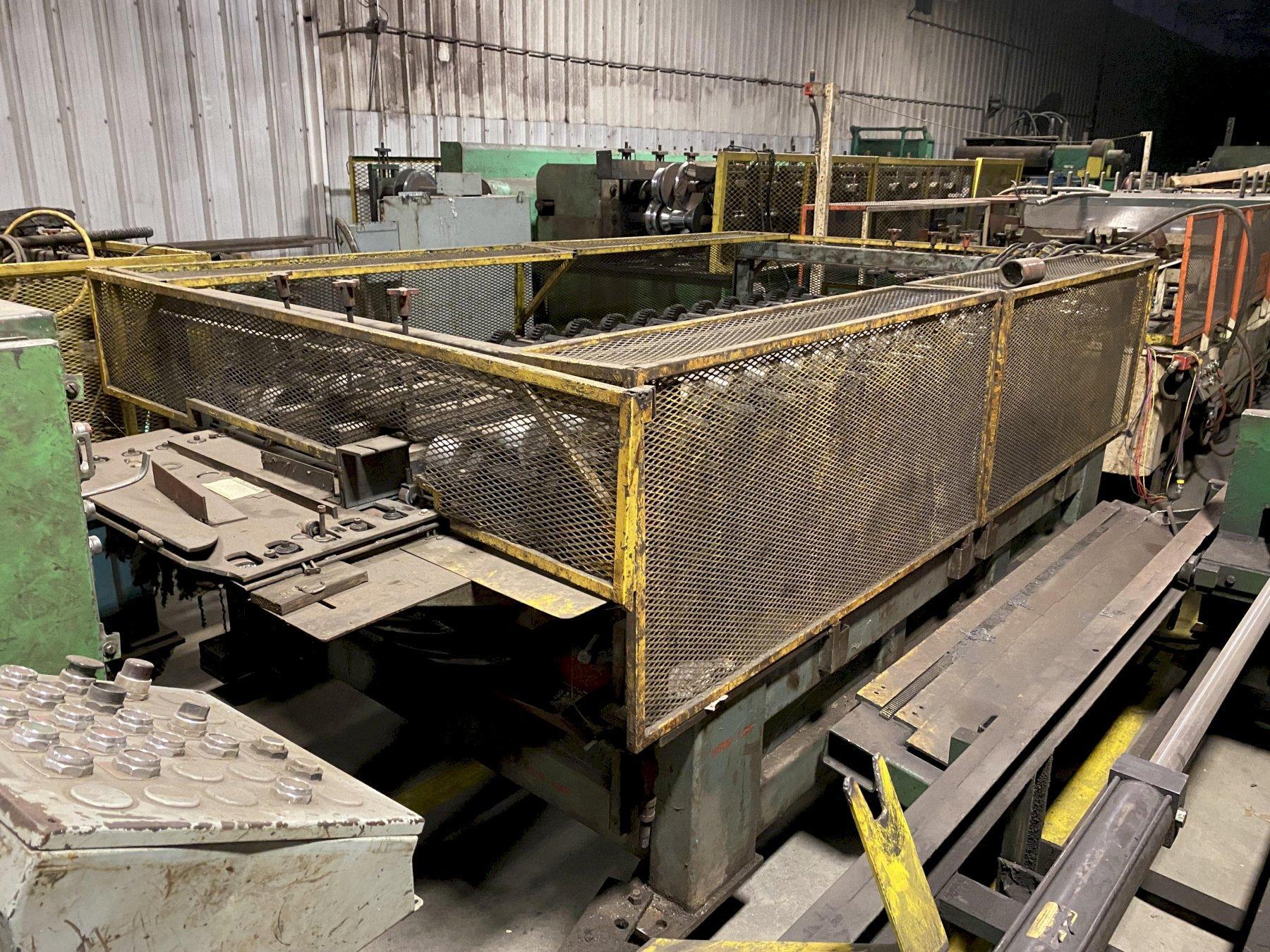

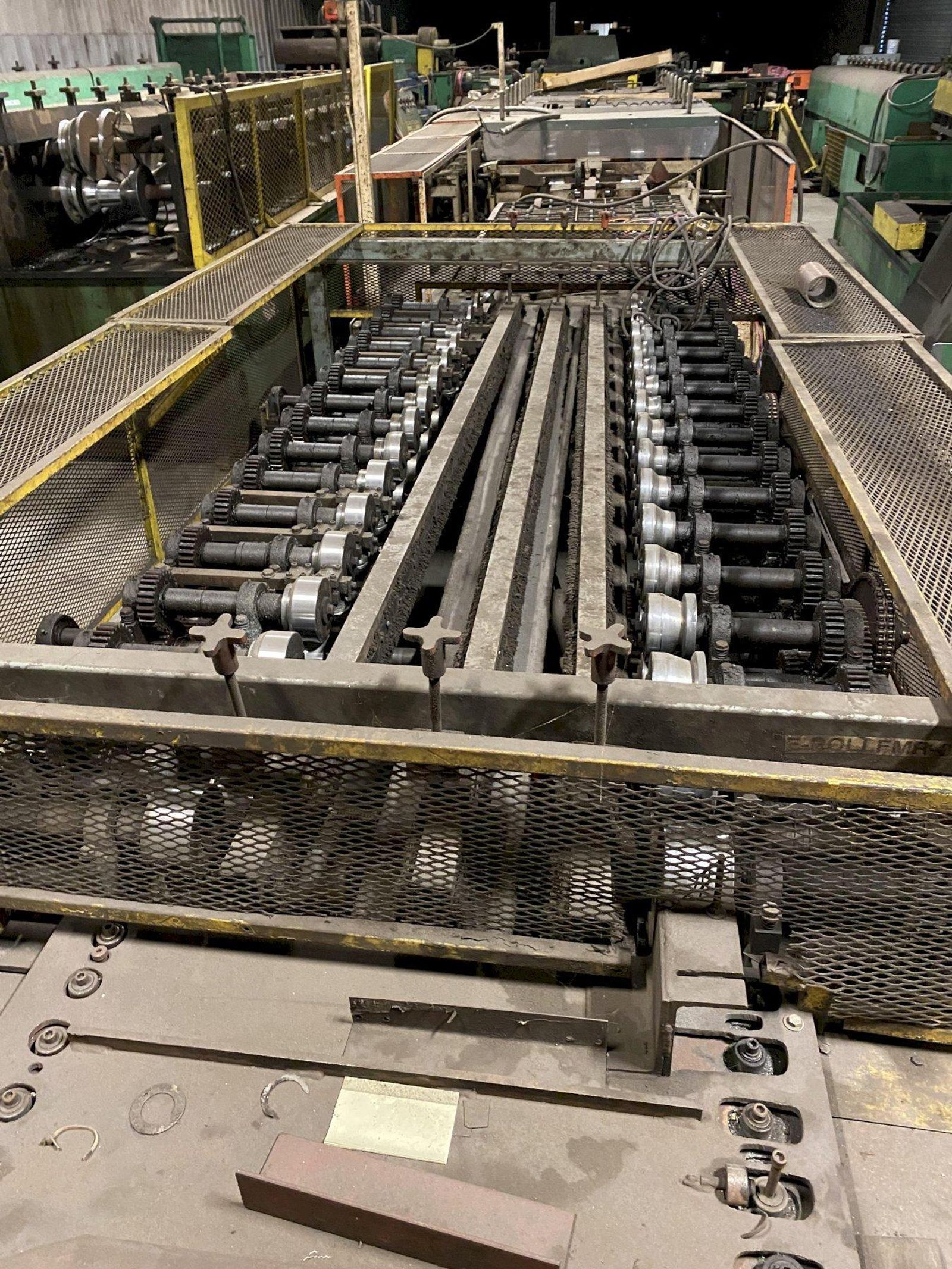

14 STAND DUPLEX LOCKFORMER SS2 LIP PROFILE
16 STAND DUPLEX LOCKFORMER L-816

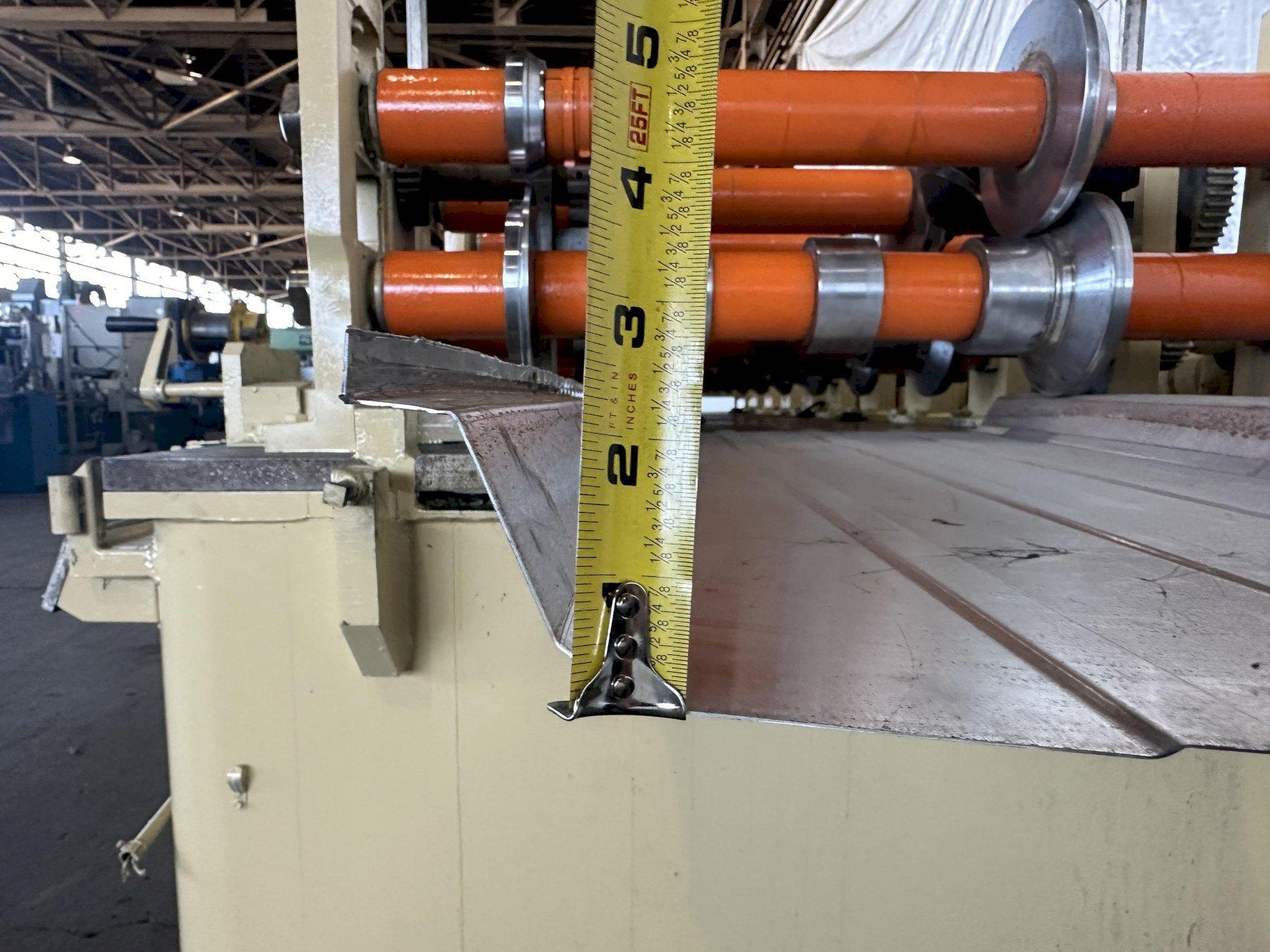

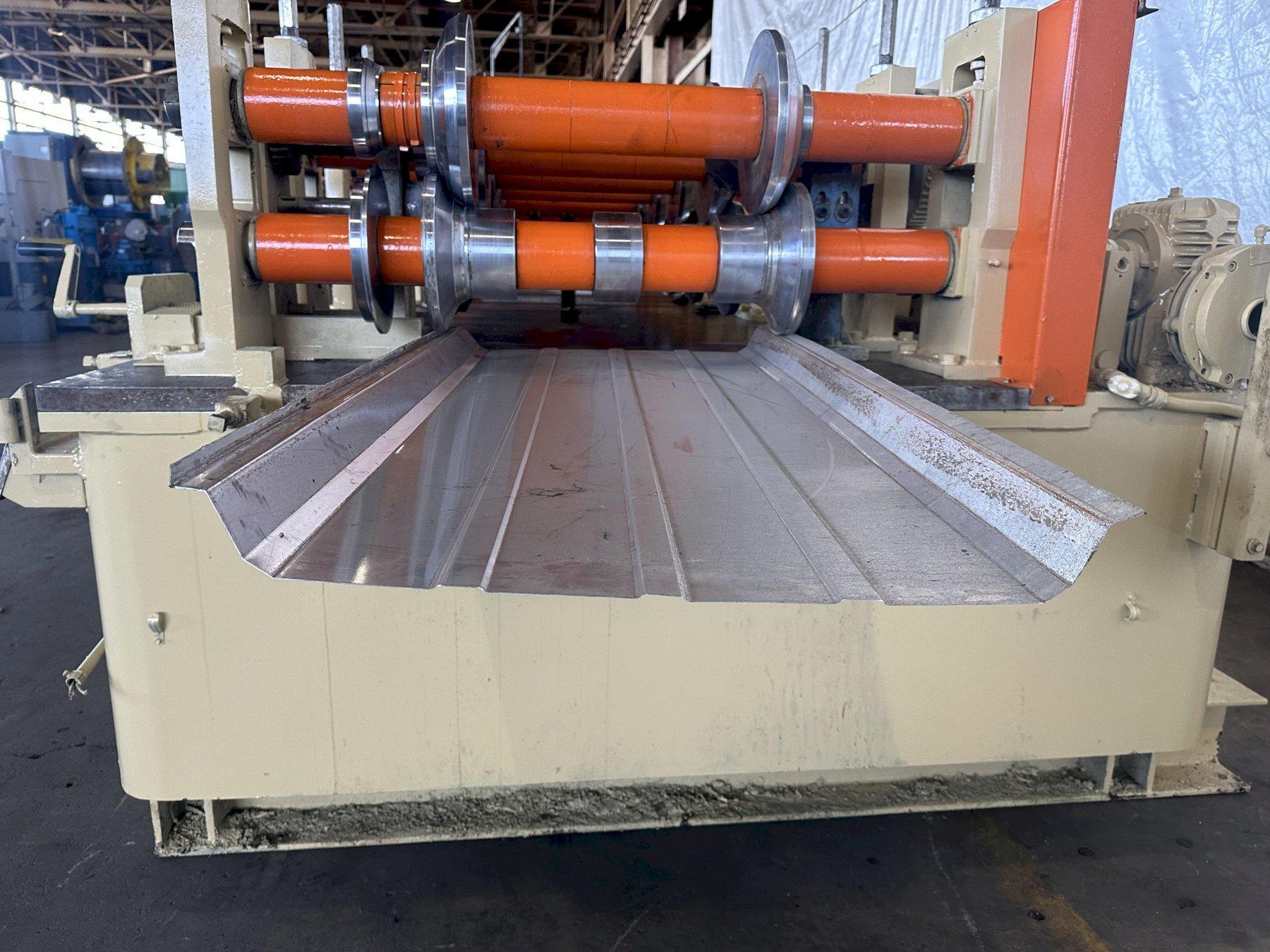

STANDING SEAM II PRODUCT DESCRIPTION:

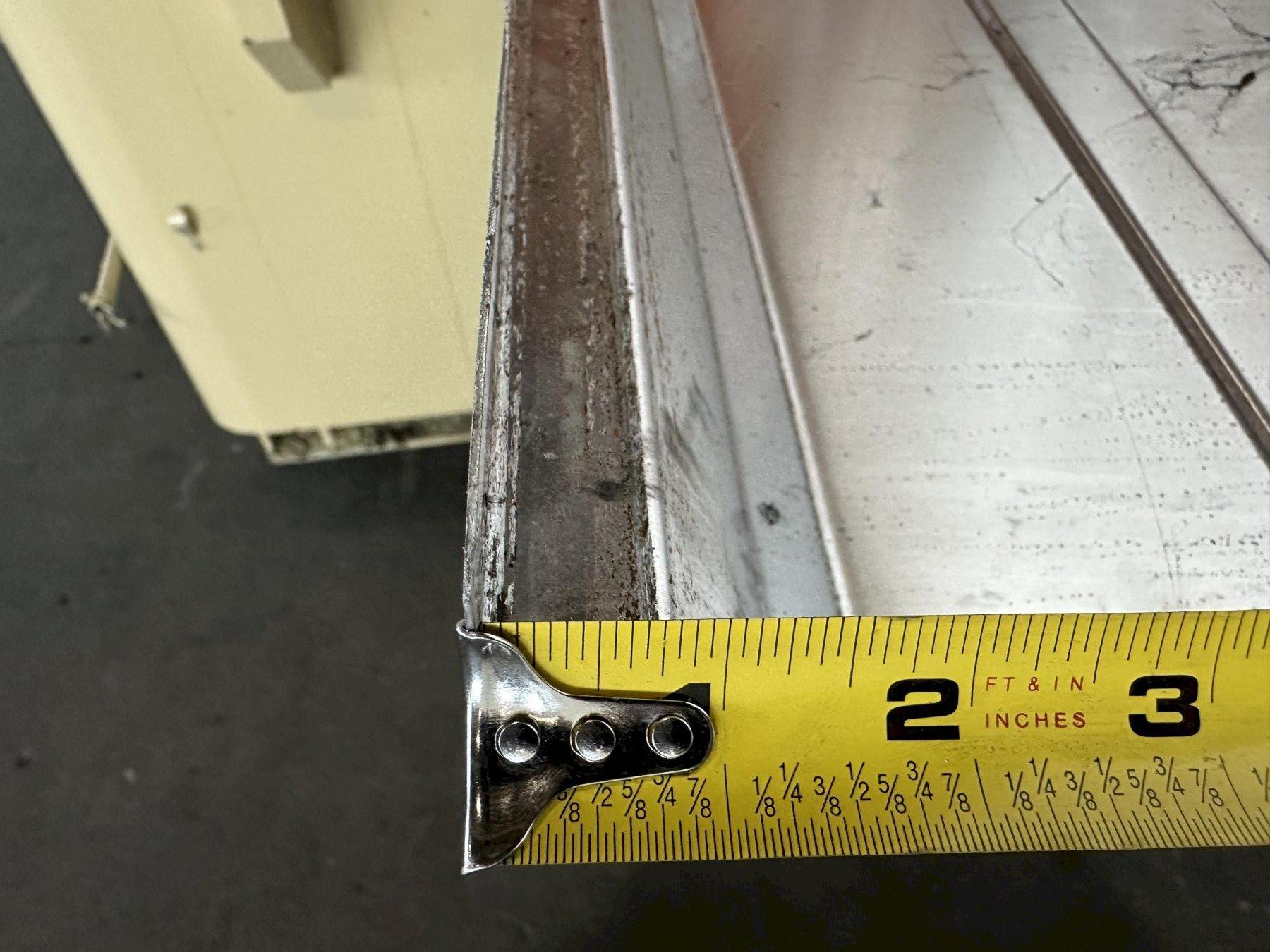

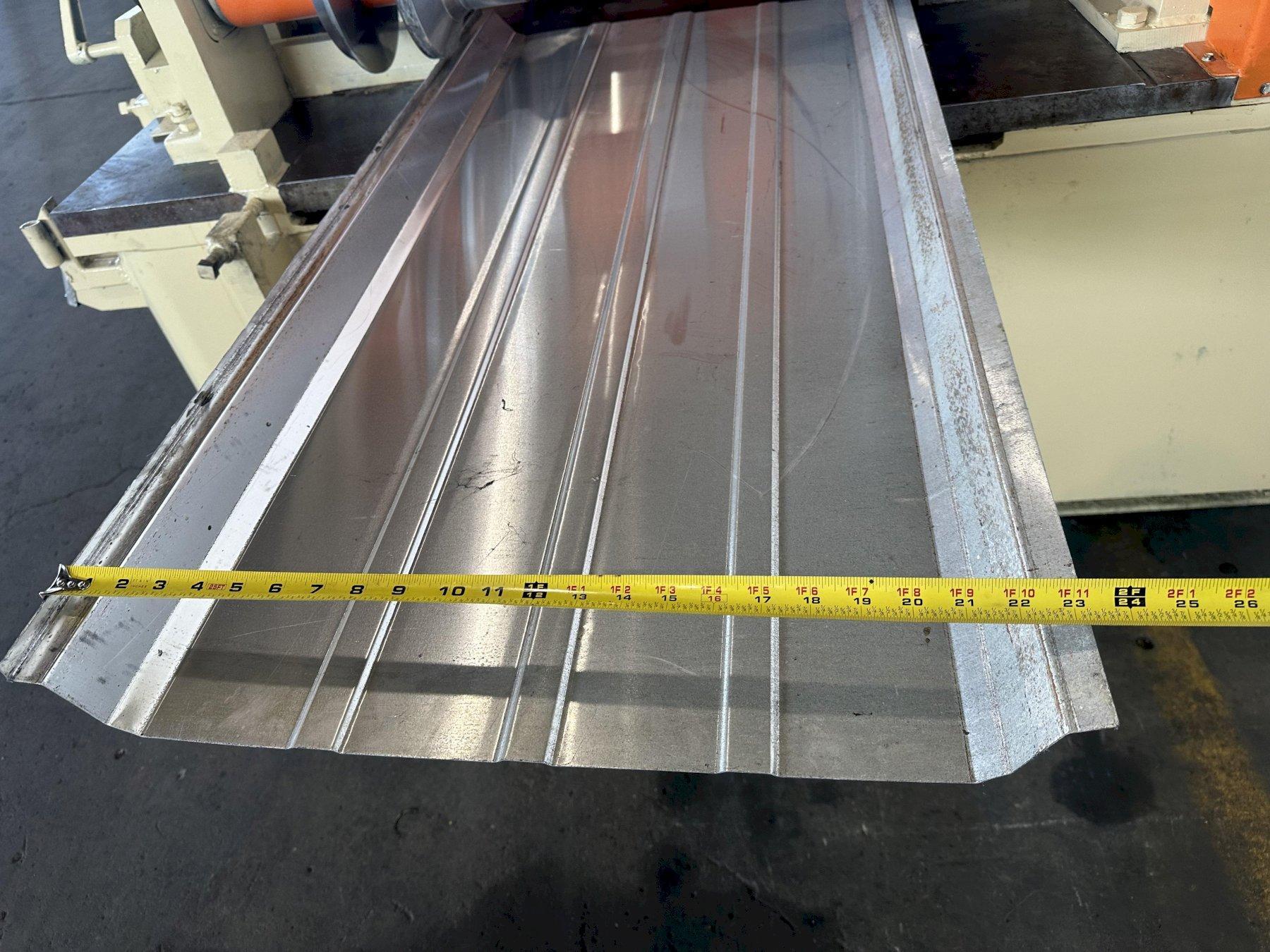

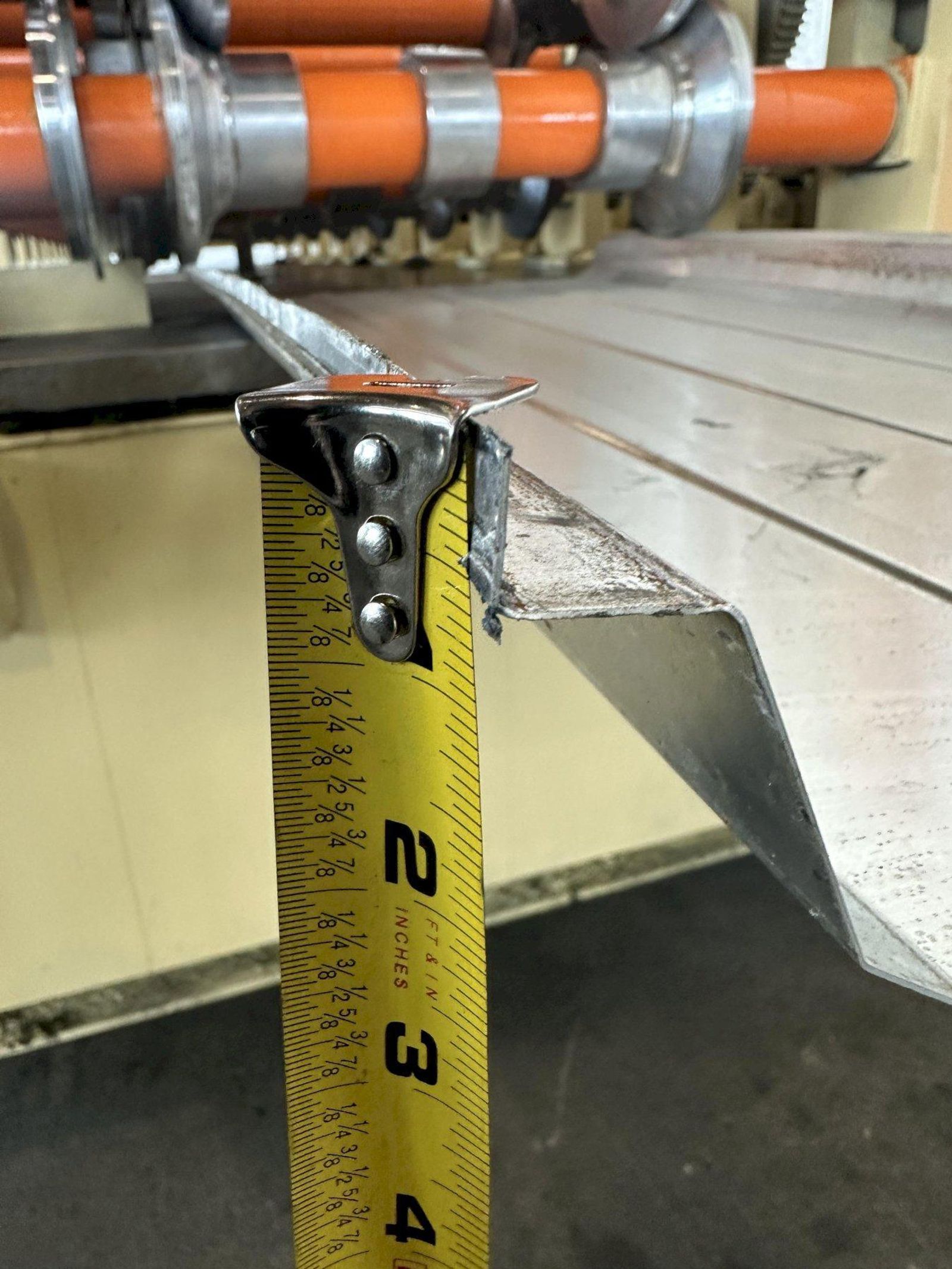

These standing seam panels float on a system of sliding clips that prevent damage from thermal expansion and contraction. Standing seam designs also eliminate 80% of the through fasteners found in other systems for greater weathertightness. Standing Seam II panels provide 24” width coverage with 2” high ribs – 3” including the seam. Minimum roof slope for the Standing Seam II roof panels is ¼ to 12. Basic Use: A roof covering system for new or retrofit construction.

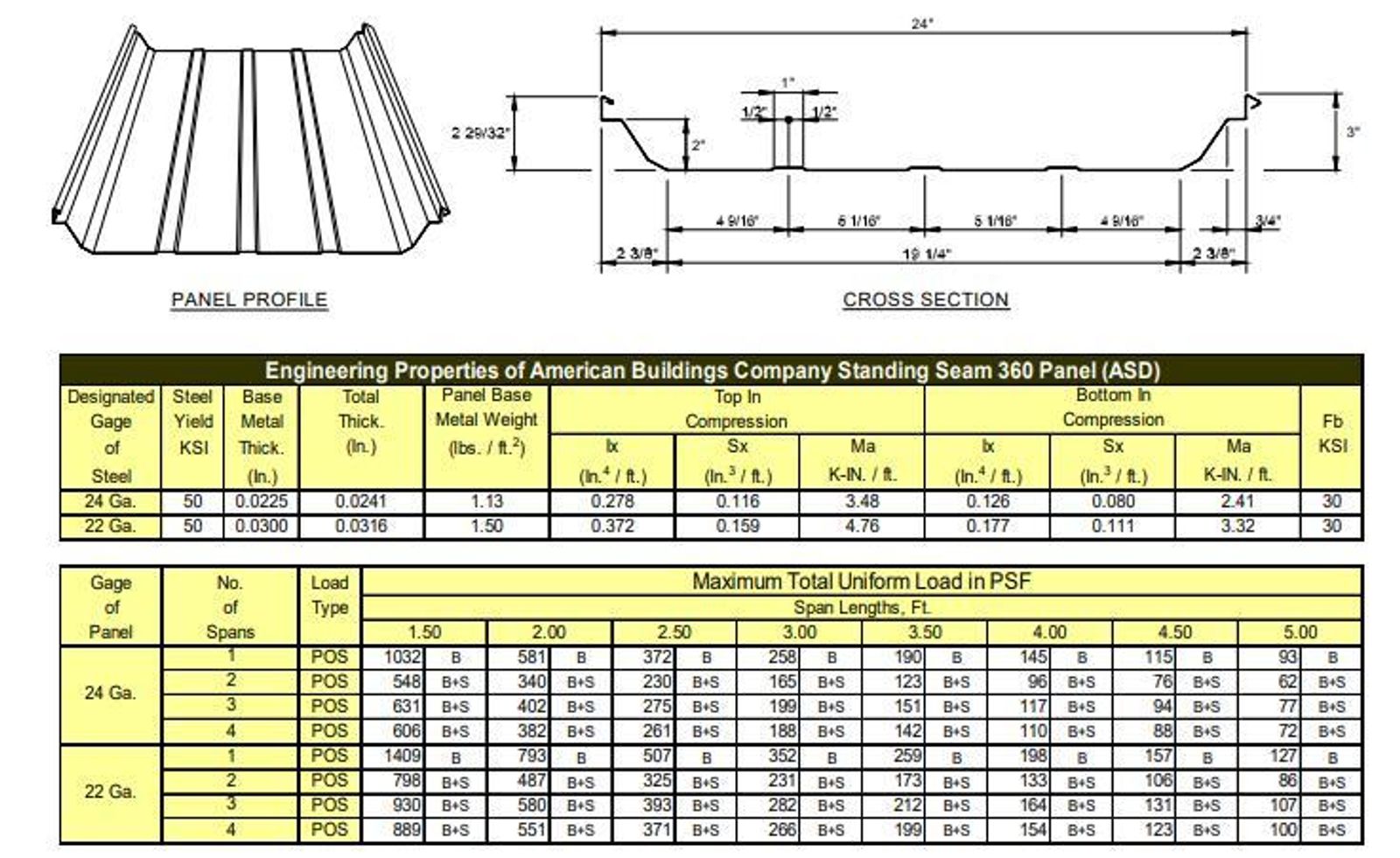

STANDING SEAM 360 PRODUCT DESCRIPTION:
These standing seam panels float on a system of sliding clips that prevent damage from thermal expansion and contraction. Standing seam designs also eliminate 80% of the through fasteners found in other systems for greater weathertightness. Standing Seam 360 panels provide 24” width coverage with 2” high ribs – 3” including the seam. Minimum roof slope for the Standing Seam 360 roof panels is ¼ to 12. Basic Use: A roof covering system for new or retrofit construction.
Brand
BRADBURY
Type
Roll Formers
Stock No.
16967
 |
