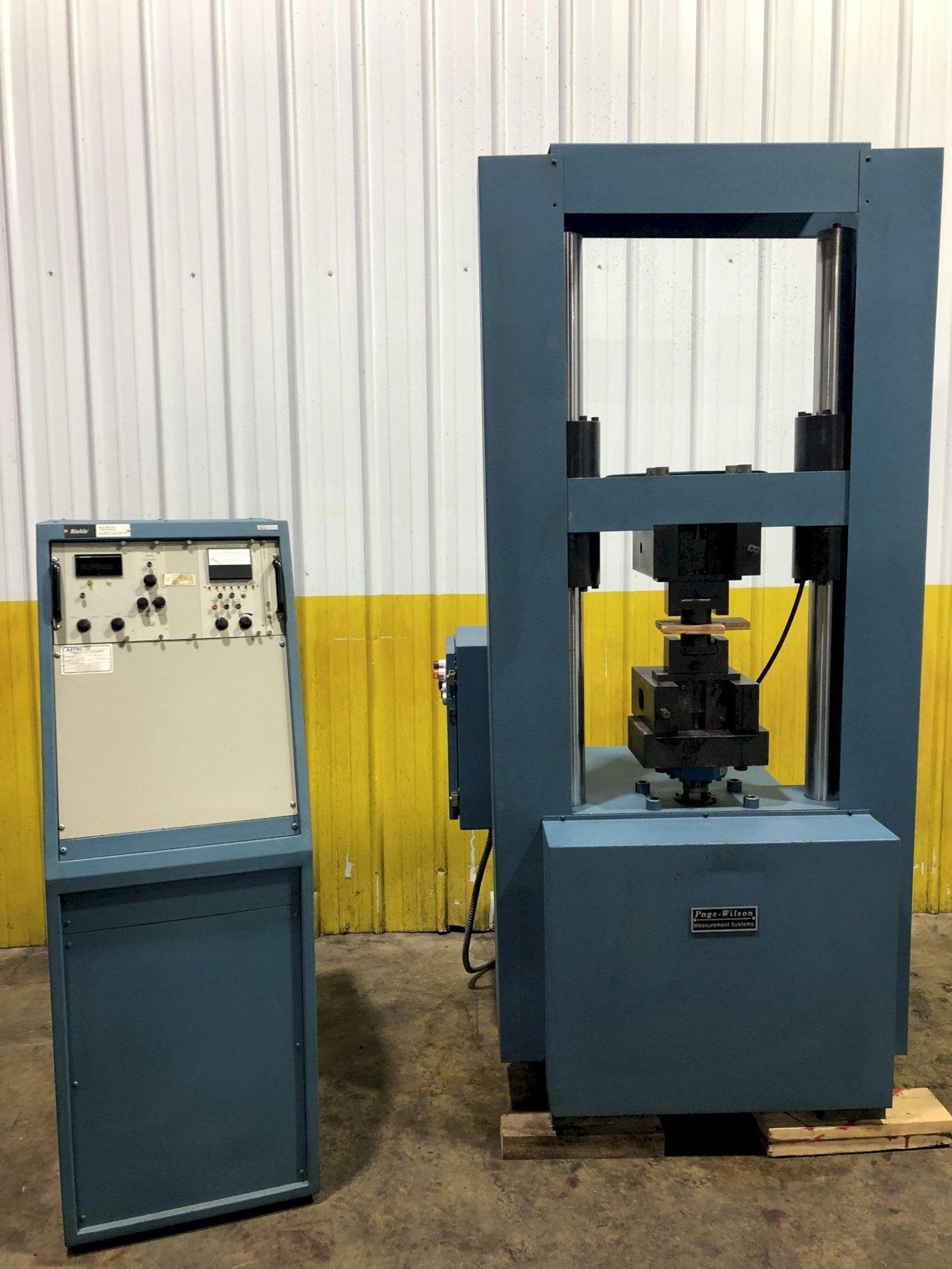

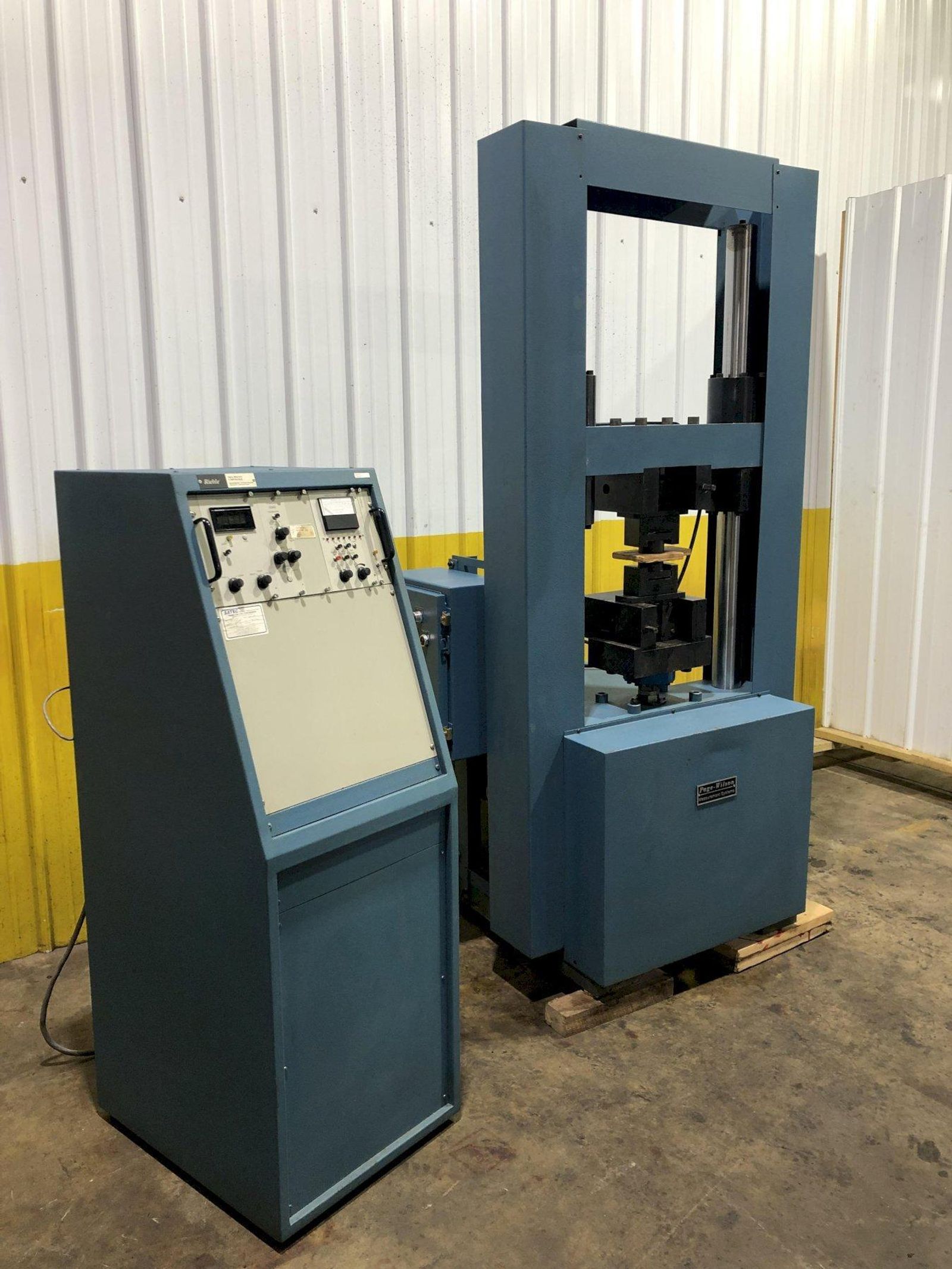

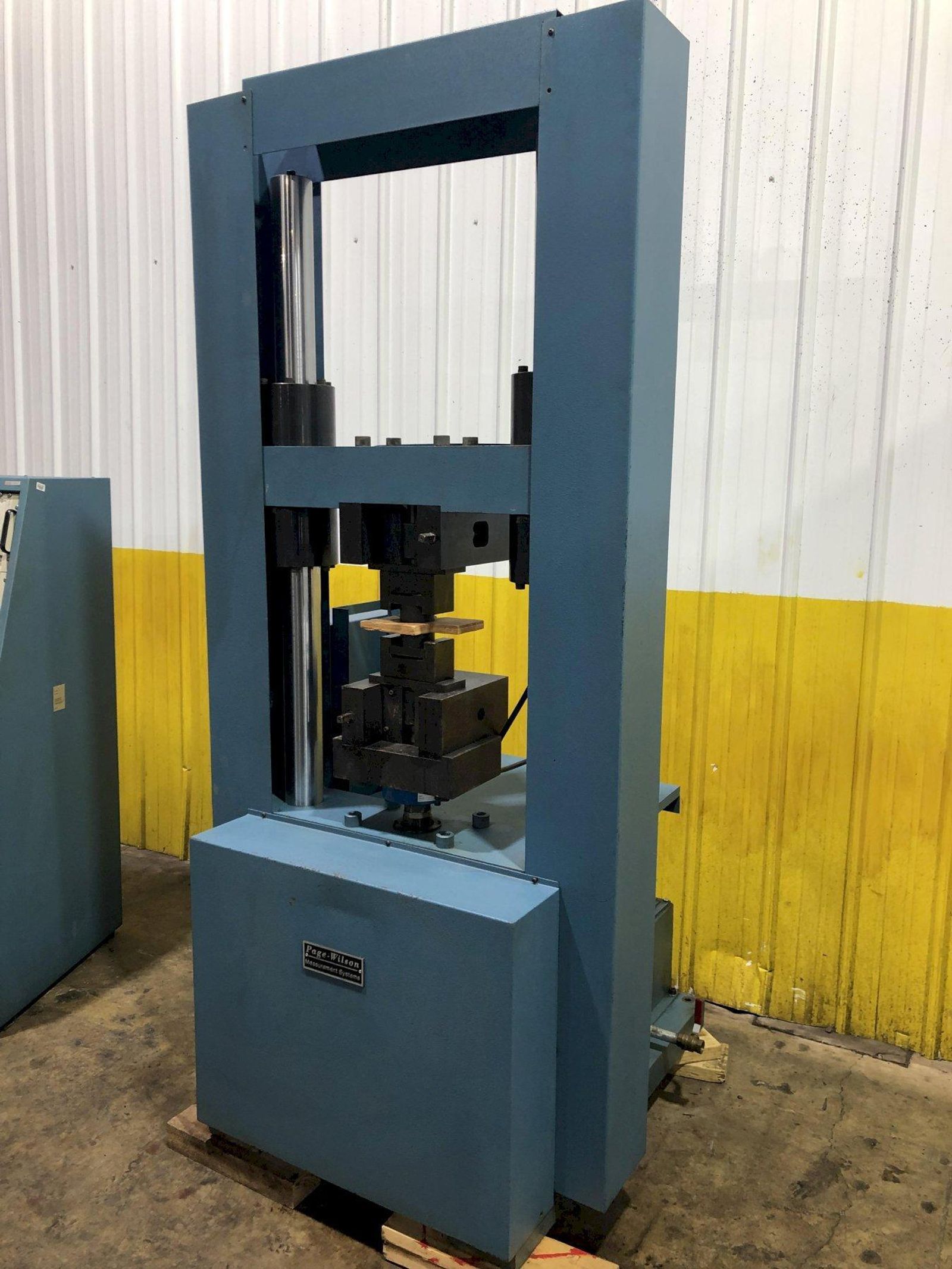

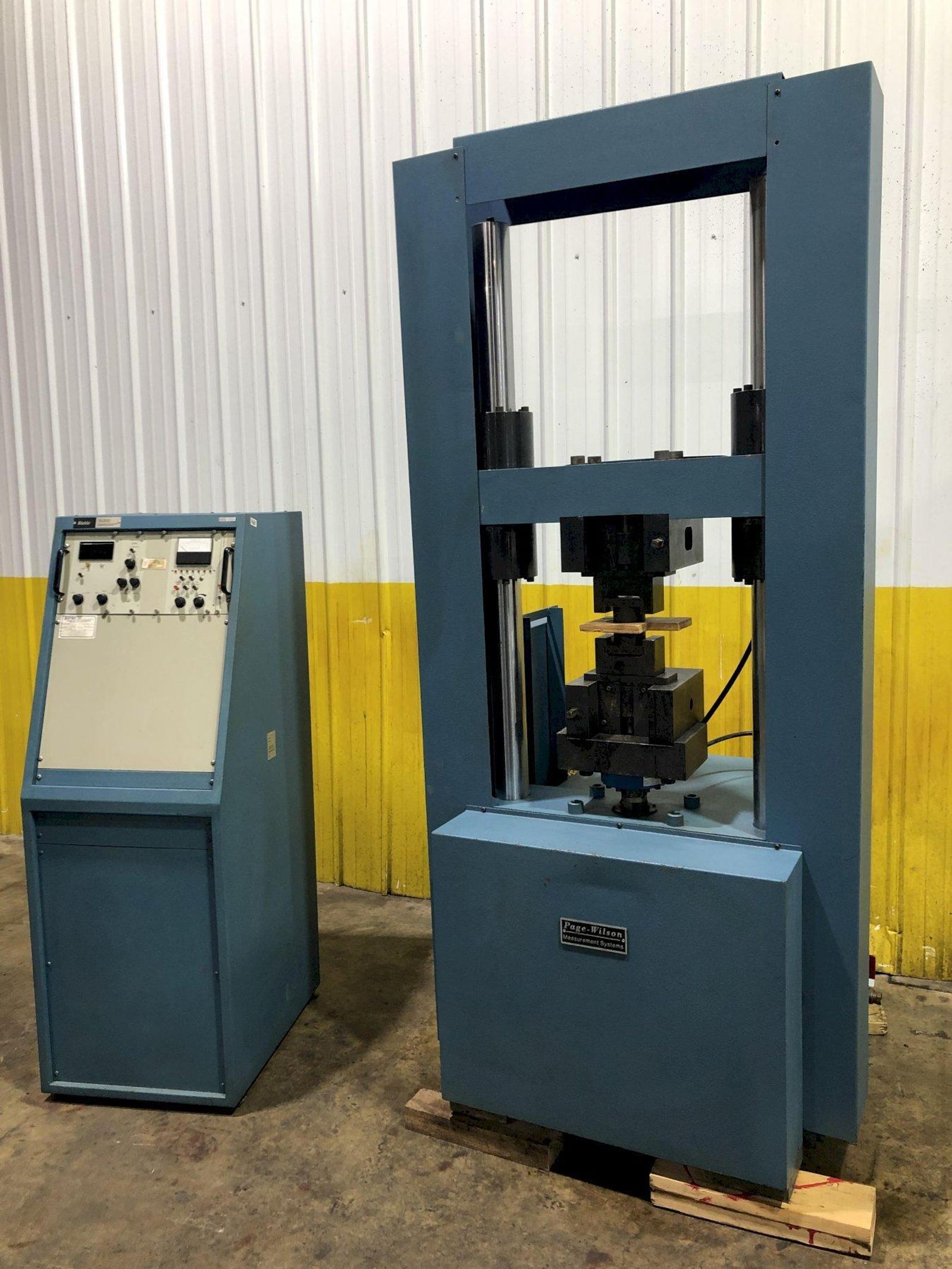

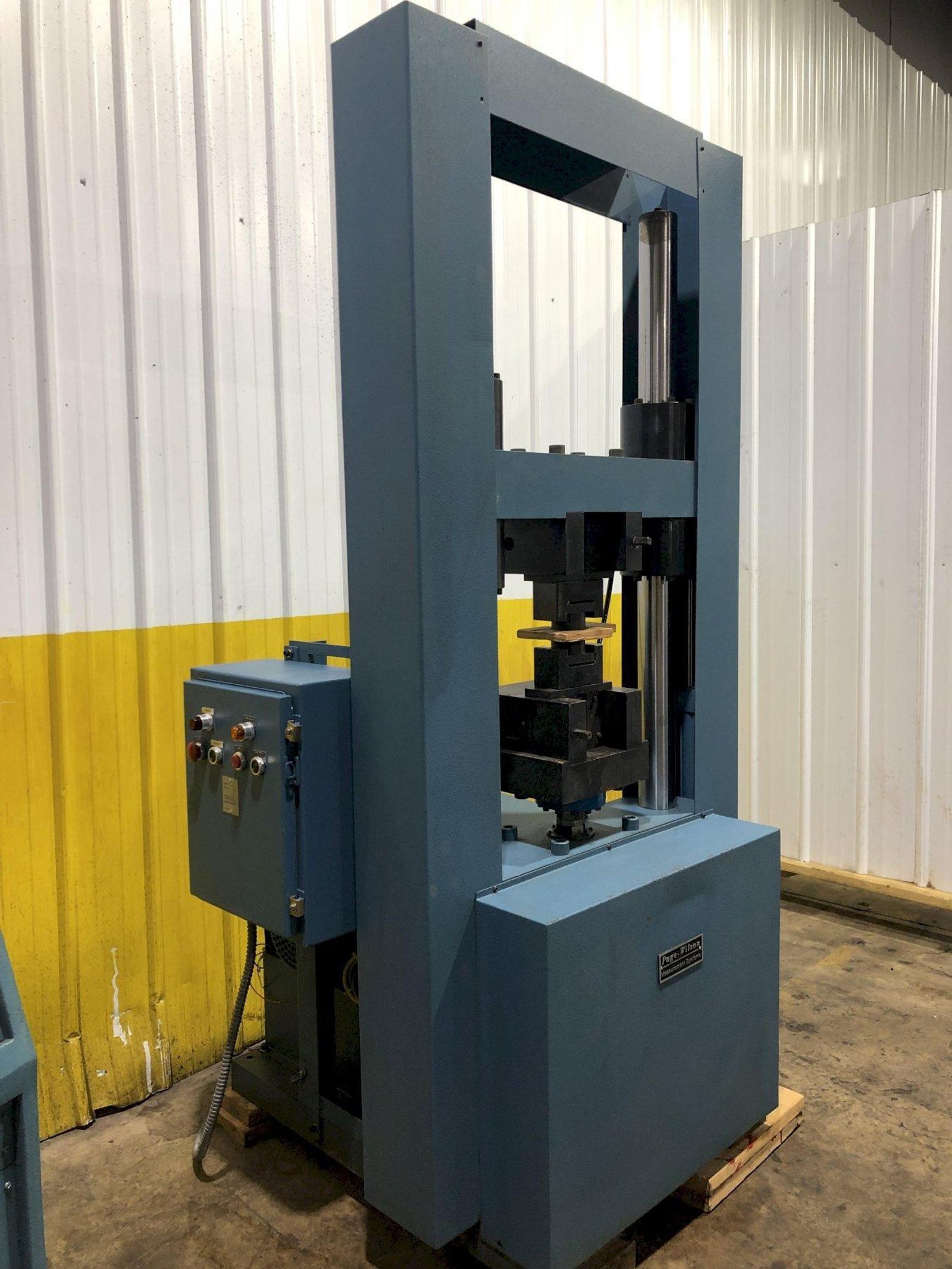

60,000 LBS RIEHLE MODEL #60-HD SERIES UNIVERSAL HYDRAULIC TESTER: STOCK #16726

Overview

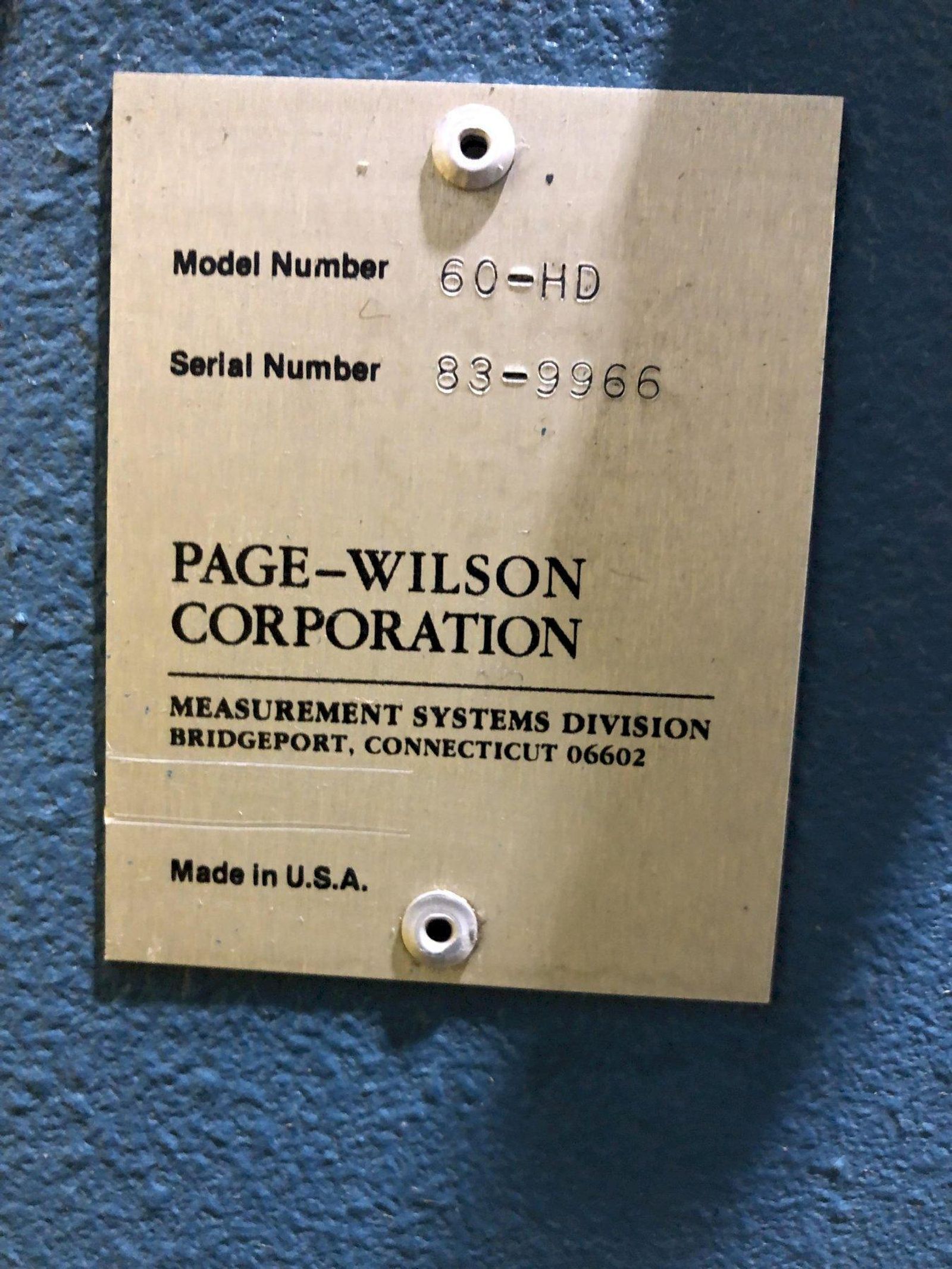

SERIAL ............................ 83-9966
MODEL ............................. 60-HD-22
LOAD FORCE CAPACITY ............... 60,000 LB
TESTING ........................... TENSION, COMPRESSON, TRANSVERSE
LOAD READ OUT ..................... DIGITAL INDICATOR
LOAD SIGNAL CONDITIONER ........... YES
OPERATORS PANEL ................... YES

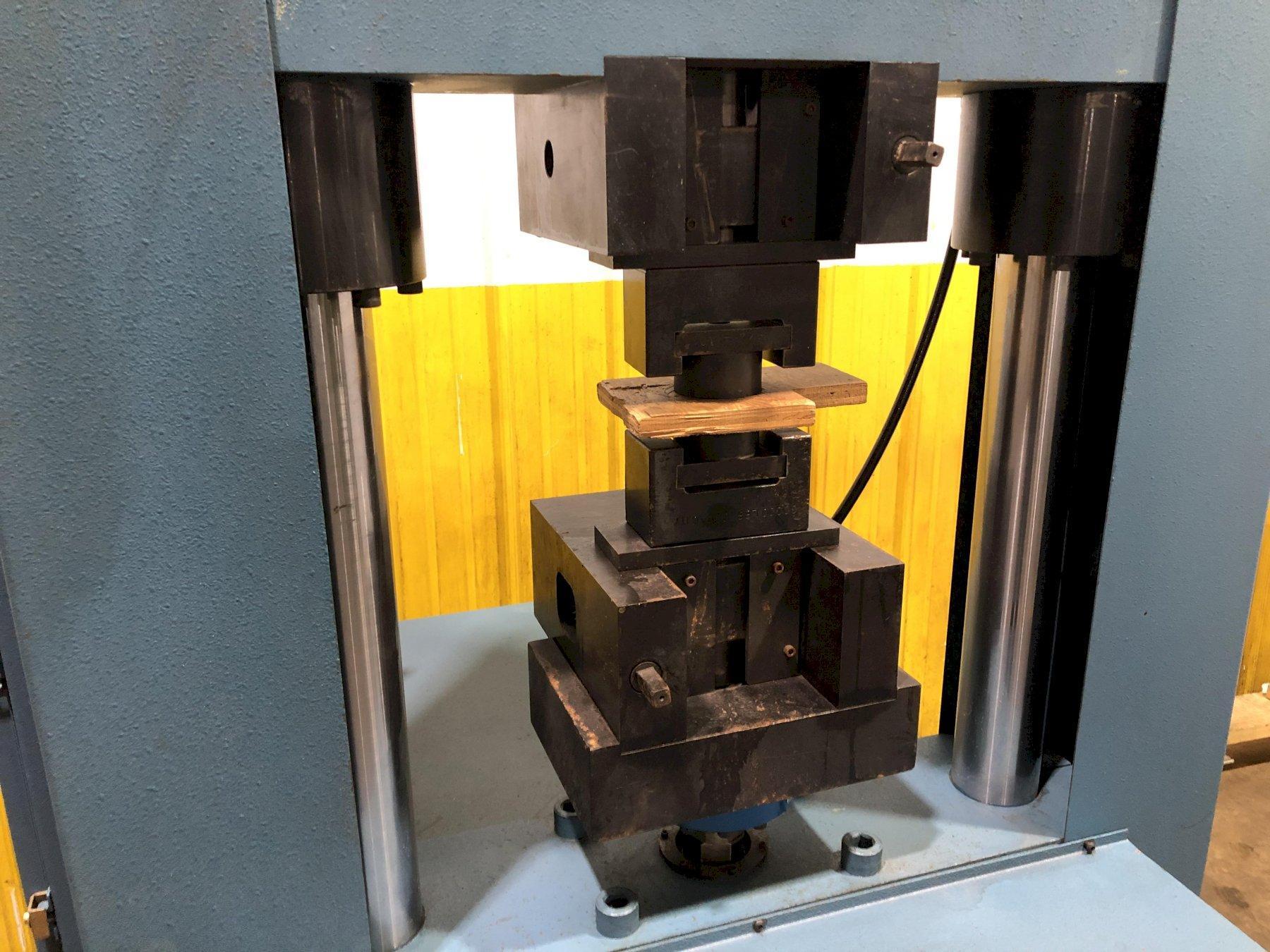

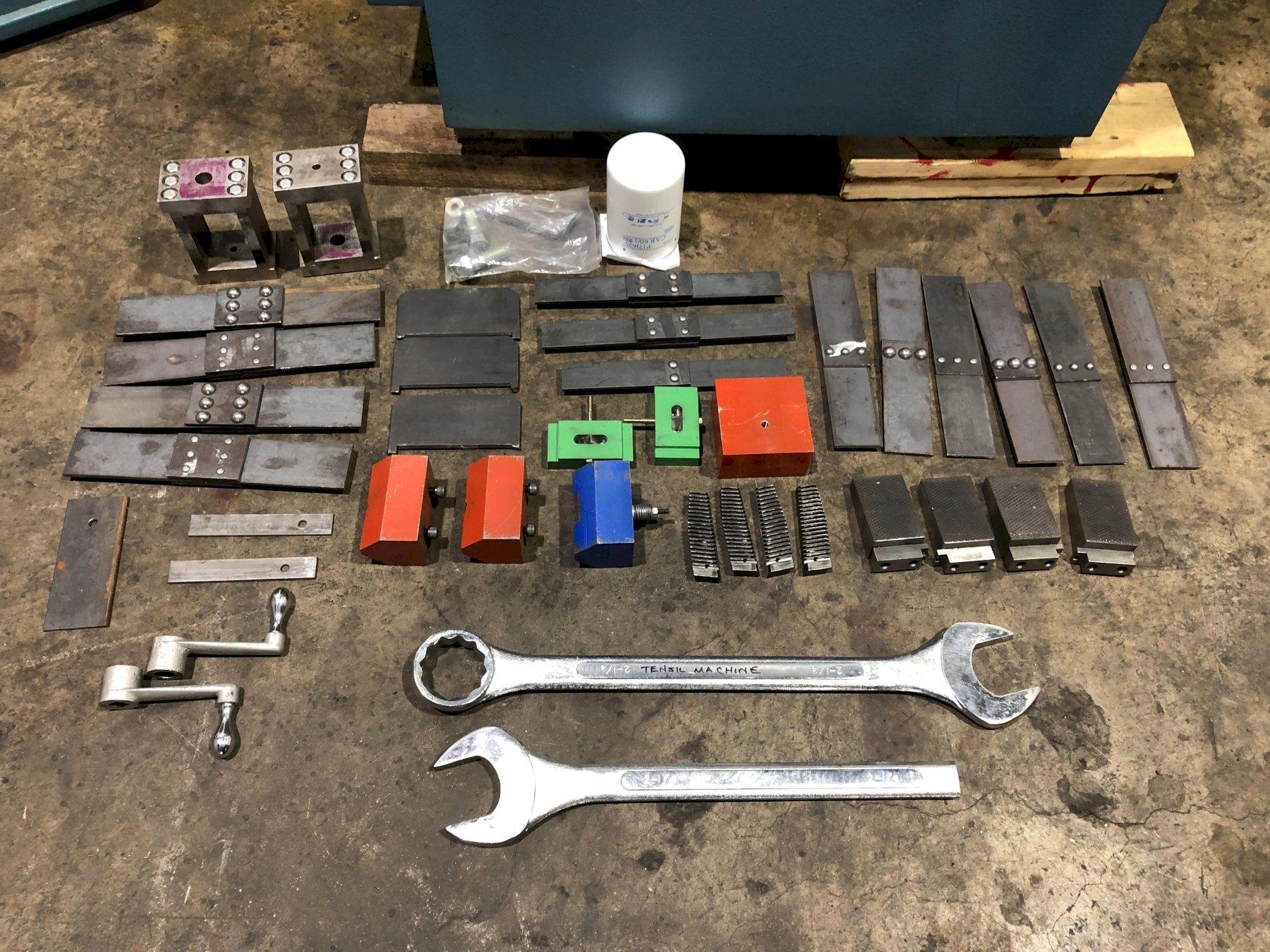

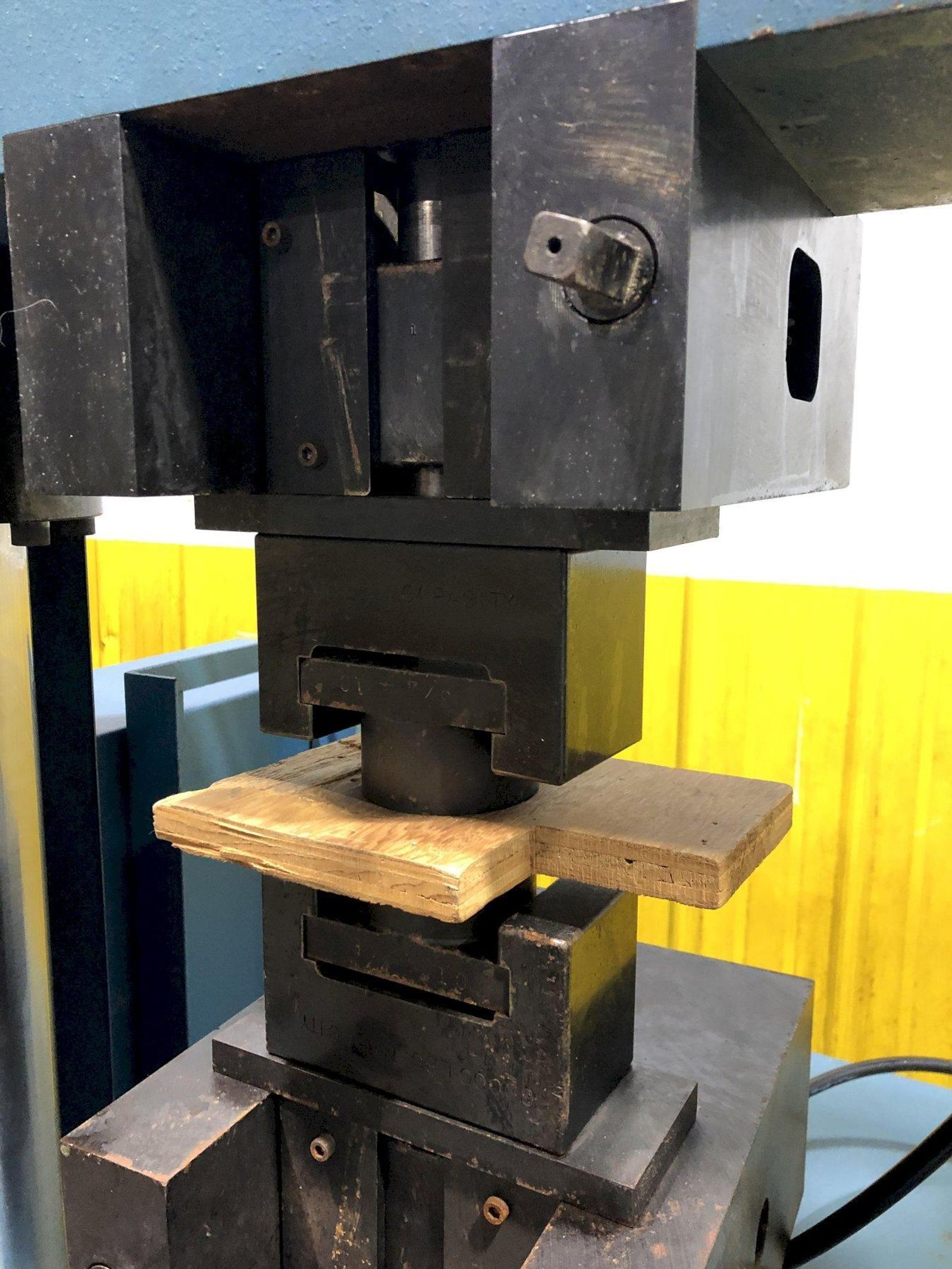

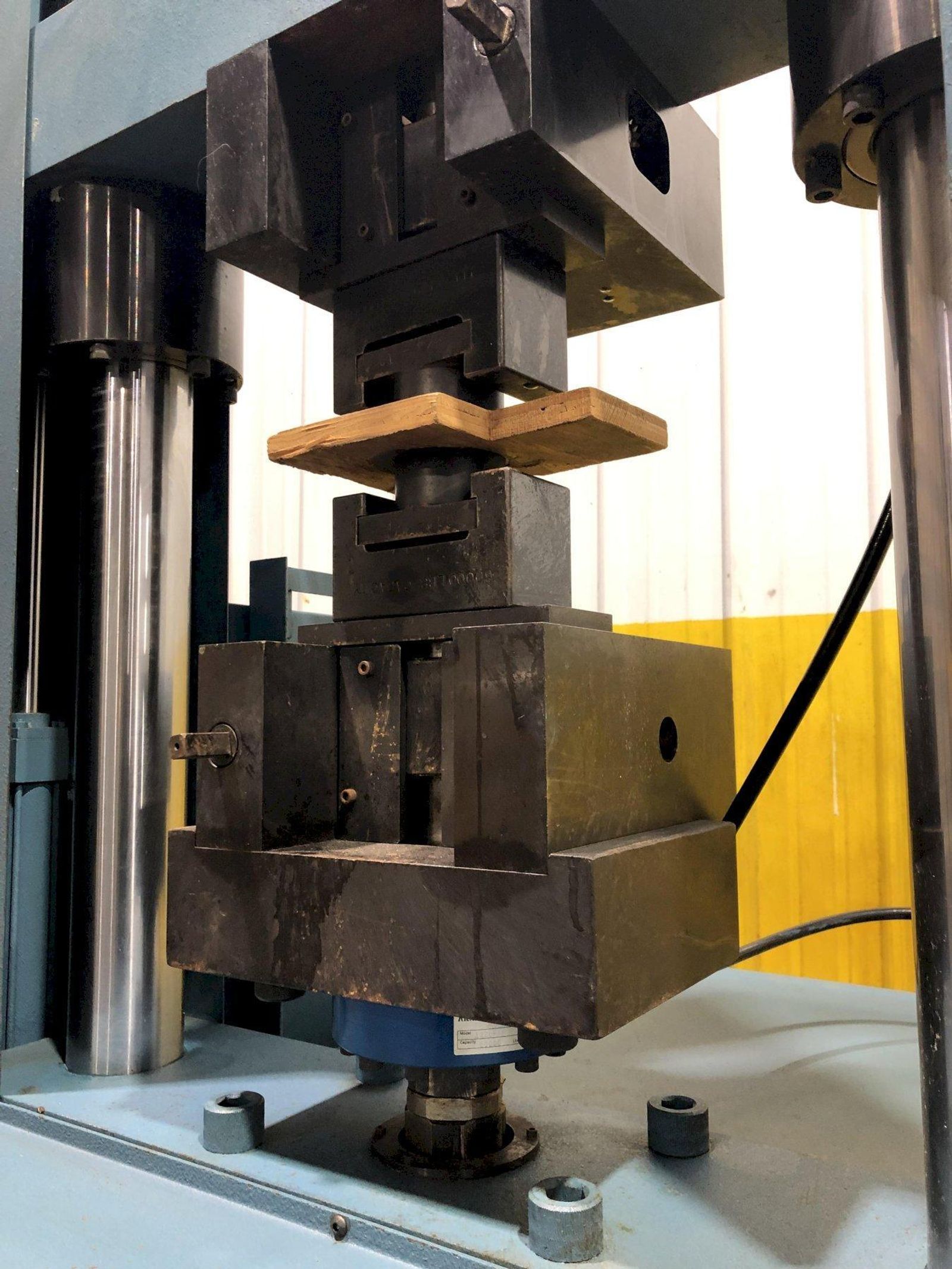

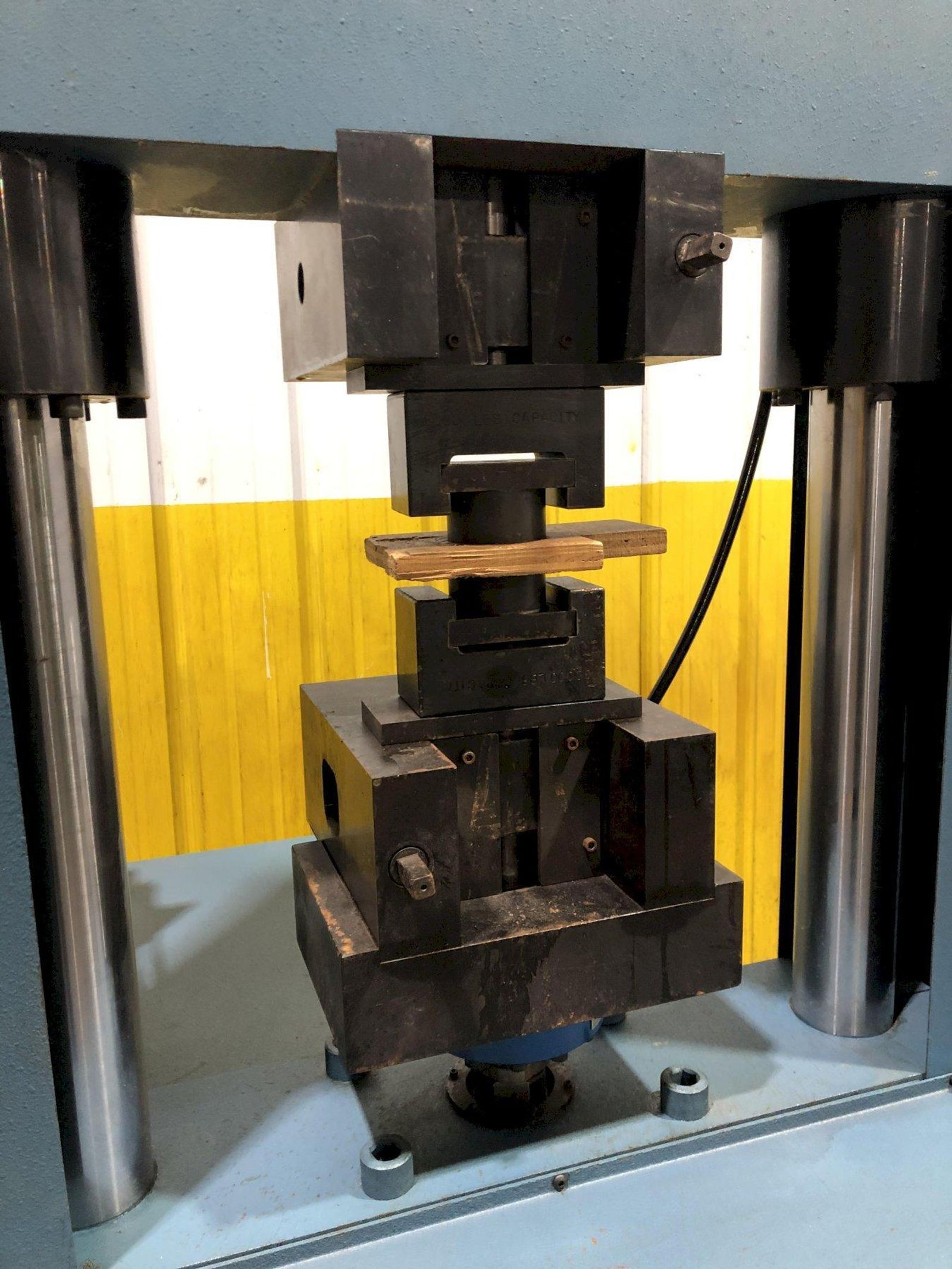

GRIPS ............................. TOP & BOTTOM
COMPRESSION SPACE ................. 26" W/O FIXTURES
TENSION SPECIMAN .................. 32" MAXIMUM

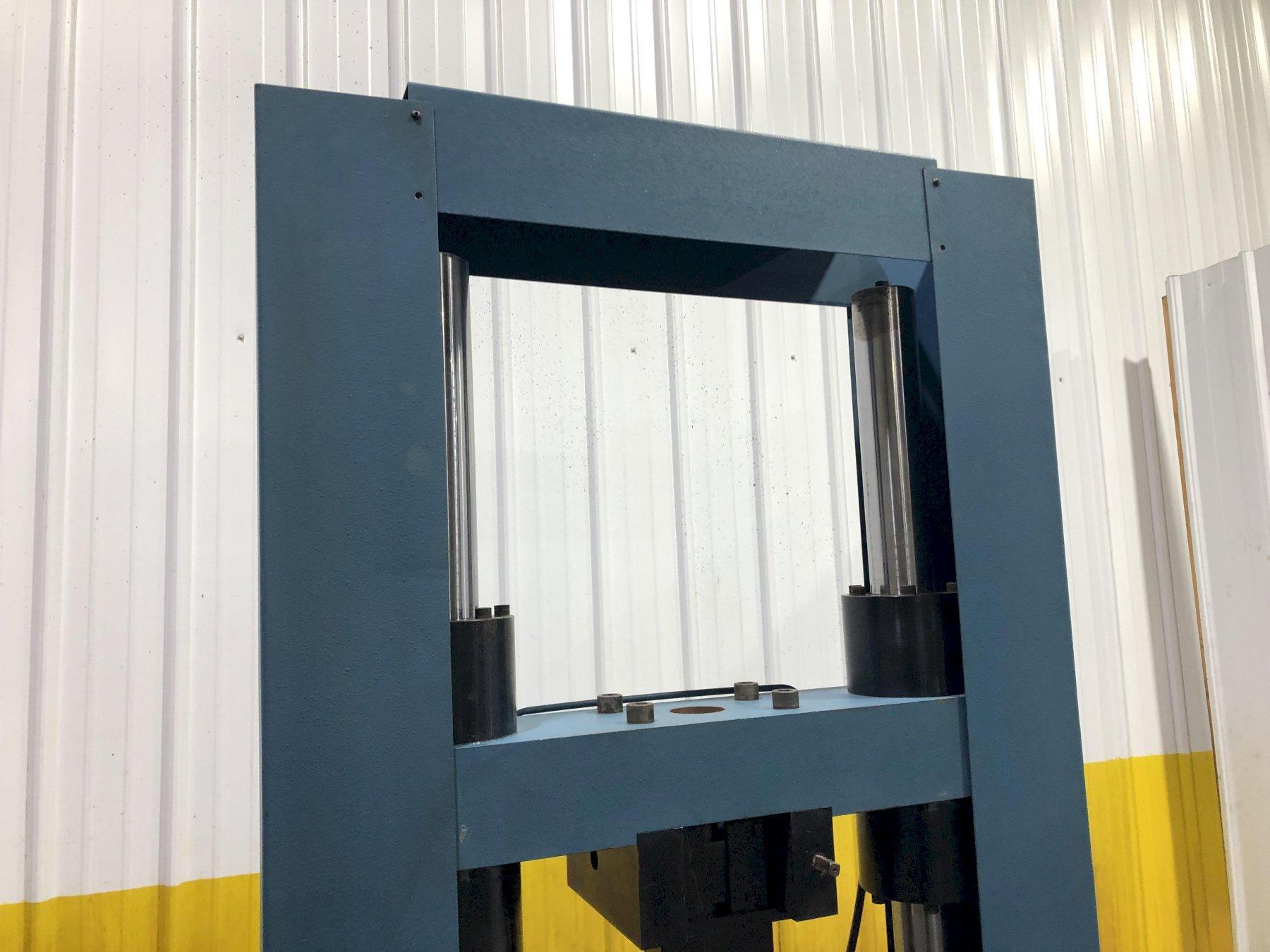

LOAD COLUMNS ...................... 2
HORIZONAL CLEARANCE ............... 22"

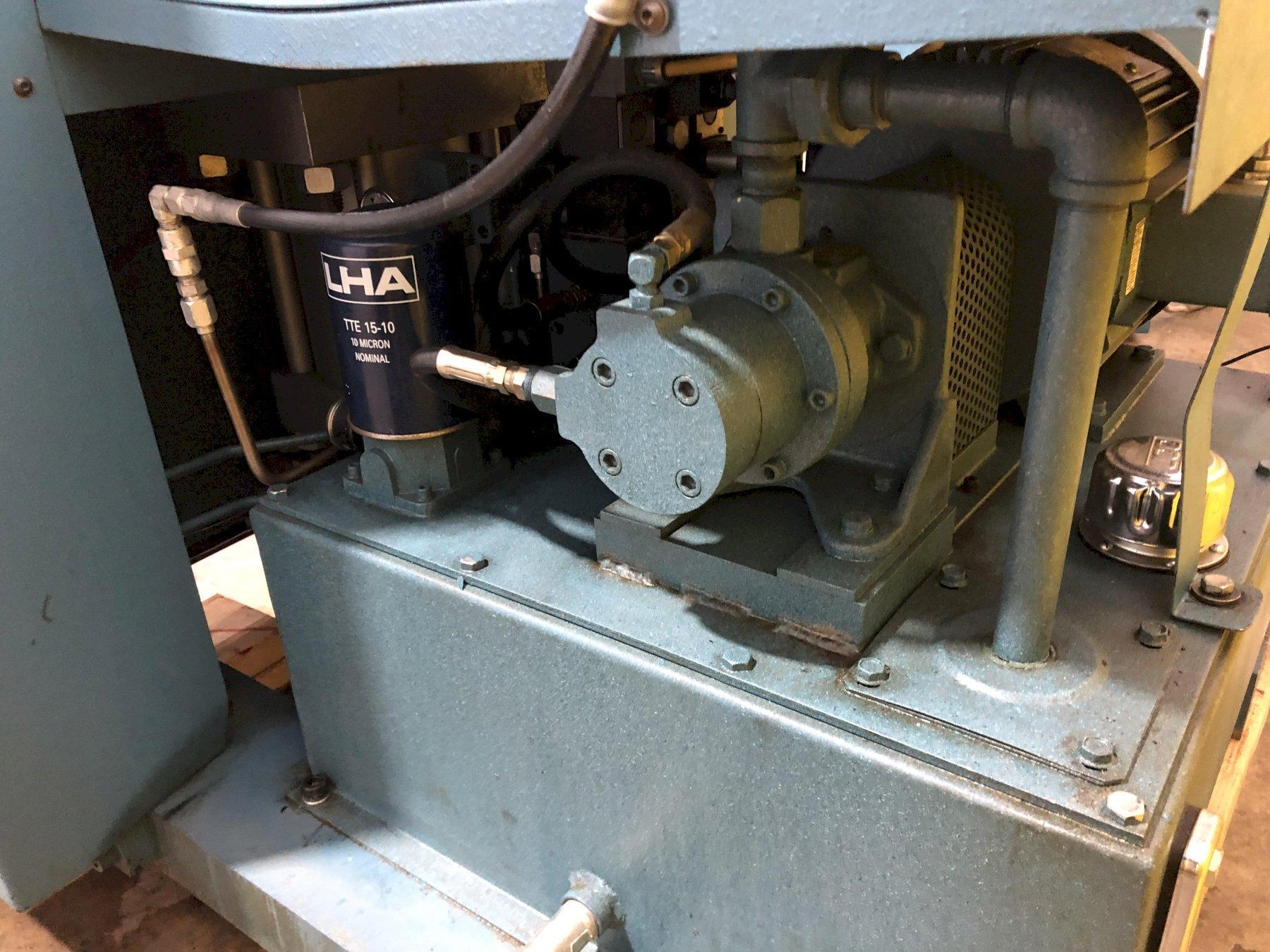

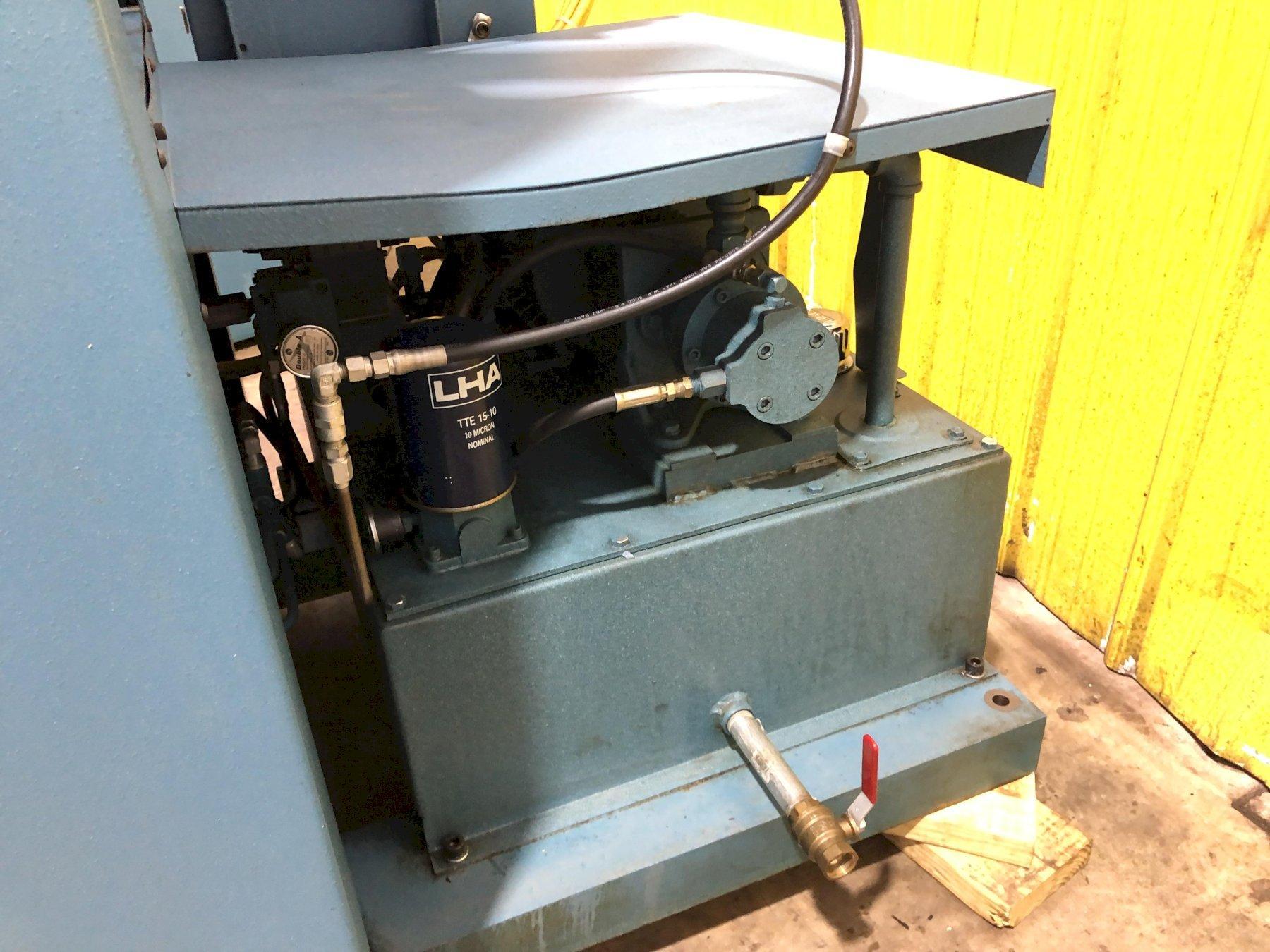

HYDRAULIC LOADING STROKE .......... 6"
UPPER CROSSHEAD ADJUSTMENT SPEED .. 15 IPM

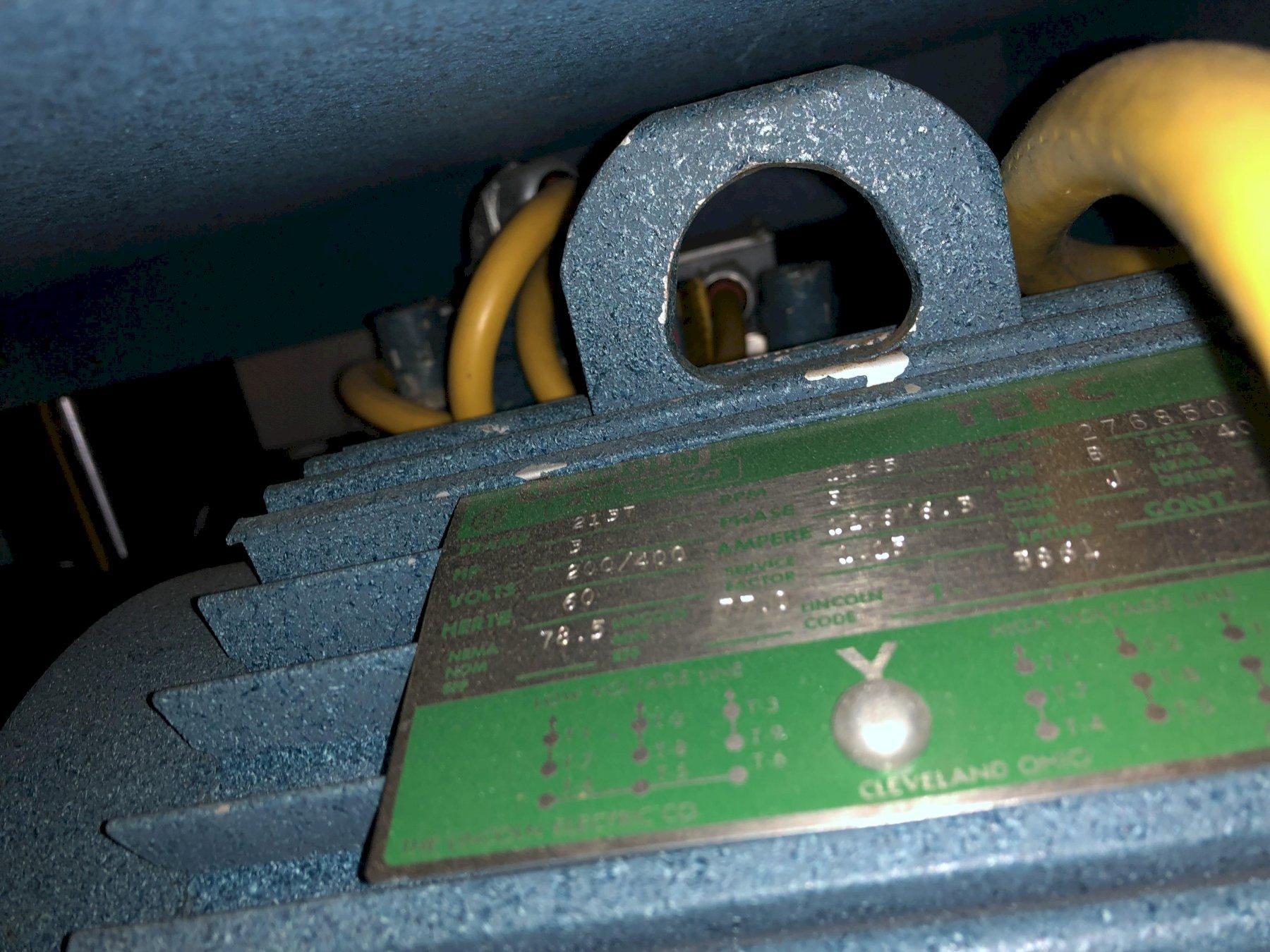

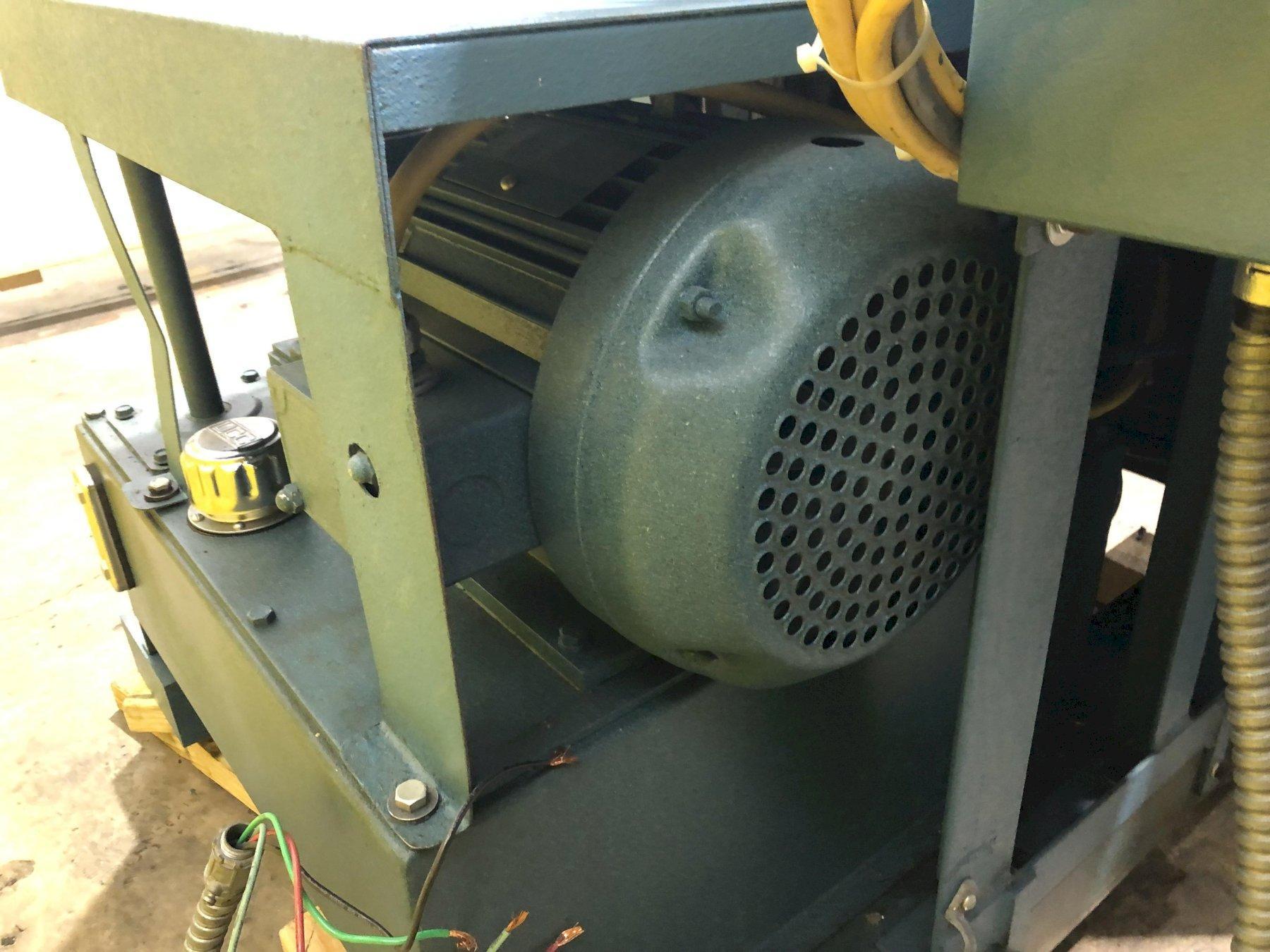

HORSEPOWER ........................ 3

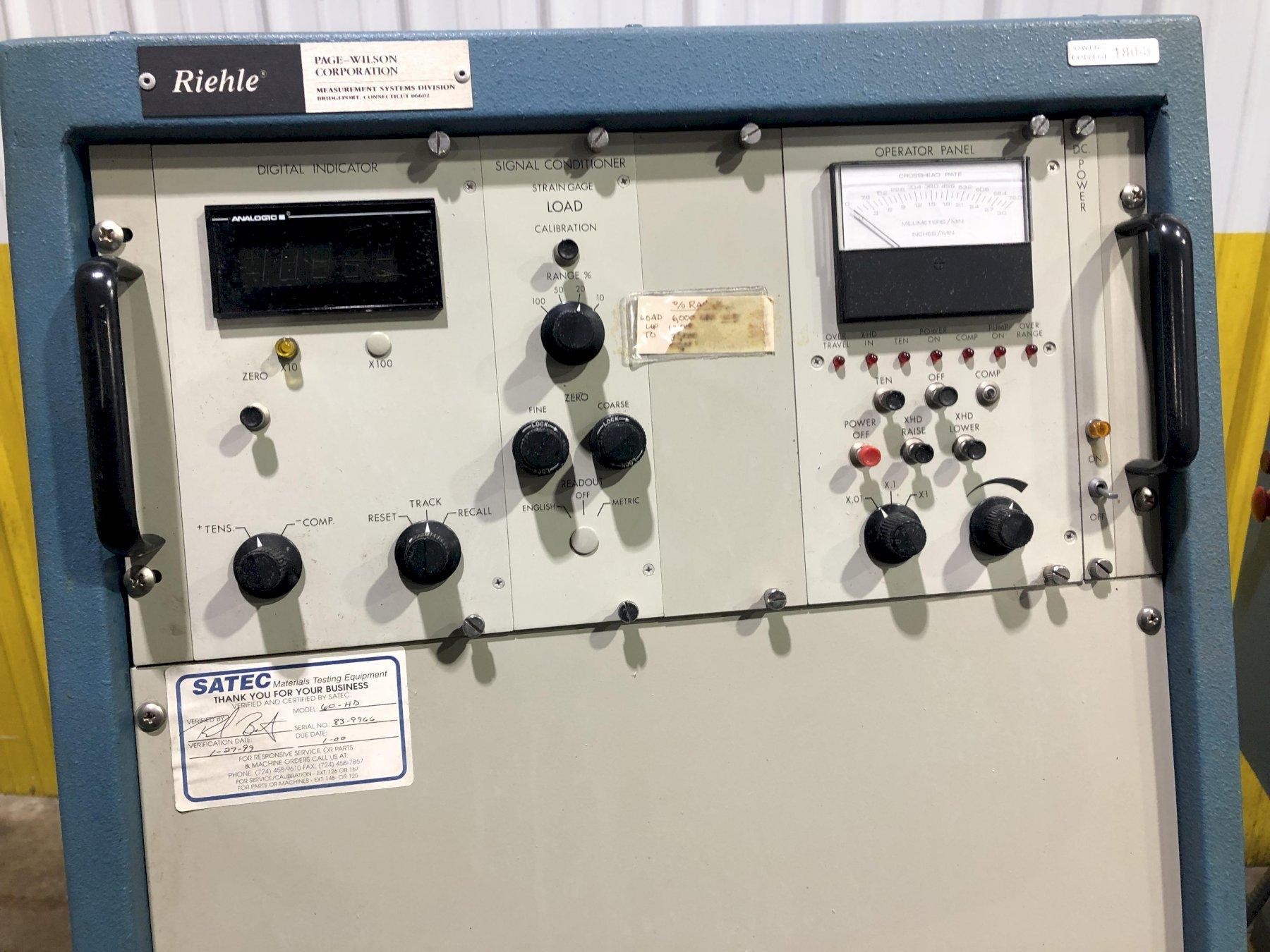

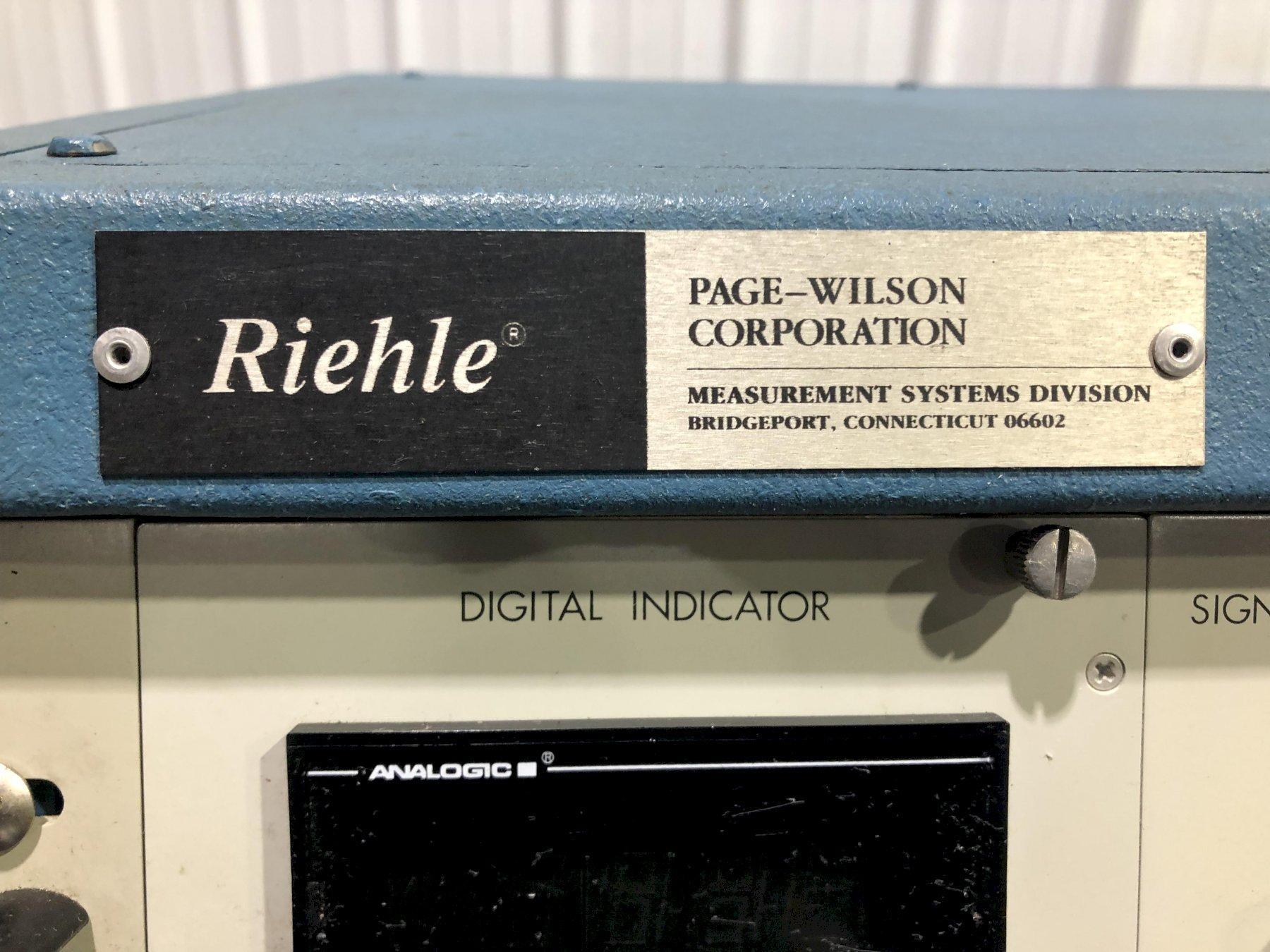

DIGITAL INDICATOR
SIGNAL CONDITOINER

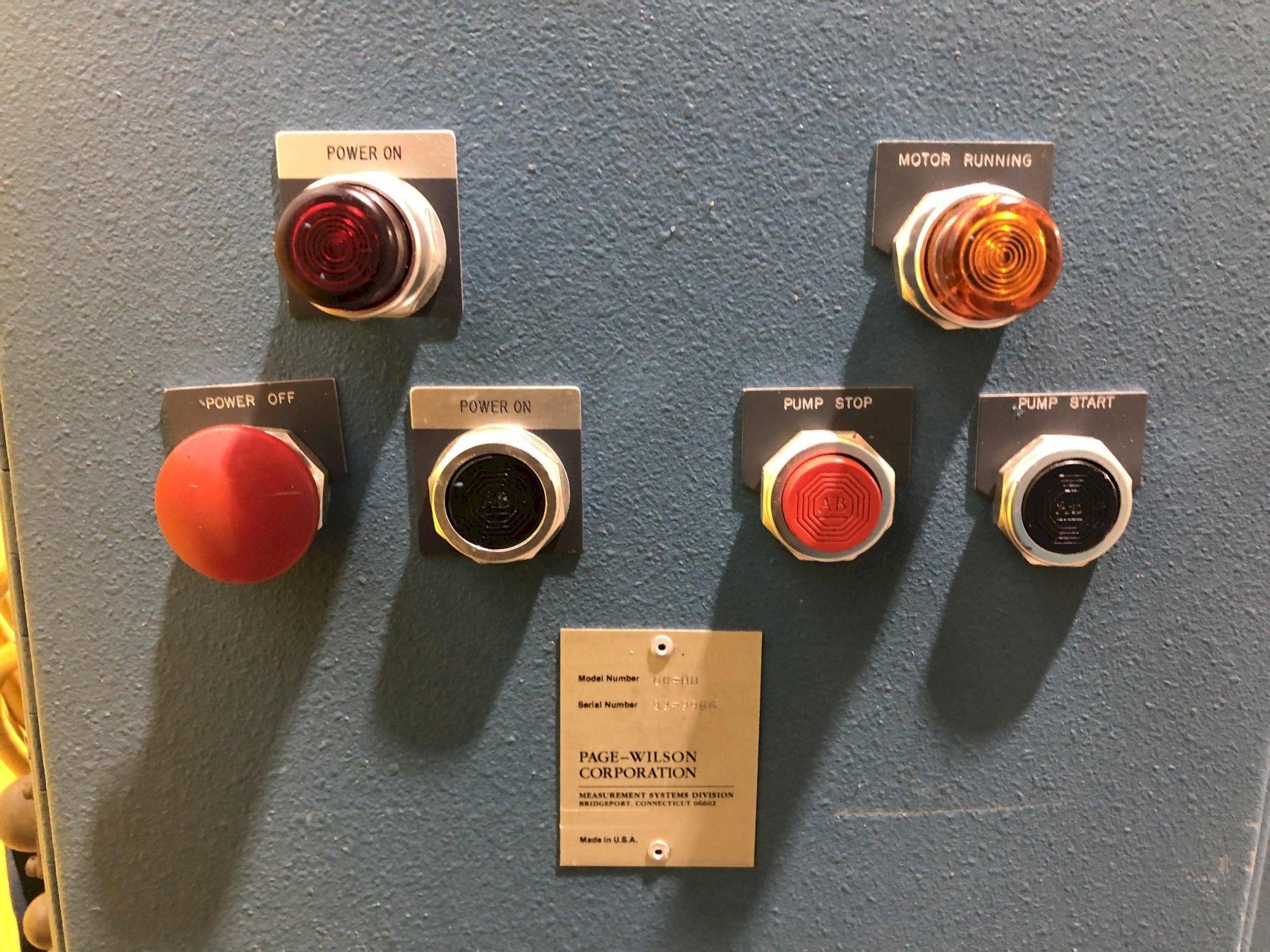

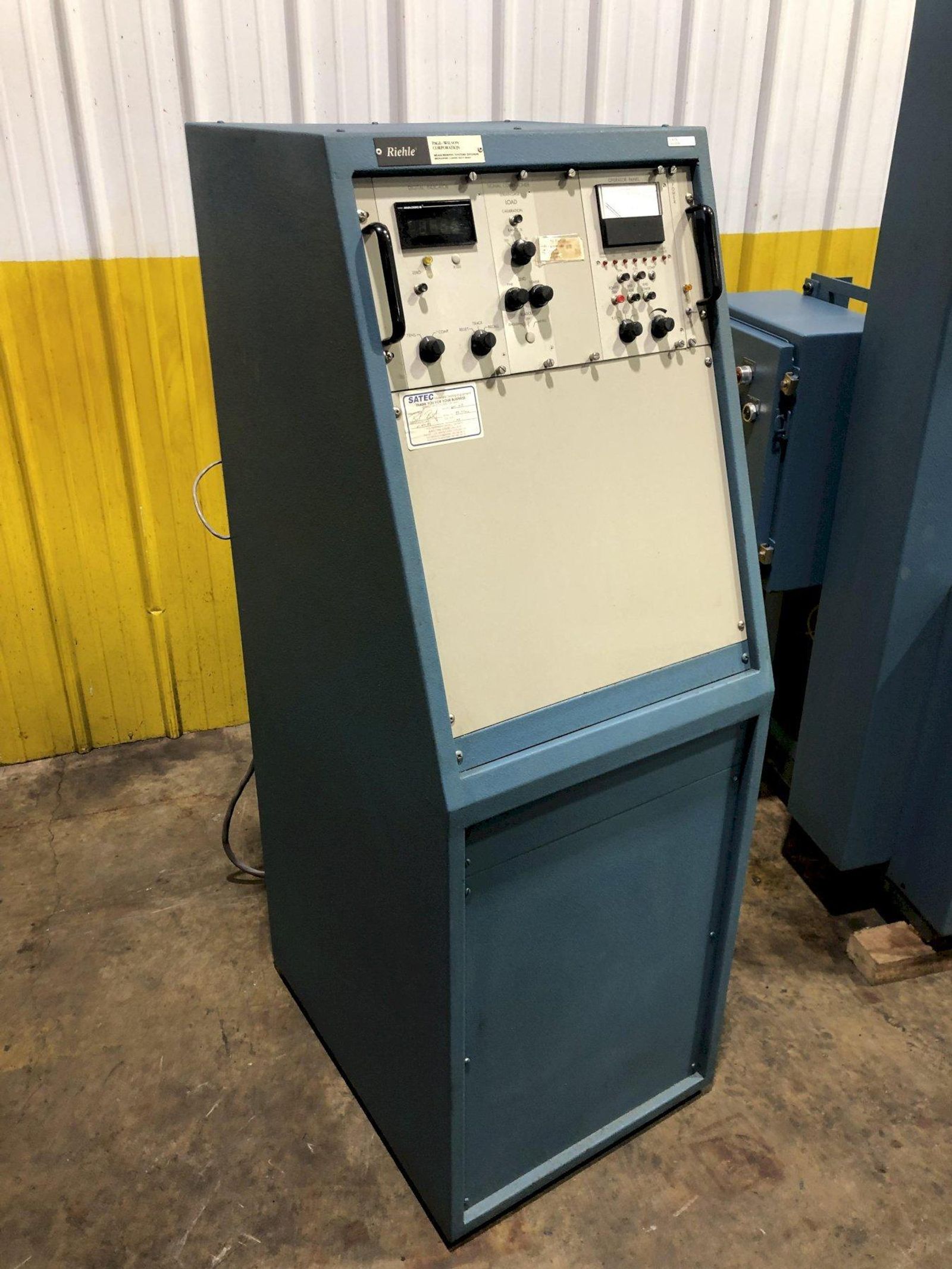

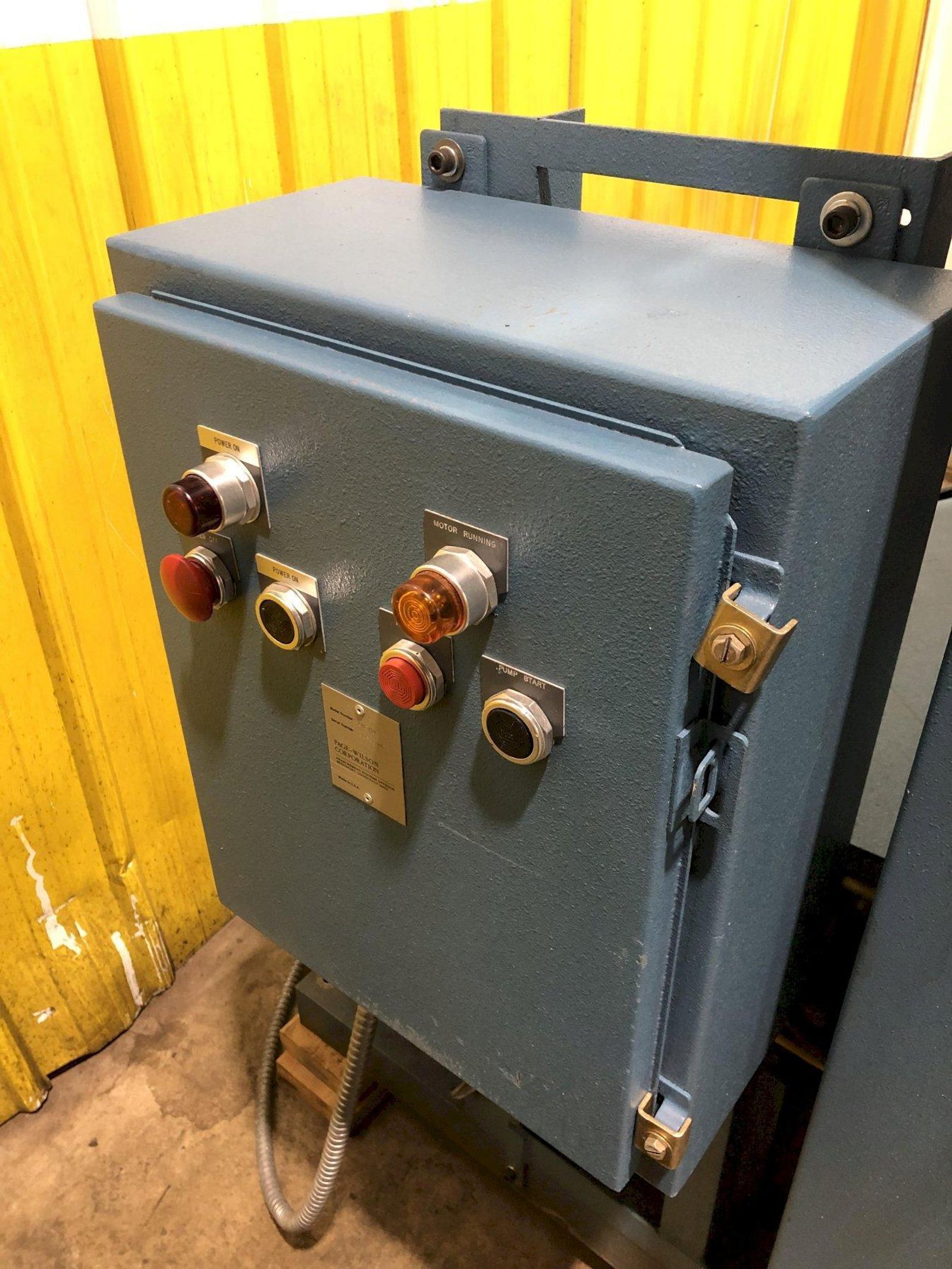

OPERATOR PANEL

Specifications
Dimensions 21" X 25.5" X 58" HIGH
Weight 3000 pounds

60,000 LBS RIEHLE MODEL #60-HD SERIES UNIVERSAL HYDRAULIC TESTER: STOCK #16726

Brand
WILSON

Type
Testers, Hardness

Stock No.
16726

Contact Us
Buy Now
Price: $9950.00
Print Details

Contact Us

Files

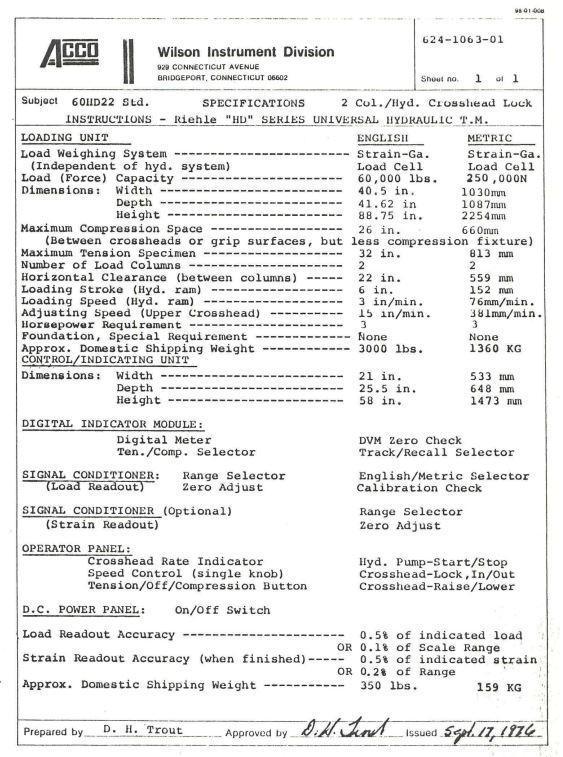

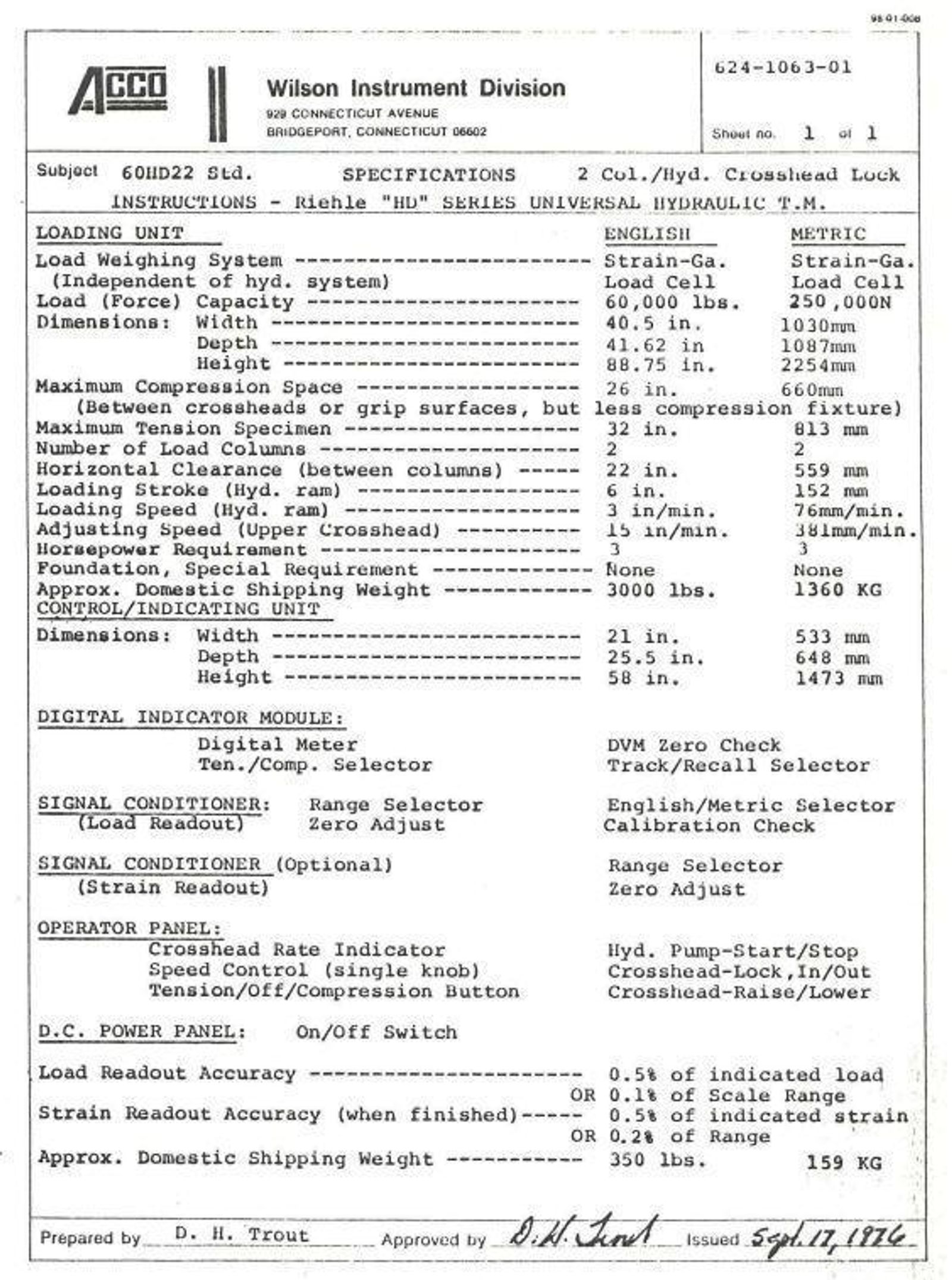

16726 manual WILSON MODEL 60-HD HARDNESS TESTER General manual.pdf
