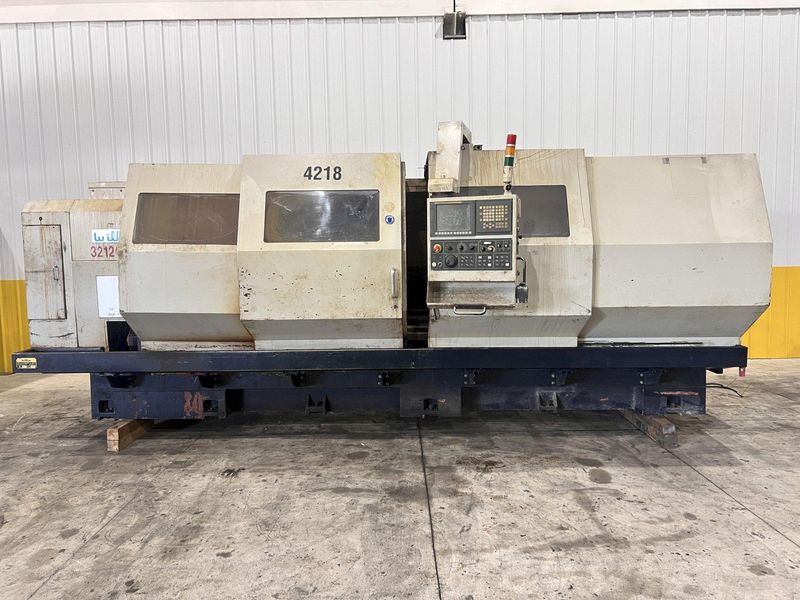

Serial ......................... 0120
New ............................ 2012

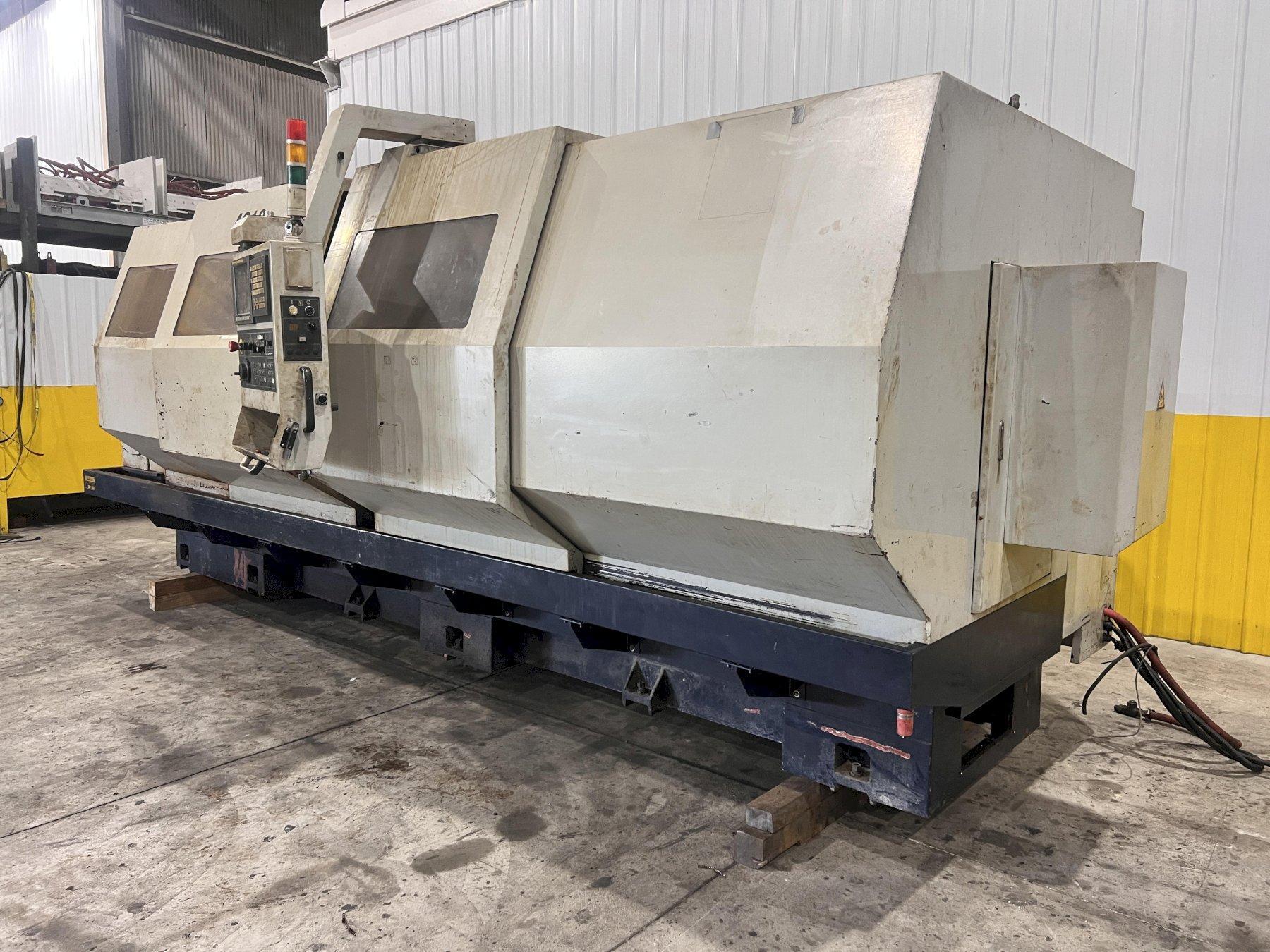

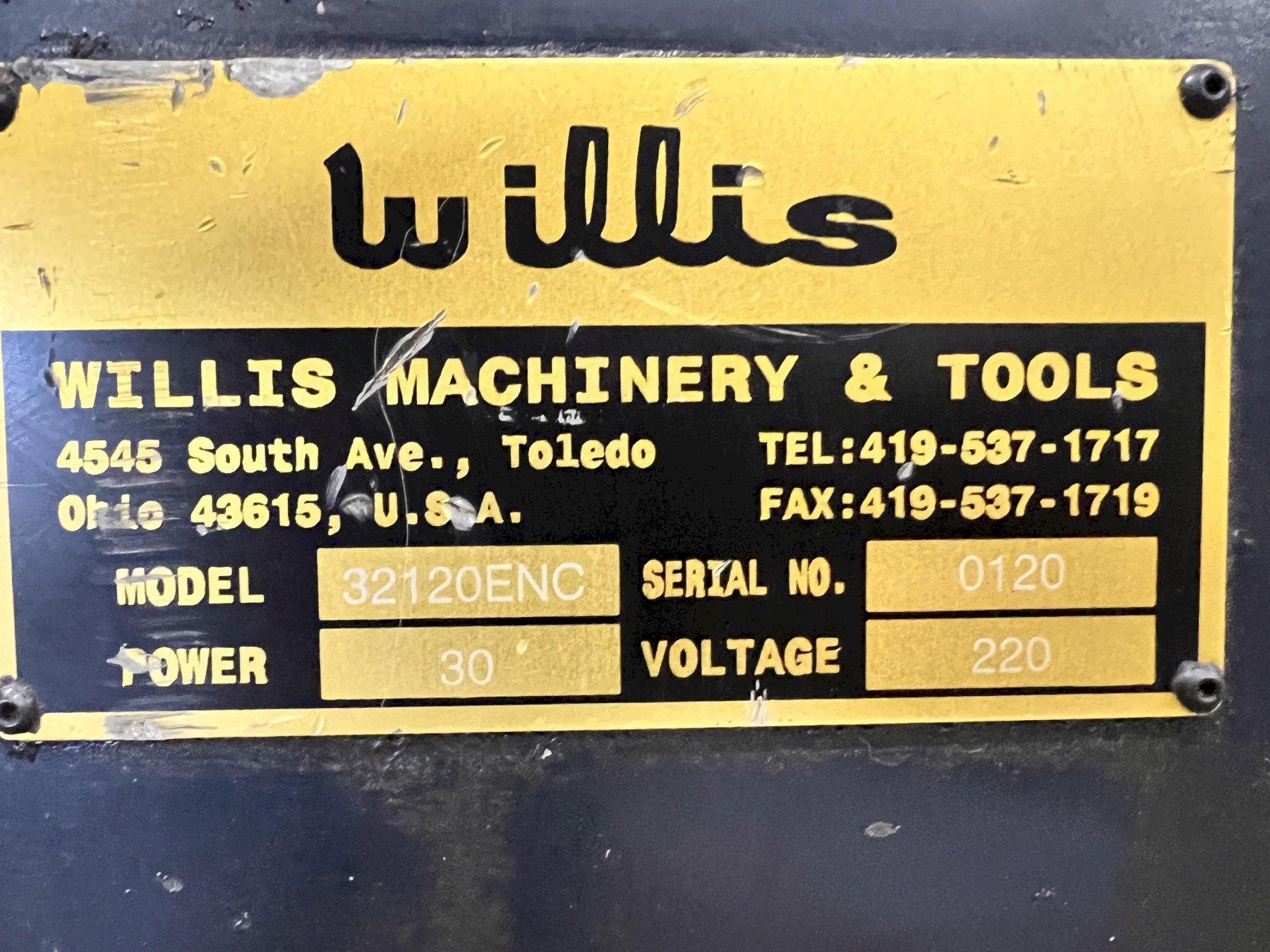

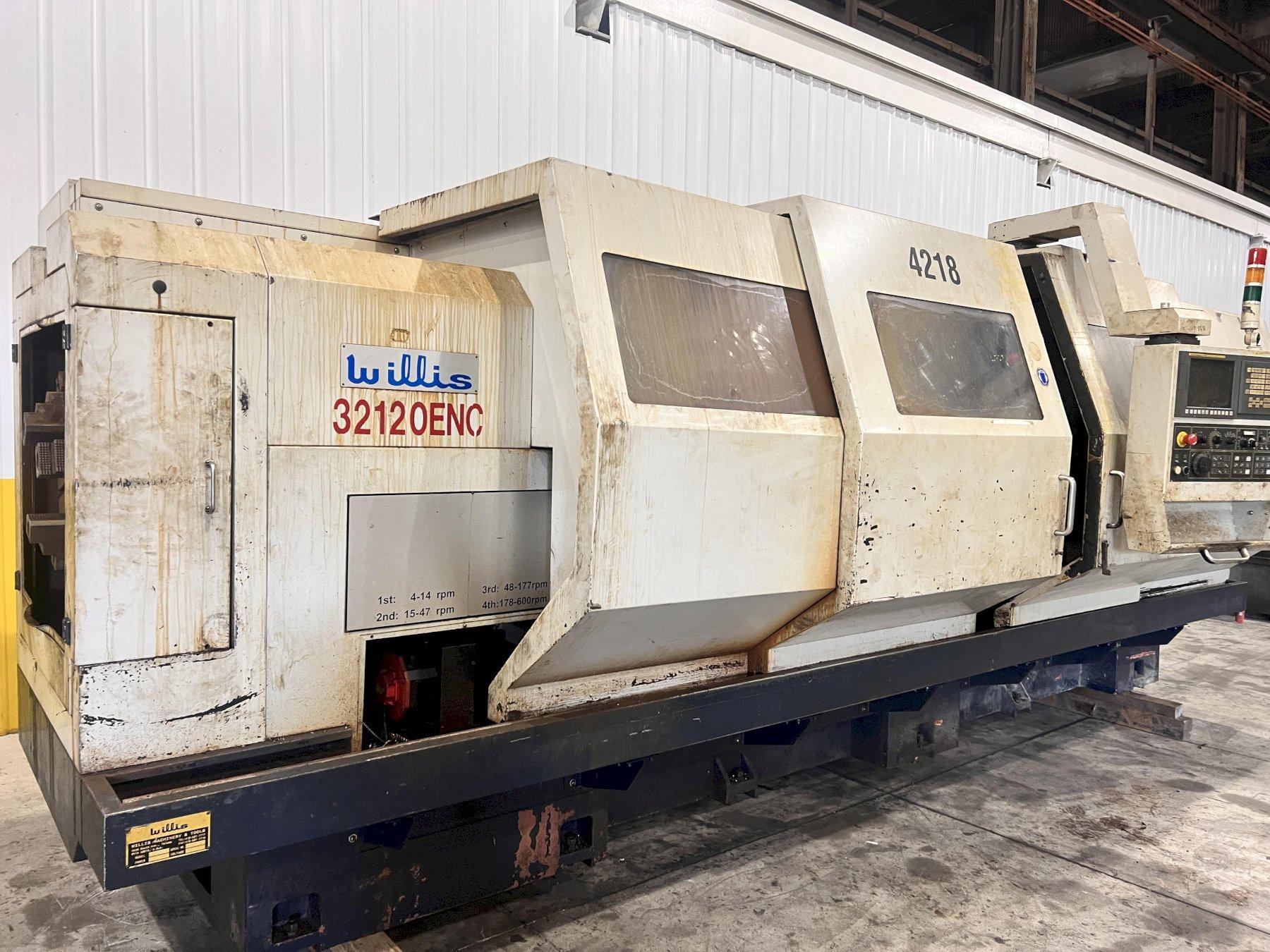

Model .......................... 32120ENC

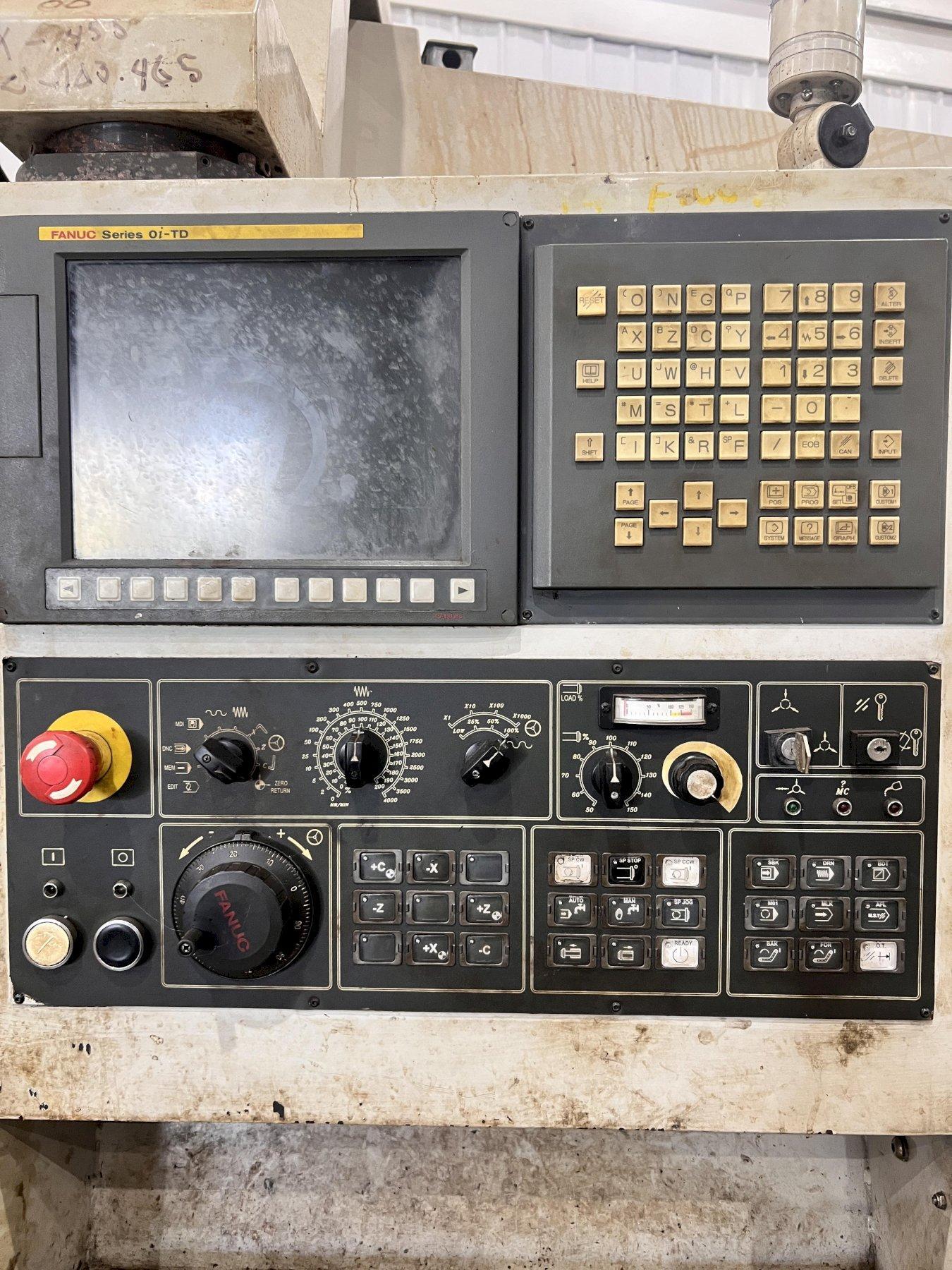

Controls ....................... Fanuc 0i-TD control w/ Fanuc servo spindle
Spindle bore Diameter .......... 12”(305mm)

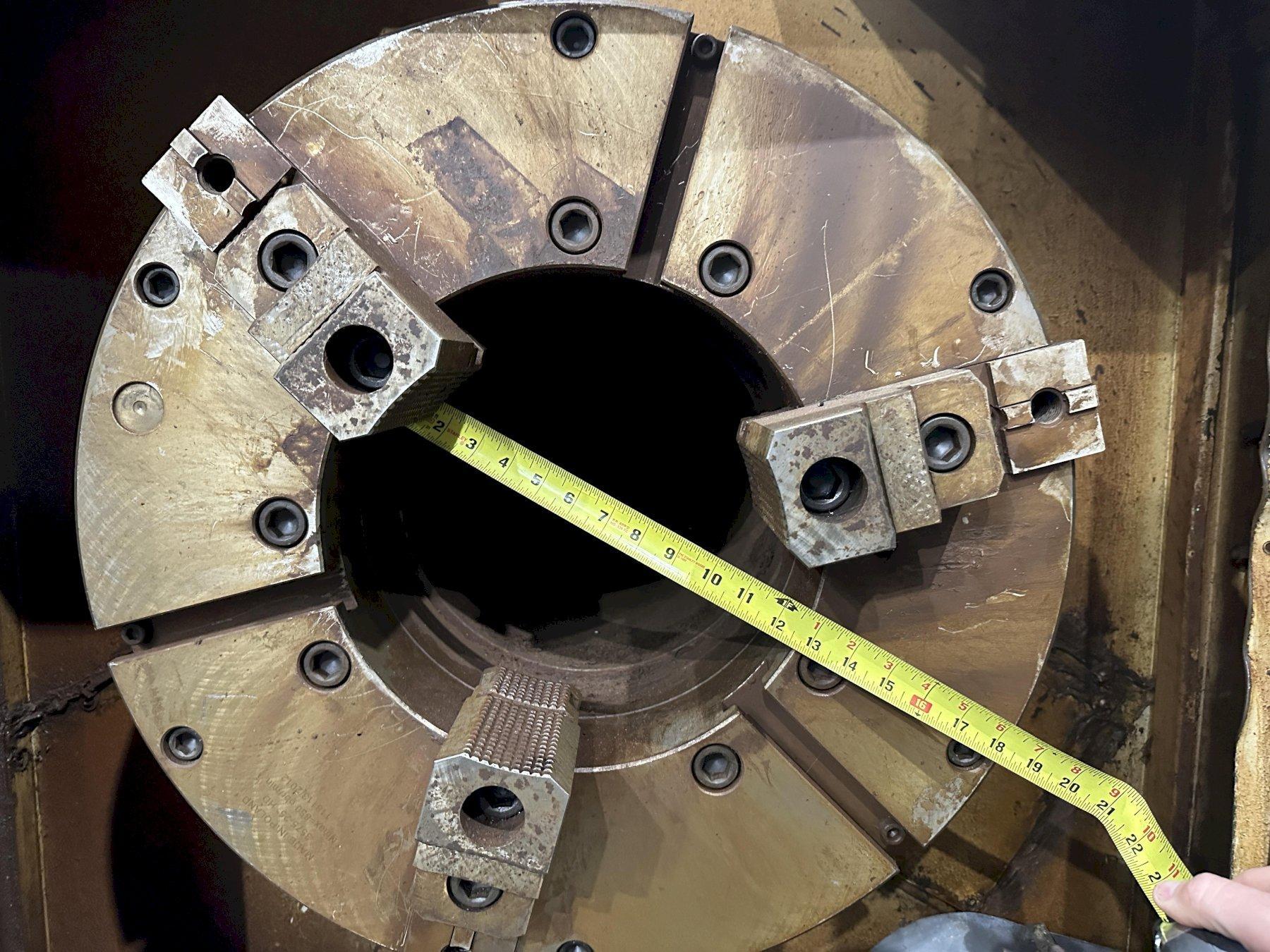

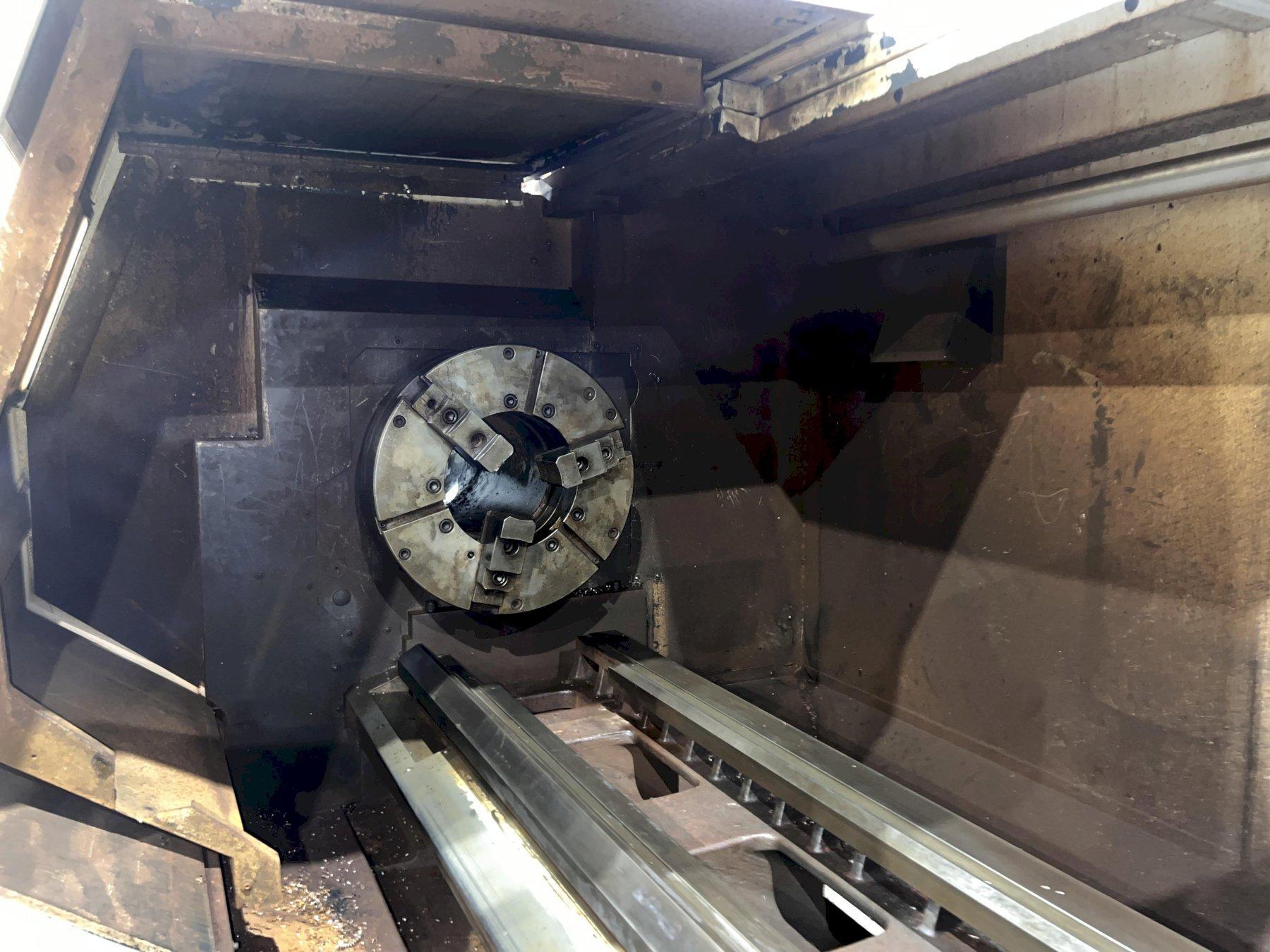

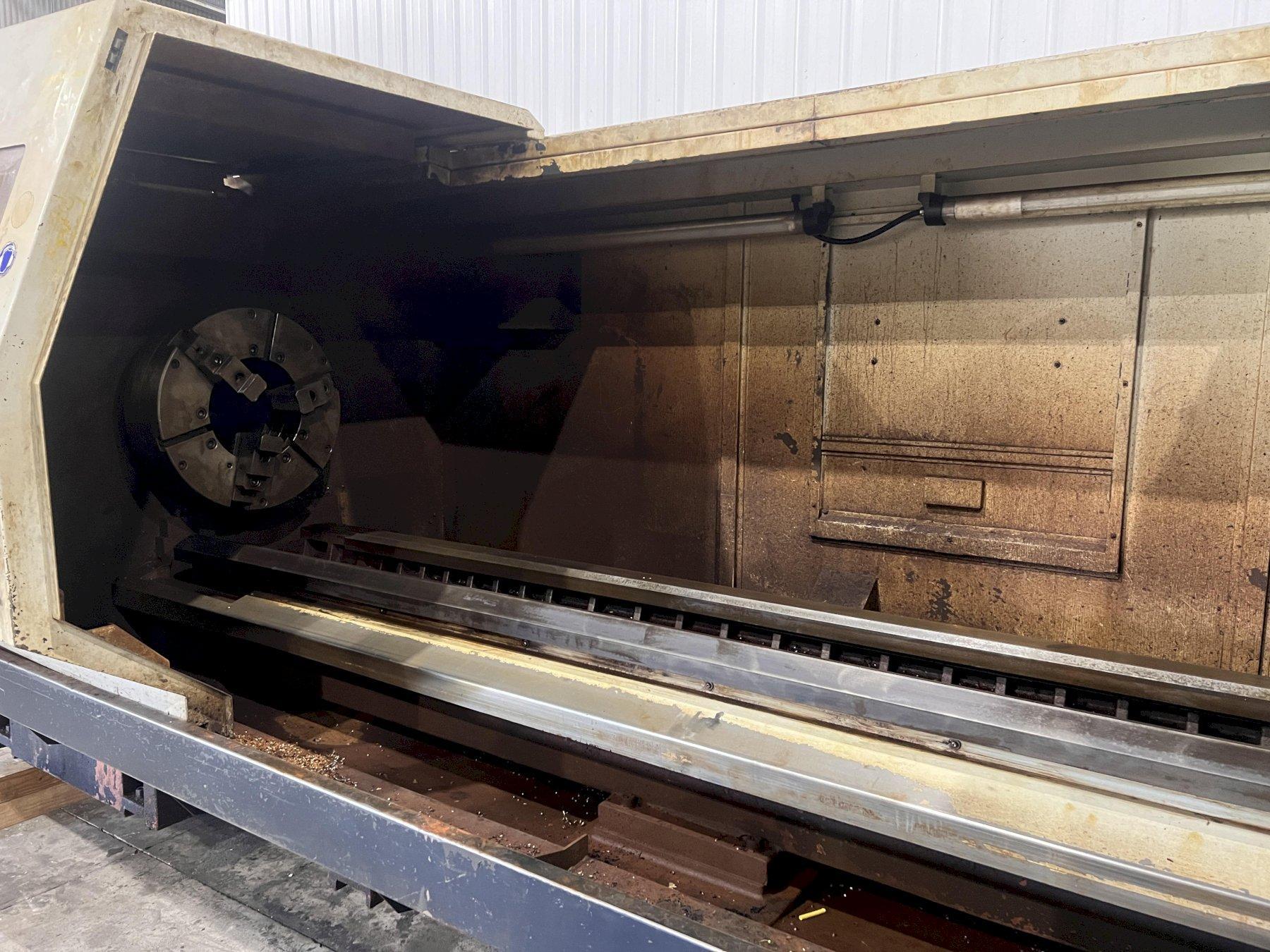

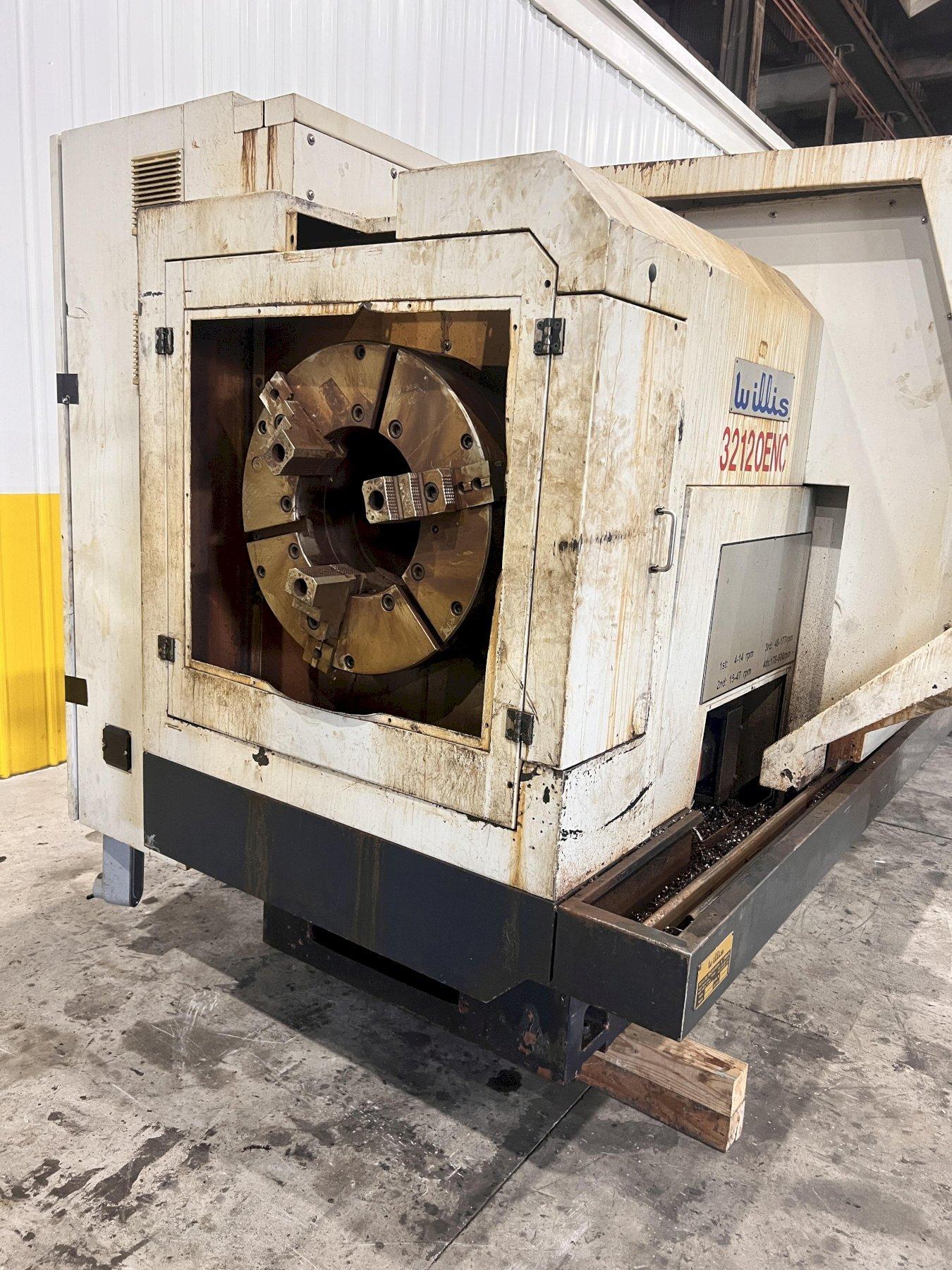

Front & Rear Chucks ............ A2-20 mount
Spindle Speeds ................. 4 TO 600 RPM
Swing over bed ................. 31.5"
Swing over cross-slide ......... 20"
Center height .................. 15.7"
Distance between centers ....... 118"
Bed width ...................... 21.7"
Cross slide width .............. 11.8"
Z axis ball screw .............. 63mm
Z axis travel .................. 112"
X axis ball screw .............. 40mm
X axis travel .................. 21"
Tailstock quill taper .......... 6 MT
Tailstock quill diameter ....... 5"
Tailstock quill travel ......... 10"
Includes:

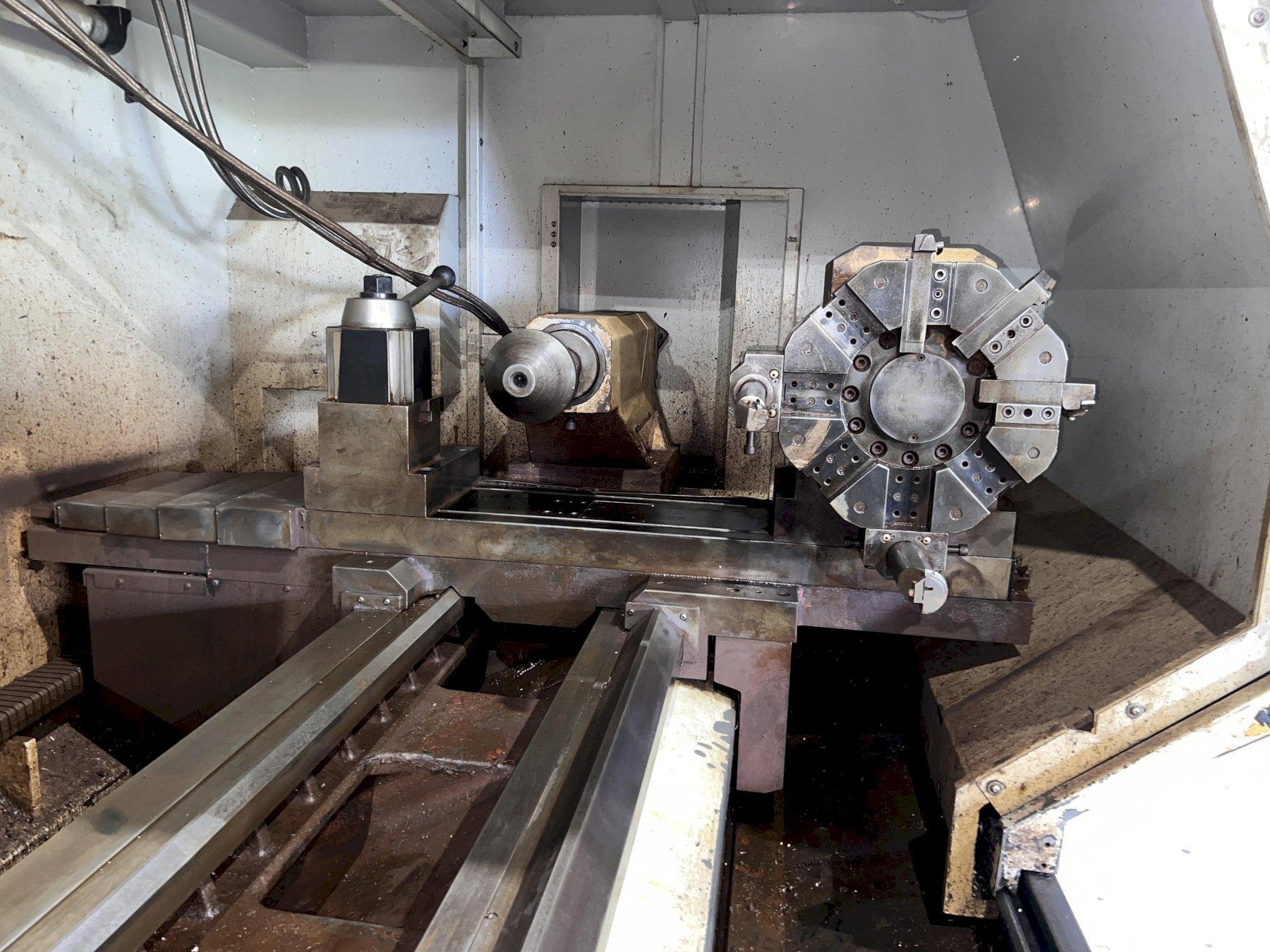

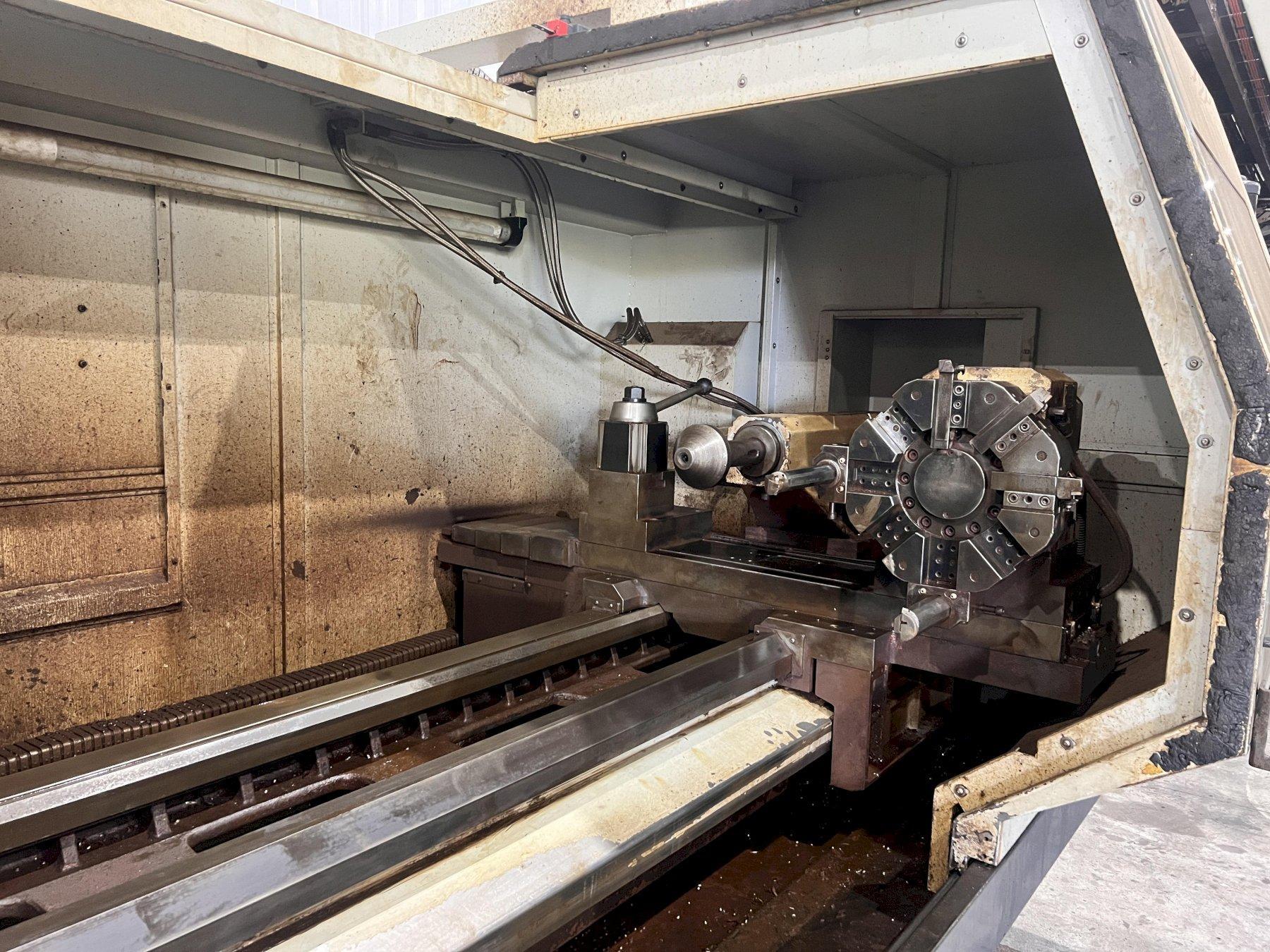

8 position electric turret on front of cross-slide
1-1/4" tool-holder capacity
2" boring bar holder capacity
Steady Rest (2"-15")
Rear chain type chip conveyor with cart

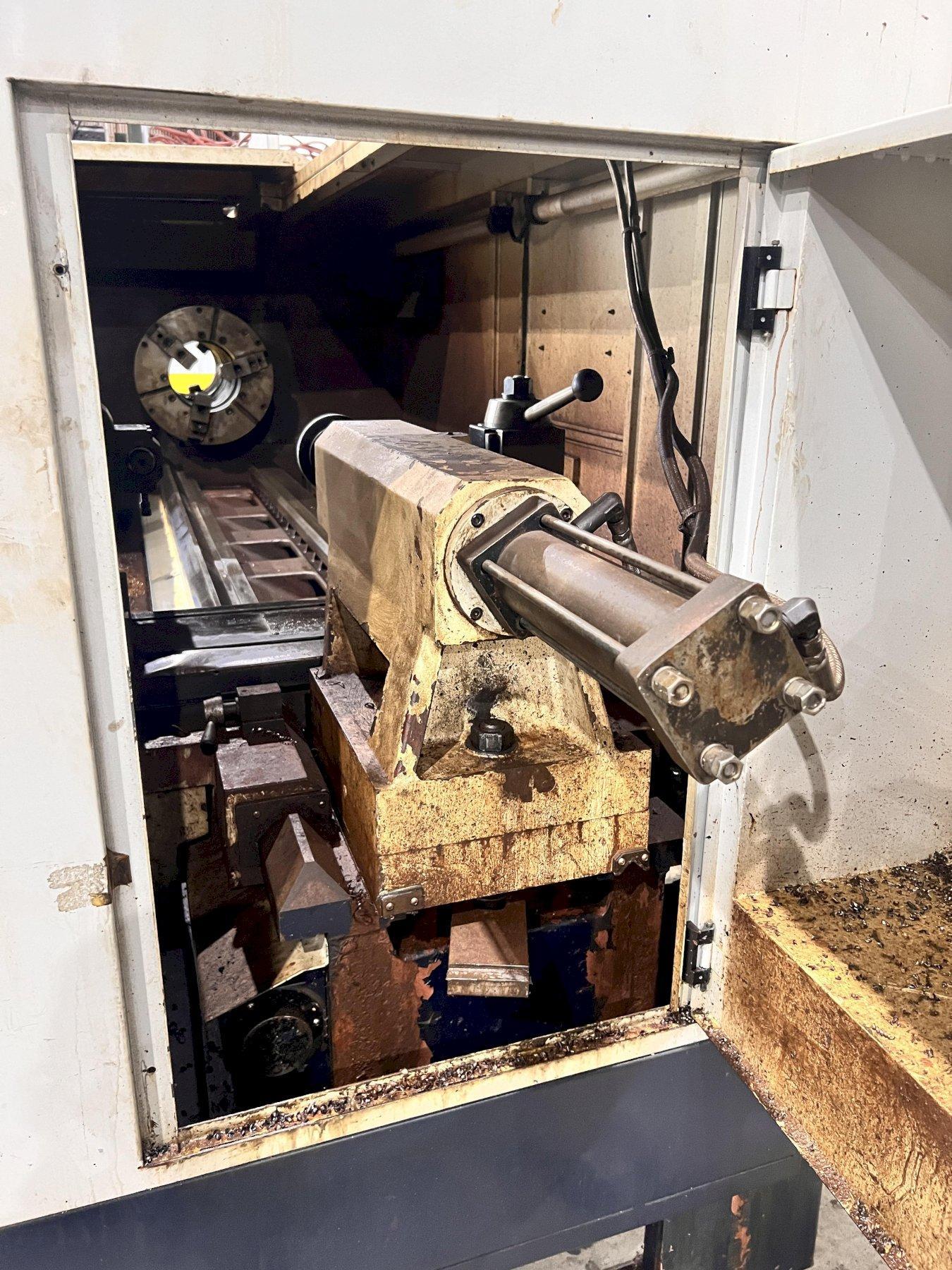

Hydraulic tailstock
Coolant System
Full length rear splash guard
Brand
WILLIS
Type
Lathes, CNC
Stock No.
21891
 |
