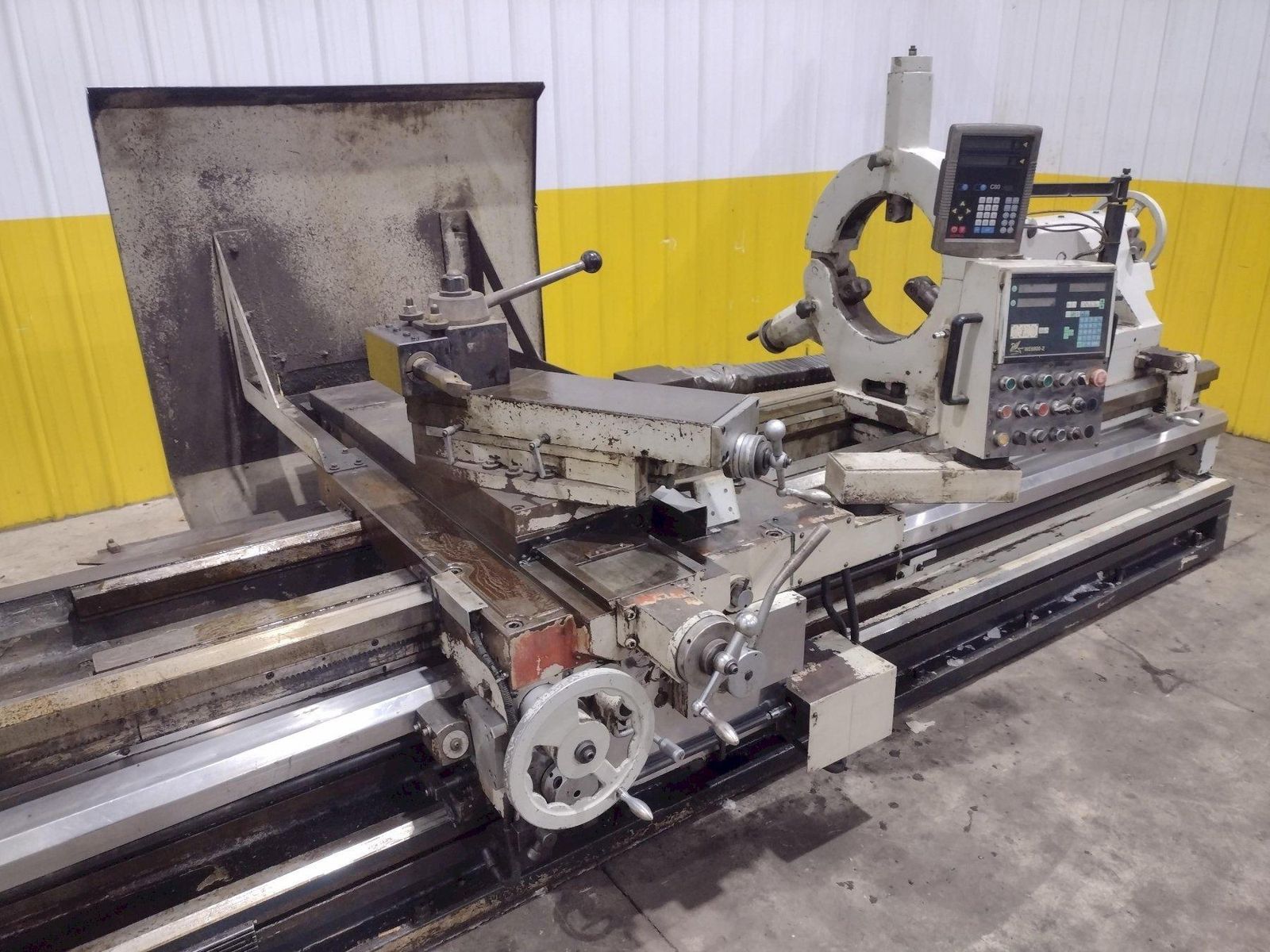

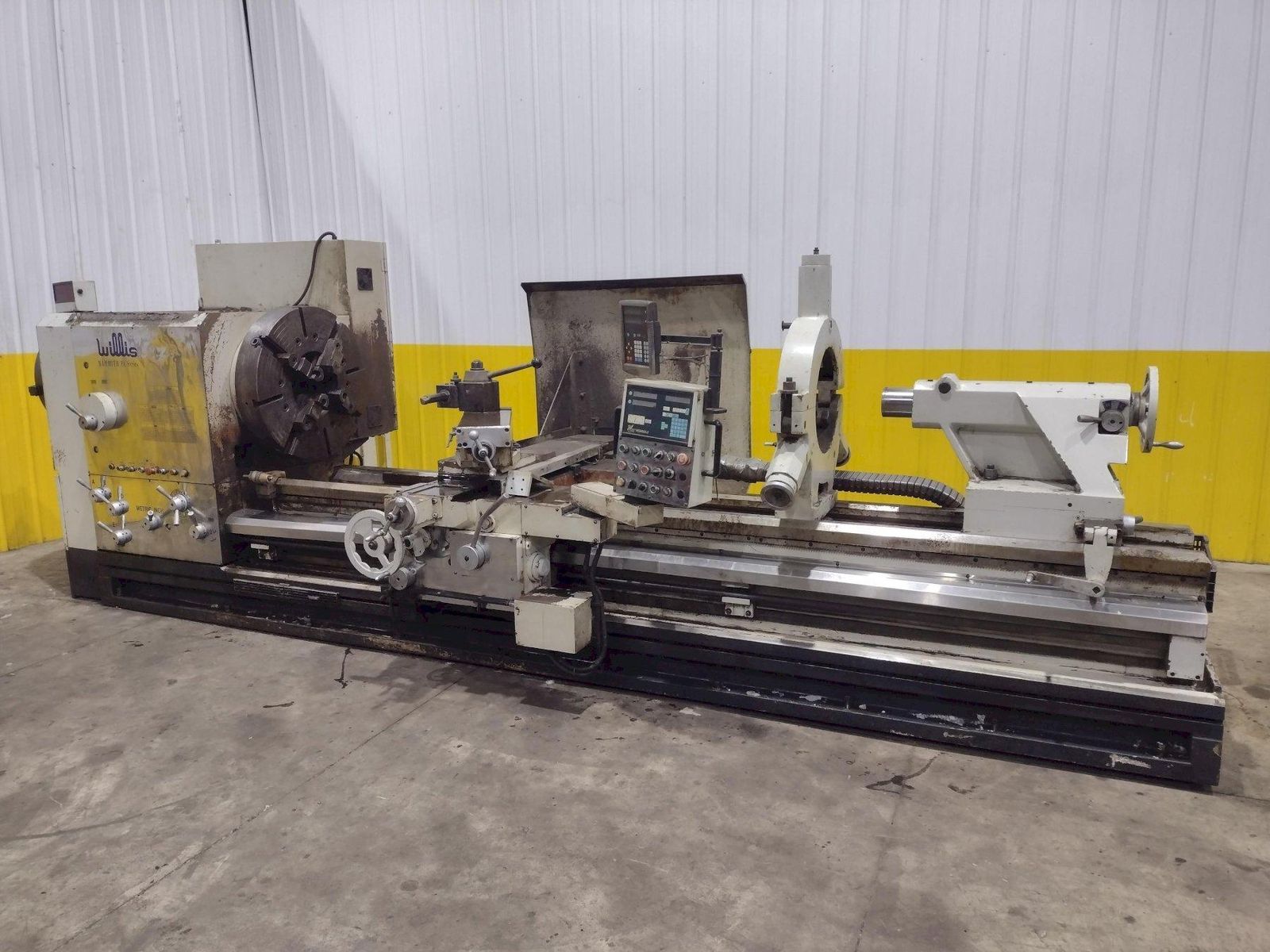

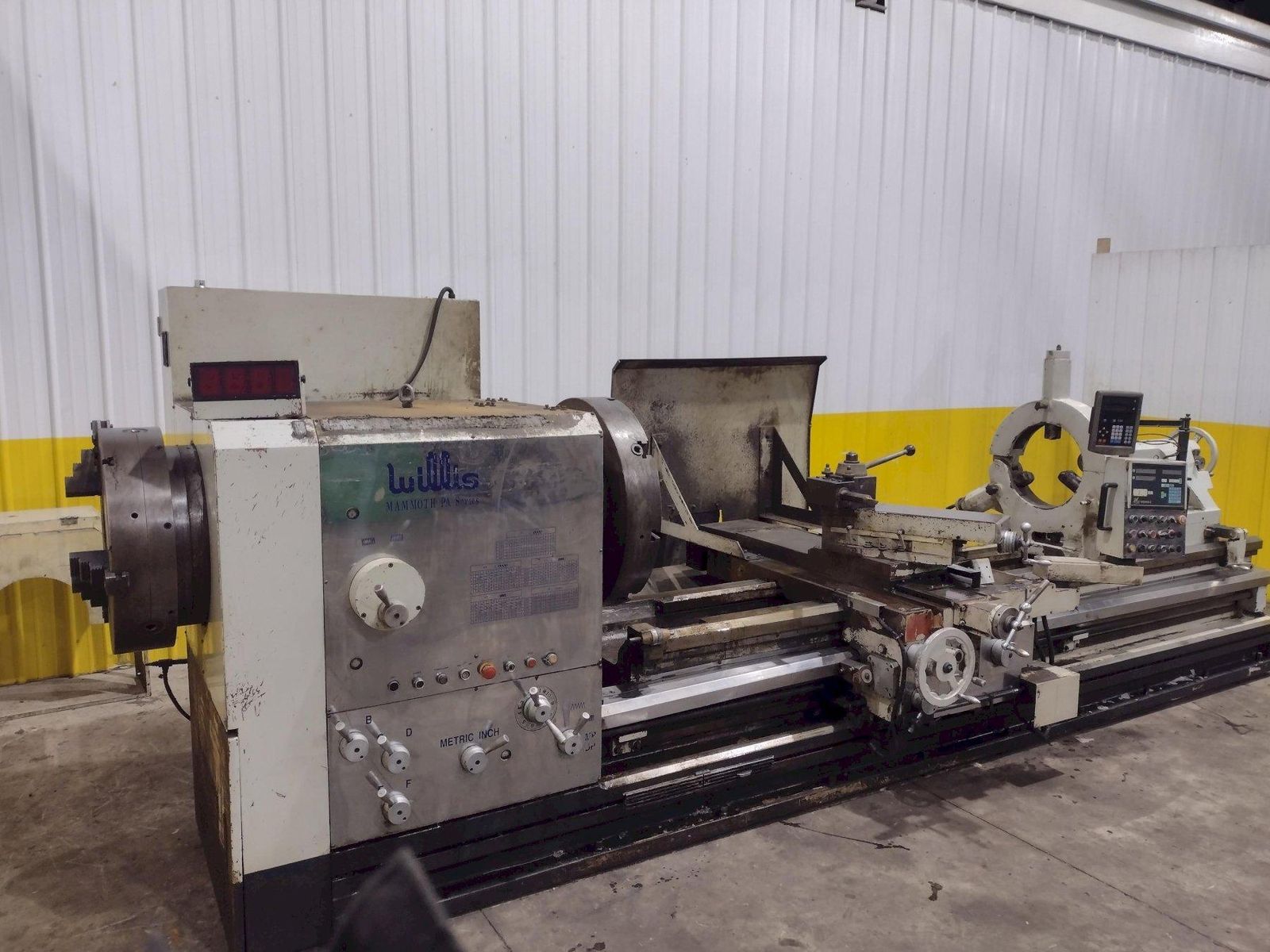

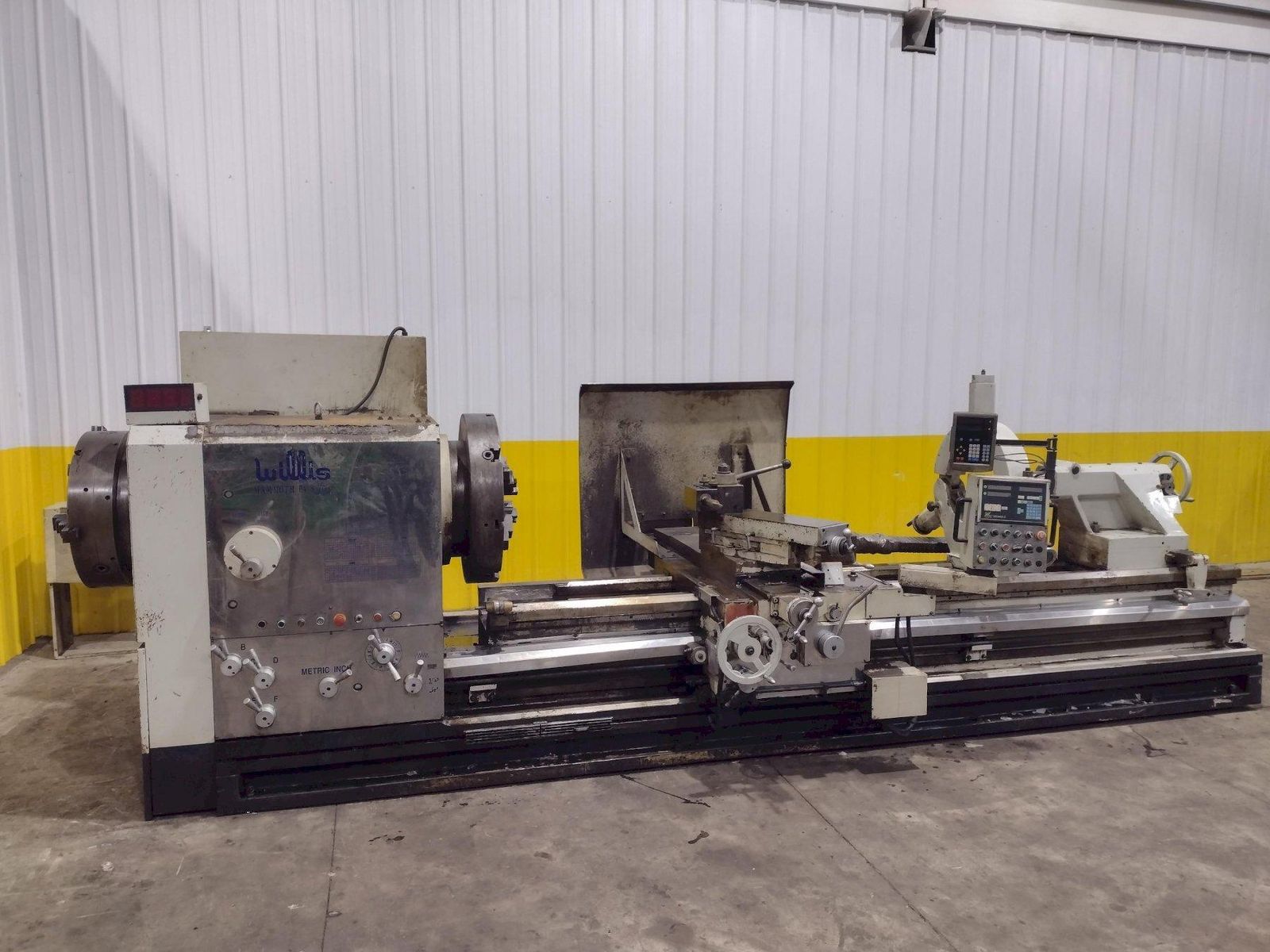

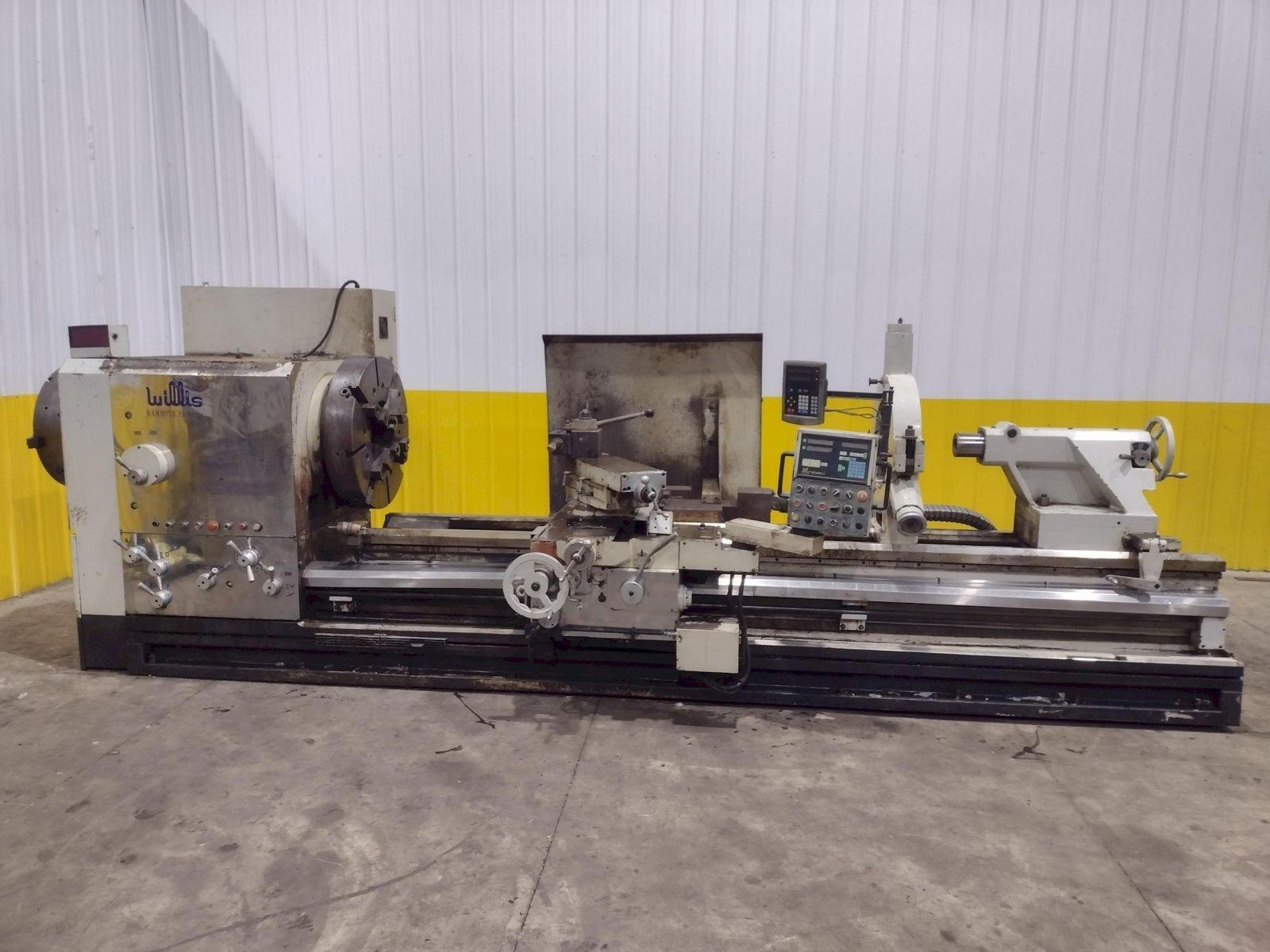

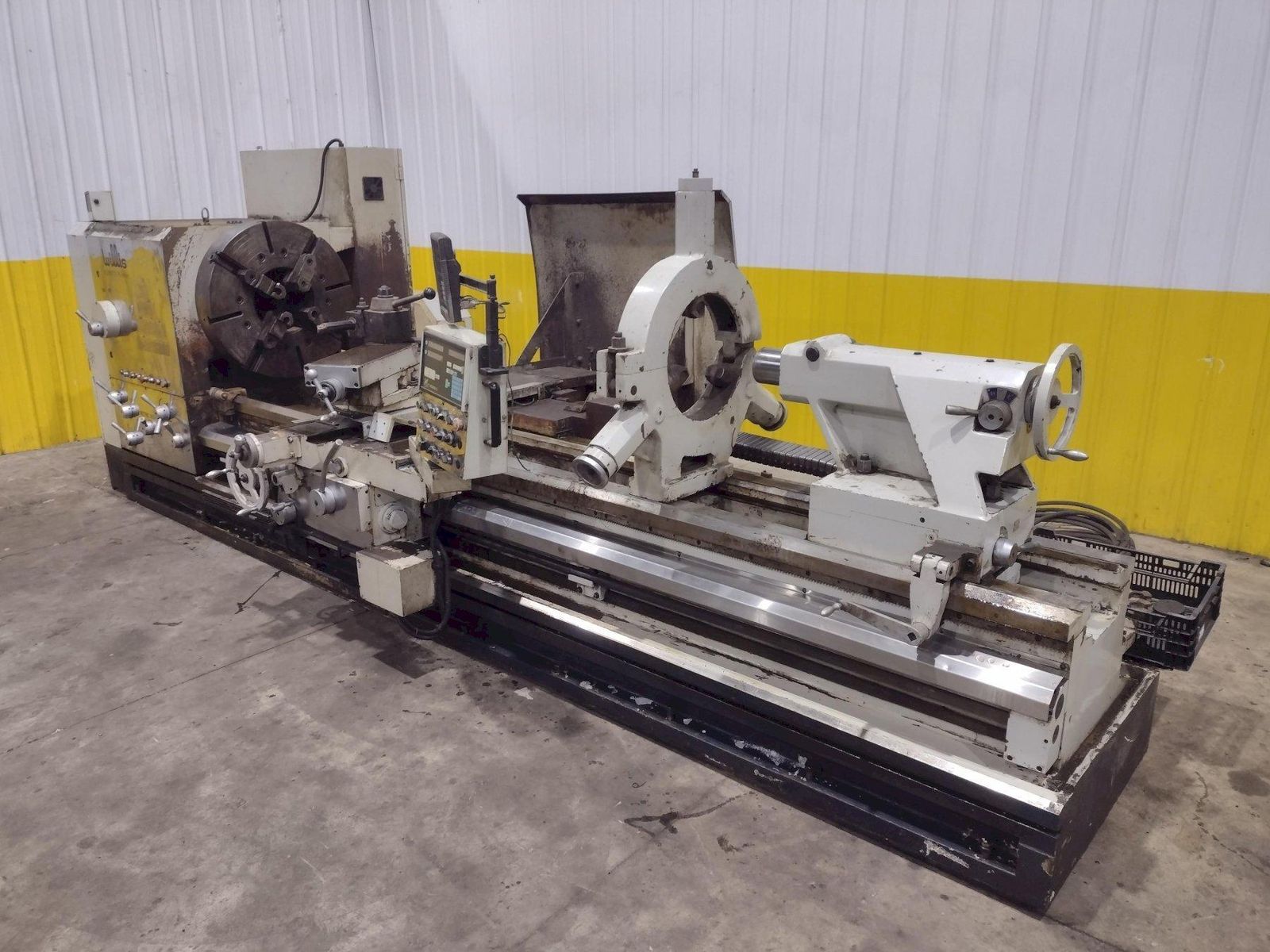

MODEL ................................. PK 35

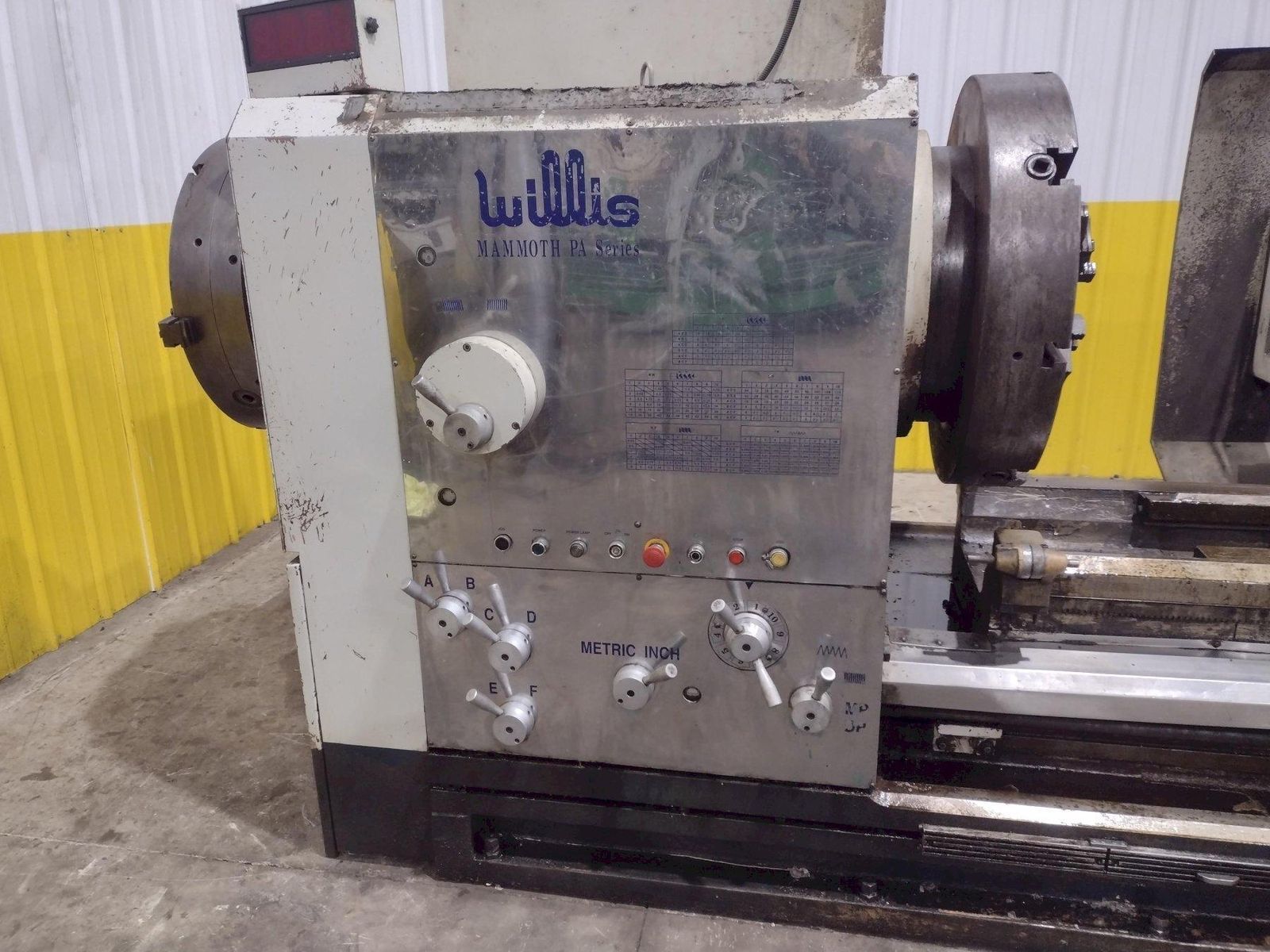

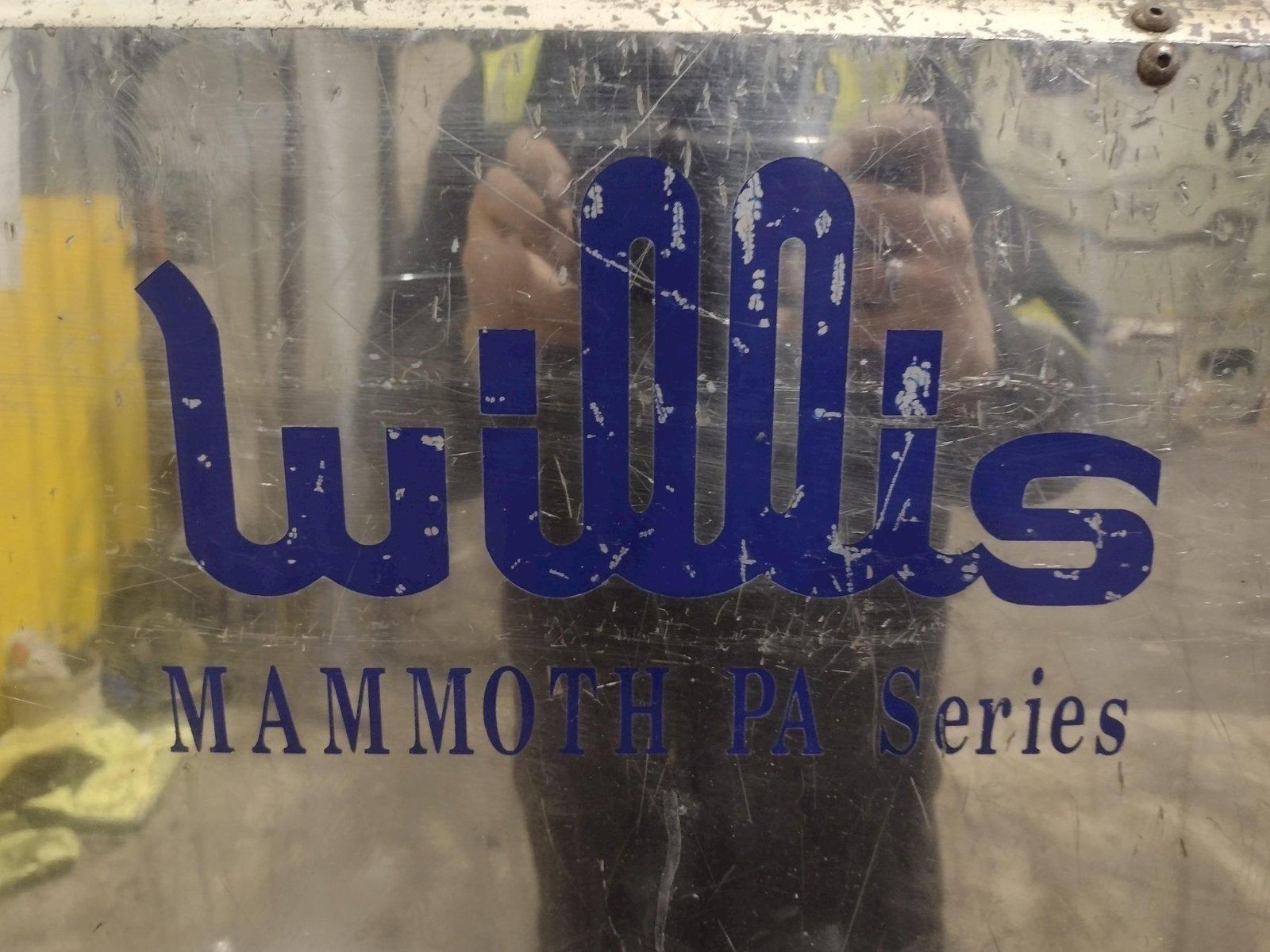

SERIES ................................ MAMMOTH PA
SWING OVER BED ........................ 34.65" (880 MM)
SWING OVER CROSS ...................... 24.21" (615 MM)
SWING IN GAP .......................... 52.76" (1340 MM)

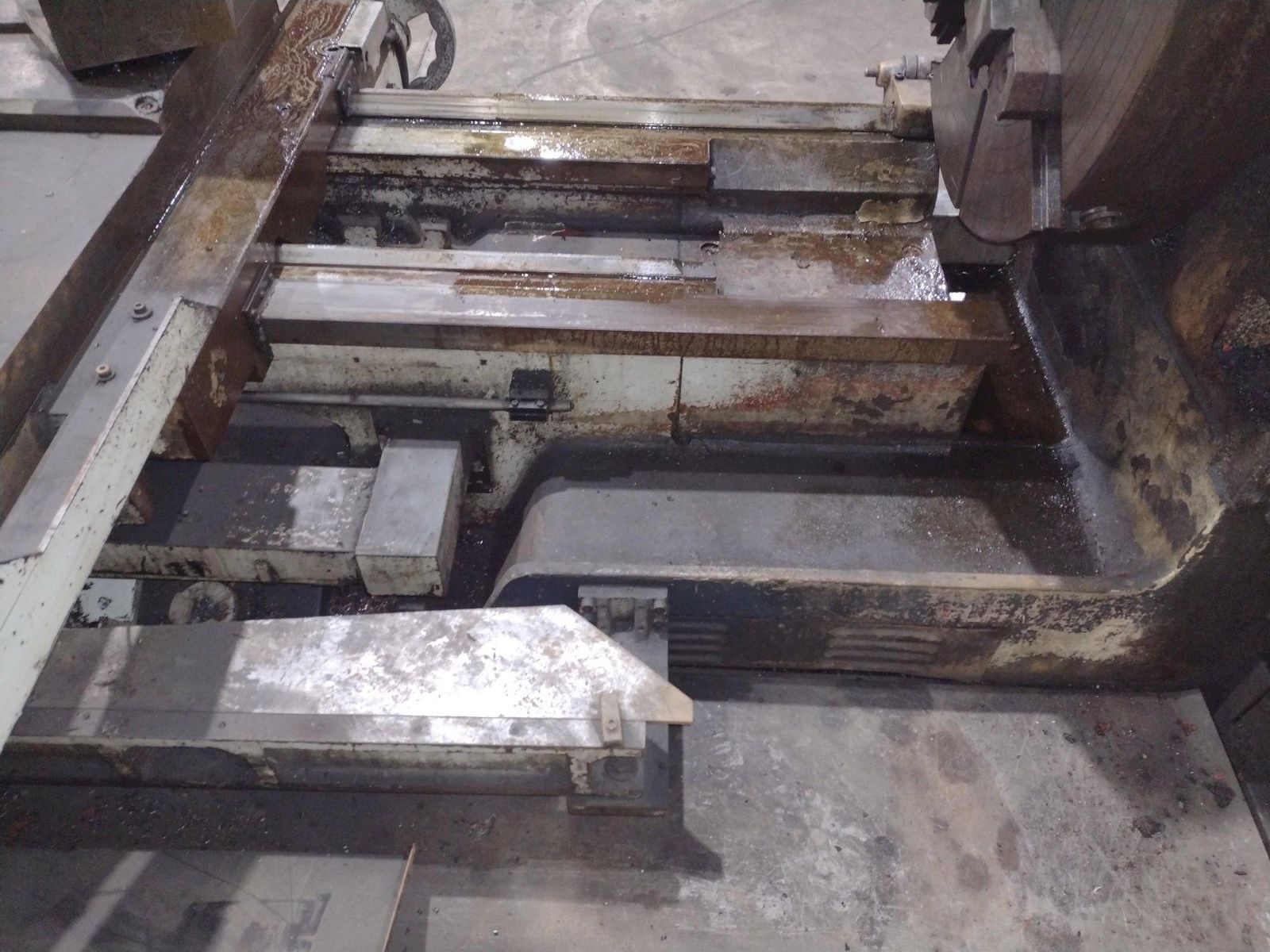

GAP LENGTH ............................ 14"
CENTER DISTANCE ....................... 120" (3000 MM)

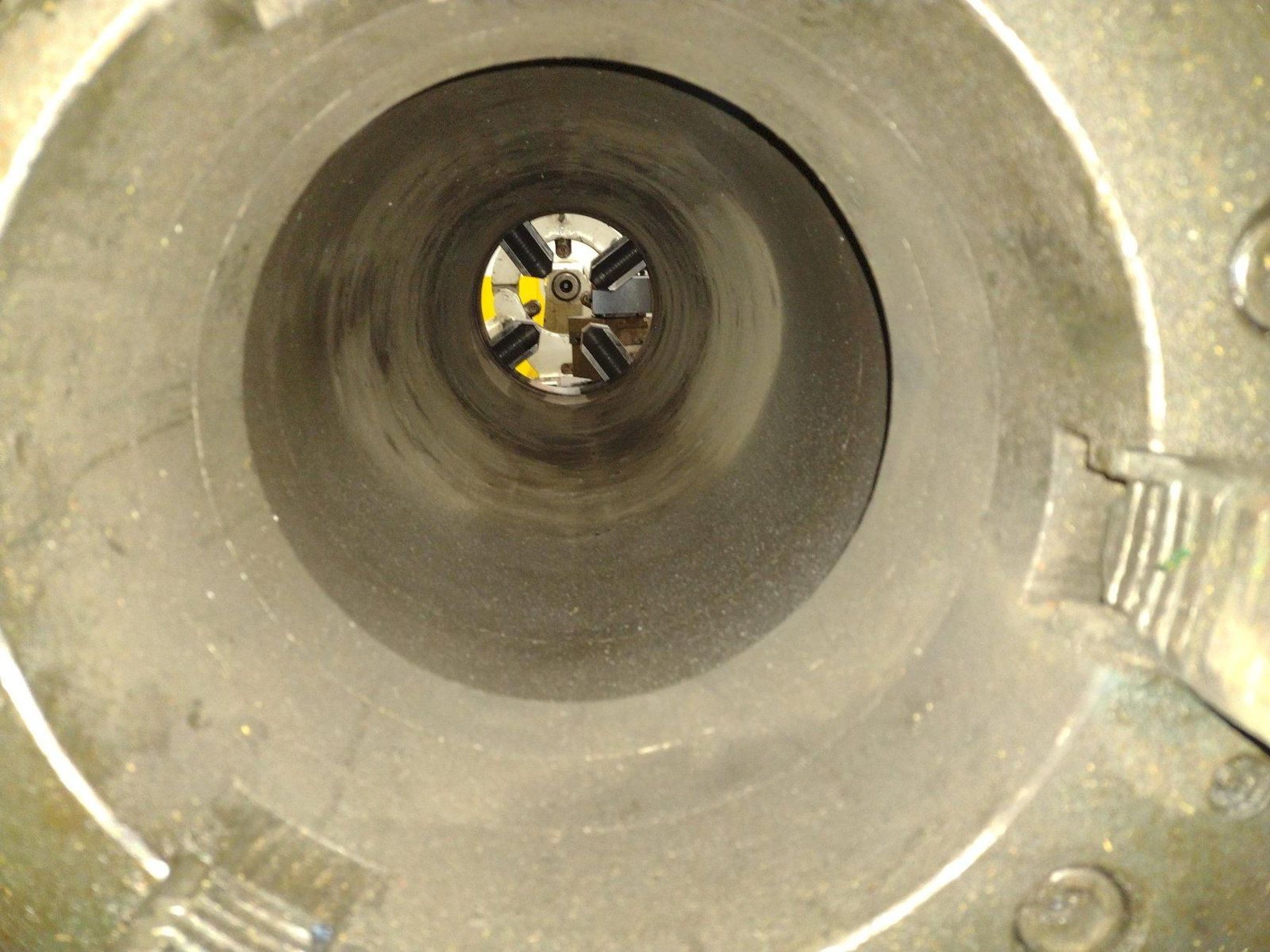

SPINDLE HOLE .......................... 10" (255 MM)
SPINDLE SPEEDS ........................ 6 TO 480 RPM

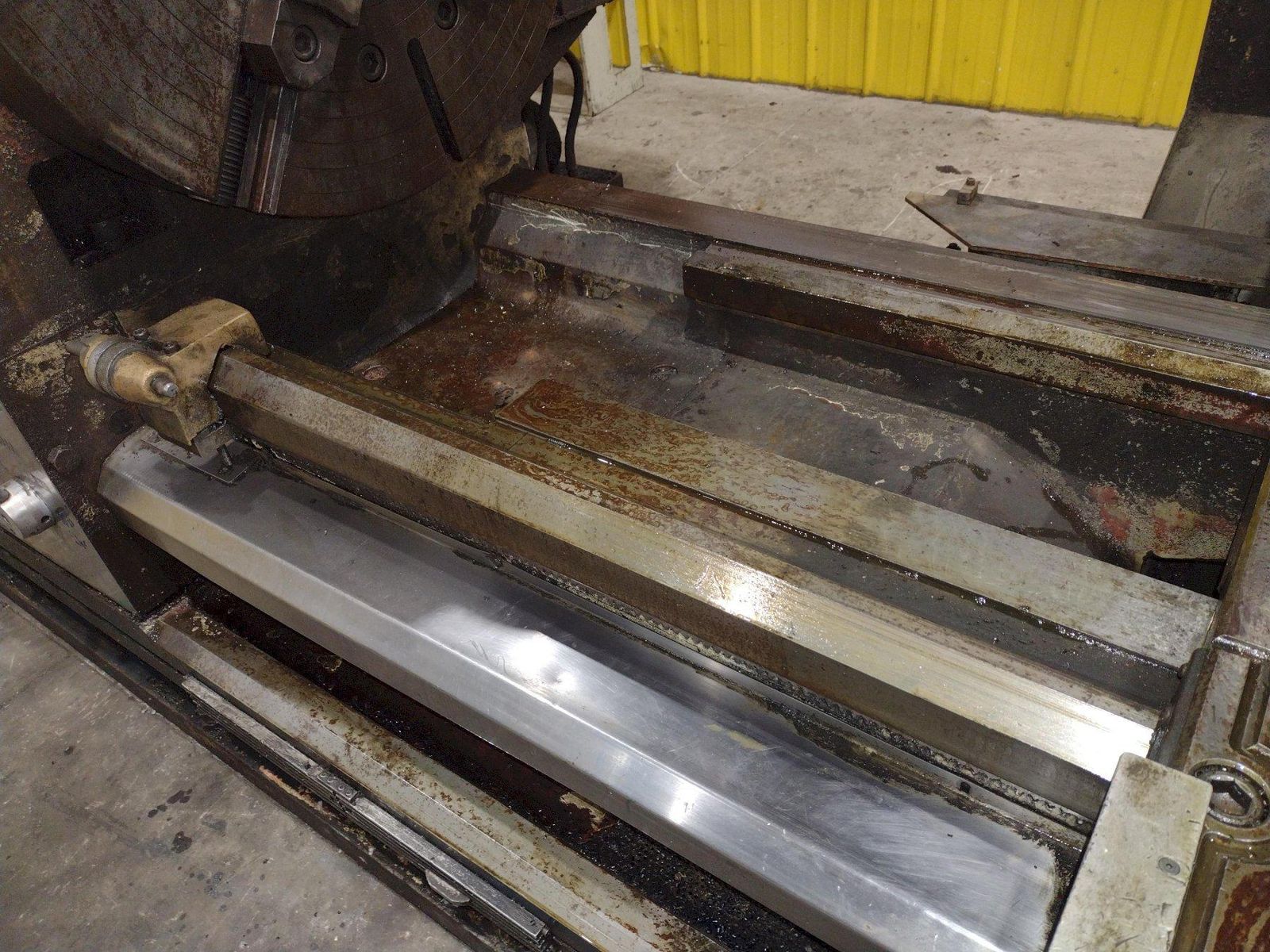

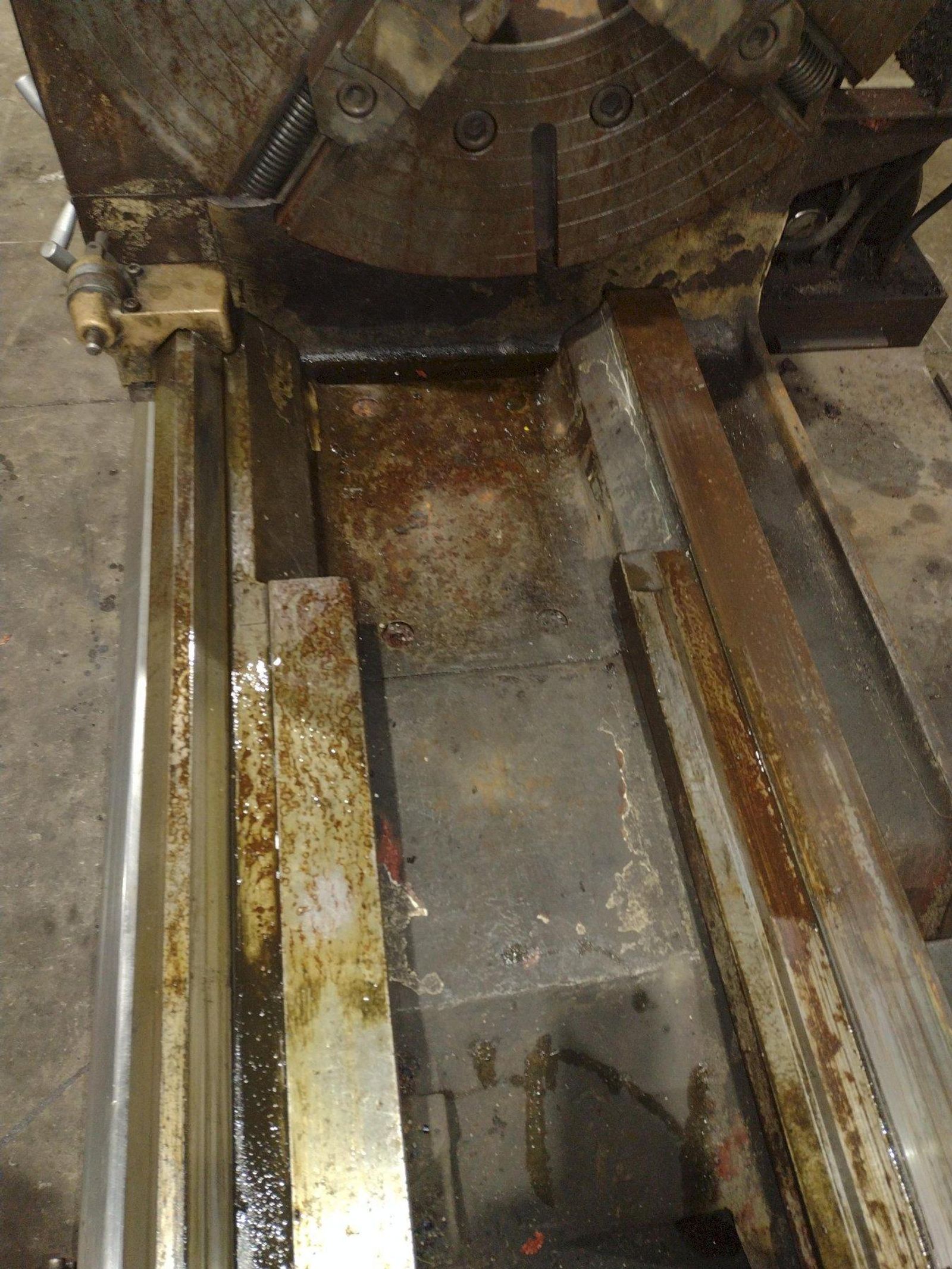

BED WIDTH ............................. 25.98" (660 MM)

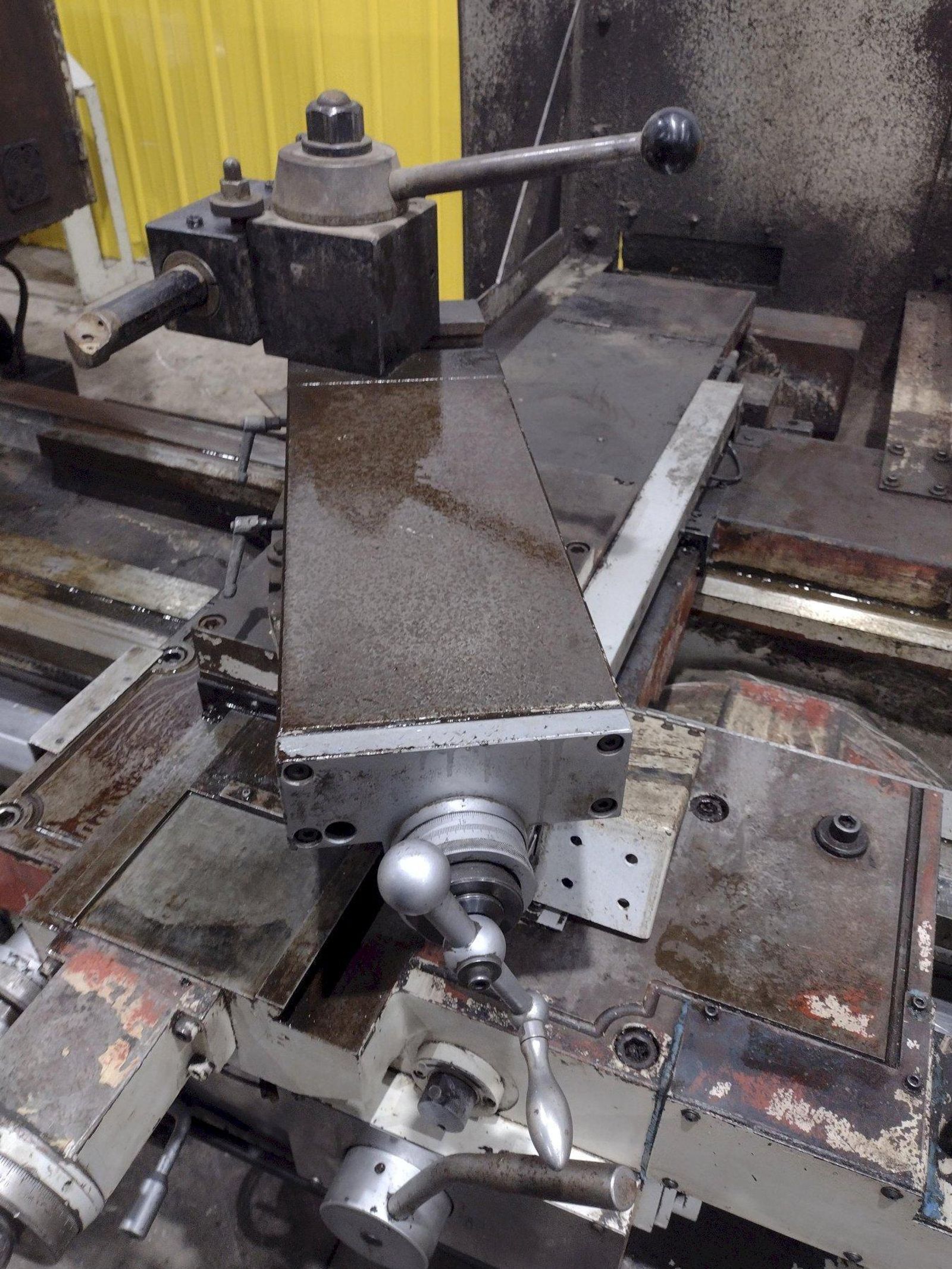

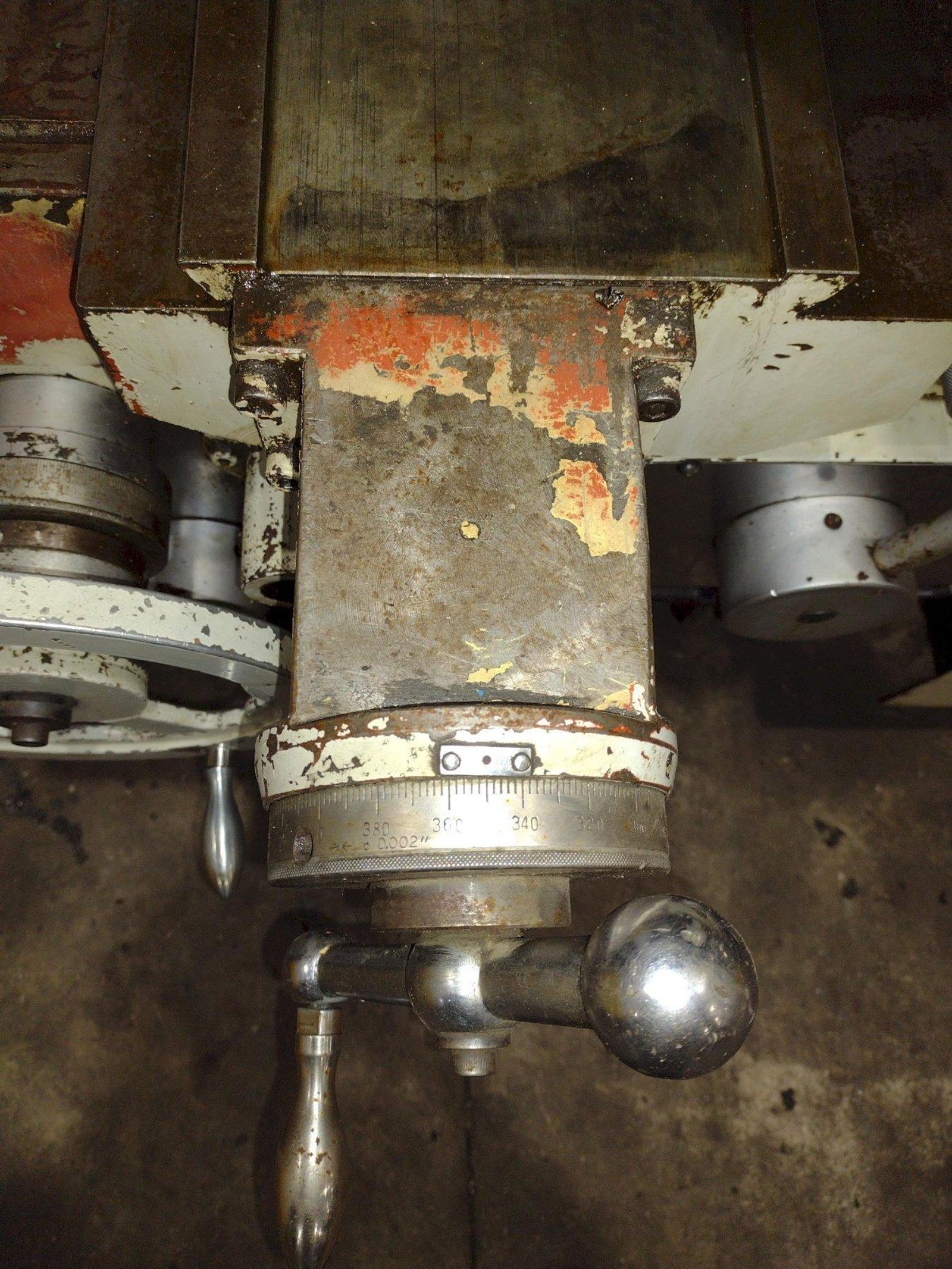

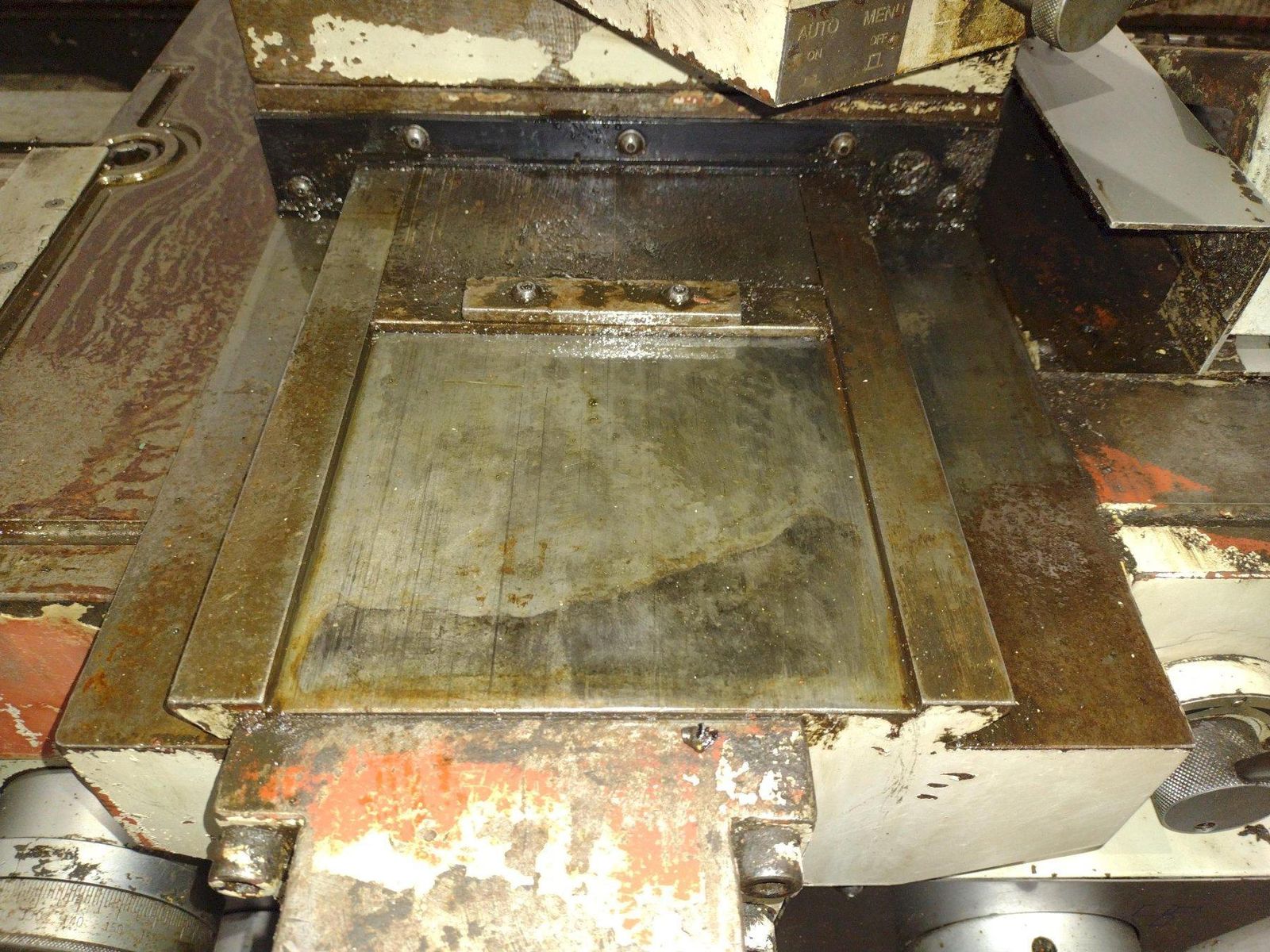

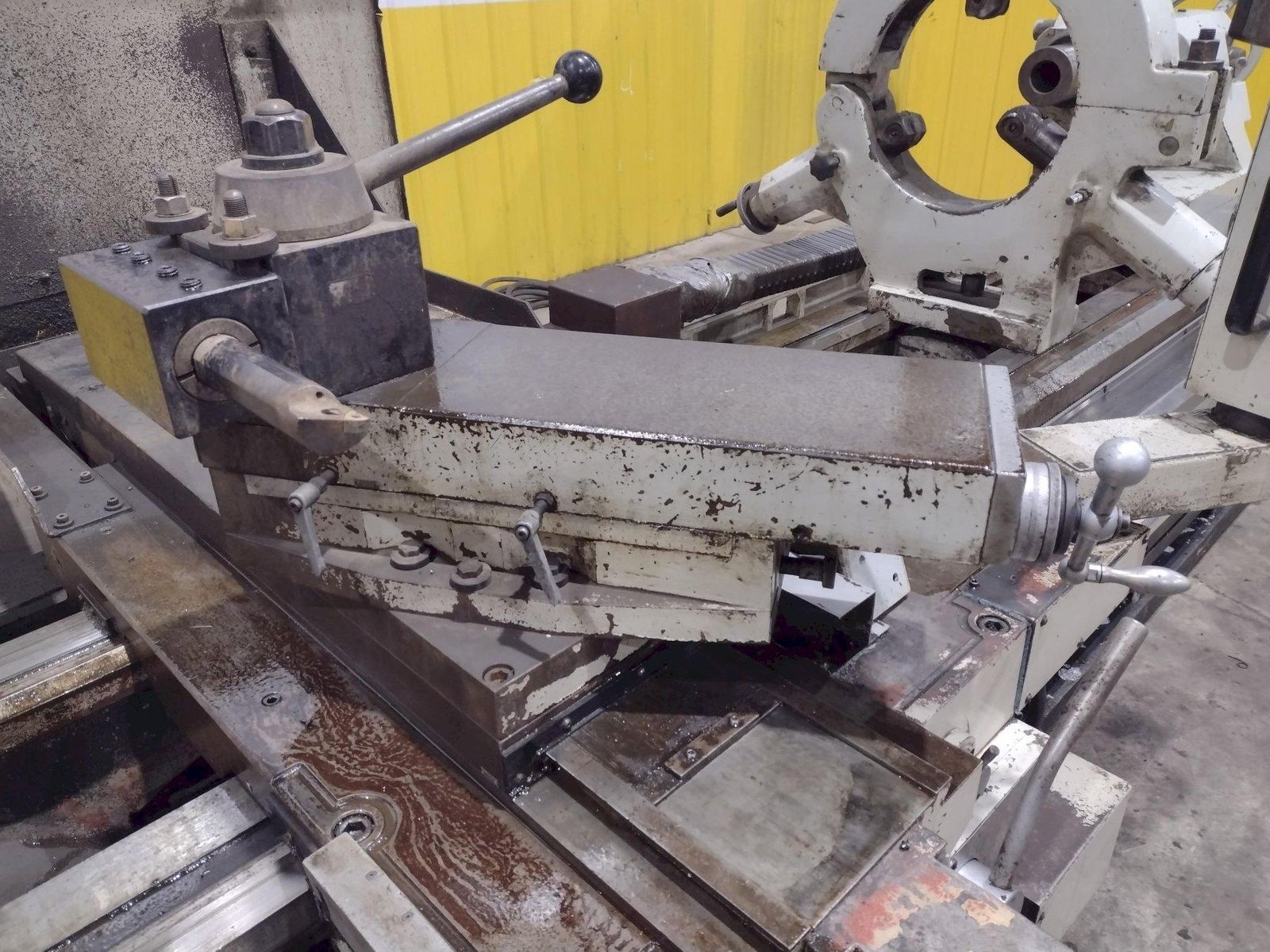

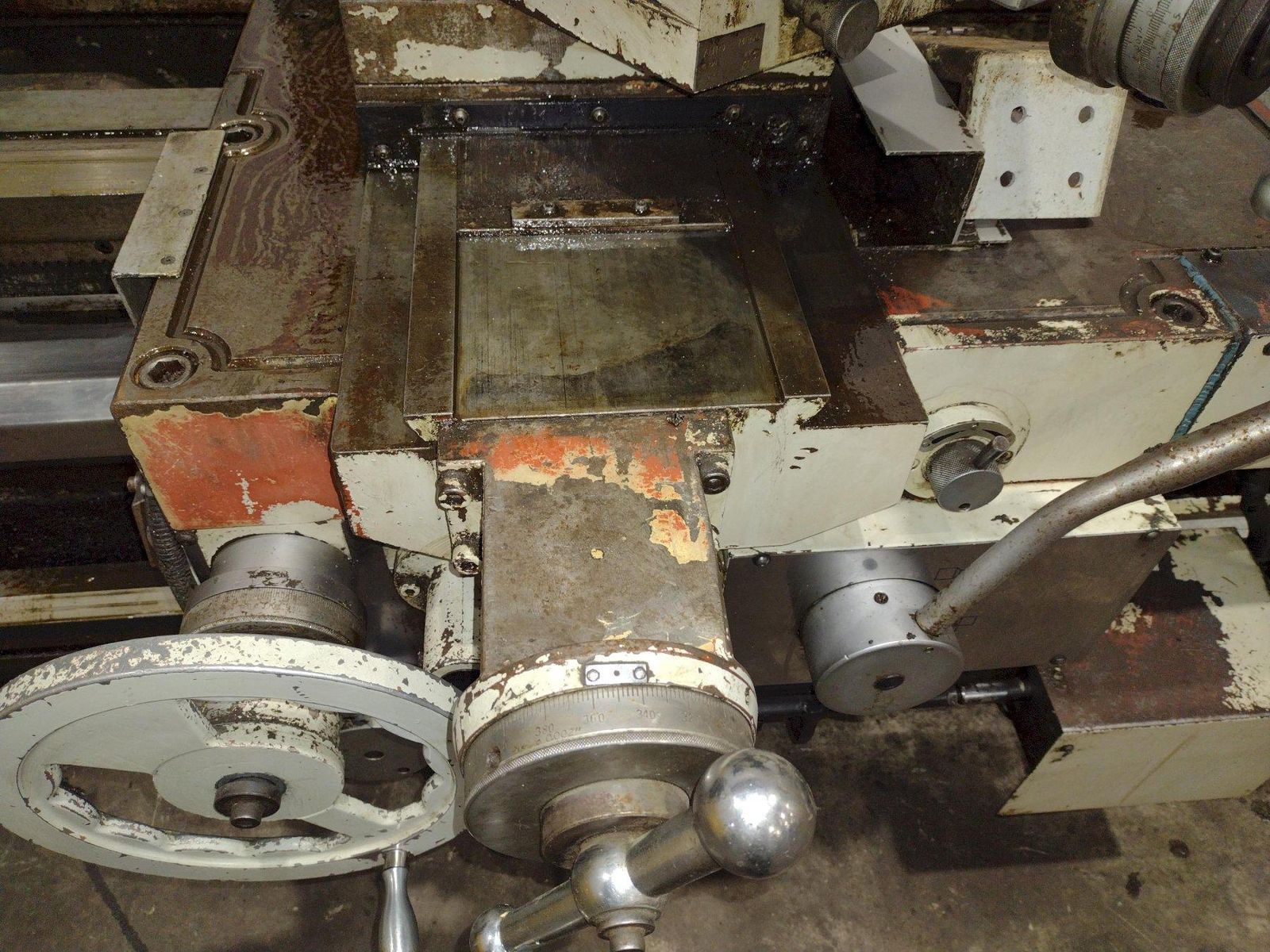

CROSS SLIDE TRAVEL .................... 26.40" (670 MM)
LONGITUDINAL FEEDS .................... 0.0018 TO 0.1 IPR (0.045 TO 2.55 MMPR)
CROSS FEEDS ........................... 0.0009 TO 0.05 IPR (0.023 TO 1.28 MMPR)
RAPID FEED ............................ YES

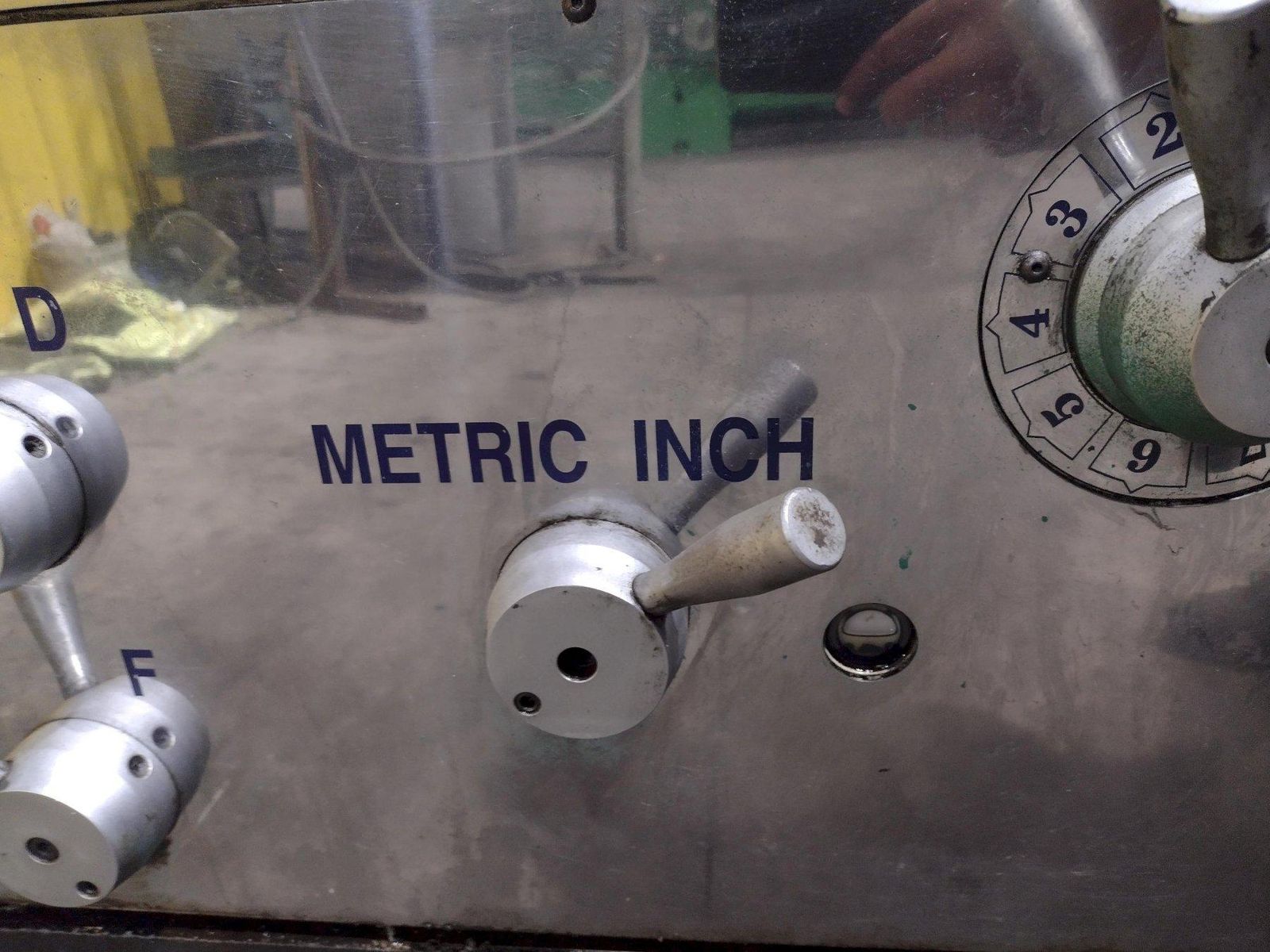

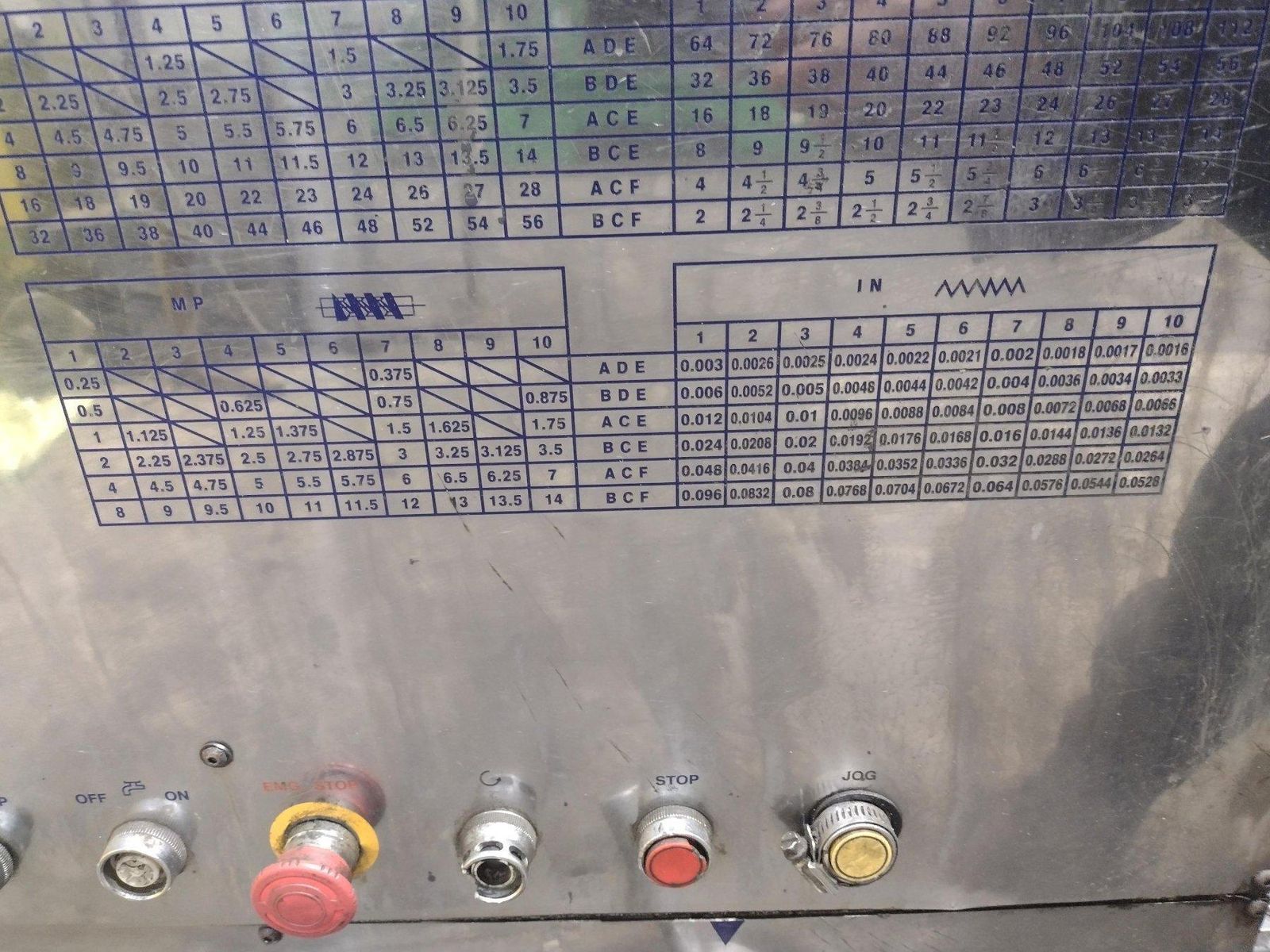

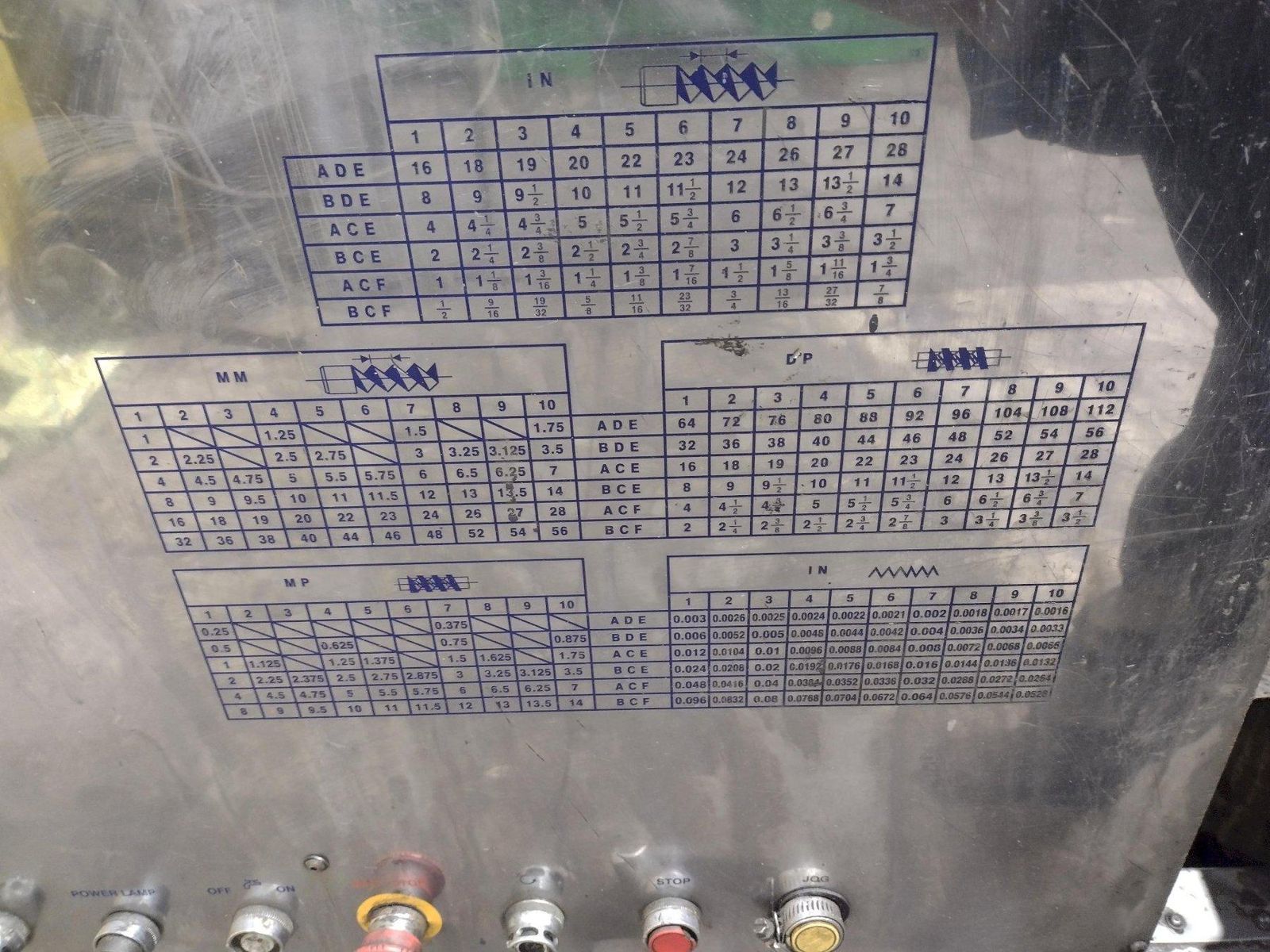

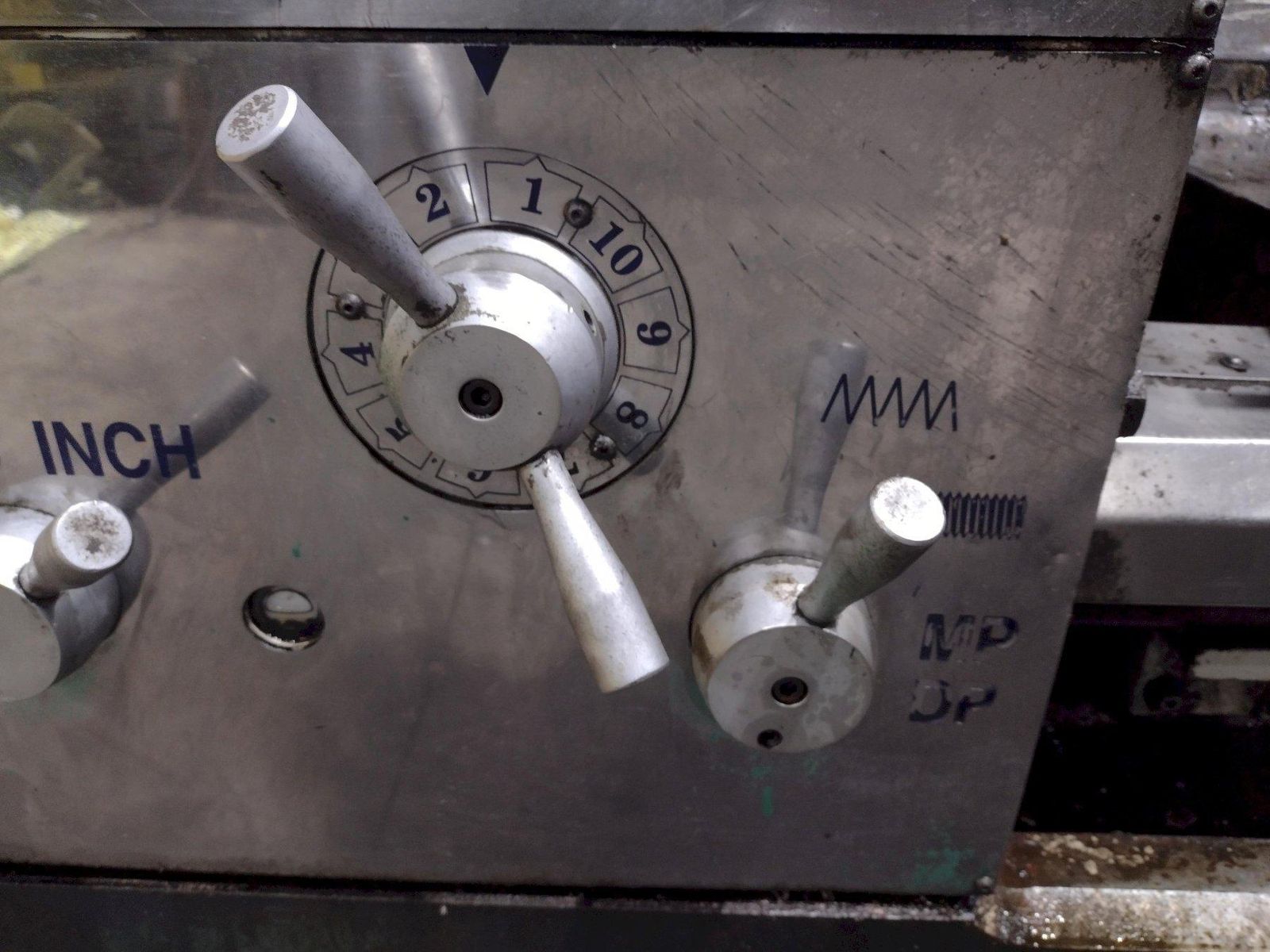

METRIC THREADING ...................... (60) 1 TO 56 MM
INCH THREADING ........................ (60) 1/2 TO 28 TPI

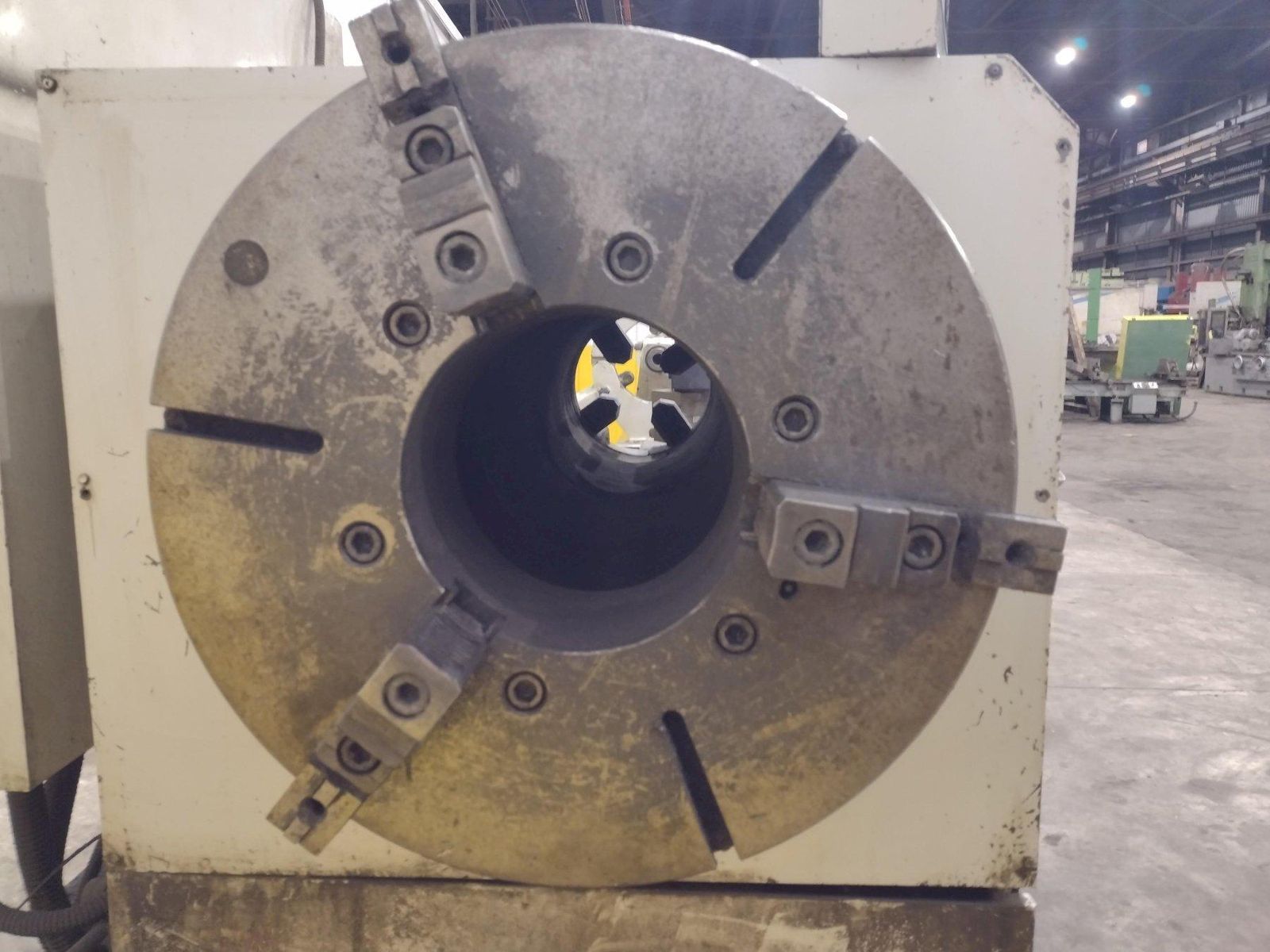

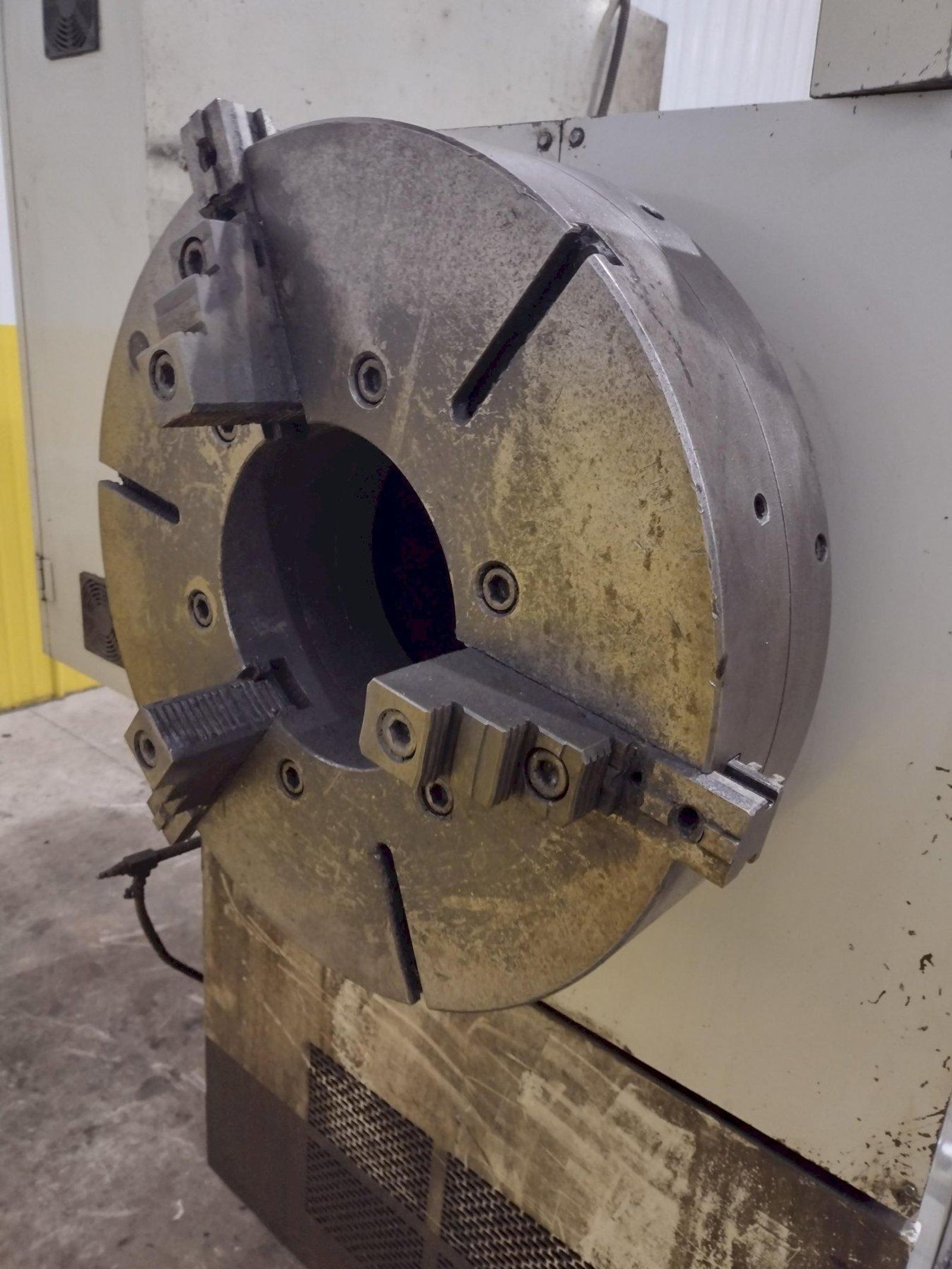

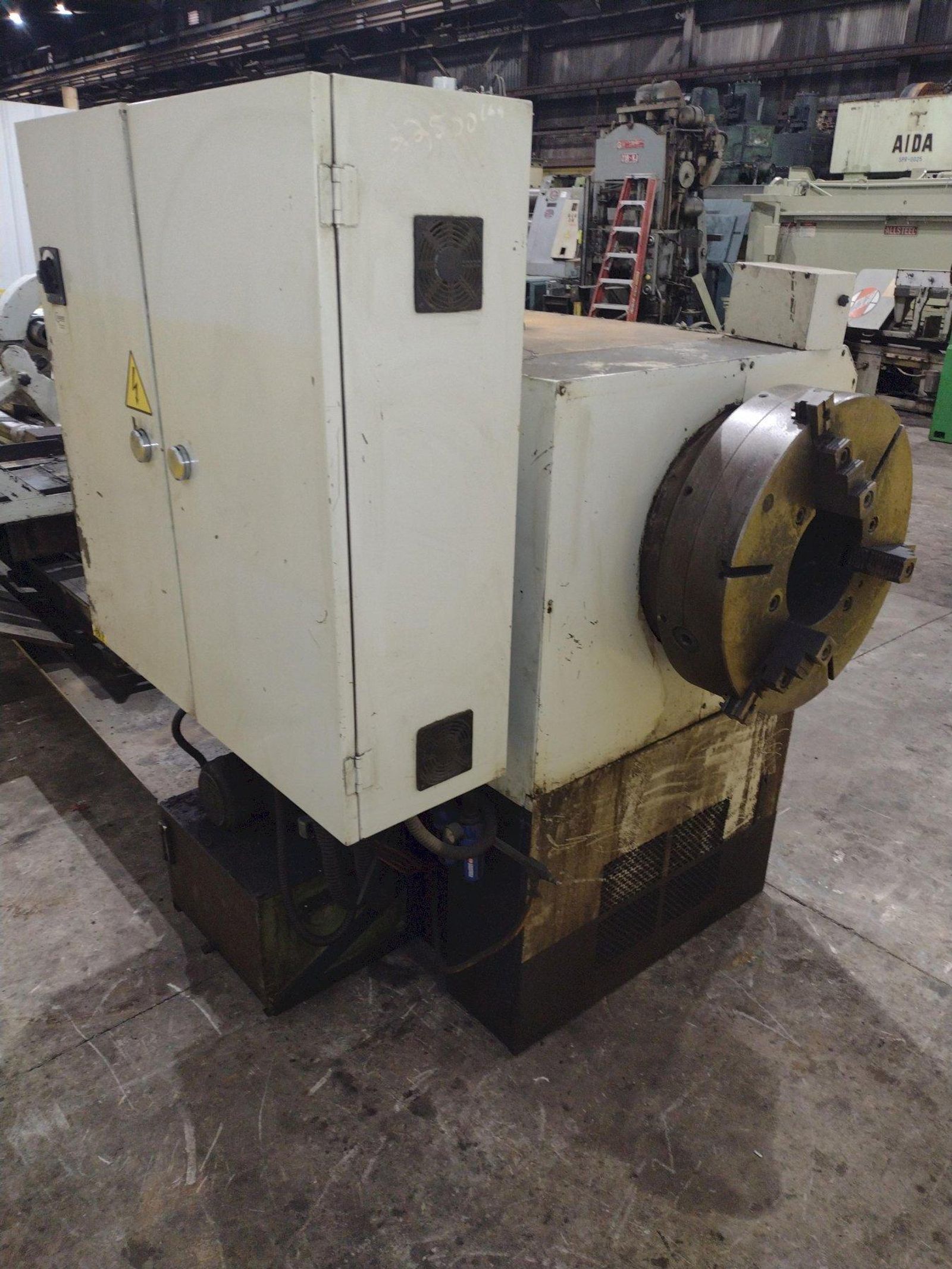

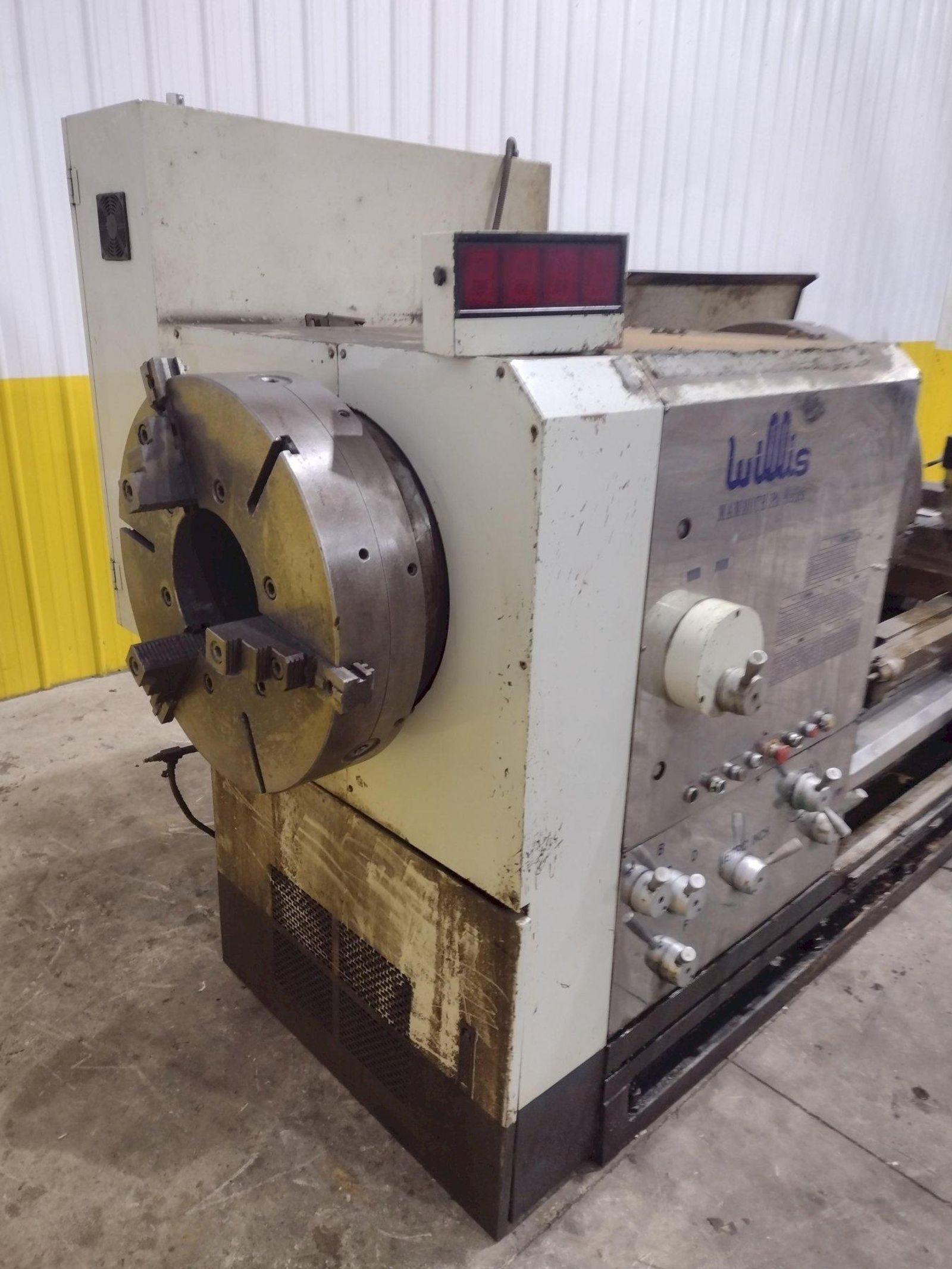

REAR CHUCK ............................ 25" (3 JAW)

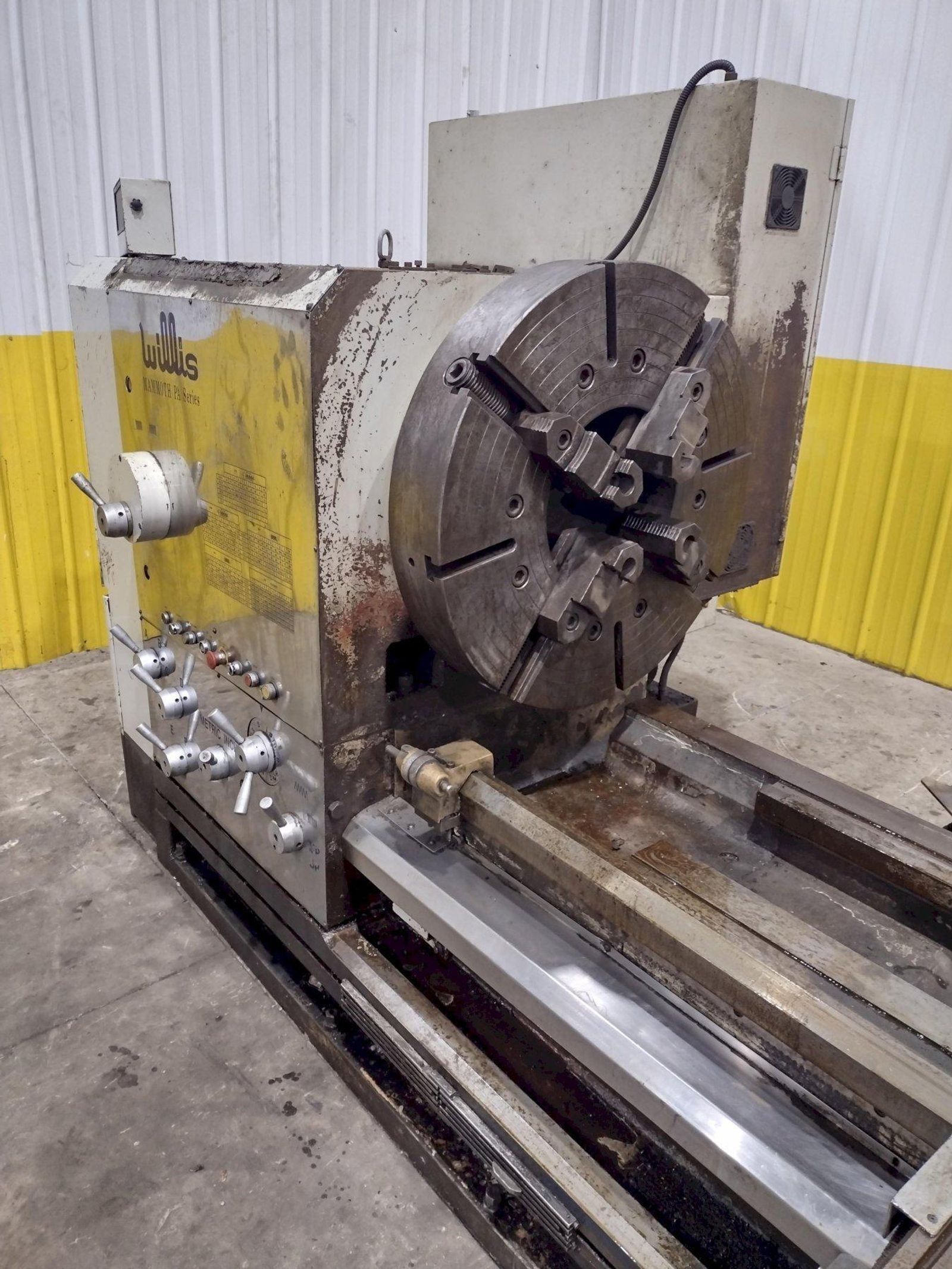

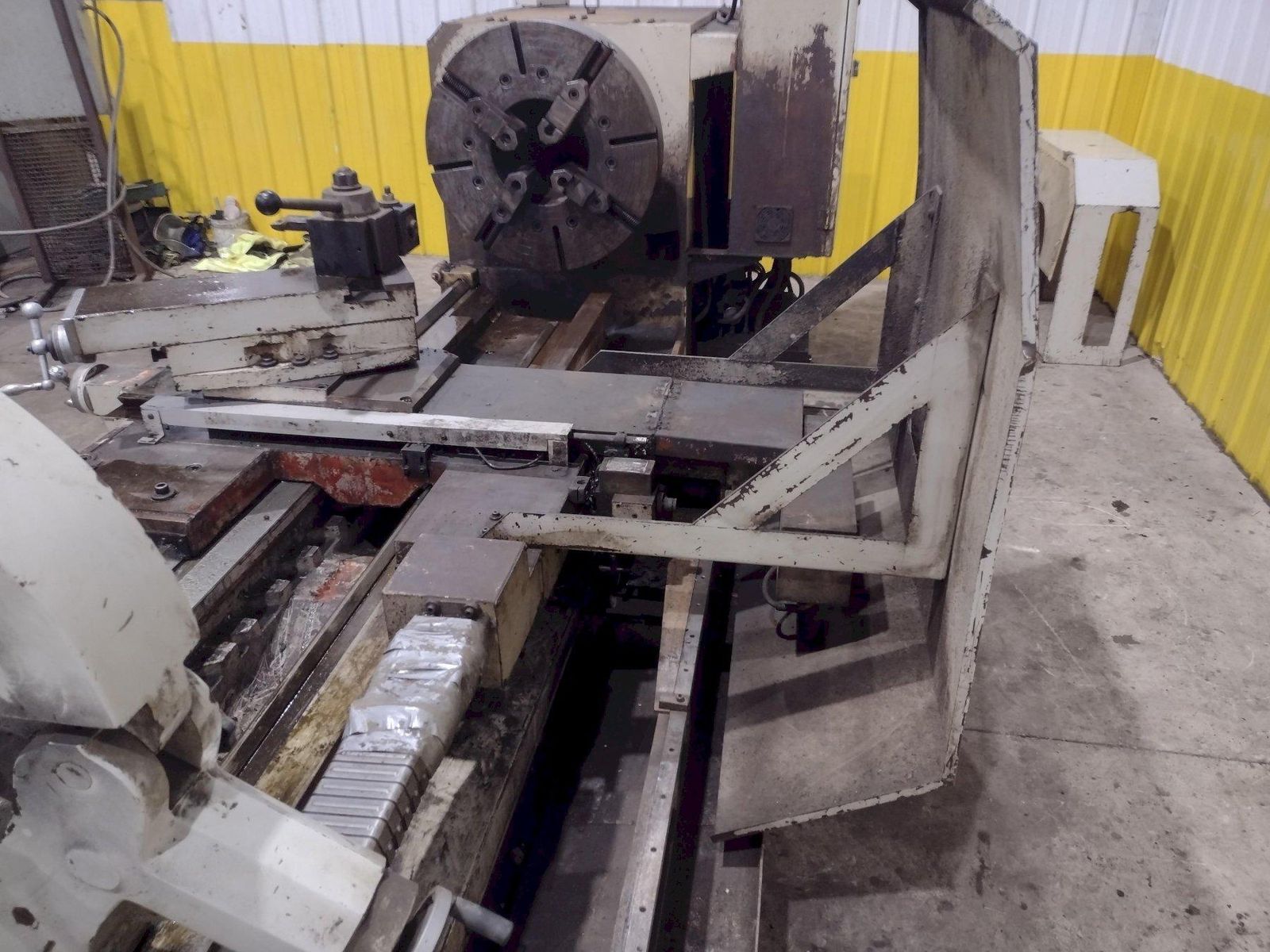

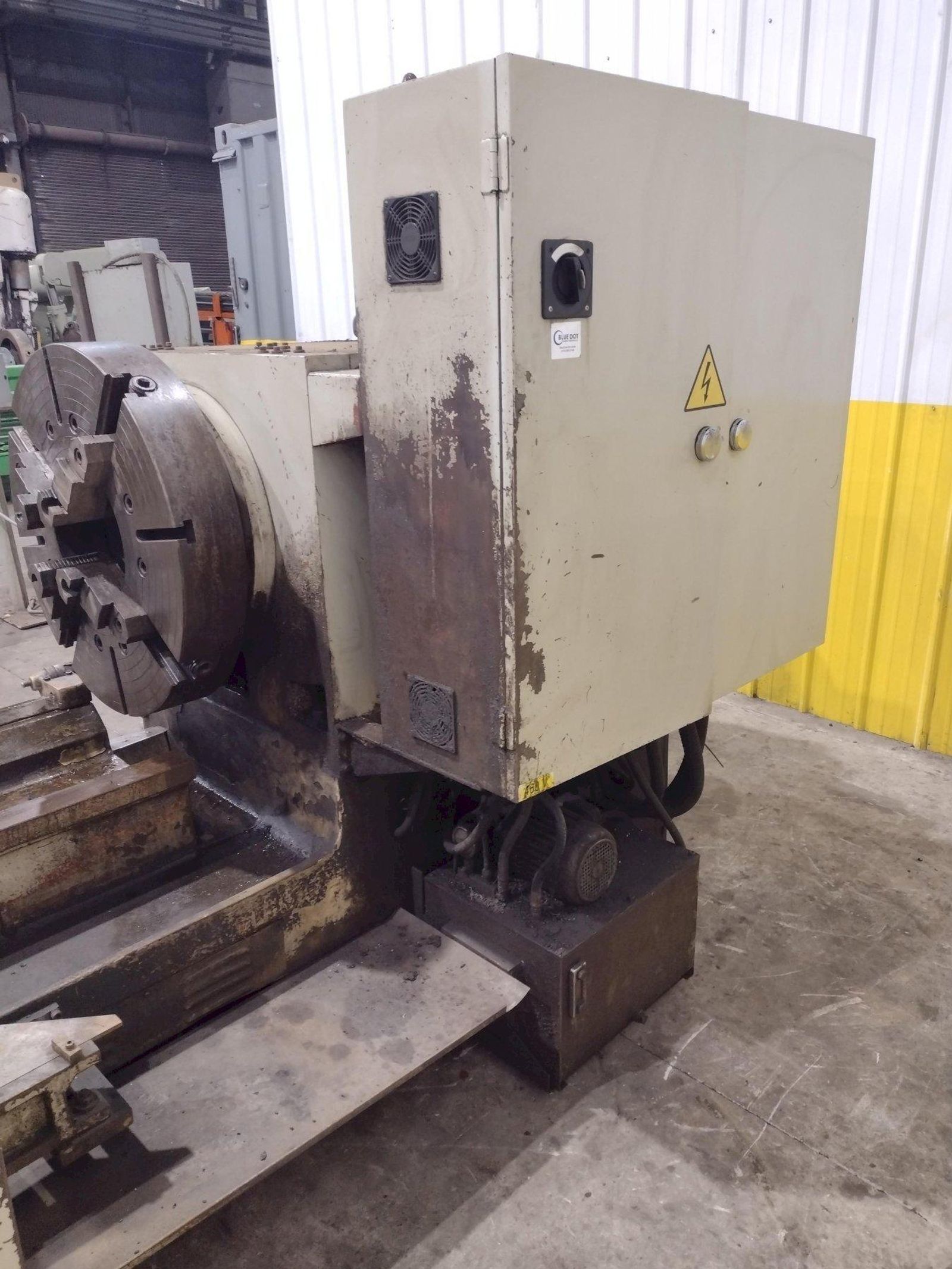

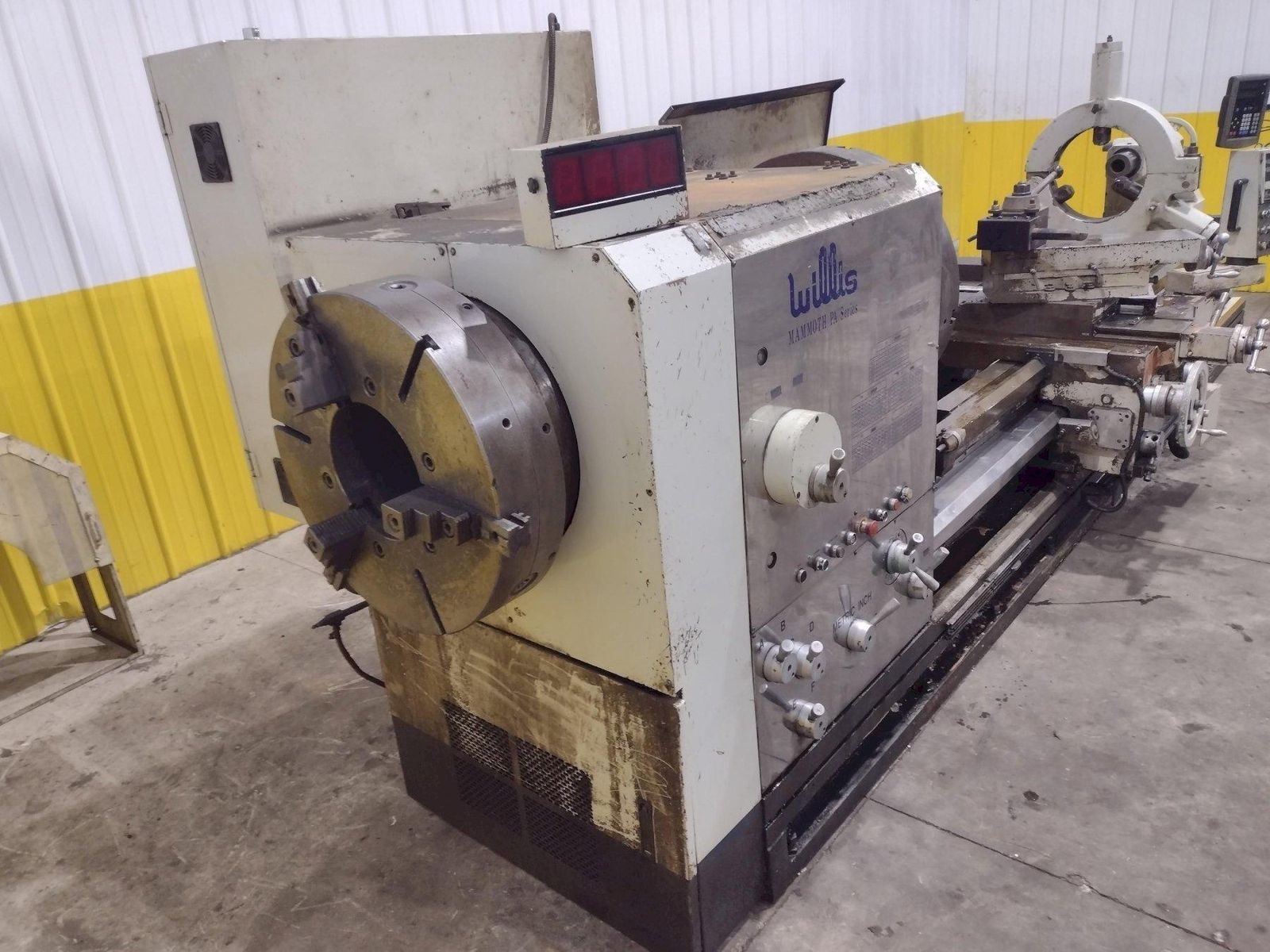

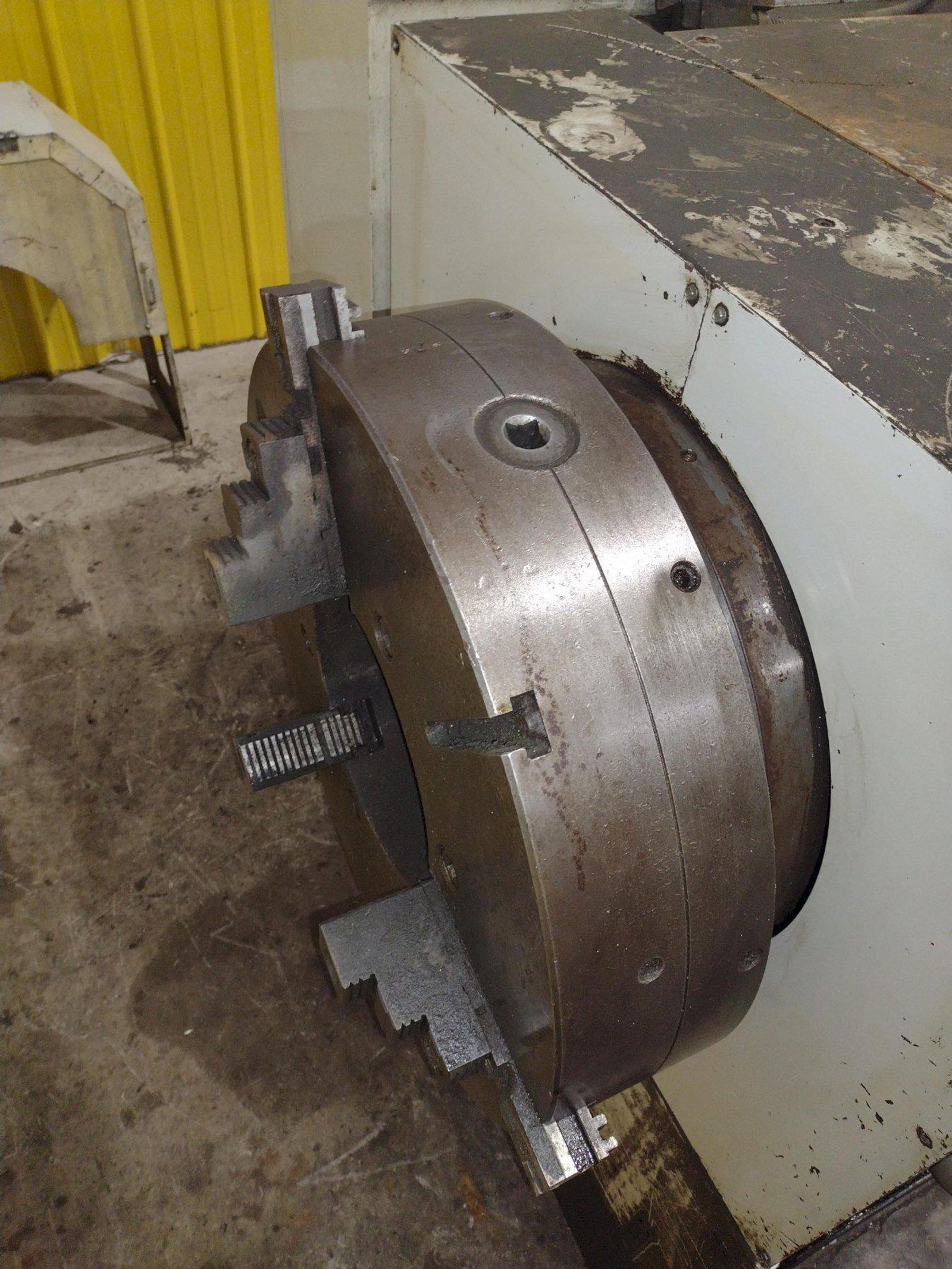

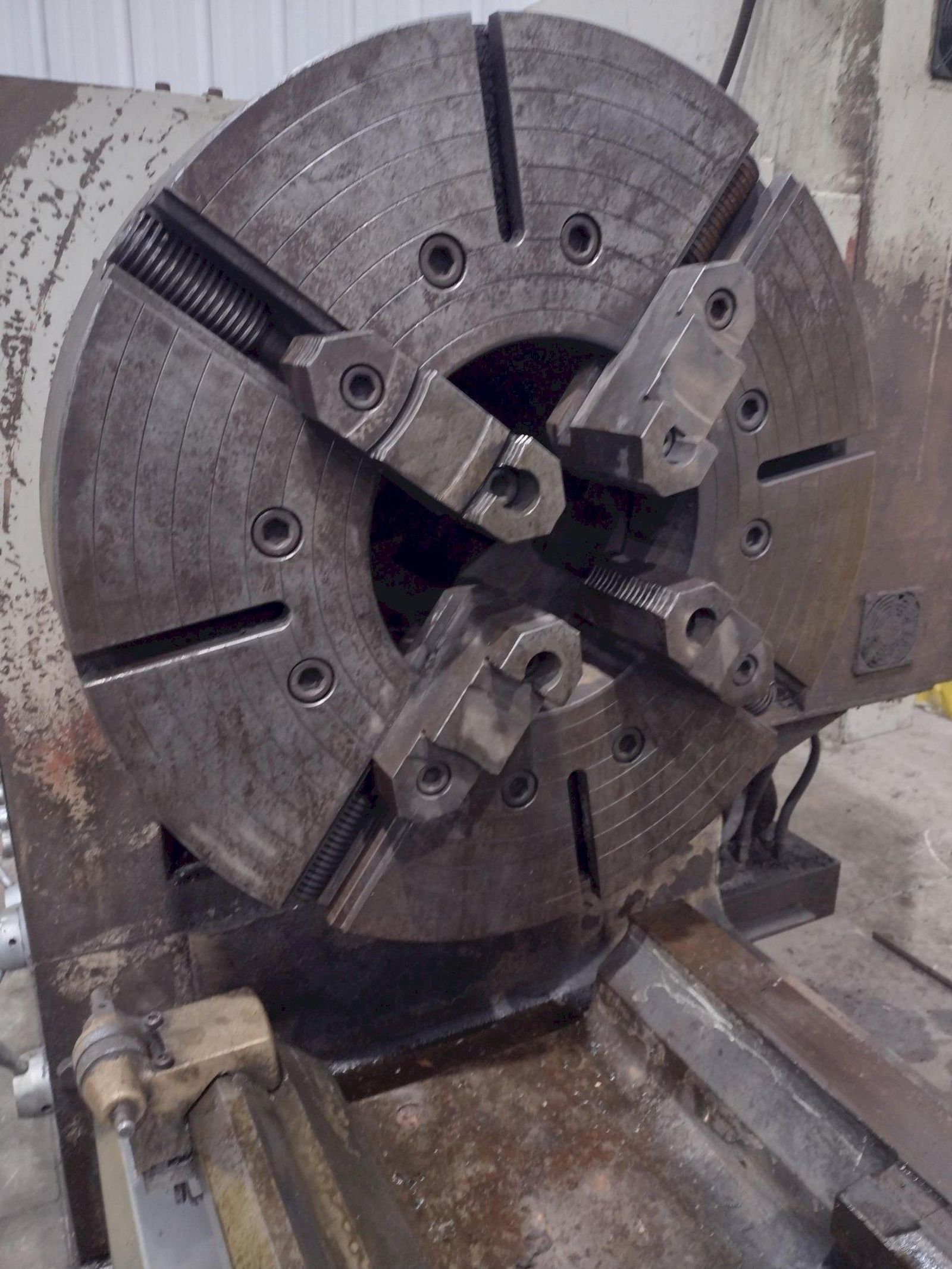

FRONT CHUCK ........................... 30" (4 JAW)

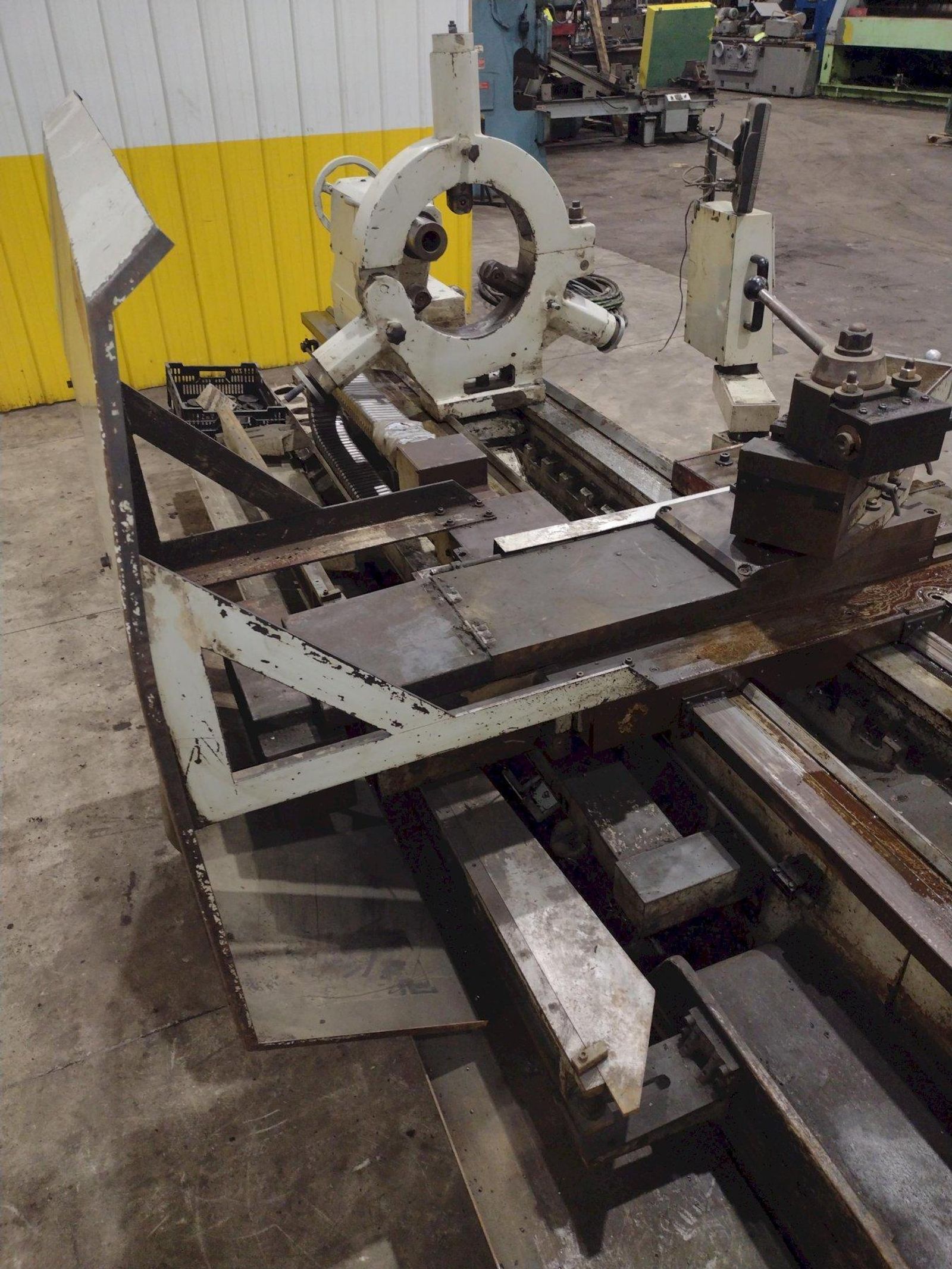

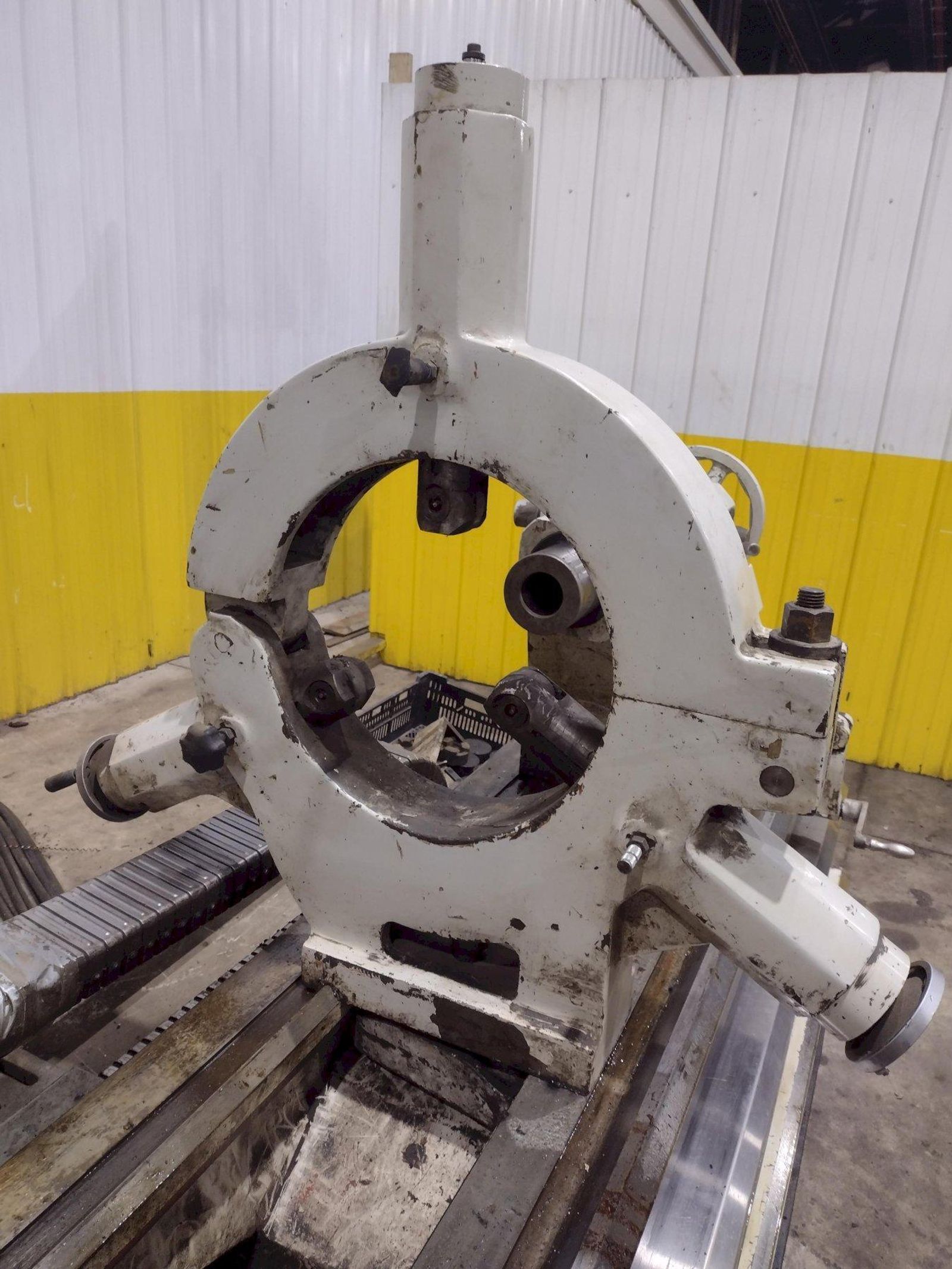

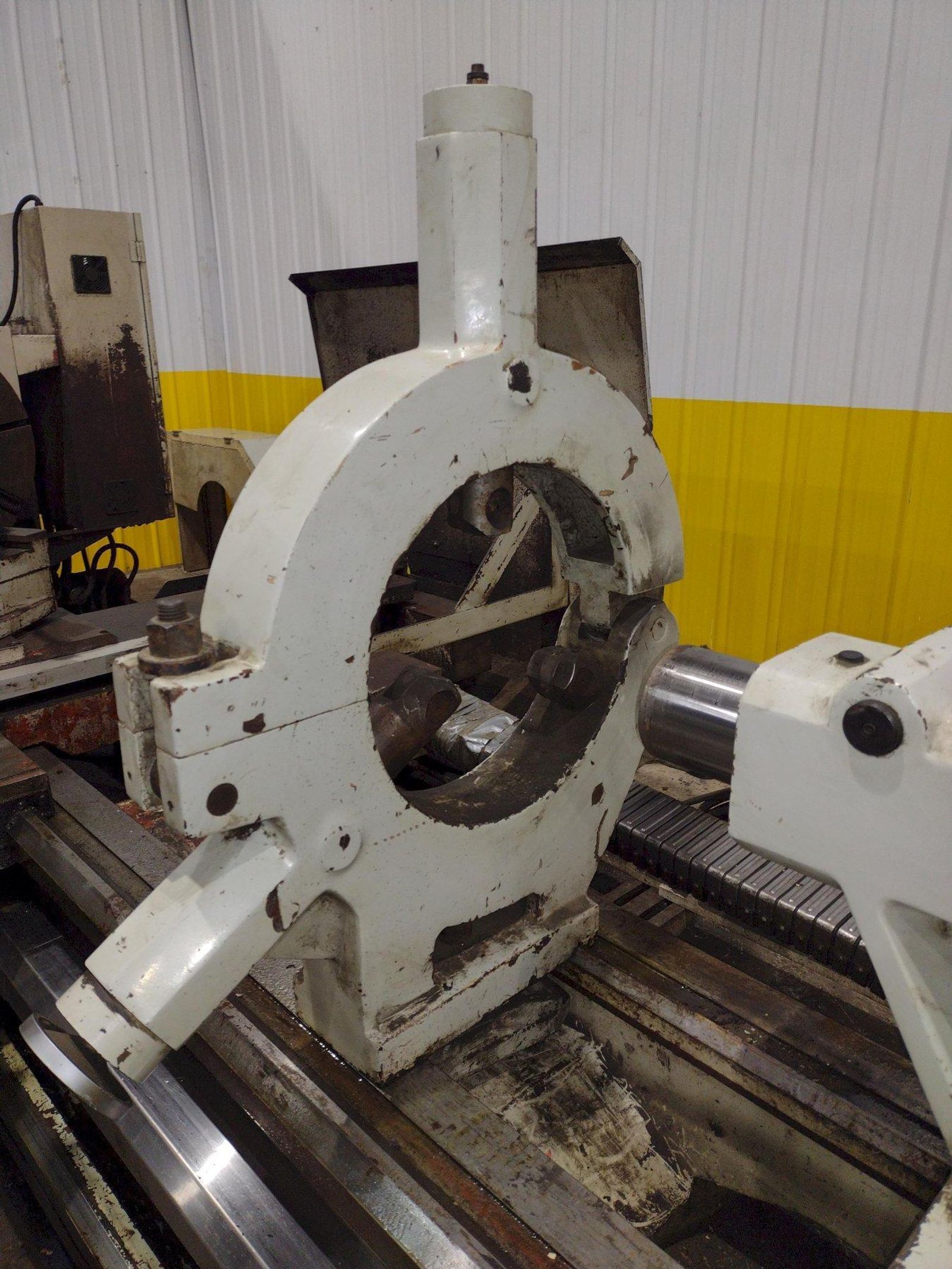

STEADY REST ........................... 16" HOLE
THREAD DIAL ........................... YES

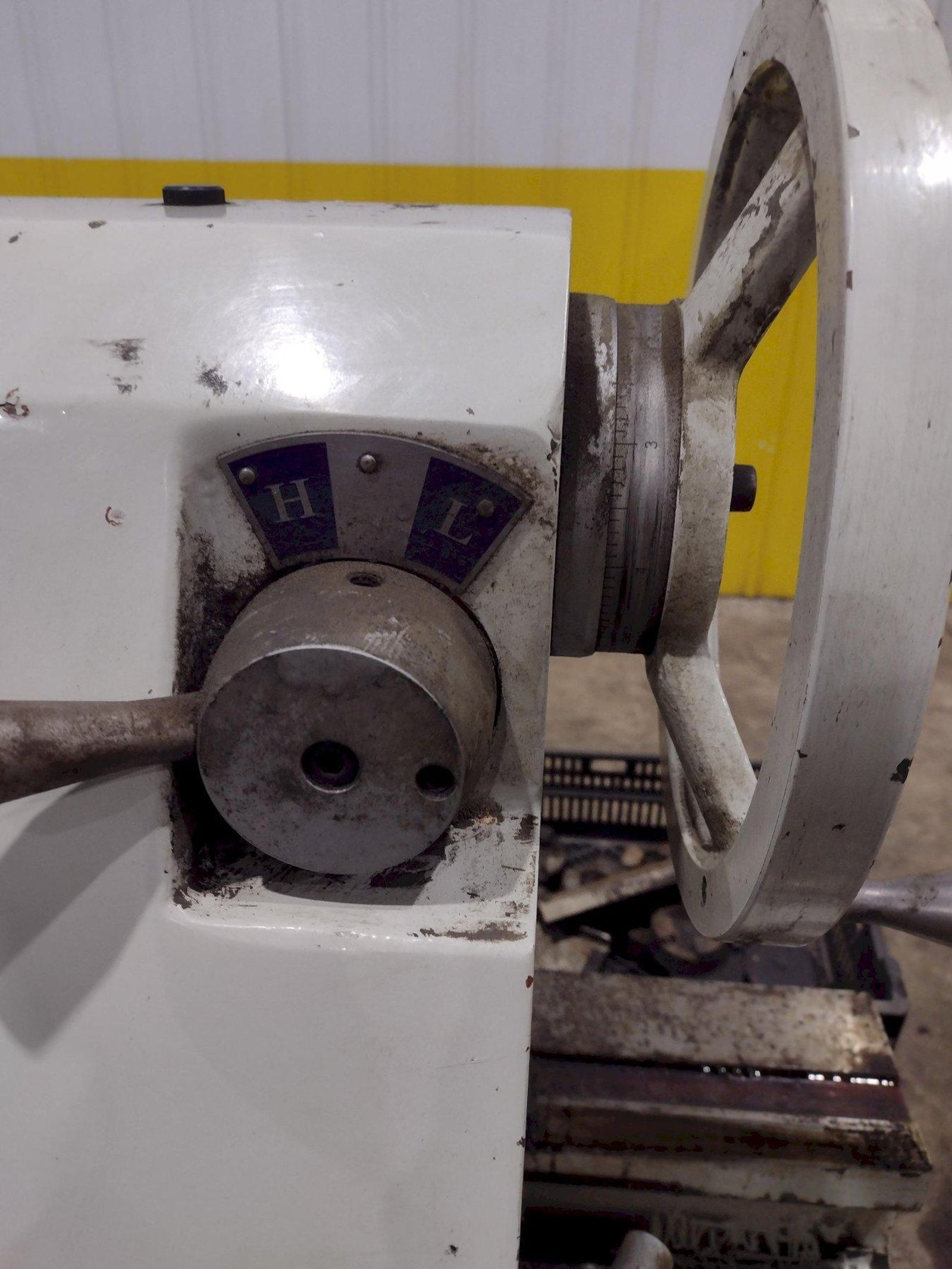

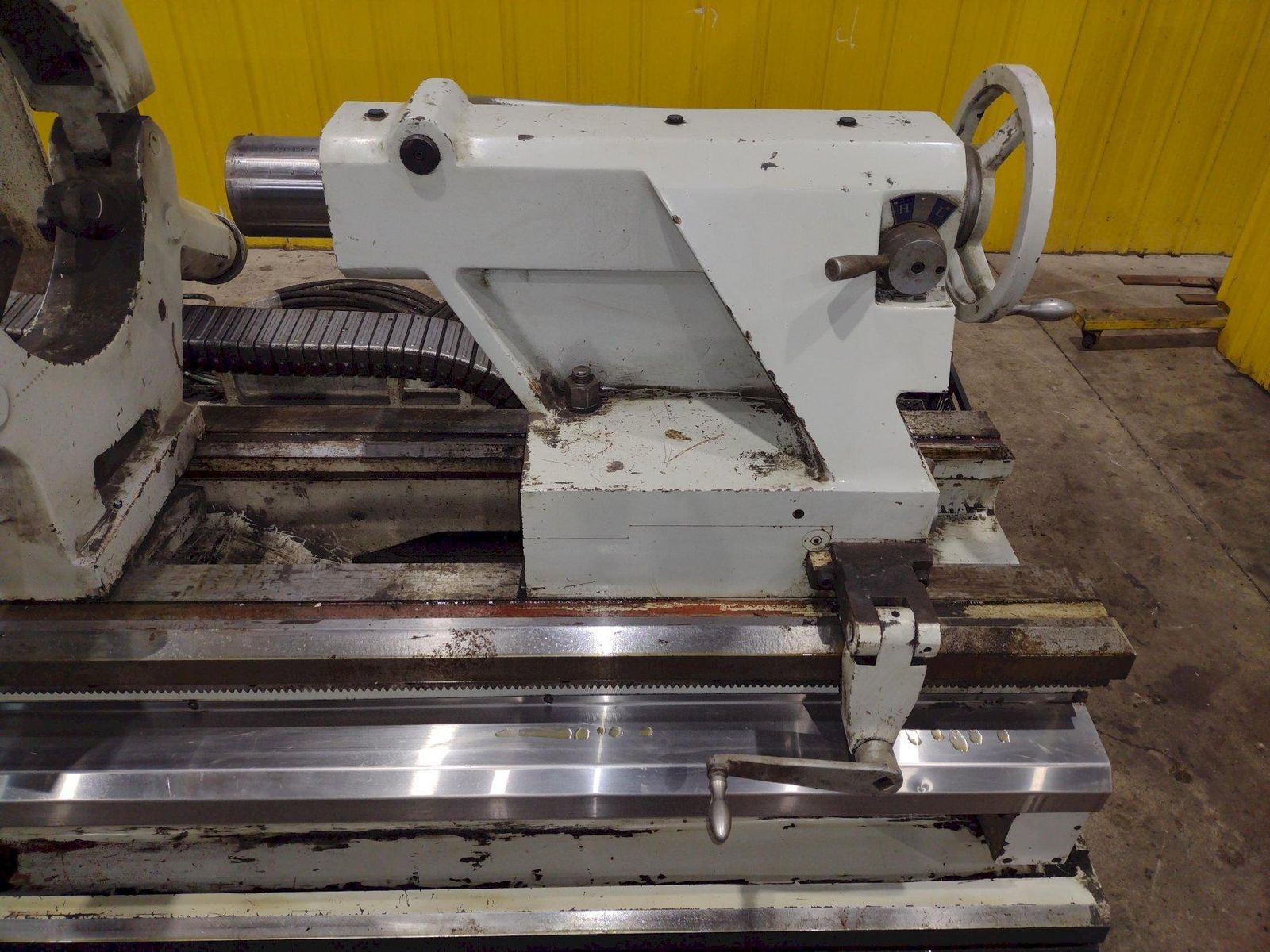

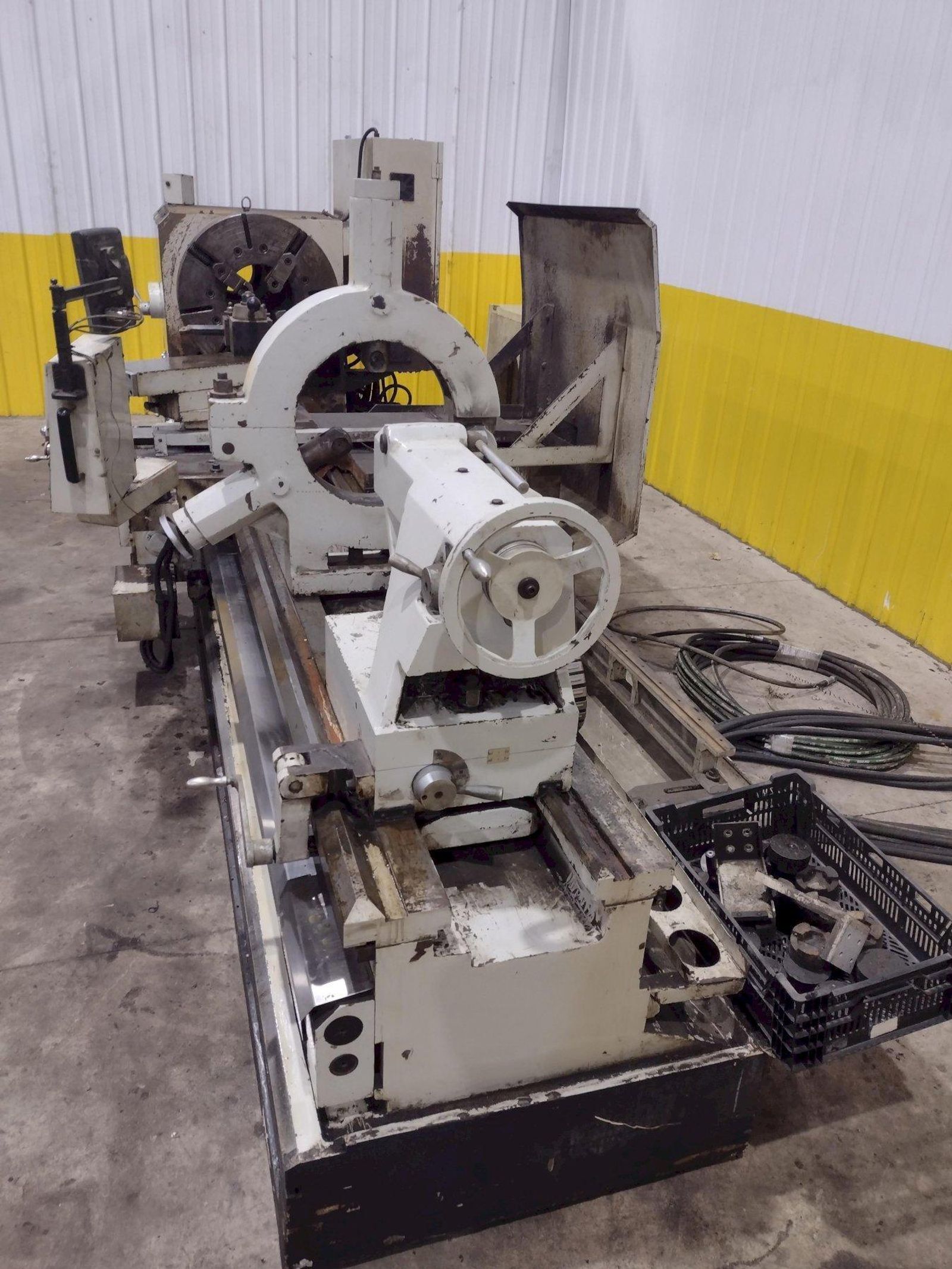

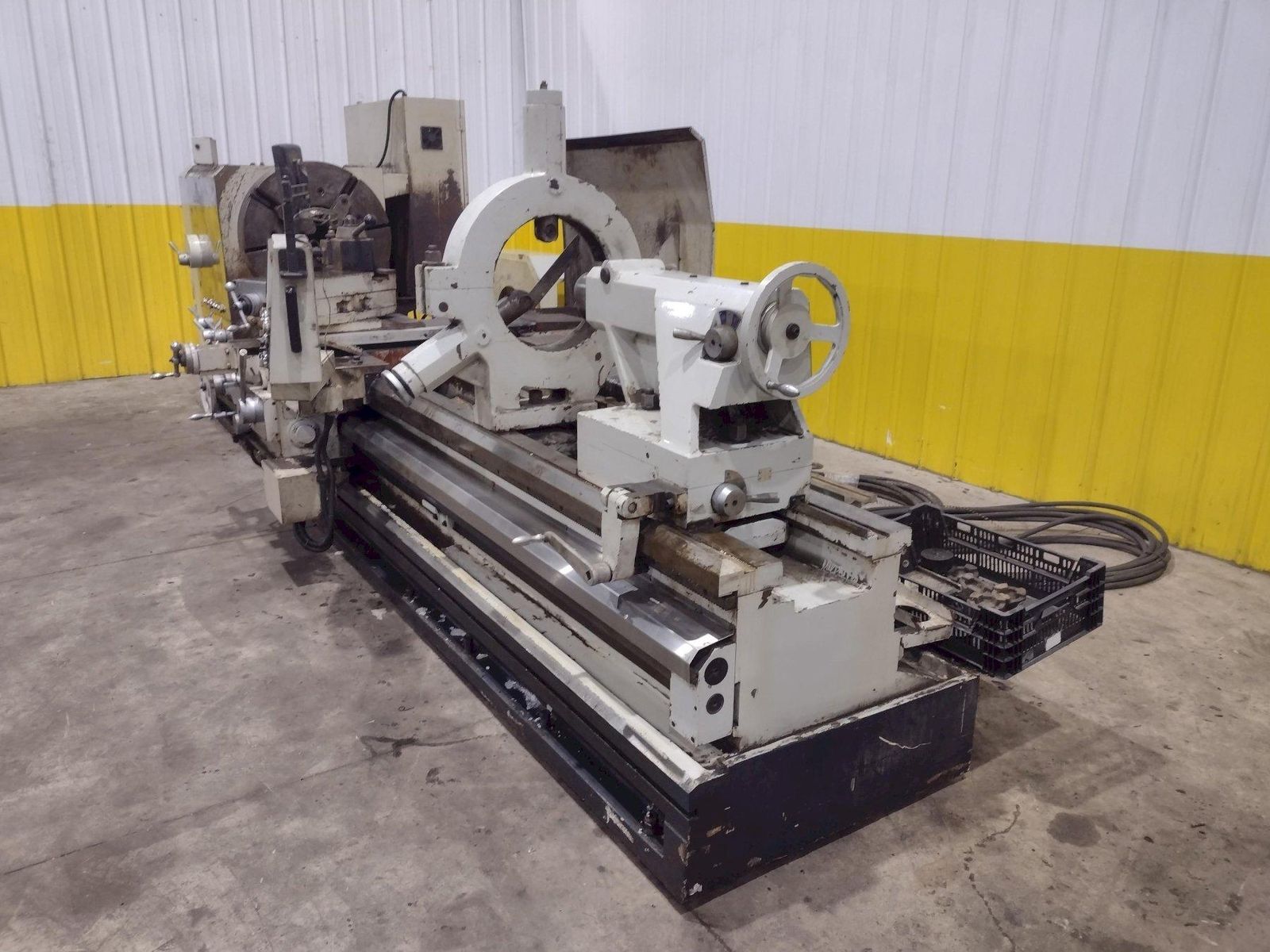

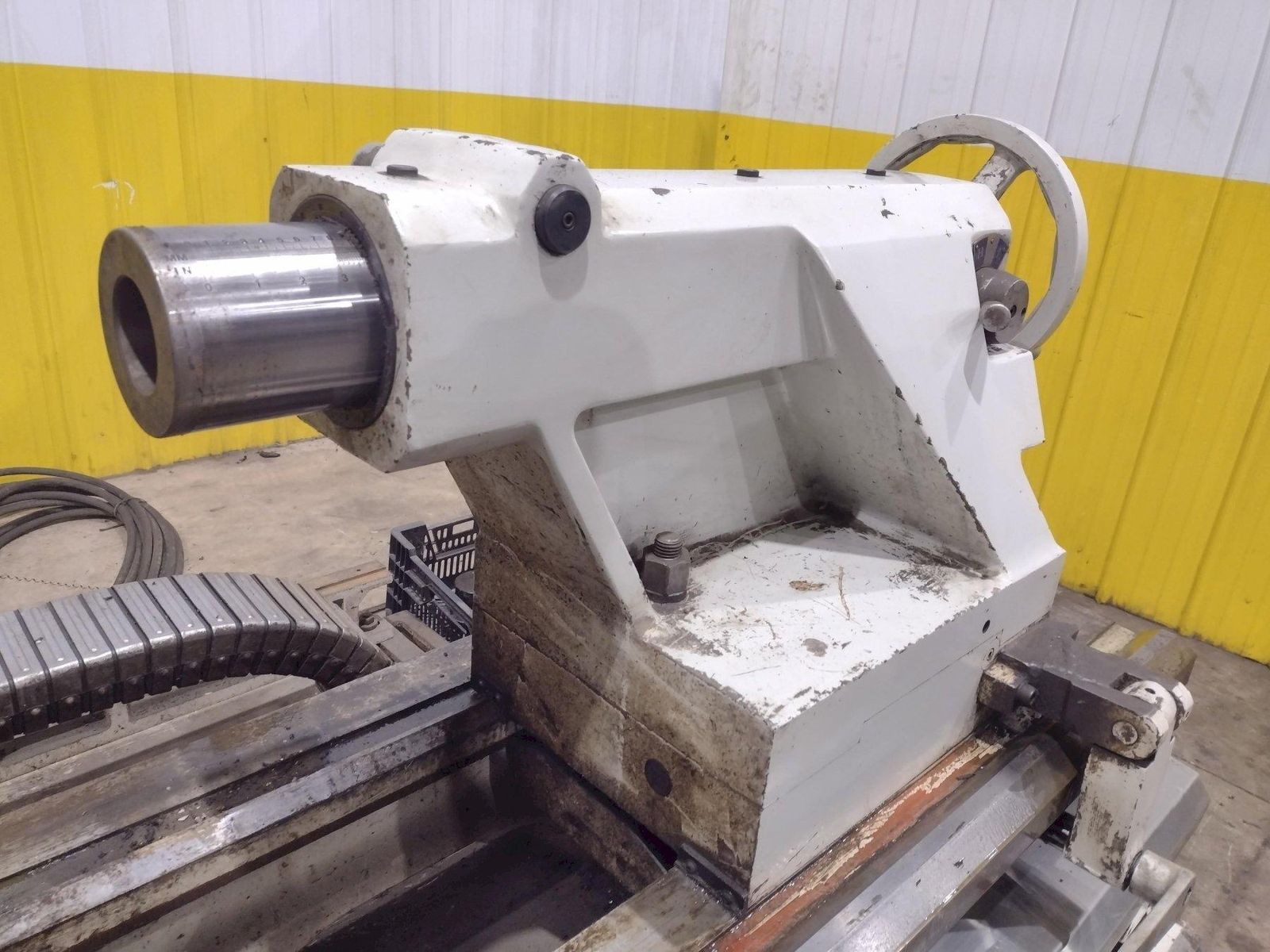

TAILSTOCK ............................. 2 SPEED

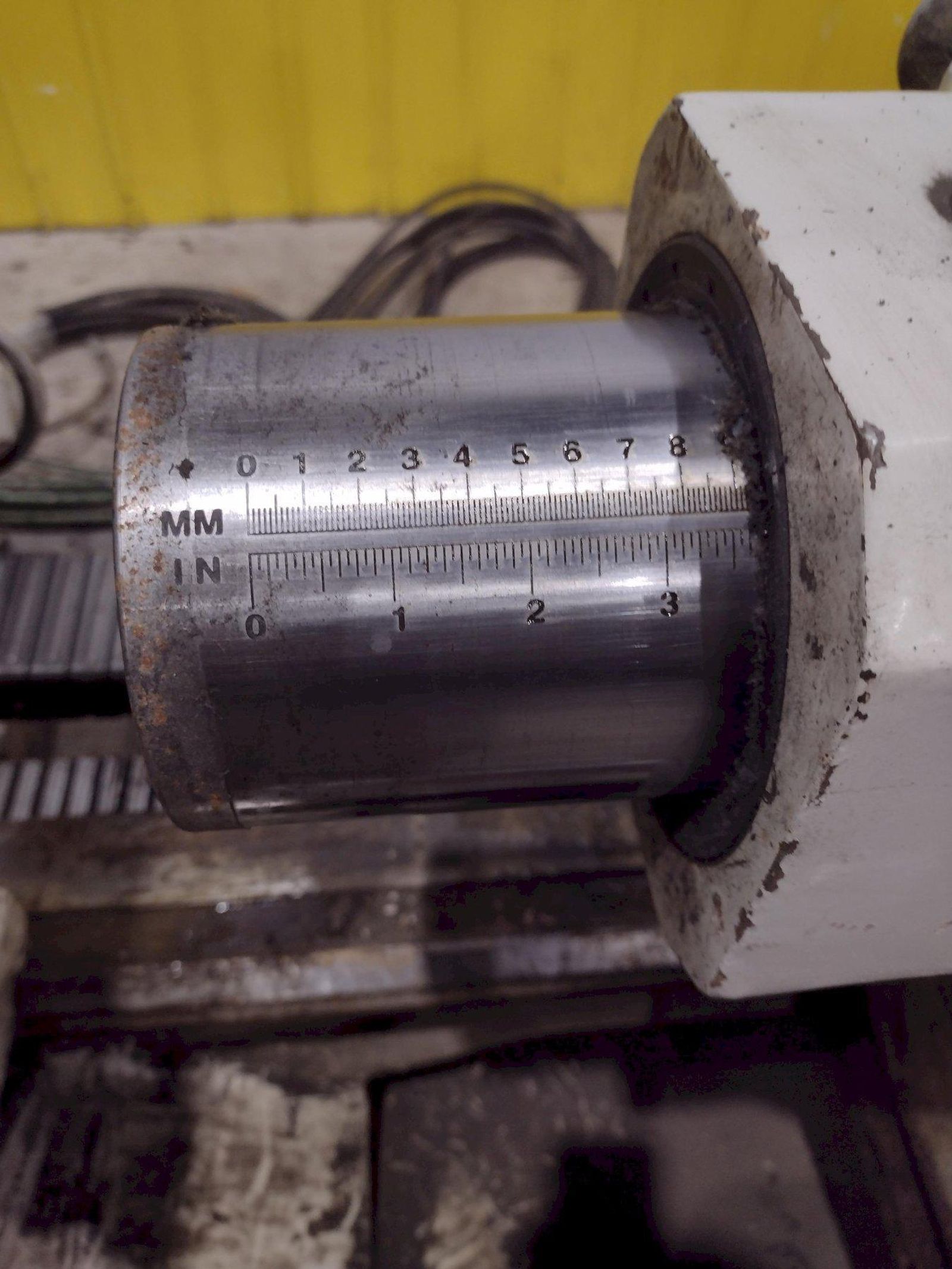

TAILSTOCK QUILL ....................... 4.52" (115 MM)
TAILSTOCK TRAVEL ...................... 7.87" (200 MM)
TAILSTOCK TAPER ....................... #6 MT

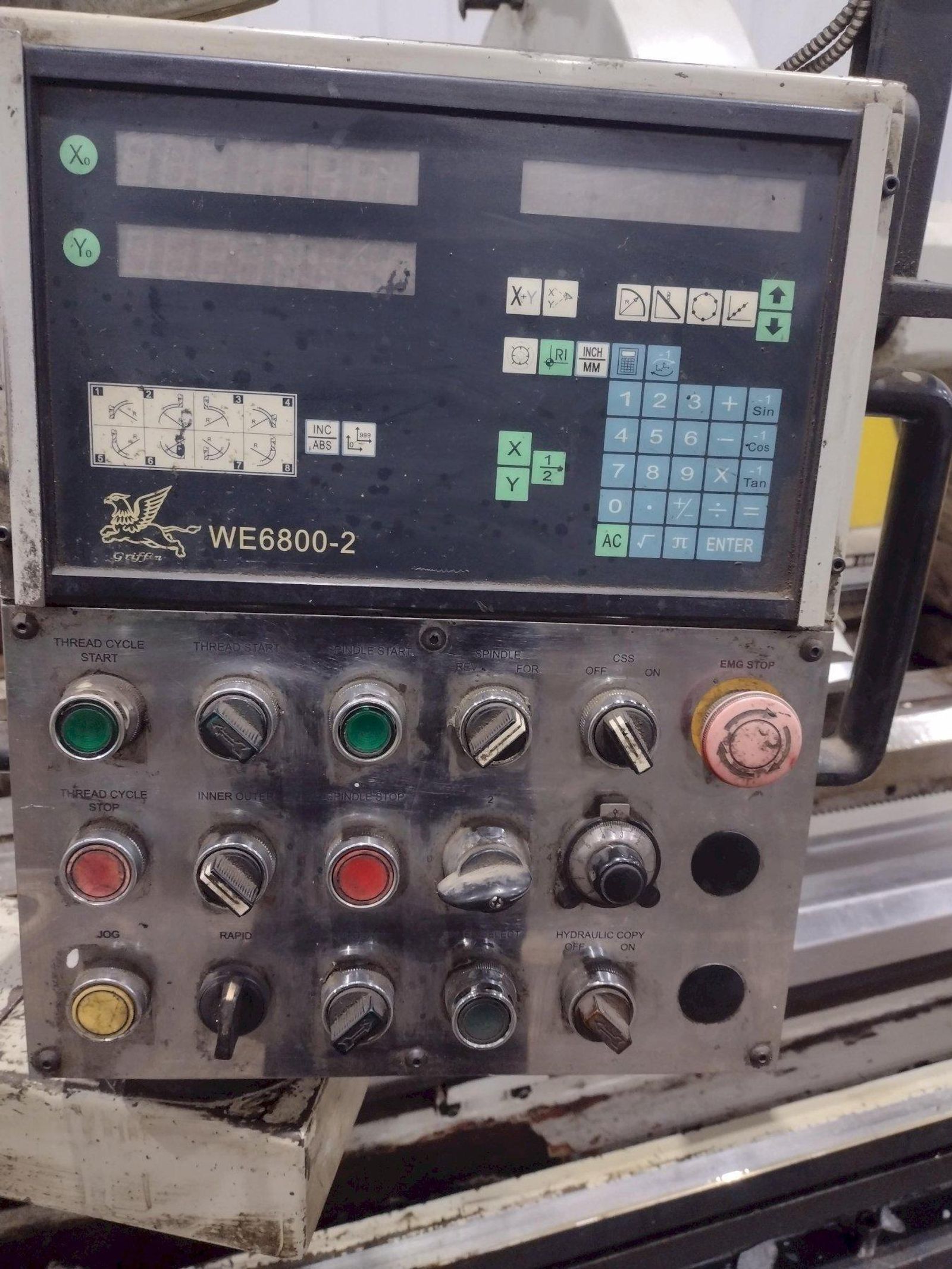

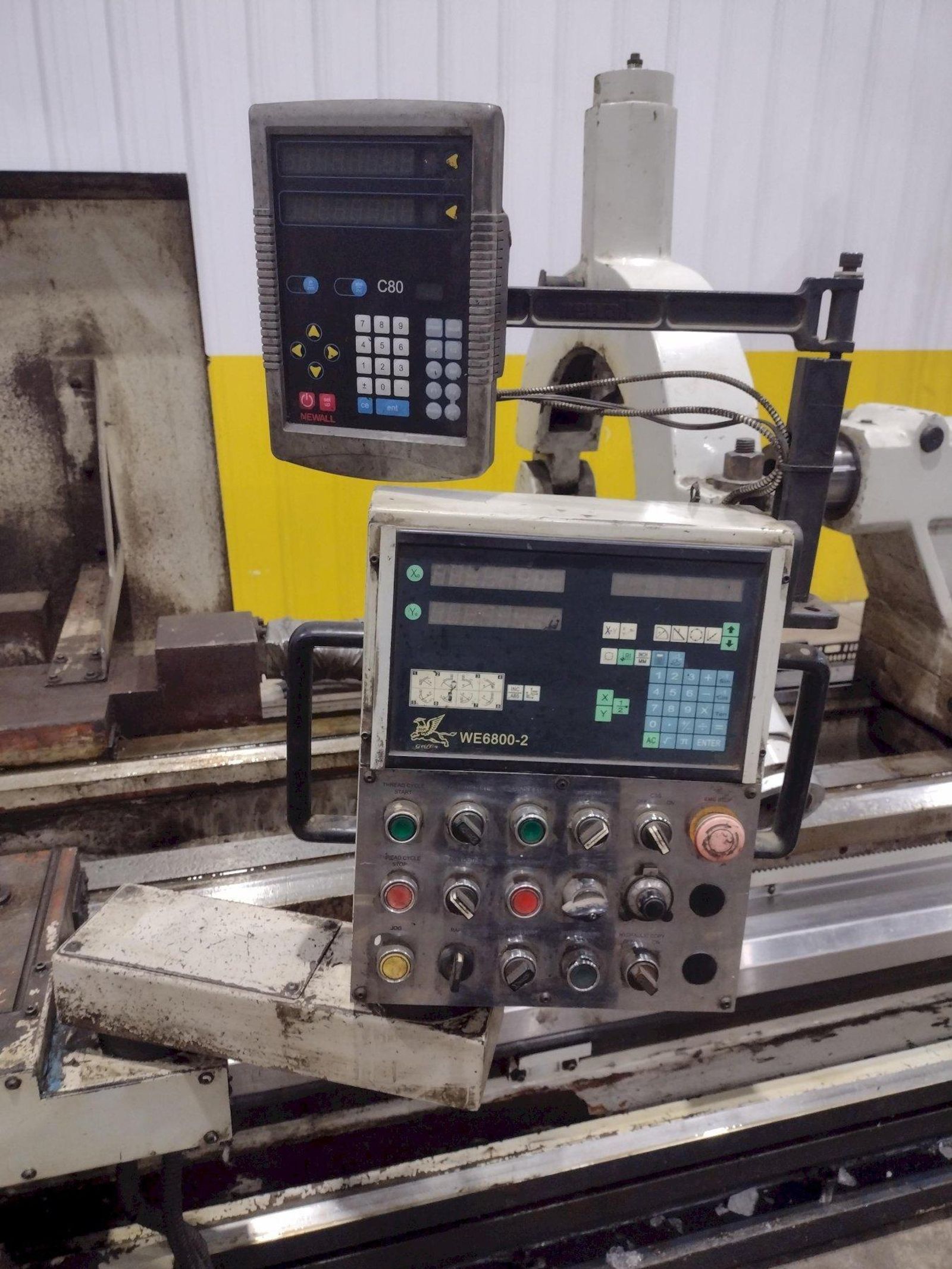

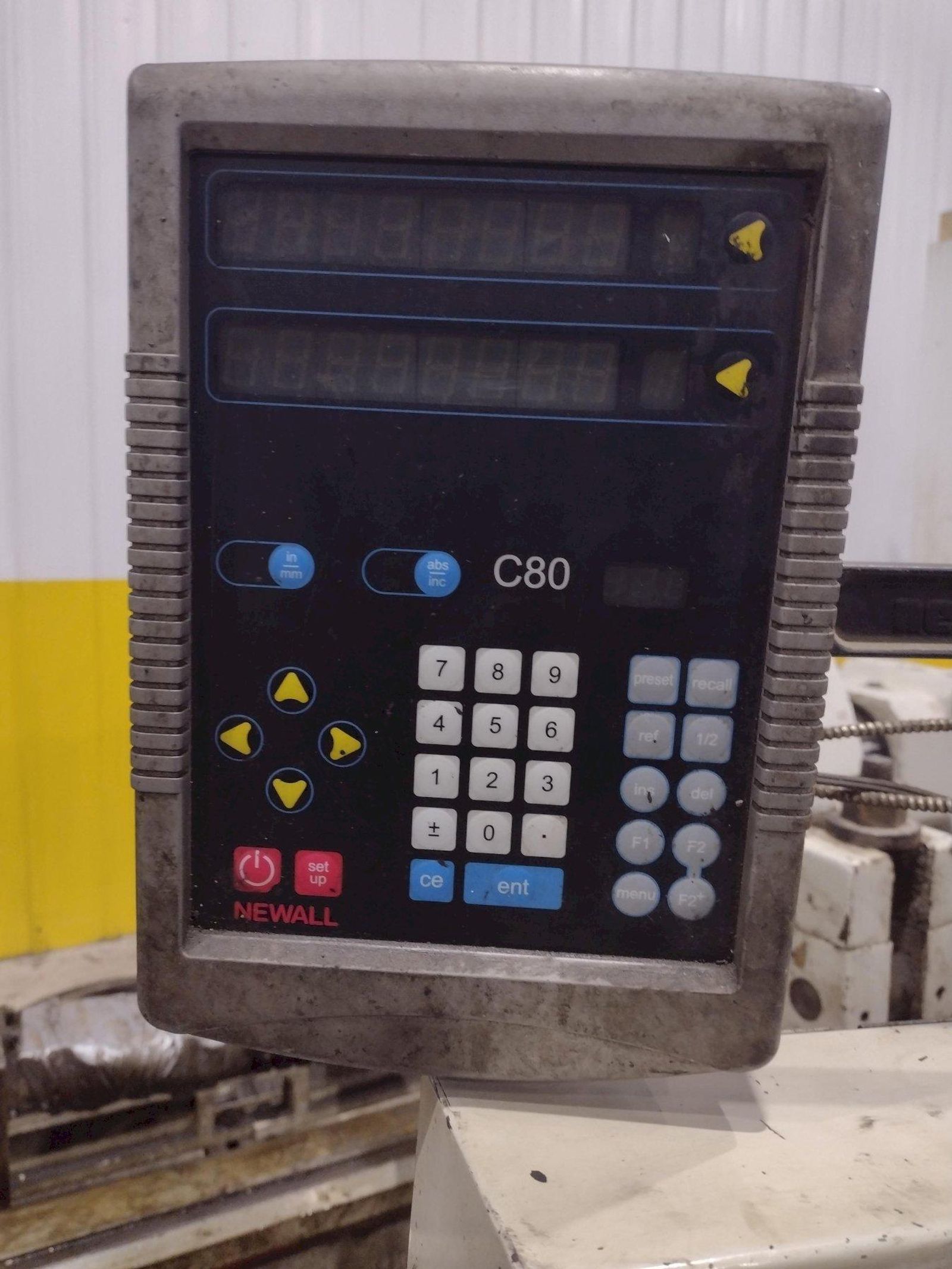

DIGITAL READ OUTS ..................... 2 AXIS
COOLANT PUMP .......................... 1/8 HP

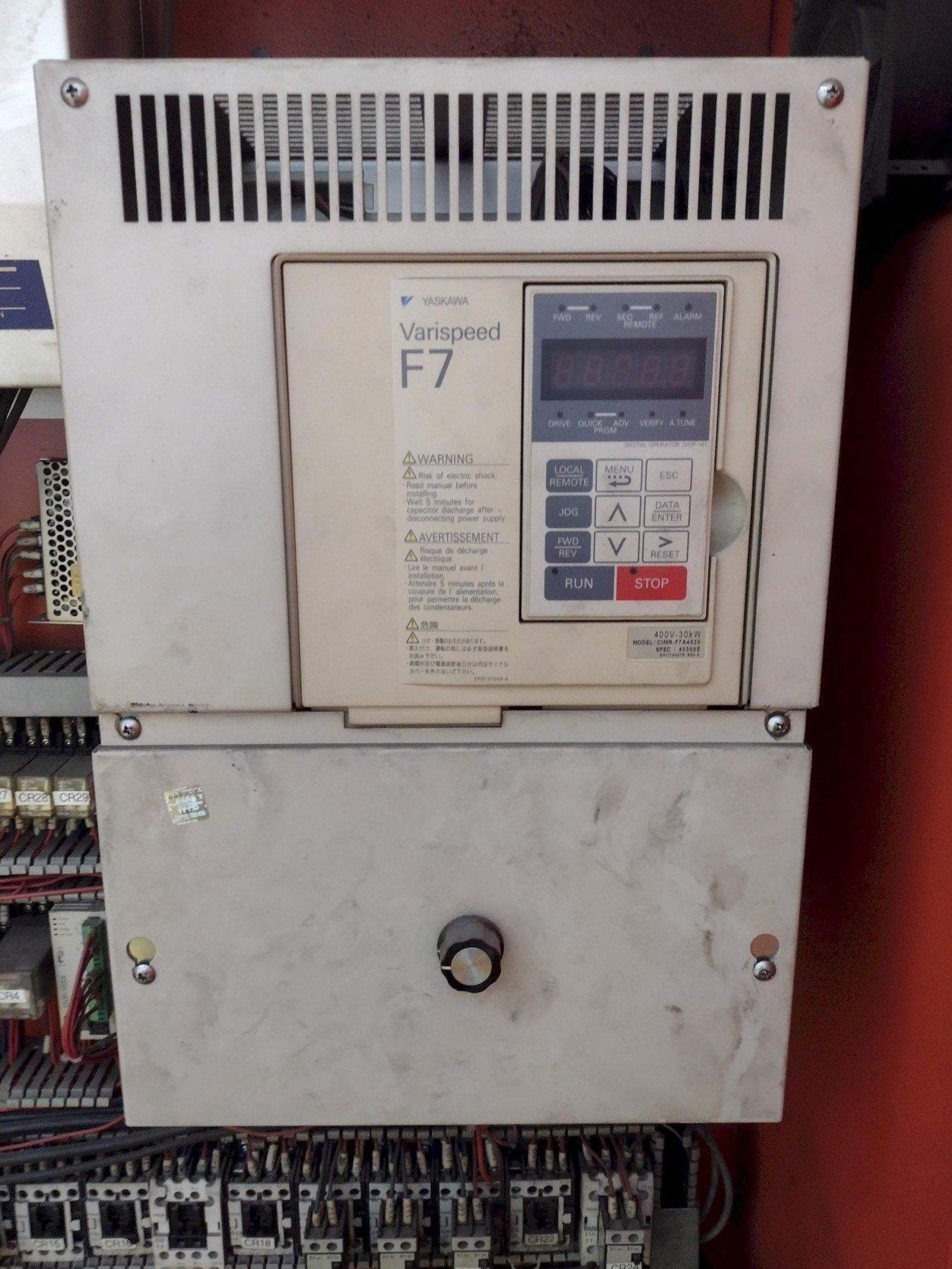

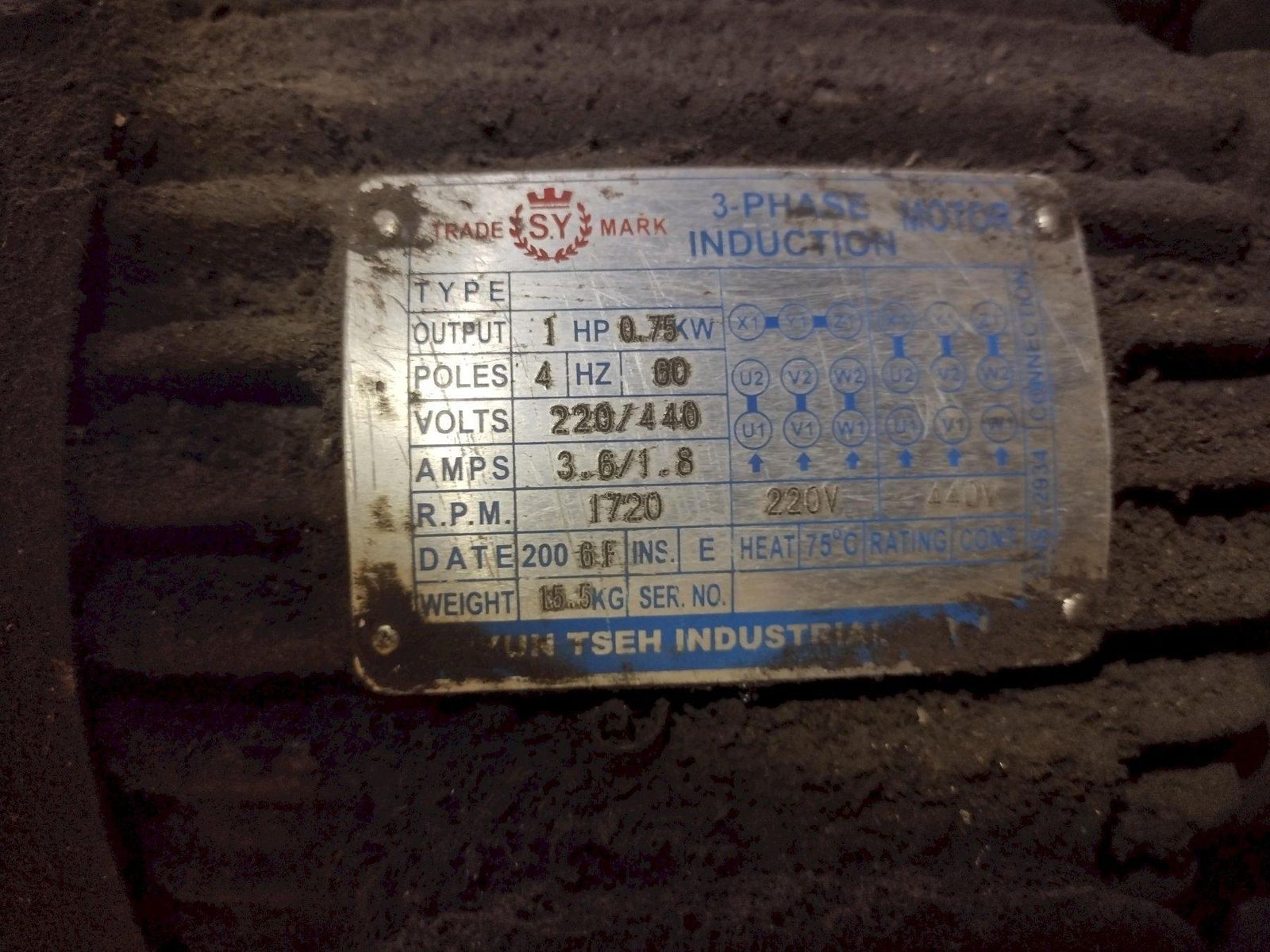

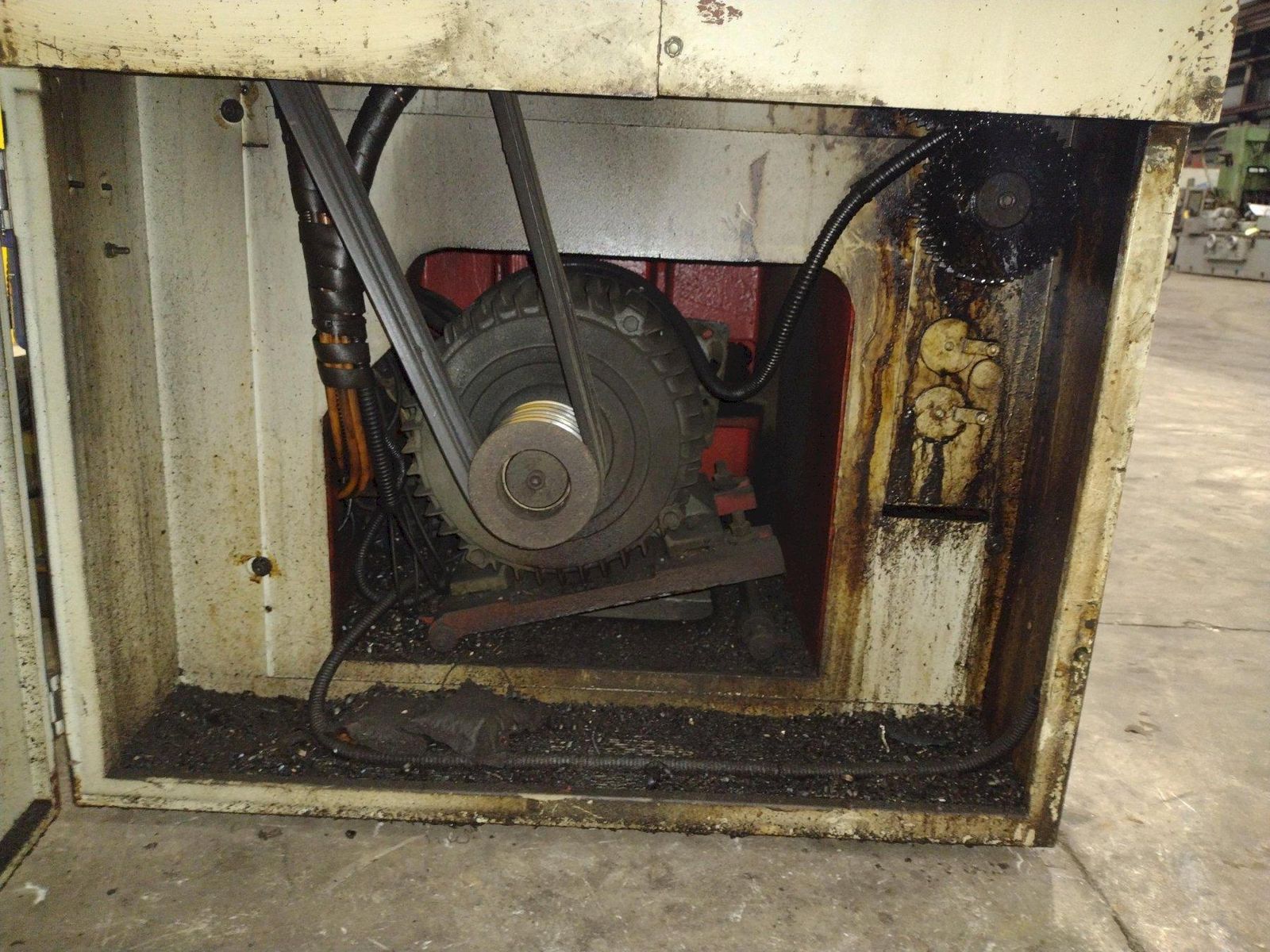

MAIN MOTOR ............................ 30 HP (22KW)

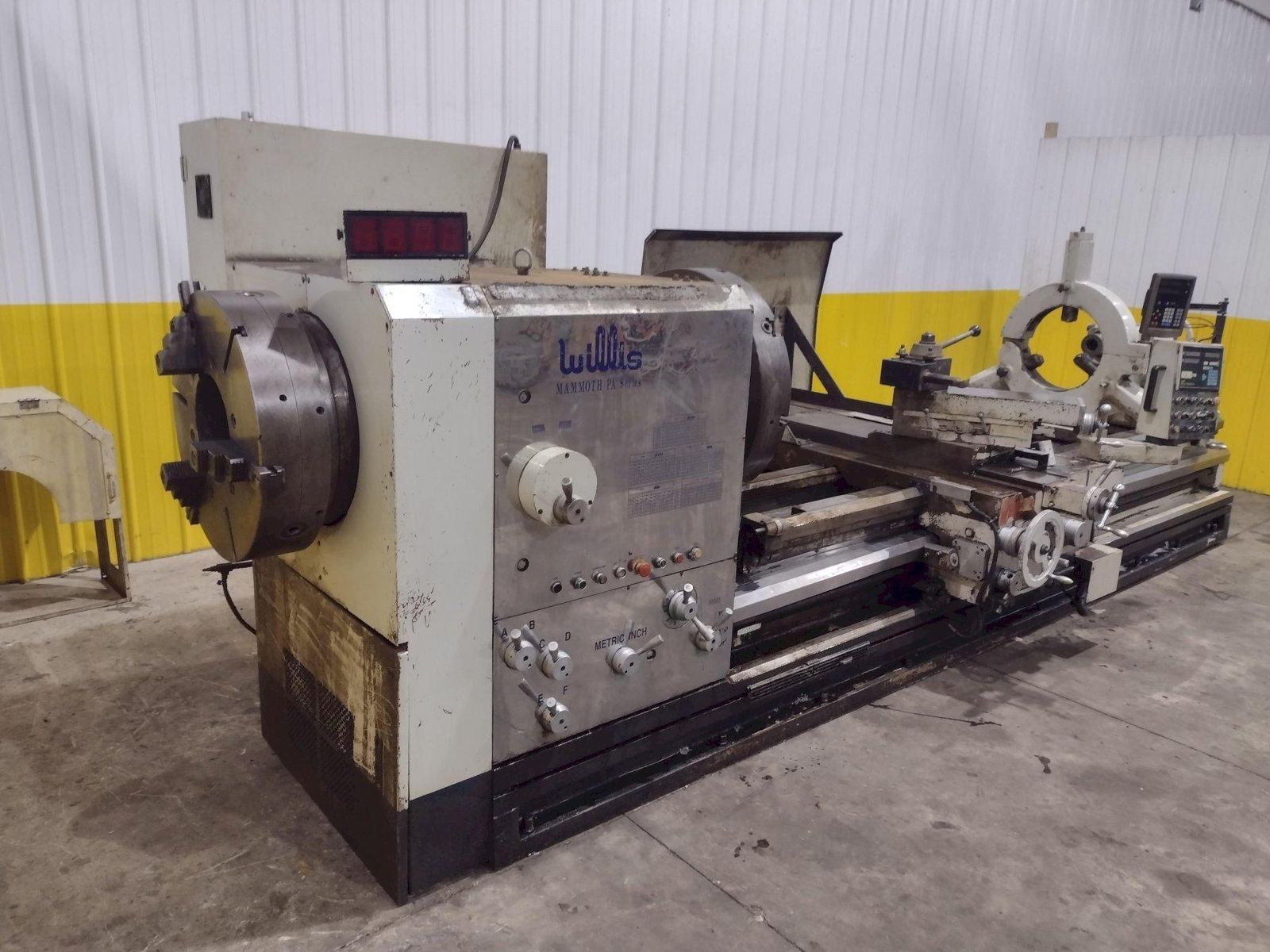

Brand
WILLIS
Type
Lathes, Engine
Stock No.
24547
 |
419-269-2000 |
Stock #: 24547
MODEL ................................. PK 35
SERIES ................................ MAMMOTH PA
SWING OVER BED ........................ 34.65" (880 MM)
SWING OVER CROSS ...................... 24.21" (615 MM)
SWING IN GAP .......................... 52.76" (1340 MM)
GAP LENGTH ............................ 14"
CENTER DISTANCE ....................... 120" (3000 MM)
SPINDLE HOLE .......................... 10" (255 MM)
SPINDLE SPEEDS ........................ 6 TO 480 RPM
BED WIDTH ............................. 25.98" (660 MM)
CROSS SLIDE TRAVEL .................... 26.40" (670 MM)
LONGITUDINAL FEEDS .................... 0.0018 TO 0.1 IPR (0.045 TO 2.55 MMPR)
CROSS FEEDS ........................... 0.0009 TO 0.05 IPR (0.023 TO 1.28 MMPR)
RAPID FEED ............................ YES
METRIC THREADING ...................... (60) 1 TO 56 MM
INCH THREADING ........................ (60) 1/2 TO 28 TPI
REAR CHUCK ............................ 25" (3 JAW)
FRONT CHUCK ........................... 30" (4 JAW)
STEADY REST ........................... 16" HOLE
THREAD DIAL ........................... YES
TAILSTOCK ............................. 2 SPEED
TAILSTOCK QUILL ....................... 4.52" (115 MM)
TAILSTOCK TRAVEL ...................... 7.87" (200 MM)
TAILSTOCK TAPER ....................... #6 MT
DIGITAL READ OUTS ..................... 2 AXIS
COOLANT PUMP .......................... 1/8 HP
MAIN MOTOR ............................ 30 HP (22KW)
