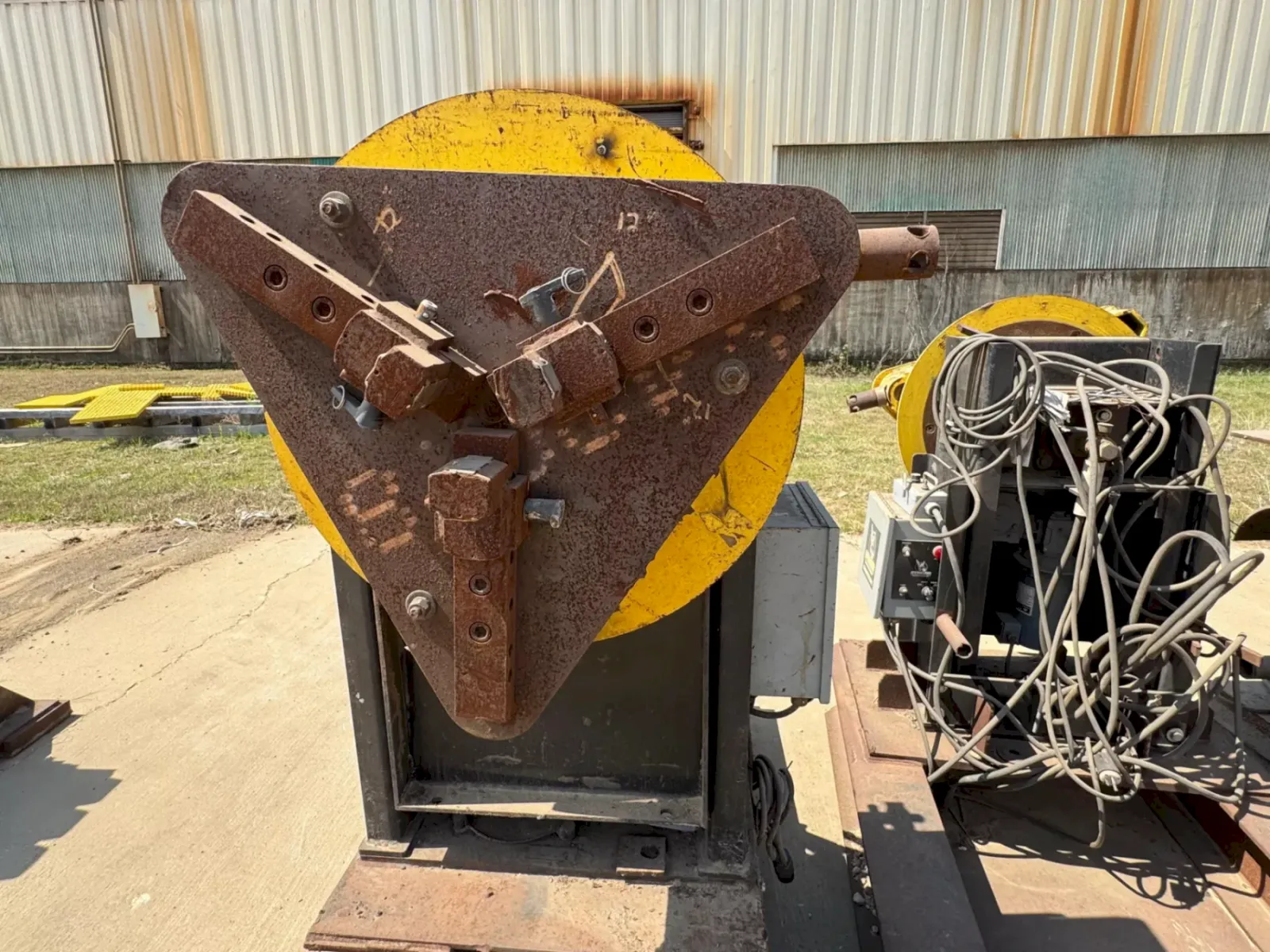

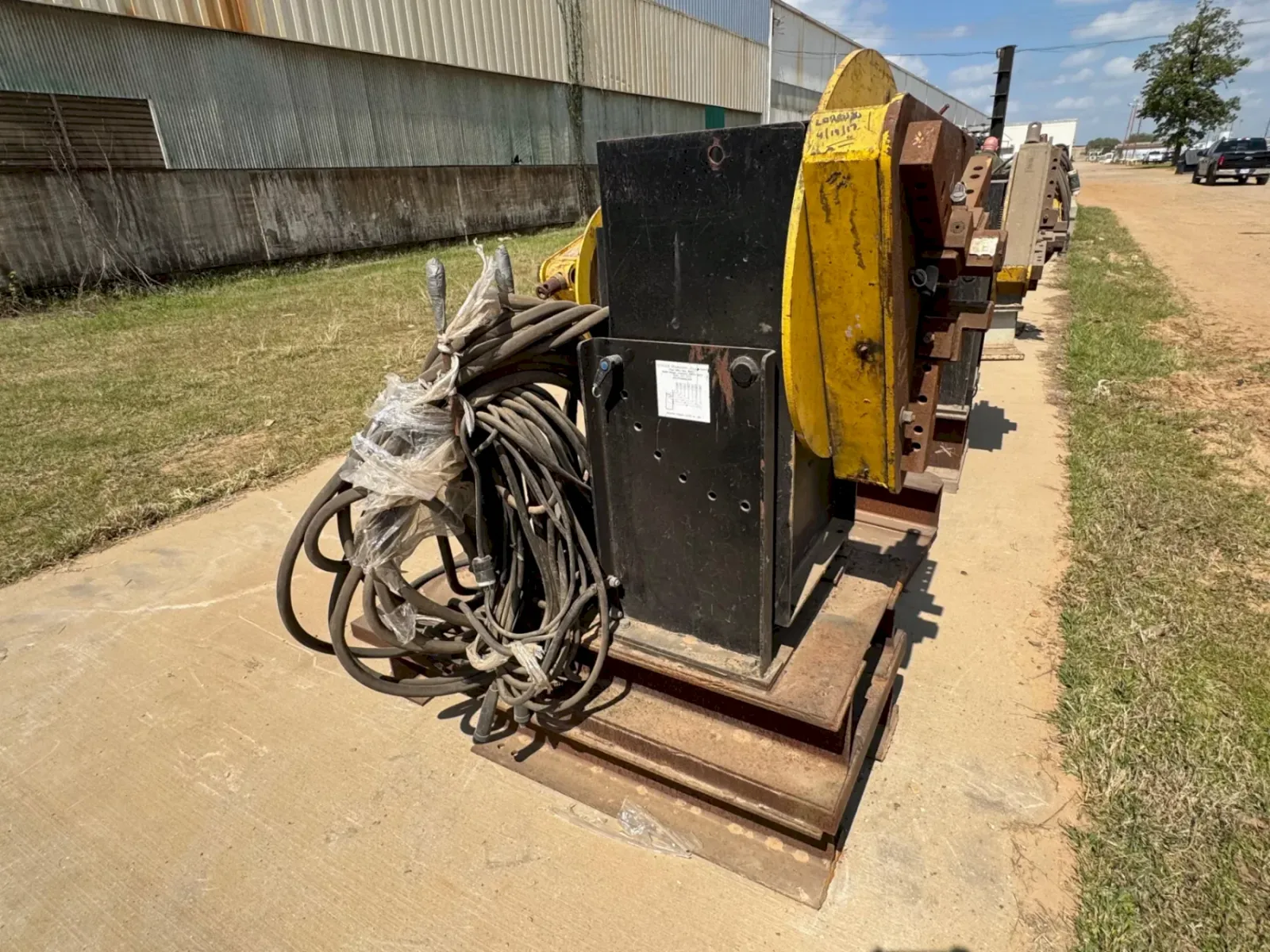

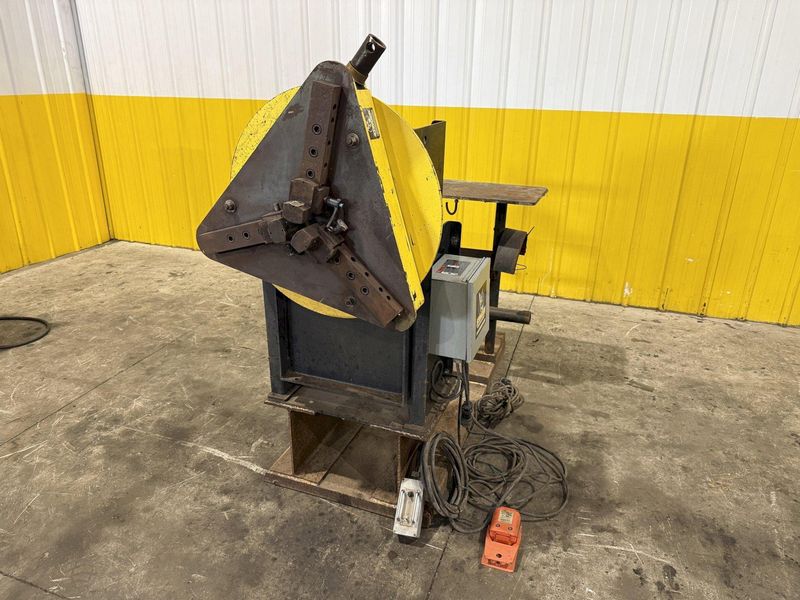

1,250 LB STINGER MODEL #P-1250 PIPE WELDING POSITIONER WITH 30" GRIPPER CHUCK: YOBRO #25216

Overview

The Stinger Model 1250F has a motorized variable speed rotation with Forward-Stop-Reverse motion.
Table rotation uses a double reduction gear box driven by a 90 VDC motor that is dynamically braked
with variable speed from 0.06 to 2.46 rpm. A 26" faceplate includes pre-drilled holes for chuck mounting.
The positioner operates on 120 volt, single phase, 60 cycle input power. A plug-in hand pendant includes
a "Forward-Stop-Reverse" switch along with a speed adjustment potentiometer on 25' of cable.
Standard pre-loaded Timken bearings are protected by a heavy-duty welding rotoground assembly.


Load Capacity - - - - - - - 1250 Lb. at 5" overhung from face
Rotational Motor Size - - - - - - - 1/2 H.P. DC Motor
Rotation Speed - - - - - - - Variable from .06 to 2.46 RPM
Rotation Torque - - - - - - - 12,000 Inch Lbs.
Tilt Range - - - - - - - 0 through 90 degrees, power tilt w/ limit switches
Tilt Torque - - - - - - - Manual
Table Size - - - - - - - 26" OD Includes
Length- Center- Back - - - - - - - 11-3/4" Hand Pendant Control w/Cable
Overall Width - - - - - - - 23" Optional Equipment
Center Height - - - - - - - 32" Variable Speed Foot Control
Base Length - - - - - - - 15" On / Off Foot Control
Table Flat Height - - - - - - - 23-3/4"
