Brand
Not Specified
Type
Combo 3-in-1 Sheet Metal Machines
Stock No.
10154
 |
419-269-2000 |
Stock #: 10154

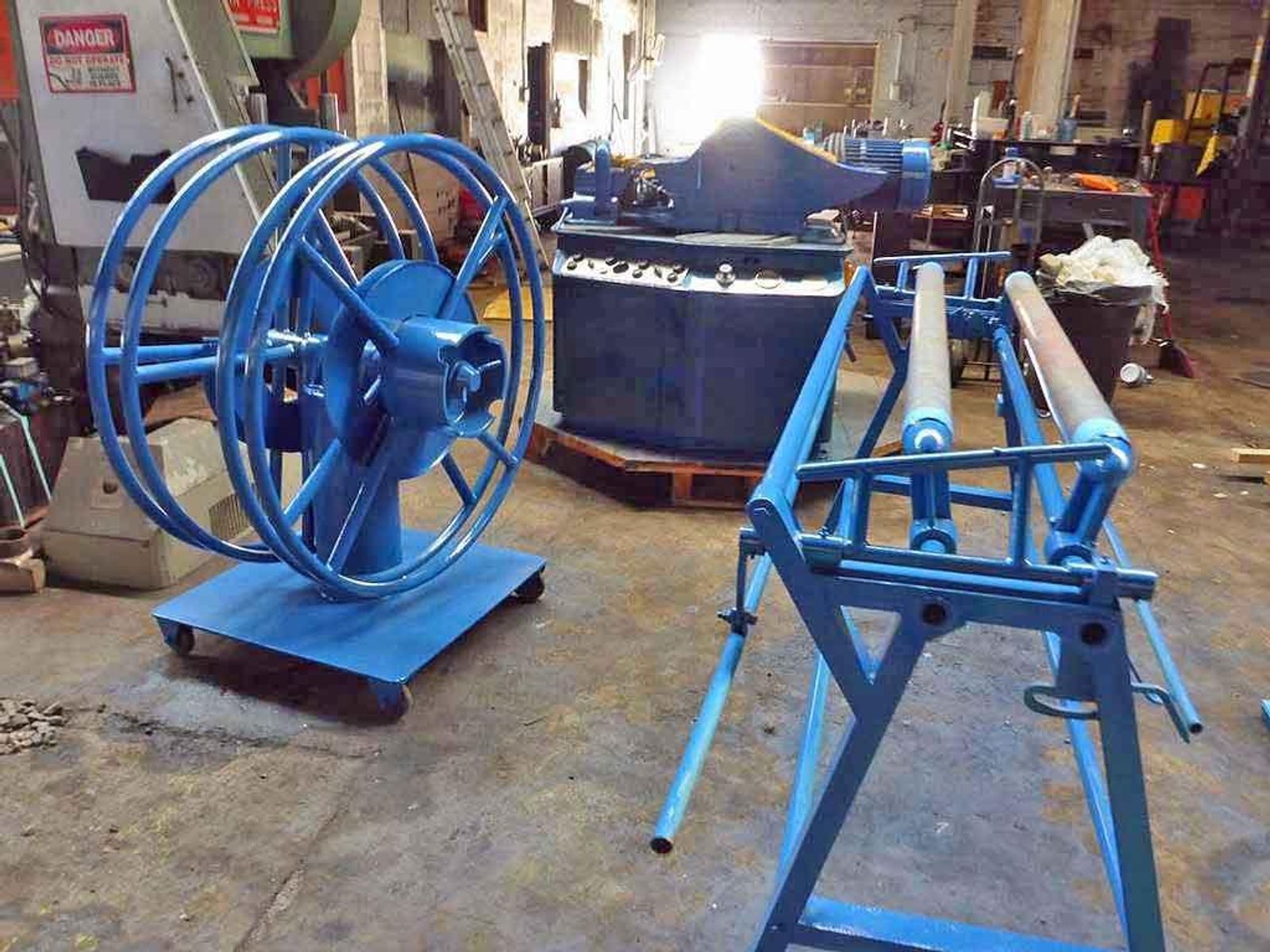

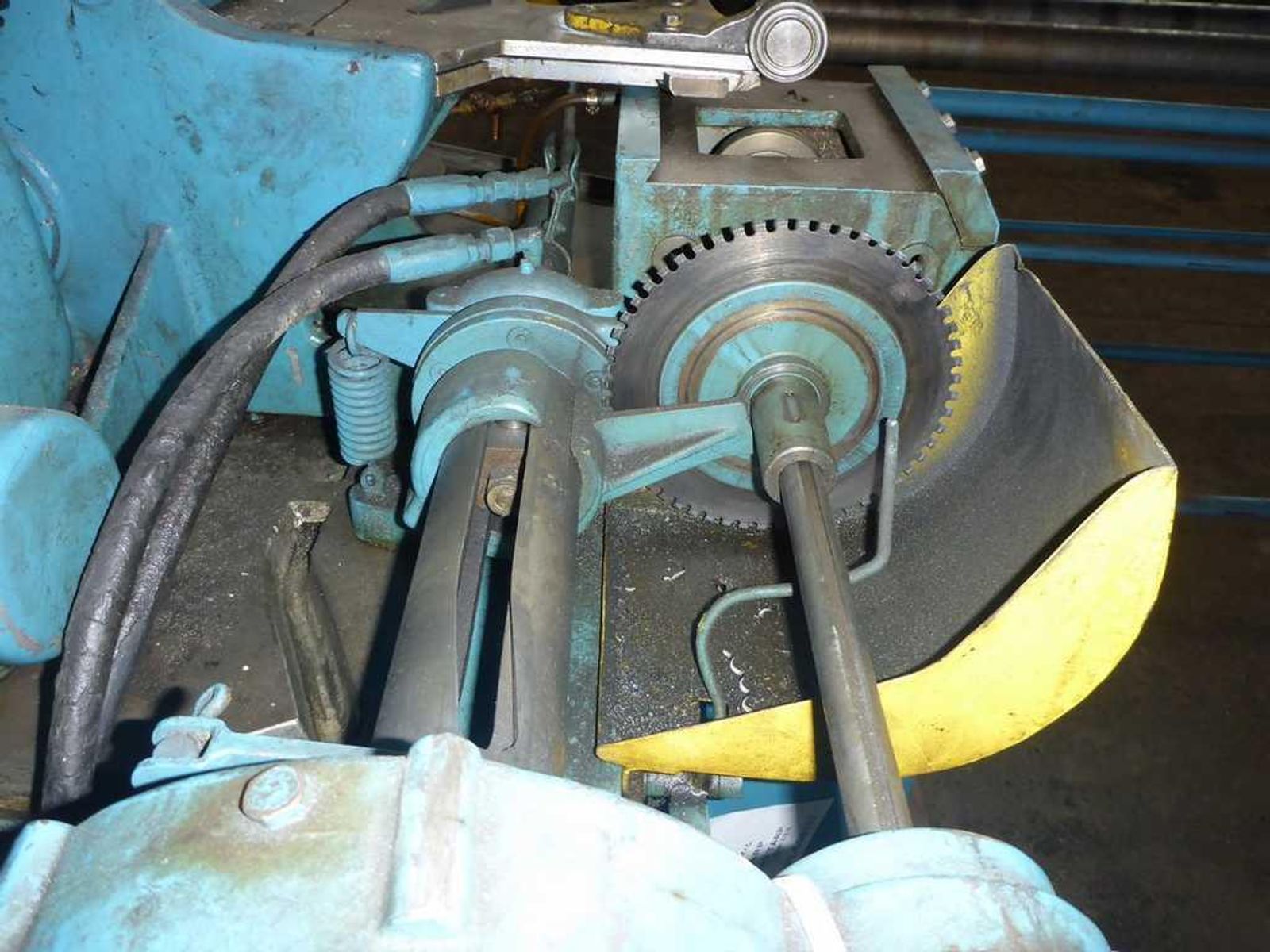

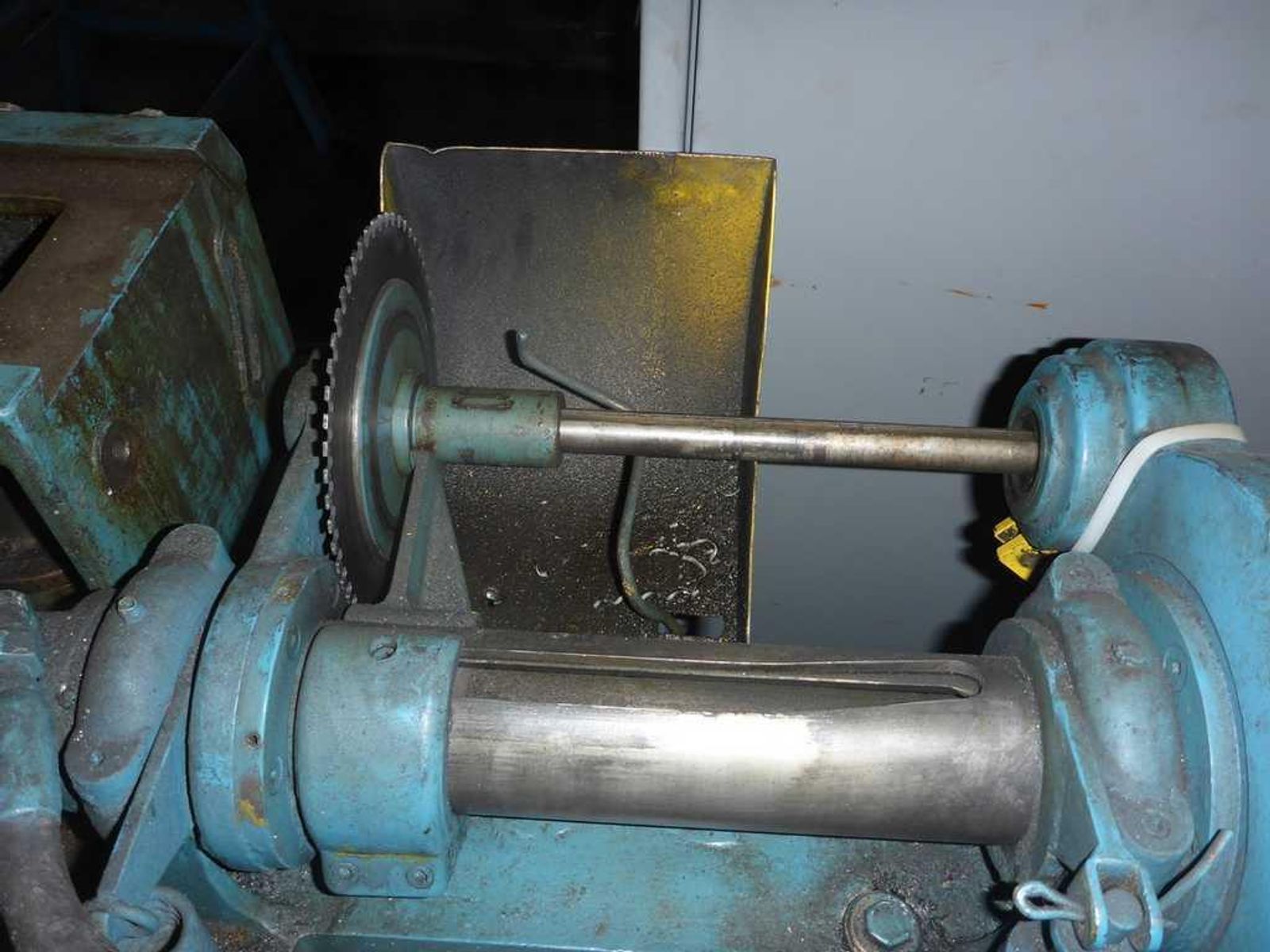

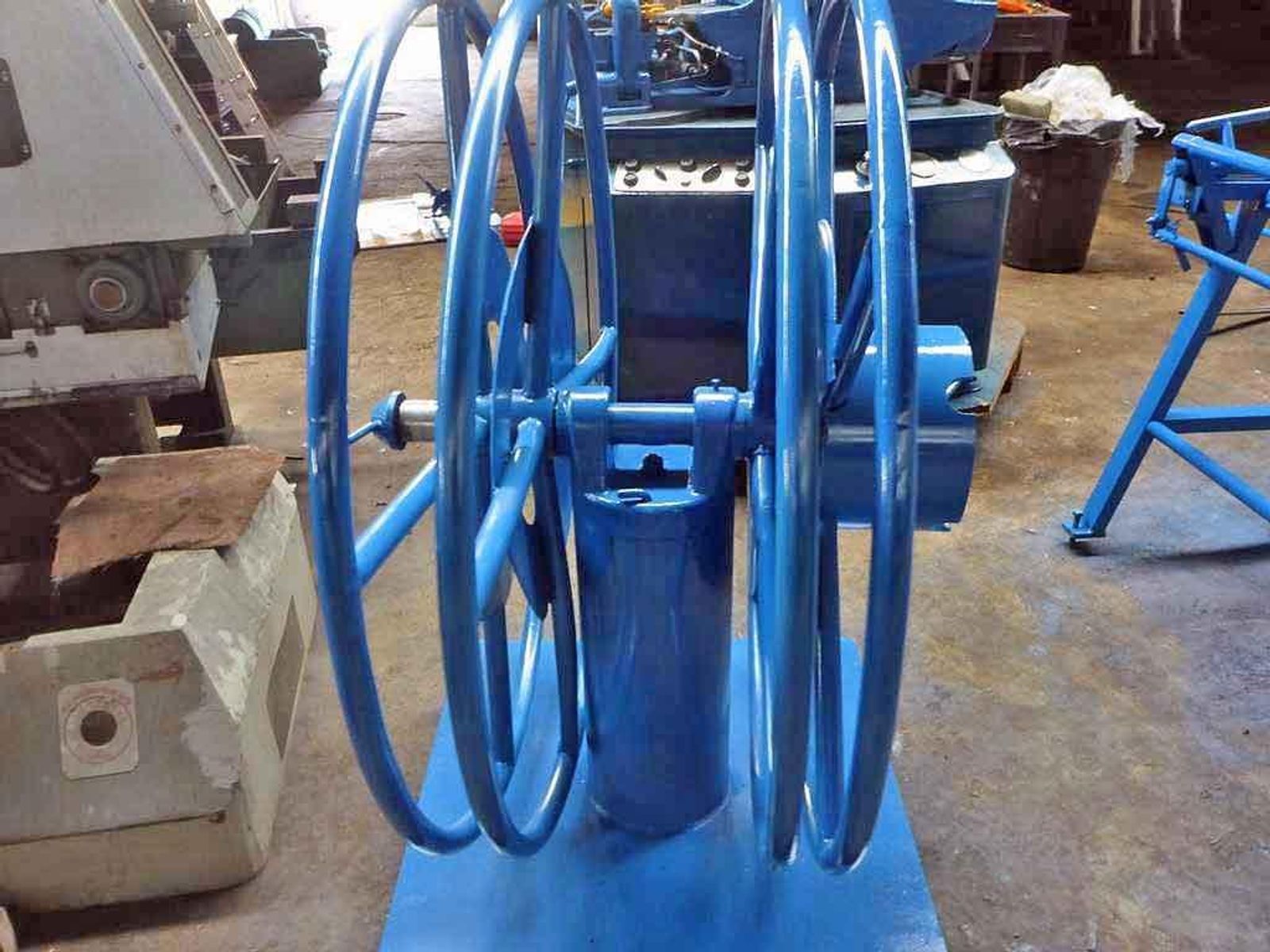

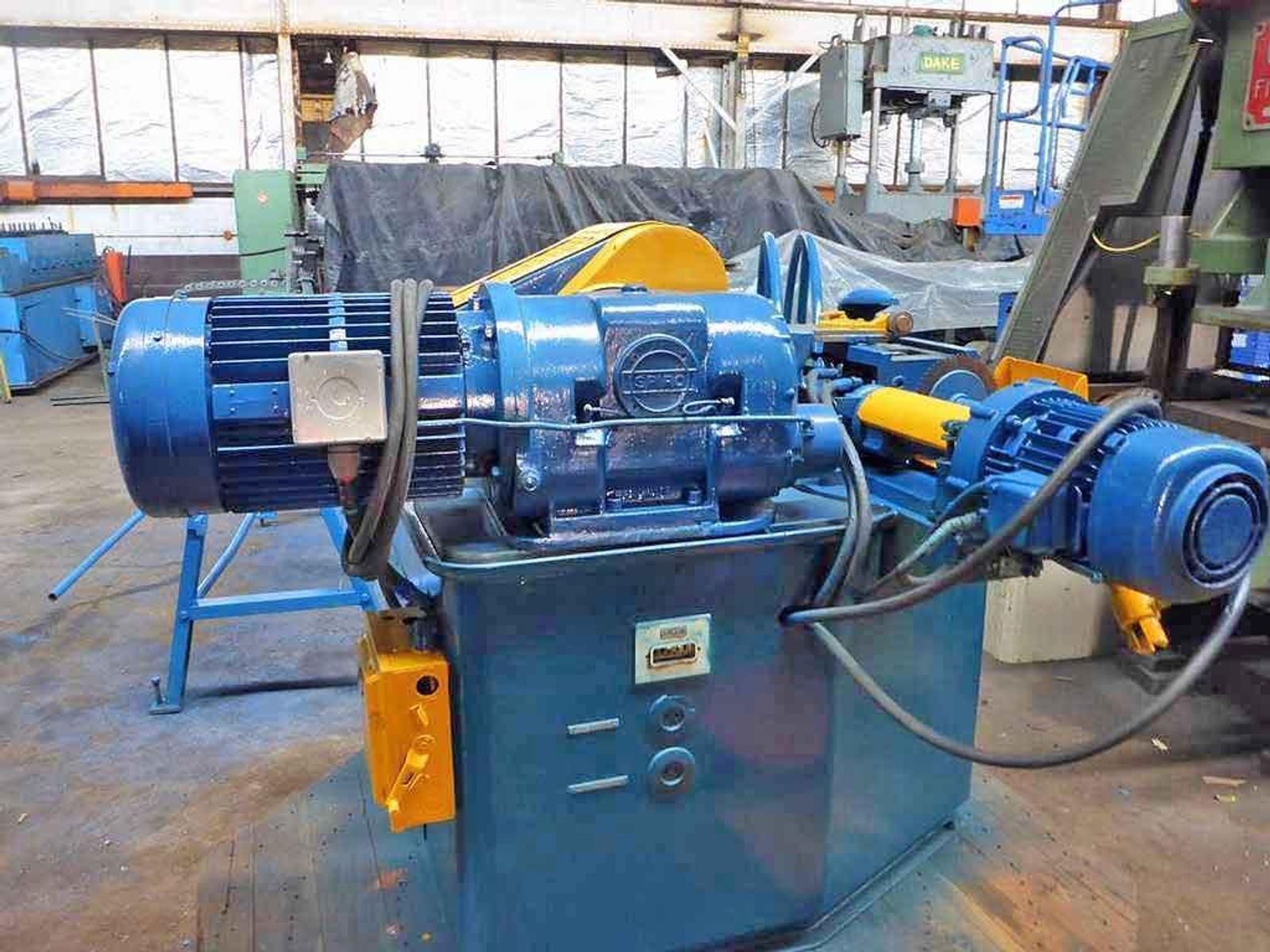

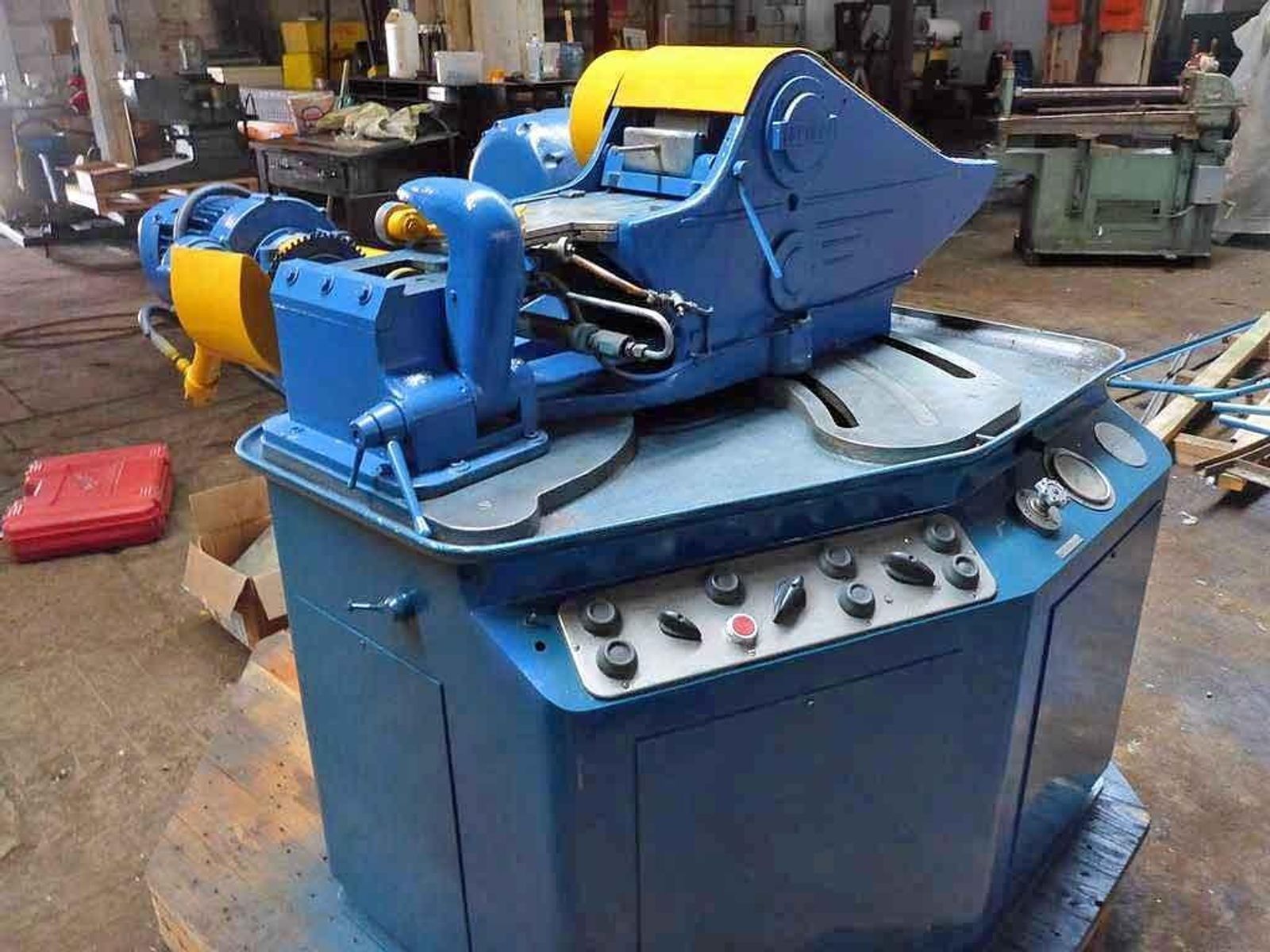

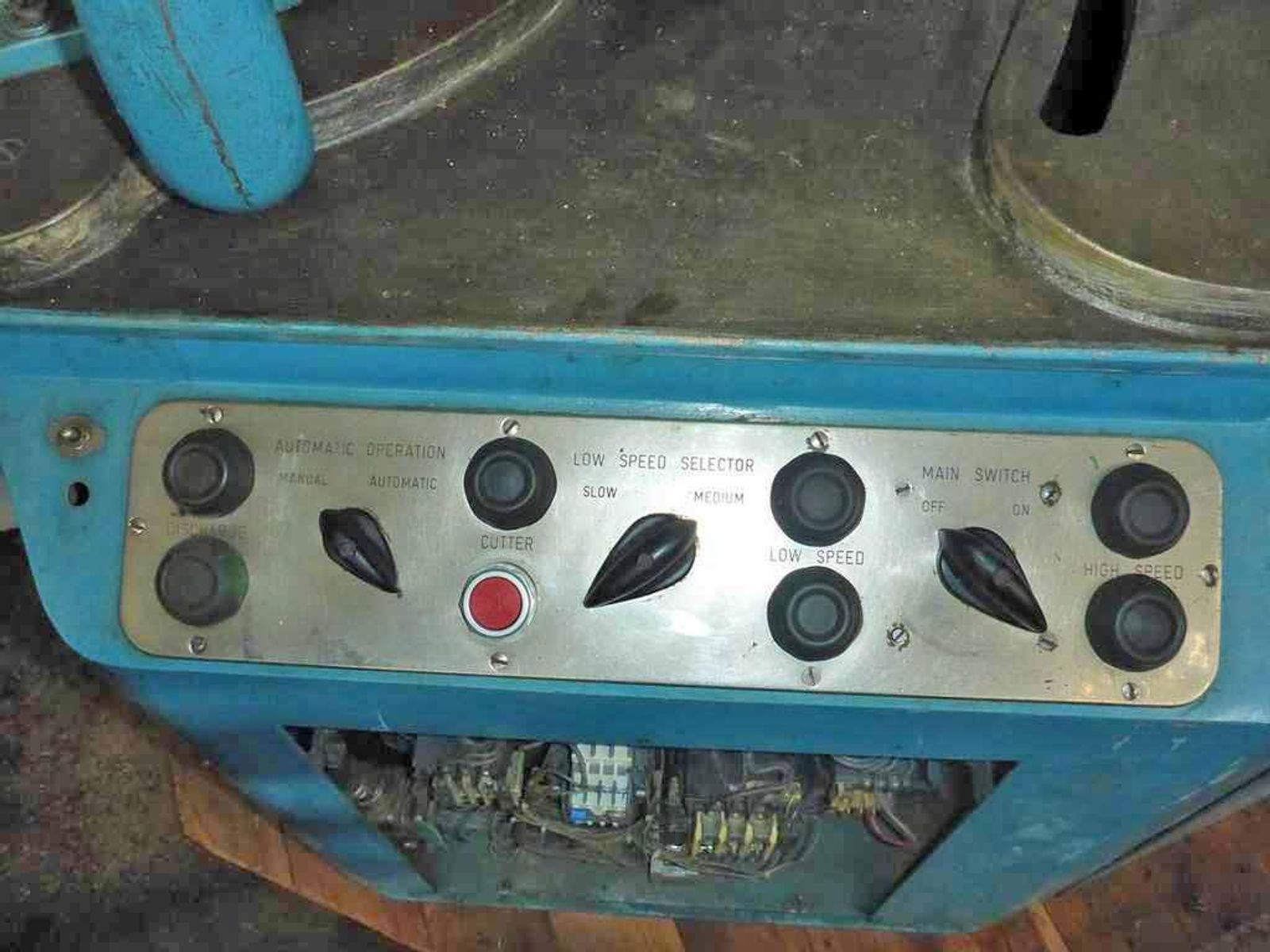

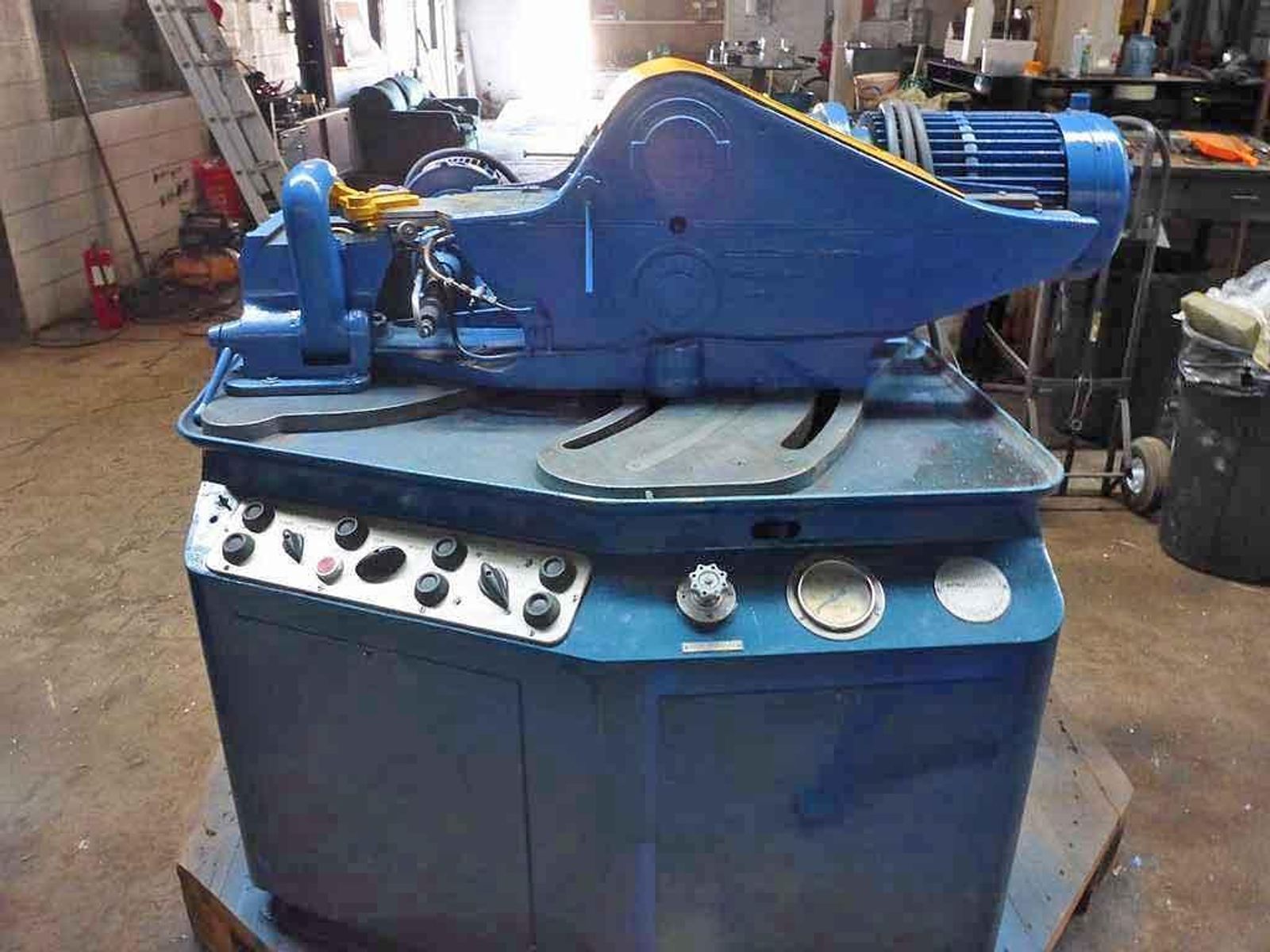

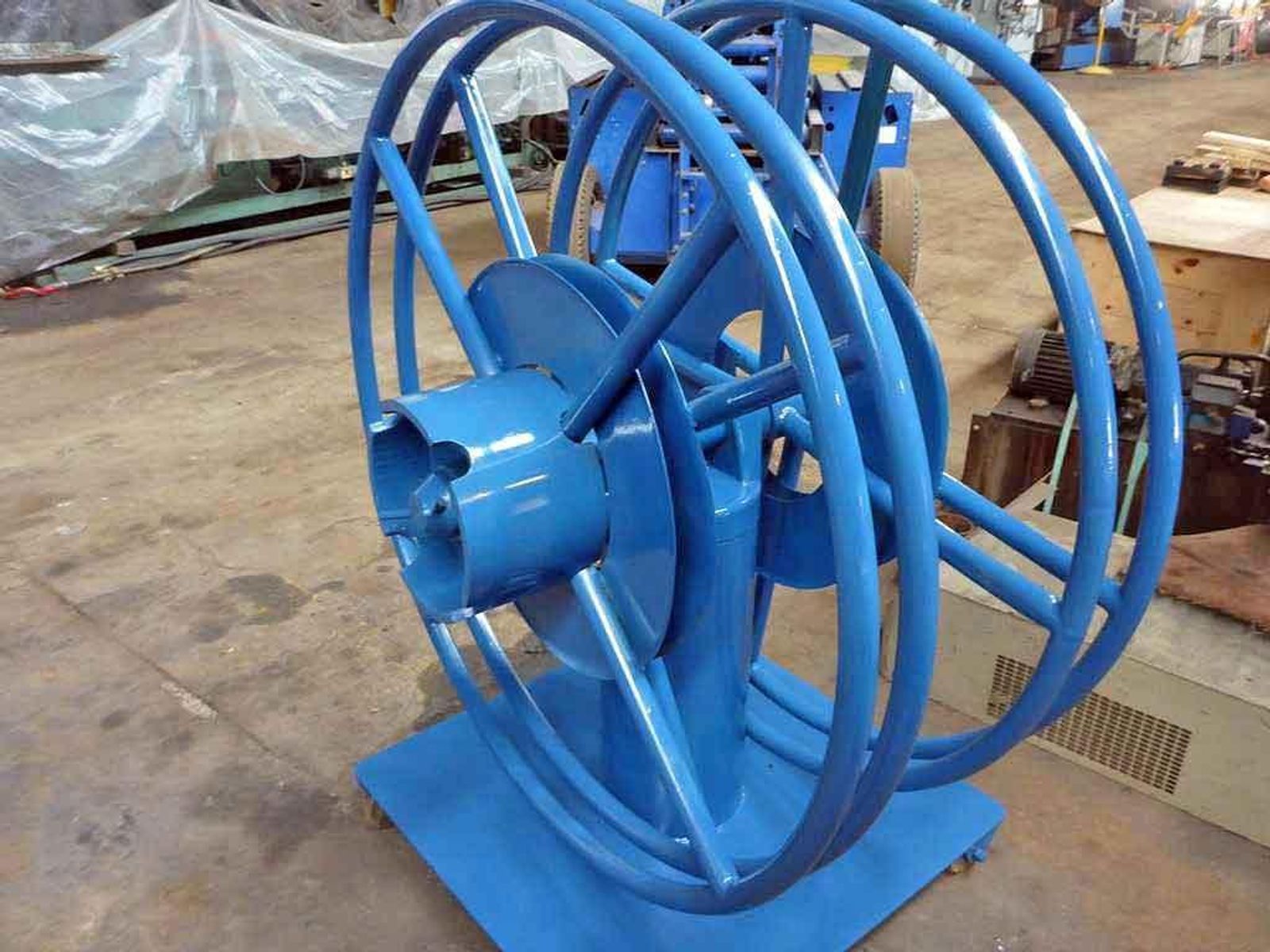

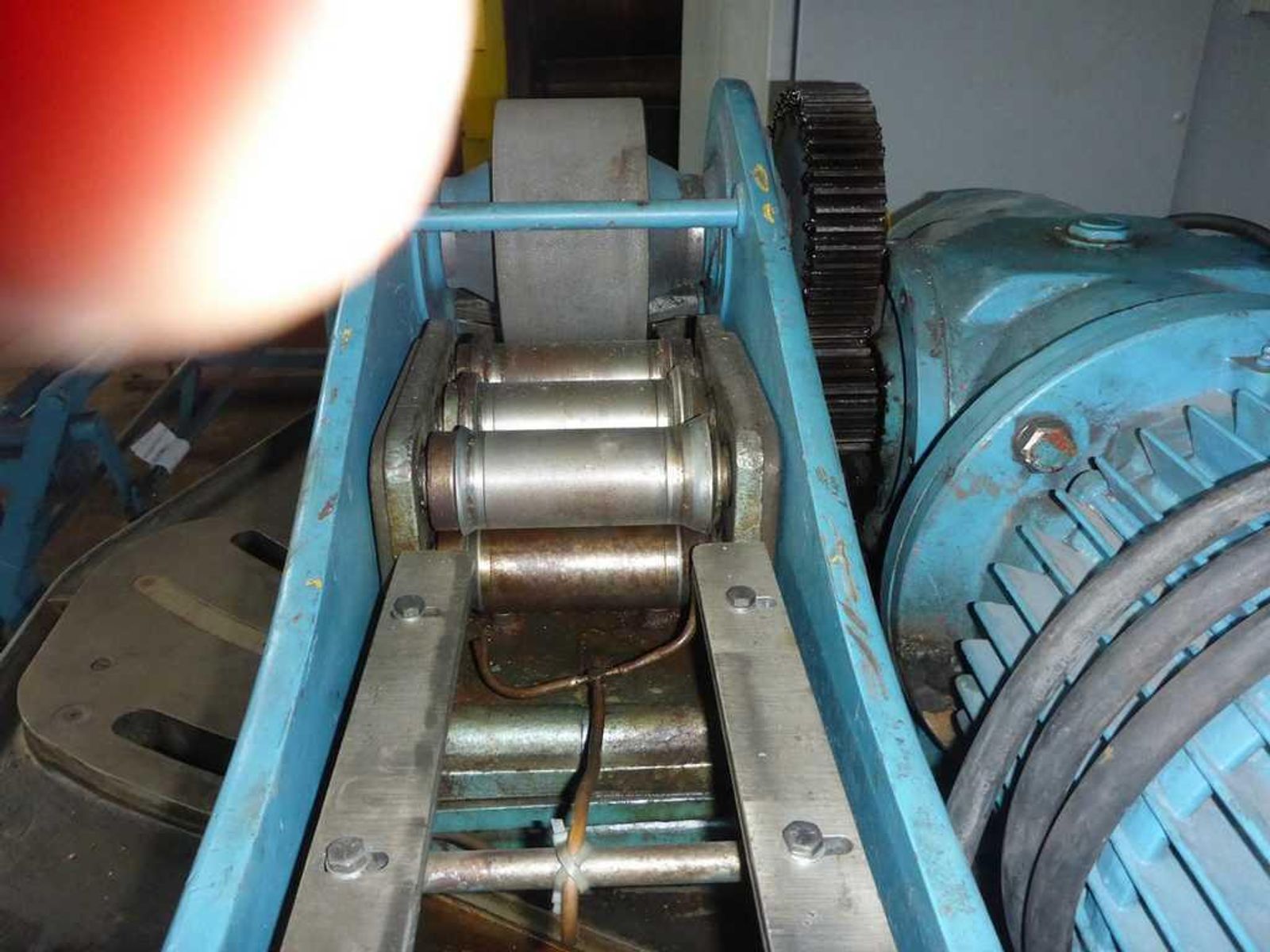

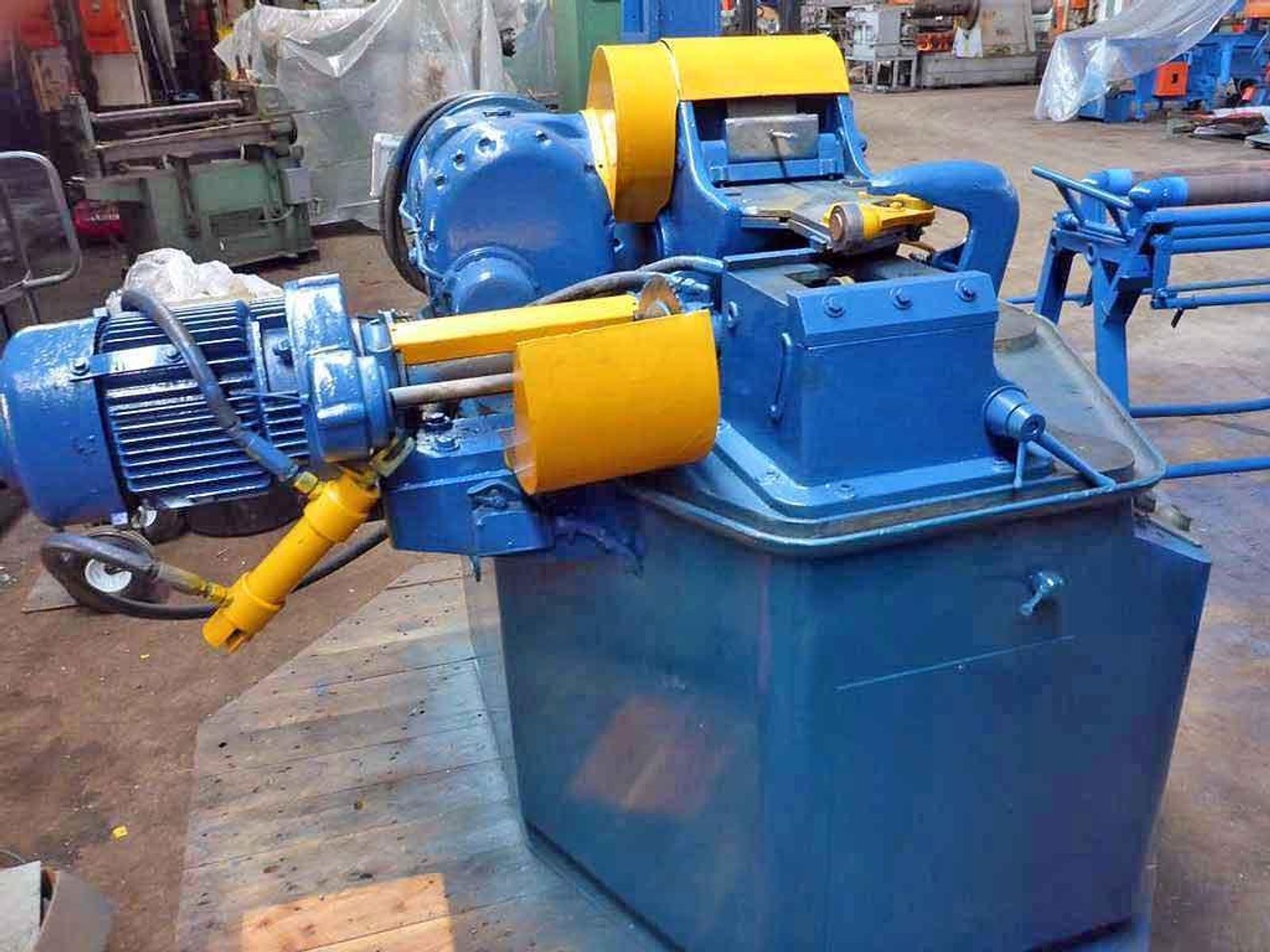

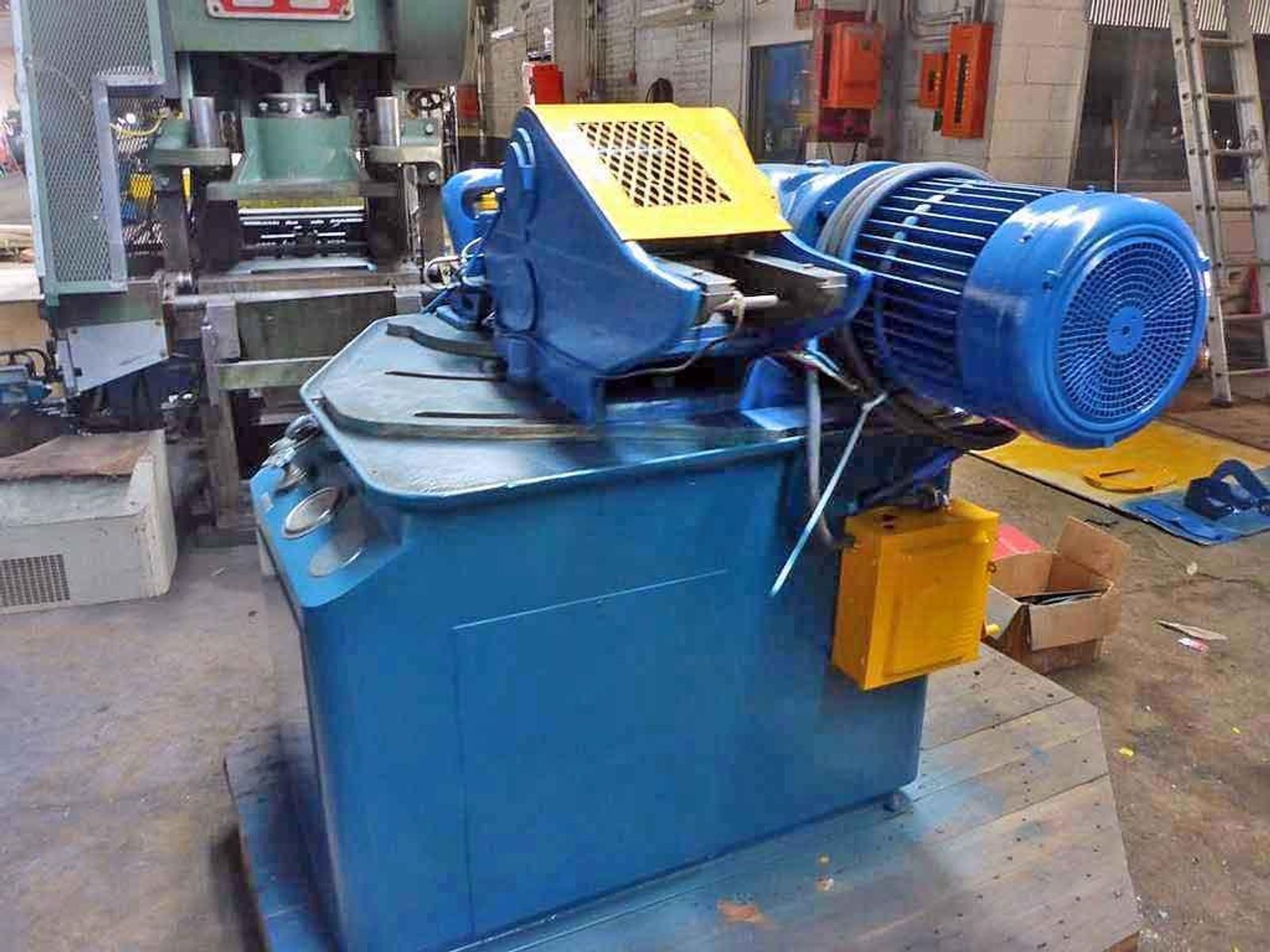

Model: 600Duct Diameter Range: 100mm - 1250mm (3.94" - 49.25")Gauge Range: 0.4mm - 1.0mm TO DW144 (0.0157" - 0.0394")-Main Motor: 7.5 KW (10 HP), 1700 RPM, 220 V, 3 Ph-2 Speed, 2 Clutch Motor-2 Speed Motor, High Speed & Low Speed(4 speeds total)-Differential Gear Ratio - allows 2 more speeds-Electric Clutches-Can be used in Automatic Cycle or Manual-Spiro requires an entry Forming Box for each gauge material-Not equipped with Forming Boxes or Die Shoes (Forming Dies)-Double End Uncoiler-Saw Blade Duct Cutoff-Roller Duct Receiving Table-Variable Speed Drive-Dimensions of Mill: 6' x 6'-Weight of Mill: 3,500 Lbs.-Uncoiler: 4' x 4'-Weight: 400 Lbs.
