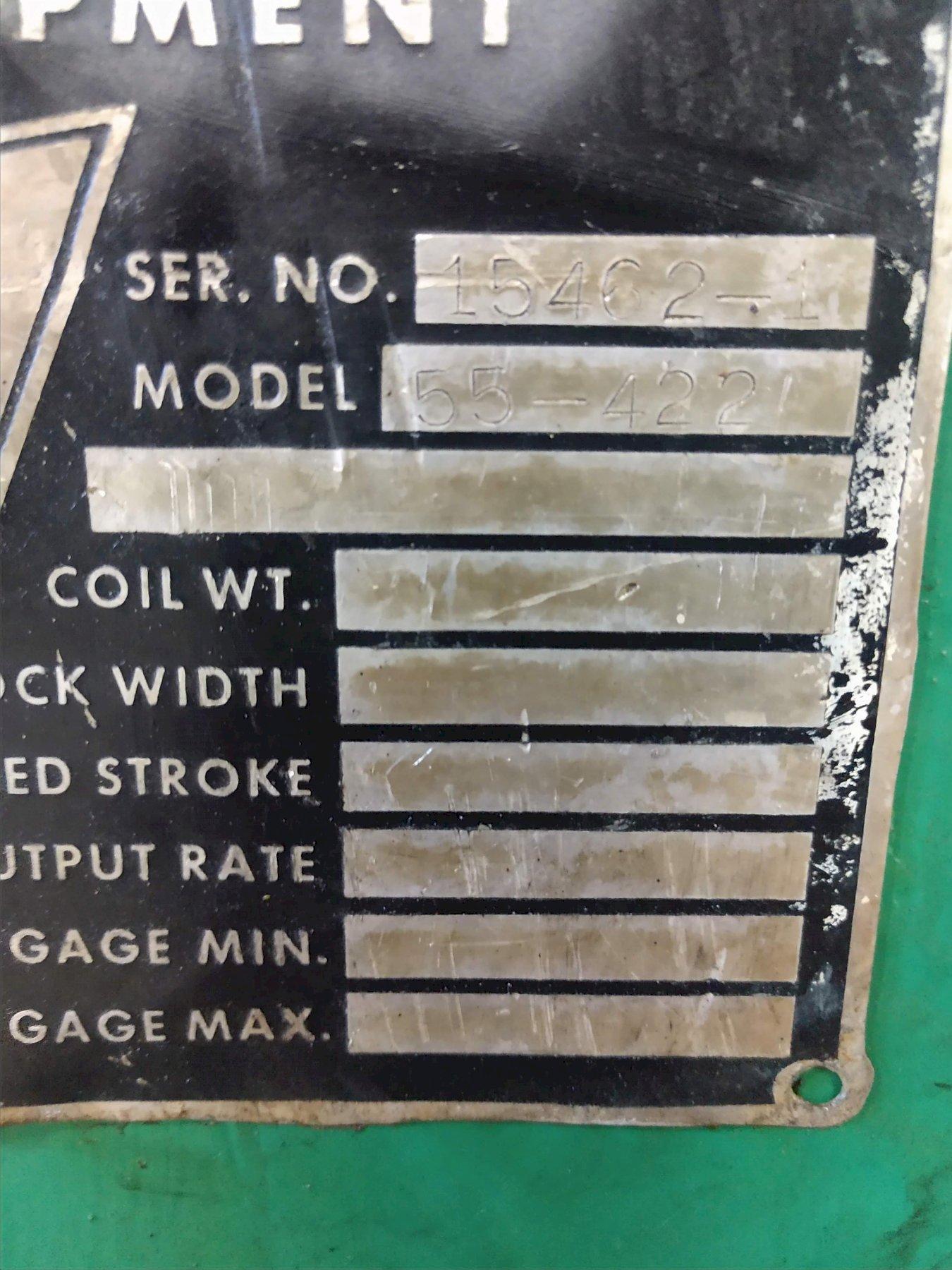

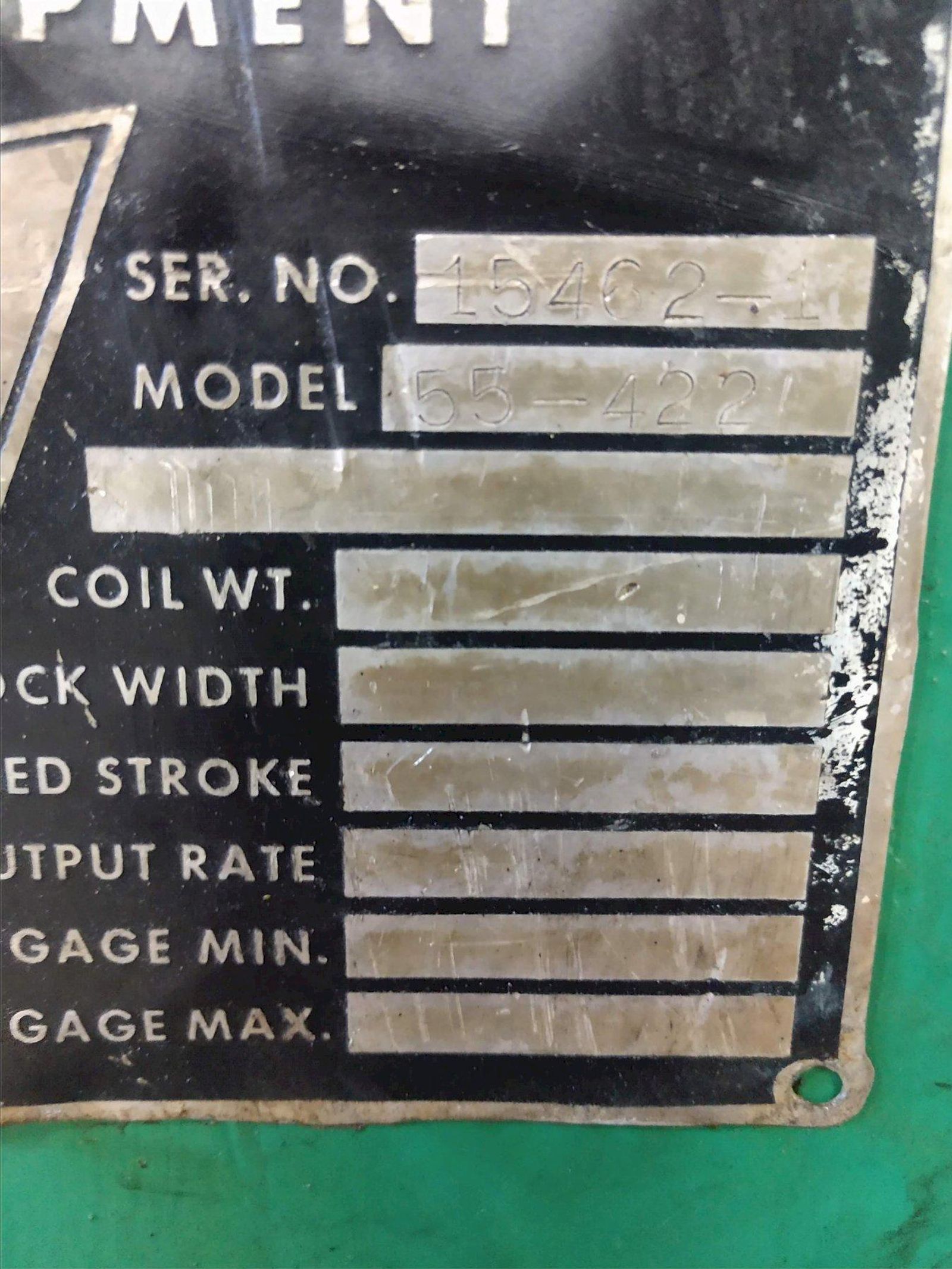

SERIAL ...................... 15402-1
MODEL ....................... 53-422
CAPACITY .................... 30,000 LBS
LENGTH OF MANDREL ........... 40"

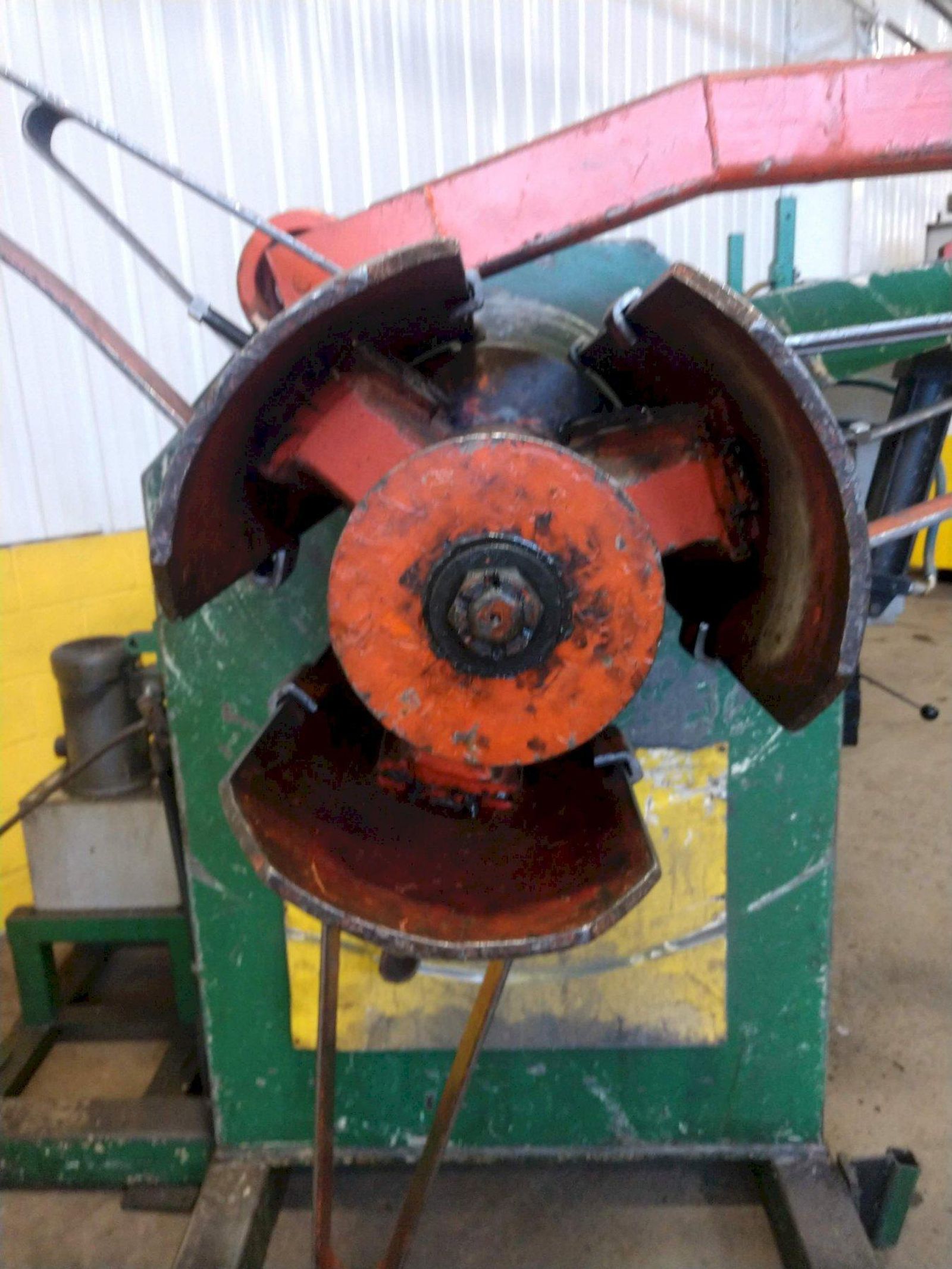

MANDREL CONSTRUCTION ........ 3 PIECE,40" L X 15" W EACH
HYDRAULIC ID EXPANSION ...... WEDGE TYPE
COIL OD ..................... 96" MAXIMUM

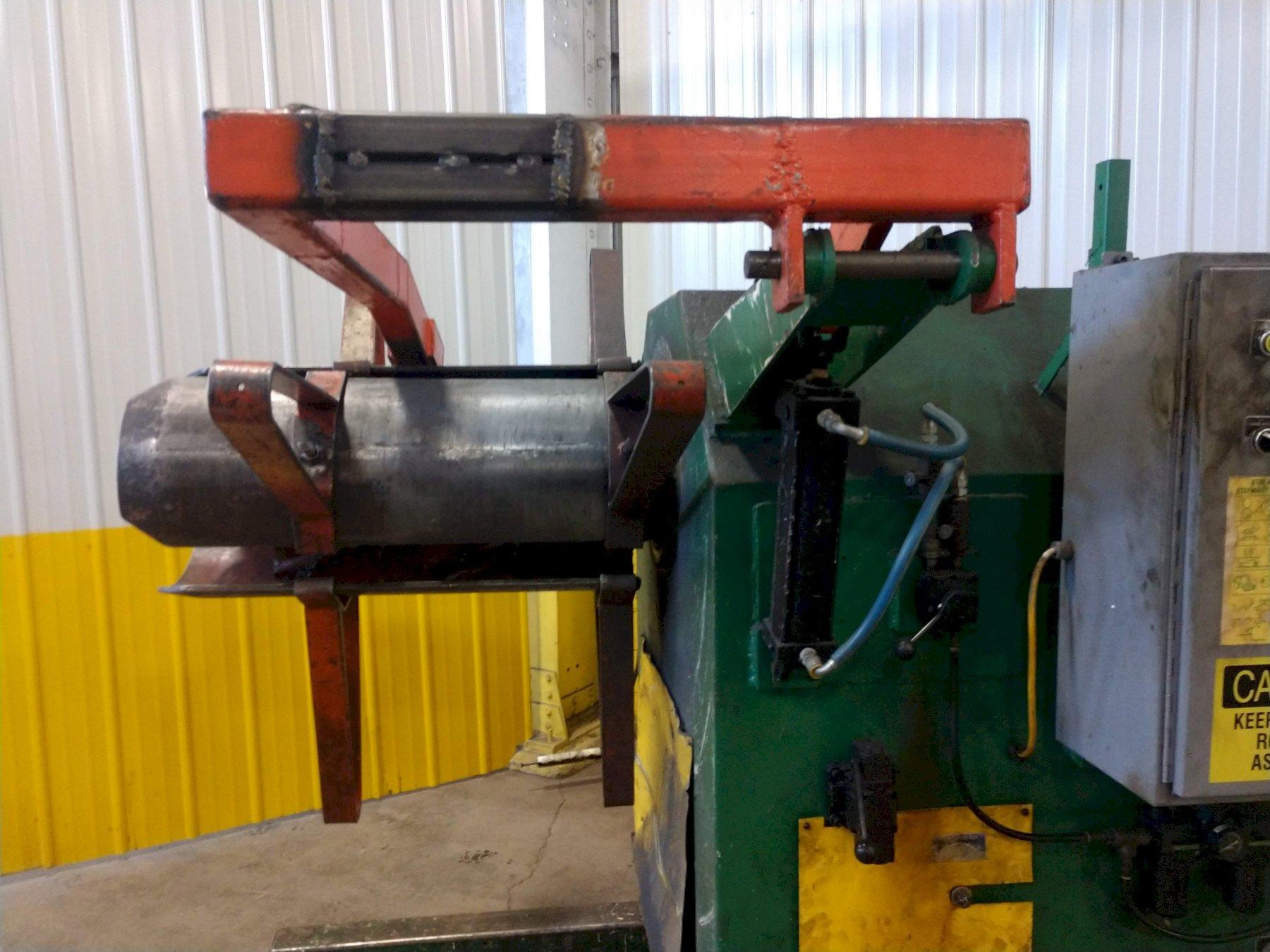

KEEPERS ON MANDREL .......... 6
MOTORIZED WITH DANCER ARM ... YES

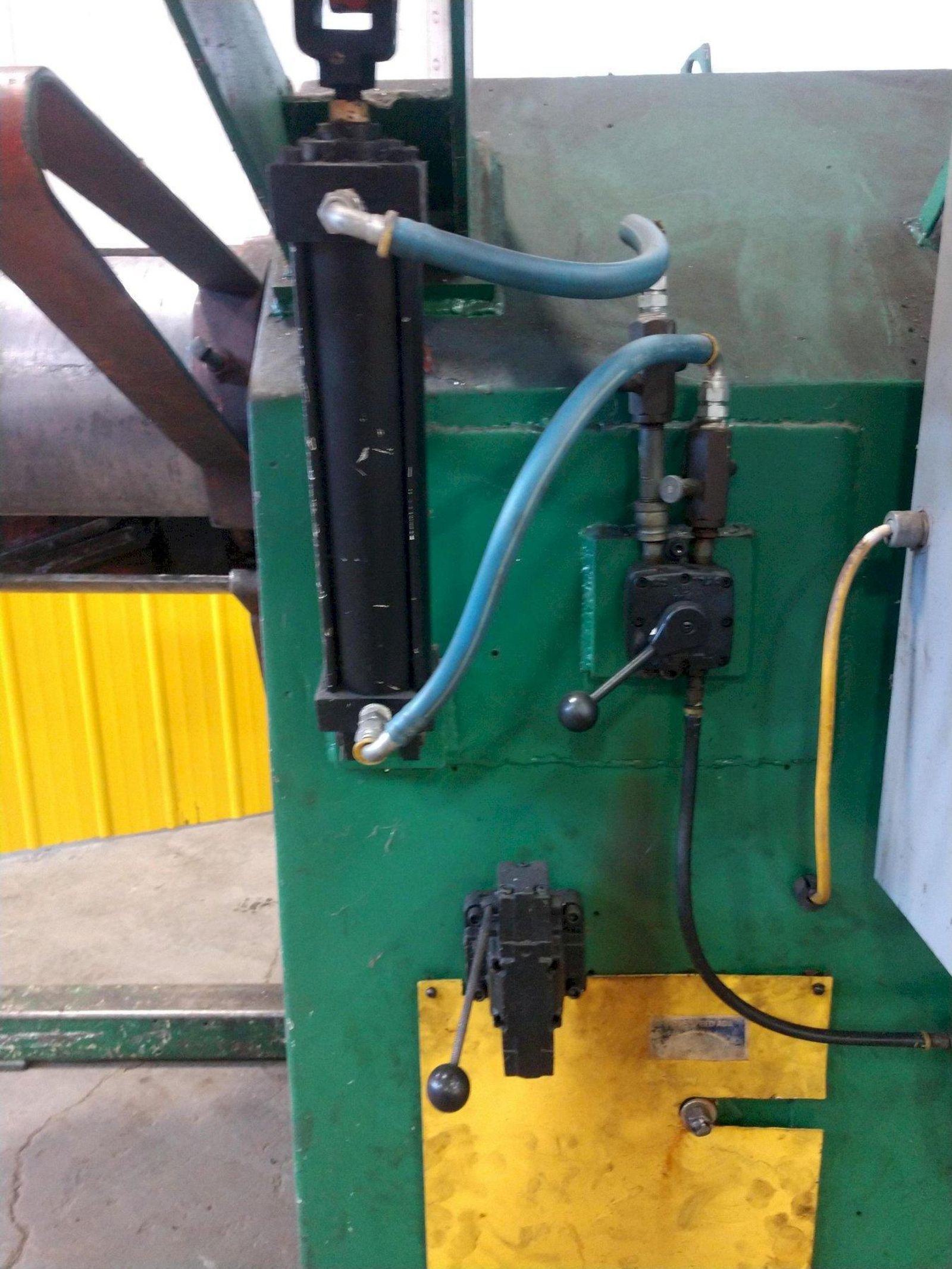

HOLD DOWN SNUBBER ARM ....... PNEUMATIC
AIR CLUTCH .................. YES

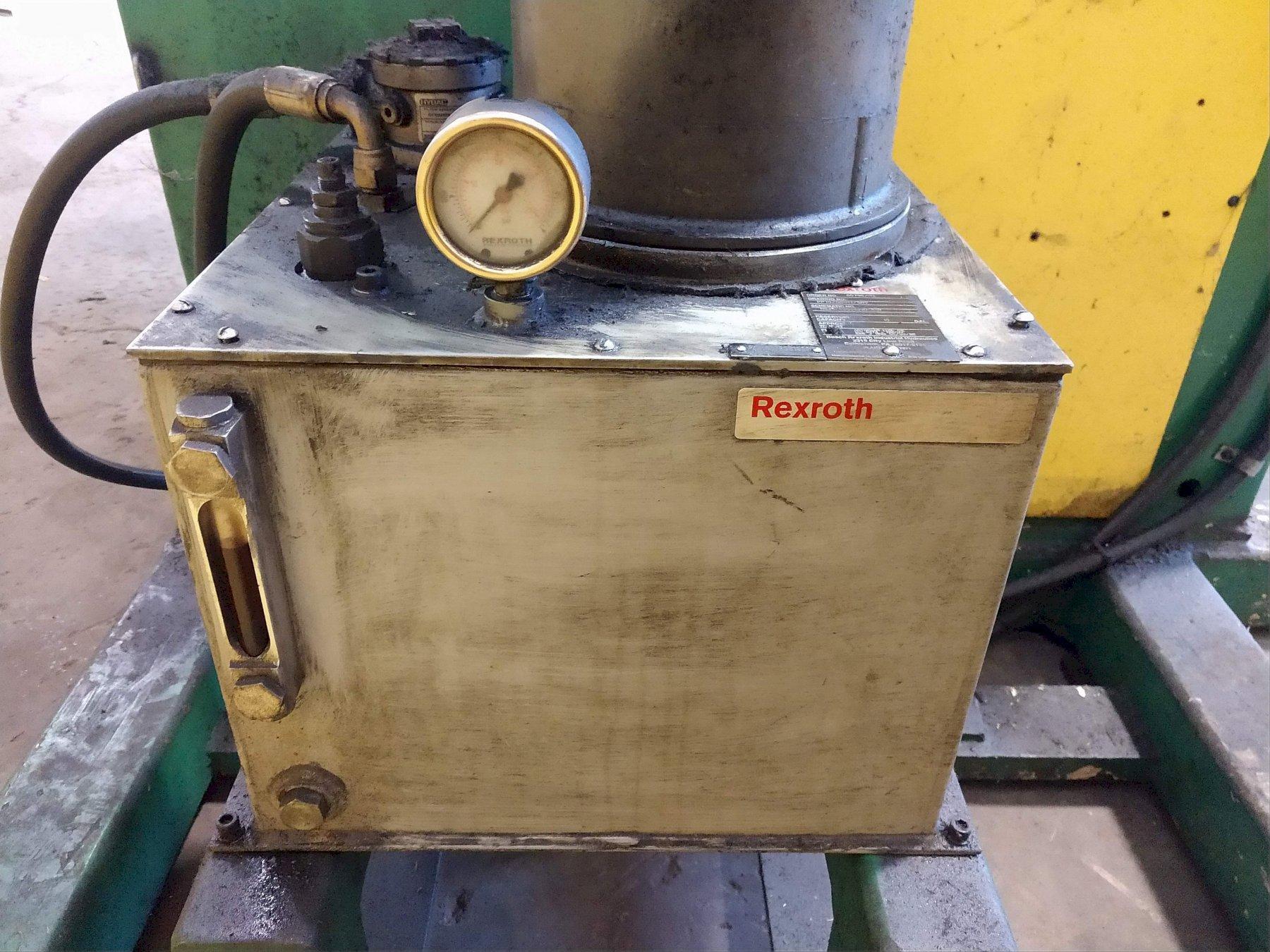

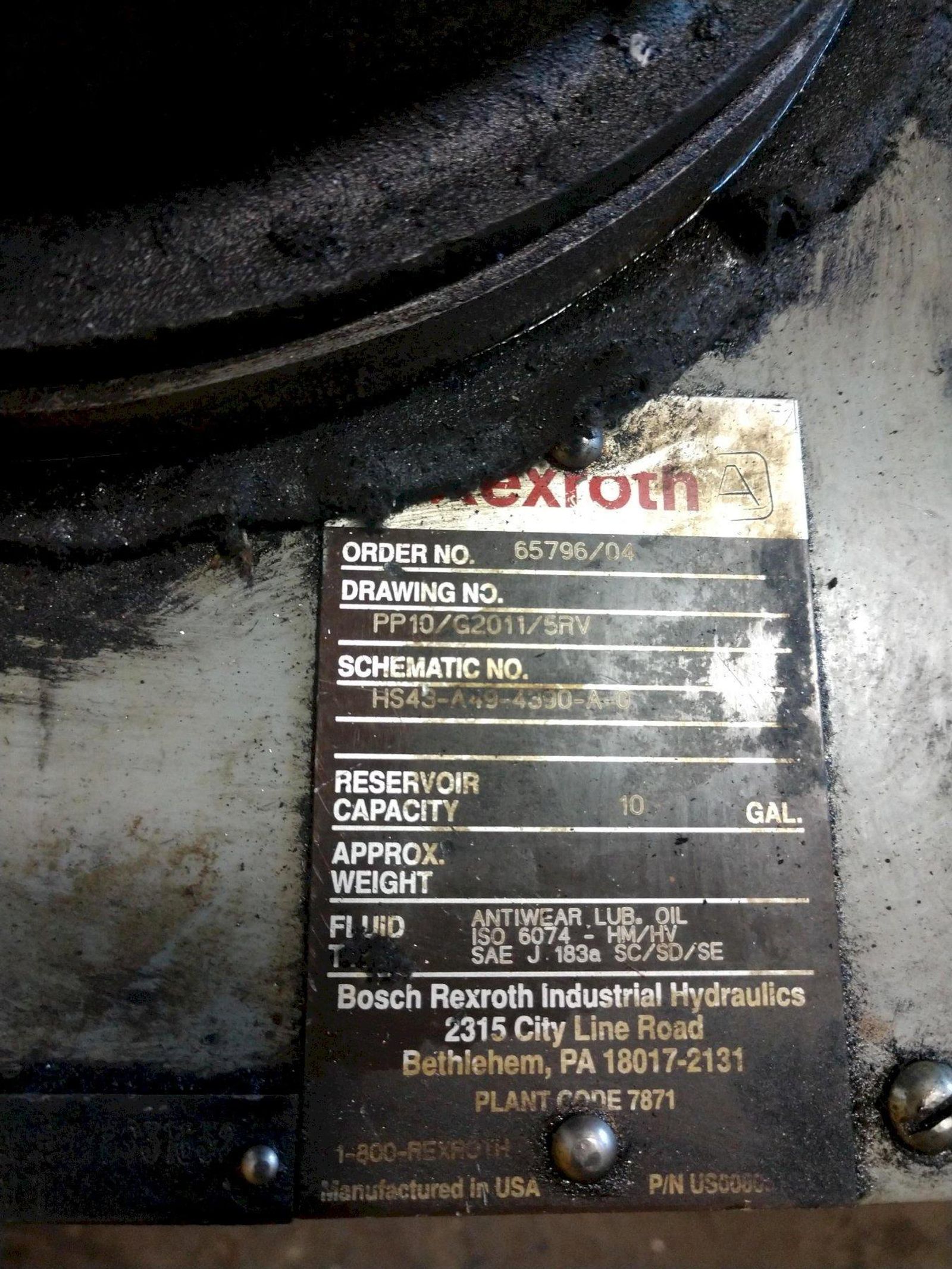

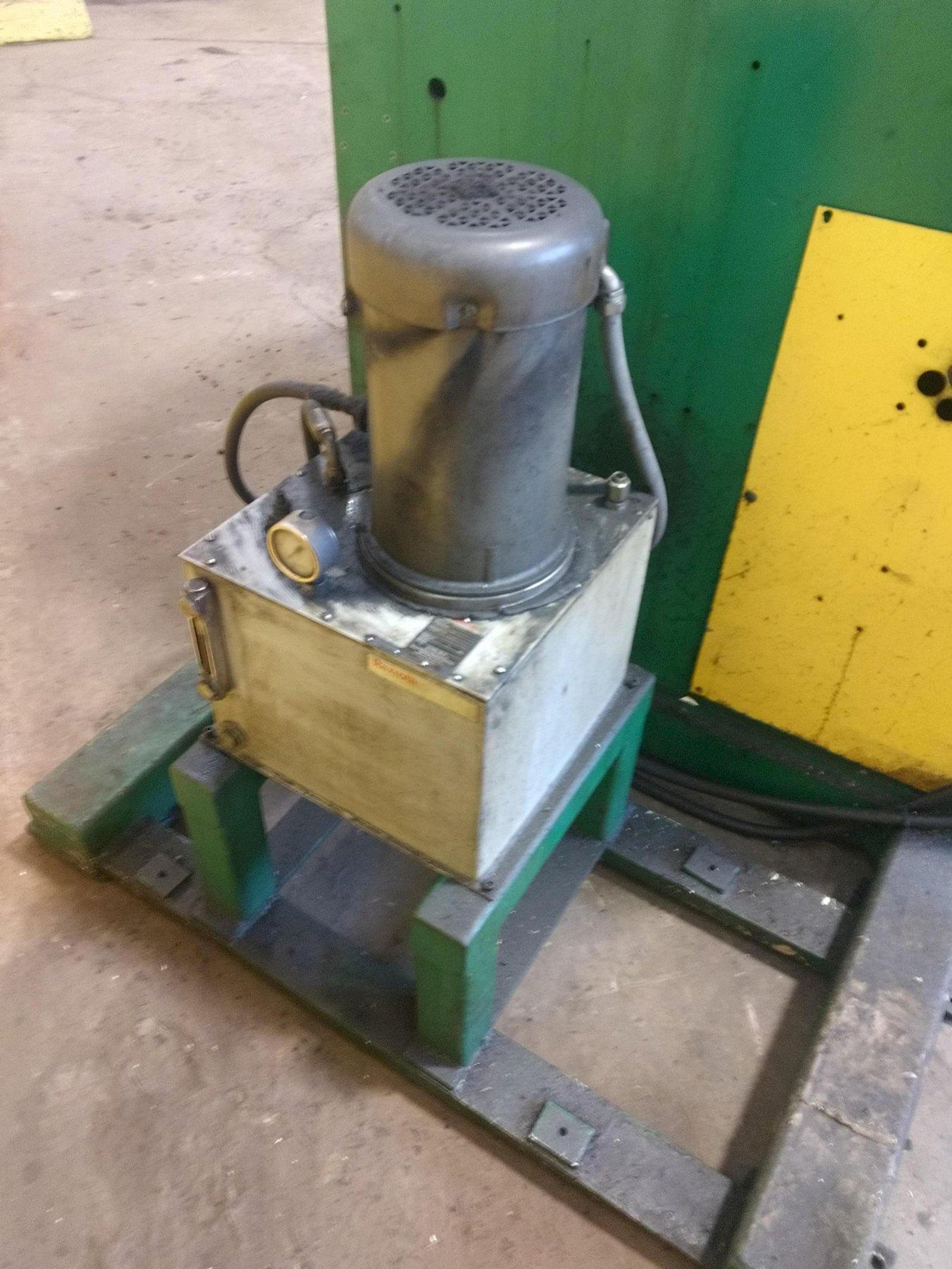

HYDRAULIC MOTOR ............. 5 HP

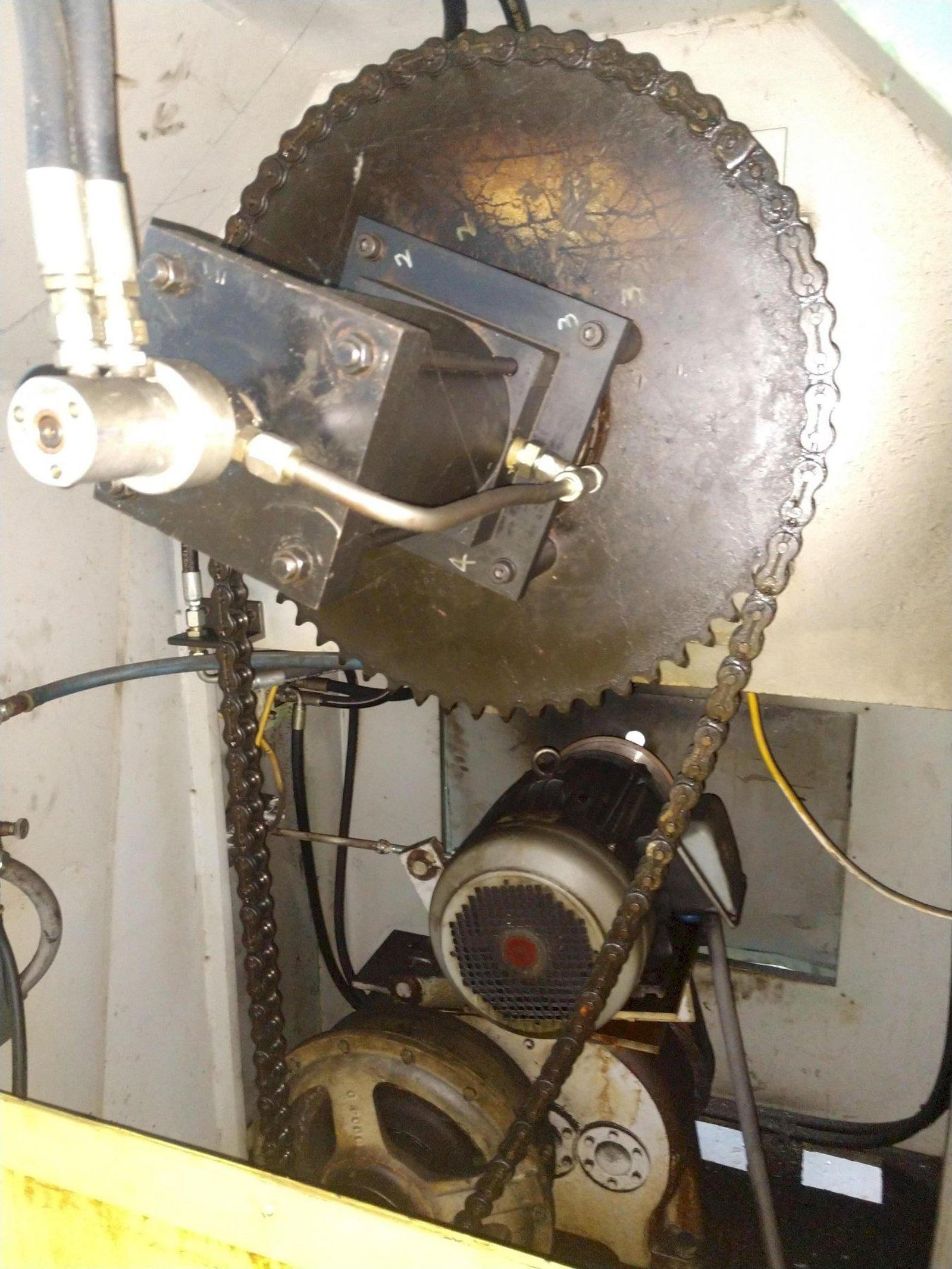

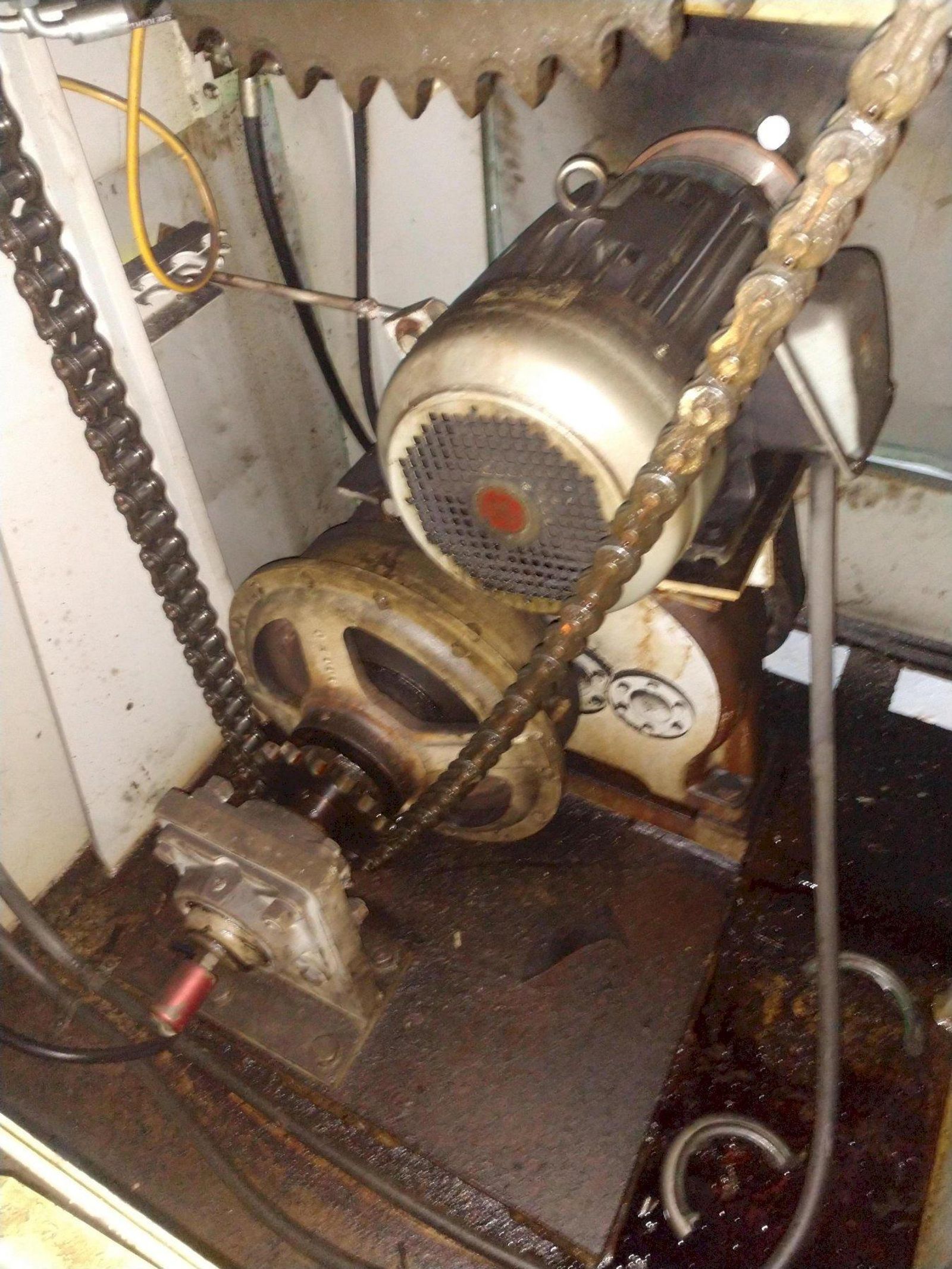

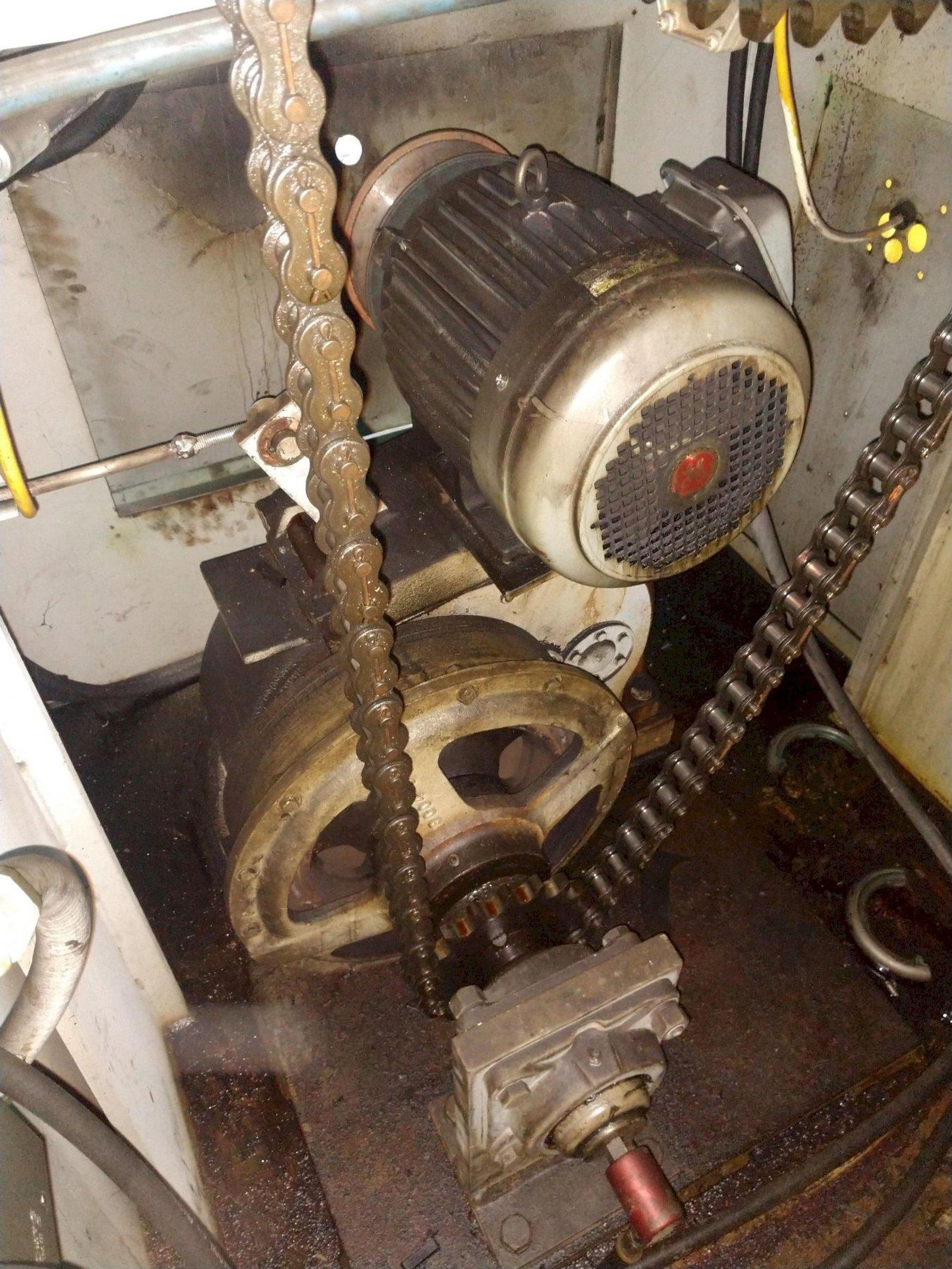

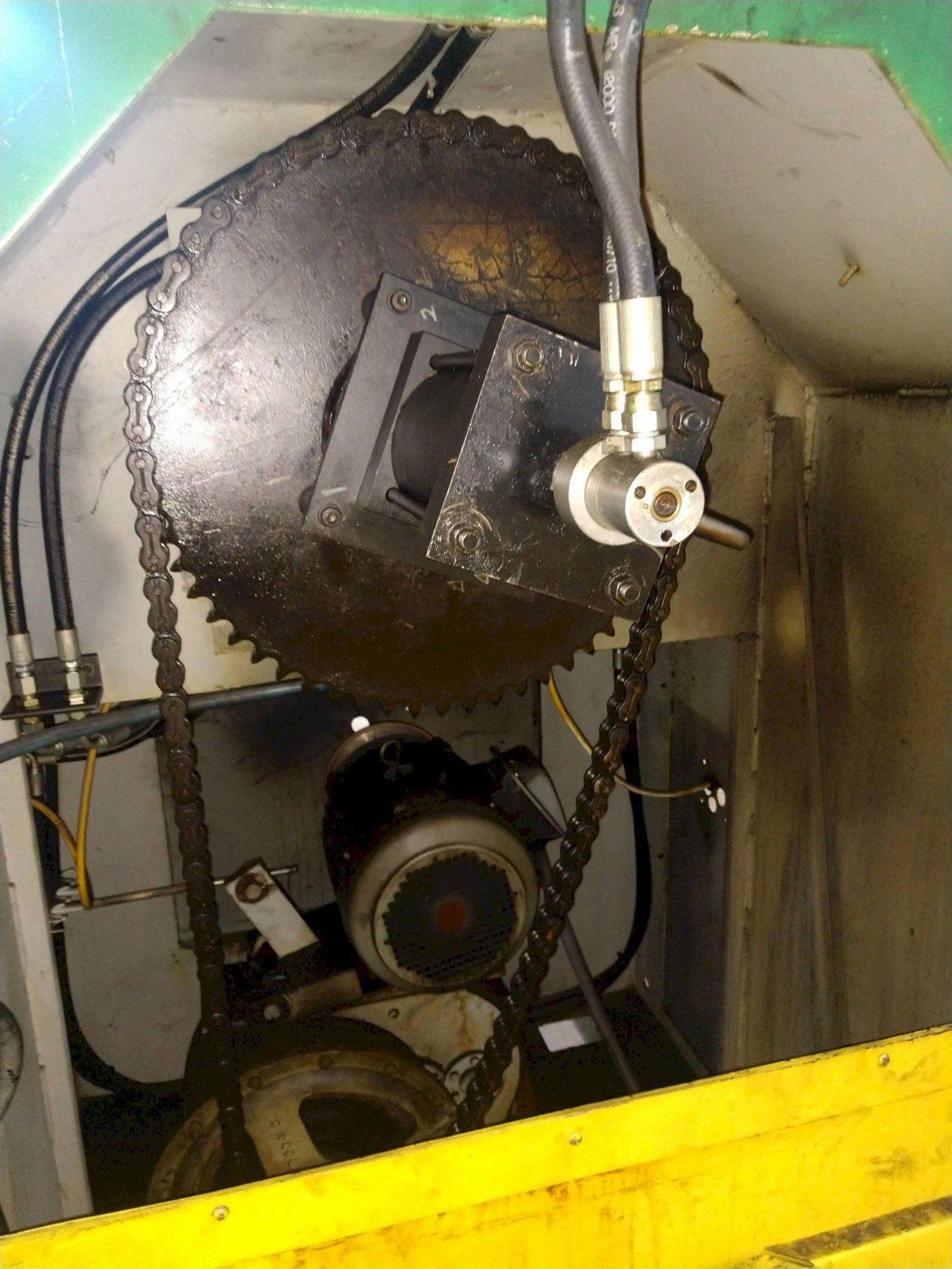

MAIN MOTOR .................. 3 HP
| Specifications | ||
|---|---|---|
| Max Weight of Coil | 30000 pounds | |
| Max Width of Coil | 40 inches | |
| Max Dia. of Coil | 96 inches | |
| Dimensions | 92" X 92" X 80" H | |
| Weight | 7050 pounds | |
Brand
SESCO
Type
Uncoilers
Stock No.
14444
 |
419-269-2000 |
Stock #: 14444
SERIAL ...................... 15402-1
MODEL ....................... 53-422
CAPACITY .................... 30,000 LBS
LENGTH OF MANDREL ........... 40"
MANDREL CONSTRUCTION ........ 3 PIECE,40" L X 15" W EACH
HYDRAULIC ID EXPANSION ...... WEDGE TYPE
COIL OD ..................... 96" MAXIMUM
KEEPERS ON MANDREL .......... 6
MOTORIZED WITH DANCER ARM ... YES
HOLD DOWN SNUBBER ARM ....... PNEUMATIC
AIR CLUTCH .................. YES
HYDRAULIC MOTOR ............. 5 HP
MAIN MOTOR .................. 3 HP
