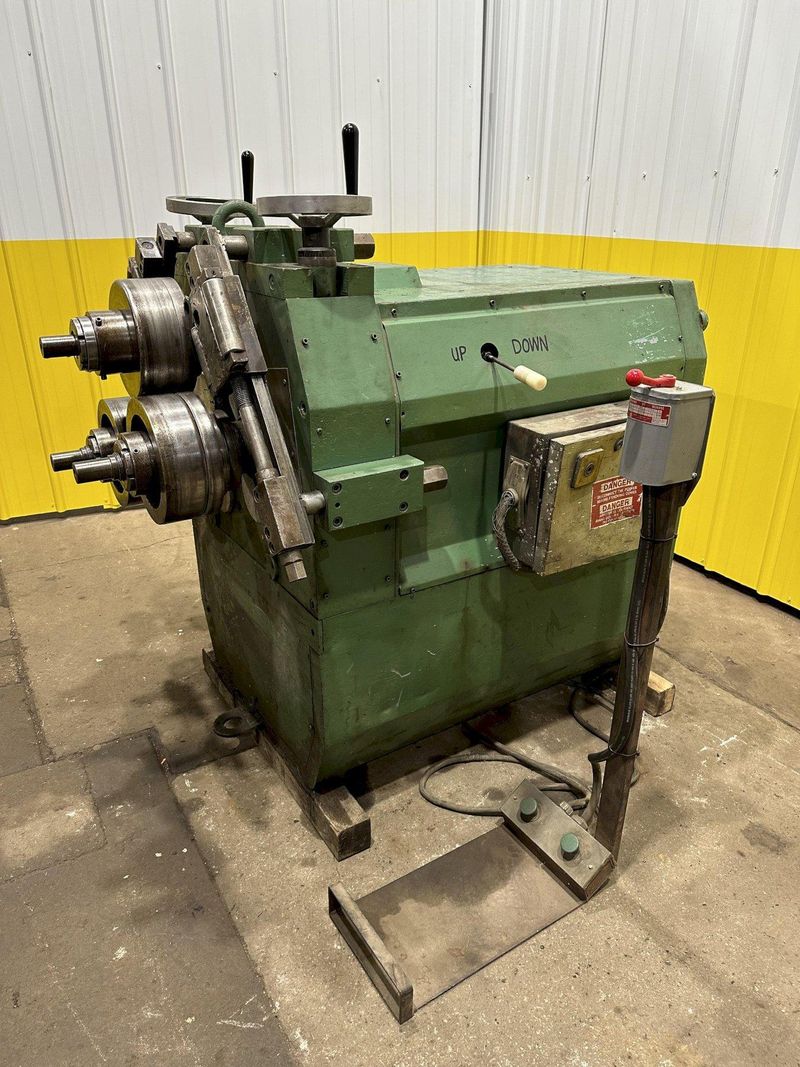

3.5" X 3.5" X 1/4" TAURING MODEL #R/4 HYDRAULIC ANGLE BENDING ROLL: STOCK #18762

Overview

Serial .......... 4/25

Model ........... DR/4

Pyramid Style Bending Rolls

Mechanically Driven

Machine Can be Used in the Horizontal or Vertical Position

Capacities in Mild Steel:

Flats on Edge ......... 80 x 15 MM (3.15" x .59")

Angle Iron ............ 90 x 90 x 6 MM (3.54" x 3.54" x .24")

Tube – Pipe ........... 120 x 3 MM (4.72" x .12")

Round Solid ........... 35 - 50 MM (1.38" - 1.96") Depending on Radius

Square Solid .......... 30 - 45 MM (1.18" - 1.77") Depending on Radius

Shaft Diameter ........ 70 MM (2.76")

Upper Roll Diameter ... 235 MM (9.25")

Lower Roll Diameter ... 247 MM (9.72")

Shaft Speed ........... 4 RPM (1 Speed Only)

Equipped with:

Angle & flat Tooling

Assortment of Tooling & Spacers

Leg Guide Attachments

Manual Hand Crank Adjustment of Rolls

Operation Station for Forward/Reverse

5.5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 220/440 Volts

Presently Wired 220 Volts

Specifications
Dimensions	41" L-R x 58" F-B x 55" High
Weight	3500 pounds

This machine has been sold, but explore our inventory for similar options available now.
