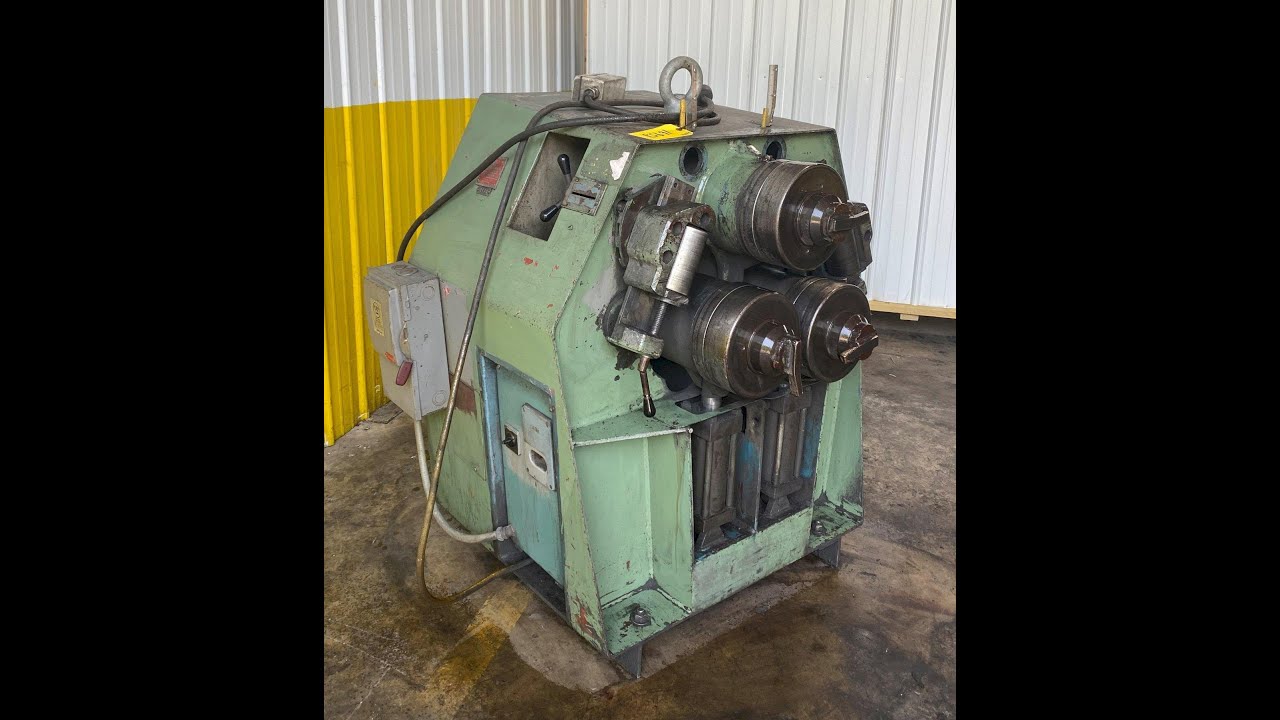

3" x 3" x 3/8" PULLMAX MODEL #Z31 VERTICAL OR HORIZONTAL HYDRAULIC ANGLE ROLL: STOCK 16952

Overview

SERIAL ............................. 12354

MODEL .............................. Z31

CAPACITY ANGLES LEG-OUT ............ 3" X 3" X 3/8"

MINIMUM DIAMETER SINGLE PASS ....... 36"

CAPACITY ANGLES LEG-IN ............. 2-1/2" X 2-1/2" X 3/8"

MINIMUM DIAMETER SINGLE PASS ....... 48"

SMALLEST ANGLE LEG-IN OR LEG-OUT ... 1" X 1" X 1/4"

MINIMUM DIAMETER IN SINGLE PASS .... 18"

I BEAMS ON FLANGE .................. 5" TO 40" DIAMETER

CHANNELS FLANGE OUT ................ 5" X 1-3/4" TO 32" DIAMETER

FLATS ON EDGE ...................... 3" X 9/16" TO 20" DIAMETER

FLATS ON FLAT ...................... 5" X 1" TO 16" DIAMETER

ROUND BARS ......................... 1-3/4" TO 16" DIAMETER

SQUARE BARS ........................ 1-3/4" TO 16" DIAMETER

STANDARD PIPE ...................... 2" TO 28" DIAMETER

TEES LEG-OUT ....................... 4" X 3" X 3/8" TO 28" DIAMETER

BENDING SPEED ...................... 26 FPM

LEG-IN/LEG-OUT GUIDES .............. YES

LOWER ROLLS ADJUSTMENT ............. HYDRAULIC

Specifications
Weight	4500 pounds

This machine has been sold, but explore our inventory for similar options available now.

3" x 3" x 3/8" PULLMAX MODEL #Z31 VERTICAL OR HORIZONTAL HYDRAULIC ANGLE ROLL: STOCK 16952

Brand
PULLMAX

Type
Rolls, Angle Bending

Stock No.
16952
