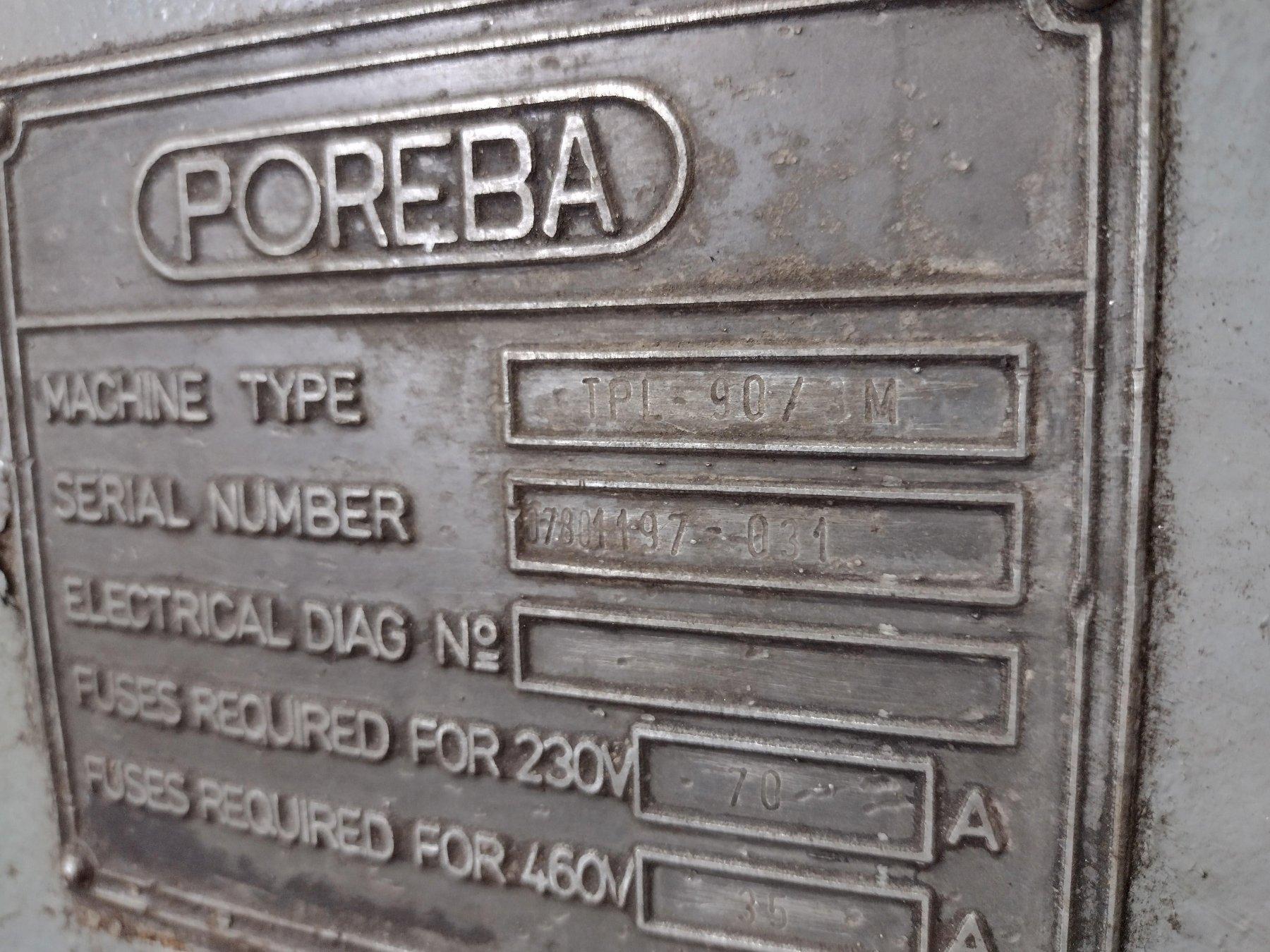

Serial ...................... 0781197-031

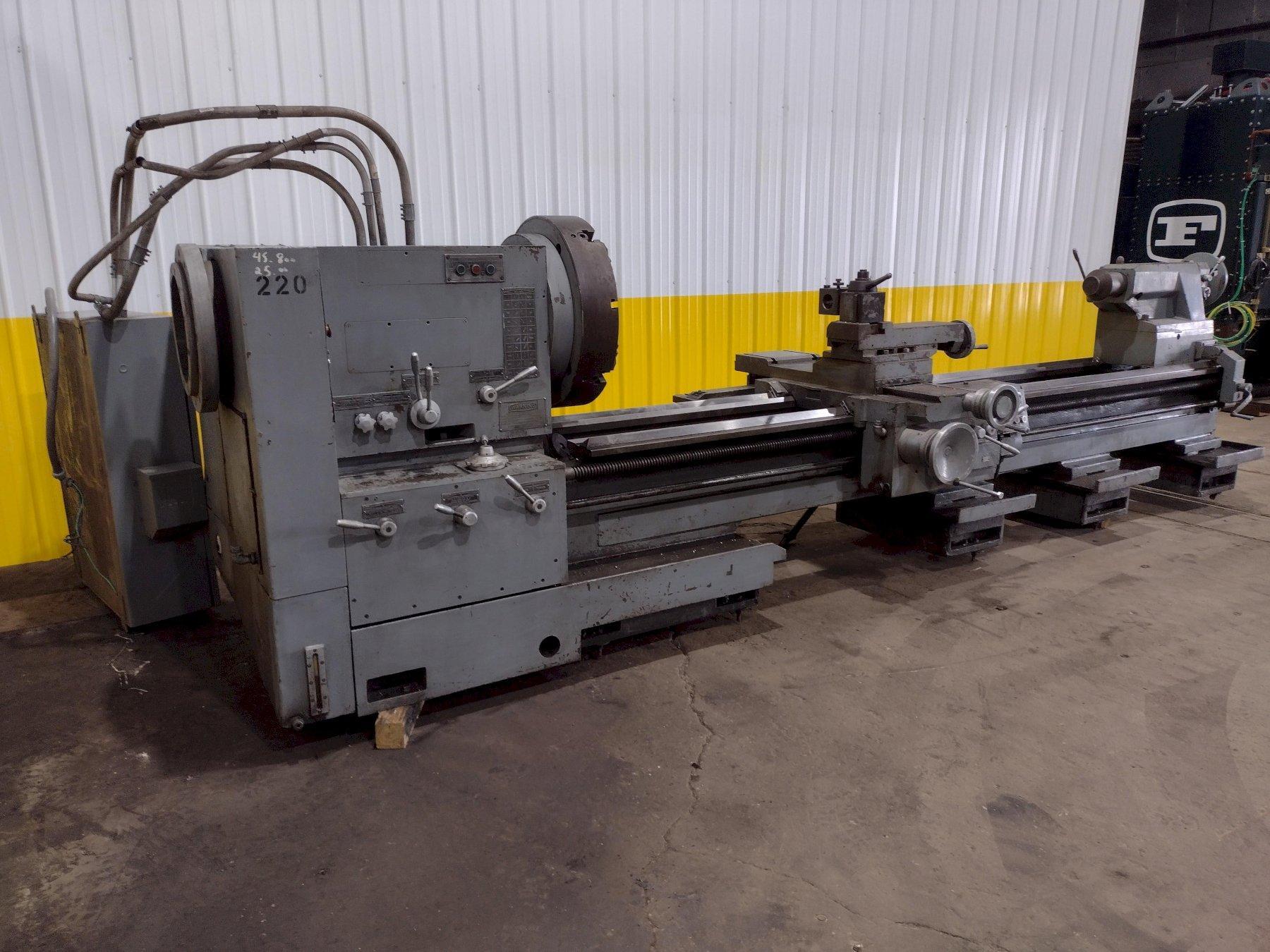

Model ....................... TPK-90/3M
Swing Over Bed .............. 38"
Swing Over Carriage ......... 25-1/2"
Distance Between Centers .... 120"

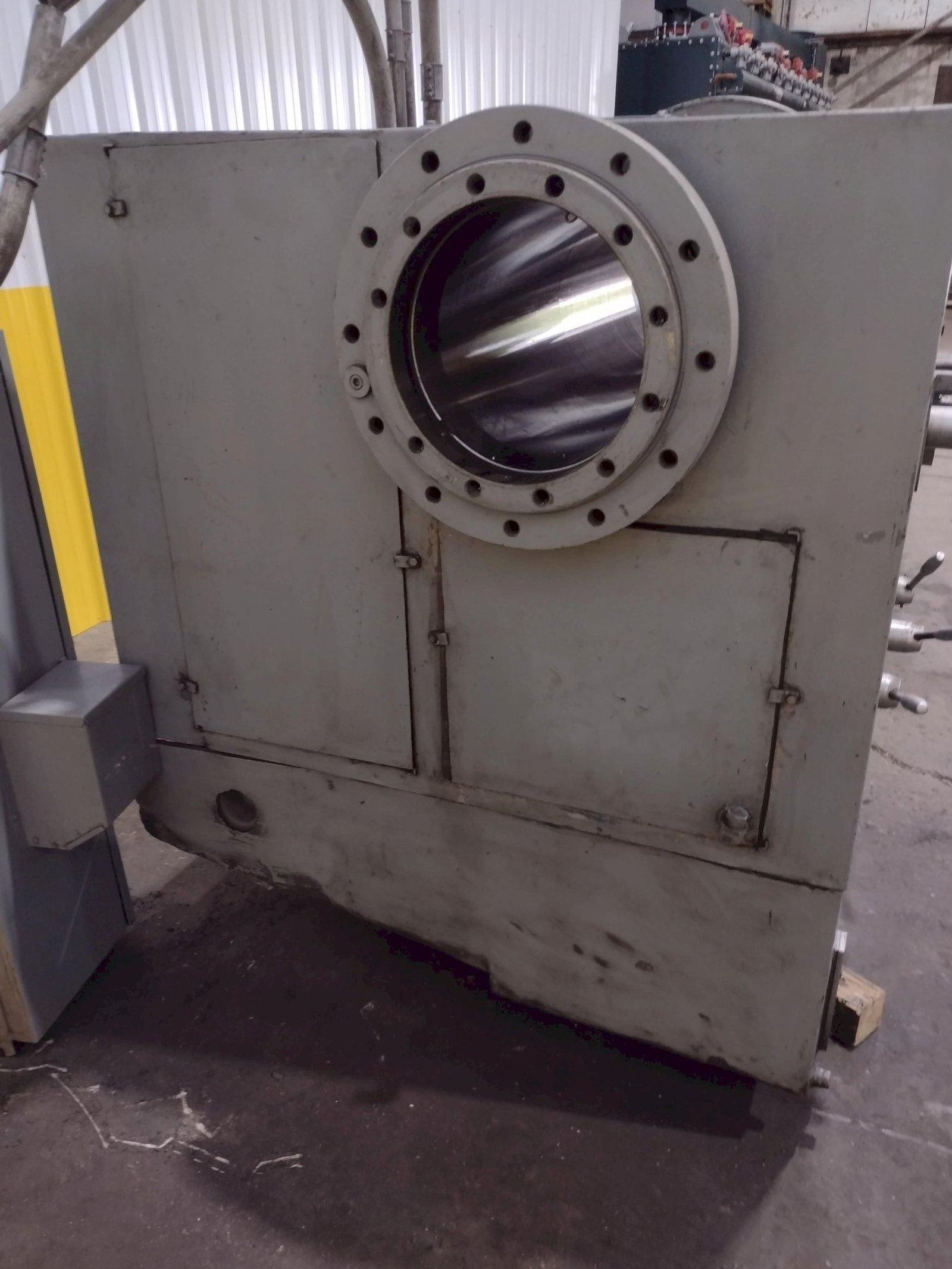

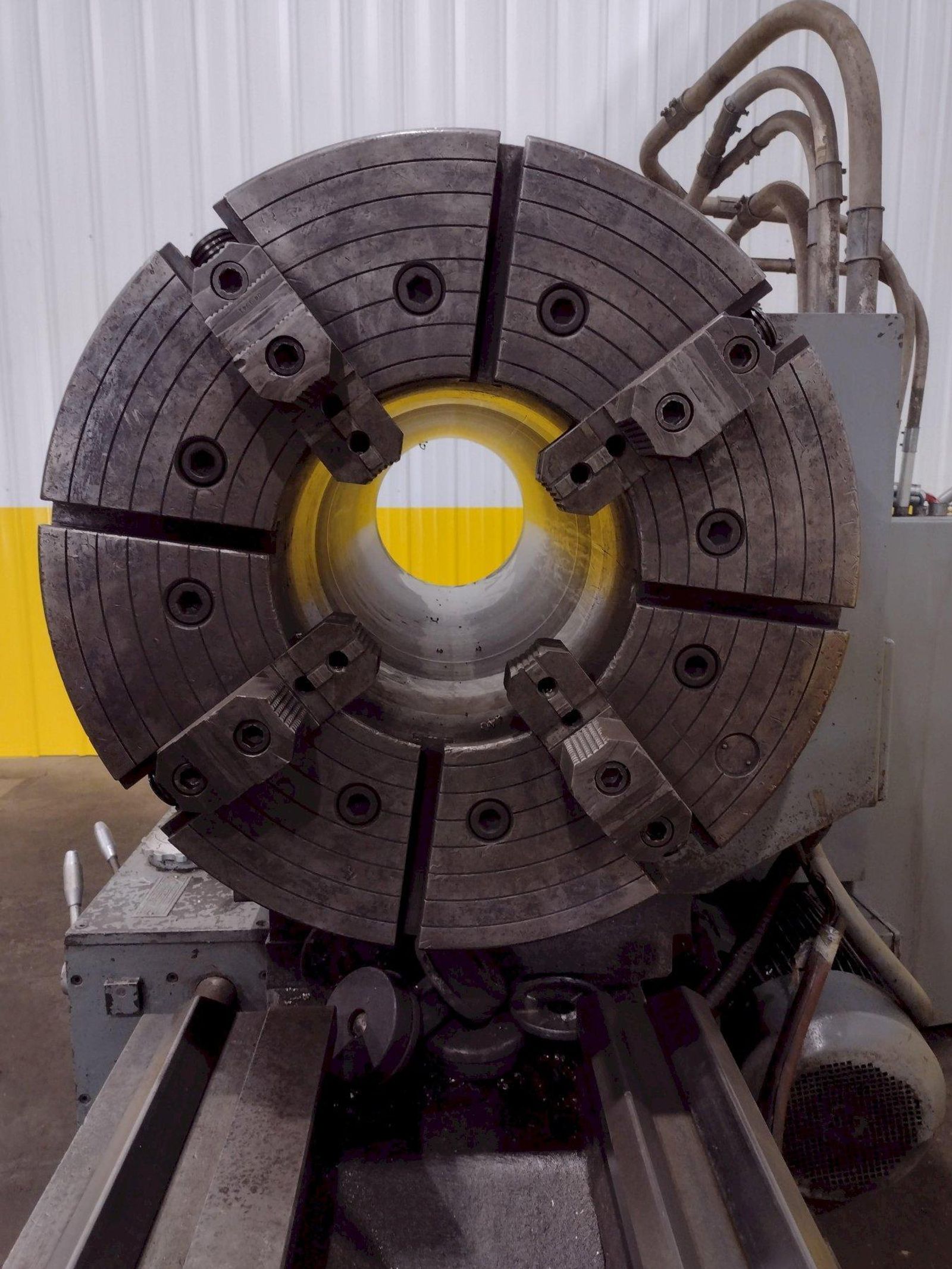

*** Spindle Hole *** ........ 12 1/2"
Spindle Nose ................ A1-20"

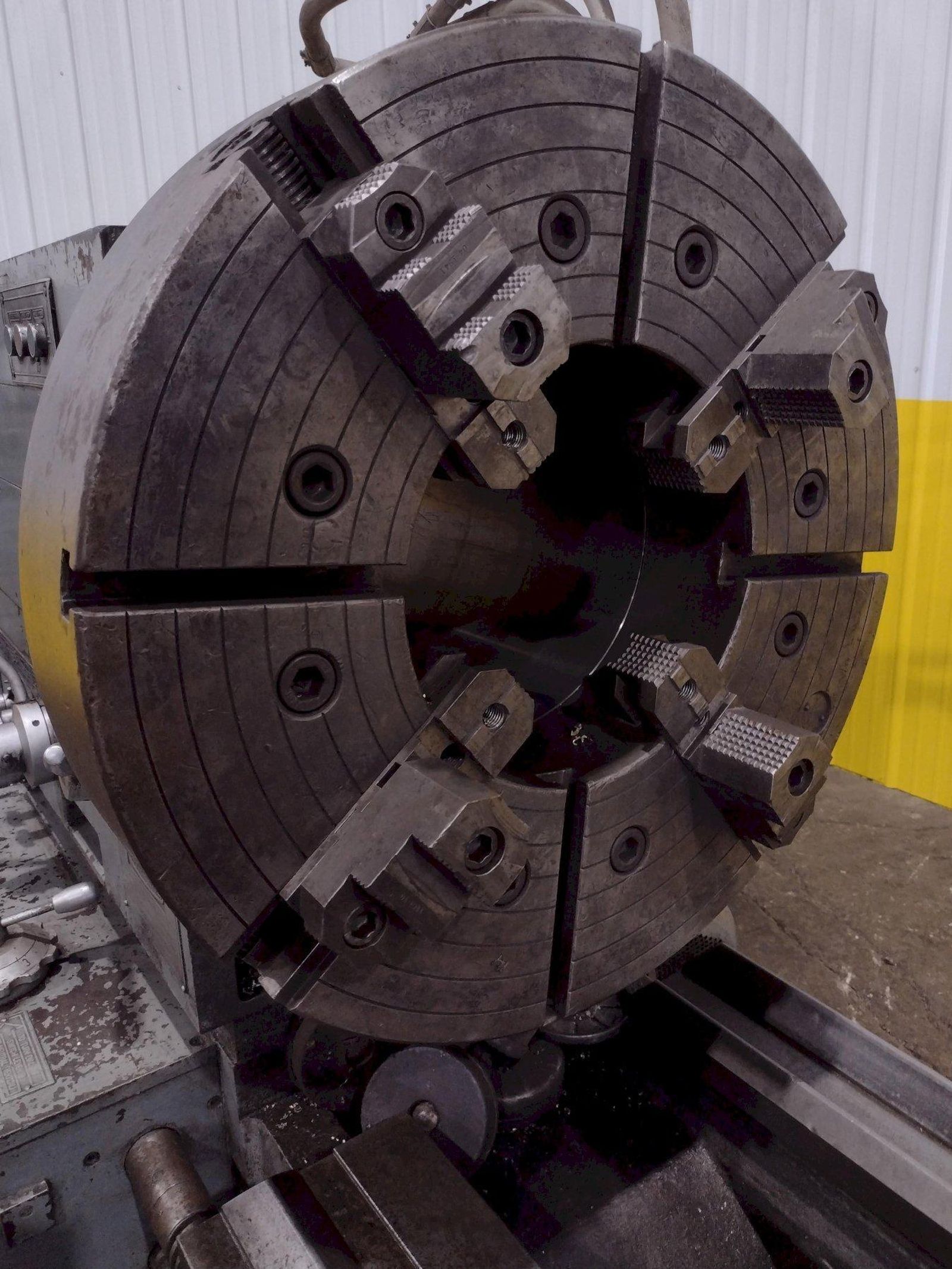

Chucks, Front & Rear ........ 28" - 4-Jaw

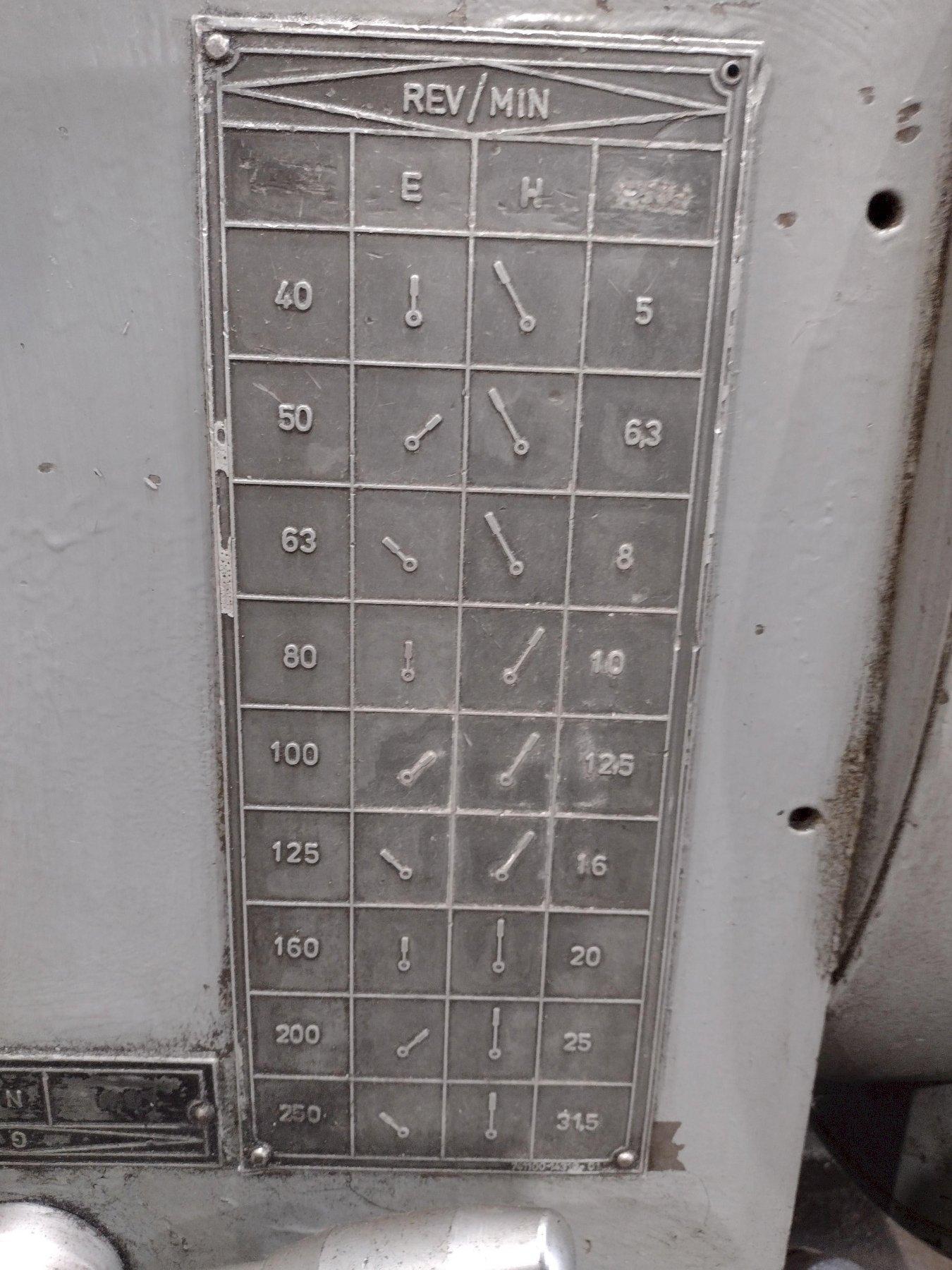

Spindle Speeds .............. (18) 5 - 250 RPM

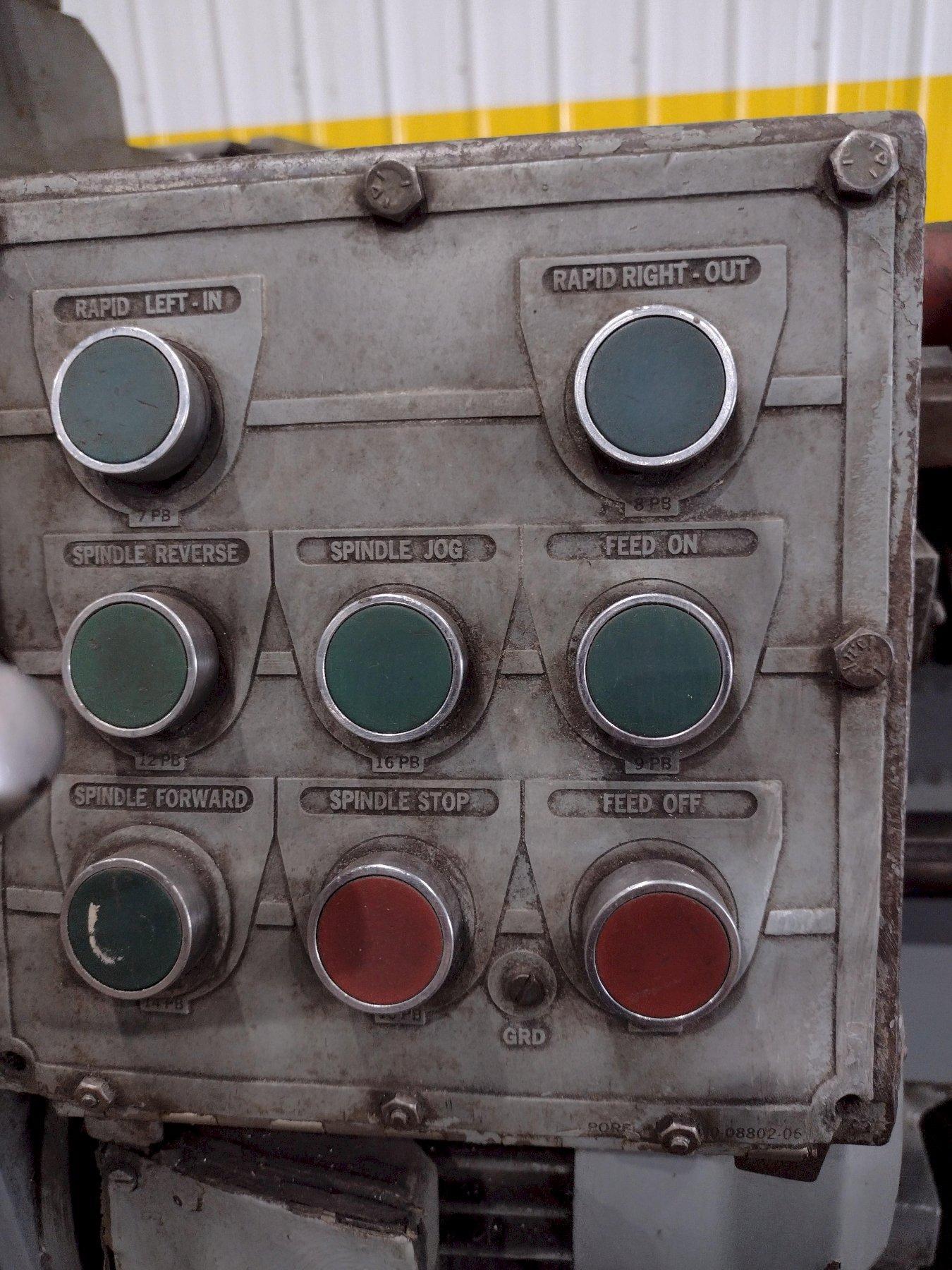

Spindle Jog Button .......... Yes, Forward & Reverse
Spindle Stop Button ......... Yes
Longitudinal Feeds, U.S ..... .0043 - .248 IPR
Longitudinal Feeds, Metric .. .11 - 6.4 mm/rev
Cross Feeds, U.S. ........... .0021" - .124 IPR
Cross Feeds, Metric ......... .05 - 3.20 mm/rev

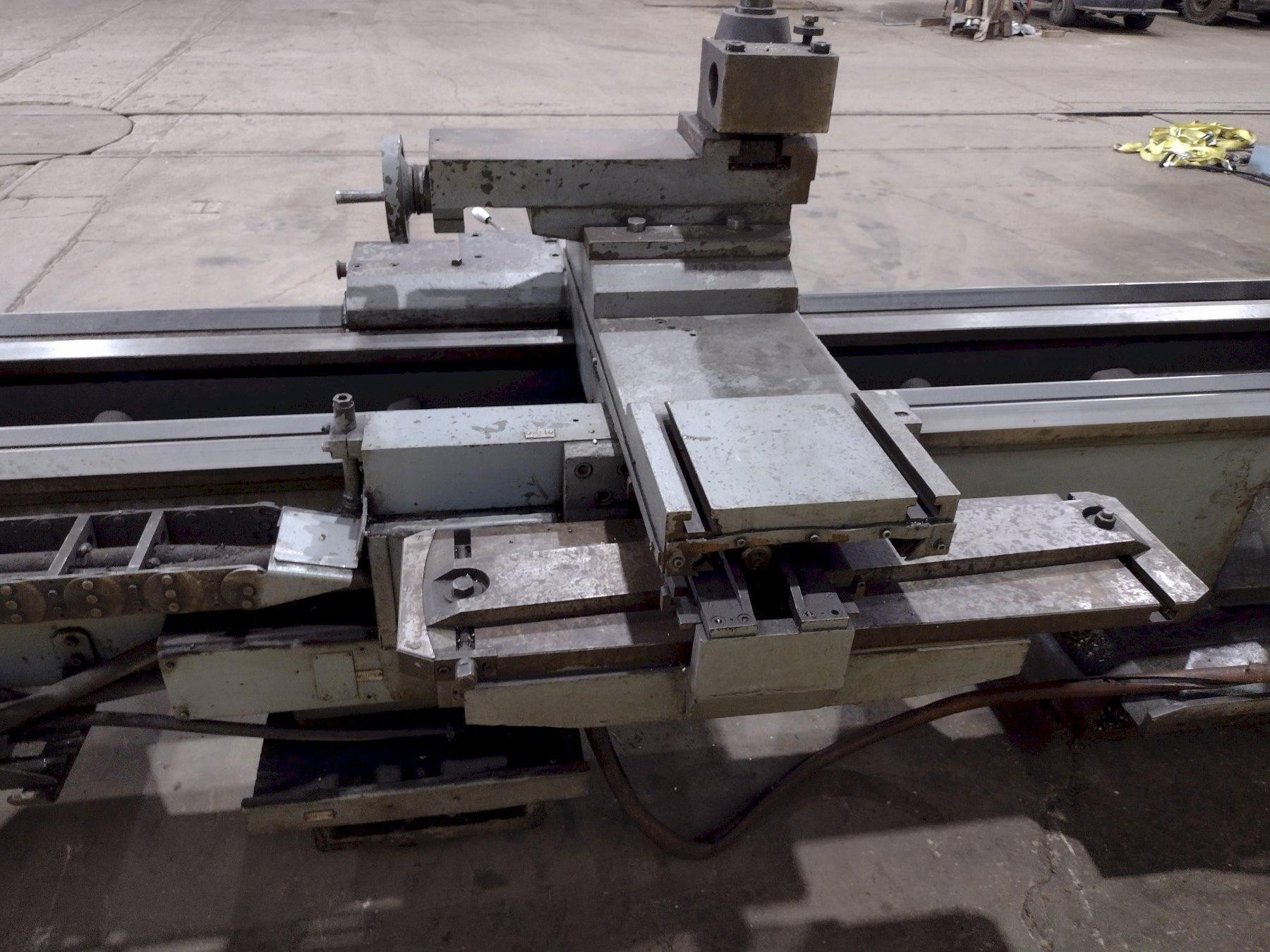

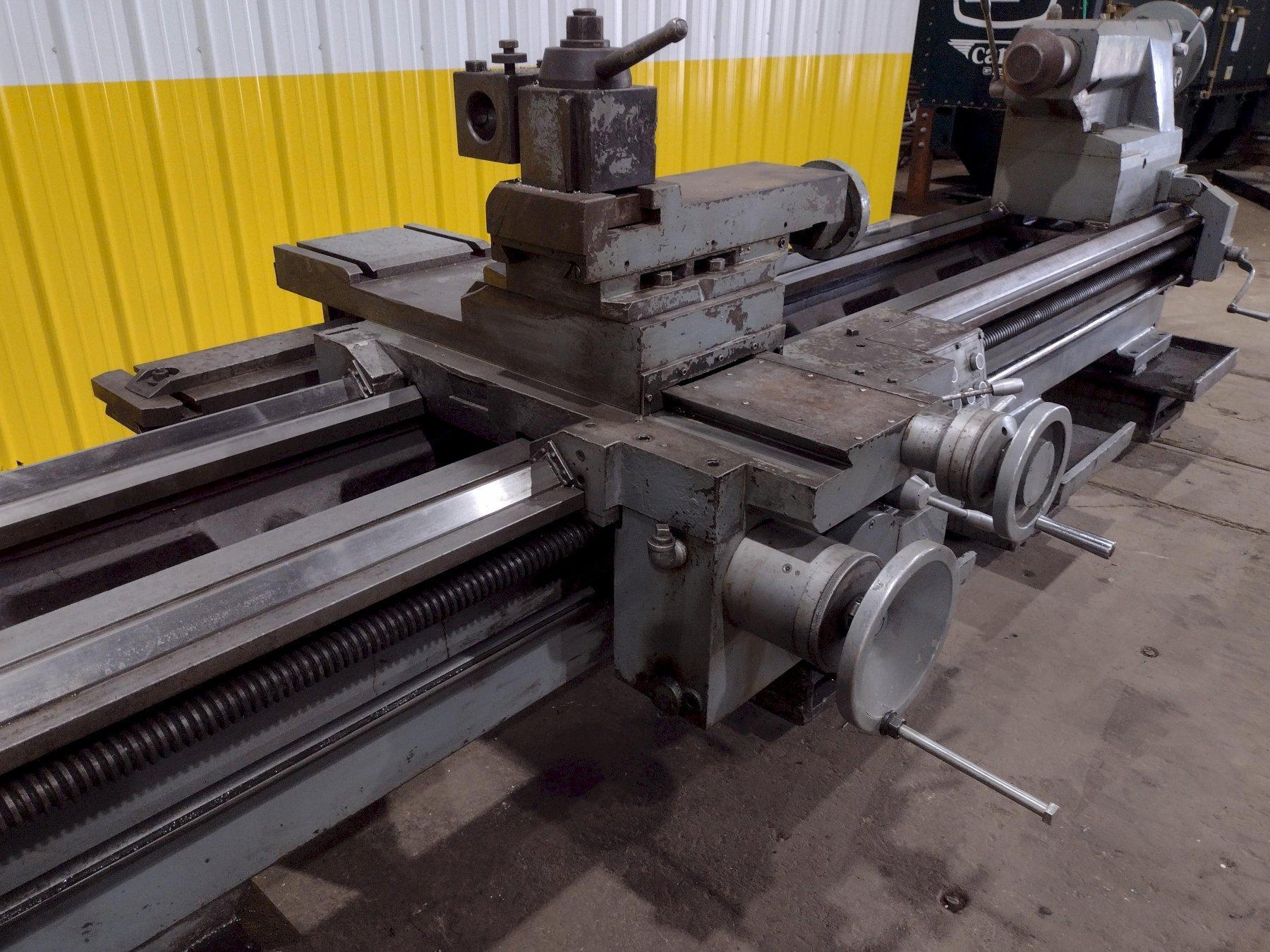

Cross Slide Travel .......... 18-1/2"
Top Slide Travel ............ 11-3/4"

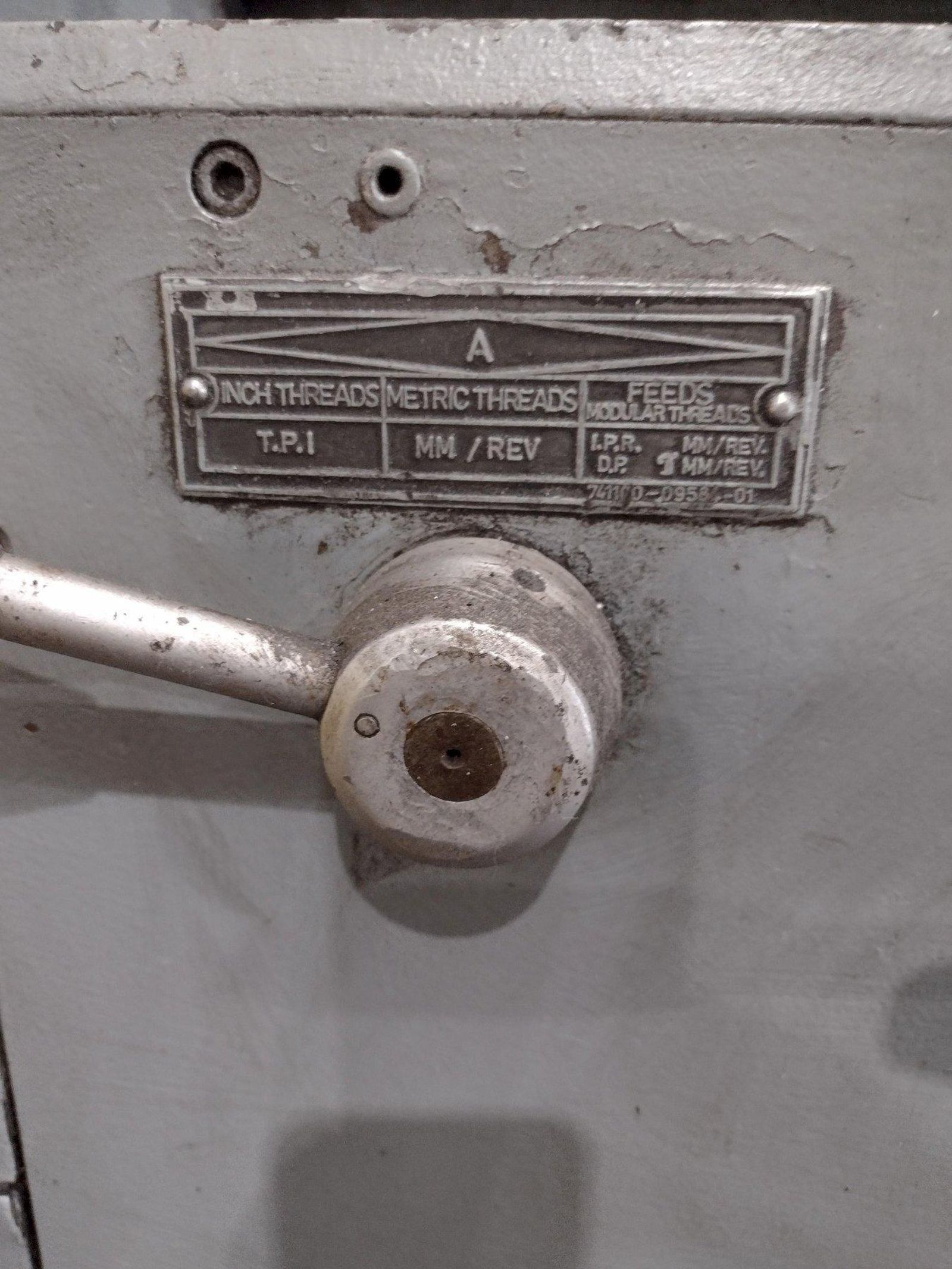

Threads, Inch ............... (54) 1/2 - 16 TPI
Threads, Metric ............. (72) 1 - 60 mm
Threads, D.P. ............... 1 - 60
Threads, Modular ............ .25 - 15 mm

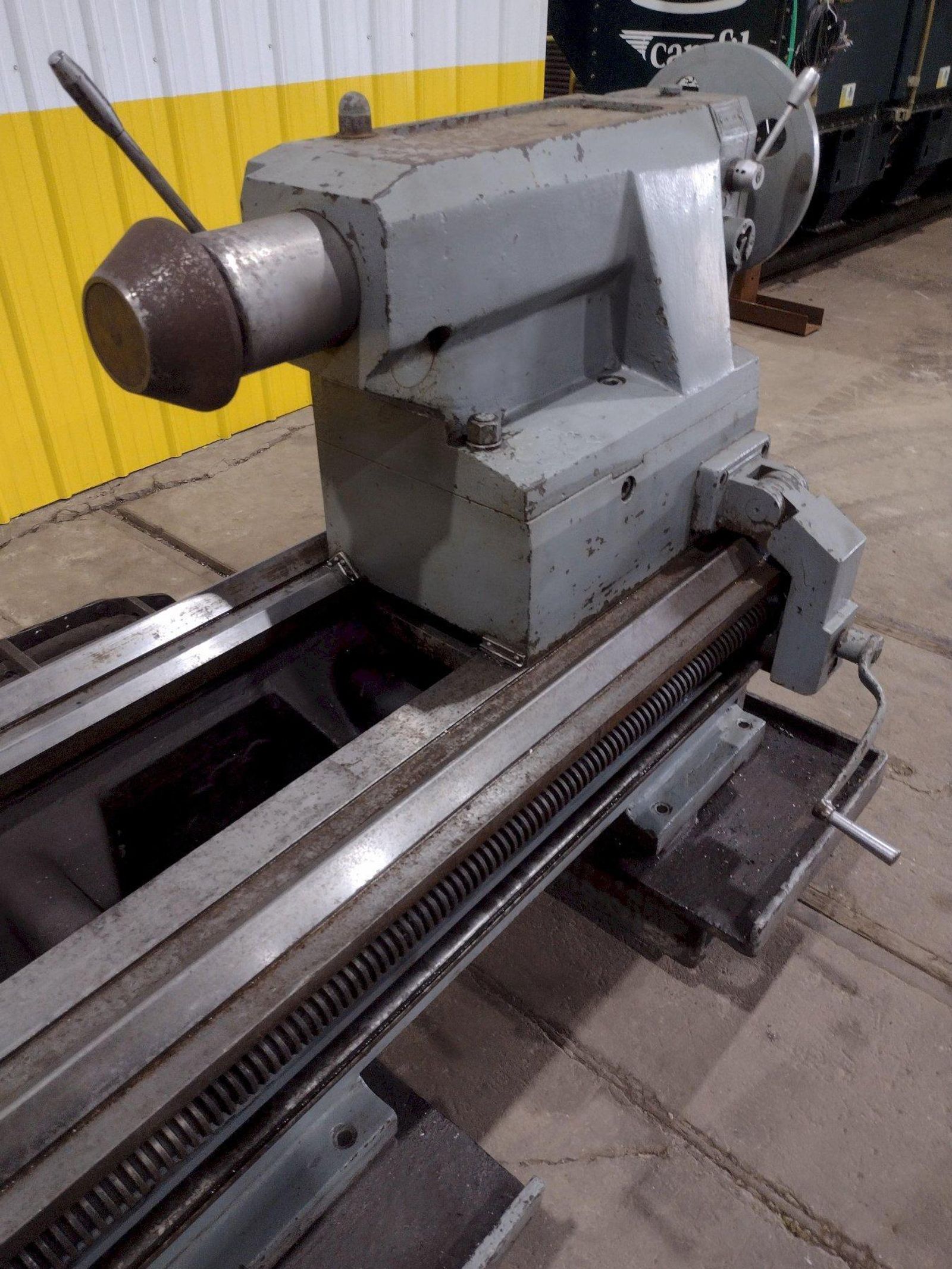

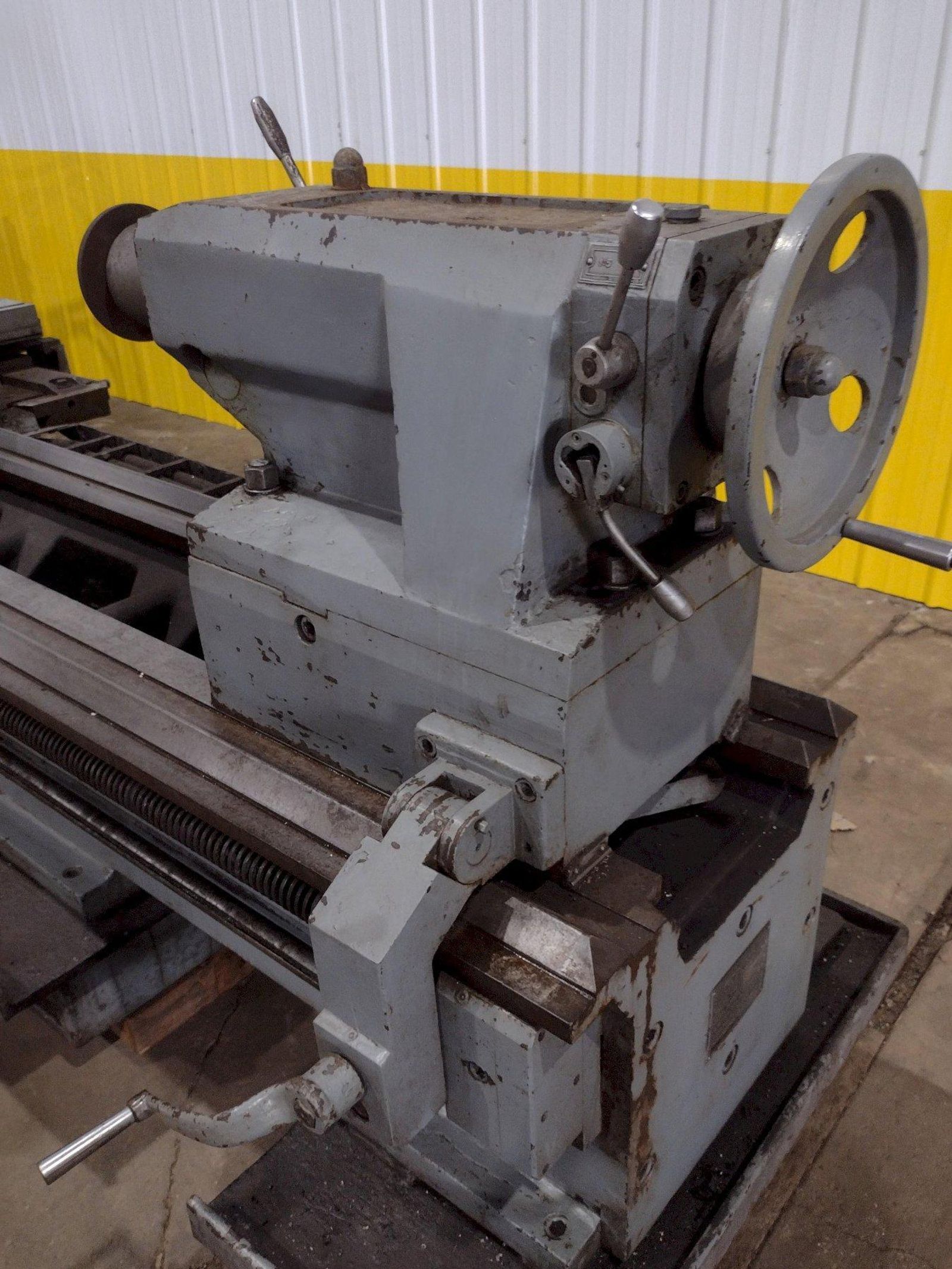

Tailstock Spindle Diameter .. 5"
Tailstock Spindle Travel .... 11-3/4"
Tailstock Spindle Taper ..... 6 MT
Steady Rest ................. Yes
Taper Attachment ............ Yes
Four Way Rapid Traverse ..... Yes
Coolant ..................... Yes

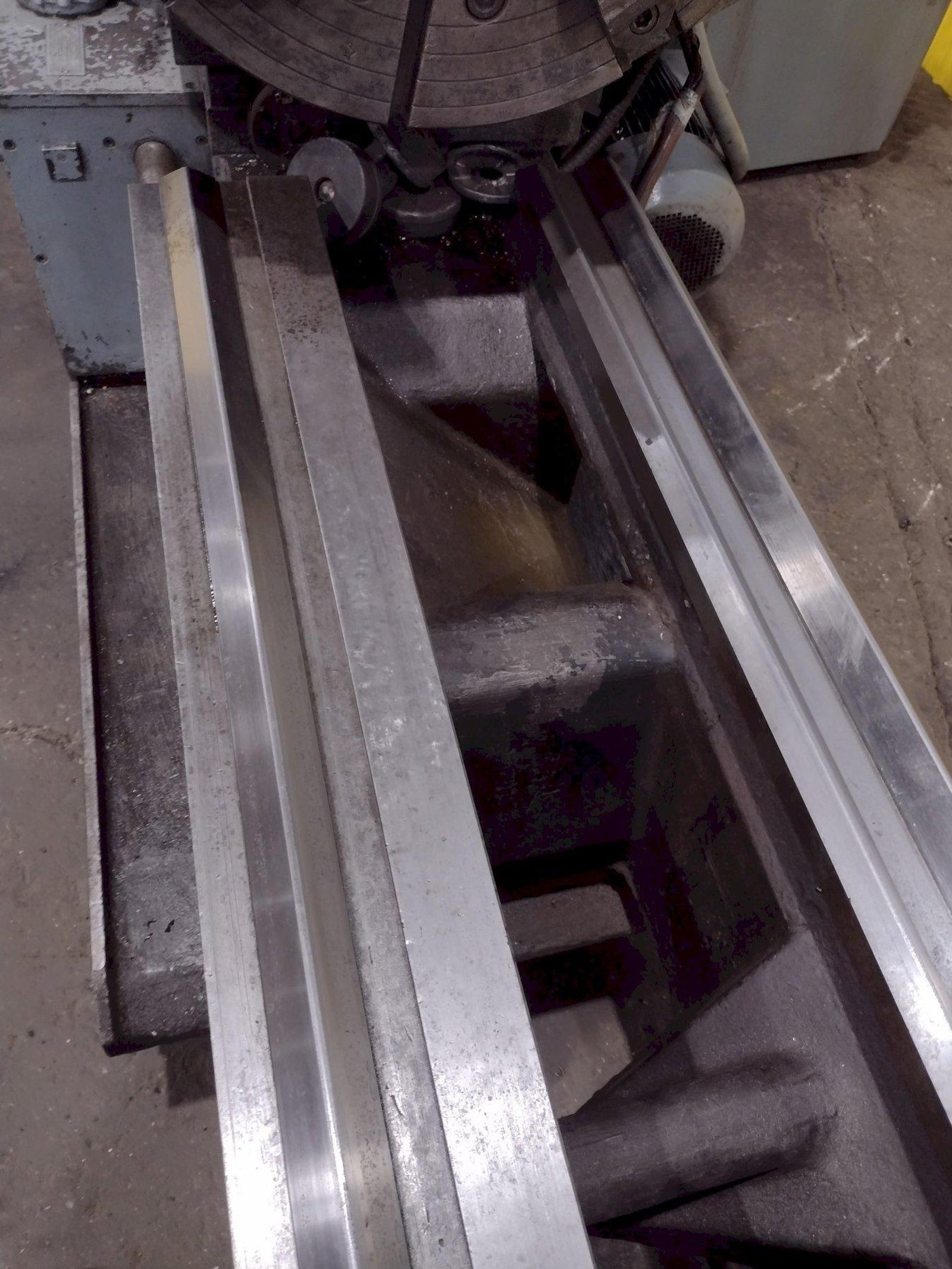

Hardened and Ground Ways .... Yes

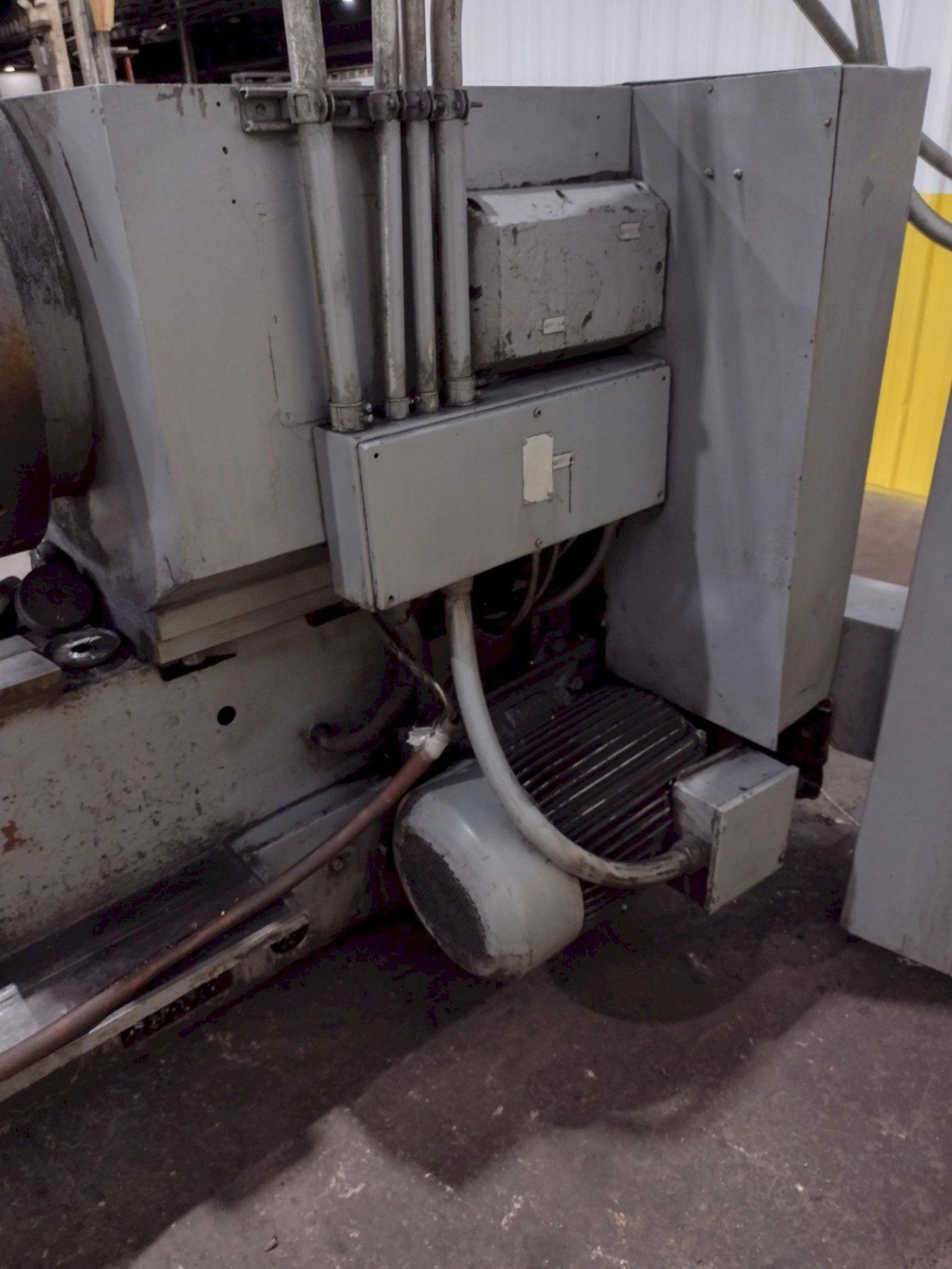

Main Motor .................. 30 HP
Brand
POREBA
Type
Lathes, Engine
Stock No.
18538
 |
419-269-2000 |
Stock #: 18538
Serial ...................... 0781197-031
Model ....................... TPK-90/3M
Swing Over Bed .............. 38"
Swing Over Carriage ......... 25-1/2"
Distance Between Centers .... 120"
*** Spindle Hole *** ........ 12 1/2"
Spindle Nose ................ A1-20"
Chucks, Front & Rear ........ 28" - 4-Jaw
Spindle Speeds .............. (18) 5 - 250 RPM
Spindle Jog Button .......... Yes, Forward & Reverse
Spindle Stop Button ......... Yes
Longitudinal Feeds, U.S ..... .0043 - .248 IPR
Longitudinal Feeds, Metric .. .11 - 6.4 mm/rev
Cross Feeds, U.S. ........... .0021" - .124 IPR
Cross Feeds, Metric ......... .05 - 3.20 mm/rev
Cross Slide Travel .......... 18-1/2"
Top Slide Travel ............ 11-3/4"
Threads, Inch ............... (54) 1/2 - 16 TPI
Threads, Metric ............. (72) 1 - 60 mm
Threads, D.P. ............... 1 - 60
Threads, Modular ............ .25 - 15 mm
Tailstock Spindle Diameter .. 5"
Tailstock Spindle Travel .... 11-3/4"
Tailstock Spindle Taper ..... 6 MT
Steady Rest ................. Yes
Taper Attachment ............ Yes
Four Way Rapid Traverse ..... Yes
Coolant ..................... Yes
Hardened and Ground Ways .... Yes
Main Motor .................. 30 HP
