Brand
PIRANHA
Type
Ironworkers
Stock No.
23636
 |
419-269-2000 |

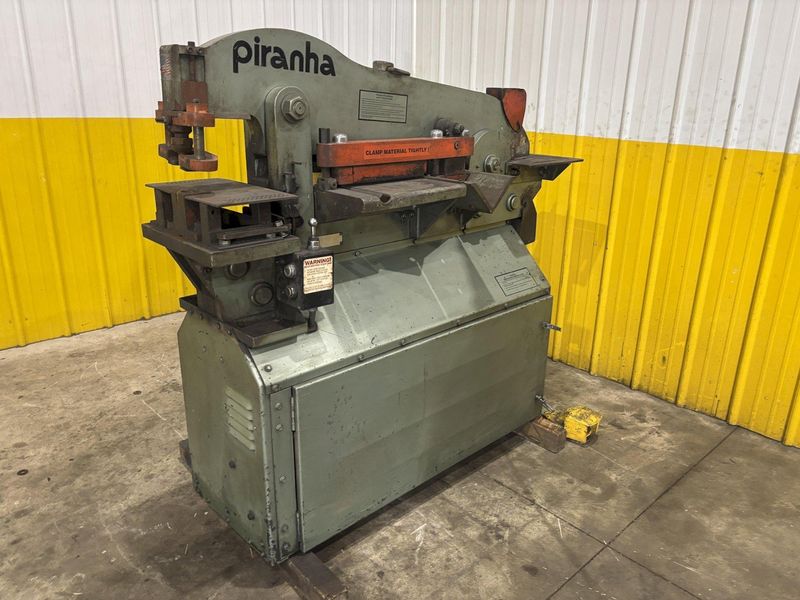

Stock #: 23636
SERIAL ............................ 3172
MODEL ............................. P3
PUNCH CAPACITY .................... 50 TON
PUNCH HOLE SIZE ................... 13/16" in 3/4" MATERIAL
PUNCH MAX HOLE SIZE ............... 5" in 1/8" MATERIAL
PLATE SHEAR LENGTH OF BLADE ....... 15-1/2″ANGLE SHEAR CAPACITY .............. 4″ x 4″ x 1/2″ & 5″ x 5″ x 3/8″BAR SHEAR ROUNDS .................. 1/4″ to 1-1/2″BAR SHEAR SQUARES ................. 1/2″ to 1″COPING/NOTCHING CAPACITY .......... 2-3/4″ x 4″ x 1/4″PUNCH END STROKES/MINUTE .......... 60 @ 1/2″THROAT DEPTH ...................... 8″OPEN HEIGHT ....................... 13-1/2″STROKE ............................ 4-1/4″MOTOR ............................. 10 HP
