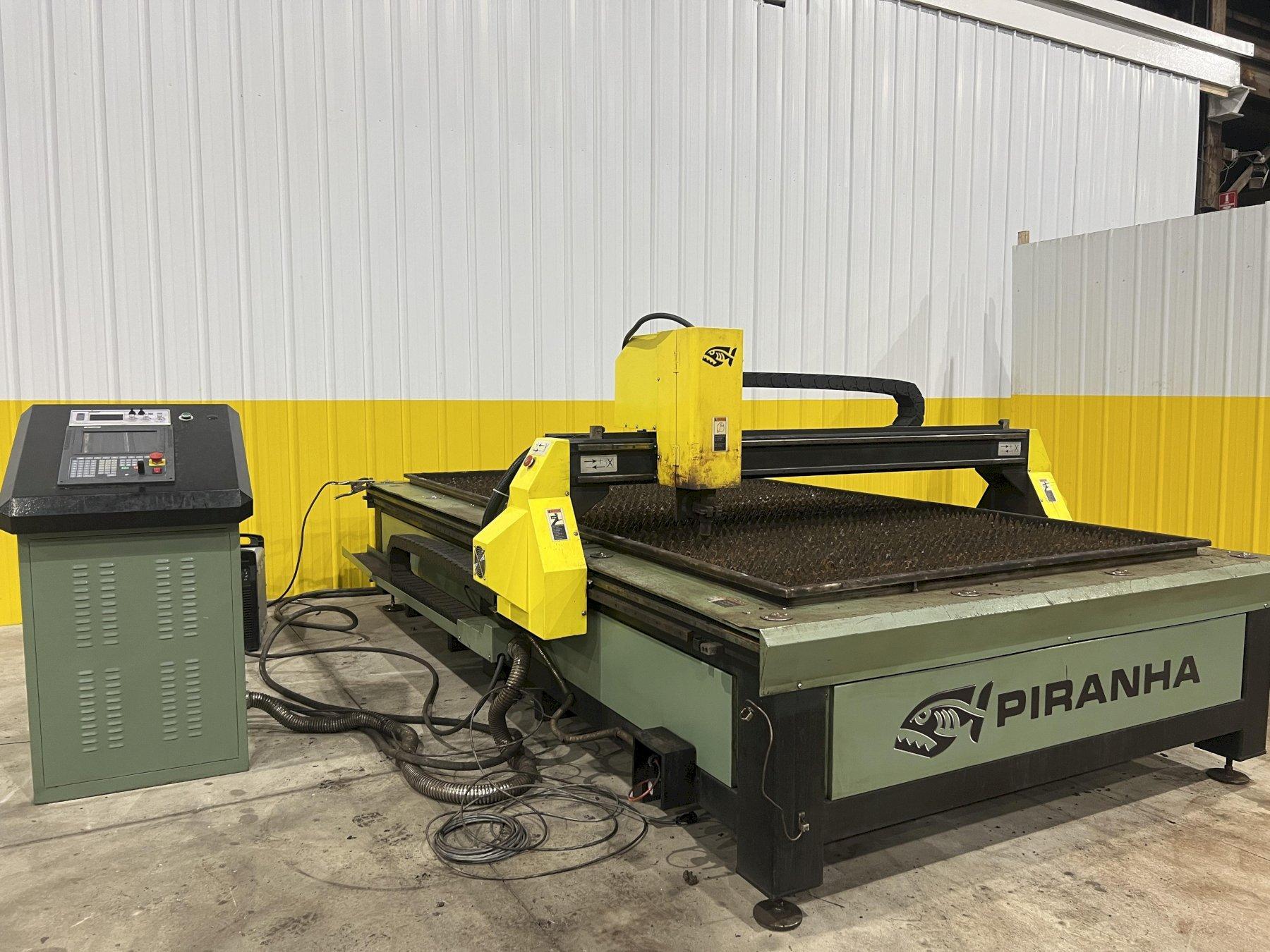

5' X 10' PIRANHA MODEL #C510 PLASMA TABLE SYSTEM HYPERTHERM POWERMAX 125: STOCK #20637

Overview

MODEL ...... C510
SERIAL ..... C510-001411
YEAR ....... 2022

Piranha C510 5′ x 10′ Plasma Table with Powermax 125 & Fast Cam Pro Software

STANDARD FEATURES
1. Rugged Construction – All-Welded Steel Frame (not bolt-together) with high accuracy linear guides and bearings. Machine is assembled complete at the factory
2. Dual Side Drive – gantry driven on both sides for maximum stability
3. CNC Control with 10.4” High resolution color LCD monitor, shape library with 20 configurable shapes, 8MB memory & USB interface
4. Panasonic servo motors and drives – Powerful 400 watt servo motors (not stepper motors) on both X-axis and Y-axis with a maximum traverse speed of 8000mm/min.
5. Down draft exhaust system – Pre-vented duct work with exhaust fan for plasma dust extraction – no messy sludge to clean out and dispose of.
6. MicroStep Programmable Torch Height Control – controls torch height automatically
7. Breakaway Torch Mounting – protects the torch from inadvertent part tip-ups
8. FastCAM® Standard Programming System – DXF importing, editing and NC code generator

5' X 10' PIRANHA MODEL #C510 PLASMA TABLE SYSTEM HYPERTHERM POWERMAX 125: STOCK #20637

Brand
PIRANHA

Type
Plasma Cutters

Stock No.
20637

Make an Offer
Request a Quote
Print Details

Contact Us
