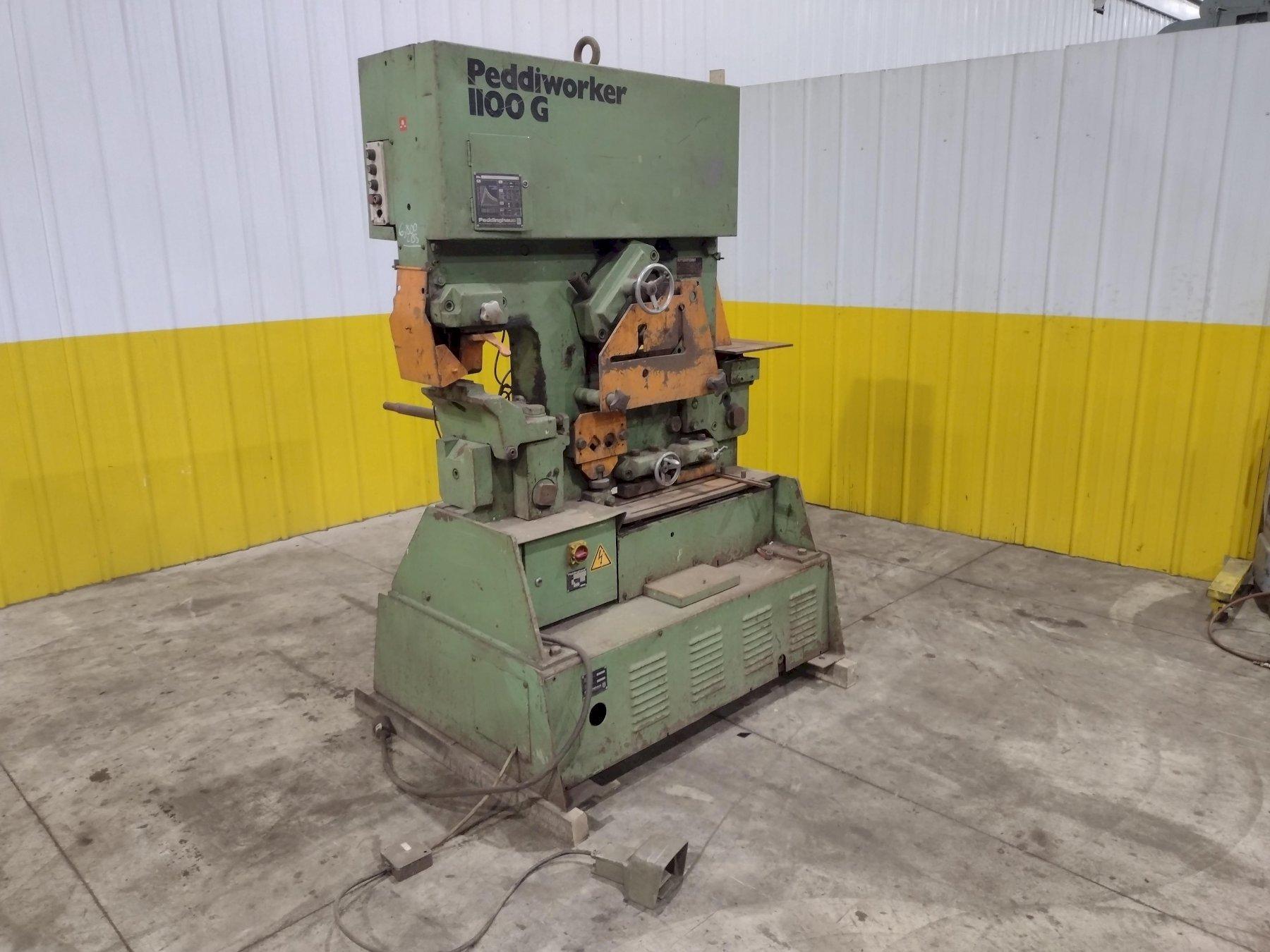

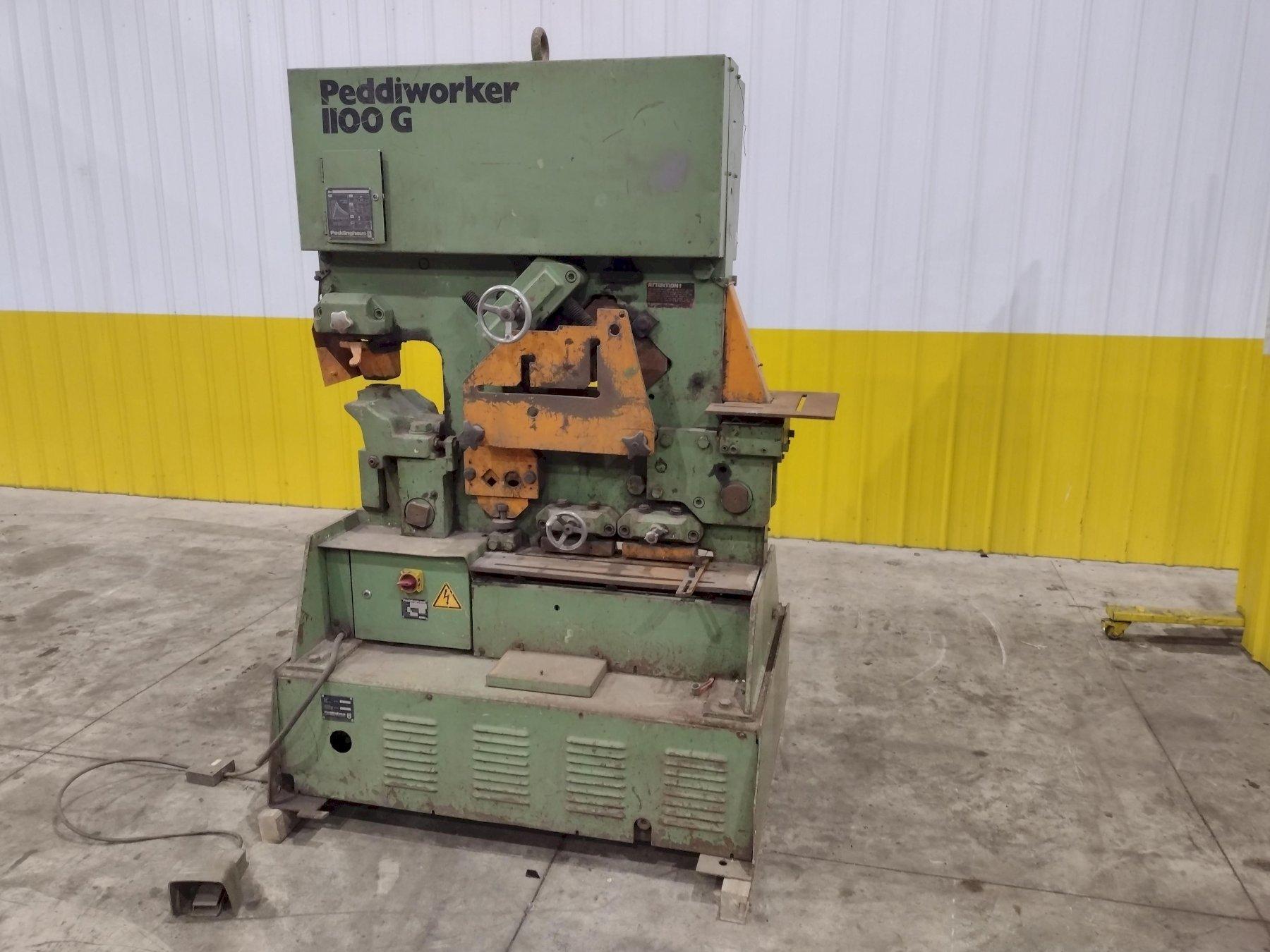

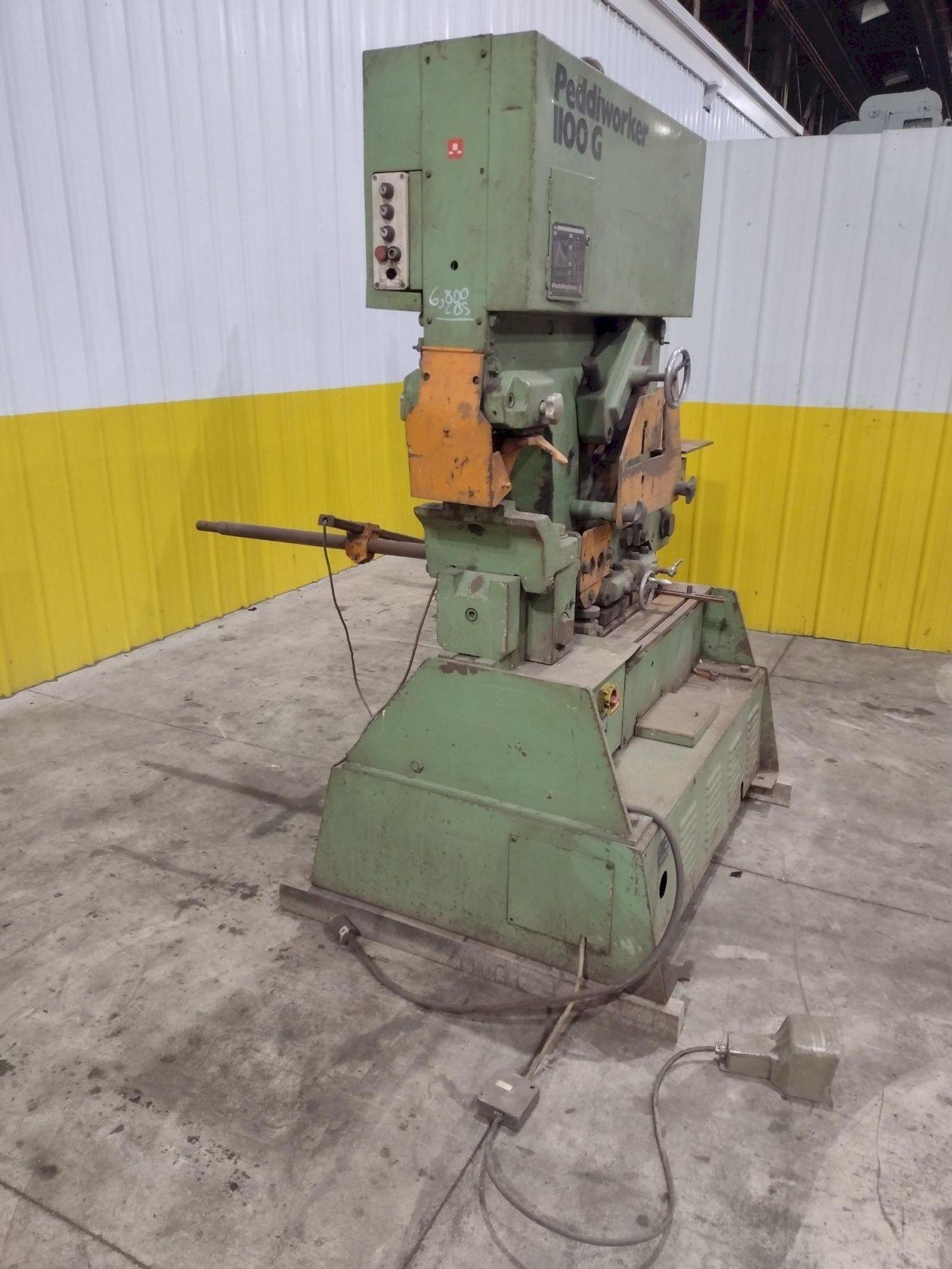

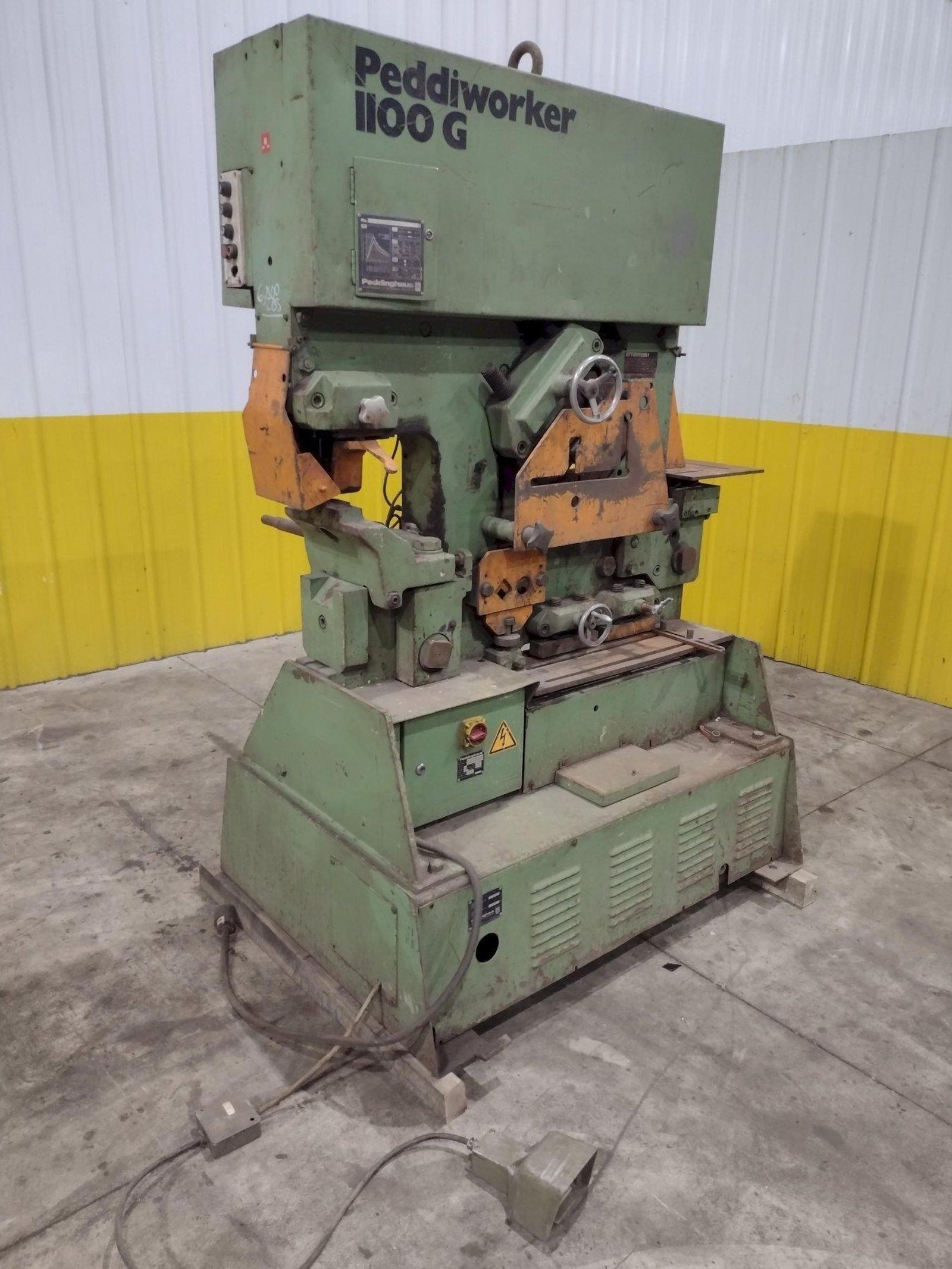

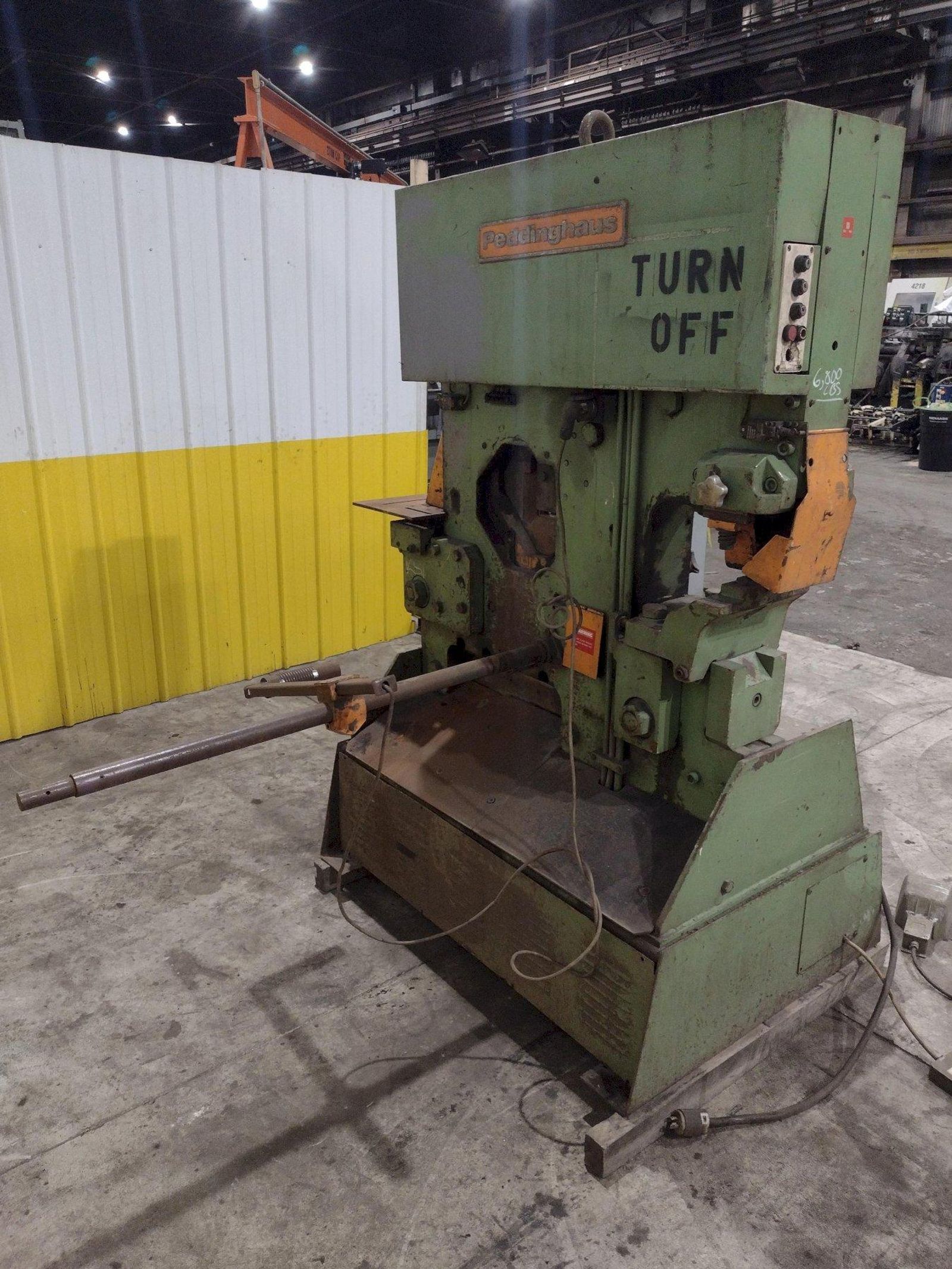

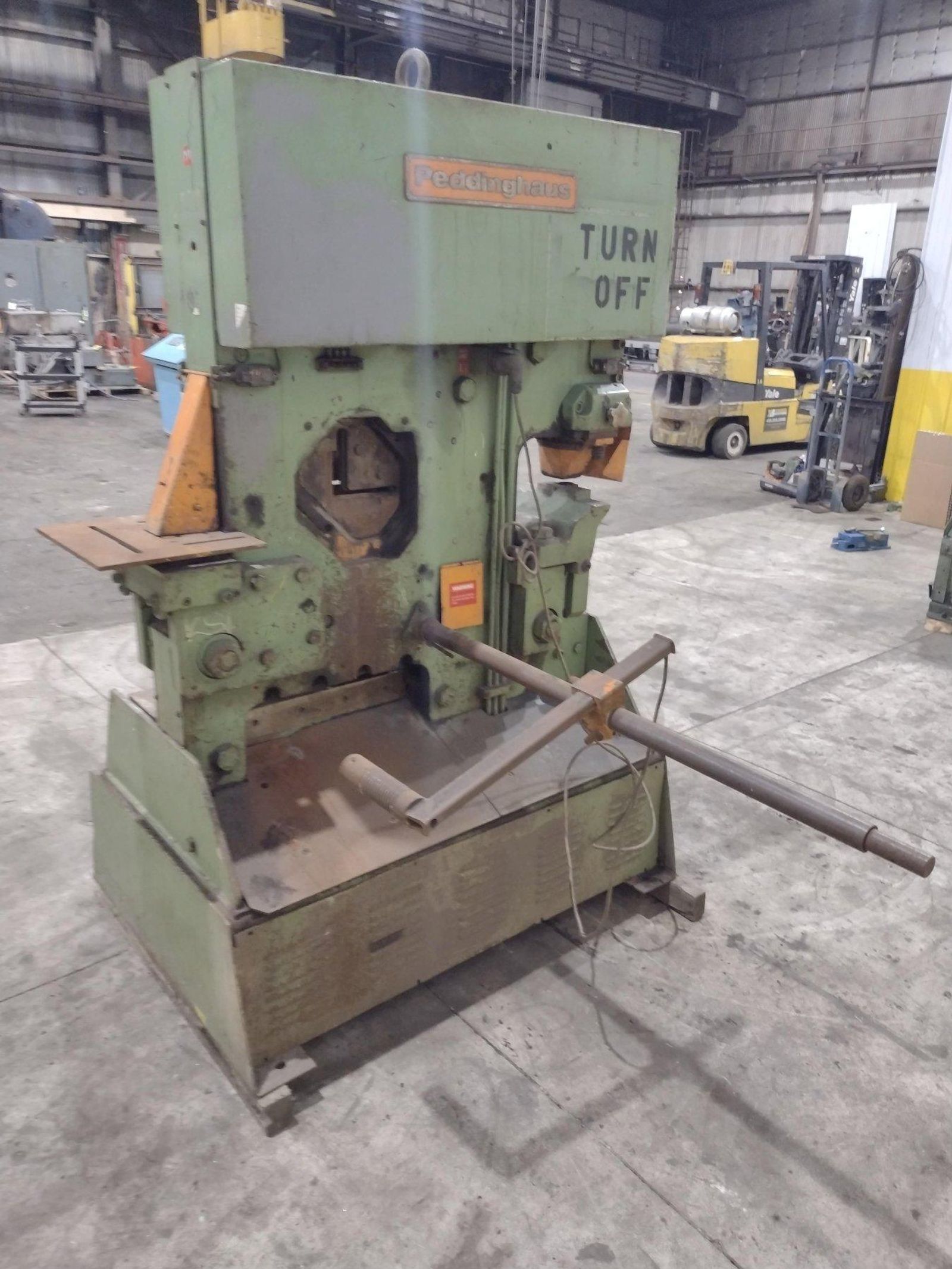

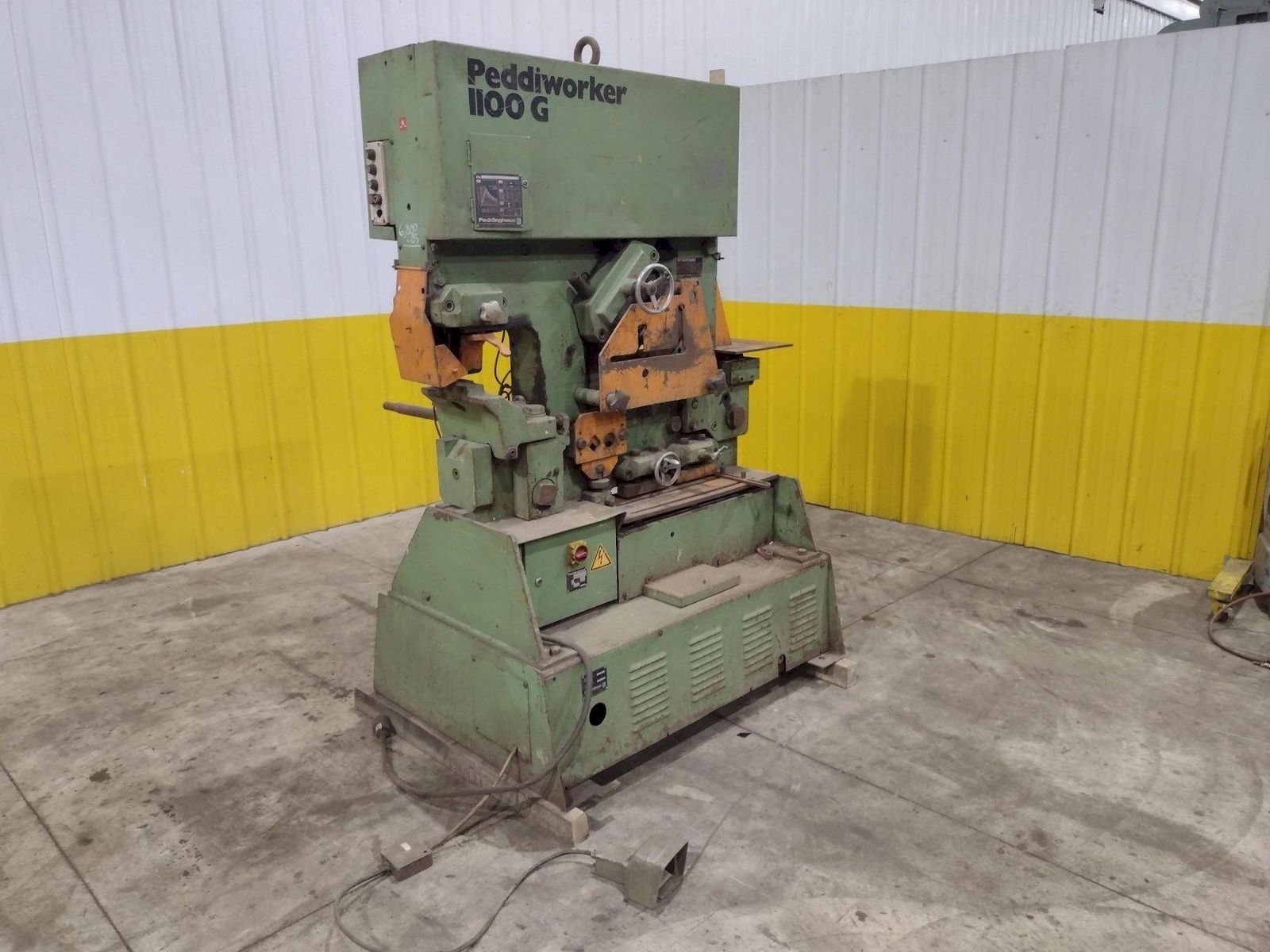

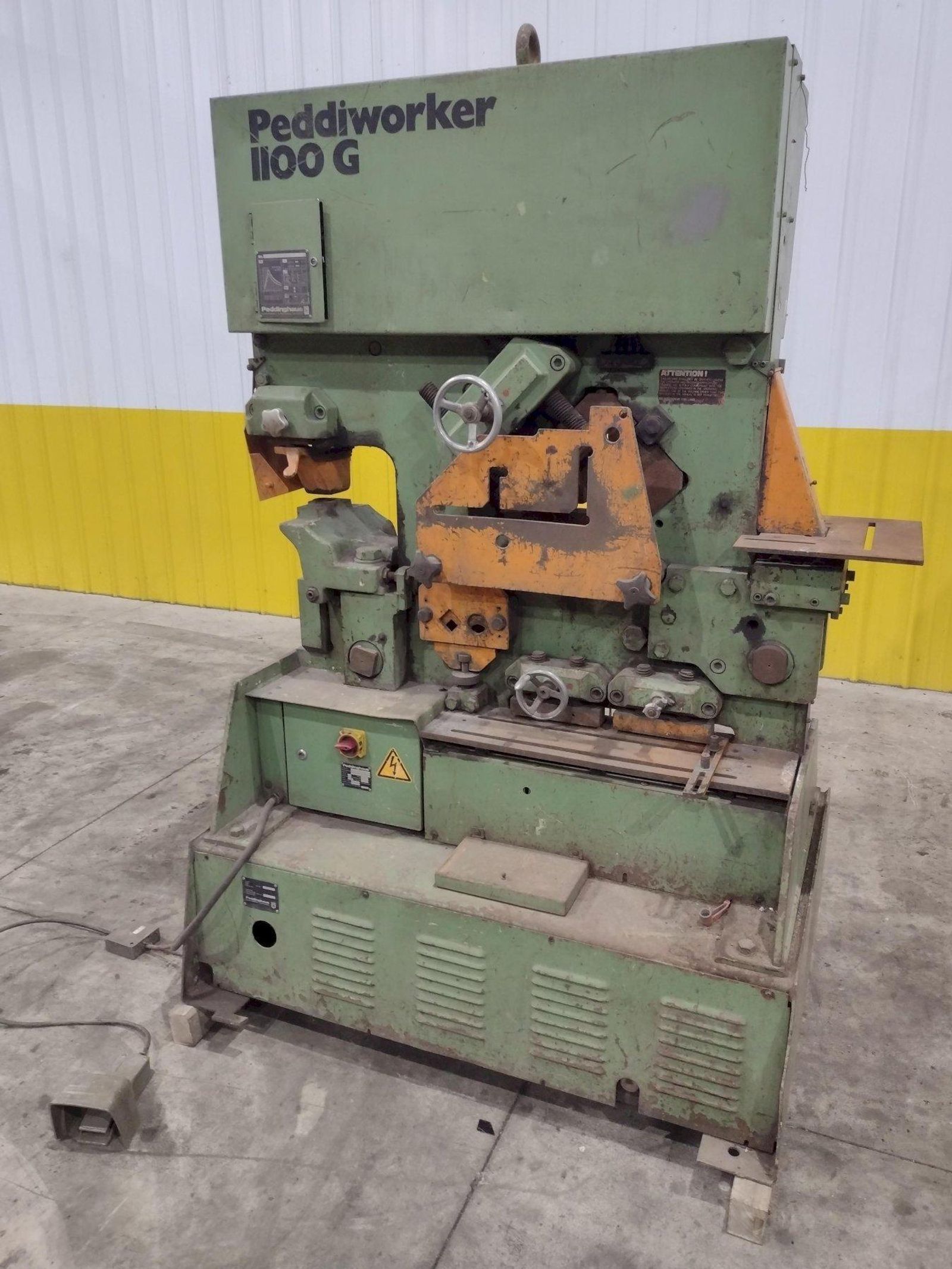

110 TON PEDDINGHAUS "PEDDIWORKER" 1100G HYDRAULIC IRONWORKER: STOCK #22724
Overview

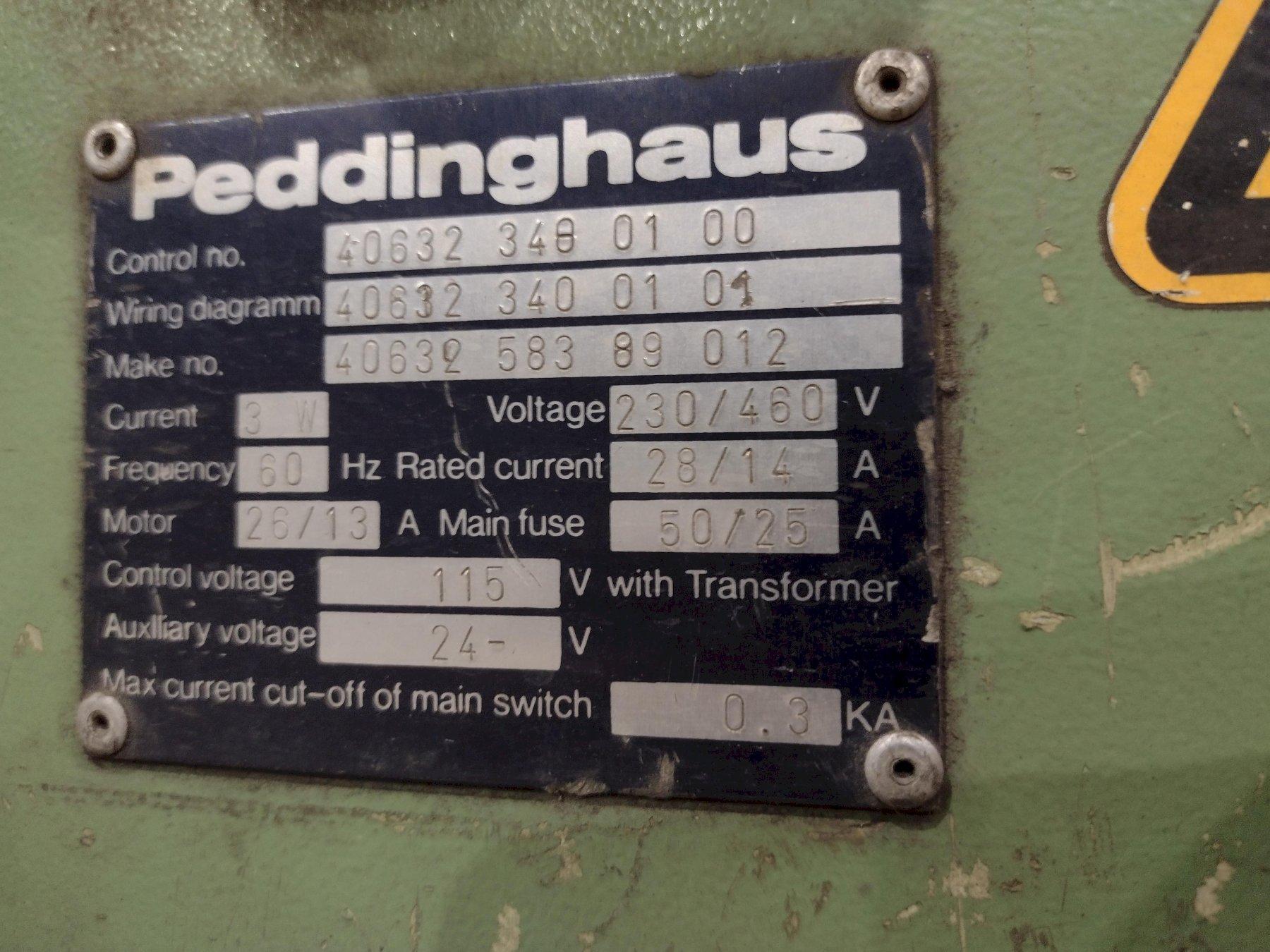

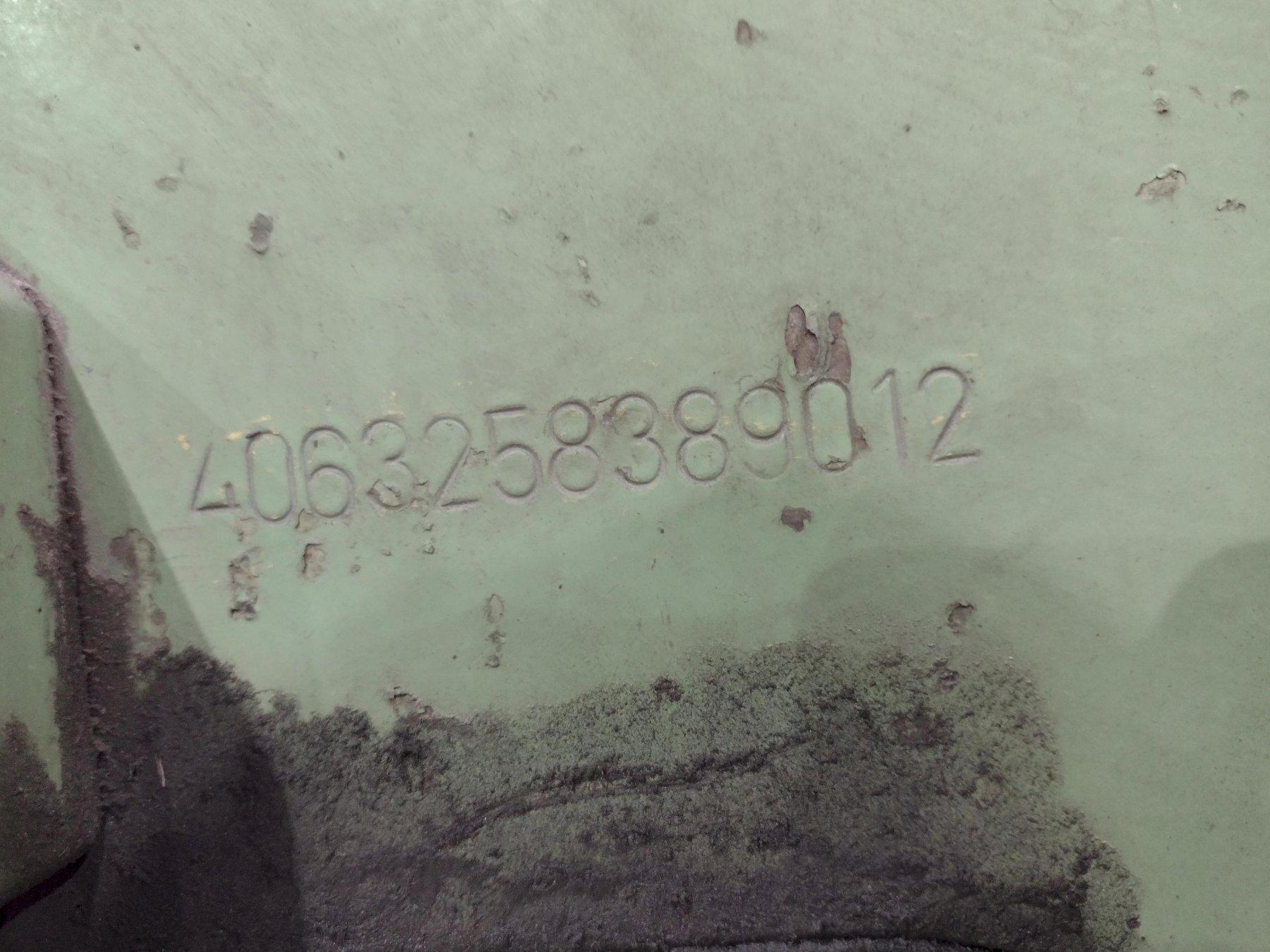

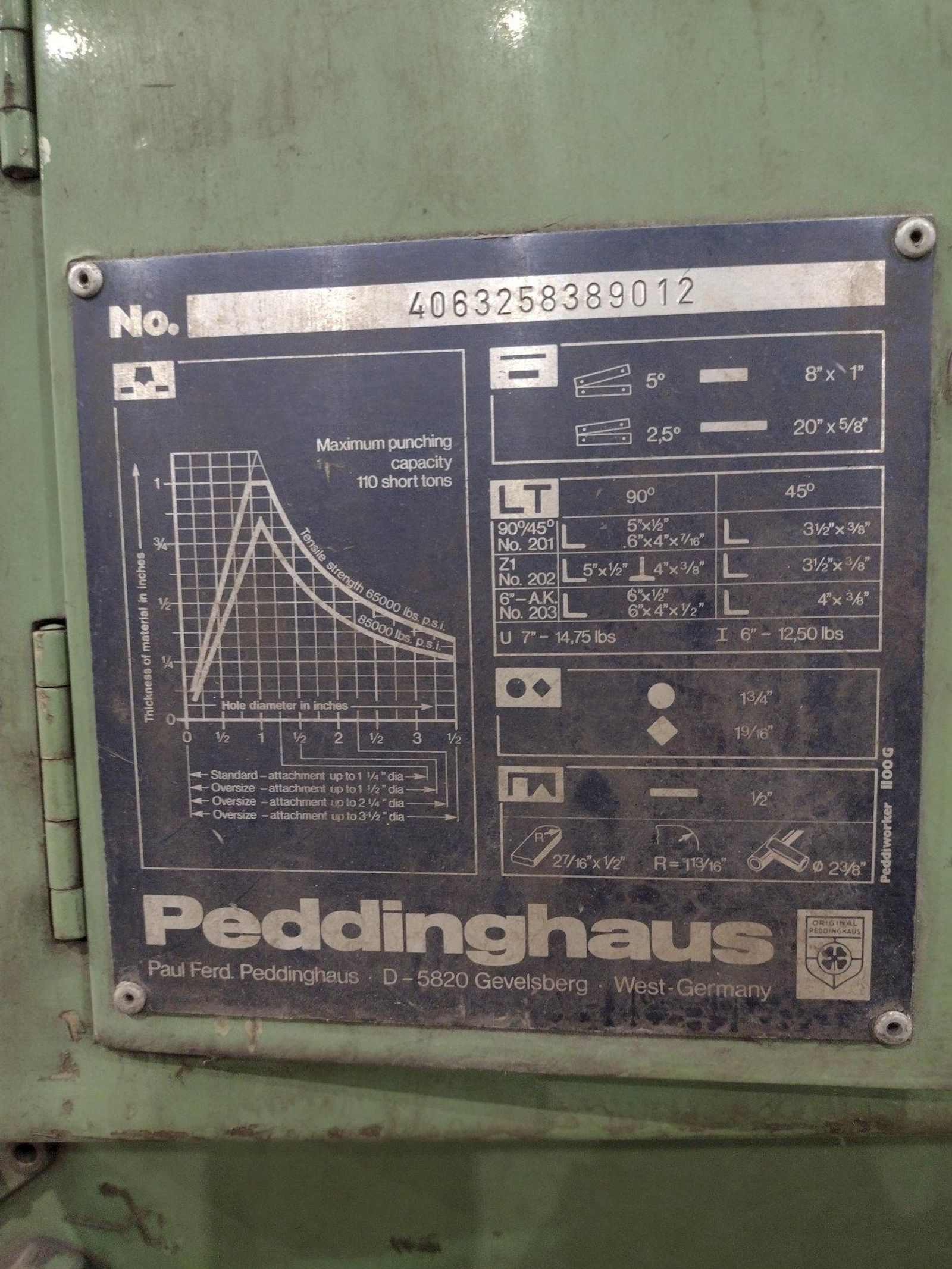

SERIAL .............. 4063258389012
MODEL ............... PEDDIWORKER 1100G
CAPACITY ............ 110 TON

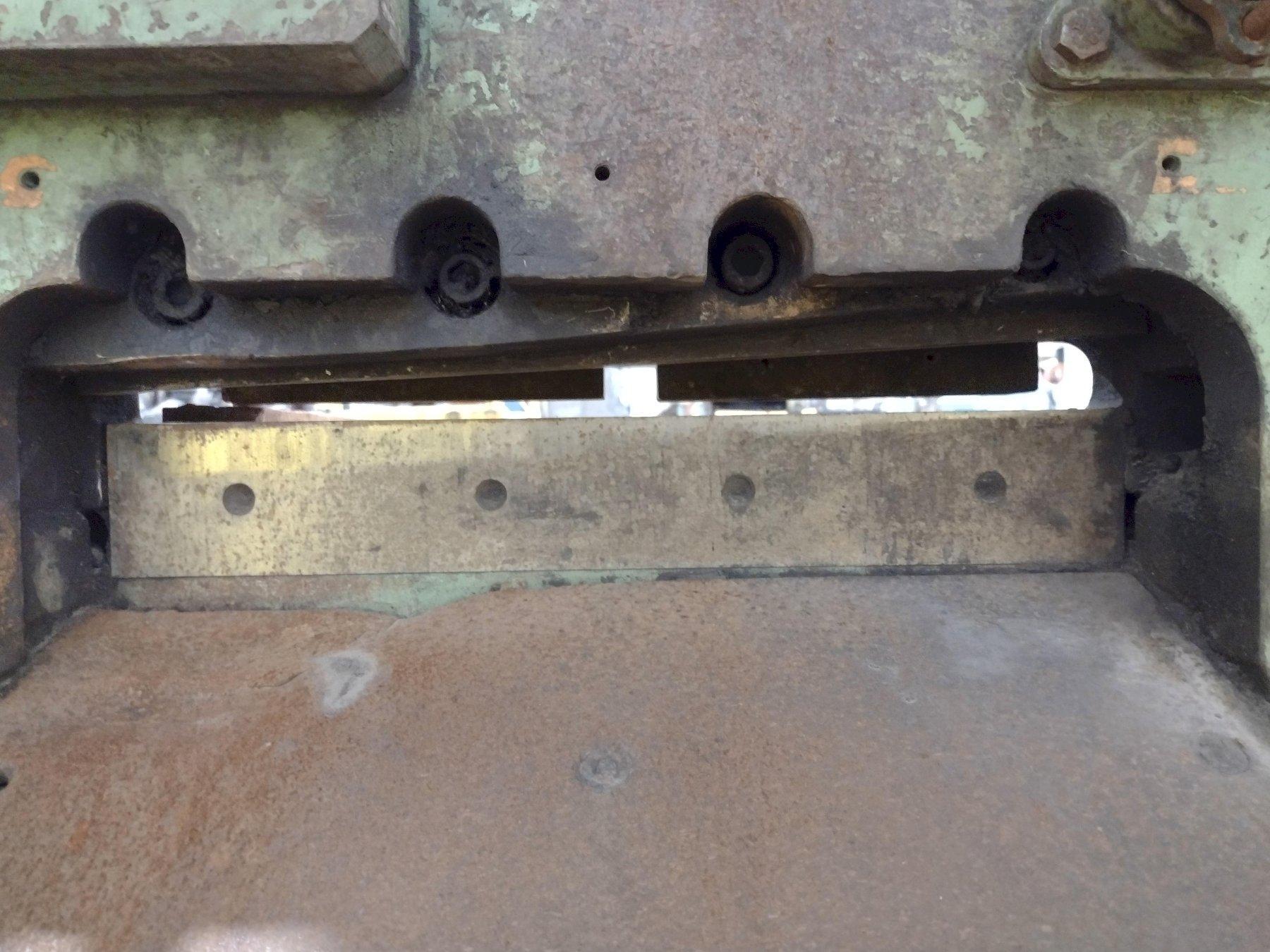

FLAT BAR SHEAR
- FLAT BAR (SLIGHTLY DISTORTED 6 DEGREES): 8”X1”
- FLAT BAR (DISTORTION-FREE 3 DEGREES): 12” X ¾”,
- 20”X 5/8”
- BLADE LENGTH: 20-7/8”
- WORKING HEIGHT: 26-1/2”

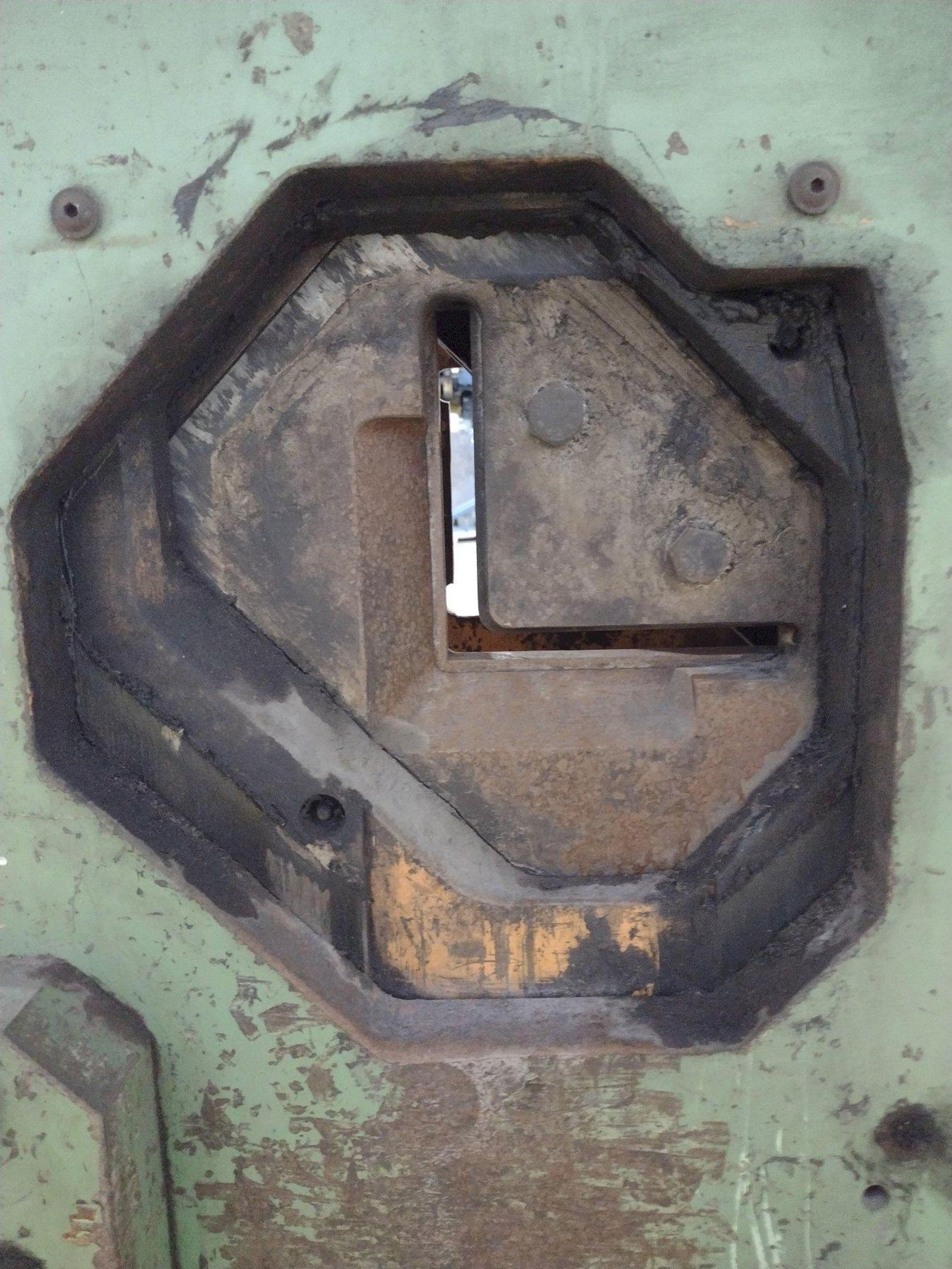

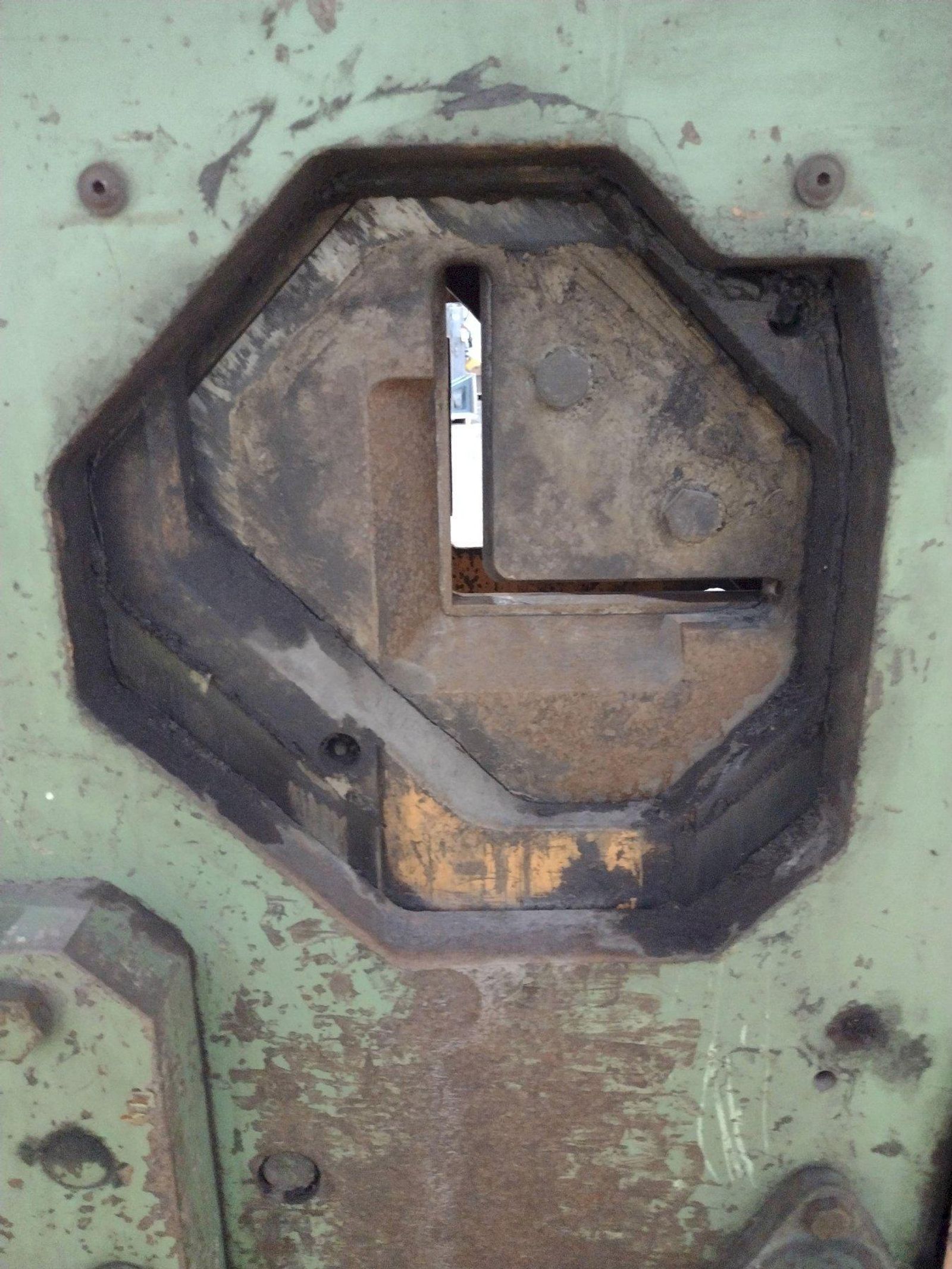

SECTION SHEAR
- SHEARING CROSS SECTION: 4.75”
- STROKE (INFINITELY VARIABLE): 3/8” – 1-9/16”
SHEARS WITH ANGLE IRON KNIVES (STANDARD)
- ANGLES (90 DEGREES): 6” X ½”
- ANGLES (45 DEGREES): 4” X 3/8”
BAR STOCK SHEAR
- ROUNDS: 1-3/4”
- SQUARES: 1-9/16”

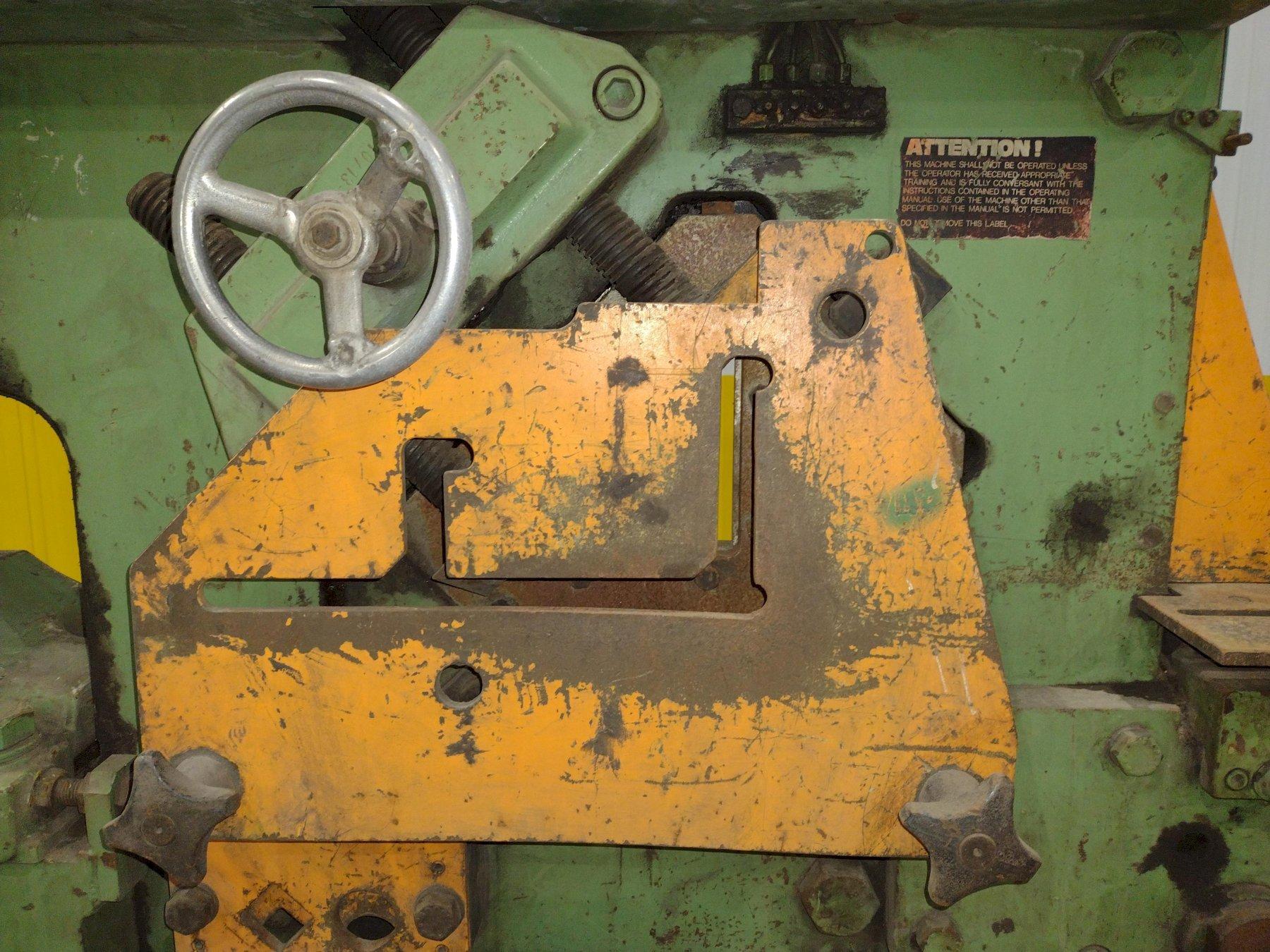

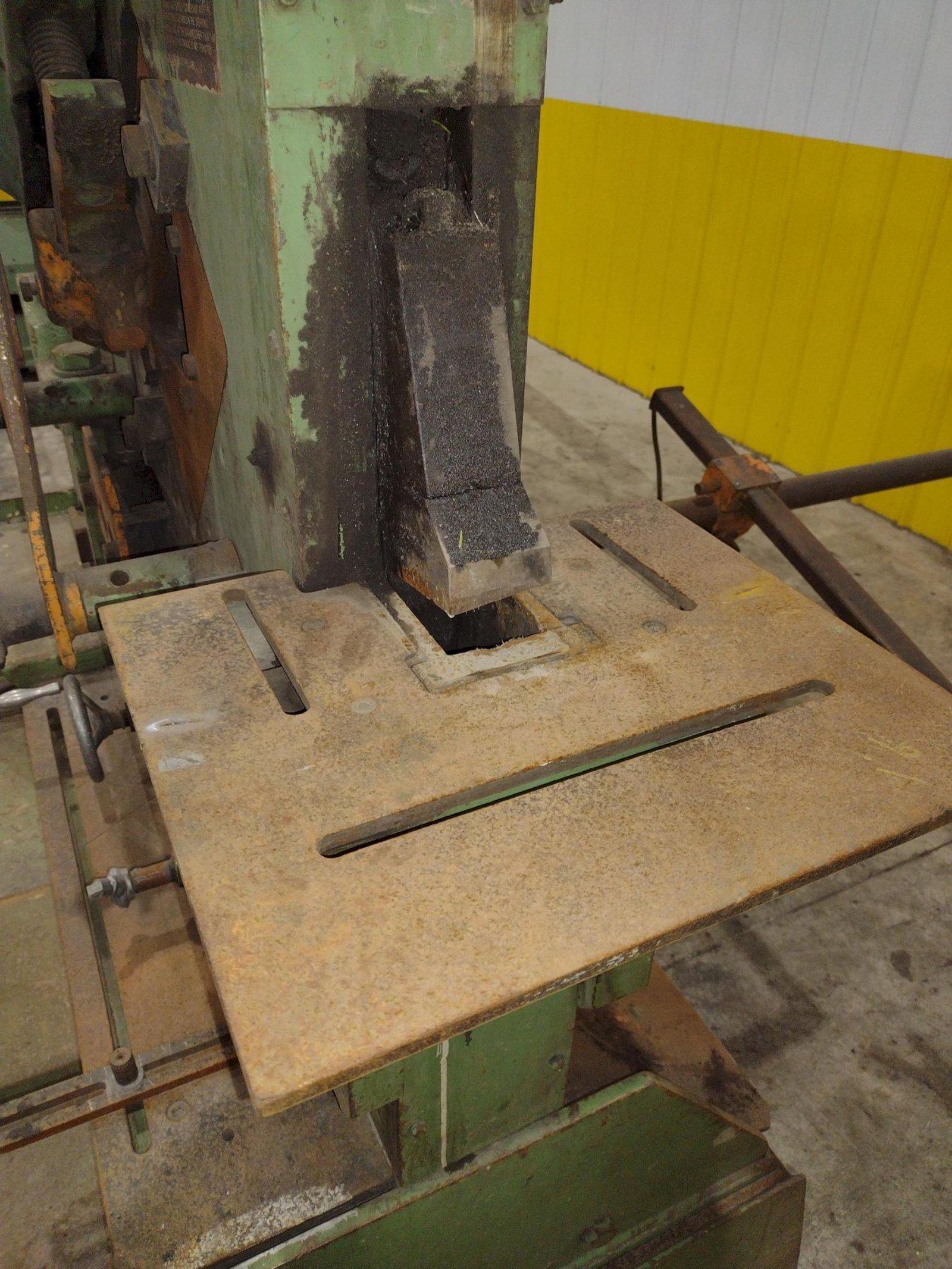

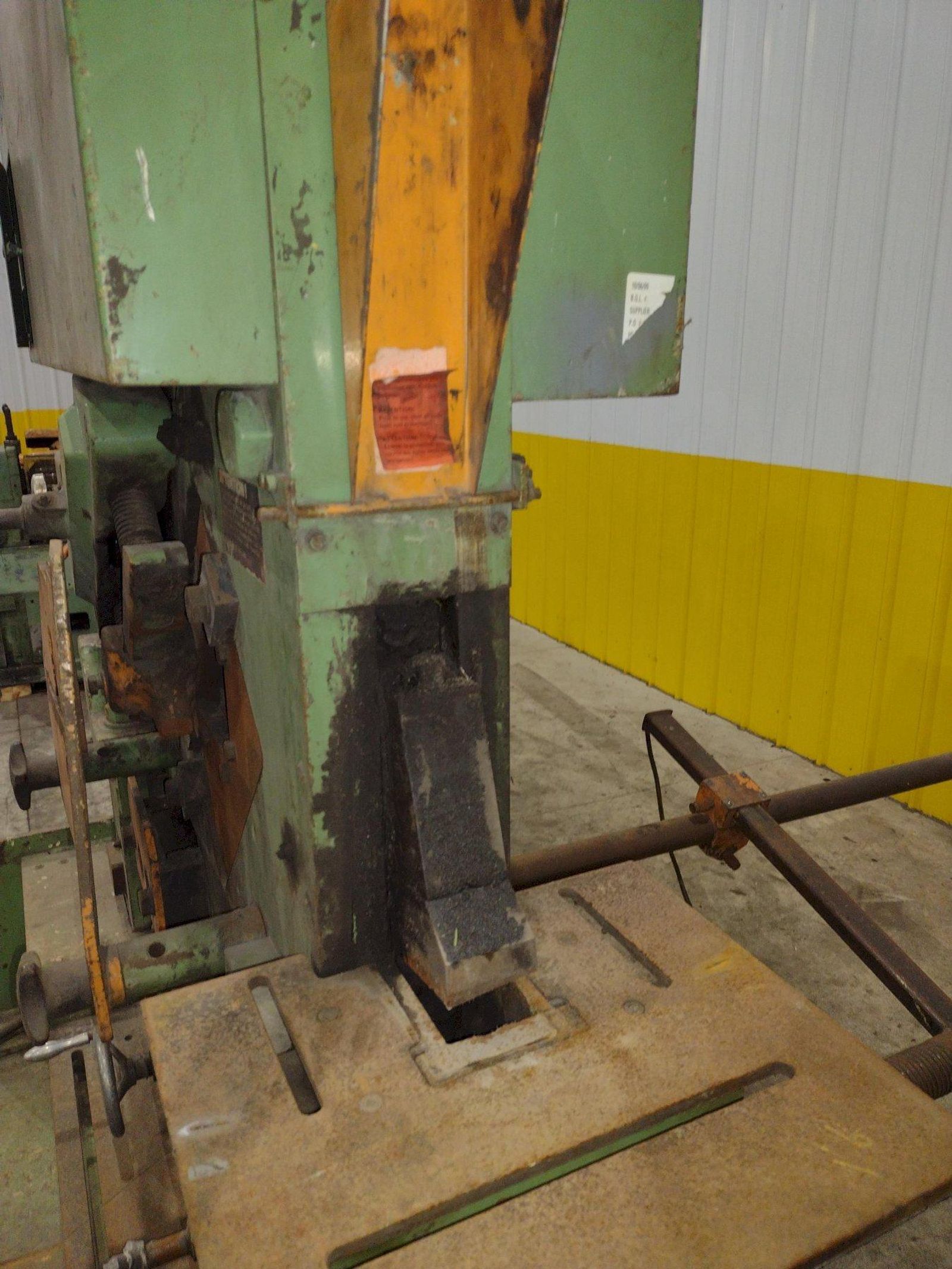

SQUARE NOTCHING ATTACHMENT
- PLATE: ½”
- ANGLES: 3-1/2” X 3/8”
- CHANNELS IN FLANGE: 3-6
- I-BEAMS IN FLANGE: 3-6
- WIDTH OF NOTCH: 2-9/16”
- DEPTH OF NOTCH: 3-5/16”

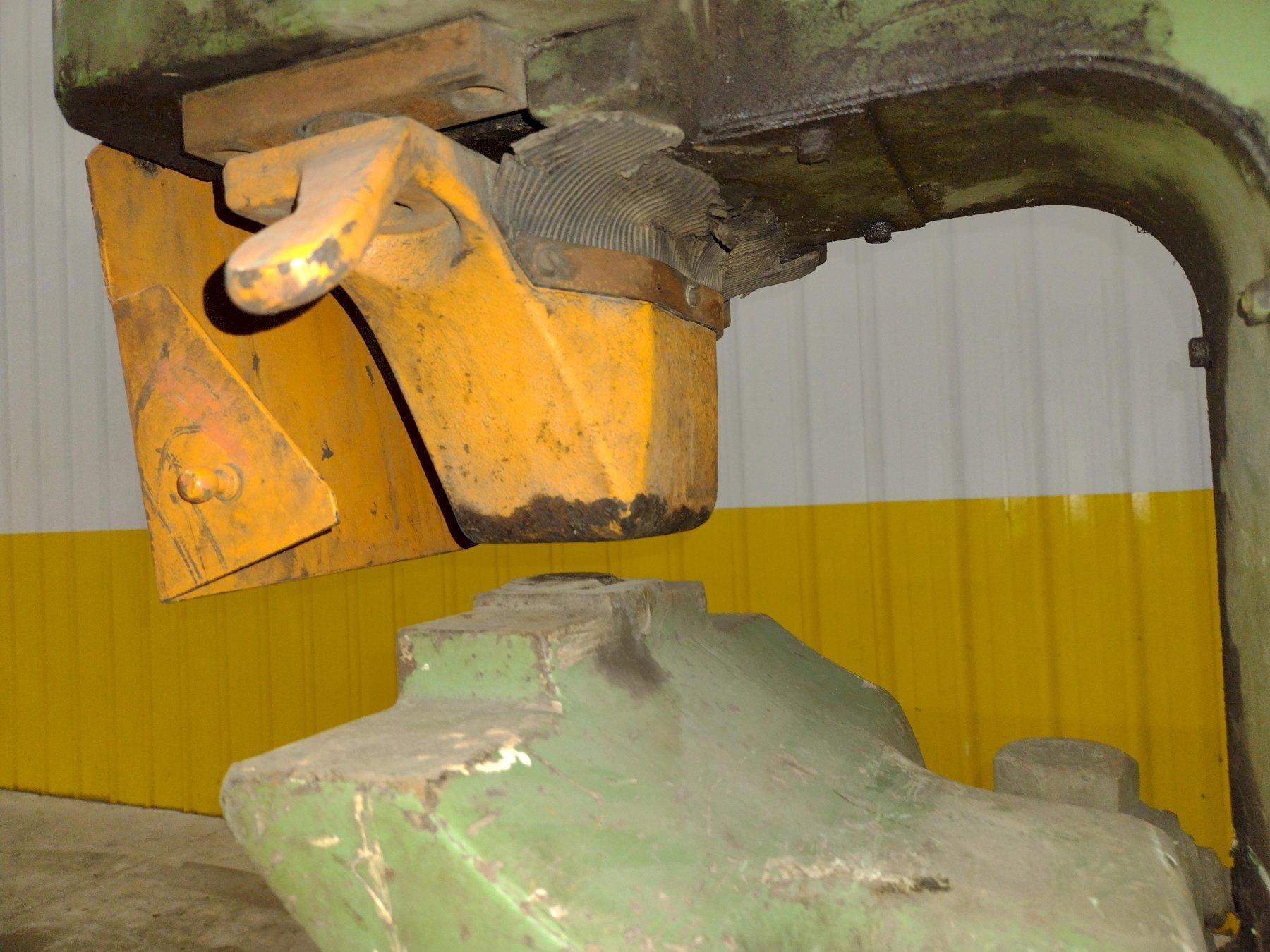

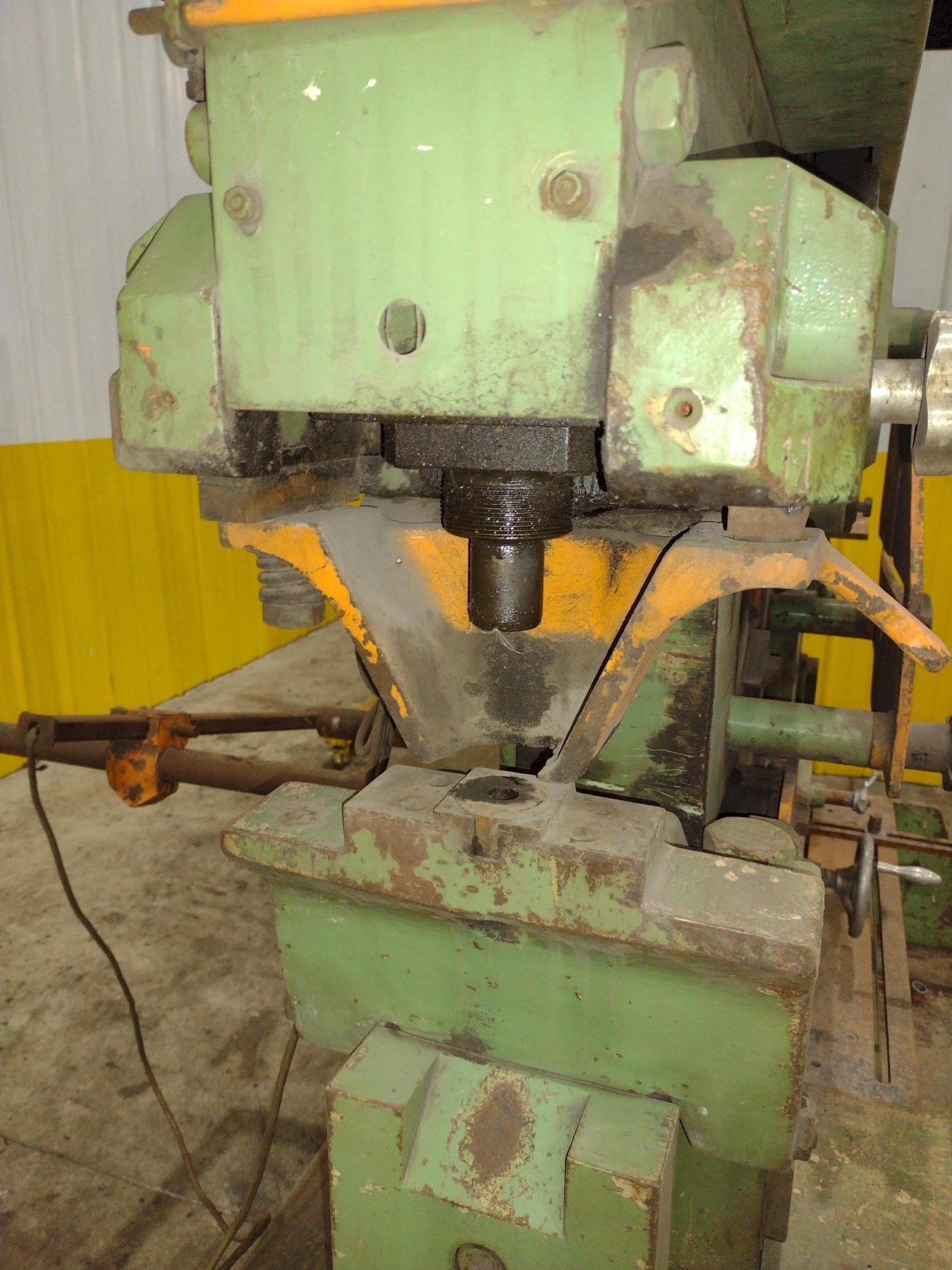

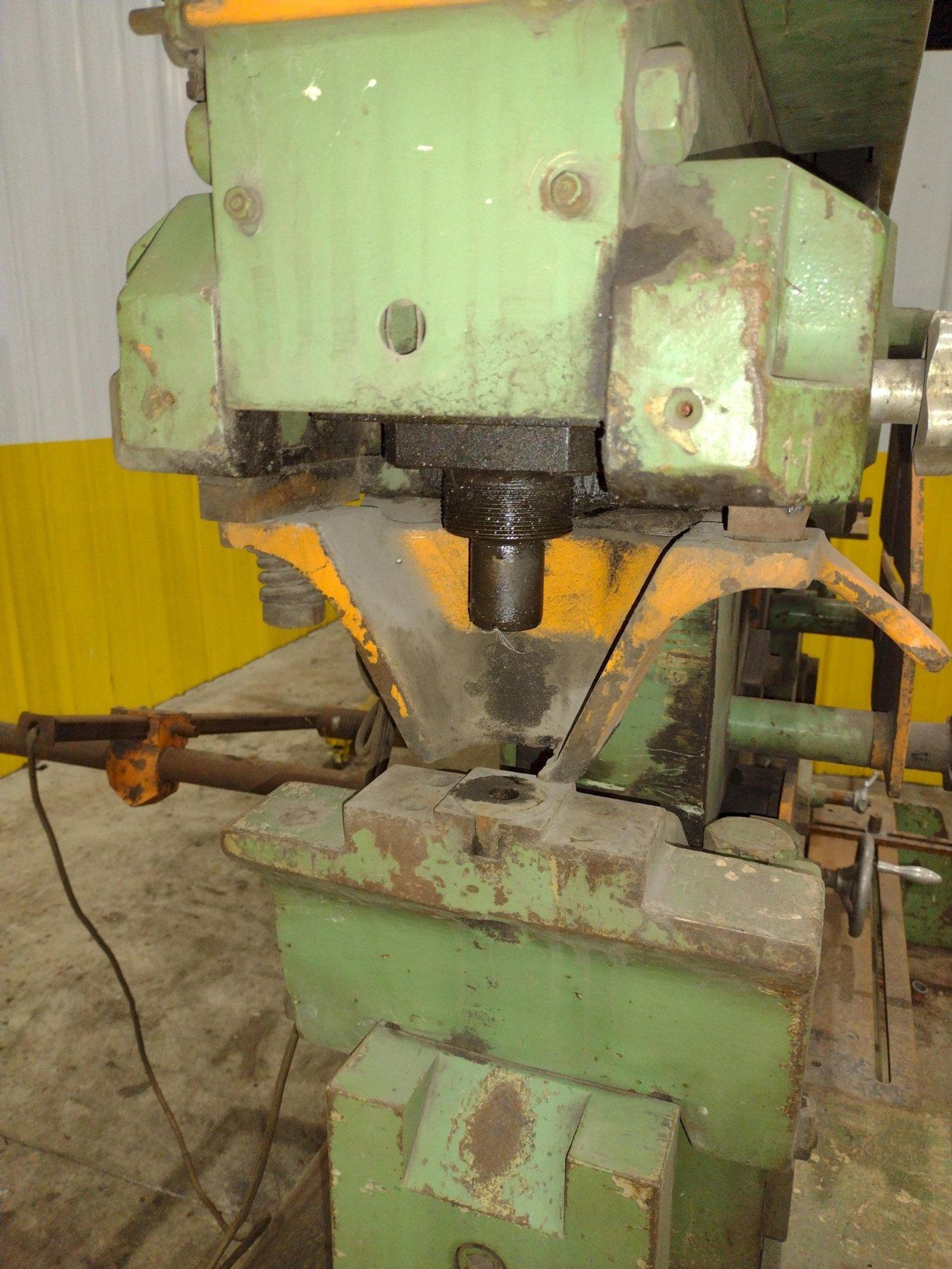

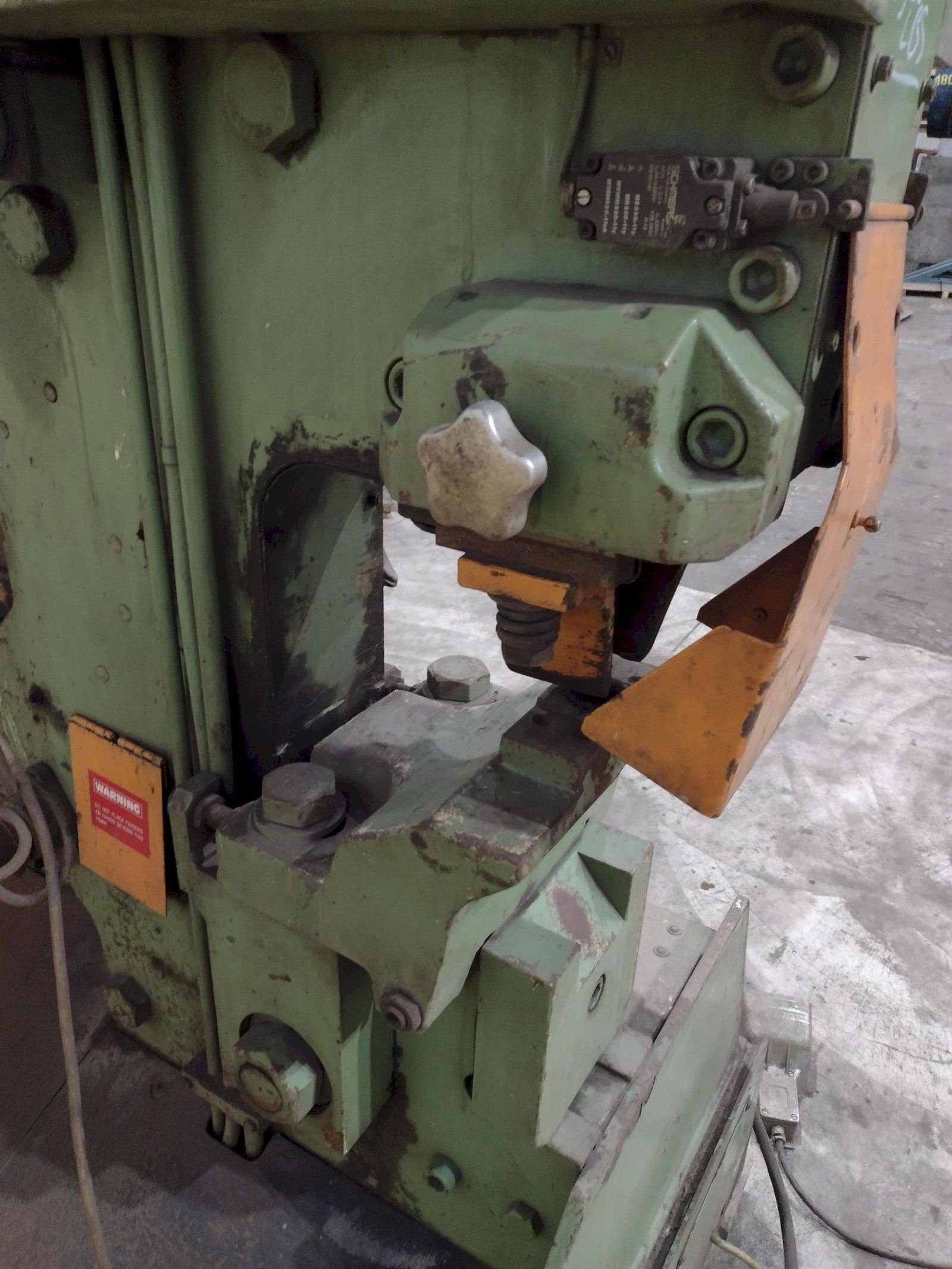

PUNCH UNIT
- RATED CAPACITY: 110 TONS
- STROKE (INFINITELY VARIABLE): ½” – 1-9/16”
- THROAT DEPTH: 10”
- WORKING HEIGHT: 44-1/2”
MACHINE DATA
- NUMBER OF STROKES AT X INCHES PER STROKE: 24-3/8”

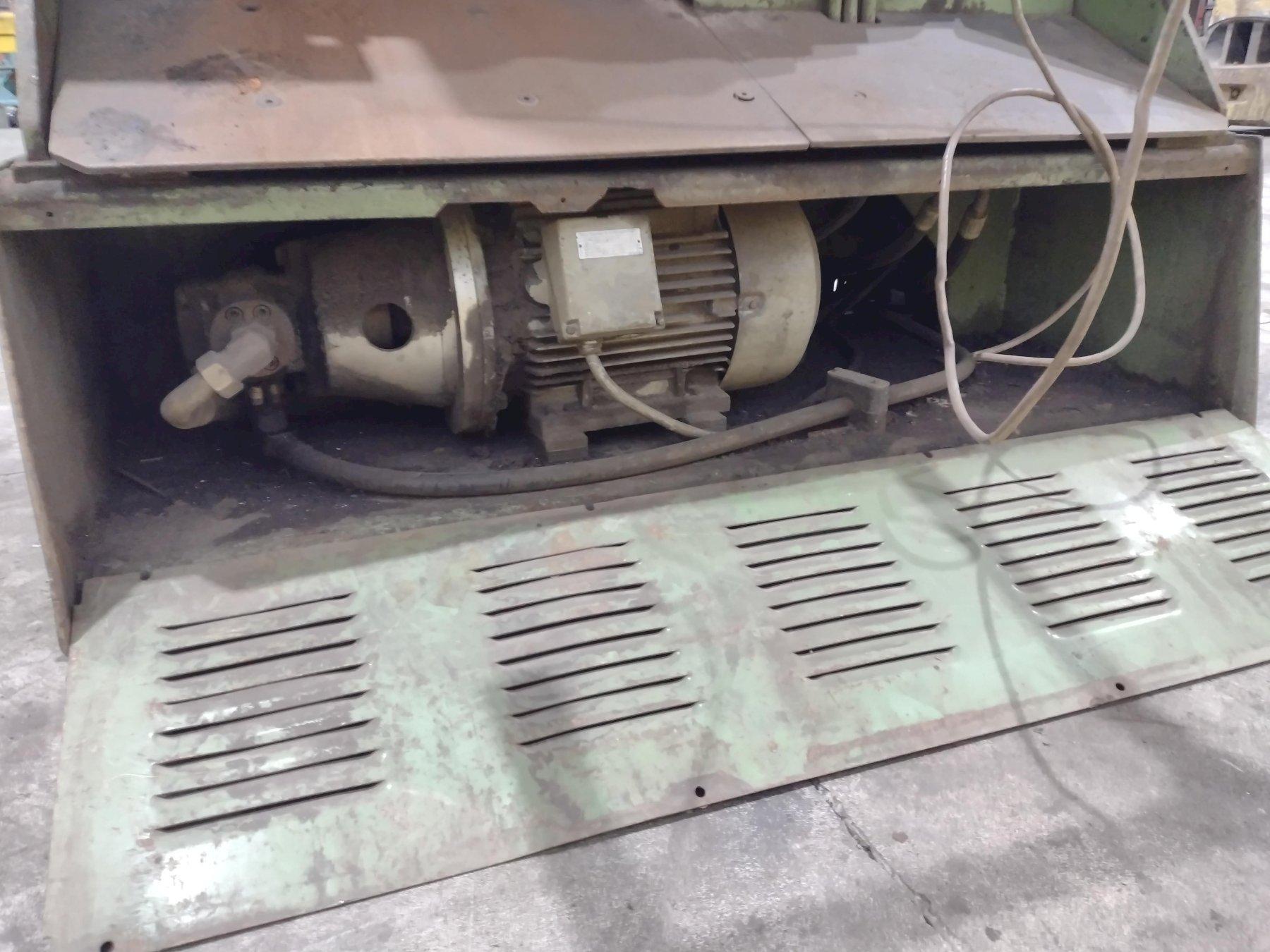

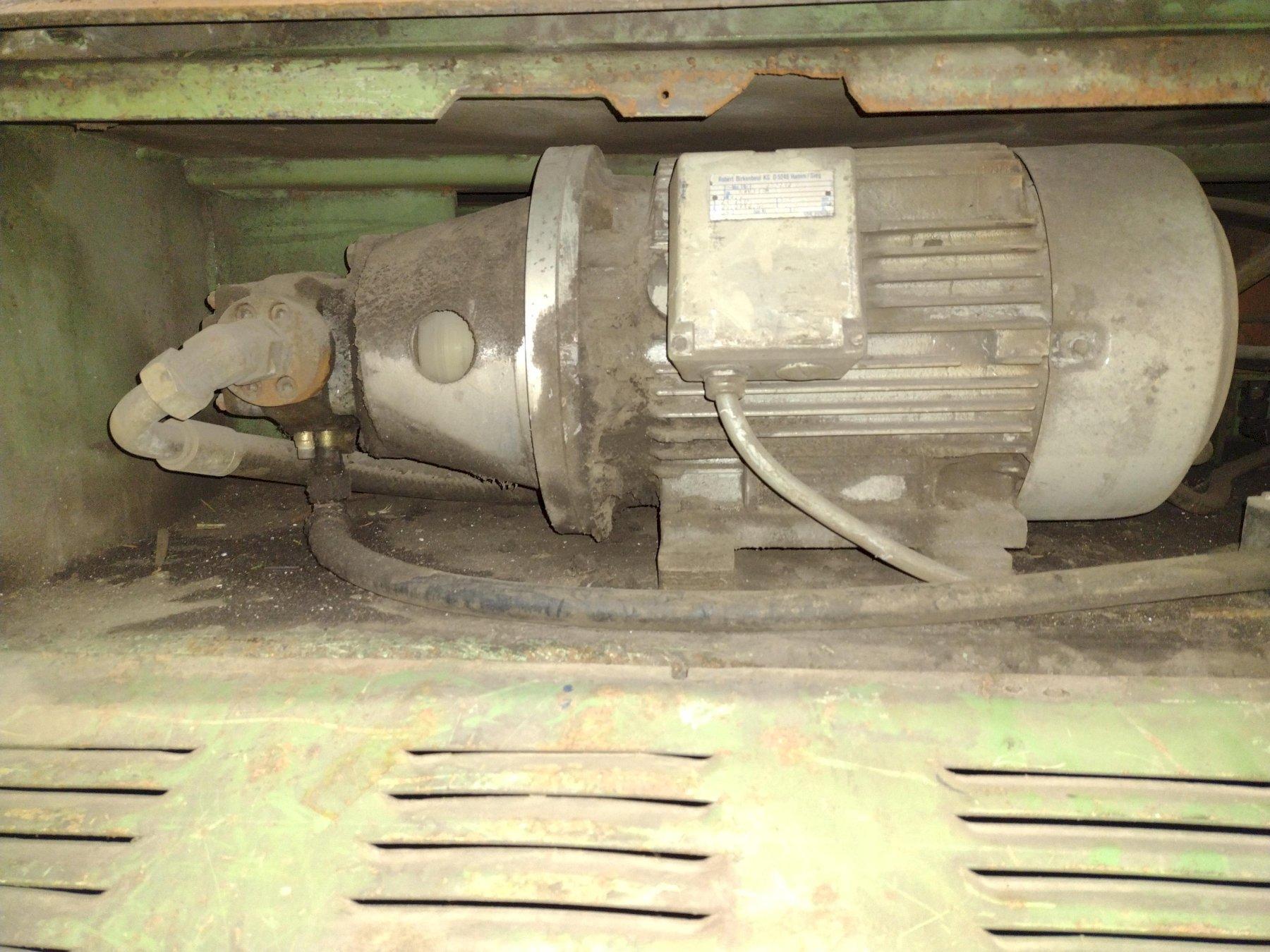

- CONNECTED LOAD: 10 HP
- CHARGE OF OIL: 21 GALLONS
- NET WEIGHT WITH OIL (APPROX): 6,200 LBS
- GROSS WEIGHT (APPROX): 6,600 LBS
- OVERALL MACHINE DIMENSIONS: 60” X 41” X 84”
