Brand
OLIVER
Type
Drill Sharpeners
Stock No.
22124
 |
419-269-2000 |
Stock #: 22124

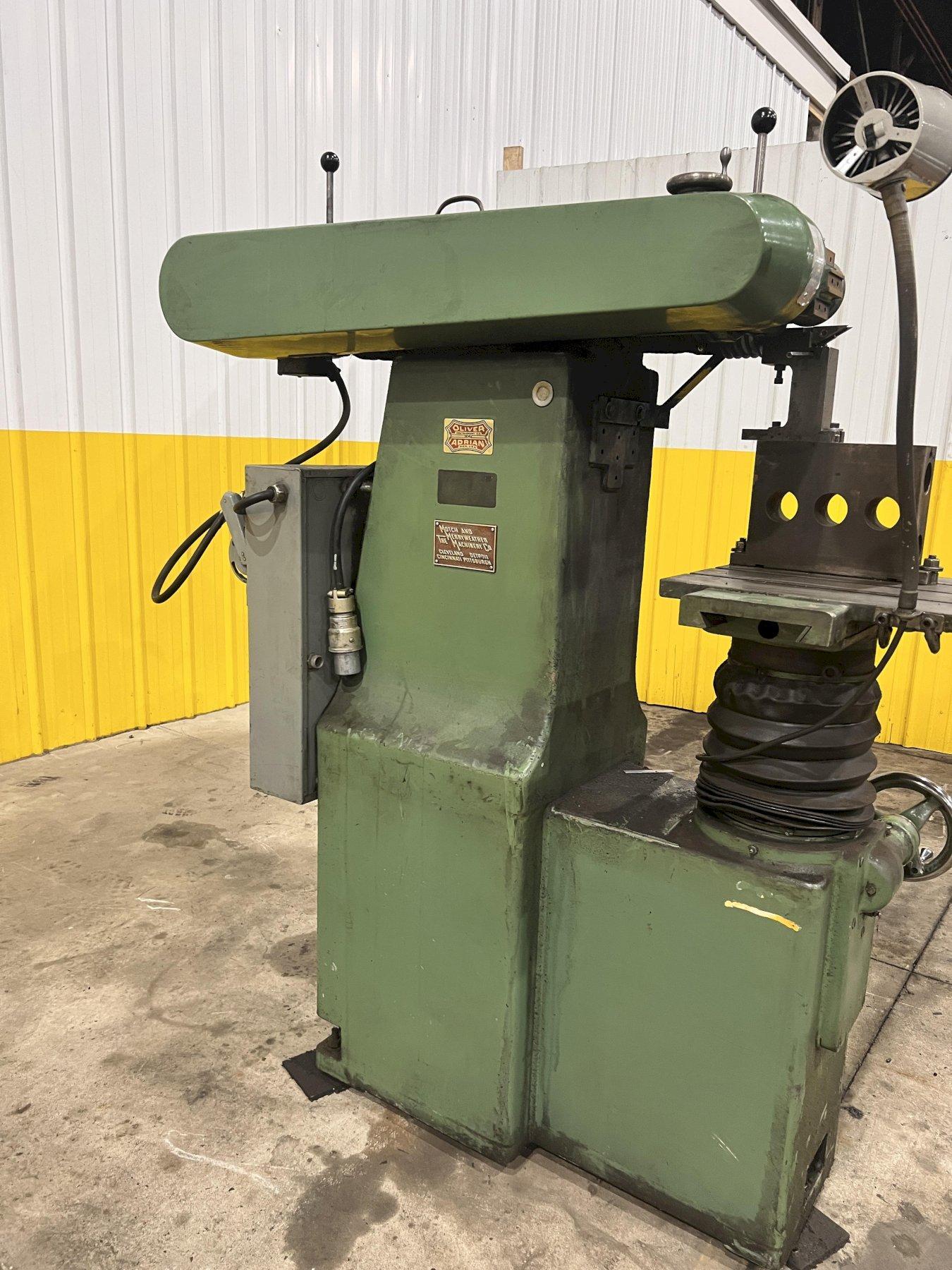

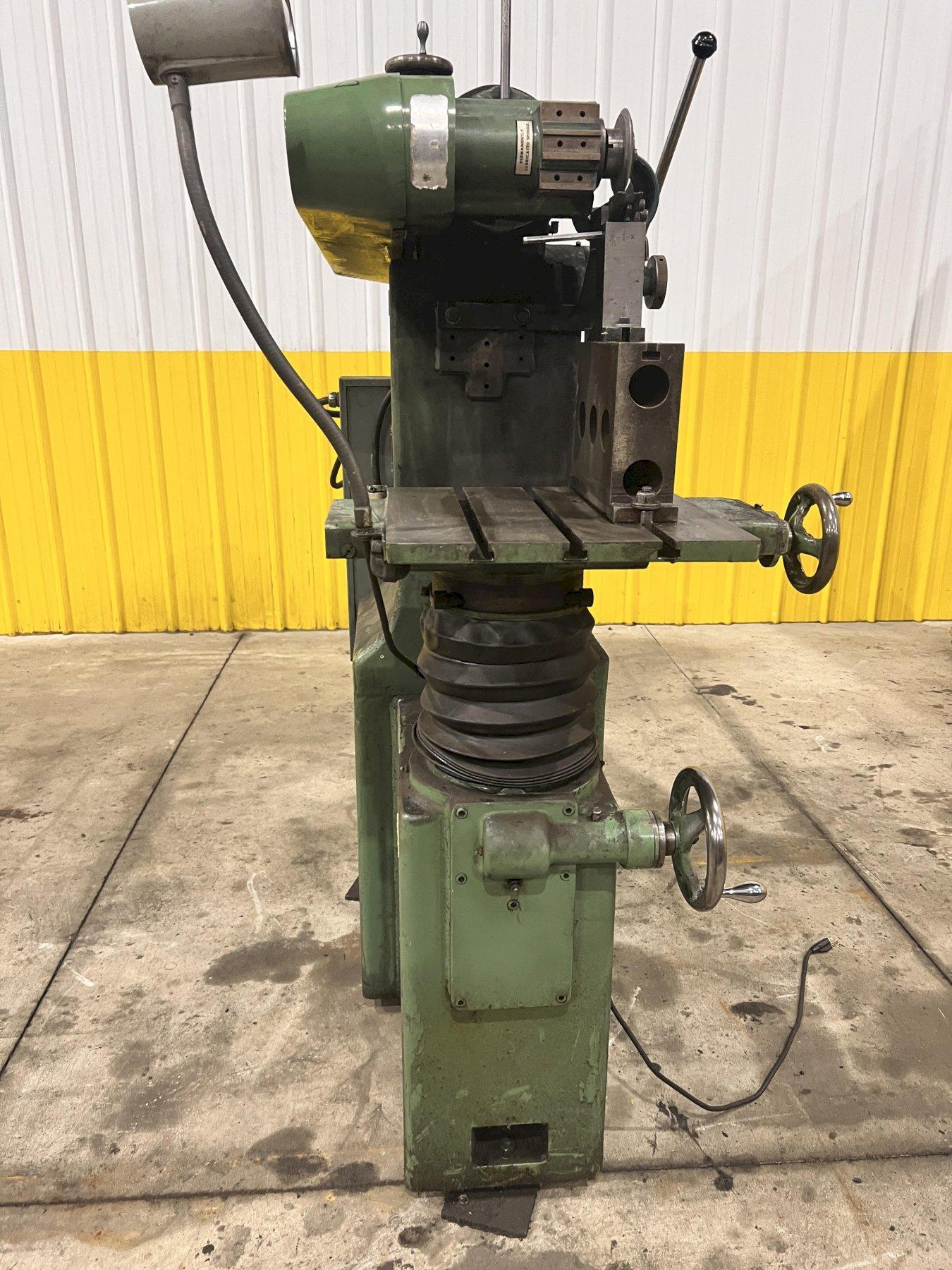

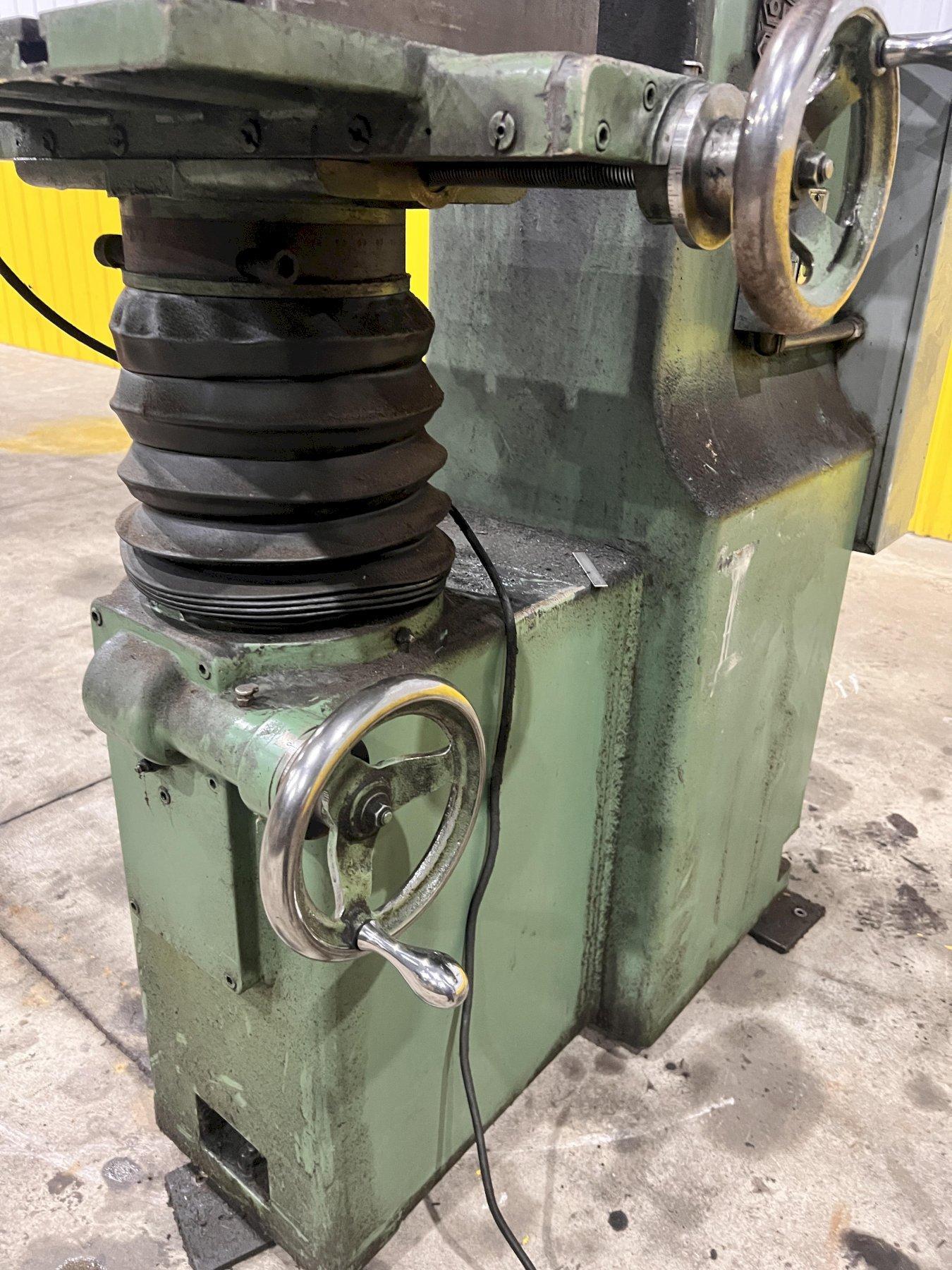

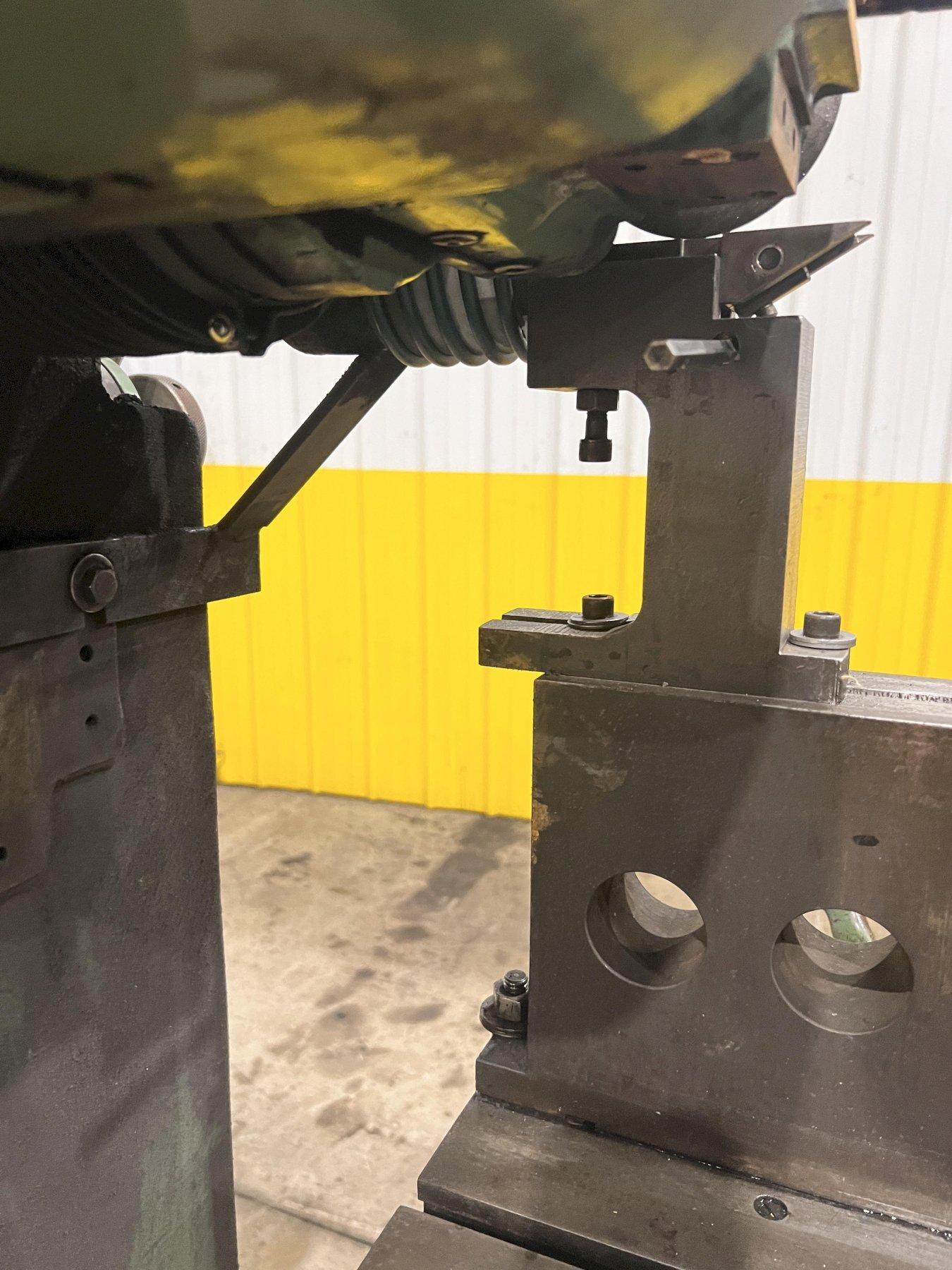

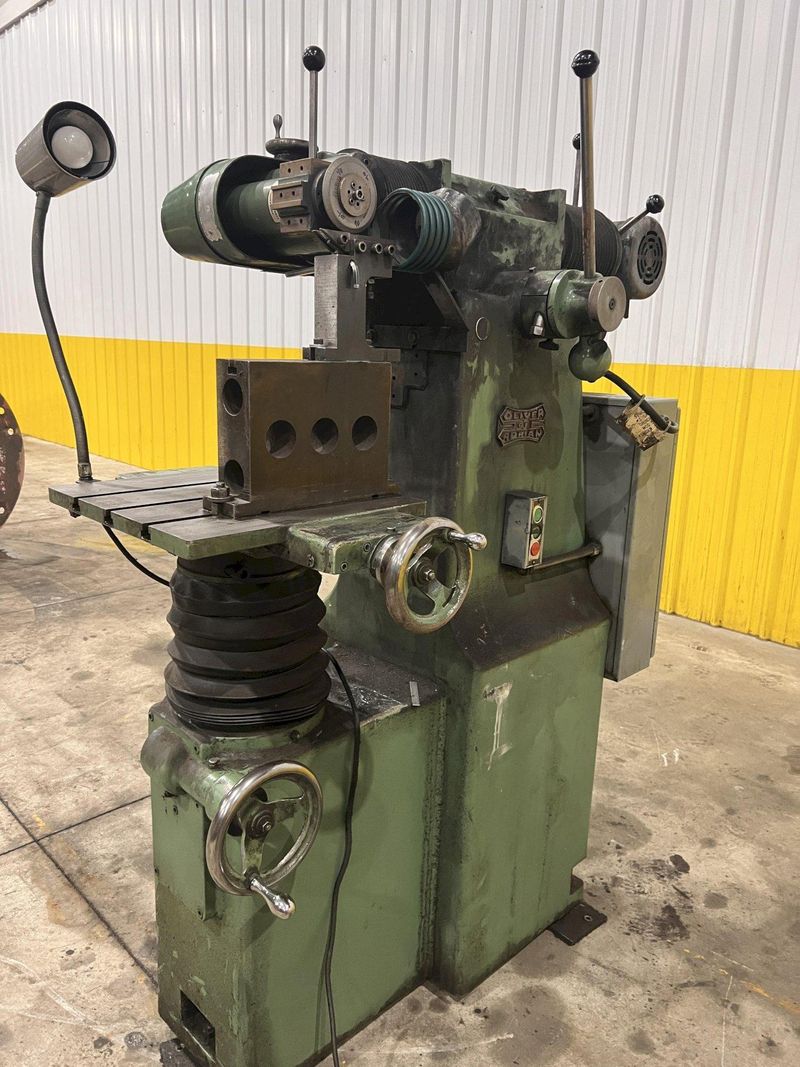

OLIVER ACE MODEL 300HD GRINDERSERIAL ................................. ACE 1234MODEL .................................. 300 HDSWING .................................. 8"DISTANCE BETWEEN CENTERS ............... 15"AREA OF TABLE .......................... 16" X 16"CROSS CARRIAGE TRAVEL .................. 14"ANGULAR ADJUSTMENT OF CARRIAGE ......... 180 DEGREESANGULAR ADJUSTMENT OF HEAD ............. 180 DEGREESANGLE ADJUSTMENT OF TABLE IN VERTICAL .. 45 DEGREESDISTANCE GRINDING WHEEL & TABLE ........ 7-3/4"DISTANCE GRINDING WHEEL & BASE TABLE ... 16-3/4"HORIZONTAL TRAVEL OF GRINDING UNIT ..... 7"VERTICAL ADJUSTMENT OF TABLE ........... 12-1/2"VERTICAL ADJUSTMENT OF GRINDING WHEEL .. 1-1/2"MOTOR .................................. 1 HORSEPOWERUNSURPASSED FOR CUTTING TOOL RECONDITIONINGNo competitive machine can come close to matching the Oliver ACE for payout on capital invested. Set-up and grinding times are at an absolute minimum to give increased output from your cutter grinding department. The ACE is simple and fool-proof to operate. All readings are made on a direct basis and it is not necessary to make intricate computations. This eliminates the need for skilled cutter and tool grinders with a consequent reduction in labor cost for each reconditioned tool.The construction of the model 300HD cannot be matched by any competitive unit from either a quality or maintenance standpoint.All of the sensitive areas are above the grinding line and away from any grit or abrasive matter. In addition, the ways are all enclosed in a dust tight bellows type enclosure to insure maximum life.The ram reciprocates on balls riding on several hardened ways with only fingertip pressure required for movement.A precision type permanently lubricated grinding wheel spindle is supplied. Radial thrust ball bearings are used in combination with a spring pre-load system to give you one of the best grinding spindles in the industry.The work spindle is hardened and ground and is complete with a special feature - a 24 division index plate for those jobs where fingers are difficult to use.
