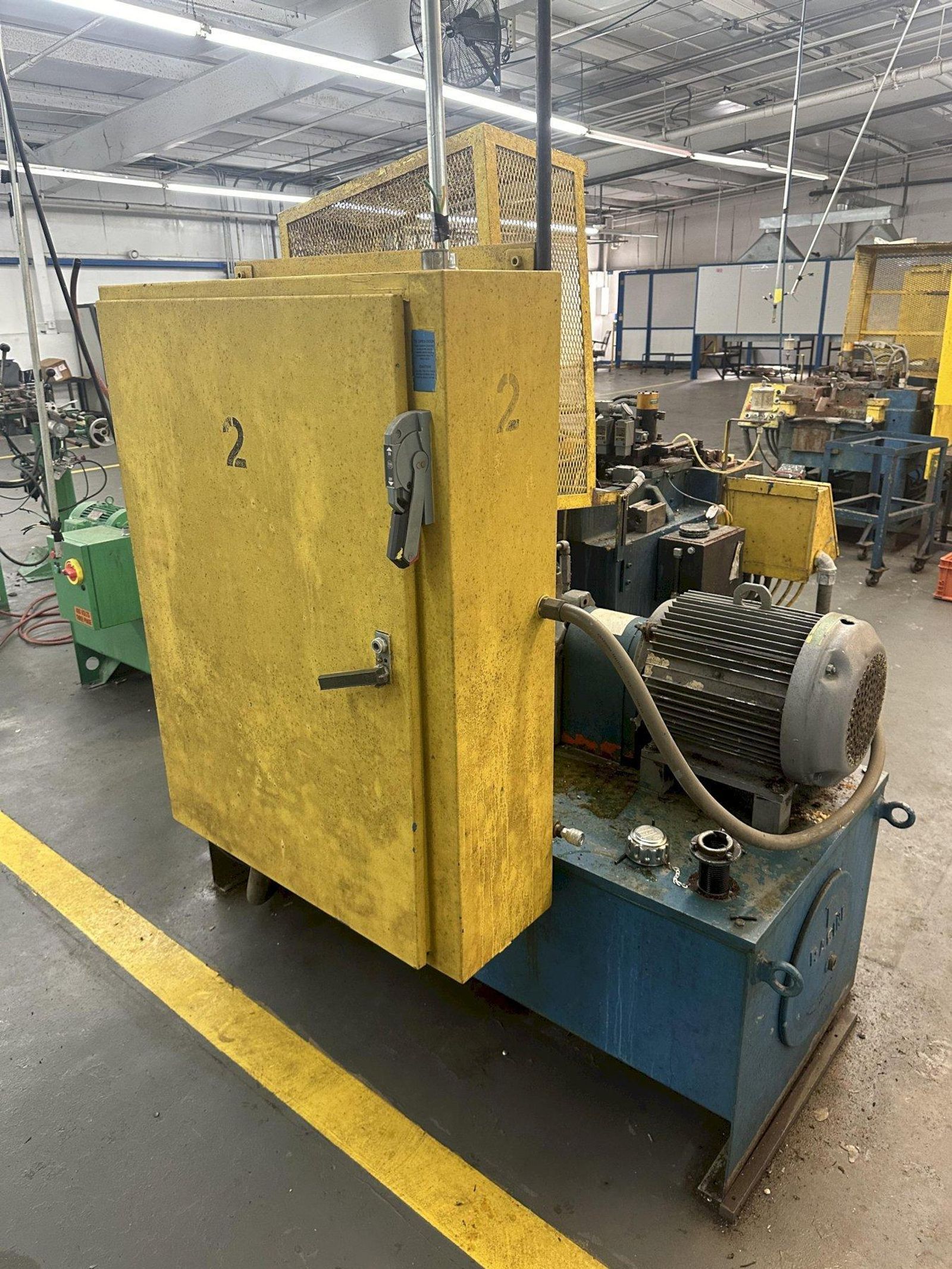

Overview

SERIAL ......................... #1185-03224

MODEL .......................... #M71H-3

TUBE CAPACITY .................. 1-1/2" O.D.

HYDRAULIC RAM CYLINDER ......... 3-1/4" BORE X 4" STROKE

RAM FORCE ...................... 8 TONS

HYDRAULIC CLAMPING CYLINDER .... 2-1/2" BORE X 2-1/2" STROKE

CLAMPING FORCE ................. 17-1/2 TONS @ 500 PSI

JAW OPENING .................... 1-3/4"

HITS ........................... 3 (TRIPLE HIT RAM)

EXTERNAL SELECTOR SWITCH

SPEED CONTROL VARIABLE VOLUME PUMP

AUTOMATIC MACHINE LUBRICATION

TUBE BACK-UP ATTACHMENT

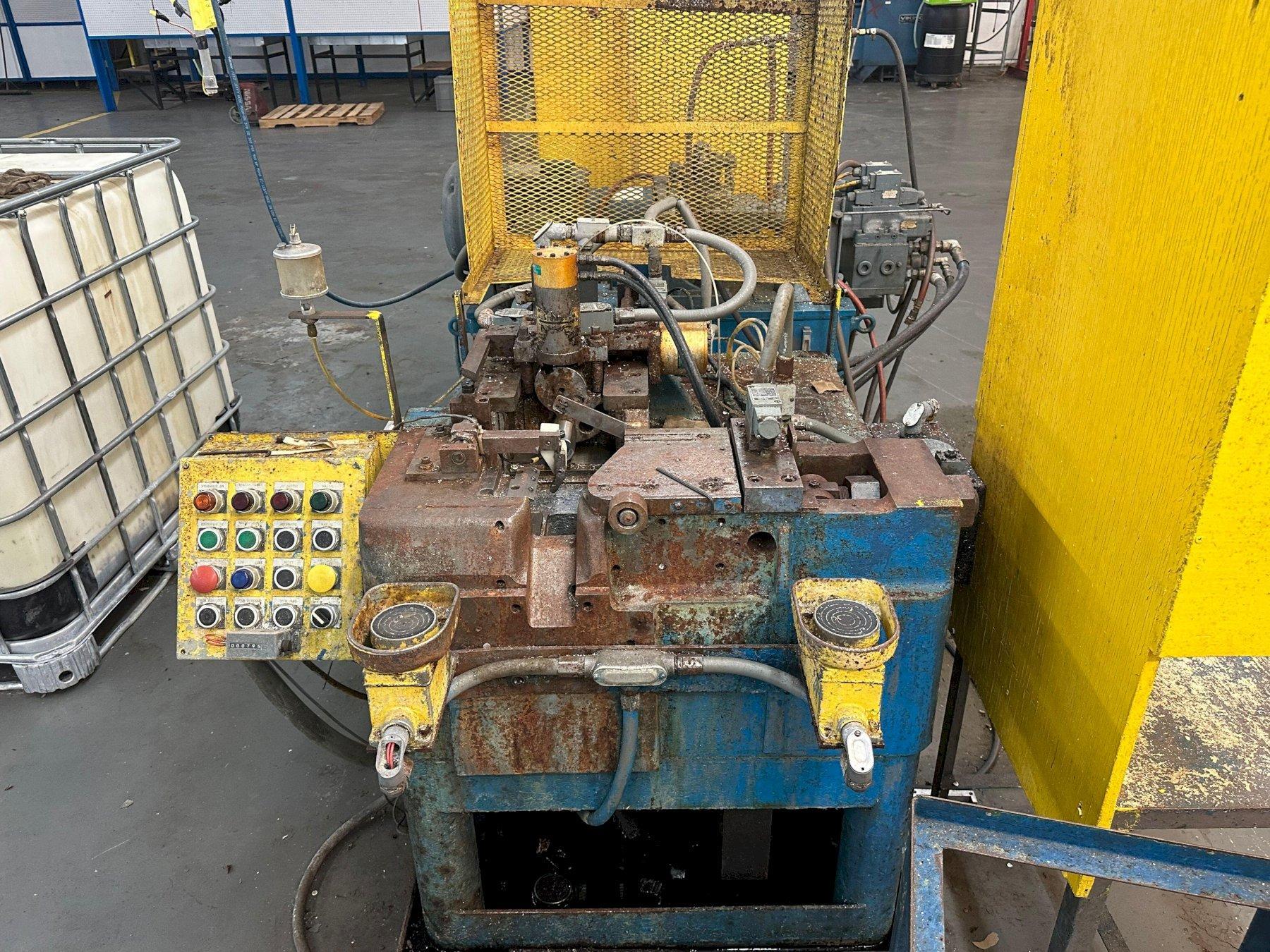

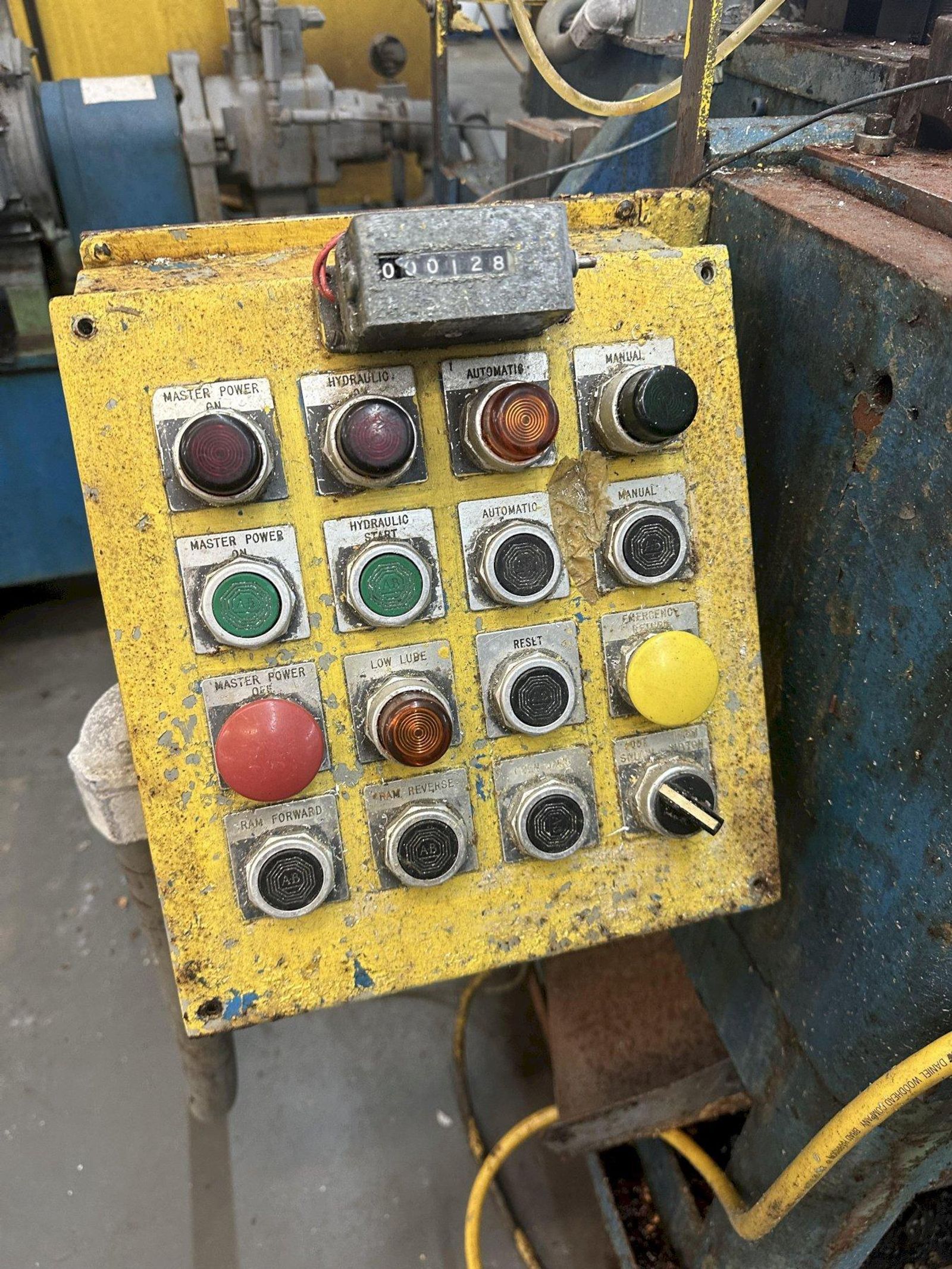

DUAL PALM BUTTONS

ALLEN-BRADLEY SOLID STATE CONTROLS

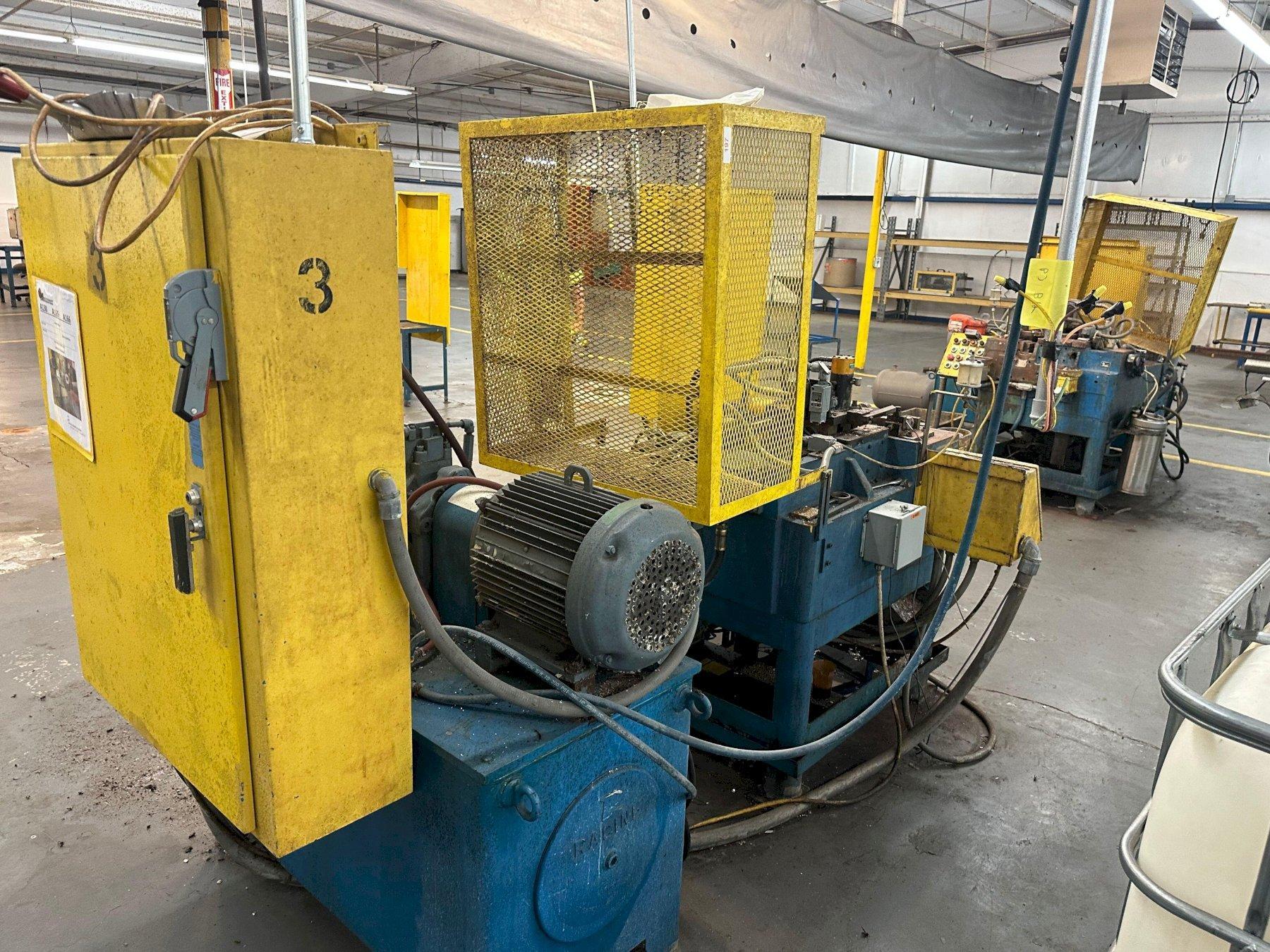

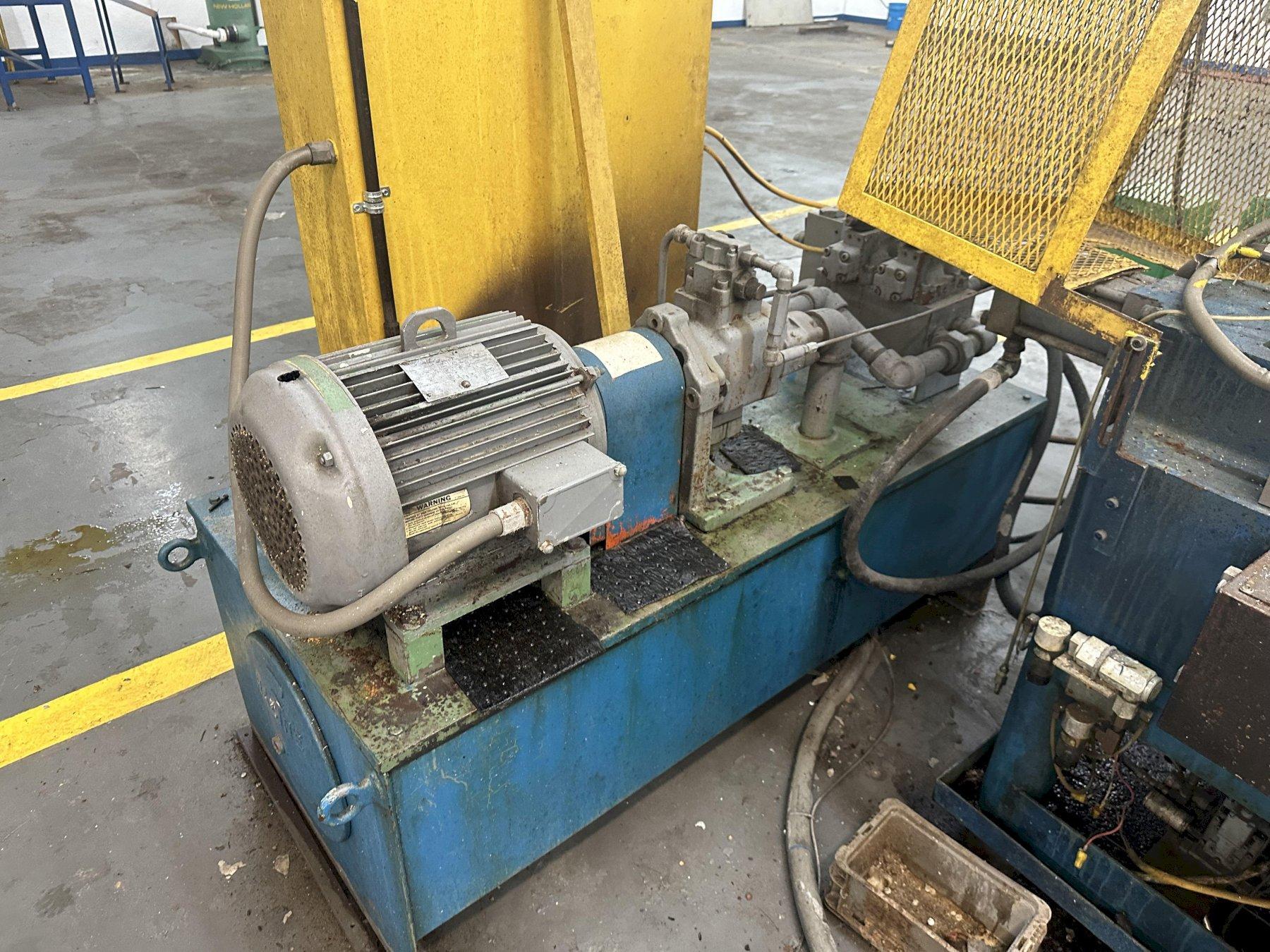

HYDRAULIC MOTOR ............... 20 HORSEPOWER

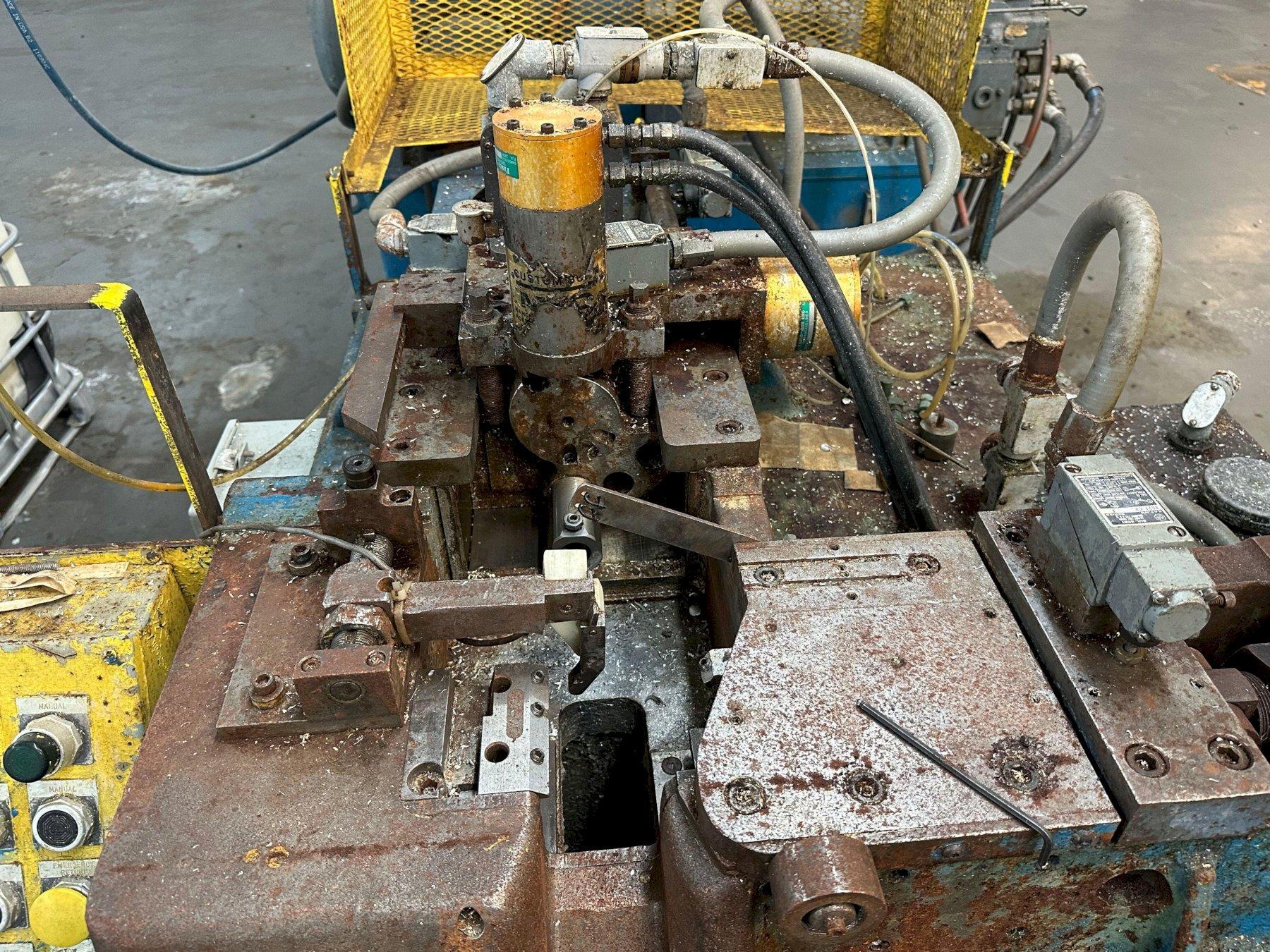

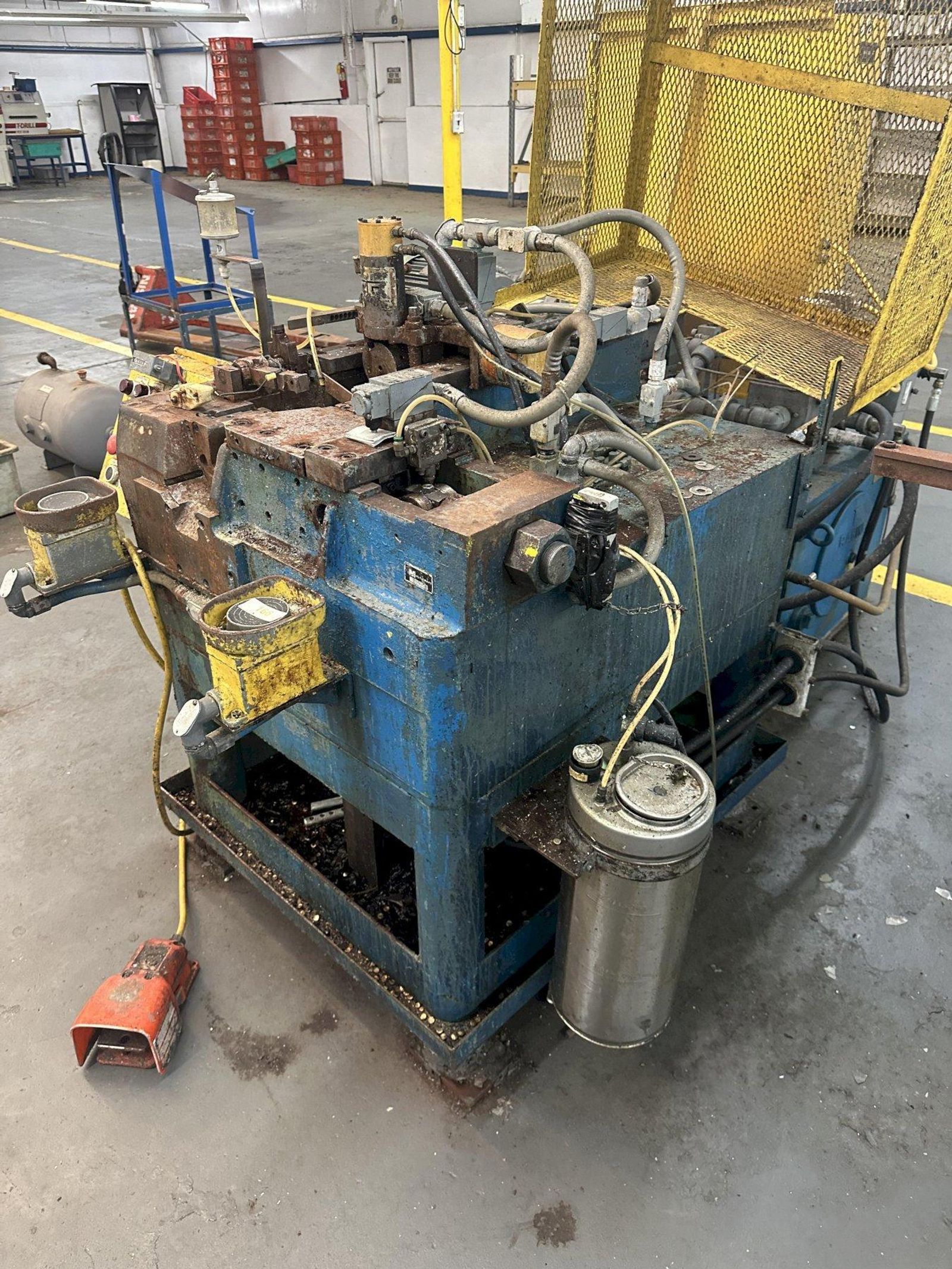

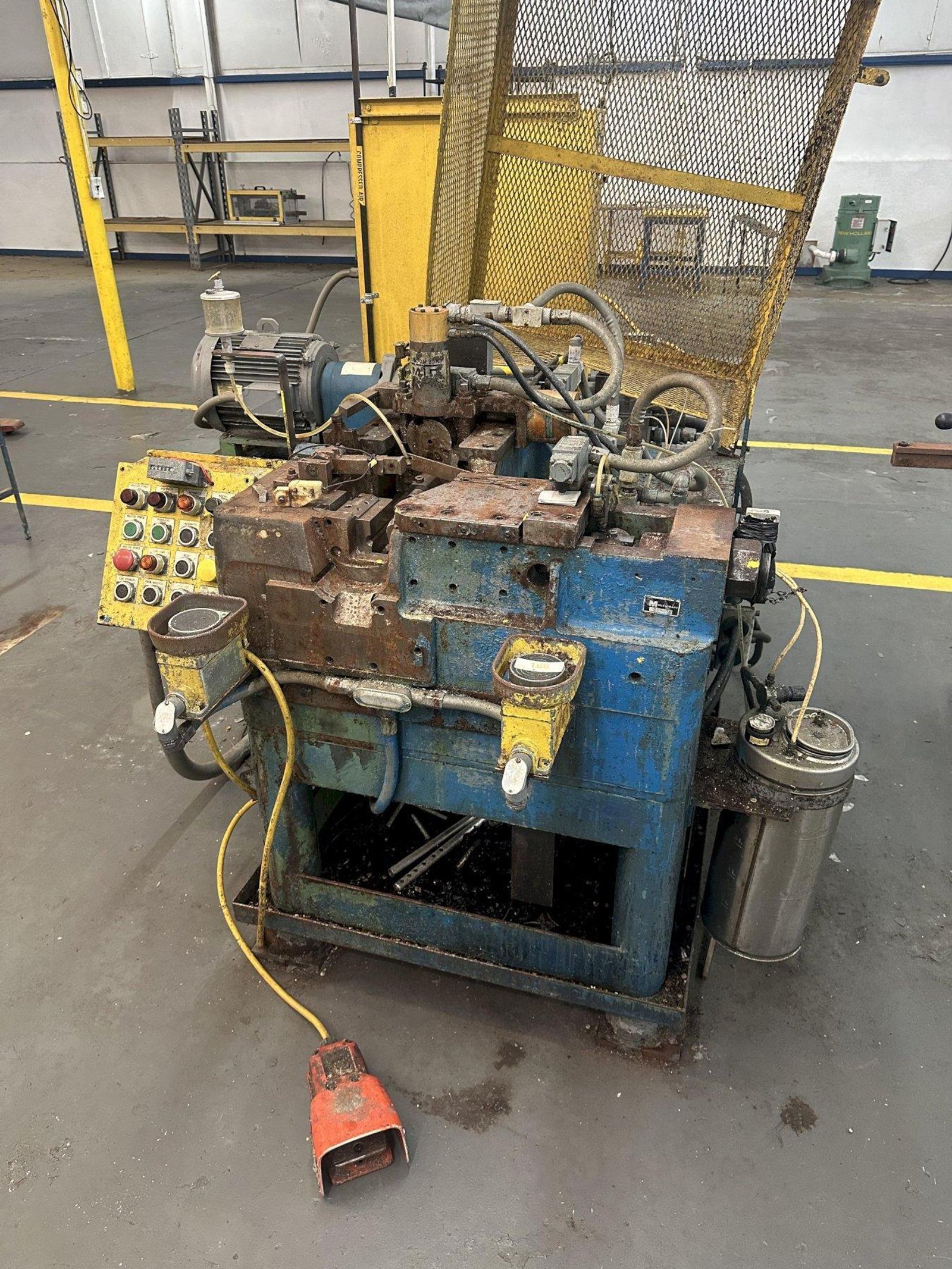

1.5" X 3 HIT MANCHESTER MTD MODEL #M71-H3 TUBE END FORMER: STOCK #20121

Brand
MANCHESTER

Type
Tube End Forming Machinery

Stock No.
20121

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

1.5" X 3 HIT MANCHESTER MTD MODEL #M71-H3 TUBE END FORMER: STOCK #20121

Stock #: 20121

Equipped With

SERIAL ......................... #1185-03224
MODEL .......................... #M71H-3
TUBE CAPACITY .................. 1-1/2" O.D.
HYDRAULIC RAM CYLINDER ......... 3-1/4" BORE X 4" STROKE
RAM FORCE ...................... 8 TONS
HYDRAULIC CLAMPING CYLINDER .... 2-1/2" BORE X 2-1/2" STROKE
CLAMPING FORCE ................. 17-1/2 TONS @ 500 PSI
JAW OPENING .................... 1-3/4"
HITS ........................... 3 (TRIPLE HIT RAM)
EXTERNAL SELECTOR SWITCH
SPEED CONTROL VARIABLE VOLUME PUMP
AUTOMATIC MACHINE LUBRICATION
TUBE BACK-UP ATTACHMENT
DUAL PALM BUTTONS
ALLEN-BRADLEY SOLID STATE CONTROLS
HYDRAULIC MOTOR ............... 20 HORSEPOWER
