Overview

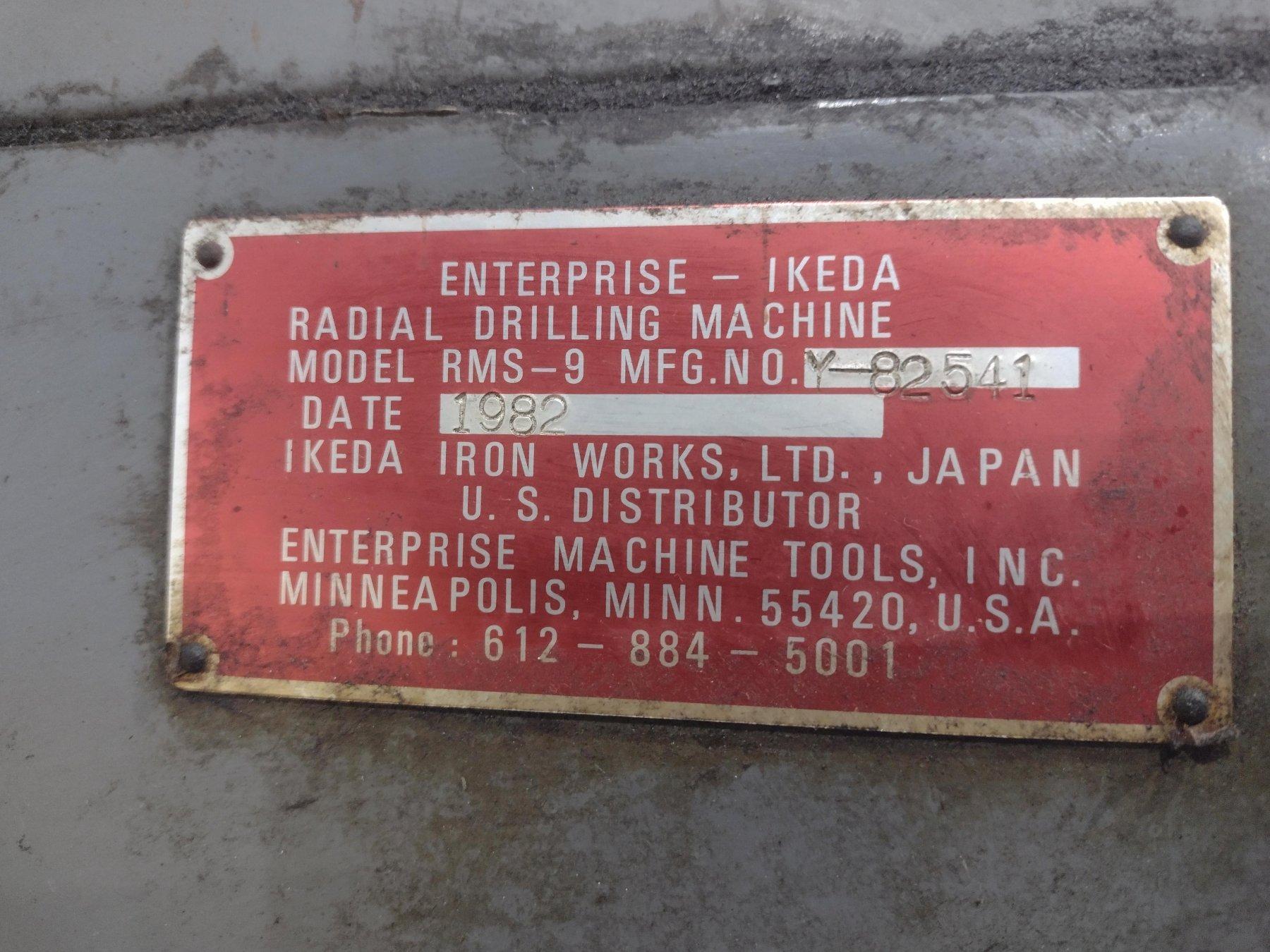

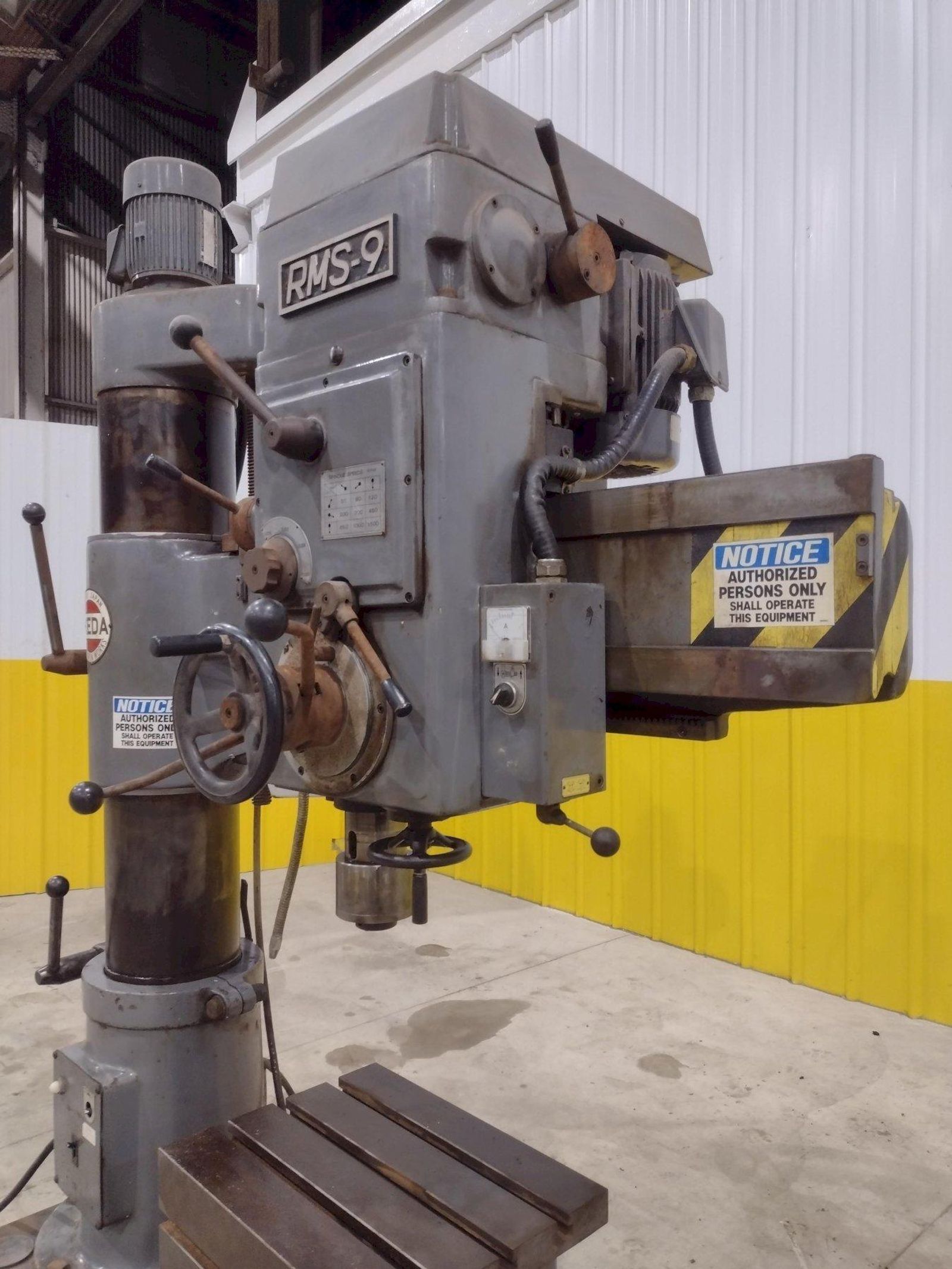

MODEL ...... RMS-9
SERIAL ..... Y 82541
YEAR ....... 1982

Arm Length 3'

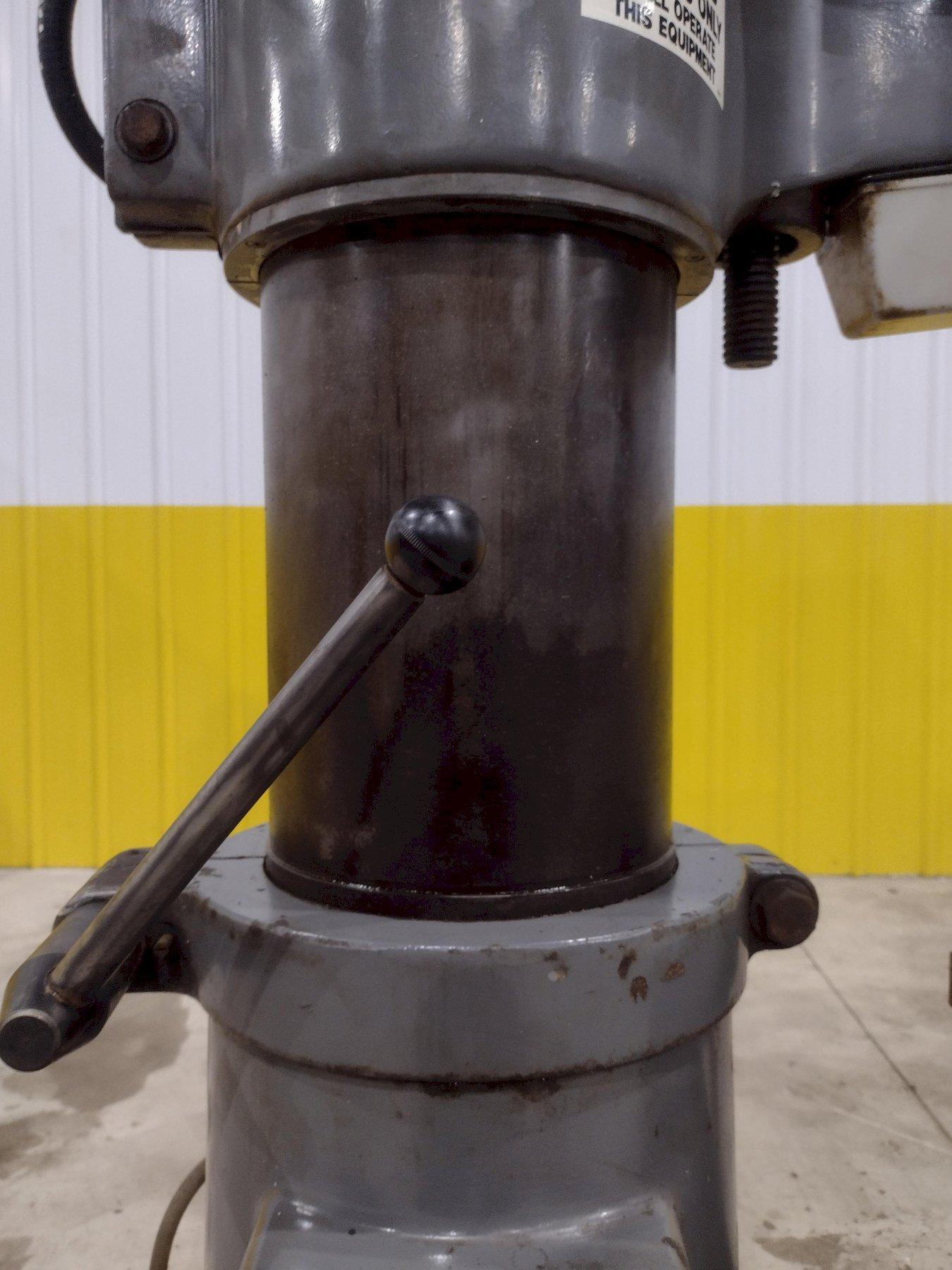

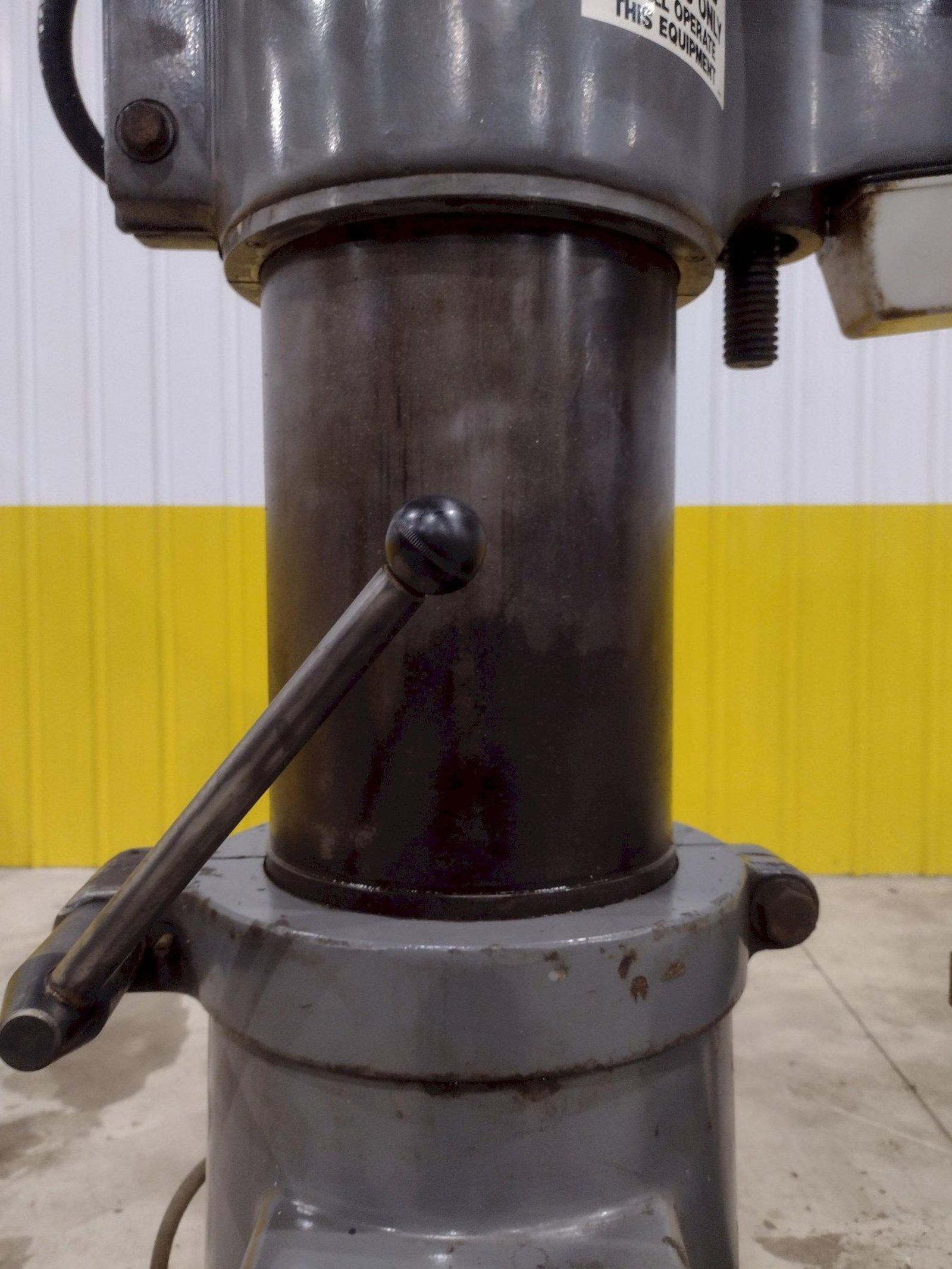

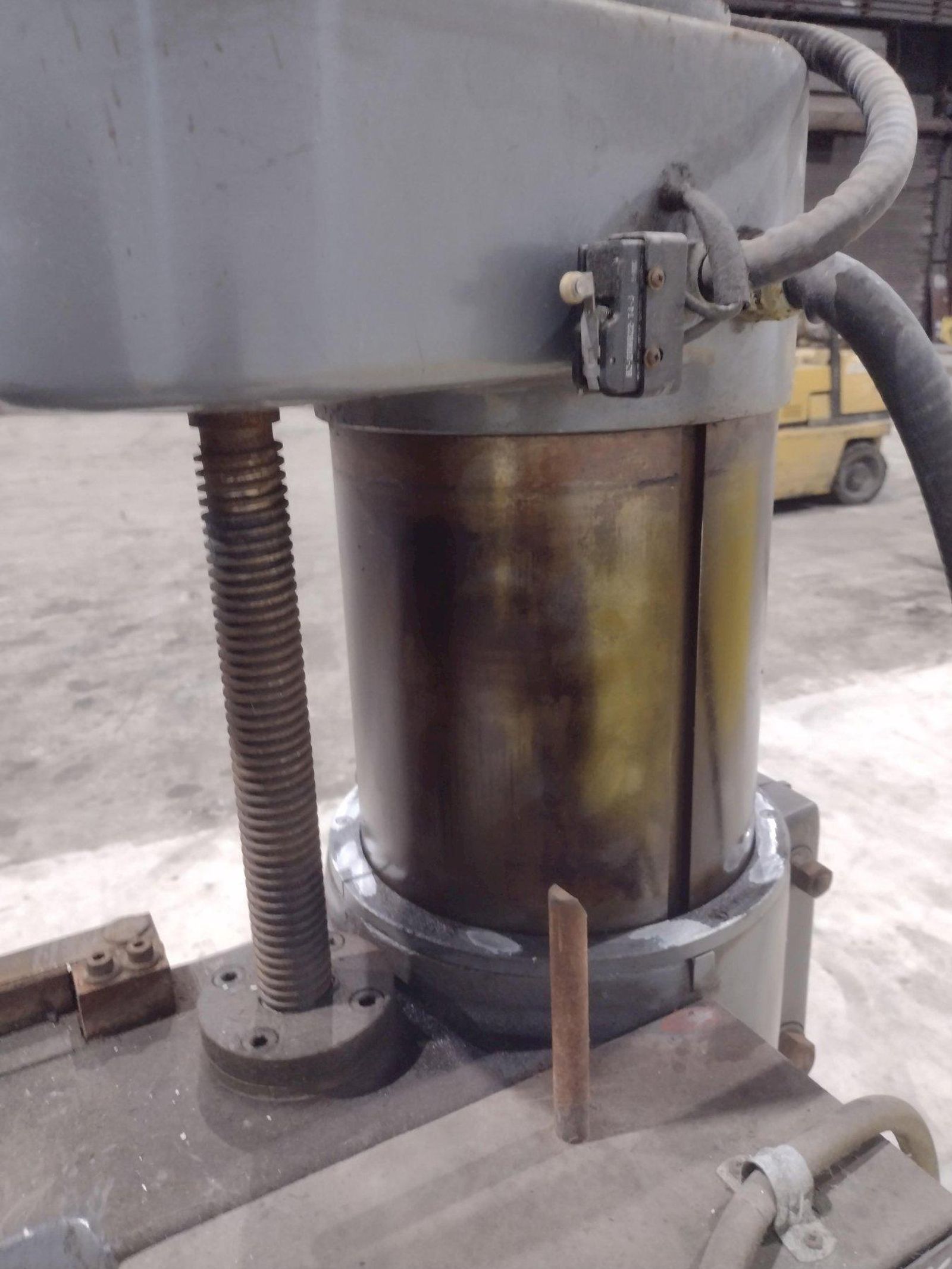

Column Diameter 9"

Vertical Spindle Stroke 9"

Spindle-Nose to Base, Minimum 11.5"

Spindle-Nose to Base, Maximum 43"

Column-Face to Spindle, Minimum 11.75"

Column-Face to Spindle, Maximum 3'

Base Working Surface, W x L 23" x 37"

Base Height 6.25"

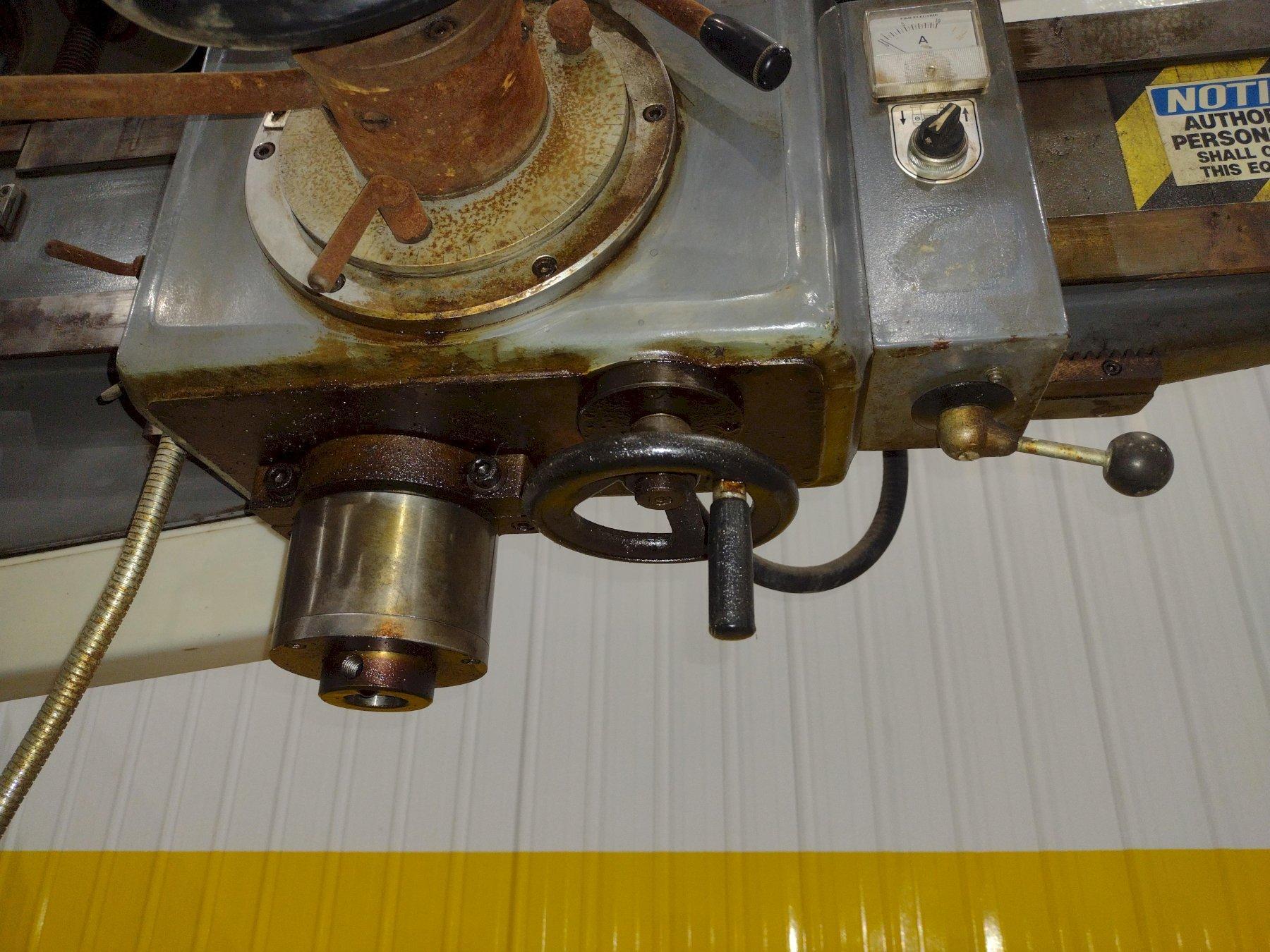

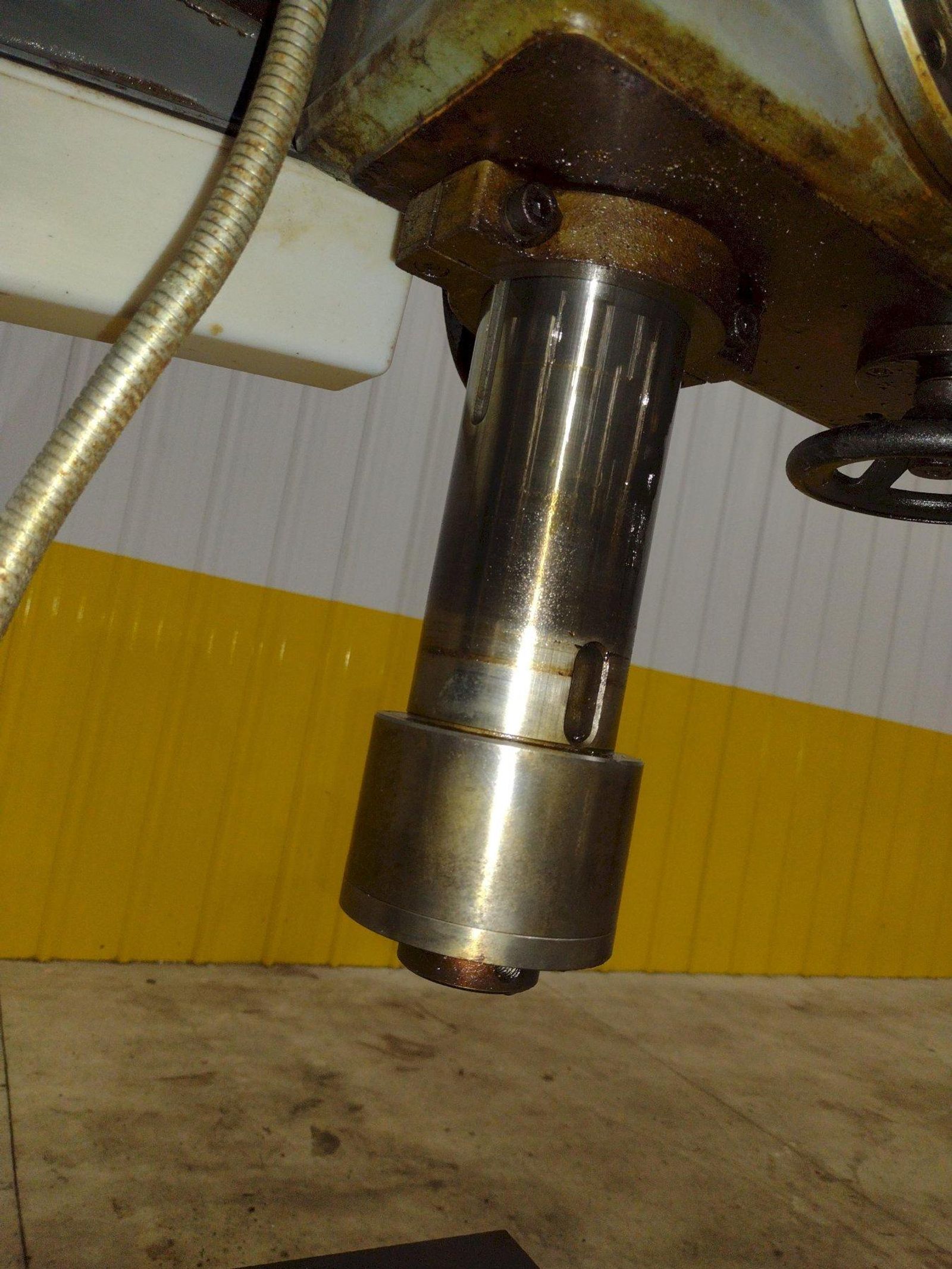

Spindle Quill Diameter 3.31"

Spindle Nose Diameter 2.25"

Spindle Taper #4 MT

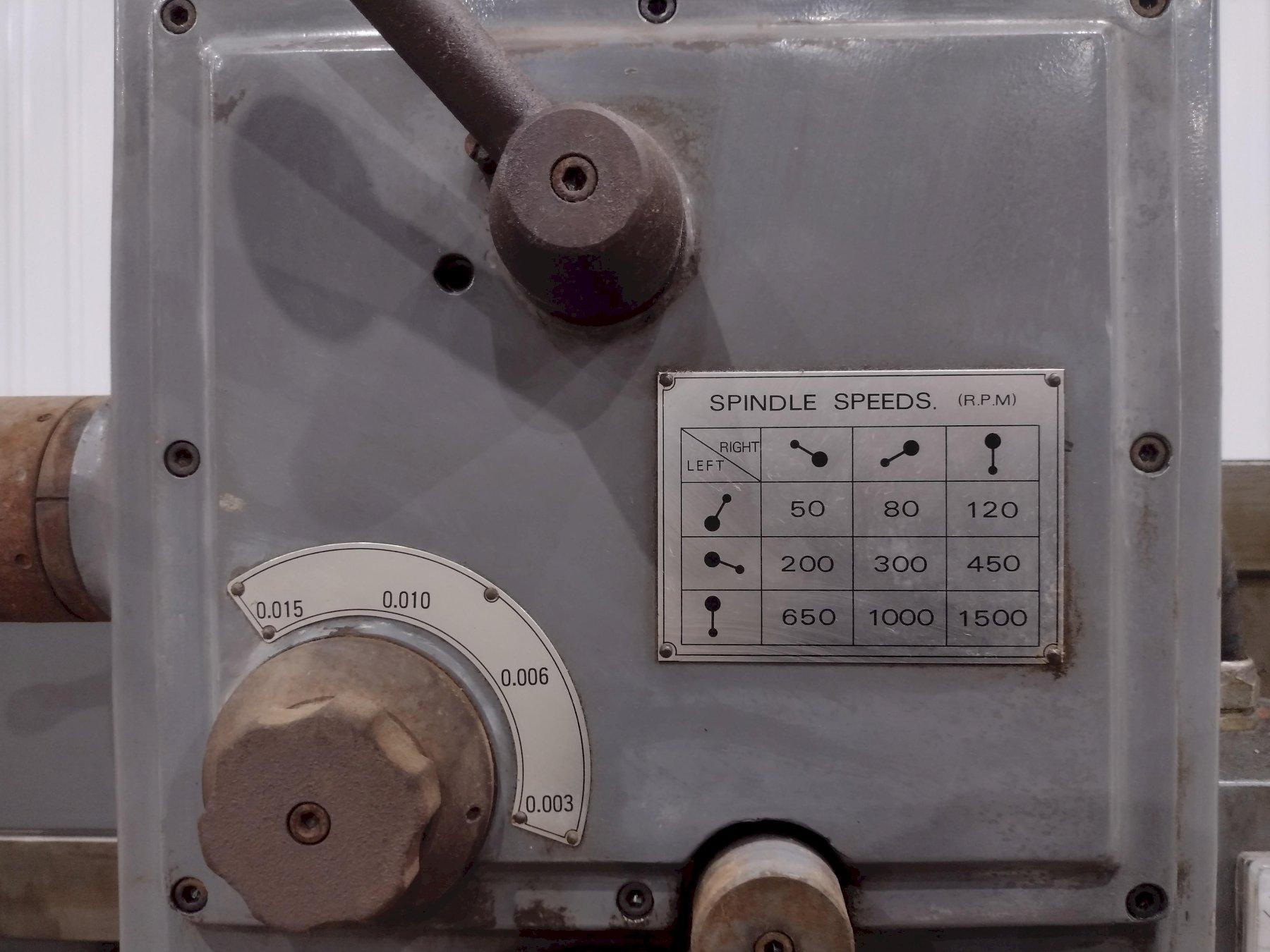

(9) Spindle Speeds, Range 50 to 1500 RPM

(4) Spindle Feeds, Range .003 to .015 IPR

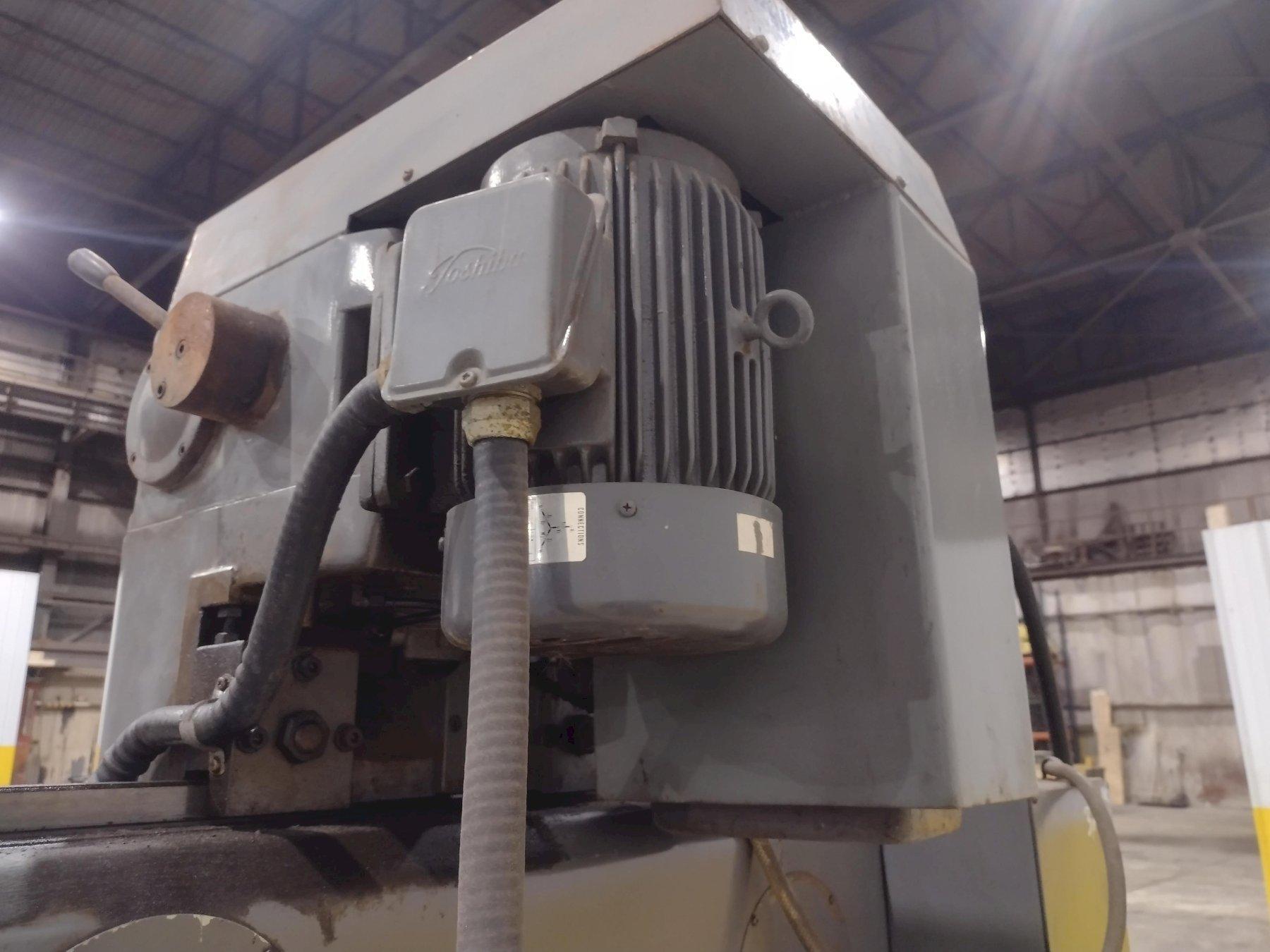

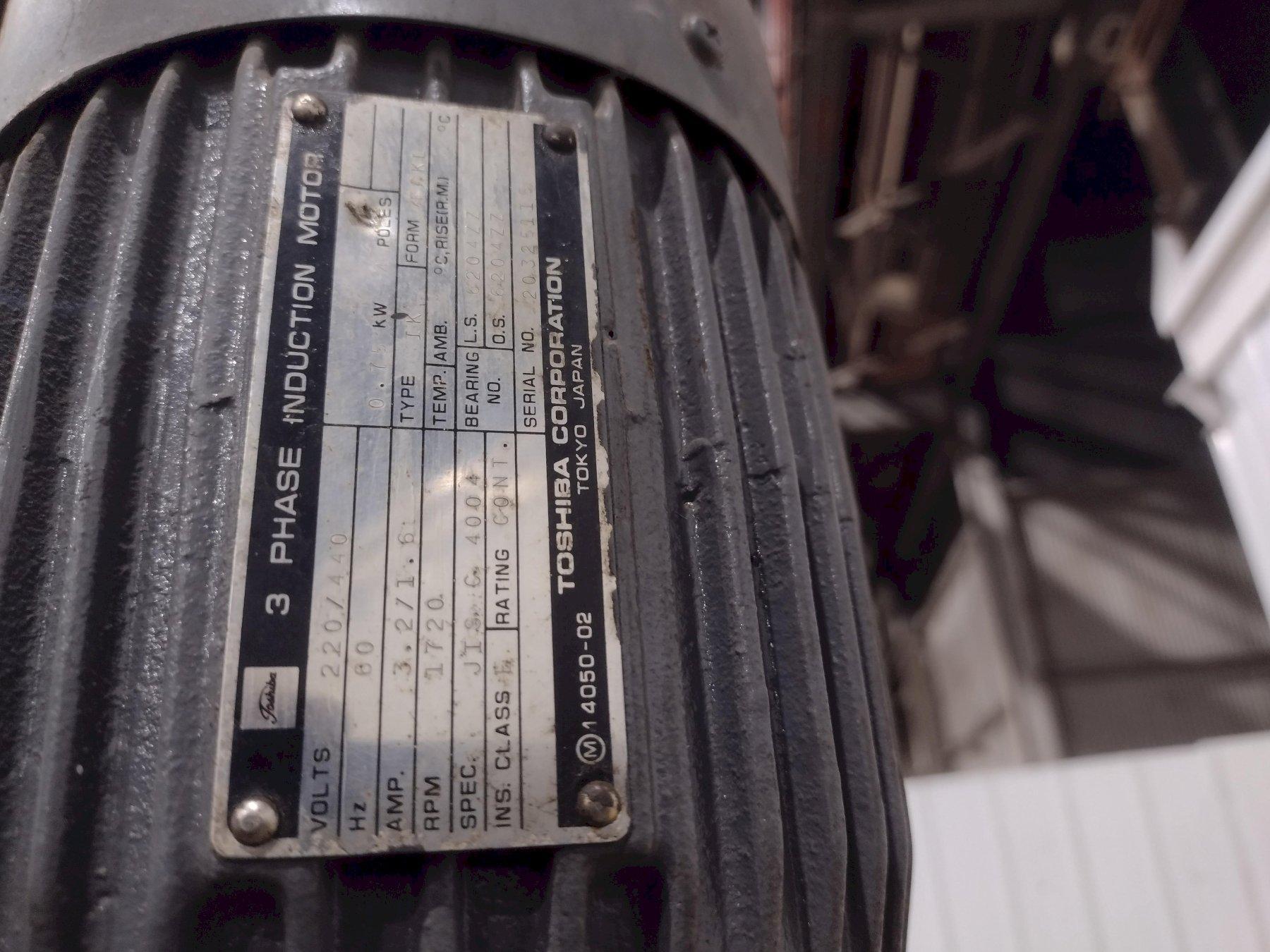

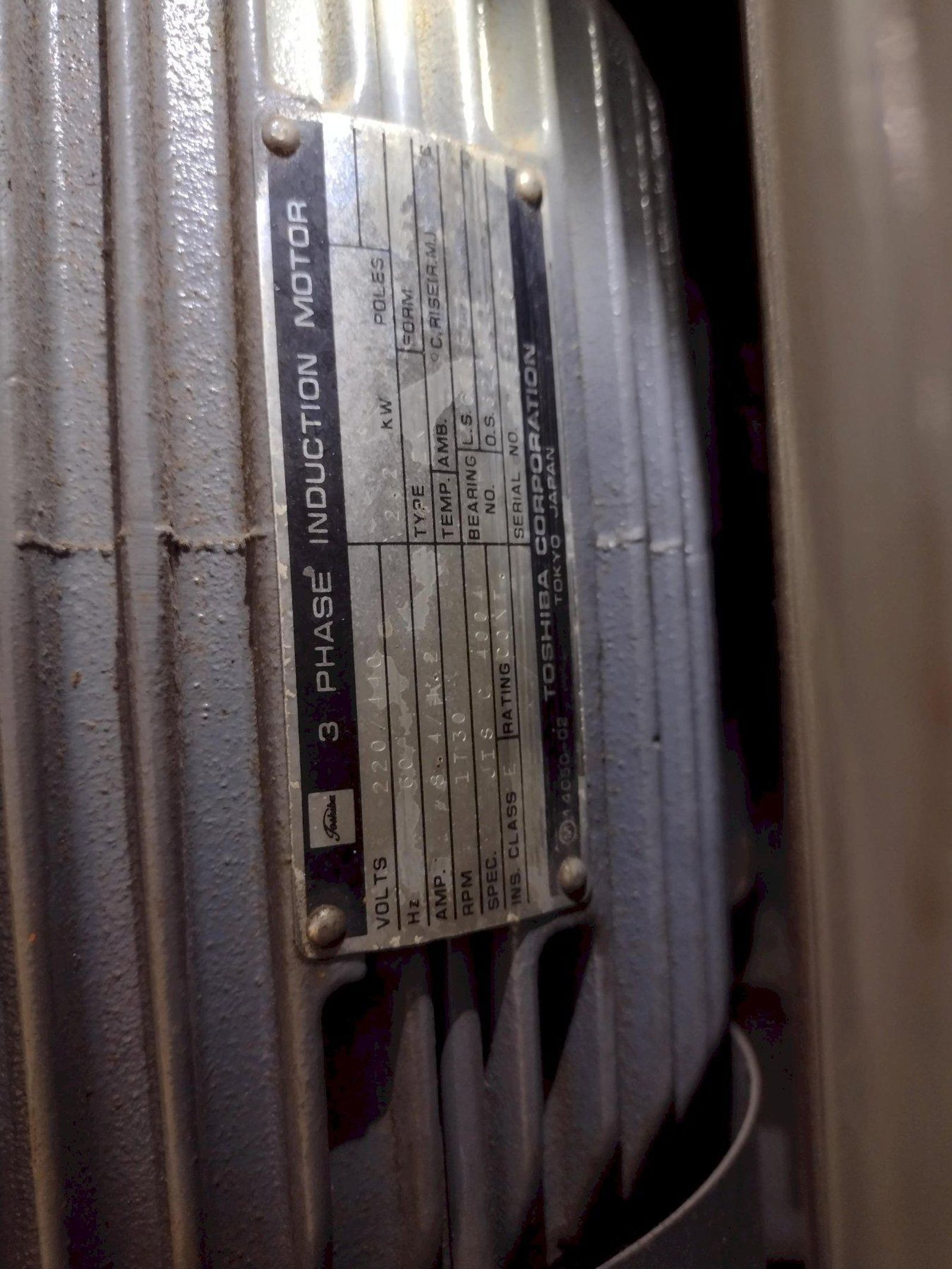

Motor, Horsepower 3 HP

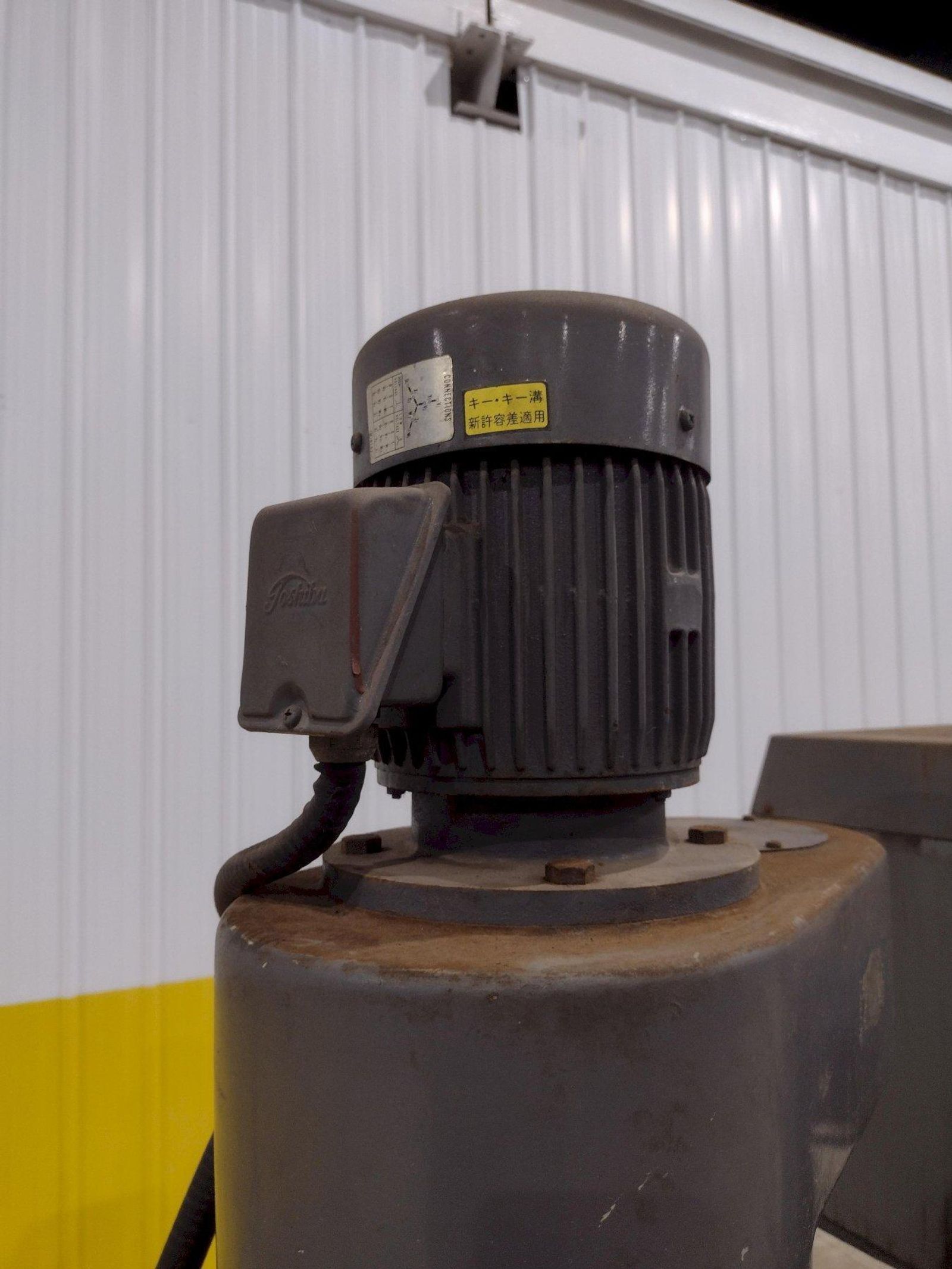

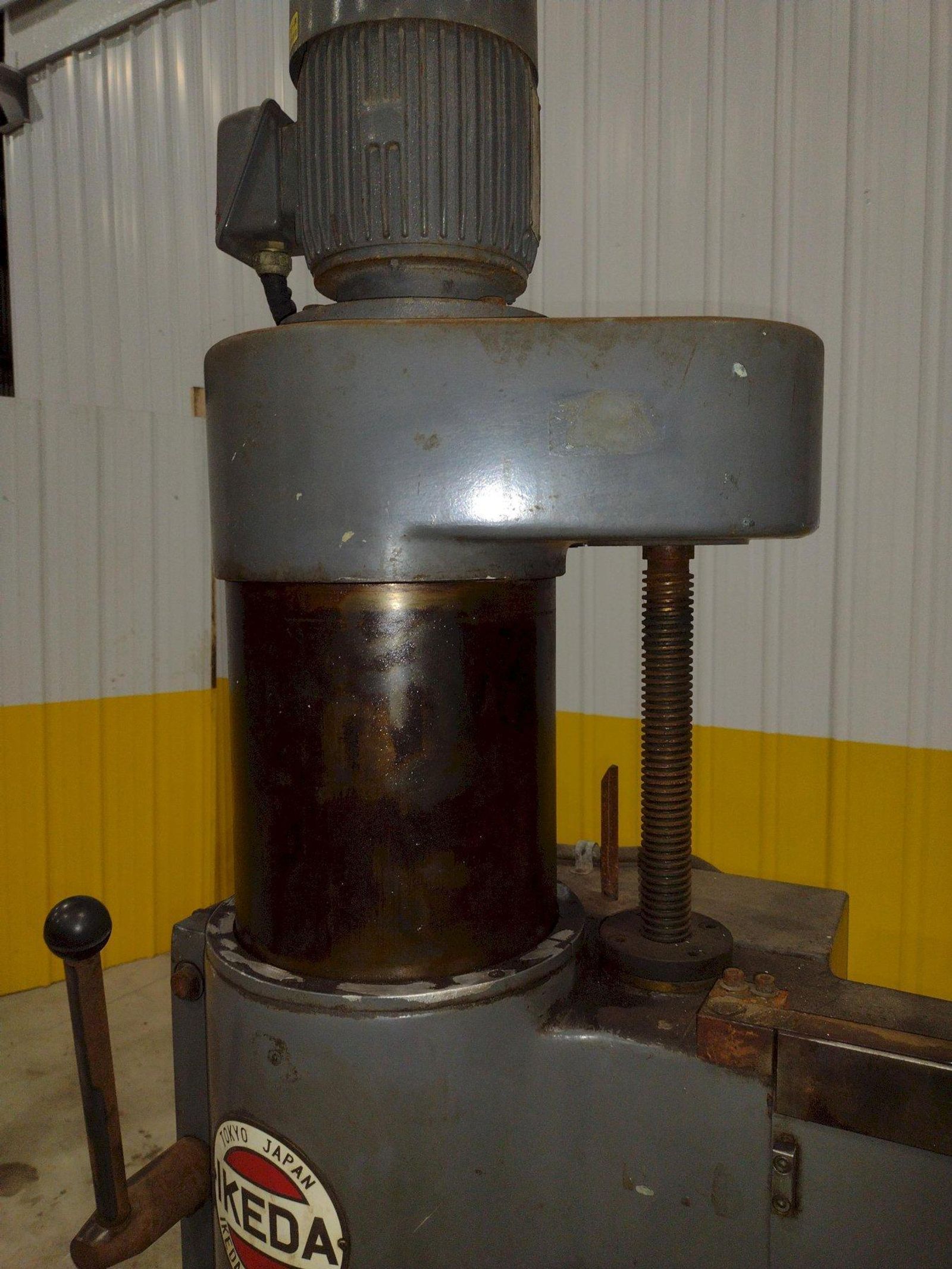

Arm Elevating Motor 1 HP

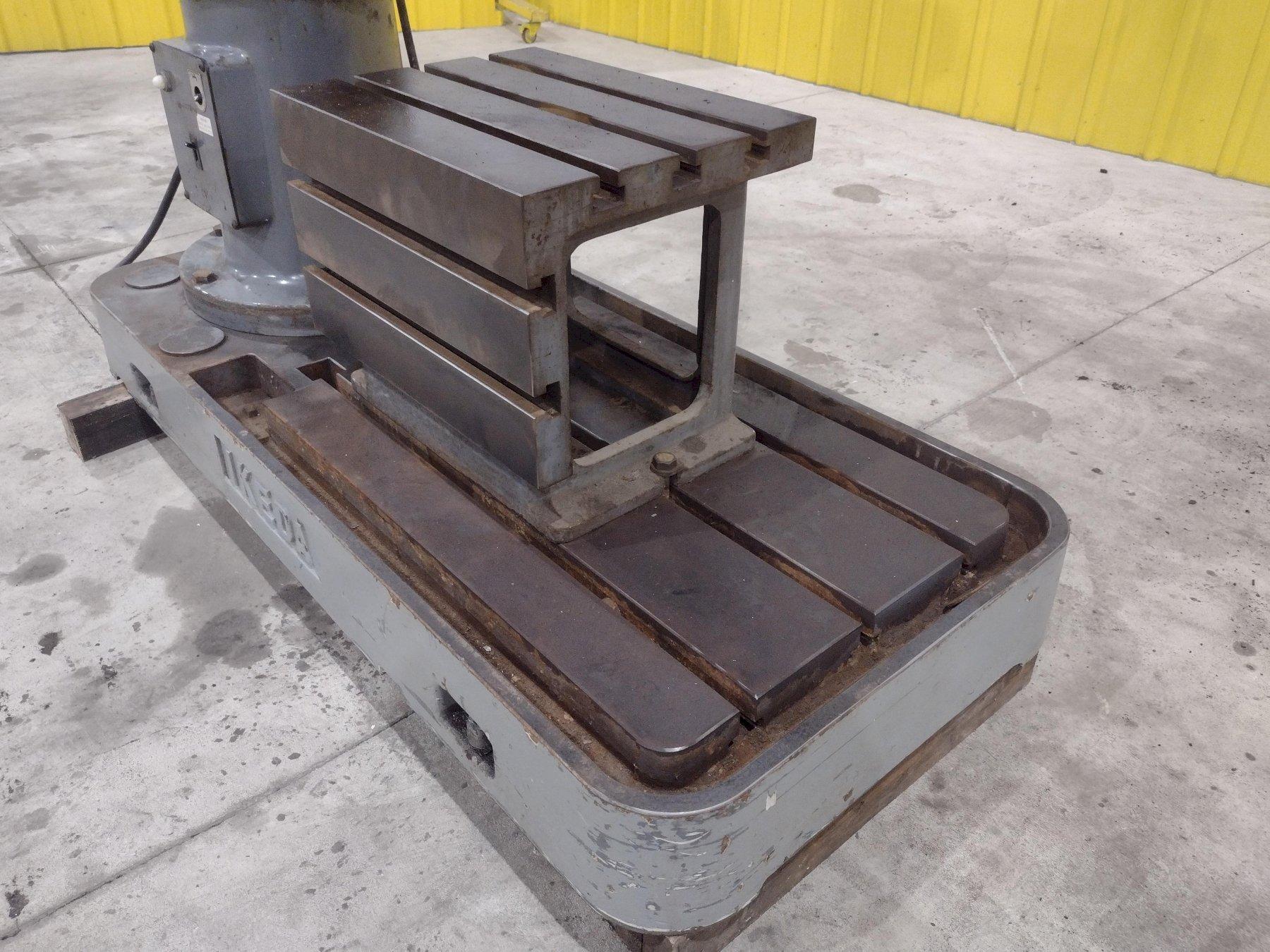

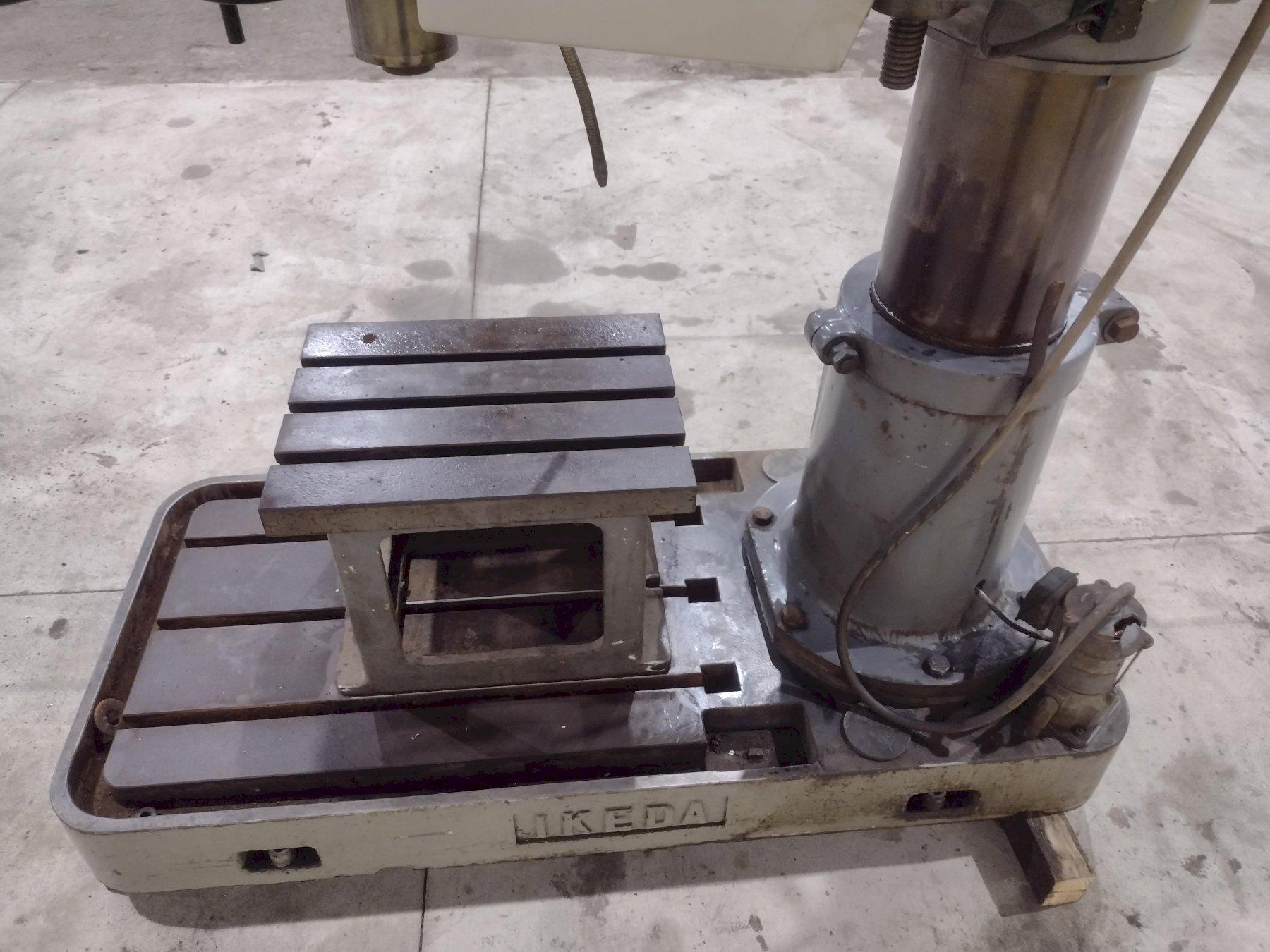

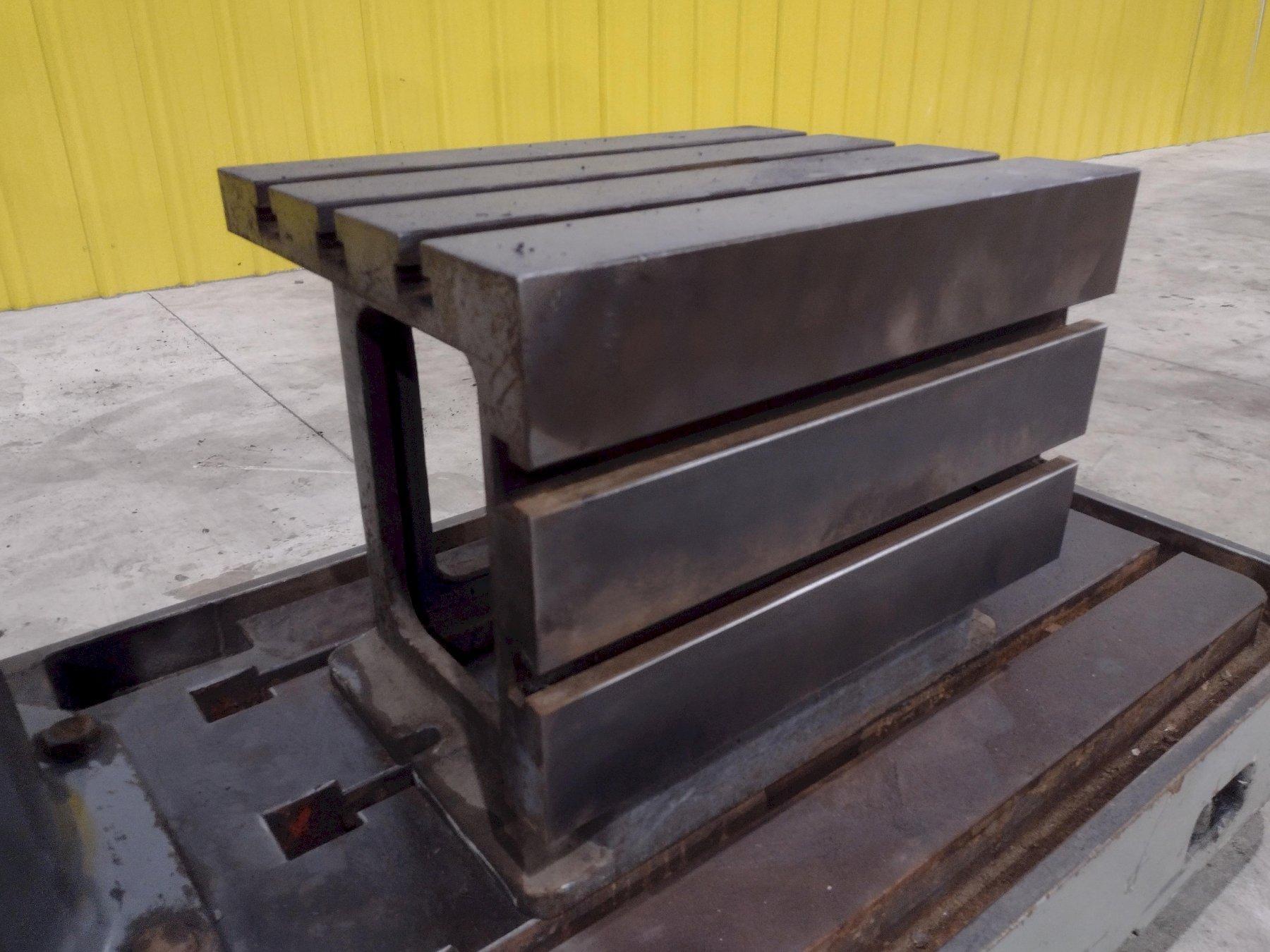

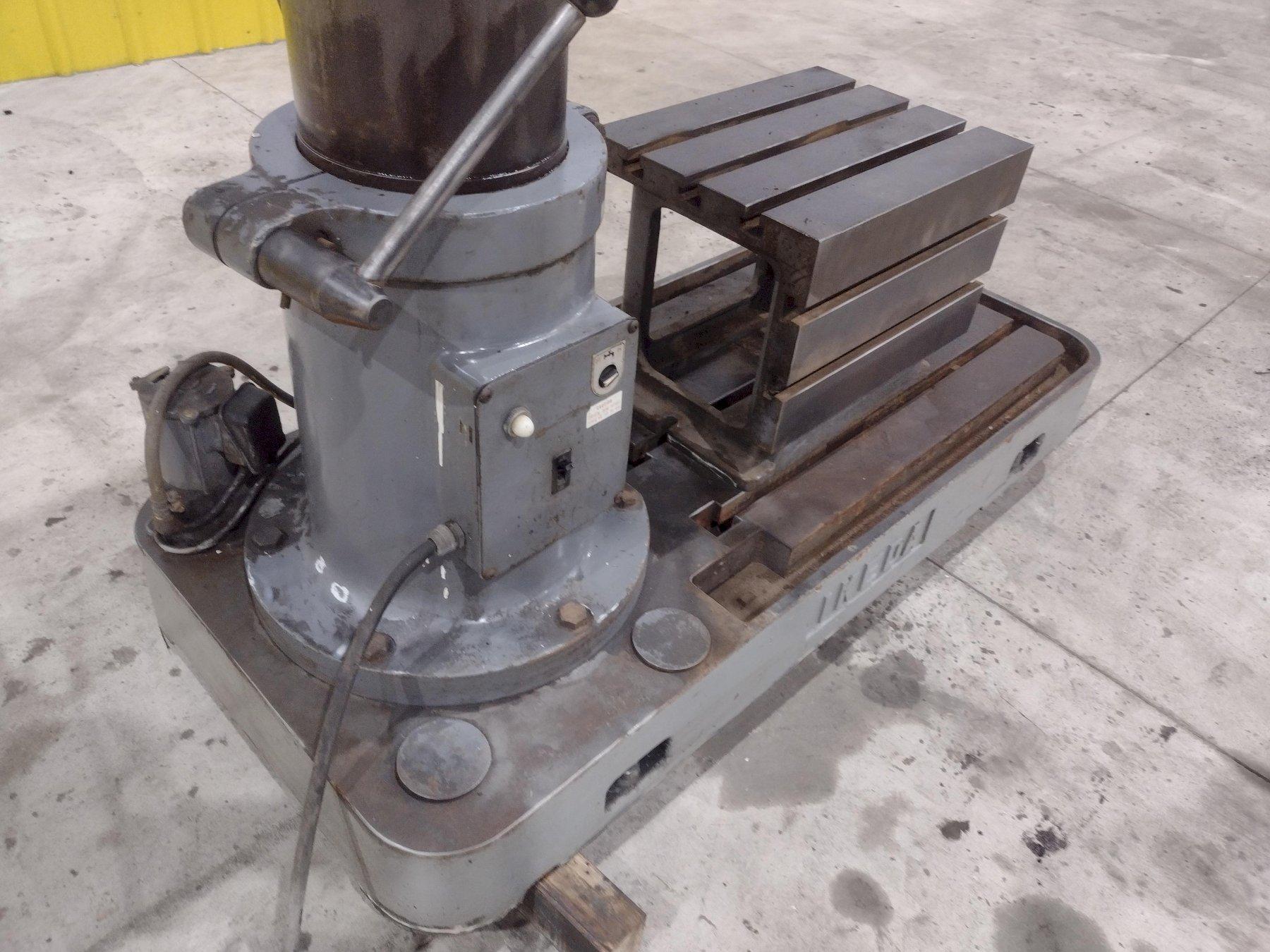

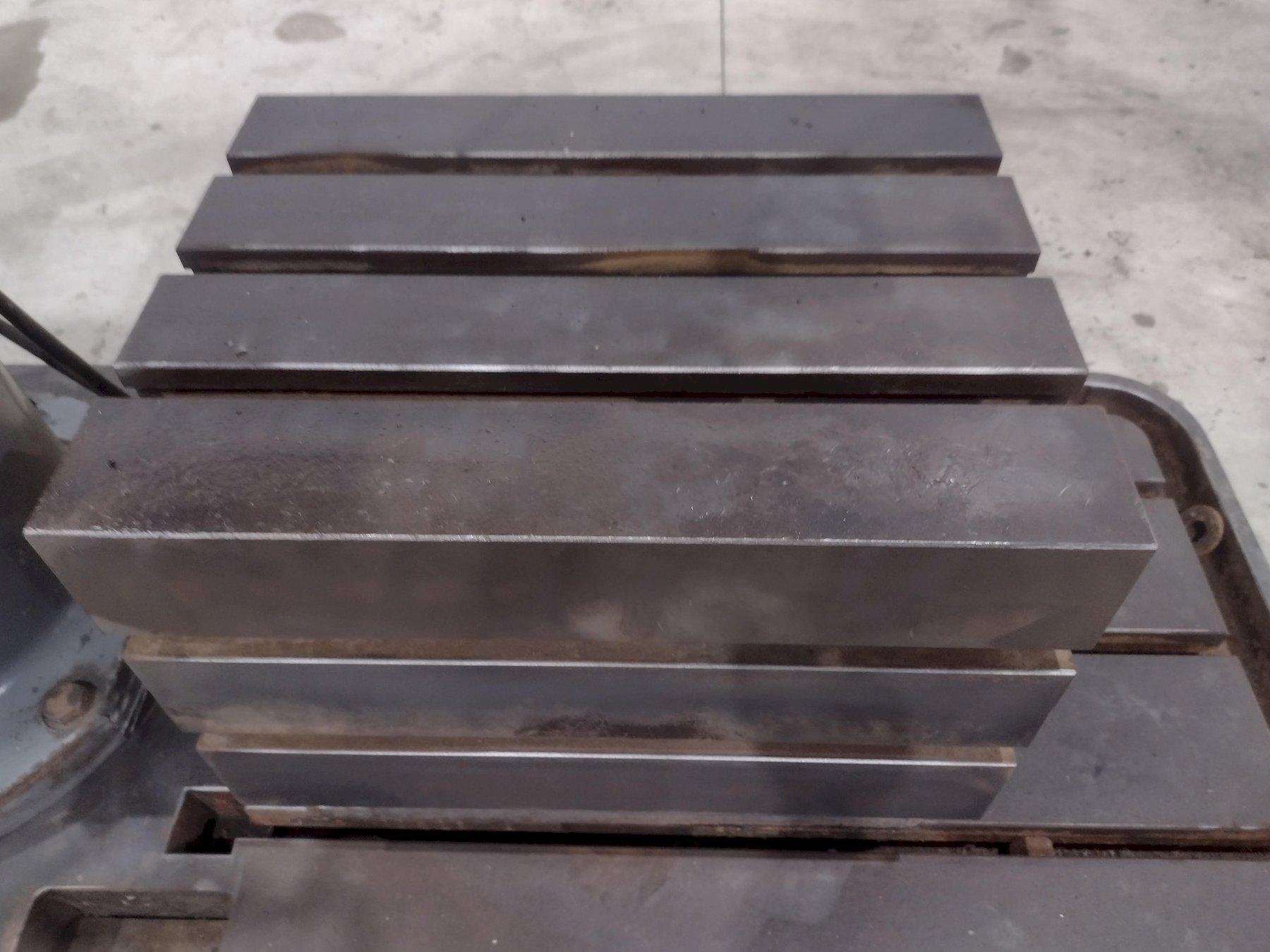

Plain Box Table

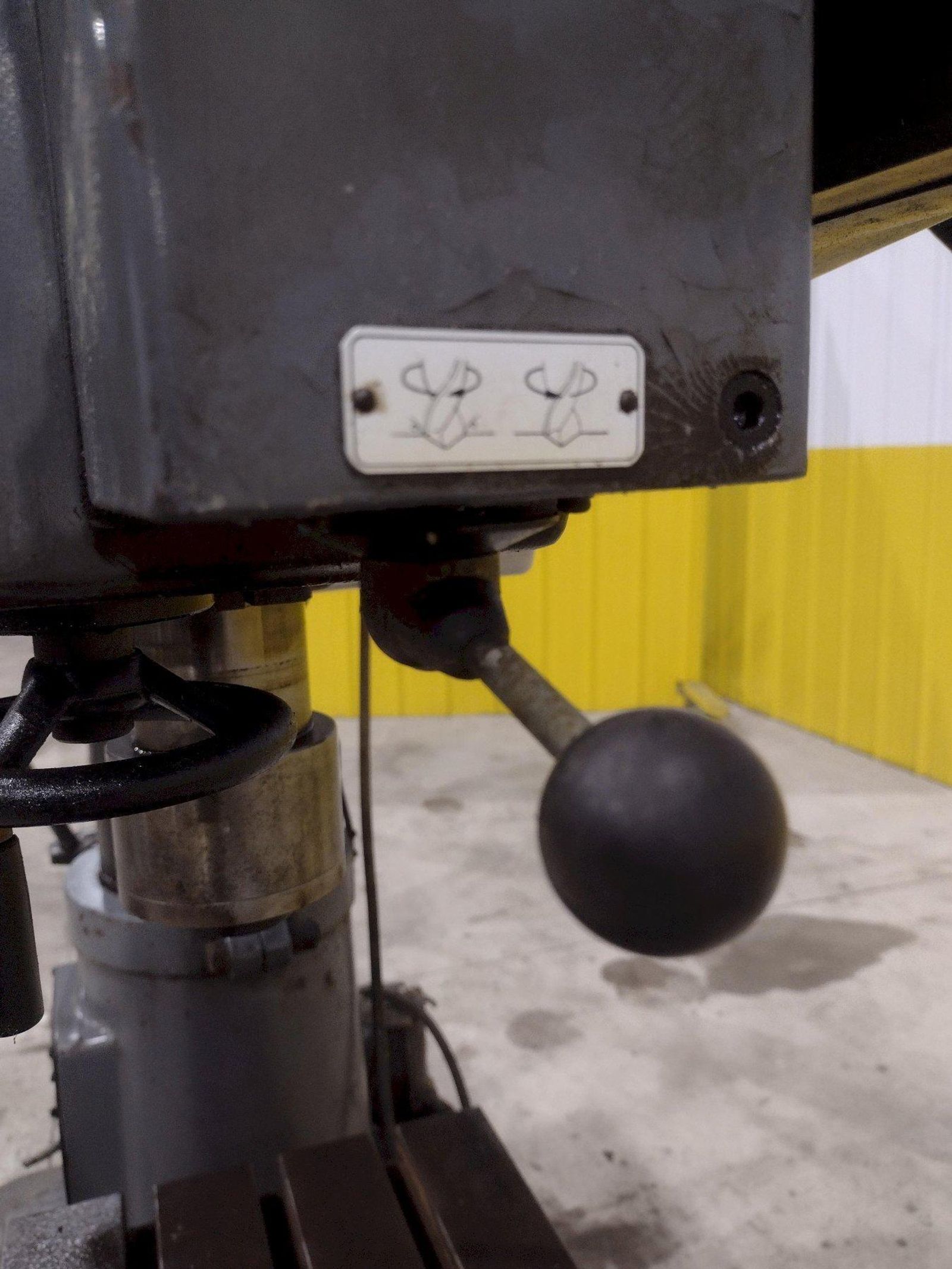

Tapping Capabilities

Plain Type Base

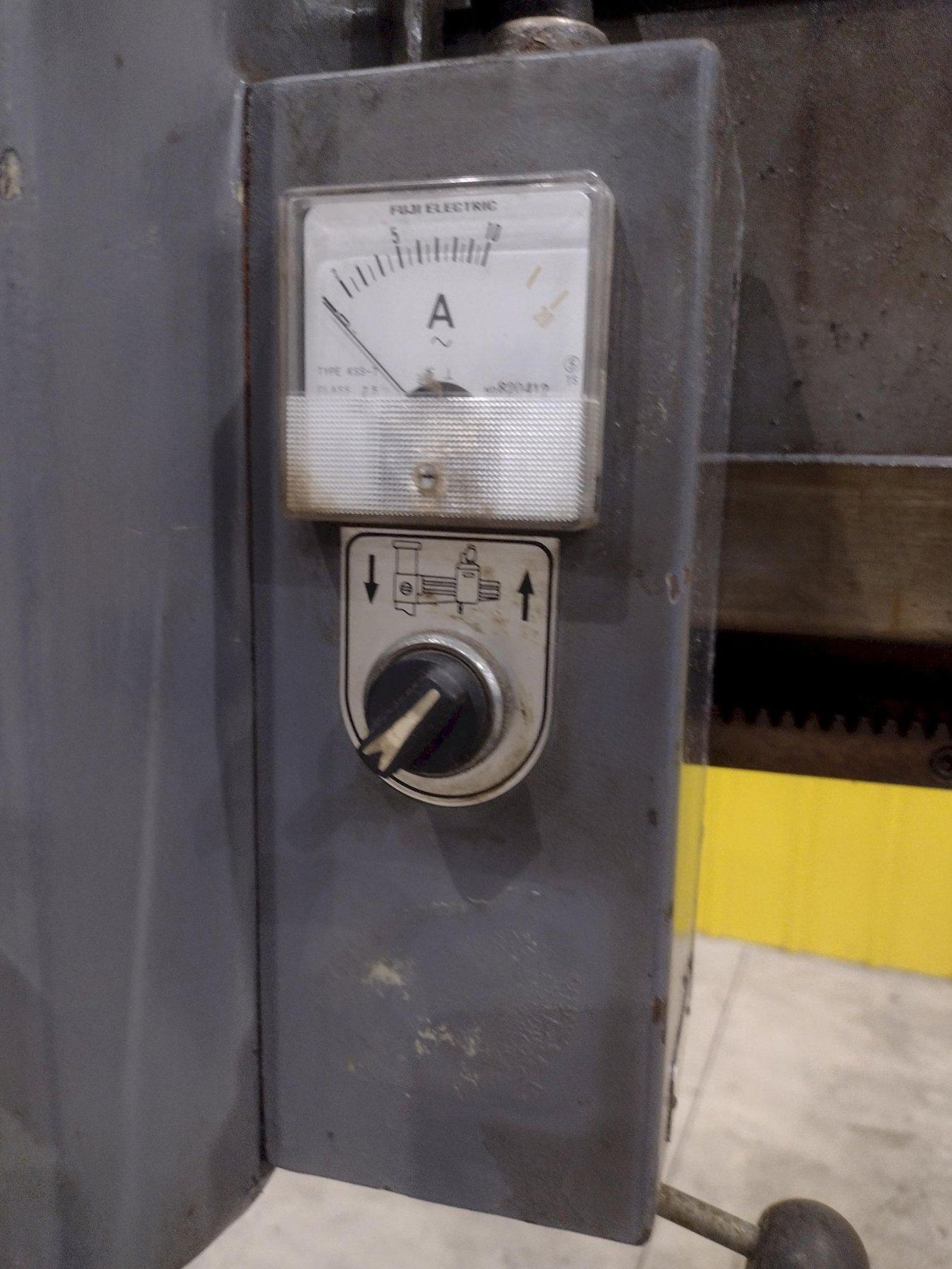

Power Arm Elevation

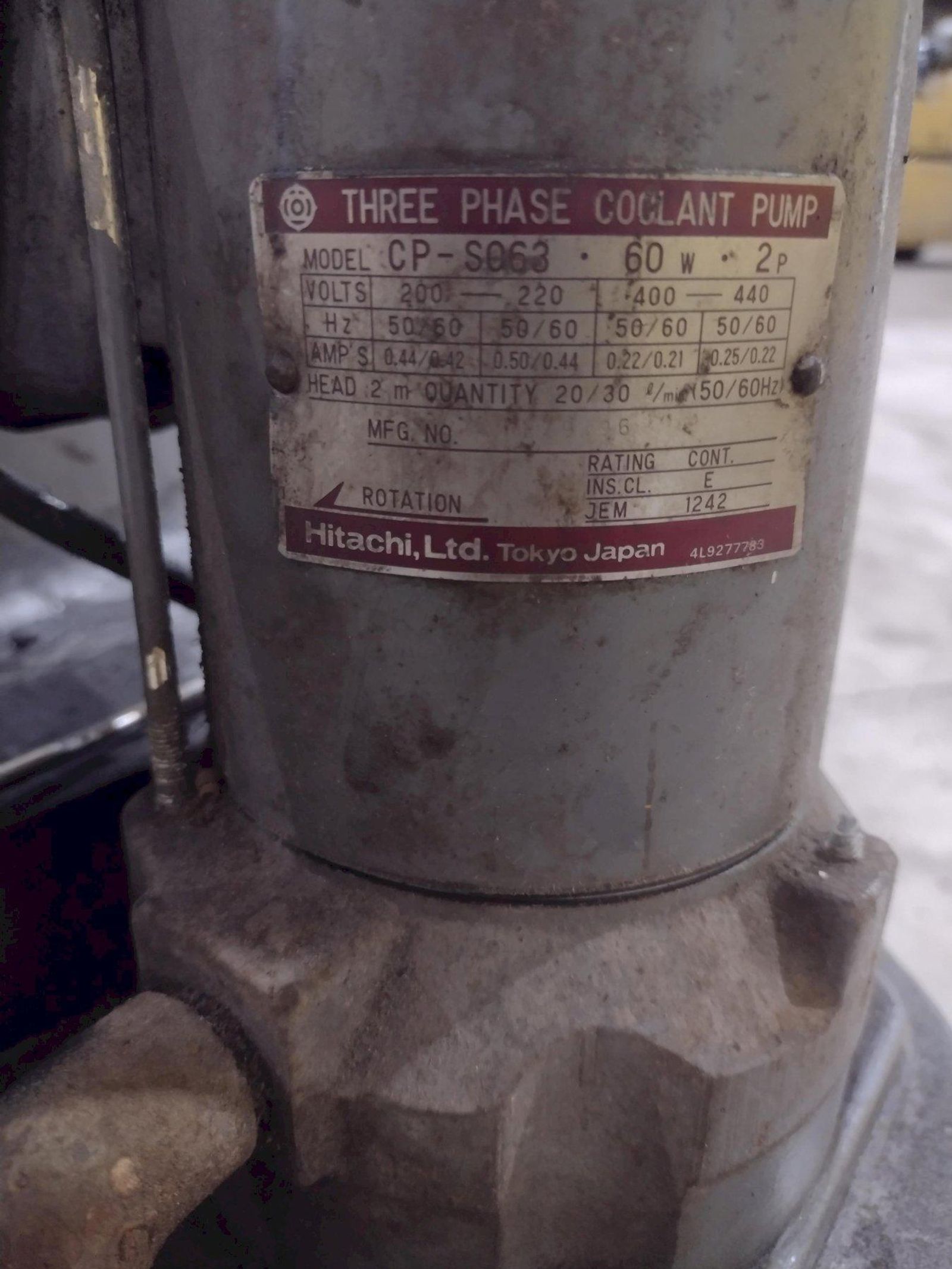

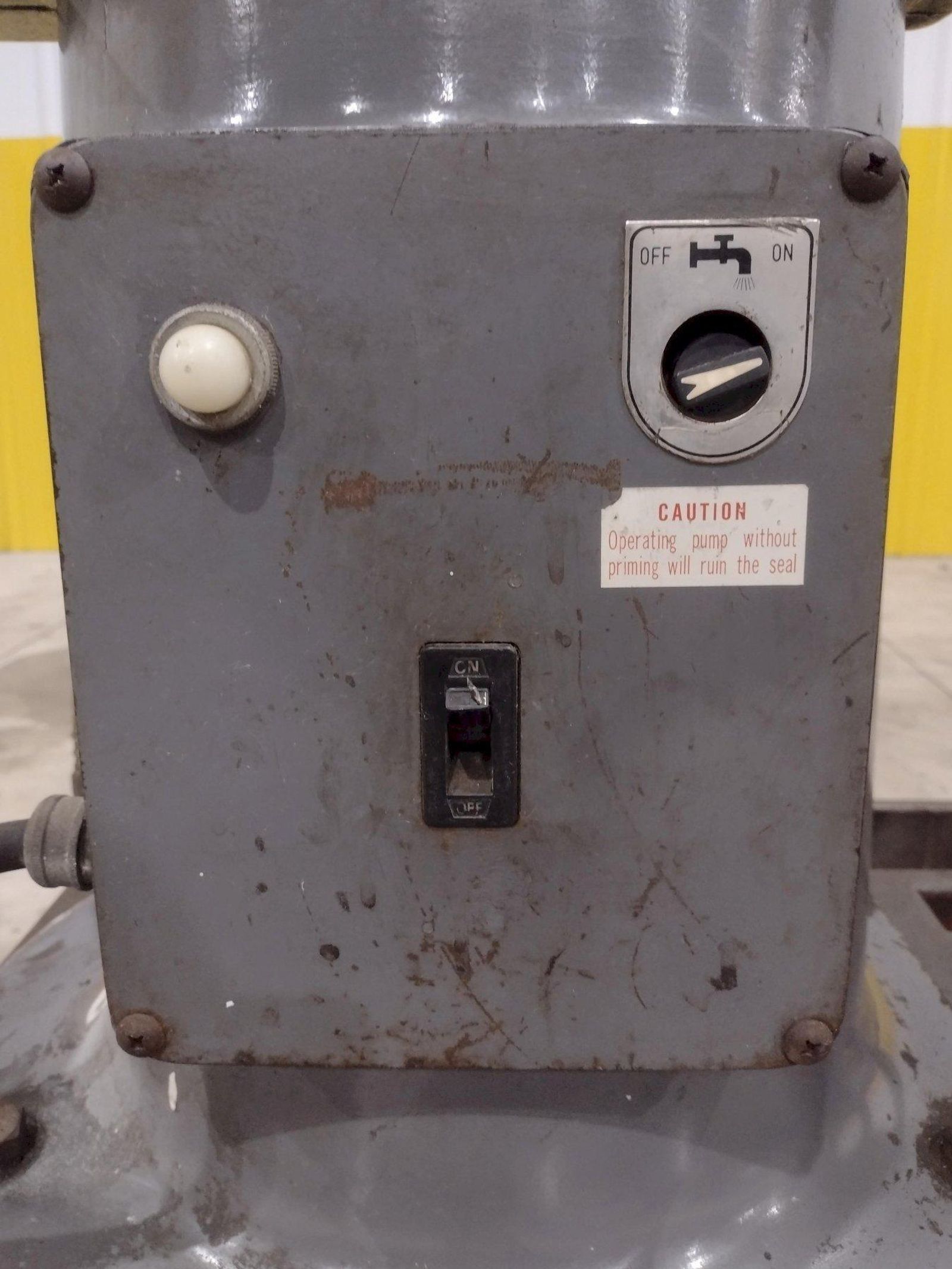

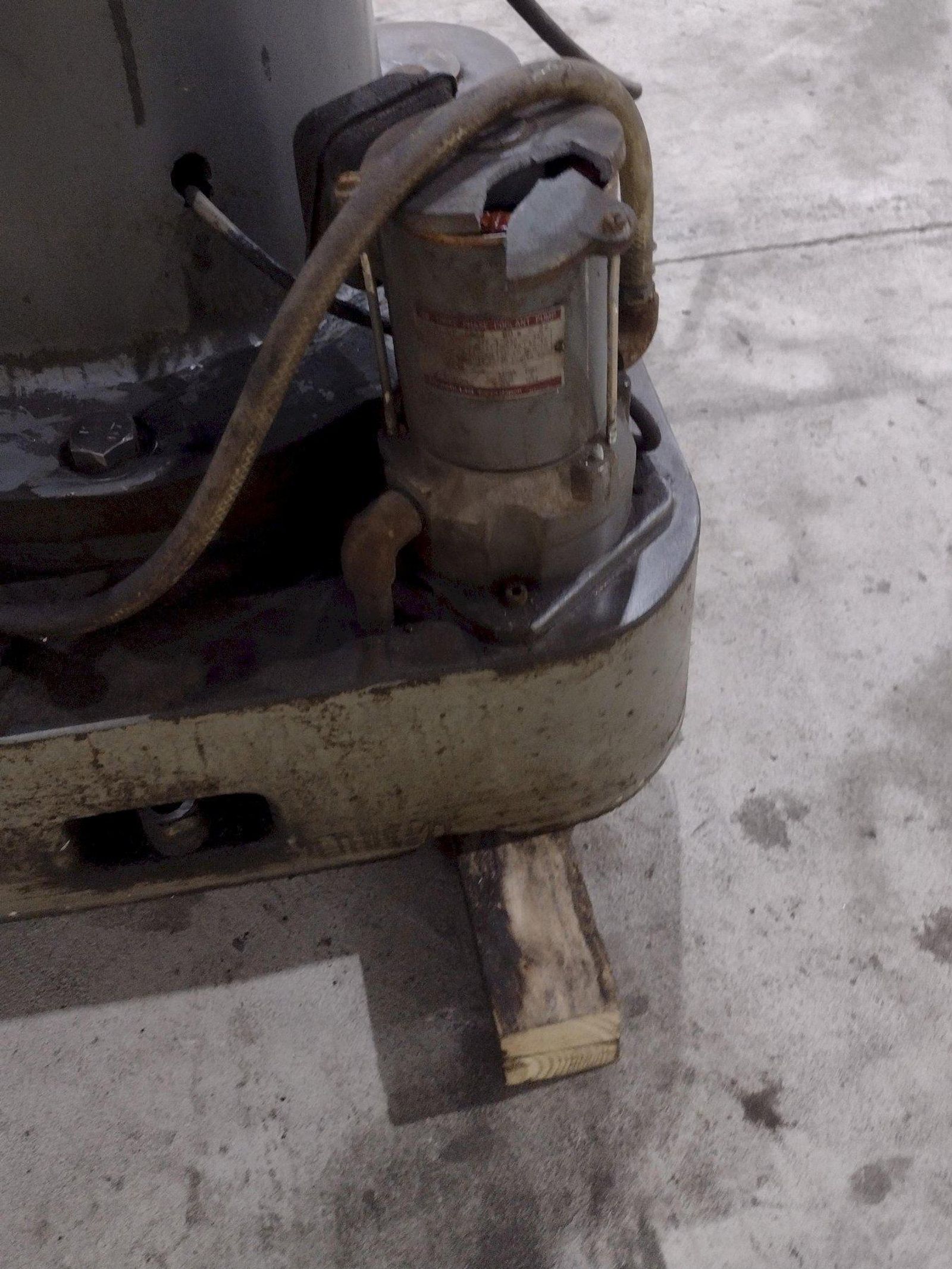

Coolant System (Built-In Base)

Specifications
Dimensions	61" x 28"
Weight	3750 pounds

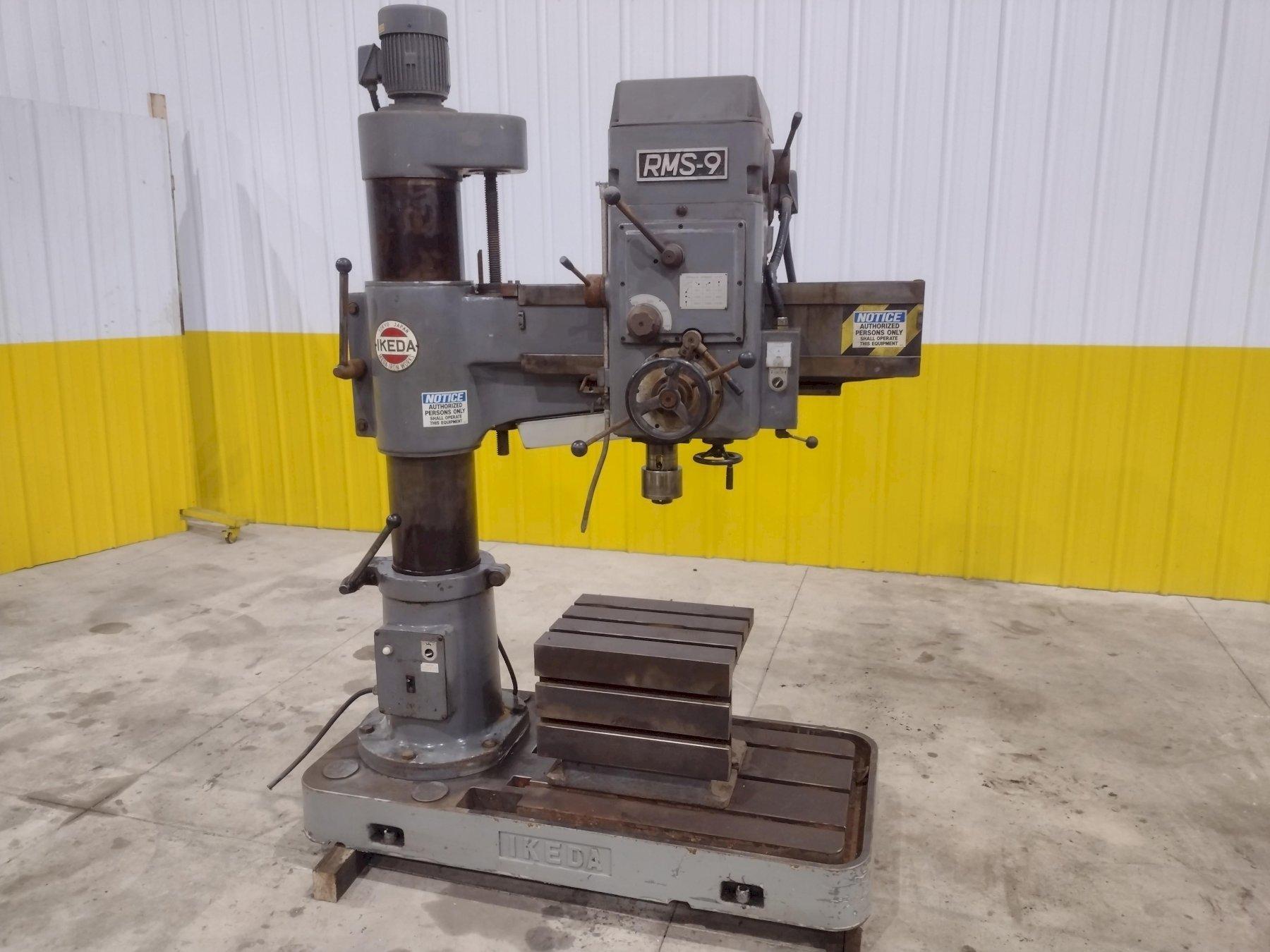

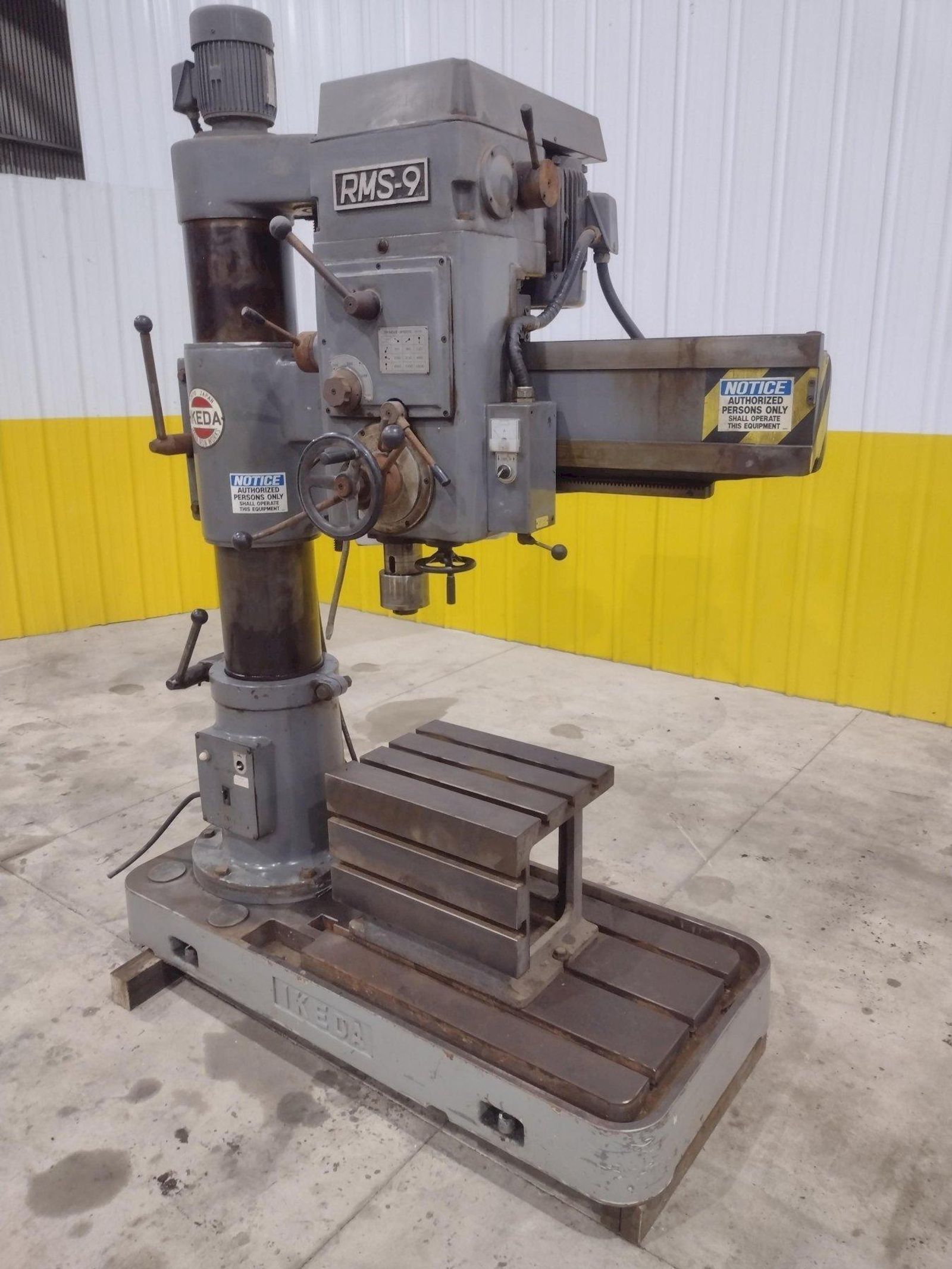

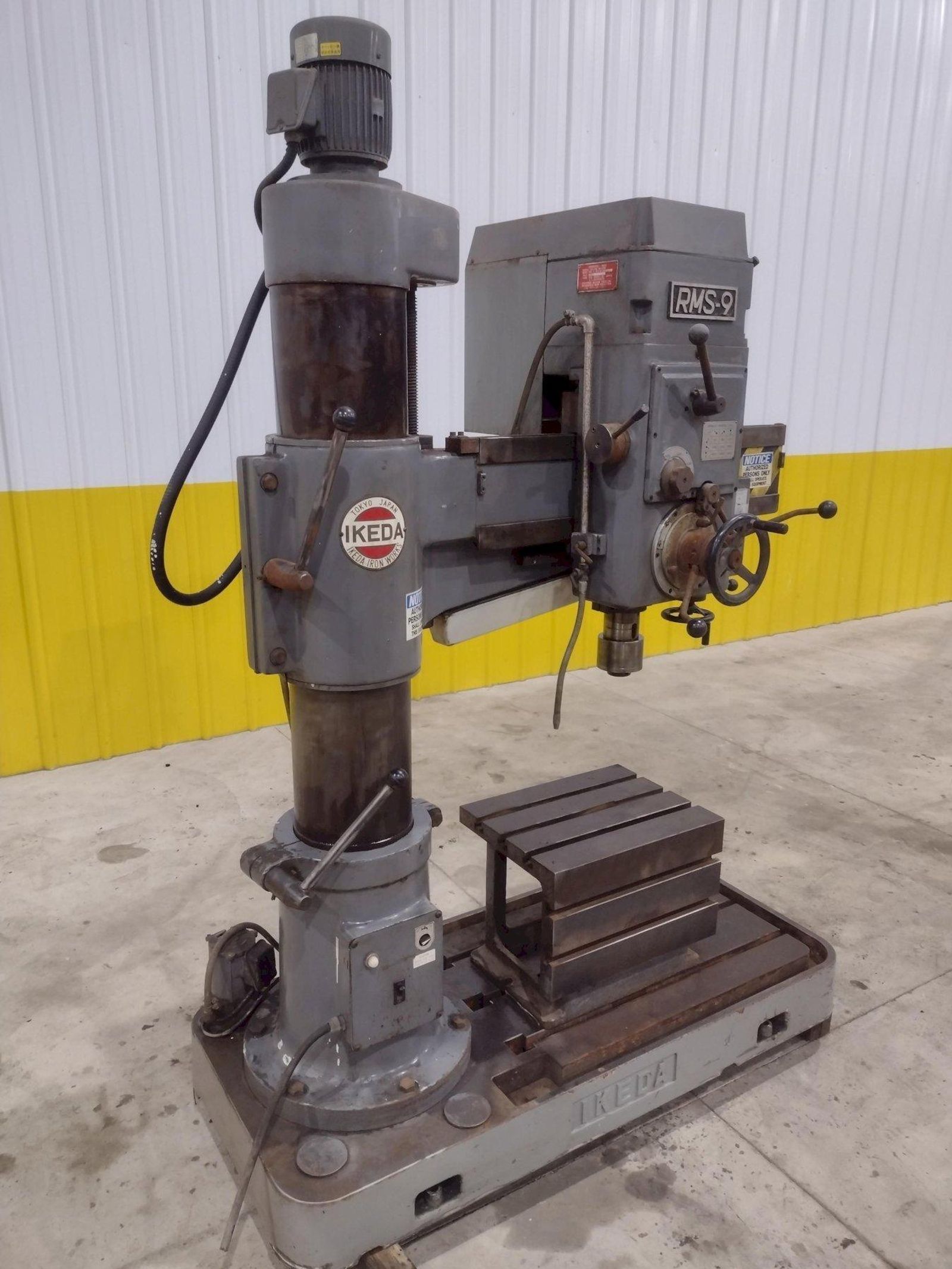

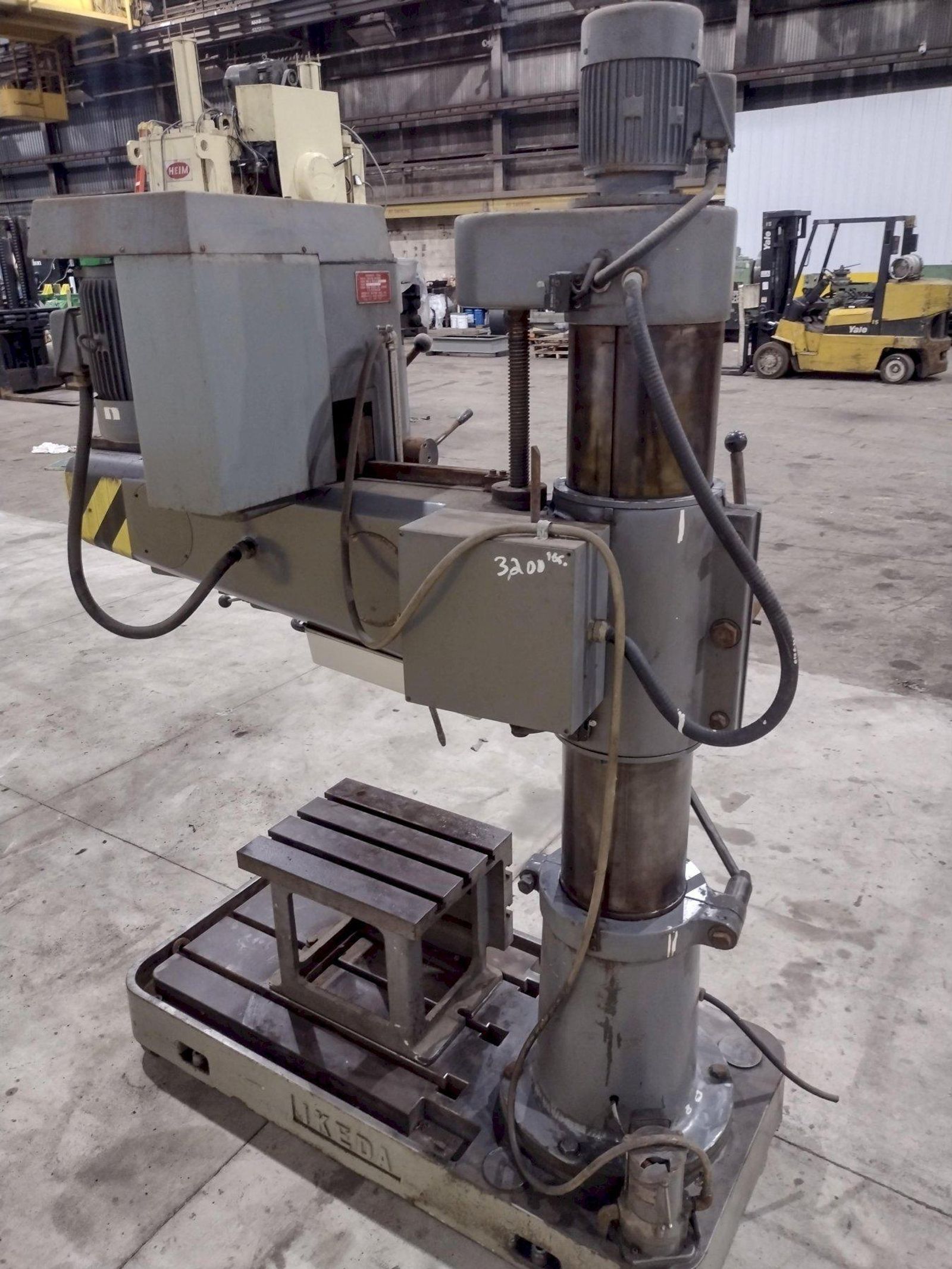

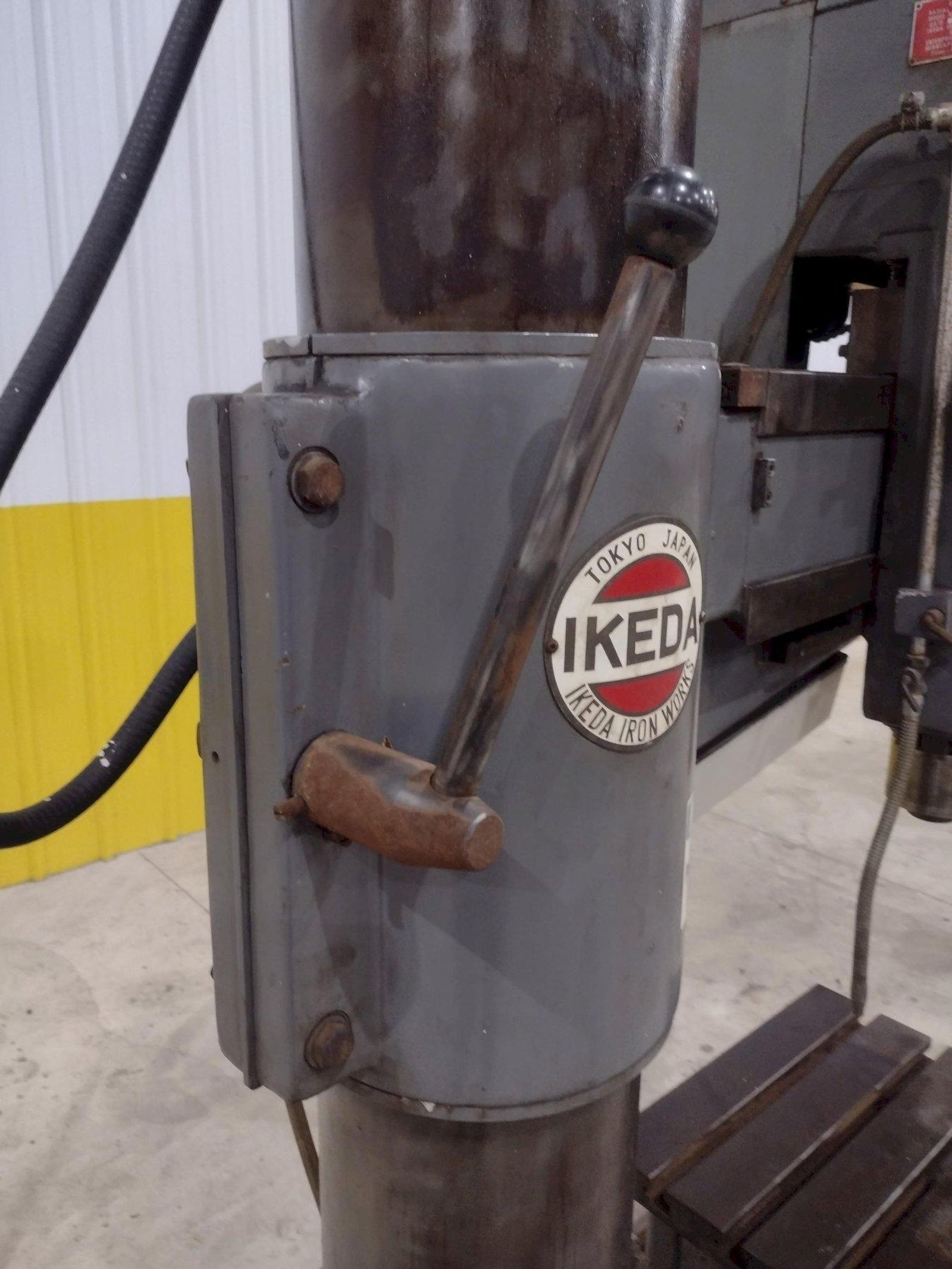

3' x 9" IKEDA MODEL #RMS9 RADIAL DRILL: STOCK #20768

Brand
IKEDA

Type
Drills, Radial

Stock No.
20768

Buy Now

Price: $3895.00

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

3' x 9" IKEDA MODEL #RMS9 RADIAL DRILL: STOCK #20768

Stock #: 20768

Equipped With

MODEL ...... RMS-9
SERIAL ..... Y 82541
YEAR ....... 1982

Arm Length 3'
Column Diameter 9"
Vertical Spindle Stroke 9"
Spindle-Nose to Base, Minimum 11.5"
Spindle-Nose to Base, Maximum 43"
Column-Face to Spindle, Minimum 11.75"
Column-Face to Spindle, Maximum 3'
Base Working Surface, W x L 23" x 37"
Base Height 6.25"
Spindle Quill Diameter  3.31"
Spindle Nose Diameter 2.25"
Spindle Taper #4 MT
(9) Spindle Speeds, Range 50 to 1500 RPM
(4) Spindle Feeds, Range .003 to .015 IPR
Motor, Horsepower 3 HP
Arm Elevating Motor  1 HP

Plain Box Table
Tapping Capabilities
Plain Type Base
Power Arm Elevation
Coolant System (Built-In Base)
