Brand
Not Specified
Type
Beam Cambering Machines
Stock No.
24412
 |
419-269-2000 |
Stock #: 24412

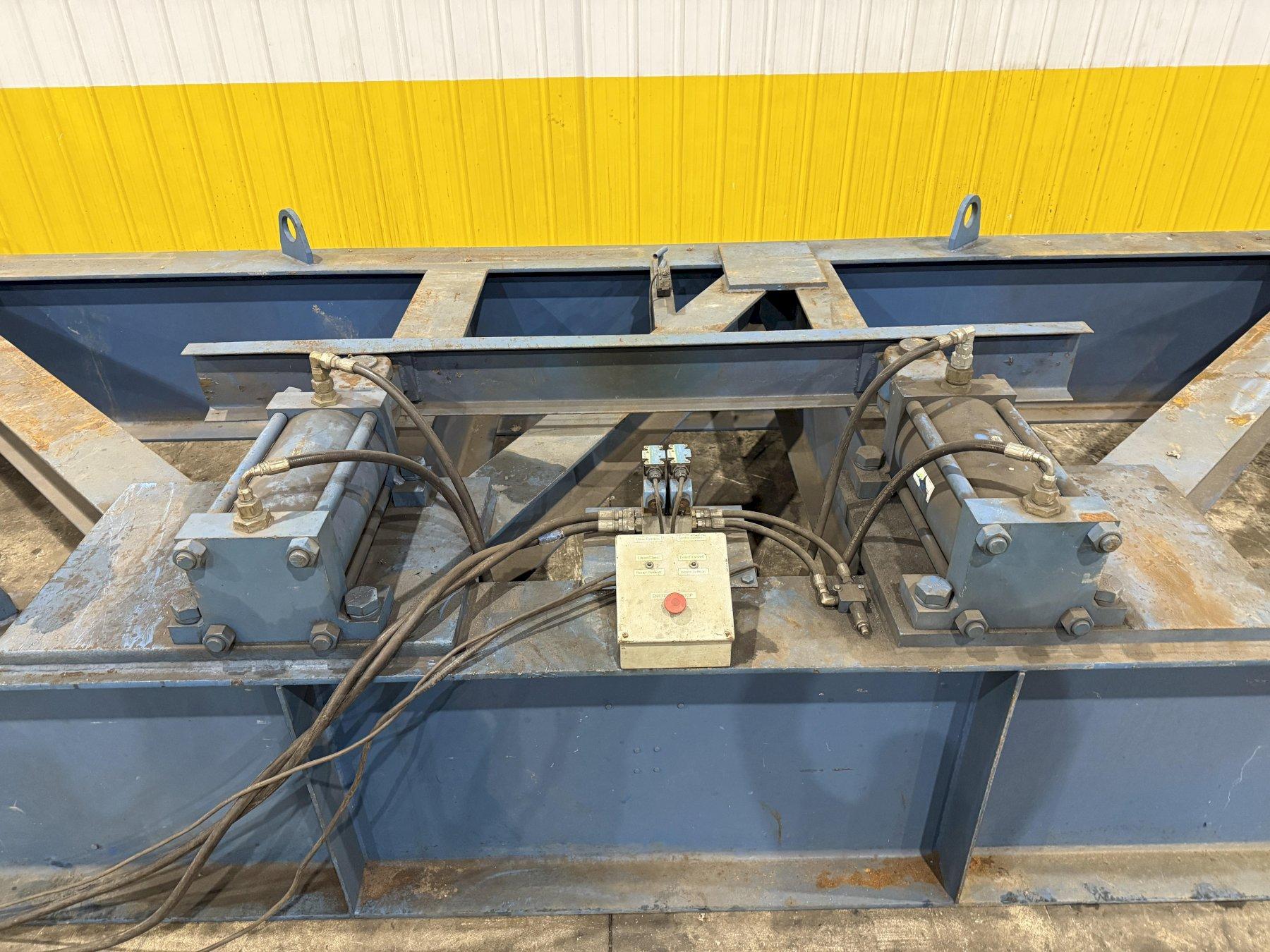

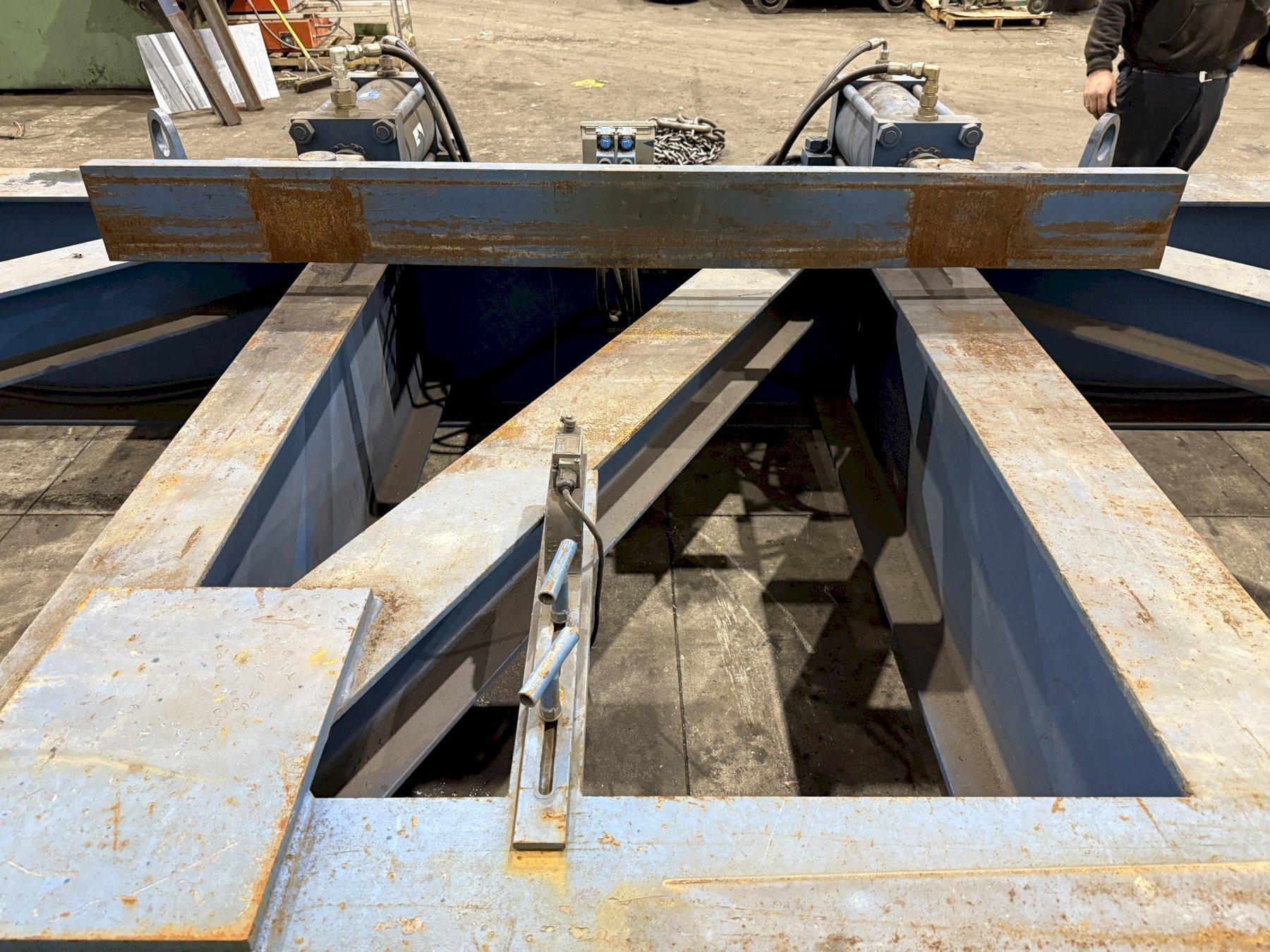

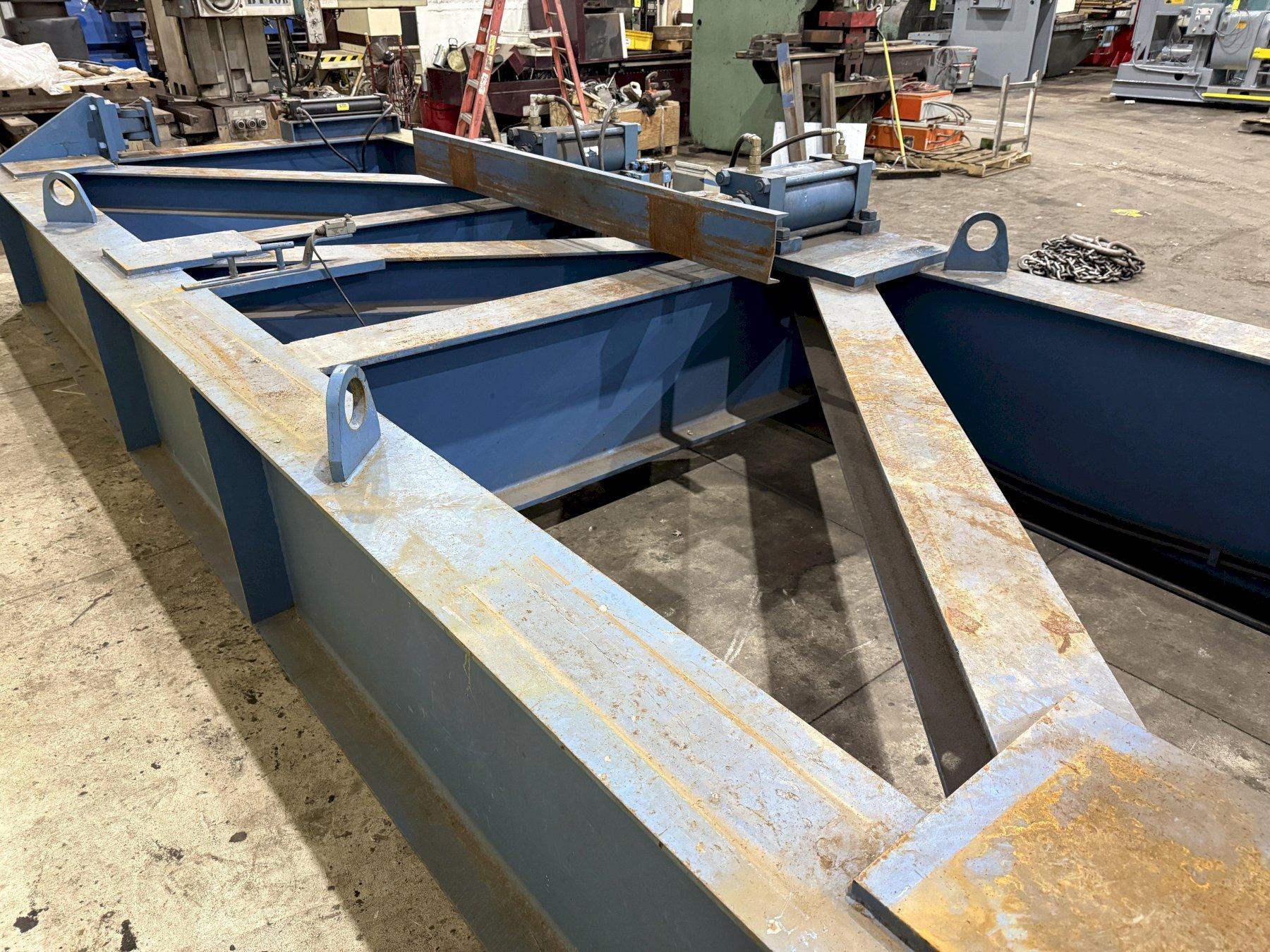

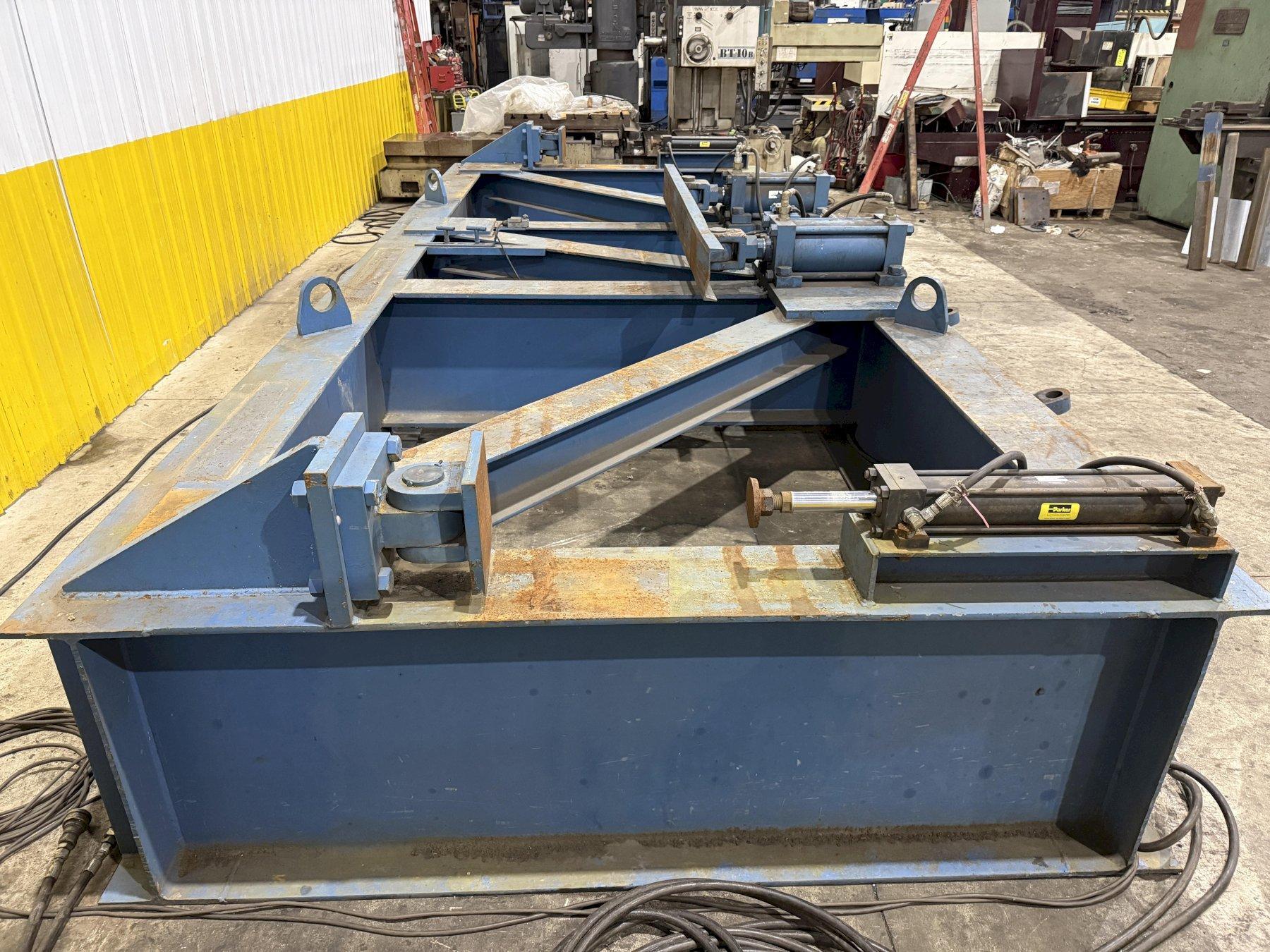

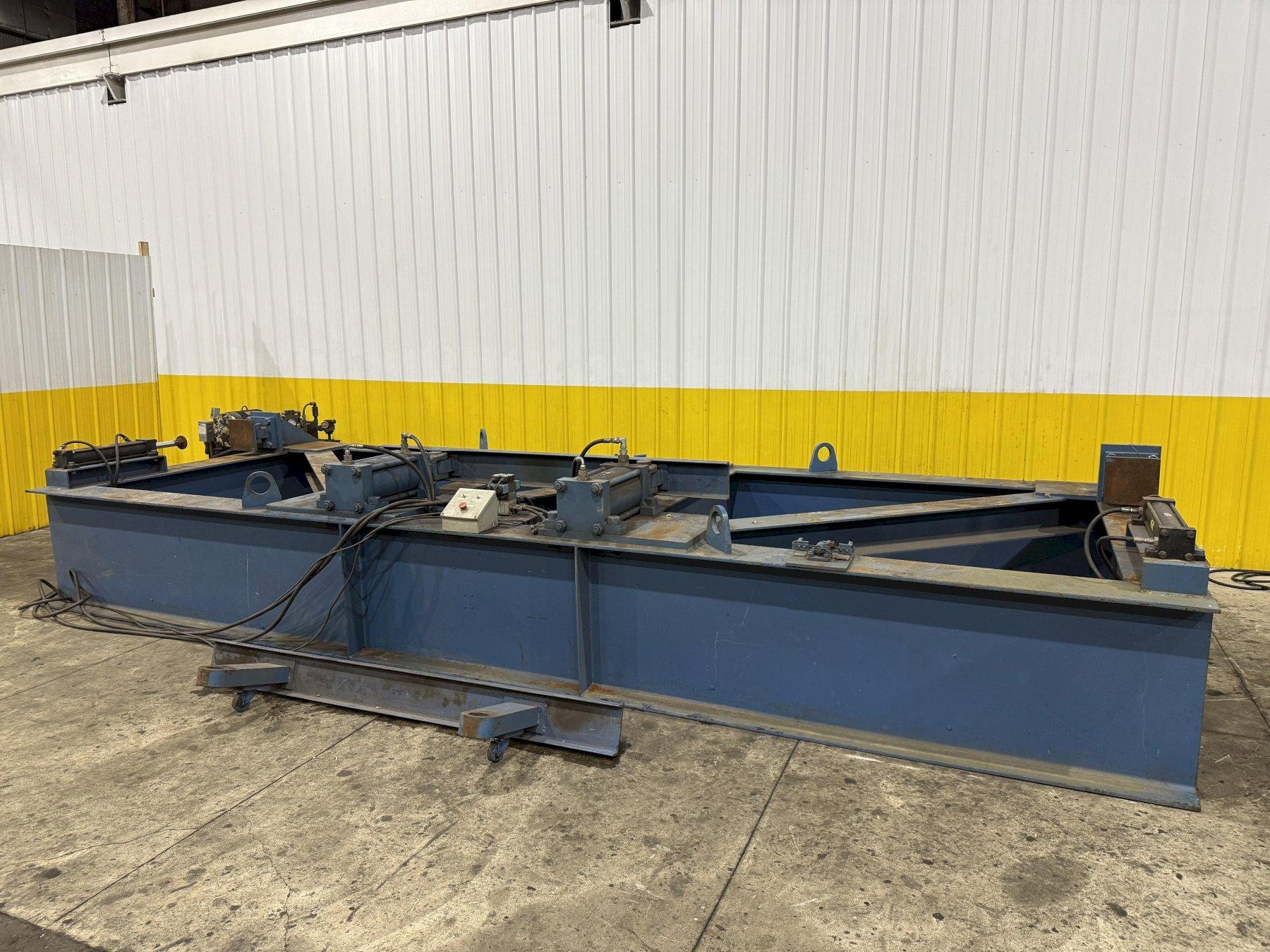

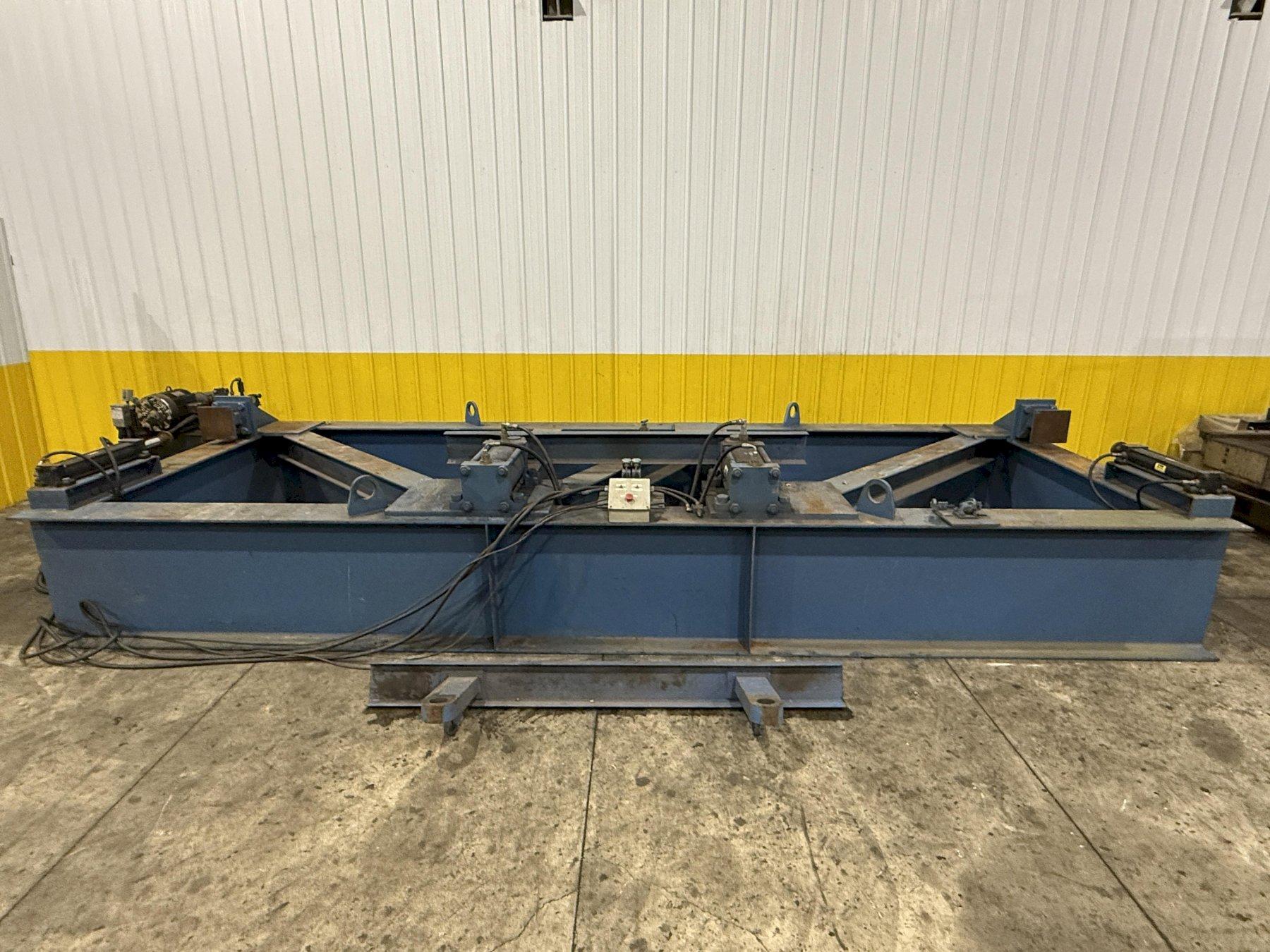

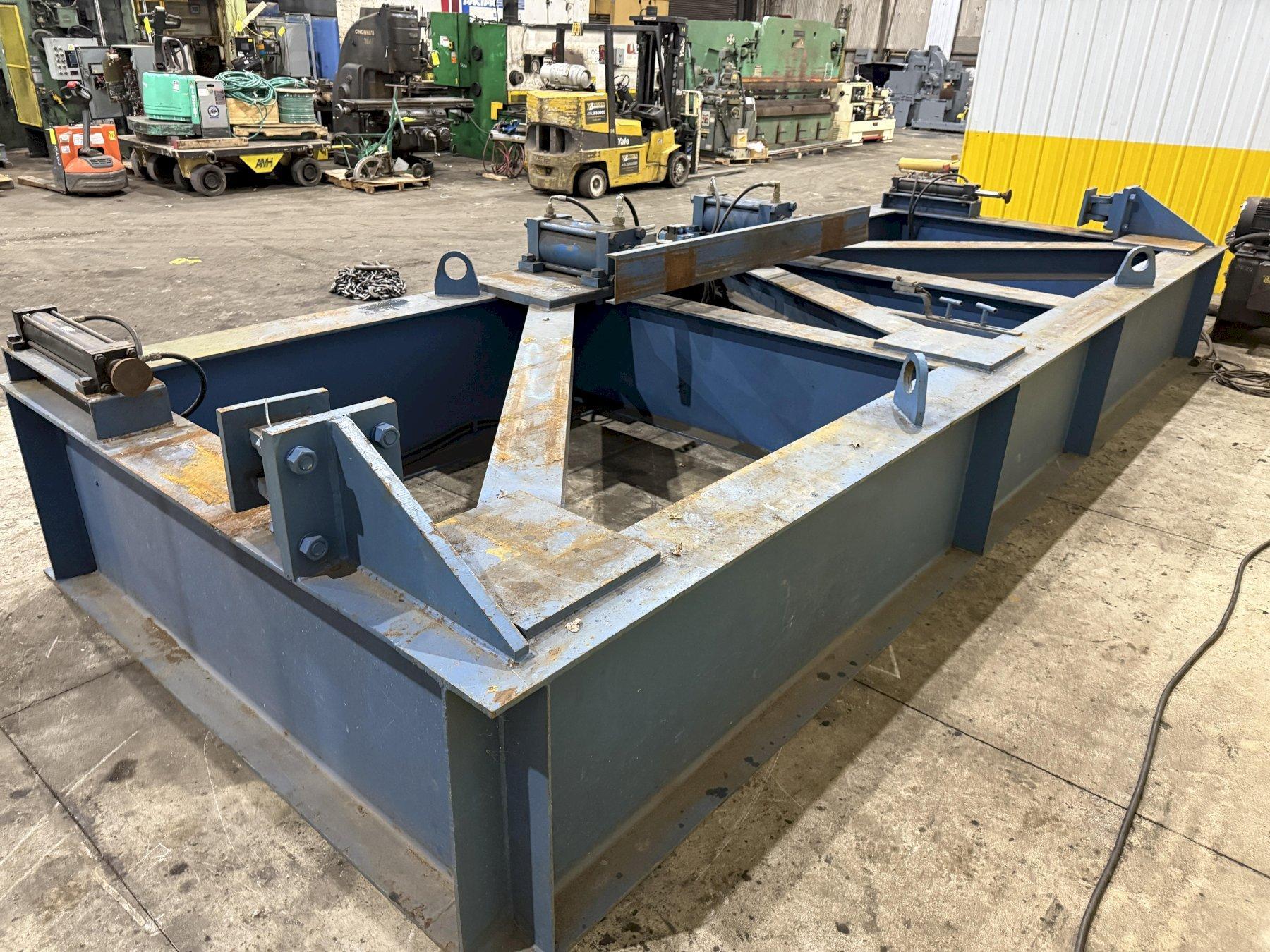

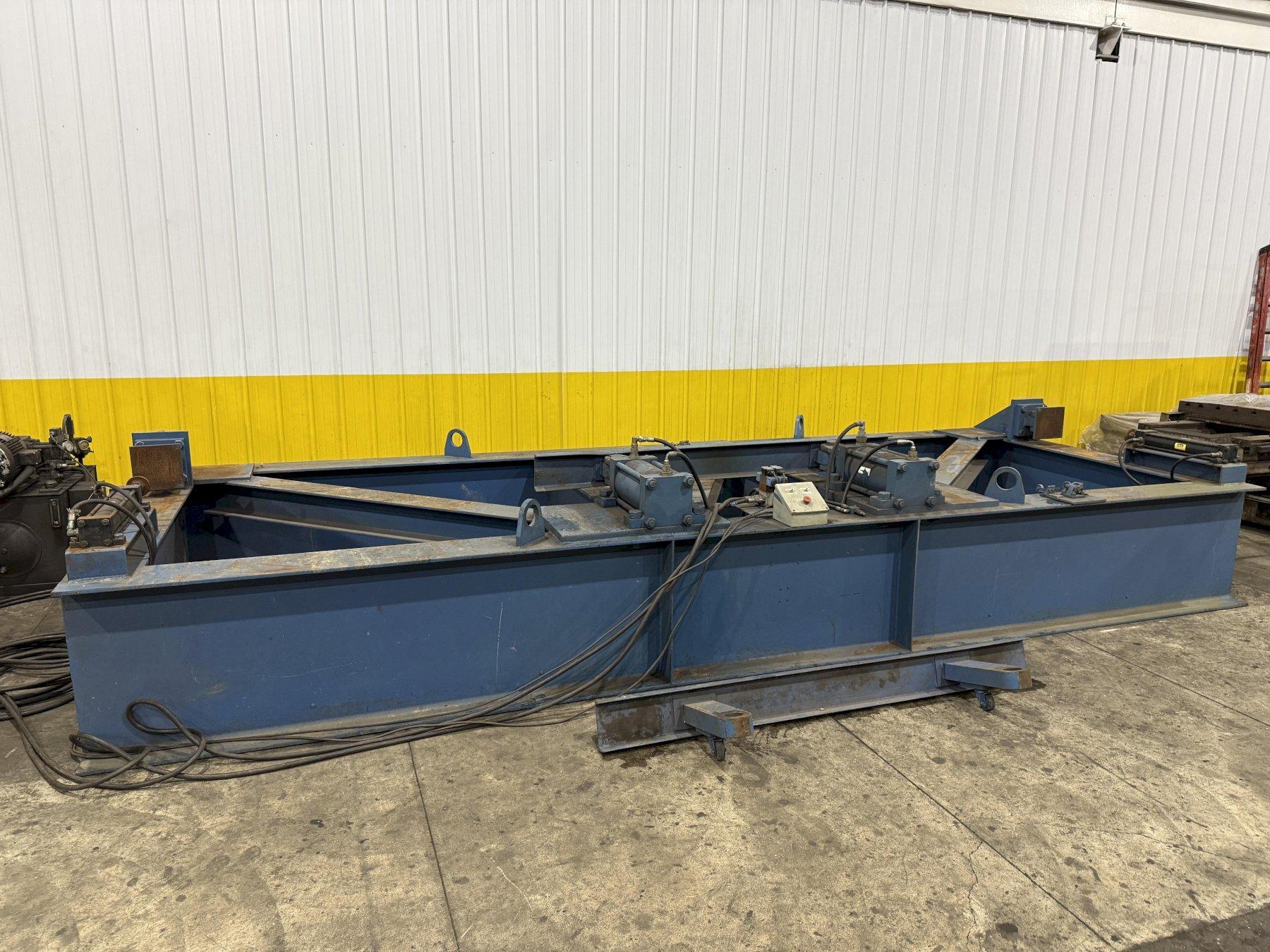

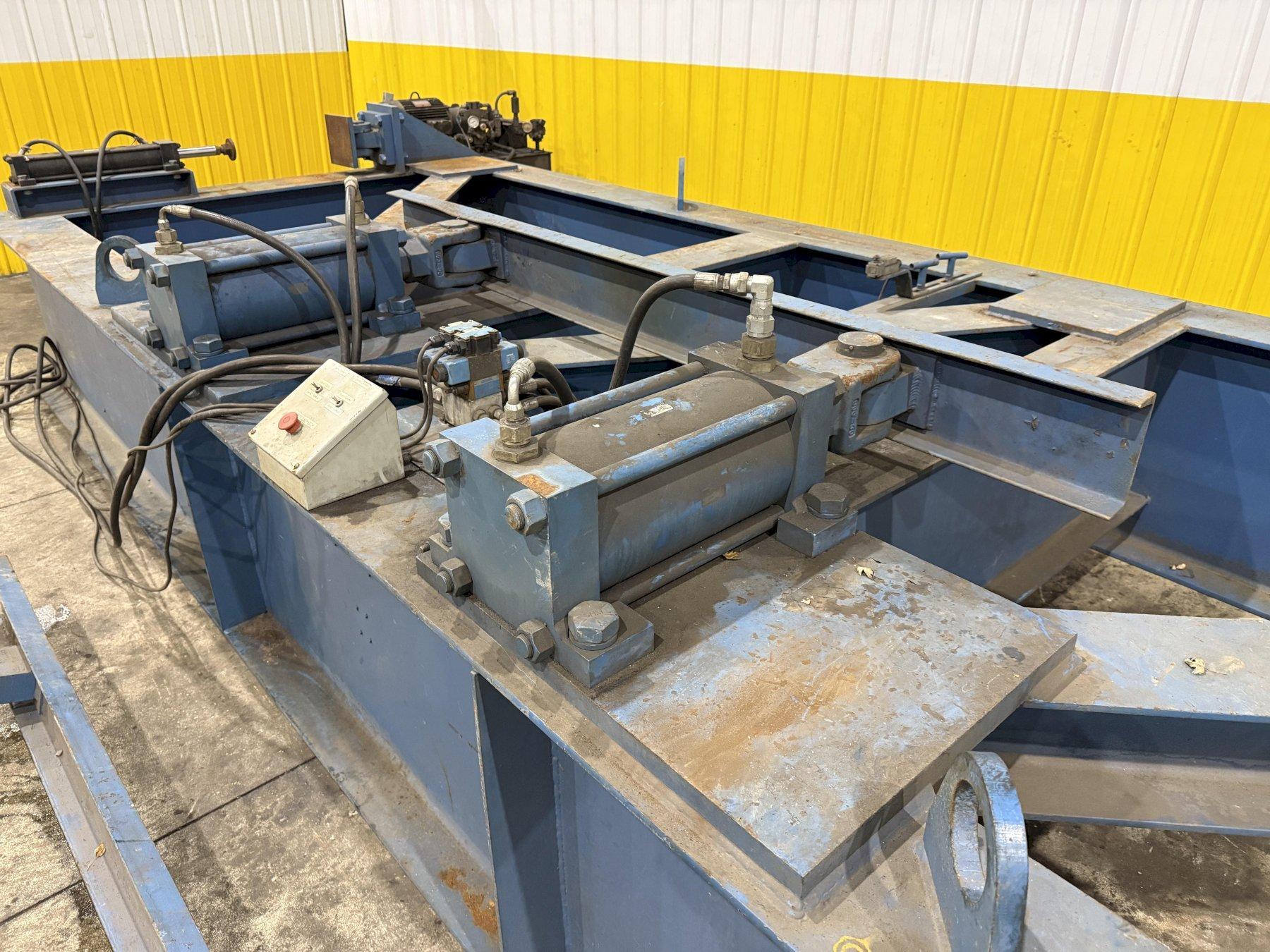

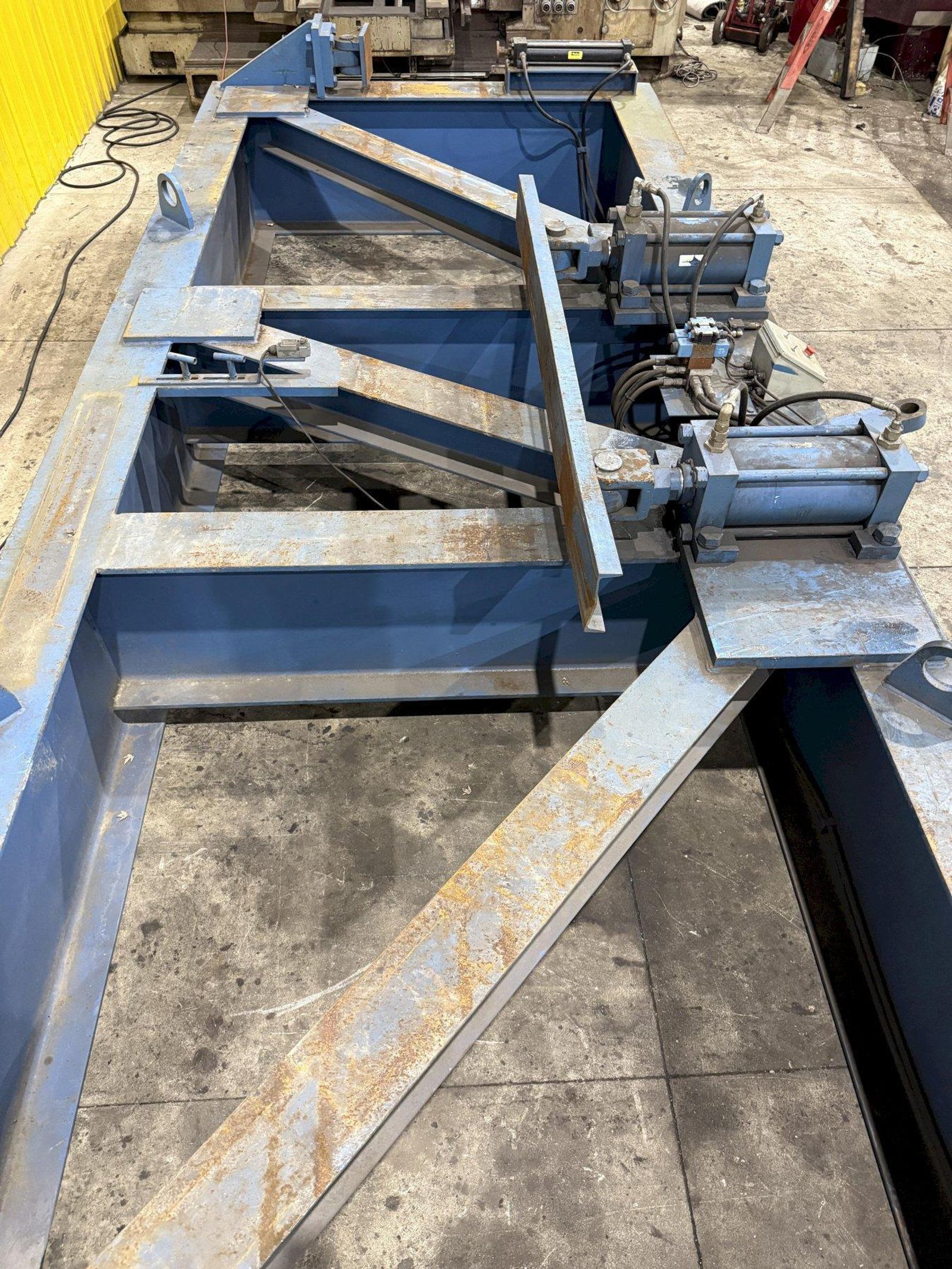

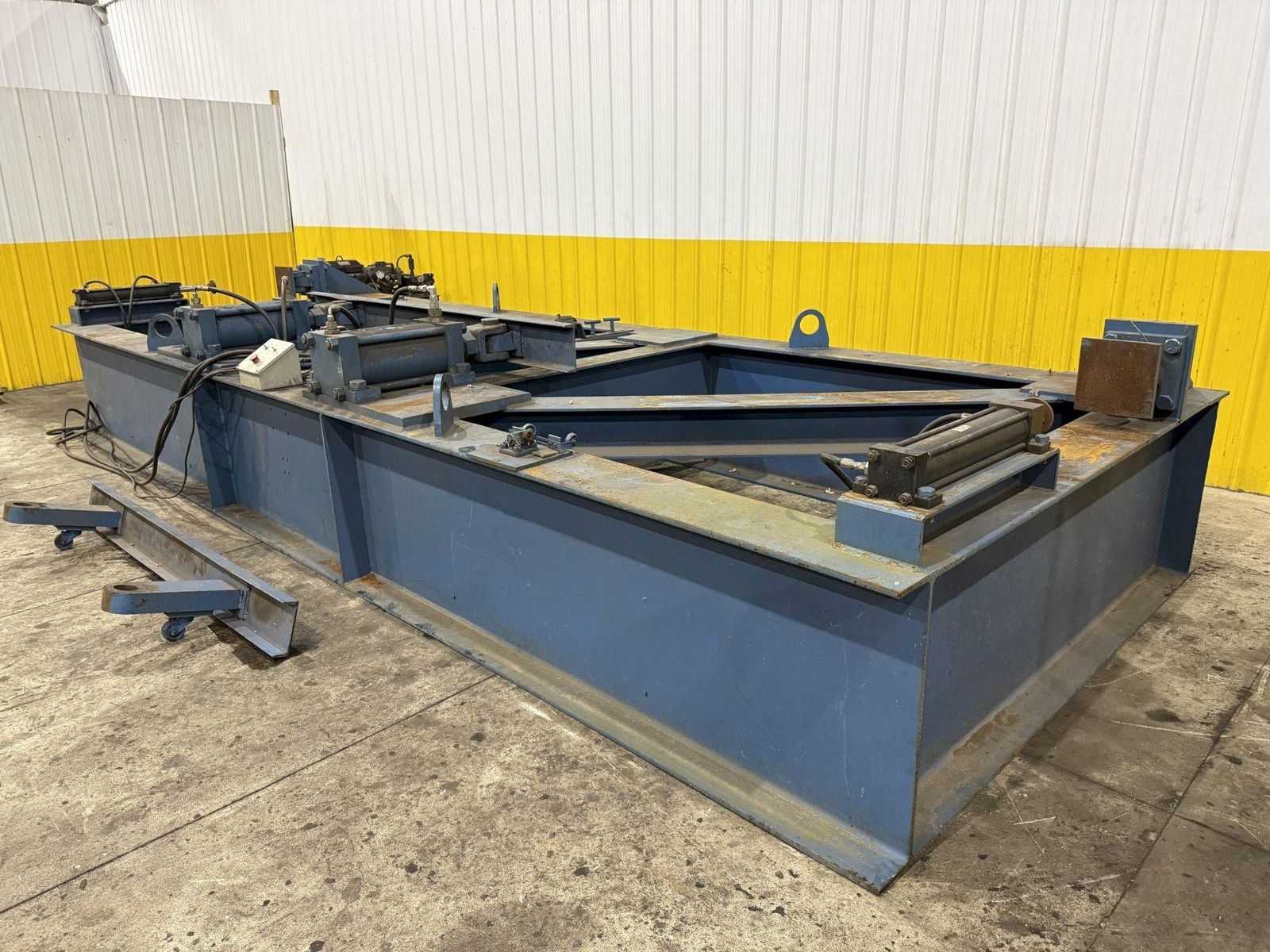

I-BEAM FRAME STRUCTURE:

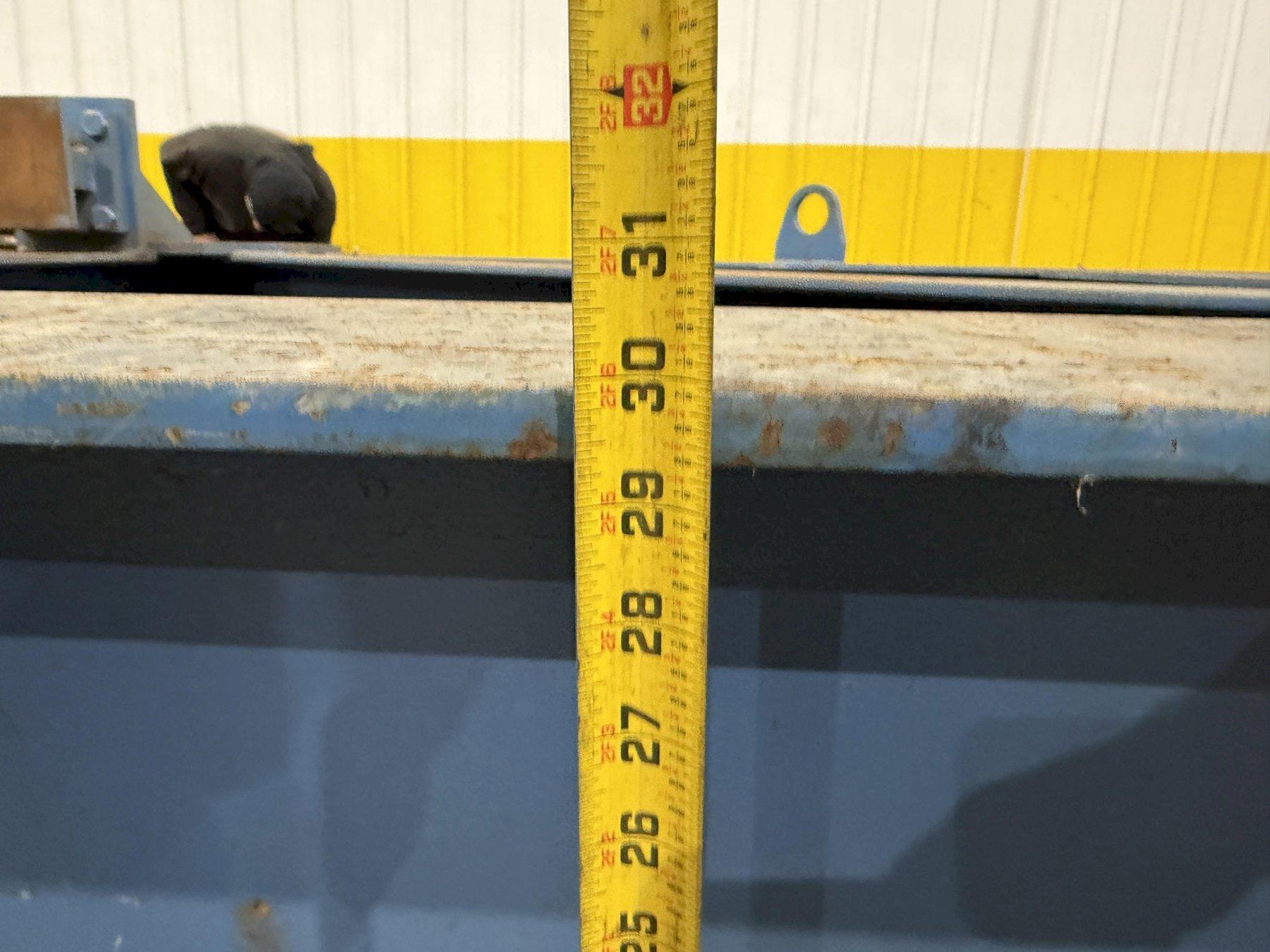

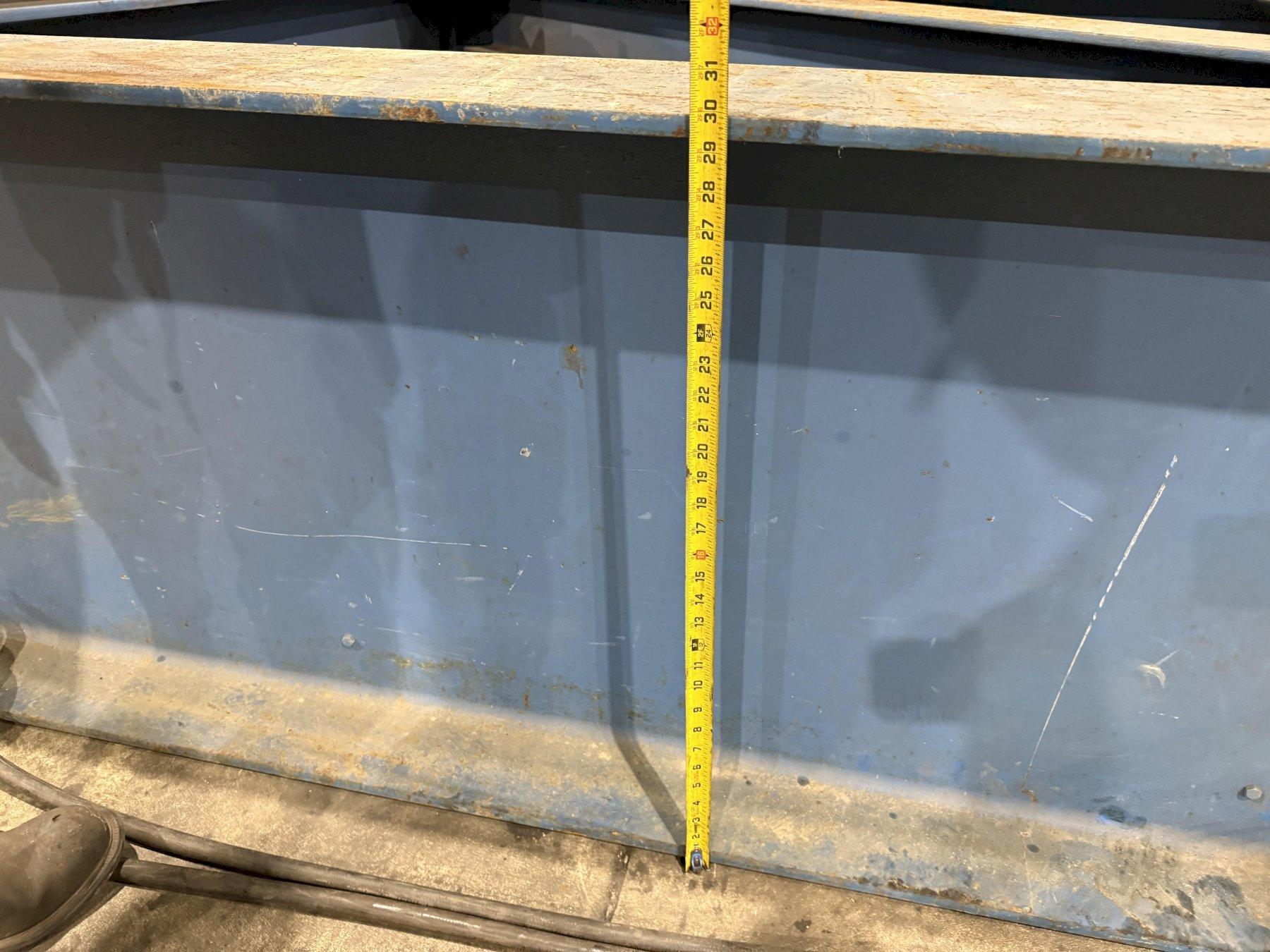

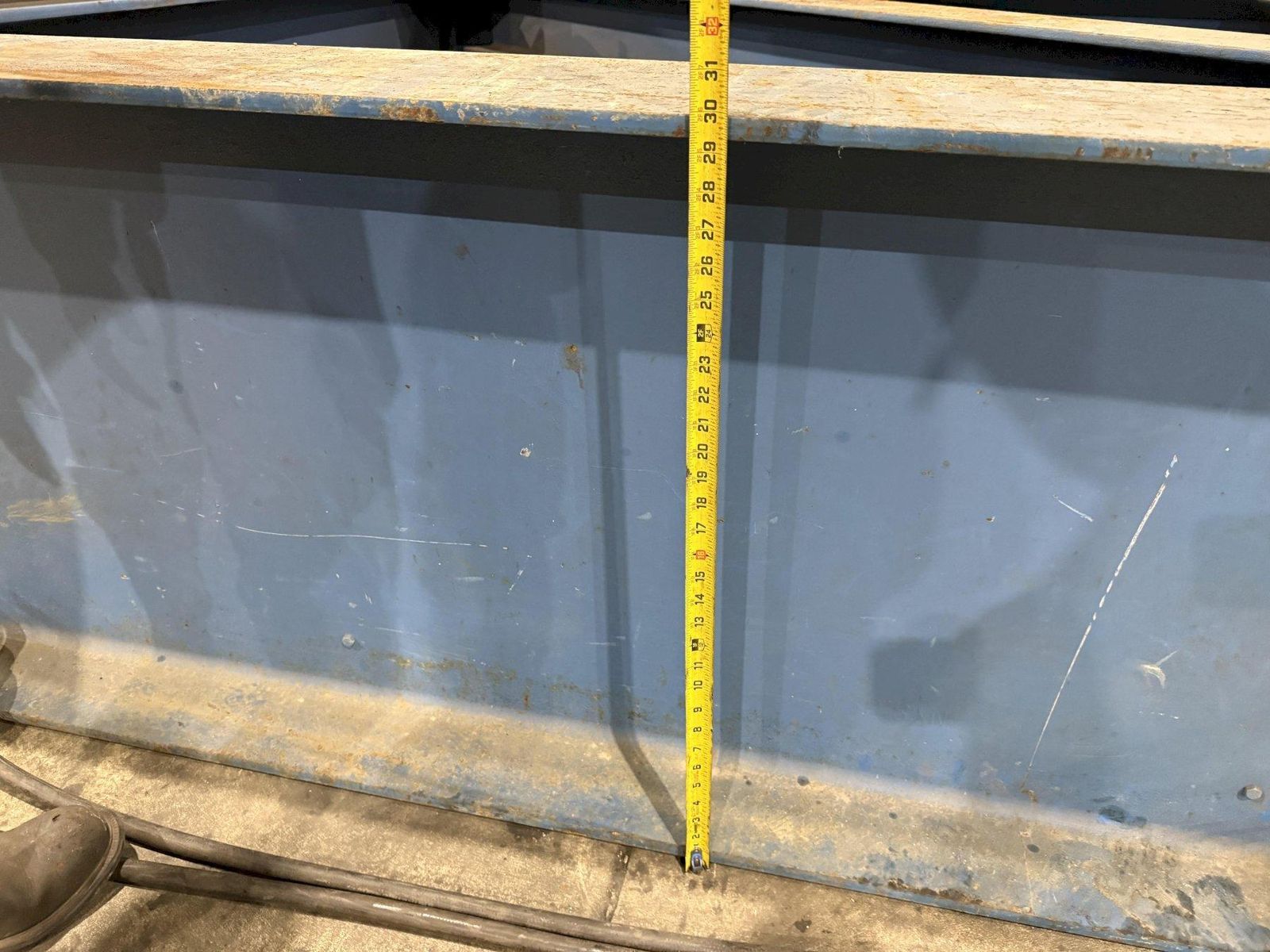

HEIGHT ........................ 30"

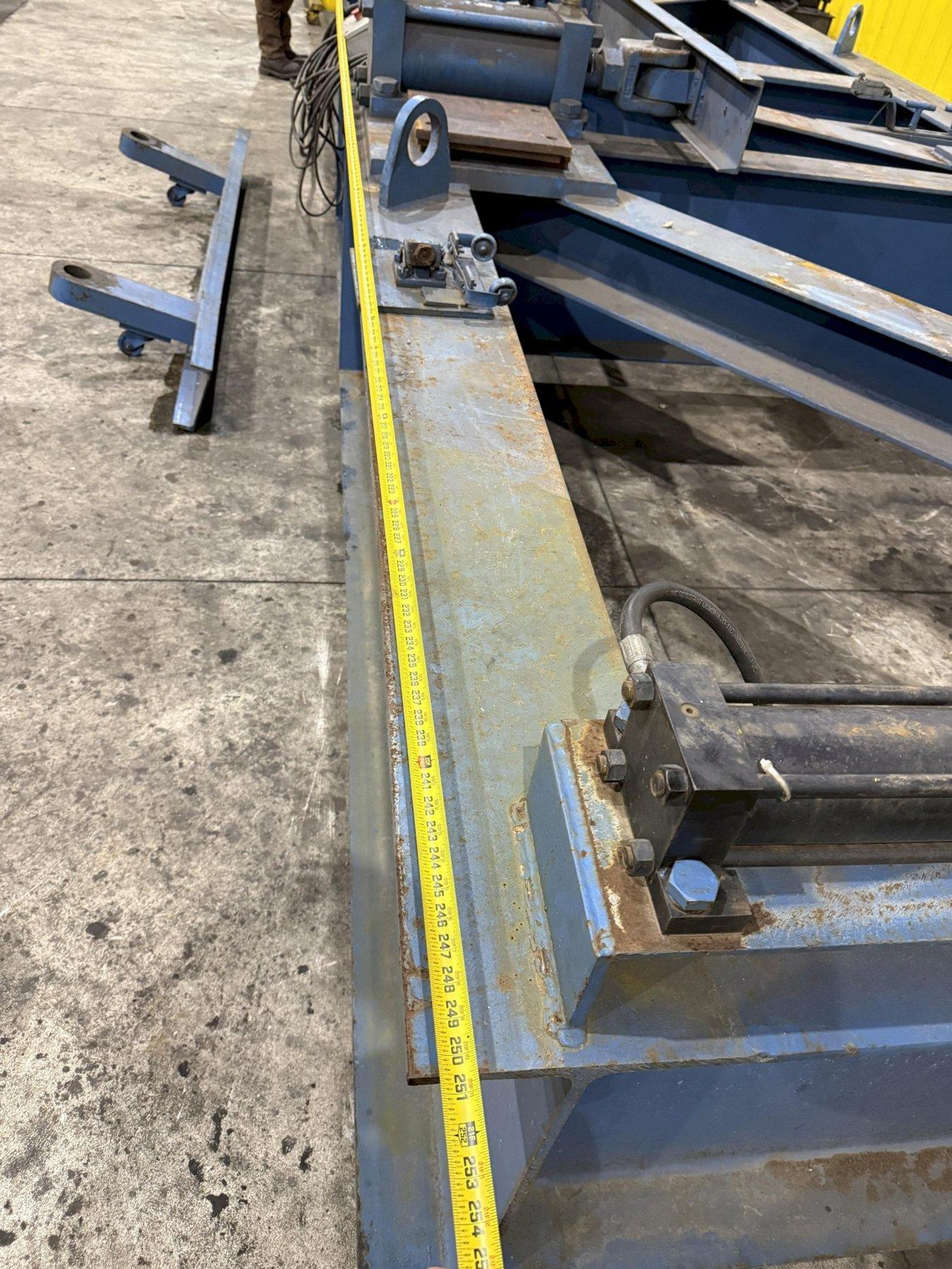

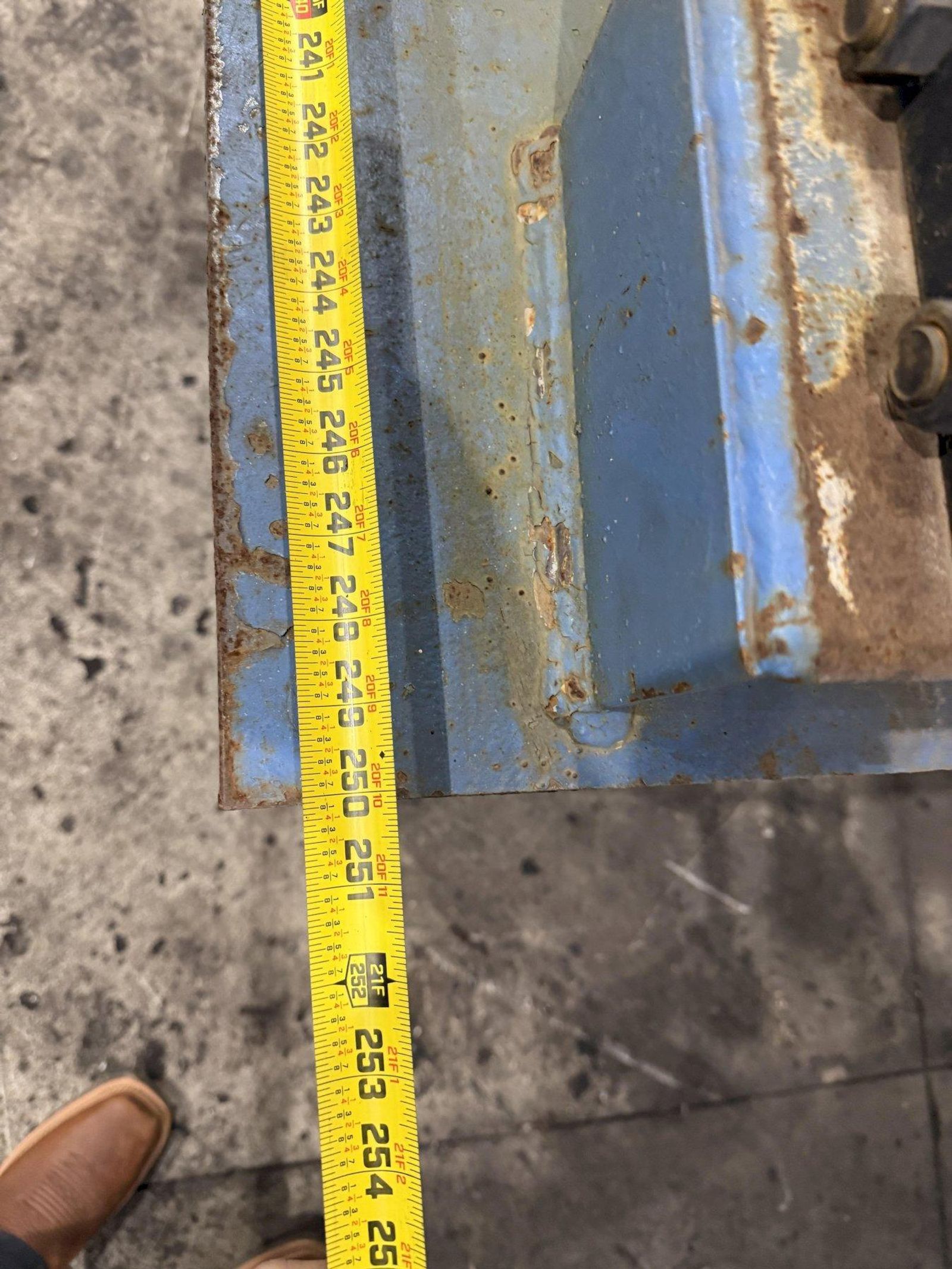

LENGTH ........................ 252" (21')

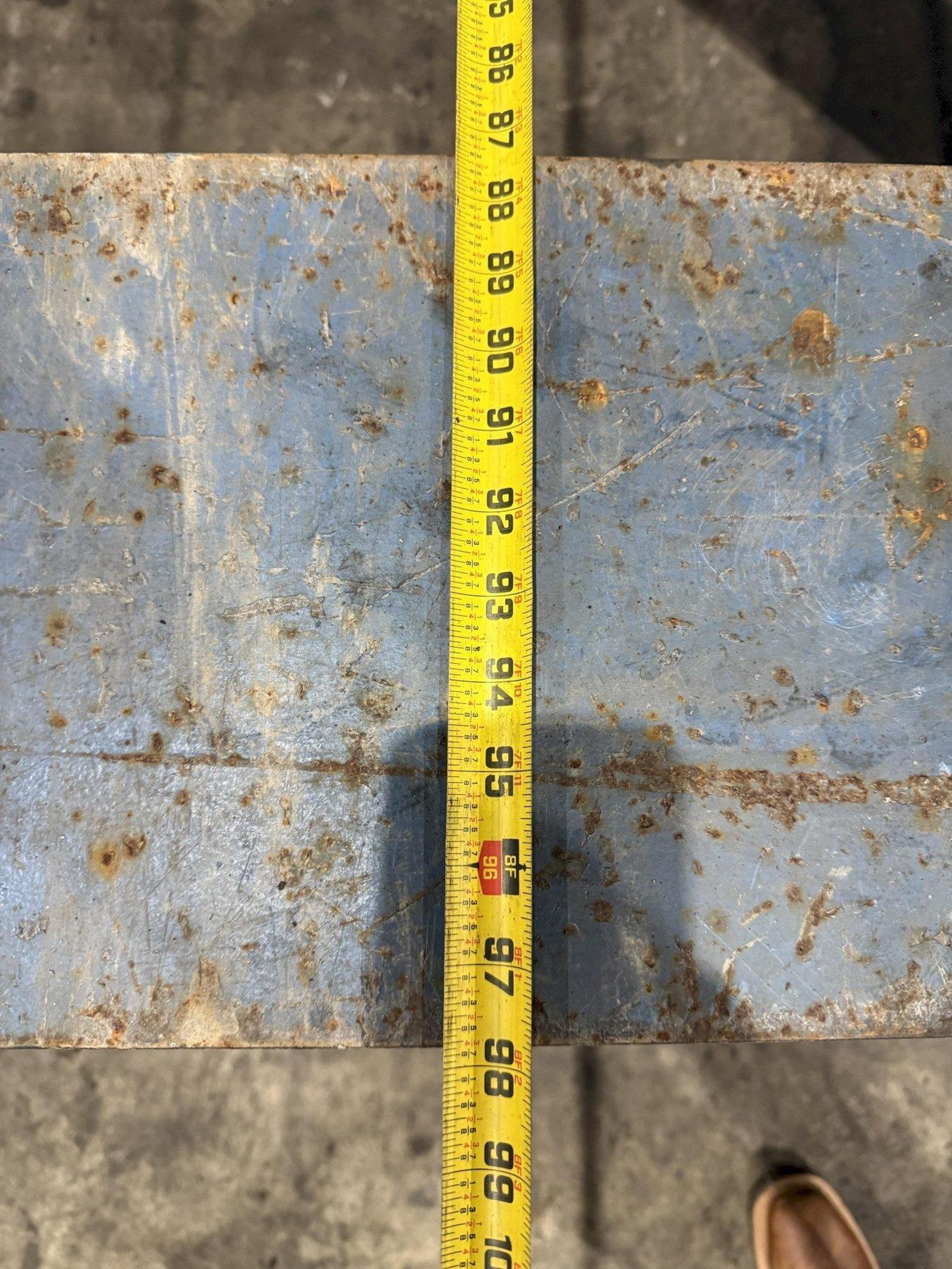

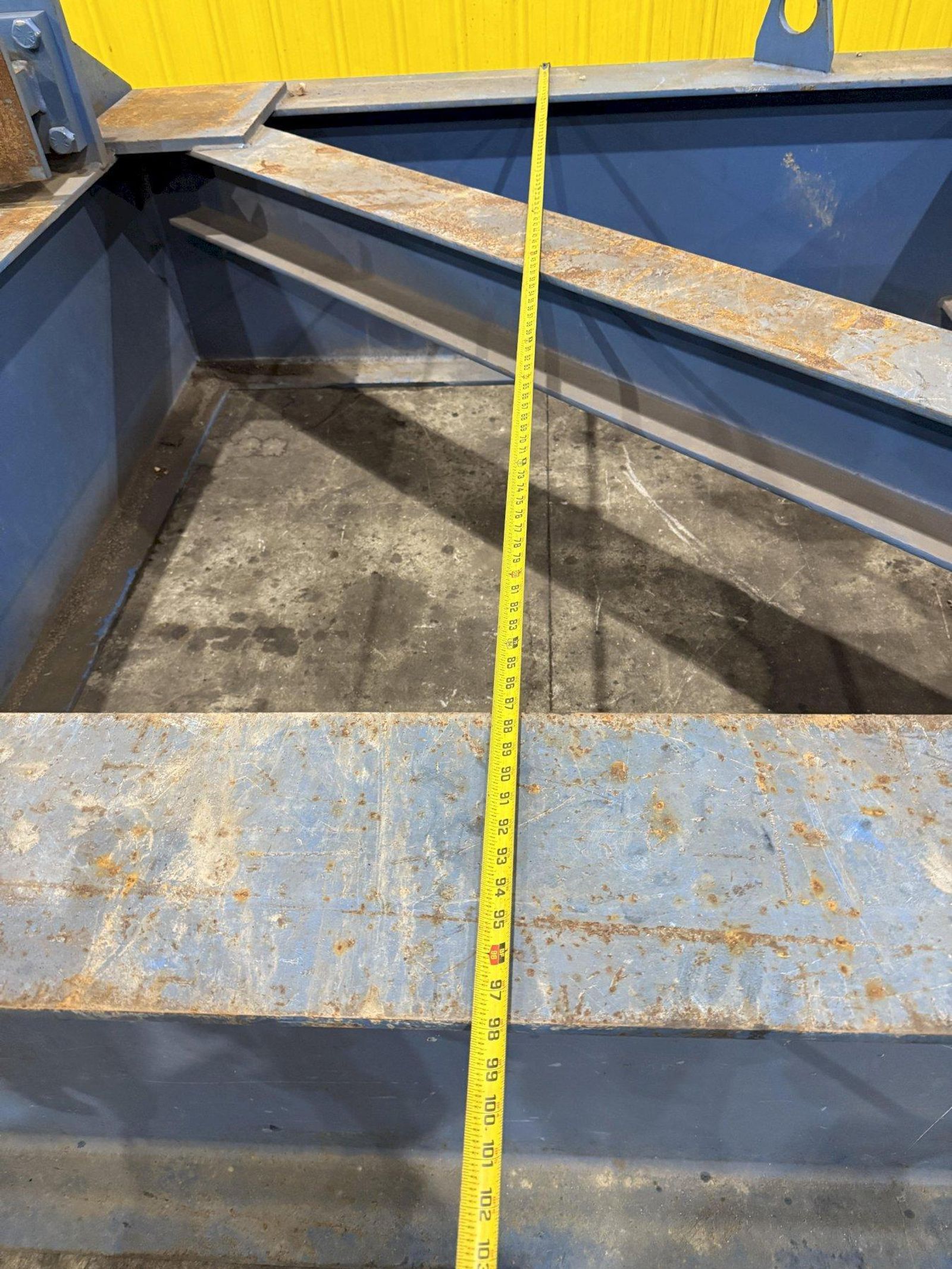

WIDTH ......................... 98"
LIFTING POINTS ................ YES
RAM PUSHER ATTACHMENTS ........ 2, SHORT & LONG

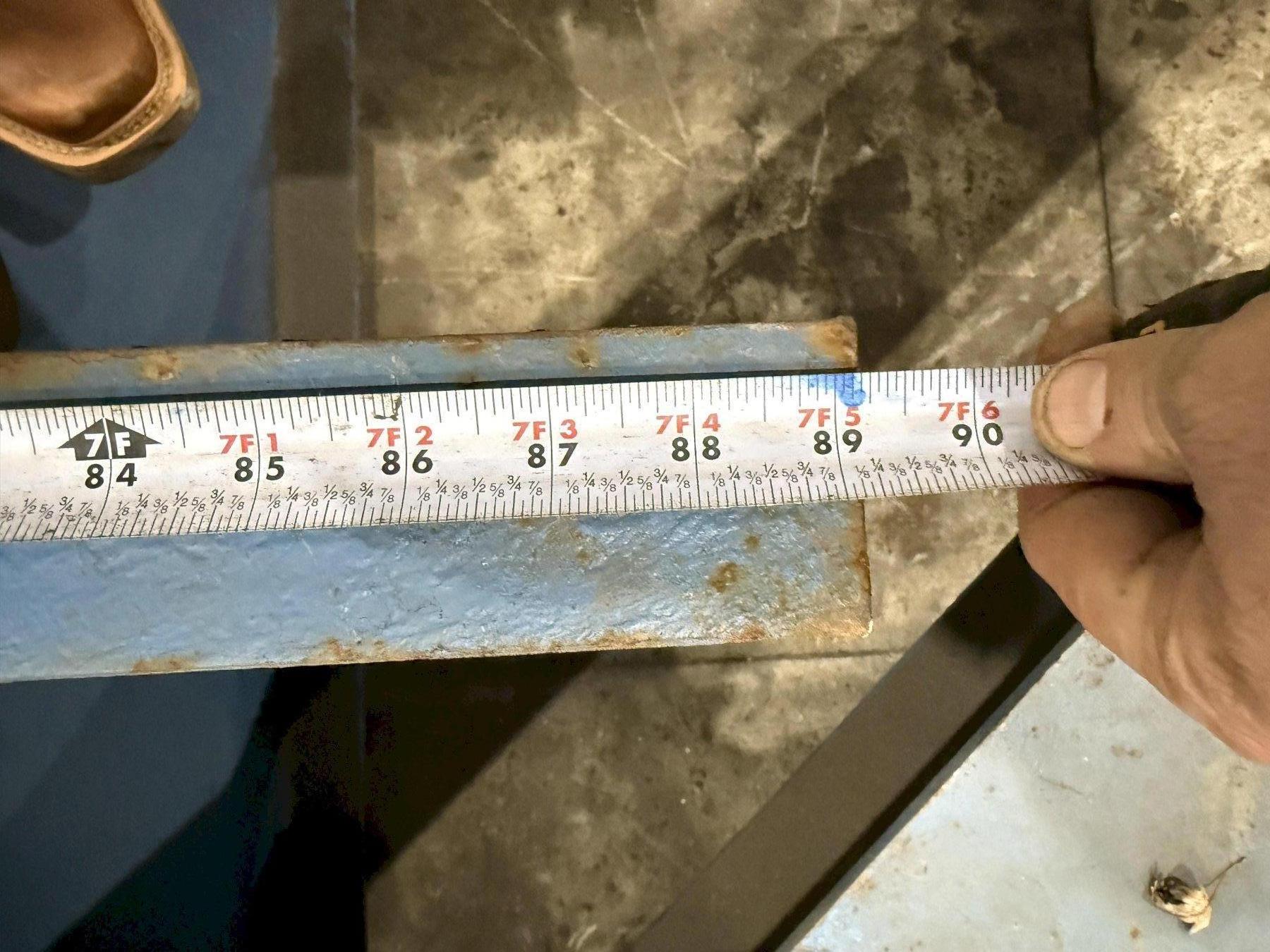

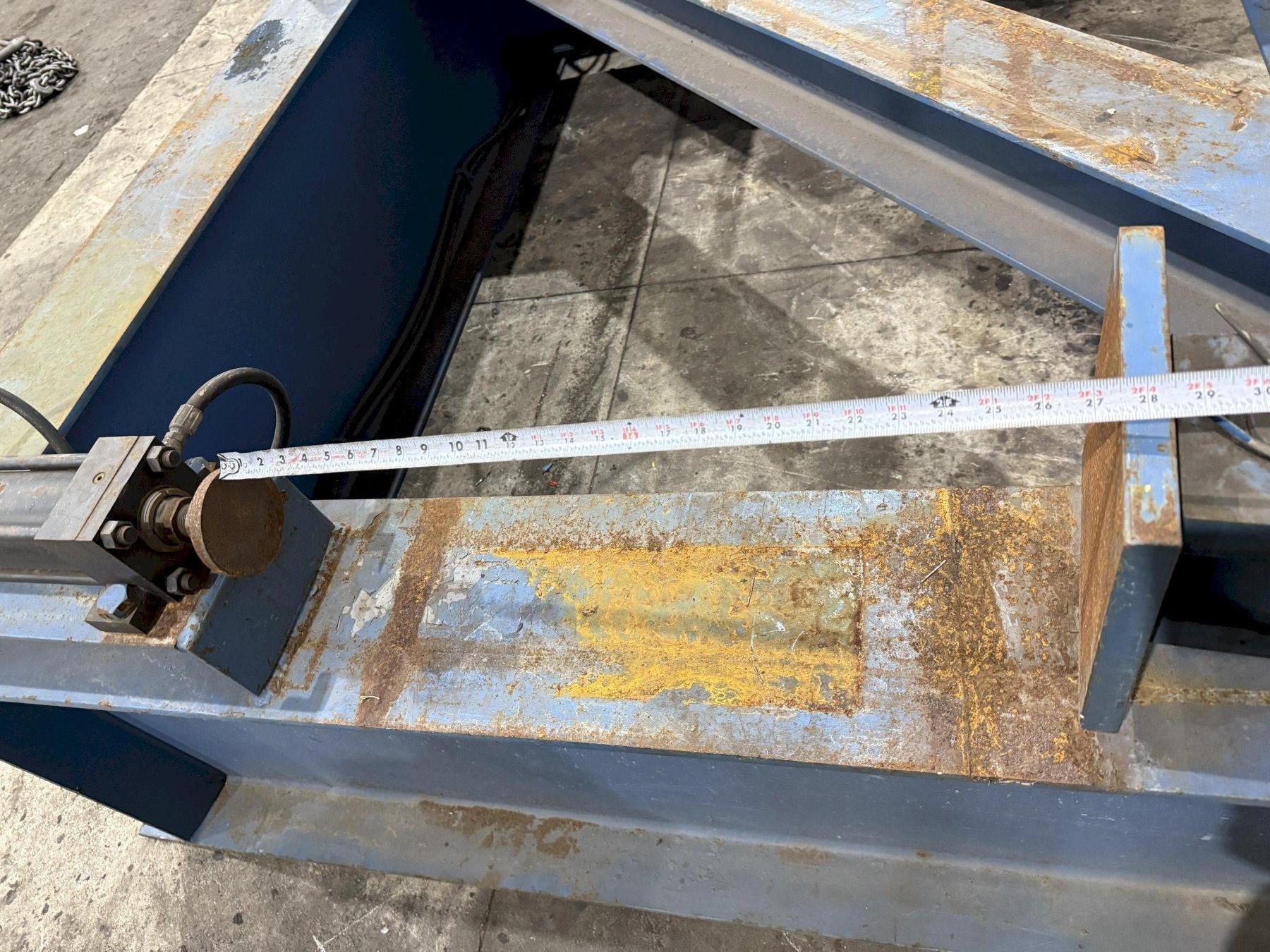

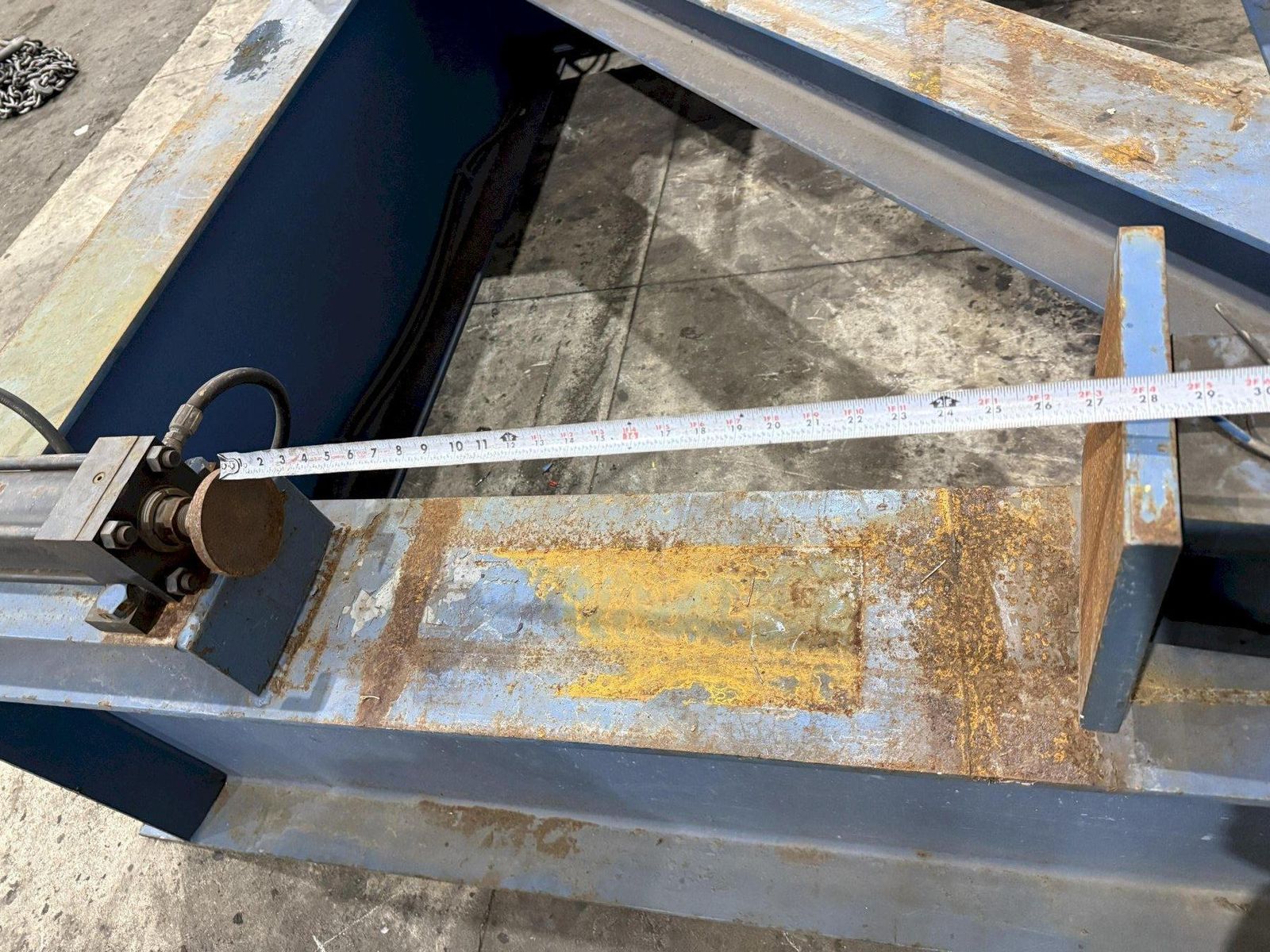

PUSHER ATTACHMENT LENGTH ...... 89"

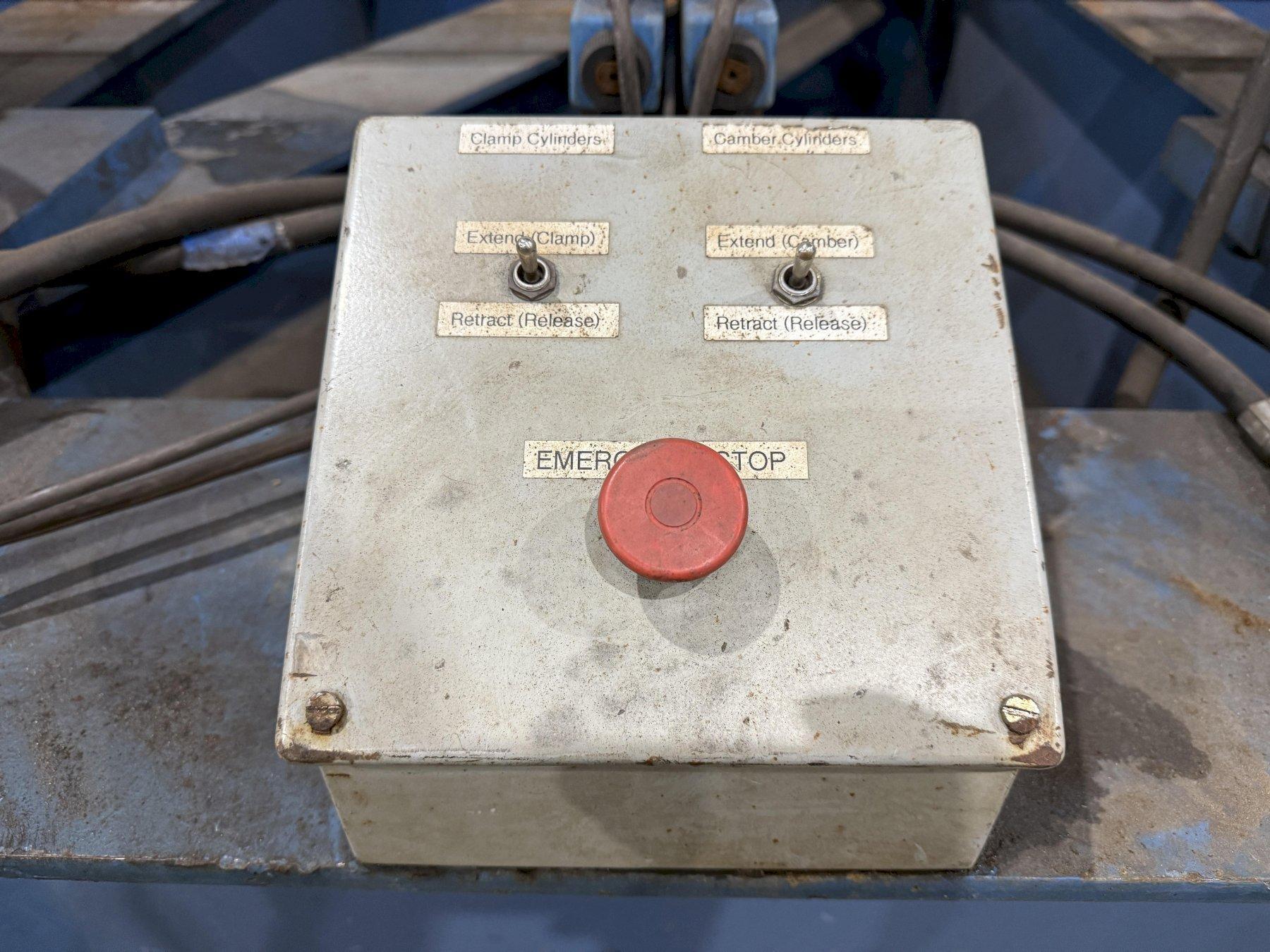

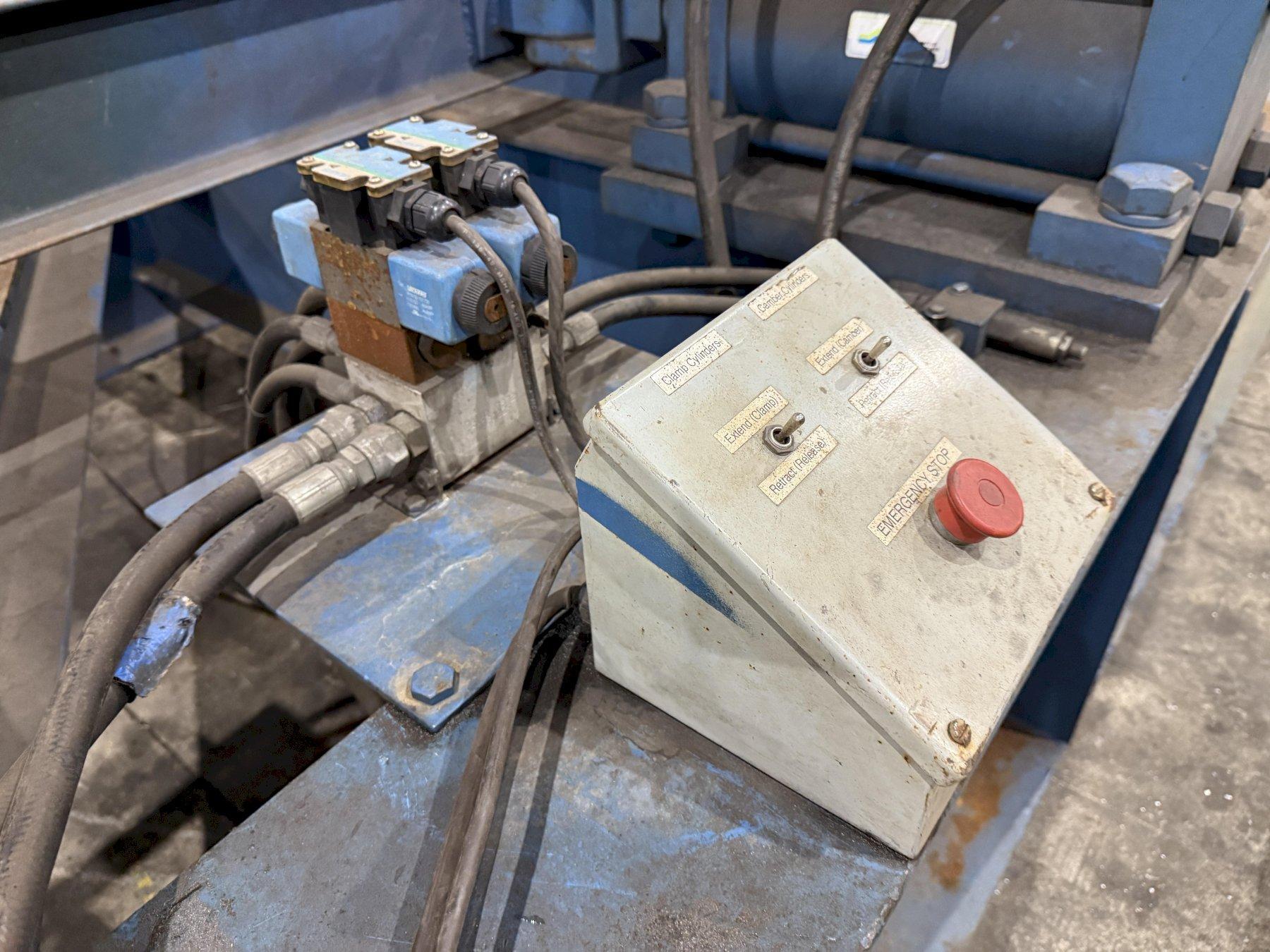

OPERATOR CONTROLS:
CLAMP CYLINDERS ............... EXTEND / RETRACT
CAMBER CYLINDERS .............. EXTEND / RETRACT
EMERGENCY STOP BUTTON ......... YES
MOUNTED ON MACHINE ............ YES

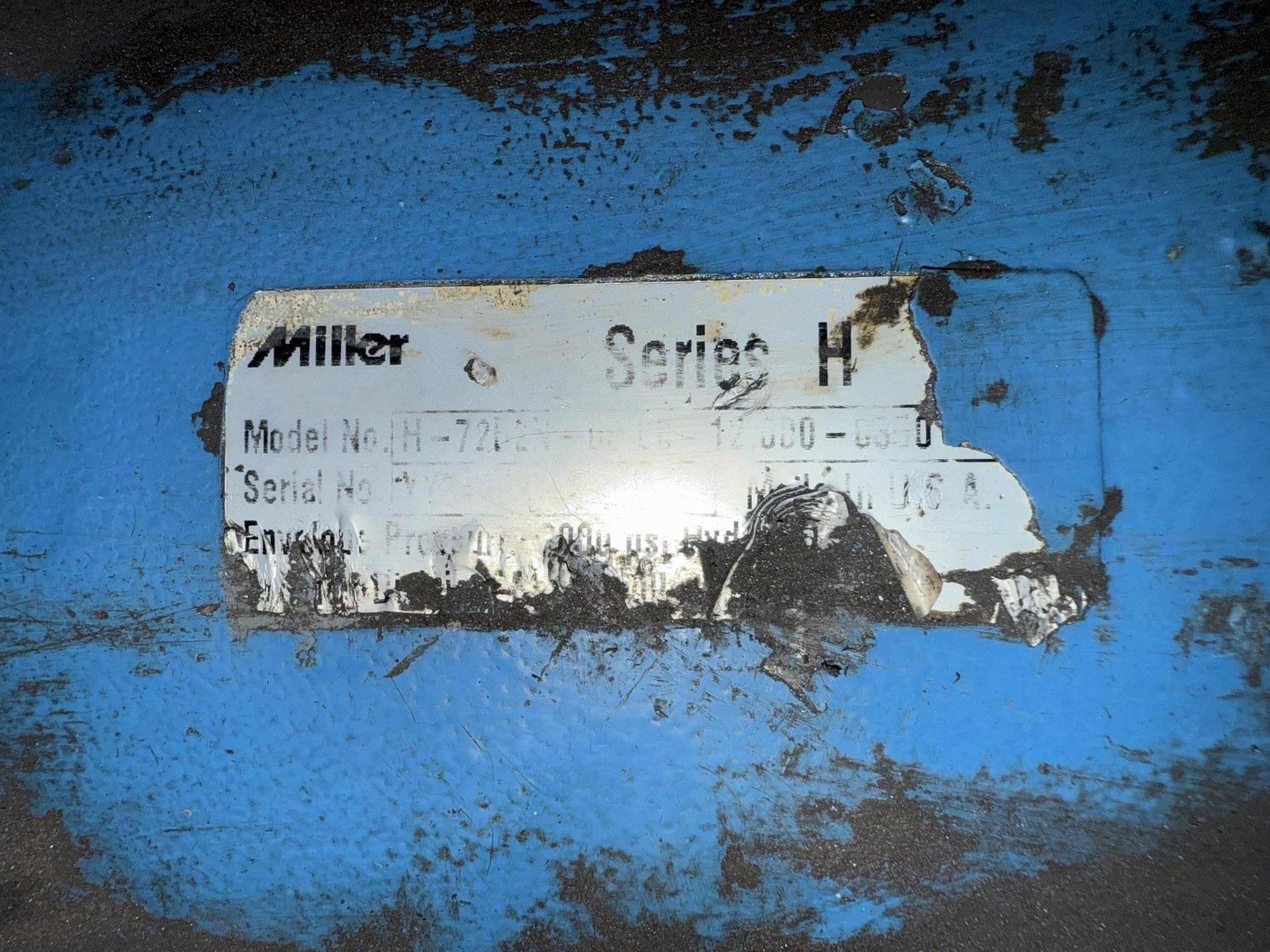

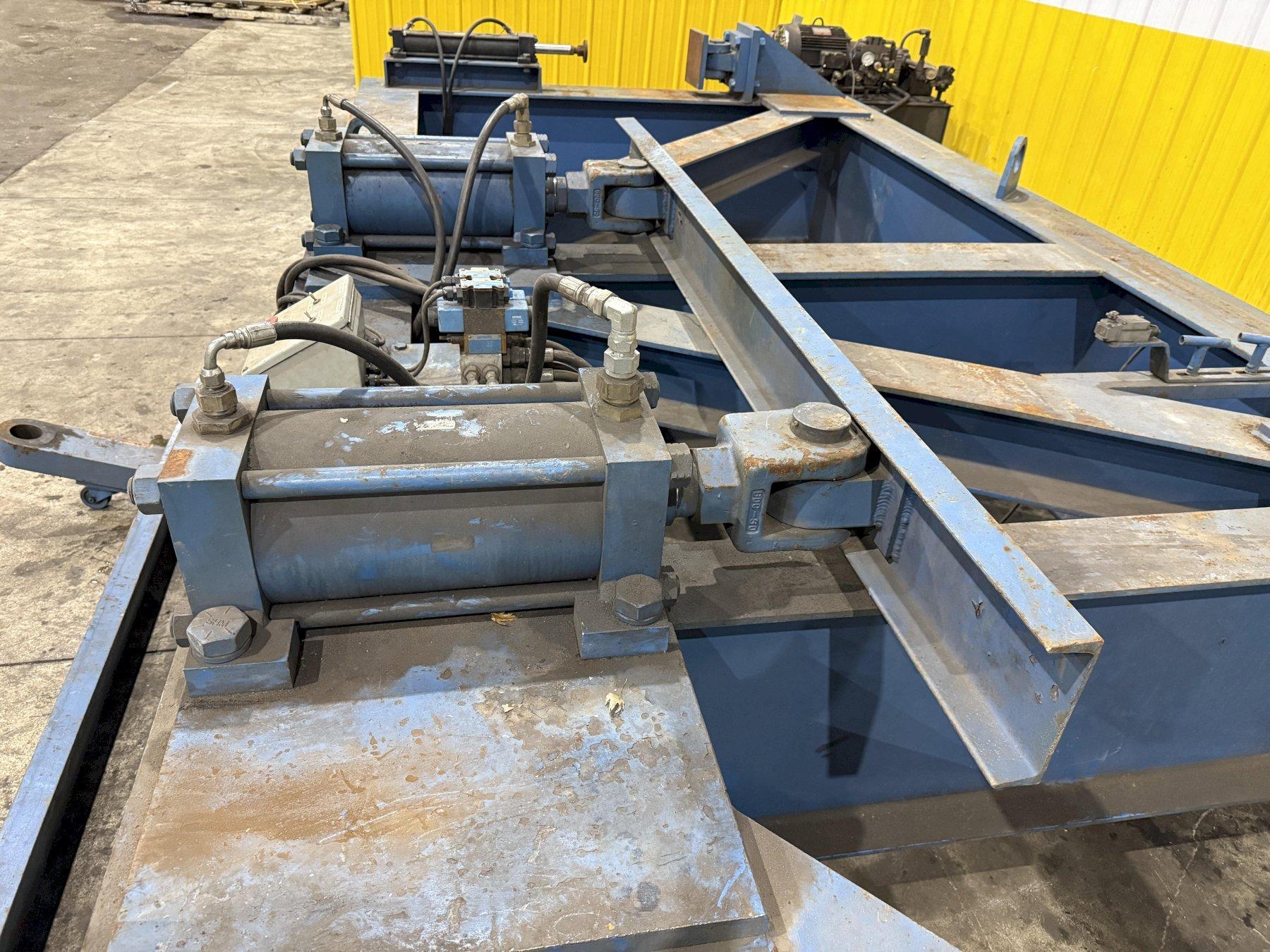

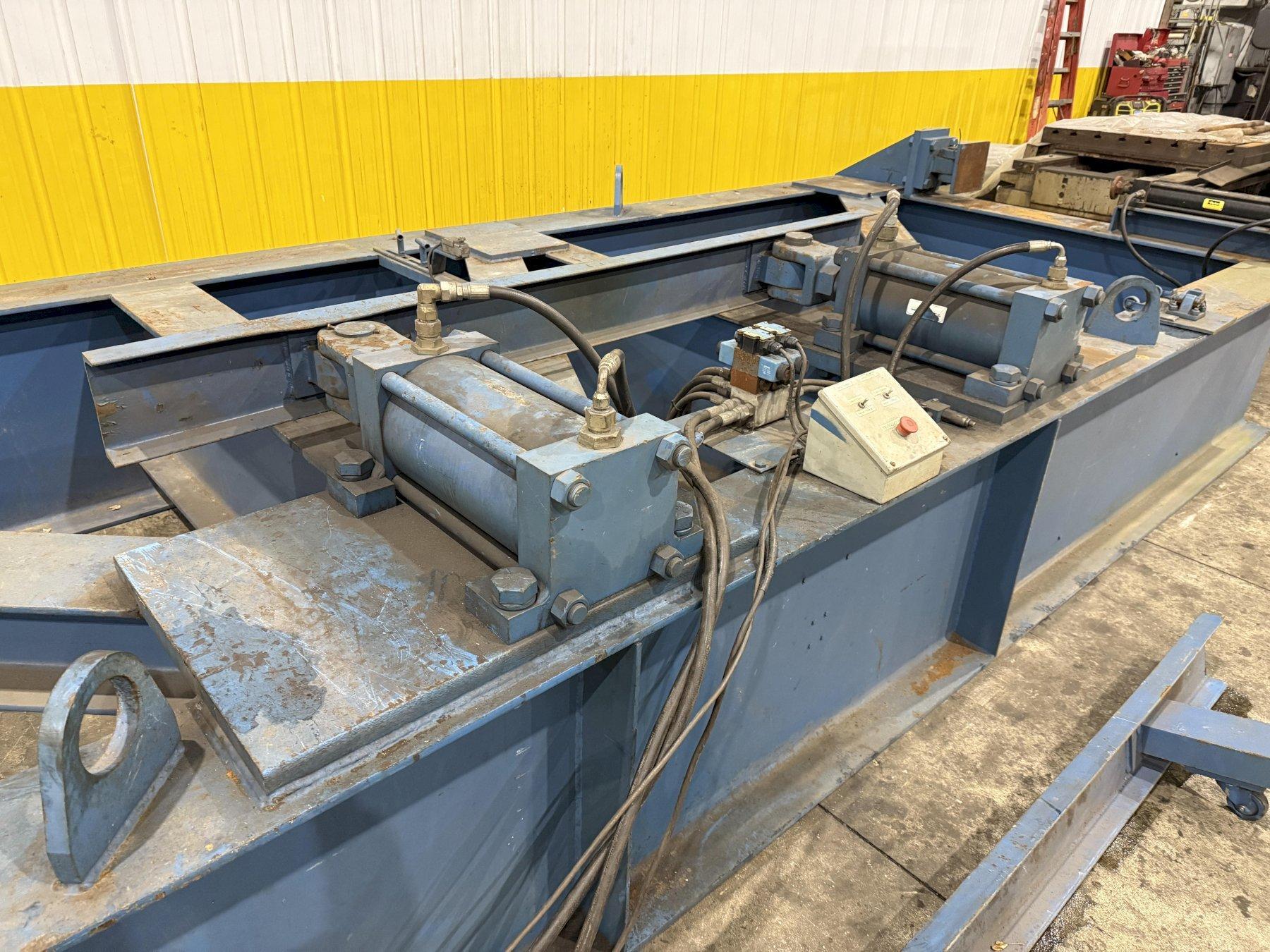

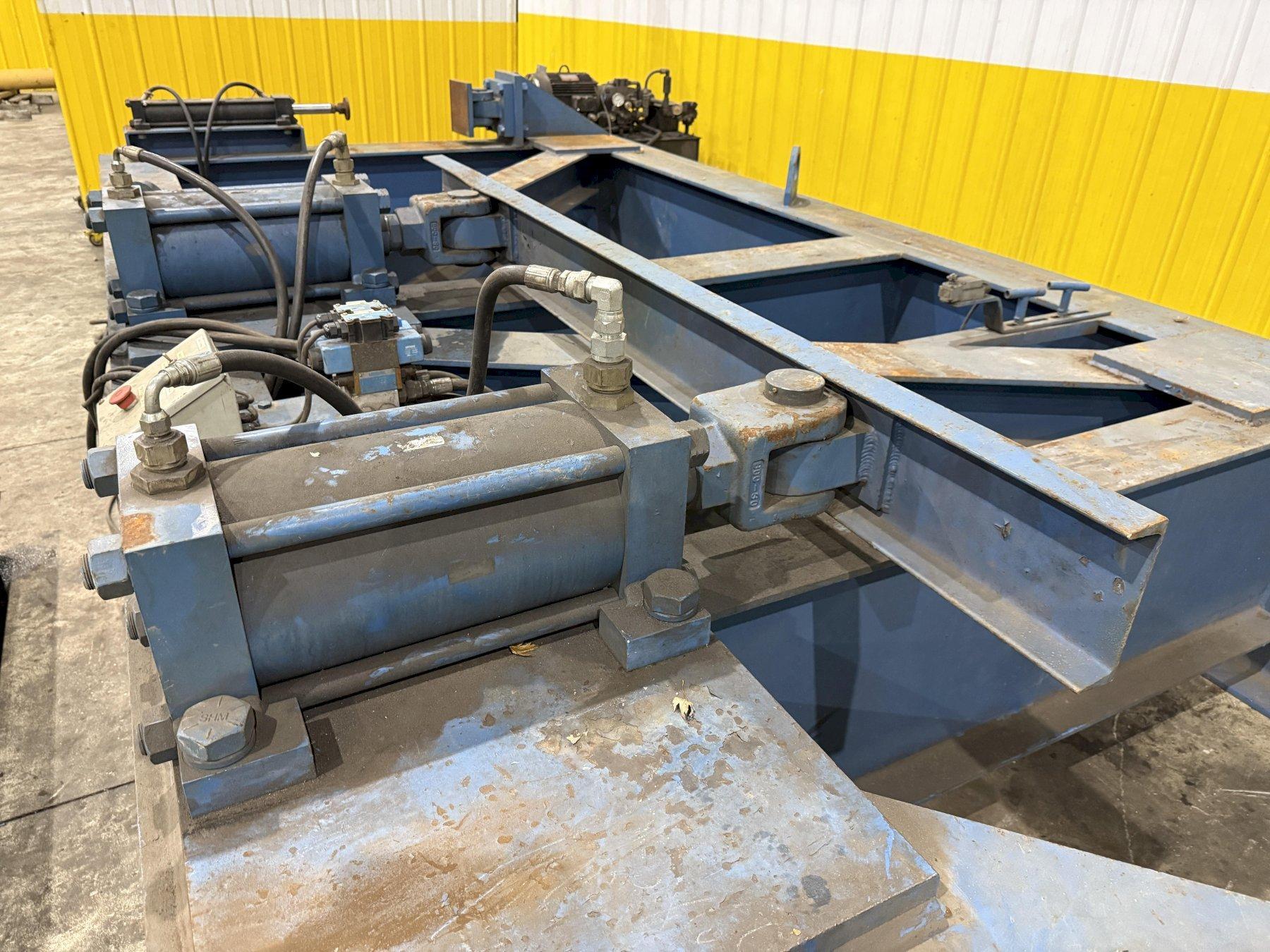

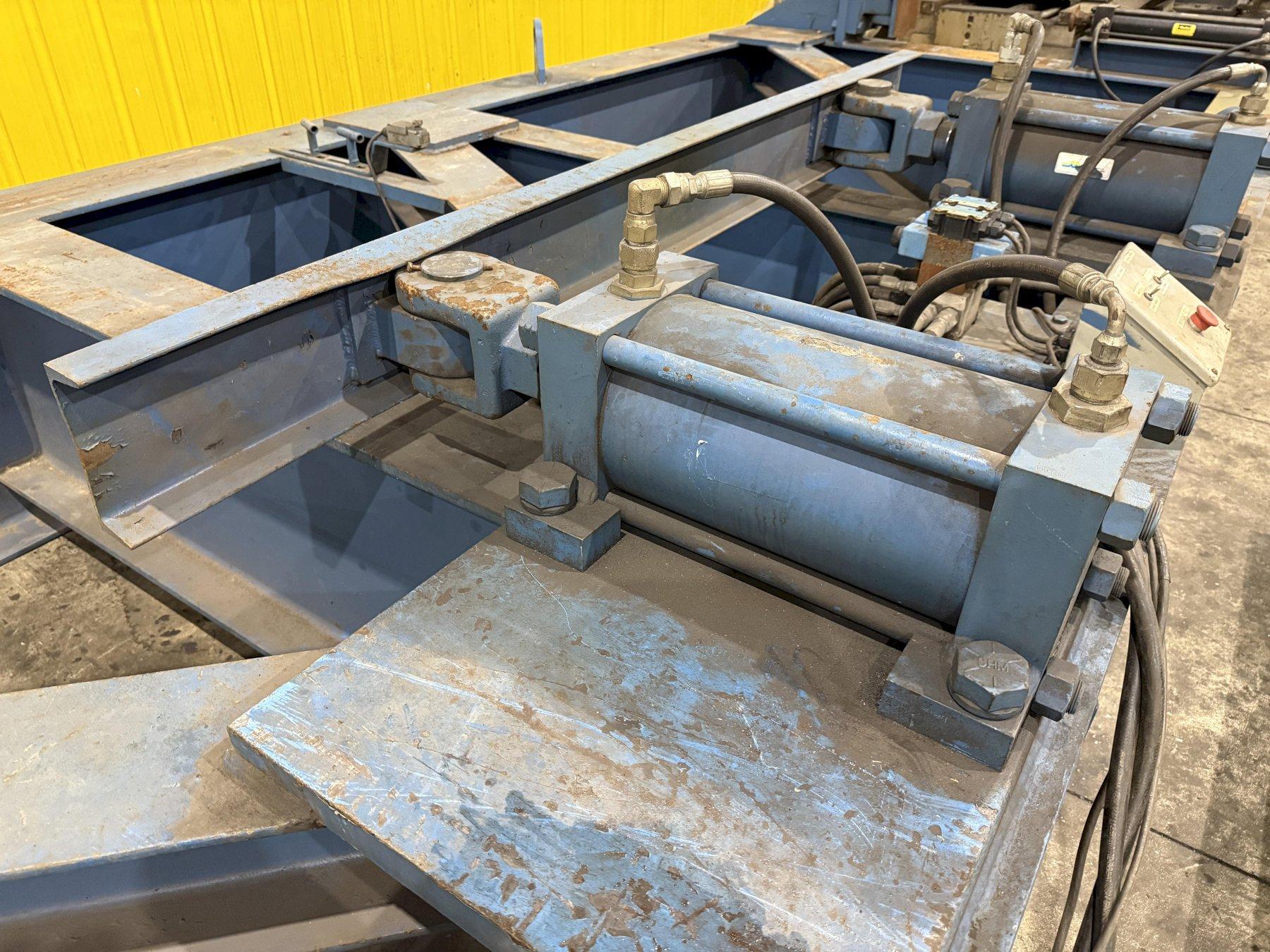

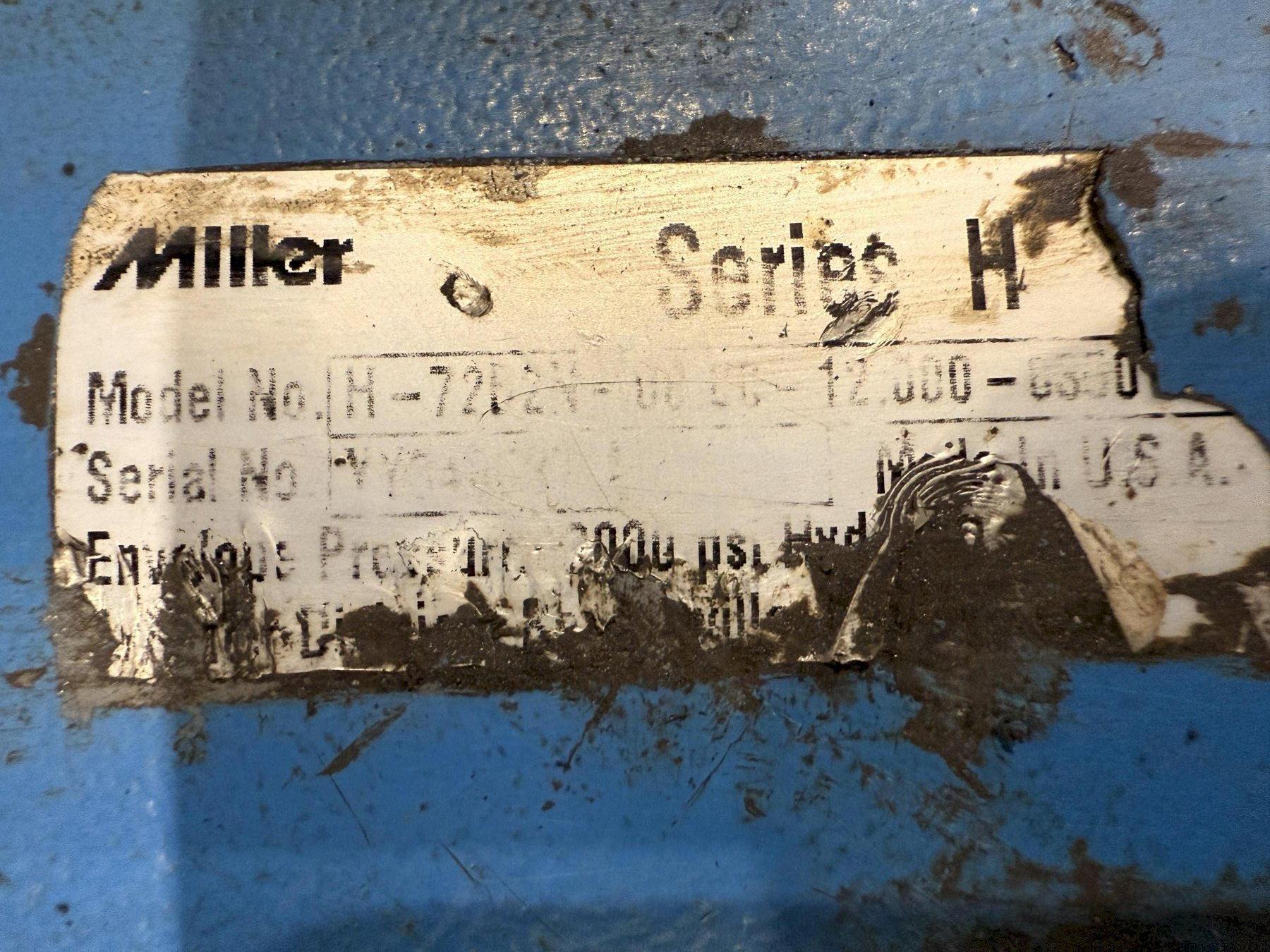

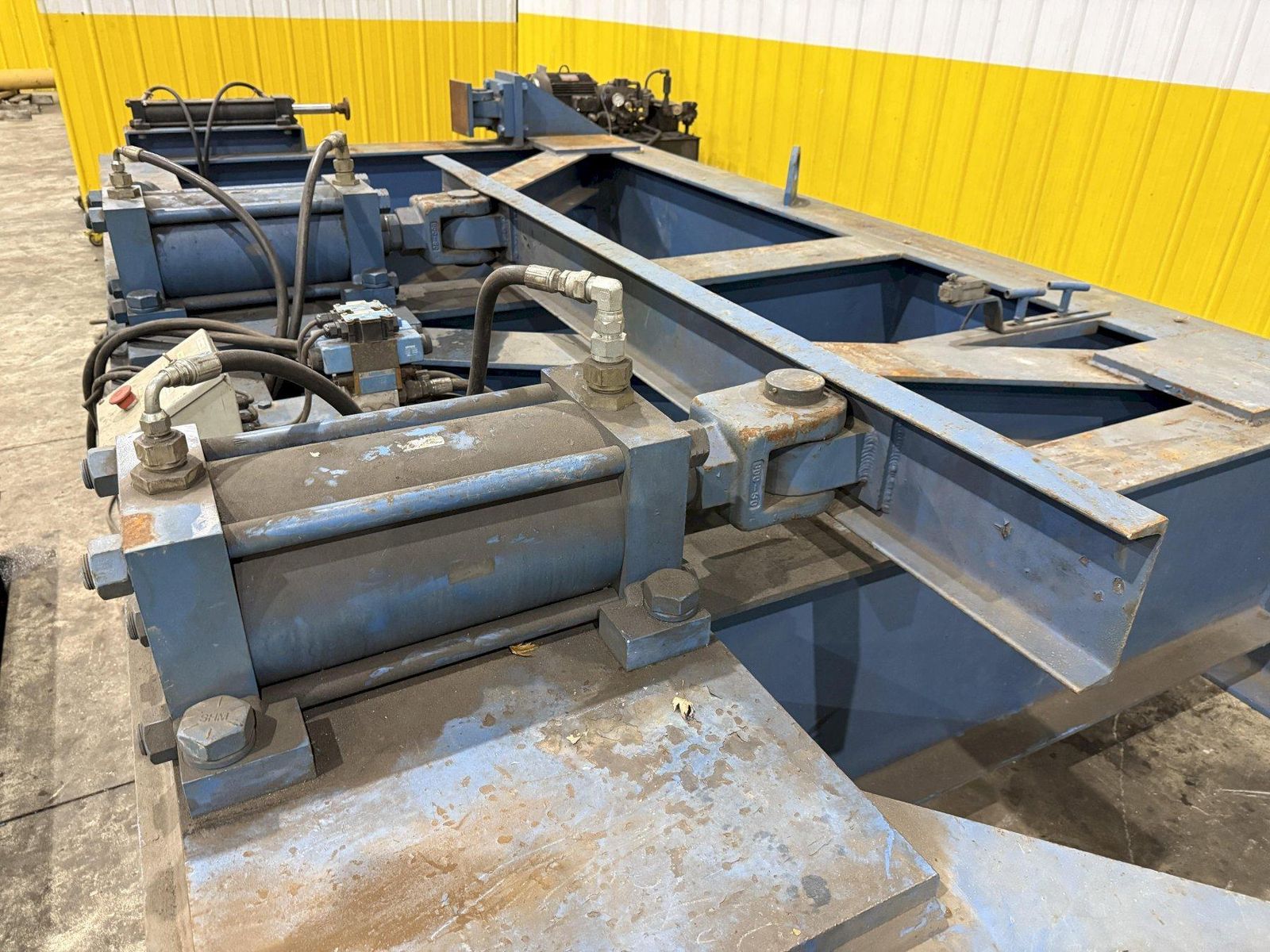

MILLER CAMBER PRESS CYLINDERS:
BENDING FORCE CAPACITY ........ 250 TONS
NUMBER OF CYLINDERS ........... (2)
SERIAL ........................ YY346537-A
MODEL ......................... H-72B2N-U8.00-12.00
STROKE OF RAM ................. 12"
BORE SIZE ..................... 8"
ENVELOPE PRESSURE ............. 3000 PSI

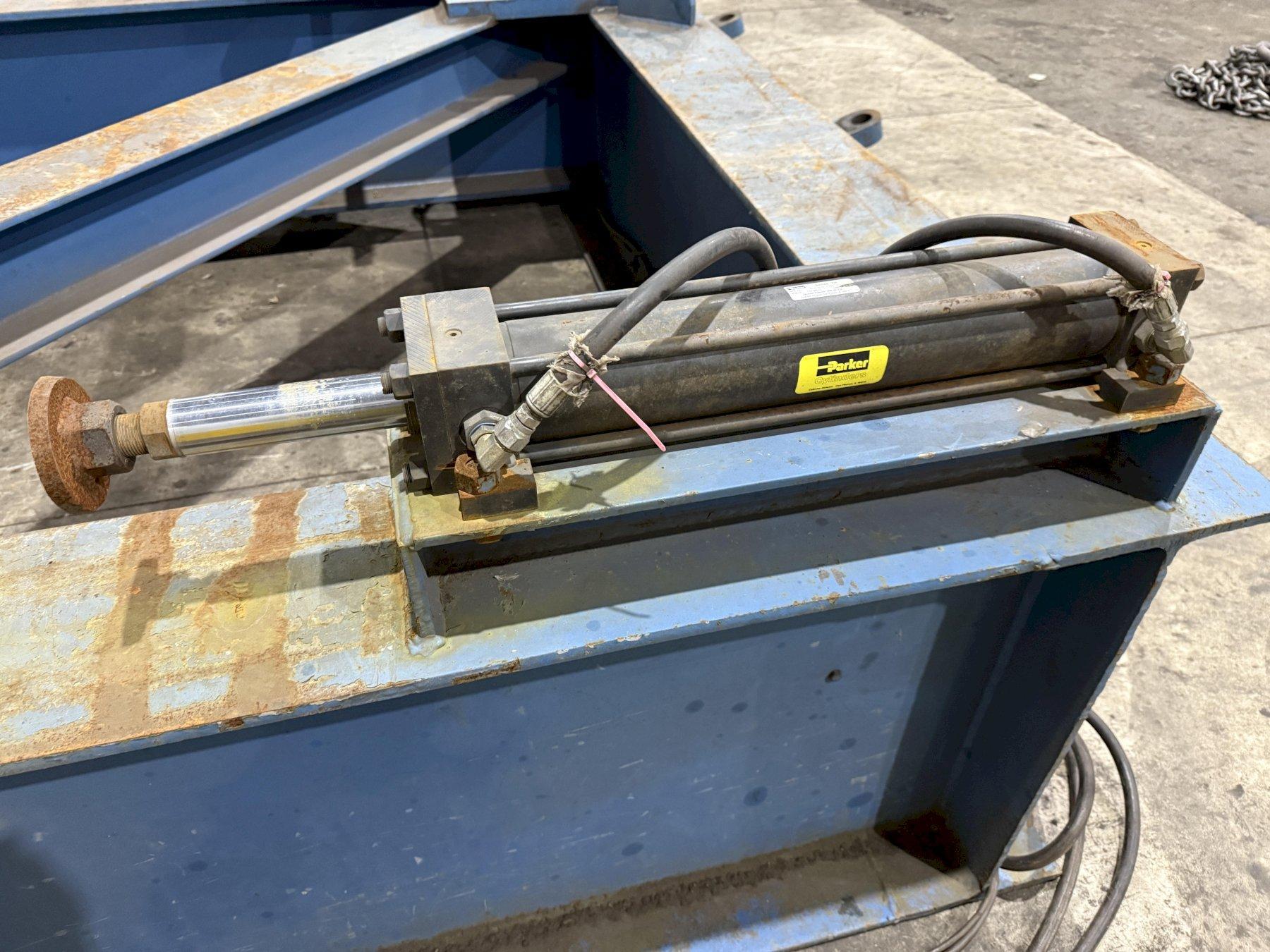

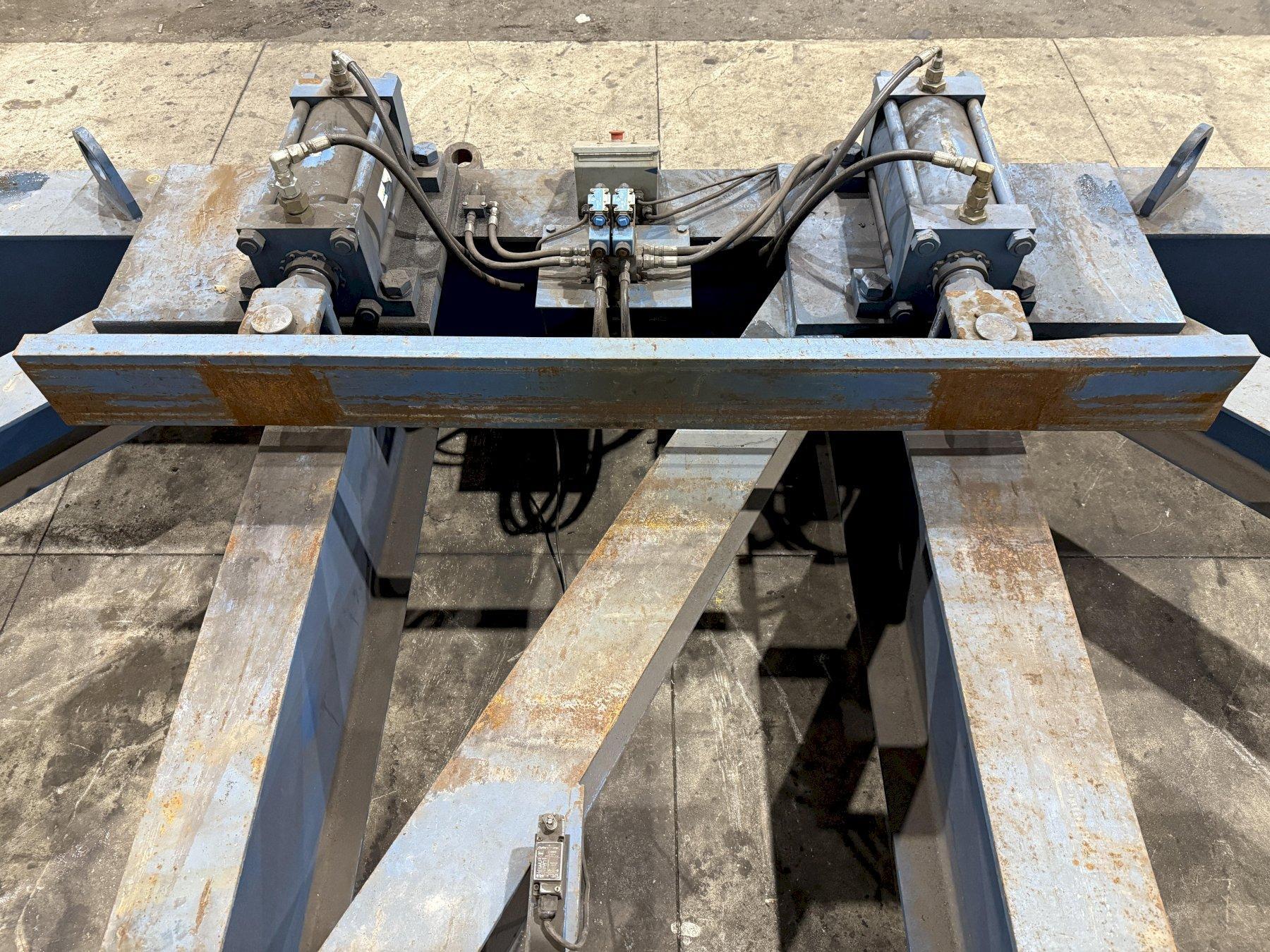

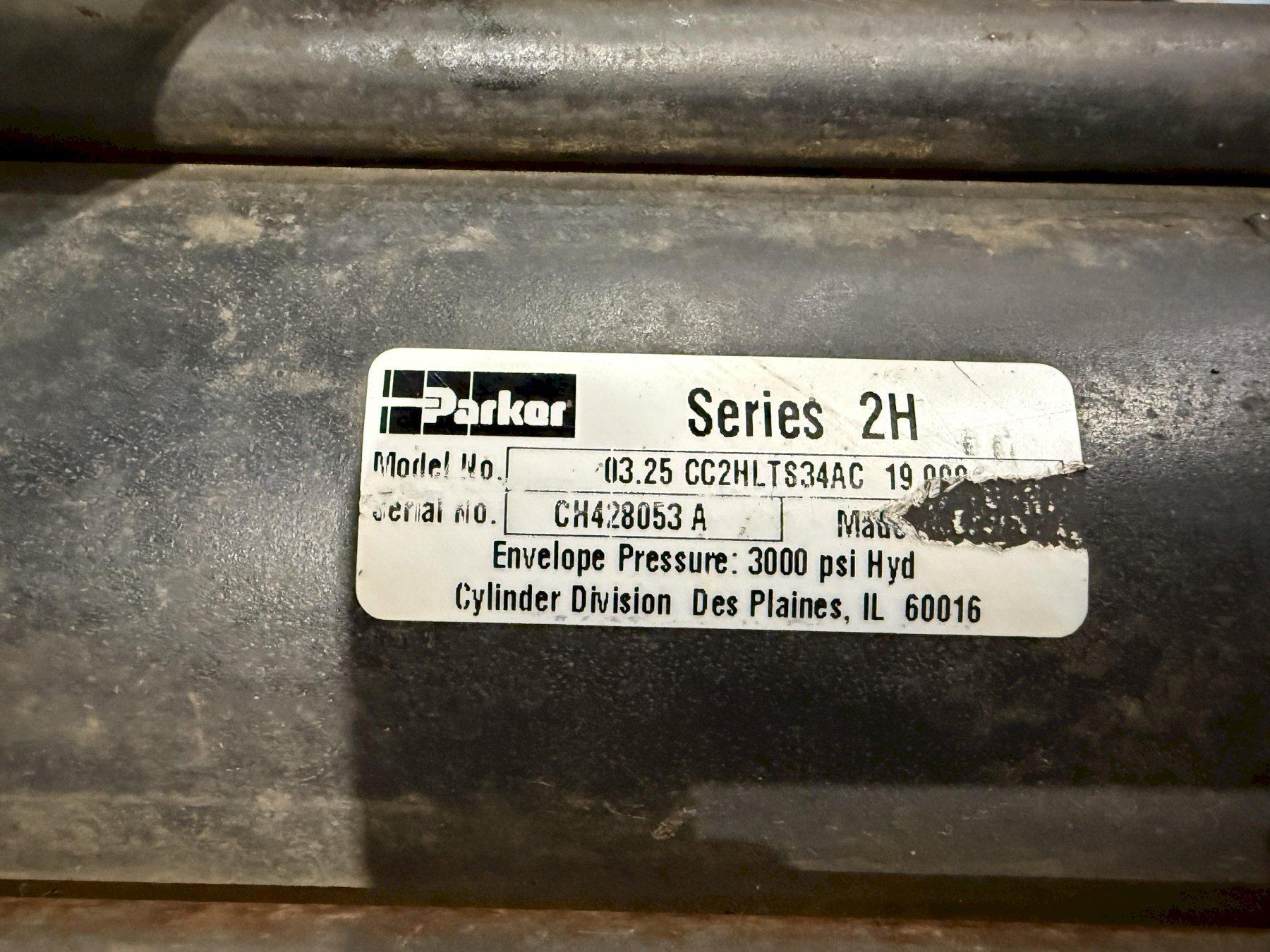

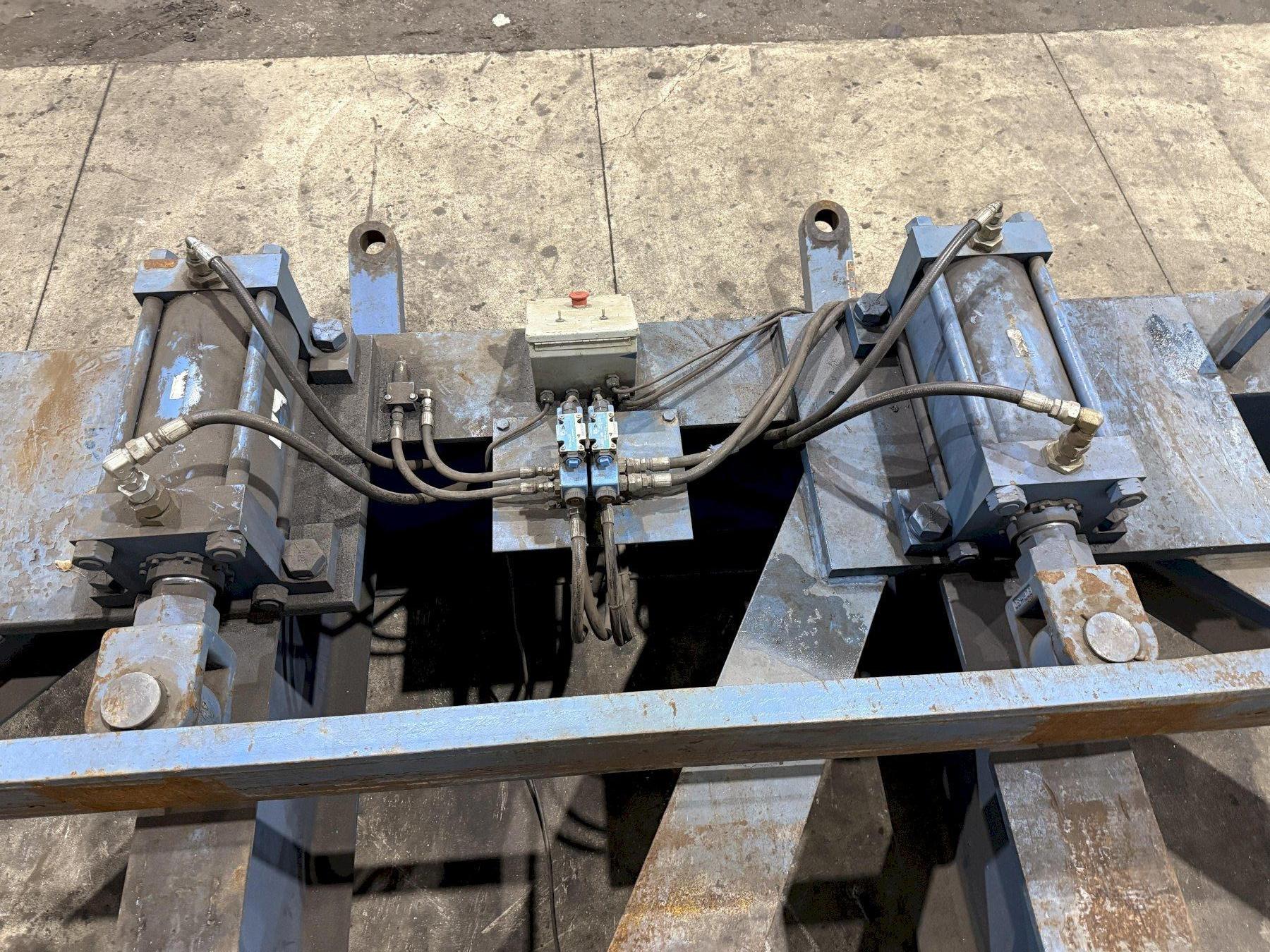

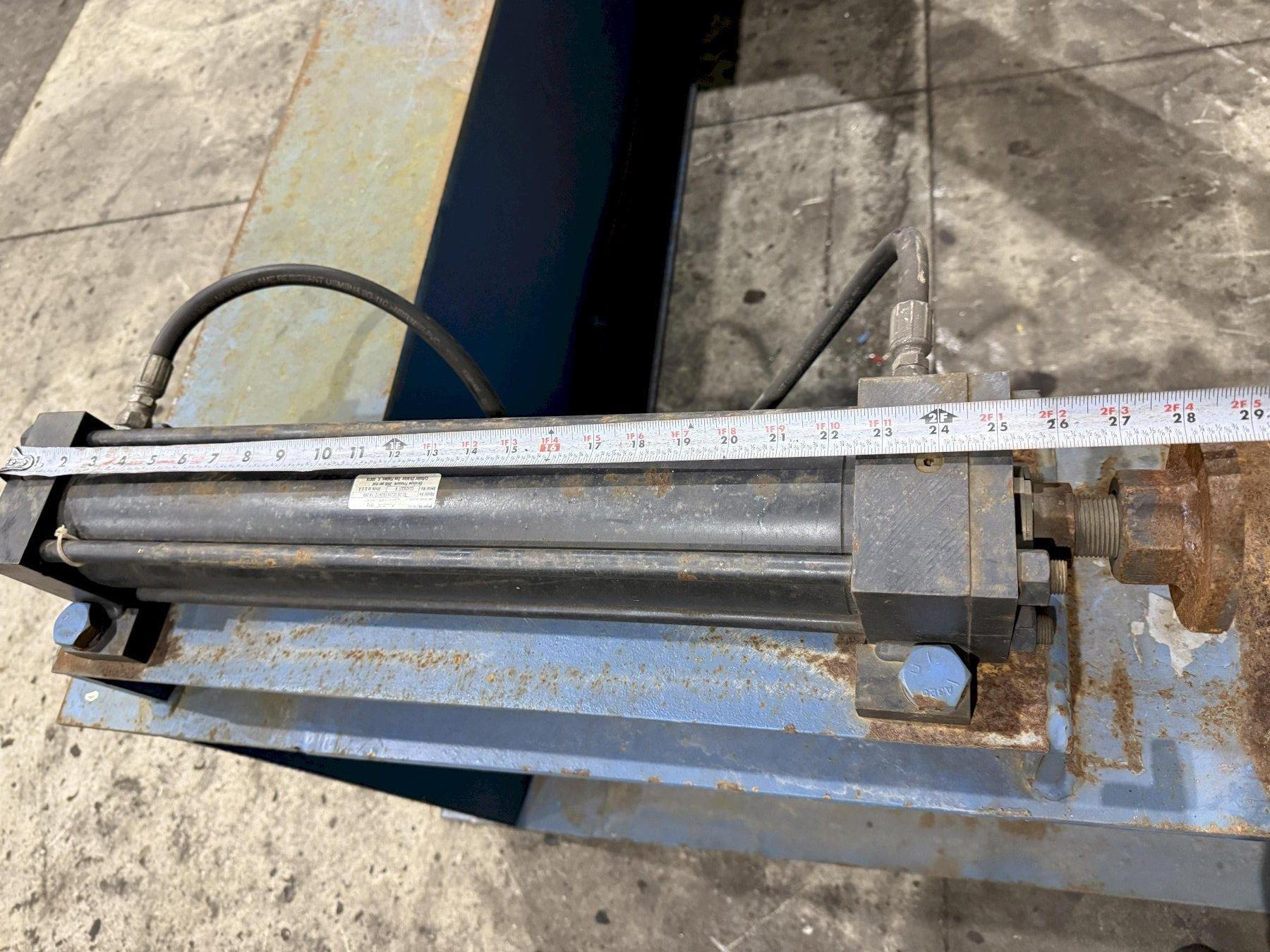

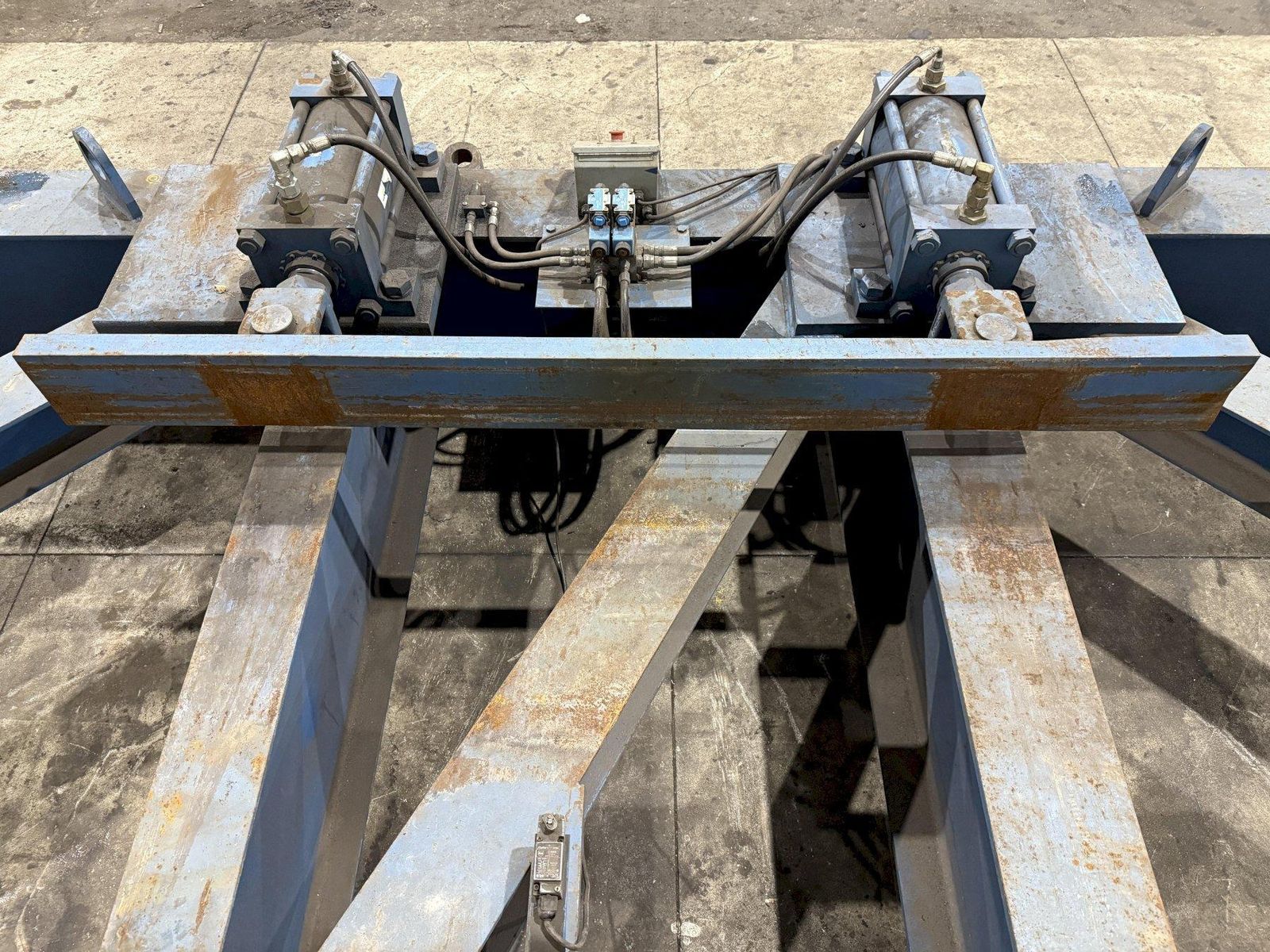

PARKER CLAMPING CYLINDERS
NUMBER OF CYLINDERS ........... (2)
SERIAL ........................ CH428053A
SERIES ........................ 2H
MODEL ......................... 03.25 CC2HLTS34AC
STROKE OF RAM ................. 19"
BORE SIZE ..................... 3.25"

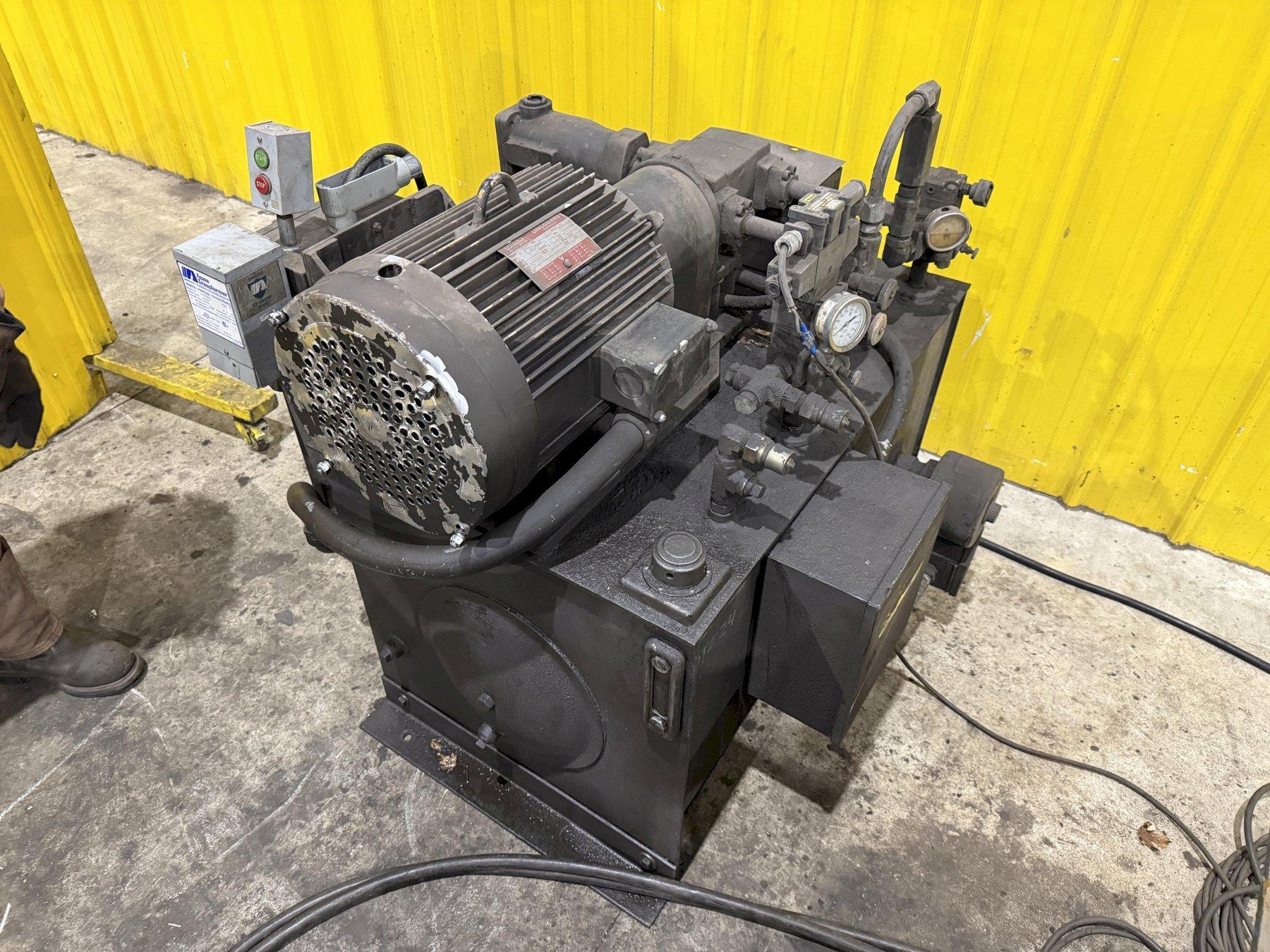

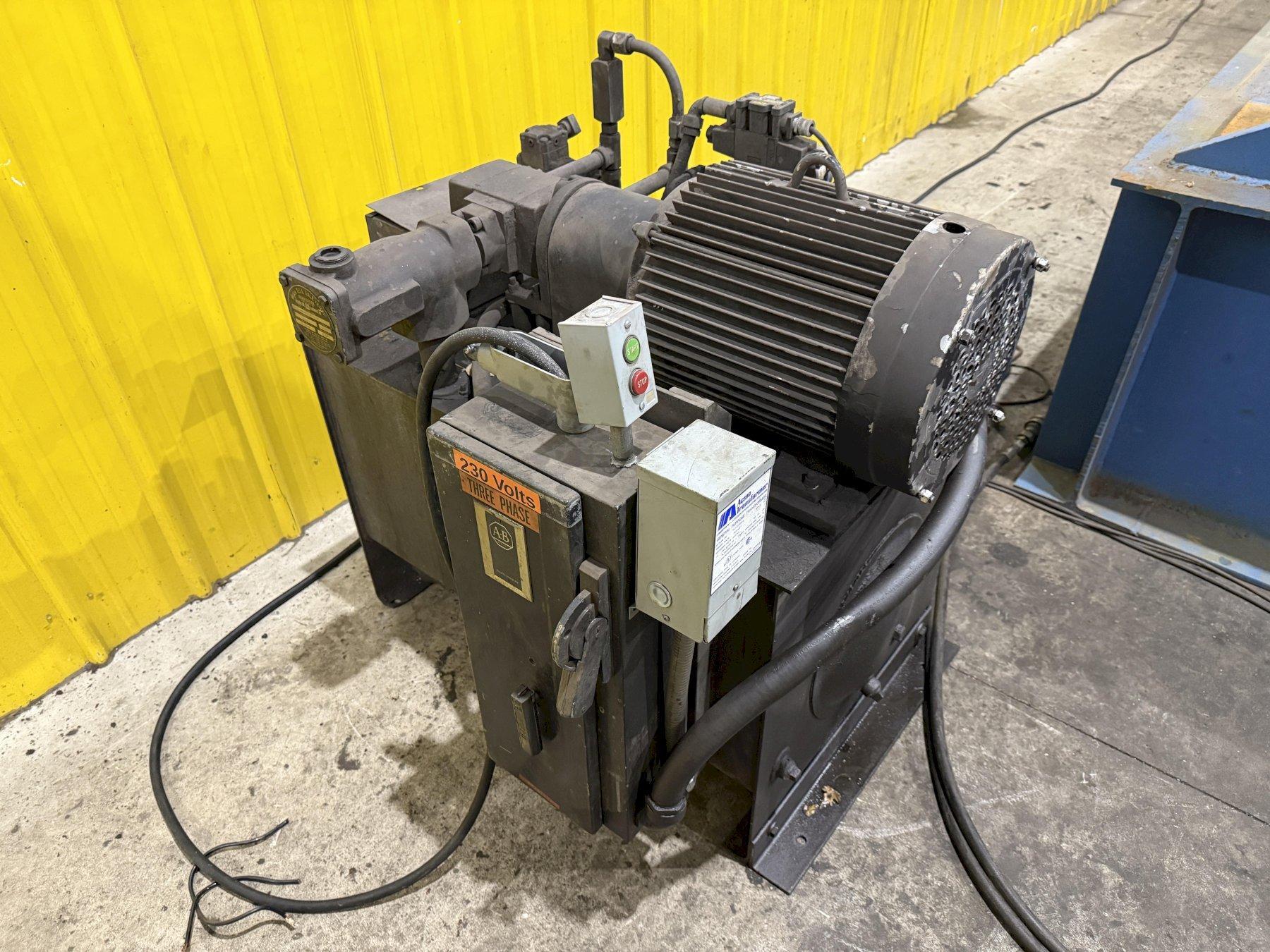

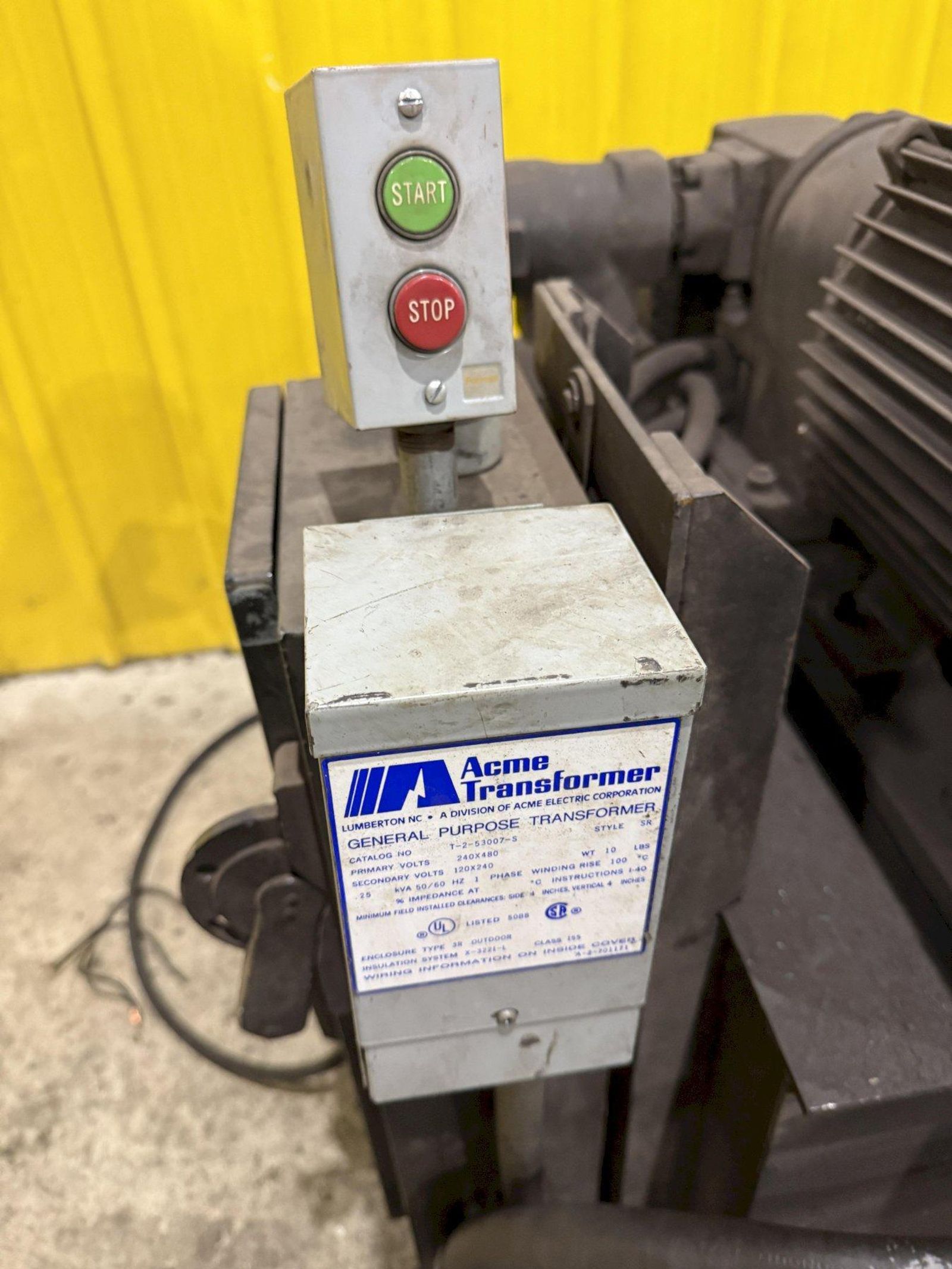

ENVELOPE PRESSURE ............. 3000 PSIHYDRAULIC PUMP ................ FABRILINE

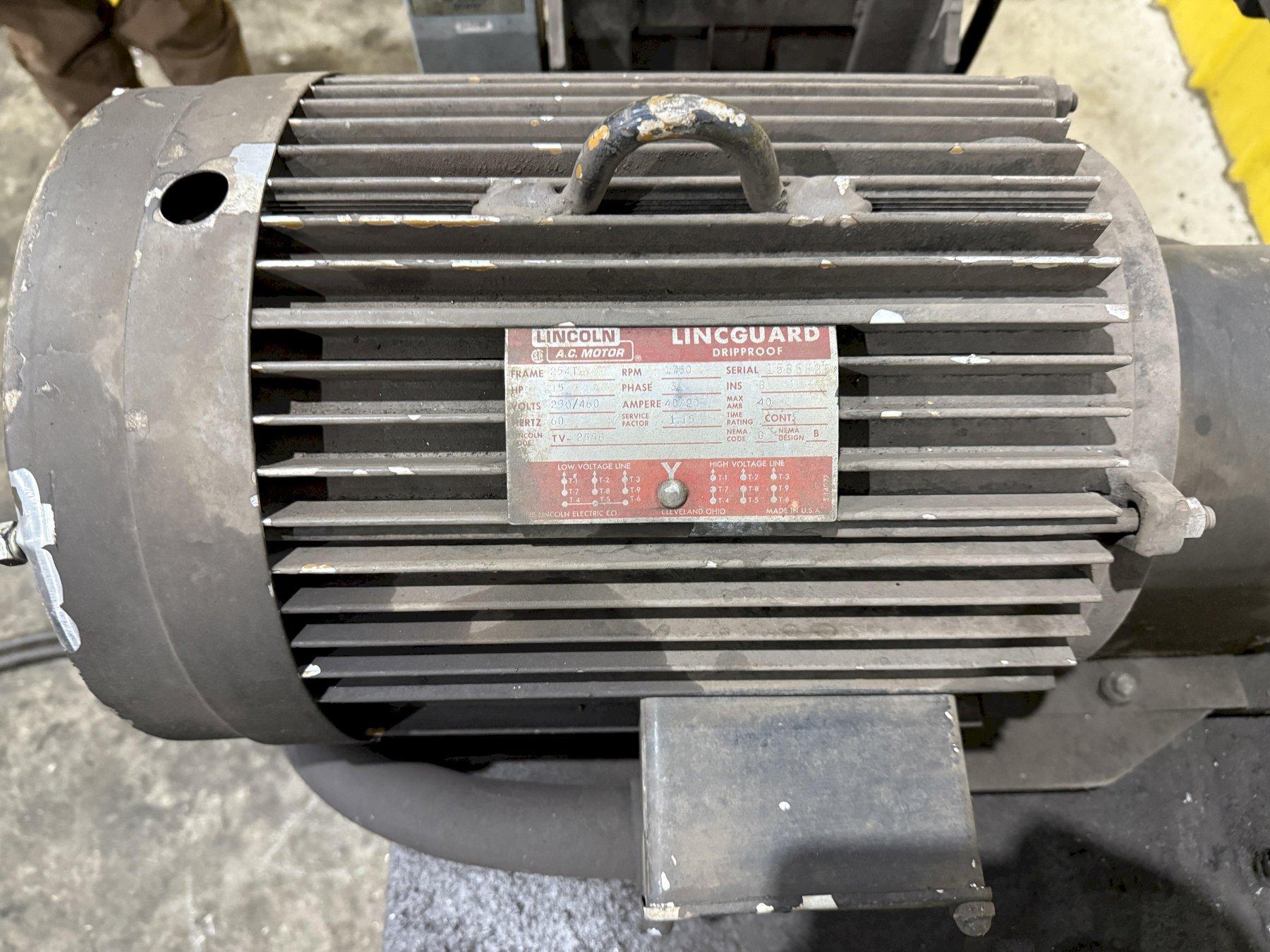

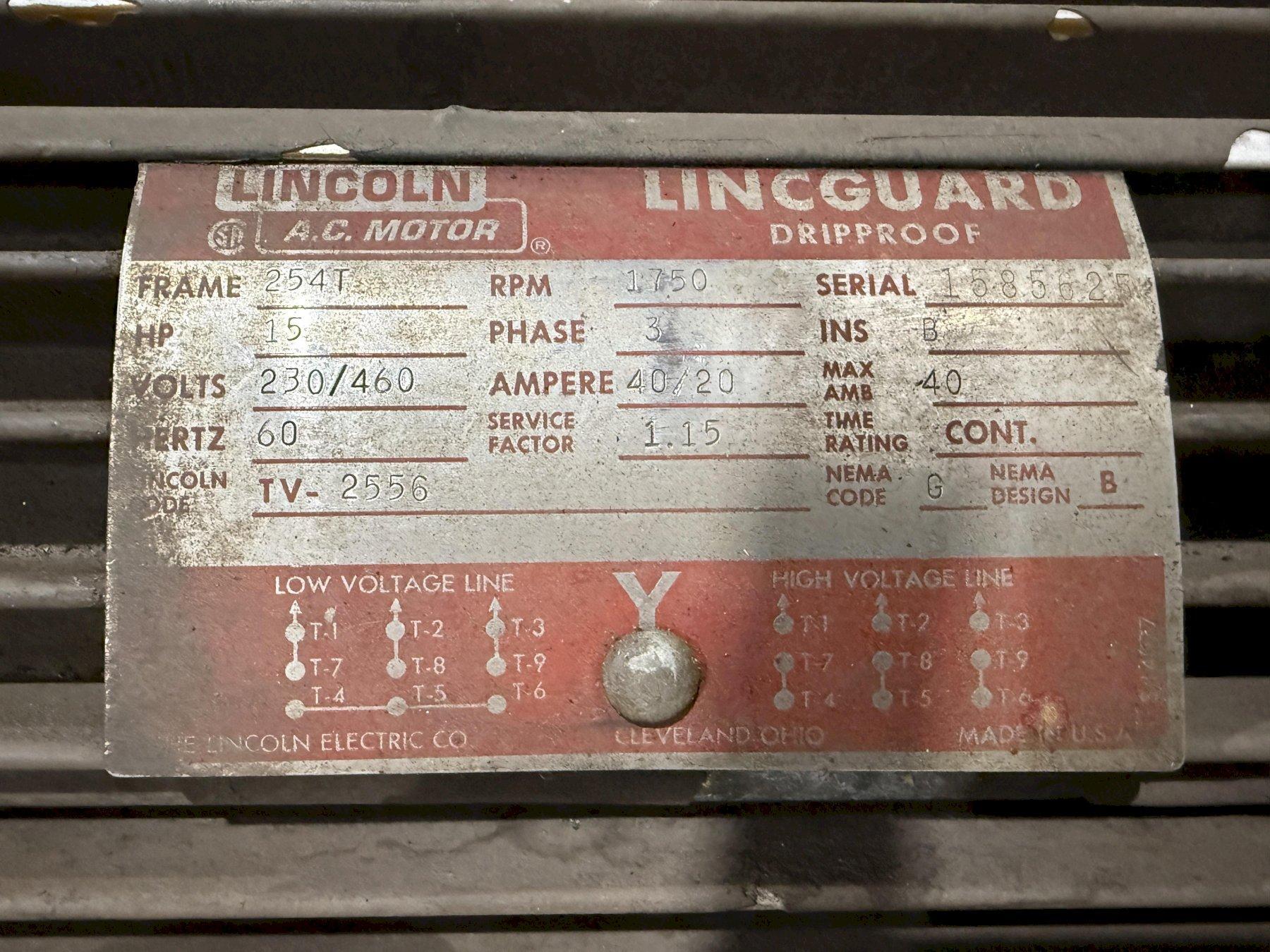

MOTOR ......................... 15 HP
