Brand
Not Specified
Type
Benders, Hydraulic
Stock No.
18901
 |
419-269-2000 |
Stock #: 18901

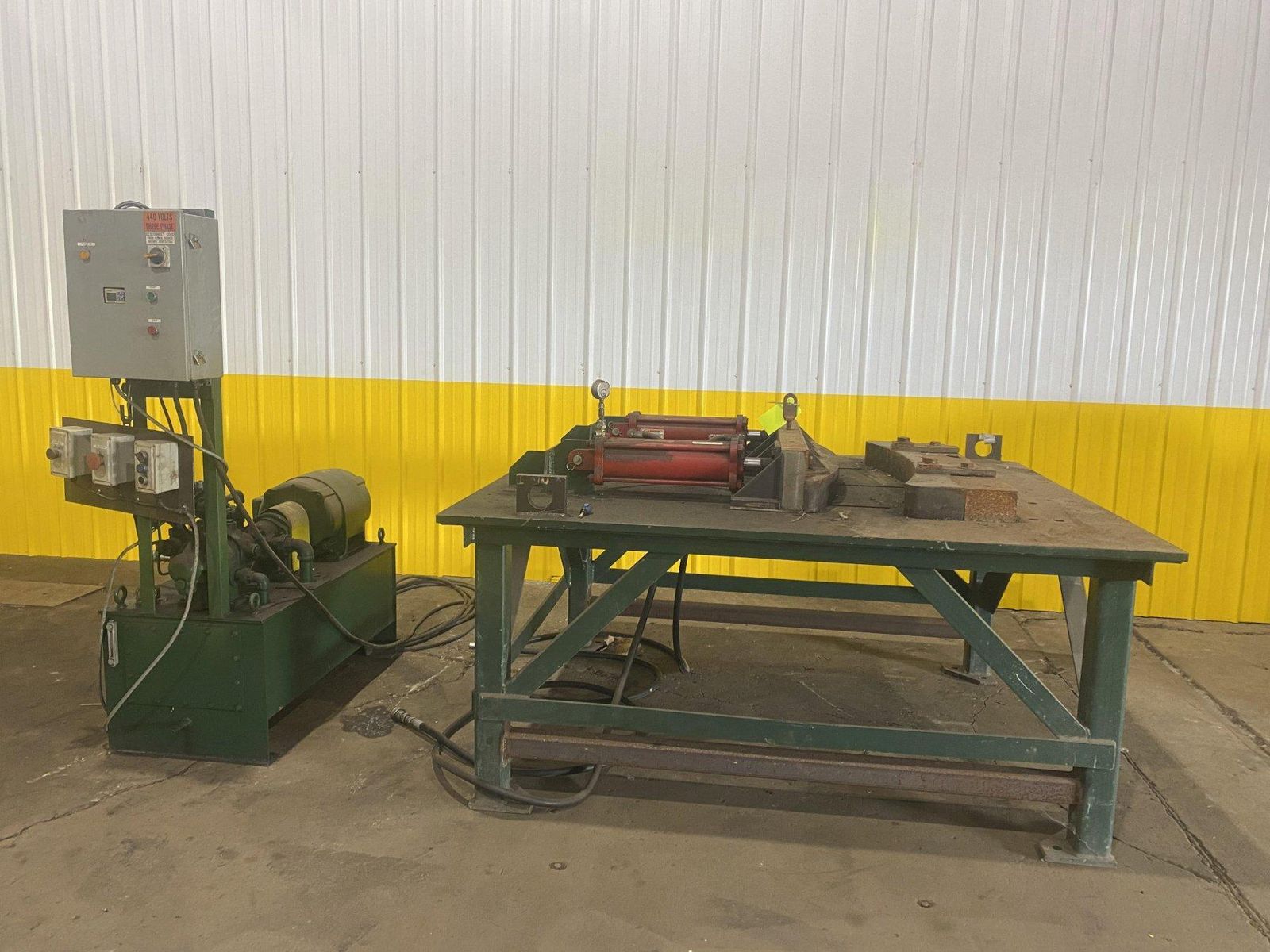

MANUFACTURER ......... CHIEF
NUMBER OF CYLINDERS .. 2 @ 40 TONS
TOTAL PRESS CAPACITY . 80 TONS
STROKE ............... 14"
BORE DIAMETER ........ 5"
ROD DIAMETER ......... 2"
MAX PRESSURE ......... 3000 PSI
DISTANCE BETWEEN ..... 35"
PRESSURE INDICATOR ... YES
GUIDED RAM ........... YES, GIBS ON TABLE
PRESSING PLATEN ...... 48" X 6" HIGH X 4" THICK
RESISTANCE PLATEN .... 48" X 8" HIGH X 3" THICK
ADJUSTABLE PLATEN .... 6 HOLES ON 3" CENTERS
DAYLIGHT PRESS AREA .. 15" TO 28"
OVERALL TABLE SIZE ... 84" X 72"
FLOOR TO TABLE TOP ... 38-3/4"
TABLE TO RAM CENTER .. 5"
PUSH BUTTONS ......... EXTEND & RETRACT
RUN MODES ............ MANUAL, CYCLE, LEARN
PROGRAMABLE CONTROL .. TECO MODEL
E-STOP BUTTON ........ YES
MOTOR ................ 16 HP
