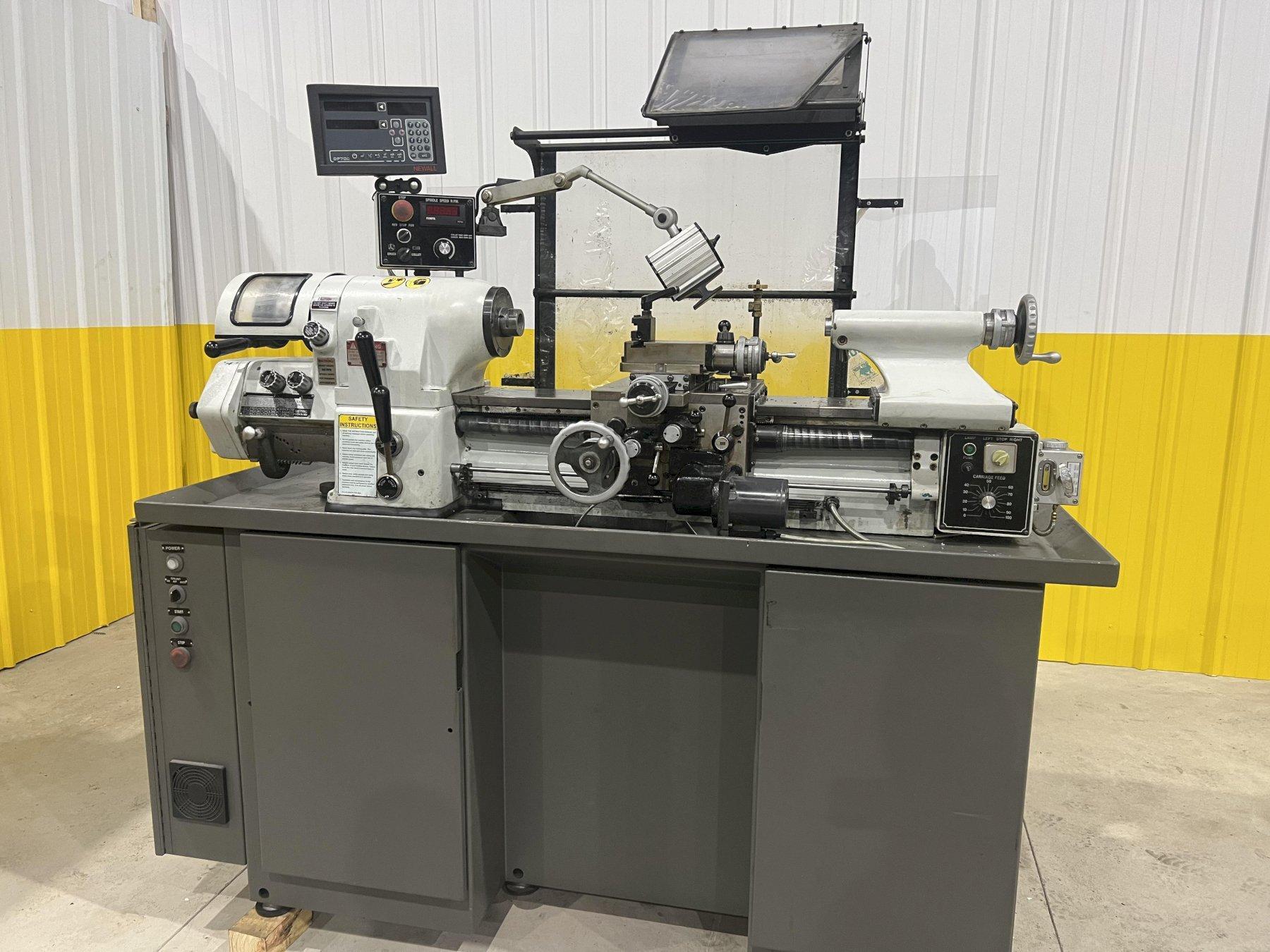

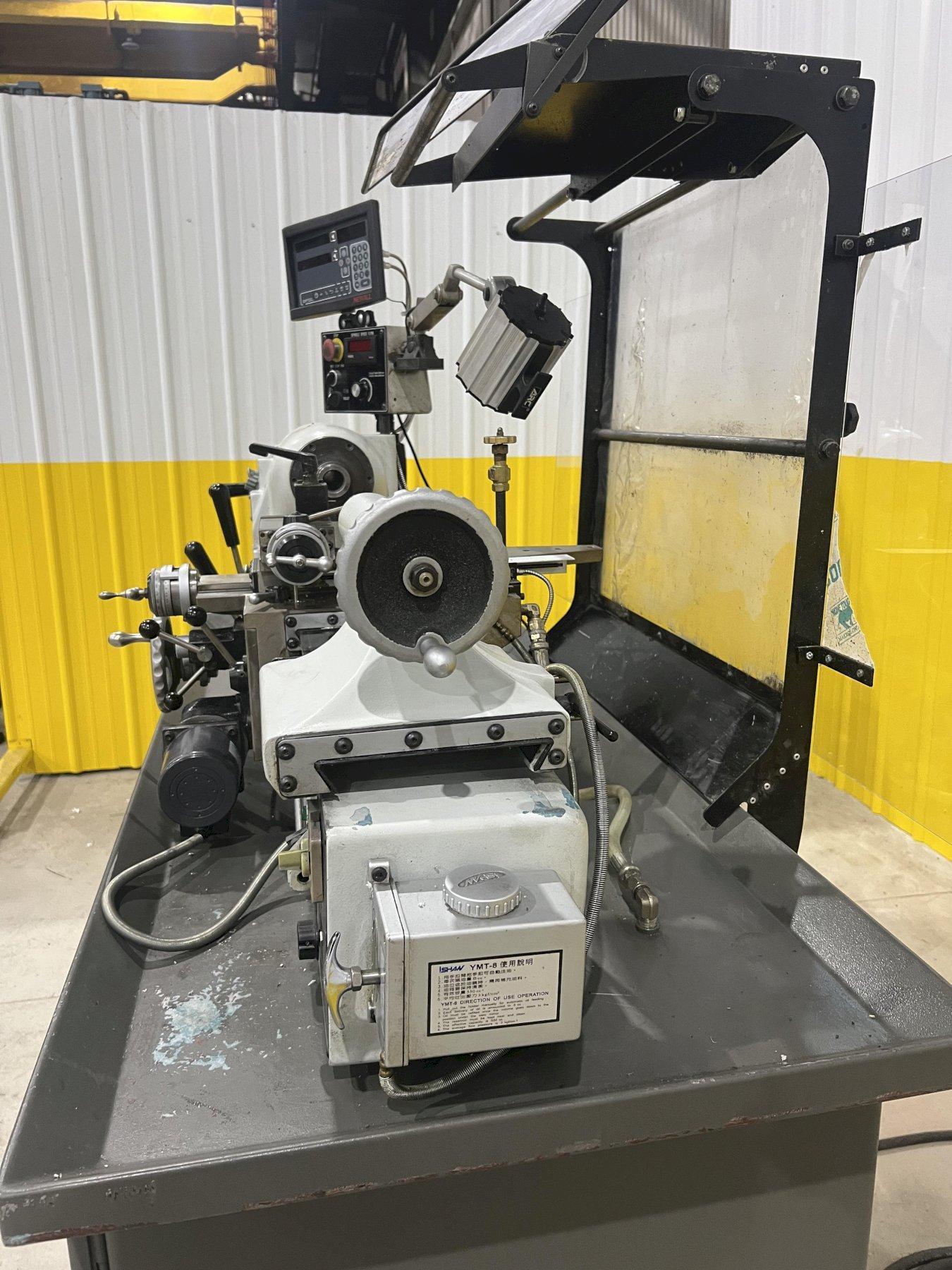

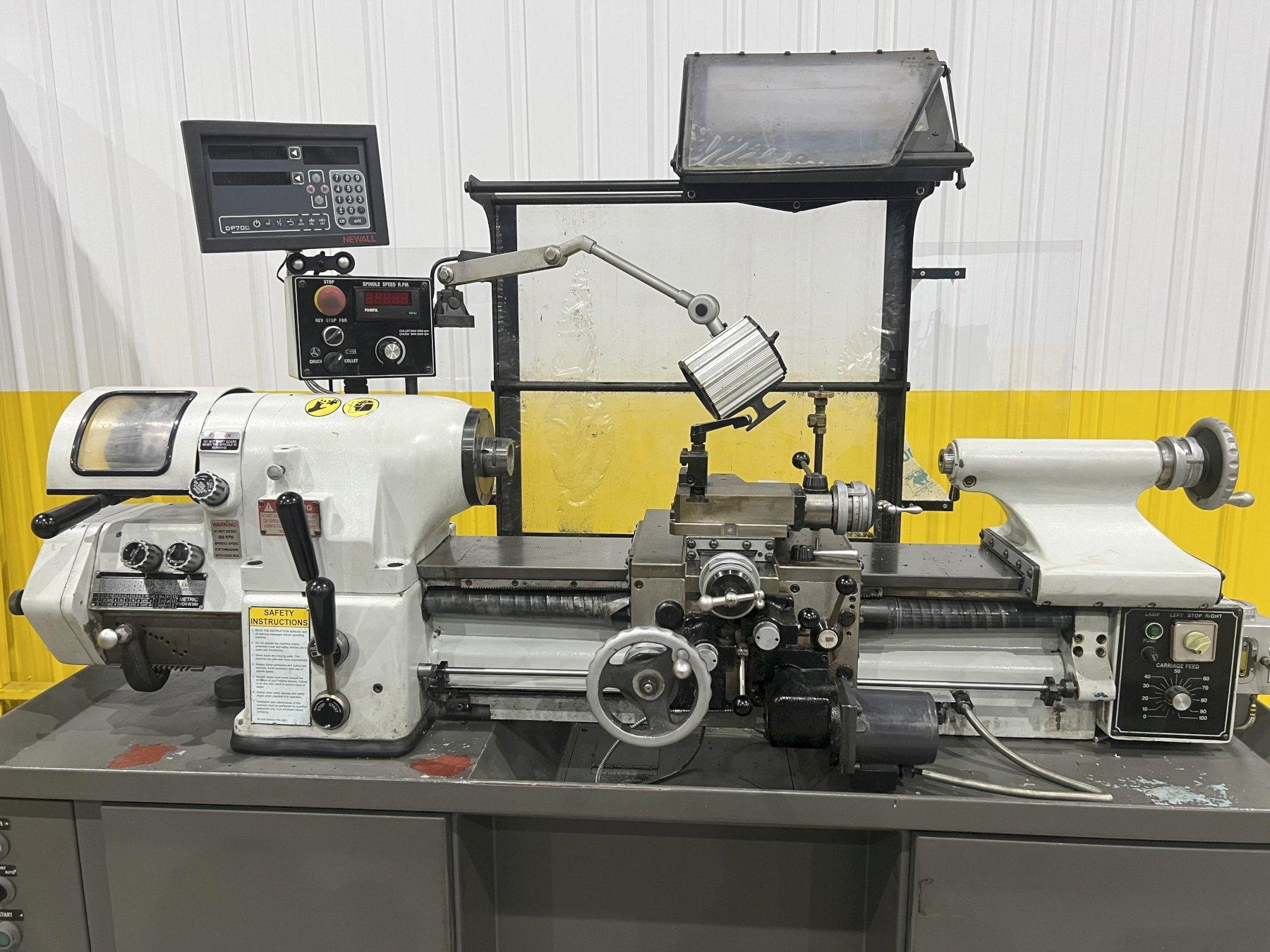

6" X 18" GMC MODEL #TL-618 EVS HIGH PRECISION TOOLROOM LATHE, 4,000 RPM, 1.25" HOLE: STOCK #20291

Overview

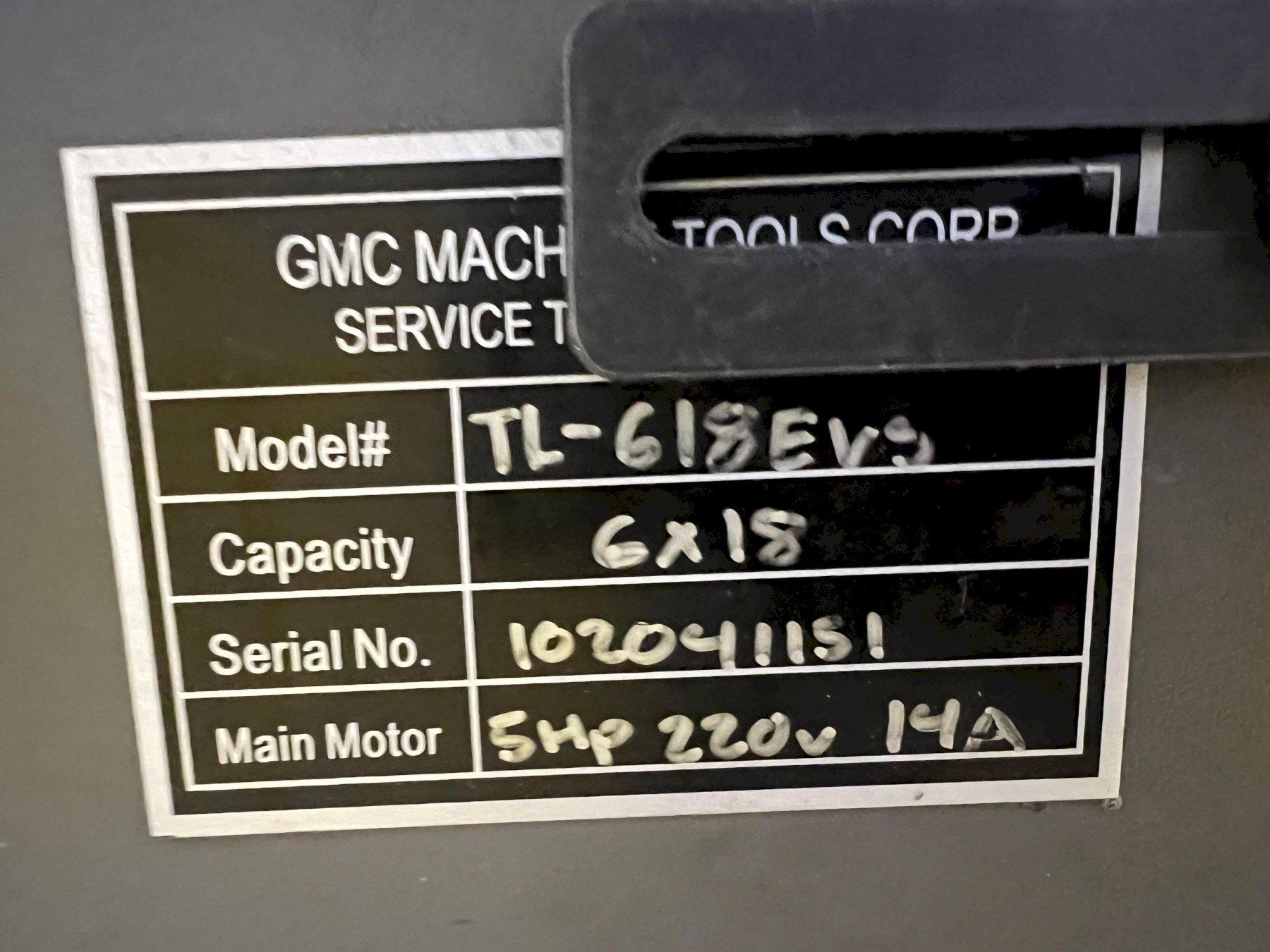

SERIAL ................. 10204115
MODEL .................. TL-618EVS
CAPACITY ............... 6" X 18"
SWING .................. 6"
CENTERS ................ 18"
SWING OVER CROSS ....... 9"
SPINDLE HOLE ........... 1.25"

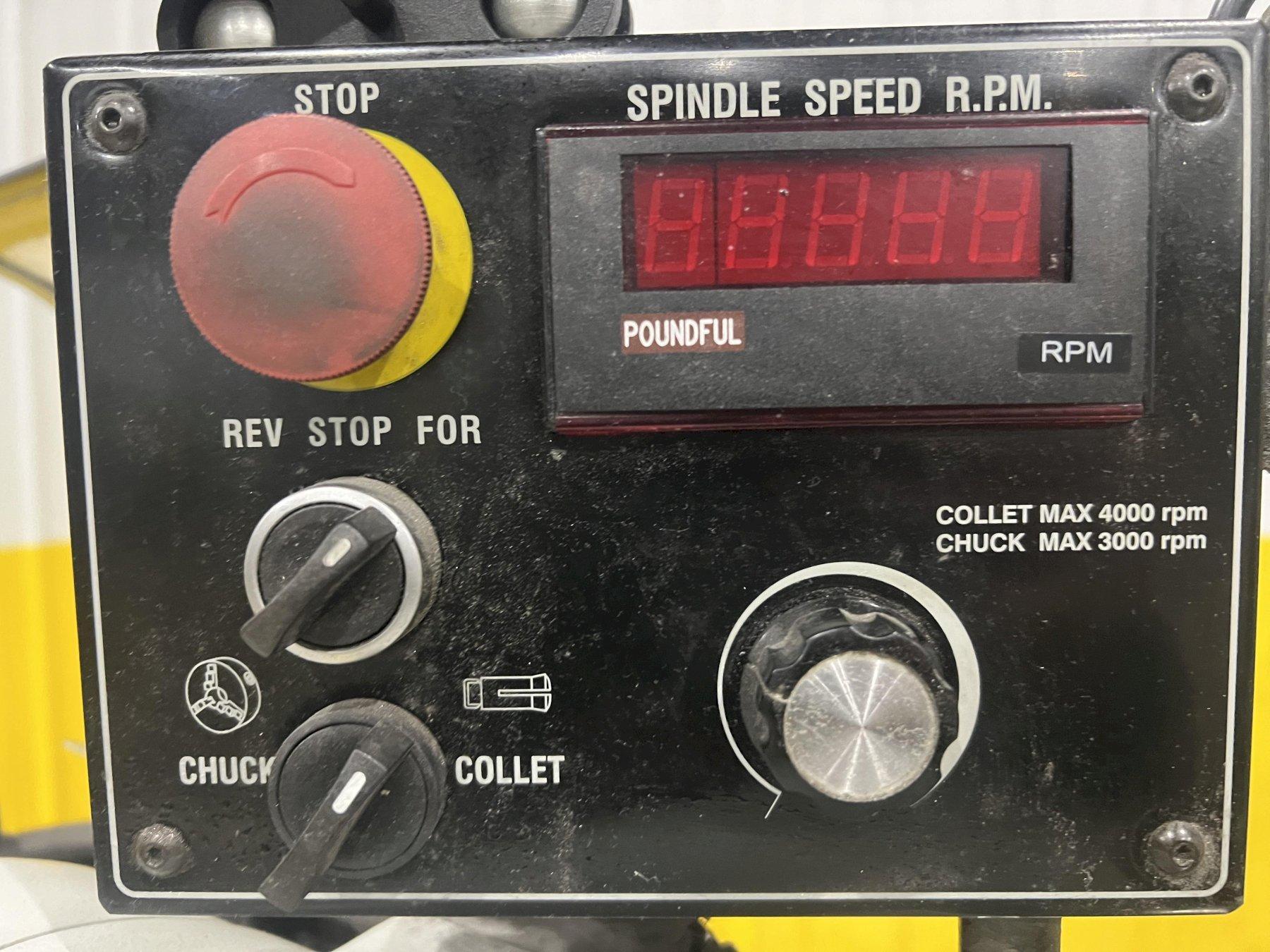

SPINDLE SPEEDS ......... O TO 4,000 RPM, VARIABLE

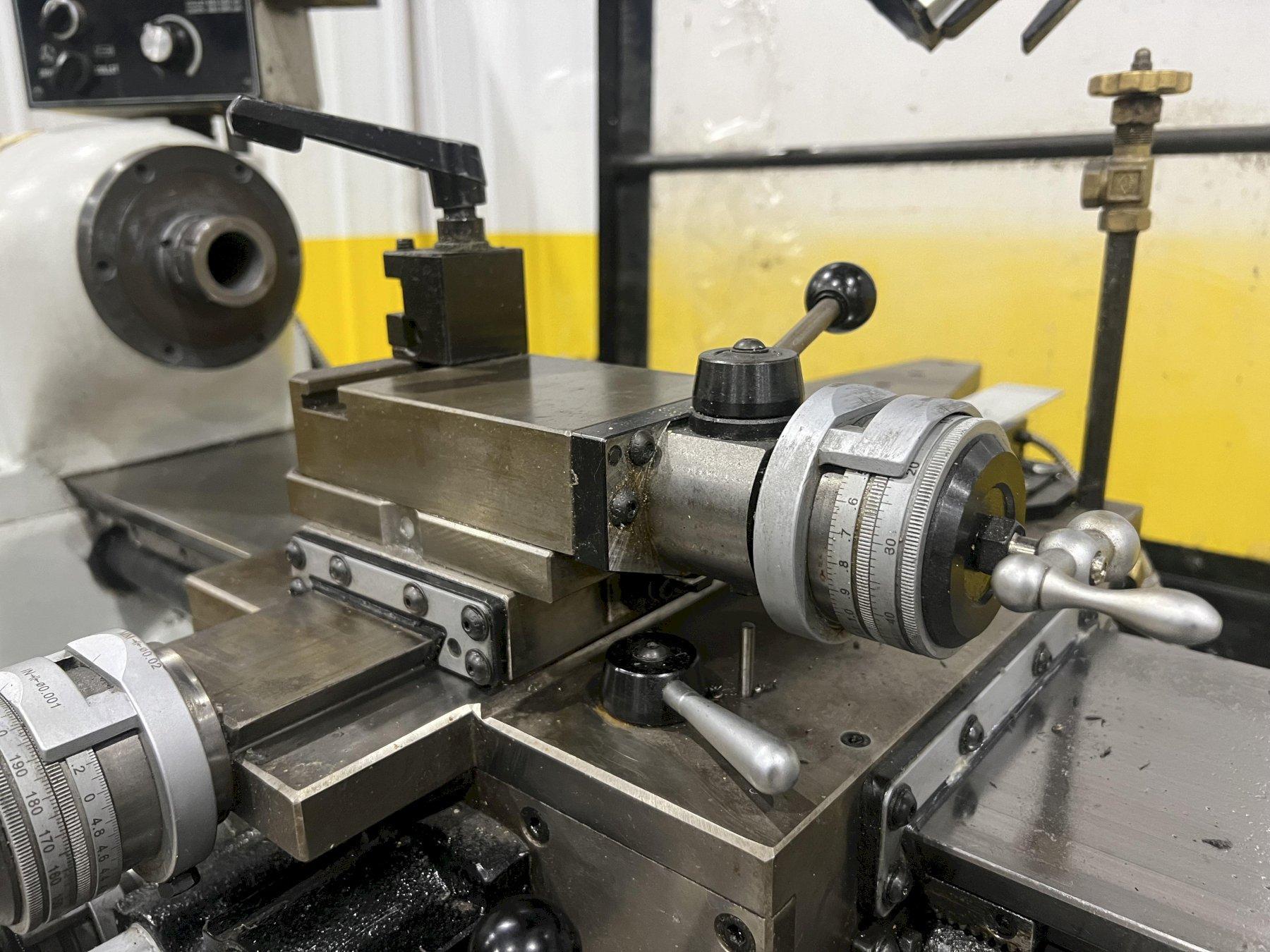

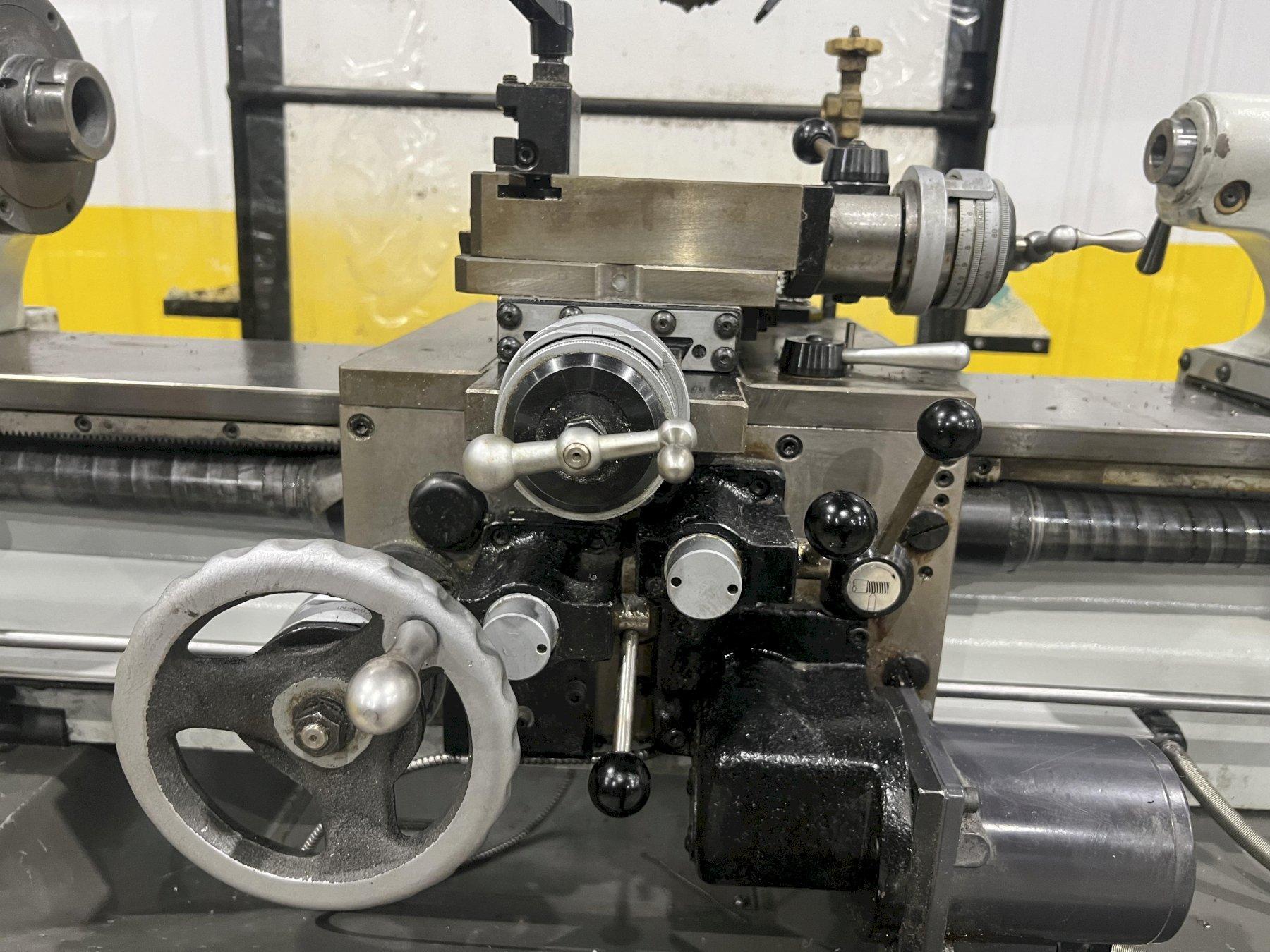

CROSS SLIDE TRAVEL ..... 6"
COMPOUND SLIDE TRAVEL .. 3"

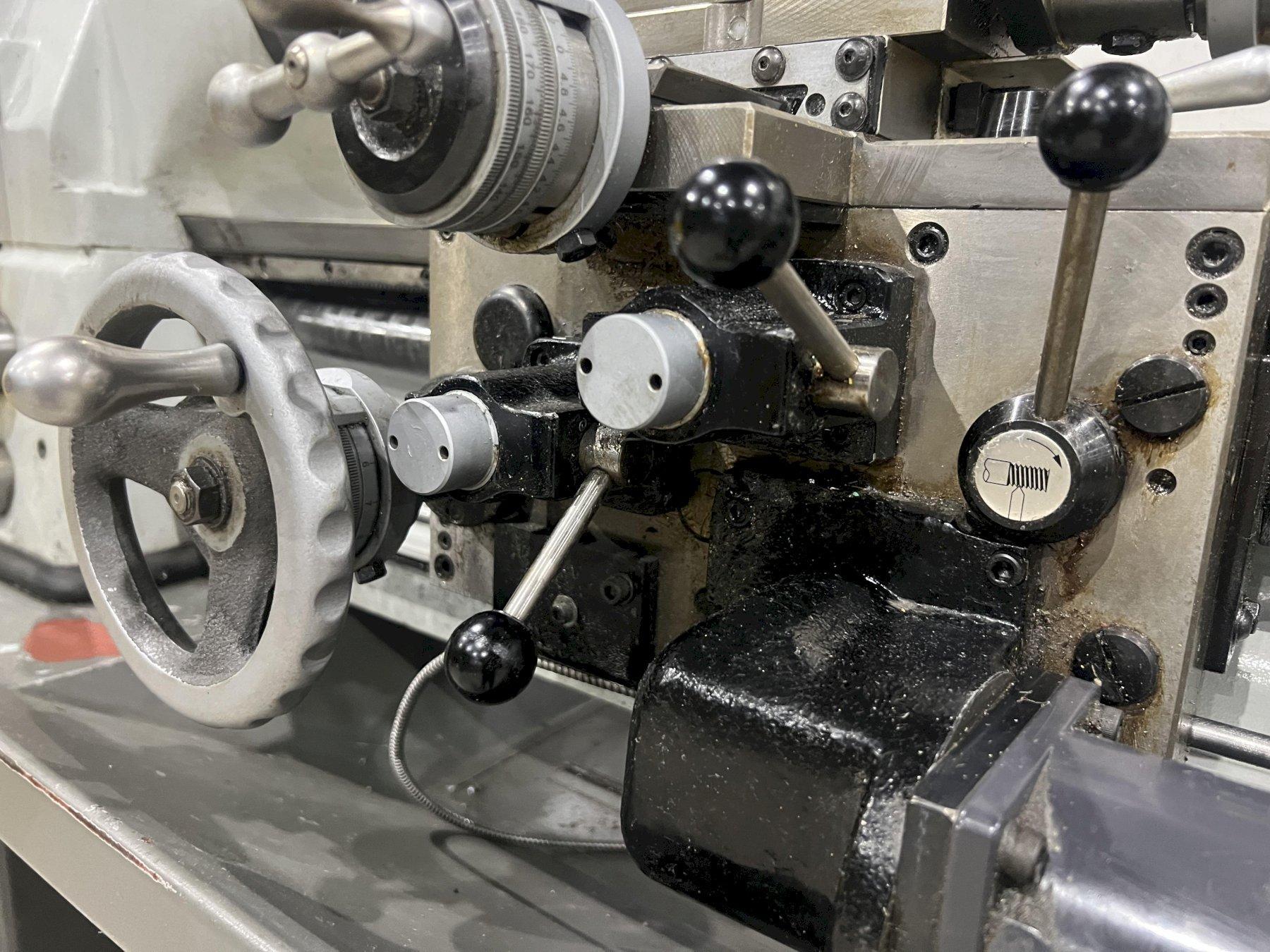

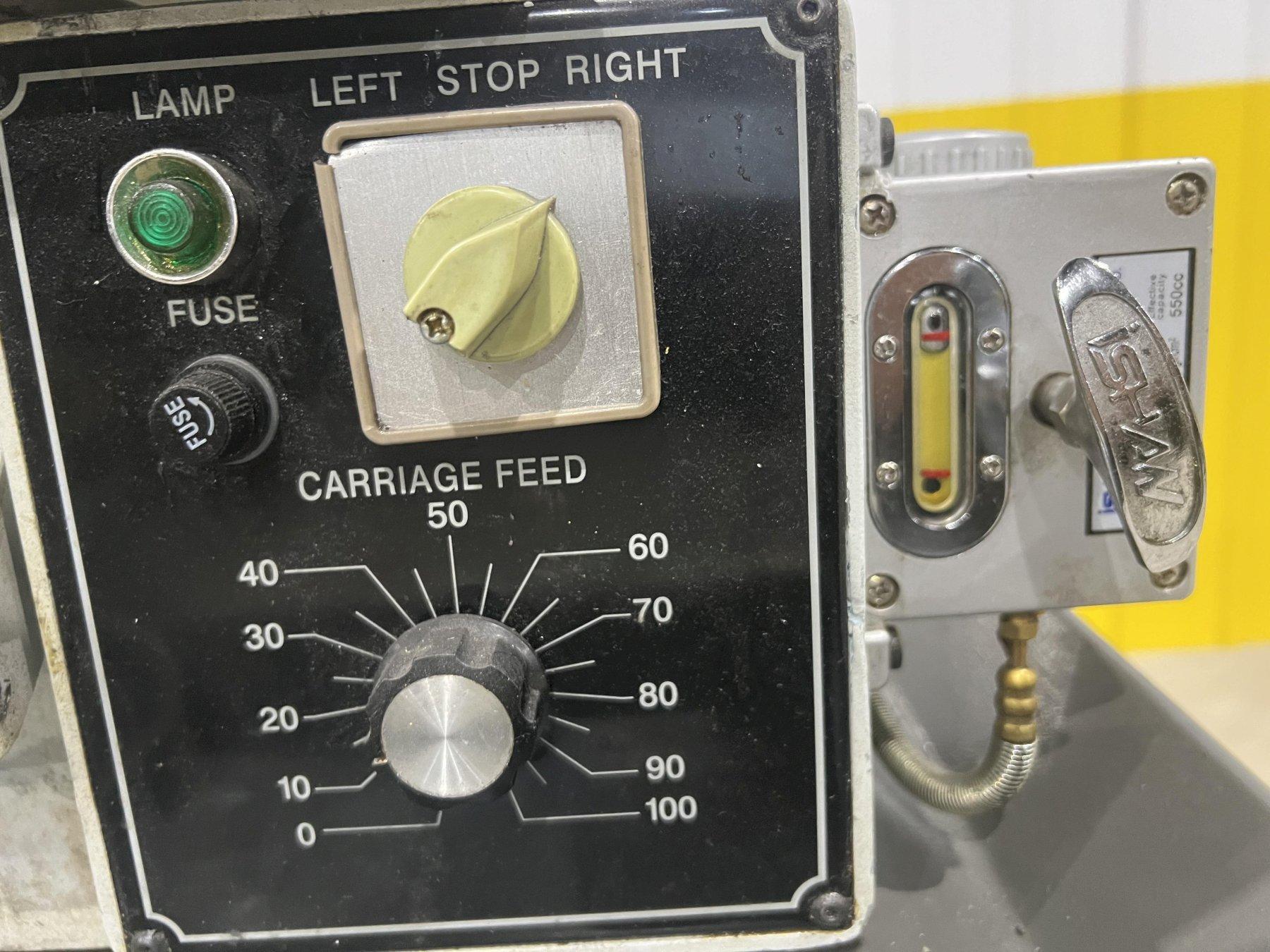

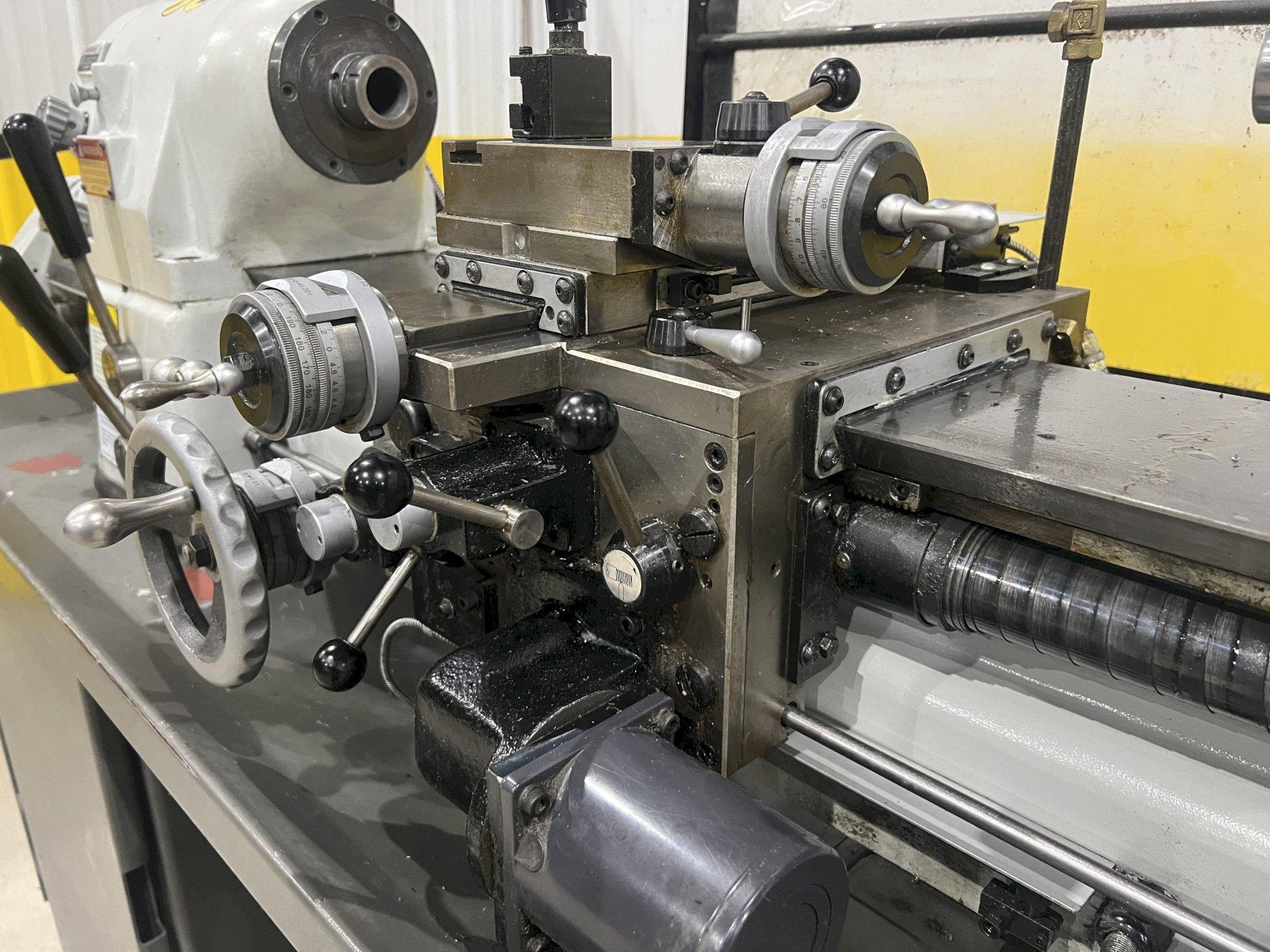

POWER CARRIAGE FEED .... 5/16" TO 7" / MINUTE
POWER CROSS SLDE FEED .. 3/16" TO 4" / MINUTE

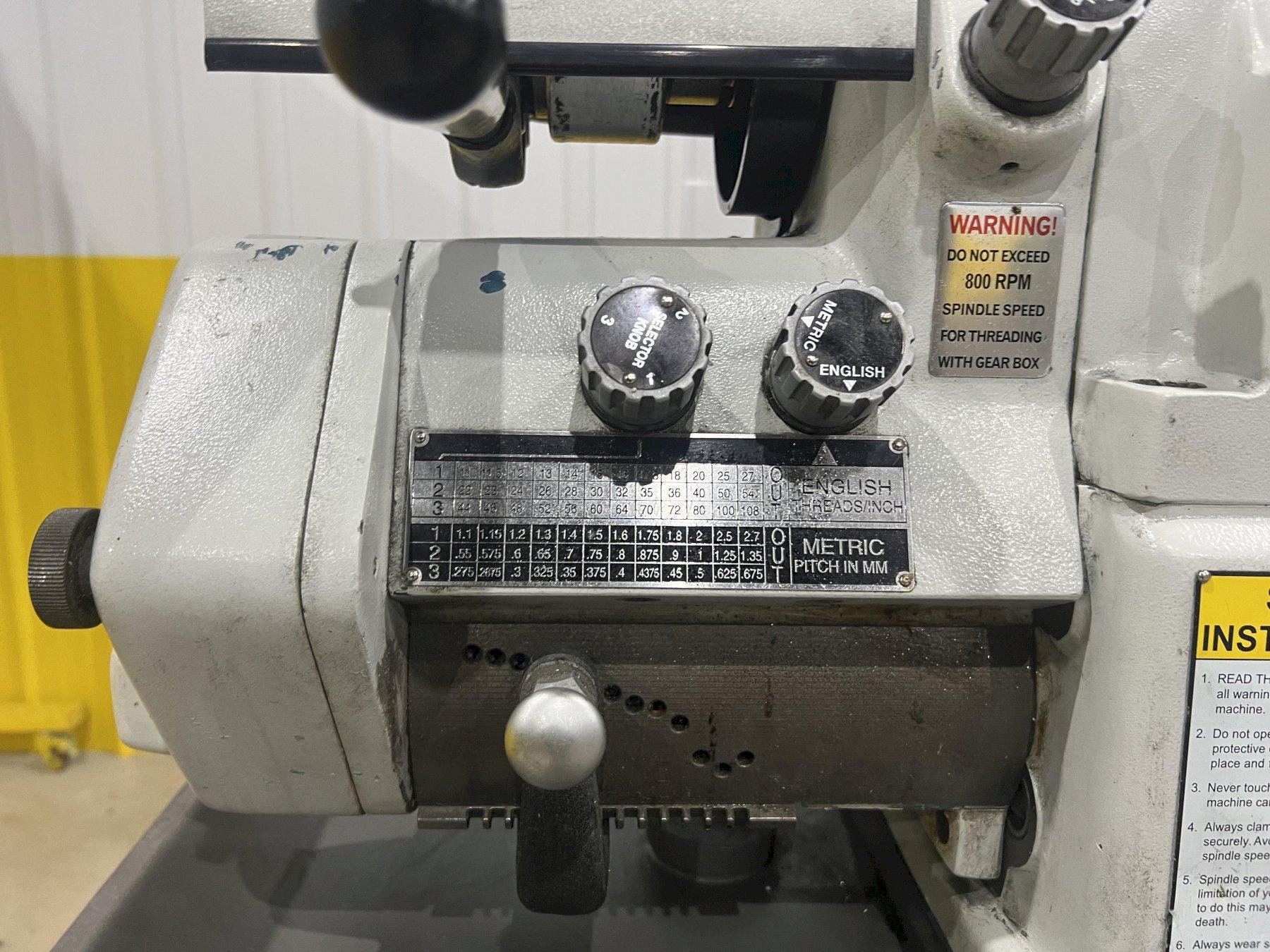

INCH THREADS ........... (36) 11 TO 118 TPI
METRIC THREADS ......... (36) .275 TO 2.7 MM

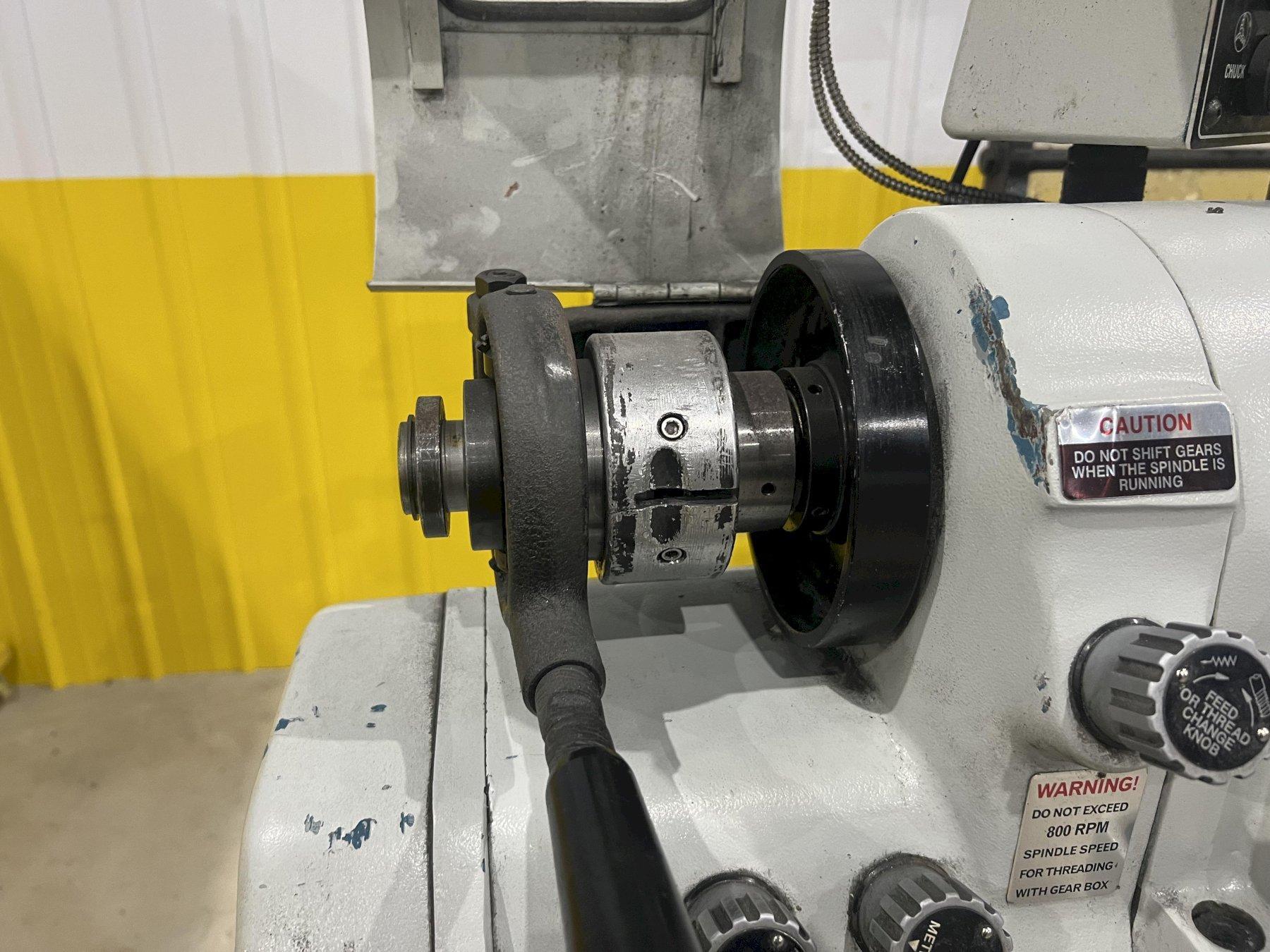

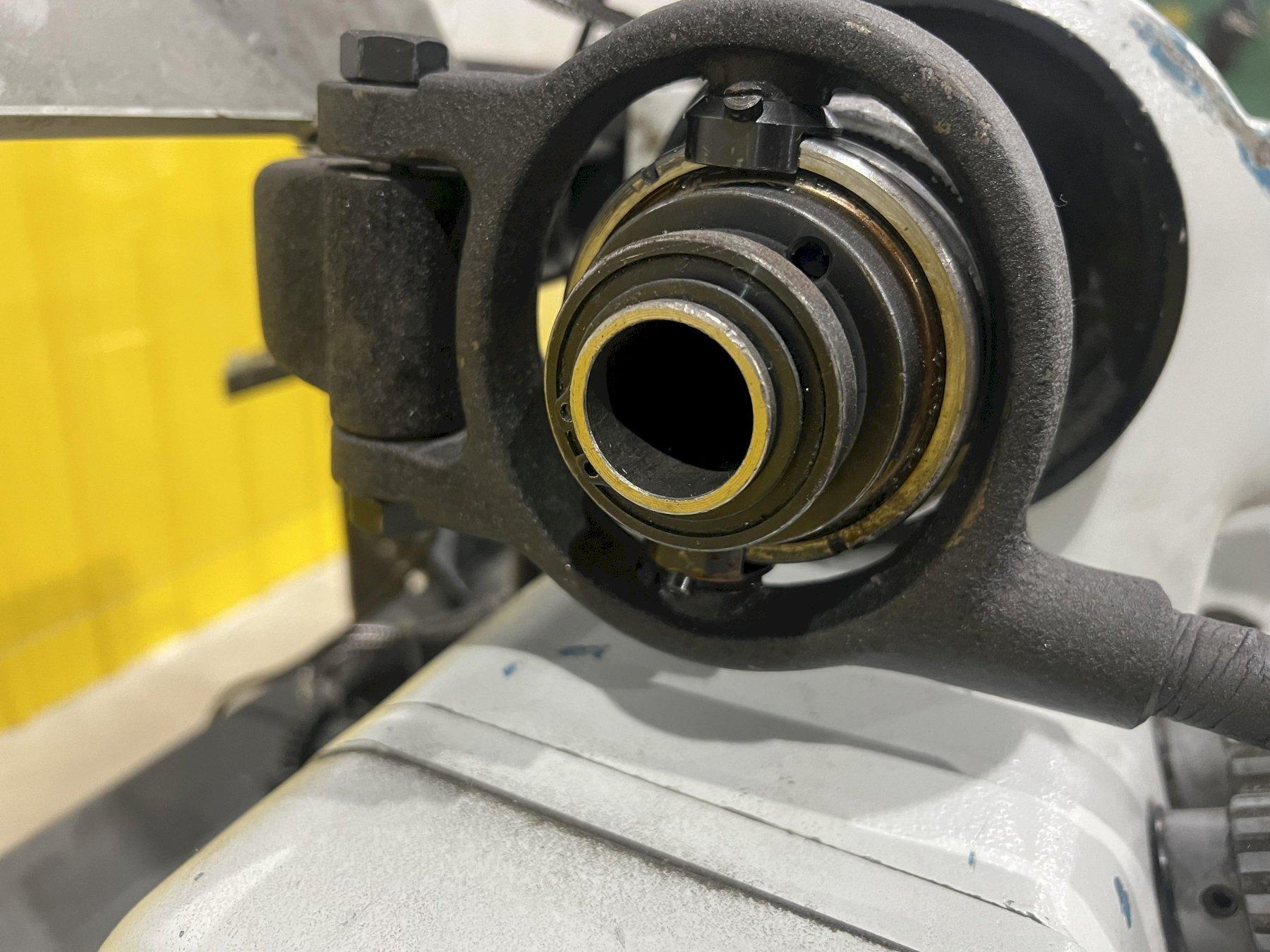

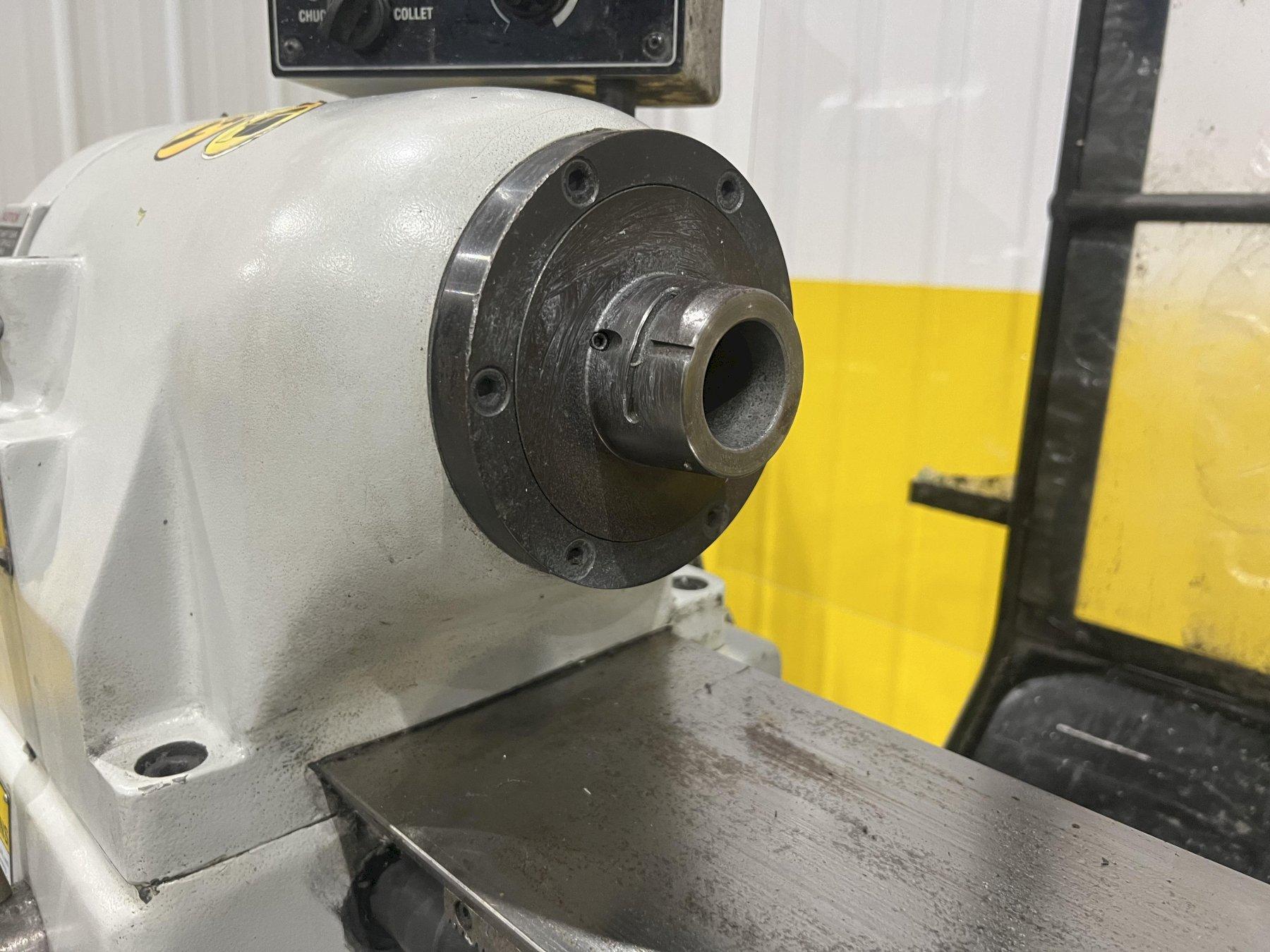

SPINDLE NOSE ........... 5C TAPER

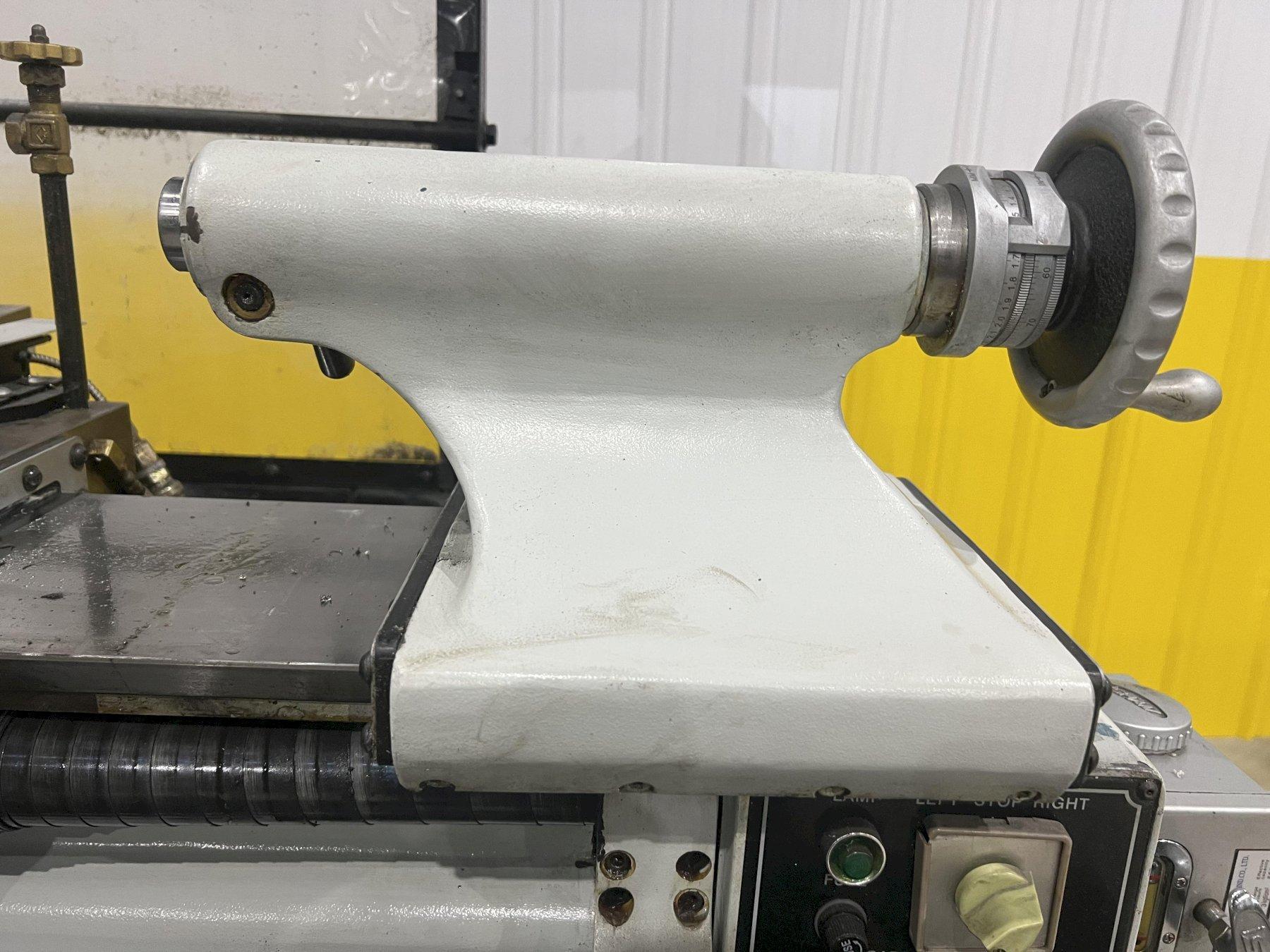

TAILSTOCK QUILL ........ 1-3/8" DIAMETER
TAILSTOCK TAPER ........ #2MT
TAILSTOCK TRAVEL ....... 3-3/4"

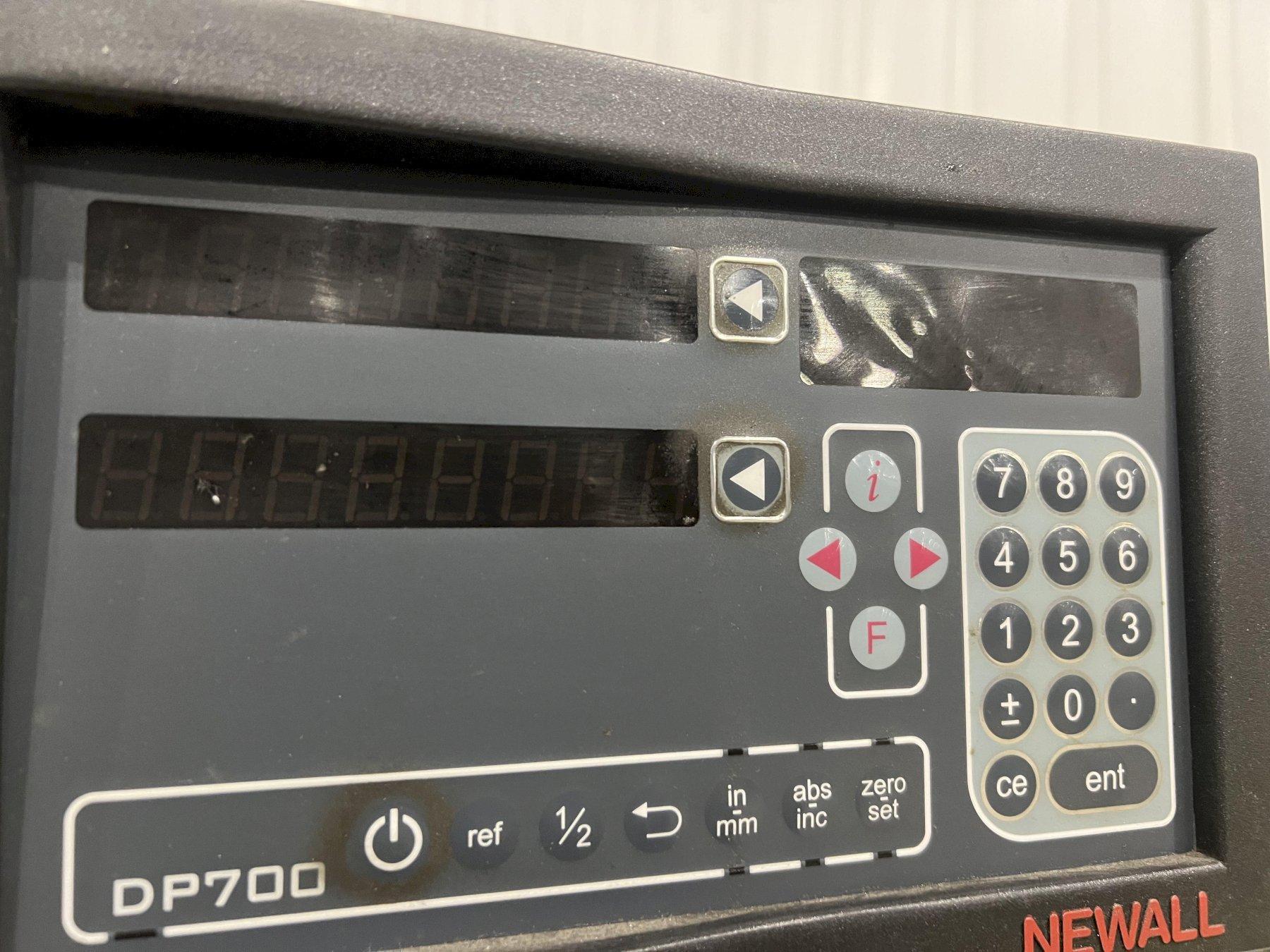

DIGIAL READ OUT ........ NEWALL 2 AXIS

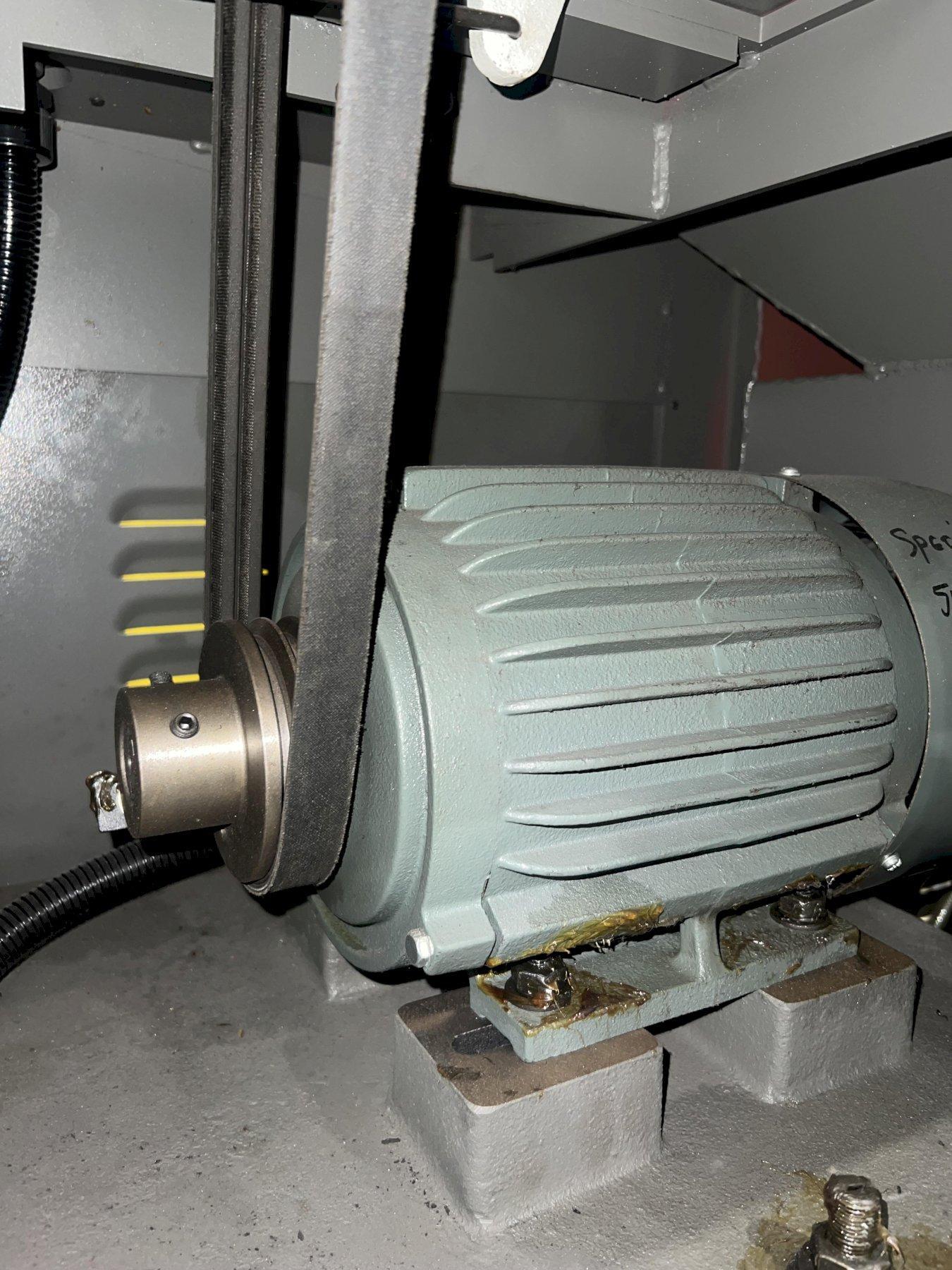

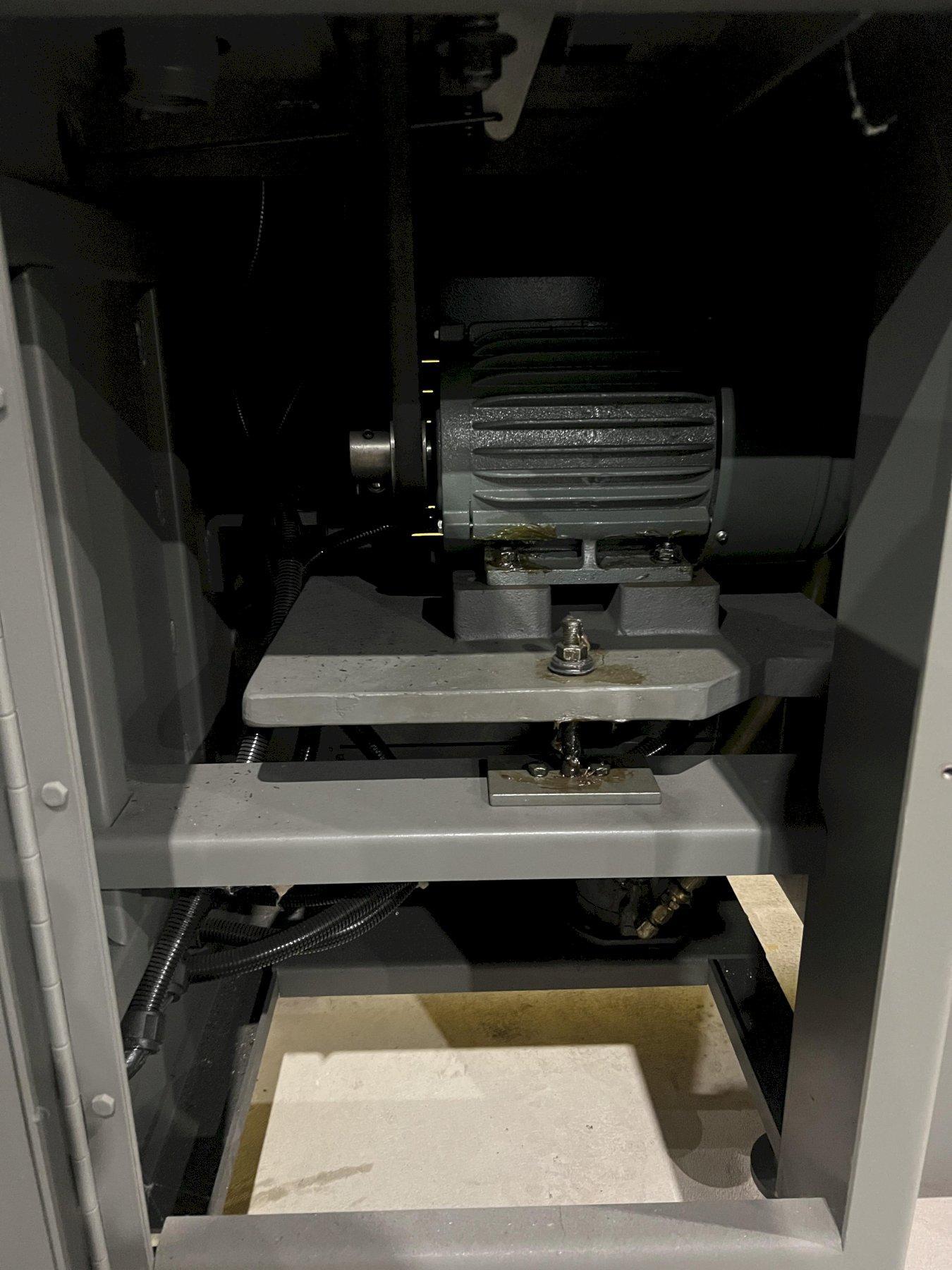

SPINDLE MOTOR .......... 3 HP


Specifications
Dimensions 73" x 30" x 67"
Weight 2530 pounds

6" X 18" GMC MODEL #TL-618 EVS HIGH PRECISION TOOLROOM LATHE, 4,000 RPM, 1.25" HOLE: STOCK #20291

Brand
GMC

Type
Lathes, Toolroom

Stock No.
20291

Contact Us
Buy Now
Price: $9950.00
