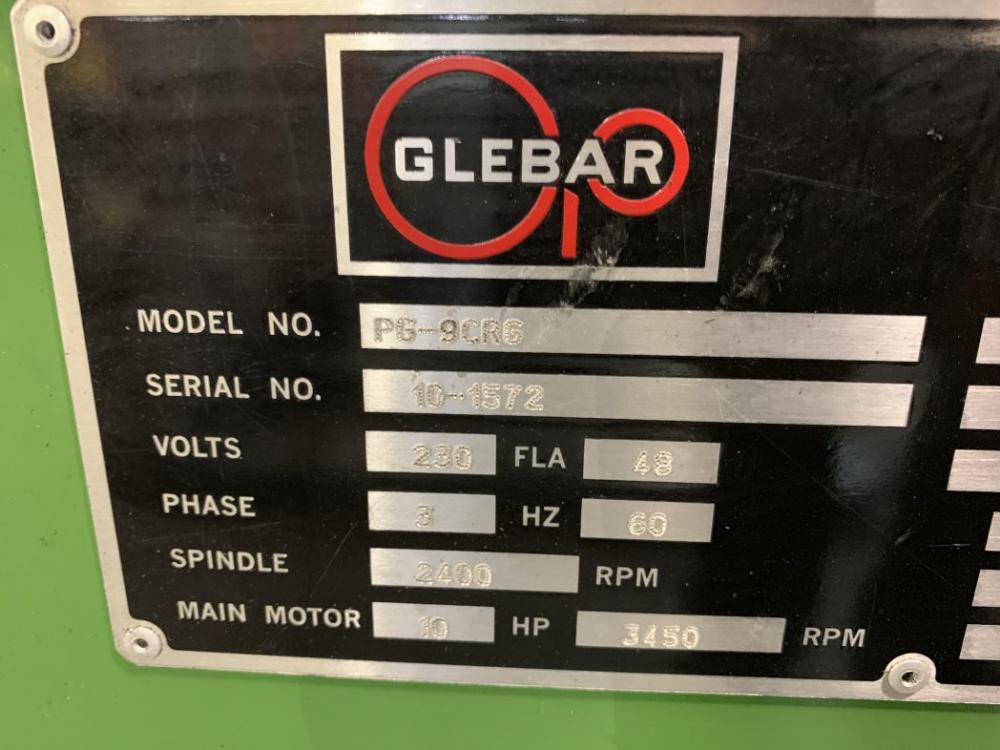

SERIAL: 10-1572
MODEL: PG-9CRG
YEAR: 2010
WORK WHEEL POWER: 15 HP
GRINDING WHEEL:
DIAMETER: 9"
LENGTH: 12-5/8"
INCLUDES:

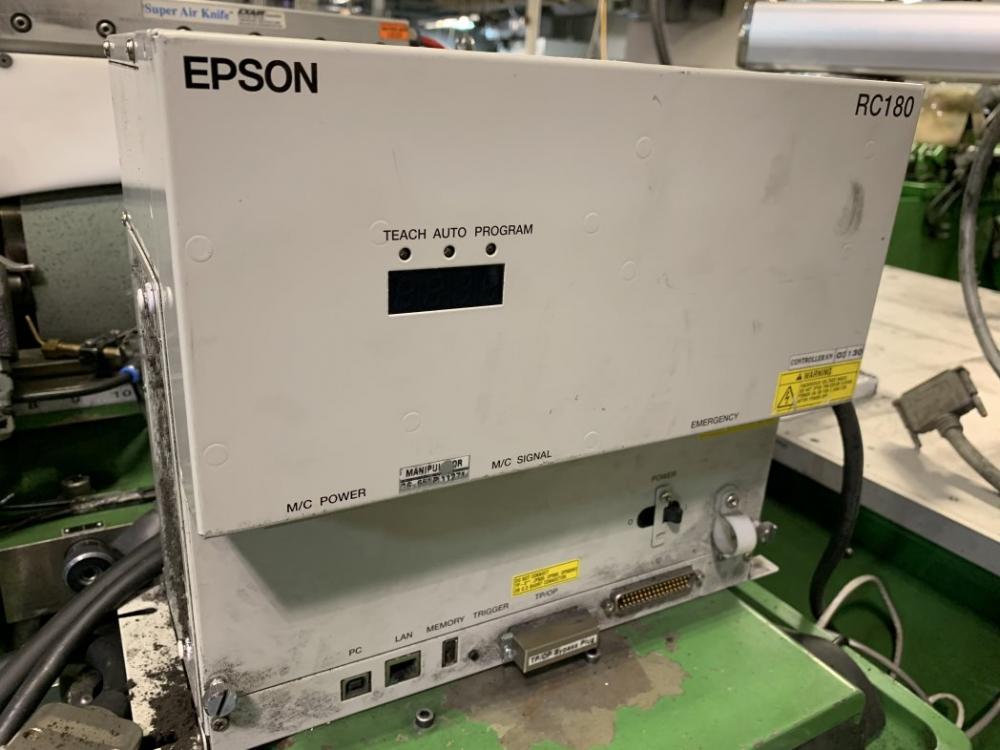

ROBOTIC ARM
PARKER HANIFAN PLC TOUCHSCREEN HMI CONTROLS
DIAMOND OR VITRIFIED
STOCK SIZE:
MAX DIA: 2"
MIN DIA: 0.375"
MAX SHAFT DIA: 1.5"
MIN SHAFT DIA: 0.187"
MAX GROUND ROLL FACE: 12-5/8" (CUSTOM SIZES AVAILABLE)
Condition: Machines appear to be in very good to excellent condition
** Options from the OEM
From the OEM website:
Traditional OD grinding methods rely on CNC Programming to profile shapes. Although adequate for prototyping, an od machine is slow since the grinding head has to traverse the length of the part. Alternatively, the PG-9CRG is able to form components in one pass
Additionally, the PG-9CRG leverages Glebar's vast knowledge in grinding wheel compositions to match the optimum
grinding wheel for your material. as a compact machine that can be highly automated, the machine can be simply adapted to grind small components using the installed collets
** Options available (price on request): in-line gauging, mist collector, off- machine wheel balancing system, post process gauging, part counter, robot pick & place, three-stage recirculating coolant system
| Specifications | ||
|---|---|---|
| Work Capacity | 2 inches | |
| Grinding Wheel Dia. | 9 inches | |
| GW Power | 15 horsepower | |
| CNC Control | yes | |
Brand
GLEBAR
Type
Grinders, Centerless
Stock No.
10389
 |
