| Specifications | ||
|---|---|---|
| Work Capacity | 2 inches | |
| Grinding Wheel Dia. | 9 inches | |
| GW Power | 15 horsepower | |
| CNC Control | yes | |
Brand
GLEBAR
Type
Grinders, Centerless
Stock No.
10387
 |
419-269-2000 |

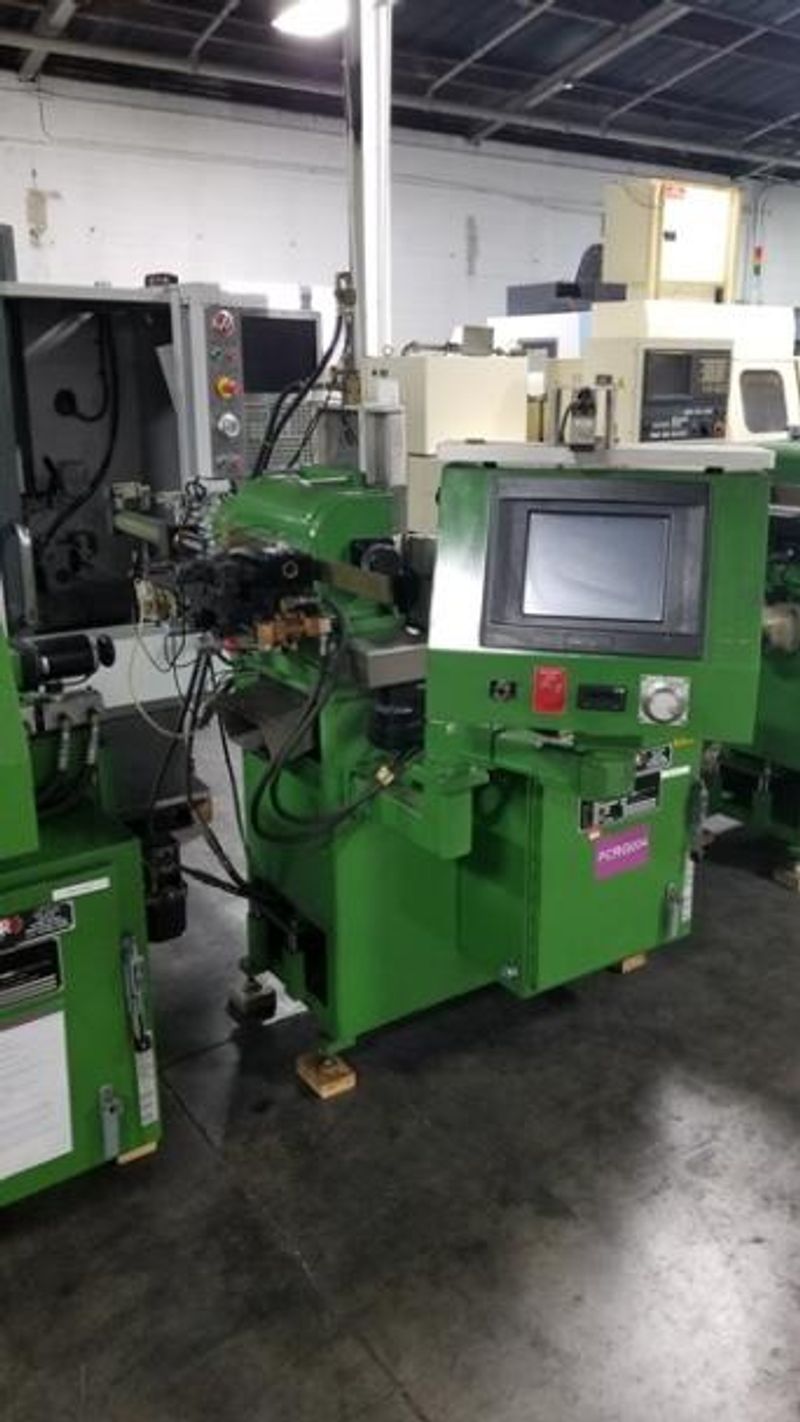

Stock #: 10387
SERIAL ........................................ 10-1577Model ......................................... PG-9CRGYear .......................................... 2011PARKER HANIFAN PLC Touchscreen HMI Controls ... YESWORK WHEEL POWER .............................. 15 HPGRINDING WHEEL LENGTH DIAMETER ................ 9" X 12-5/8" diamond or vitrifiedMAX STOCK SIZE CAPACITY ....................... 2"(50.8MM) DIAMIN STOCK SIZE CAPACITY ....................... 375"(9.5MM) DIAMAX SHAFT DIAMETER ............................ 1.5"(38.1mm)MIN SHAFT DIAMETER ............................ 0.187"(4.76mm)Max ground roll face: 12-5/8"(321mm) max. (custom sizes available)CONDITION: MACHINES APPEAR TO BE IN VERY GOOD TO EXCELLENT CONDITION.TRADITIONAL OD GRINDING METHODS RELY ON CNC PROGRAMMING TO PROFILE SHAPES. ALTHOUGH ADEQUATE FOR PROTOTYPING, AN OD MACHINE IS SLOW SINCE THE GRINDING HEAD HAS TO TRAVERSE THE LENGTH OF THE PART. ALTERNATIVELY, THE PG-9CRG IS ABLE TO FORM COMPONENTS IN ONE PASS.ADDITIONALLY THE PG-9CRG LEVERAGES GLEBAR'S VAST KNOWLEDGE IN GRINDING WHEEL COMPOSITIONS TO MATCH THE OPTIMUM GRINDING WHEEL FOR YOUR MATERIAL. AS A COMPACT MACHINE THAT CAN BE HIGHLY AUTOMATED, THE MACHINE CAN BE SIMPLY ADAPTED TO GRIND SMALL COMPONENTS USING THE INSTALLED COLLATES.OPTIONS AVAILABLE(PRICE ON REQUEST):
IN-LINE GAUGING
MIST COLLECTOR
OFF-MACHINE WHEEL BALANCING SYSTEM
POST PROCESS GAUGING
PART COUNTER
ROBOT PICK & PLACE
THREE STAGE RECIRCULATING COOLANT SYSTEM
