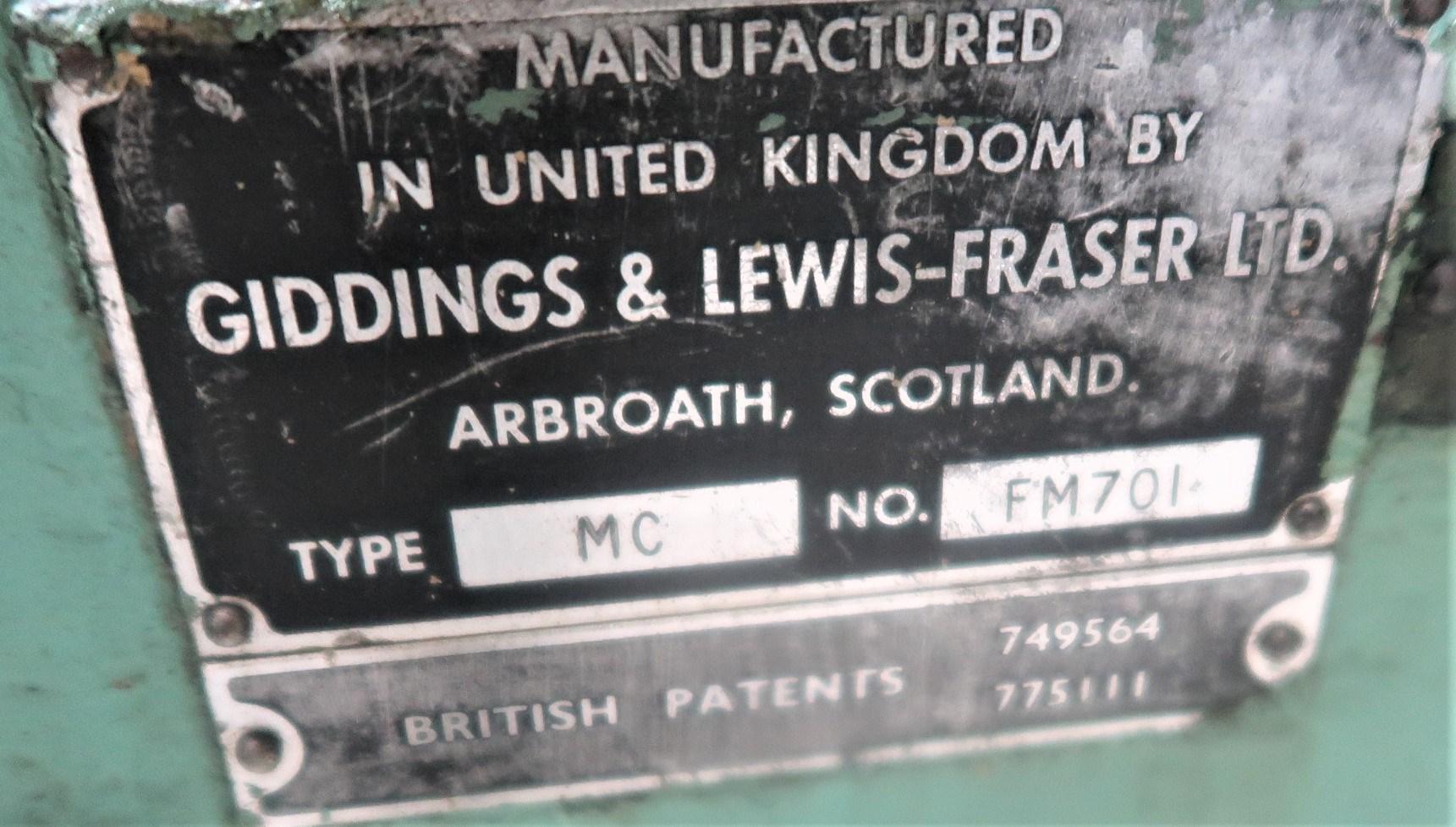

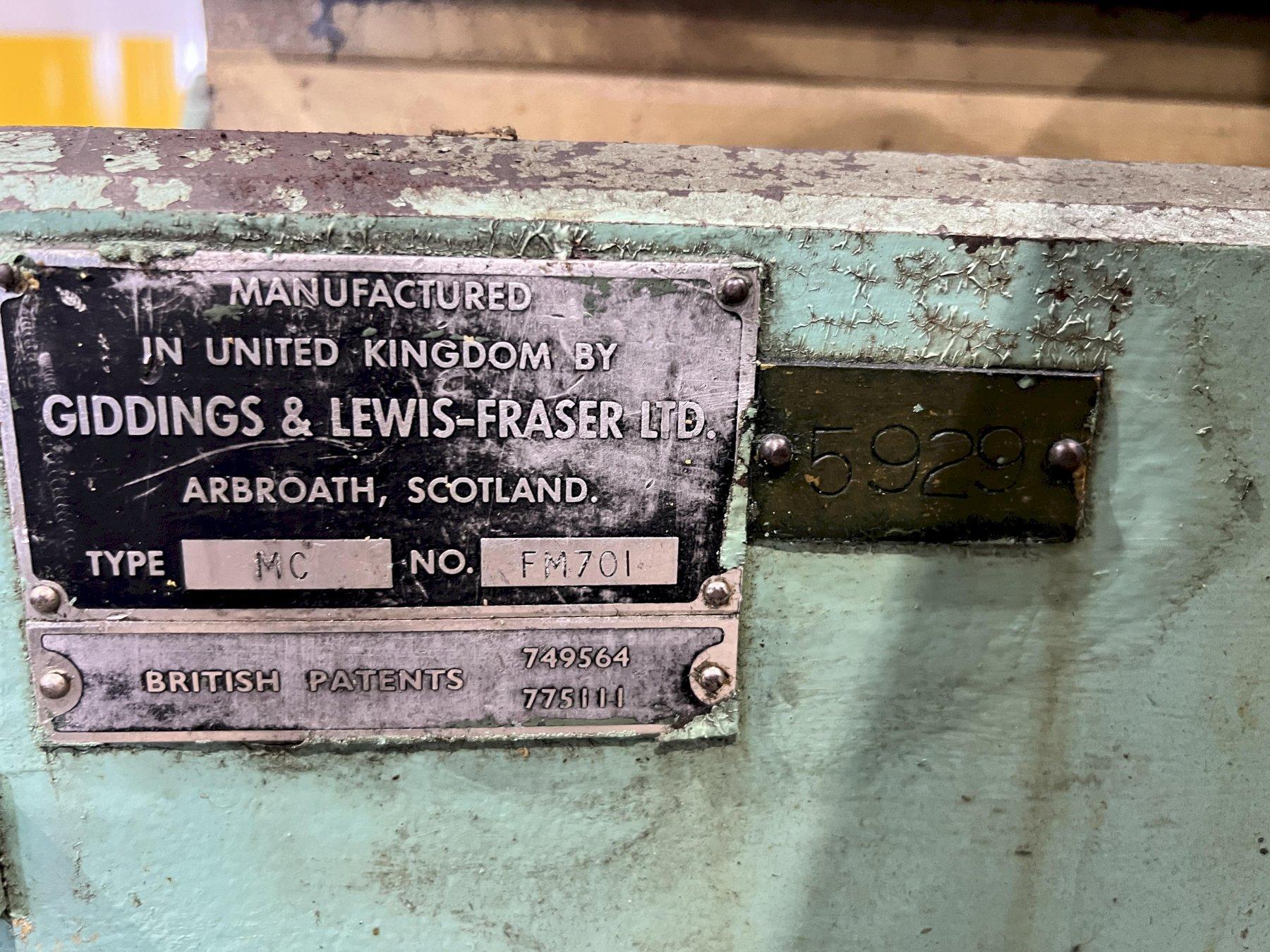

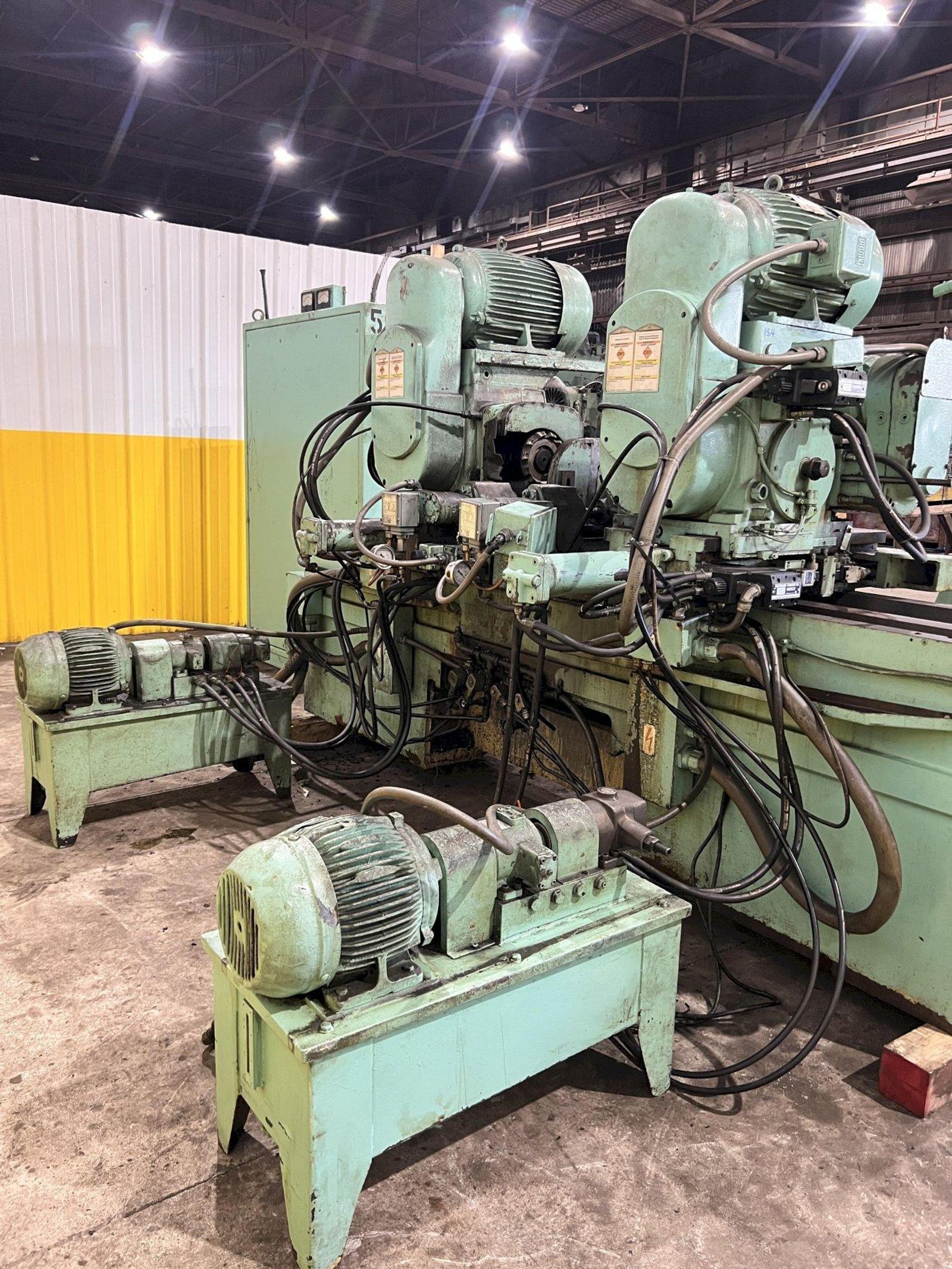

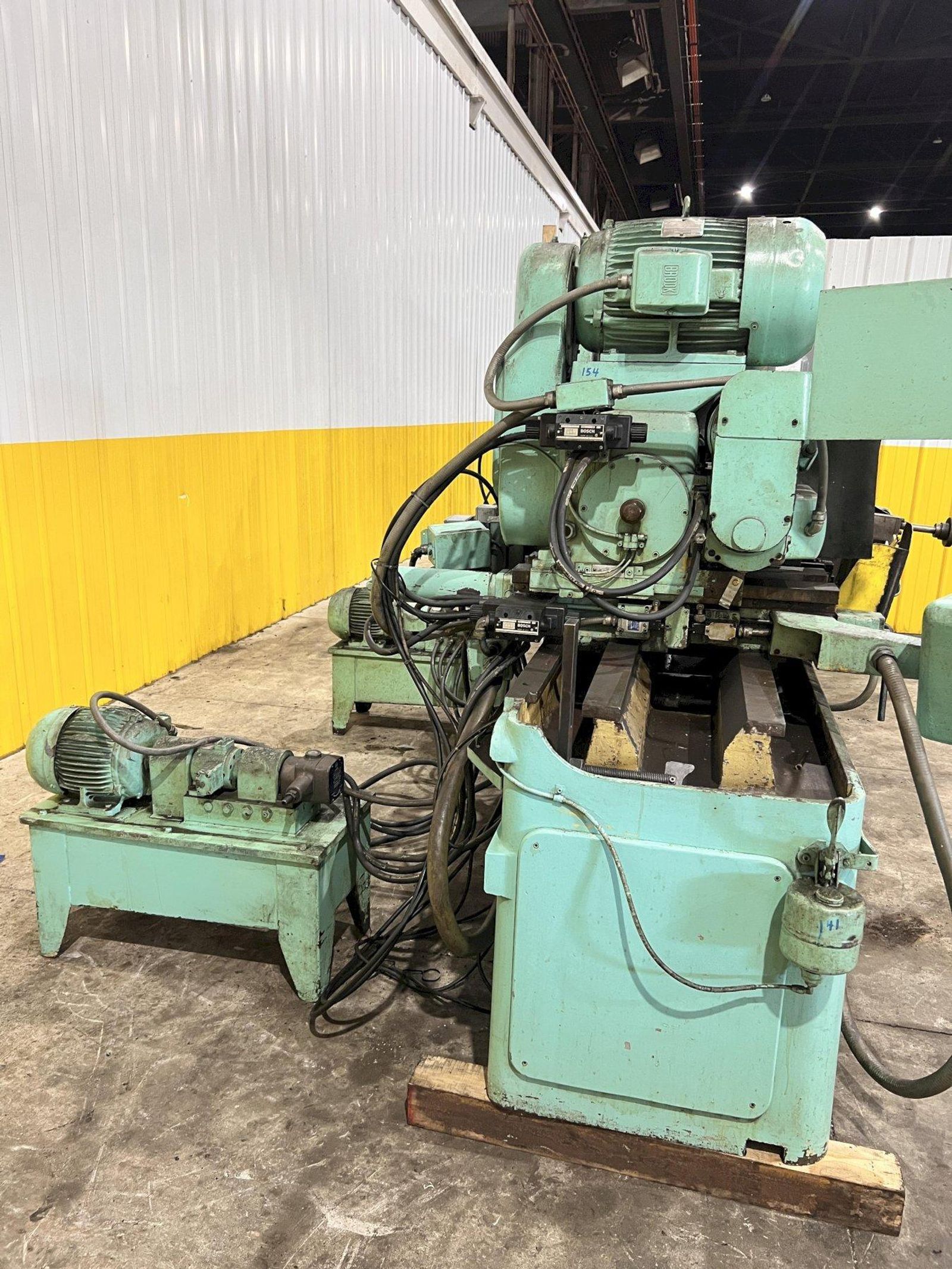

Serial .............................. FM701
Model ............................... MC
Distance Between Centers ............ 24"- 66"
Quill Diameter ...................... 8"
Drill Quill Stroke .................. 0"- 3"
Milling & Drilling Feed Stroke ...... 9.75"
Drilling Spindle Speeds ............. 314- 1,105 RPM
Milling Spindle Speeds .............. 26- 236 RPM
Milling & Drilling Feeds ............ 0- 110 IPM

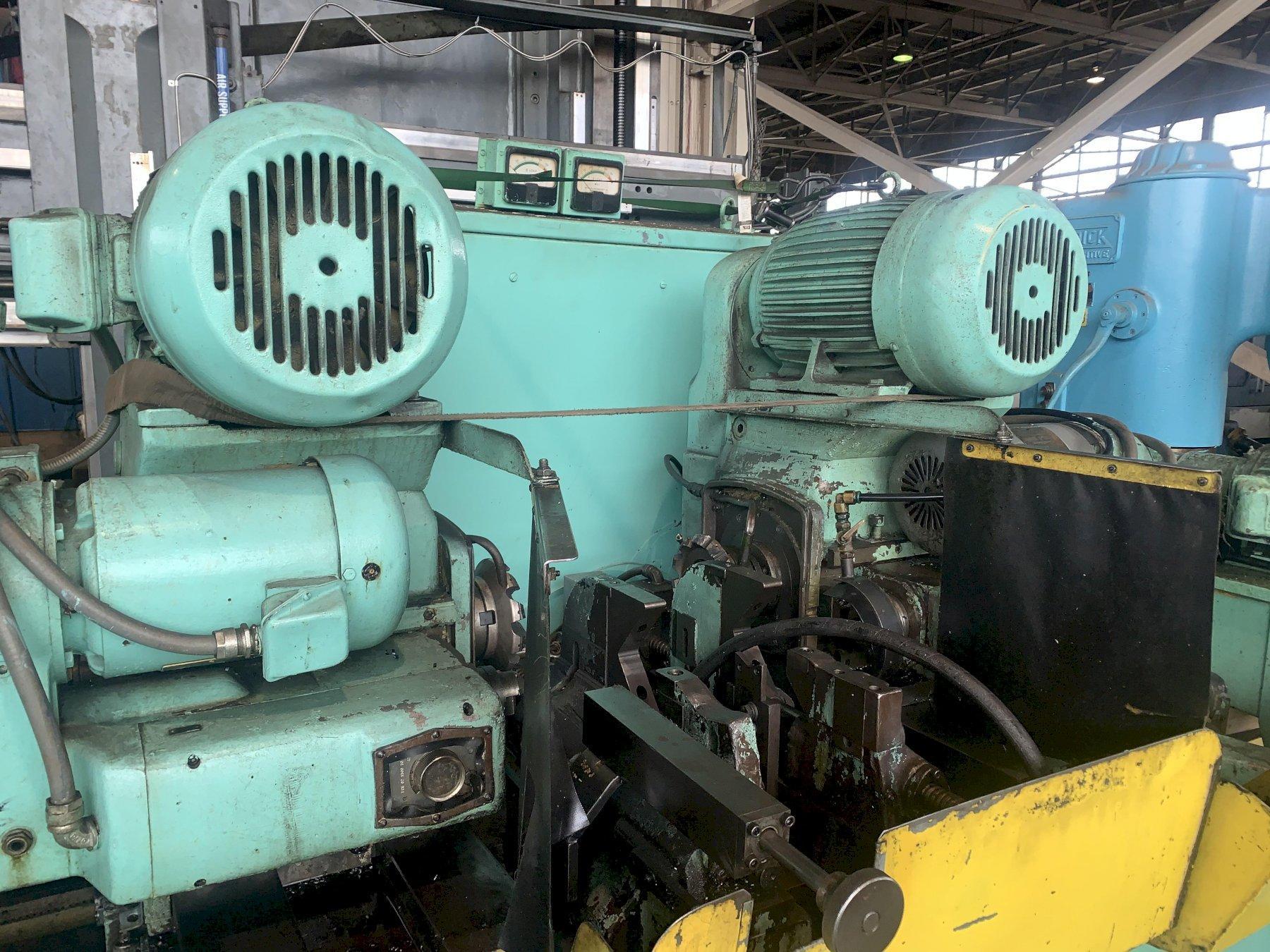

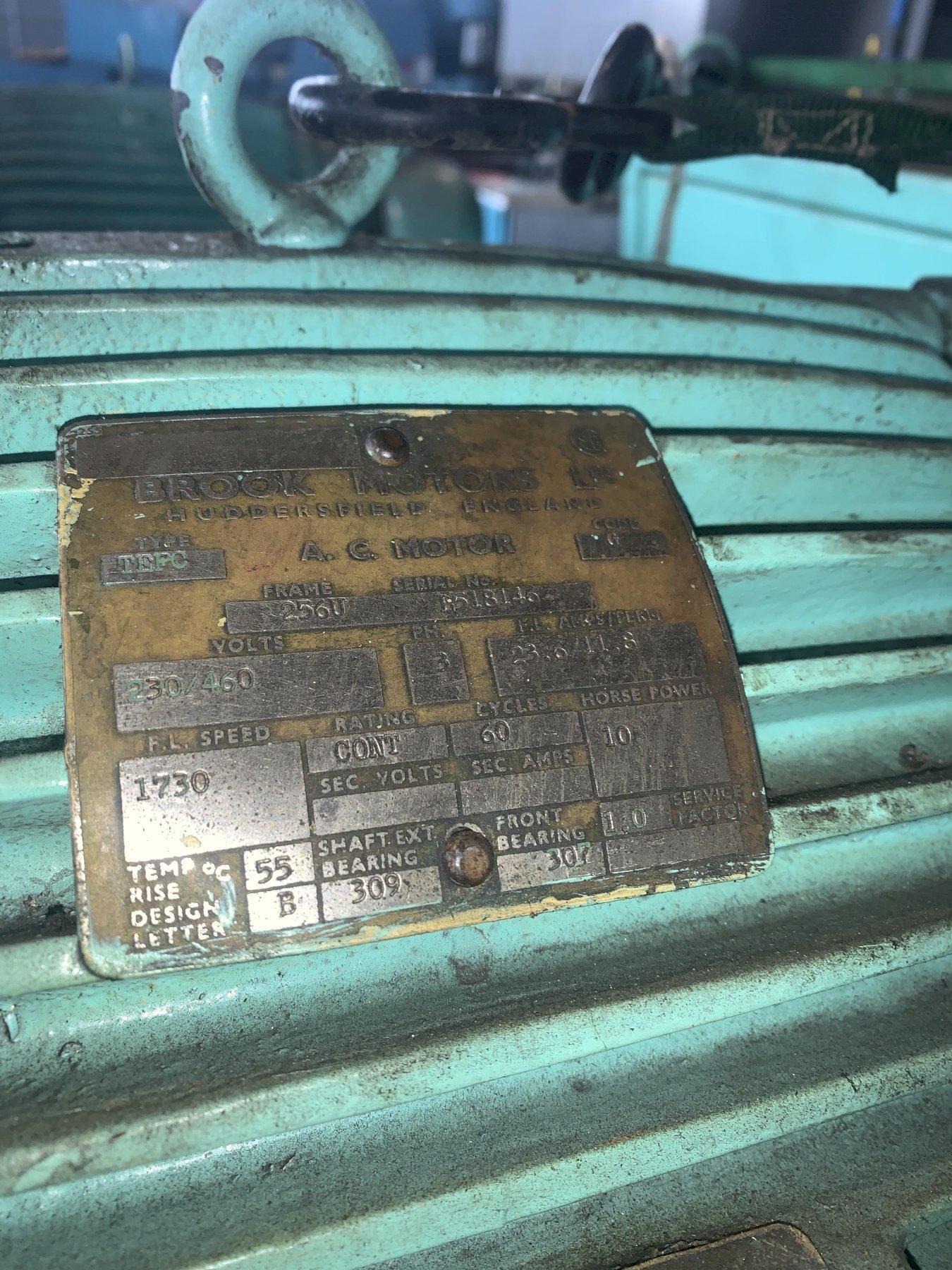

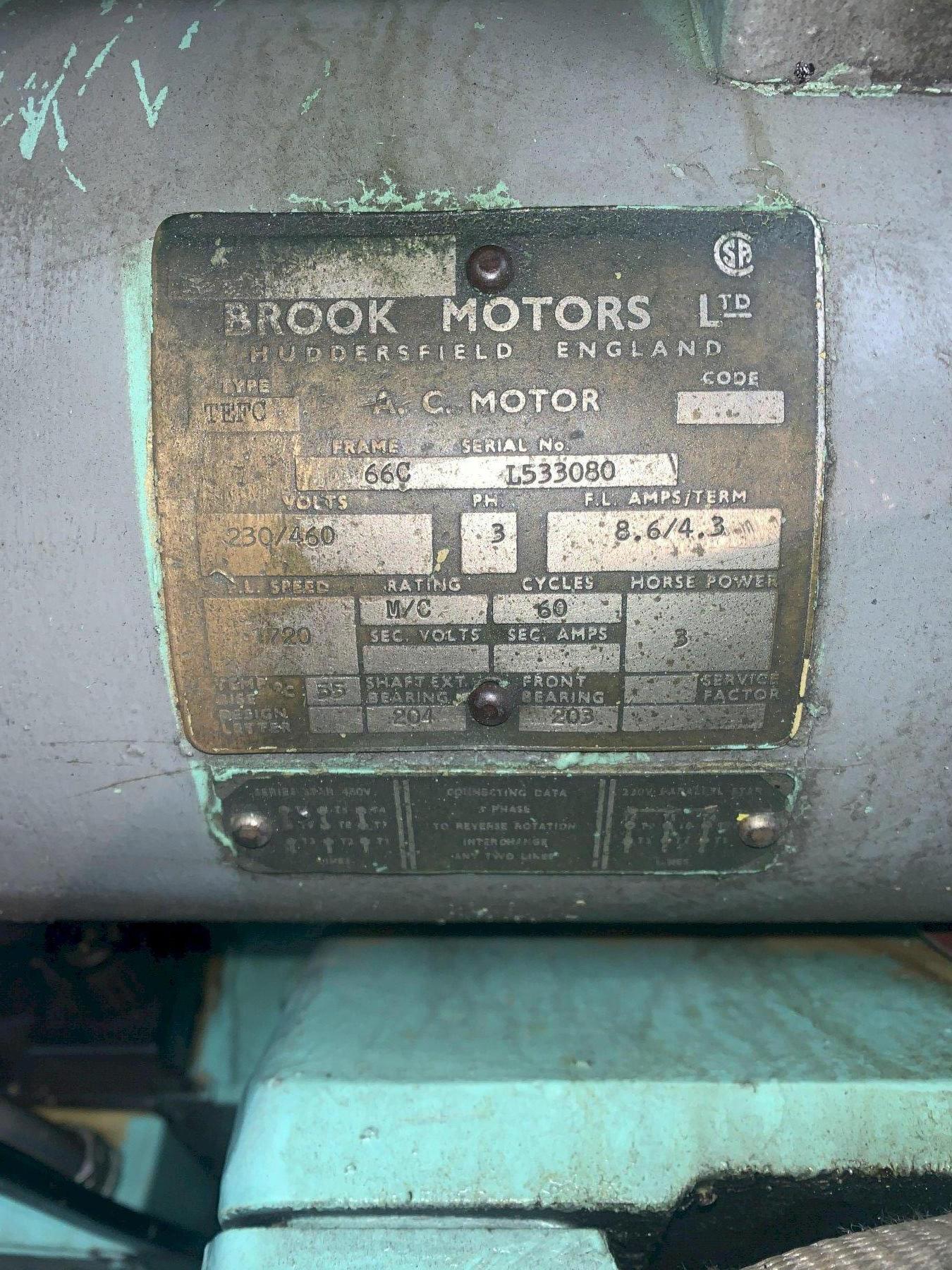

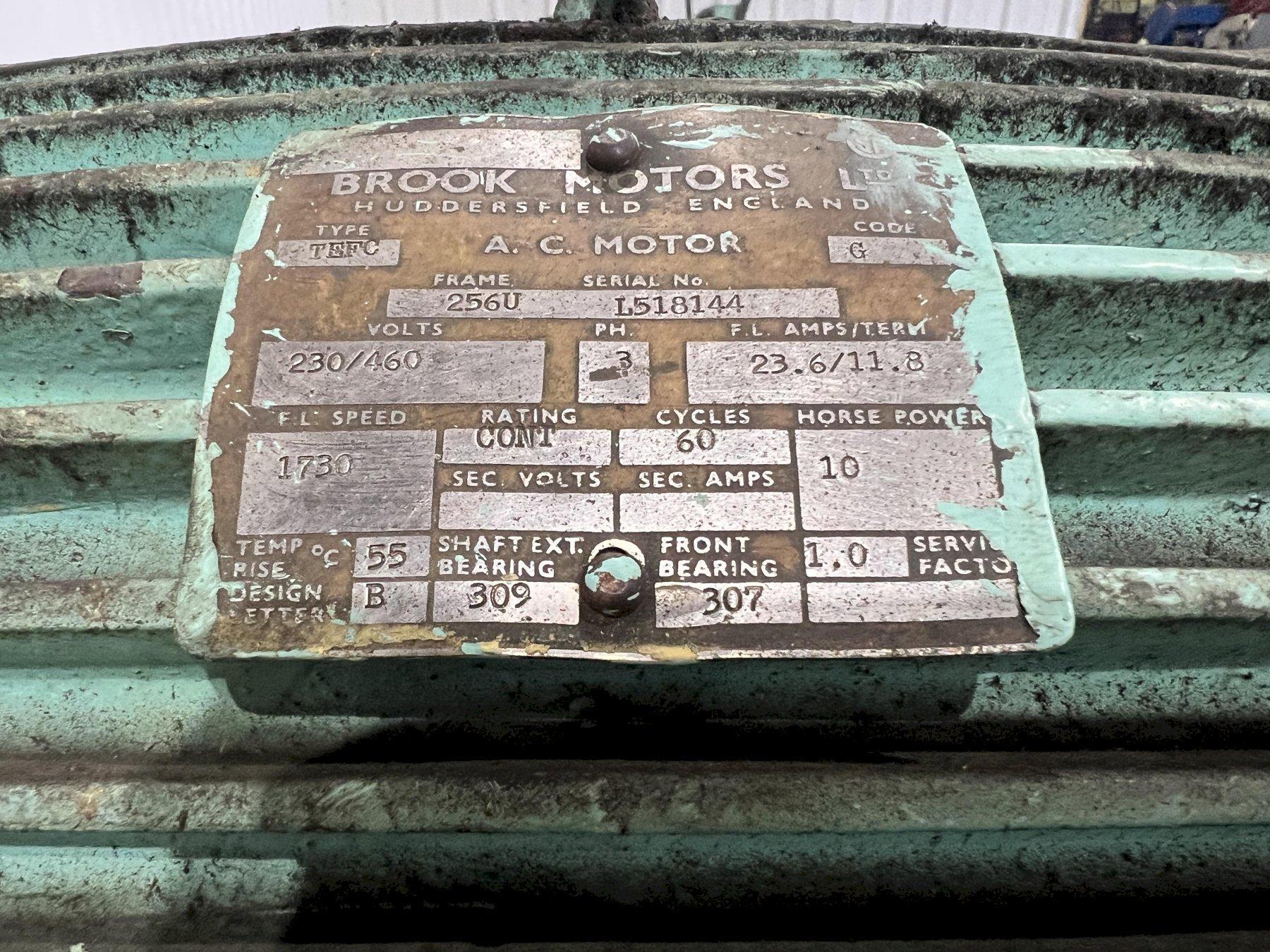

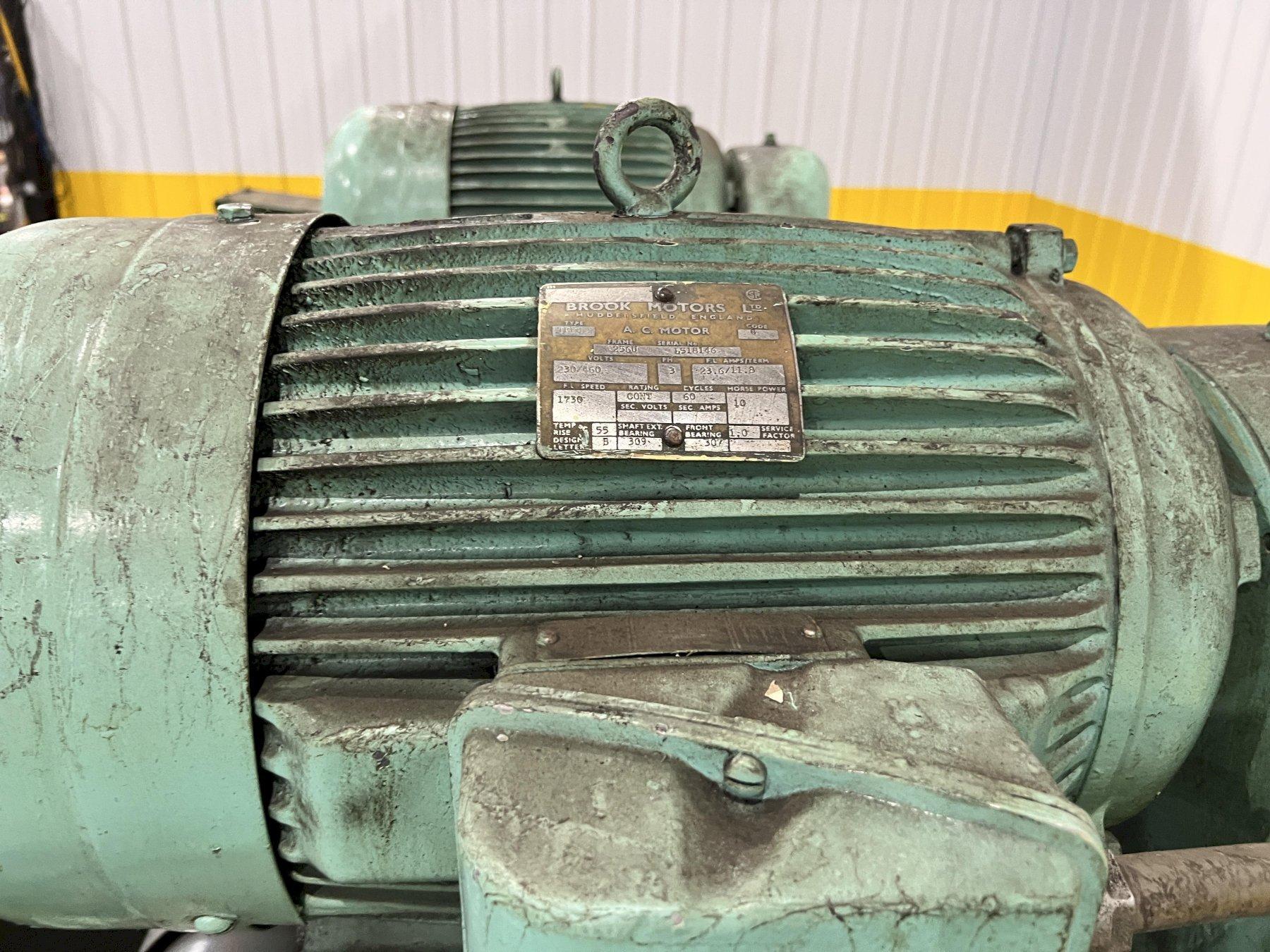

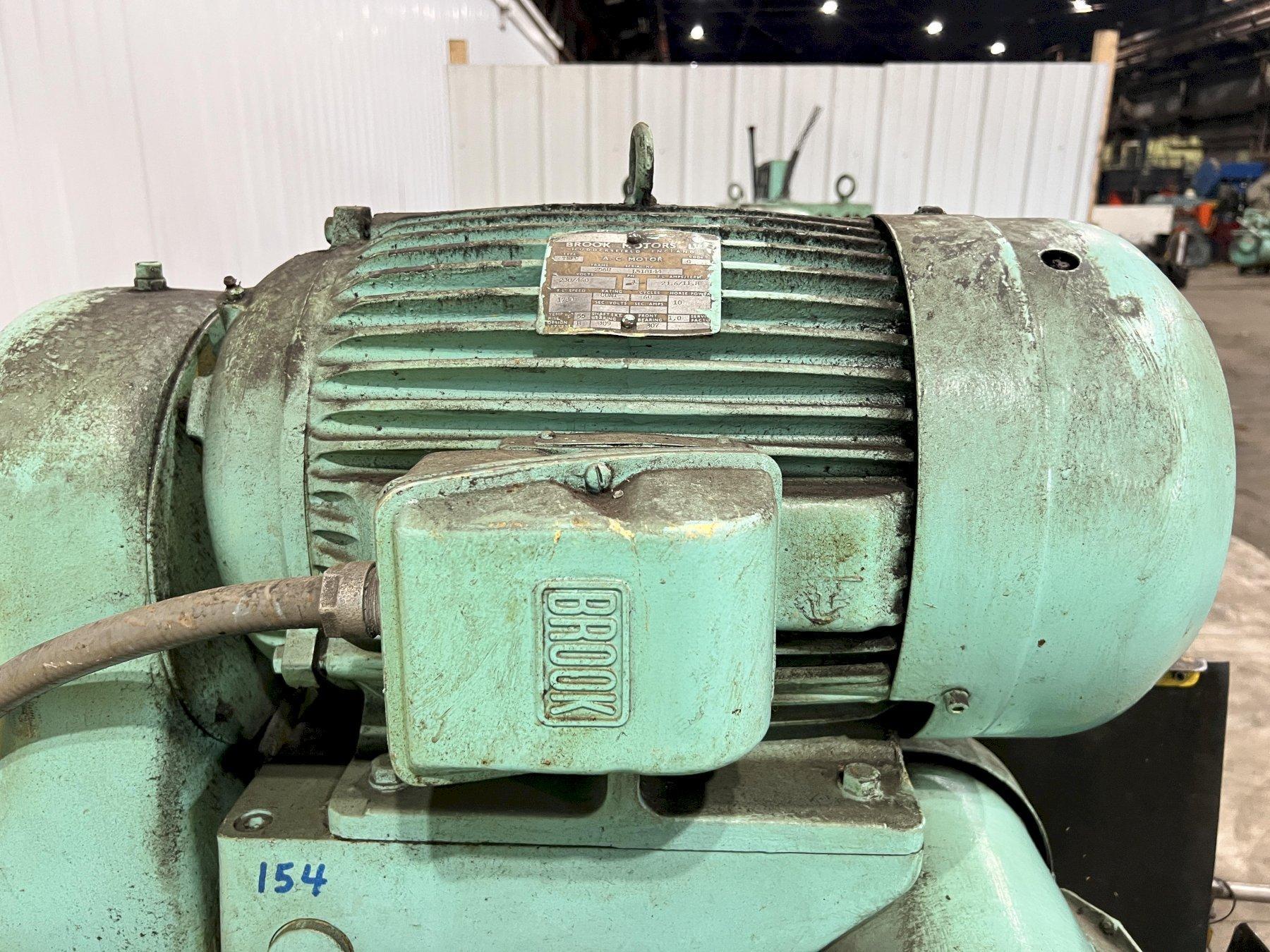

Milling Head Motors (2) ............. 15 HP

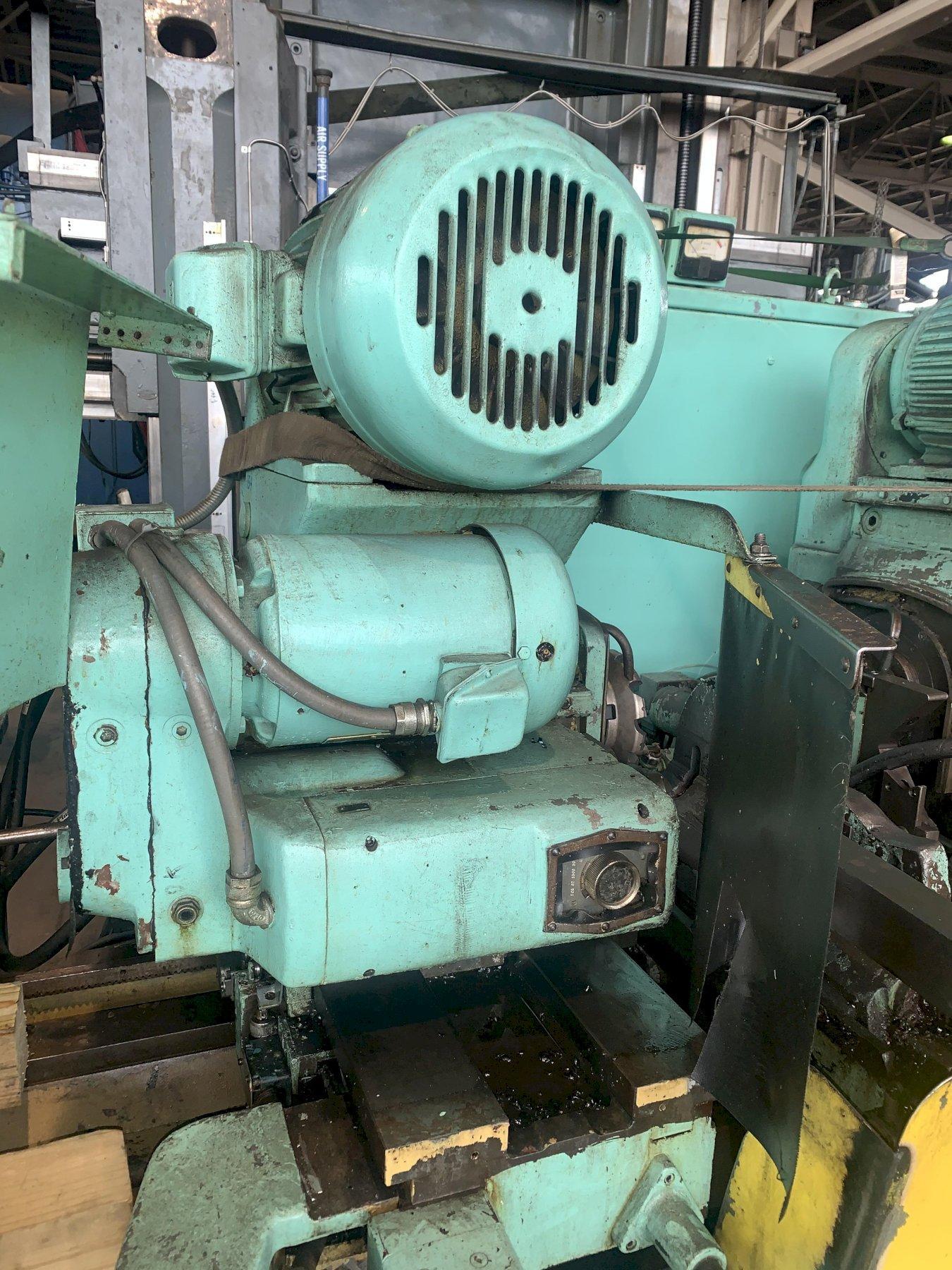

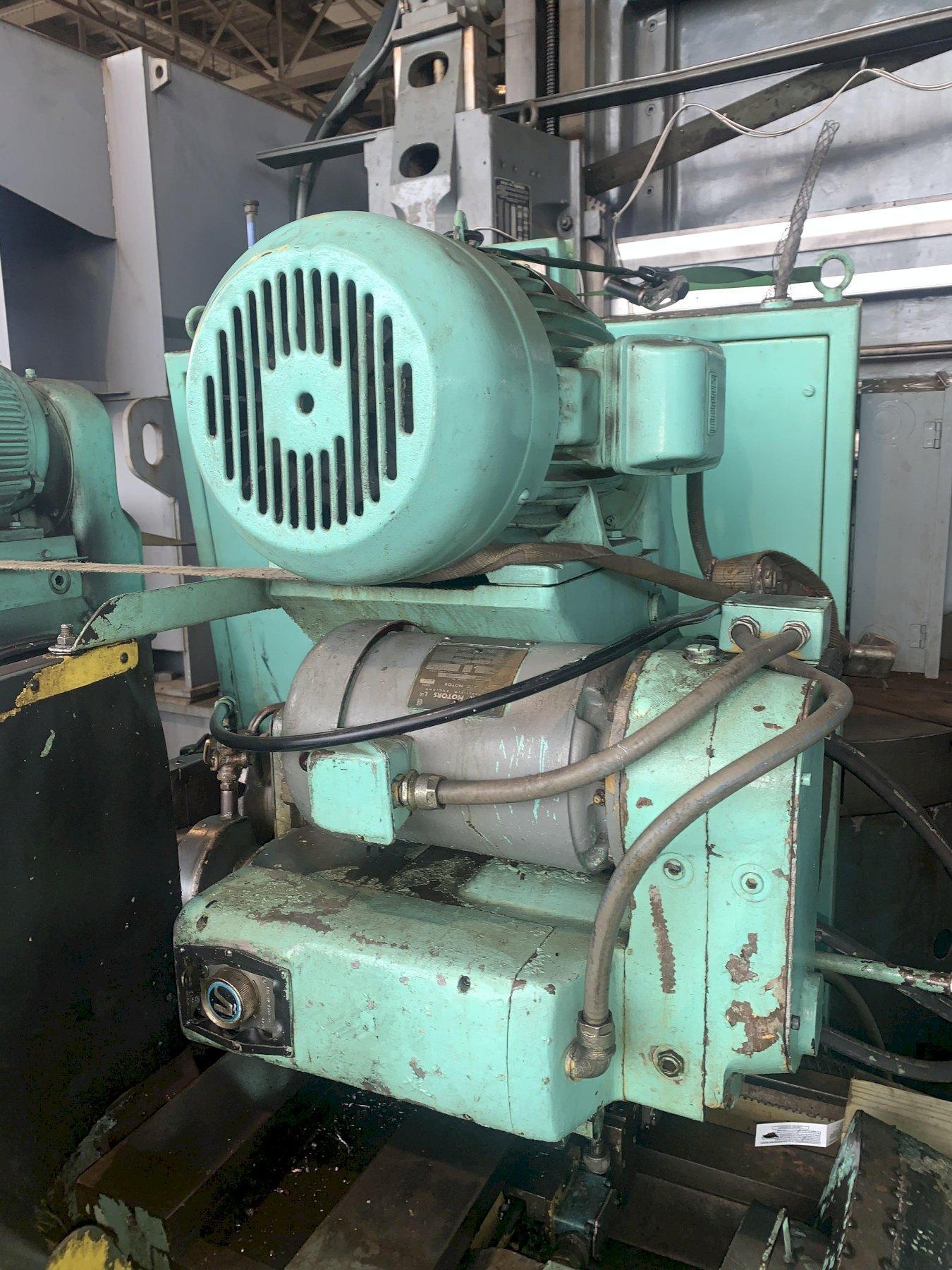

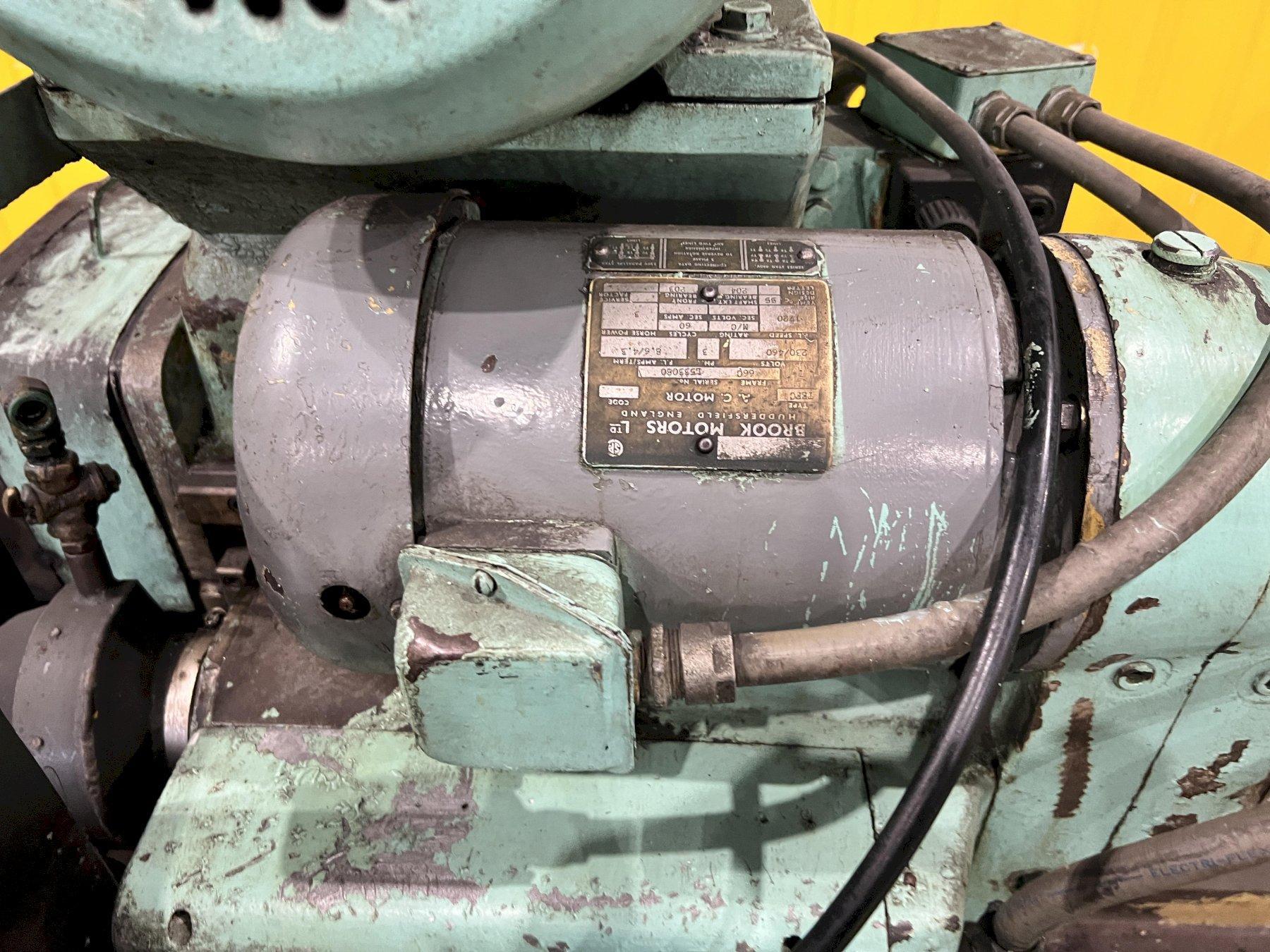

Drilling Head Motors (2) ............ 3 HP

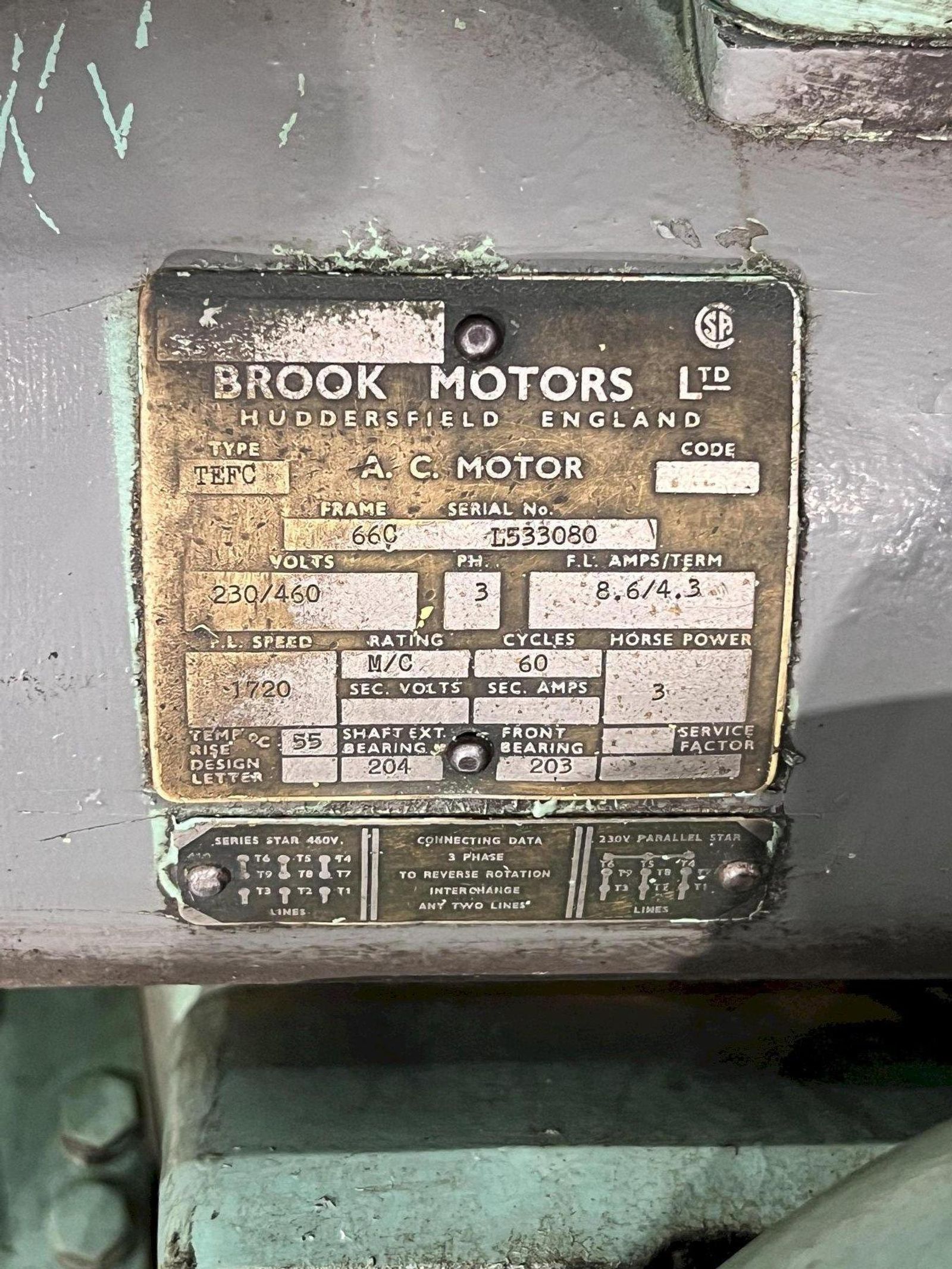

Hydraulic Pump Motors (2) ........... 3 HP

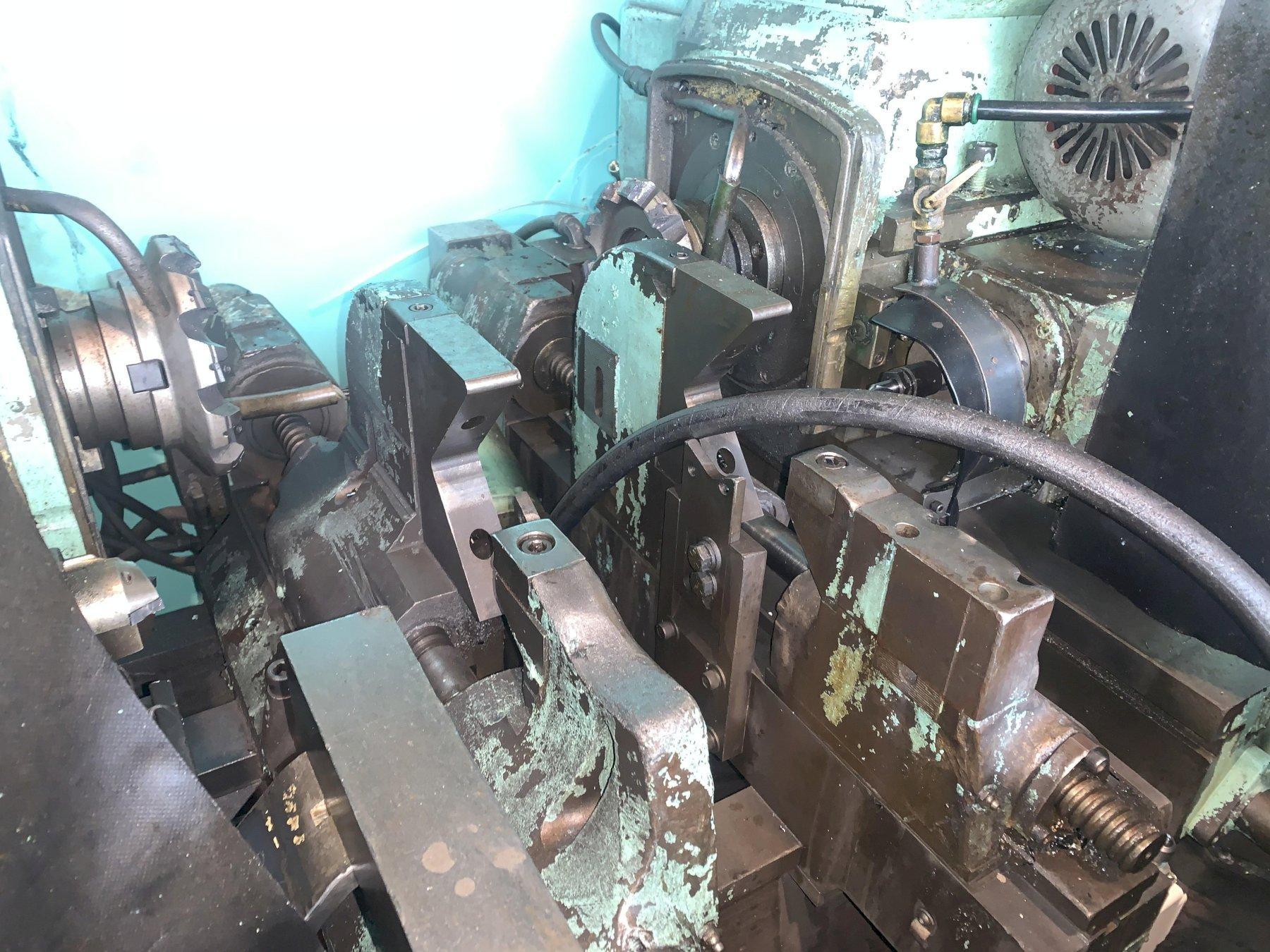

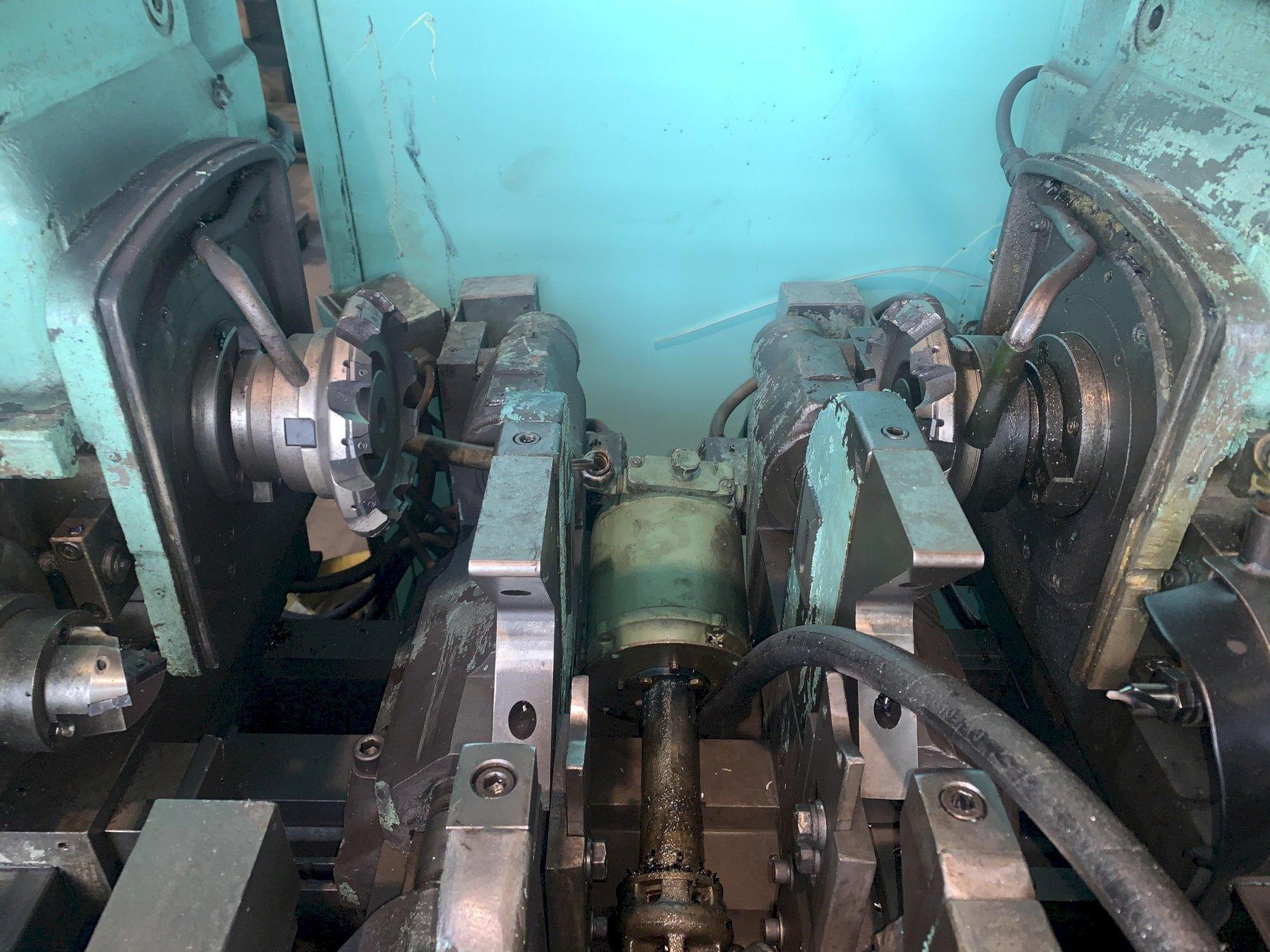

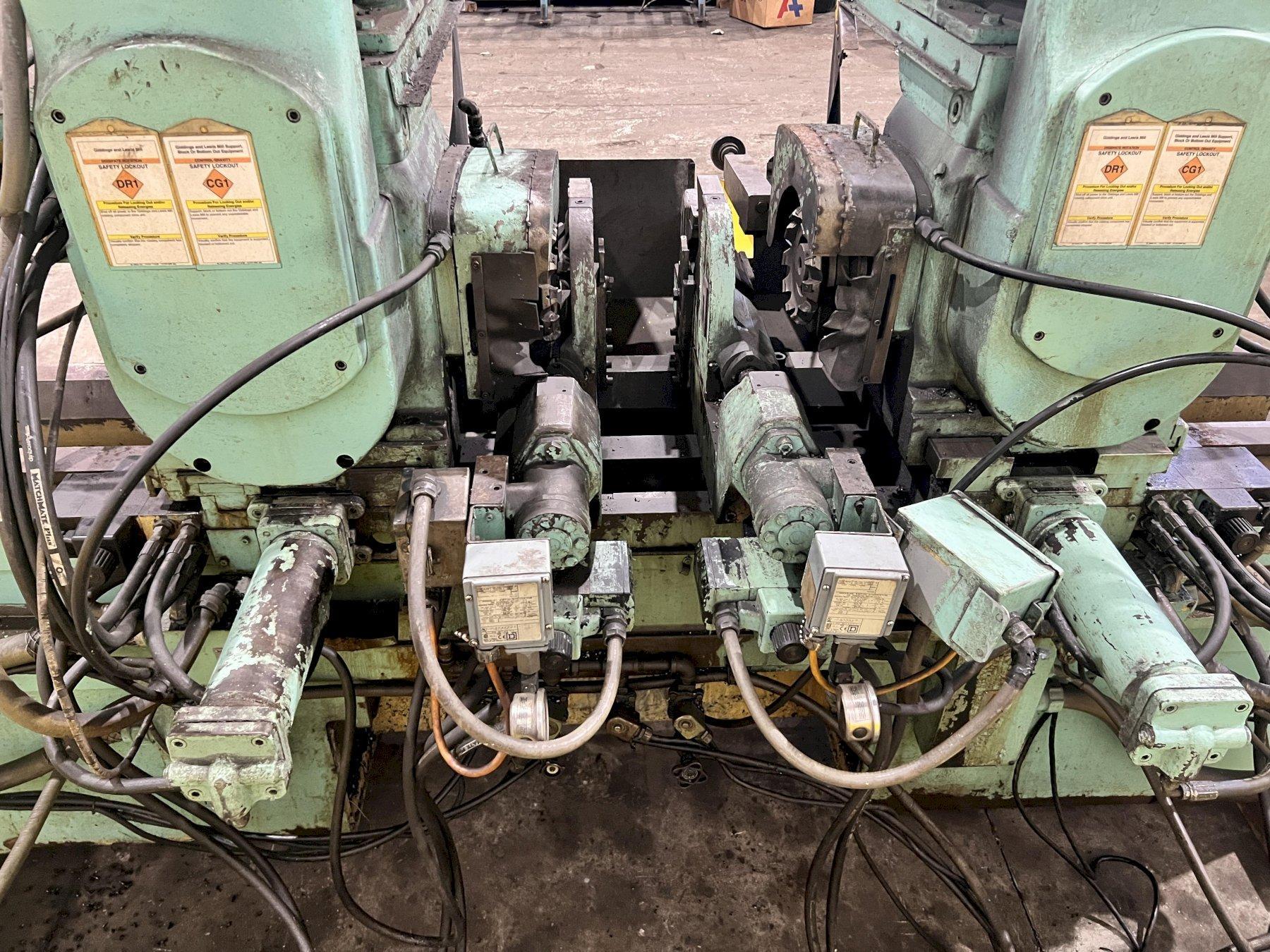

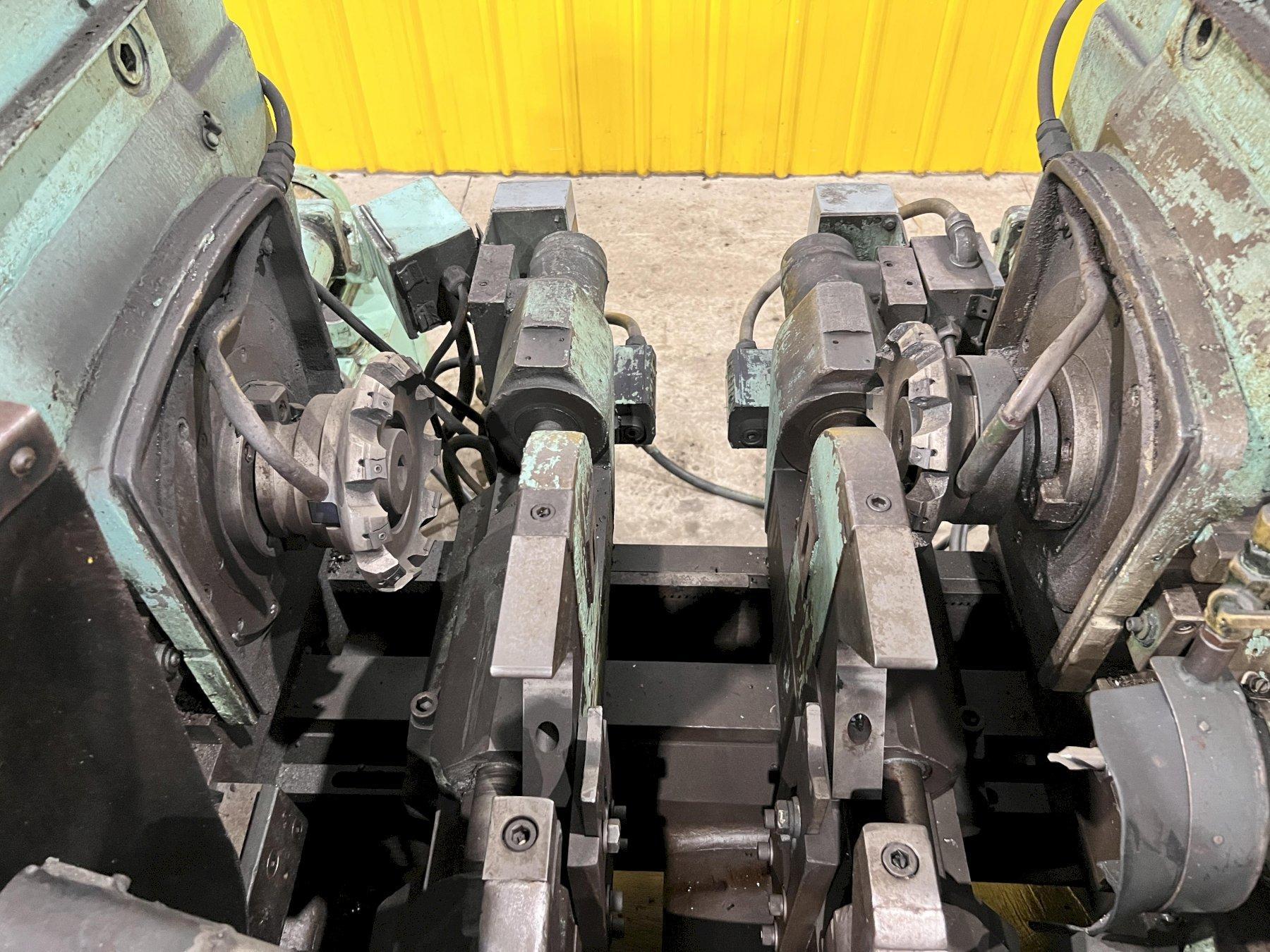

2 Self Centering Hydraulic Clamping
Auto Lube System
Coolant System
| Specifications | ||
|---|---|---|
| Dimensions | 120" X 84" X 84" HIGH | |
| Weight | 10000 pounds | |
Brand
GIDDINGS & LEWIS
Type

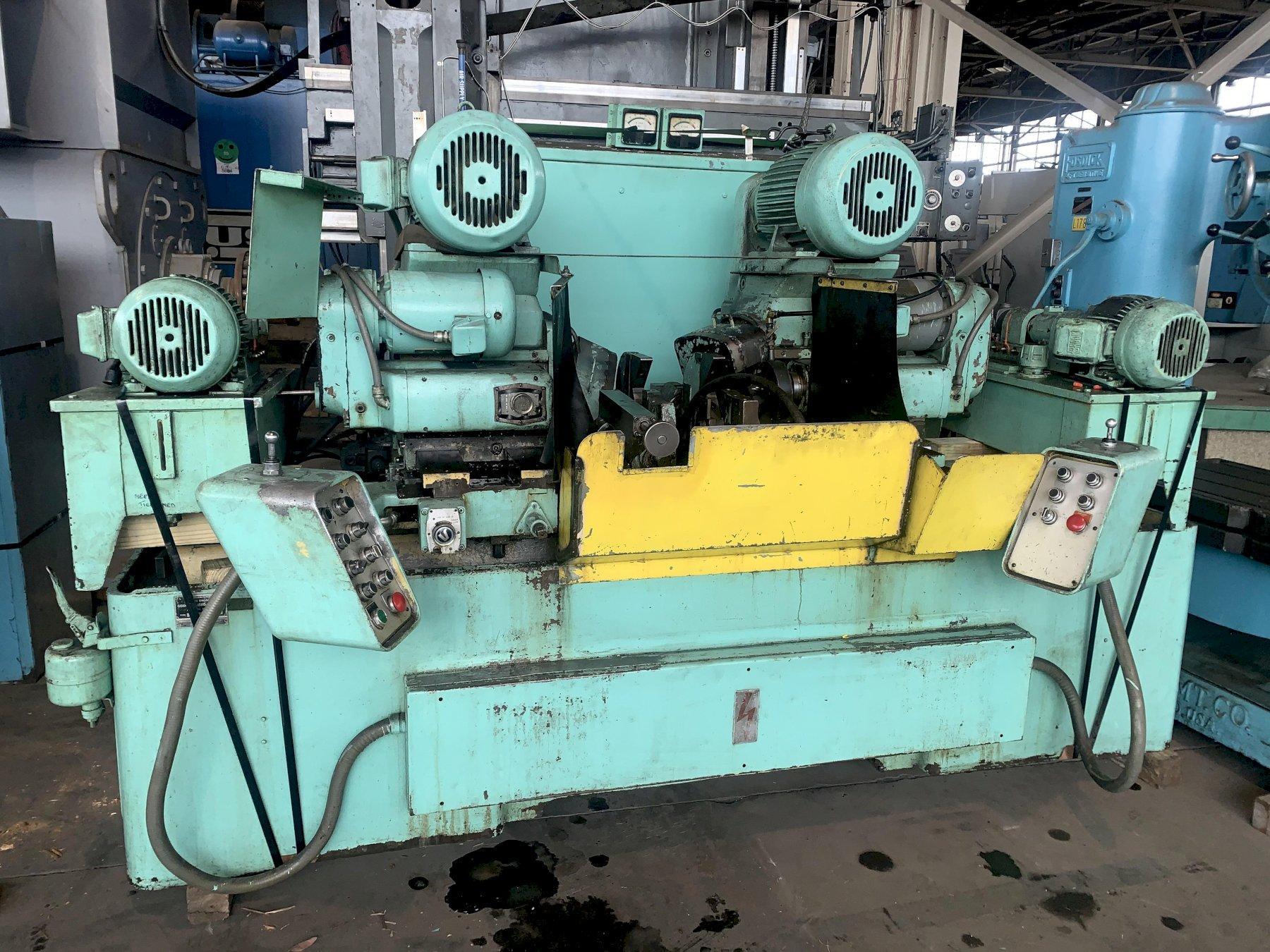

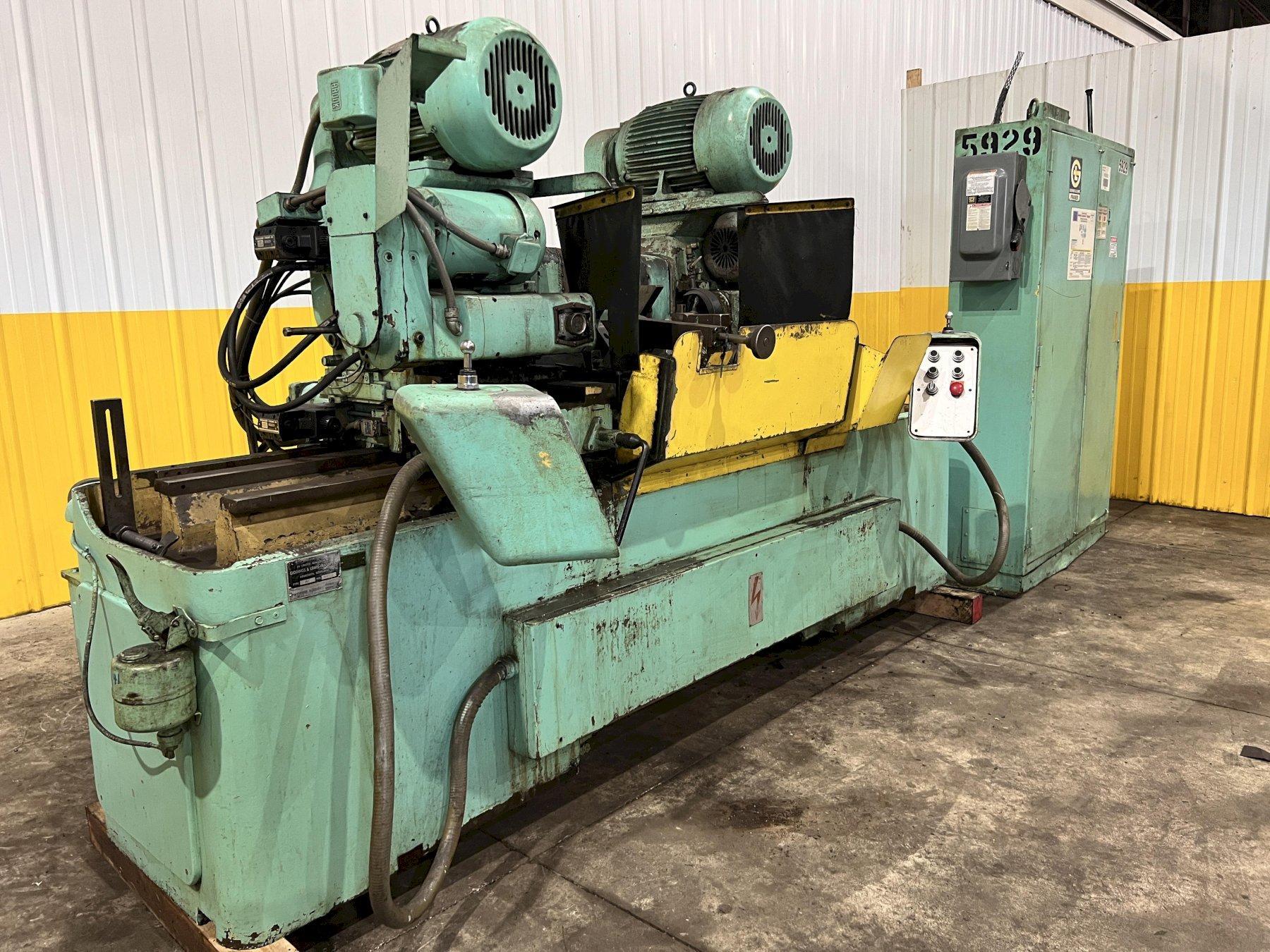

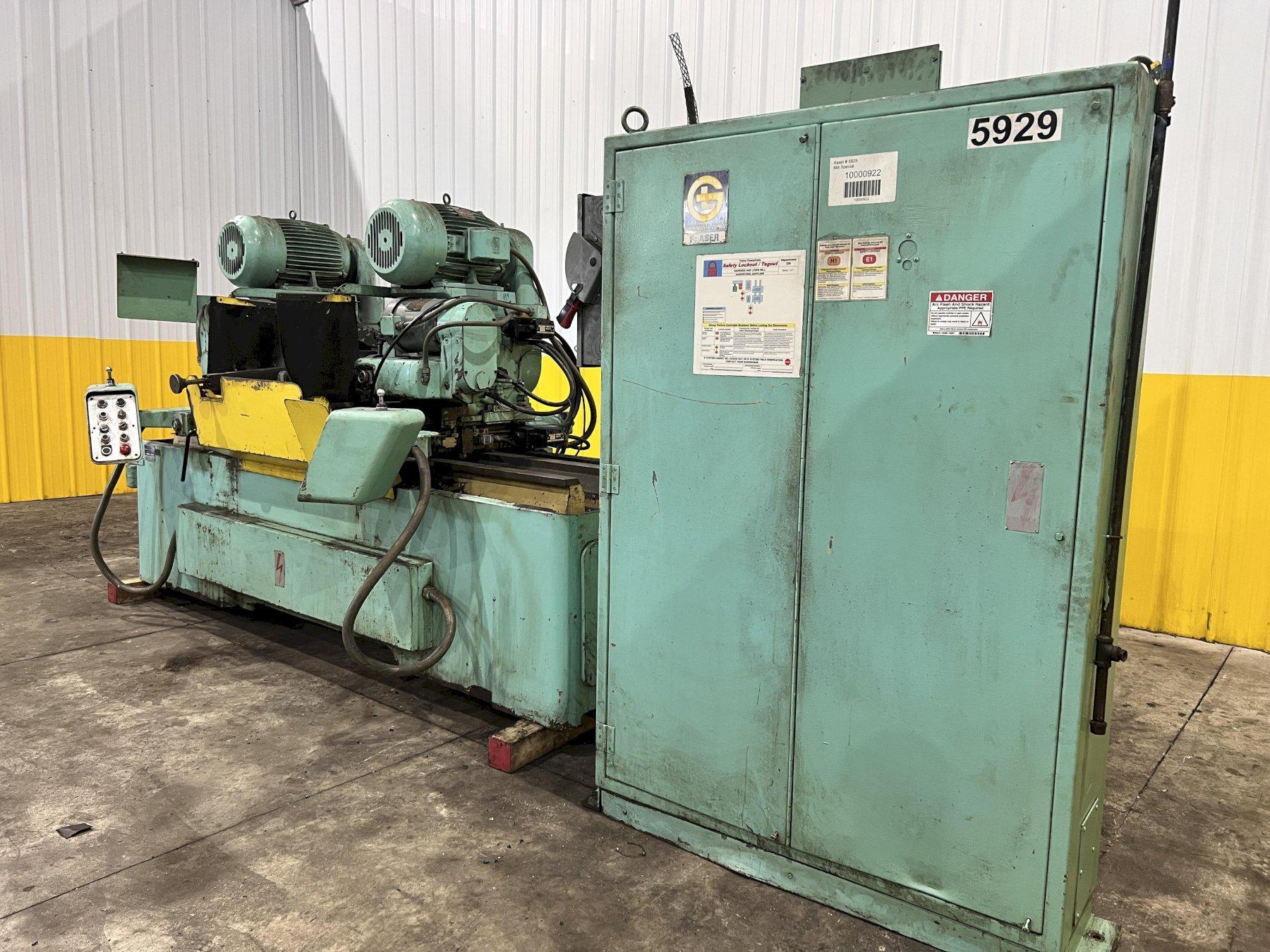

Facing & Centering Machines
Stock No.
12230
 |
419-269-2000 |
Stock #: 12230
Serial .............................. FM701
Model ............................... MC
Distance Between Centers ............ 24"- 66"
Quill Diameter ...................... 8"
Drill Quill Stroke .................. 0"- 3"
Milling & Drilling Feed Stroke ...... 9.75"
Drilling Spindle Speeds ............. 314- 1,105 RPM
Milling Spindle Speeds .............. 26- 236 RPM
Milling & Drilling Feeds ............ 0- 110 IPM
Milling Head Motors (2) ............. 15 HP
Drilling Head Motors (2) ............ 3 HP
Hydraulic Pump Motors (2) ........... 3 HP
2 Self Centering Hydraulic Clamping
Auto Lube System
Coolant System
