REMOVES BROKEN TAPS, BOLTS & DRILLS IN MINUTES!
SERIAL 3690
MODEL 2-DBQT
HEAD SERIAL A2896

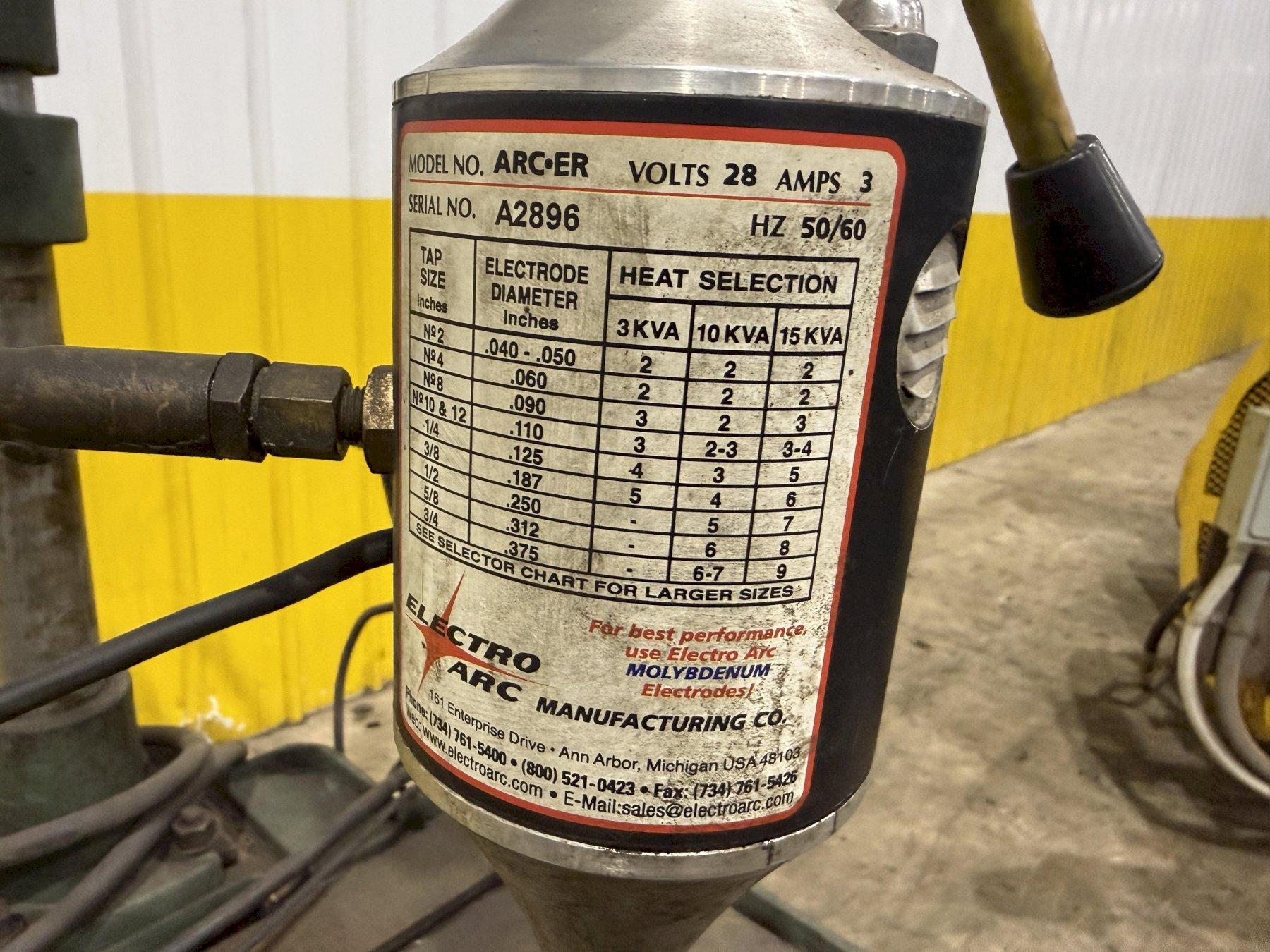

HEAD MODEL ARC-ER
Capacity: .05" - 2"
Table Work Area: 18" x 24"
Table Load: 2,000 LBS
Work Height from Spindle to Tabletop: 30"
Work Head Vertical Adjustment: 9"
Adjustable Stop: 8"
Adjustable Swivel: 0° to 90° L/R
Adjustable In/Out: 24"
Manual Height Adjustment: 30" with Lock Knob
Main Column Diameter: 2-3/4"
Dial-In Feed Rate: 0 - 8 IPM
VA Rating: 10 kVA
Voltage: 440 V
Amperage: 13 A
Frequency: 60 Hz
Machine Dimensions: 59" x 31"
Machine Height: 83"
Dual/Horizontal Crossarms
2-DB SERIES

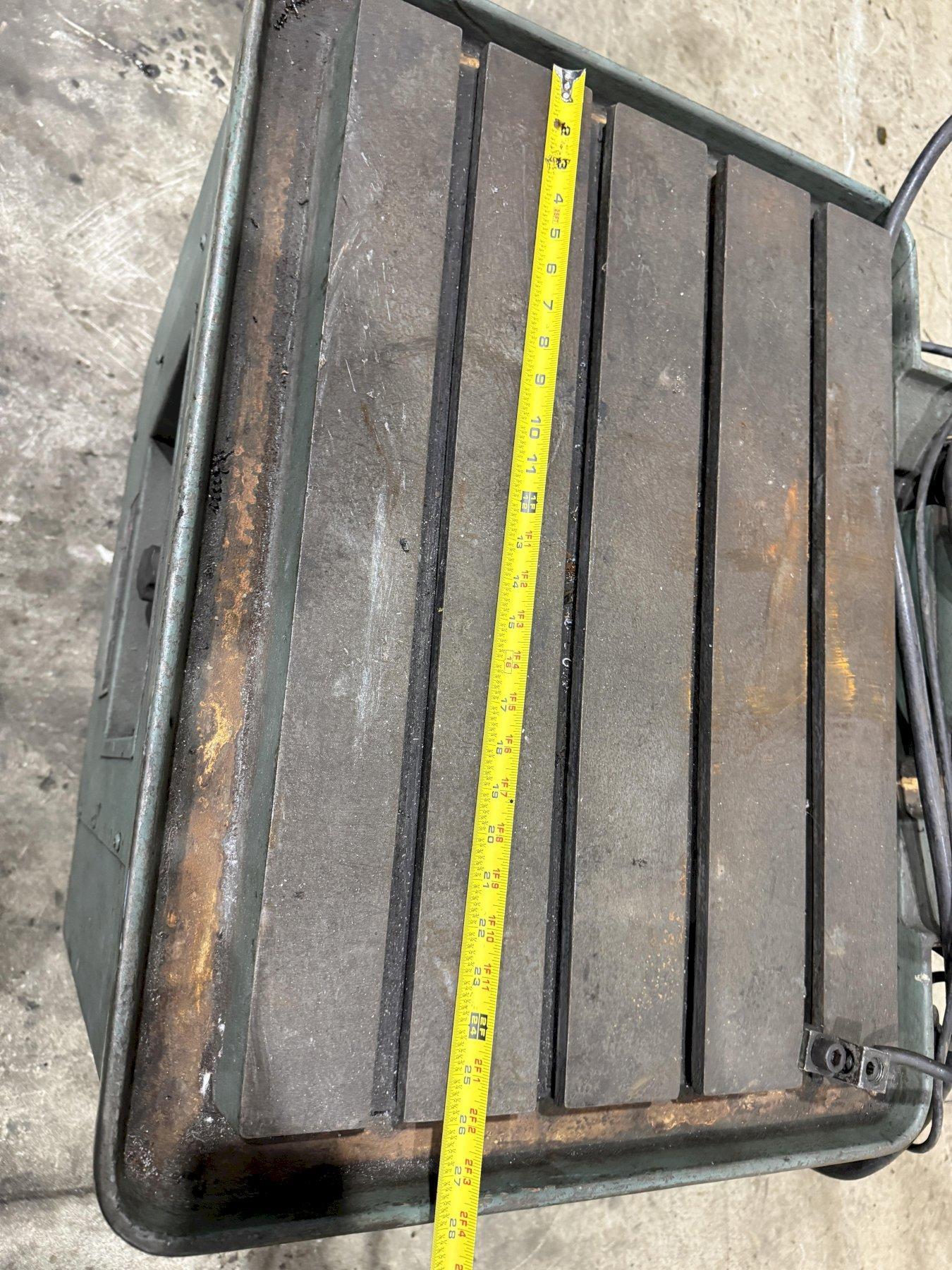

Tabletop (Work Support)

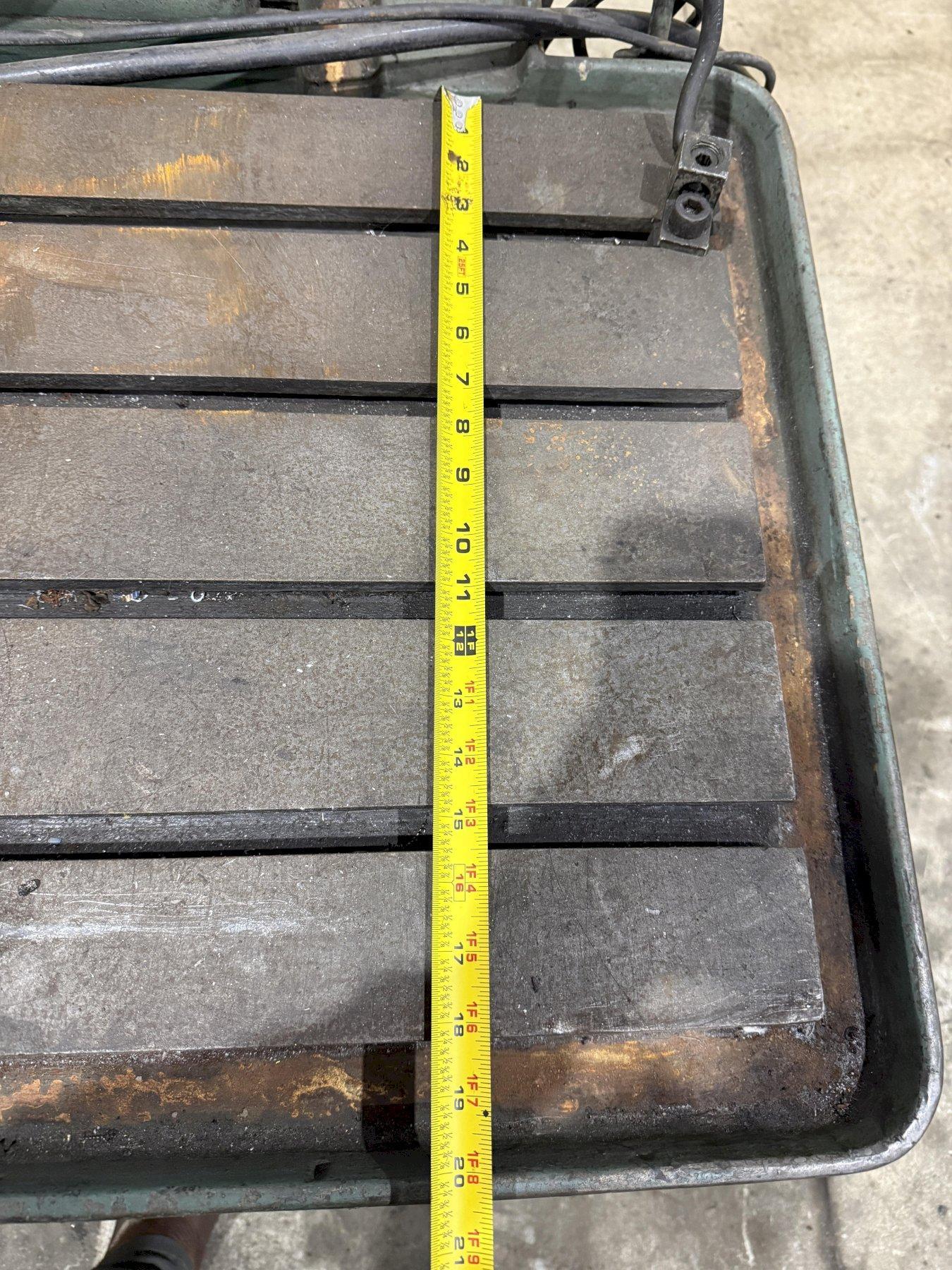

• Solid cast, ground worktop
• T-Slots that accept T-bolts for anchoring workpieces
• Troughs to catch and recycle coolant from the process.

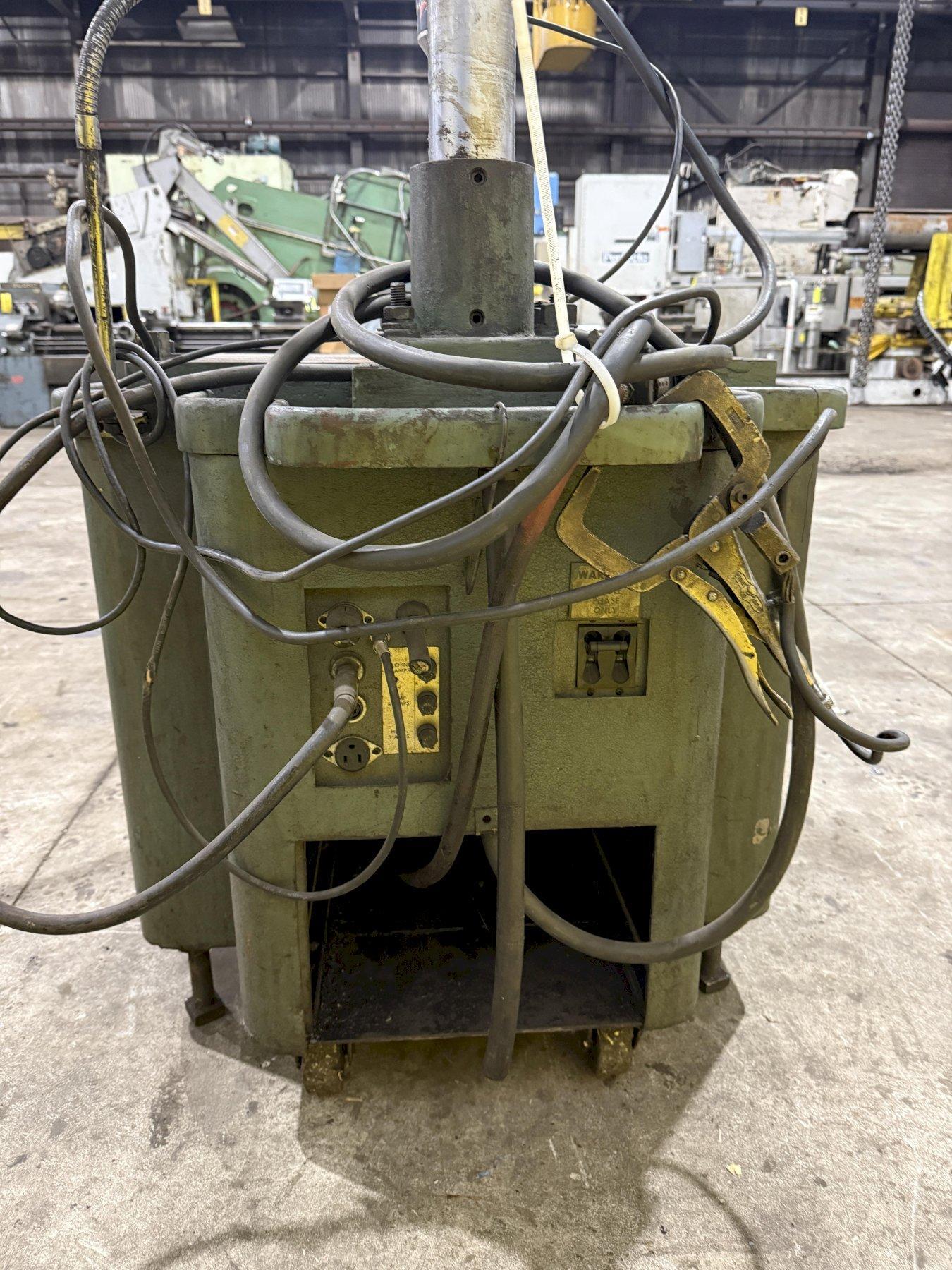

Base/Cabinet
• Supports the worktop at a convenient height
• Holds the power supply, coolant system and control panel
• Heavy-duty casters for easy movement around the shop
• Levelers for stability in operation
Built-in Coolant System
• Provides coolant for the disintegration process
• Worktop captures coolant for recycling
• Internal pump provides 90 psi coolant pressure
• Internal tank with filter
Superstructure (Head Support)
• Sturdy, firmly-mounted column
• Single or double crossarm rises, swings and extends
• Rigidly supports operating head all over work surface.
Work top 31” x 31” (795 x 795mm)
Column 2-3/4” (70 mm) diameter x 50” (1270 mm) high
Double Crossarms 36” (914 mm) x 1-1/2” dia. (38 mm)
Brand
ELECTRO ARC
Type
Disintegrators
Stock No.
25002
 |
419-269-2000 |
Stock #: 25002
