Machine Information

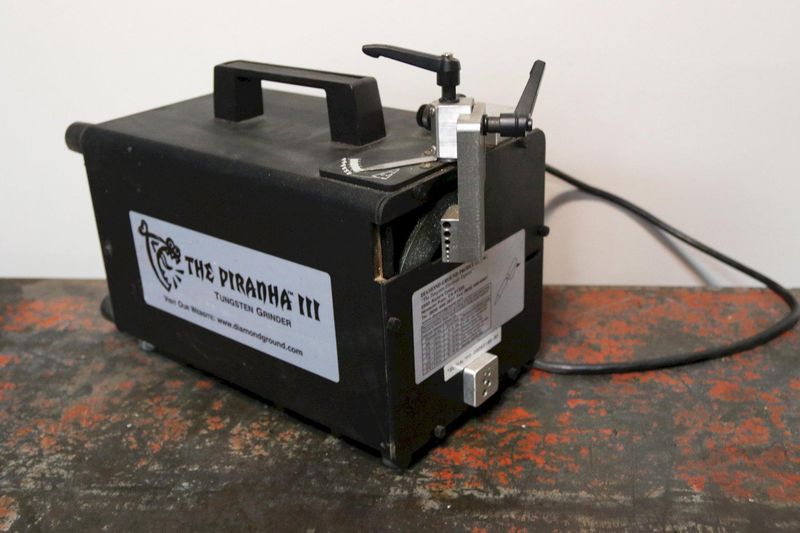

3/16" DIAMOND MODEL #PIRANHA III TUNGSTEN TOOL SHARPENER ELECTRO GRINDER: STOCK 12298

Stock #: 12298

Equipped With

Piranha III Tungsten Electrode Grinder
Range of Included Angle:
10 to 60 degrees
Electrode Diameters:
040″ (1.0mm), 1/16″ (1.6mm), 3/32″ (2.4mm), 1/8″ (3.2mm), 5/32″ (4.0mm), 3/16″ (4.8mm)
Minimum Electrode Length:
.75″ (19.05mm)
Voltage:
100/120 VAC, 50/60Hz, 220v
Power Consumption:
500 Watts
Motor:
1/3 hp, 1,680 rpm, 5.0 amps
Dimensions:
Length: 20″ (508mm)
Width: 12″ (304.8mm)
Height: 12″ (304.8mm)
Weight: 51 lbs (23.13 kg)

The Piranha III tungsten electrode grinder continues to be the best tungsten electrode grinder on the market. It is easy to set up and operate and is a safe alternative to a standard bench grinder or the low-quality tungsten electrode grinders on the market. This makes the Piranha II tungsten electrode grinder an ideal option for consistently precision grinding tungsten electrodes for a variety of welding applications.
The Piranha III was designed for maximum commercial use. It features a universal collet which will grind from .040″ (1.0mm) to 3/16″ (4.8mm) and as short as 1.75” (44.5mm) and taper angles from 10˚ – 60˚. The construction of the Piranha III tungsten electrode grinder unit is aluminum, very sturdy and user-friendly. The Piranha III unit is also fully enclosed with a 100% containment of excess tungsten electrode dust. It is also available as a stand alone unit or can be equipped with a vacuum and vacuum cabinet for additional dust extraction & safety.
Safety – Enclosed grinding area captures tungsten dust for easy disposal and user safety.
Weld Quality – 20 Ra surface finish improves tungsten life, arc starting, arc stability & produces consistent weld penetration.
Productivity – Correctly & consistently diamond grind your tungsten Electrode (up to 3/16”) longitudinally in less than 30 seconds.
Value – Diamond grinds, flats & cuts your tungsten electrodes economically.


Compact, durable & designed for the unforgiving rigors of commercial use, the Piranha III tungsten grinder continues to set the bar for precision tungsten preparation. The Piranha III grinder is the best tungsten grinder on the market and we’ll prove it to you. Give us a call today so we can discuss why a call to DGP will be the last call you’ll need to make.
The New Piranha III Tungsten Grinder Features:

Sliding dust shield for 100% dust containment
Integrated receptacle area for ease of handling electrodes
Recessed handle for better form & function
On/off switch with LED light for improved display of unit operation
Lightened chassis for reduced weight
Signature blue powdercoat
Easy set up, optimal consistency and near-perfect repeatability
Compact, durable and solid design with no vibration
Longitudinal 20 RA grinding for maximum arc starting, arc stability, electrode life and weld penetration
Universal collet arm for 6 electrode sizes – 040” (1.0mm), 1/16” (1.6mm), 3/32” (2.4mm), 1/8” (3.2mm), 5/32” (4.0mm) & 3/16” (4.8mm) – with no equipment changes
Included angle scale for angles from 10° – 60°
Precision tip flat gauge & depth adjustment stop ensures exact Tungsten points every time – enabling consistent, repeatable arc performance and welding output
Dust Shield & Containment Baffle to keep 100% of dust inside the grinder housing, for safety and easy disposal
Tip flat block for square end grinding and removing bad tips
Electrode notching station for simple cut-off
Detailed Manual with valuable engineering data and welding recommendations
Port ready for Vacuum upgrade
Integrated receptacle for electrode storage/access
Recessed carry handle for better form & function
