SERIAL ......................... 12-155
MODEL .......................... 3B-48
| Specifications | ||
|---|---|---|
| Dimensions | 98” H x 90” W x 116” L | |
| Weight | 22000 ounces | |
Brand

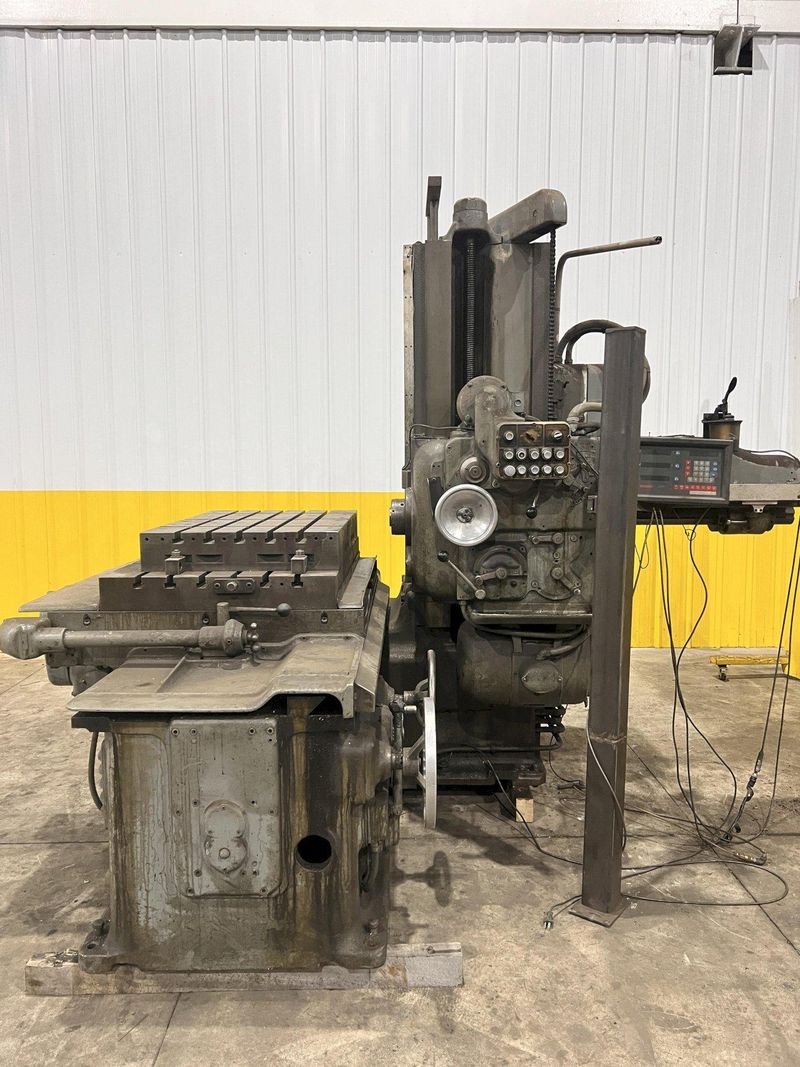

DEVLIEG
Type
Jig Mills
Stock No.
22358
 |
419-269-2000 |
Stock #: 22358
SERIAL ......................... 12-155
MODEL .......................... 3B-48
SPINDLE DIAMETER ............... 3”SPINDLE SPEEDS ................. (16) 25 TO 1200 RPMSPINDLE FEEDS .................. (6) .002 TO 20TABLE FEEDS .................... (12) .3 TO 14 IPMFEEDS .......................... (6) .003, .0017, .0011, .012, .0075, .0047VERTICAL SPINDAL TRAVEL ........ 36”FEED OUT OF SPINDLE ............ 16”SPINDLE TAPER .................. #40SIZE OF TABLE .................. 30” x 48”LONGITUDINAL TRAVEL ............ 52”TABLE CROSS TRAVEL ............. 16”MAIN MOTOR ..................... 7.5 HP
