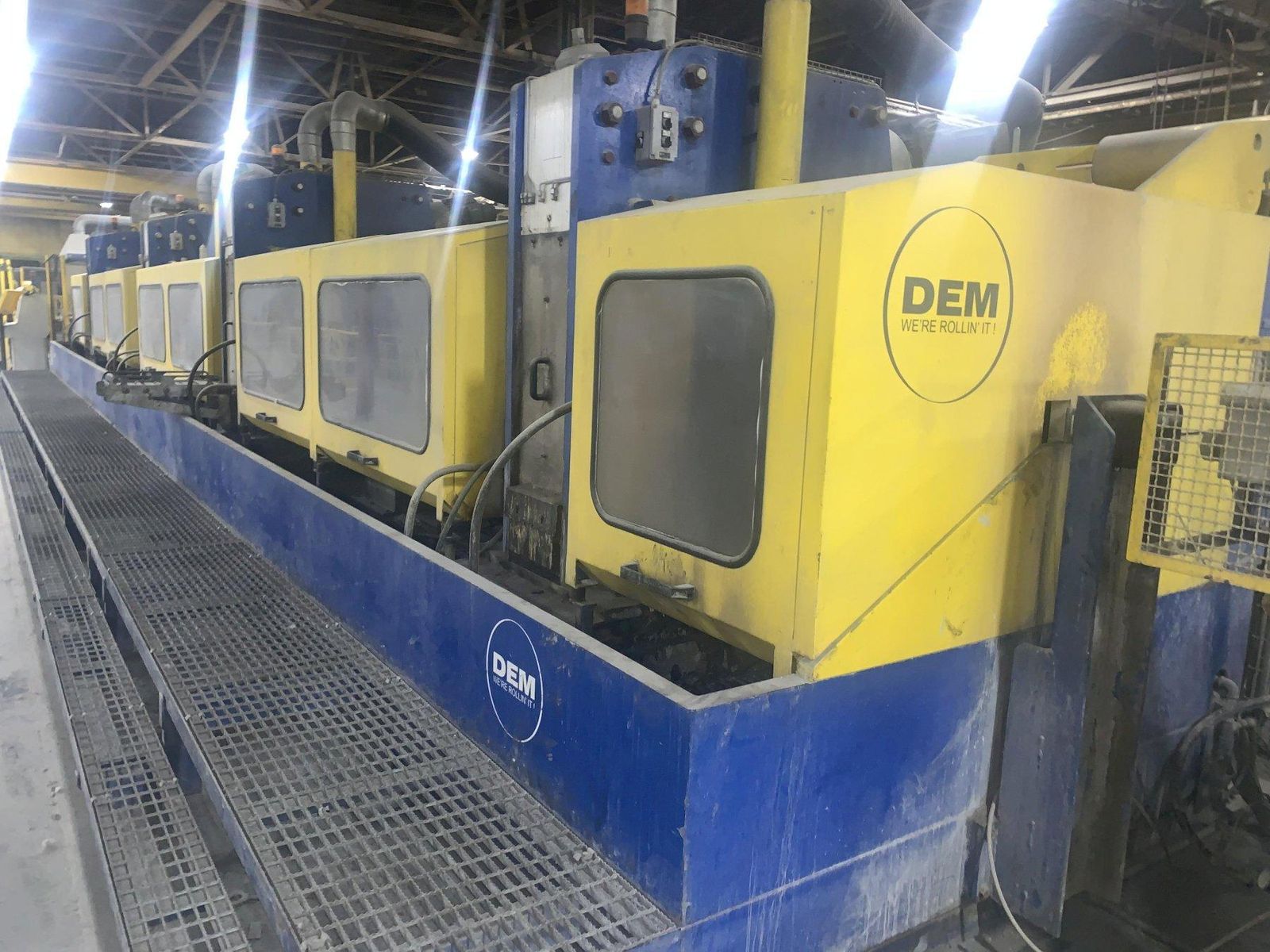

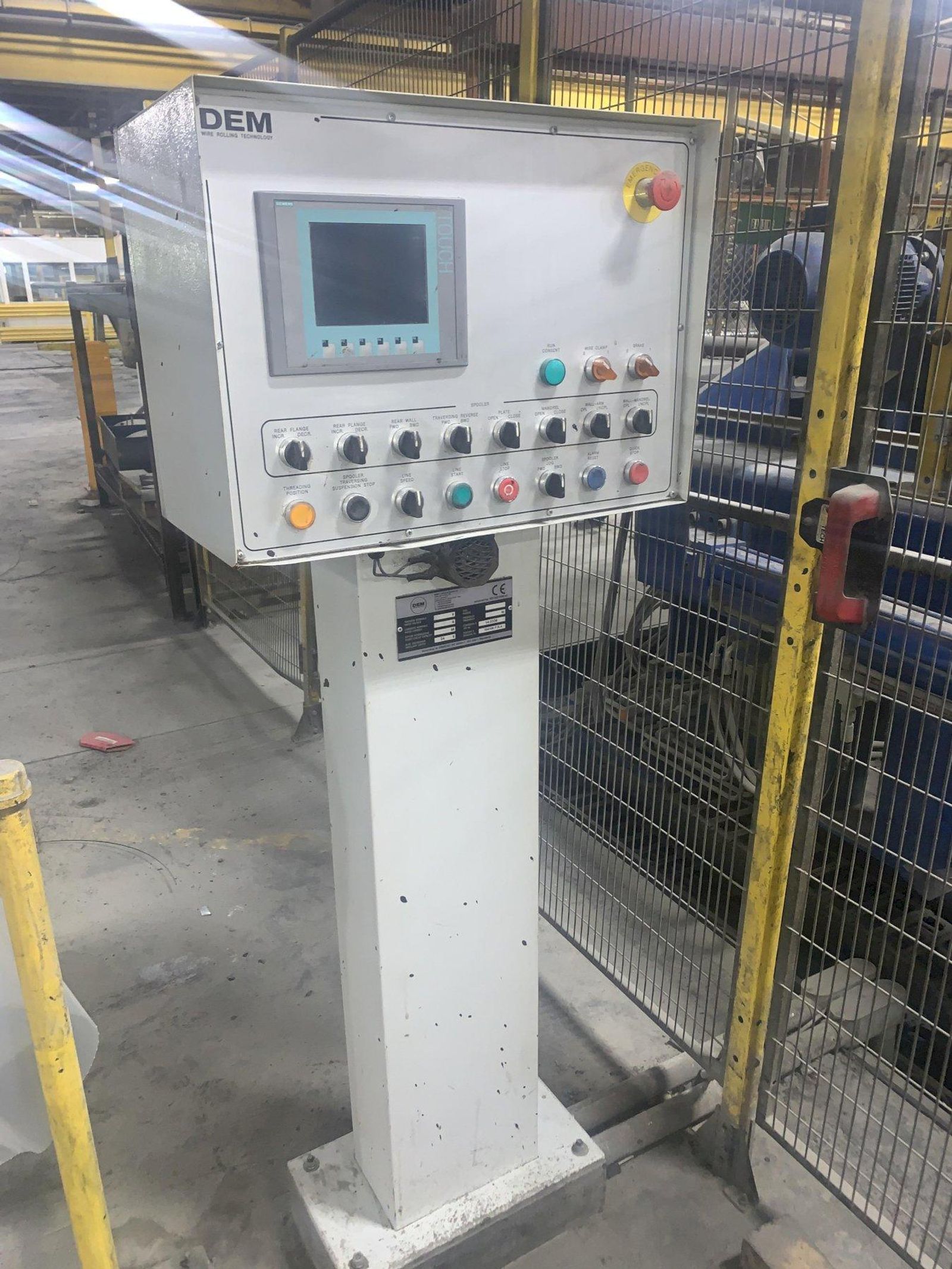

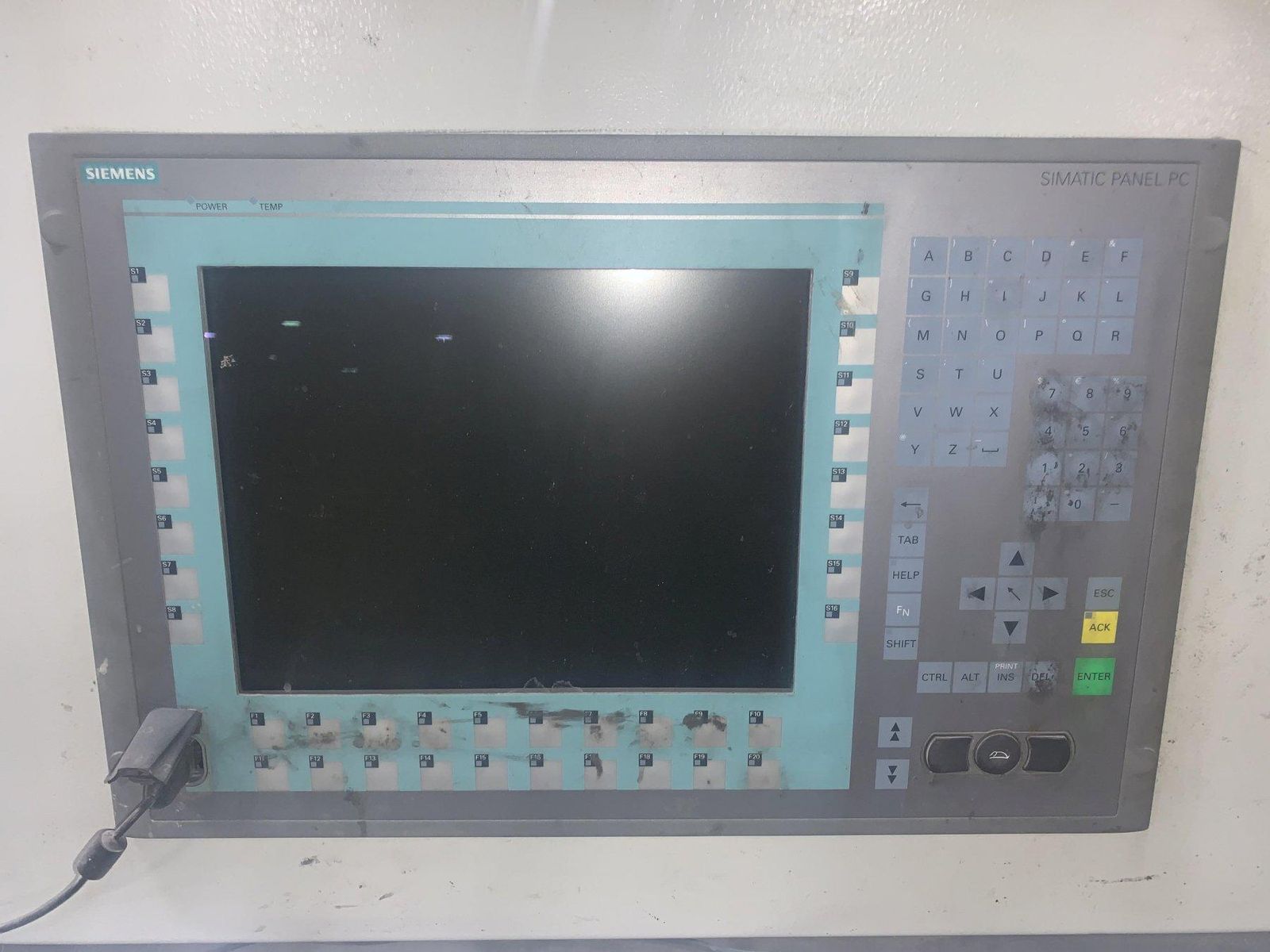

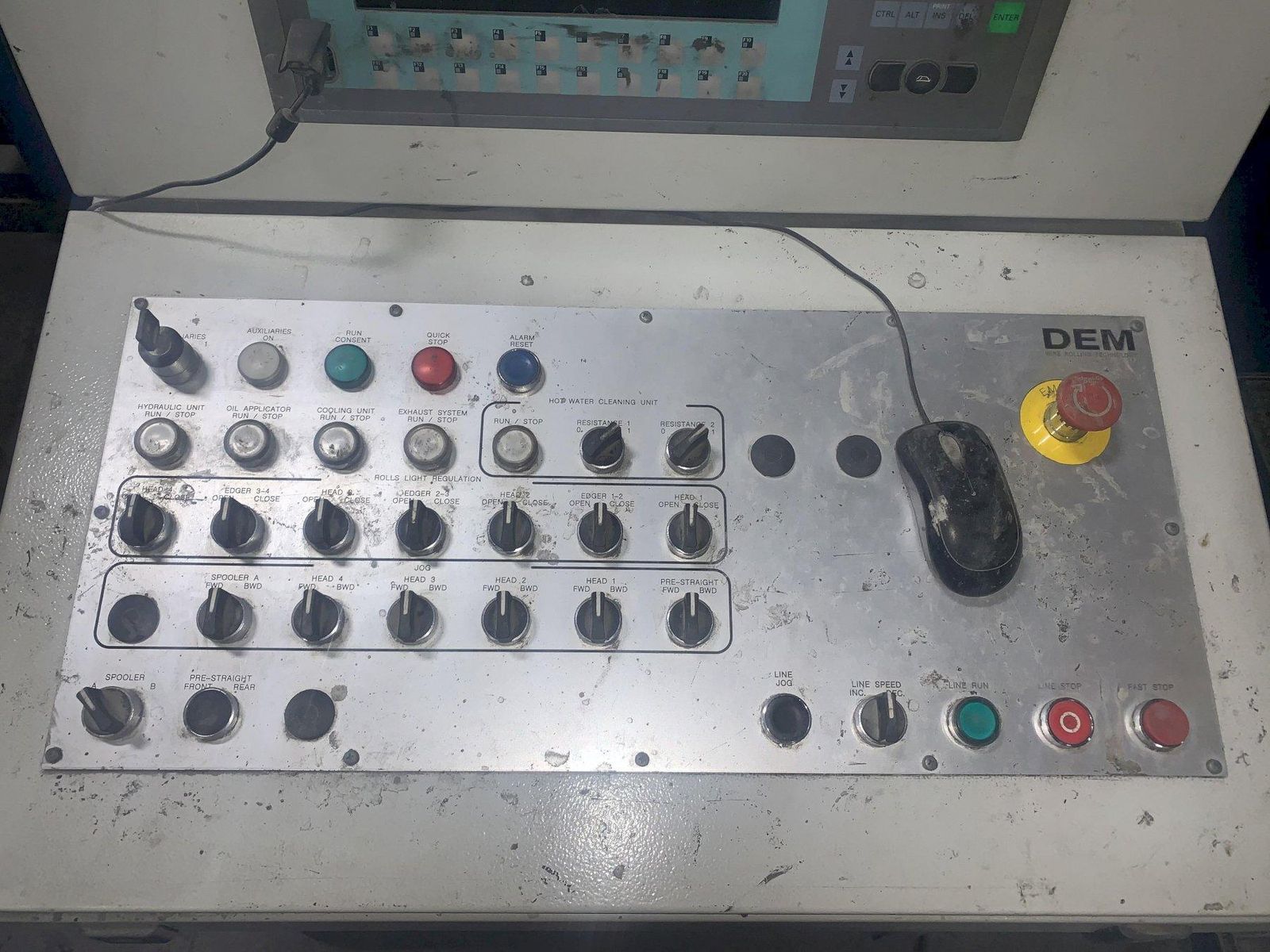

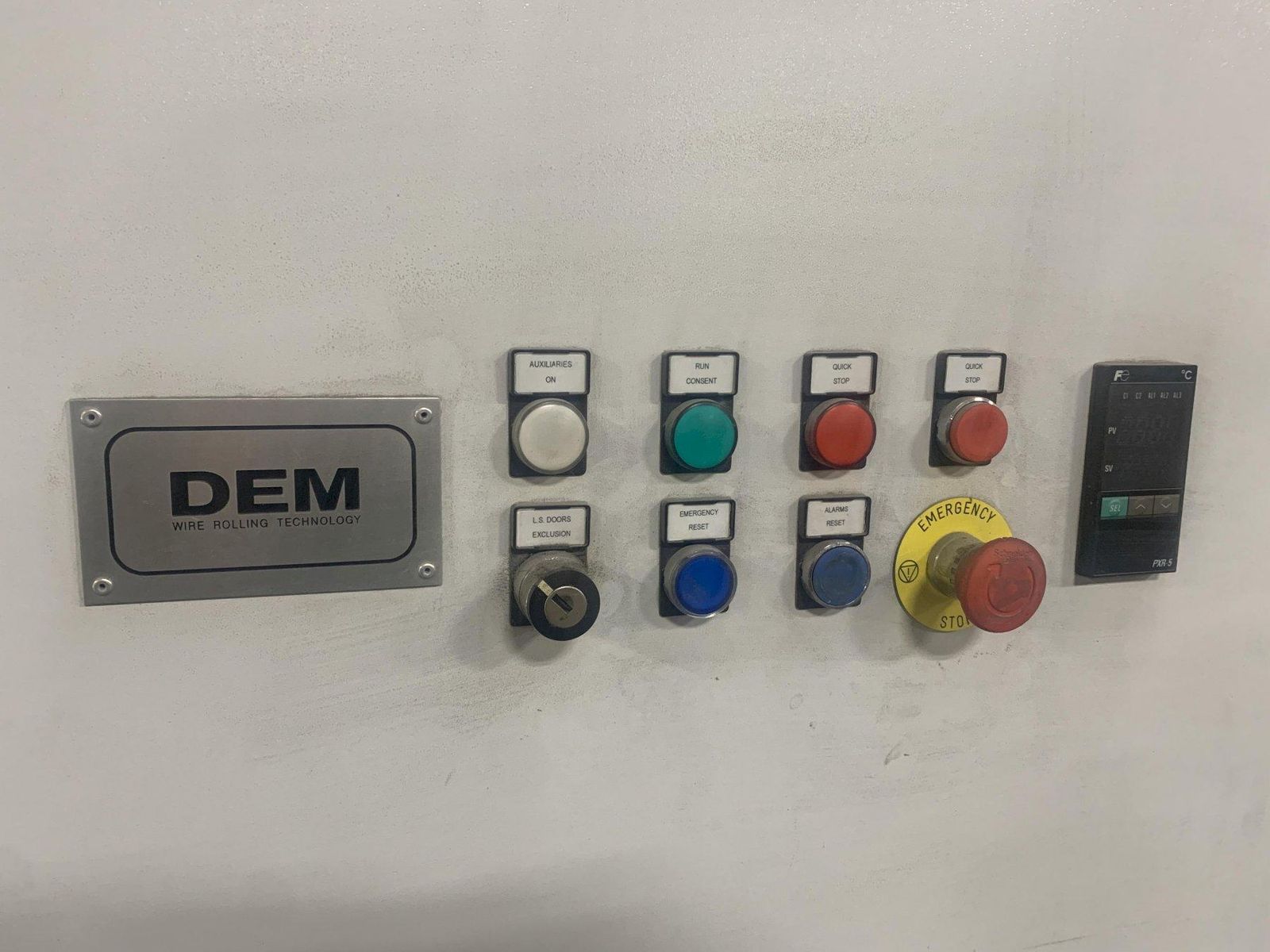

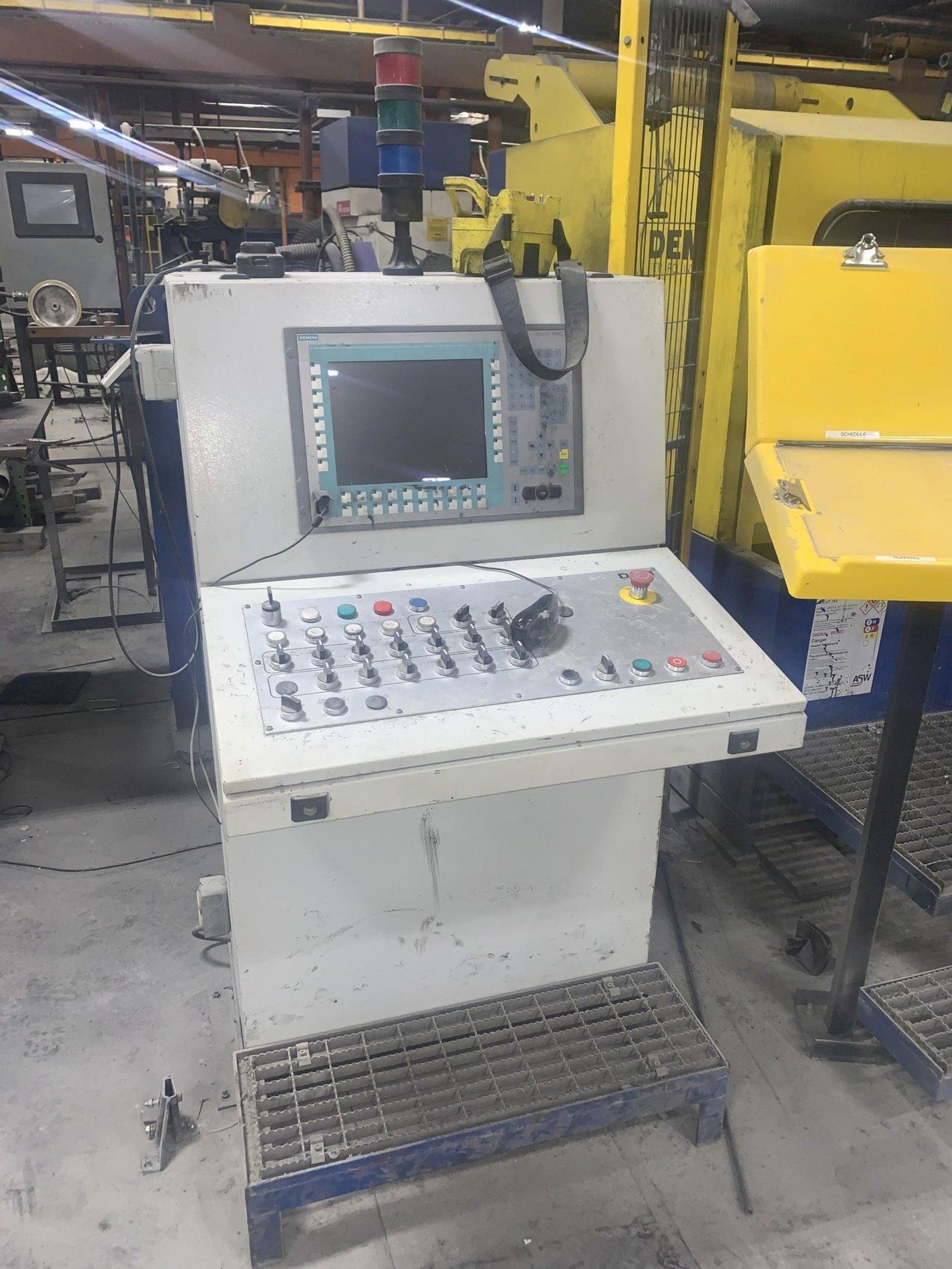

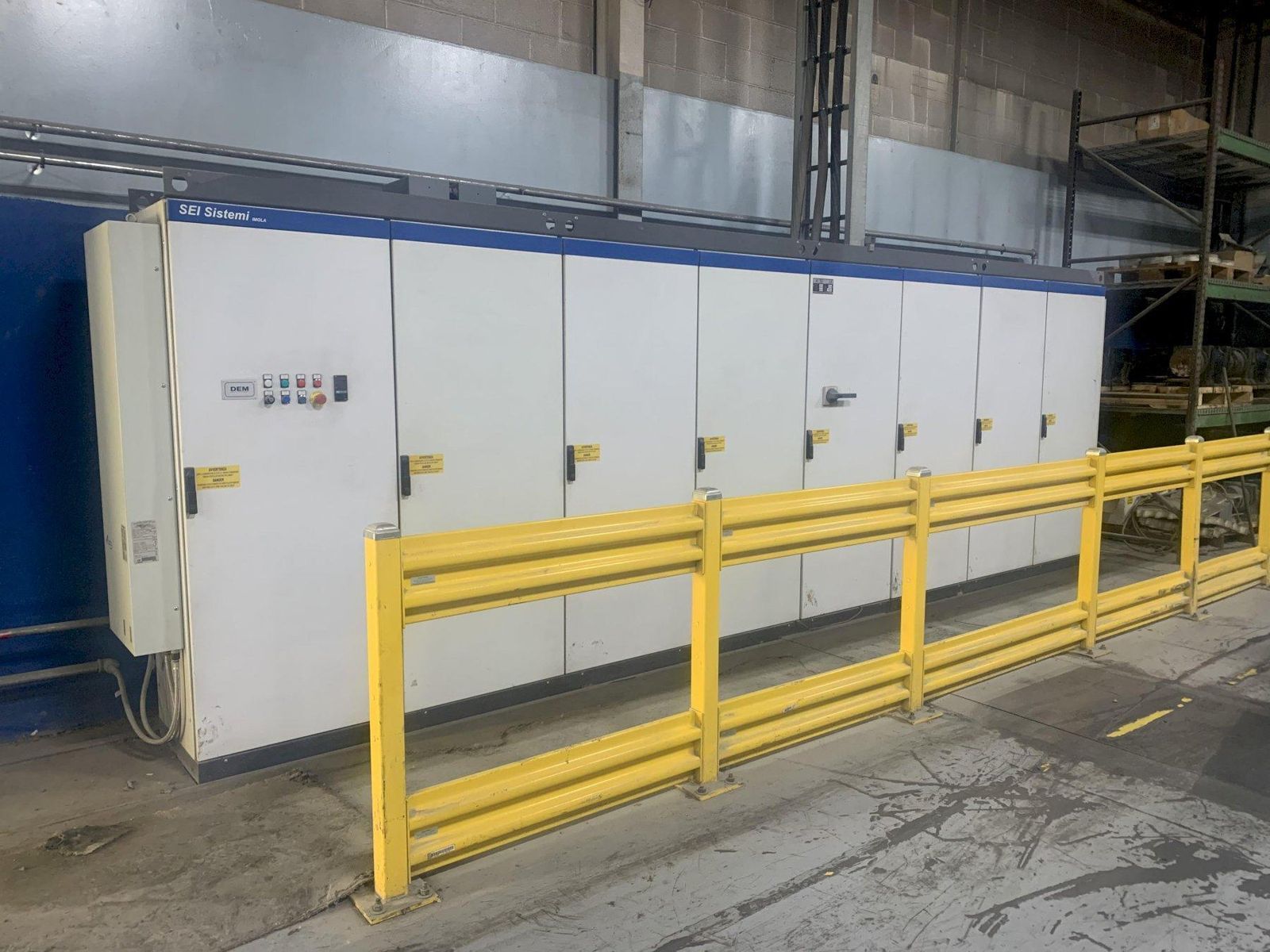

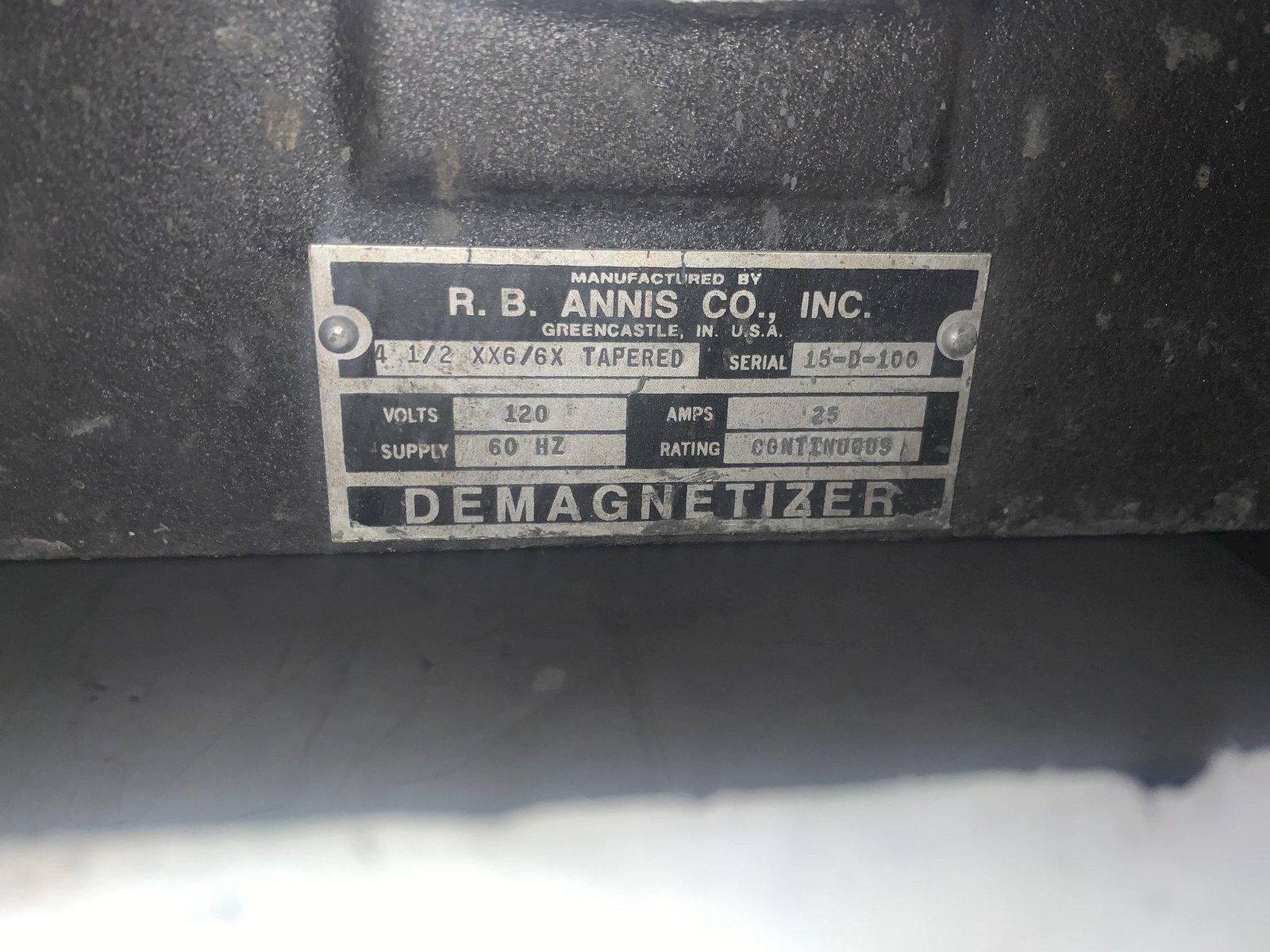

NUMBER OF ROLL STRANDS ......................... 4
WORKABLE MATERIAL DIMENSIONS ................... 0.236 TO 0.512"
WORKABLE MATERIAL .............................. SAE 1060 STEEL
FINISH PRODUCT DIMENSION ....................... 0.314 X 0.157" TO 0.708 X 0.196"
MAX WORKING SPEED .............................. 1000 FPM

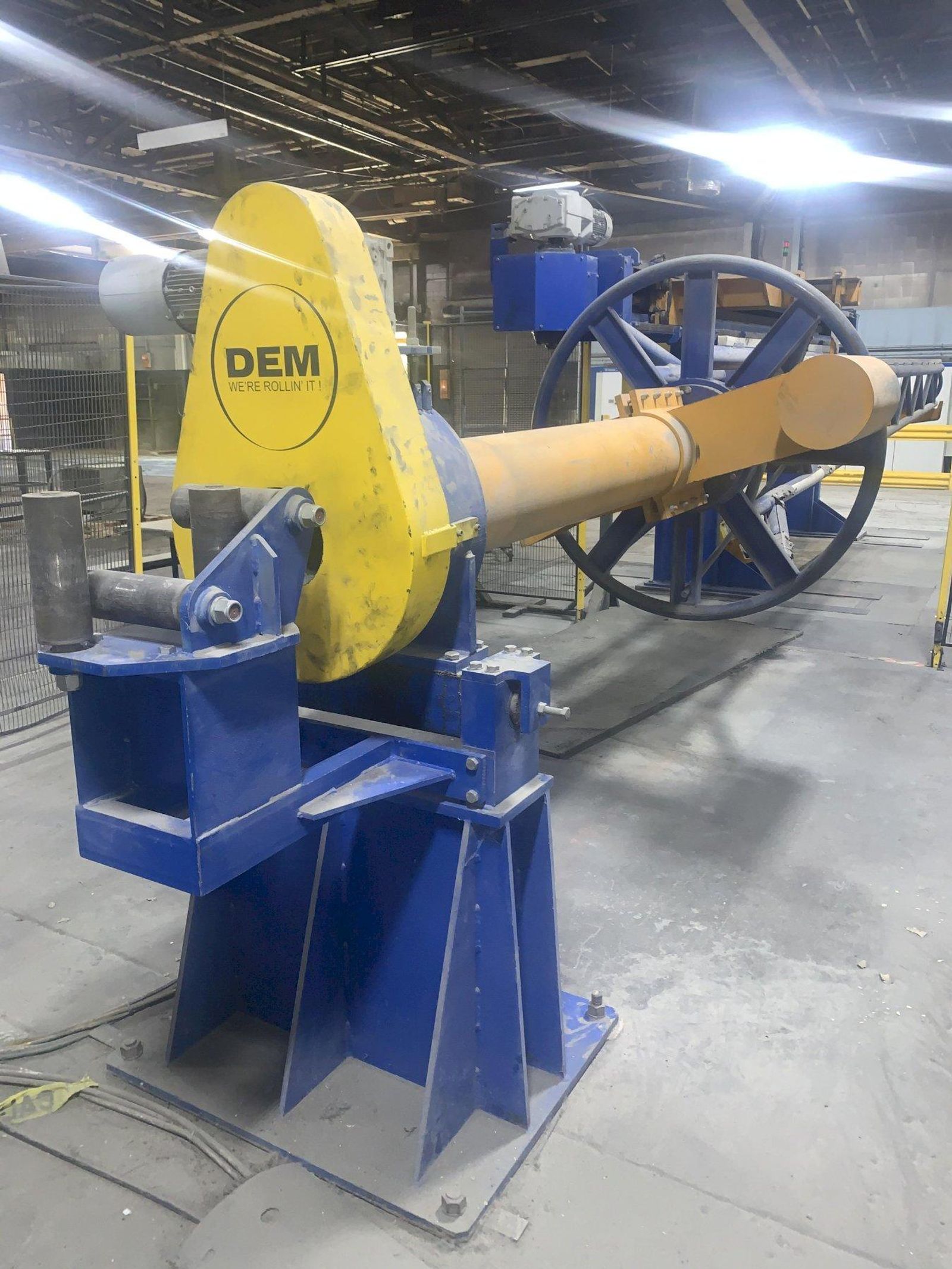

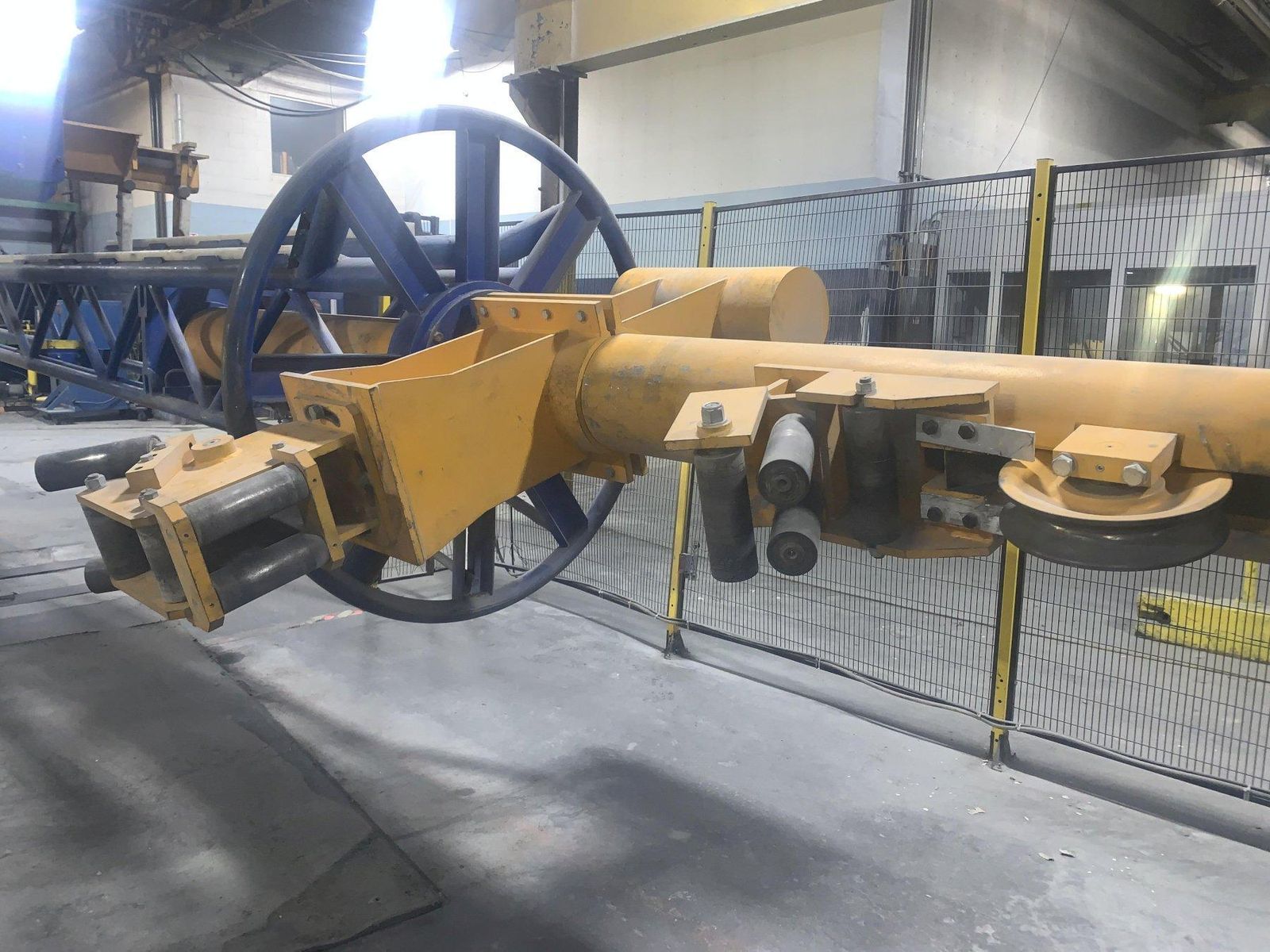

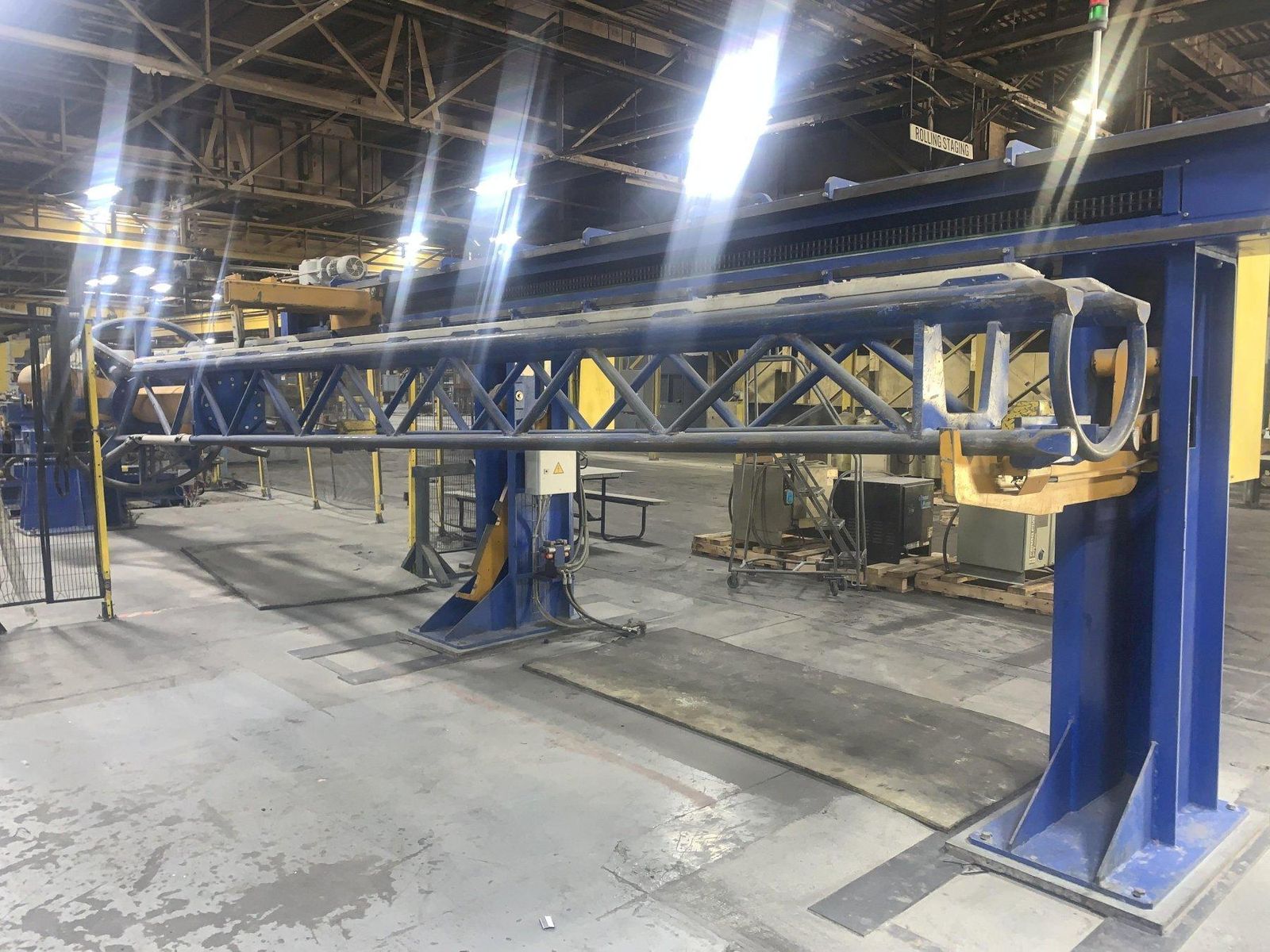

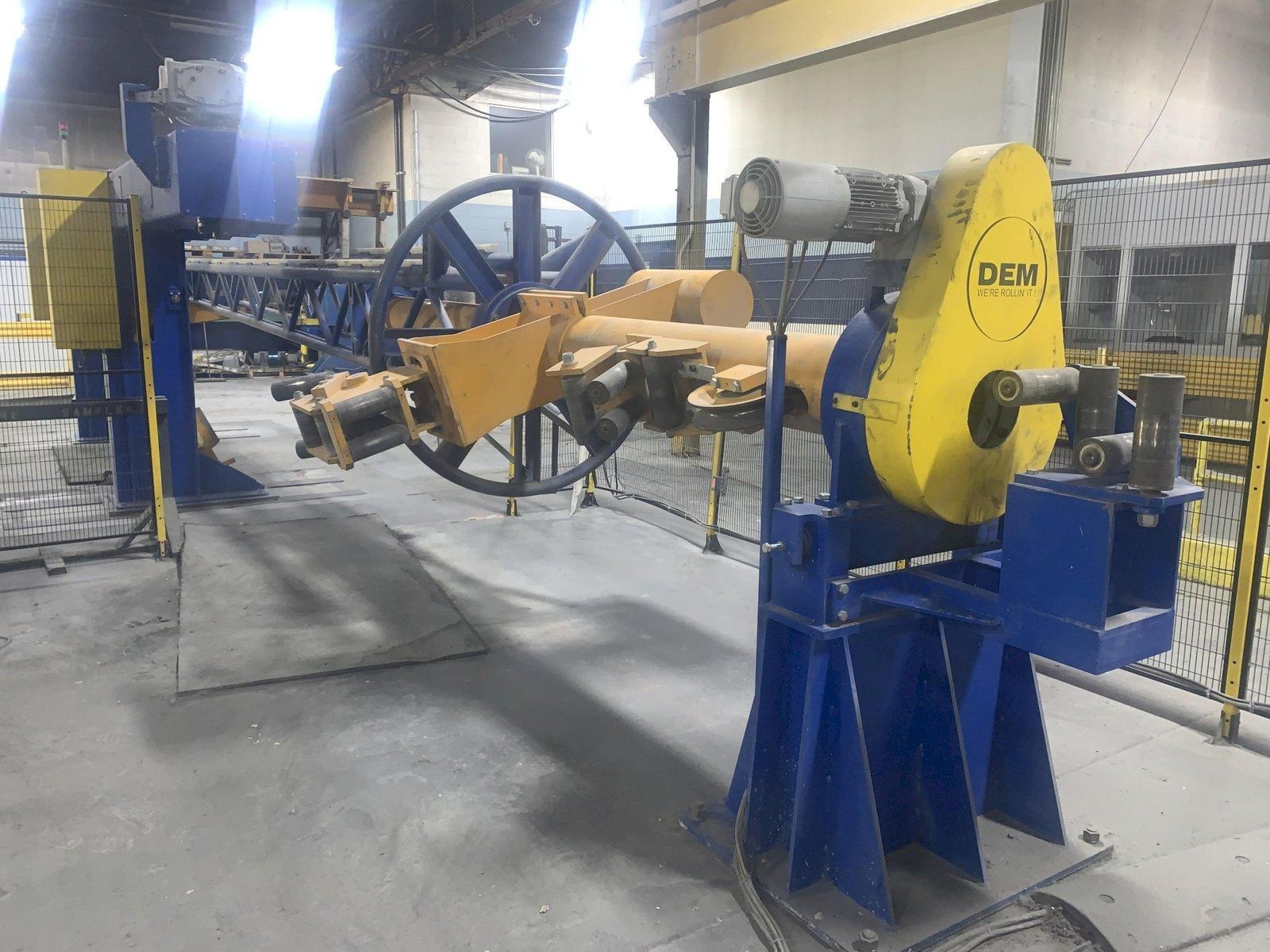

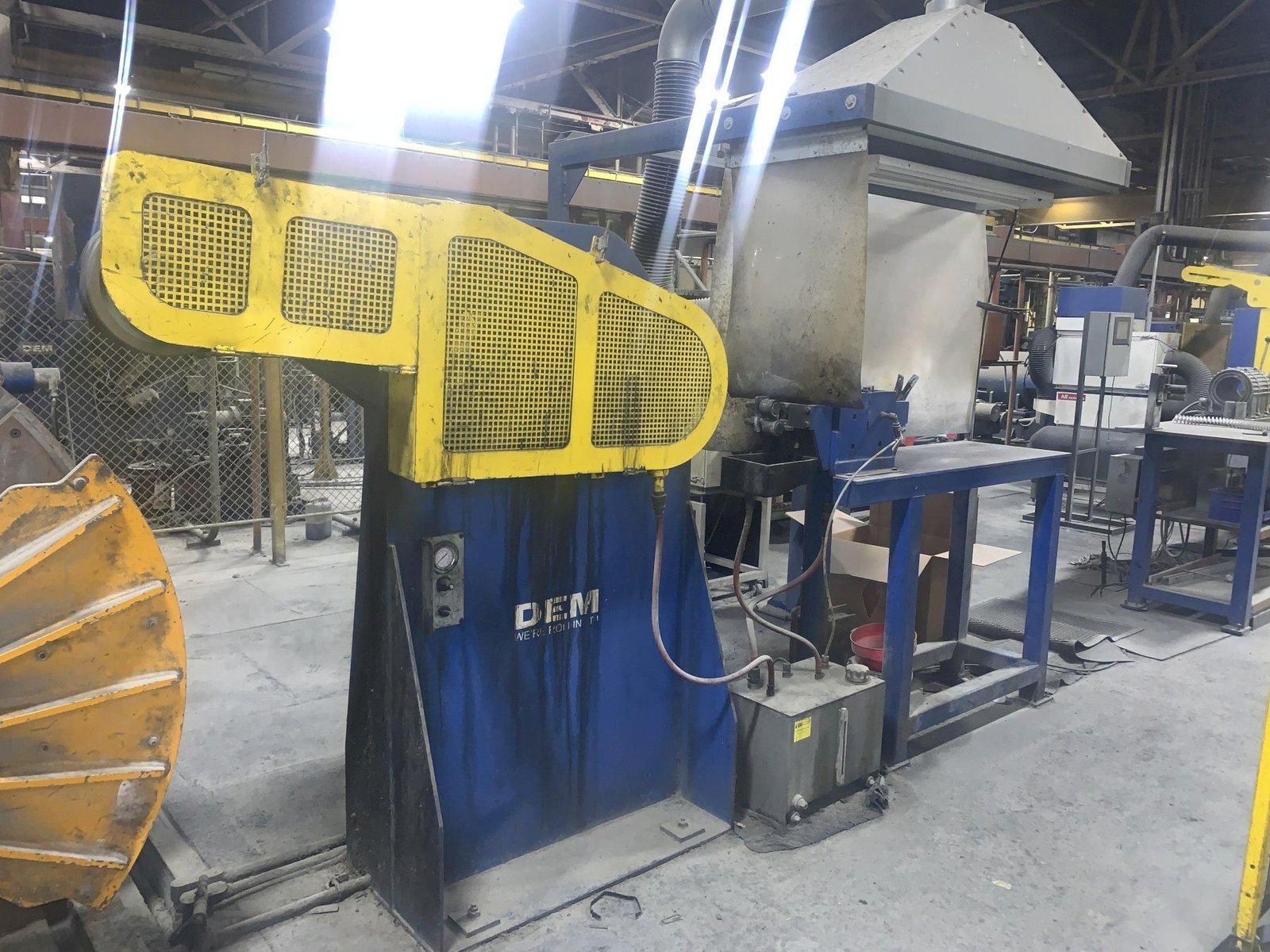

HORIZONTAL PAYOFF:
WIRE ROD COIL WEIGHT ........................... 6614 LBS
MAX LOADING CAPACITY ........................... 9921 LBS (3X3307 OR 1X6614+1X3307 LBS)
WIRE ROD DIAMETER .............................. 0.551"
MAX COIL OUTER DIAMETER ........................ 60"
MAX COIL INNER DIAMETER ........................ 32"

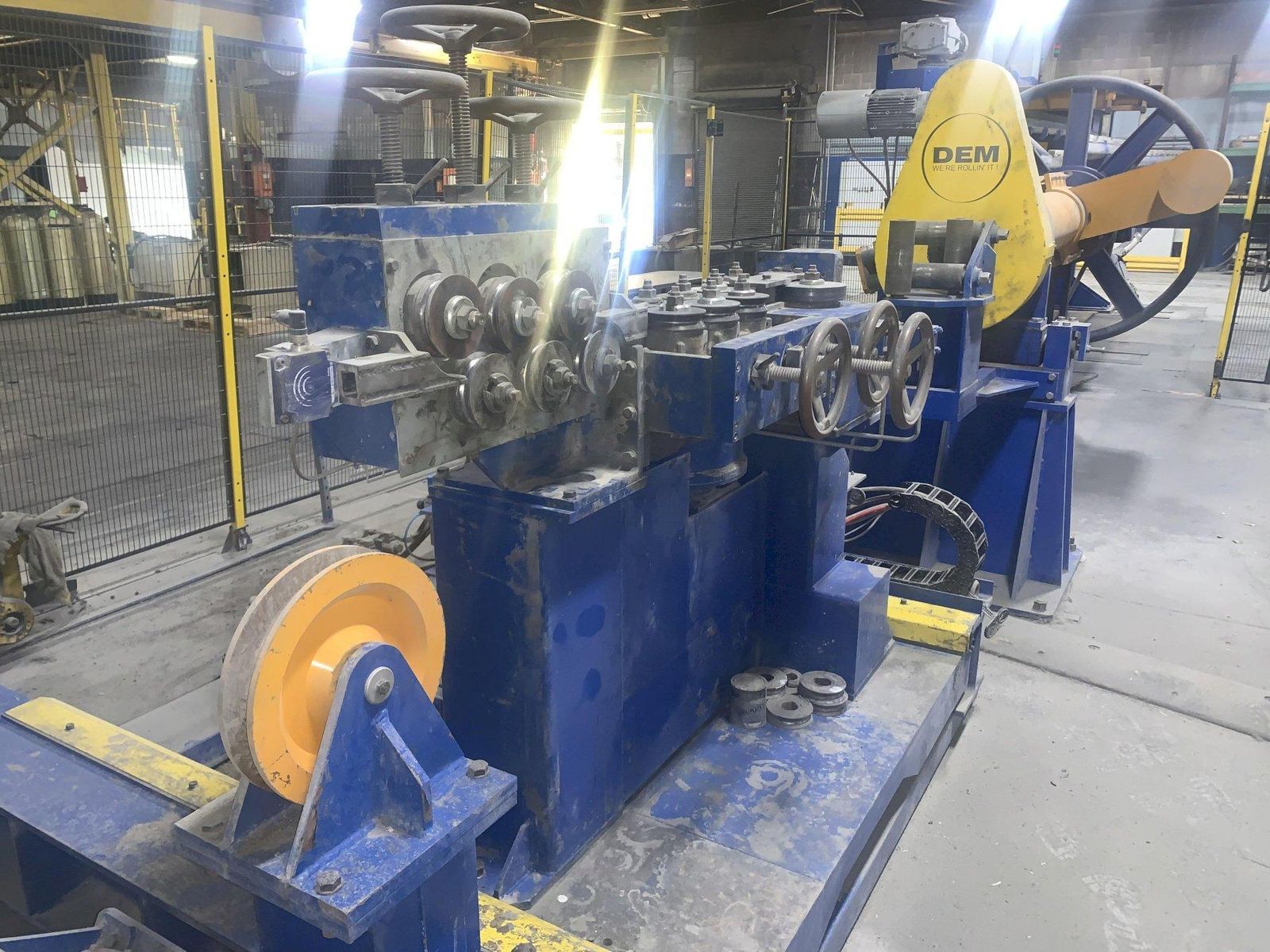

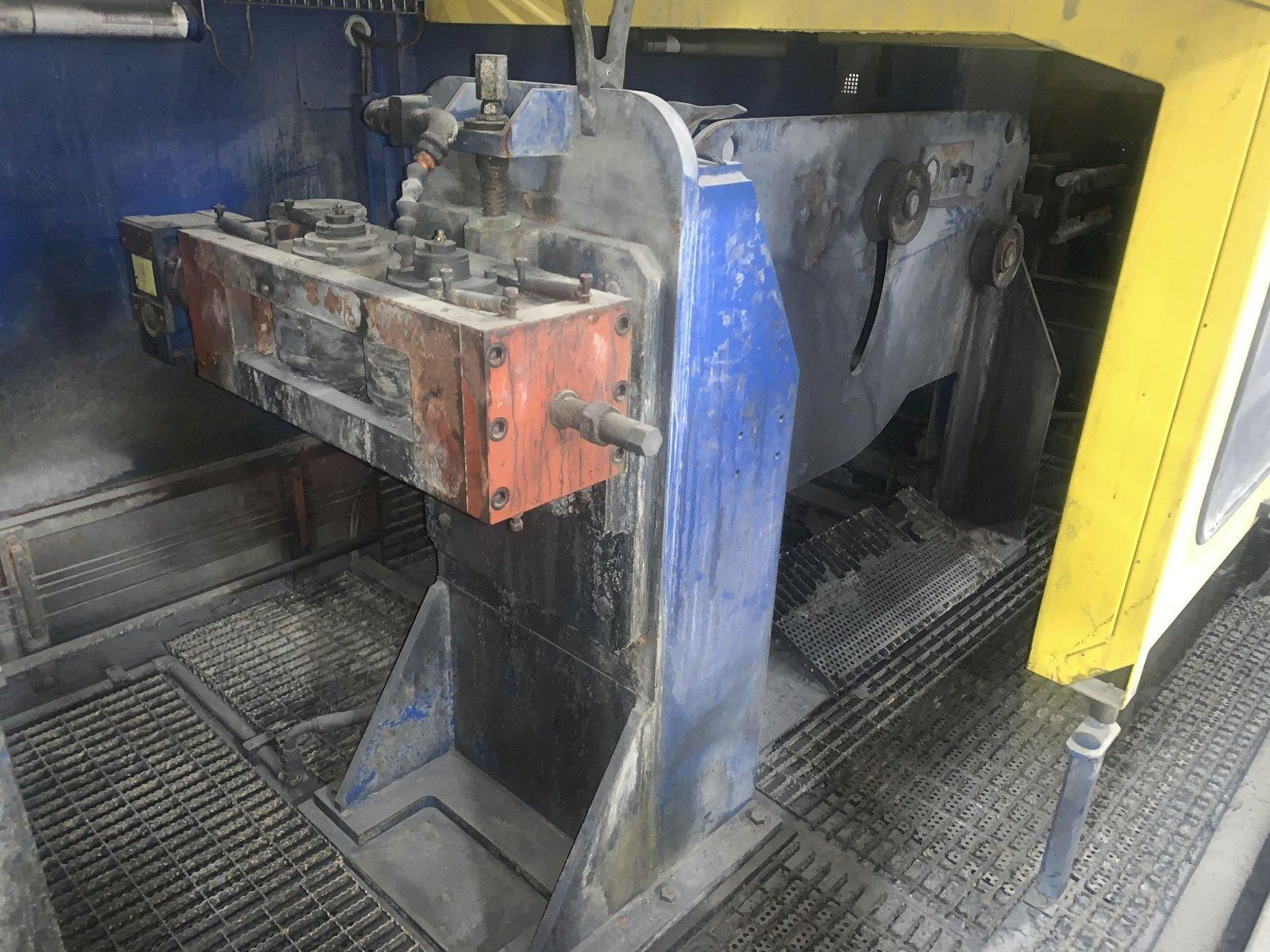

H/V PRE-STRAIGHTENER:
NUMBER OF ROLLS ................................ 2
NUMBER OF PLANES ............................... 2
NUMBER OF VERTICAL PRE-STRAIGHTENING ROLLS ..... 6
NUMBER OF HORIZONTAL PRE-STRAIGHTENING ROLLS ... 6
RE-STRAIGHTENING ROLL DIAMETER ................. 4.3"

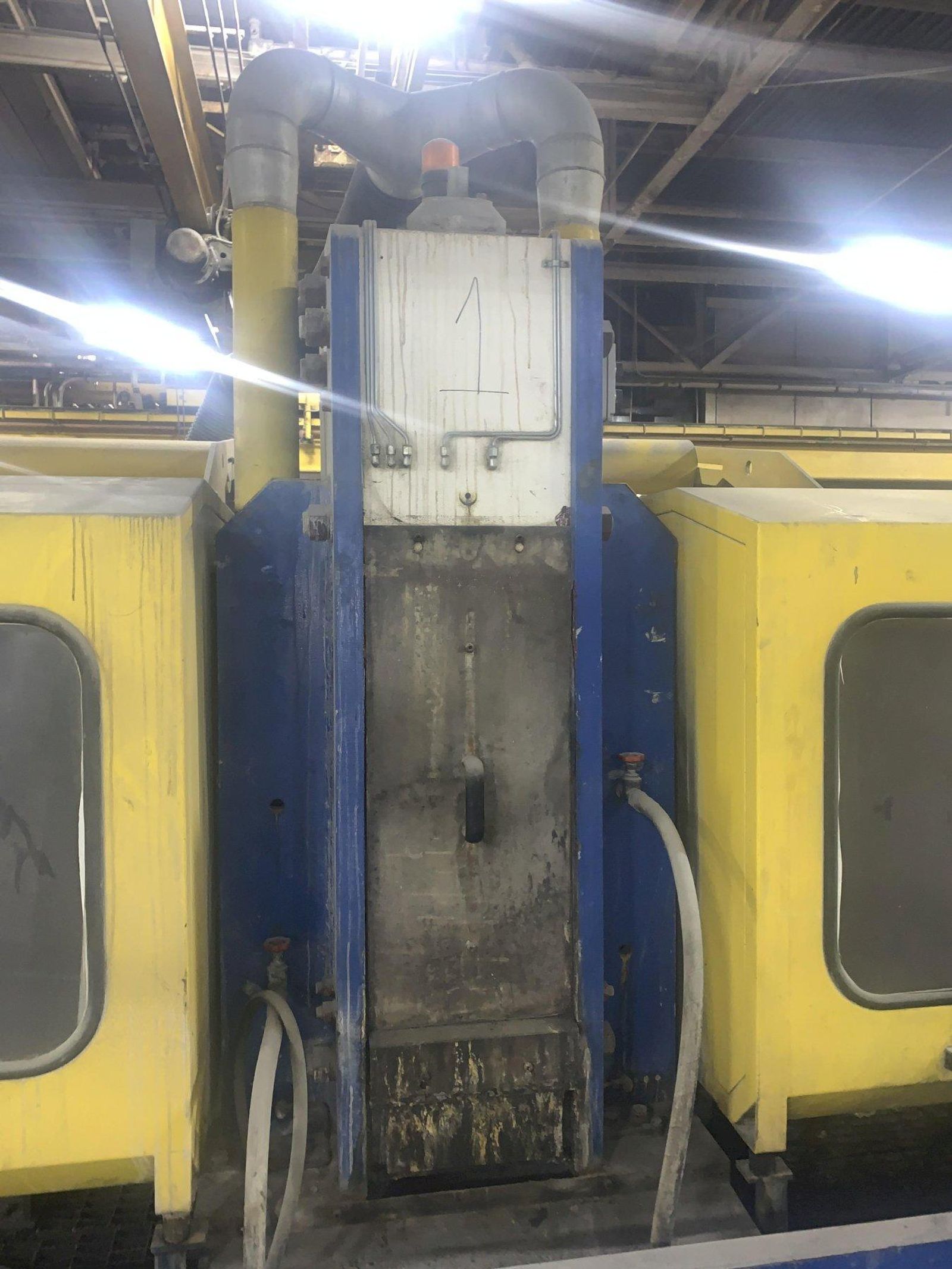

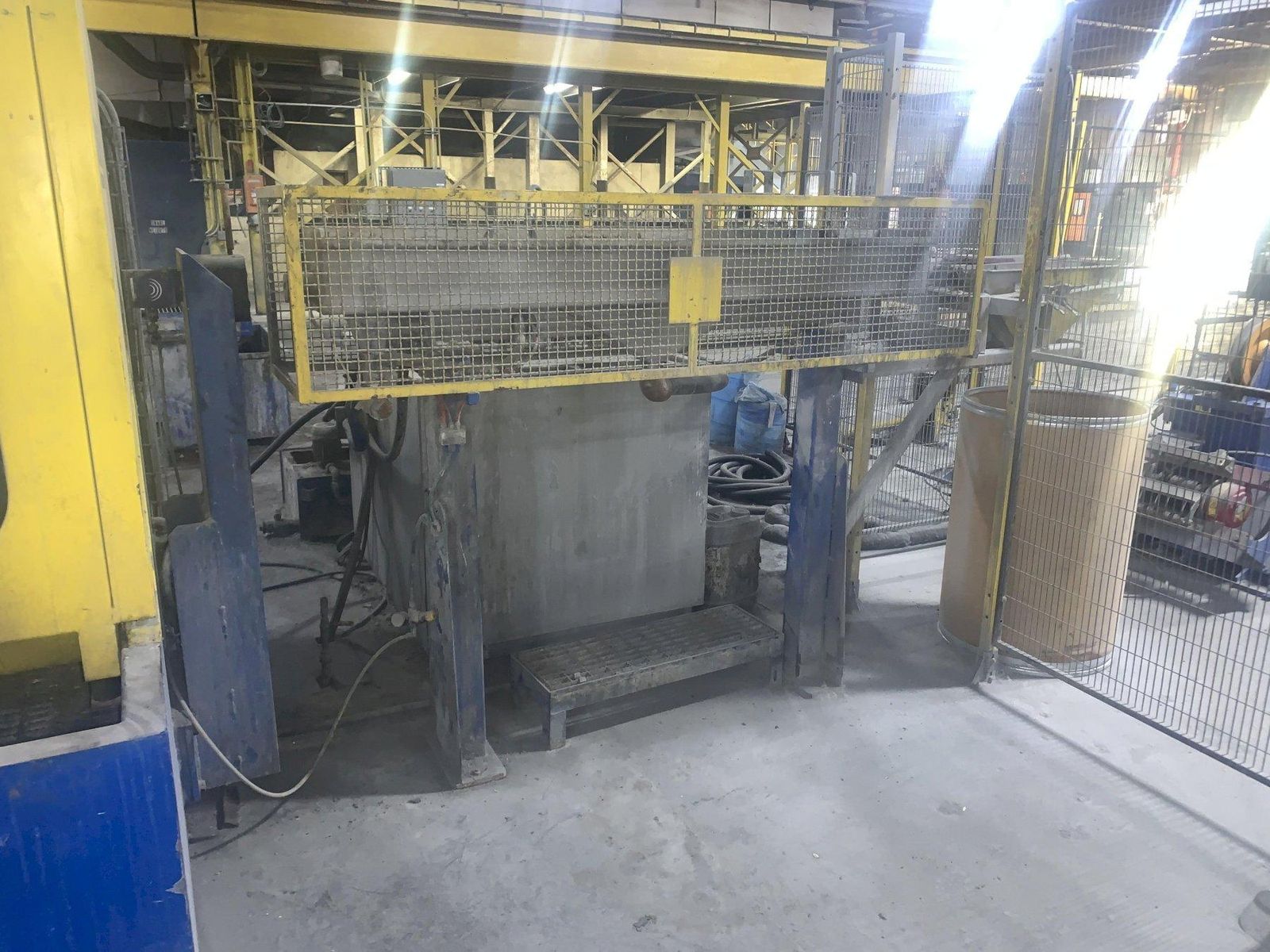

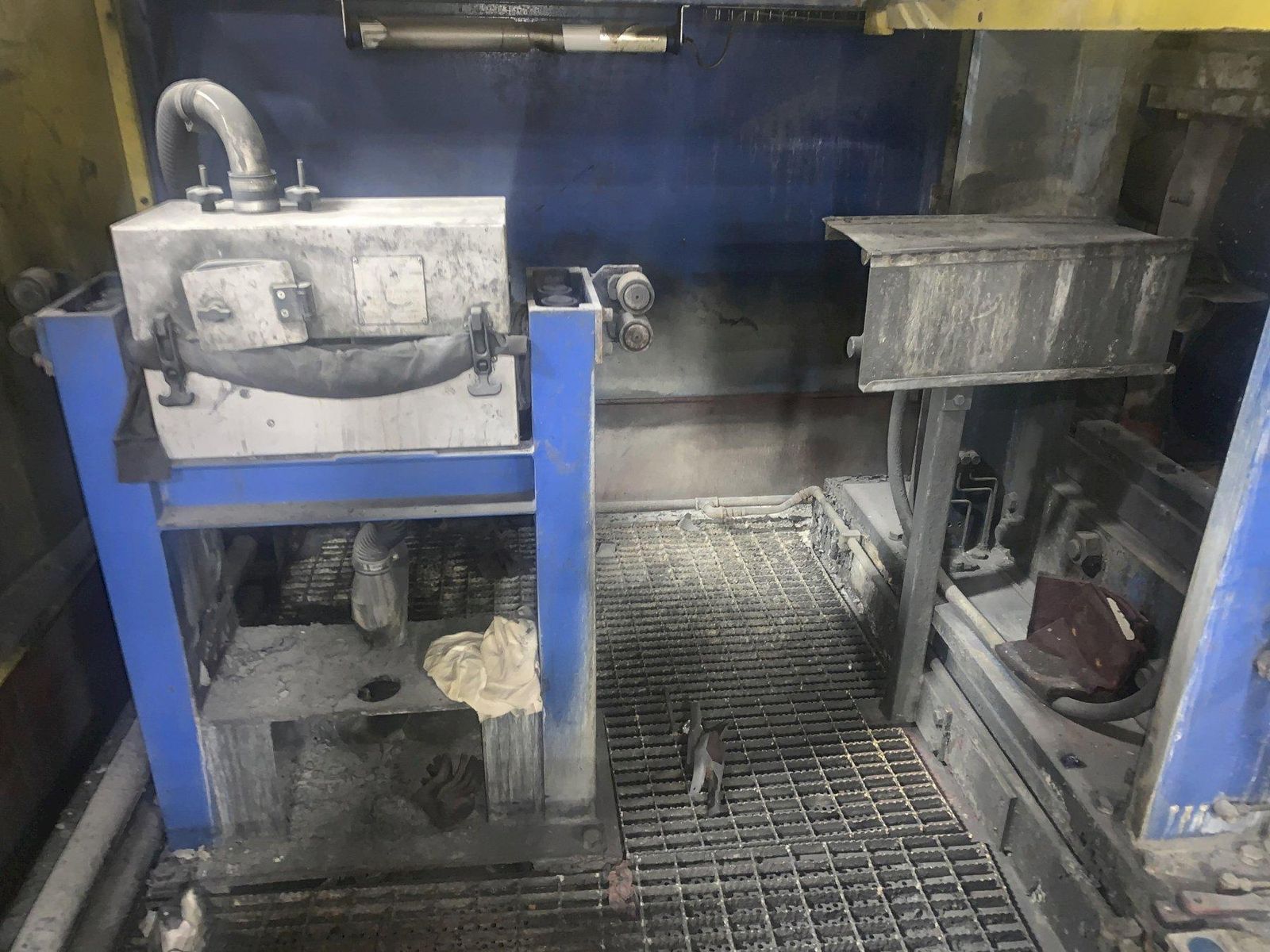

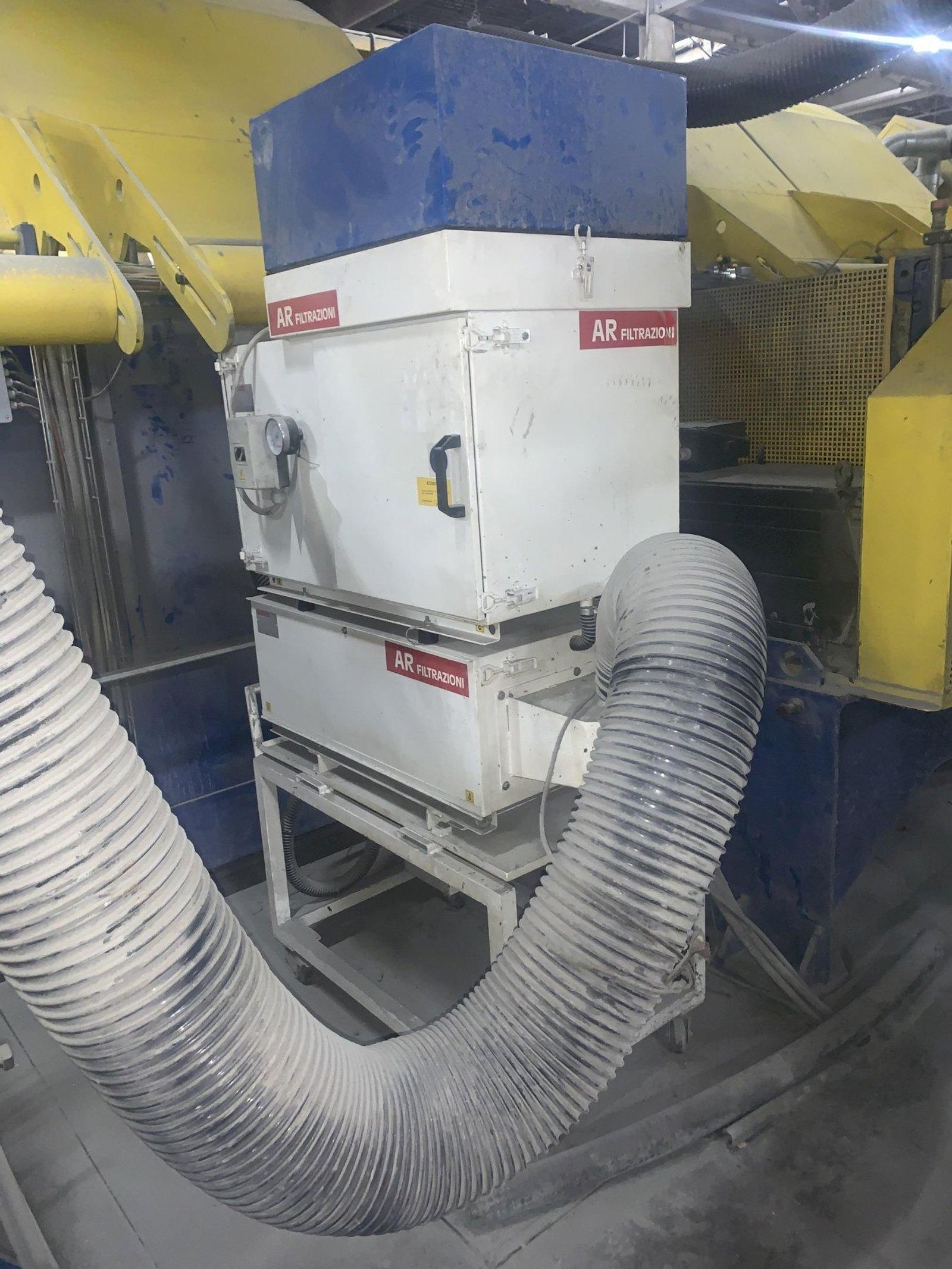

CLEANING UNIT:
WATER TEMPERATURE .............................. 140°-185°
TANK CAPACITY .................................. 1000 L
ELECTRICAL HEATERS ............................. 2 X 8 KW
PAPER FILTER ................................... W/AUTOMATIC CLOGGING DETECTION
BRUSHING UNIT .................................. 7.9" SPIRAL BRUSHES

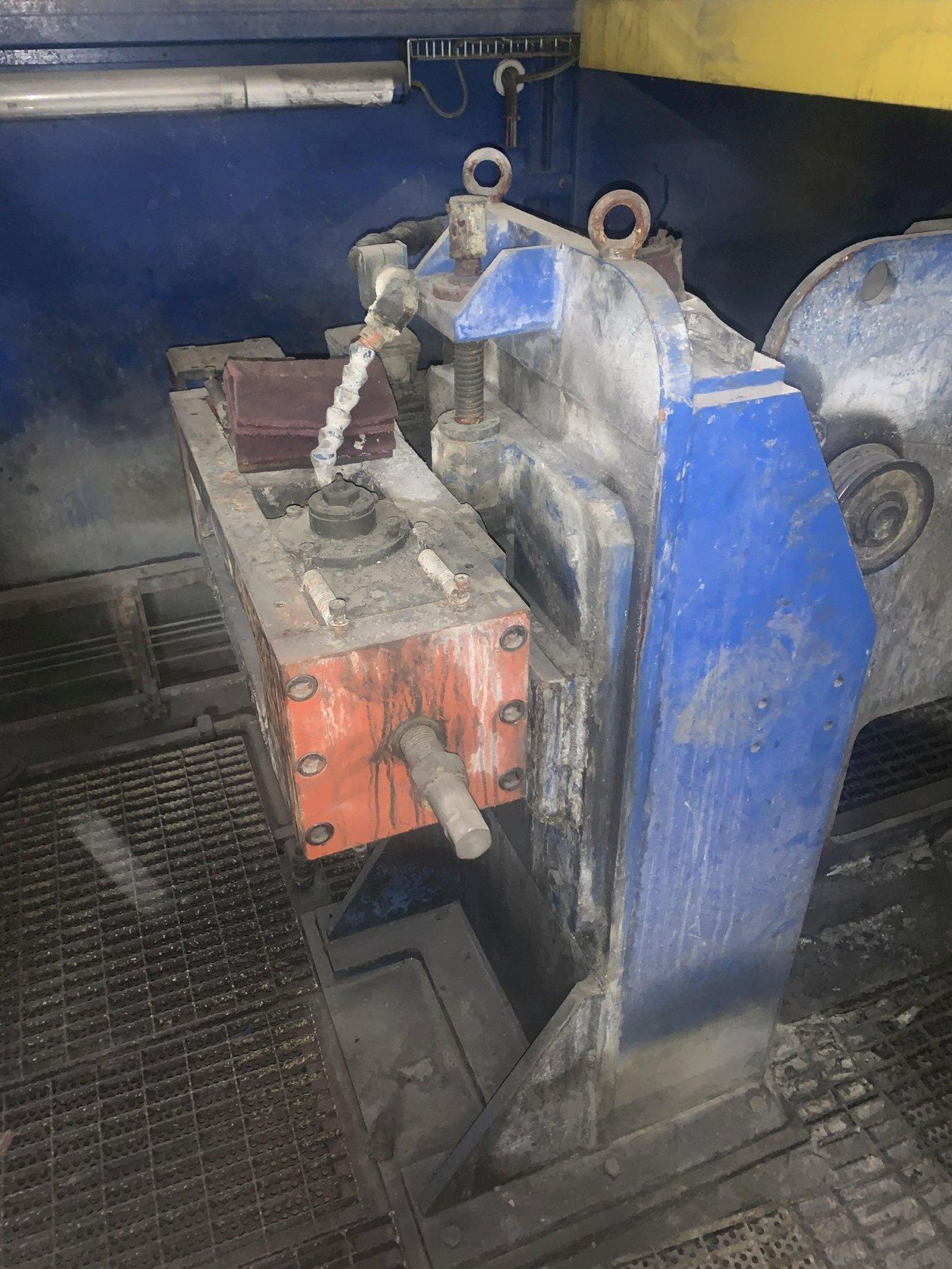

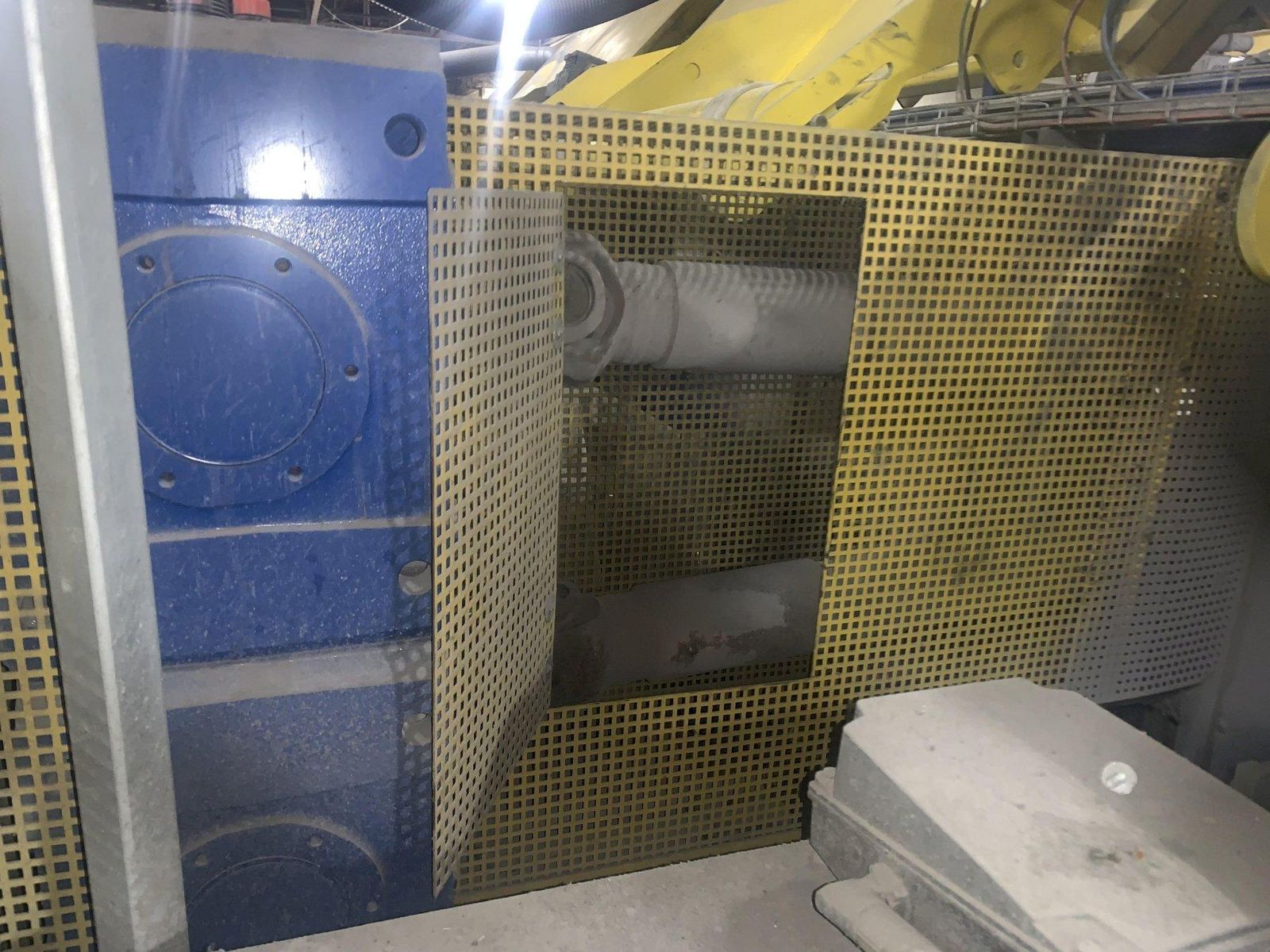

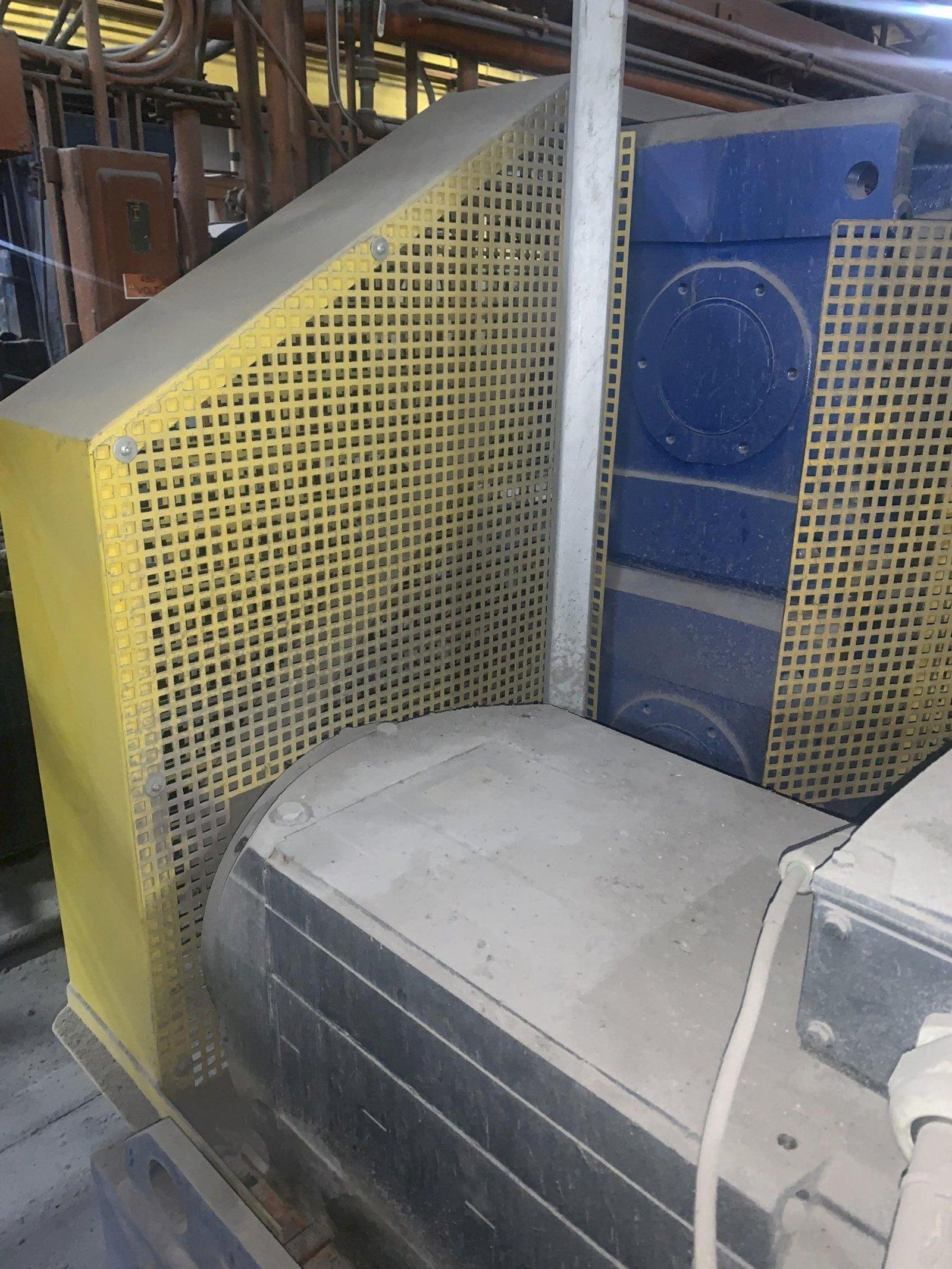

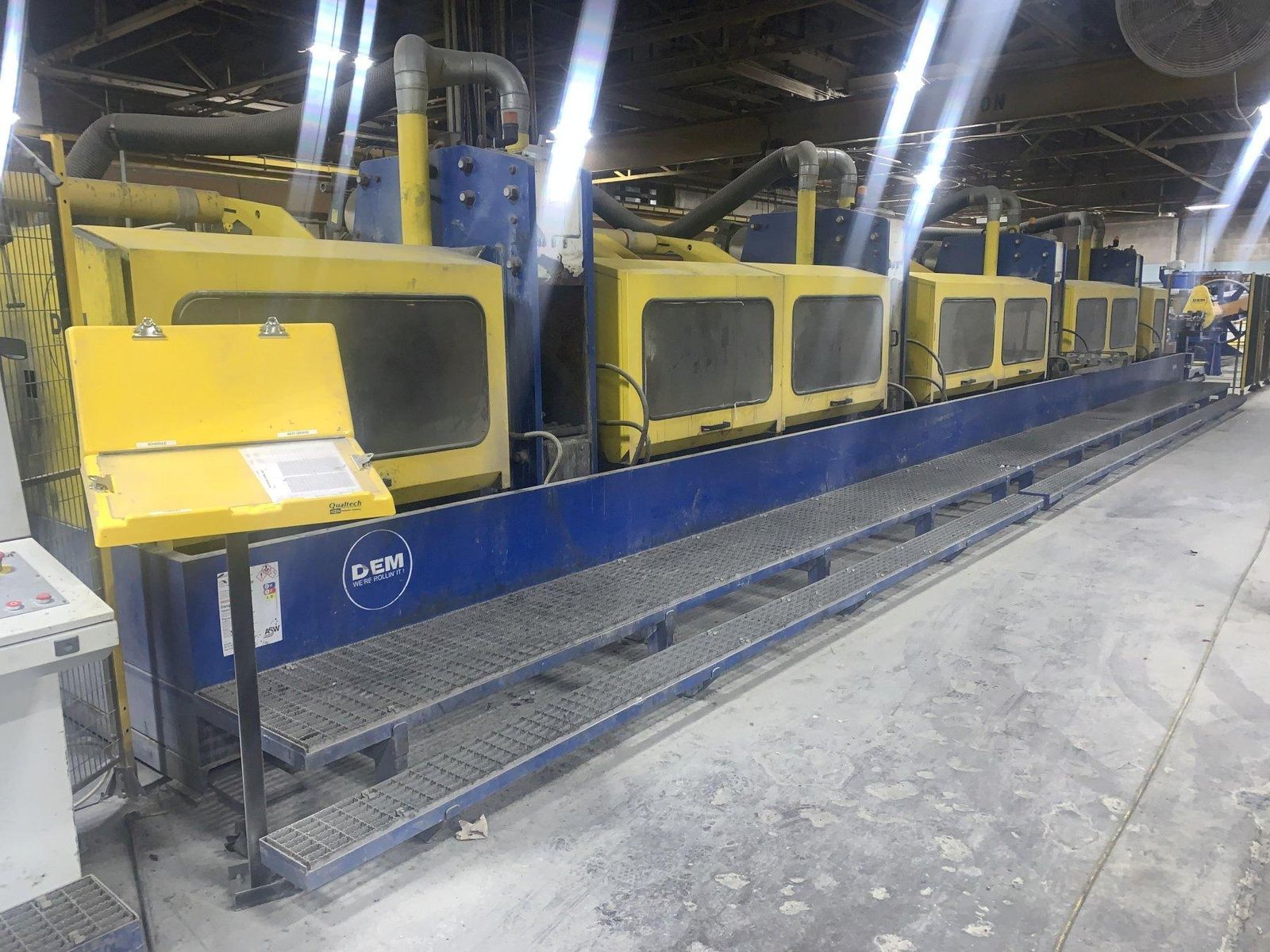

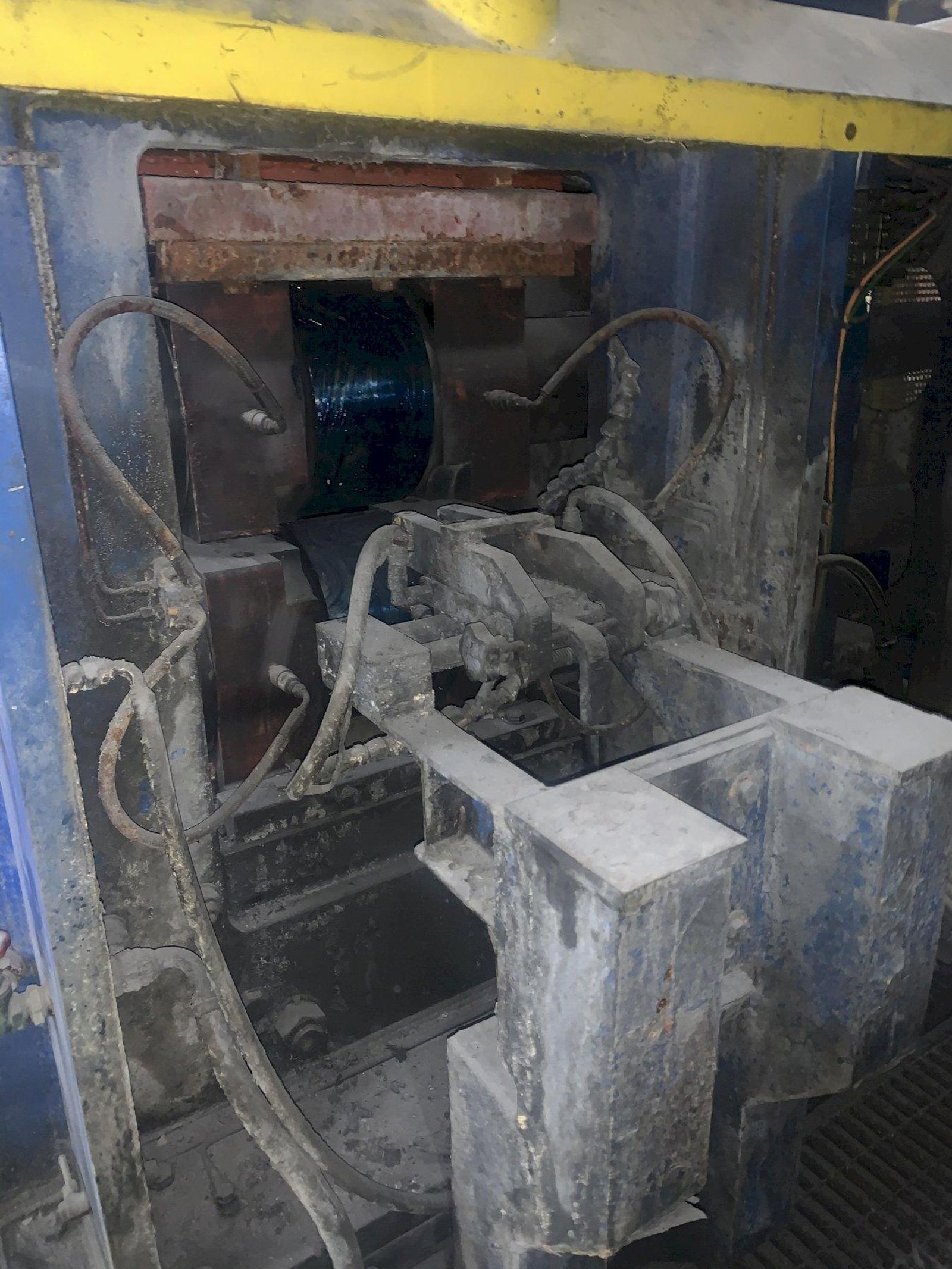

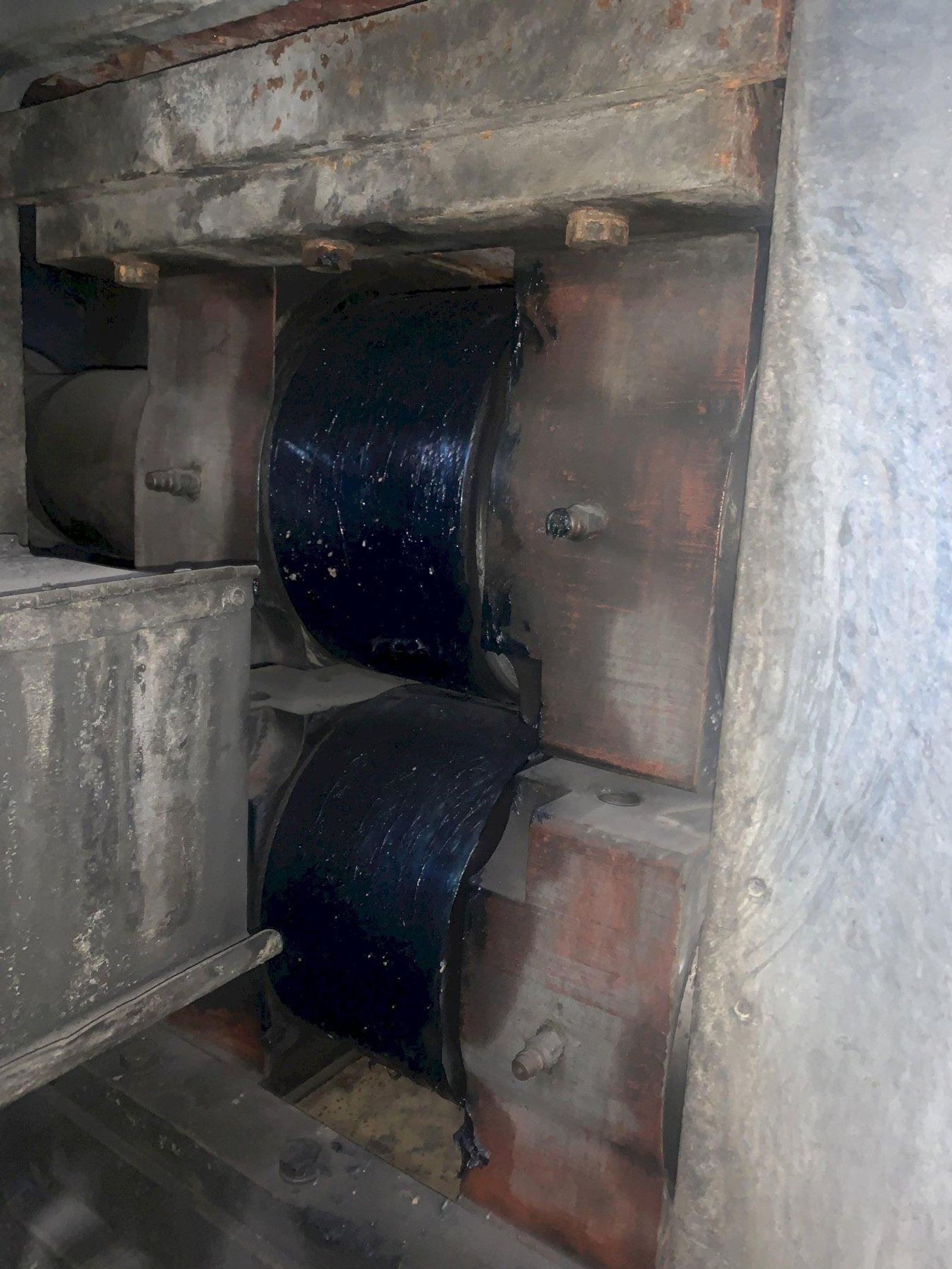

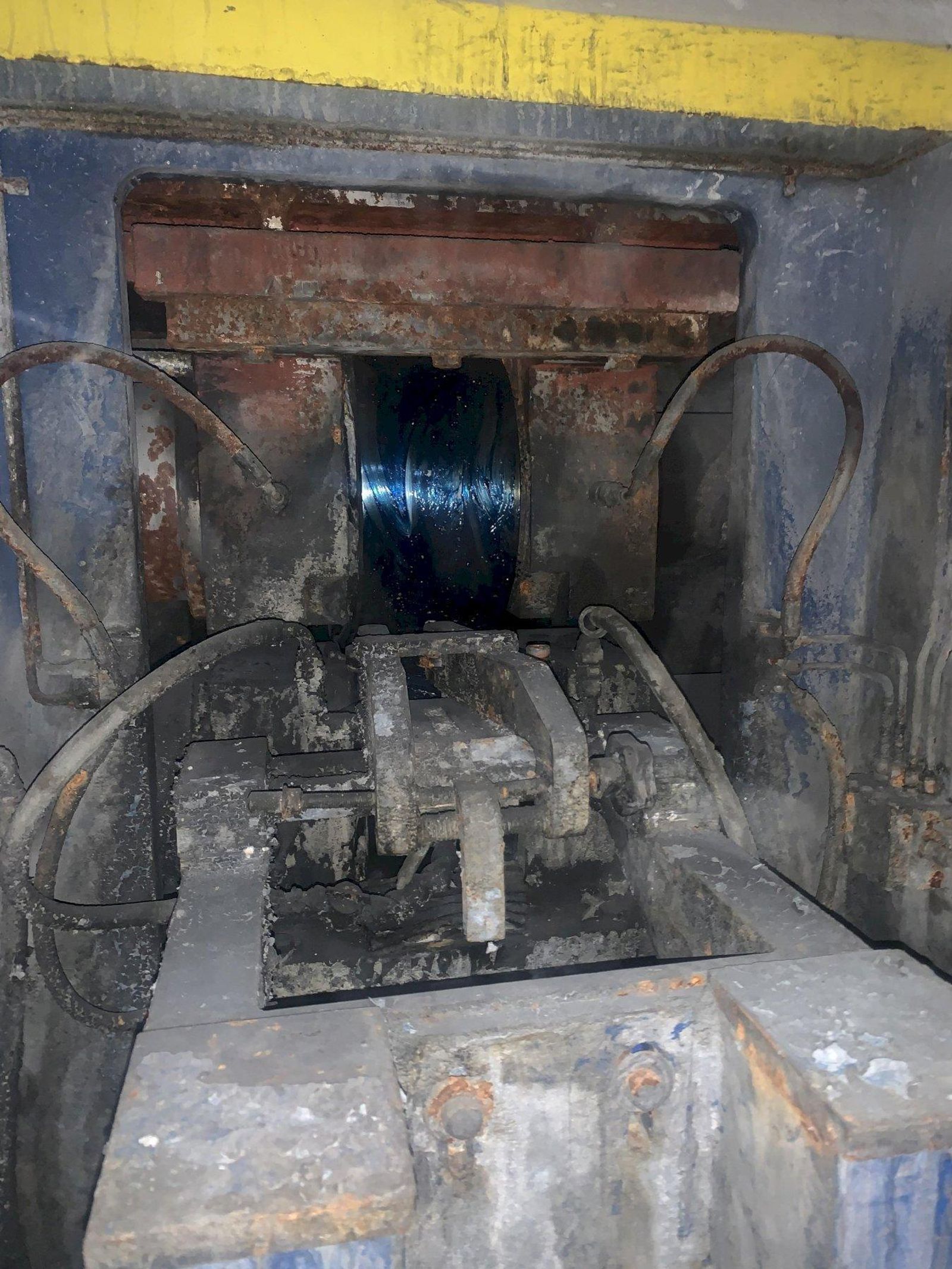

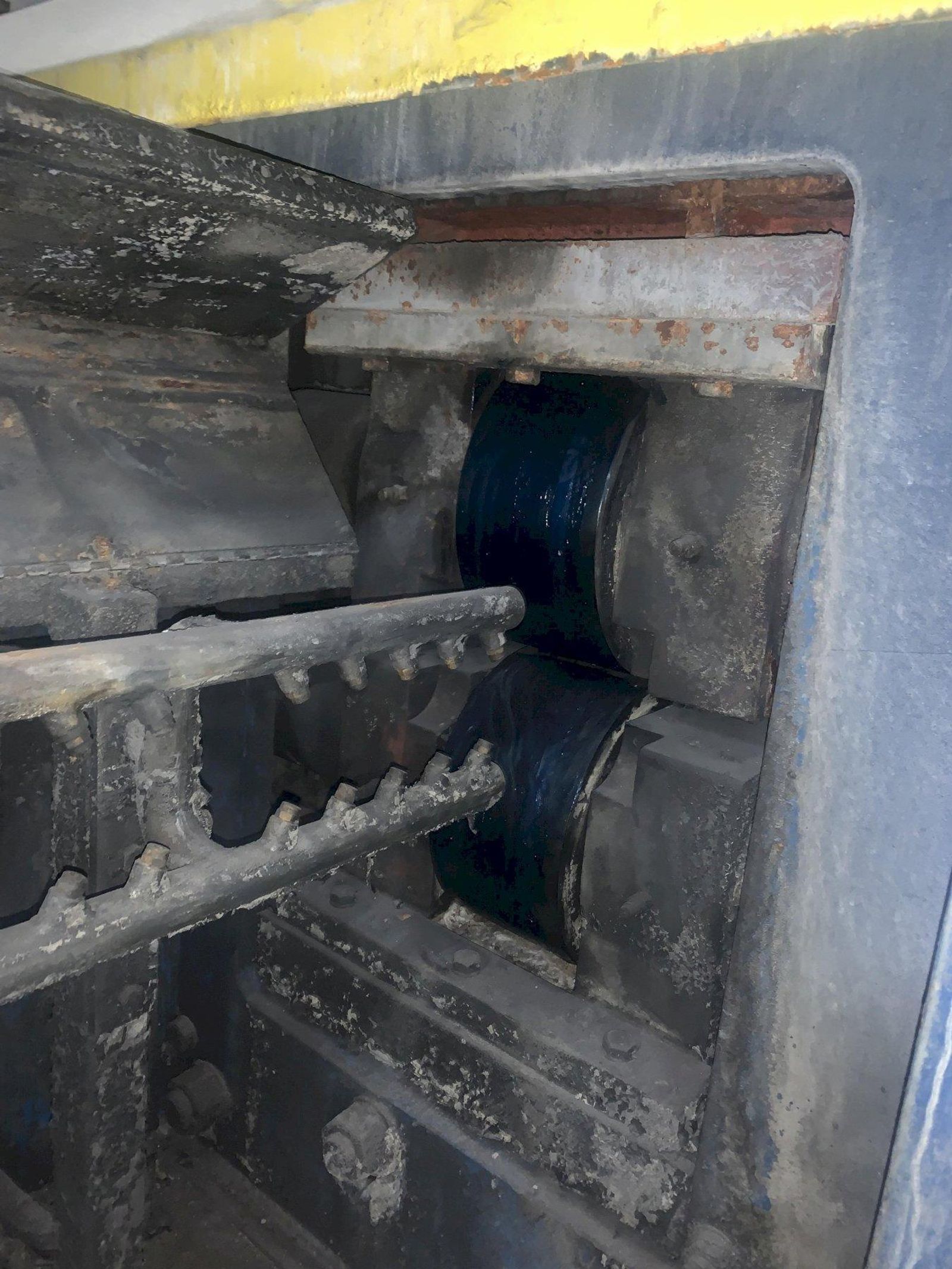

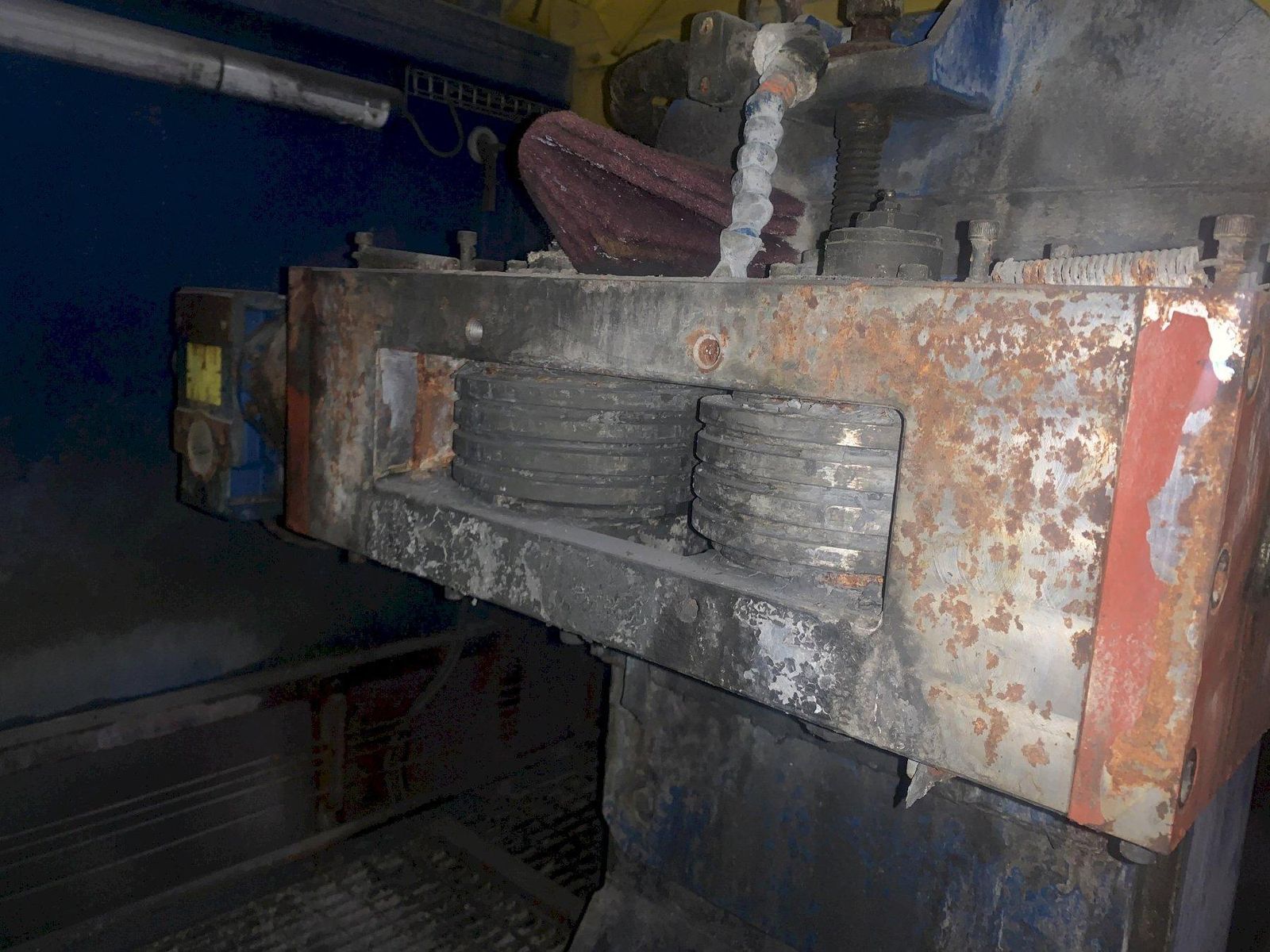

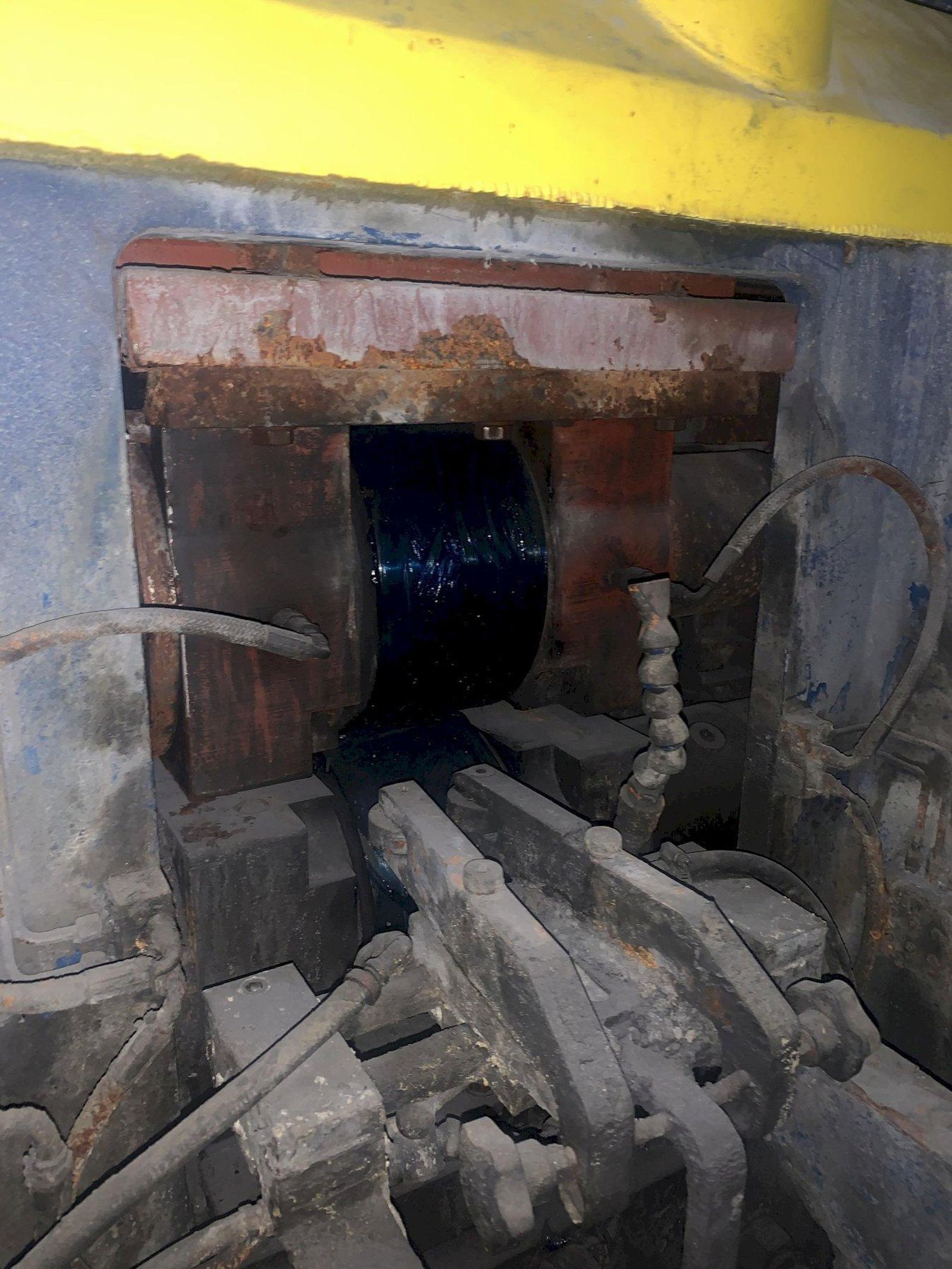

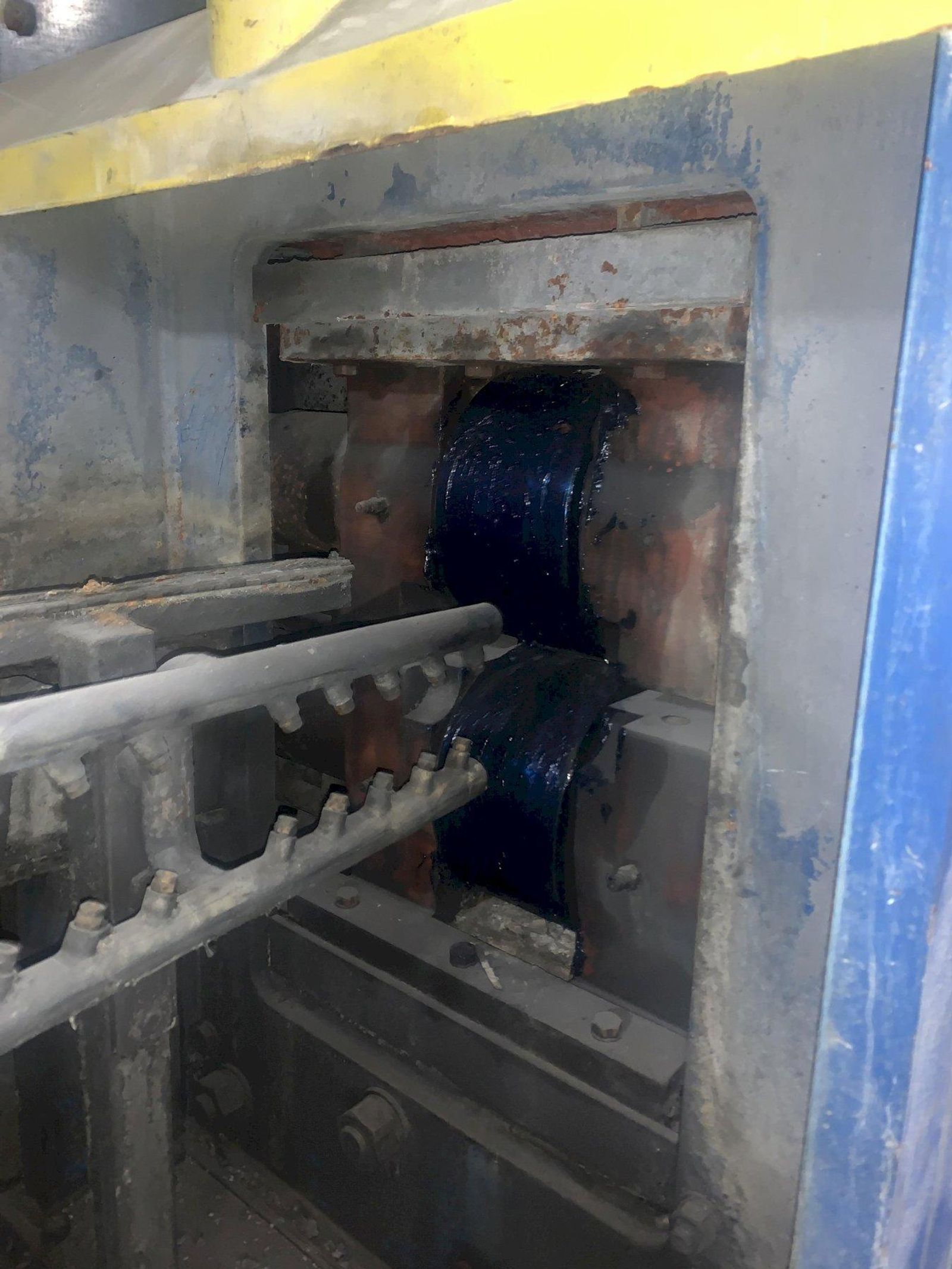

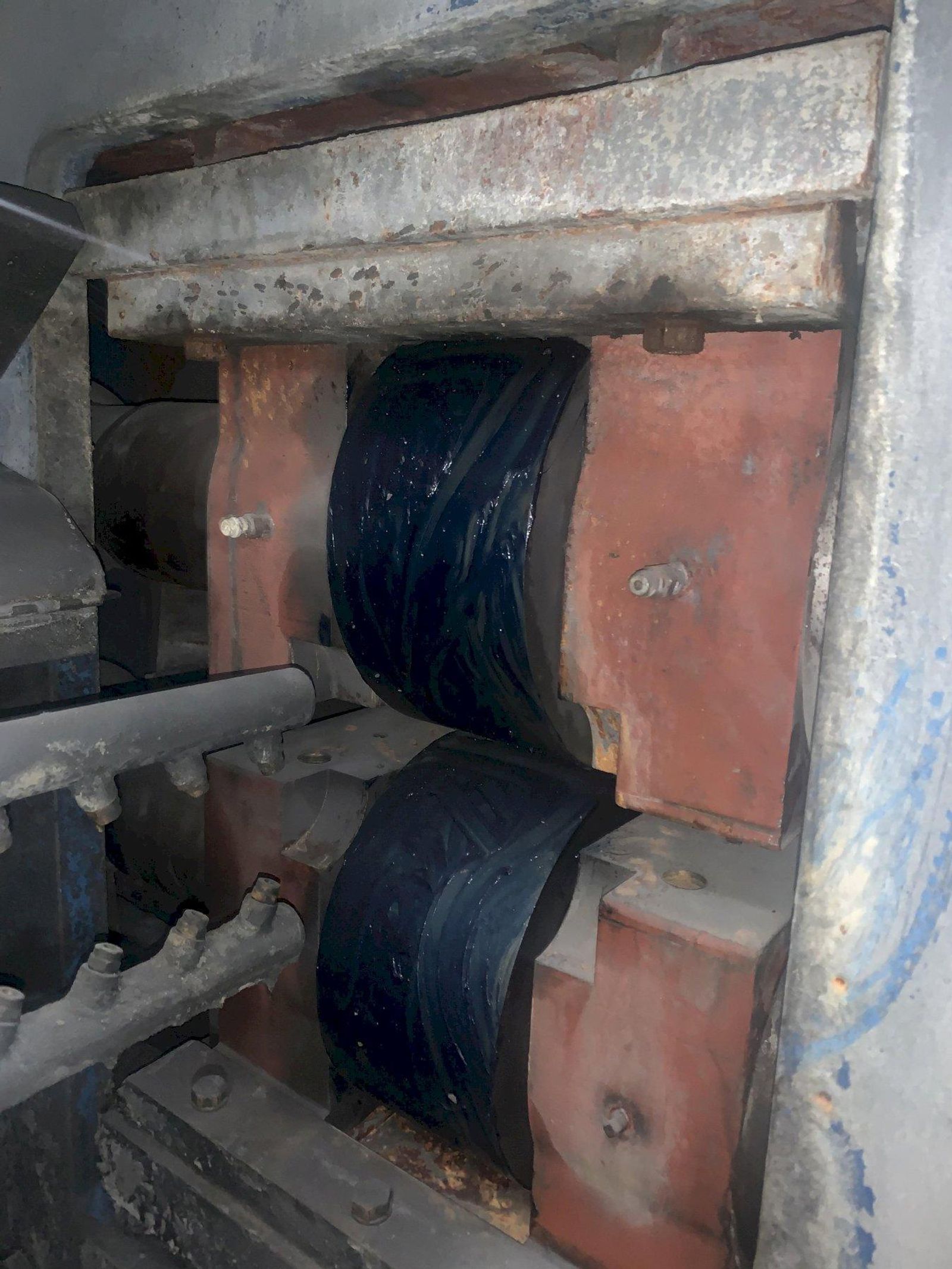

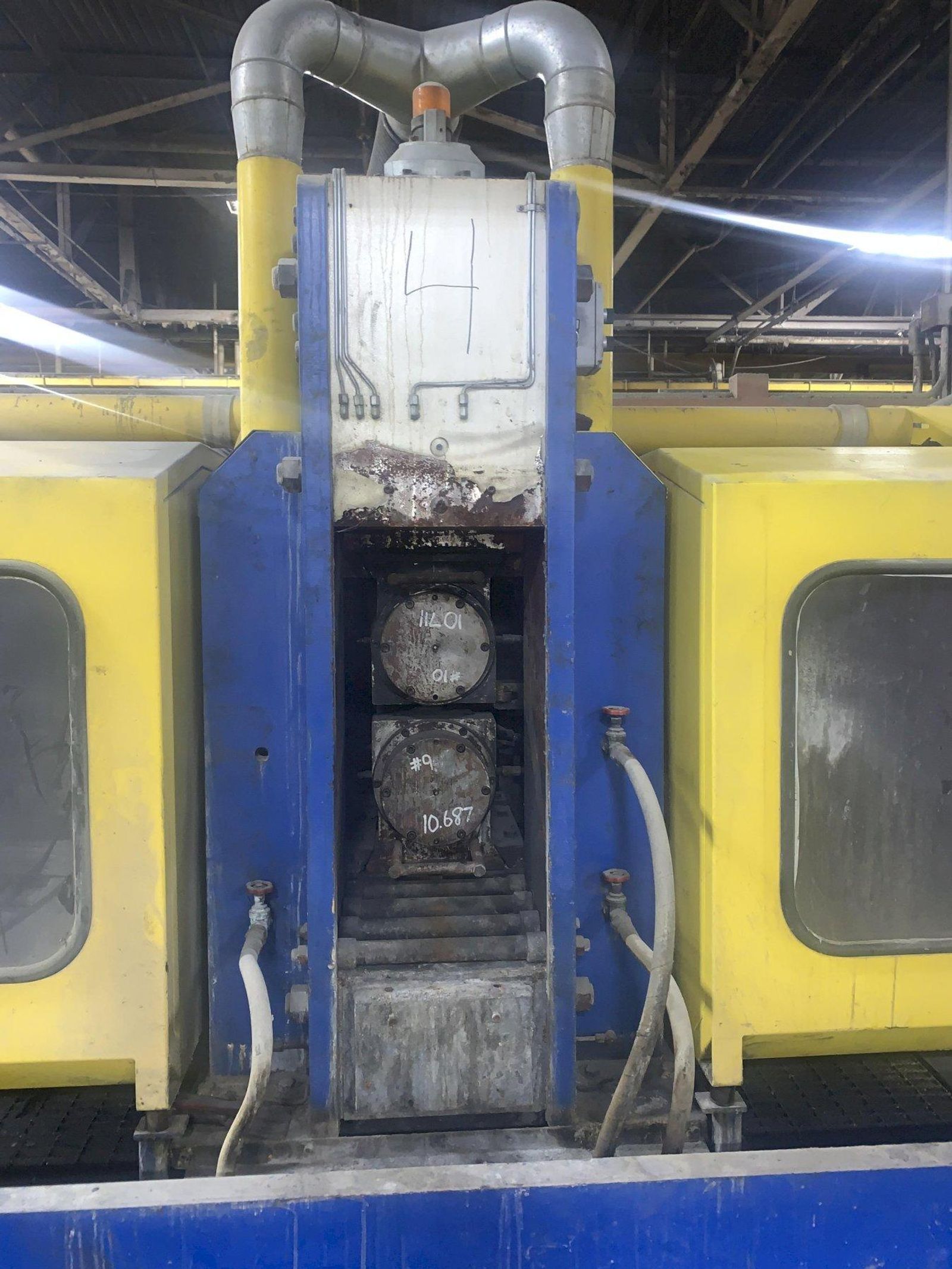

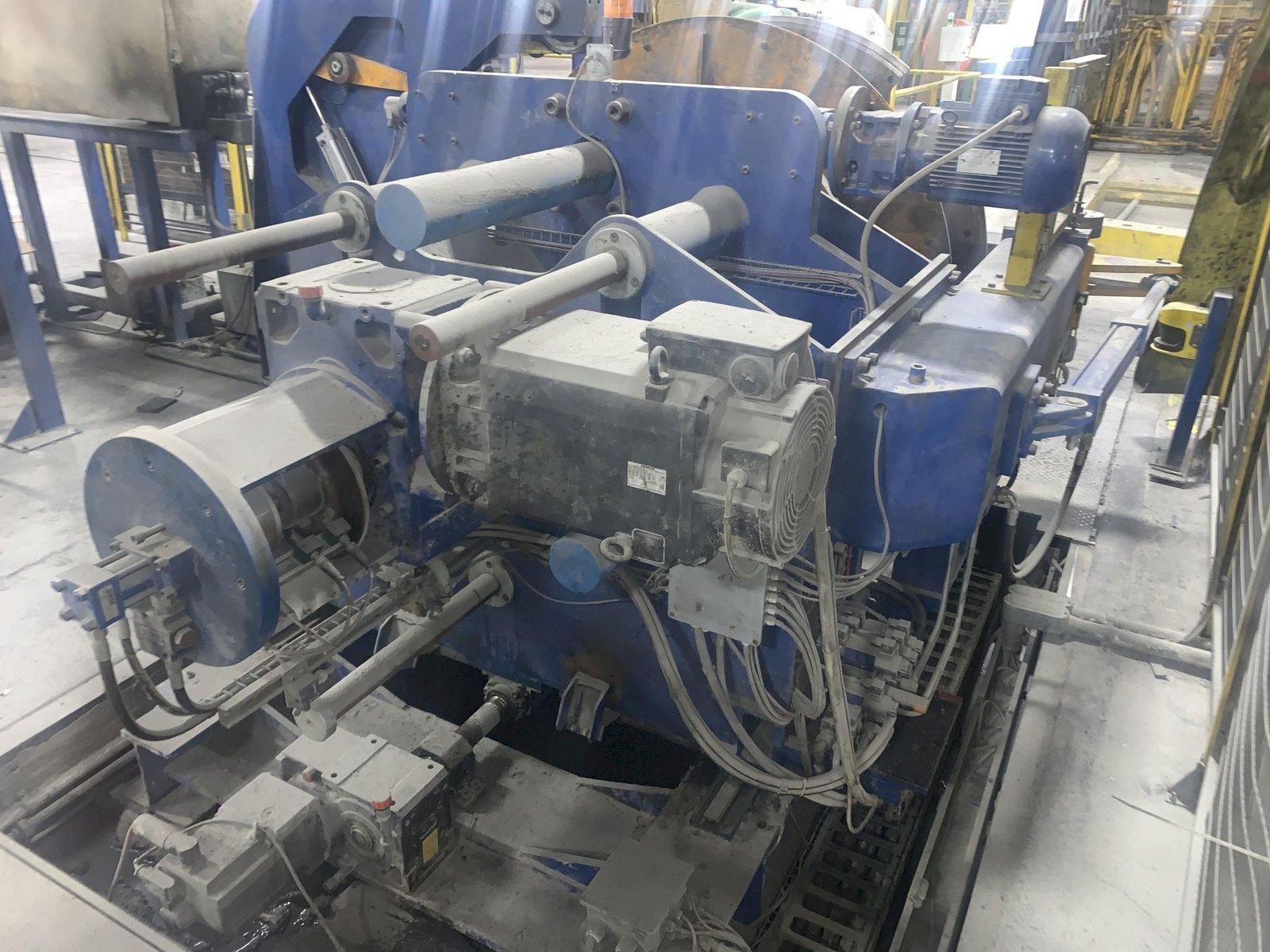

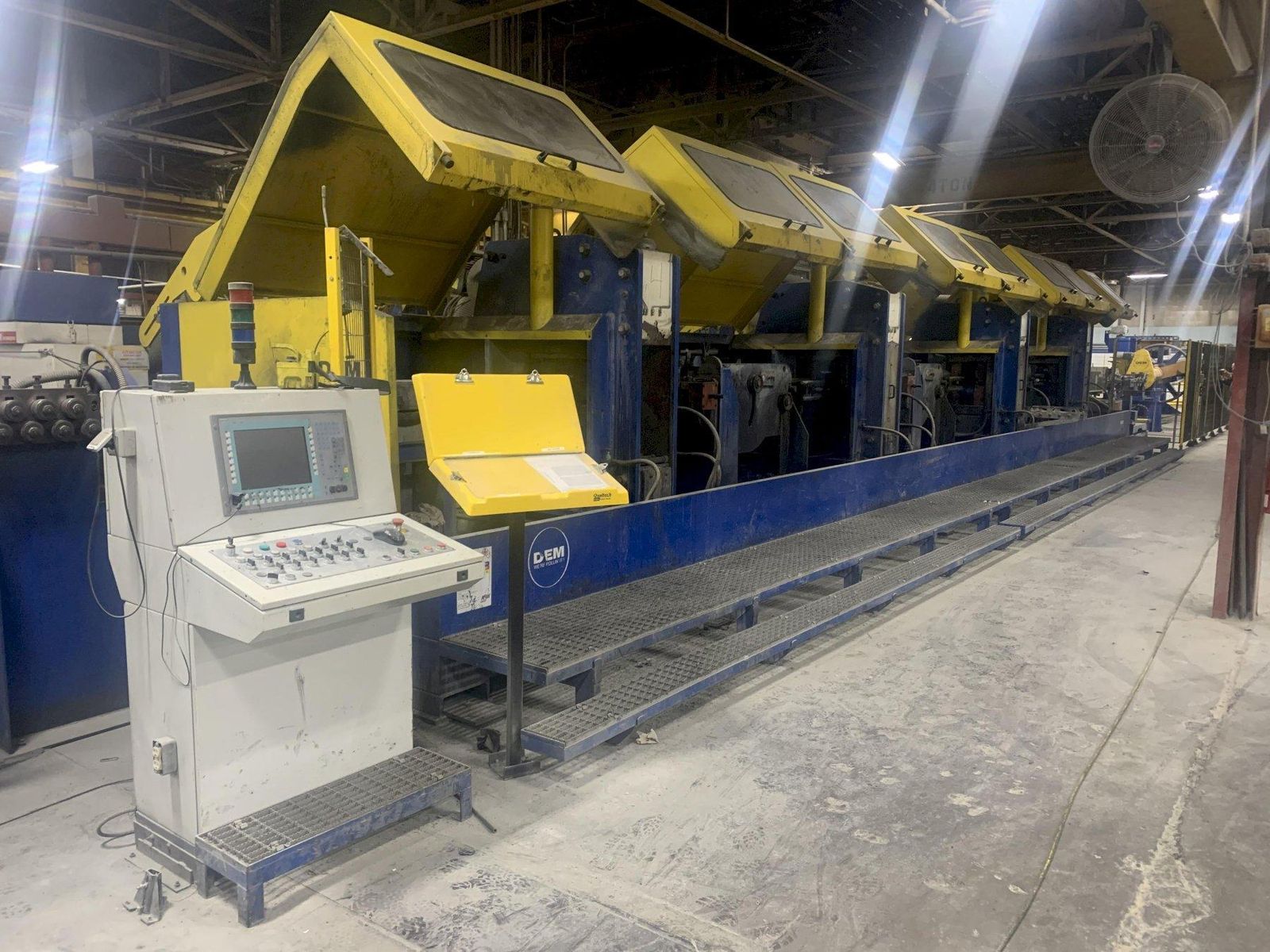

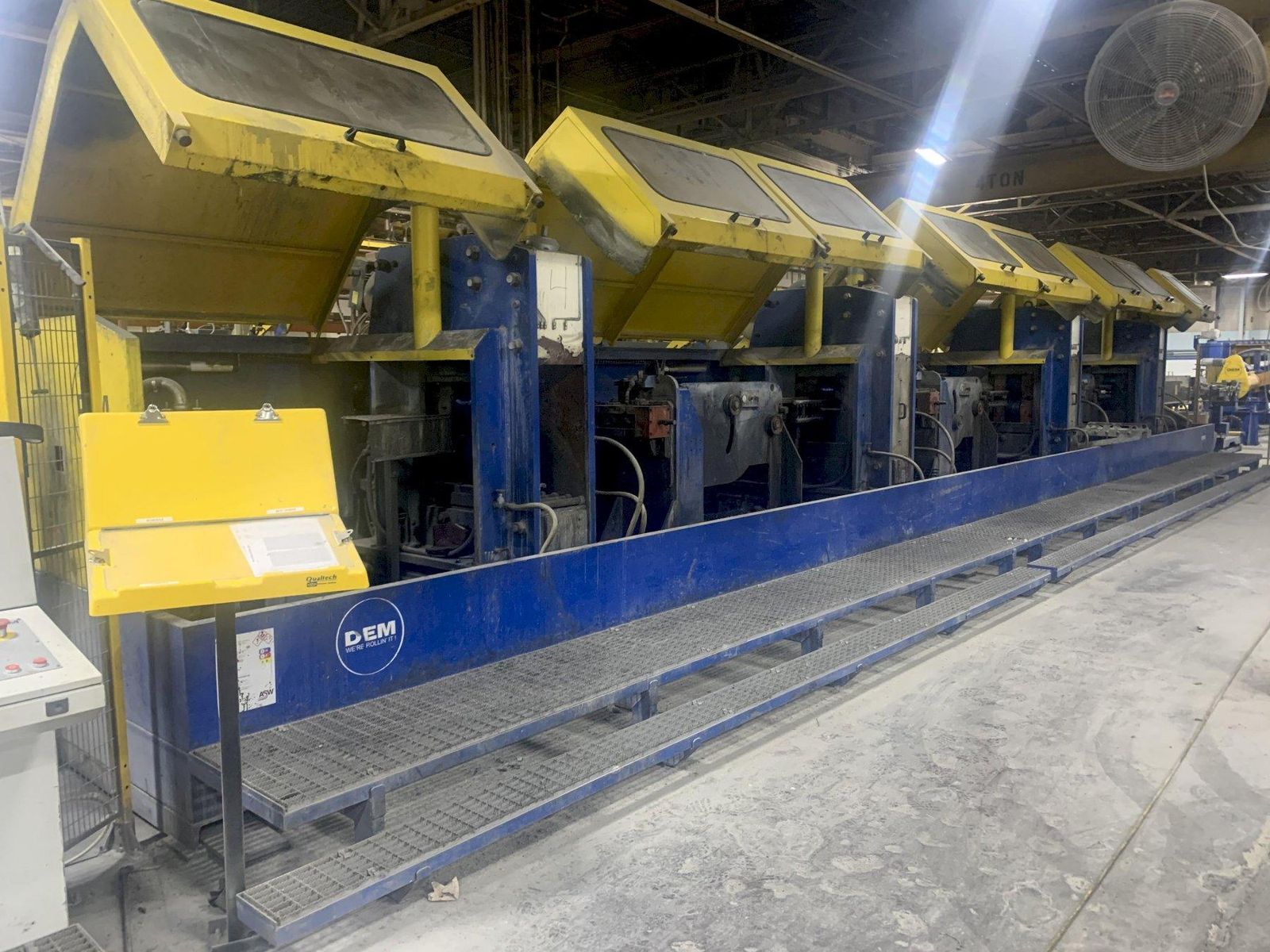

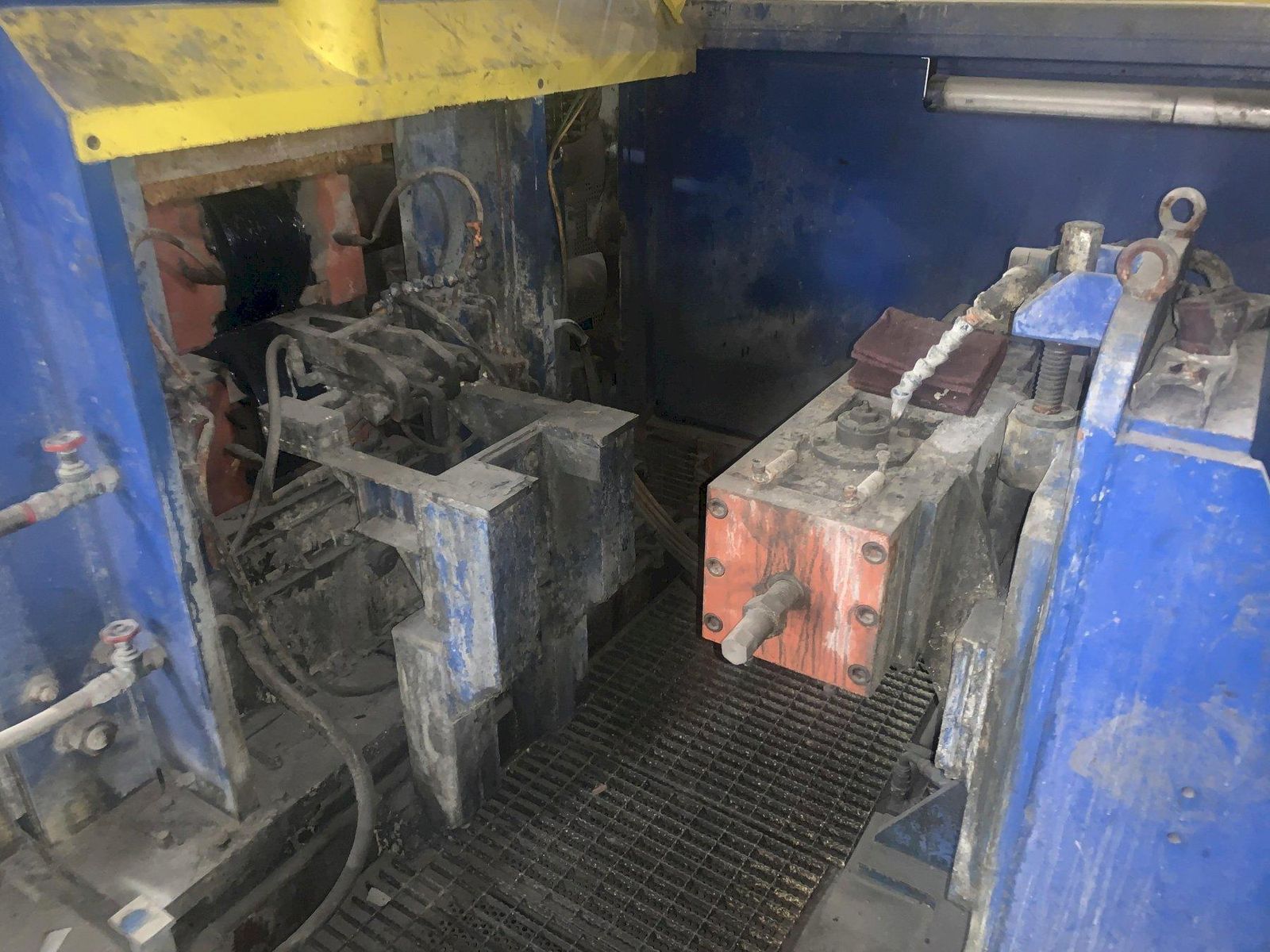

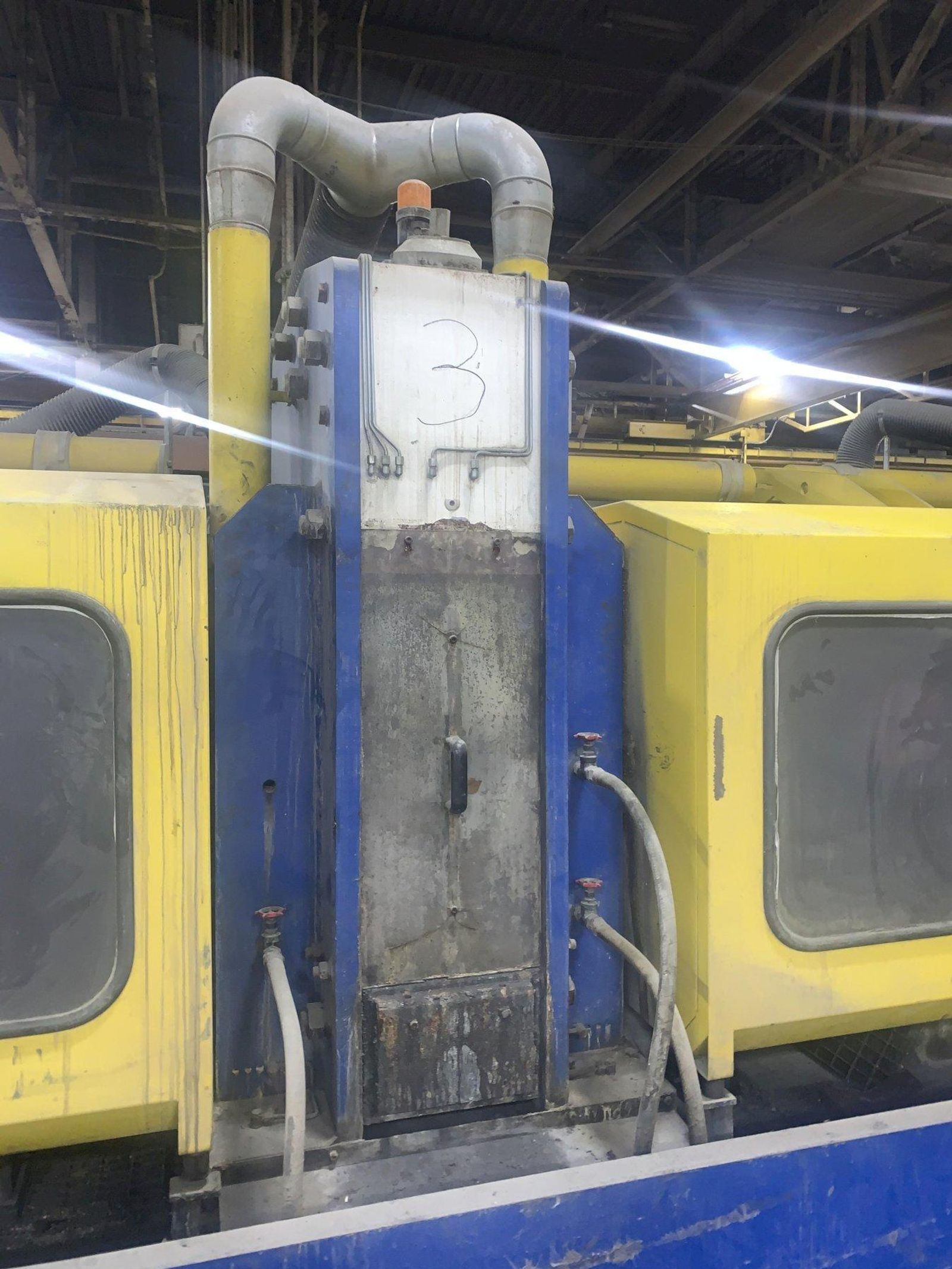

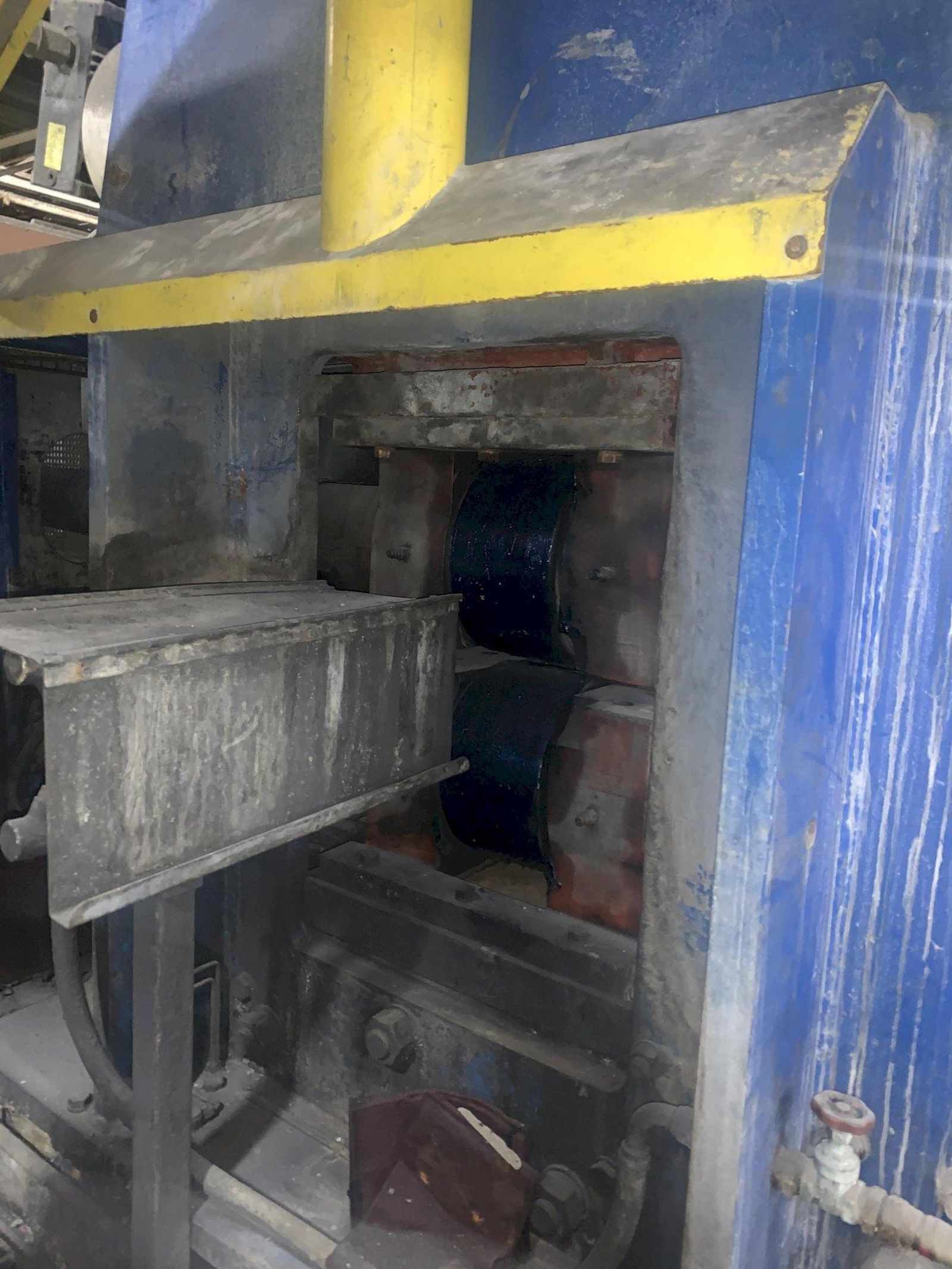

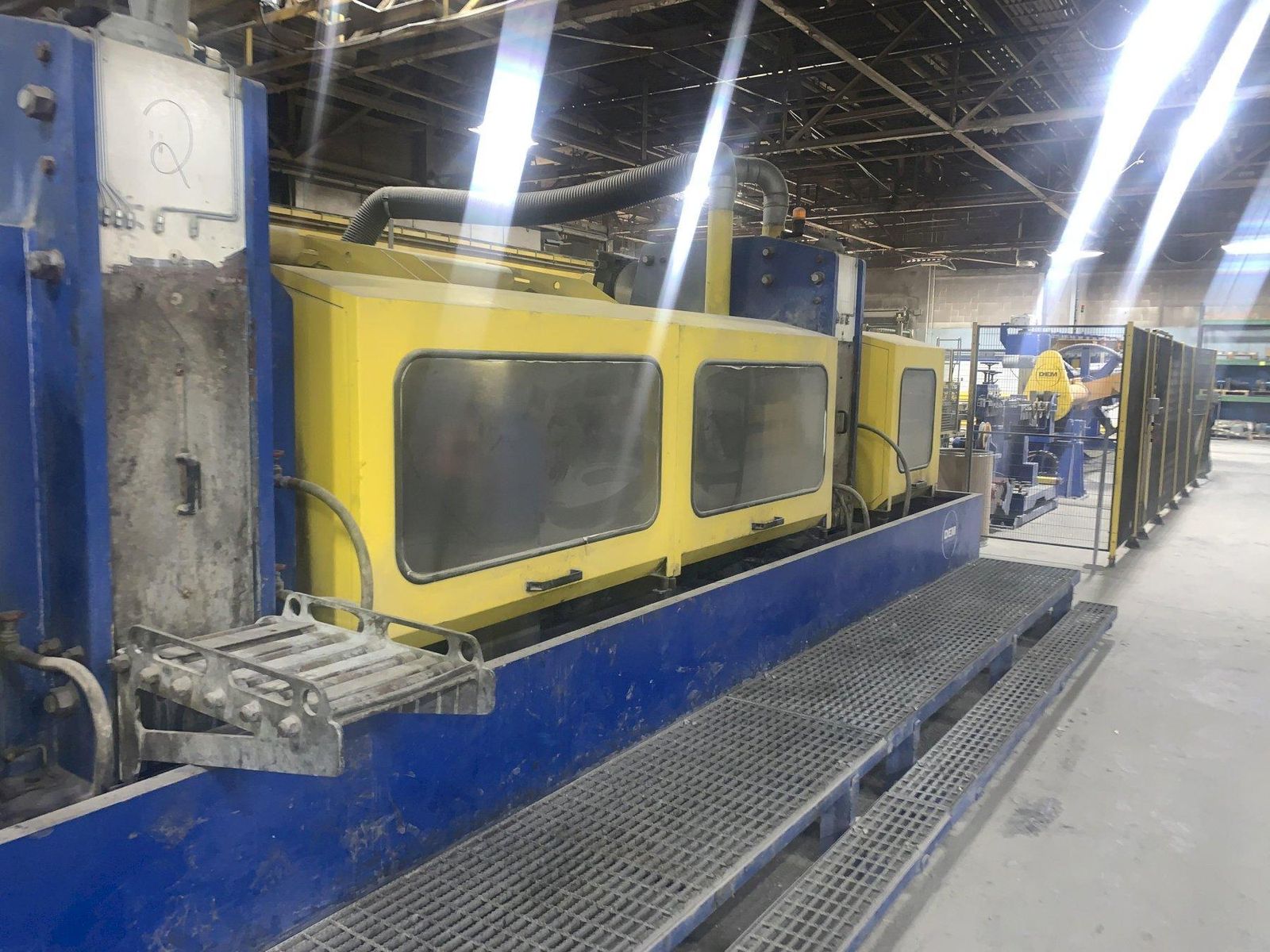

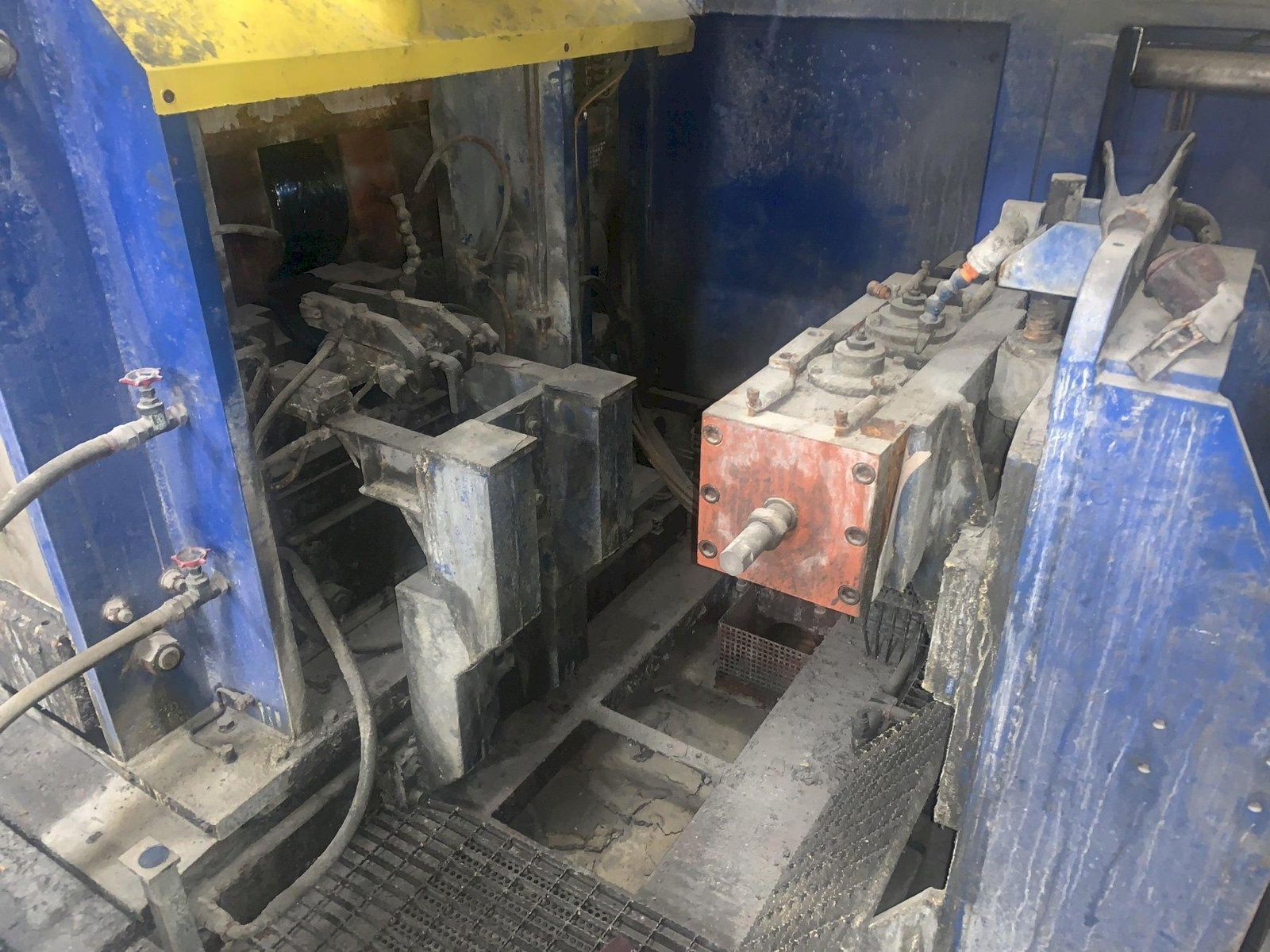

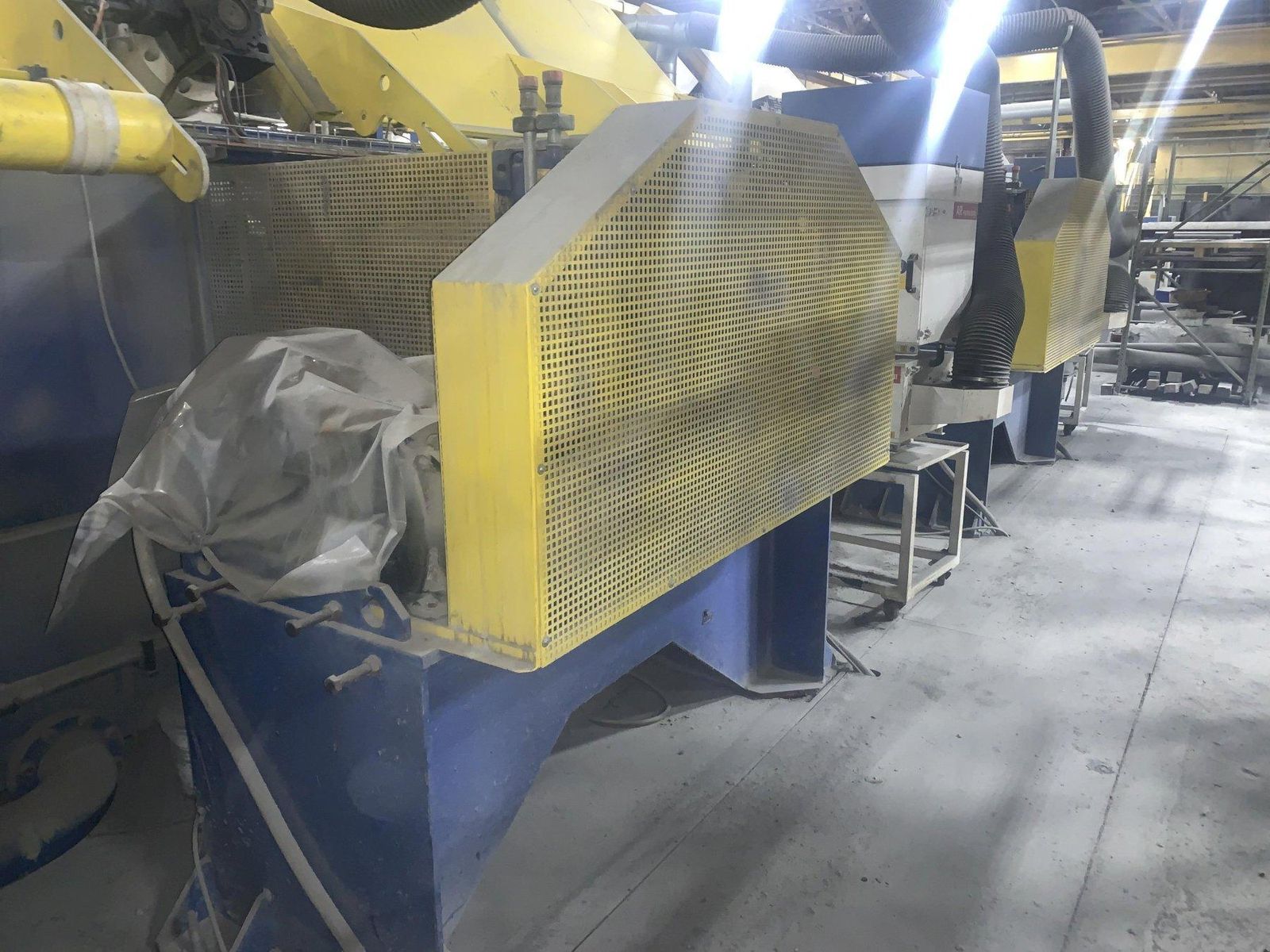

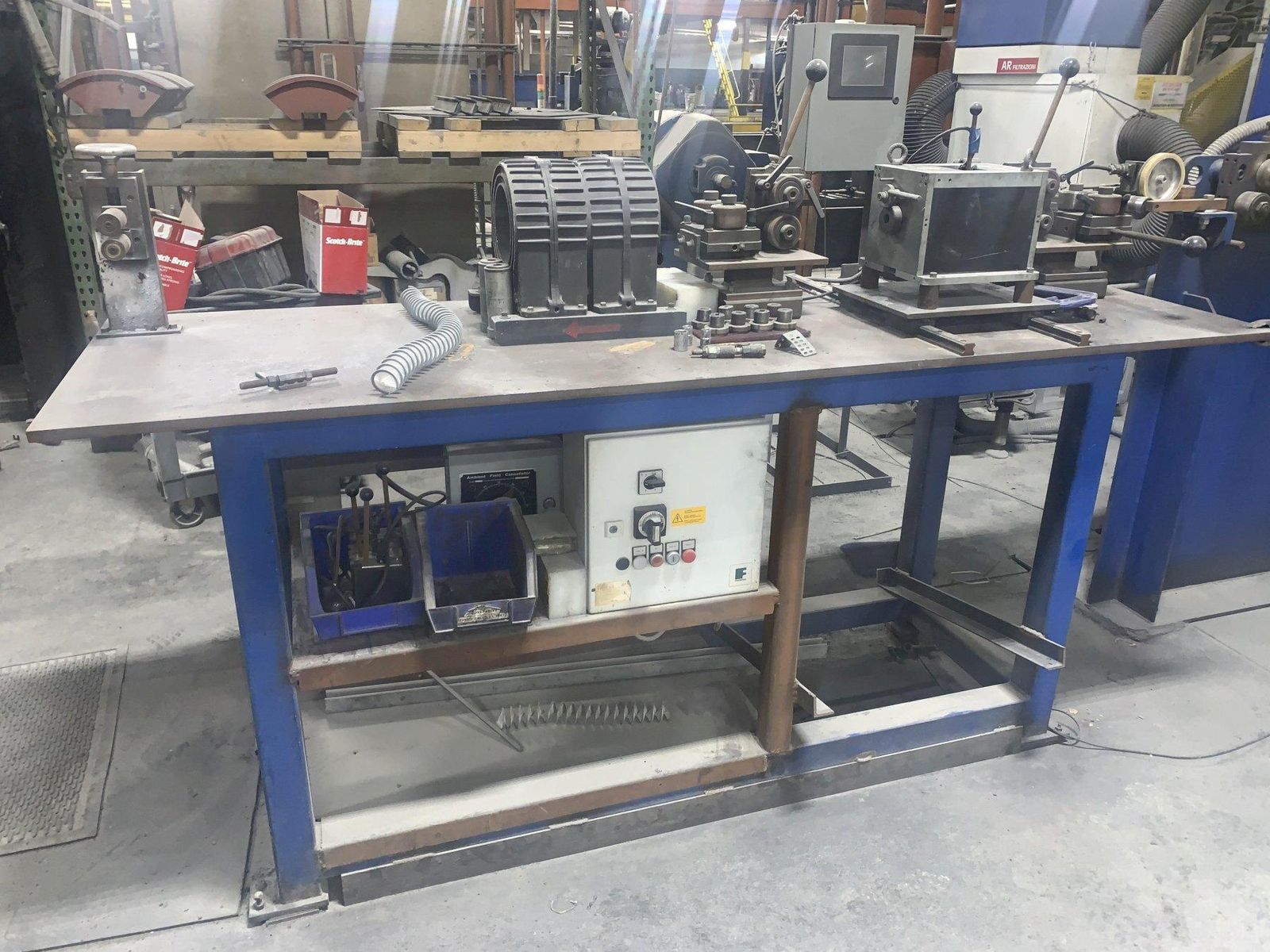

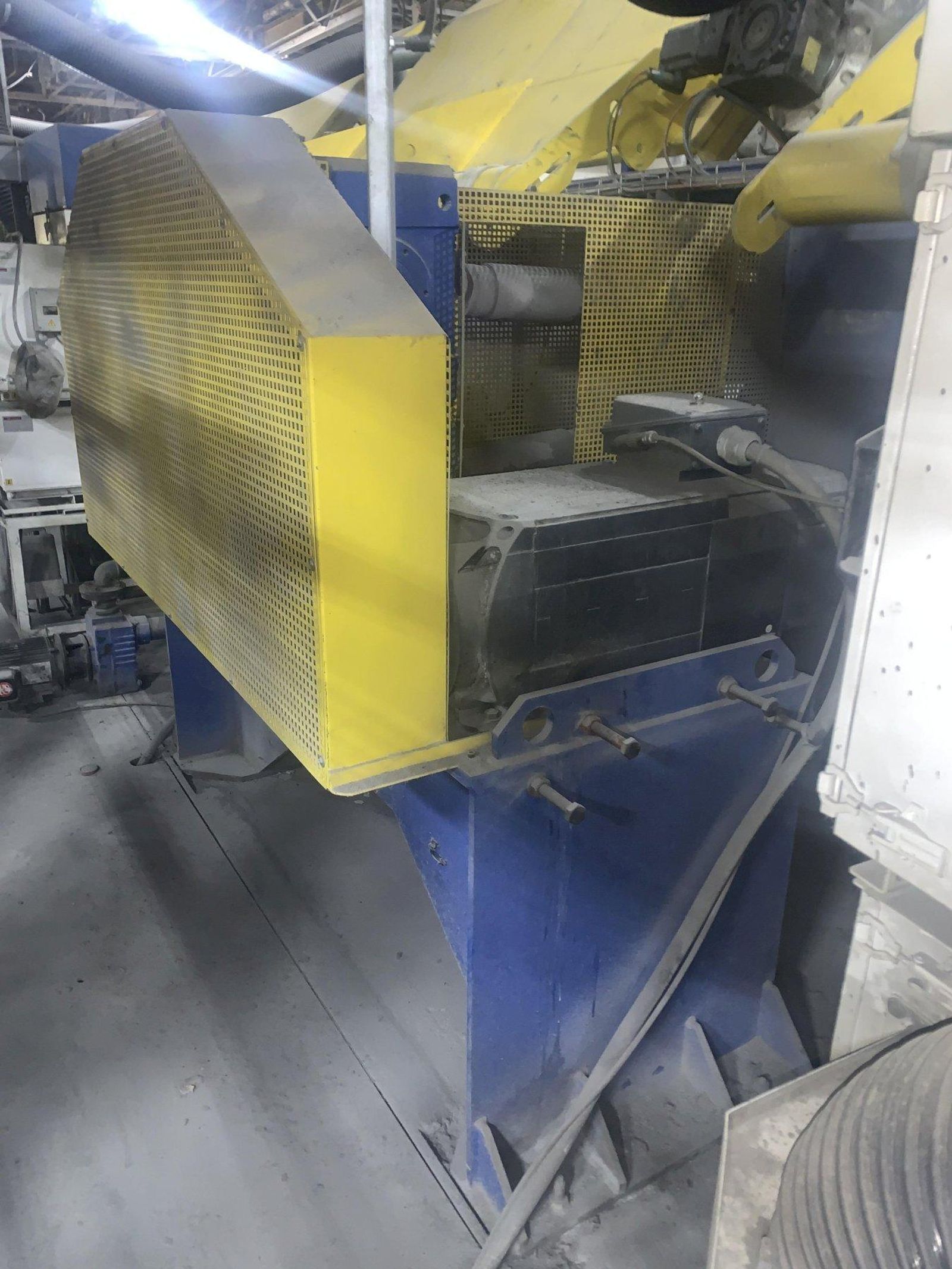

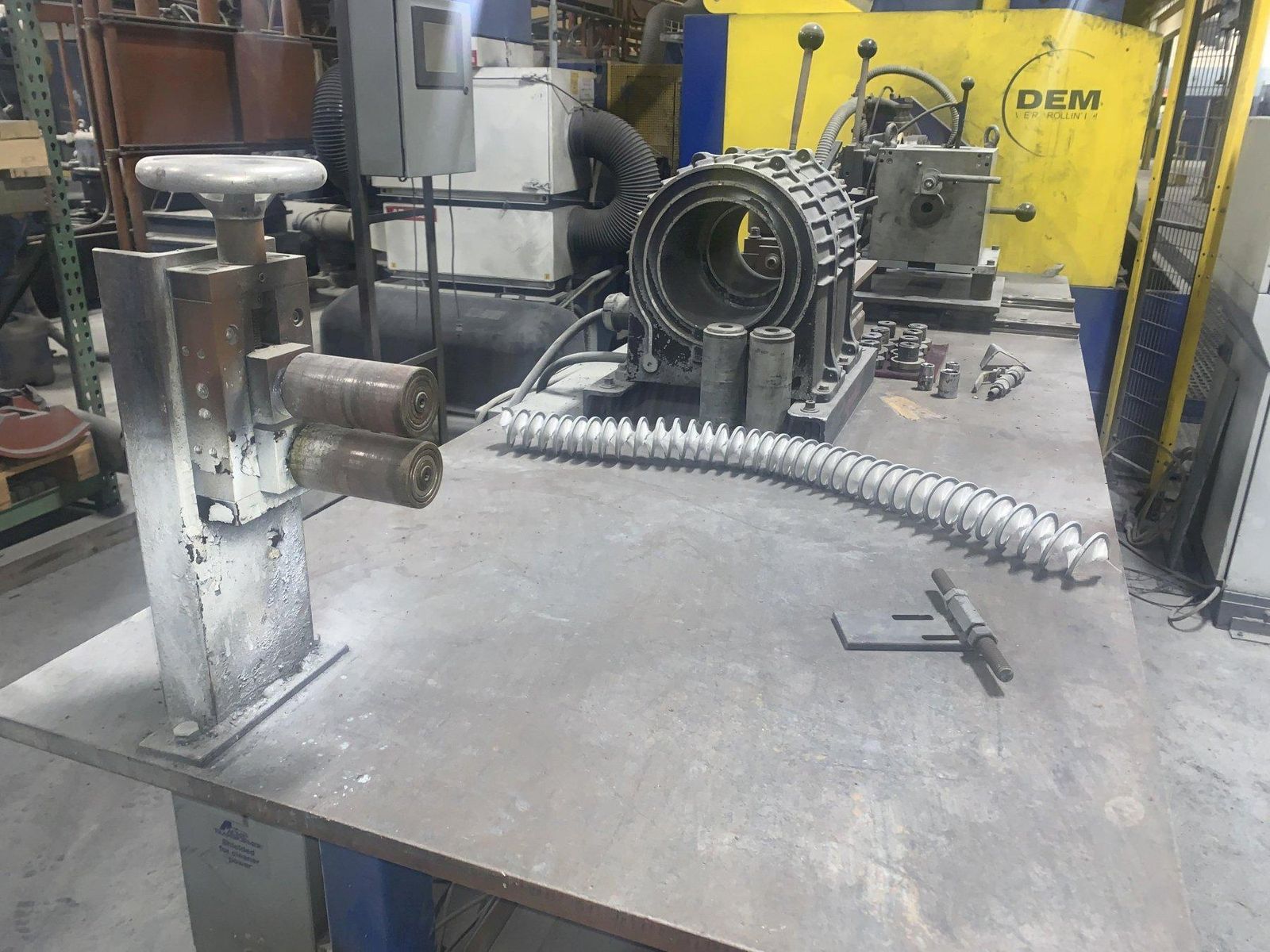

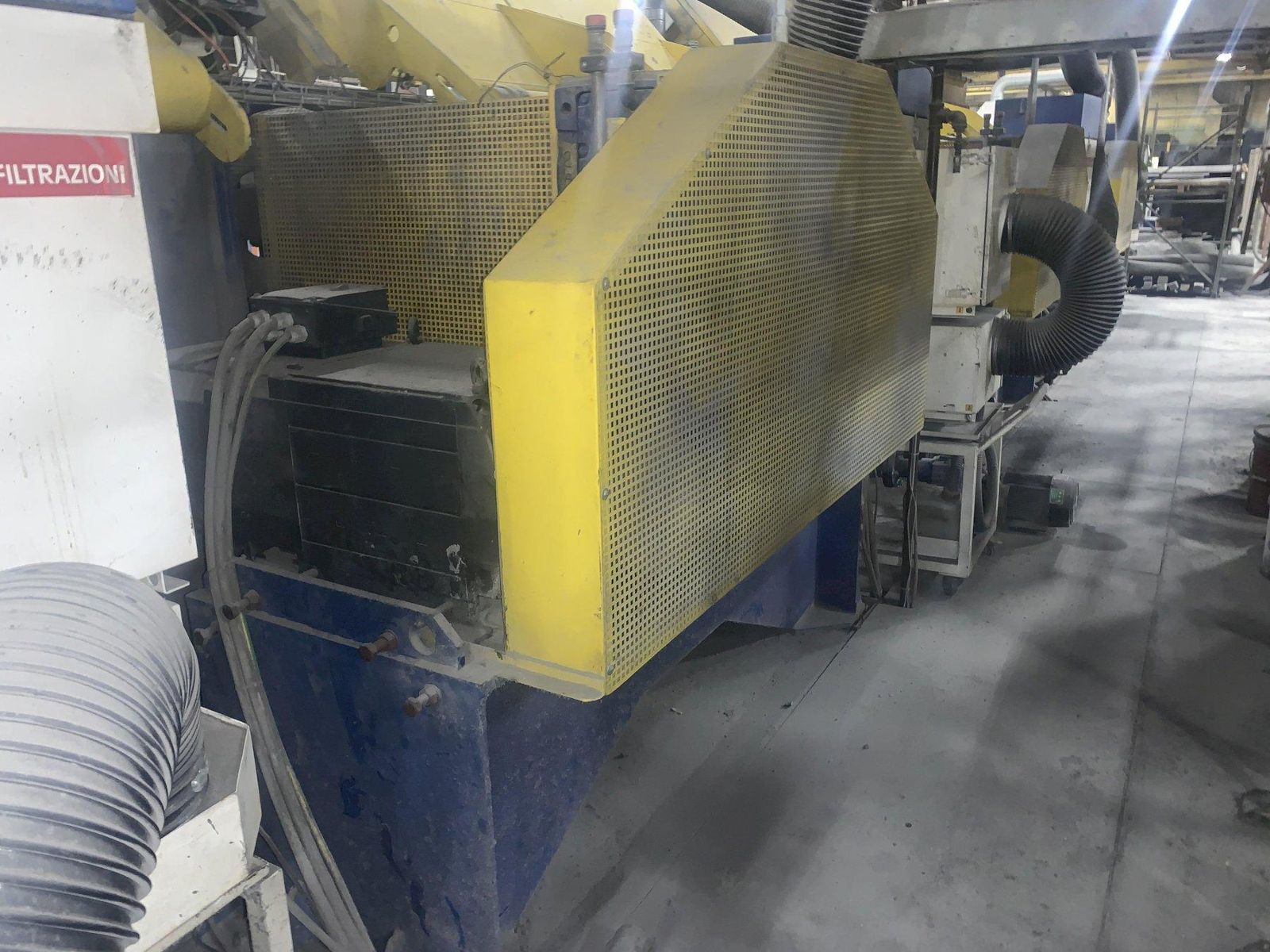

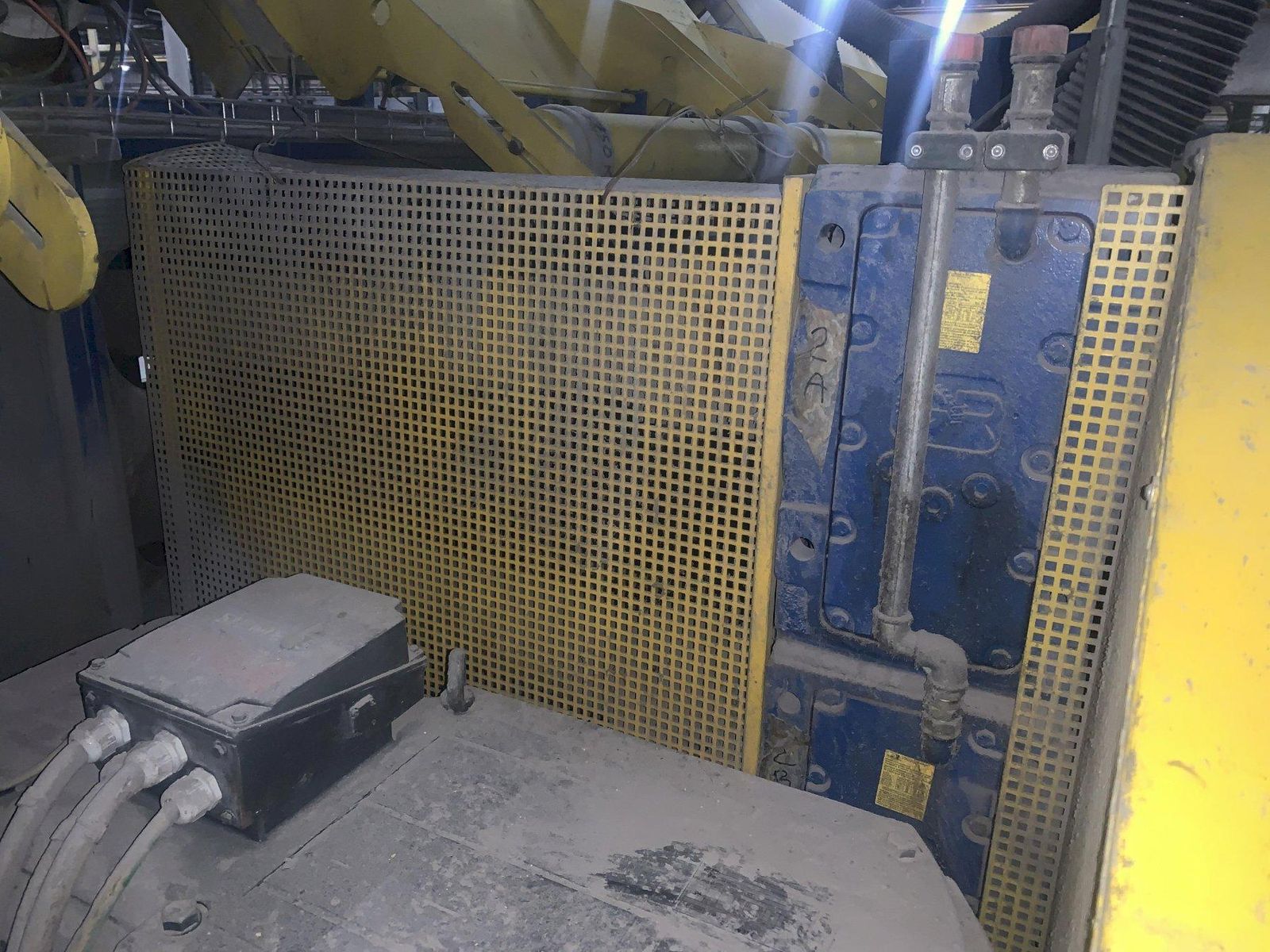

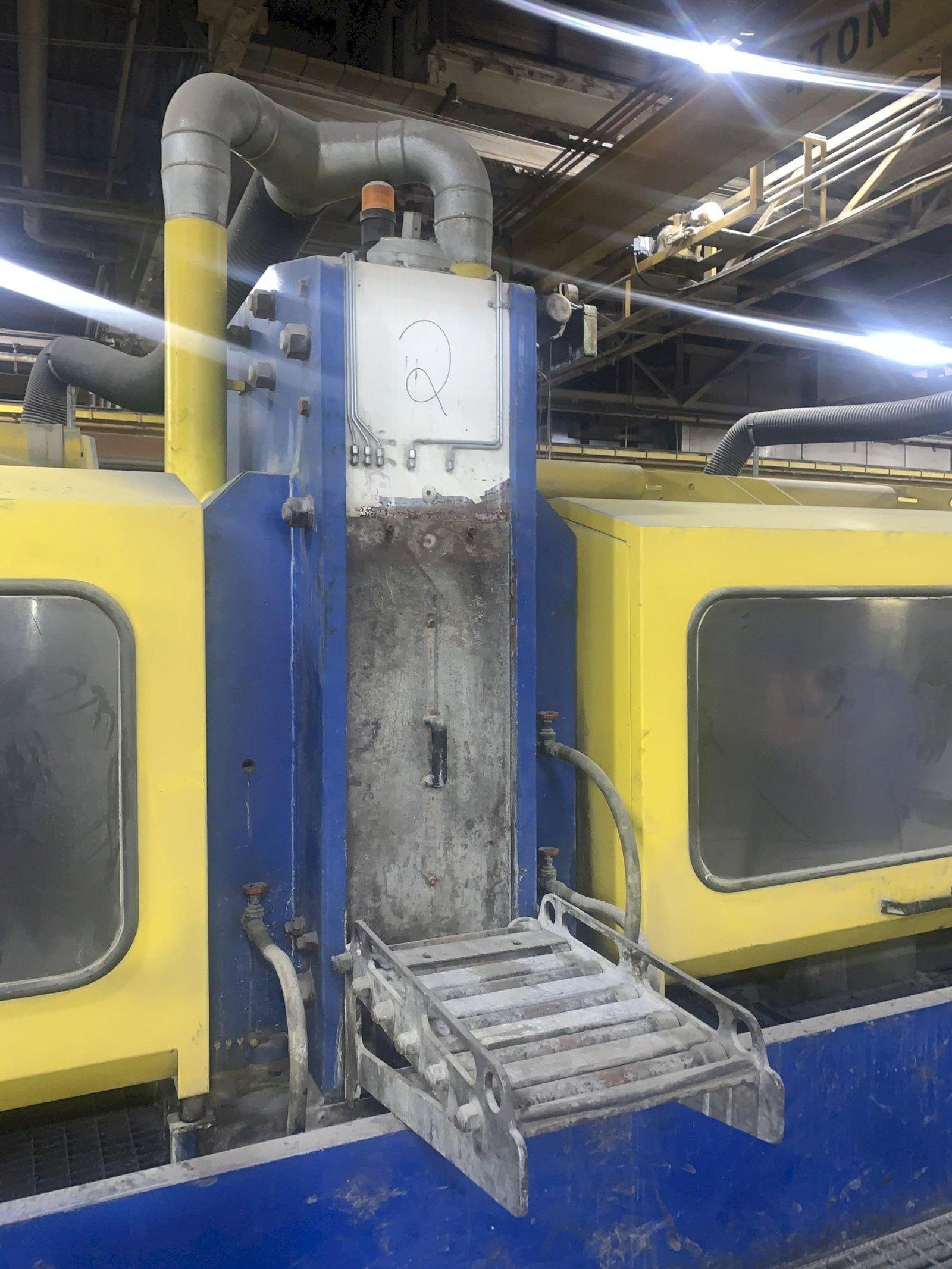

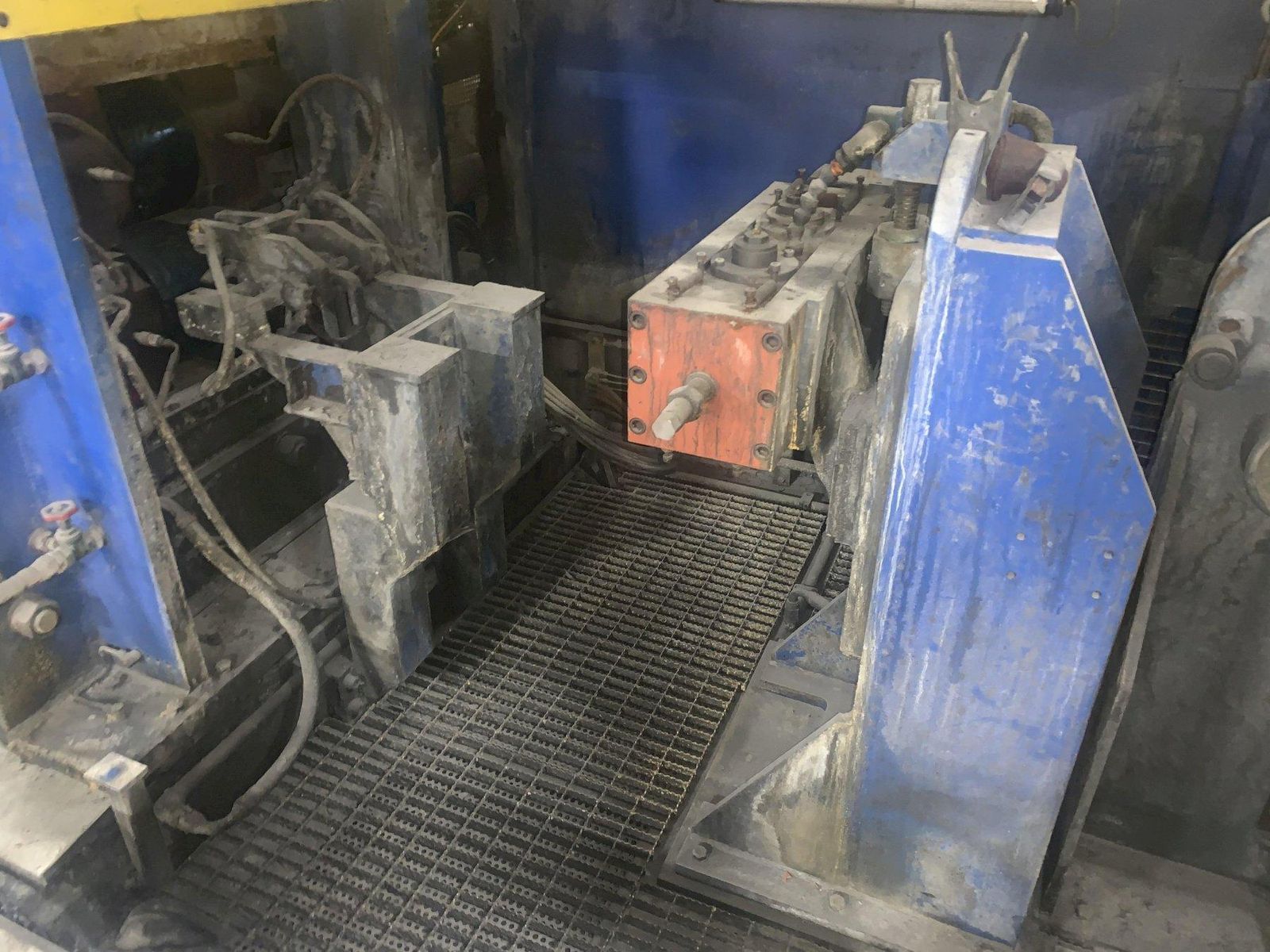

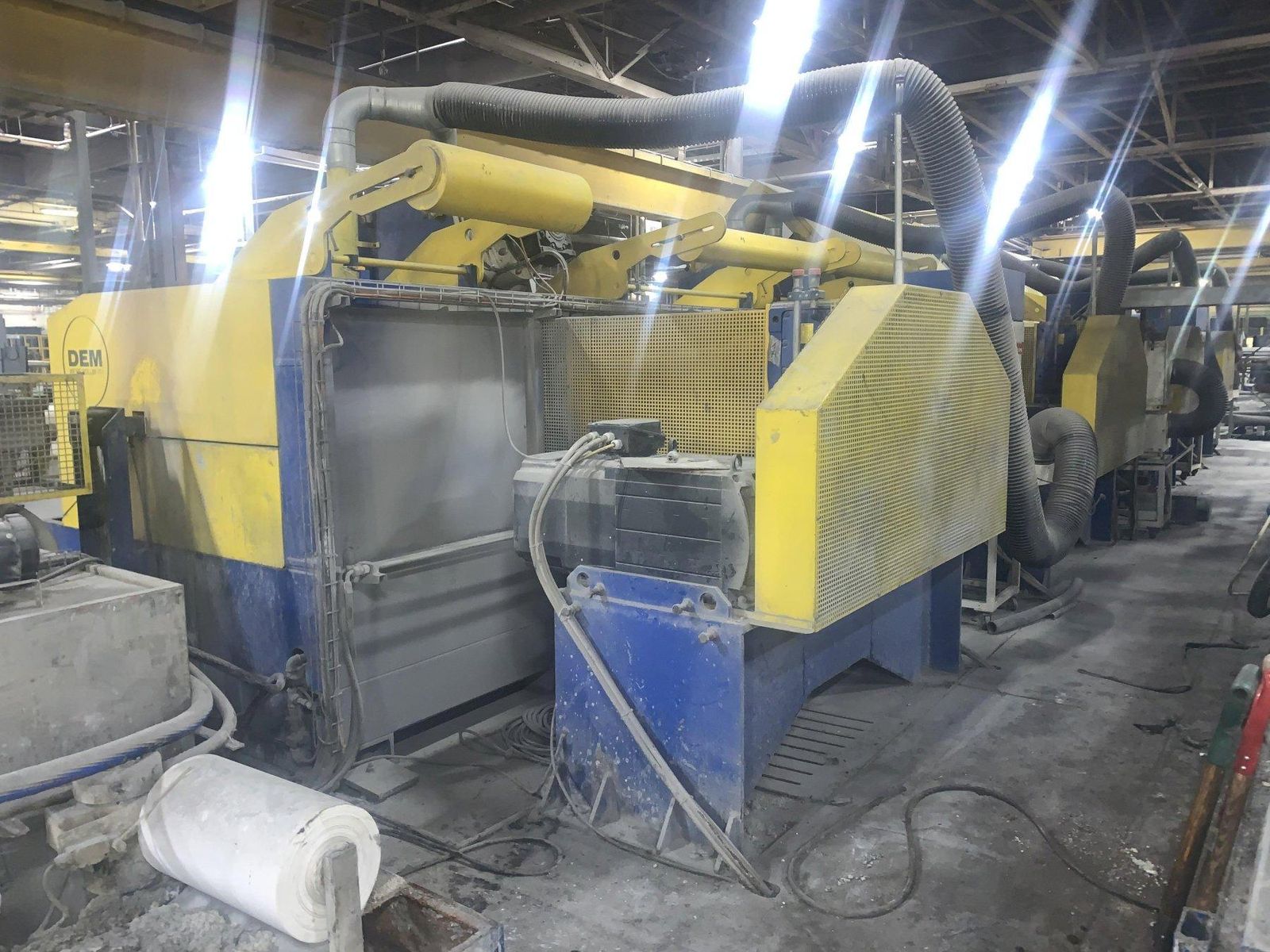

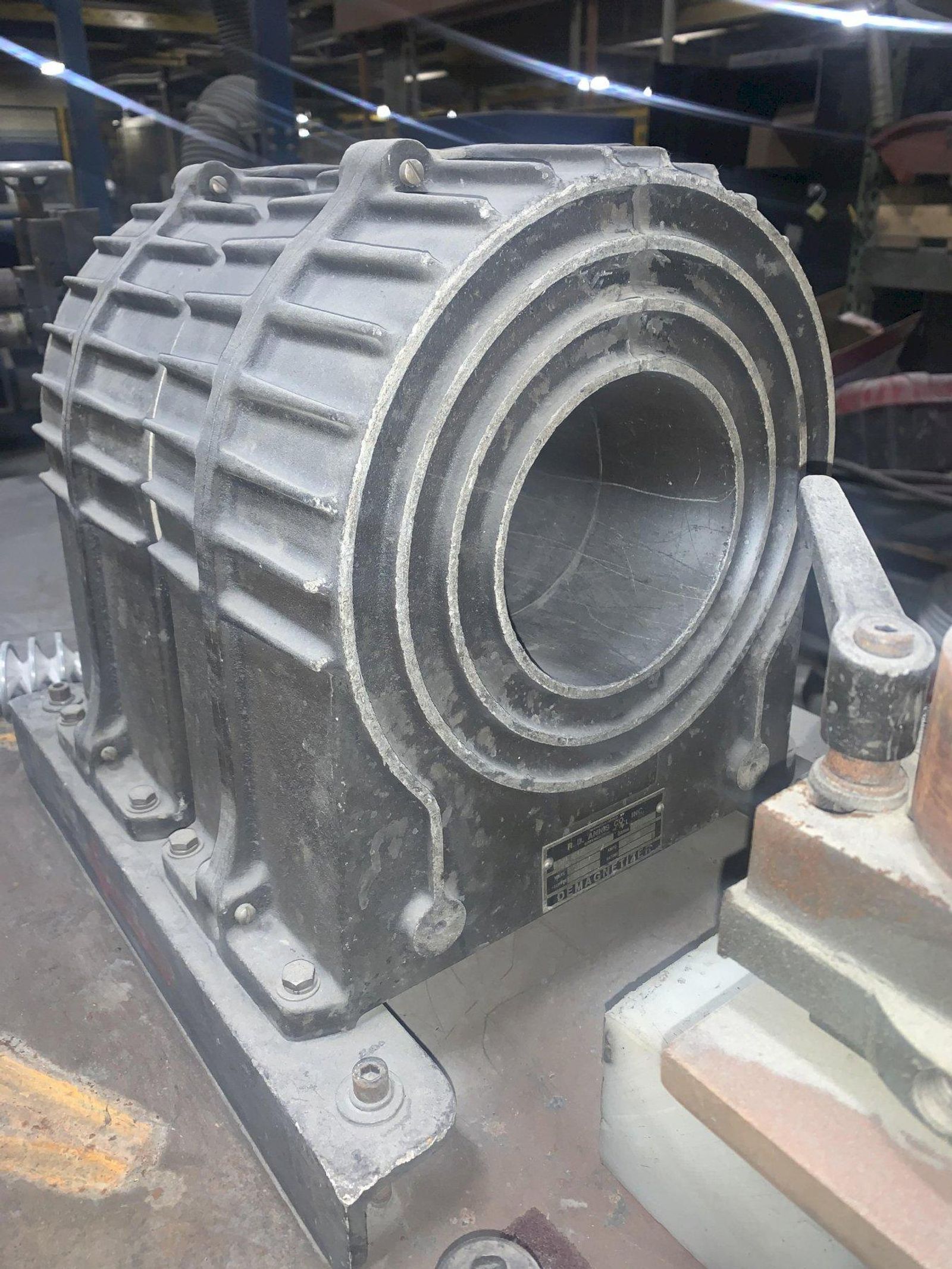

ROLL STANDS:
ROLL DIAMETER (#1) ............................. 12"
ROLL DIAMETR (#2-#3-#4) ........................ 10"

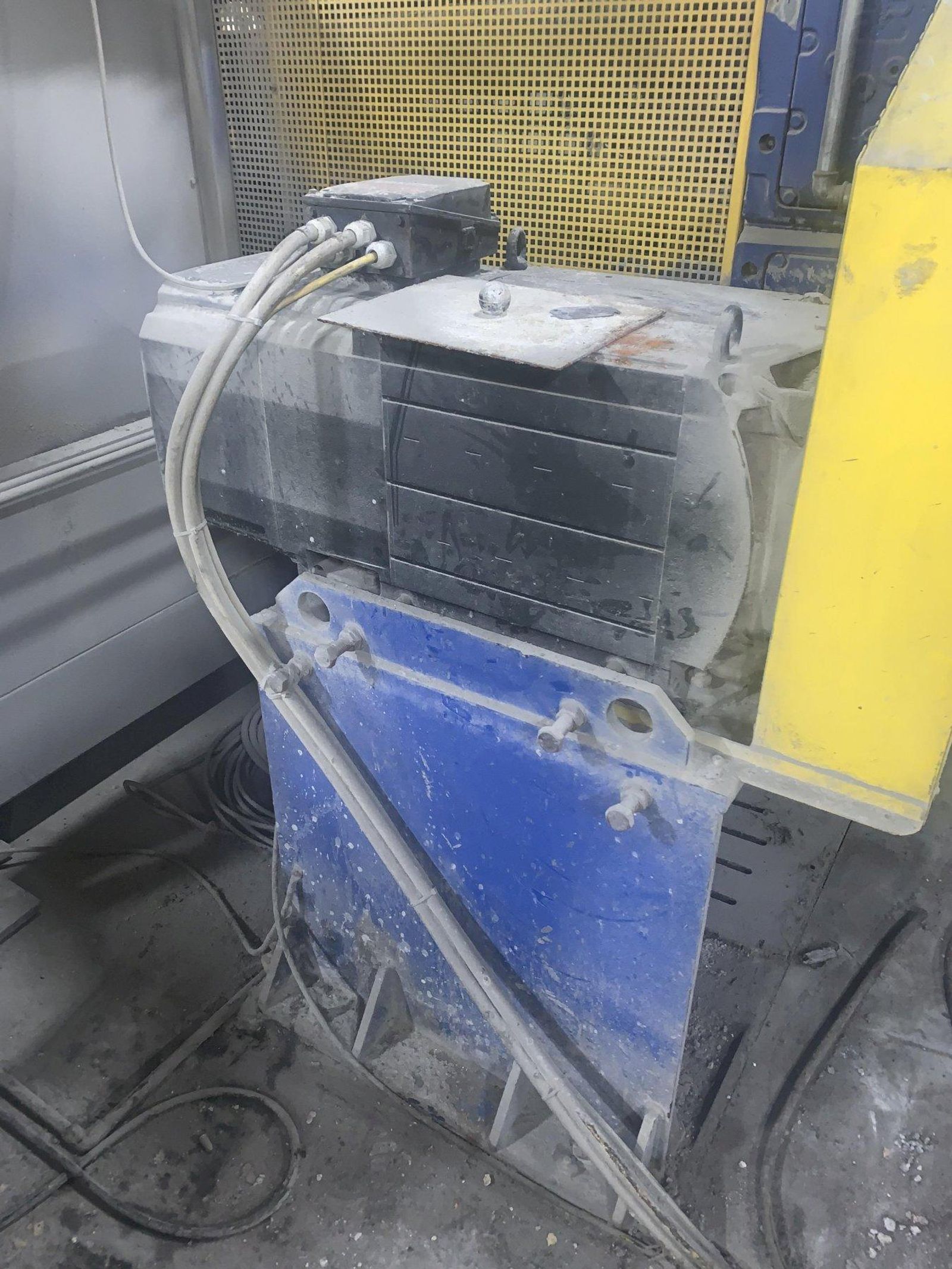

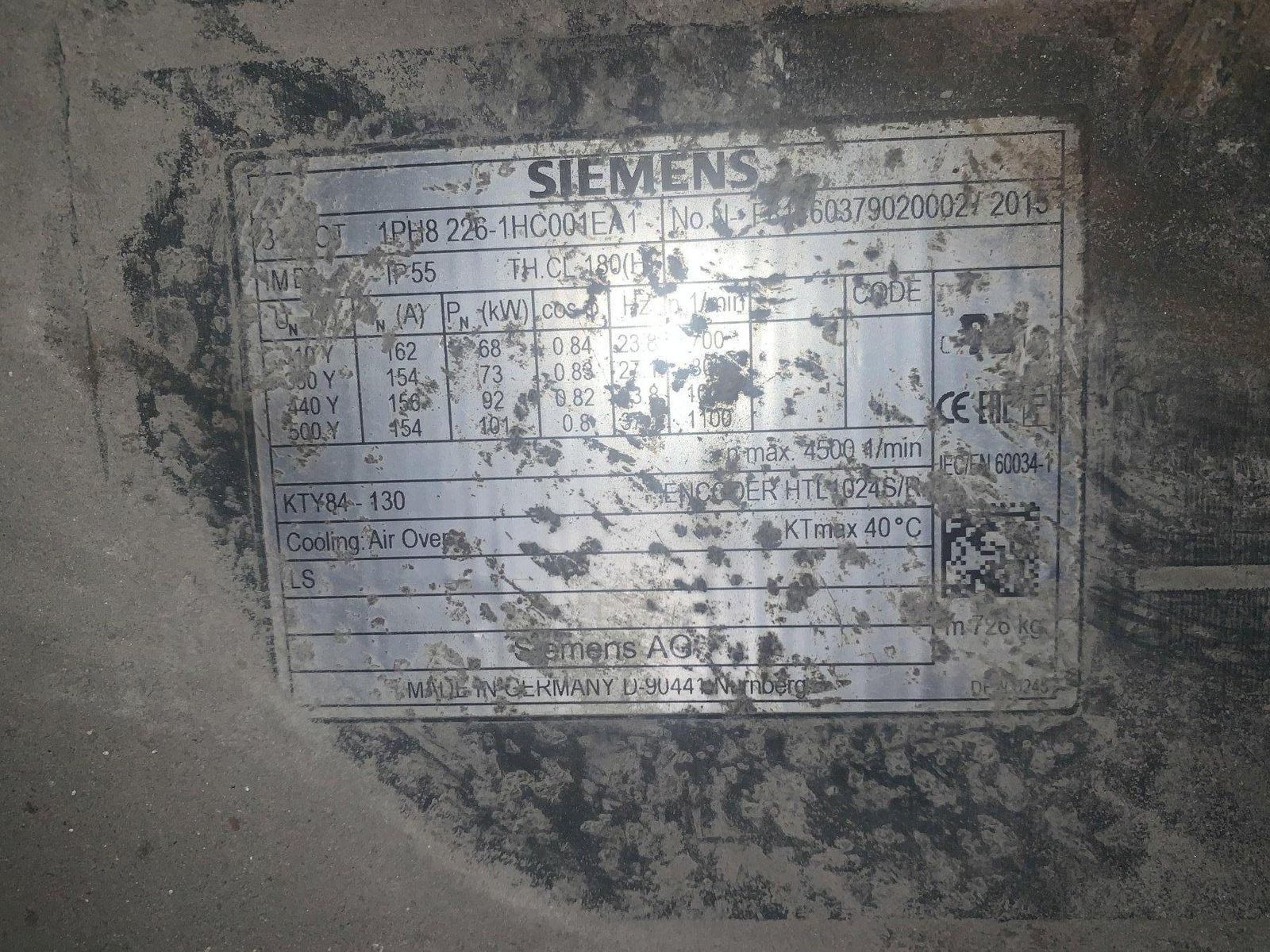

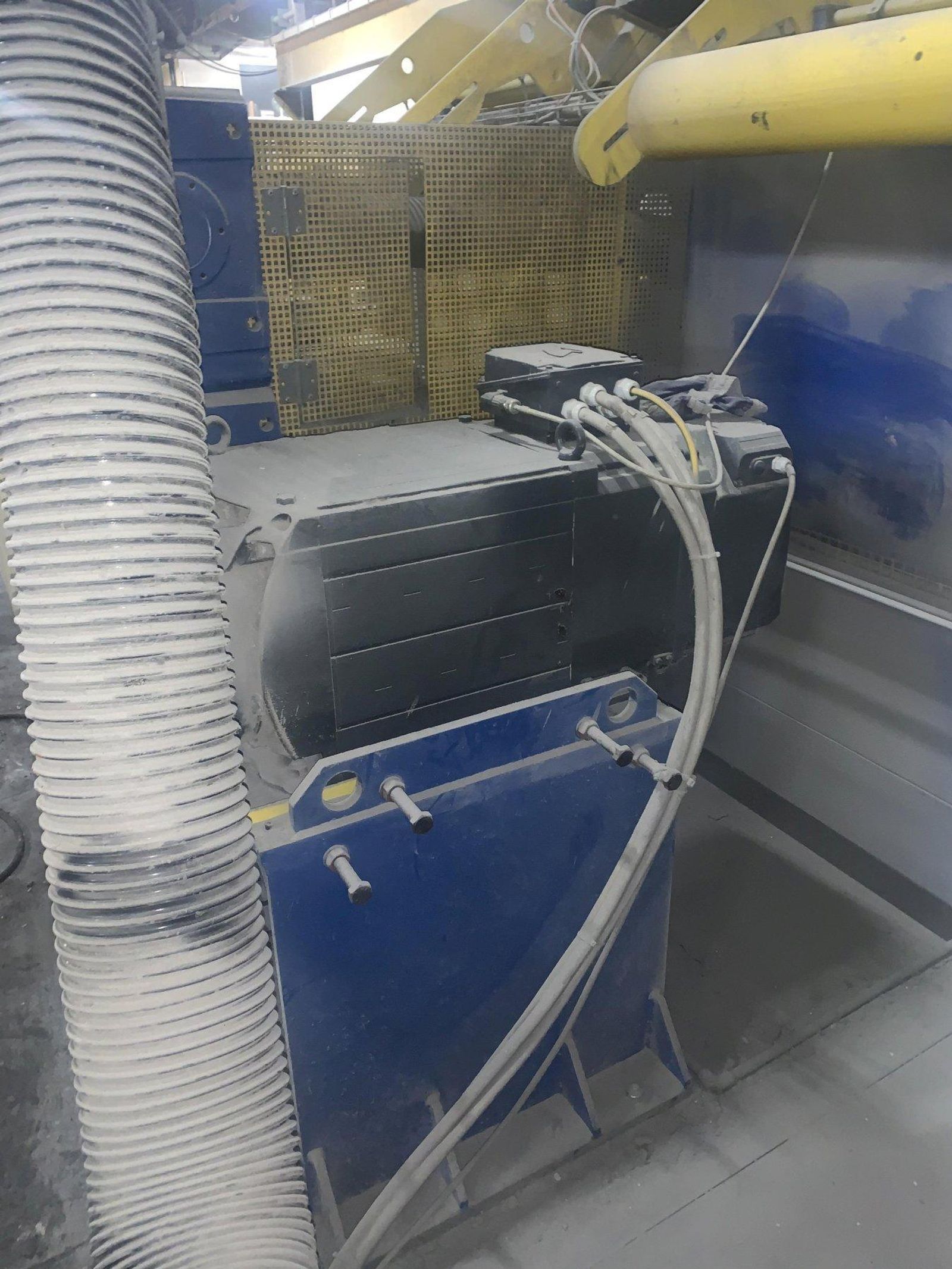

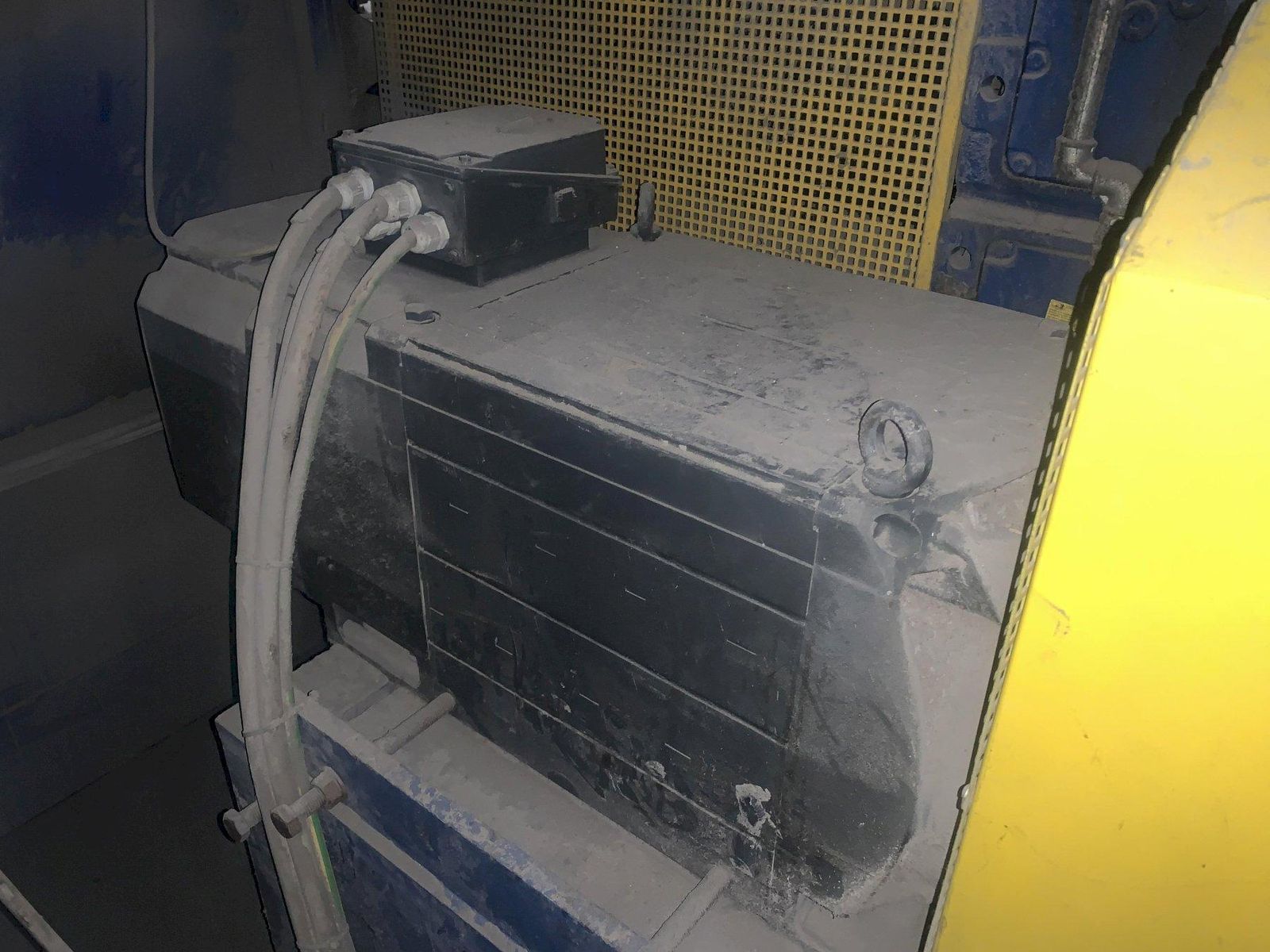

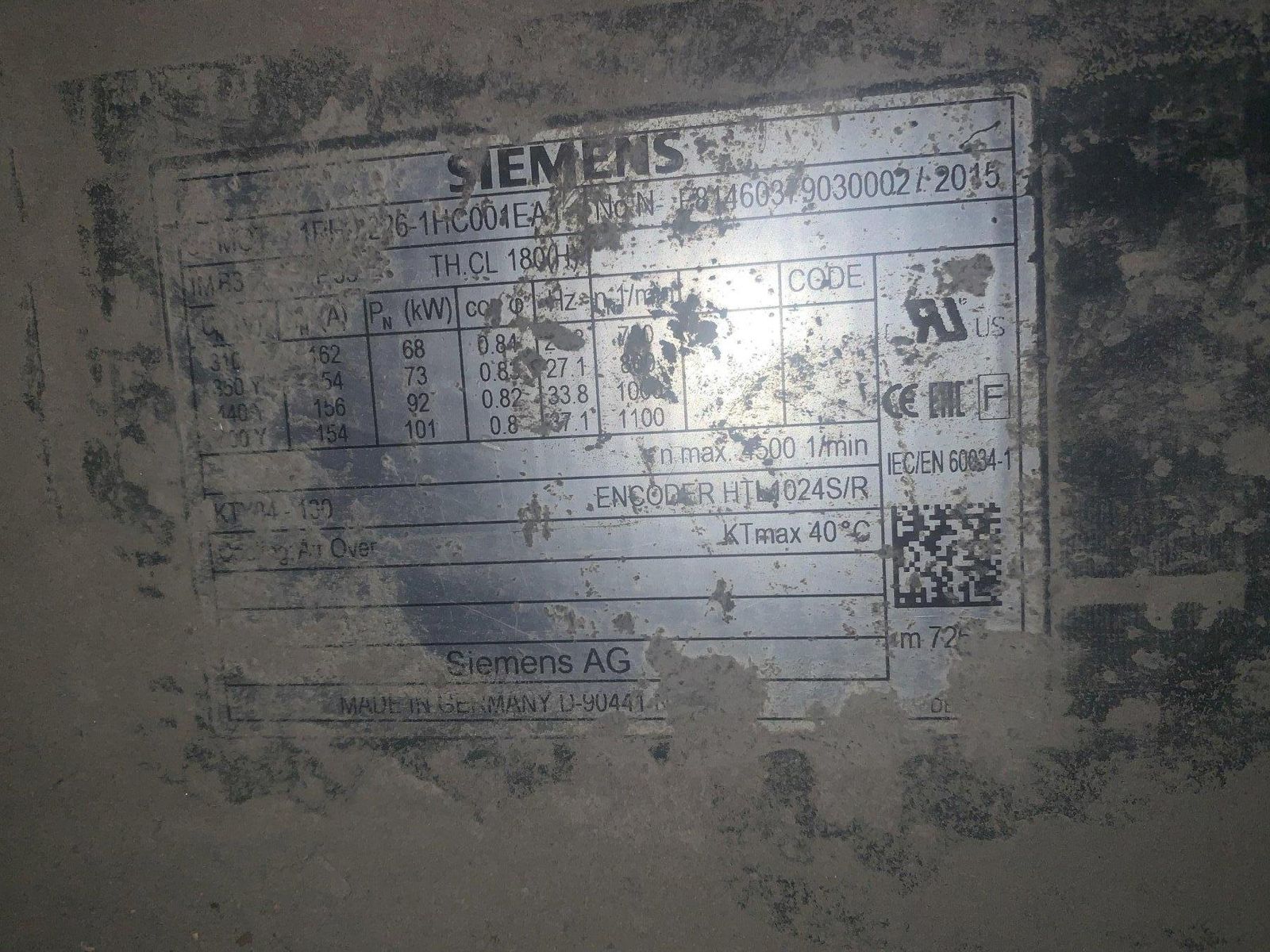

ROLL ROTATING MOTOR POWER (#1-#2) .............. 73 KW EACH
ROLL ROTATING MOTOR POWER (#3-#4) .............. 58 KW EACH

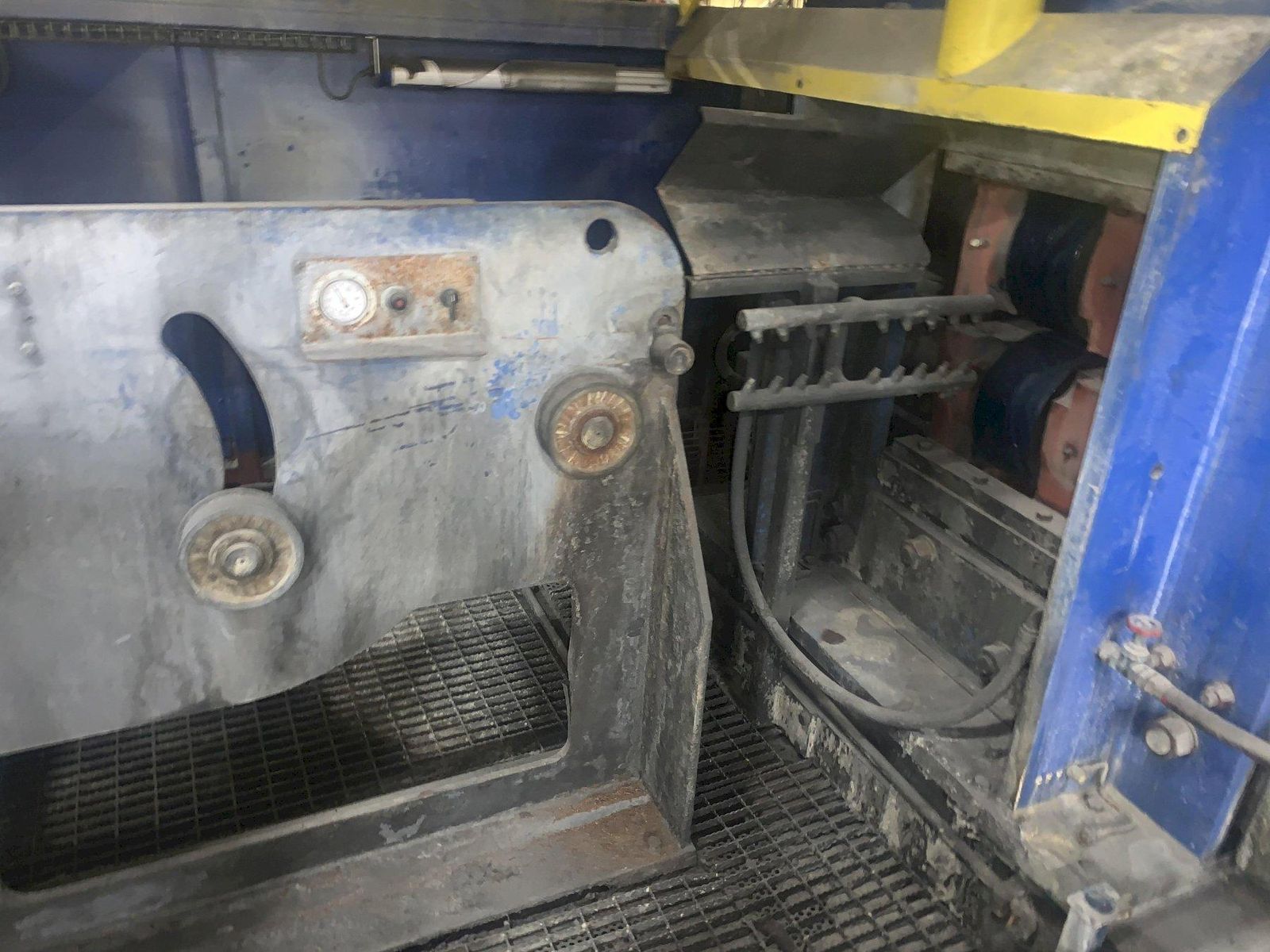

SPEED DANCER:
ROLL DIAMETER .................................. 5.9"
ROLL THICKNESS ................................. 2"
ARM MOVEMENT PNUEMATIC CYLINDER ................ 02.5 STROKE 7.9"

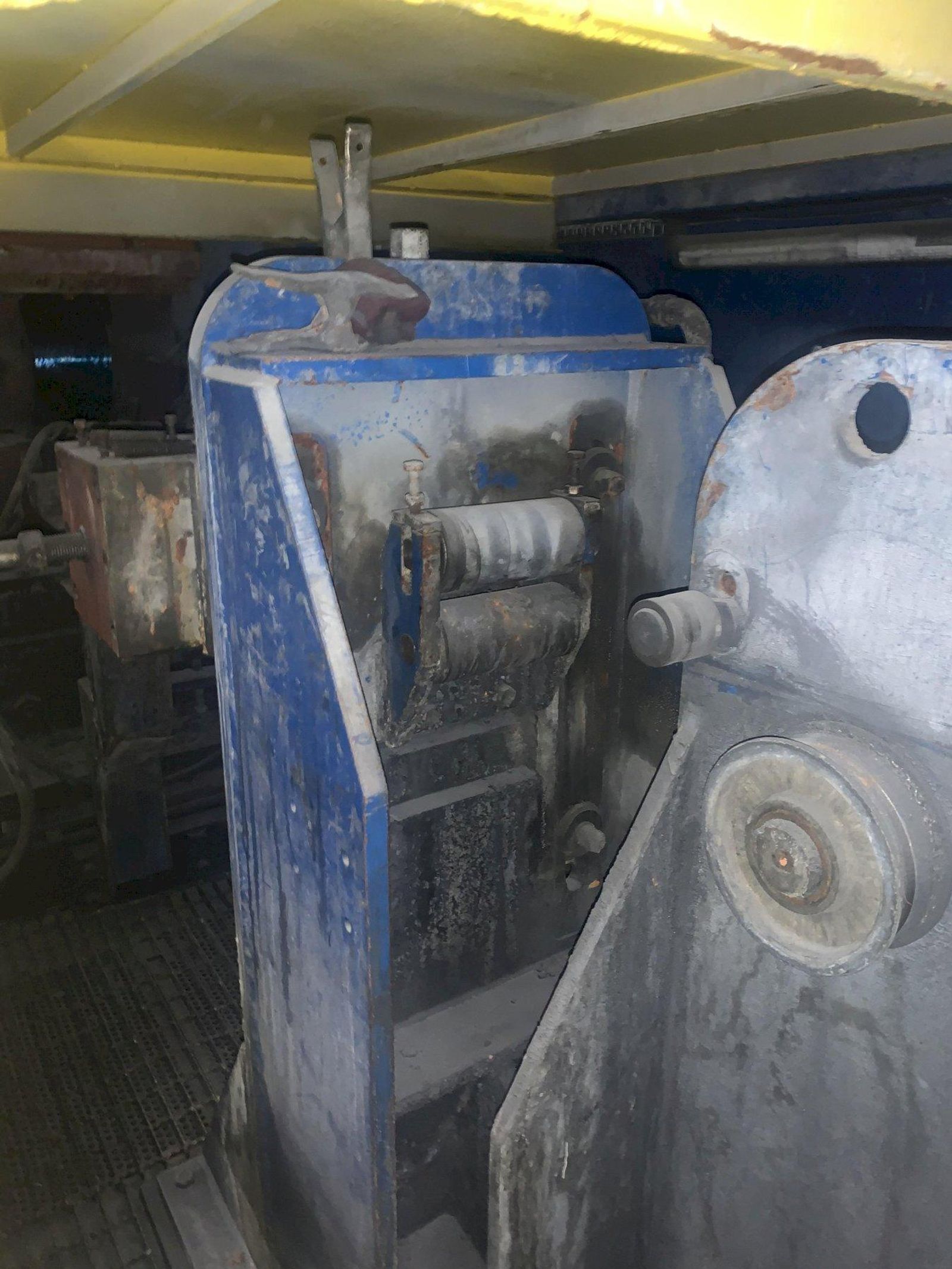

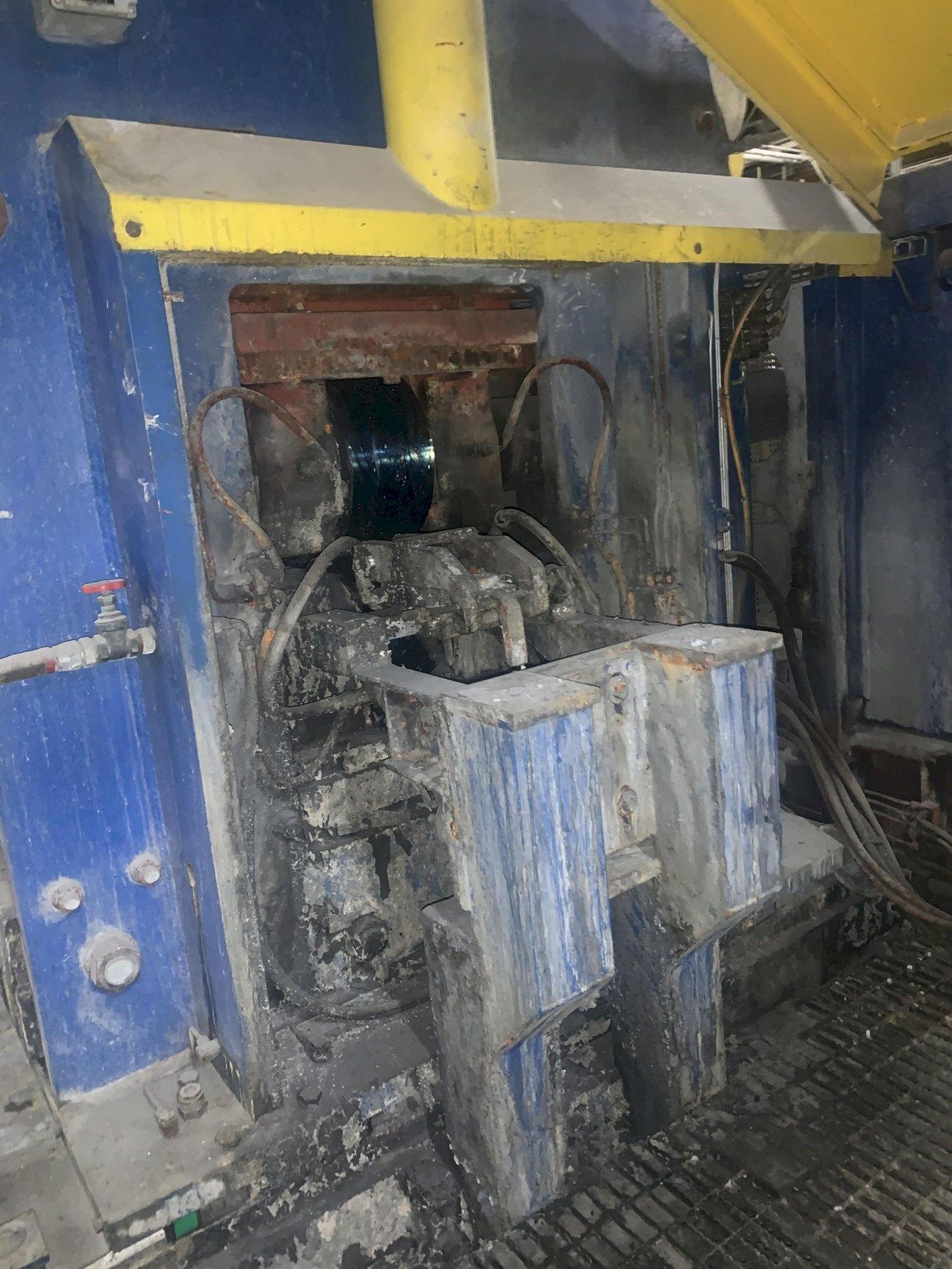

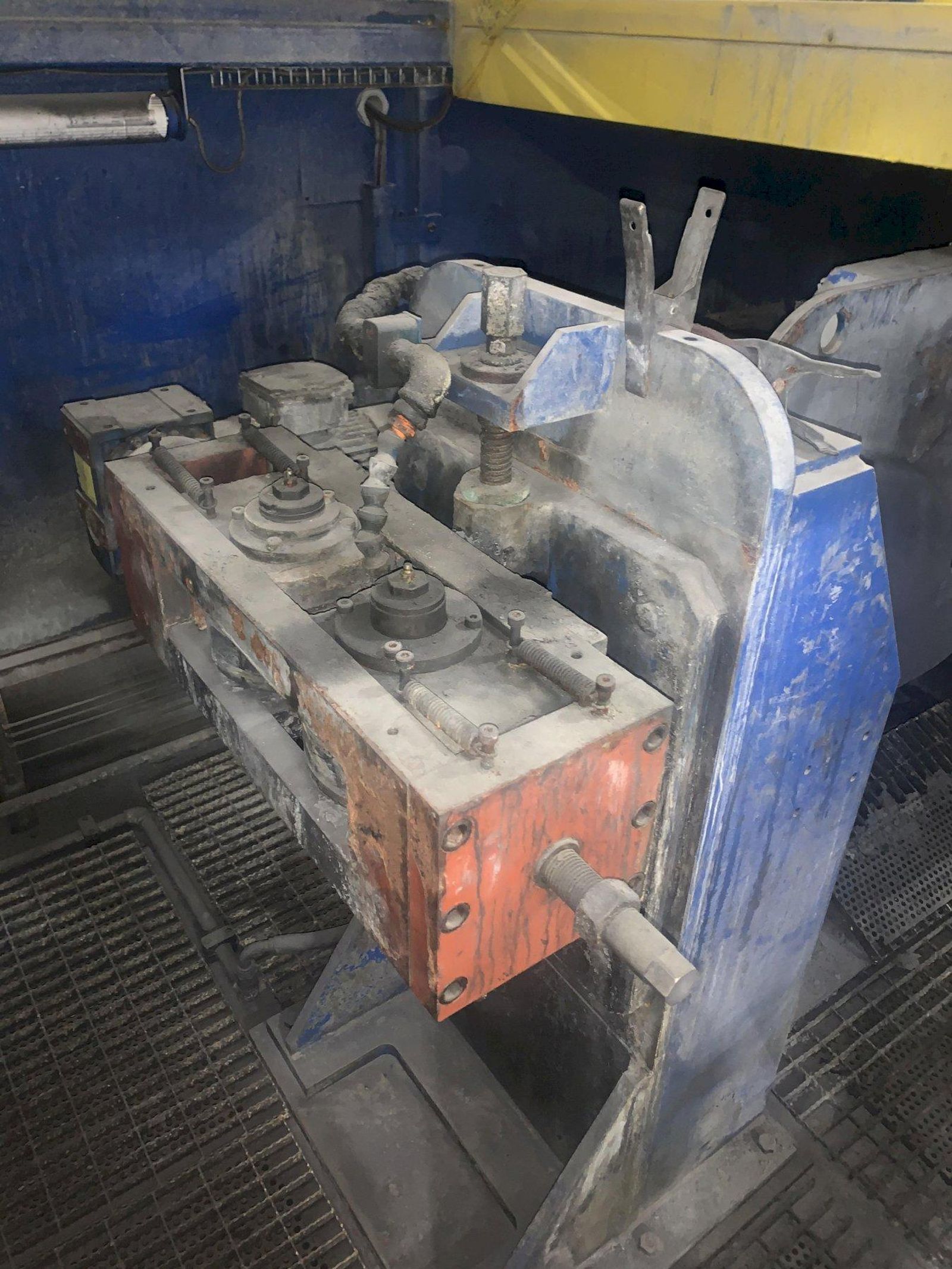

EDGER PROFILE ROLLING UNIT:
ROLLING LOAD CAPACITY .......................... 80KN
ROLL DIAMETER .................................. 7.1"
ROLL THICKNESS ................................. 2.4"

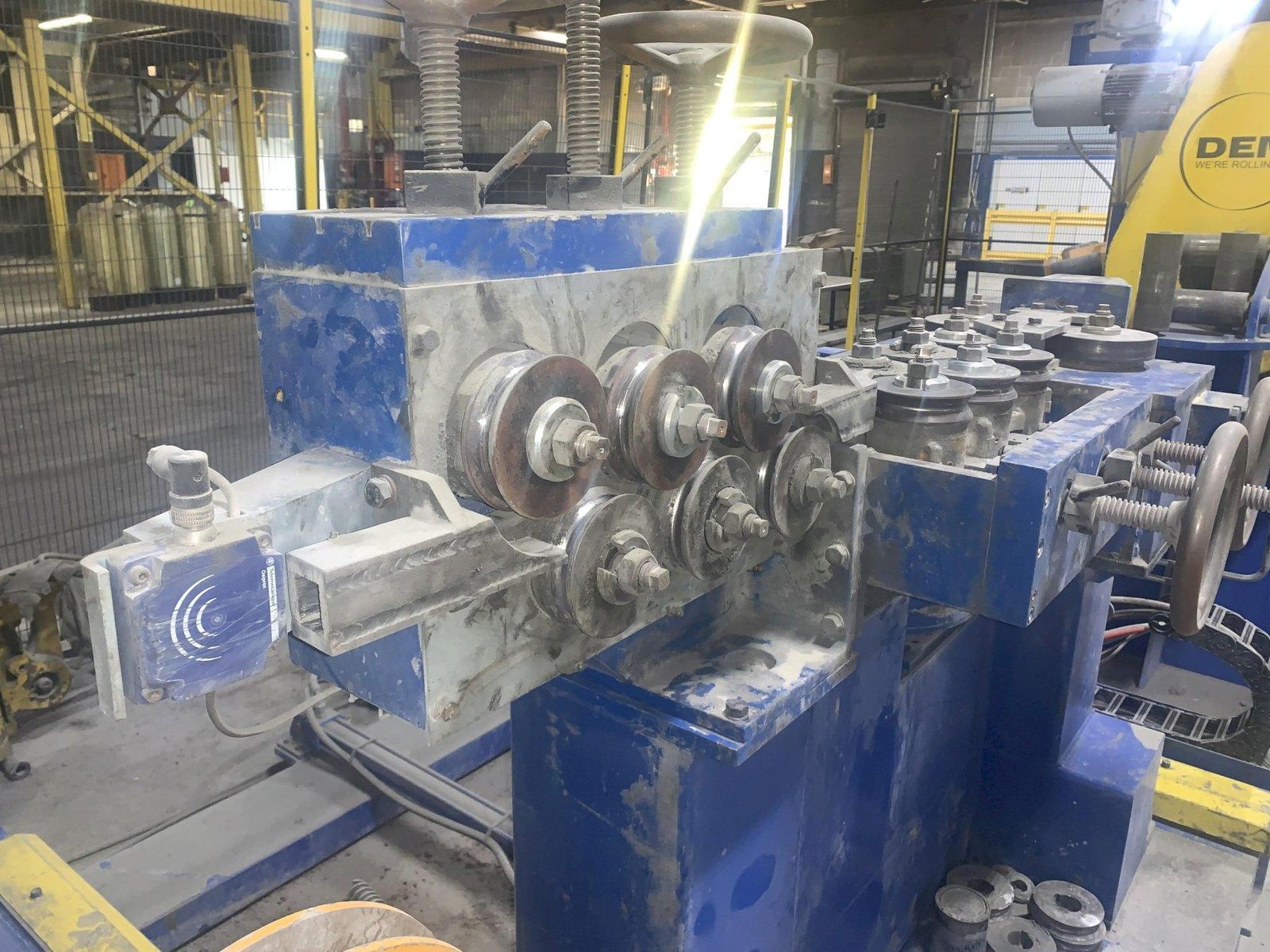

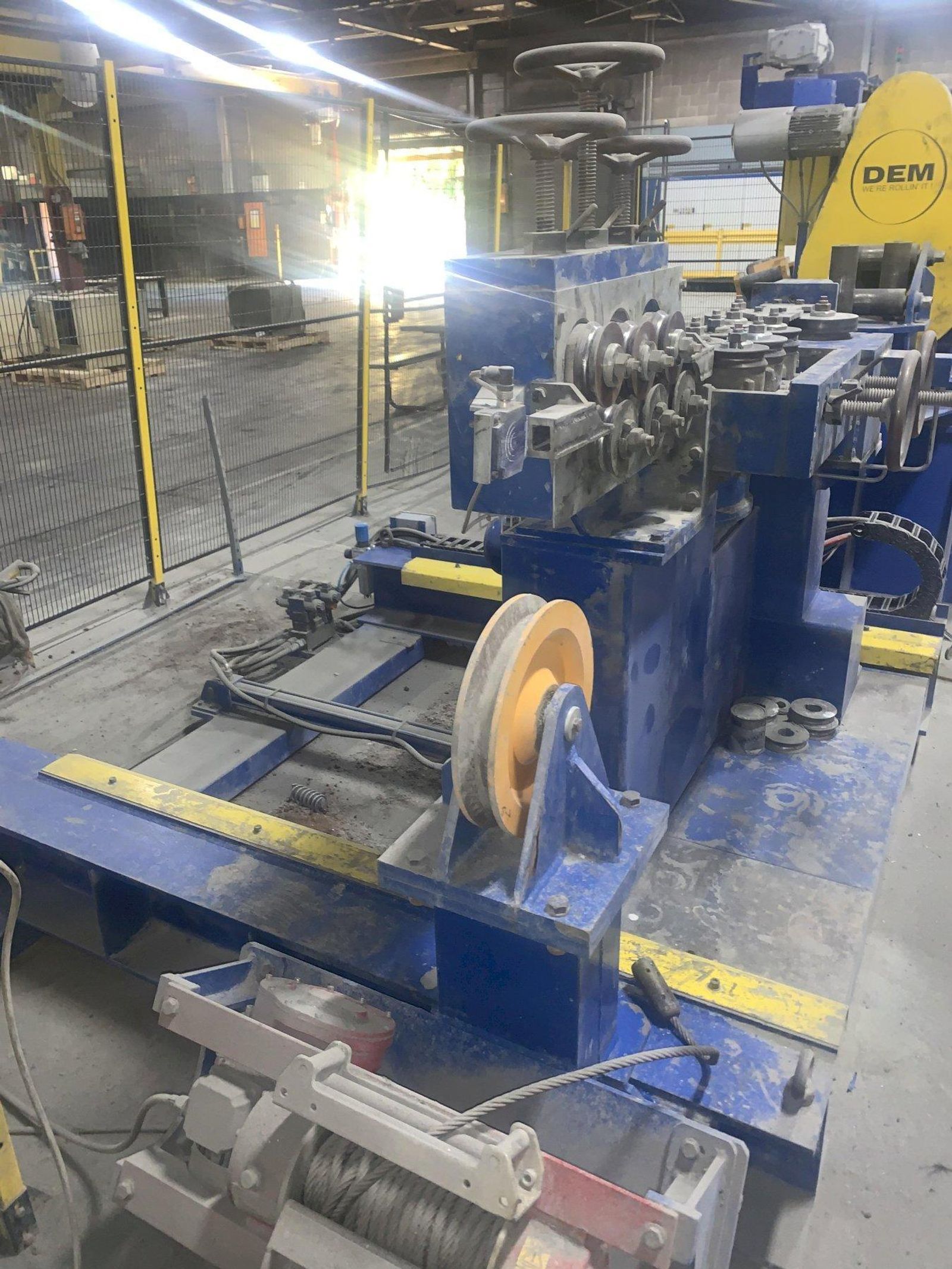

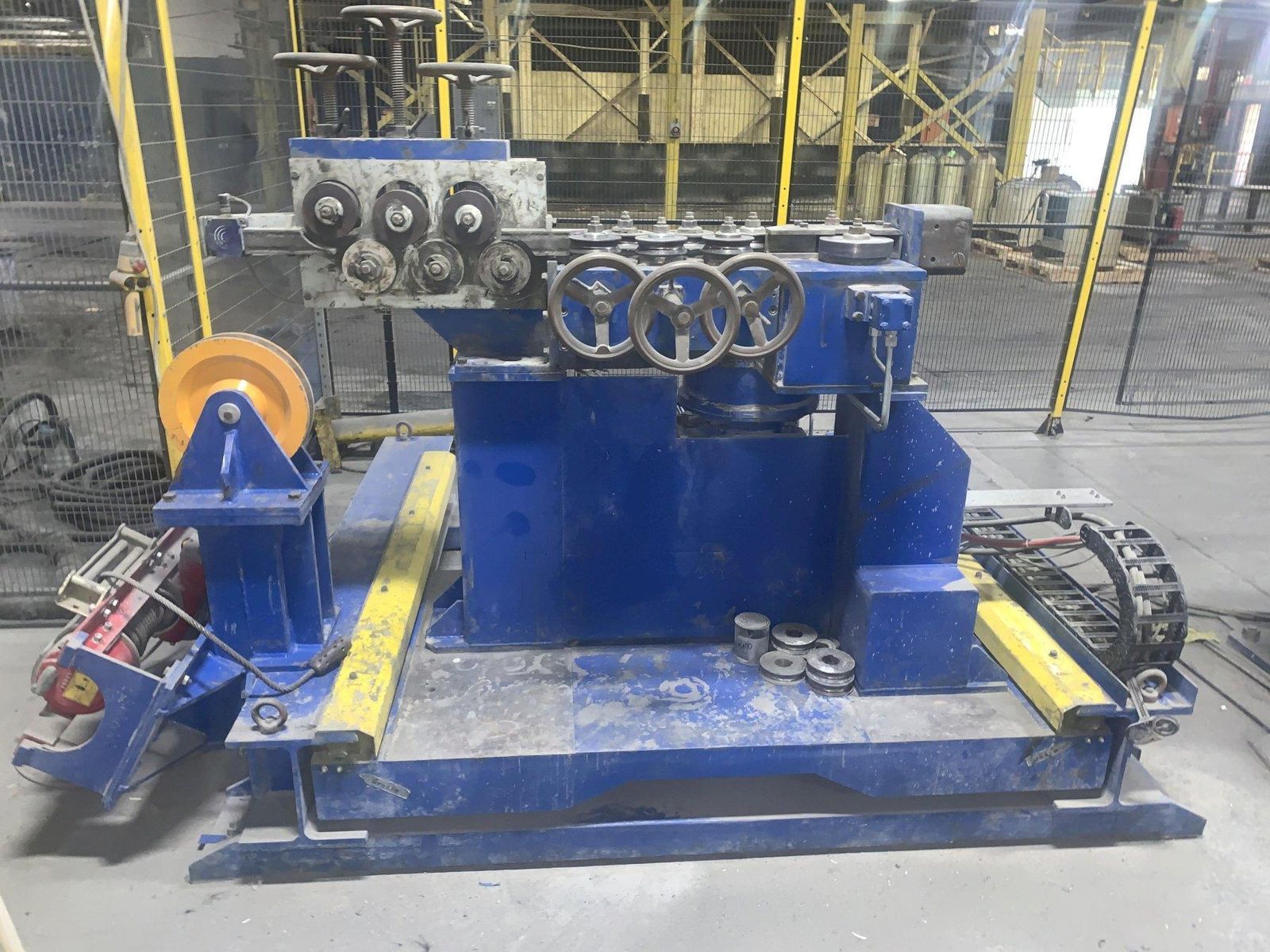

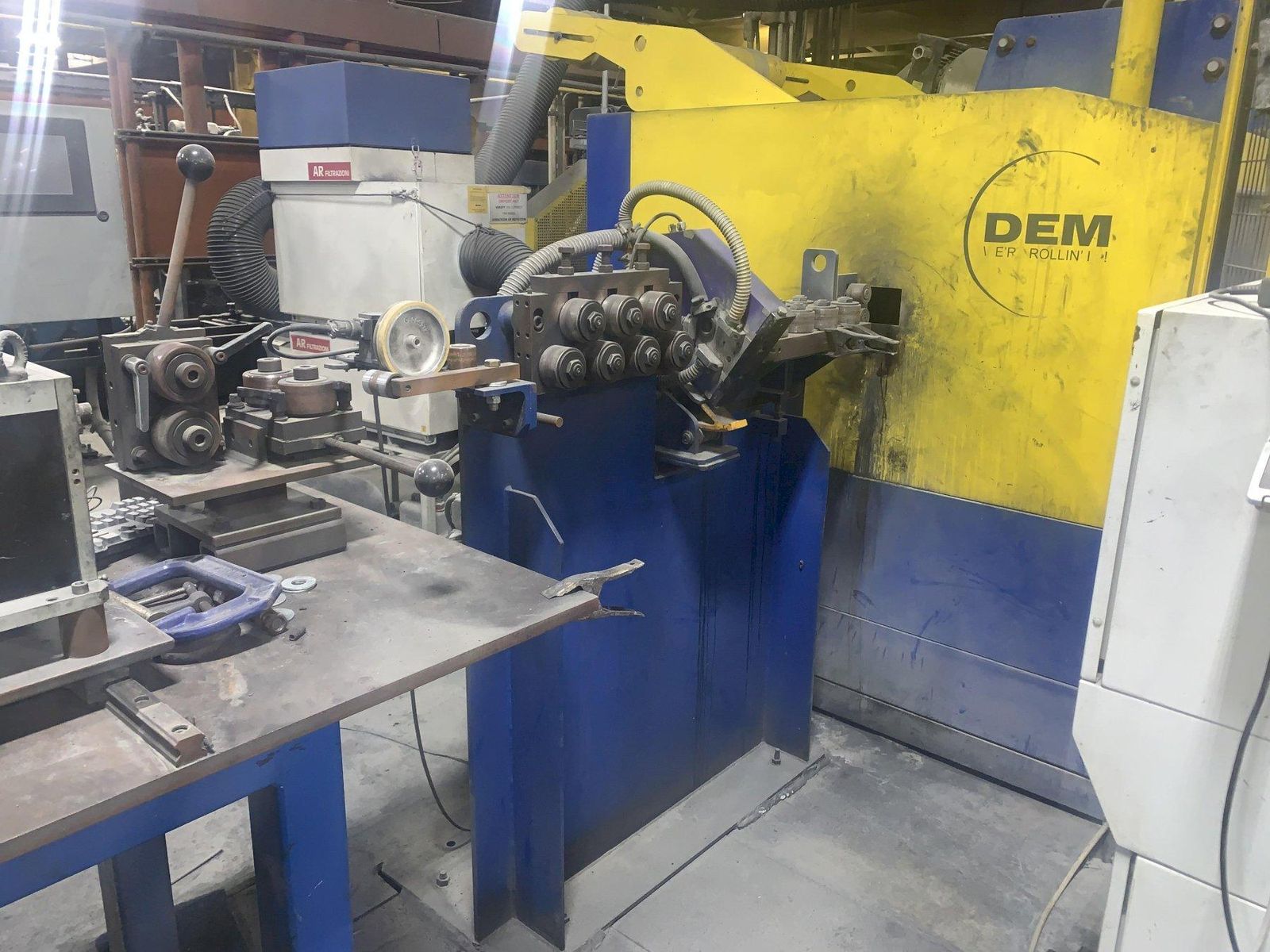

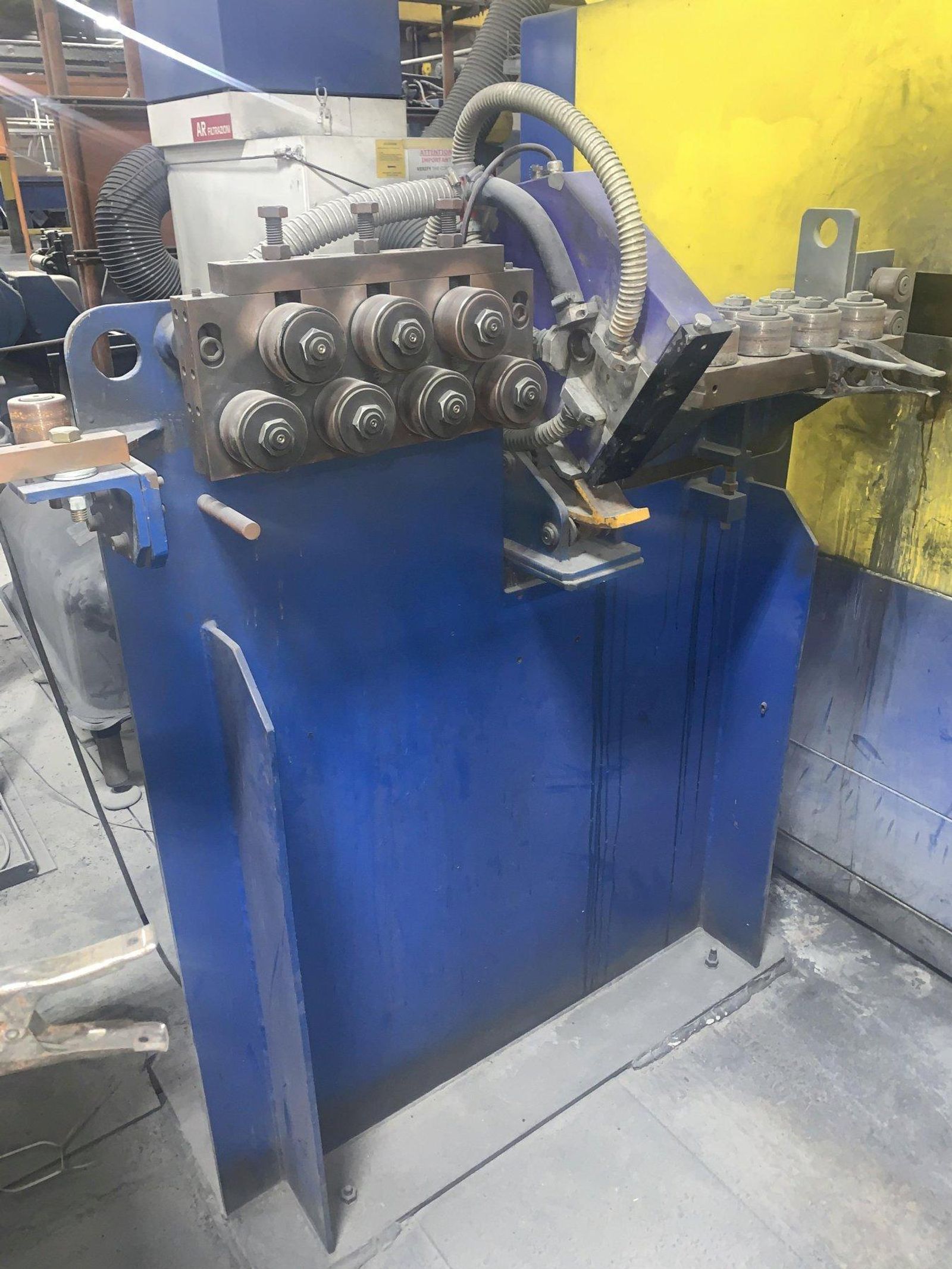

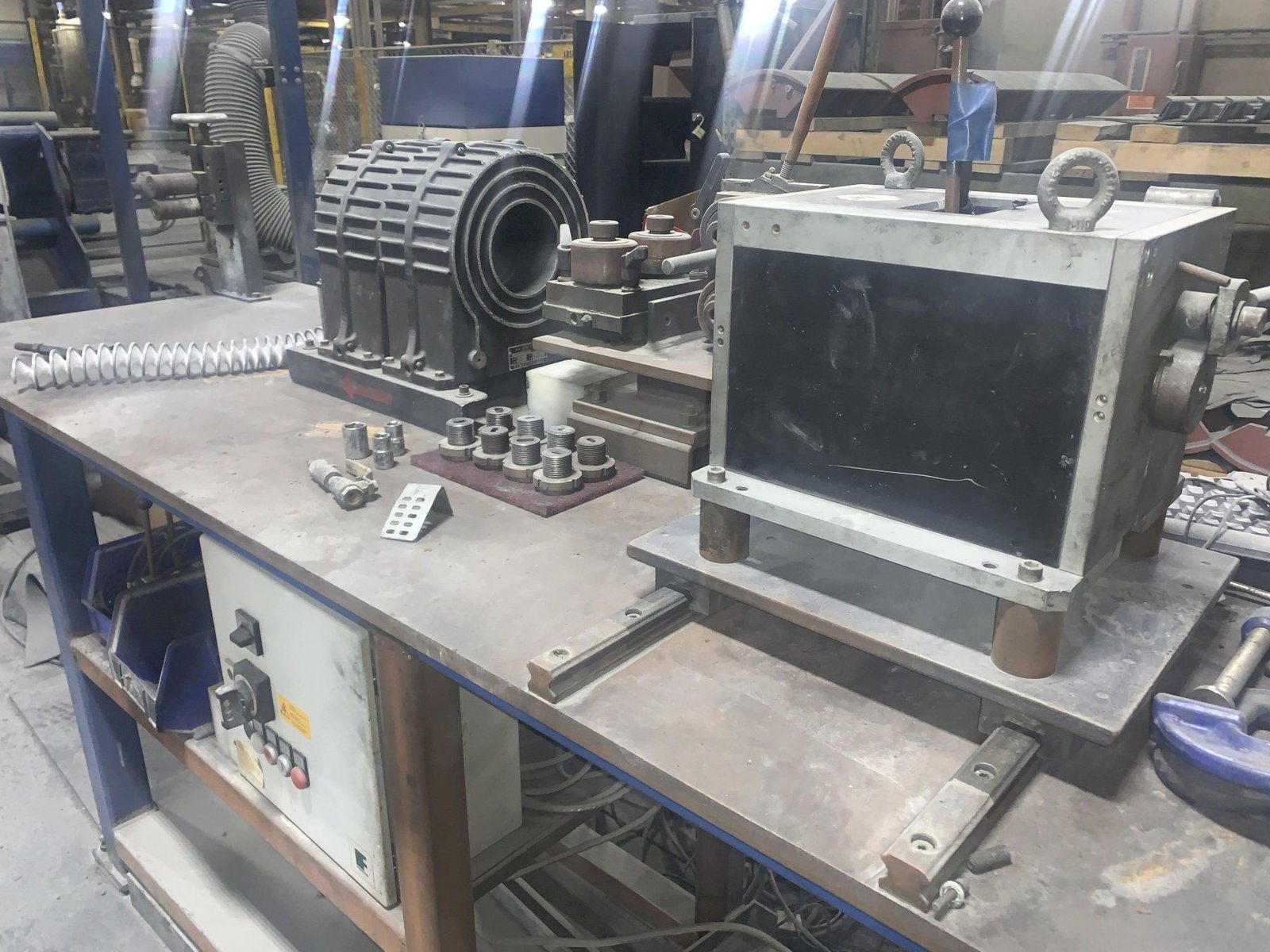

WIRE STRAIGHTENER:
ROLLS .......................................... 7 PER SECTION
ROLL DIAMETER .................................. 3.1"
ROLL THICKNESS ................................. 1.8"
LASER DIMENSIONAL UUNIT FOR ON-LINE CONTROL:
MEASUREMENT RANGE .............................. 34X34 MM
MIN SIZE MEASURED .............................. 0.15 MM
SCAN FREQUENCY ................................. 2X1200HZ=1200(X)X1200(Y)SEC
OSCILLATION PERIOD ............................. -5°+5°, 1-12 SEC (HOWEVER PRESETTABLE)
RUST PREVENTER APPLICATOR:
TANK CAPACITY .................................. LT
MOTOR PUMP POWER ............................... 0.18KW
NOMINAL FLOW RATE .............................. 350 CM3/MIN

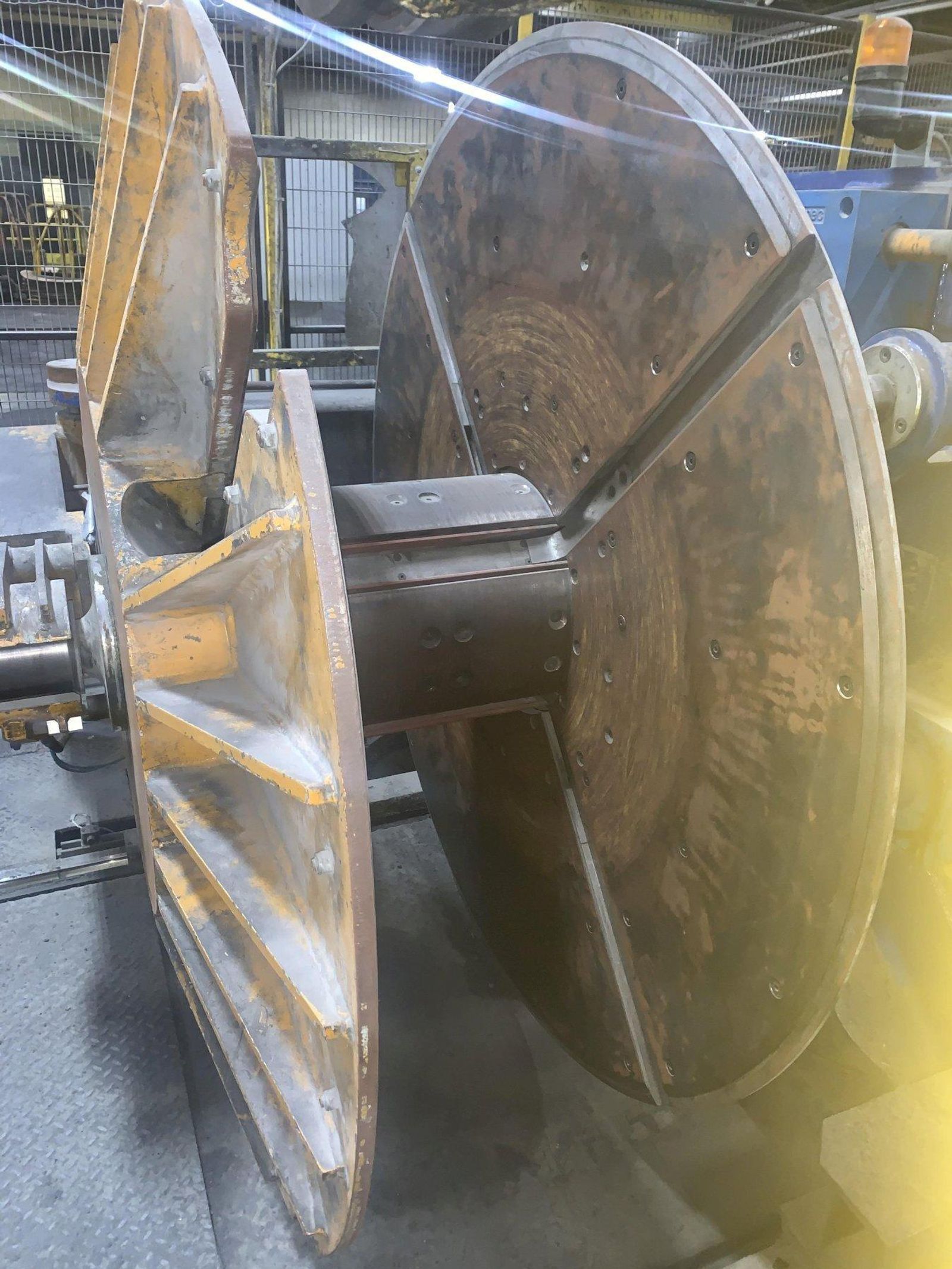

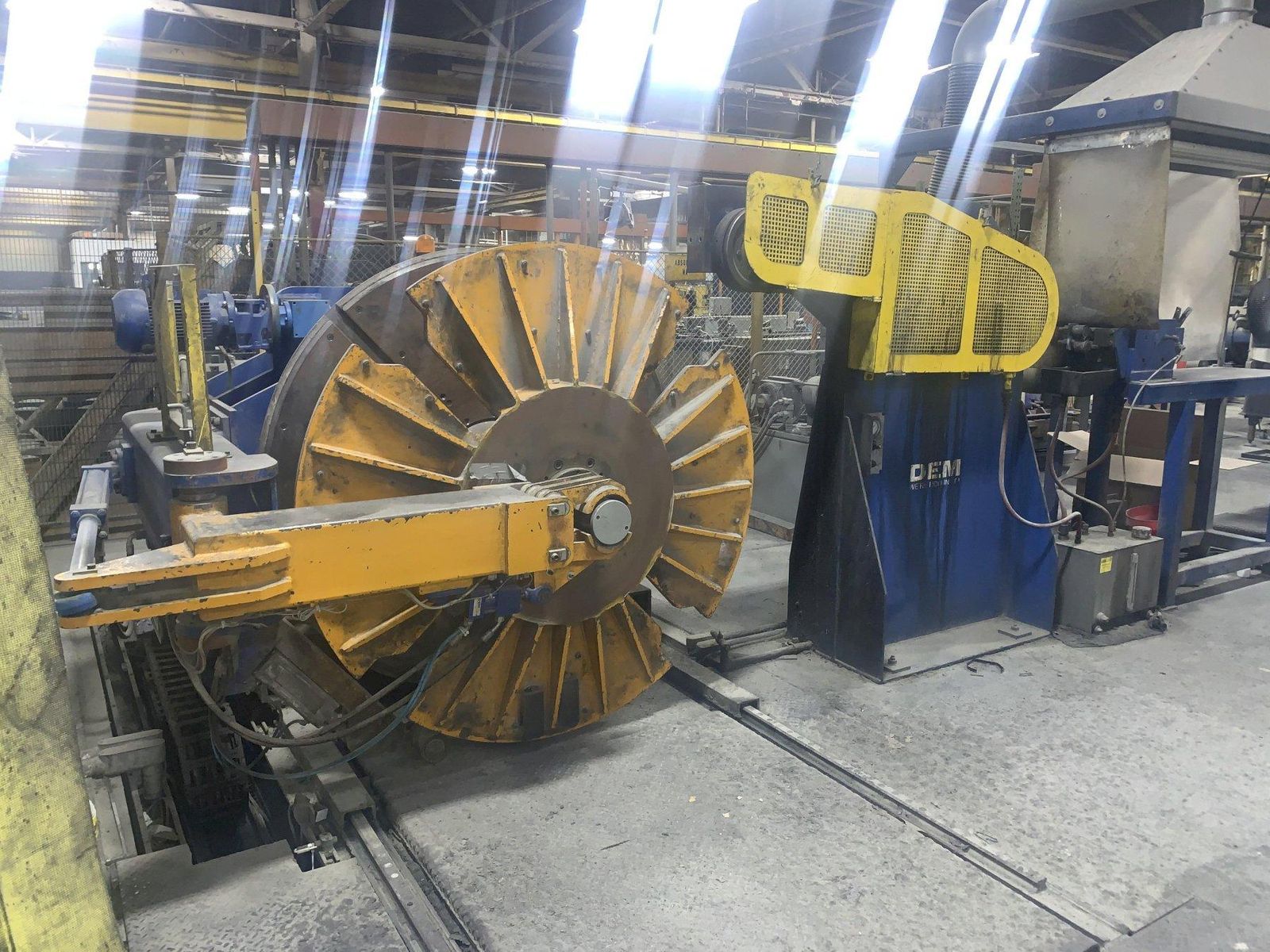

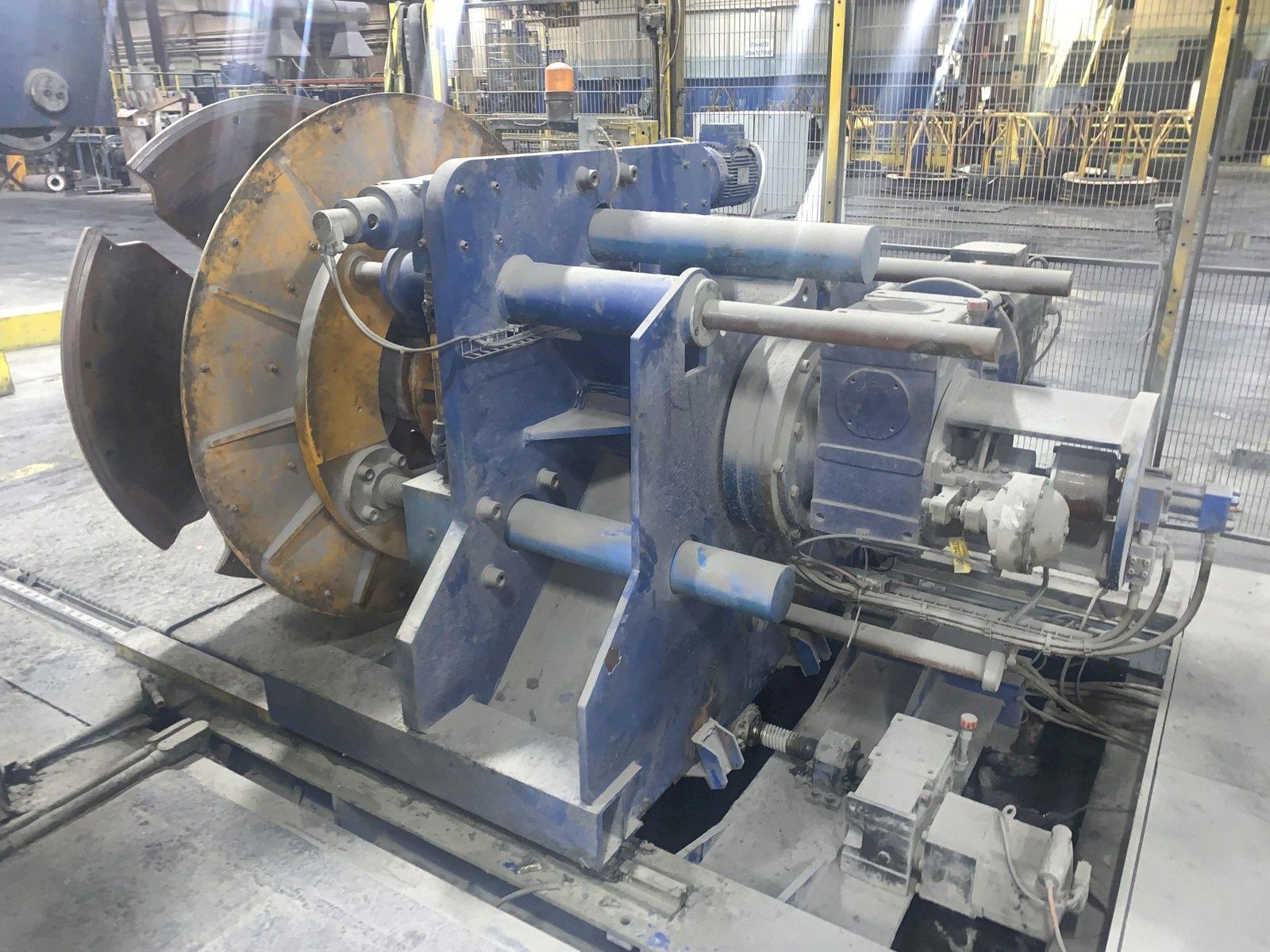

HORIZONTAL SPOOLER:
COIL INNER DIAMETER ............................ 16/20/24/25.5"
COIL SIDE O.D. ................................. 60"
COIL MAX WEIGHT ................................ 6614 LBS
SPOOLER ROTATING MOTOR POWER ................... 34 KW
SIDEWAY SPOOLER MOTOR POWER .................... 5.5 KW
MACHINE IN RUNNING CONDITION
Brand
Not Specified
Type
Rolling Mills
Stock No.
13898
 |
419-269-2000 |
Stock #: 13898
