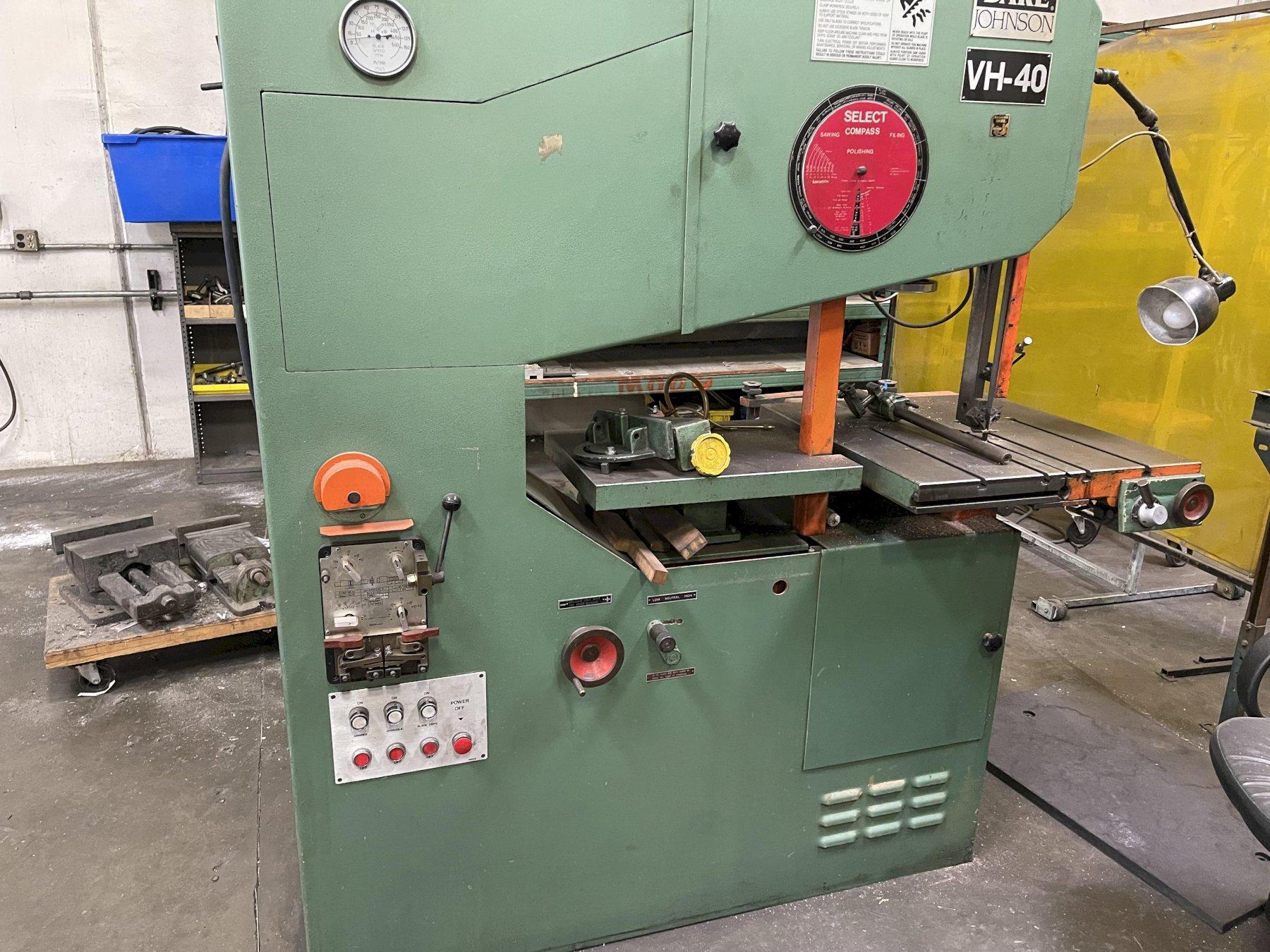

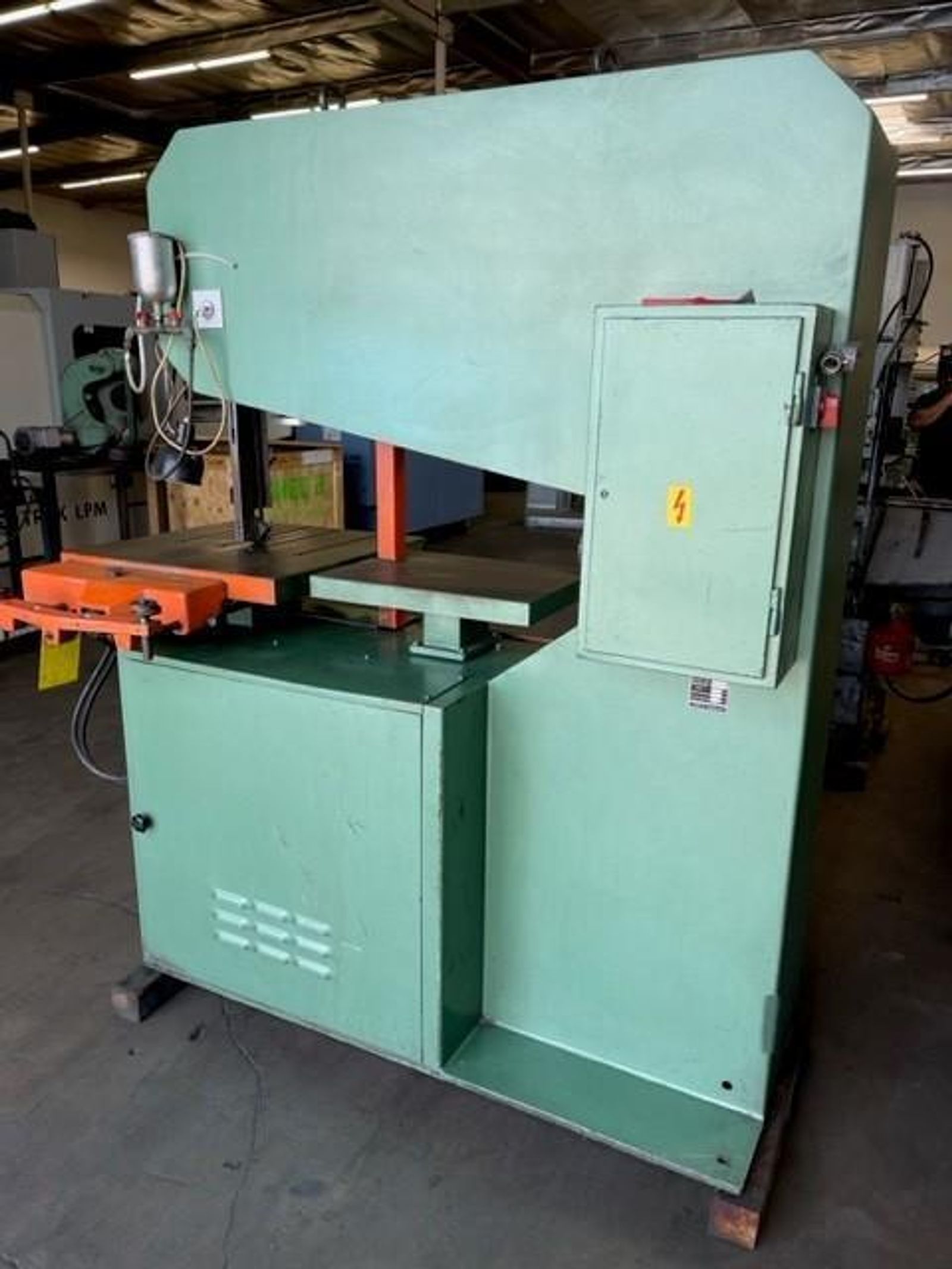

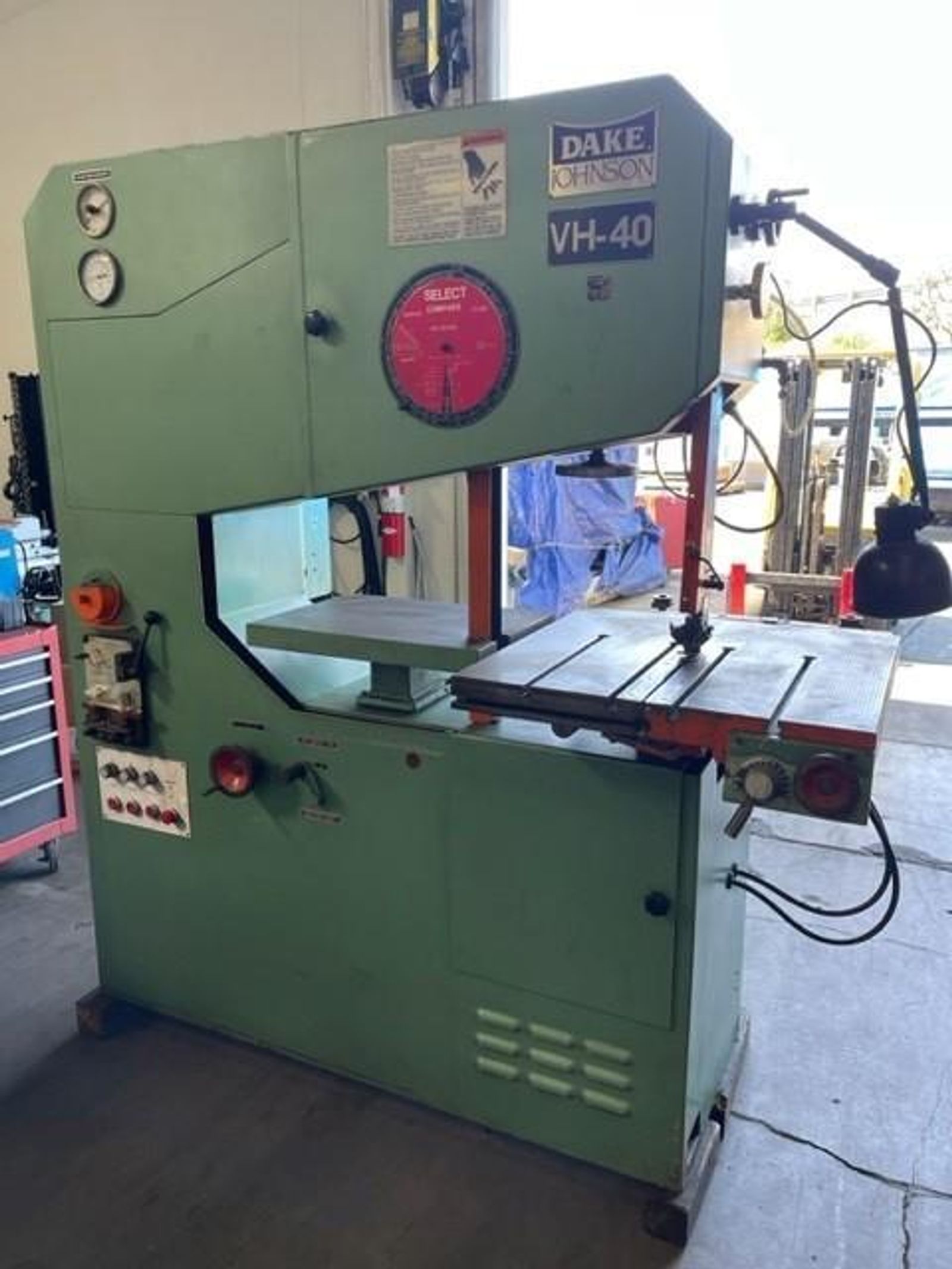

40" DAKE JOHNSON MODEL #VH-40 VERTICAL BAND SAW: STOCK #18615

Overview

Dake Johnson VH-40 Vertical Band Saw 41" x 13" #6710 #1
SERIAL ......................... 109423
MODEL .......................... VH-40

SPECIFICATIONS
Blade Width .................... 5/16 – 3/4″
Blade Length ................... 188″
Blade Speed .................... 50 – 500 FPM
Welder Capacity ................ 5/16 – 3/4″
Worktable Travel Distance ..... 10″
Worktable T-Slots .............. 4
Band Wheels Number ............. 3
Band Wheels Size ............... 16-1/2″
Motor HP ....................... 2.2
Throat Size (Band to Column) ... 41″
Maximum Work Height ............ 13″
Table Size ..................... 26-1/4″ x 26-1/4″
Electrical ..................... 220 / 440V (Wired 440) / 3PH

EQUIPPED WITH

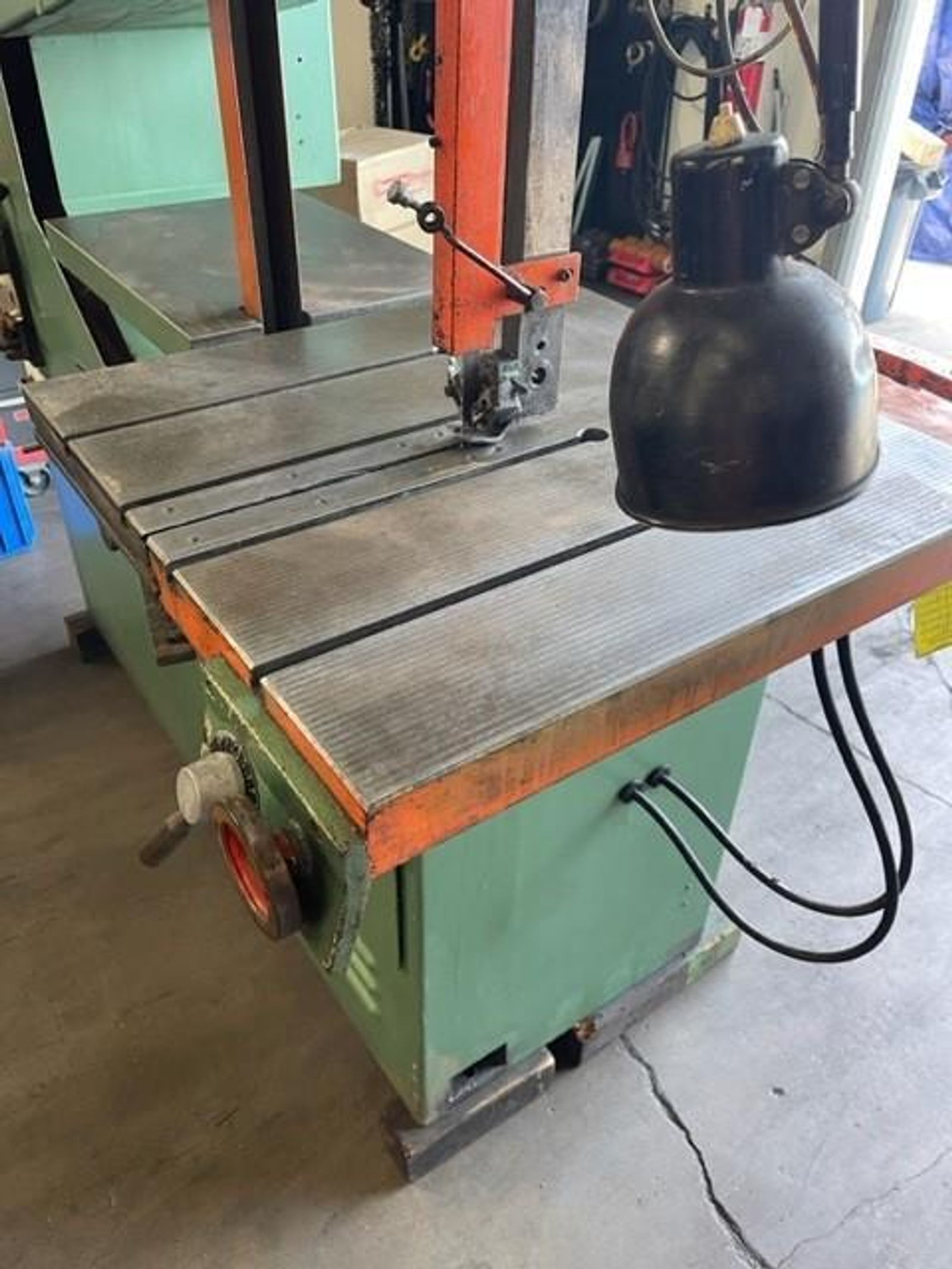

Hydraulic Power Feed Table, Blade Grinder & Welder, Chip Blower, Work Light


40" DAKE JOHNSON MODEL #VH-40 VERTICAL BAND SAW: STOCK #18615

Brand
Not Specified

Type
Saws, Band, Vertical

Stock No.
18615

Price: $5950.00
