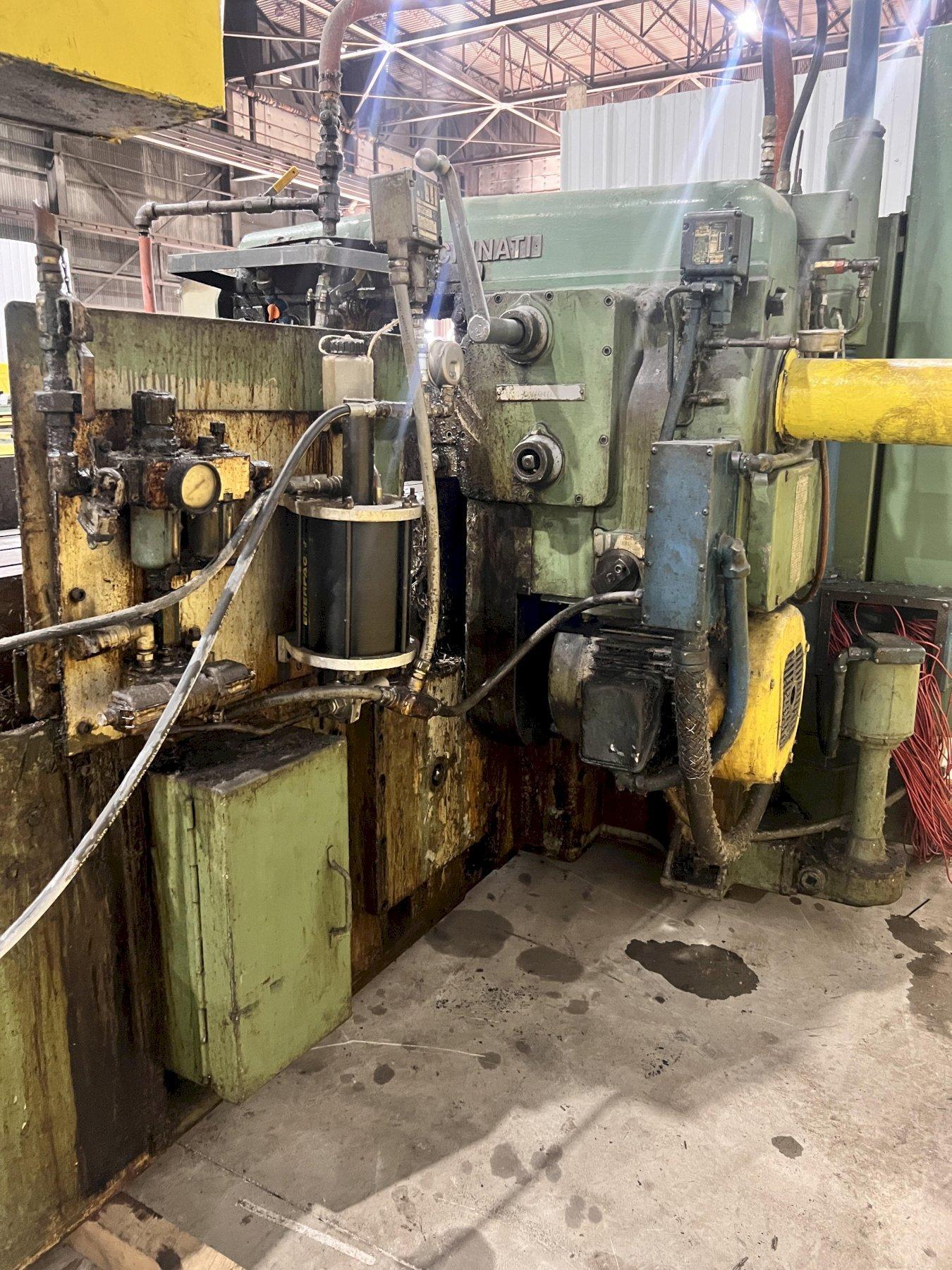

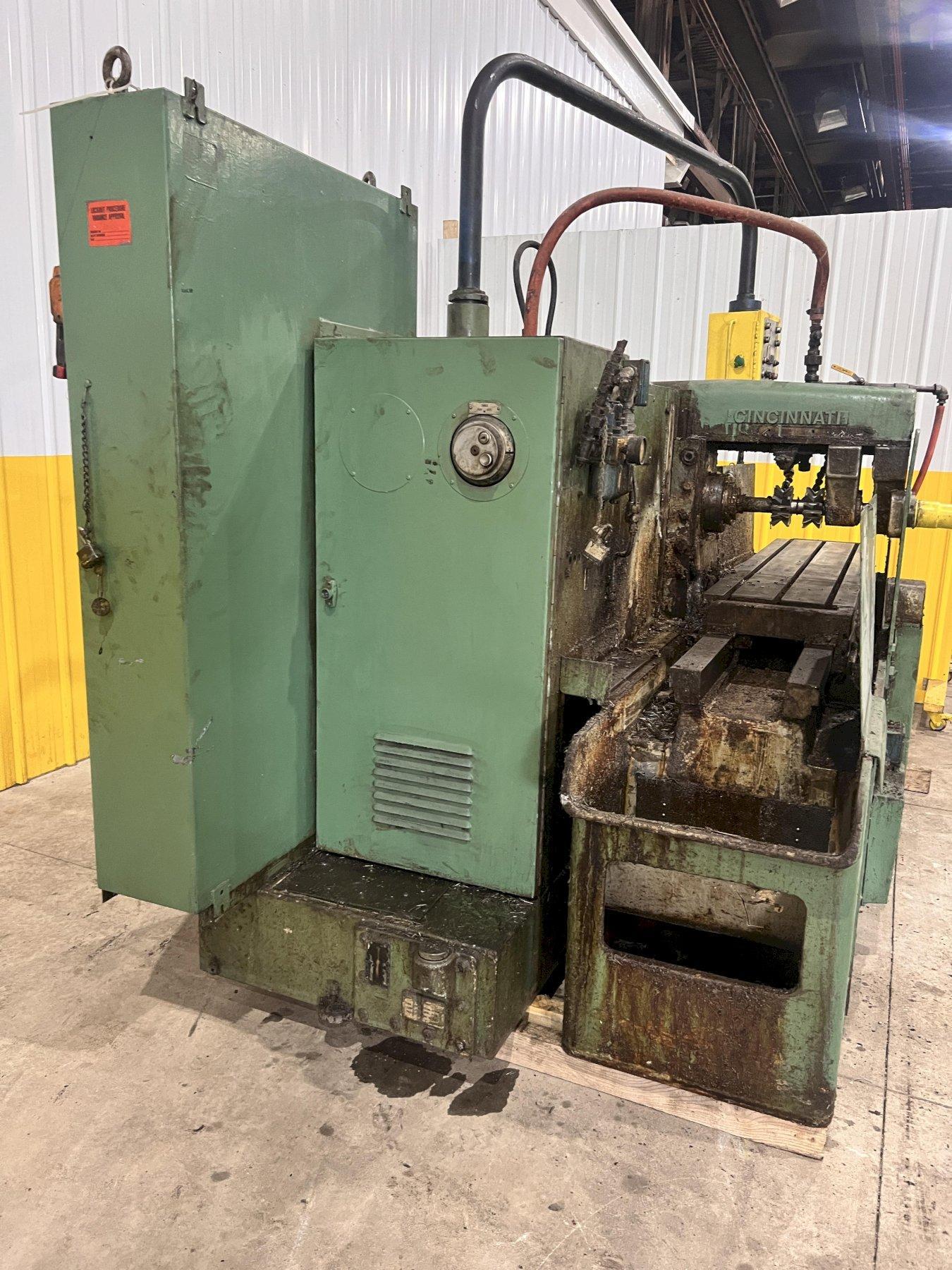

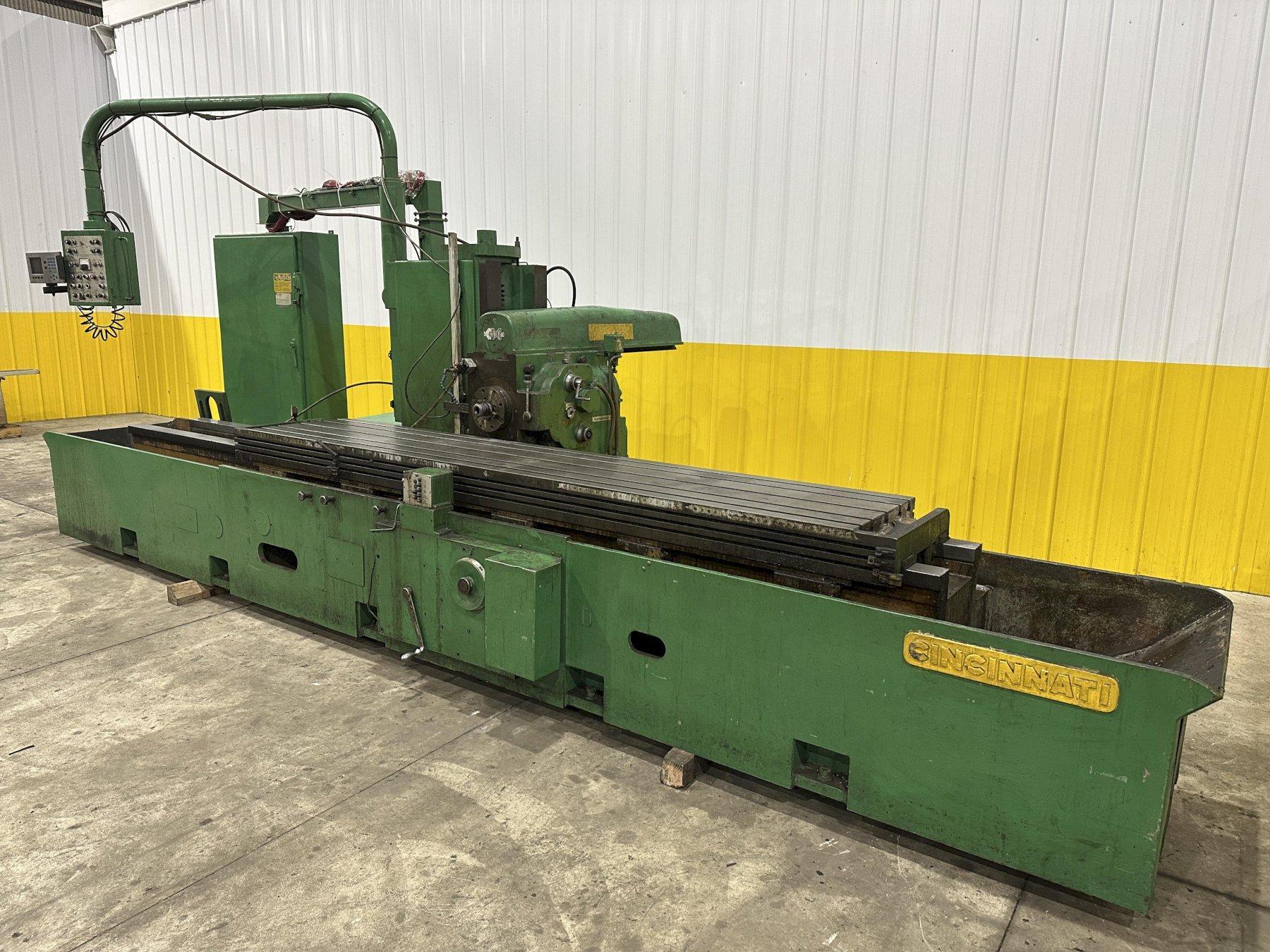

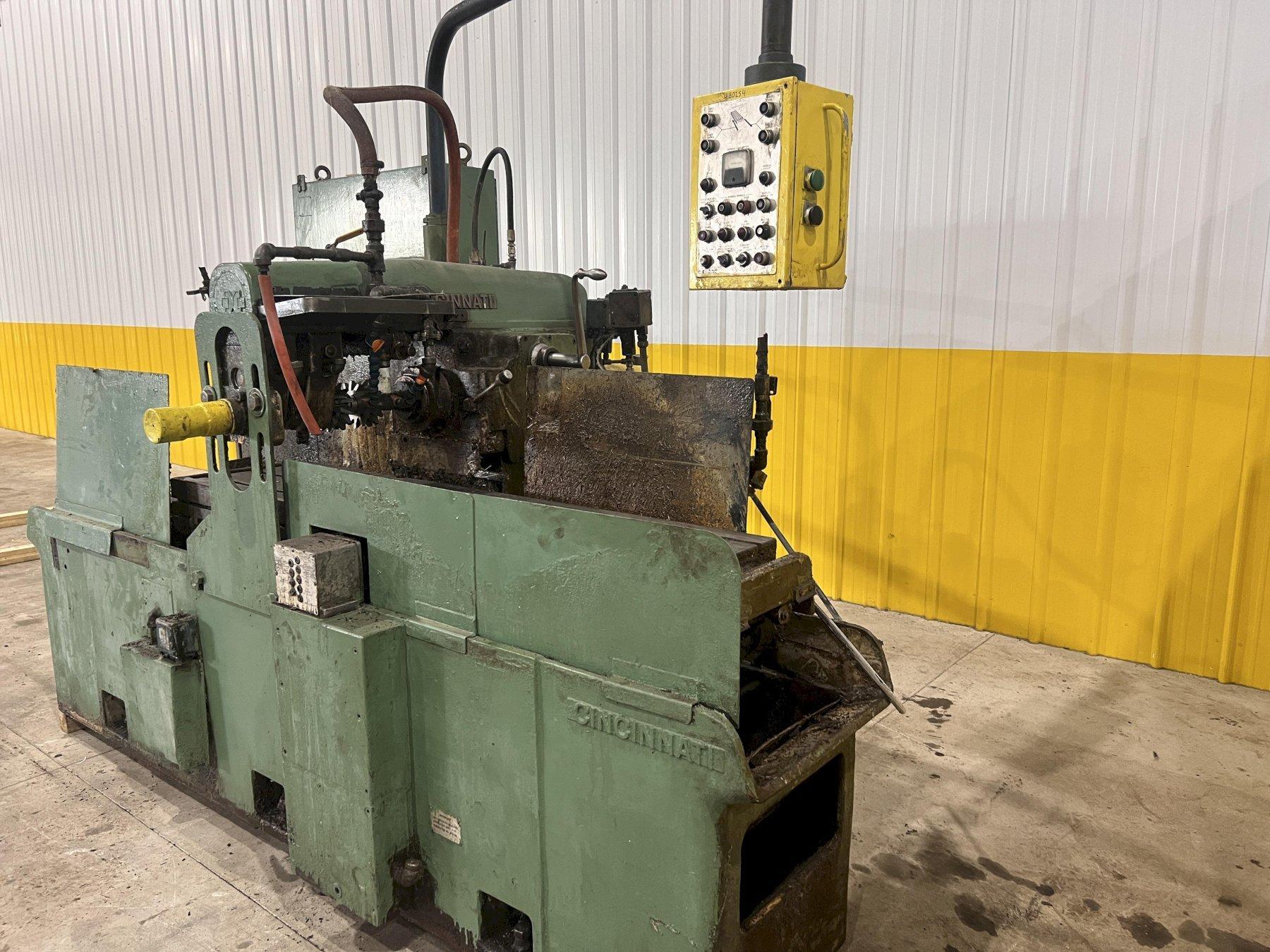

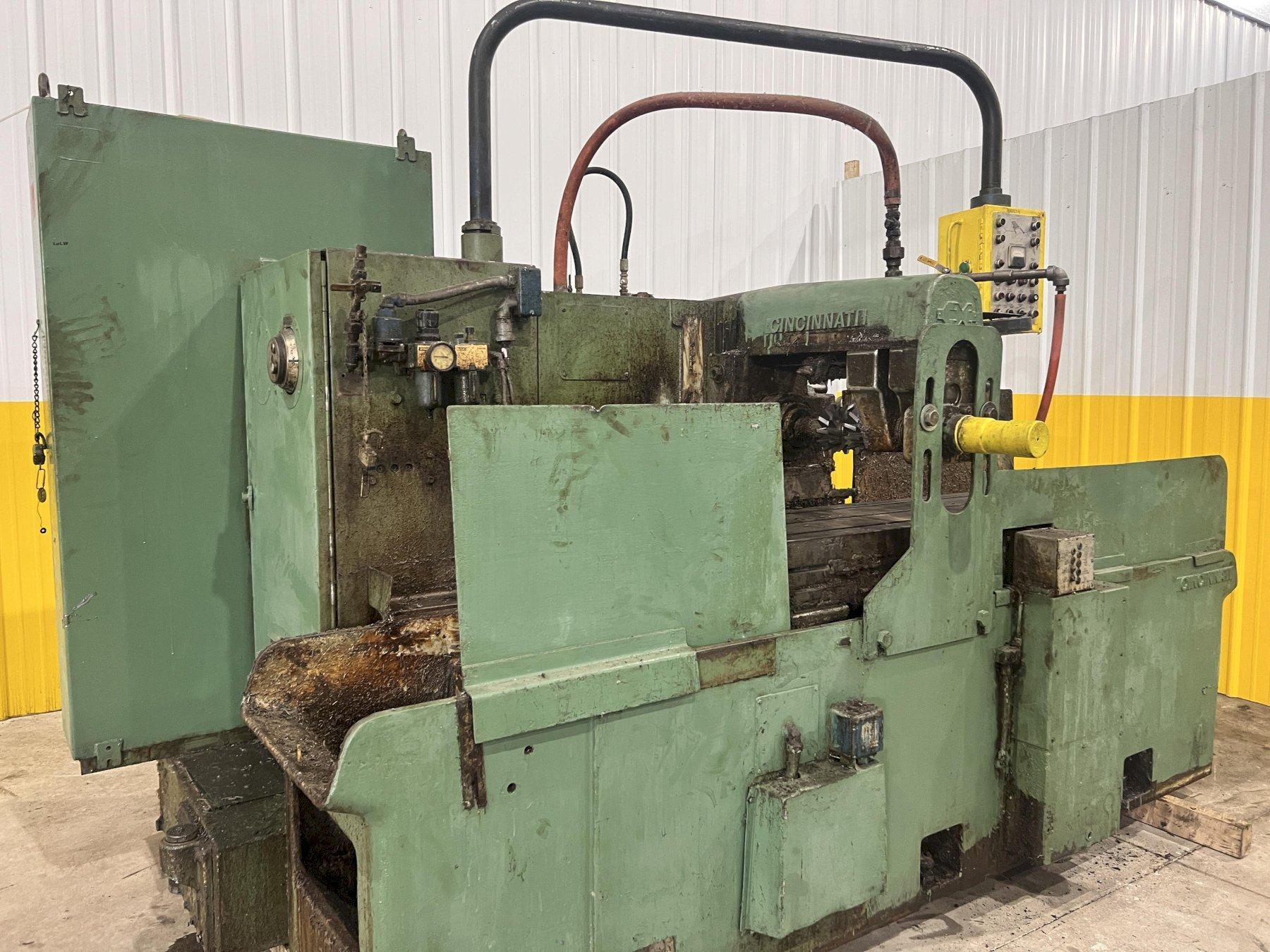

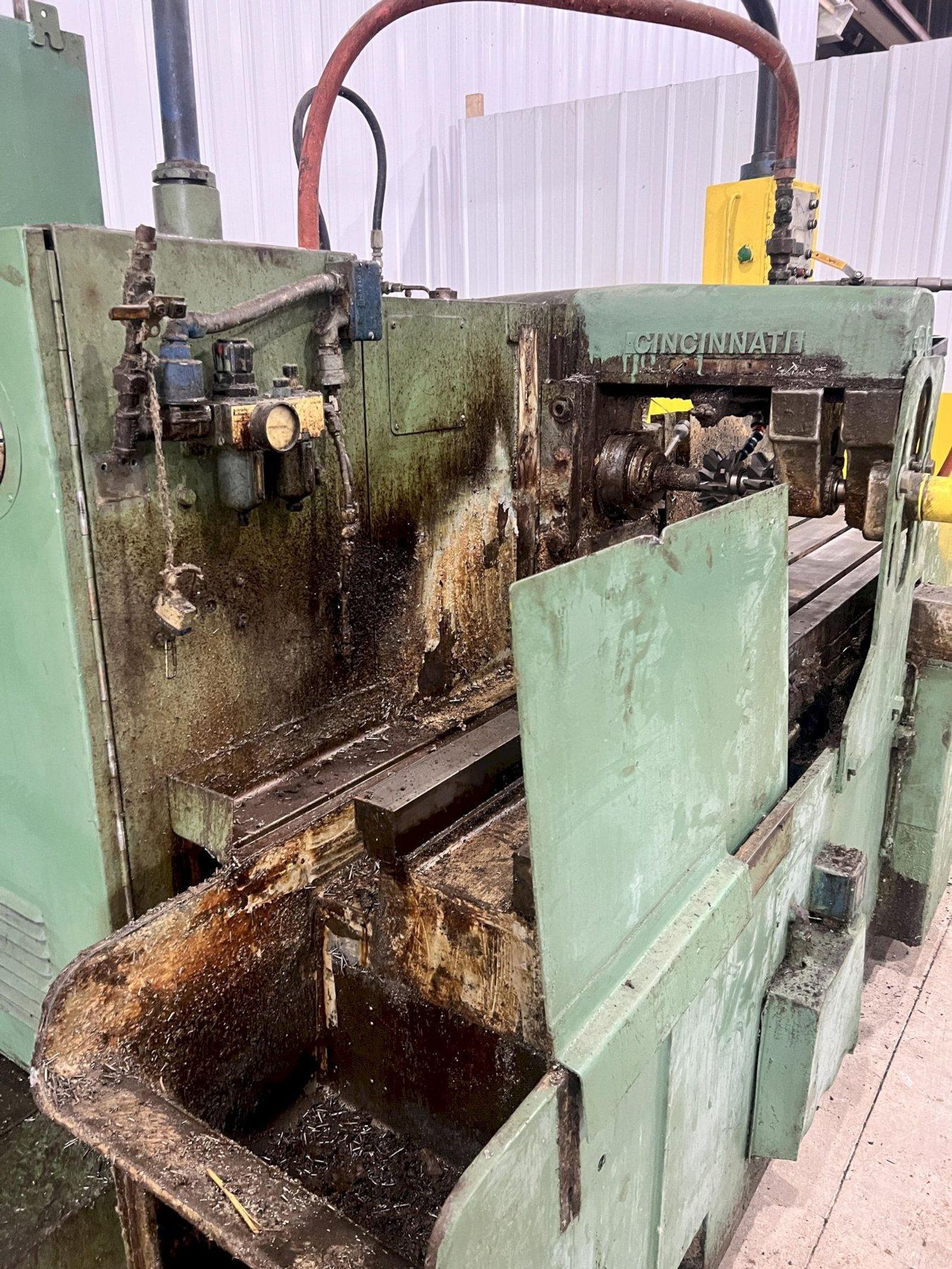

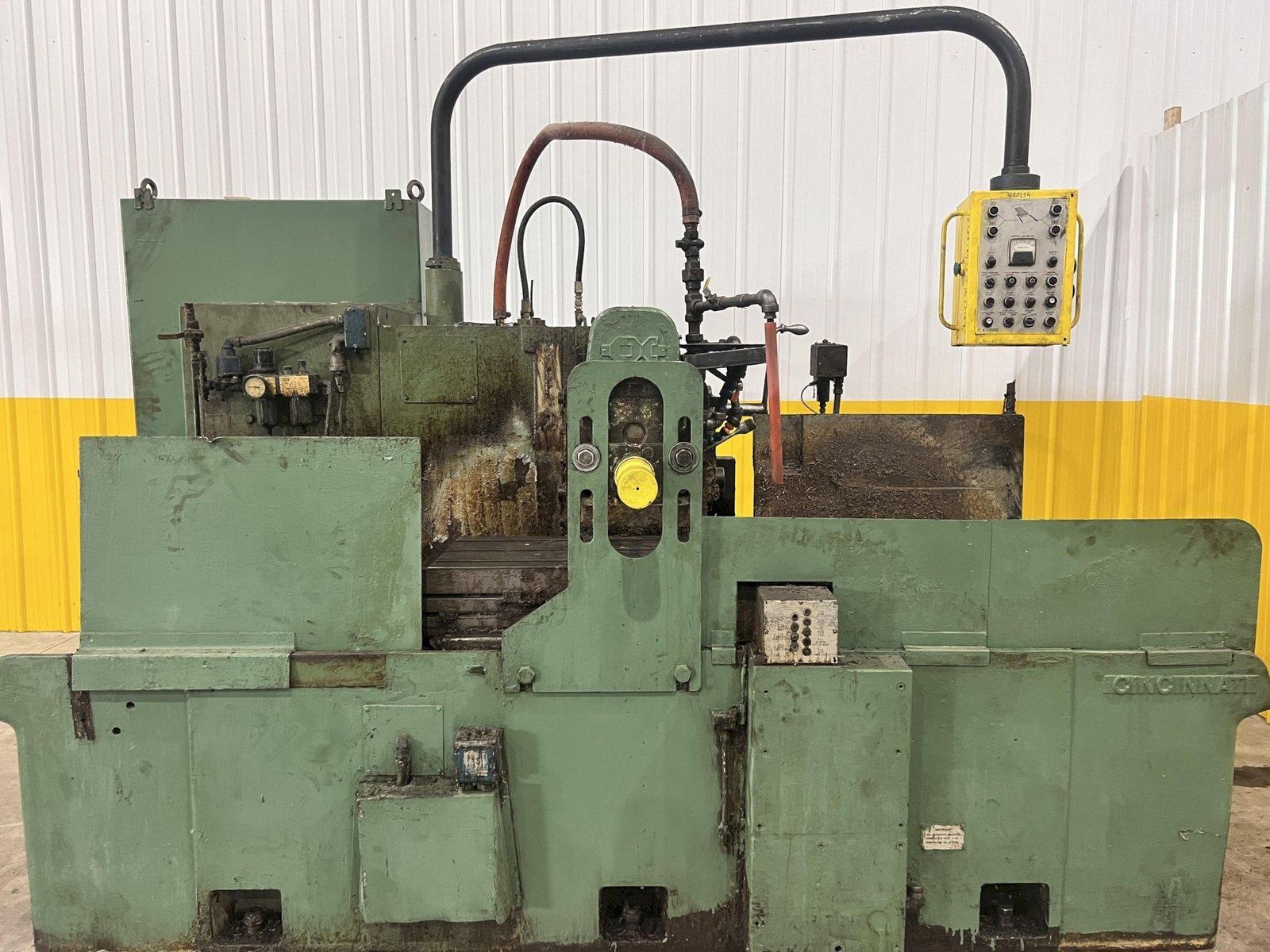

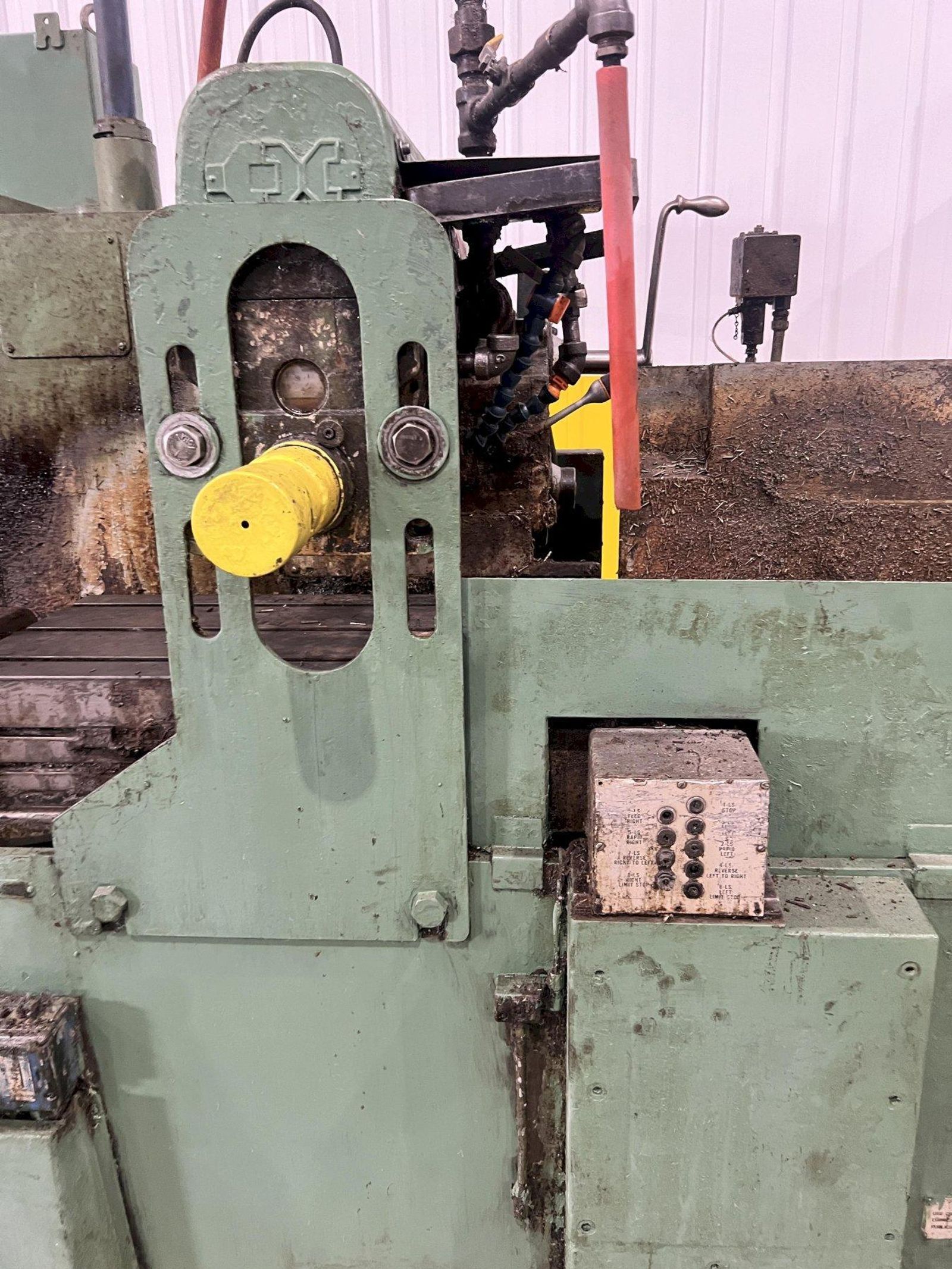

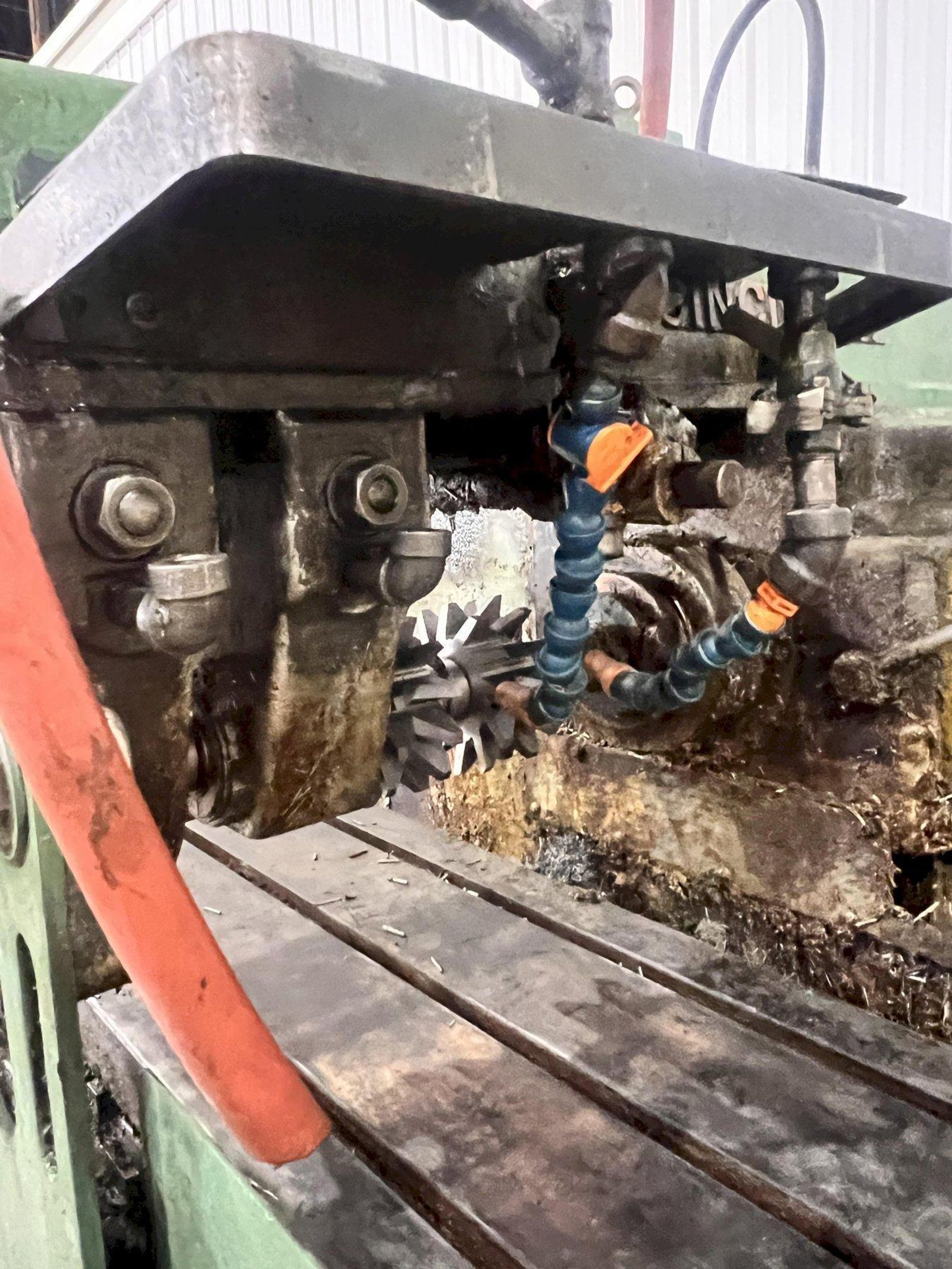

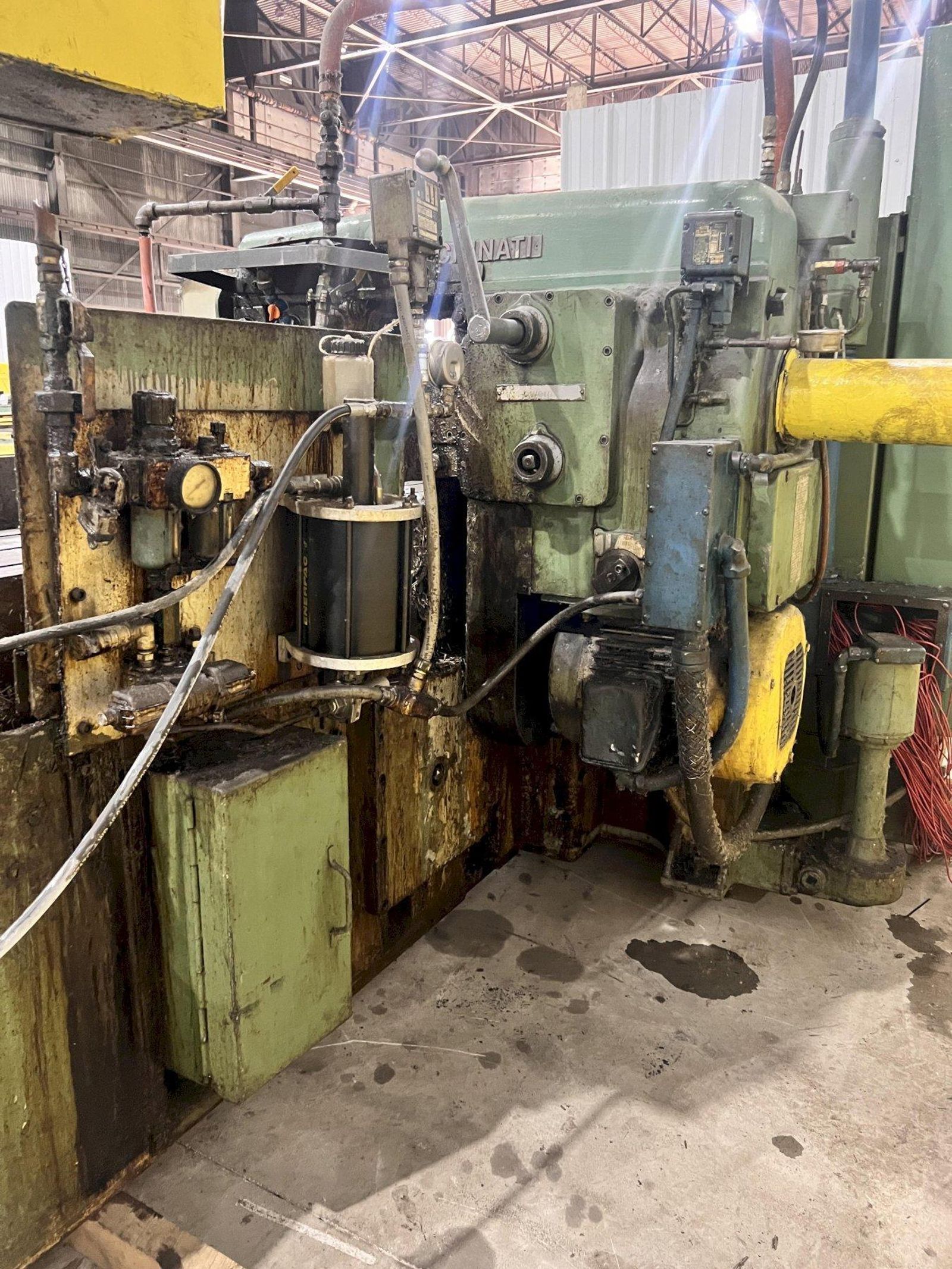

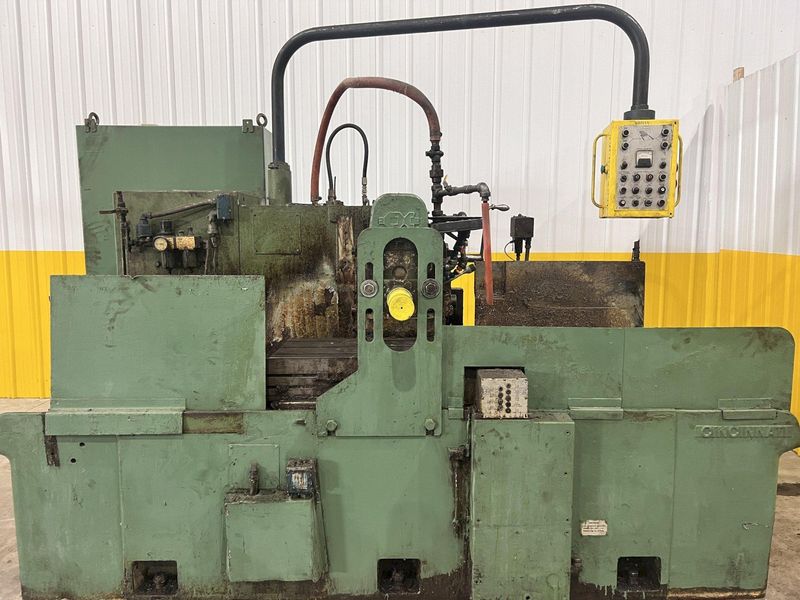

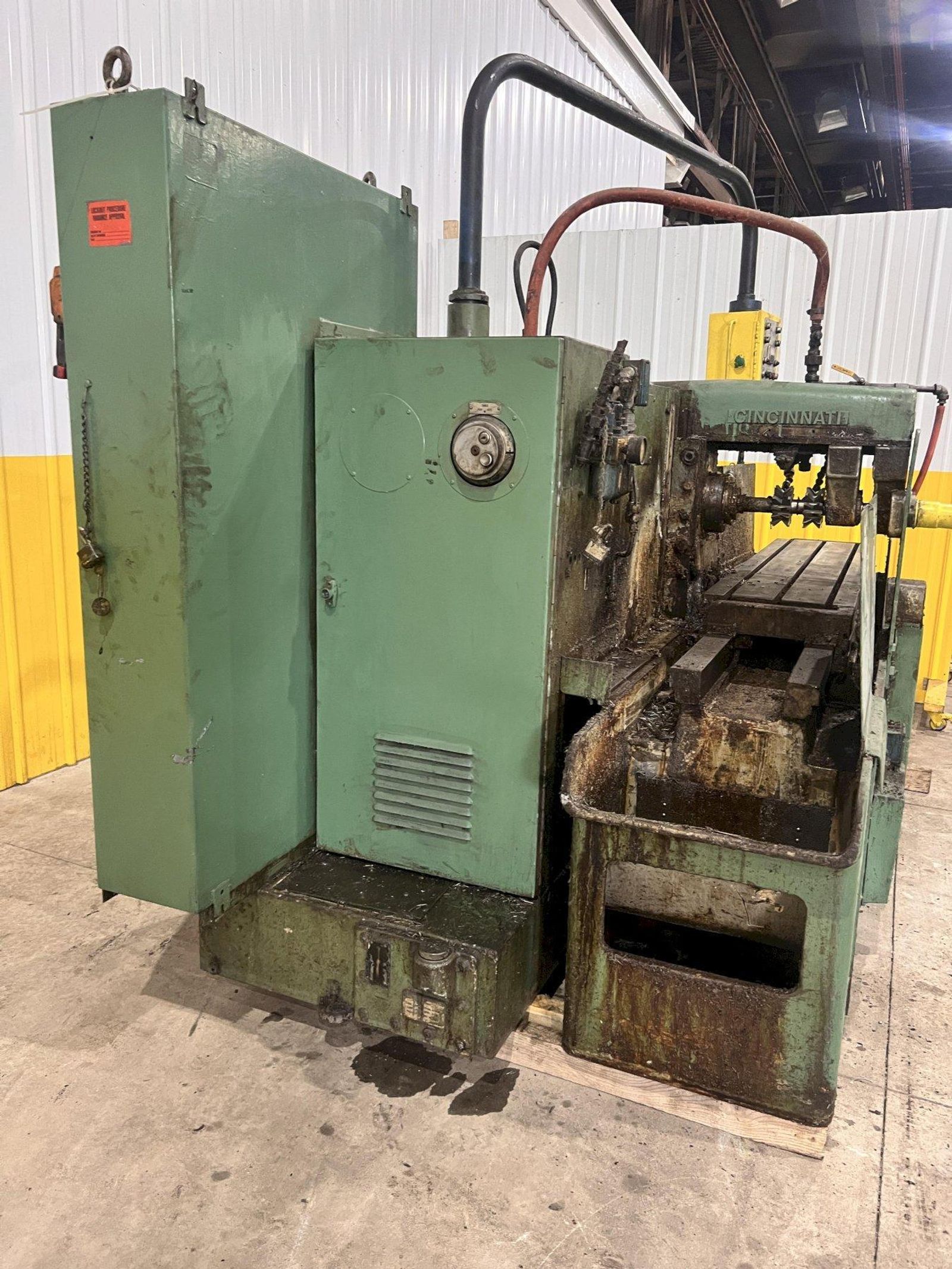

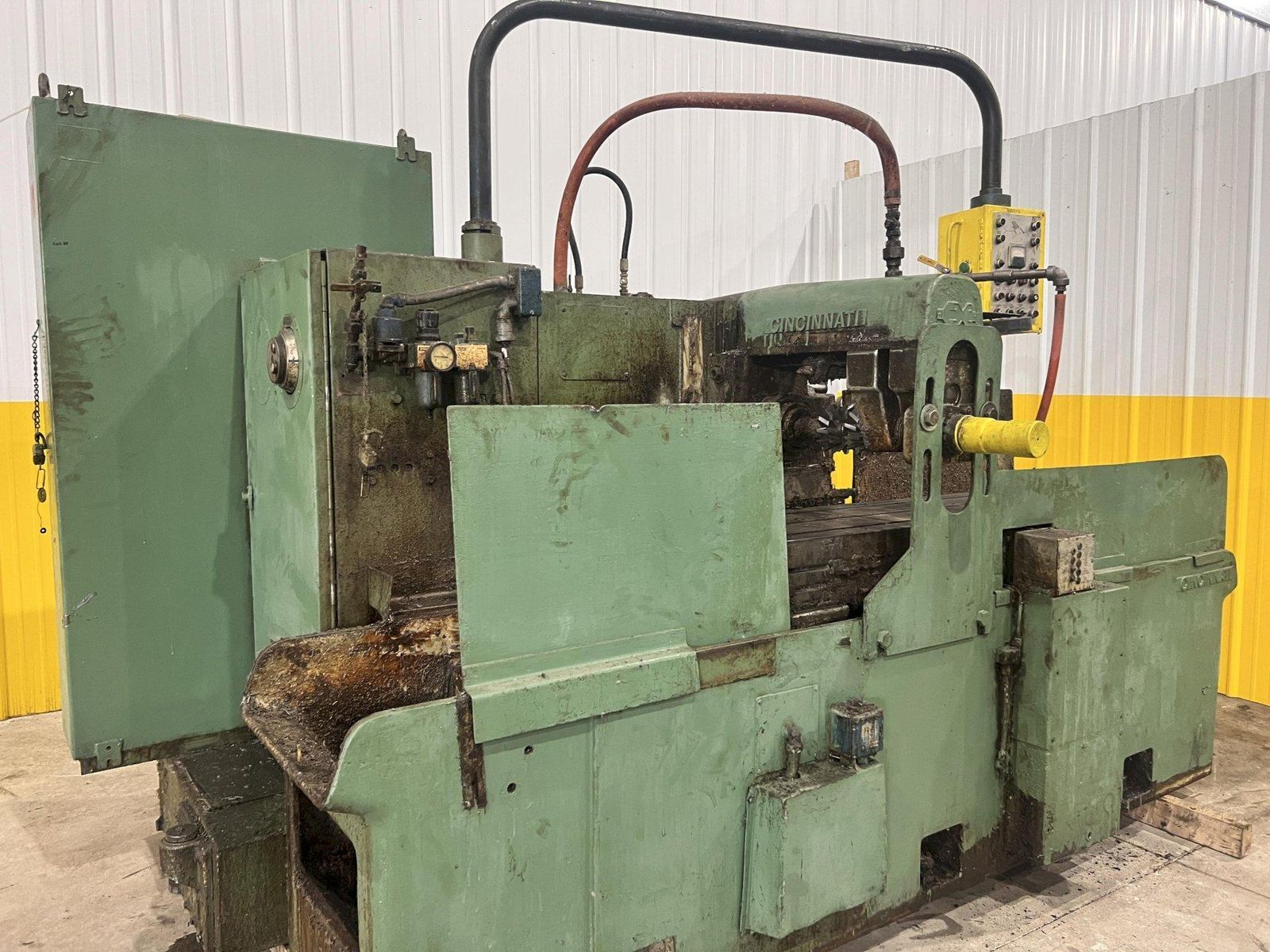

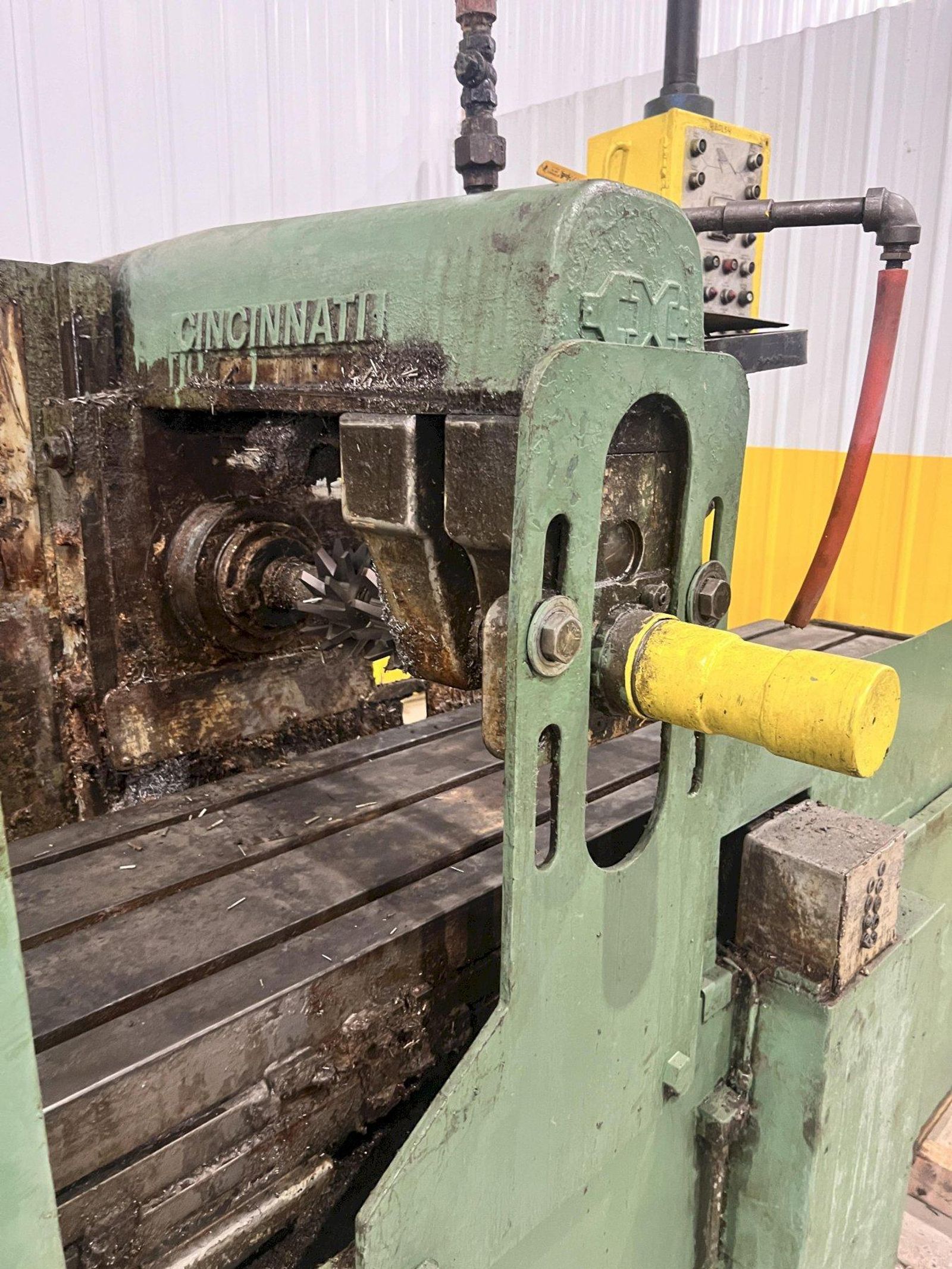

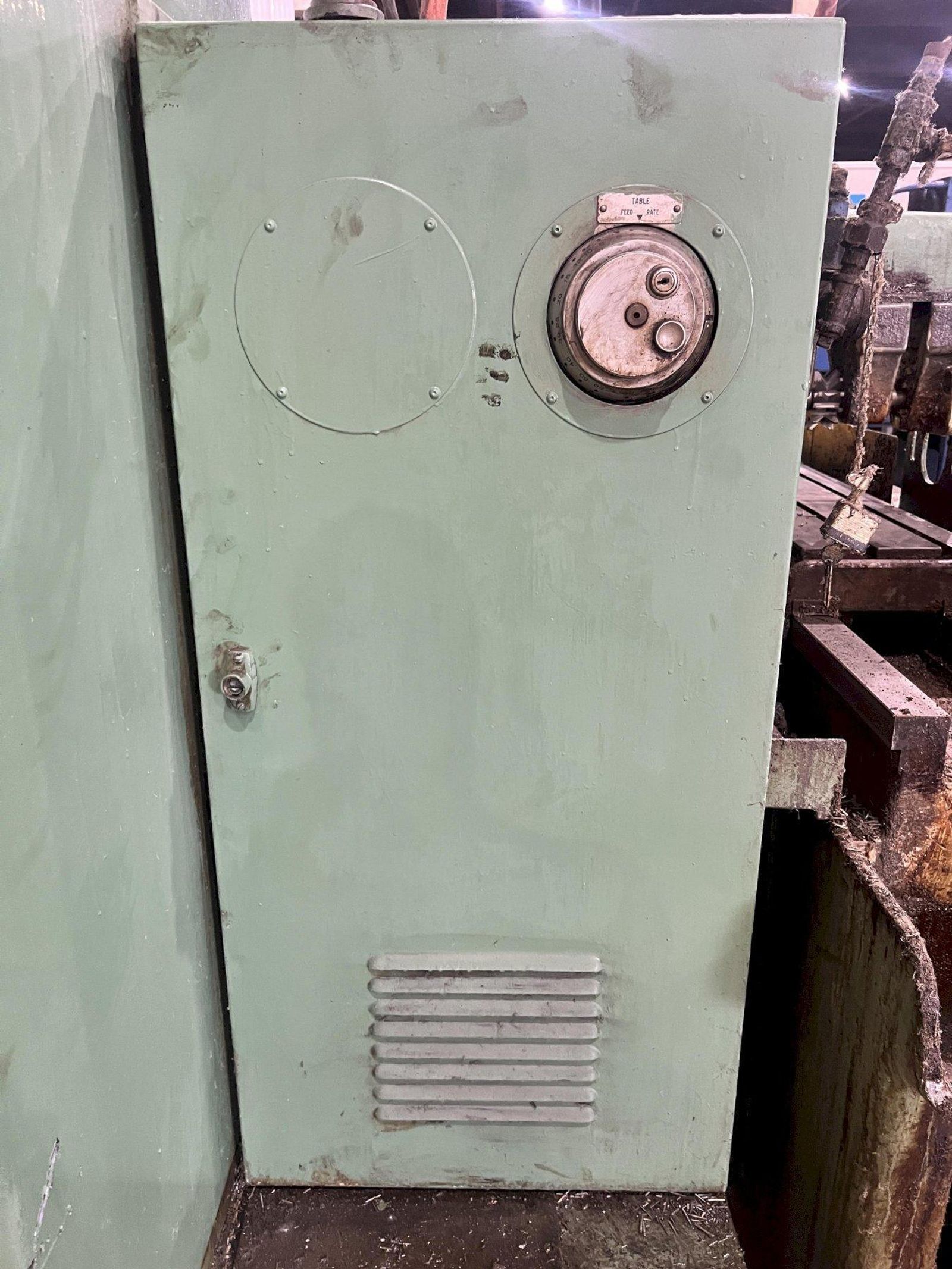

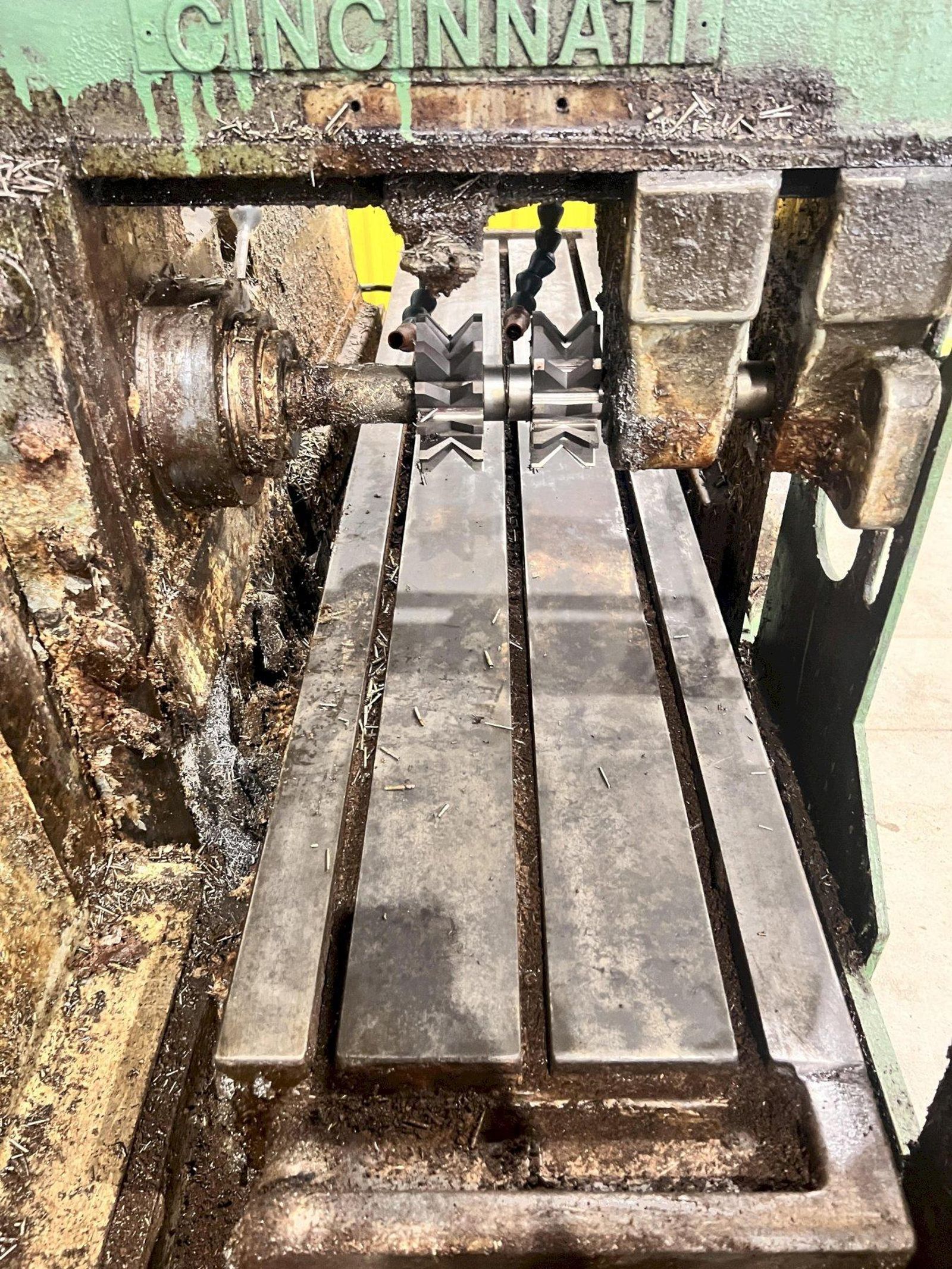

12" x 60" CINCINNATI MODEL #215-153 PLAIN HYPOWERMATIC HORIZONTAL BED-TYPE MILL / MILLING MACHINE: STOCK #20688

Overview

12" x 60" CINCINNATI MODEL #215-153 PLAIN HYPOWERMATIC HORIZONTAL BED-TYPE MILL / MILLING MACHINE: STOCK #20688

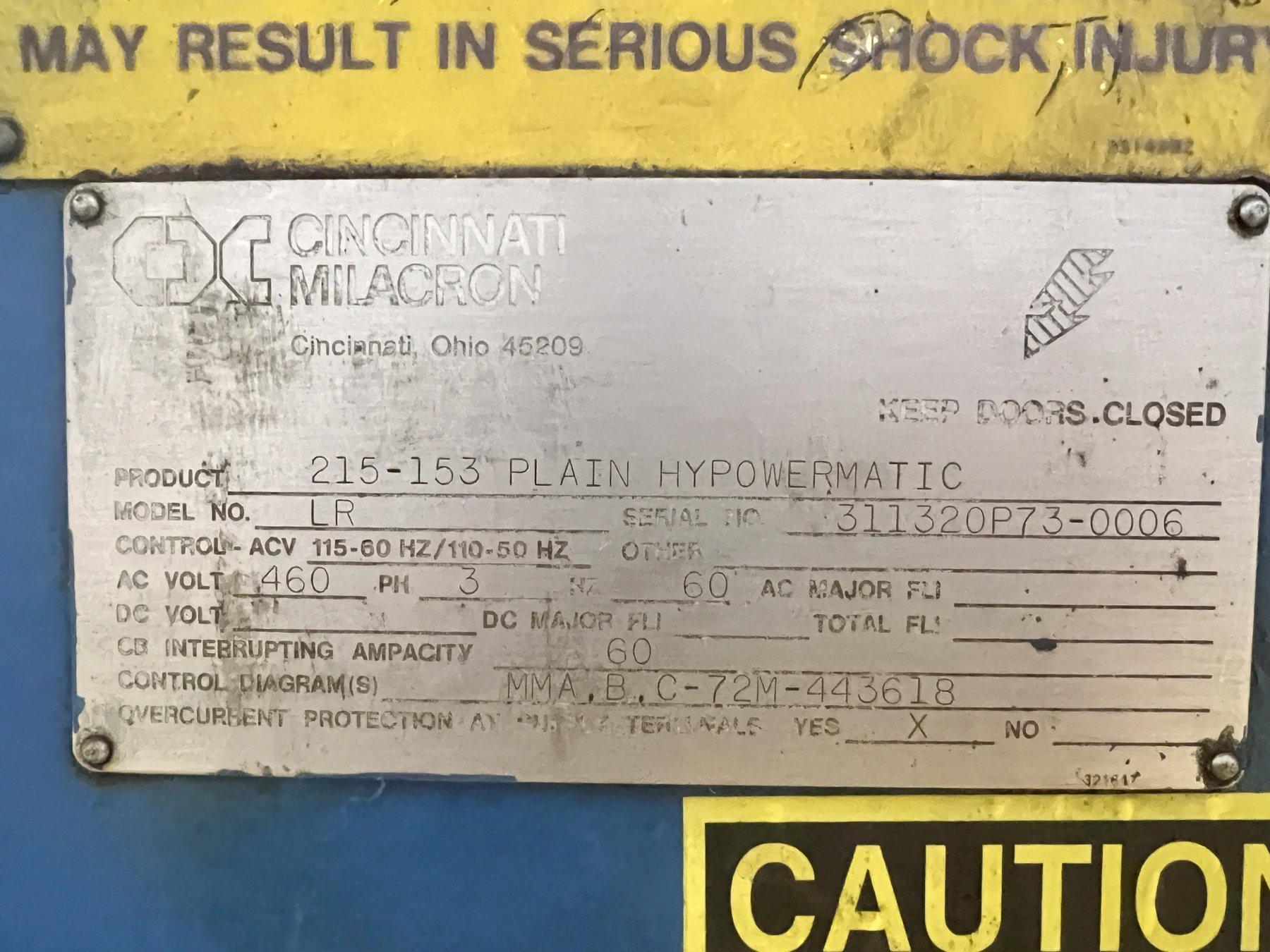

SERIAL ........................... 311320P73-0006
MODEL ............................ 215-153 HYDROMATIC

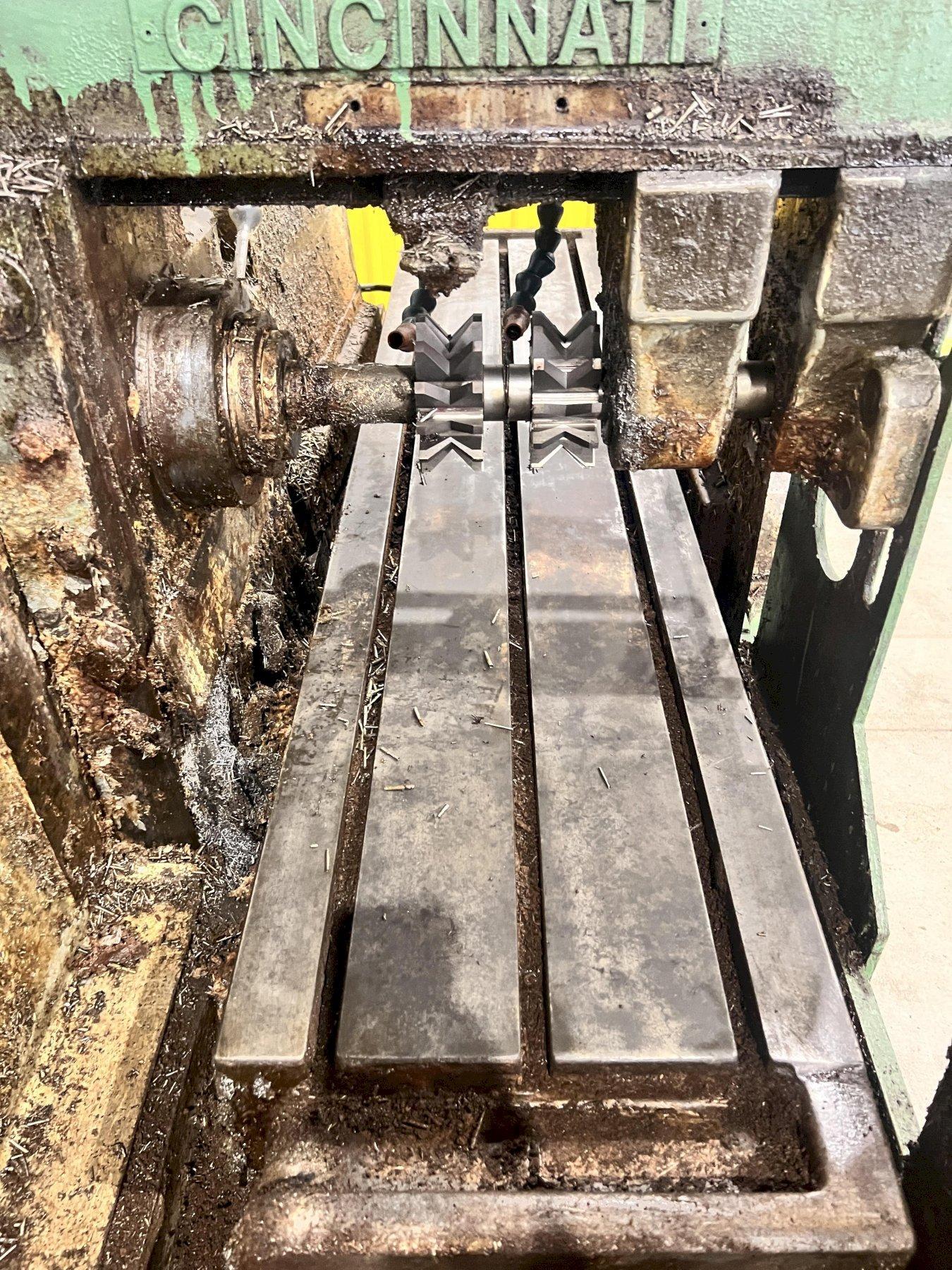

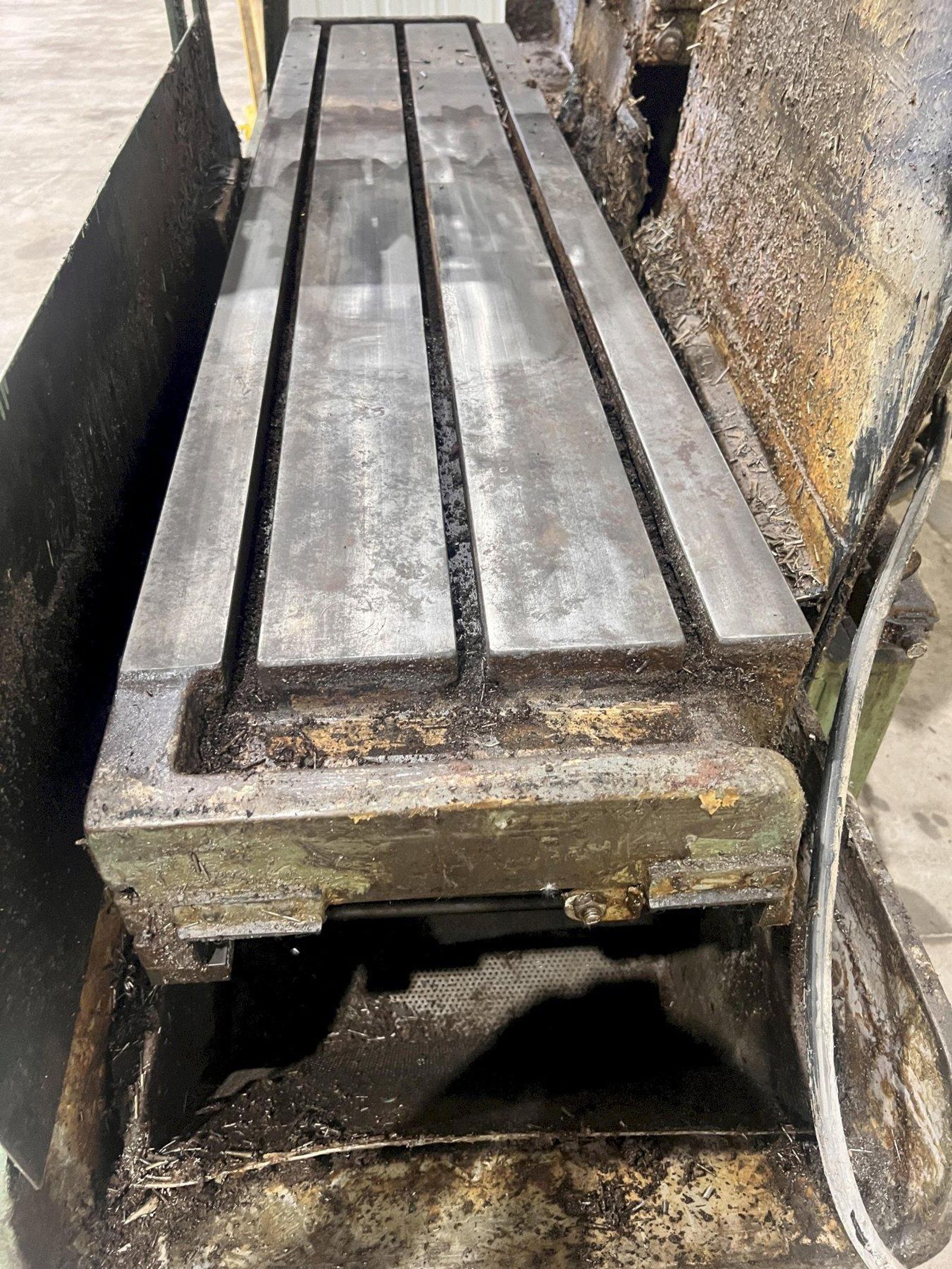

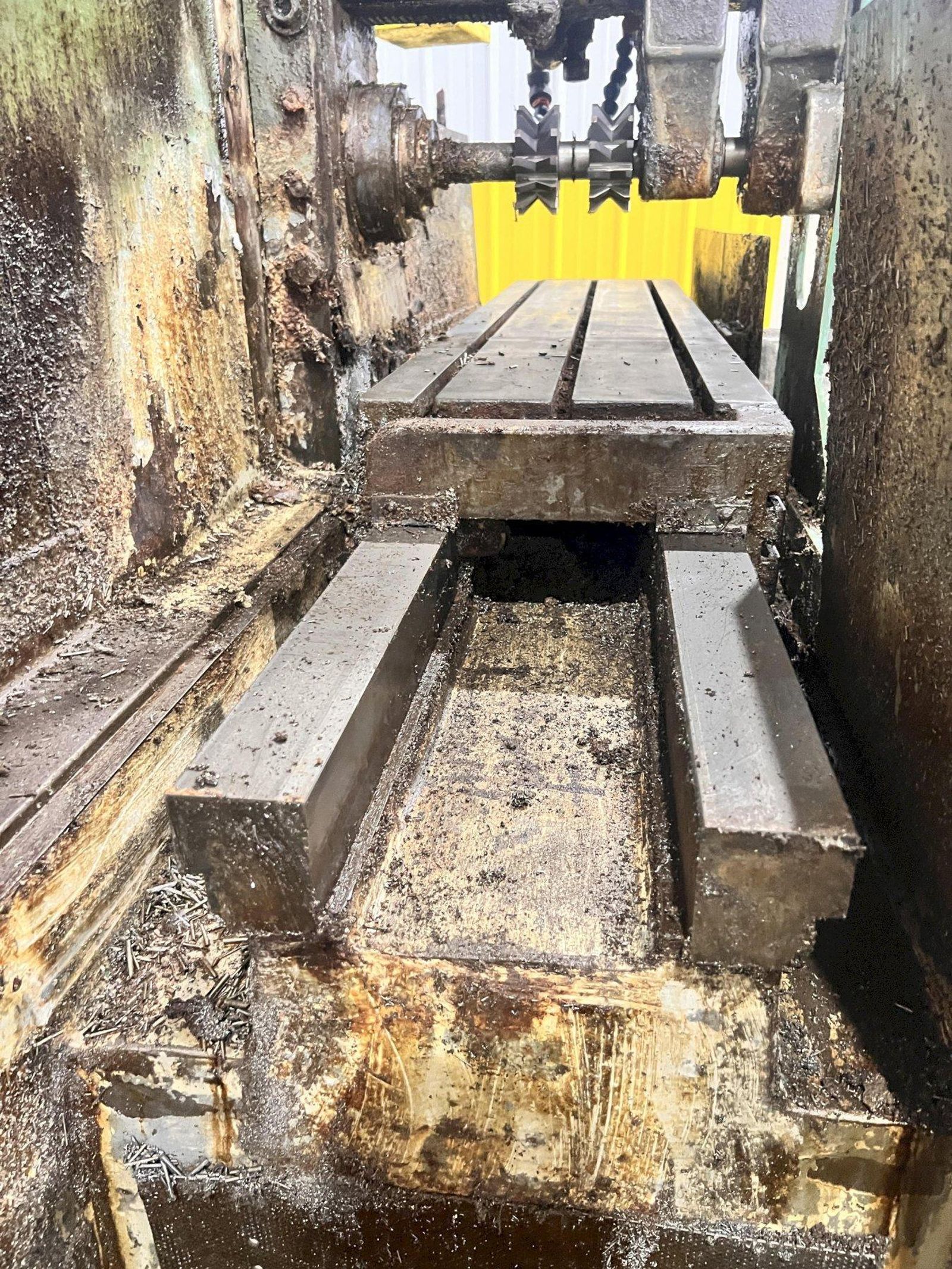

AREA OF TABLE .................... 63" X 15"
SPINDLE SPEEDS ................... (16) 50 TO 2000 RPM

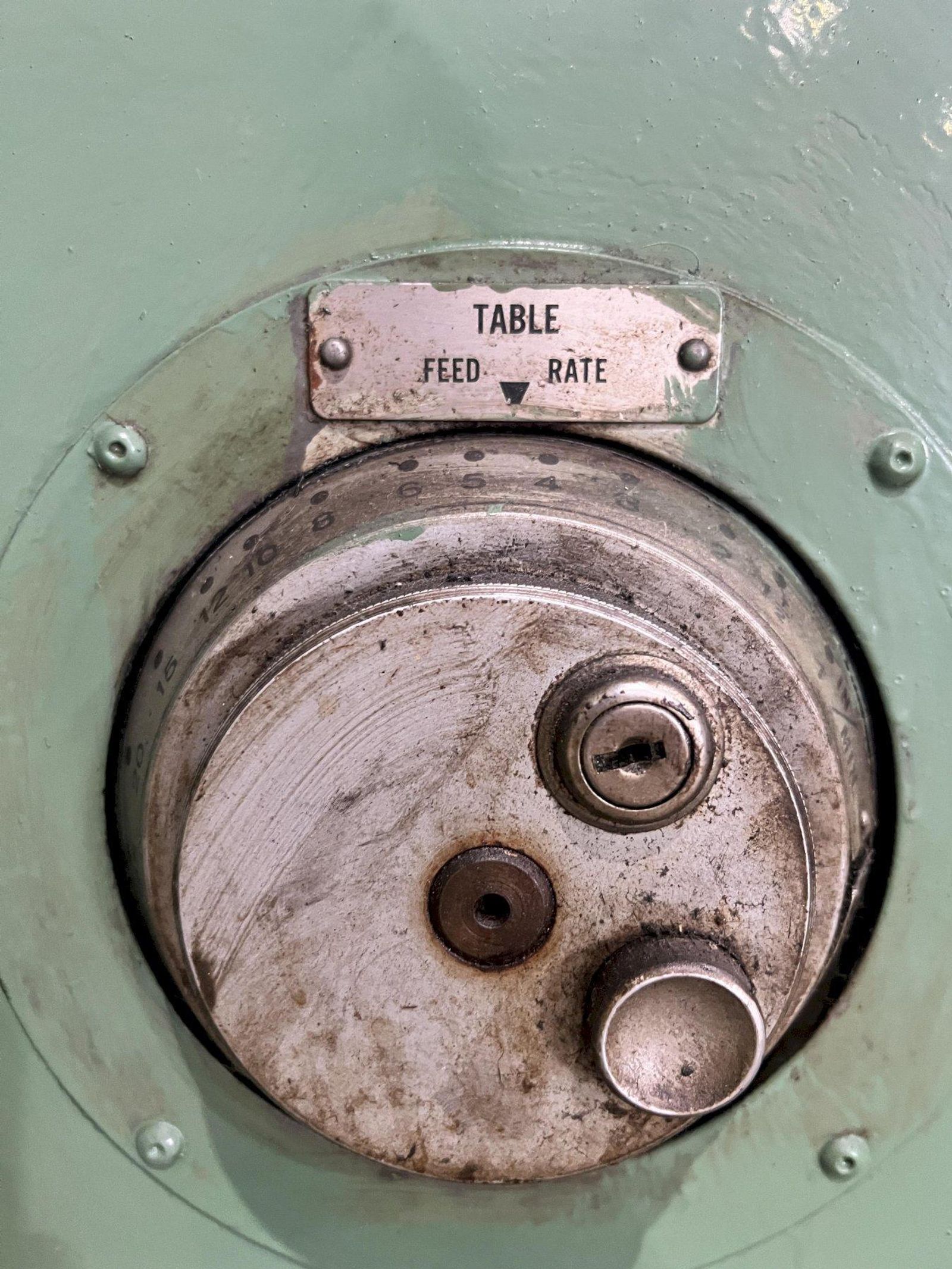

TABLE FEEDS  ..................... 1 TO 150 IPM (VARIABLE)
TABLE TRAVEL ..................... 36"
VERTICAL ADJUSTMENT OF SPINDLE ... 10"
TRAVEL OF QUILL .................. 3"
DIAMETER OF QUILL ................ 7"
TAPER IN SPINDLE ................. #50 NS
TOP OF TABLE TO SPINDLE CENTER ... 4" MIN. / 14" MAX.
CENTER OF TABLE TO SPINDLE FACE .. 7" MIN. / 10" MAX.
RAPID TRAVERSE ................... 300 IPM

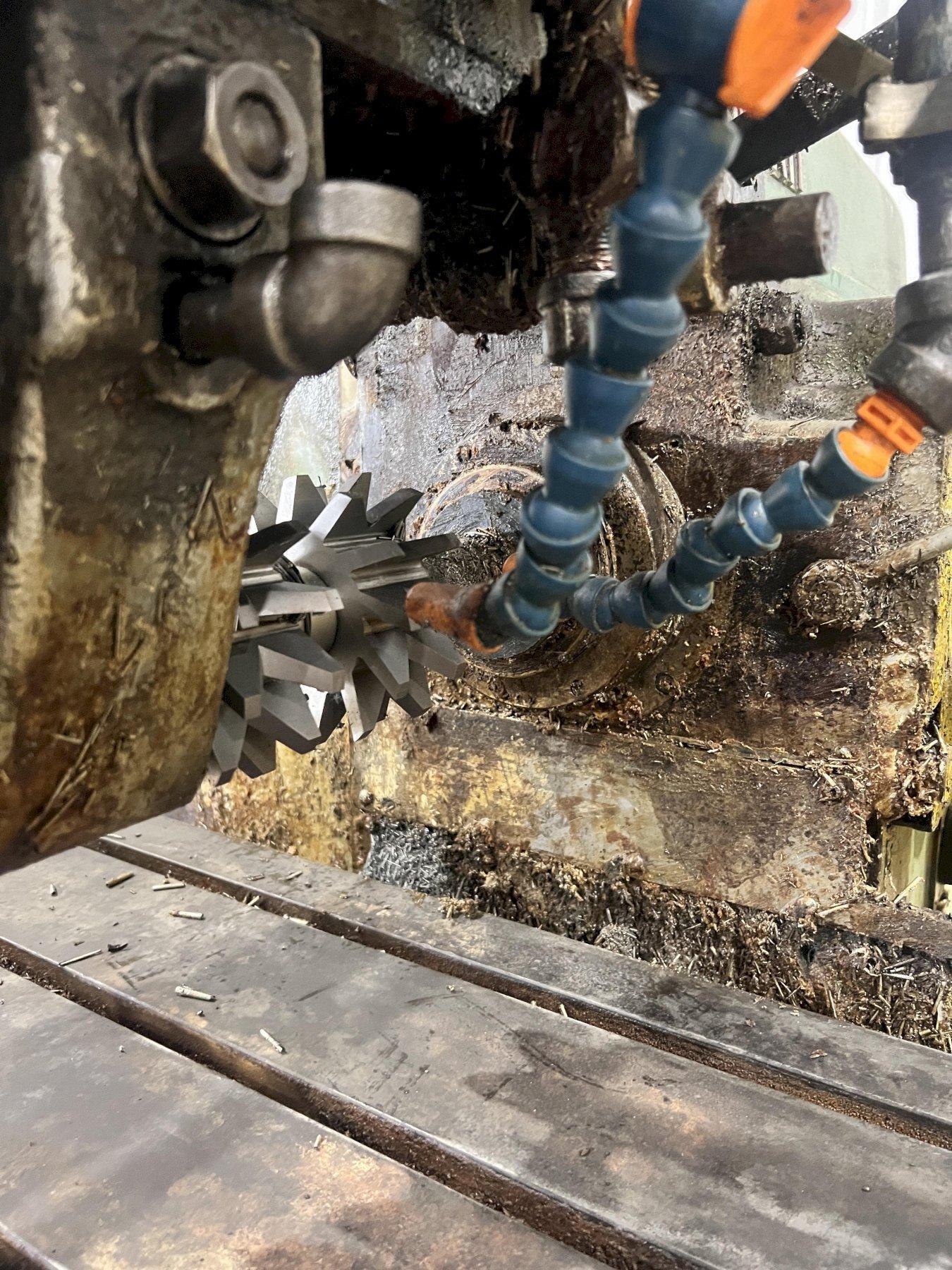

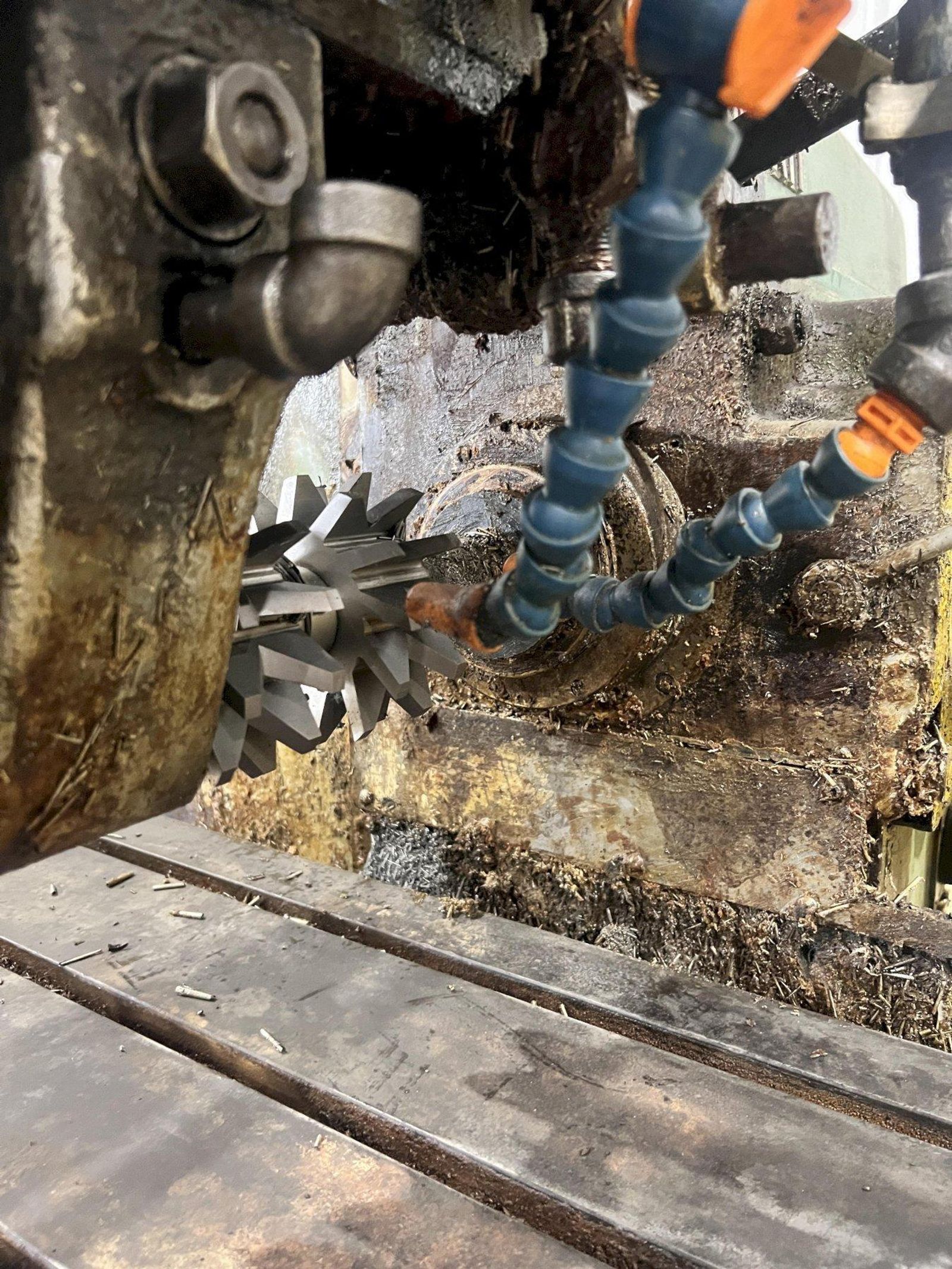

COOLANT .......................... YES
MAIN MOTOR ....................... 15 HORSEPOWER
HYDRAULIC MOTOR .................. 5 HORSEPOWER

12" x 60" CINCINNATI MODEL #215-153 PLAIN HYPOWERMATIC HORIZONTAL BED-TYPE MILL / MILLING MACHINE: STOCK #20688

Brand
CINCINNATI MILACRON

Type
Millers, Horizontal, Plain

Stock No.
20688

Contact Us
Buy Now
Price: $9950.00
