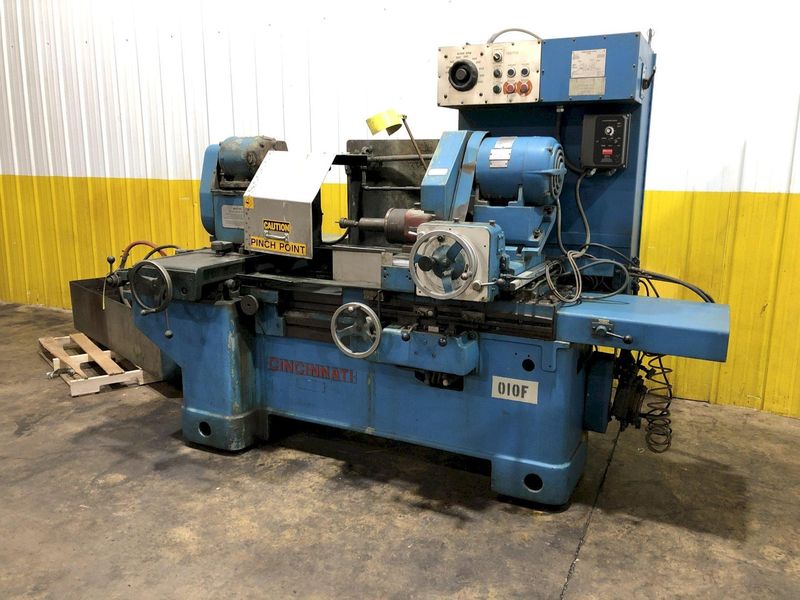

20" CINCINNATI MILICRON / HEALD / RED-HEAD MODEL #273A INTERNAL I.D. GRINDER: STOCK #17983

Overview

SERIAL .......................... 46405

MODEL ........................... 273A

MAXIMUM WORK SWING .............. 24-1/2"

SWING W/WORKHEAD @ 90 DEGREES ... 13"

WORKHEAD CROSS SLIDE TRAVEL ..... 17-1/2"

MAXIMUM TABLE TRAVEL ............ 20"

MAXIMUM GRINDING STROKE ......... 16"

WHEELHEAD CROSS SLIDE TRAVEL .... 1-1/2"

WORKHEAD FLANGE TO WHEEL SLIDE .. 0 TO 28-1/2"

TABLE SPEEDS (VARIABLE) ......... 0 TO 18 FPM

WORKHEAD SPEEDS (VARIABLE) ...... 0 TO 500 RPM

I.D. SPINDLE .................... RED HEAD
I.D. SPINDLE SPEED .............. 12000 RPM MAX

WORKHEAD SWIVEL ................. 90 DEGREES

TABLE FEED ...................... HYDRAULIC

COOLANT SYSTEM .................. YES

WORKHEAD SPINDLE MOTOR .......... 1-1/2 HP

I.D. SPINDLE MOTOR .............. 5 HP

HYDRAULIC MOTOR ................. 1/2 HP

This machine has been sold, but explore our inventory for similar options available now.
