Brand

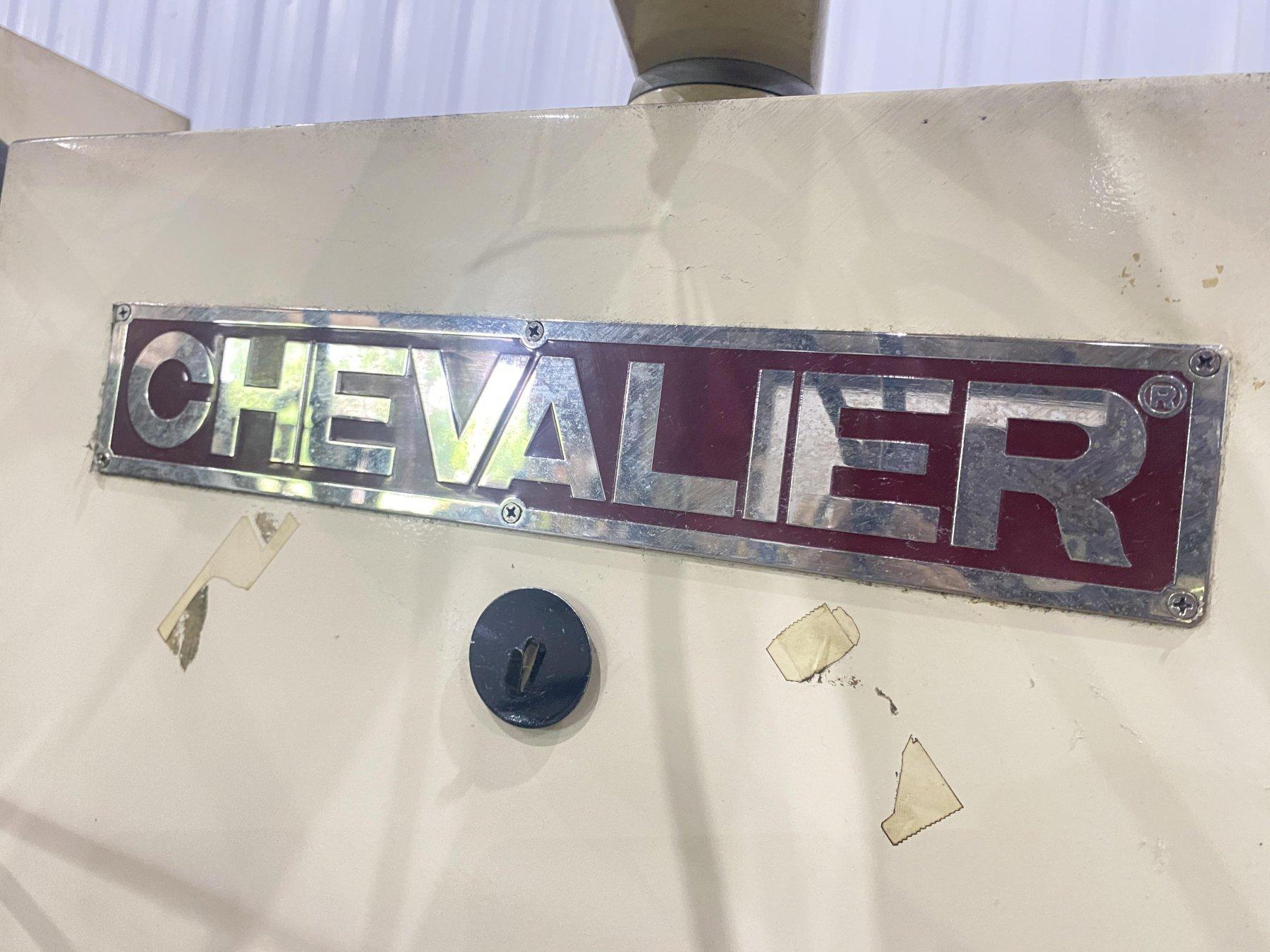

CHEVALIER
Type
Grinders, Surface
Stock No.
20968
 |
419-269-2000 |
Stock #: 20968

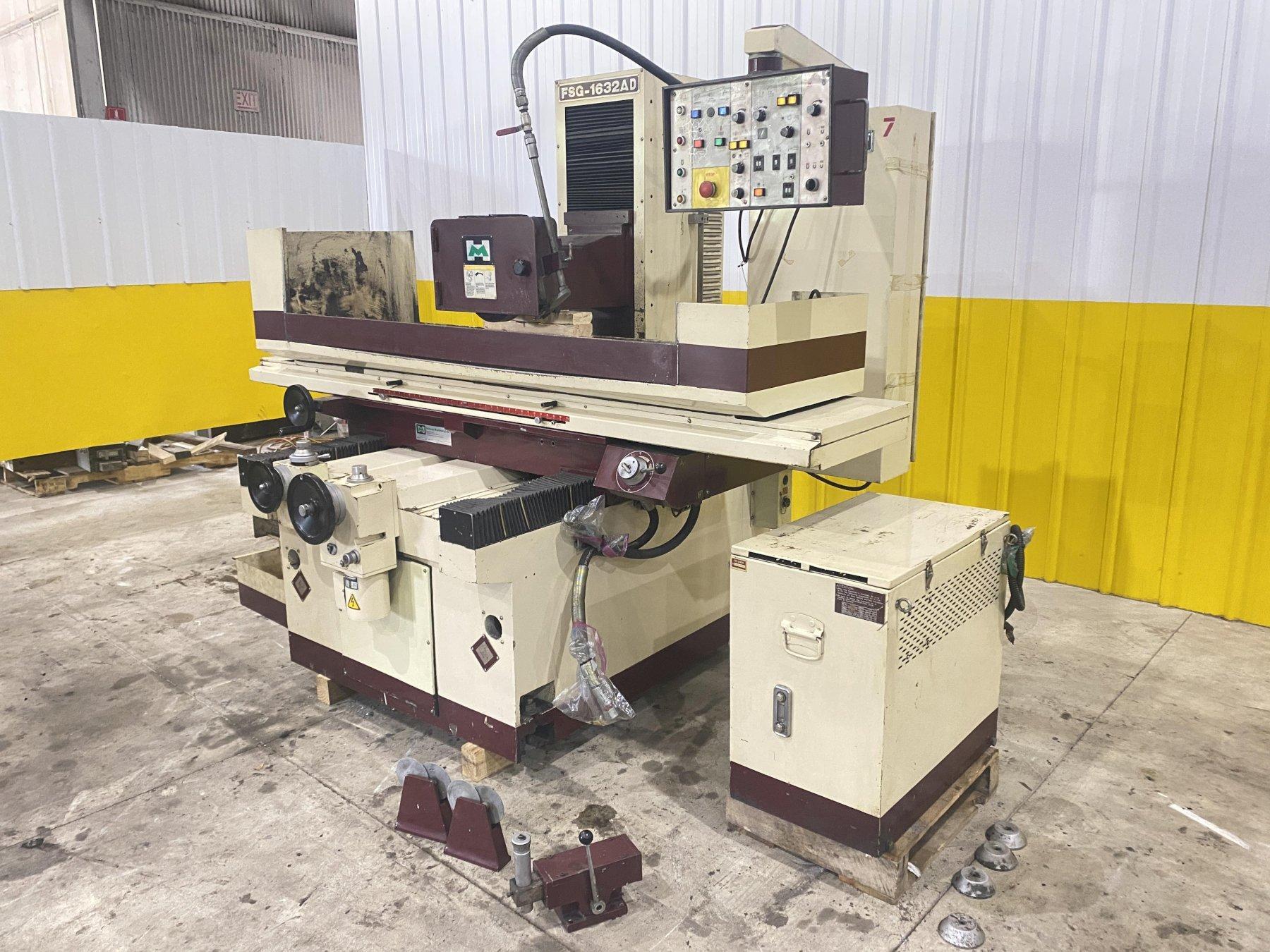

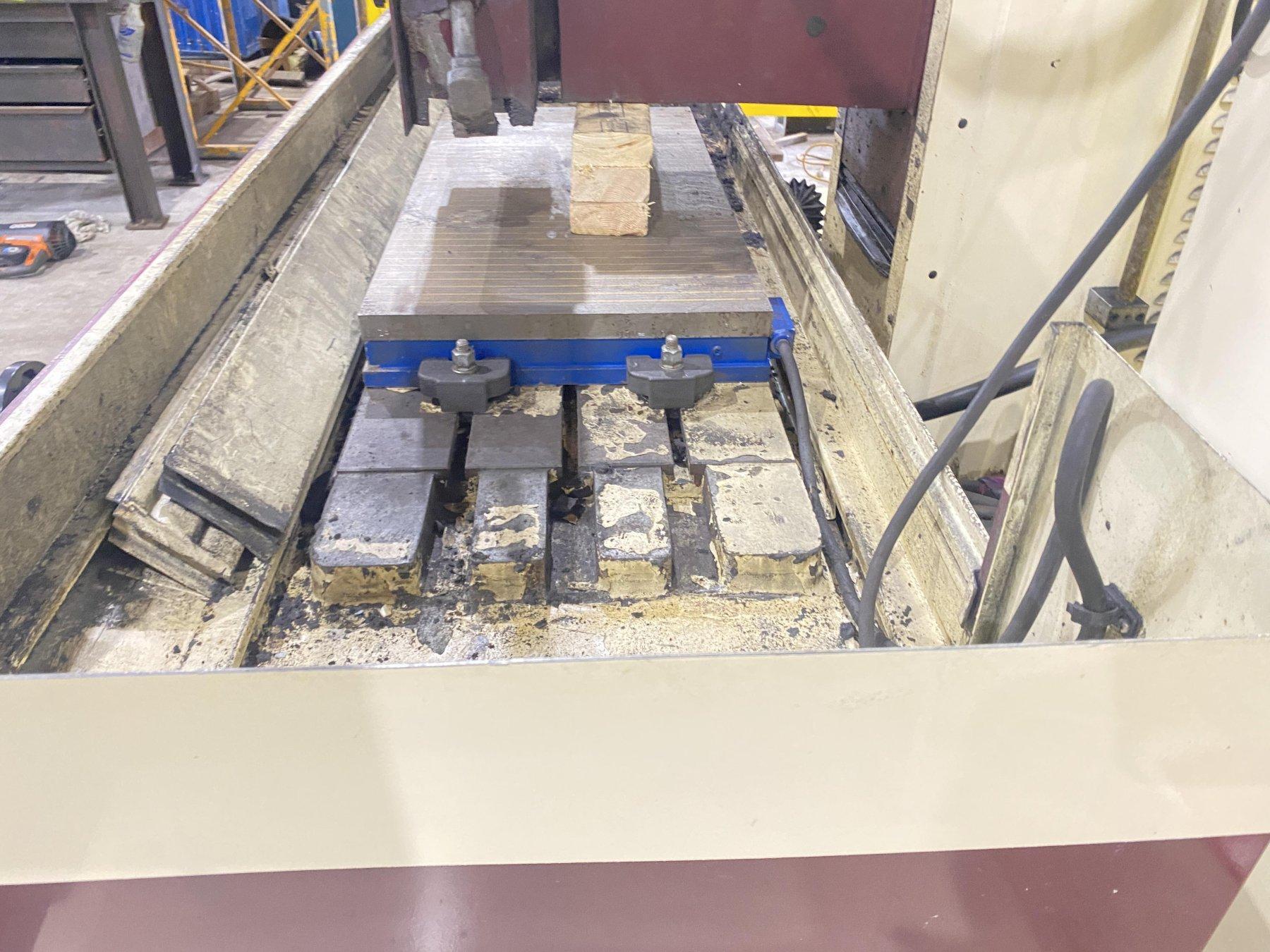

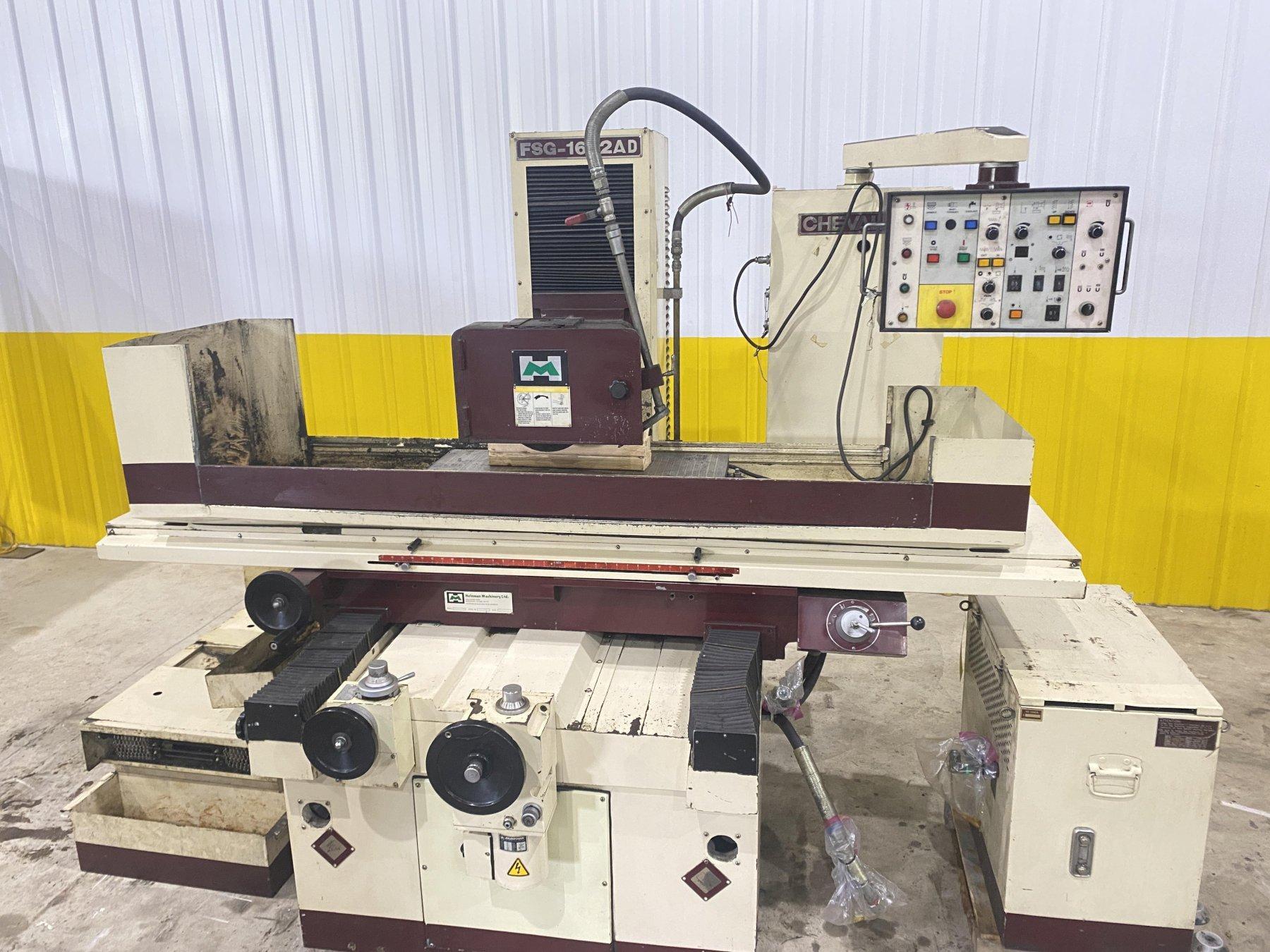

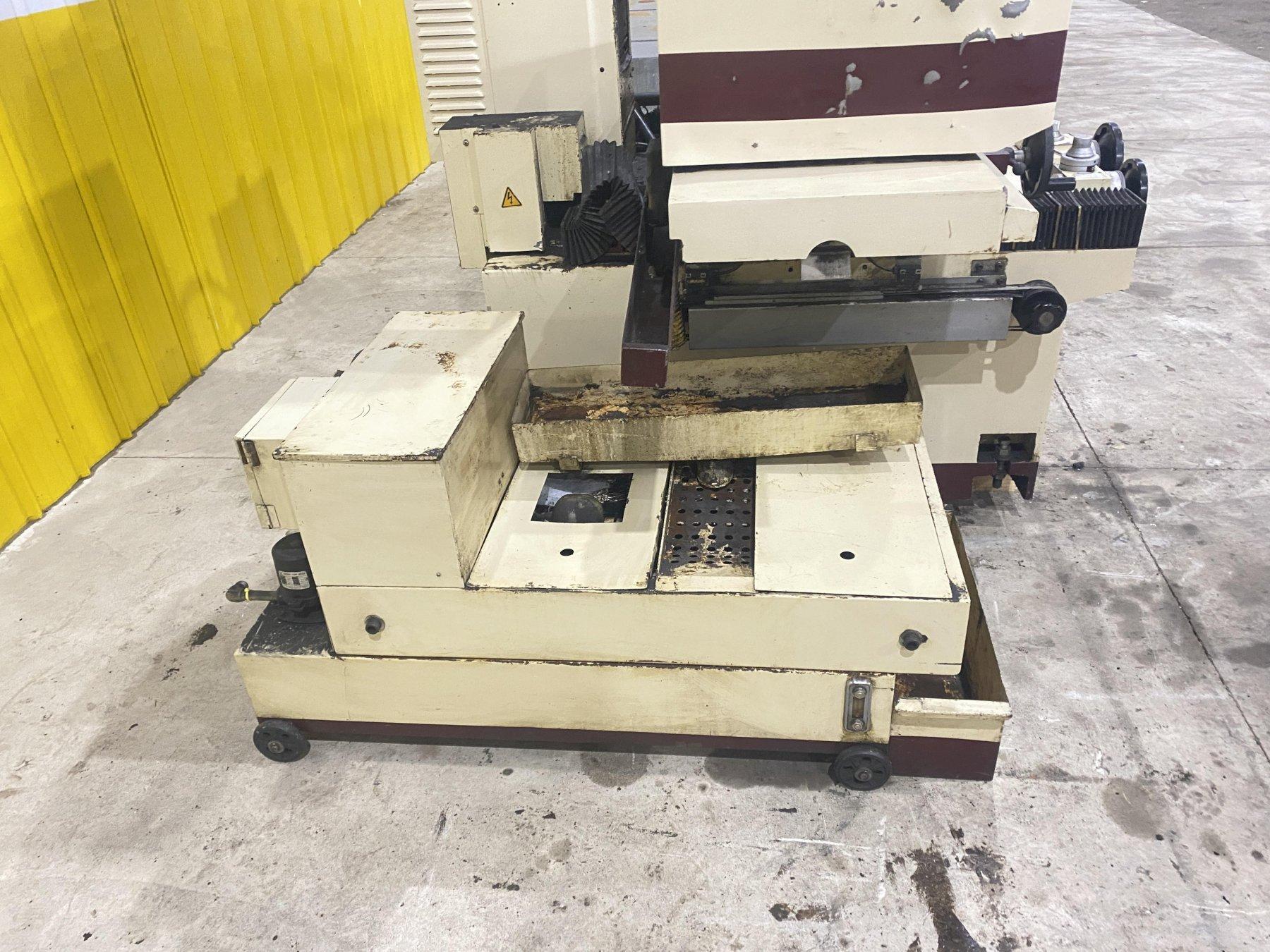

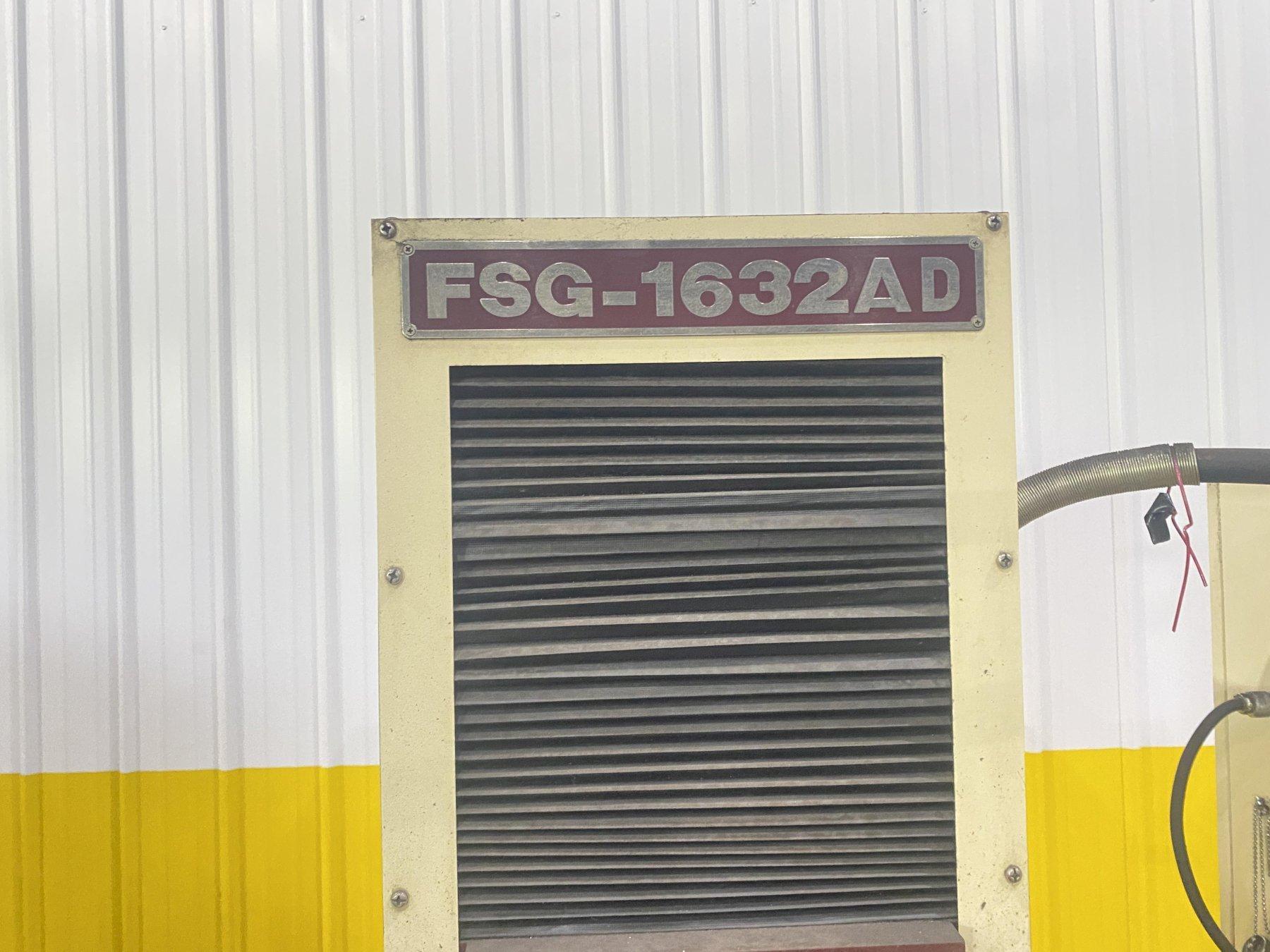

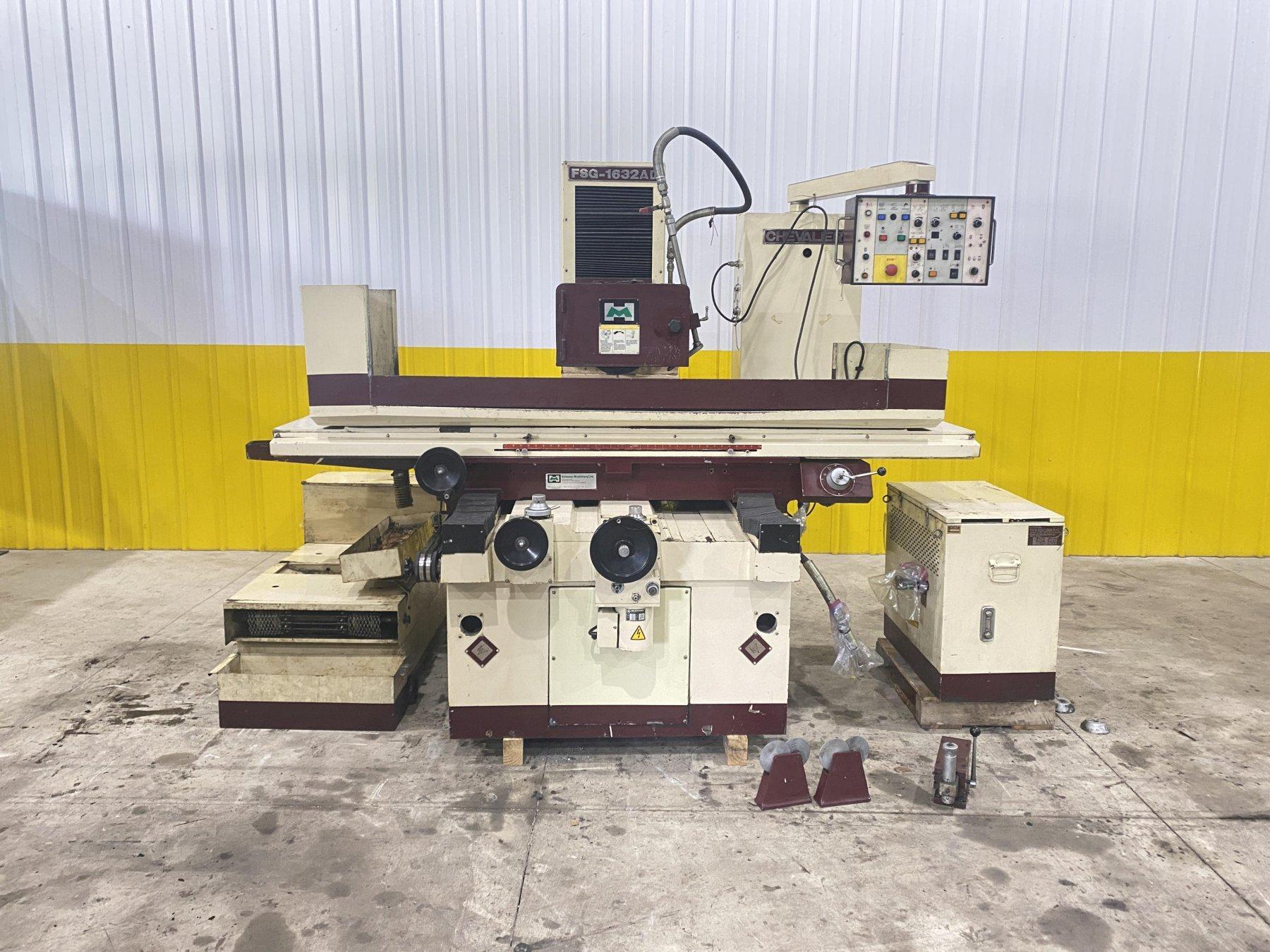

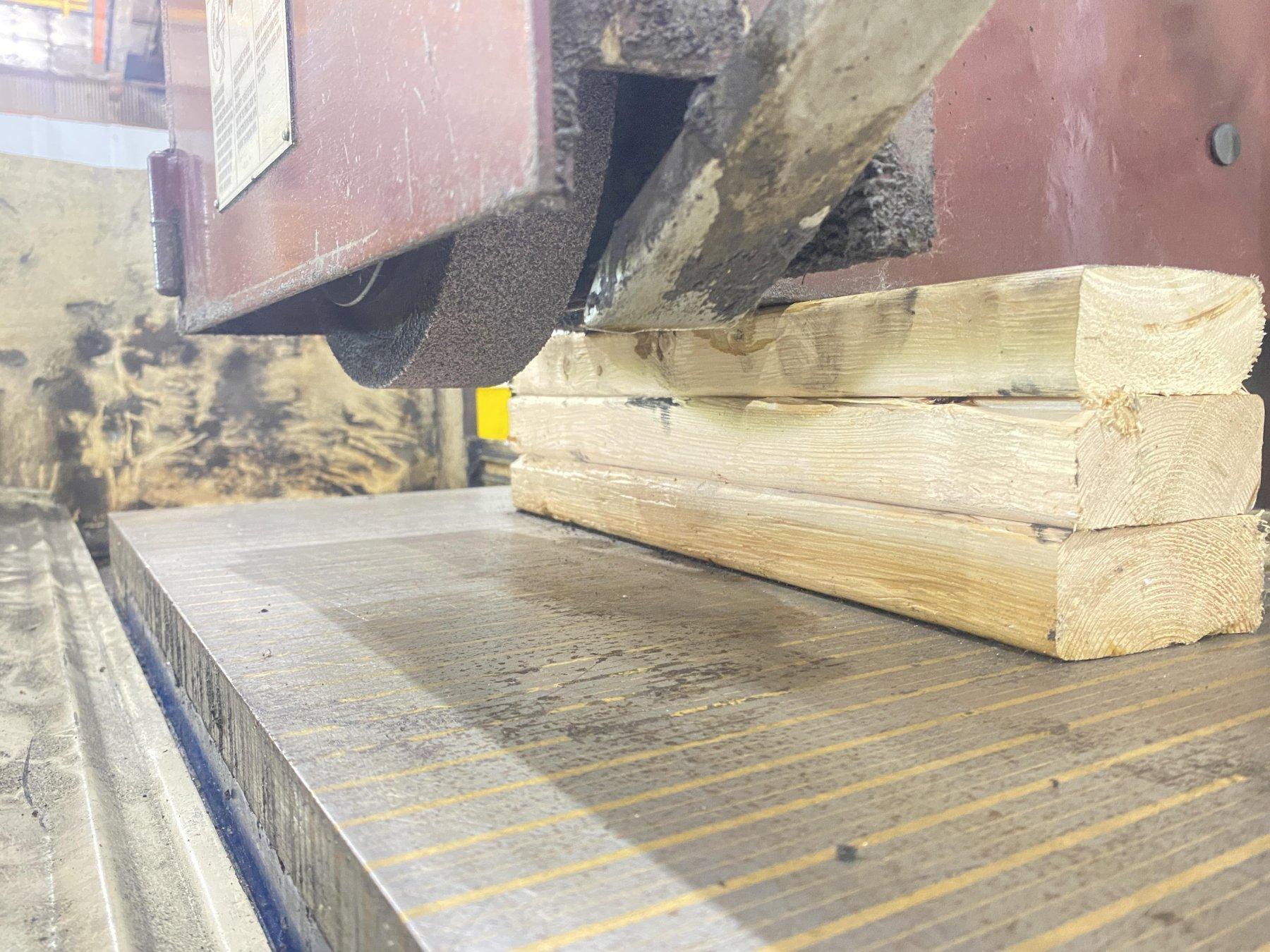

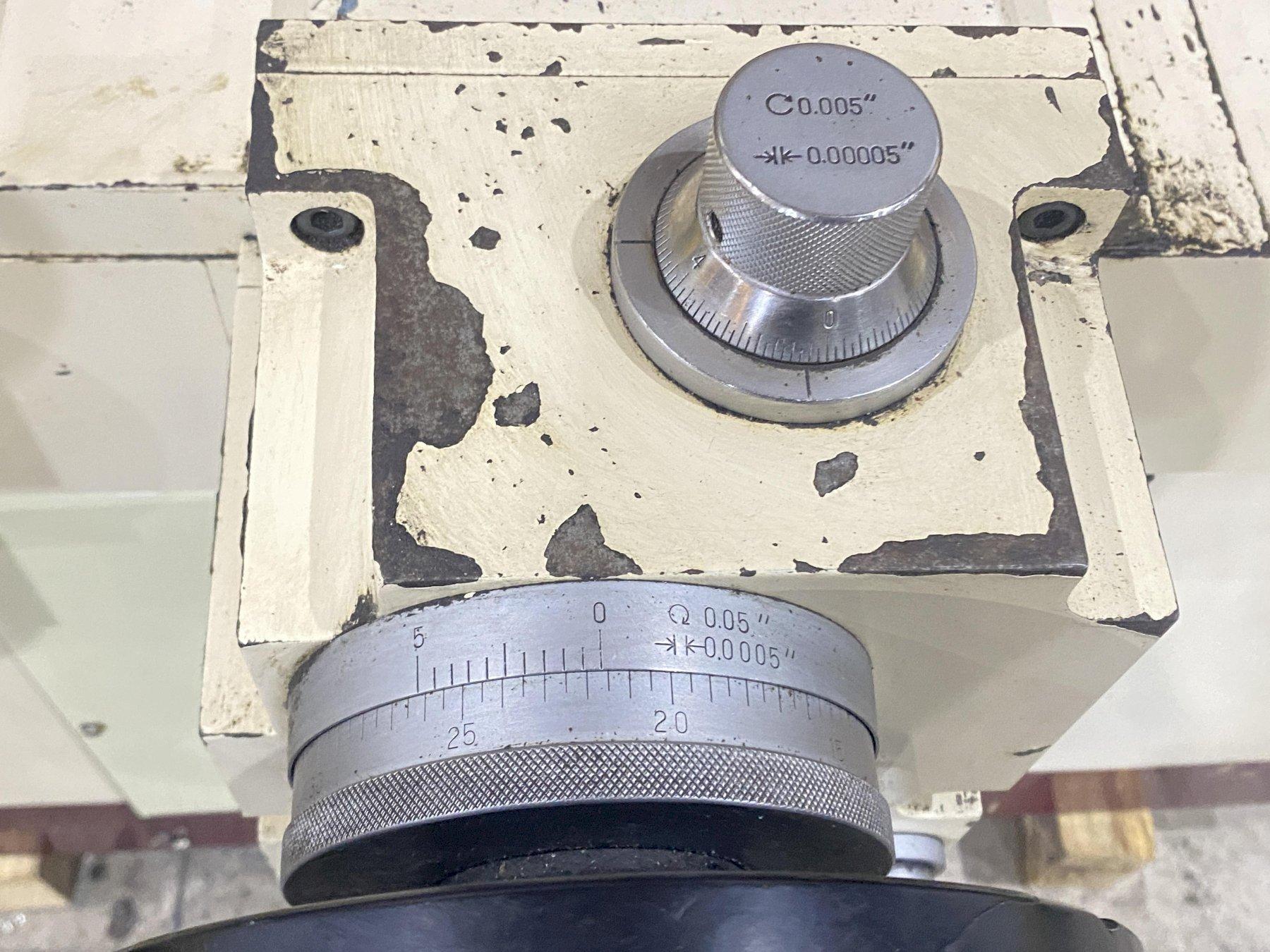

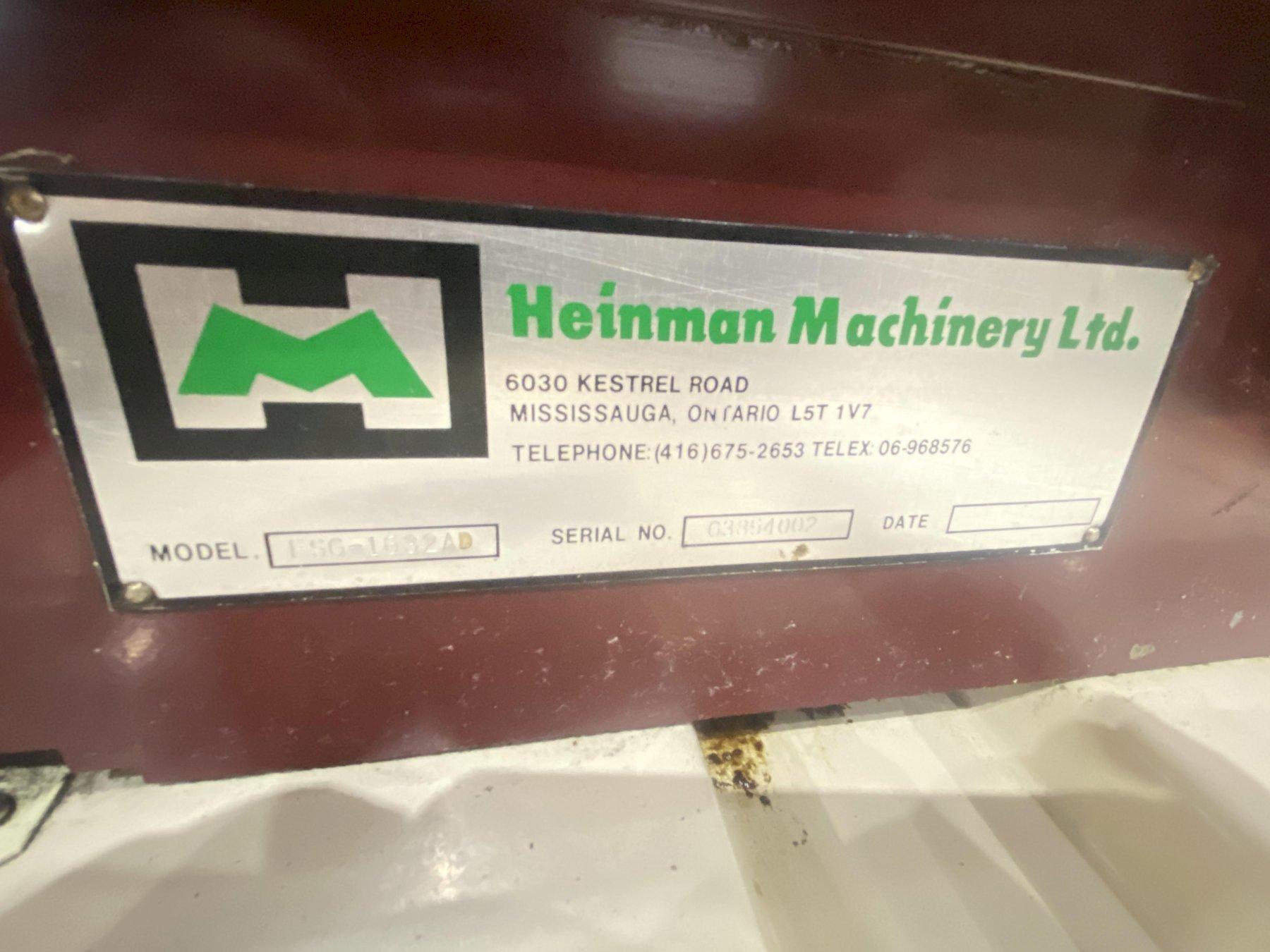

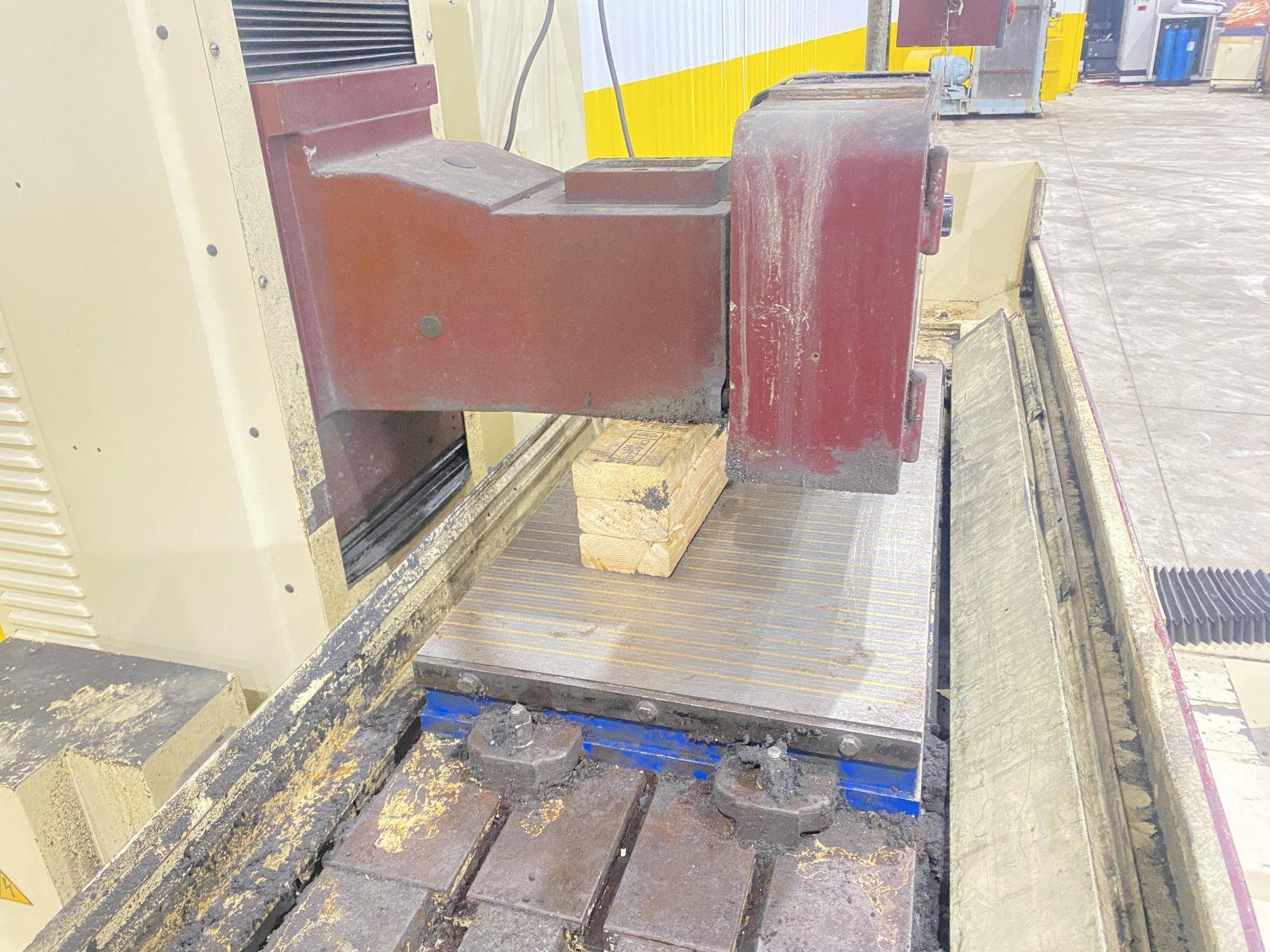

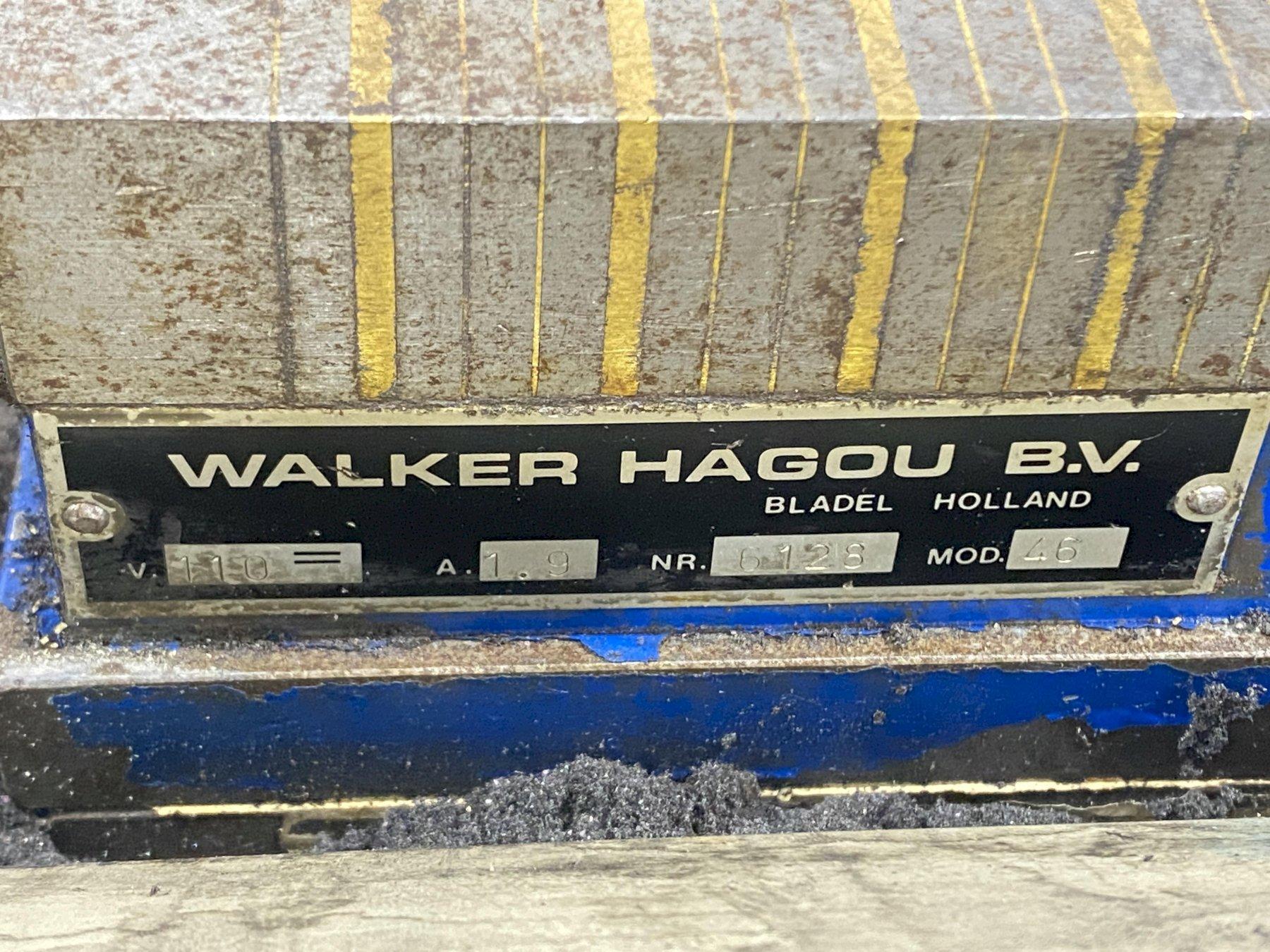

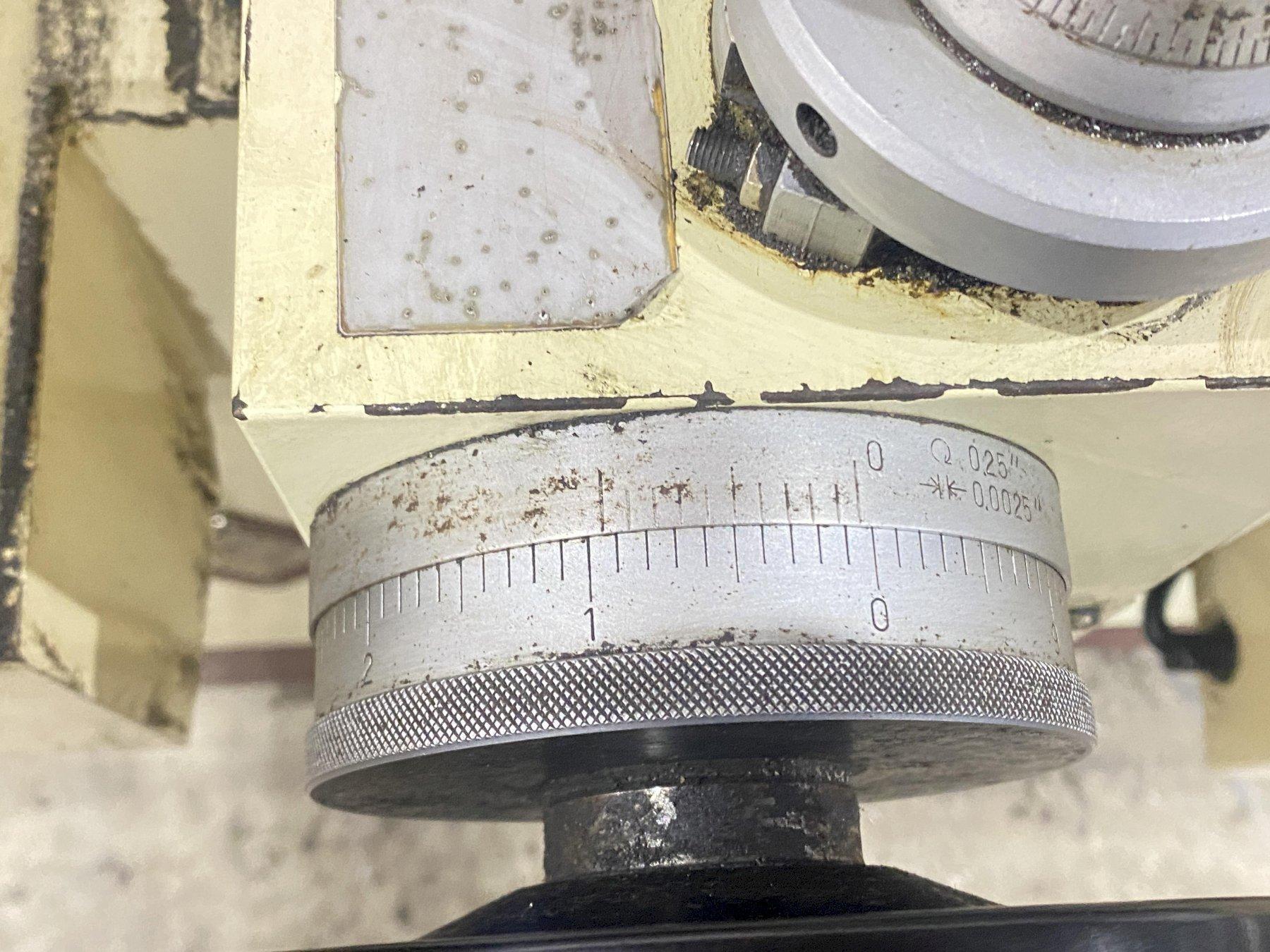

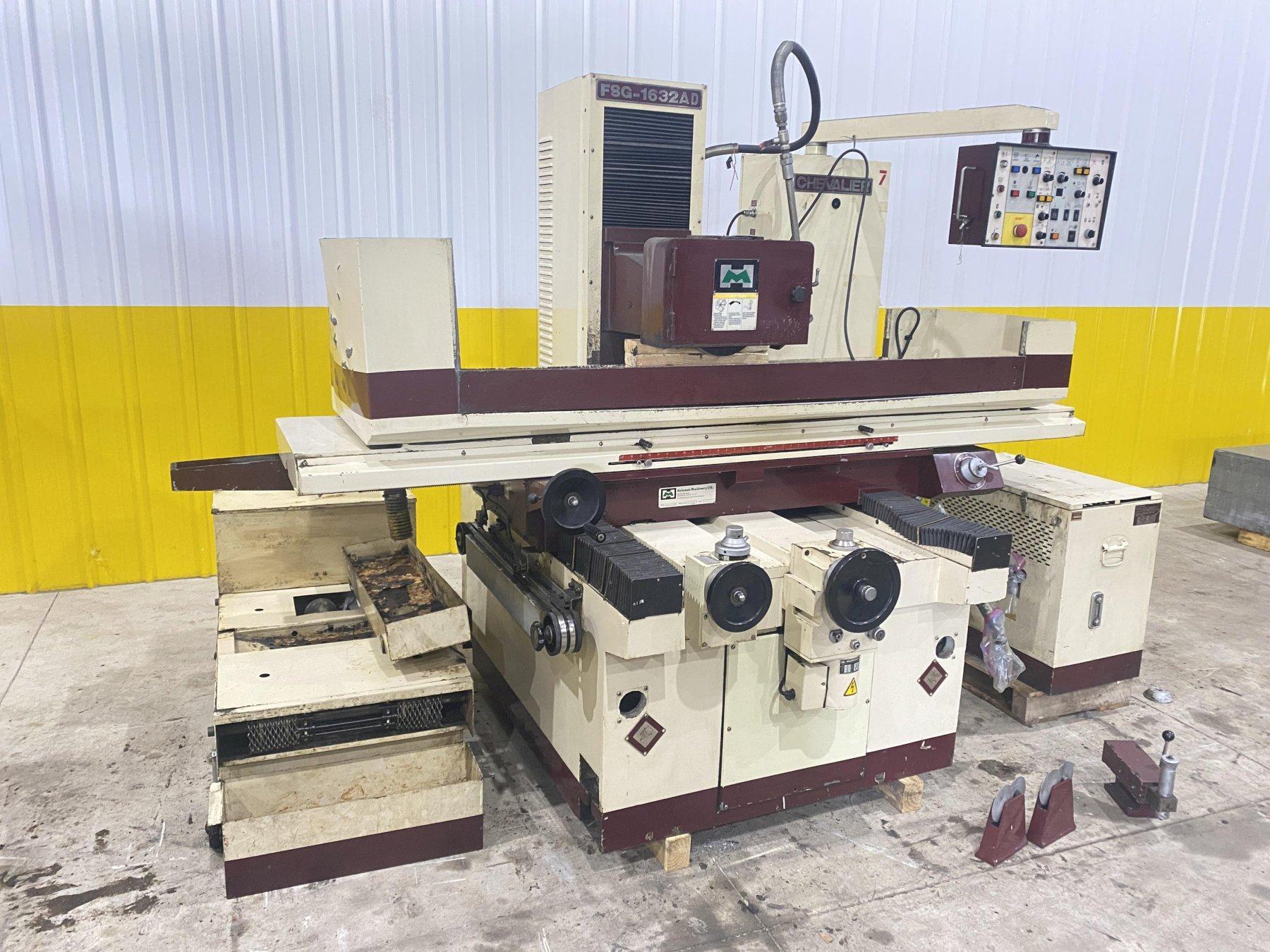

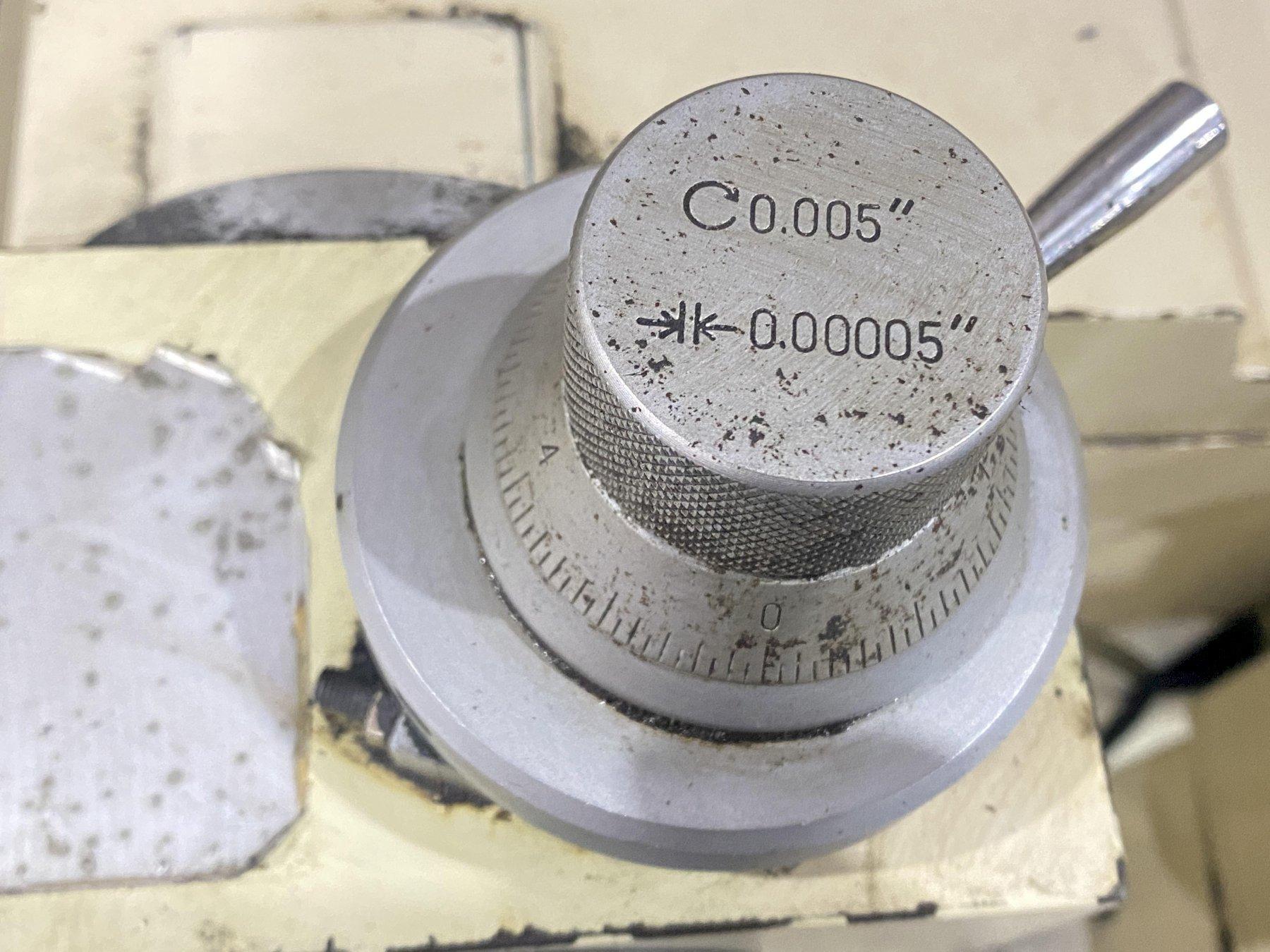

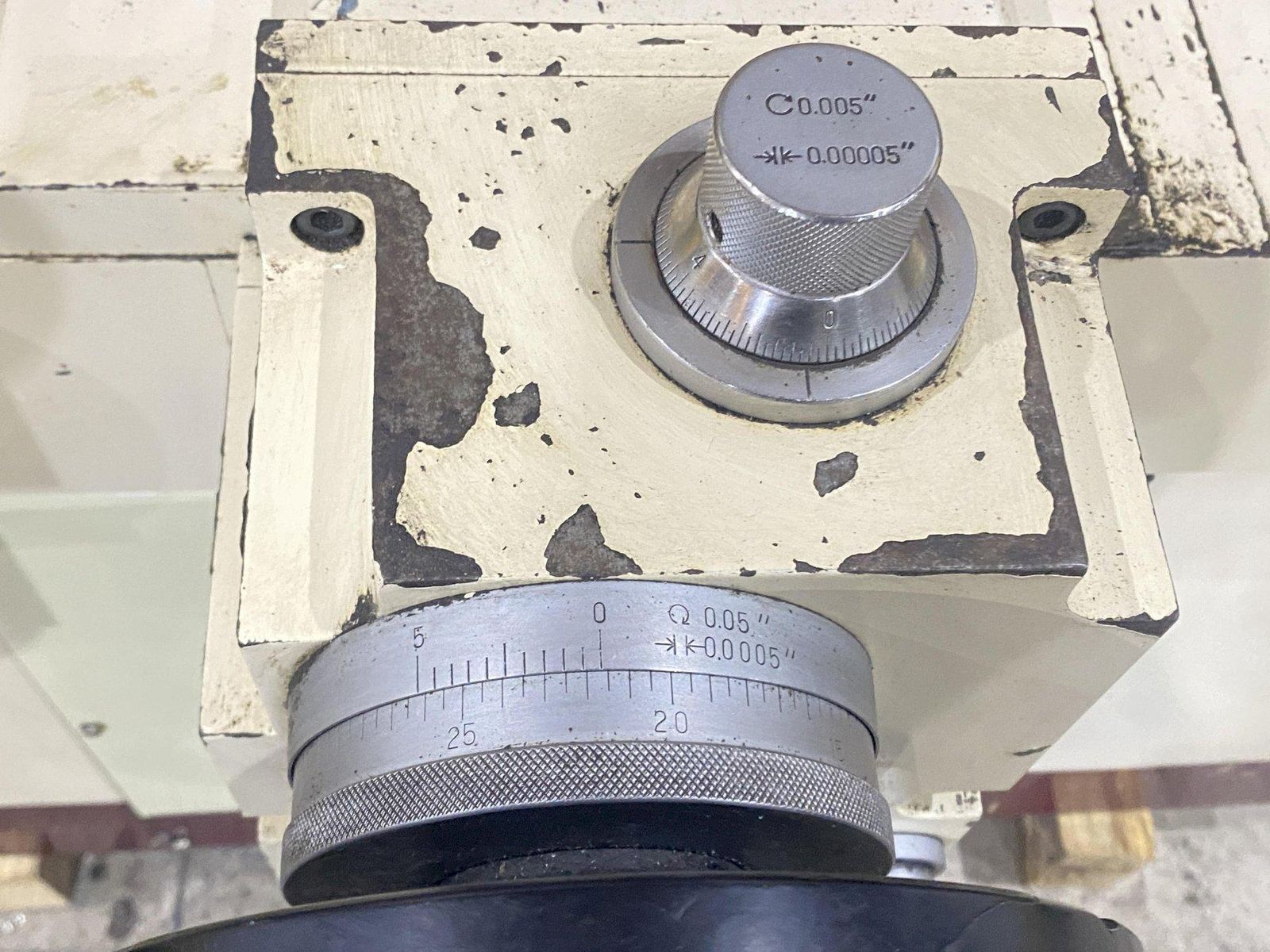

SERIAL ................................ G3854002MODEL ................................. FSG-1632ADGRINDING CAPACITY ..................... 16" X 32"SPINDLE TO TABLE (MAXIMUM) ............ 24"LONGITUDINAL TABLE TRAVEL ............. 35-3/8"CROSS TABLE TRAVEL .................... 18"TABLE SPEED (VARIABLE) ................ 5 TO 25 FPMSPINDLE SPEED ......................... 3450 RPMGRINDING WHEEL SIZE ................... 14" X 2" X 5"ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"AUTOMATIC CROSSFEED ................... 0.005 IPRPOWER ELEVATION ....................... 12 FPMCOOLANT W/PAPER FILTRATION ............ YESOVER THE WHEEL DRESSER ................ YESELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YESSPINDLE MOTOR ......................... 5 HORSEPOWERHYDRAULIC MOTOR ....................... 2 HORSEPOWER
