MAXIMUM NOMINAL DIAMETERAL PITCH ............................ 6 DP
MAXIMUM DIAMETER OF WORK .................................... 16"
MAXIMUM HOB DIAMETER ........................................ 5"
MAXIMUM HOB-SLIDE TRAVEL .................................... 16"
MAXIMUM WORK SLIDE TRAVEL ................................... 8"
MAXIMUM DISTANCE WORK SPINDLE TO HOB SPINDLE CENTERLINE ..... 8.75"
MINIMUM DISTANCE WORK SPINDLE TO HOB SPINDLE CENTERLINE ..... 0.75”
MAXIMUM DISTANCE WORK SPINDLE FACE TO TAILSTOCK-CENTER ...... 44"
WORK SPINDLE THRU-BORE DIAMETER ............................. 4.13"
HOB SPEED RANGE ............................................. 59 TO 425 RPM
FEED RANGES ................................................. 0.015 TO .150 I.P.R.
MAIN DRIVE MOTOR ............................................ 5 HP/1800 RPM
RAPID TRAVERSE HORSEPOWER ................................... 2
COOLANT PUMP HORSEPOWER ..................................... 1/4
LUBRICATION PUMP ............................................ 1/20 HP
FLOOR SPACE ................................................. 90”X 82"
MACHINE OVERALL HEIGHT ...................................... 84”
APPROX. MACHINE NET WEIGHT .................................. 7,600 LBS.

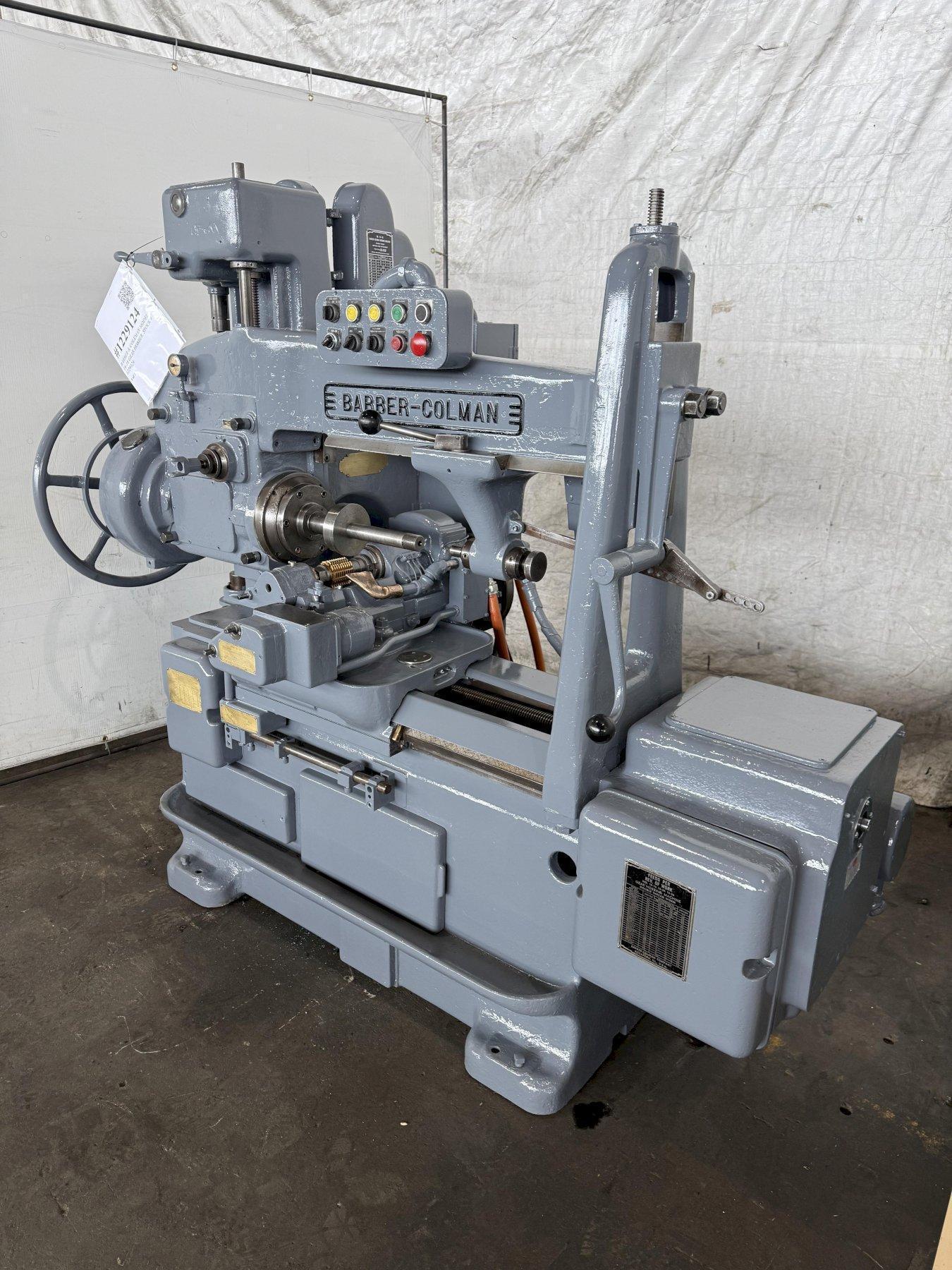

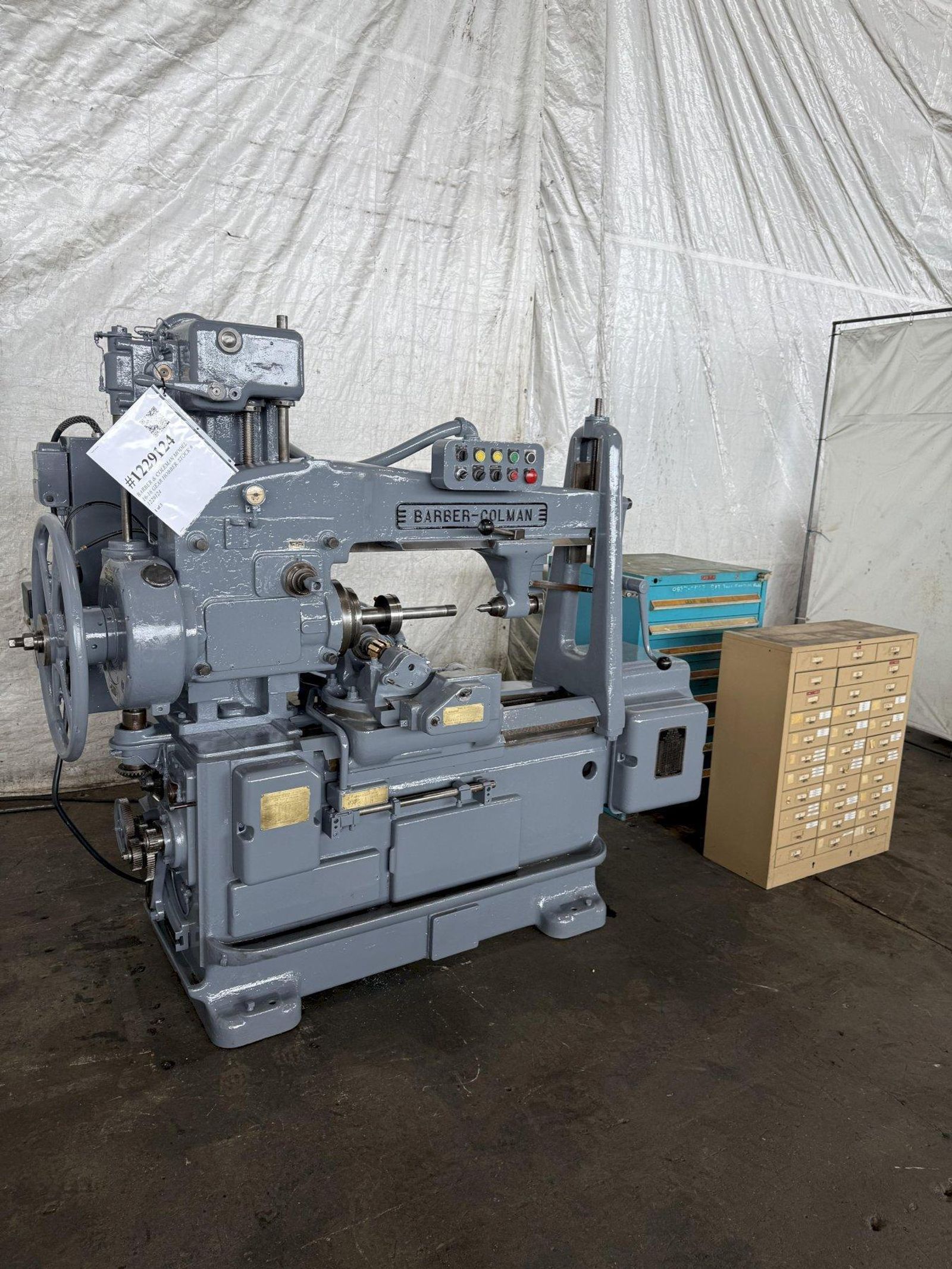

Brand
BARBER COLMAN
Type
Gear Hobbers
Stock No.
22417
 |
419-269-2000 |
Stock #: 22417
MAXIMUM NOMINAL DIAMETERAL PITCH ............................ 6 DP
MAXIMUM DIAMETER OF WORK .................................... 16"
MAXIMUM HOB DIAMETER ........................................ 5"
MAXIMUM HOB-SLIDE TRAVEL .................................... 16"
MAXIMUM WORK SLIDE TRAVEL ................................... 8"
MAXIMUM DISTANCE WORK SPINDLE TO HOB SPINDLE CENTERLINE ..... 8.75"
MINIMUM DISTANCE WORK SPINDLE TO HOB SPINDLE CENTERLINE ..... 0.75”
MAXIMUM DISTANCE WORK SPINDLE FACE TO TAILSTOCK-CENTER ...... 44"
WORK SPINDLE THRU-BORE DIAMETER ............................. 4.13"
HOB SPEED RANGE ............................................. 59 TO 425 RPM
FEED RANGES ................................................. 0.015 TO .150 I.P.R.
MAIN DRIVE MOTOR ............................................ 5 HP/1800 RPM
RAPID TRAVERSE HORSEPOWER ................................... 2
COOLANT PUMP HORSEPOWER ..................................... 1/4
LUBRICATION PUMP ............................................ 1/20 HP
FLOOR SPACE ................................................. 90”X 82"
MACHINE OVERALL HEIGHT ...................................... 84”
APPROX. MACHINE NET WEIGHT .................................. 7,600 LBS.
