Brand
LAMINA
Type
Die Casting Machines
Stock No.
18990
 |
419-269-2000 |
Stock #: 18990

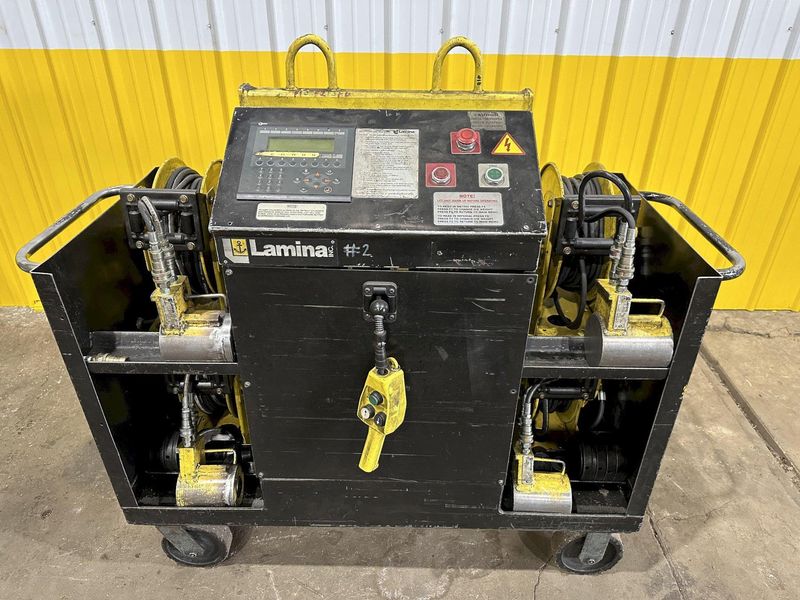

SERIAL ........................ 1061NUMBER OF LIFT CYLINDERS ...... 4ALLEN BRADLEY PANELVIEW ....... YESMICROPROCESSOR CONTROL ........ E300 DIGITALPENDANT CONTROL ............... YESPORTABLE CART MOUNTED FRAME ... YESPortable Electronic Die Setter - 4 CylindersOne compact, low profile wheeled cabinet contains all the equipment you need for all the punch spotting, die setting and die separation jobs in your shop. This die setter is completely portable with self-retracting hose reels and pendant.Each Die Setter has two modes of operation:1. Unify Mode - Cylinders will extend until each makes contact with the die; cylinders will subsequently lift uniformly, creating a synchronous lifting system.2. Parallel Mode - Cylinders will extend uniformly, at the same rate, and act as a synchronous jacking system. To initiate this mode, cylinders must be fully extended or fully retracted.
