SERIAL ................................ 001
MODEL ................................. WRL2510
YEAR .................................. 2003
MAX LENGTH ............................ 350MM
SINGLE PIECE ROLLING OUTPUT ........... 500-750
MAX NUMBER DOUBLE STROKES PER MIN ..... 14
MAX PRODUCTION RATE ................... 800 PCS/HR
INITIAL BILLET DIAMETER ............... 20-23MM
INITIAL BILLET LENGTH ................. 80-120MM
MAX LENGTH ROLL FORGING DIAMETER ...... 20-23MM
MAX LENGTH ROLL FORGING LENGTH ........ 240MM
TOOL LENGTH ........................... 1000MM
MIN AUTOMATIC CYCLE TIME .............. 4.5
INSTALLED ELECTRIC POWER .............. 116KW
OPERATION MODE ........................ 2-SHIFT
DUAL MOTOR HY UNIT .................... 50HP
POWER SUPPLY .......................... 3PH,AC/380/480V/50/60HZ
COMPRESSED AIR LINE CHARACTERISTICS:
PRESSURE .............................. 0,6-0,8 MPA
MAX RATED NORMAL AIR FLOW RATE 1/MIN .. 1000
Brand
AMT
Type
Forging Rolls
Stock No.
12192
 |
419-269-2000 |
Stock #: 12192

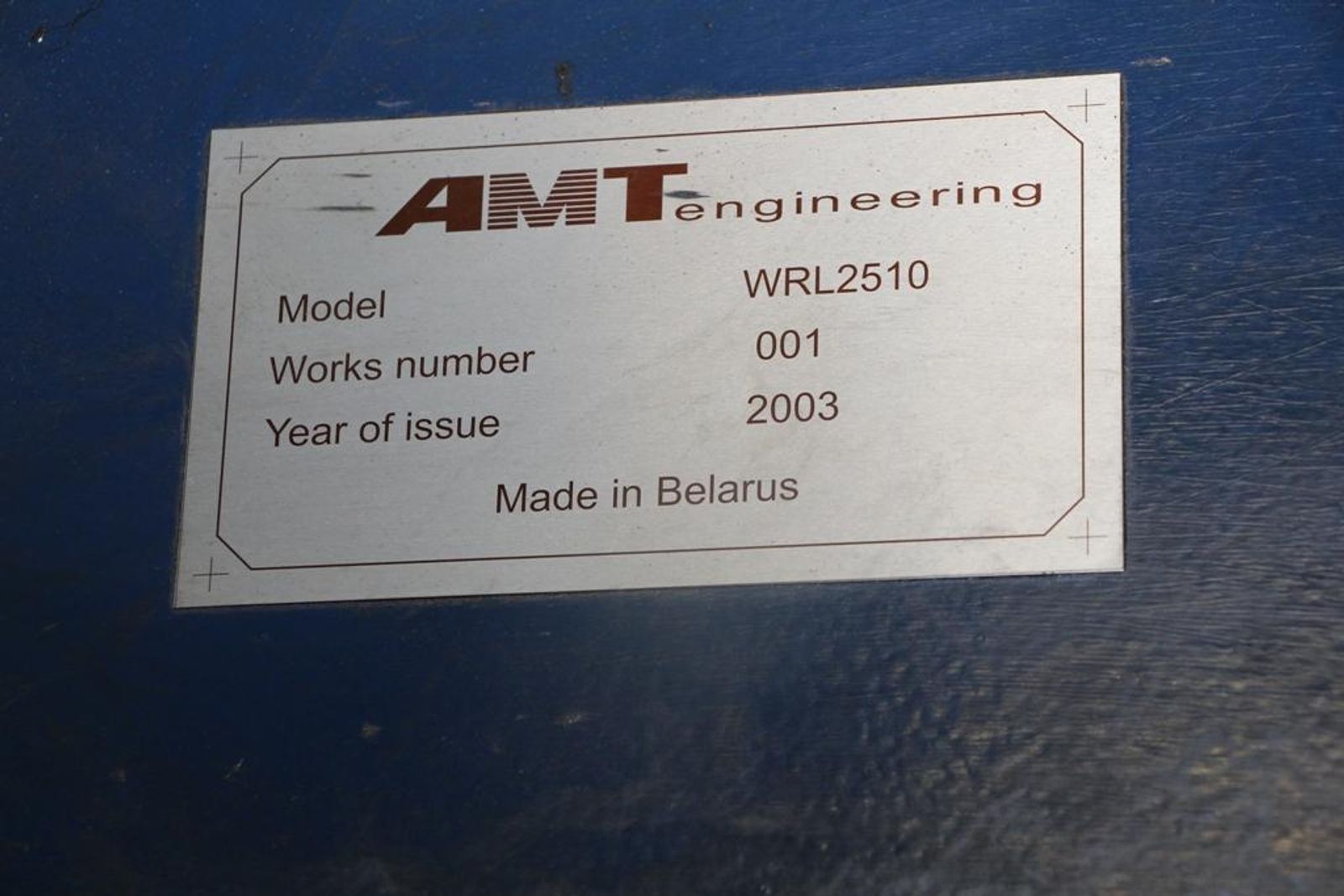

SERIAL ................................ 001
