Overview

MODEL ........................... AM-2V

Table Size ...................... 9” x 49”

Longitudinal Travel (X-Axis) .... 32-1/2”

Cross Travel (Y-Axis) ........... 12-1/2”

Knee Travel (Z-Axis) ............ 16”

Overarm Travel .................. 16-1/4”

Number of T-Slots ............... 3

T-Slot Size and Centers ......... 5/8”, 2-1/2”

DRILLING SPECIFICATIONS:

CAST IRON ....................... 3/4"

STEEL ........................... 5/8"

FACE MILL ....................... 3"

END MILL ........................ 3/4"

SPINDLE TAPER ................... R8 OR NT-30

QUILL DIAMETER .................. 3-3/8"

COLLET CAPACITY ................. 1/8" TO 5/8"

VARAIABLE SPINDLE SPEED ......... 60 TO 4200 RPM

SPINDLE FEEDS ................... .0015, .0003, .0006 INCH/REV

SPINDLE TO COLUMN ............... 5" TO 17-3/8"

MOTOR ........................... 3 HP

Acu-Rite MillPower 3 Axis Controller

Specifications
Weight	2200 pounds
Dimensions	54" X 48"

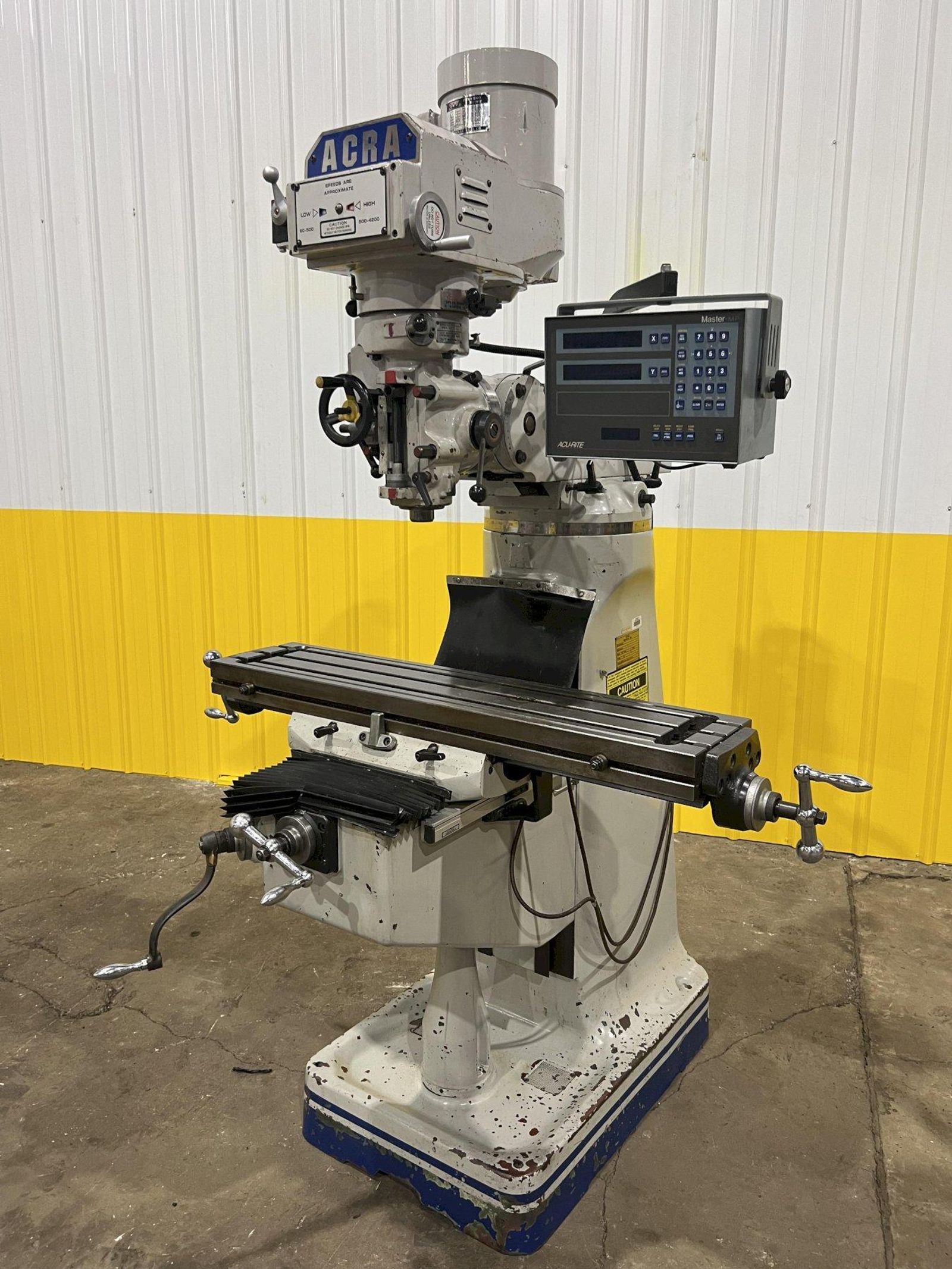

2 HP ACRA MODEL #AM-2V VERTICAL KNEE MILL: STOCK #18824

Brand
ACRA

Type
Boring Mills, Vertical

Stock No.
18824

Buy Now

Price: $4950.00

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

2 HP ACRA MODEL #AM-2V VERTICAL KNEE MILL: STOCK #18824

Stock #: 18824

Equipped With

MODEL ........................... AM-2V
Table Size ...................... 9” x 49”
Longitudinal Travel (X-Axis) .... 32-1/2”
Cross Travel (Y-Axis) ........... 12-1/2”
Knee Travel (Z-Axis) ............ 16”
Overarm Travel .................. 16-1/4”
Number of T-Slots ............... 3
T-Slot Size and Centers ......... 5/8”, 2-1/2”

DRILLING SPECIFICATIONS:
CAST IRON ....................... 3/4"
STEEL ........................... 5/8"
FACE MILL ....................... 3"
END MILL ........................ 3/4"
SPINDLE TAPER ................... R8 OR NT-30
QUILL DIAMETER .................. 3-3/8"
COLLET CAPACITY ................. 1/8" TO 5/8"
VARAIABLE SPINDLE SPEED ......... 60 TO 4200 RPM
SPINDLE FEEDS ................... .0015, .0003, .0006 INCH/REV
SPINDLE TO COLUMN ............... 5" TO 17-3/8"
MOTOR ........................... 3 HP
Acu-Rite MillPower 3 Axis Controller
