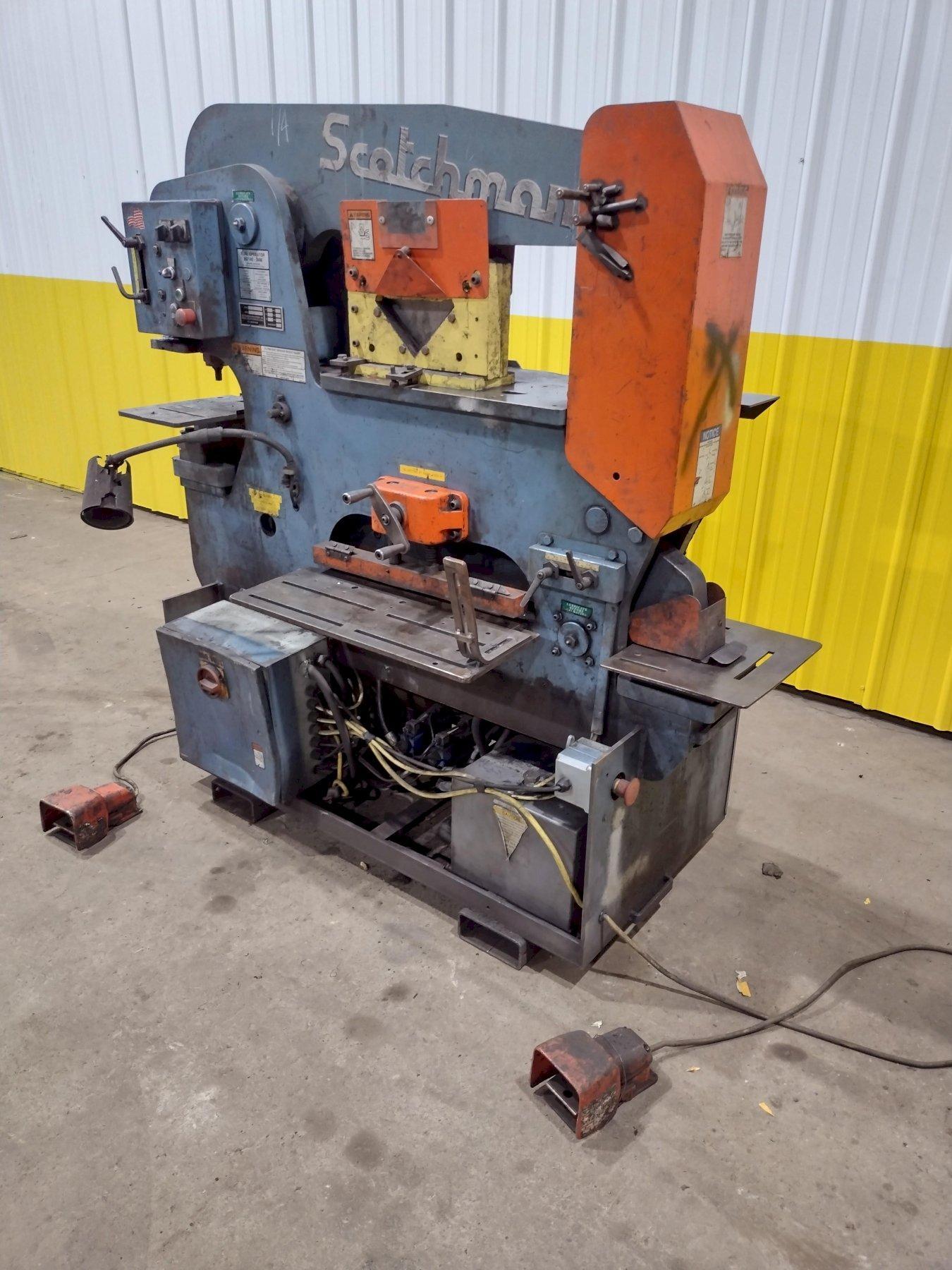

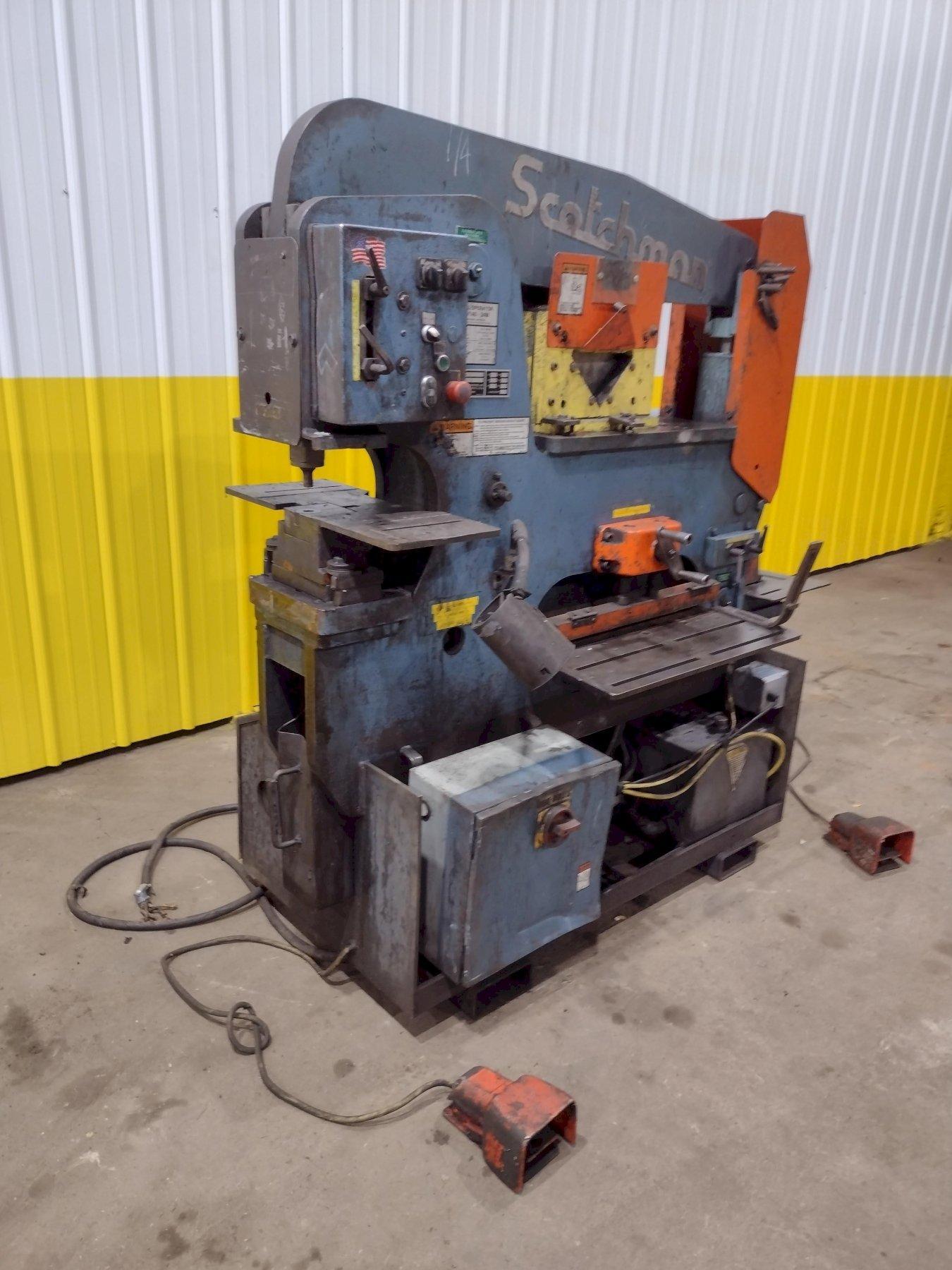

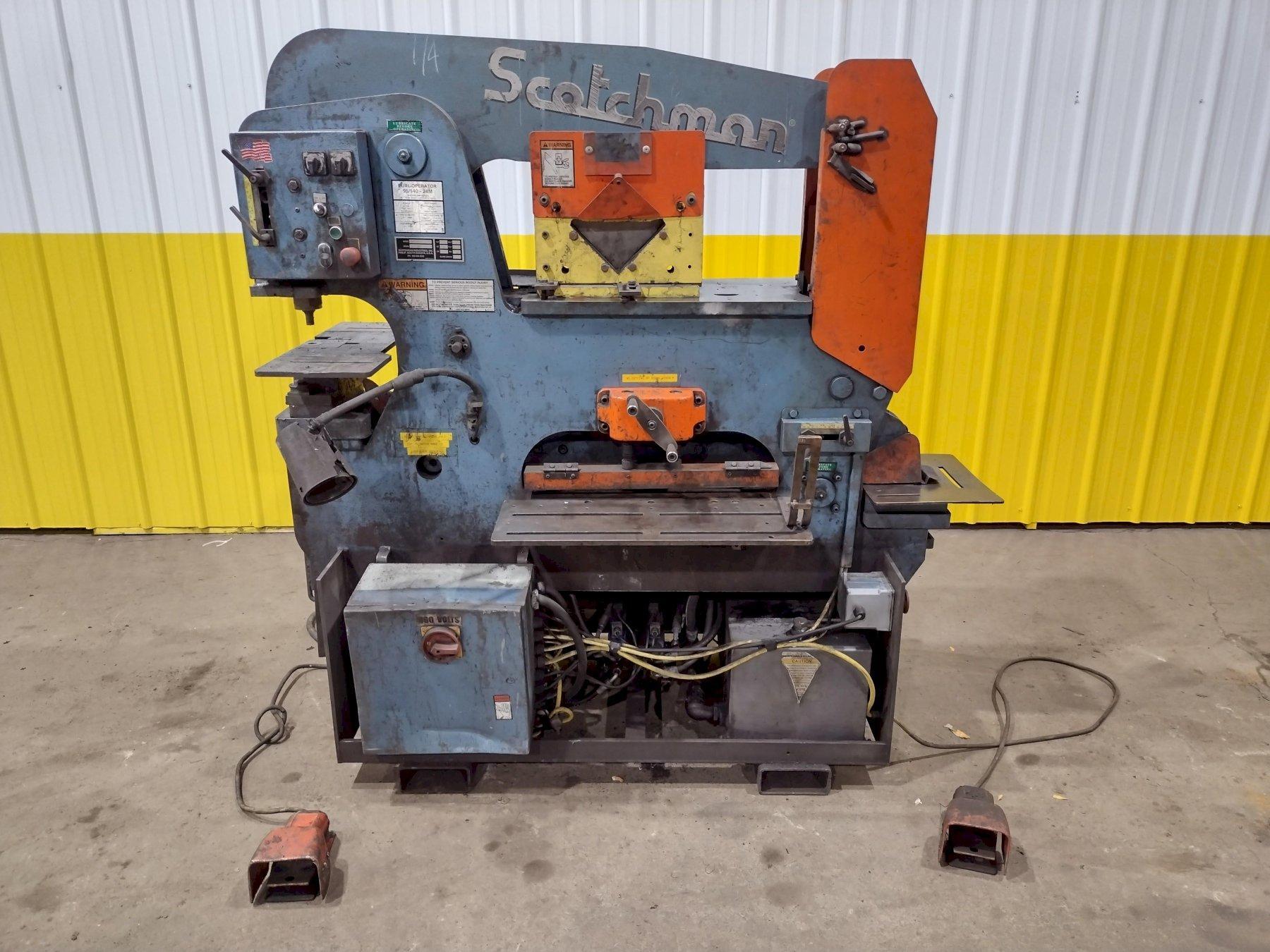

95 TON SCOTCHMAN MODEL #95/140-24M DUAL OPERATOR HYDRAULIC IRONWORKER: STOCK #19297

Overview

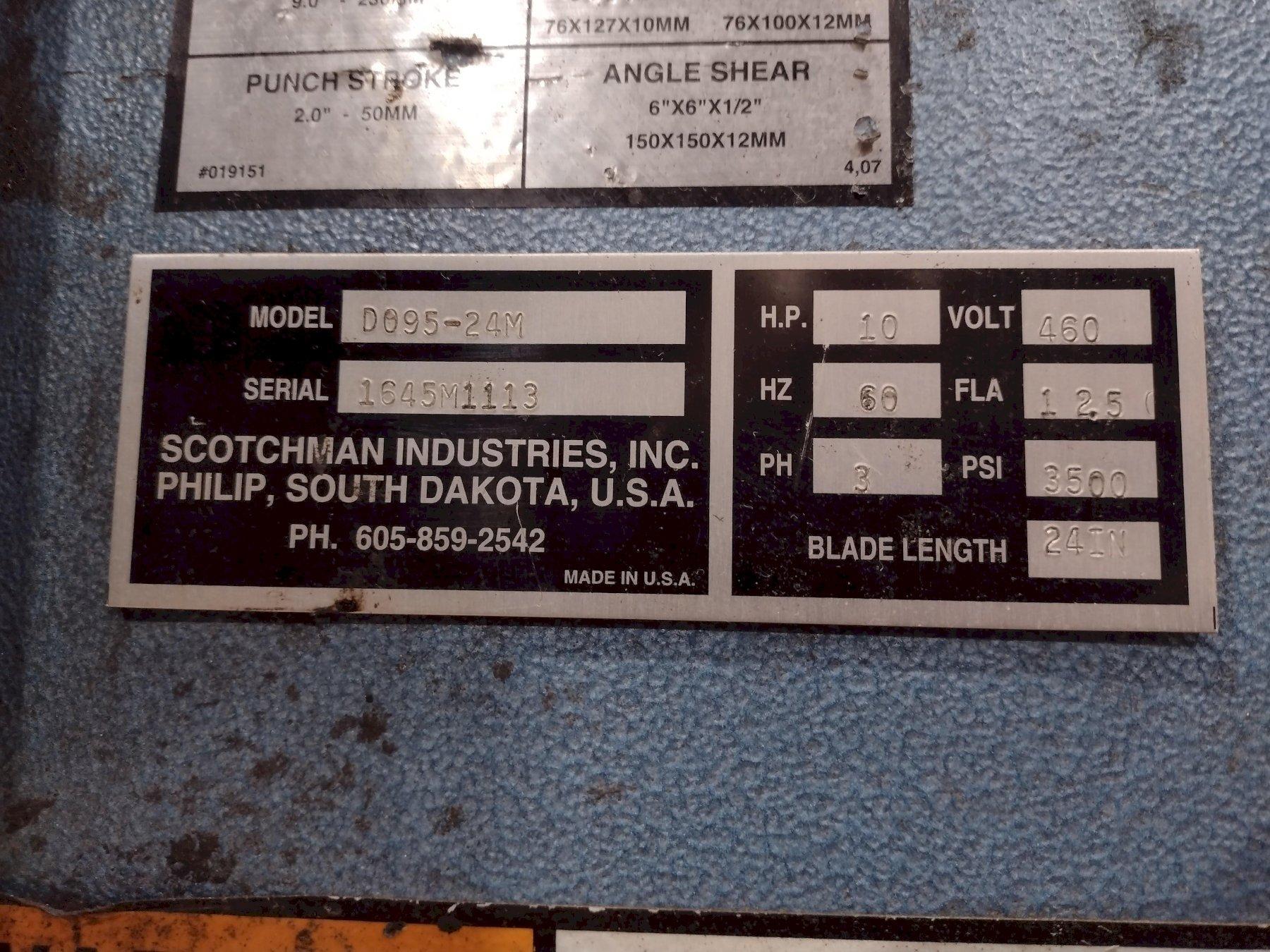

SERIAL ................................ 1645M1113
NEW ................................... 2013
MODEL ................................. D095/140-24M

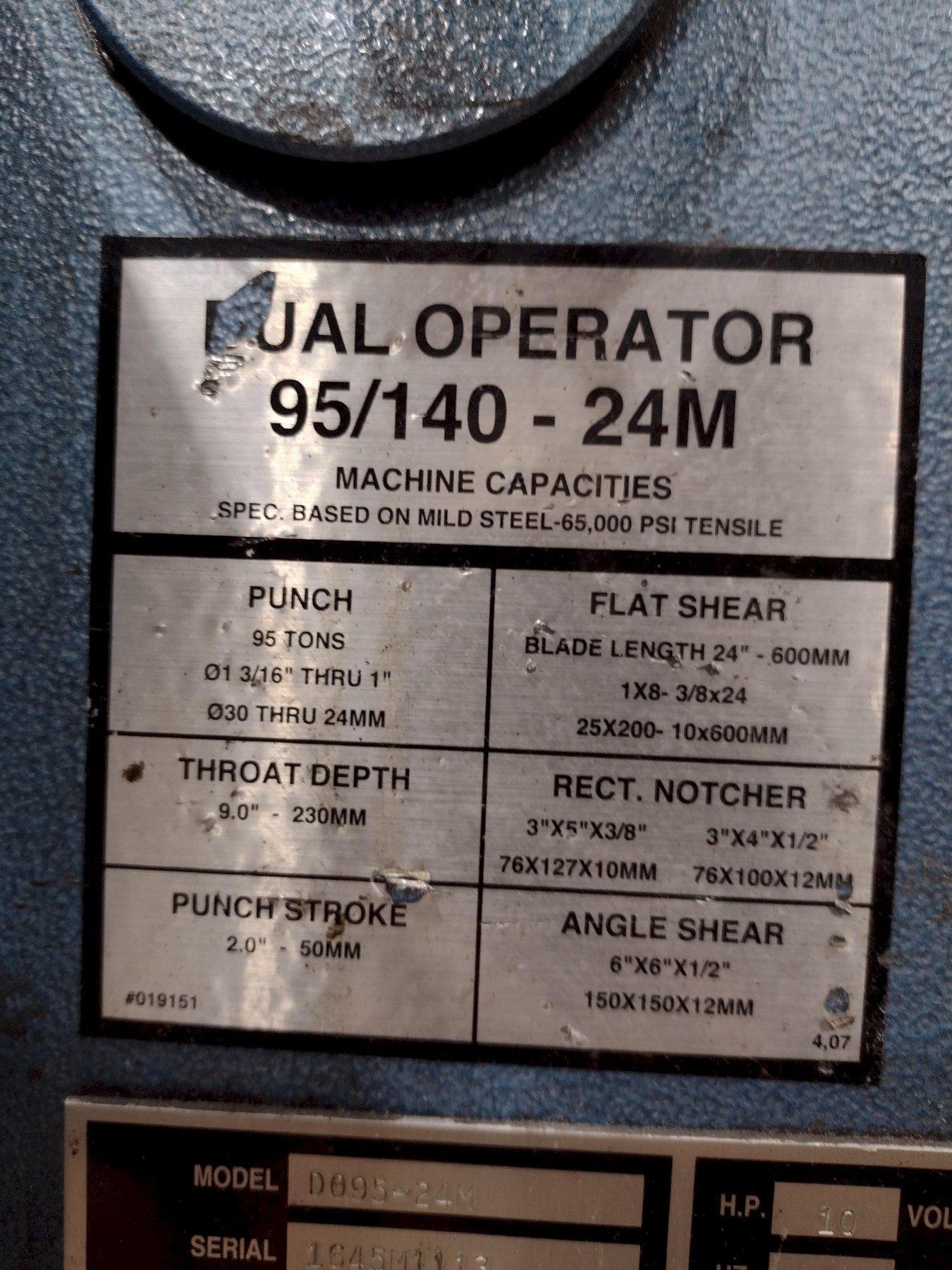

PUNCHING CAPACITY ..................... 95 TON 1-3/16" IN 1"
THROAT DEPTH .......................... 9"

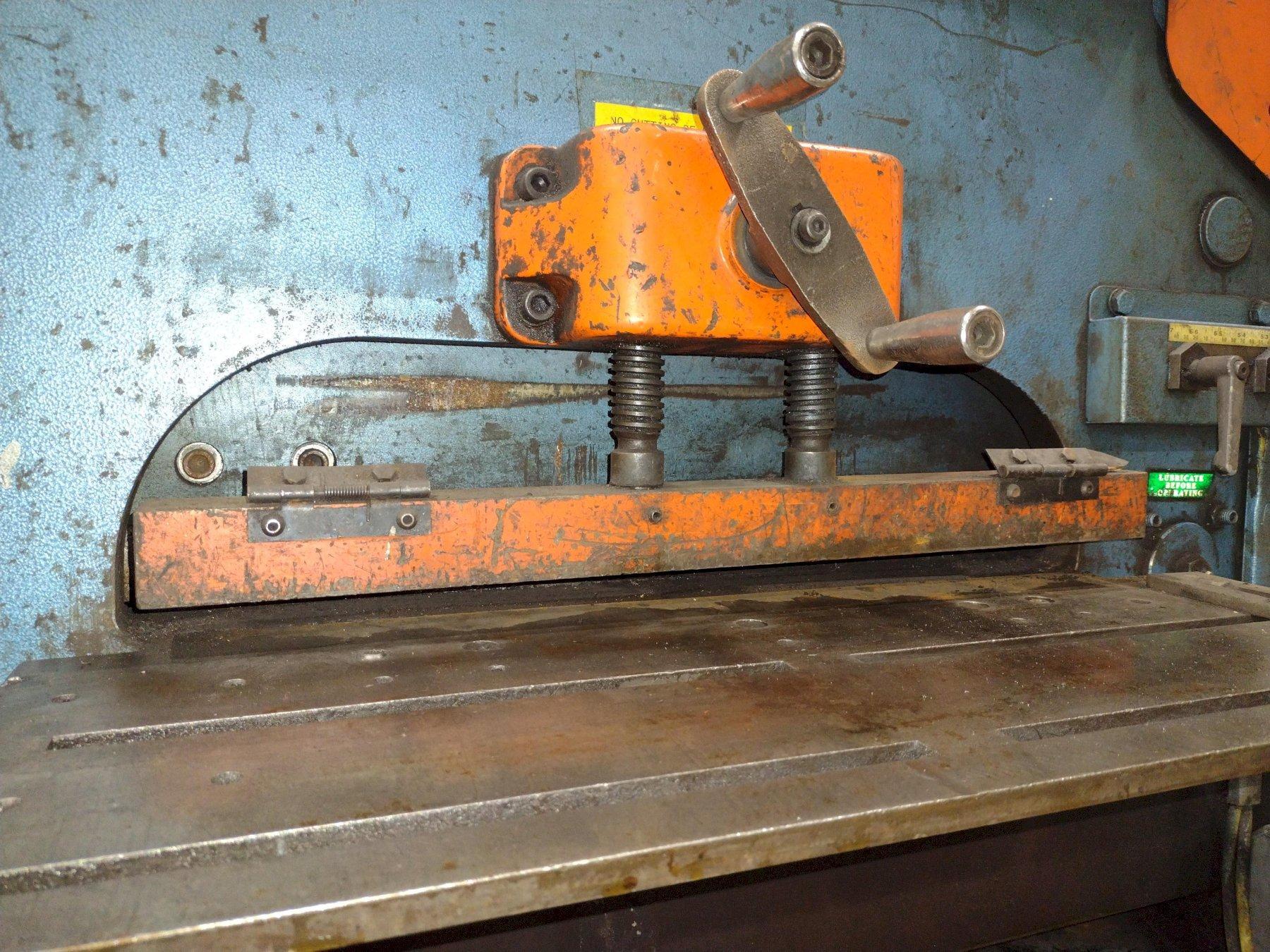

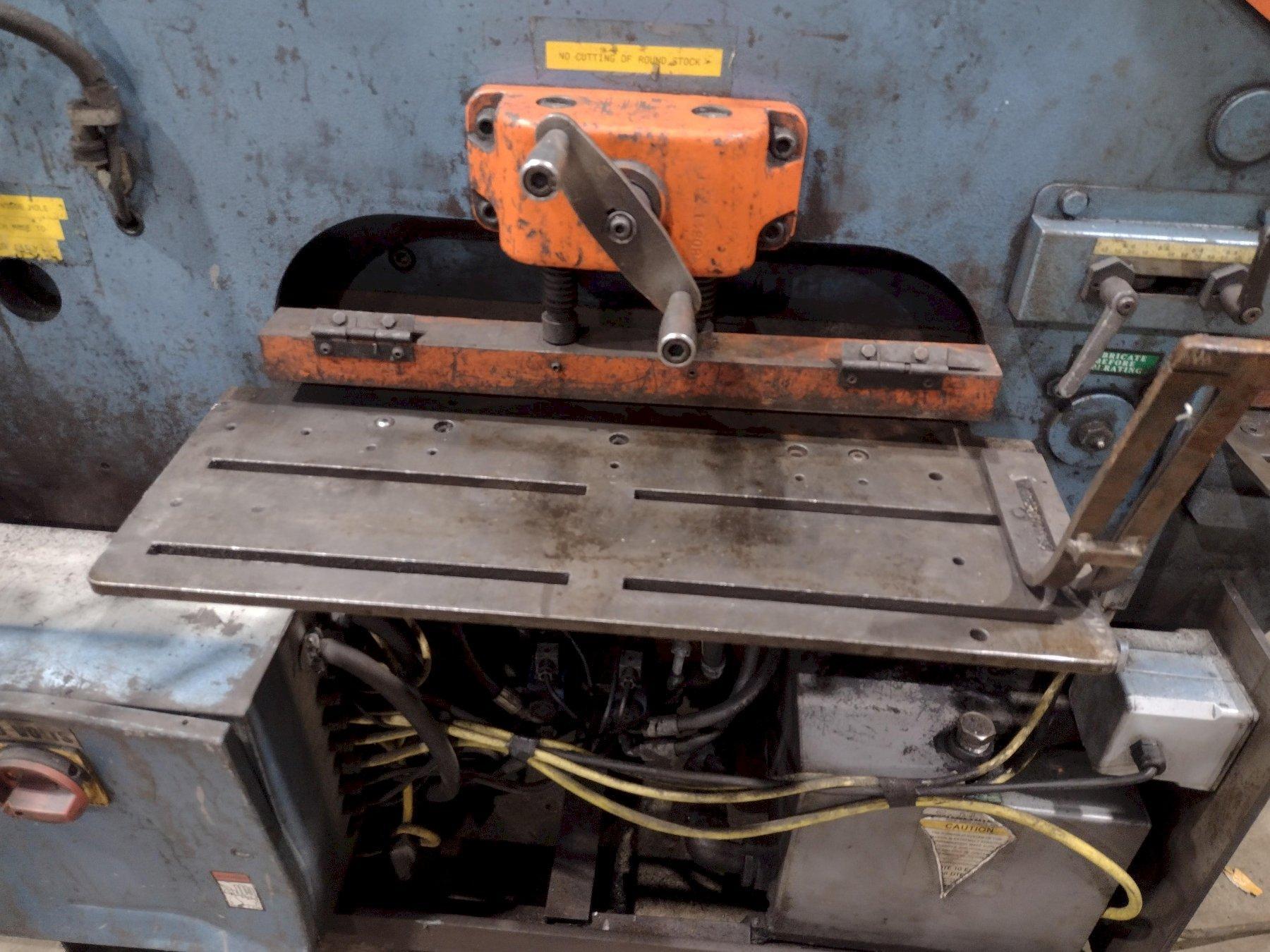

FLAT BAR SHEAR ........................ 24" LENGTH
SHEAR CAPACITY ........................ 1" X 8"; 3/4" X 12"; 1/2" X 16"; 3/8" X 24"
ANGLE SHEAR 90 DEGREE .................  6" X 6" X 1/2"
ANGLE SHEAR 45 DEGREE W/TOOL .......... 3" X 3" X 3/8"
ANGLE SHEAR 45 DEGREE W/BAR SHEAR ..... 4" X 4" X 1/2"
BRAKE .................................  12": 80 TON
BRAKE ................................. 24": 55 TON
OPEN END BRAKE ........................ 1/4" X 5" [FLAT OR ANGLE IRON]
PIPE NOTCHER SCHEDULE ................. 40: 3/4", 1", 1-1/4", 1-1/2", 2"

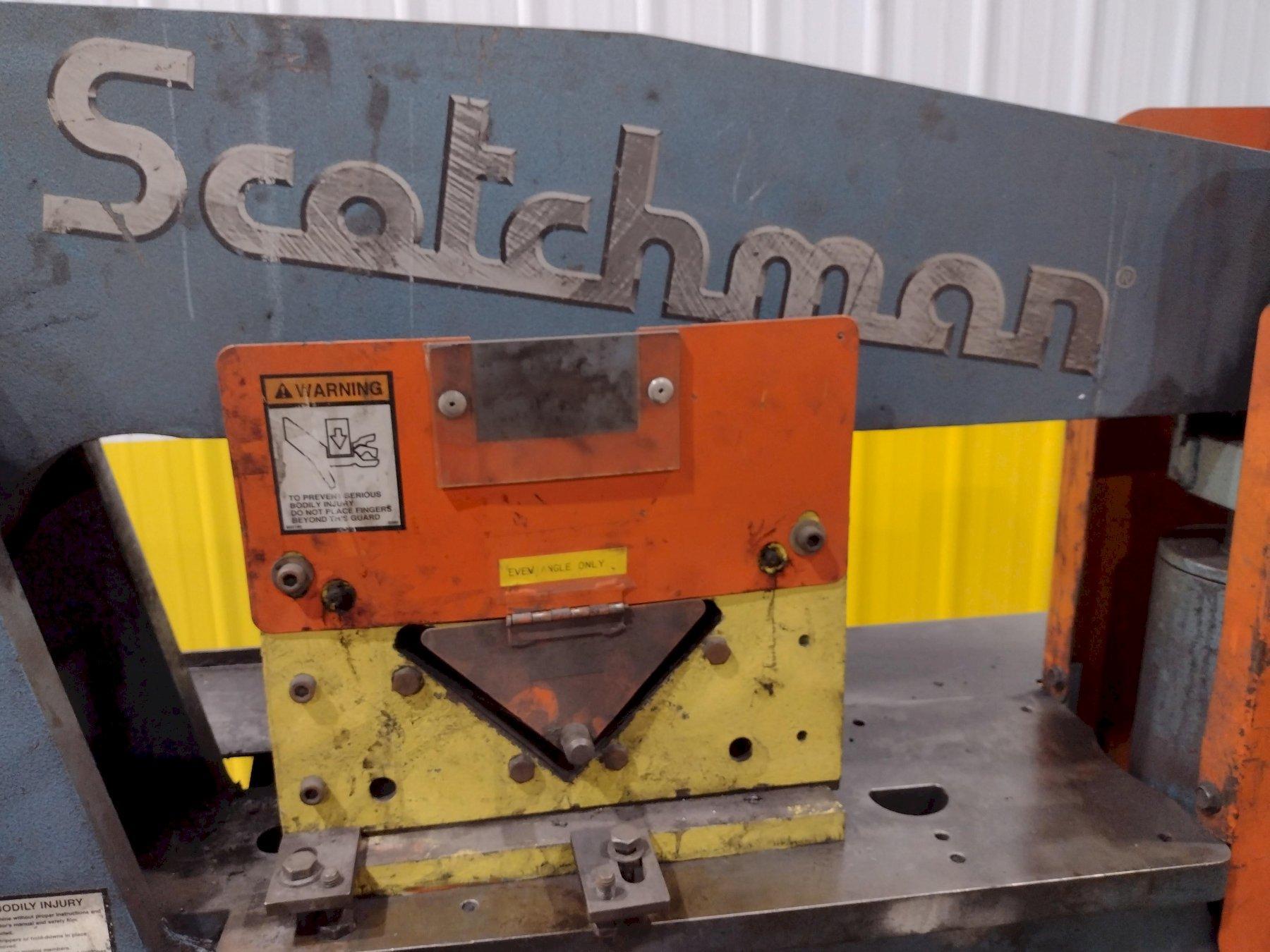

RECTANGLE NOTCHER ..................... 3" X 5" X 3/8"; 3" X 4" X 1/2"
90 DEGREE V-NOTCHER ................... 6" X 6" X 5/16"; 3" X 3" X 3/8"
NOTCHING IN LEG OF CHANNEL ............ 6" TO 10"
CHANNEL SHEAR ......................... 2" TO 6" ADJ.
ROD SHEAR ROUND ....................... 9 CAVITY - 1/4" TO 1-1/4"
ROD SHEAR SQUARE ...................... 1 CAVITY - 1/4" TO 1"
SQUARE TUBE SHEAR ..................... 1/2" TO 2" 12 GAUGE
PICKET TOOL ........................... 1/2", 3/4", 1" 16 GAUGE
WELD COUPON BENDER .................... 2" WIDE X 3/8"
OFFSET DIE HOLDER ..................... 40 TON
STROKES PER MINUTE IN LIGHT MATERIAL .. 38 SPM [PUNCH STATION] 1/4" STROKE
STROKES PER MINUTE IN HEAVY MATERIAL .. 15 SPM [PUNCH STATION] 3/4" STROKE
HYDRAULICS ............................ 3,500/3,500 PSI
MOTOR ................................. 10 HP


Specifications
Dimensions Dimensions (L x W x H): 69" x 37-1/2" x 71"
Weight 3800 pounds
