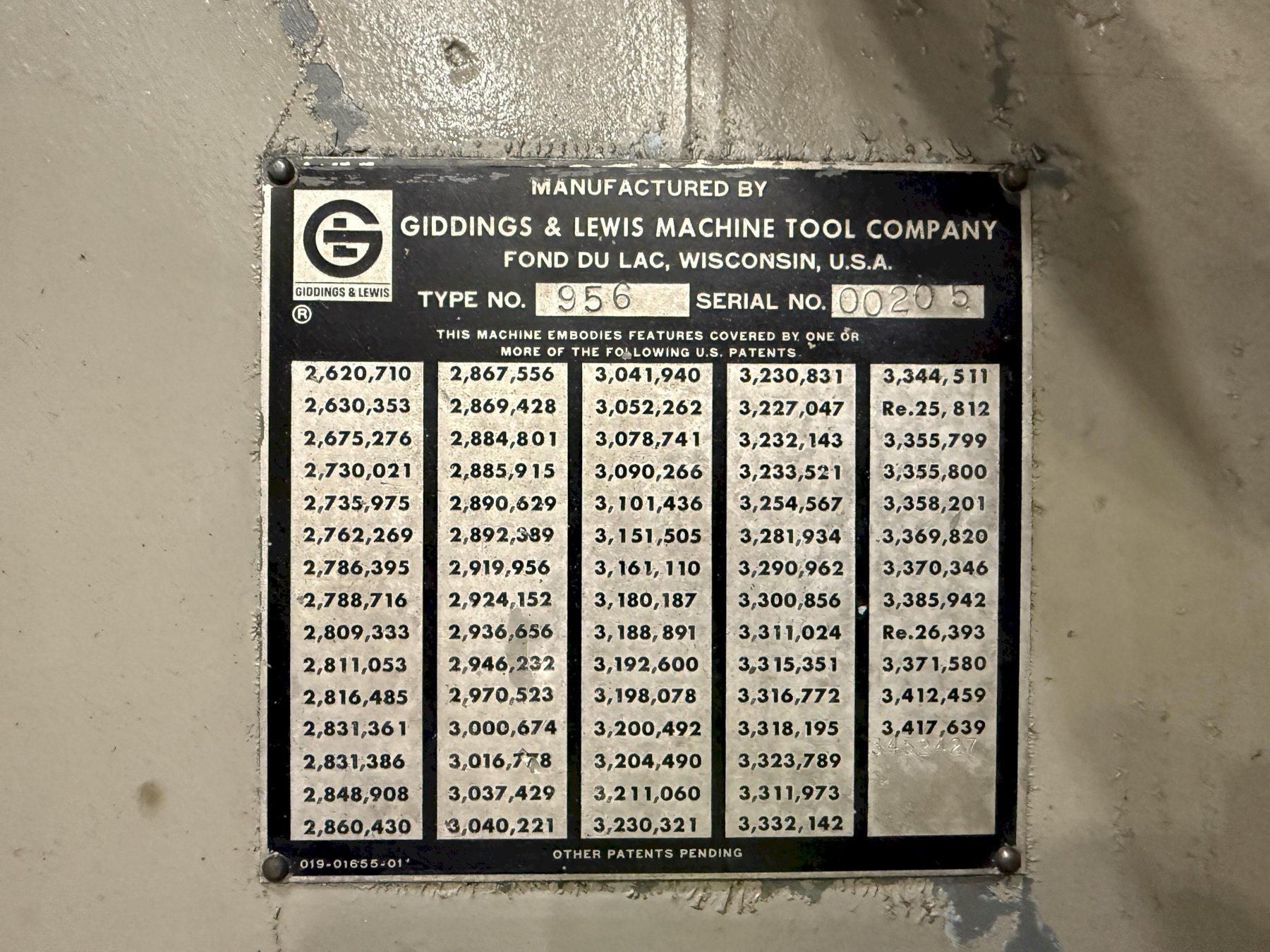

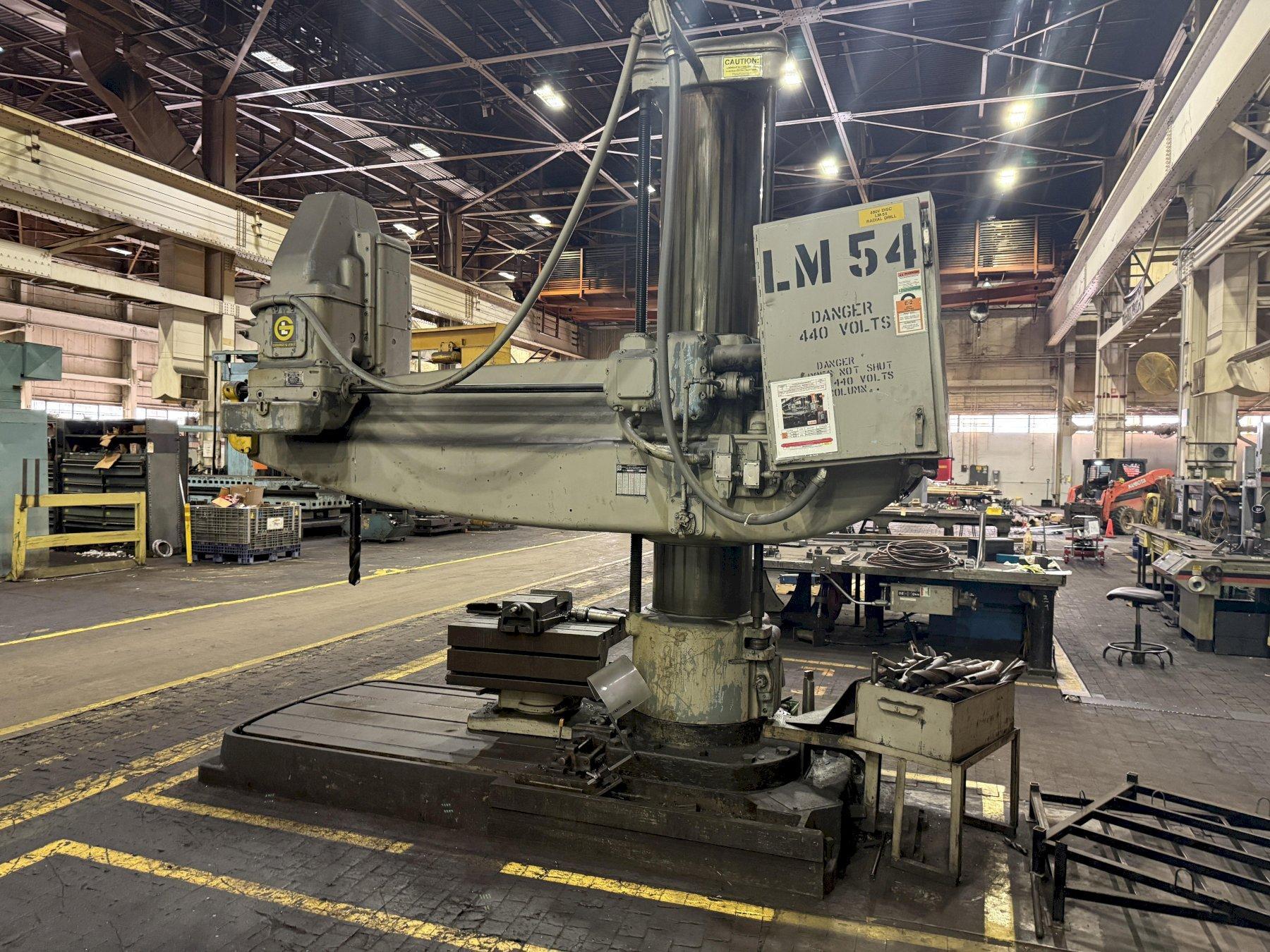

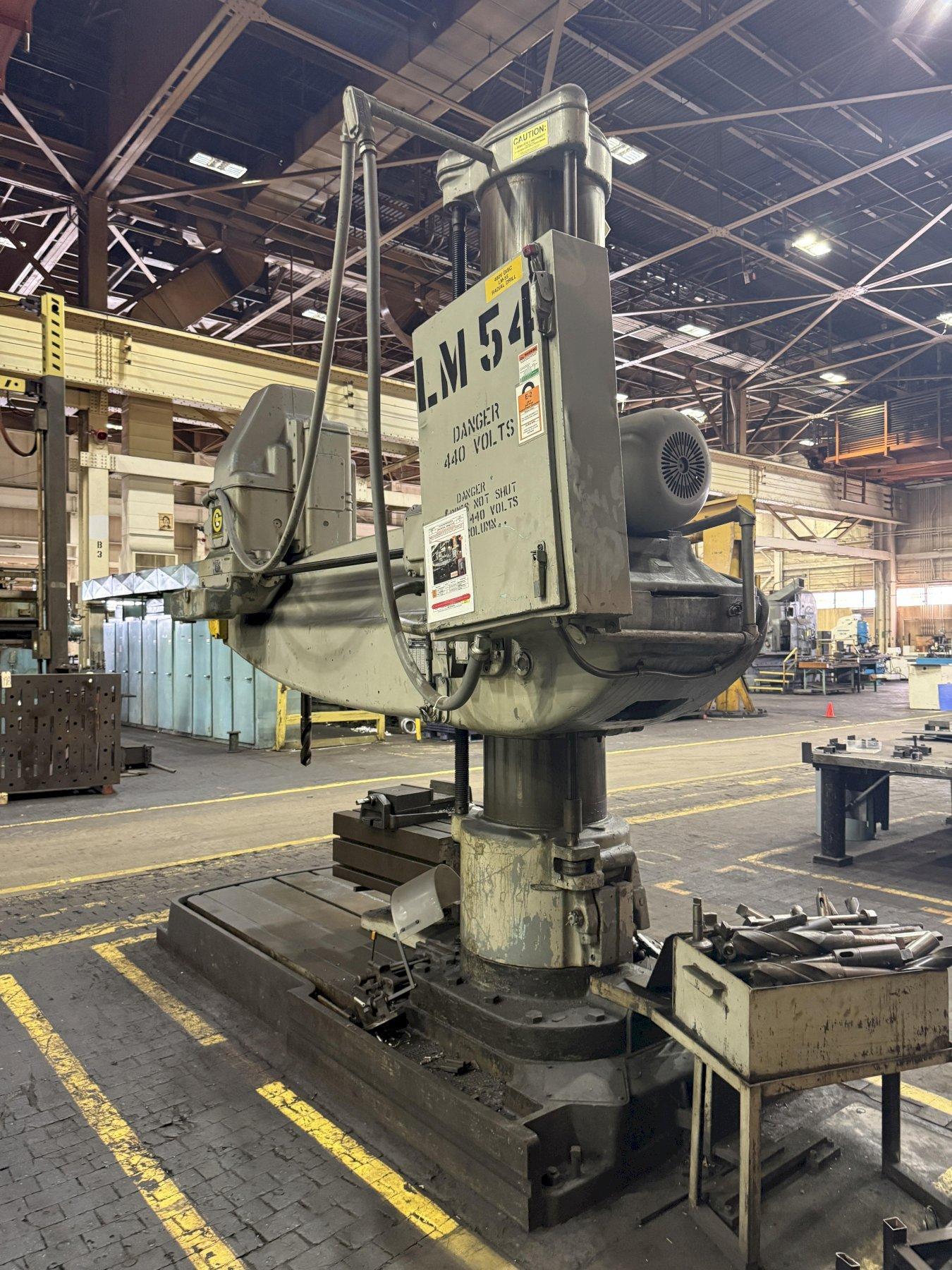

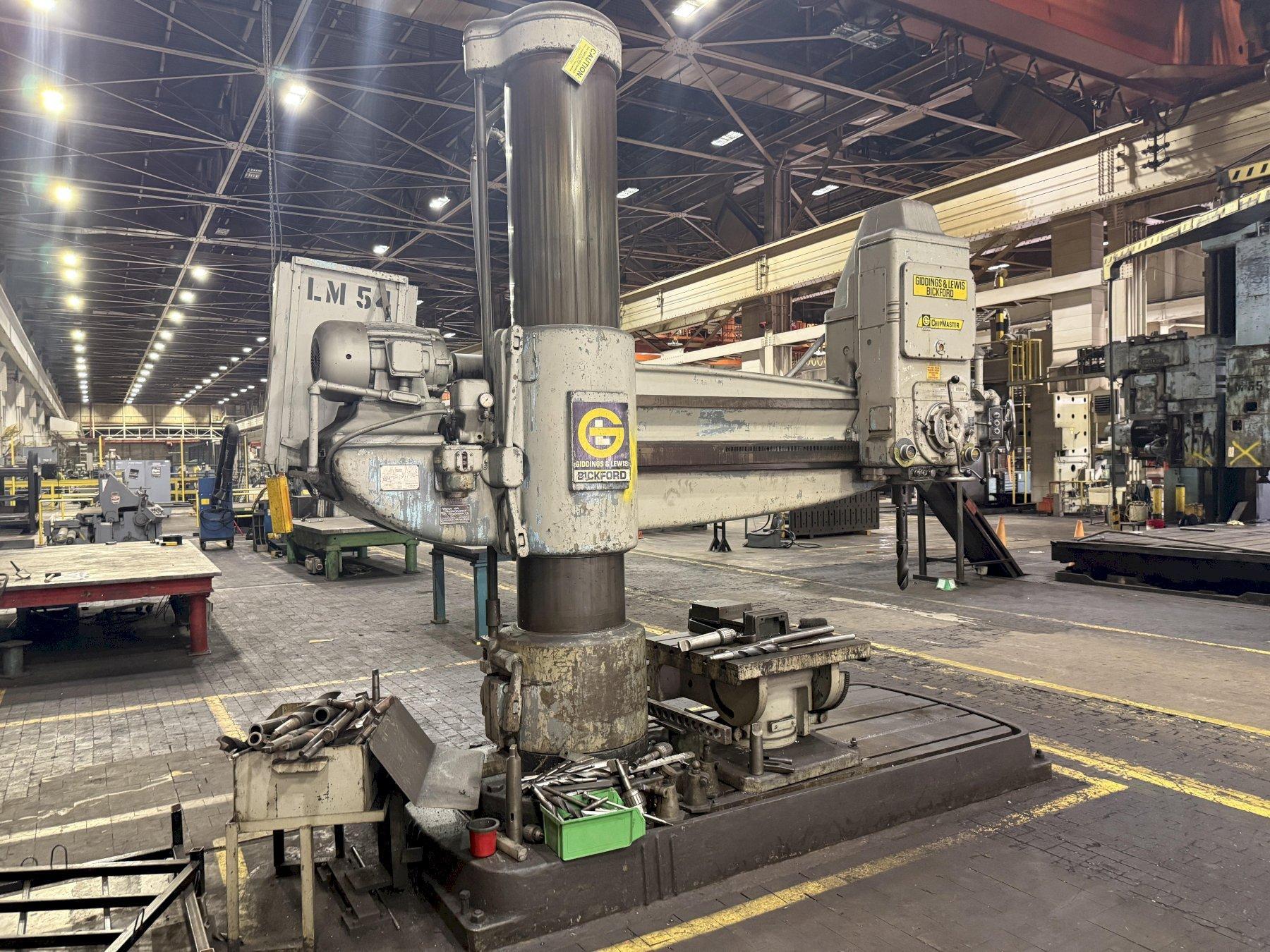

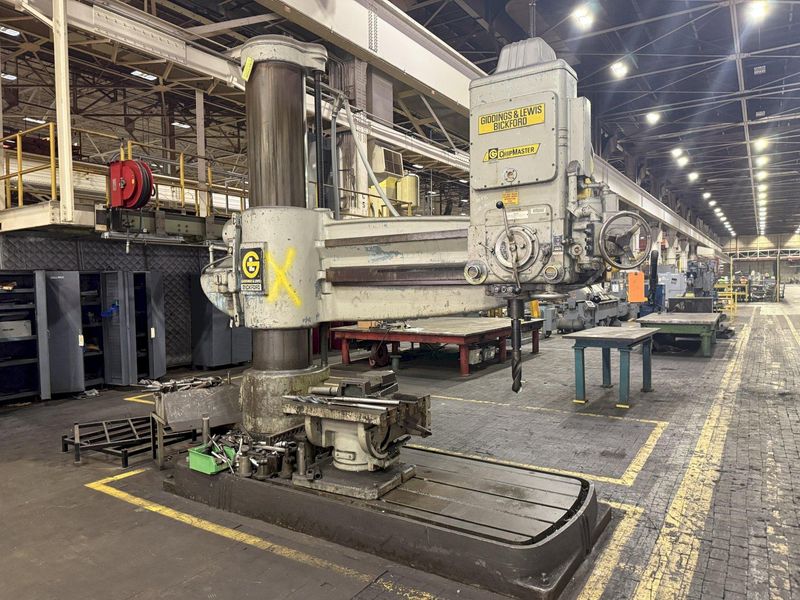

SERIAL .............................. 00205-69
MODEL ............................... 956

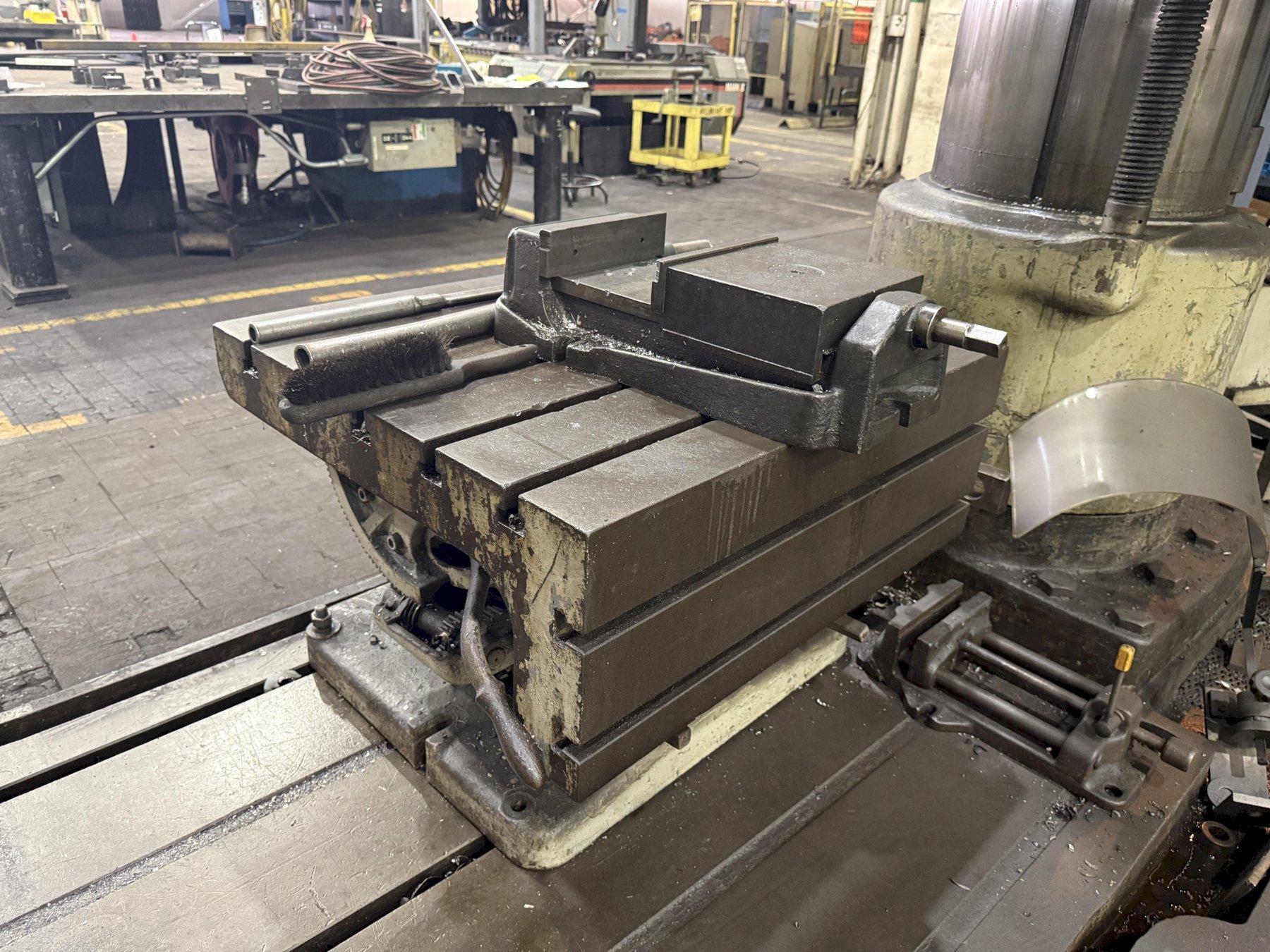

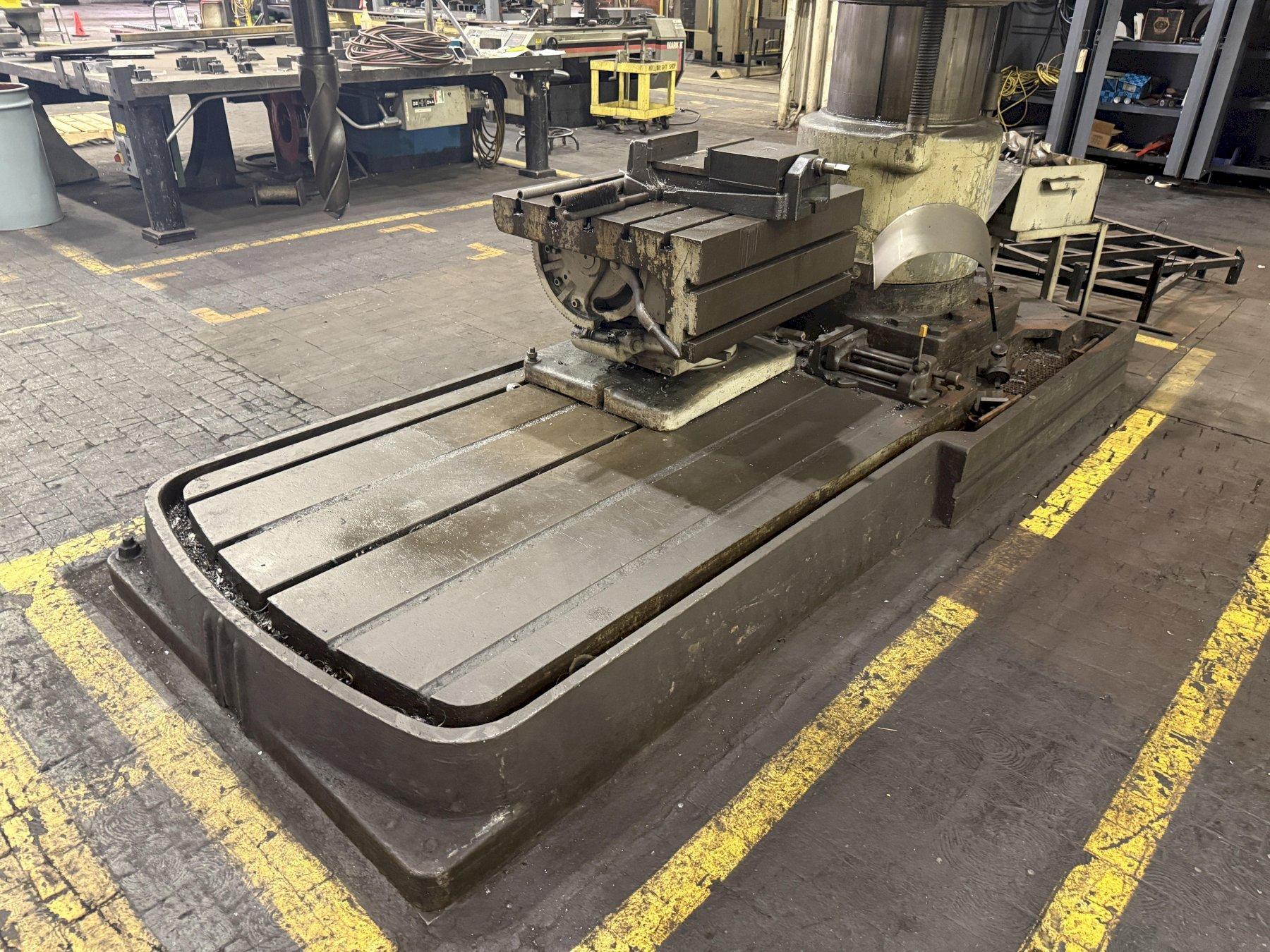

AREA OF BASE ........................ 102" X 50"
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 4-1/2"

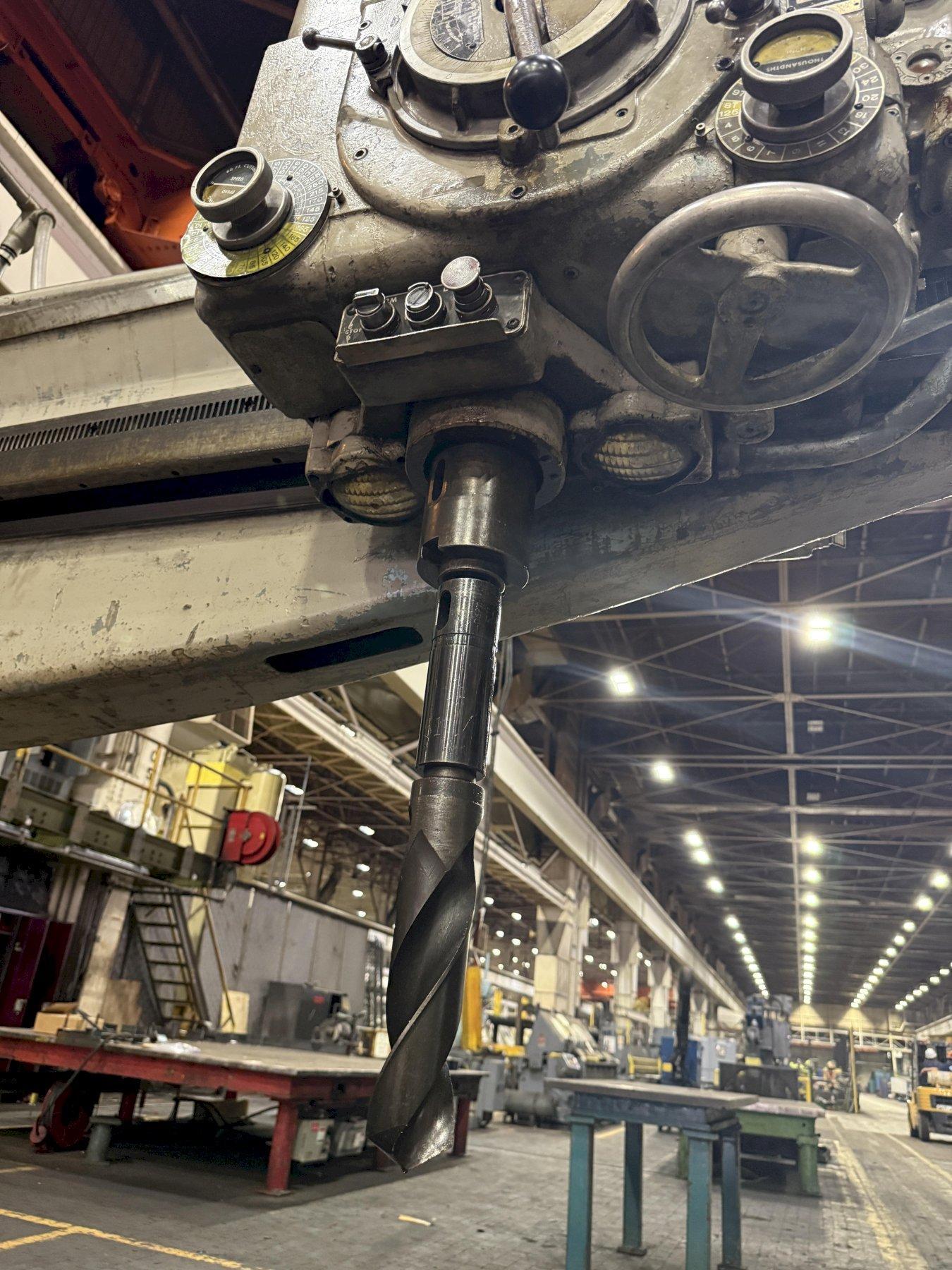

TAPER IN SPINDLE .................... #5 MT

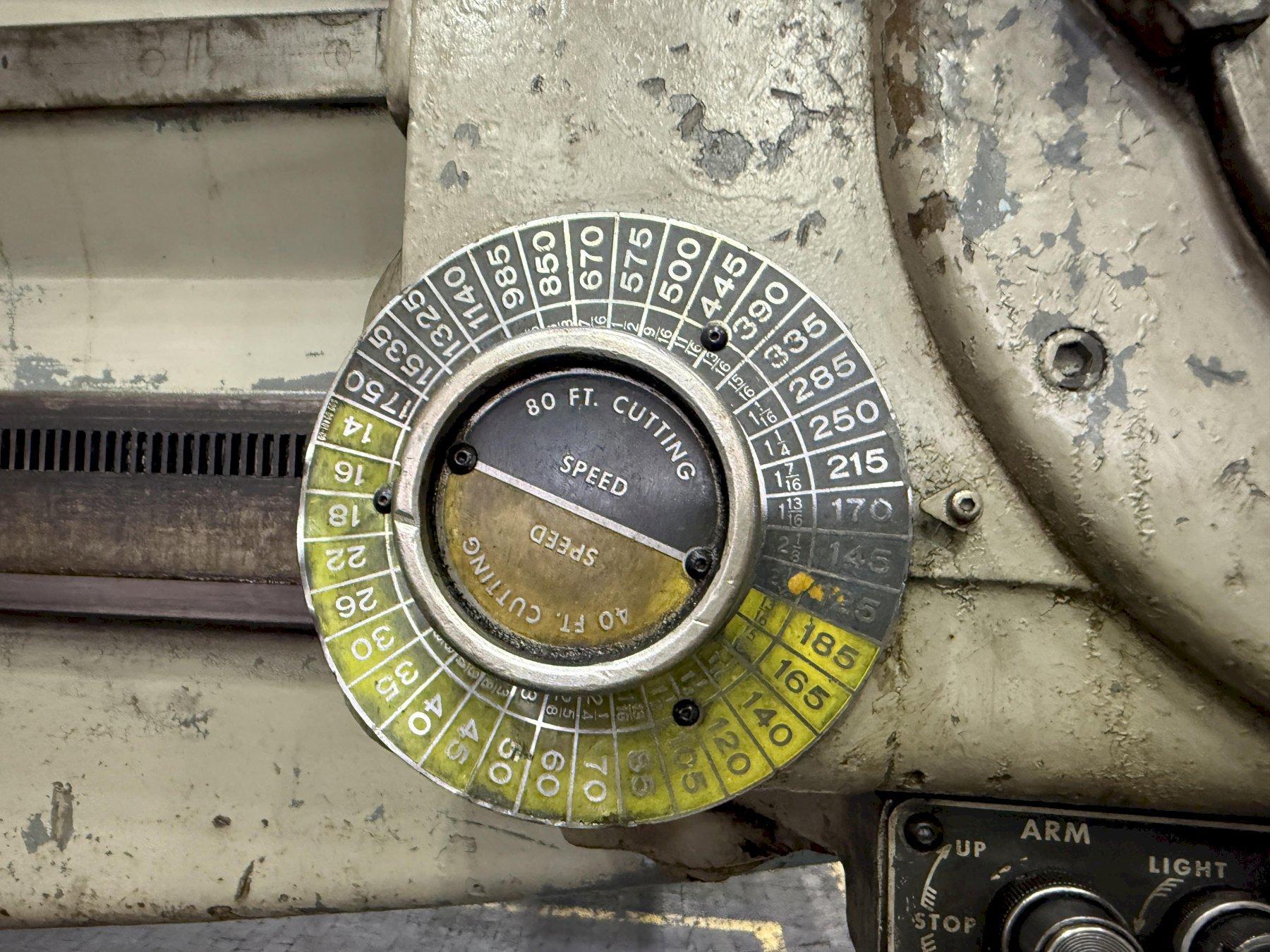

SPINDLE SPEEDS ...................... (36) 14 TO 1750 RPM

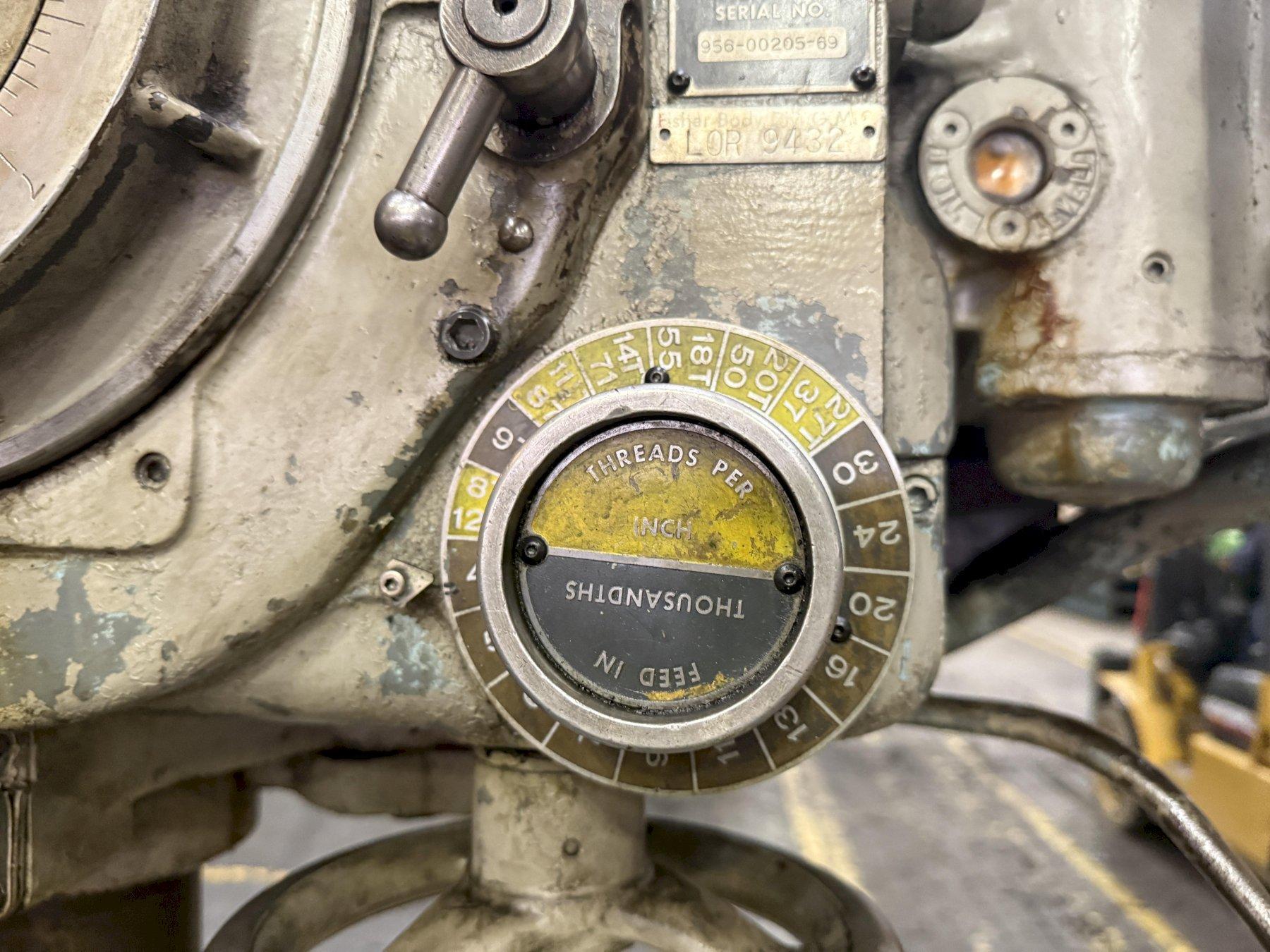

THREADS ............................. 8, 11-1/2, 14, 18,20, & 27 TPI
FEEDS ............................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN .......... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ............ 36" MIN. TO 78" MAXIMUM
TRAVEL OF HEAD ON ARM ............... 79"

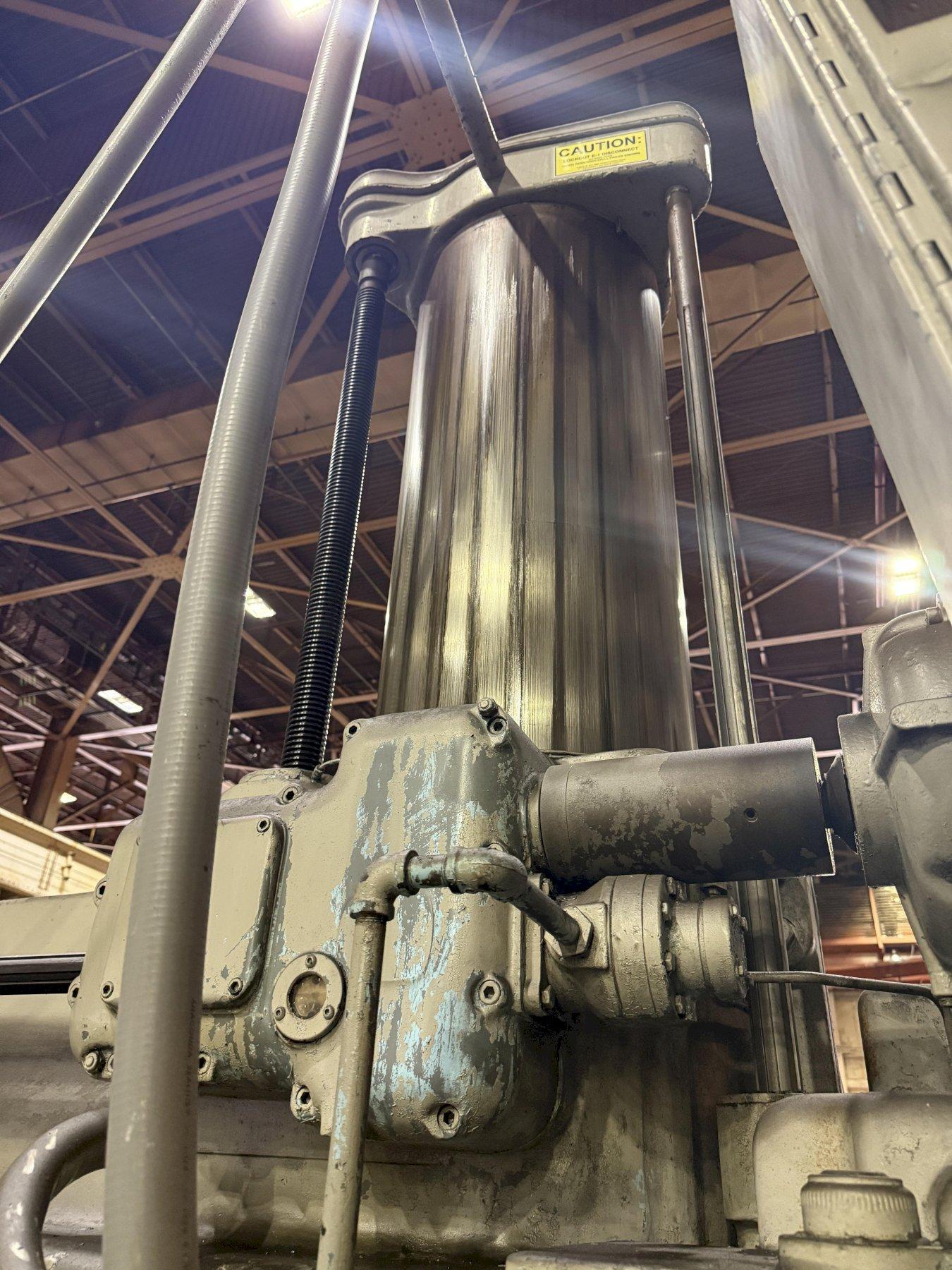

TRAVEL OF ARM ON COLUMN ............. 42"
POWER HEAD TRAVEL ................... YES
POWER COLUMN CLAMPING ............... YES
POWER ARM ELEVATION ................. YES
POWER HEAD CLAMPING ................. YES
MOTOR ............................... 30 HORSEPOWER
Brand

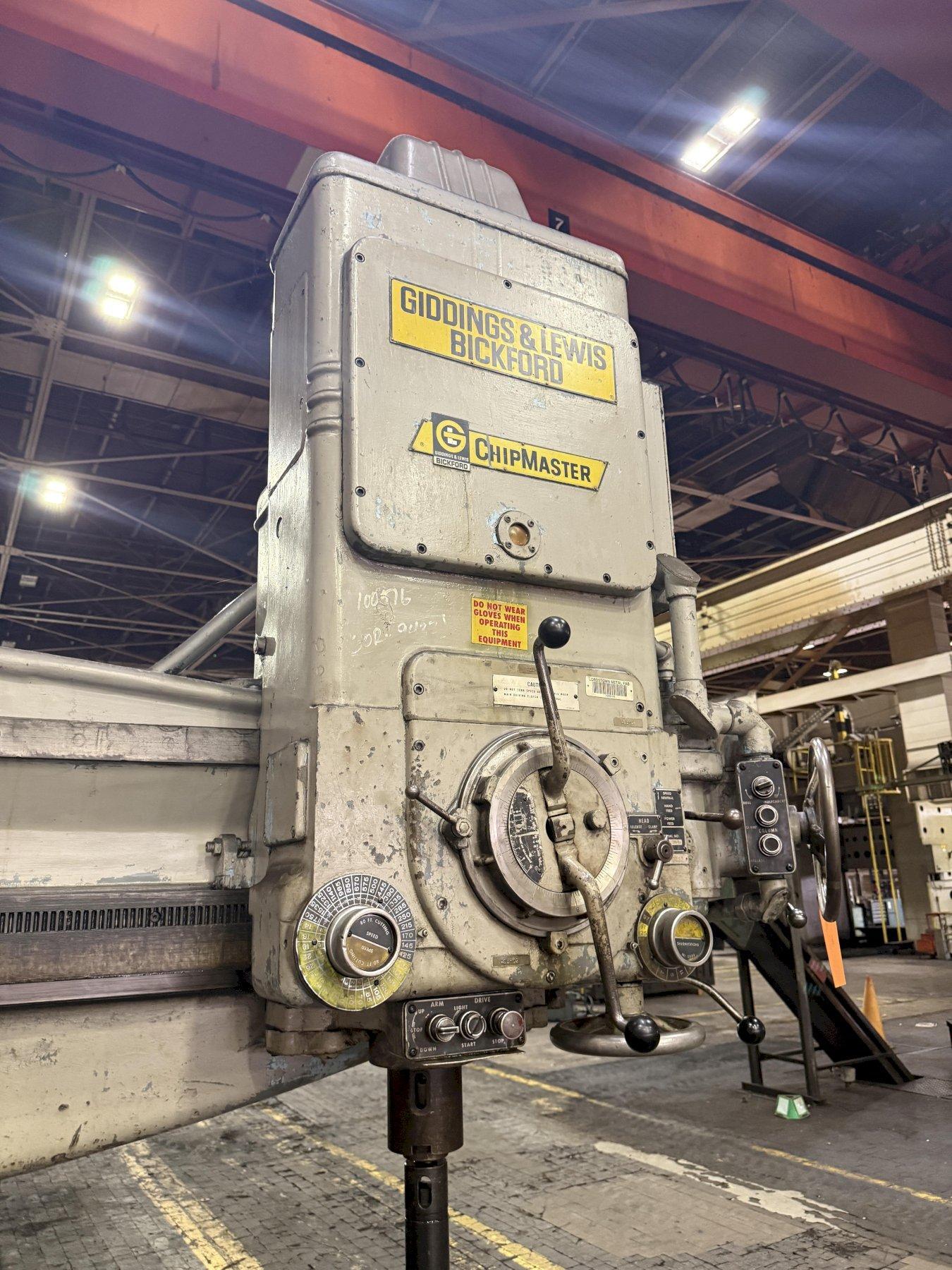

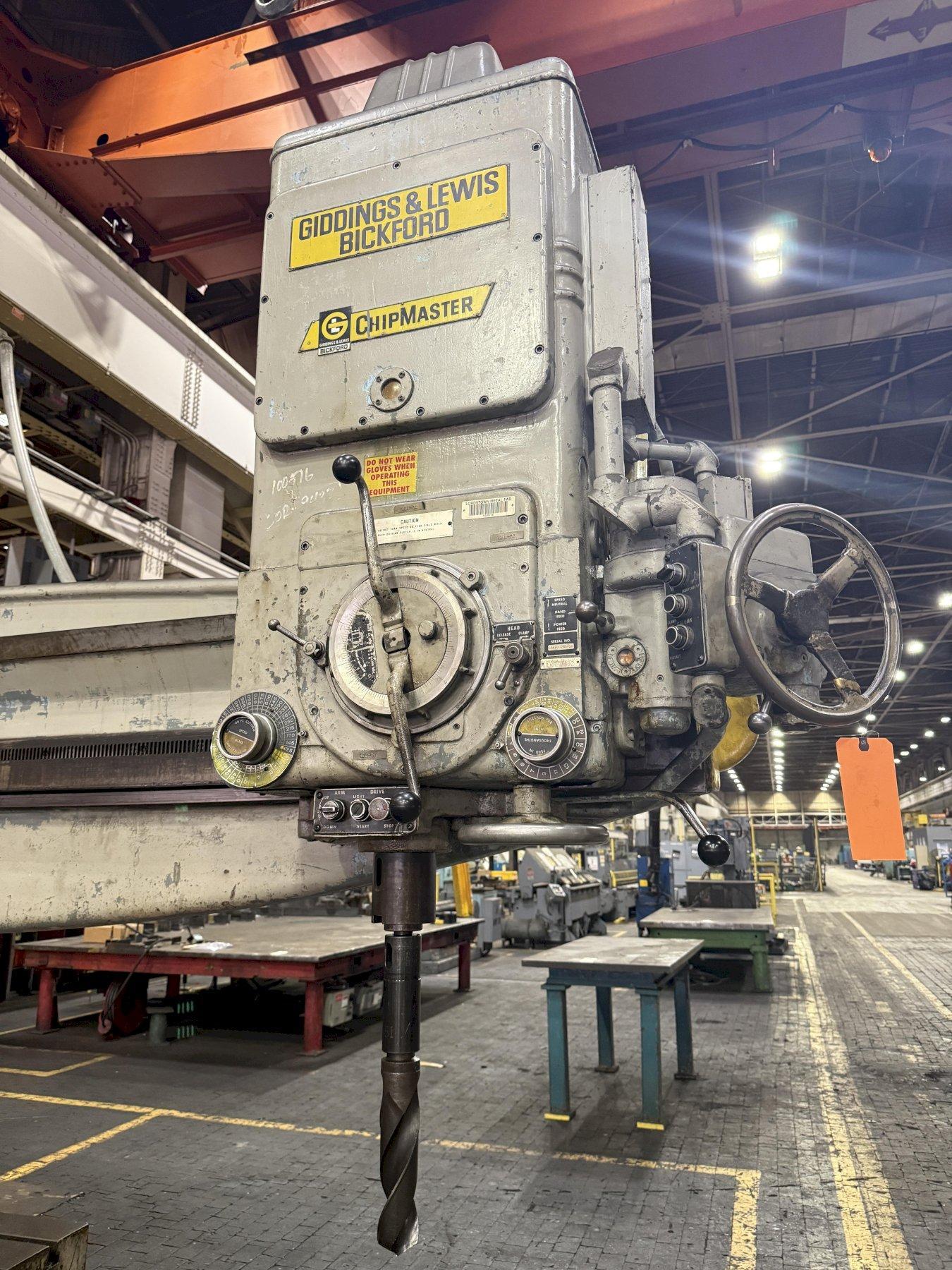

GIDDINGS & LEWIS BICKFORD
Type

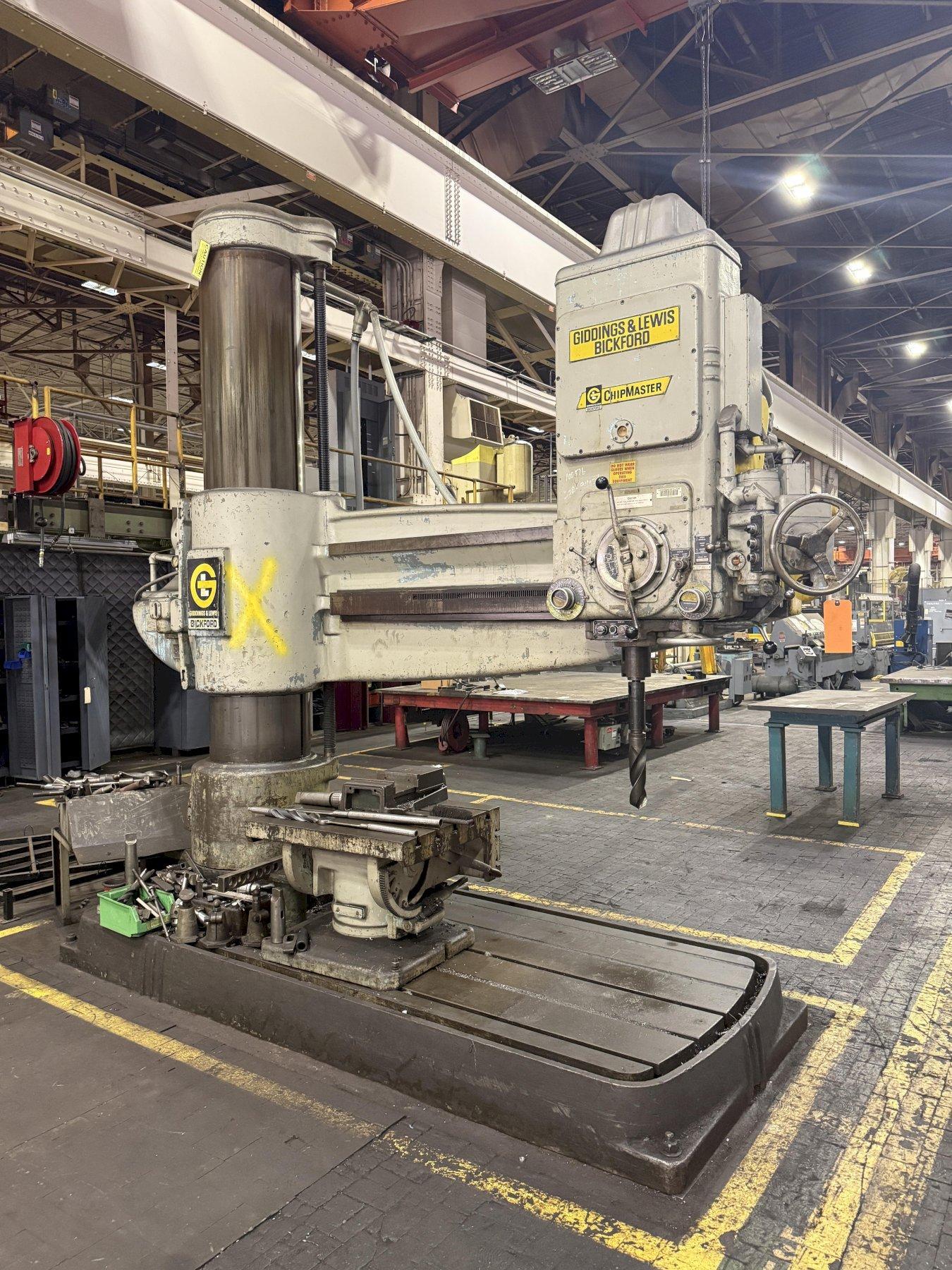

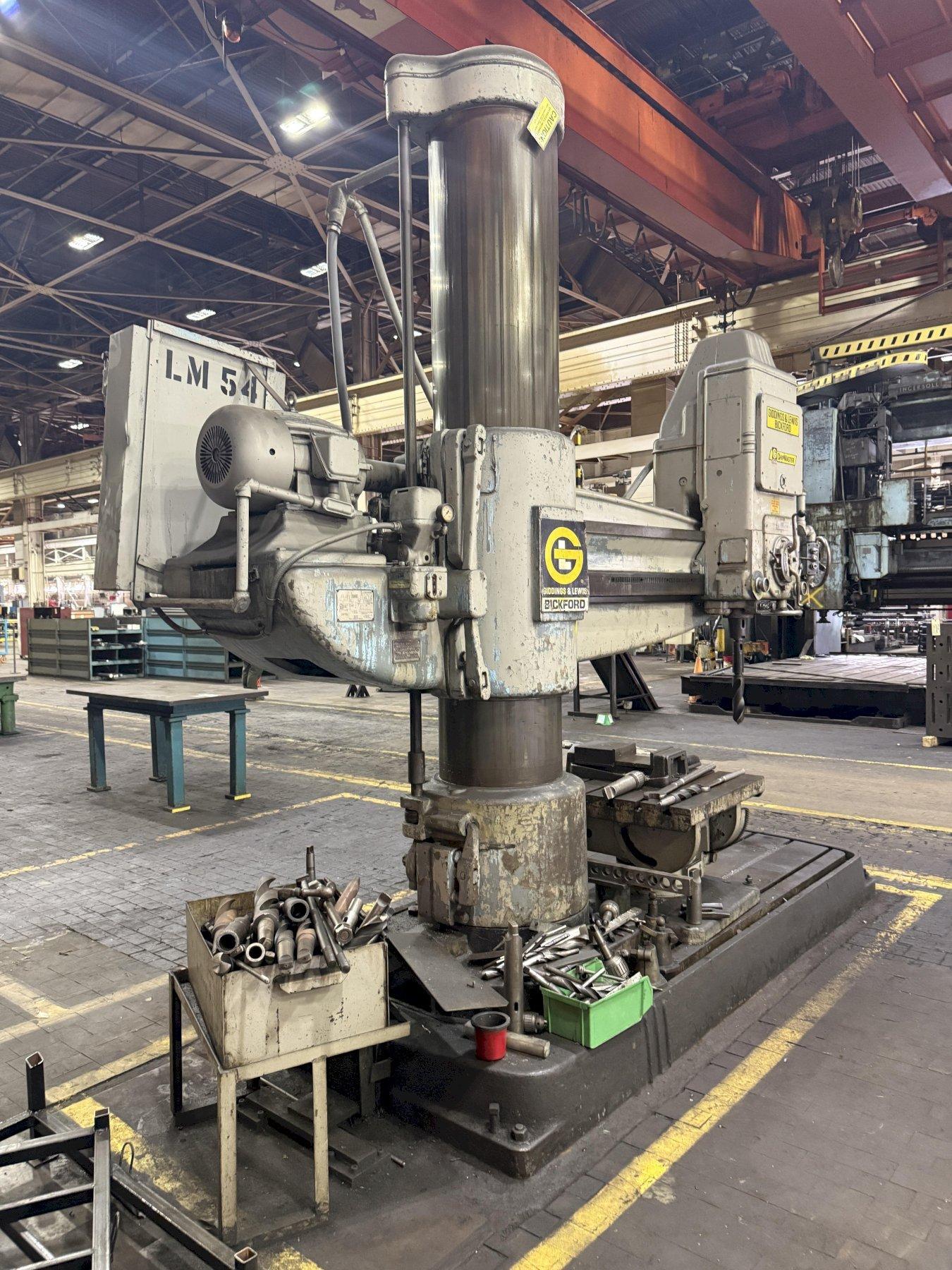

Drills, Radial
Stock No.
23553
 |
419-269-2000 |
Stock #: 23553
SERIAL .............................. 00205-69
MODEL ............................... 956
AREA OF BASE ........................ 102" X 50"
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 4-1/2"
TAPER IN SPINDLE .................... #5 MT
SPINDLE SPEEDS ...................... (36) 14 TO 1750 RPM
THREADS ............................. 8, 11-1/2, 14, 18,20, & 27 TPI
FEEDS ............................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN .......... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ............ 36" MIN. TO 78" MAXIMUM
TRAVEL OF HEAD ON ARM ............... 79"
TRAVEL OF ARM ON COLUMN ............. 42"
POWER HEAD TRAVEL ................... YES
POWER COLUMN CLAMPING ............... YES
POWER ARM ELEVATION ................. YES
POWER HEAD CLAMPING ................. YES
MOTOR ............................... 30 HORSEPOWER
