SERIAL .............................. 00202-70
MODEL ............................... 956
AREA OF DUAL BASE ................... 192" X 50"

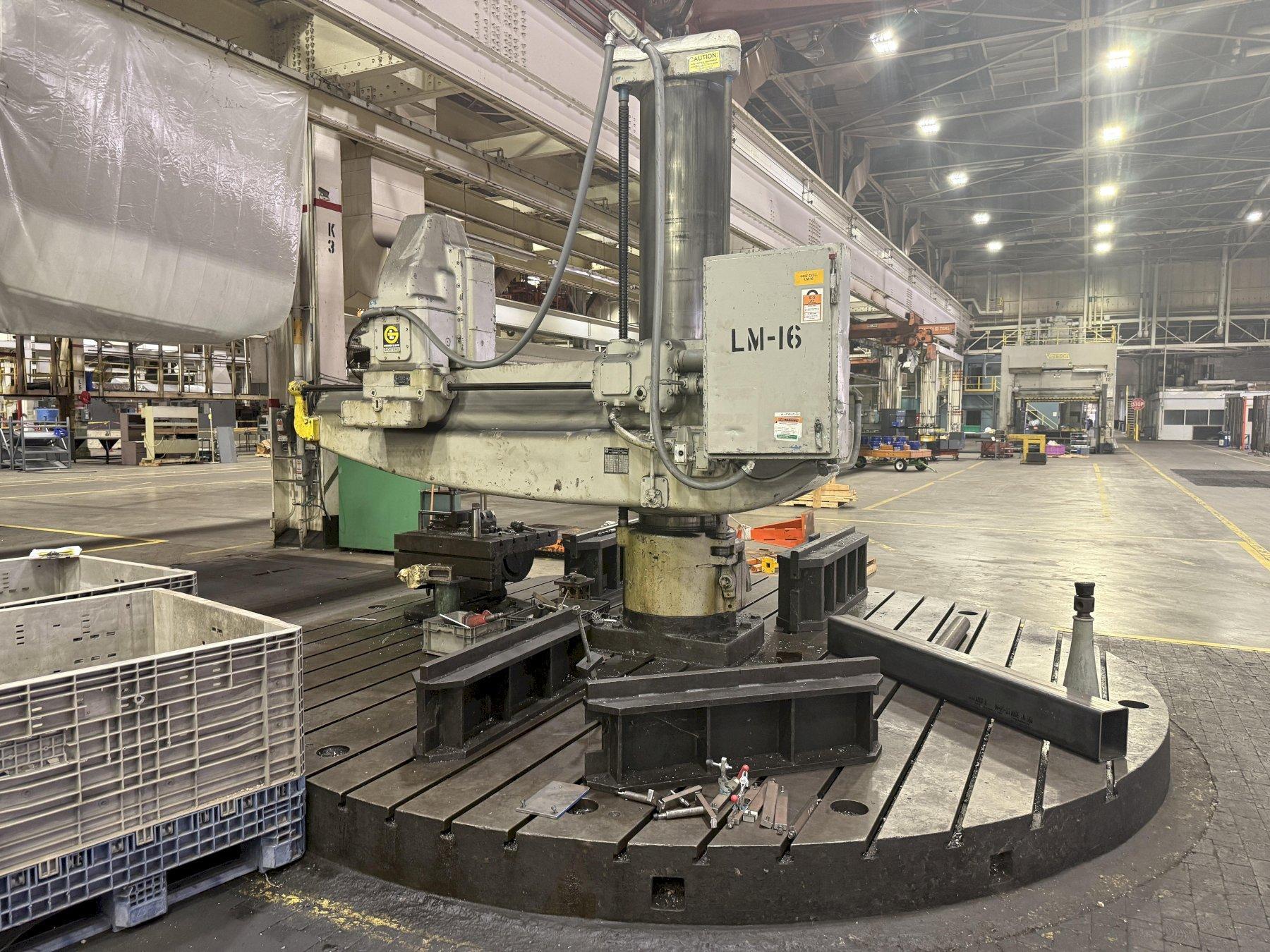

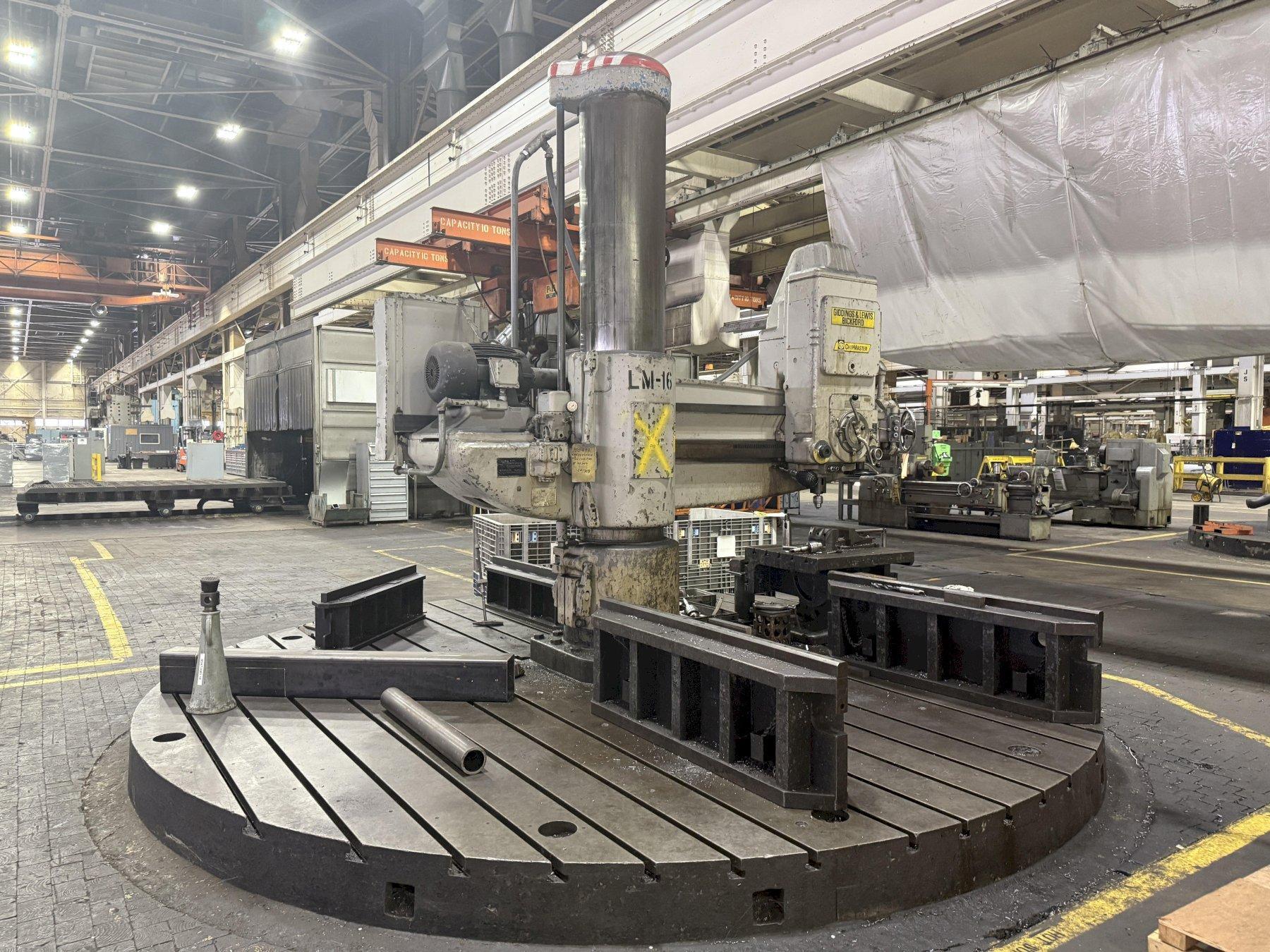

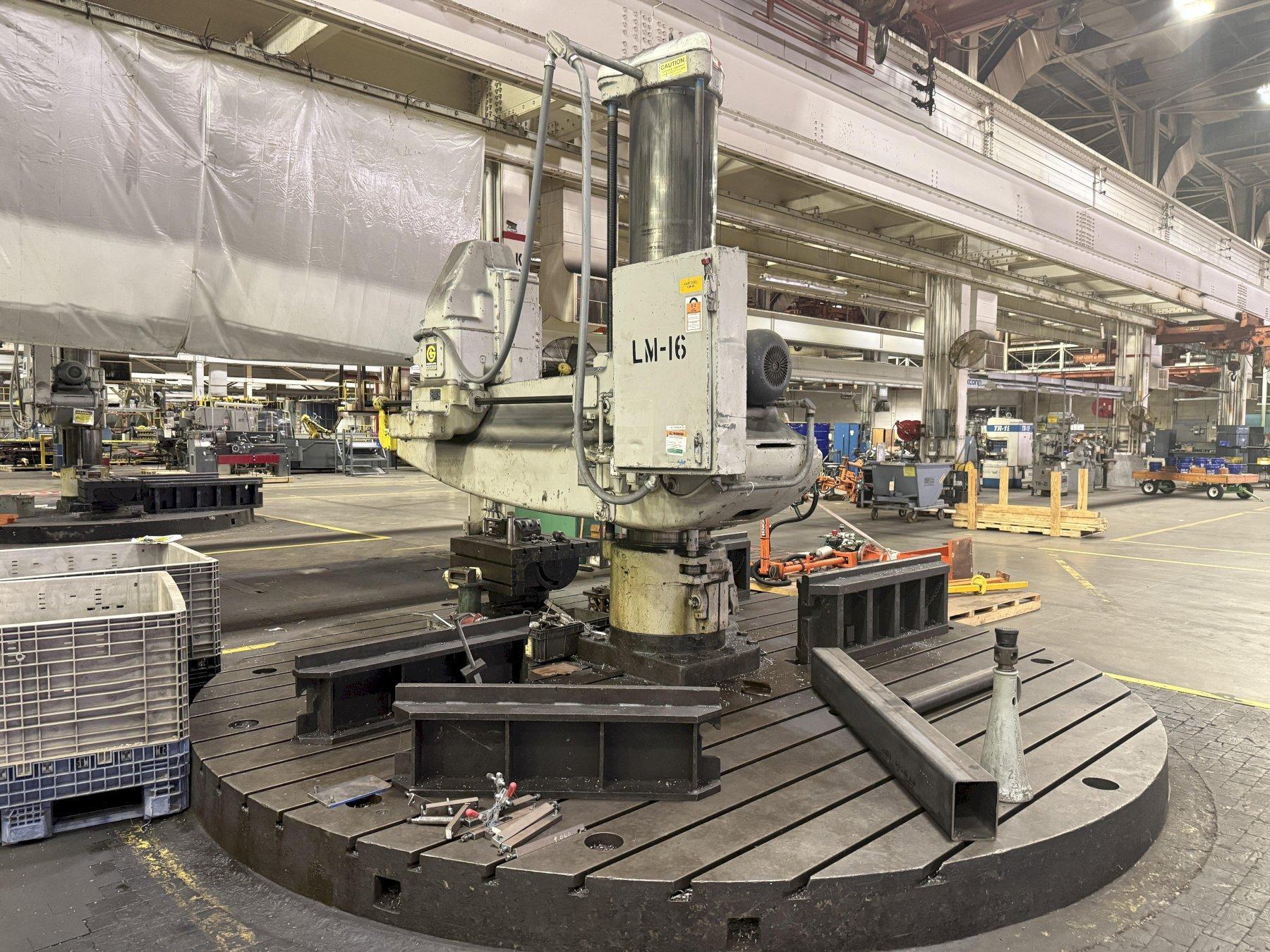

DIAMETER OF FULL 360° BASE ........... 192" (16 FT) DIAMETER
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 4-1/2"
TAPER IN SPINDLE .................... #5 MT
SPINDLE SPEEDS ...................... (36) 14 TO 1750 RPM
THREADS ............................. 8, 11-1/2, 14, 18,20, & 27 TPI
FEEDS ............................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN .......... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ............ 36" MIN. TO 78" MAXIMUM
TRAVEL OF HEAD ON ARM ............... 79"
TRAVEL OF ARM ON COLUMN ............. 42"
POWER HEAD TRAVEL ................... YES
POWER COLUMN CLAMPING ............... YES
POWER ARM ELEVATION ................. YES
POWER HEAD CLAMPING ................. YES
MOTOR ............................... 30 HORSEPOWER

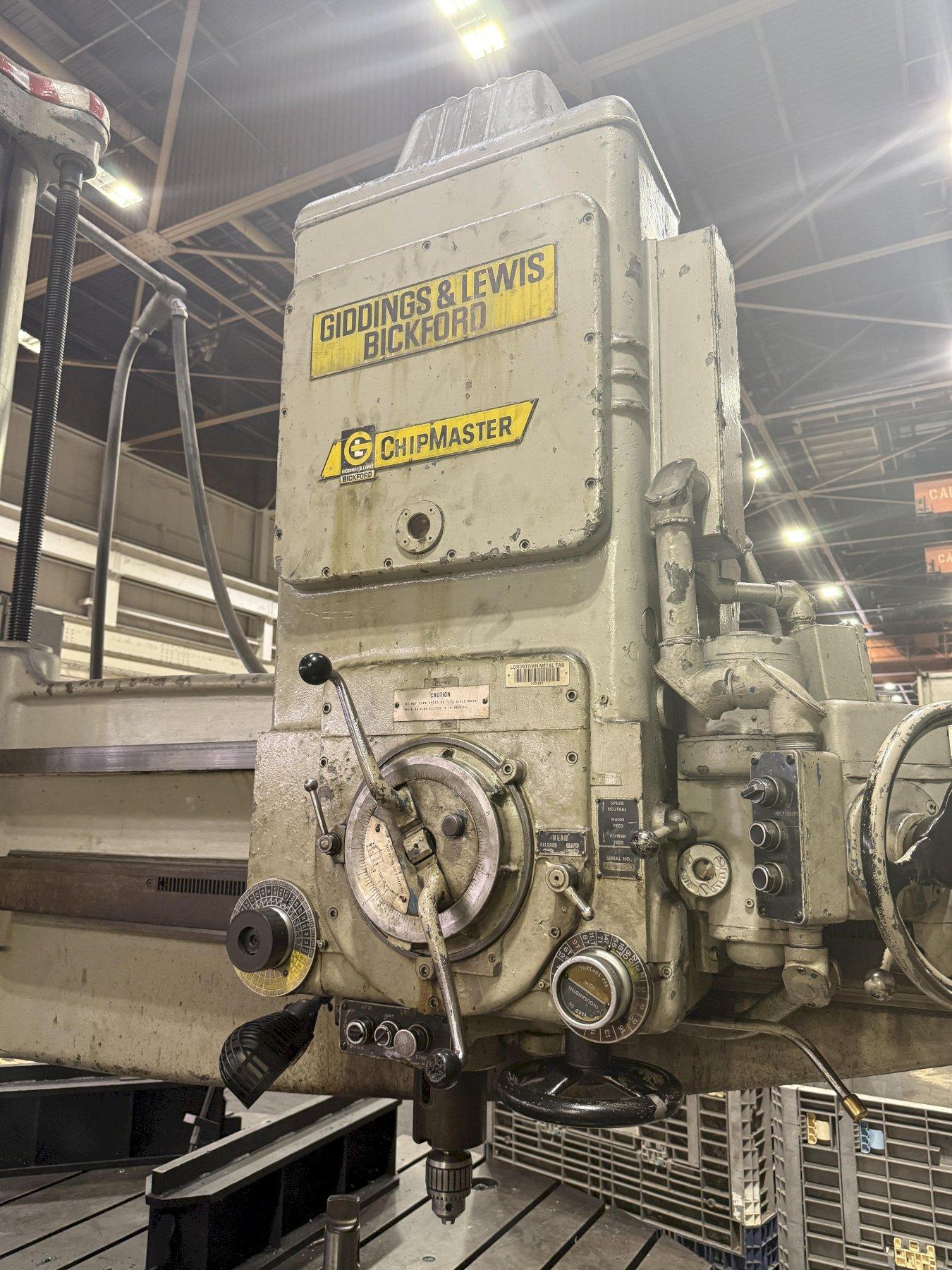

Brand

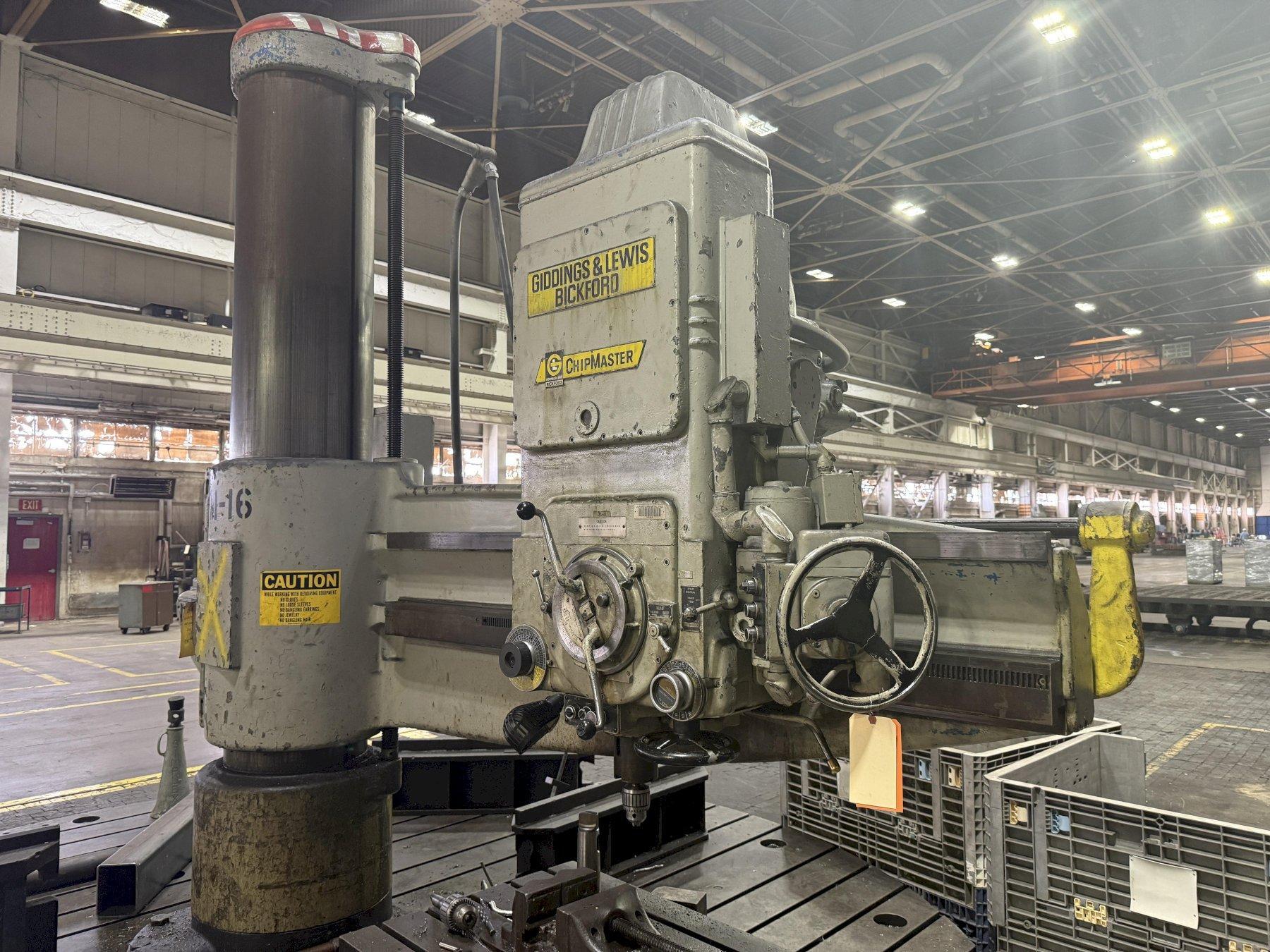

GIDDINGS & LEWIS BICKFORD
Type
Drills, Radial
Stock No.
23544
 |
419-269-2000 |
Stock #: 23544

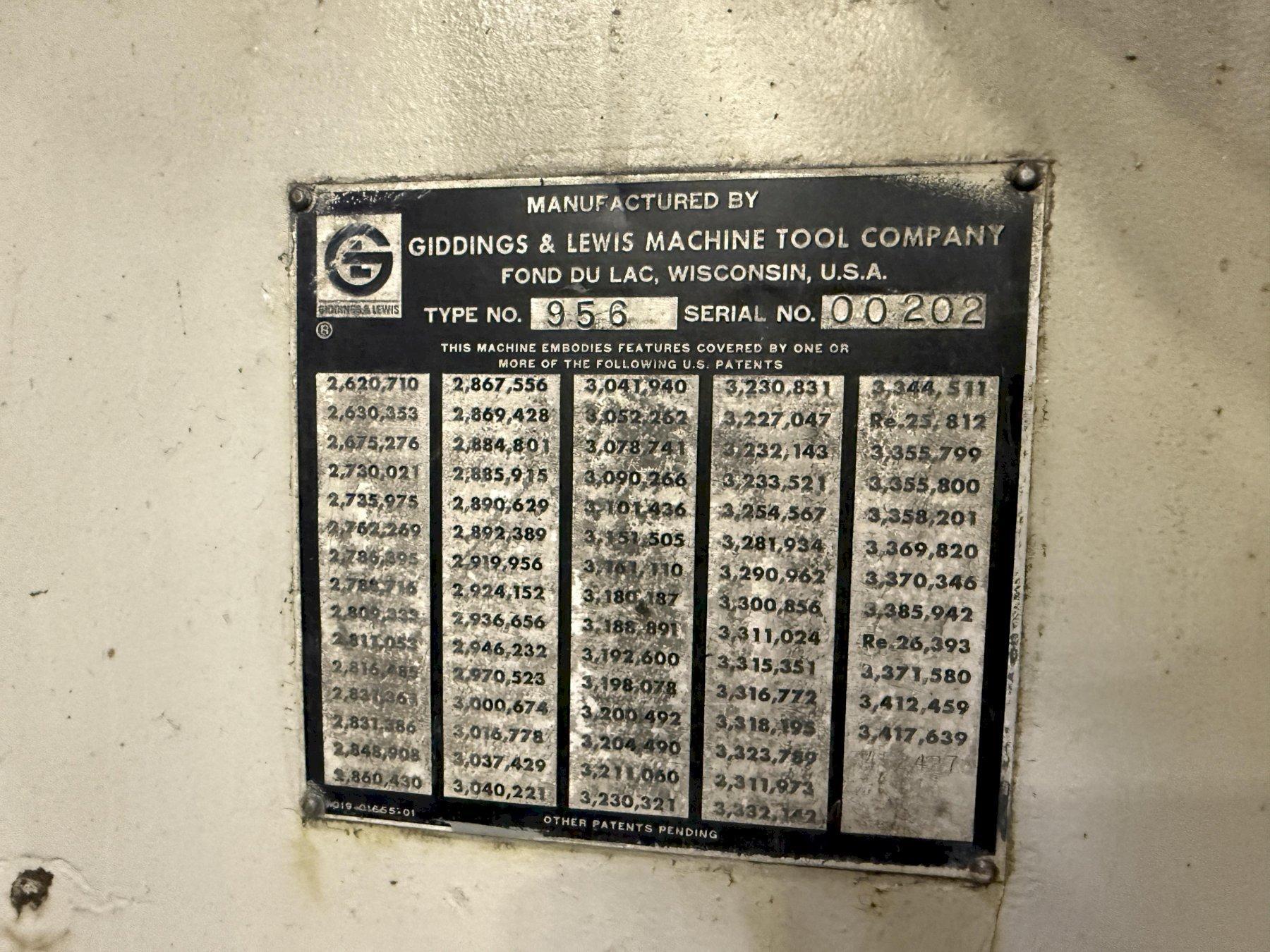

SERIAL .............................. 00202-70
MODEL ............................... 956
AREA OF DUAL BASE ................... 192" X 50"

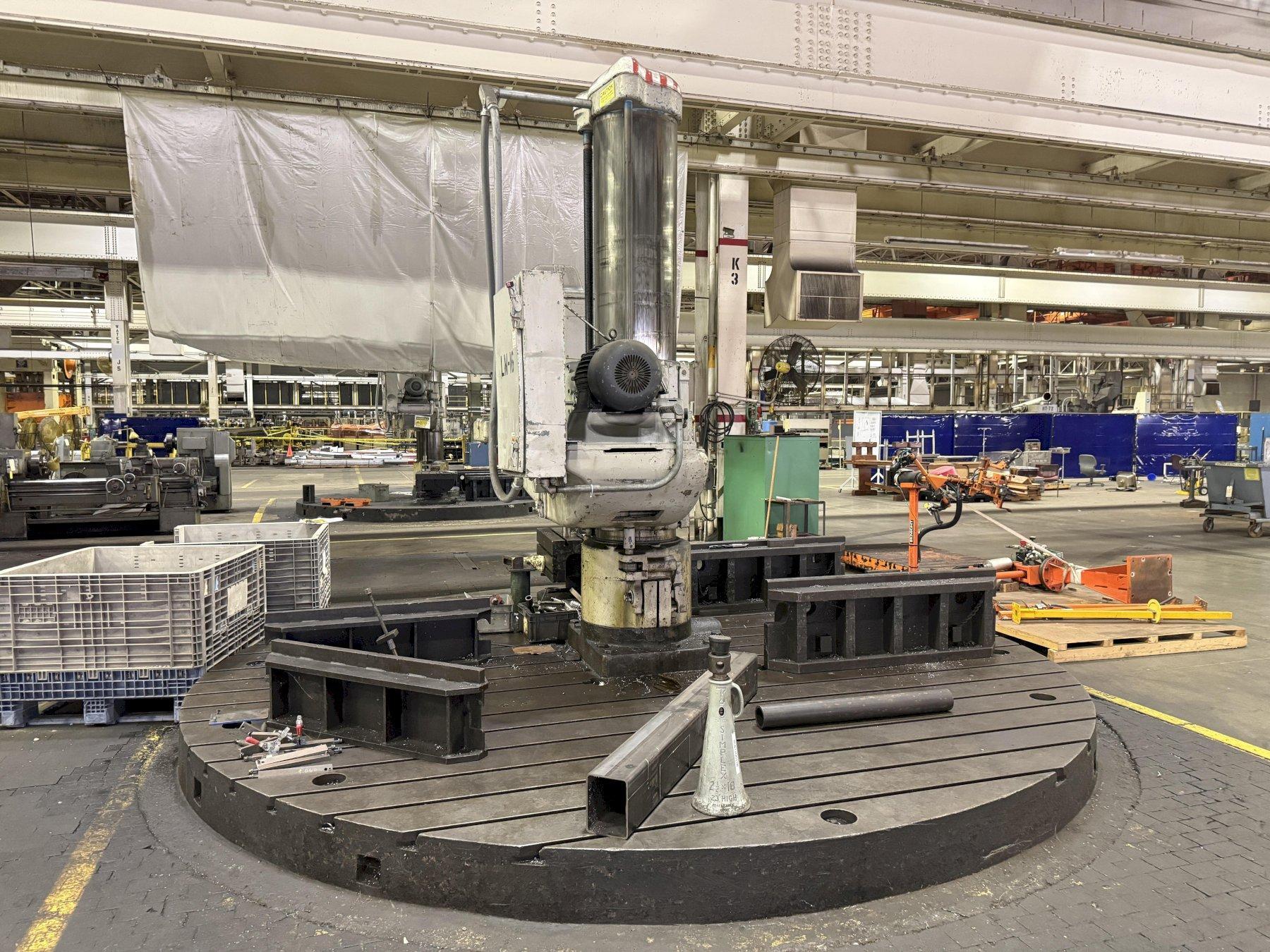

DIAMETER OF FULL 360° BASE ........... 192" (16 FT) DIAMETER
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 4-1/2"
TAPER IN SPINDLE .................... #5 MT
SPINDLE SPEEDS ...................... (36) 14 TO 1750 RPM
THREADS ............................. 8, 11-1/2, 14, 18,20, & 27 TPI

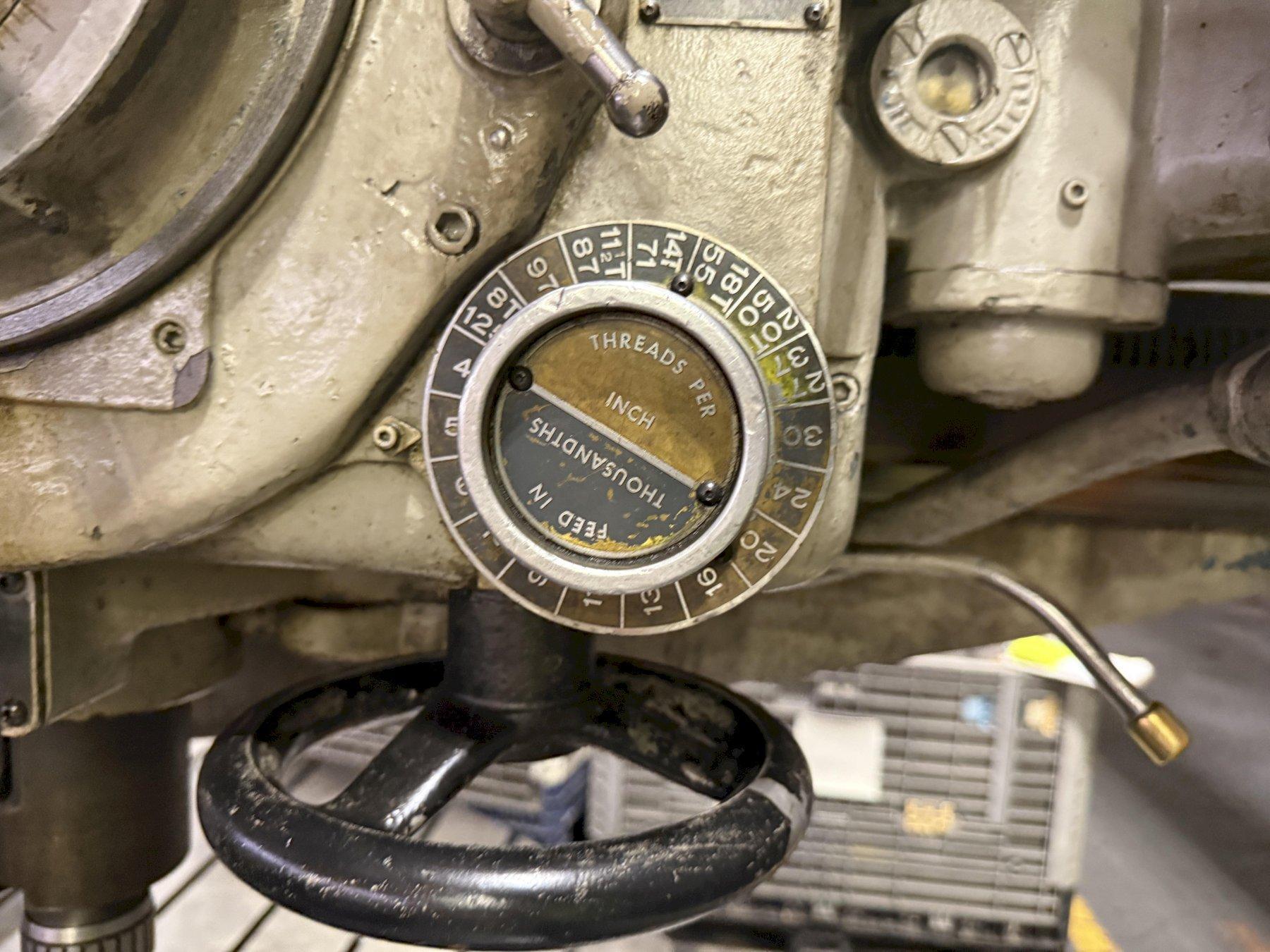

FEEDS ............................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN .......... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ............ 36" MIN. TO 78" MAXIMUM
TRAVEL OF HEAD ON ARM ............... 79"
TRAVEL OF ARM ON COLUMN ............. 42"
POWER HEAD TRAVEL ................... YES
POWER COLUMN CLAMPING ............... YES
POWER ARM ELEVATION ................. YES
POWER HEAD CLAMPING ................. YES
MOTOR ............................... 30 HORSEPOWER
