SERIAL ................................ C-23603
YEAR ................................. 2011
CRANE CLASS ........................... D

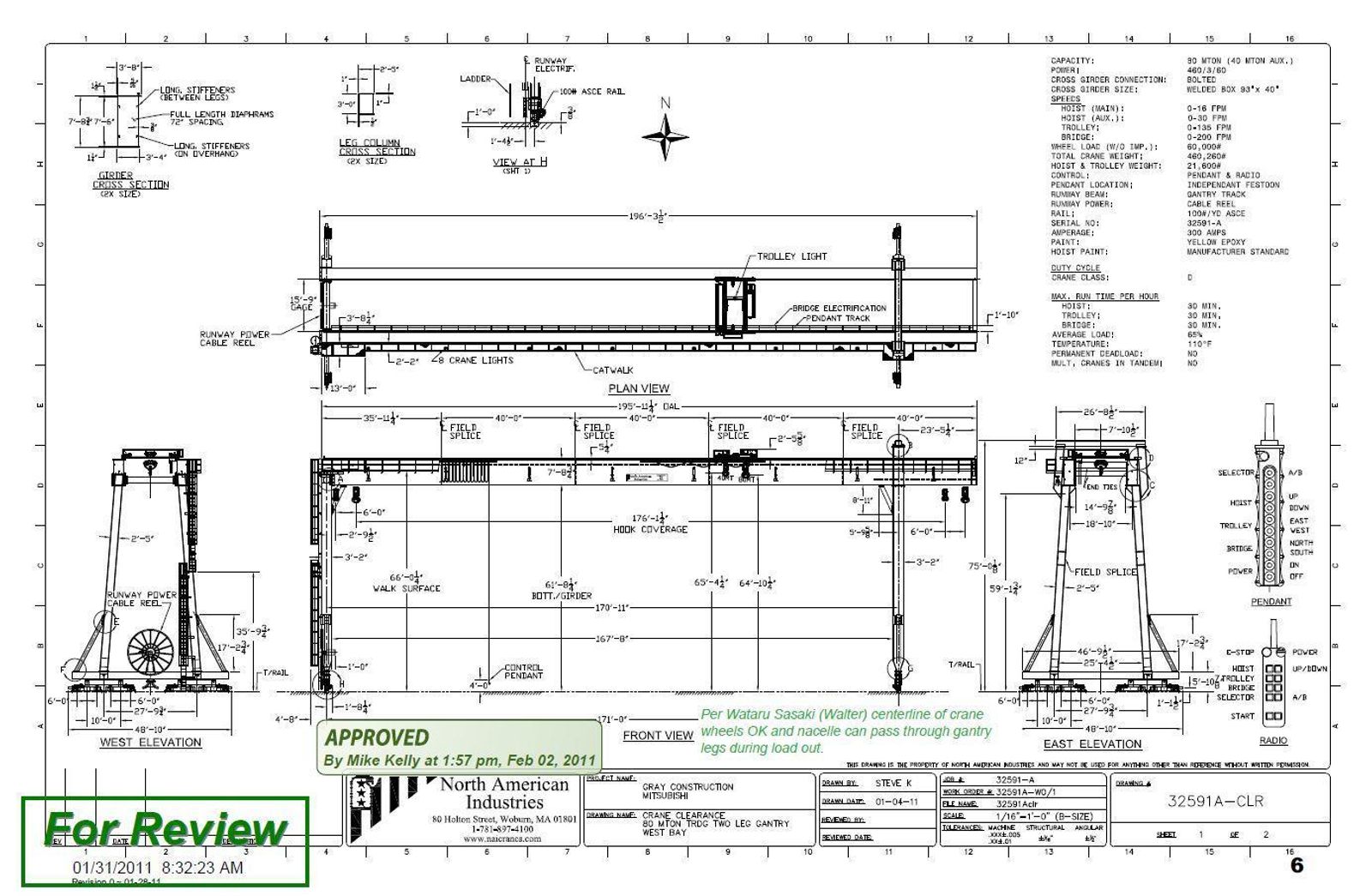

CRANE SPAN ............................ 196'

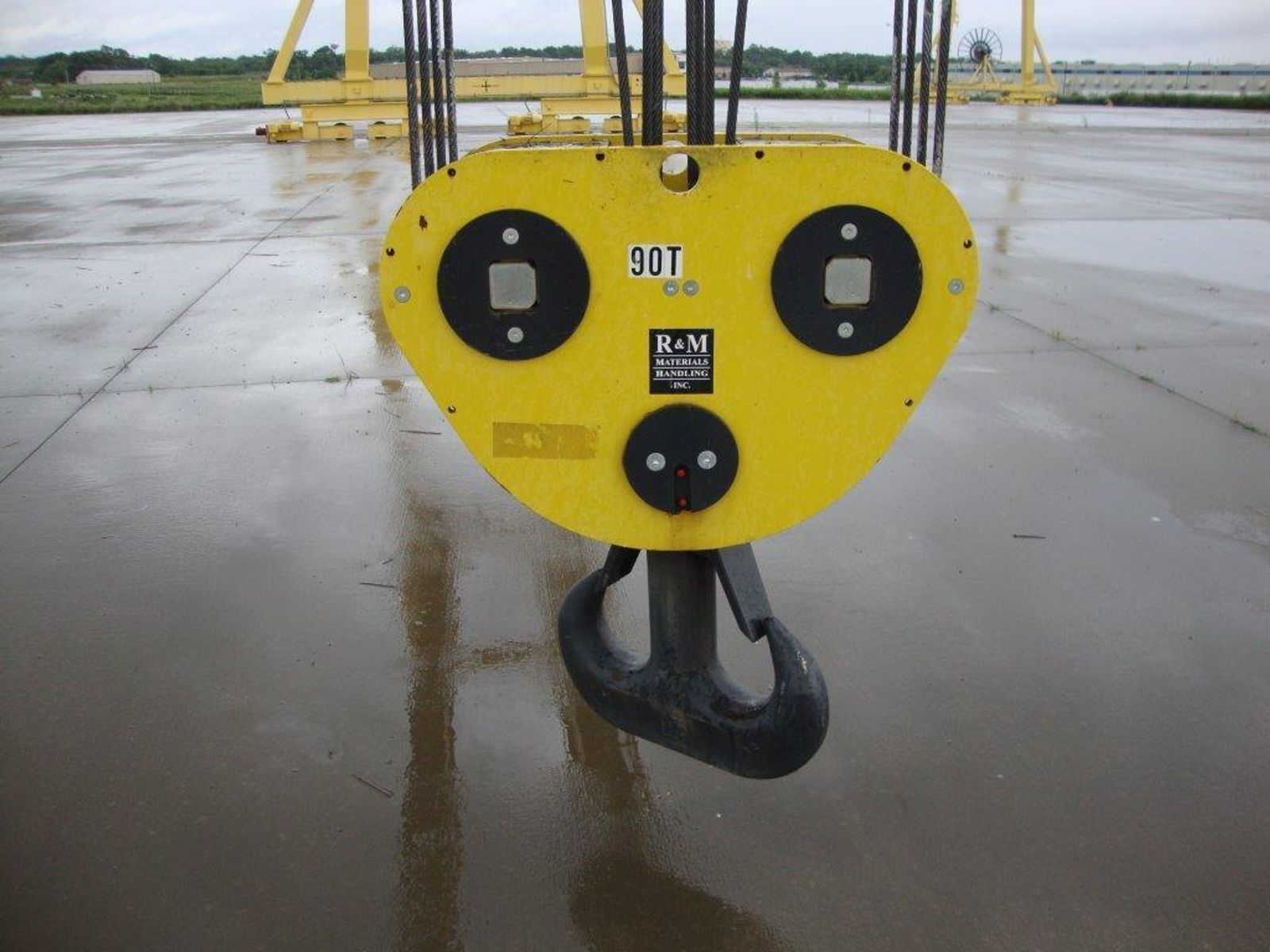

MAIN HOIST CAPACITY ................... 80 TON
AUX HOIST CAPACITY .................... 40 TON
DISTANCE BETWEEN UPRIGHTS ............. 125'
CANTILEVERS ........................... 25'
DISTANCE TO BOTTOM OF BRIDGE .......... 35'
REMOTE CONTROL W/PENDANT BACKUP
TOTAL WEIGHT .......................... 703.619 LBS
TOTAL SHIPPING WEIGHT ................. 730,000 LBS
CRANE WHEEL LOAD ...................... 94,400 LBS @ 39' 3"
MAIN HOIST ............................ 7.0 FPM/100 HP
AUX HOIST ............................. 39.5 FPM/100 HP

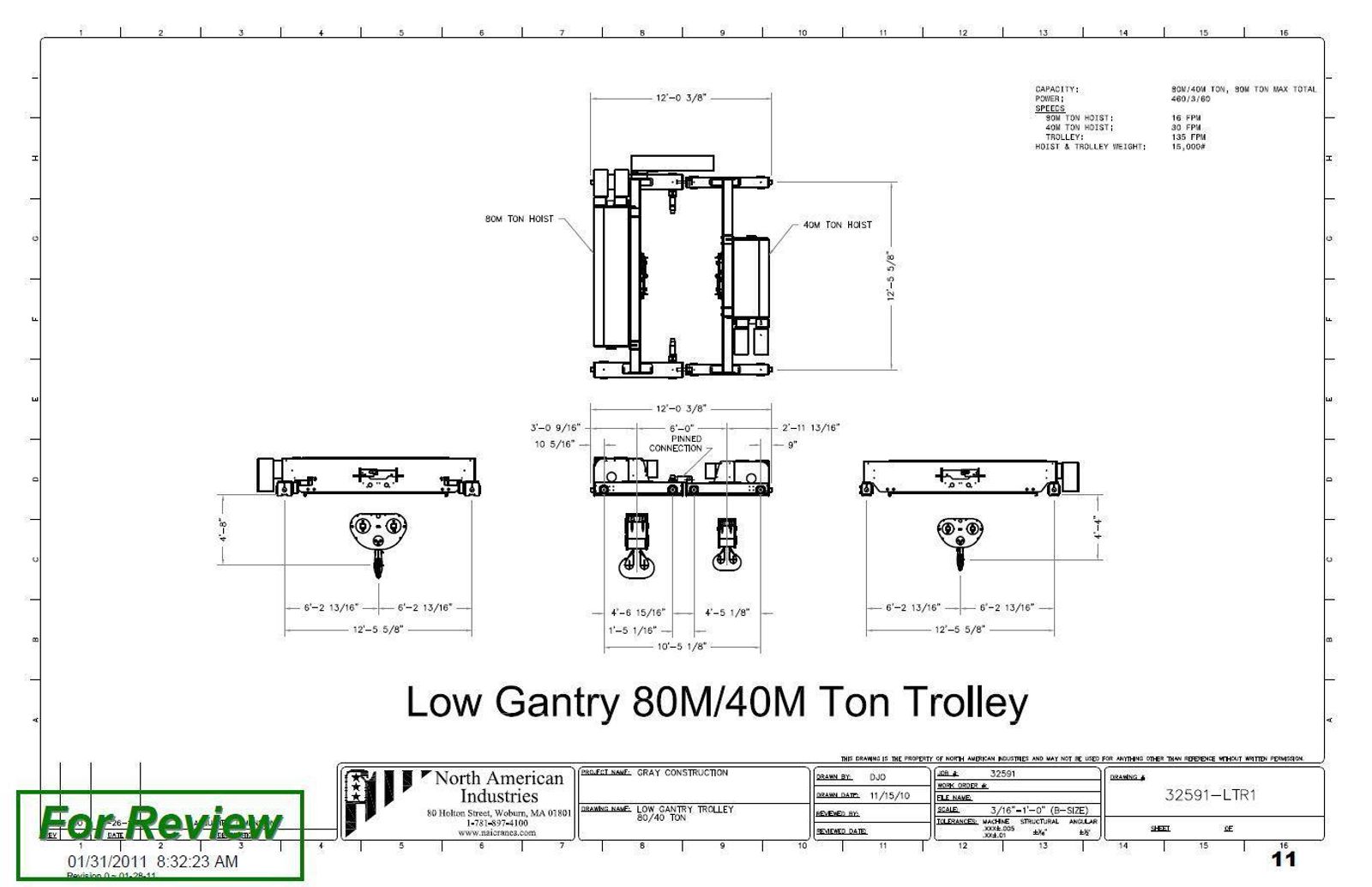

TROLLEY ............................... 60.0 FPM/15 HP

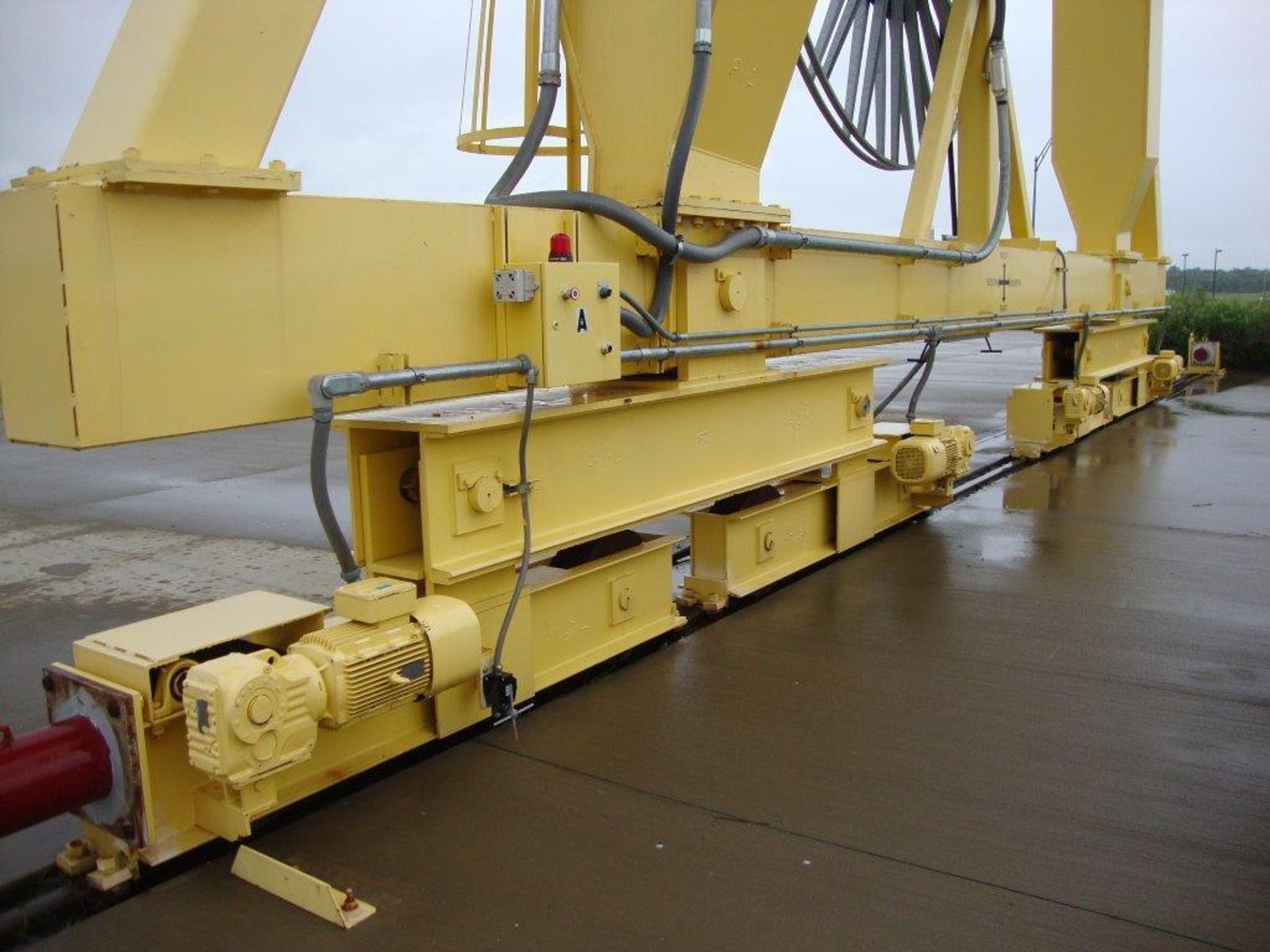

BRIDGE ............................... 110.0 FPM/4 X 15 HP
GANTRY TRAVEL SPEED ................... 110-130 FPM
TROLLEY TRAVEL SPEED .................. 50-60 FPM
MAIN HOOK HOISTING SPEED .............. 8 FPM
AUX HOOK HOISTING SPEED ............... 30-35 FPM
Brand
NORTH AMERICAN
Type
Cranes, Gantry, Bridge Type
Stock No.
14494
 |
419-269-2000 |
Stock #: 14494
SERIAL ................................ C-23603
YEAR ................................. 2011
CRANE CLASS ........................... D
CRANE SPAN ............................ 196'
MAIN HOIST CAPACITY ................... 80 TON
AUX HOIST CAPACITY .................... 40 TON
DISTANCE BETWEEN UPRIGHTS ............. 125'
CANTILEVERS ........................... 25'
DISTANCE TO BOTTOM OF BRIDGE .......... 35'
REMOTE CONTROL W/PENDANT BACKUPTOTAL WEIGHT .......................... 703.619 LBS
TOTAL SHIPPING WEIGHT ................. 730,000 LBS
CRANE WHEEL LOAD ...................... 94,400 LBS @ 39' 3"MAIN HOIST ............................ 7.0 FPM/100 HP
AUX HOIST ............................. 39.5 FPM/100 HP
TROLLEY ............................... 60.0 FPM/15 HP
BRIDGE ............................... 110.0 FPM/4 X 15 HP
GANTRY TRAVEL SPEED ................... 110-130 FPM
TROLLEY TRAVEL SPEED .................. 50-60 FPM
MAIN HOOK HOISTING SPEED .............. 8 FPM
AUX HOOK HOISTING SPEED ............... 30-35 FPM
