YEAR NEW ......................... 1996

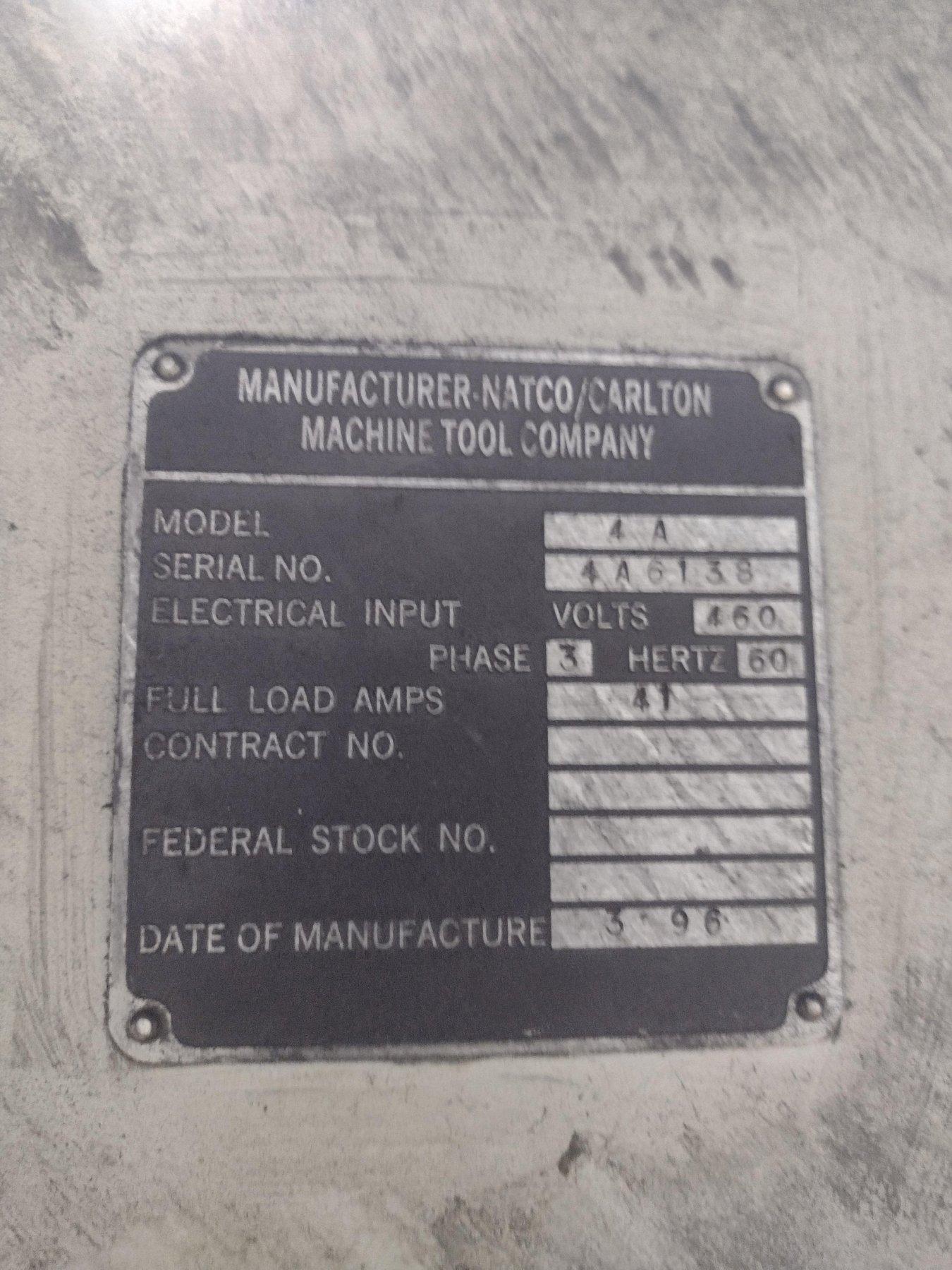

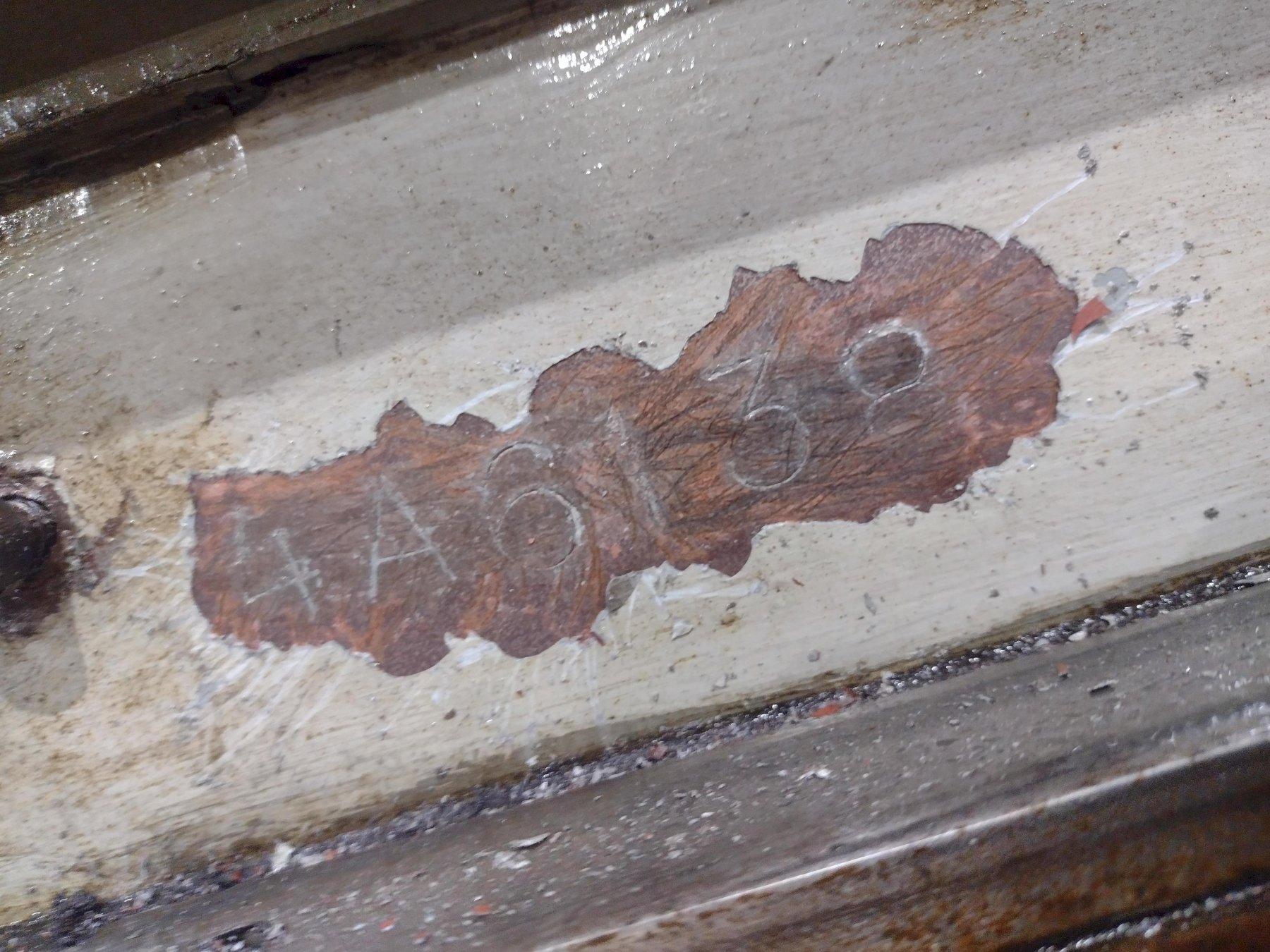

SERIAL ........................... 4A 6138

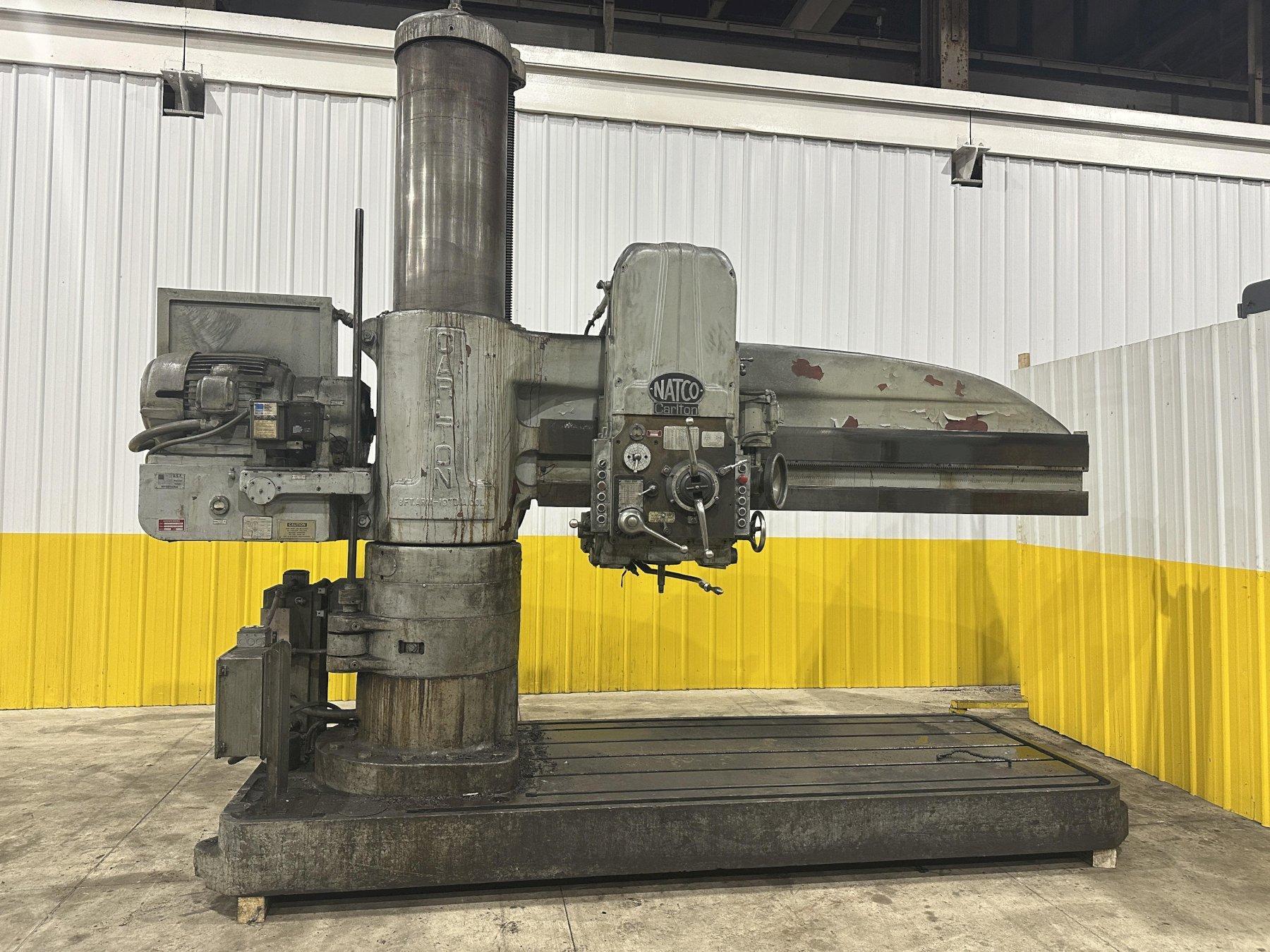

MODEL ............................ 4A

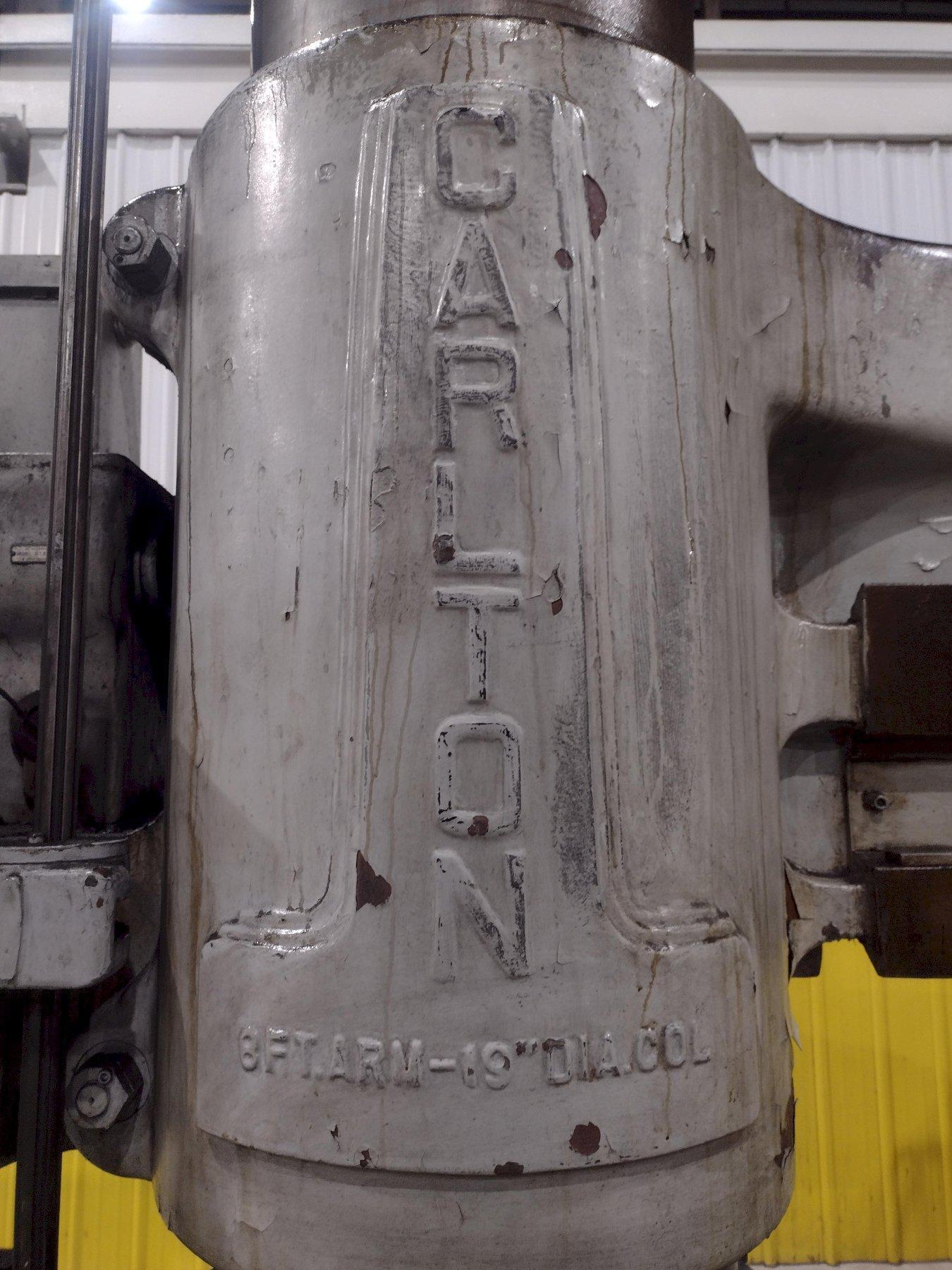

LENGTH OF ARM .................... 96"

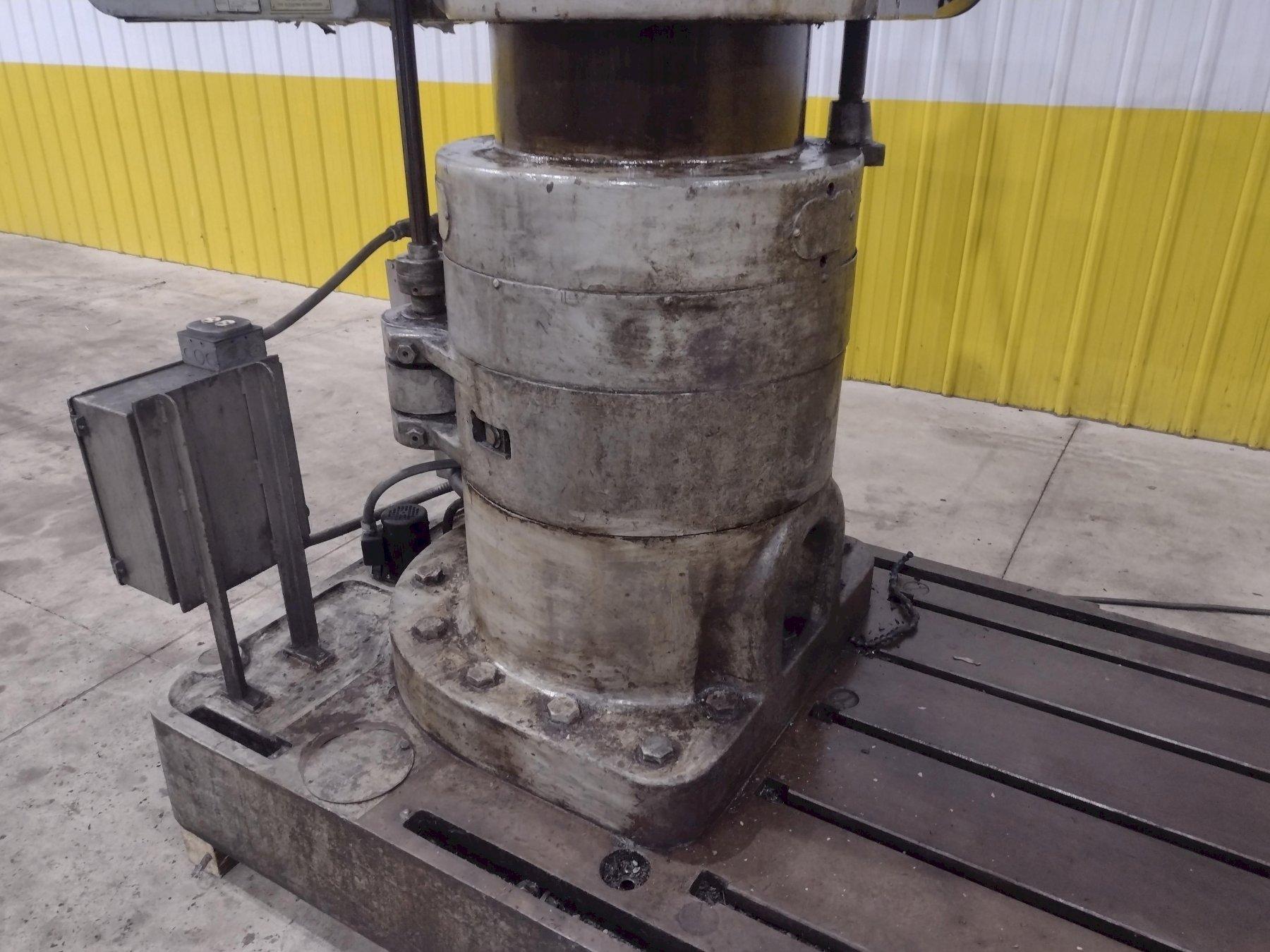

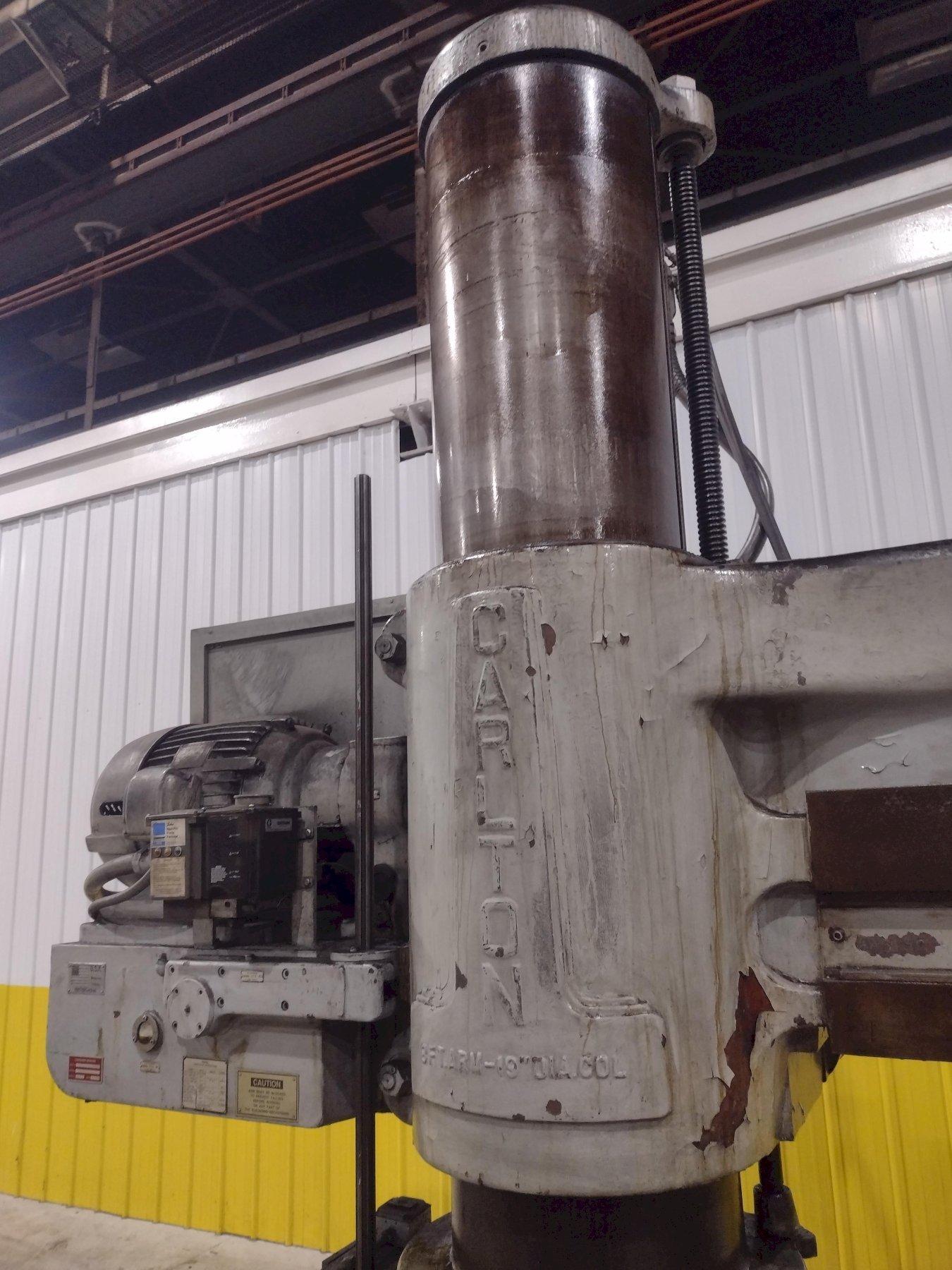

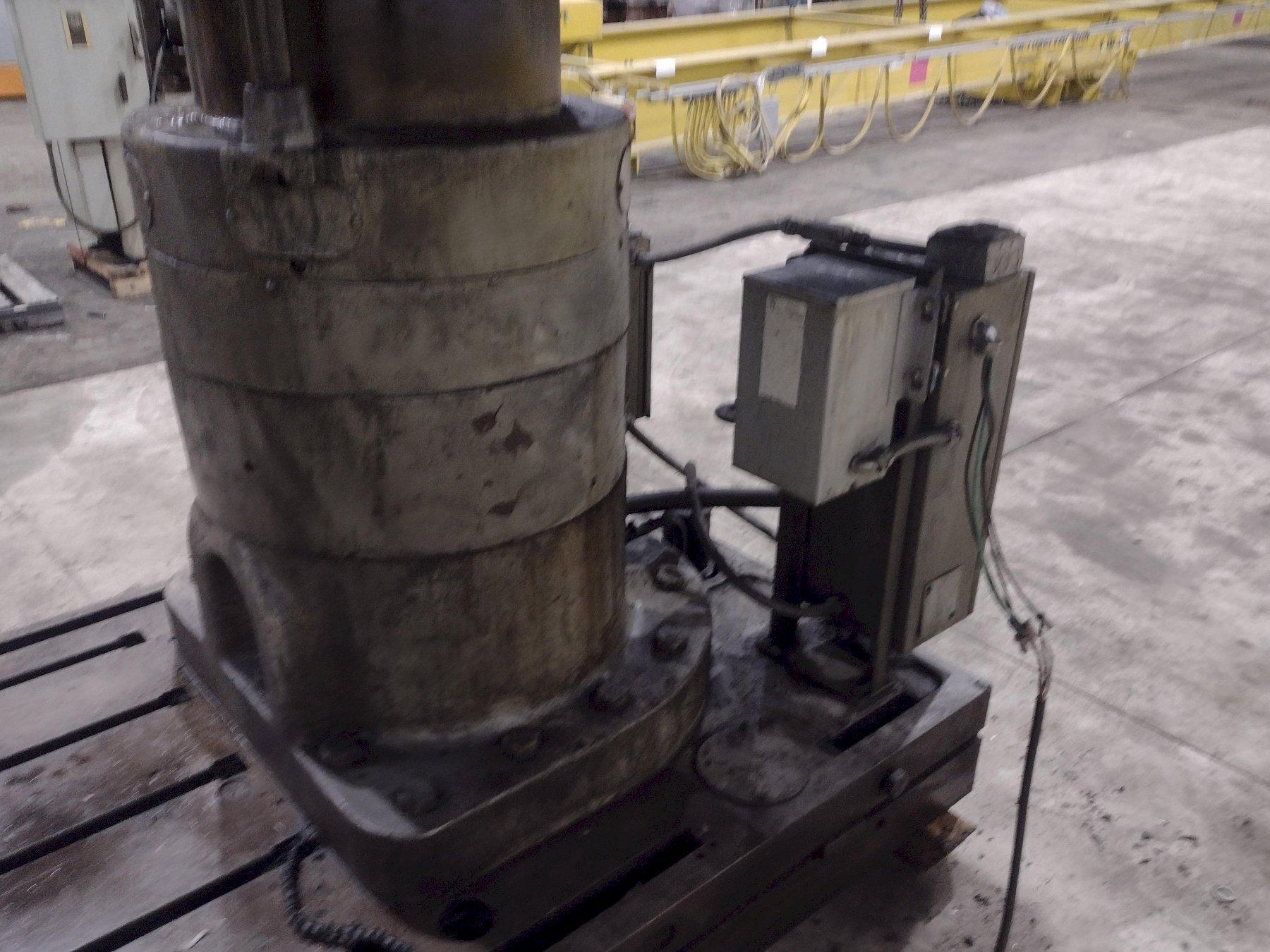

DIAMETER OF COLUMN ............... 19"

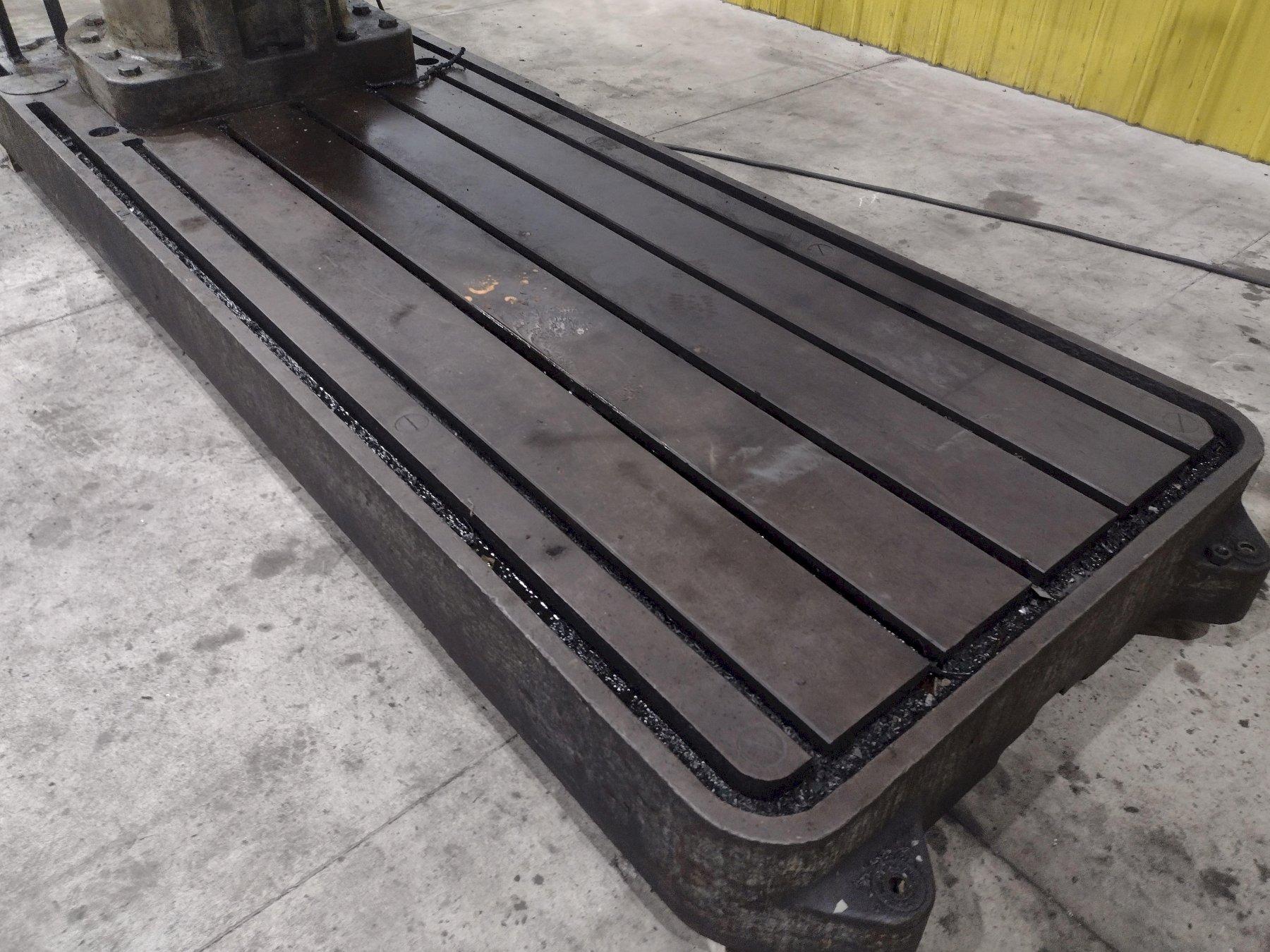

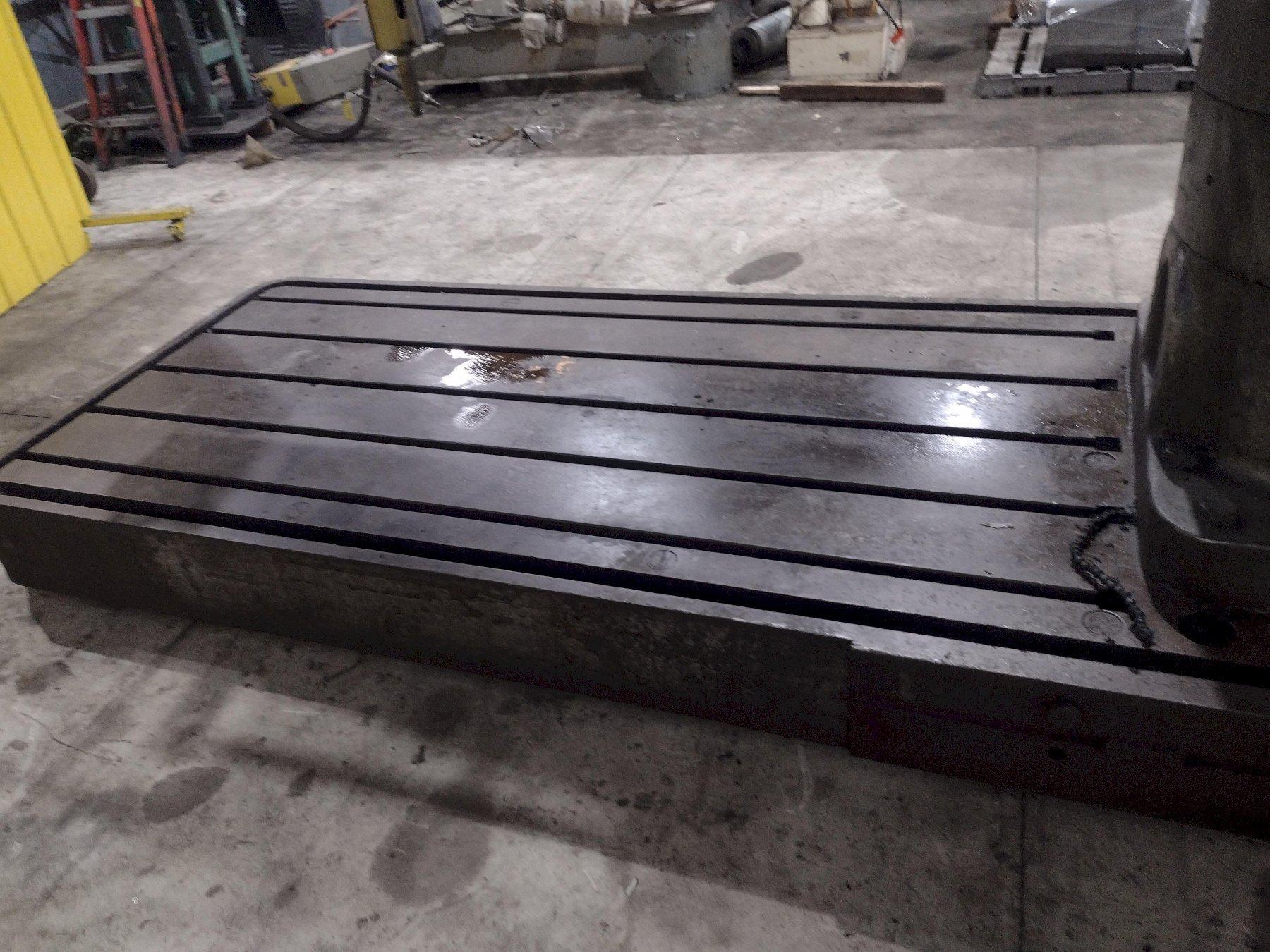

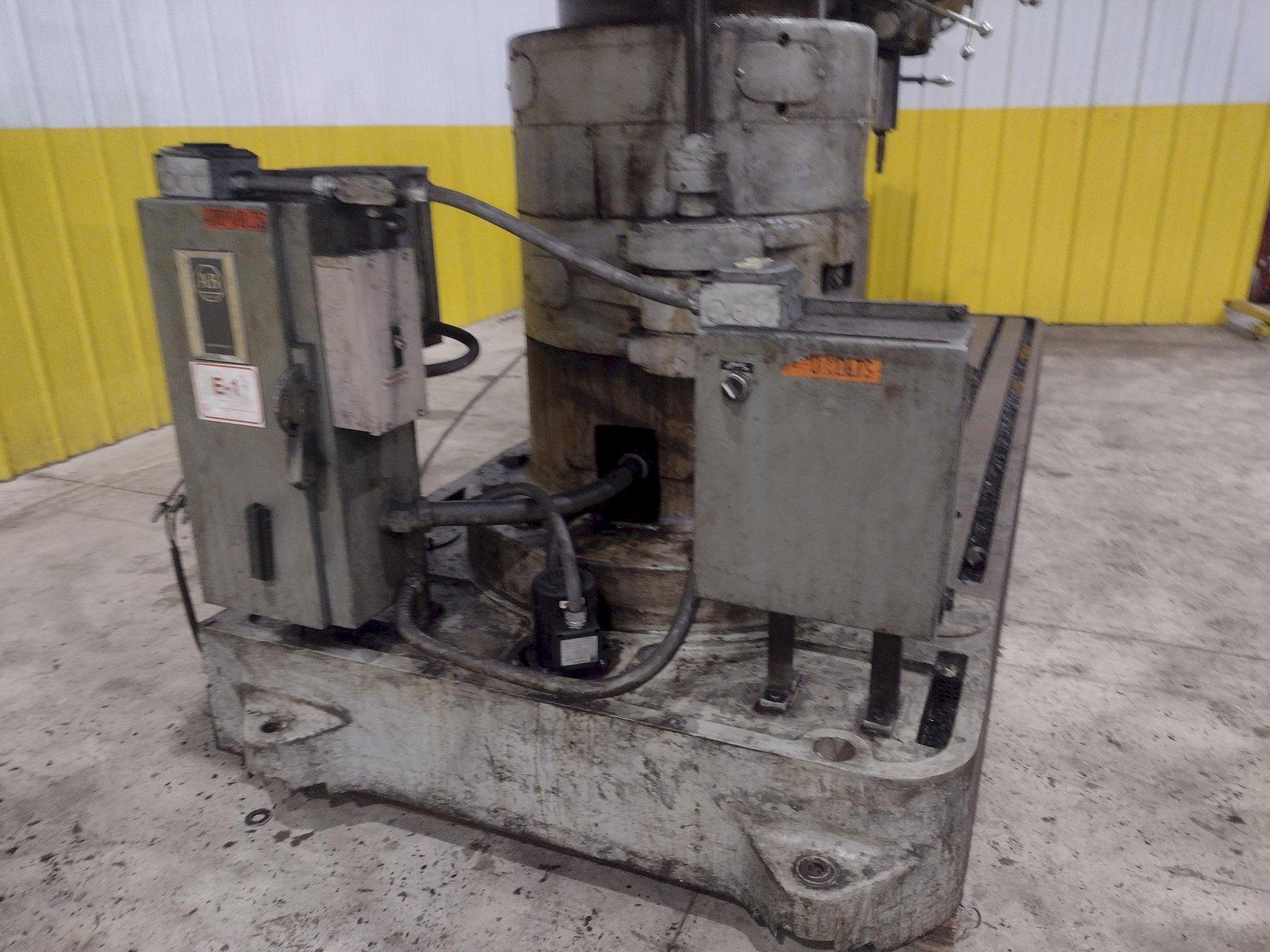

WORKING SURFACE OF BASE .......... 77" X 50"

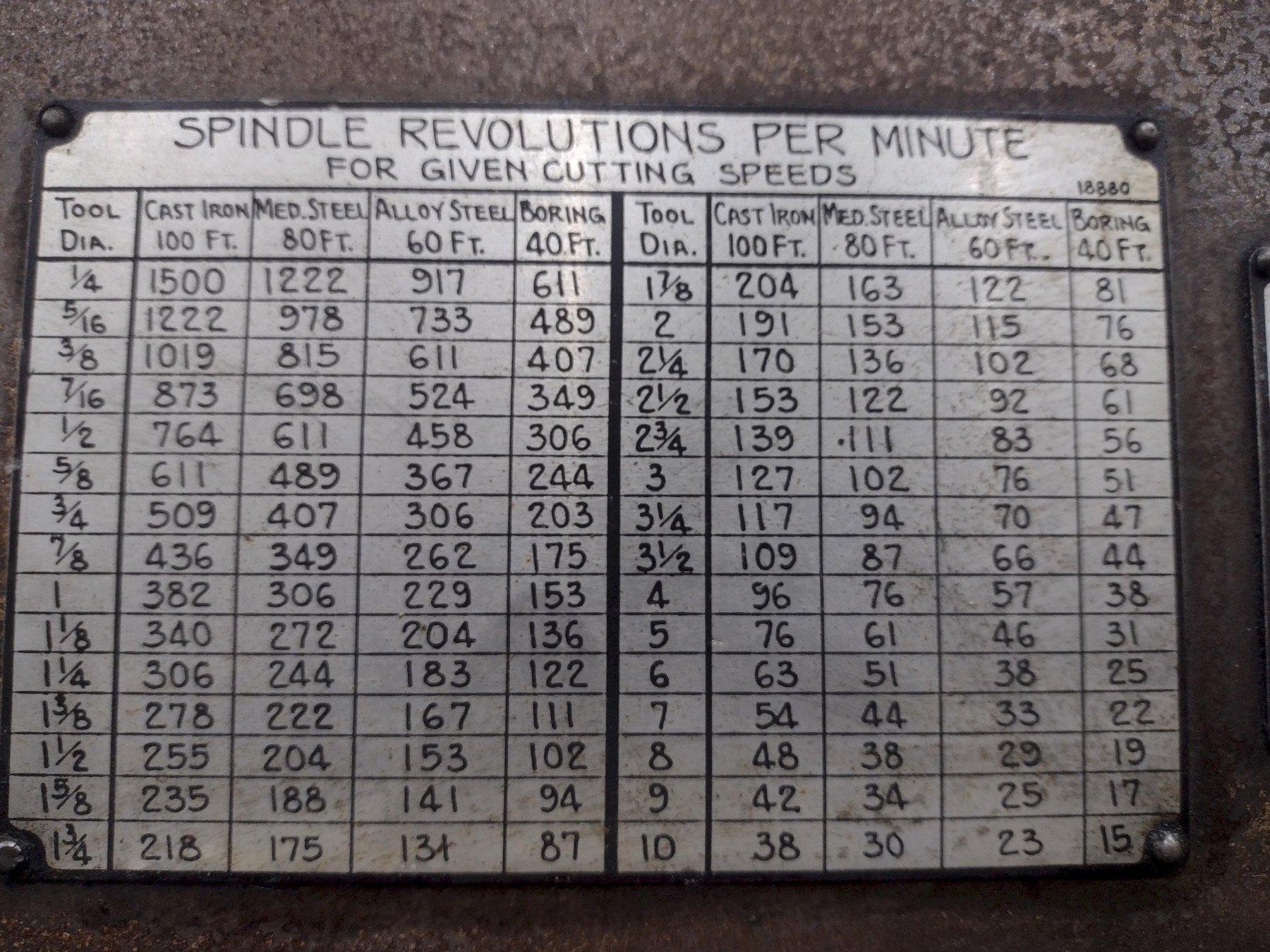

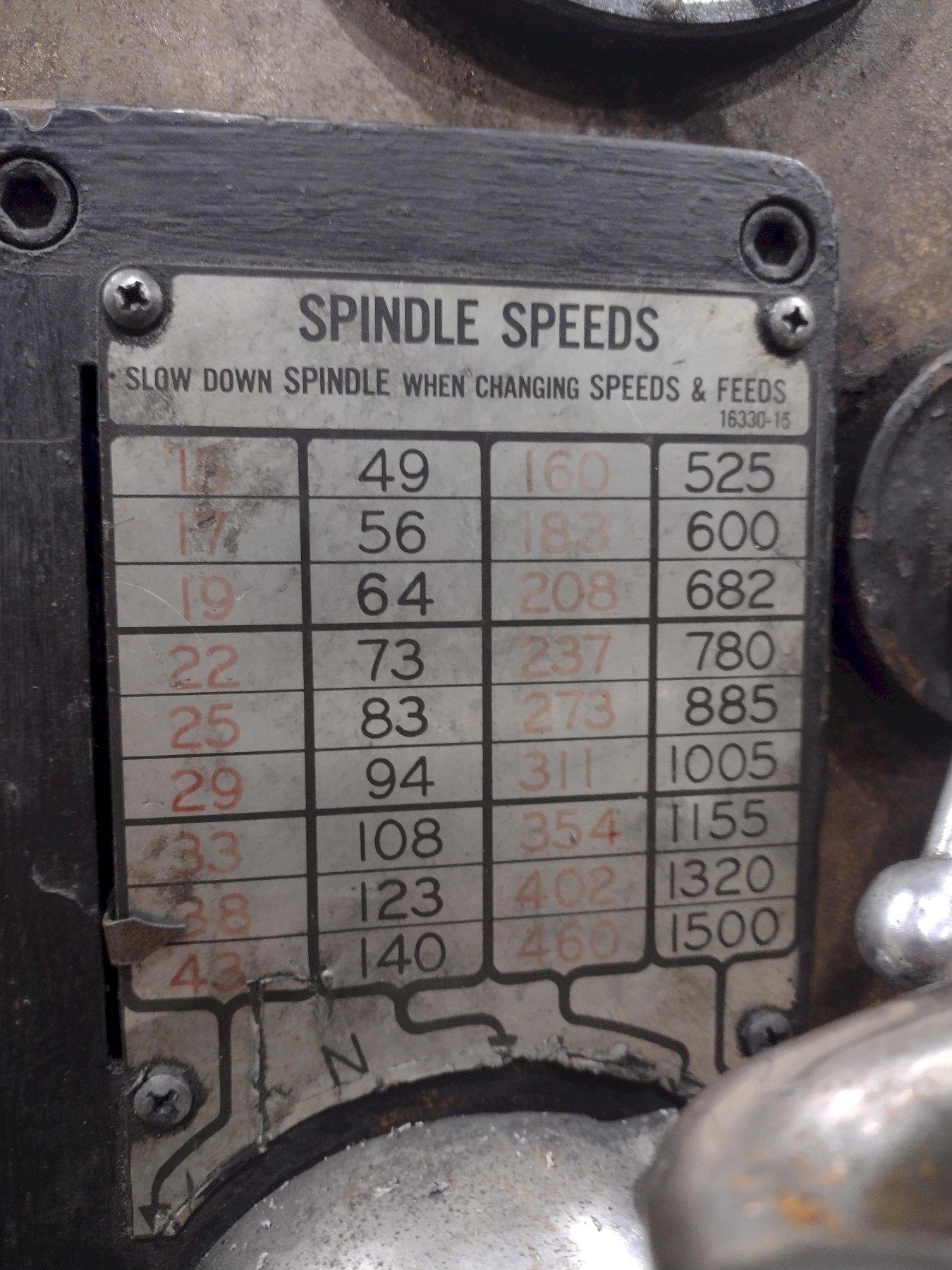

SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004 TO .125 IPR

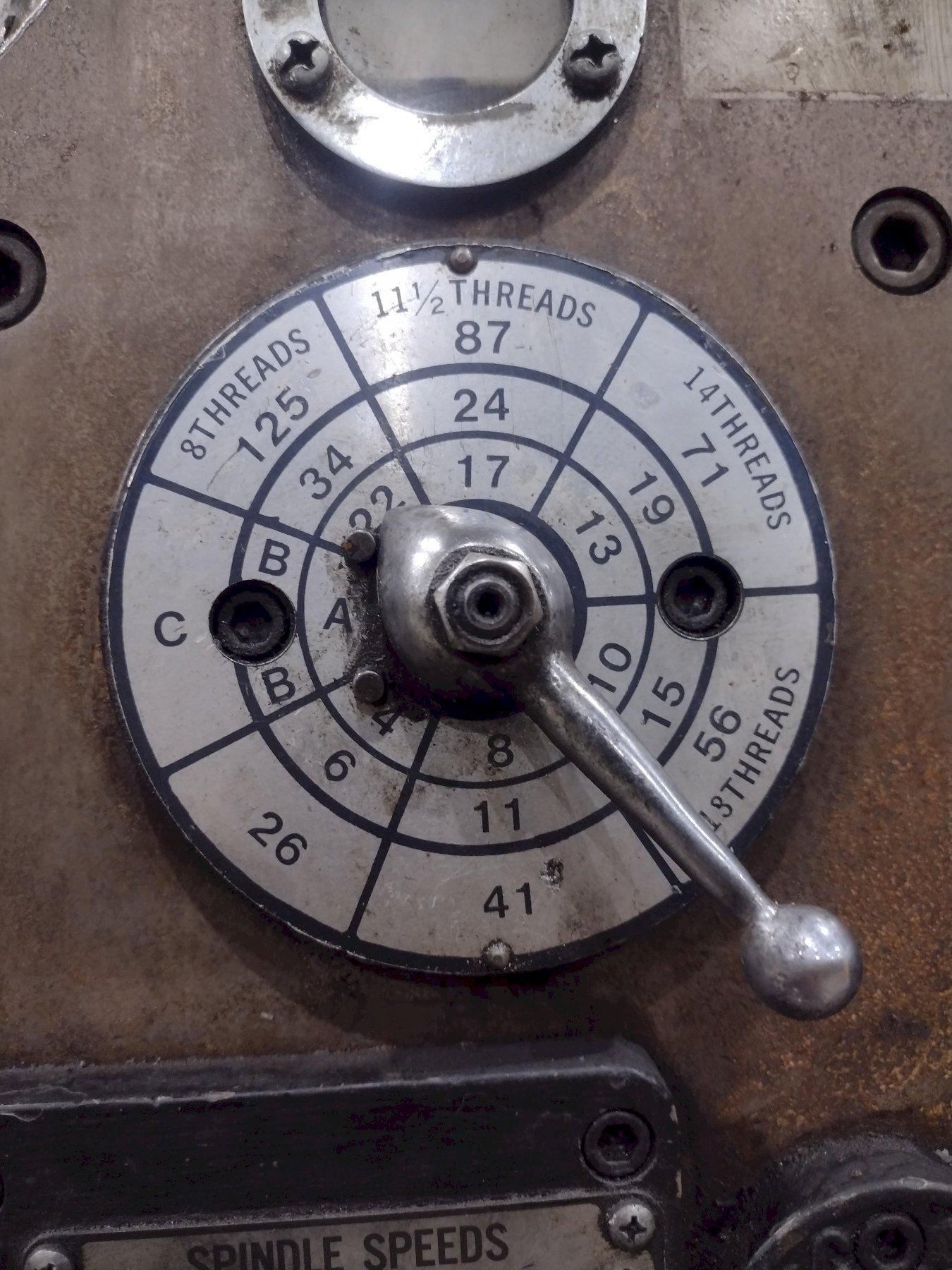

THREADS .......................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ................... 20"

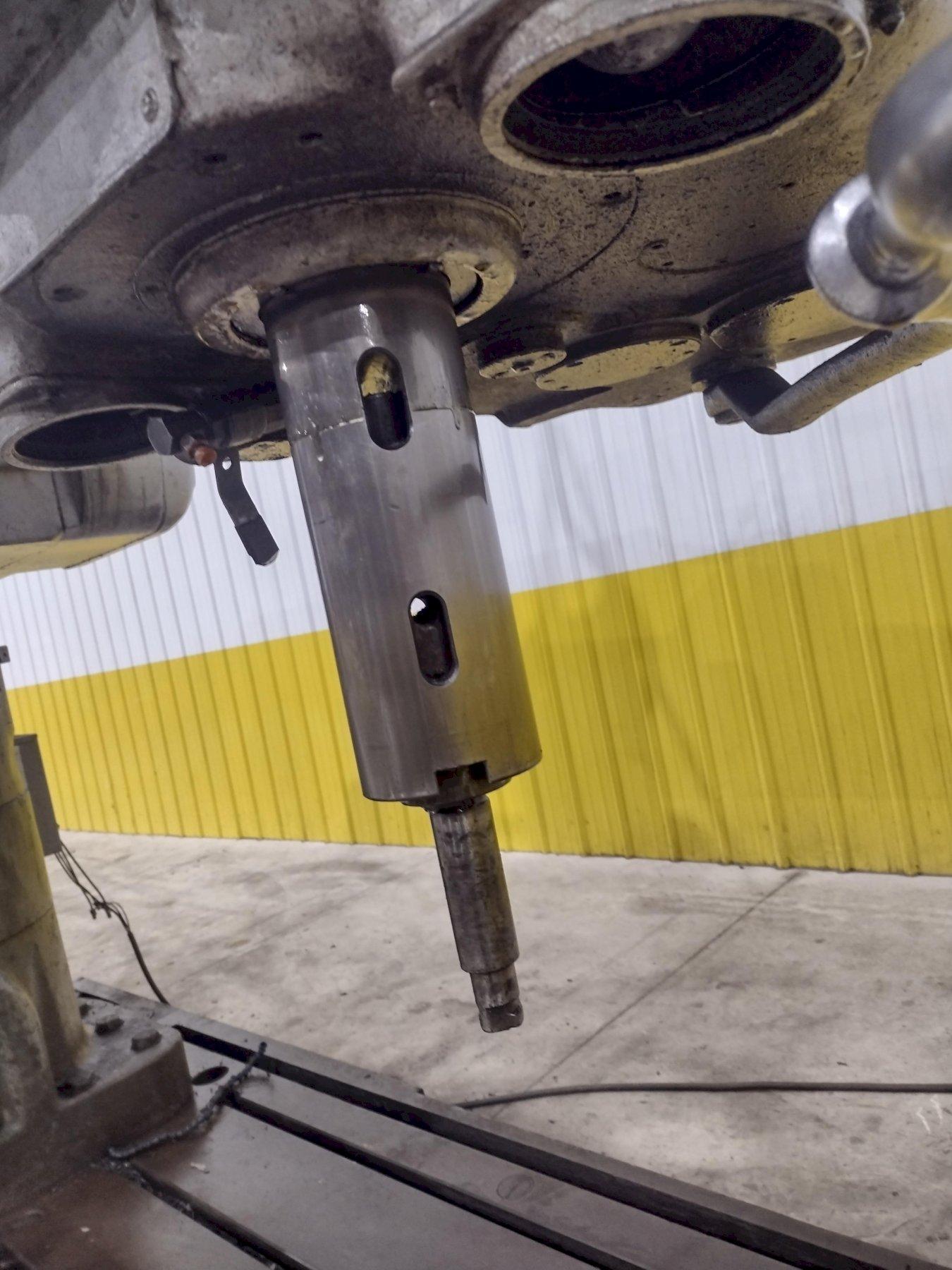

DIAMETER OF SPINDLE .............. 4"
TAPER IN SPINDLE ................. #6 MT
DISTANCE SPINDLE TO BASE ......... 32" MINIMUM TO 102" MAXIMUM
DISTANCE SPINDLE TO COLUMN ....... 13-1/4" MINIMUM TO 96" MAXIMUM

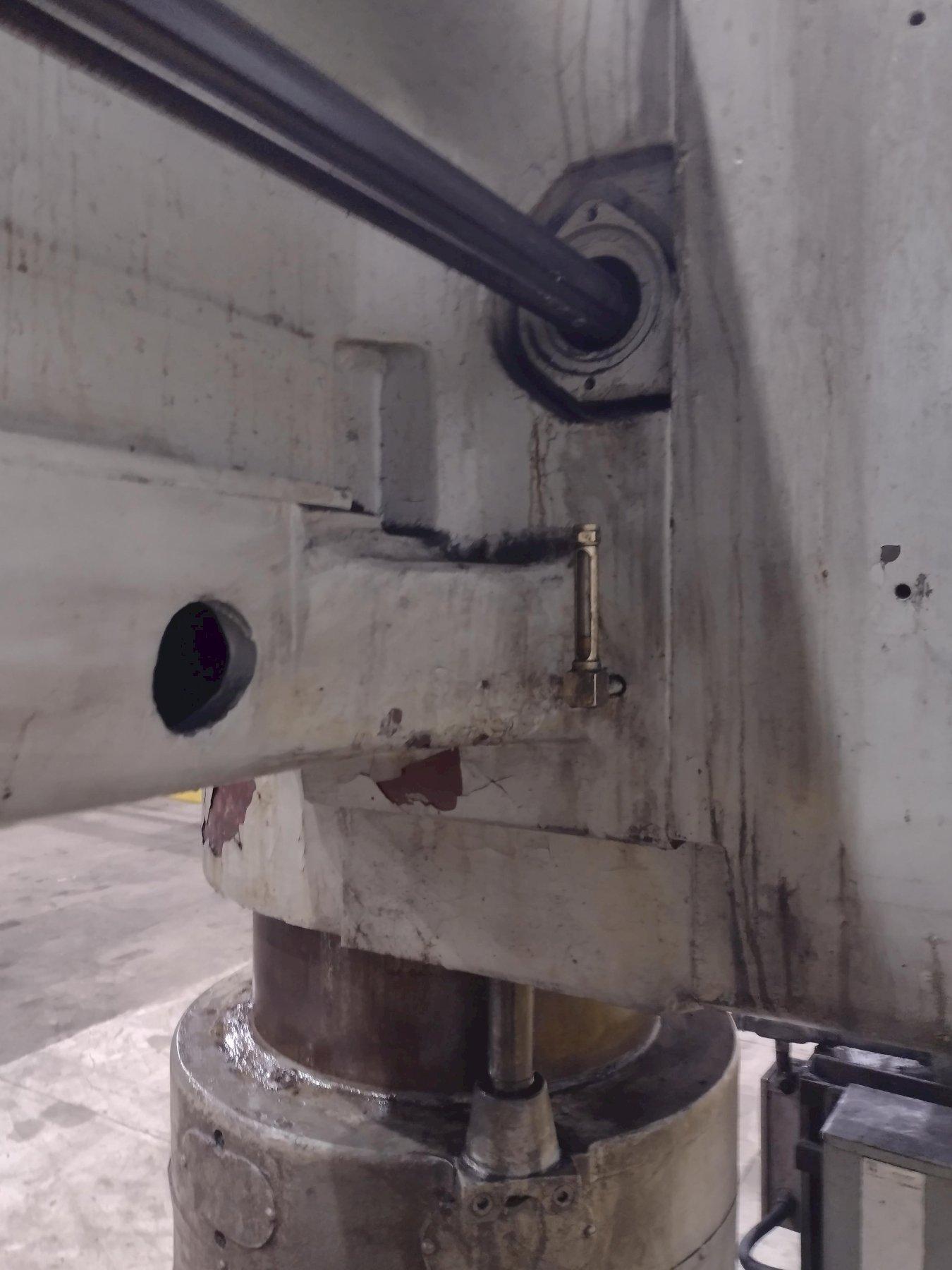

TRAVEL ARM ON COLUMN ............. 46"

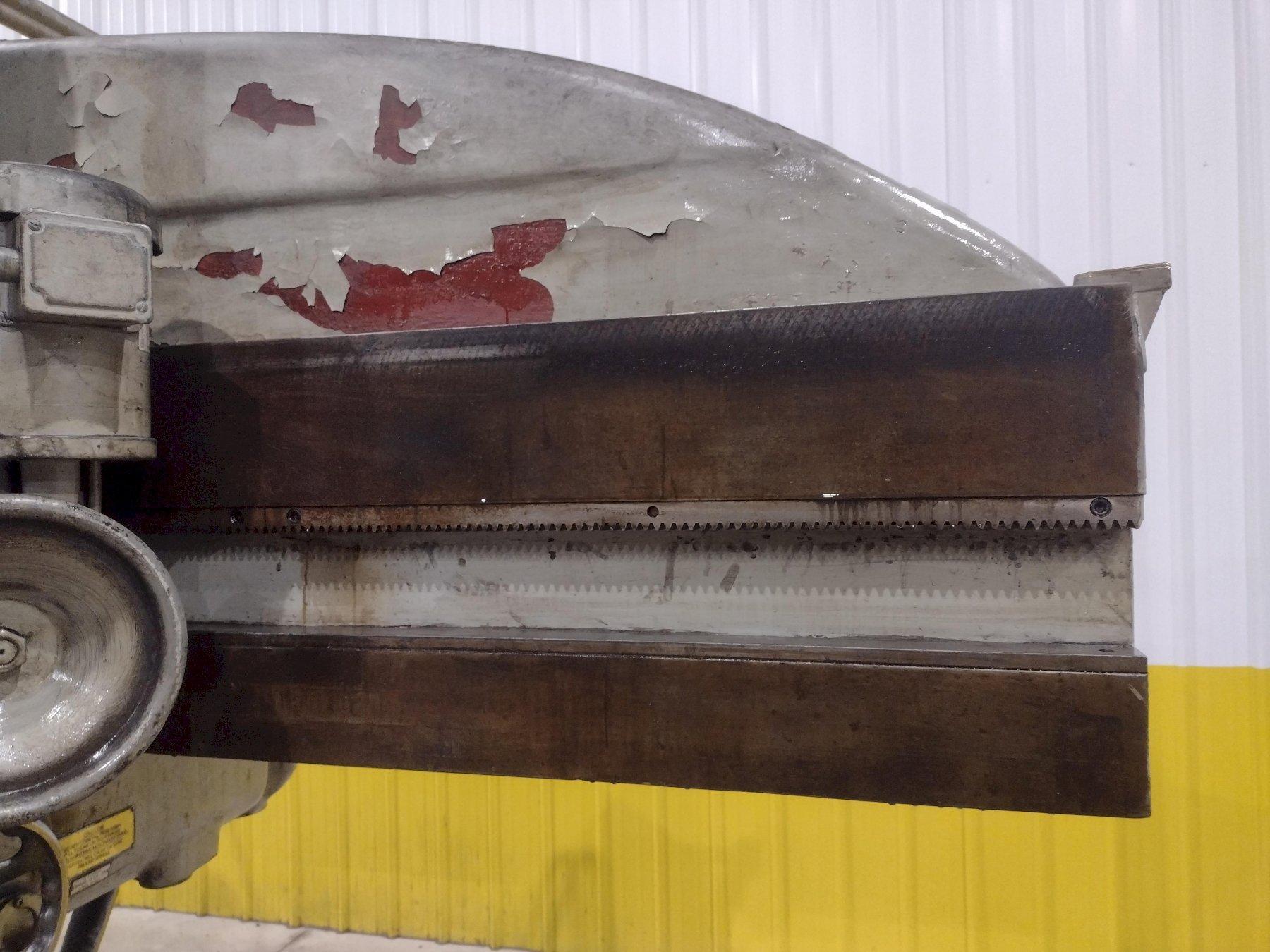

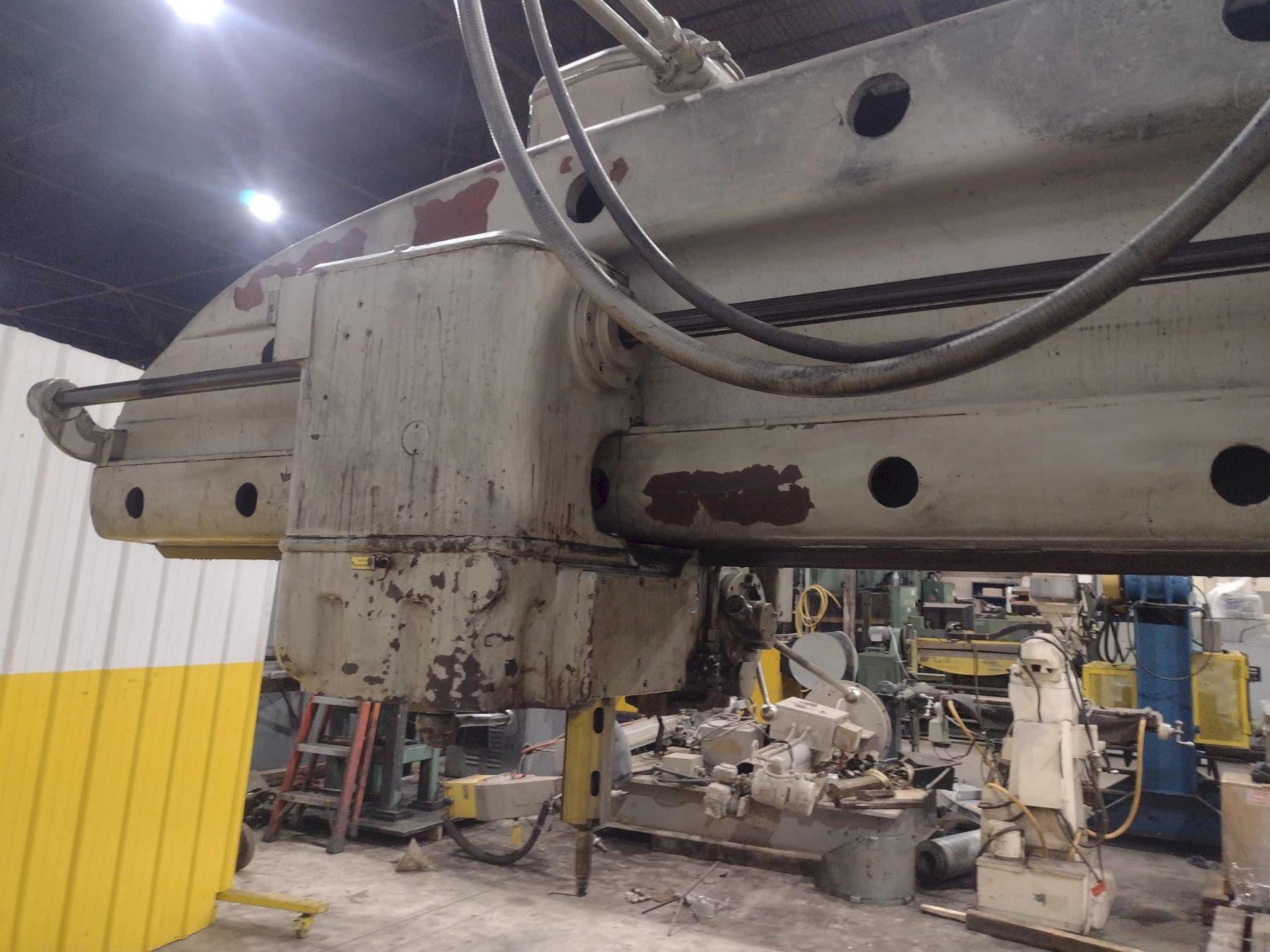

TRAVEL HEAD ON ARM ............... 59"

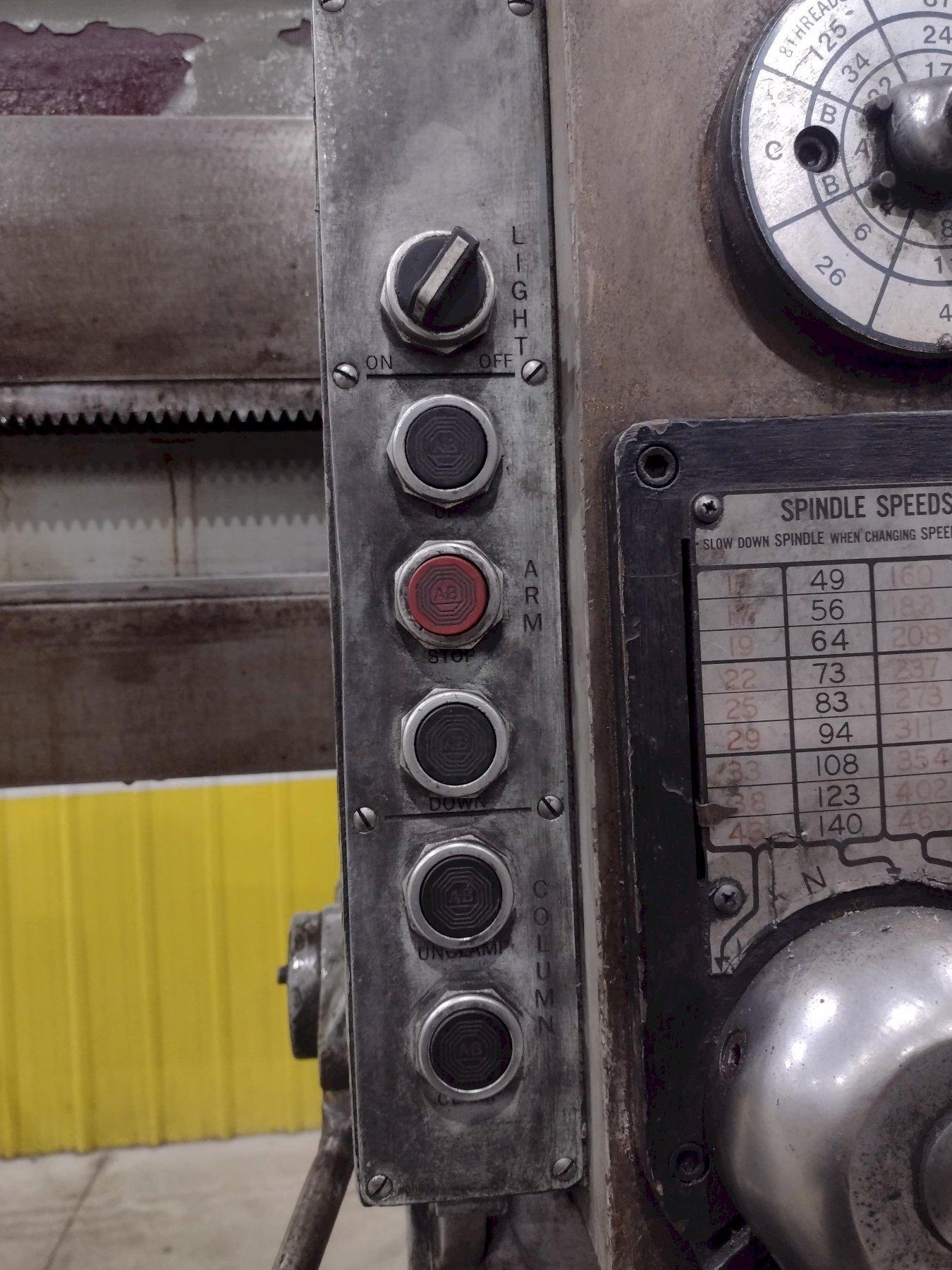

POWER CLAMPING ................... YES
POWER ELEVATION .................. YES

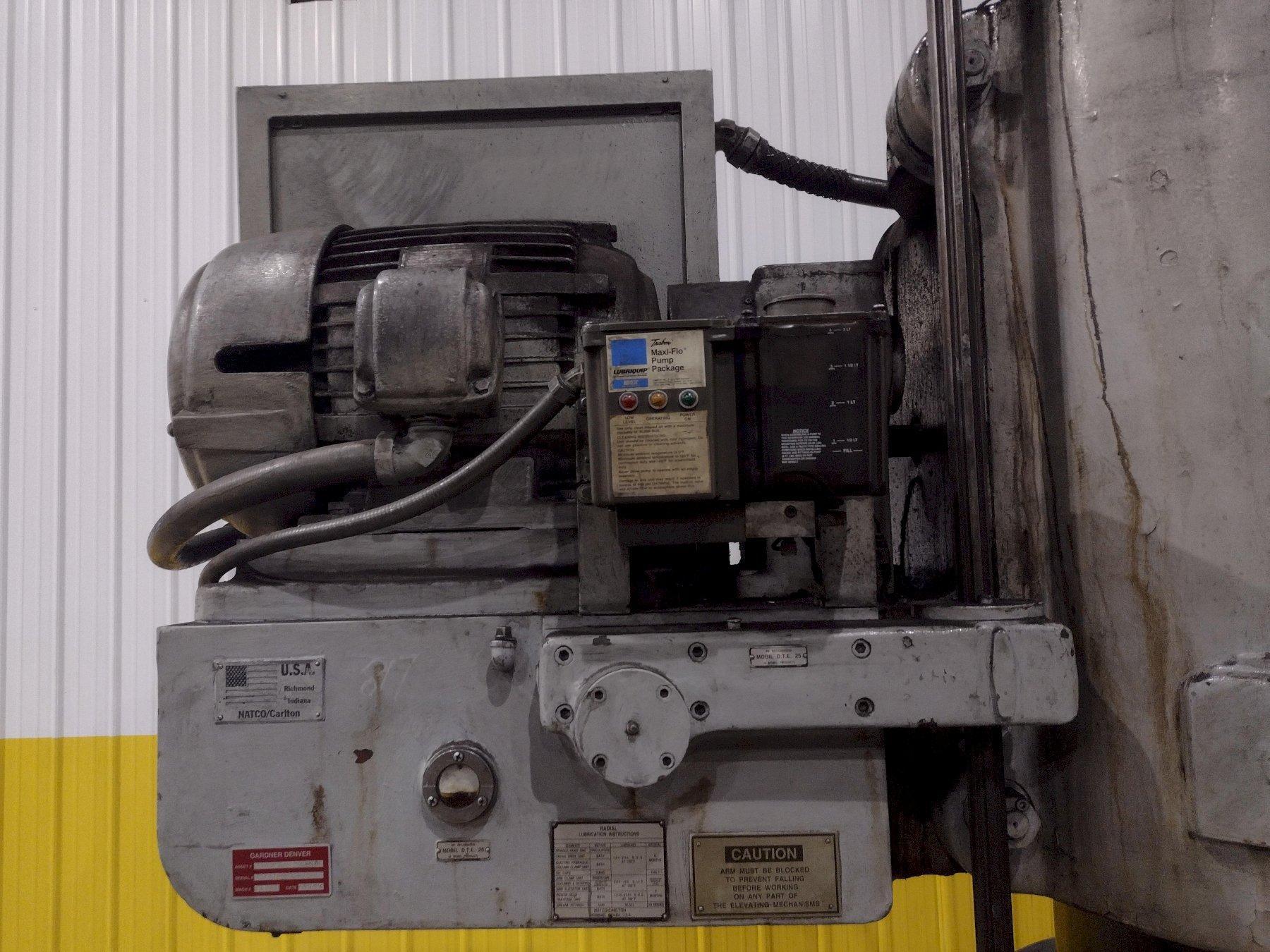

POWER HEAD TRAVERSE .............. YES

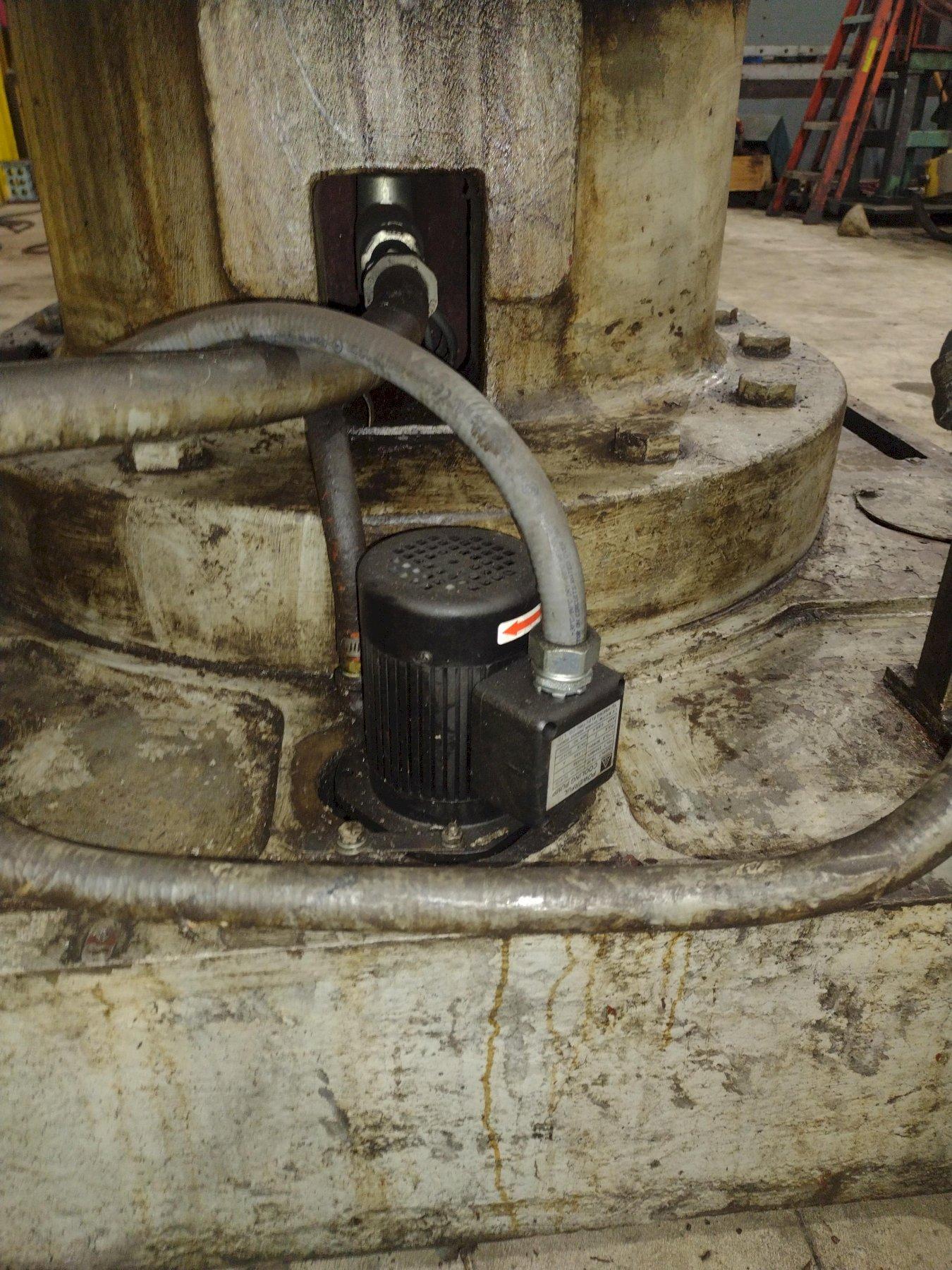

COOLANT .......................... YES

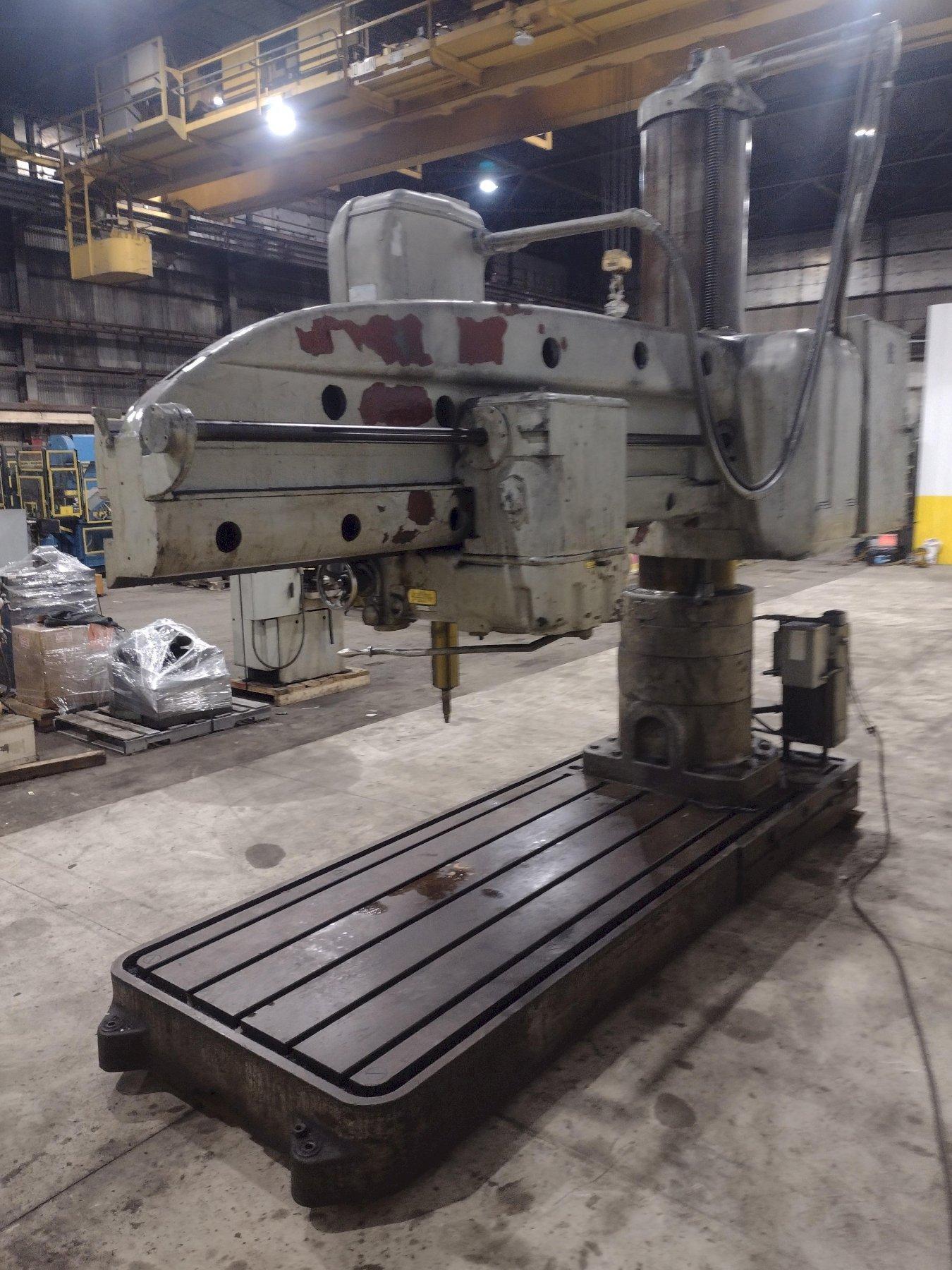

Brand
CARLTON
Type
Drills, Radial
Stock No.
22069
 |
419-269-2000 |
Stock #: 22069
YEAR NEW ......................... 1996
SERIAL ........................... 4A 6138
MODEL ............................ 4A
LENGTH OF ARM .................... 96"
DIAMETER OF COLUMN ............... 19"
WORKING SURFACE OF BASE .......... 77" X 50"
SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004 TO .125 IPR
THREADS .......................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ................... 20"
DIAMETER OF SPINDLE .............. 4"
TAPER IN SPINDLE ................. #6 MT
DISTANCE SPINDLE TO BASE ......... 32" MINIMUM TO 102" MAXIMUM
DISTANCE SPINDLE TO COLUMN ....... 13-1/4" MINIMUM TO 96" MAXIMUM
TRAVEL ARM ON COLUMN ............. 46"
TRAVEL HEAD ON ARM ............... 59"
POWER CLAMPING ................... YES
POWER ELEVATION .................. YES
POWER HEAD TRAVERSE .............. YES
COOLANT .......................... YES
