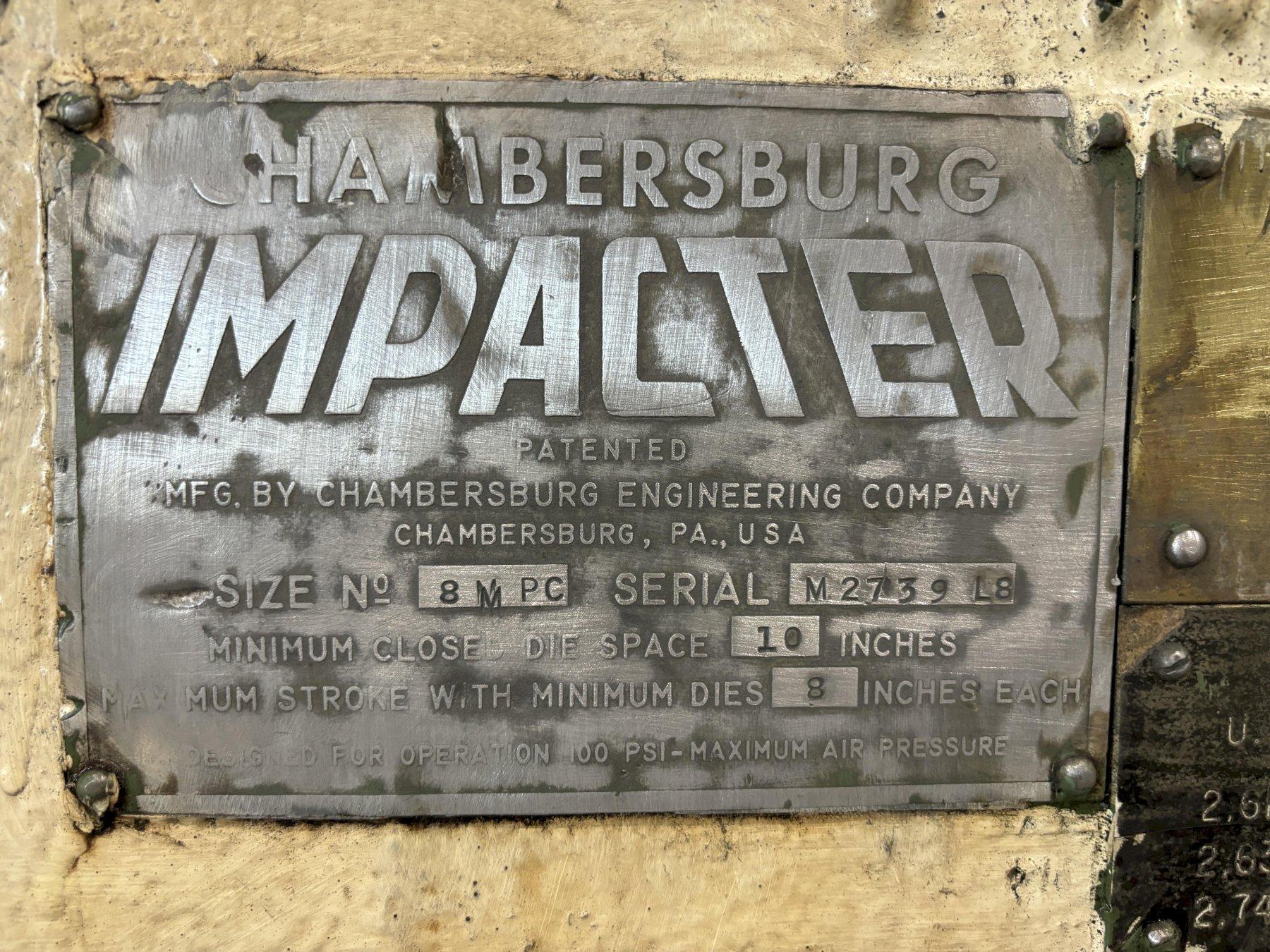

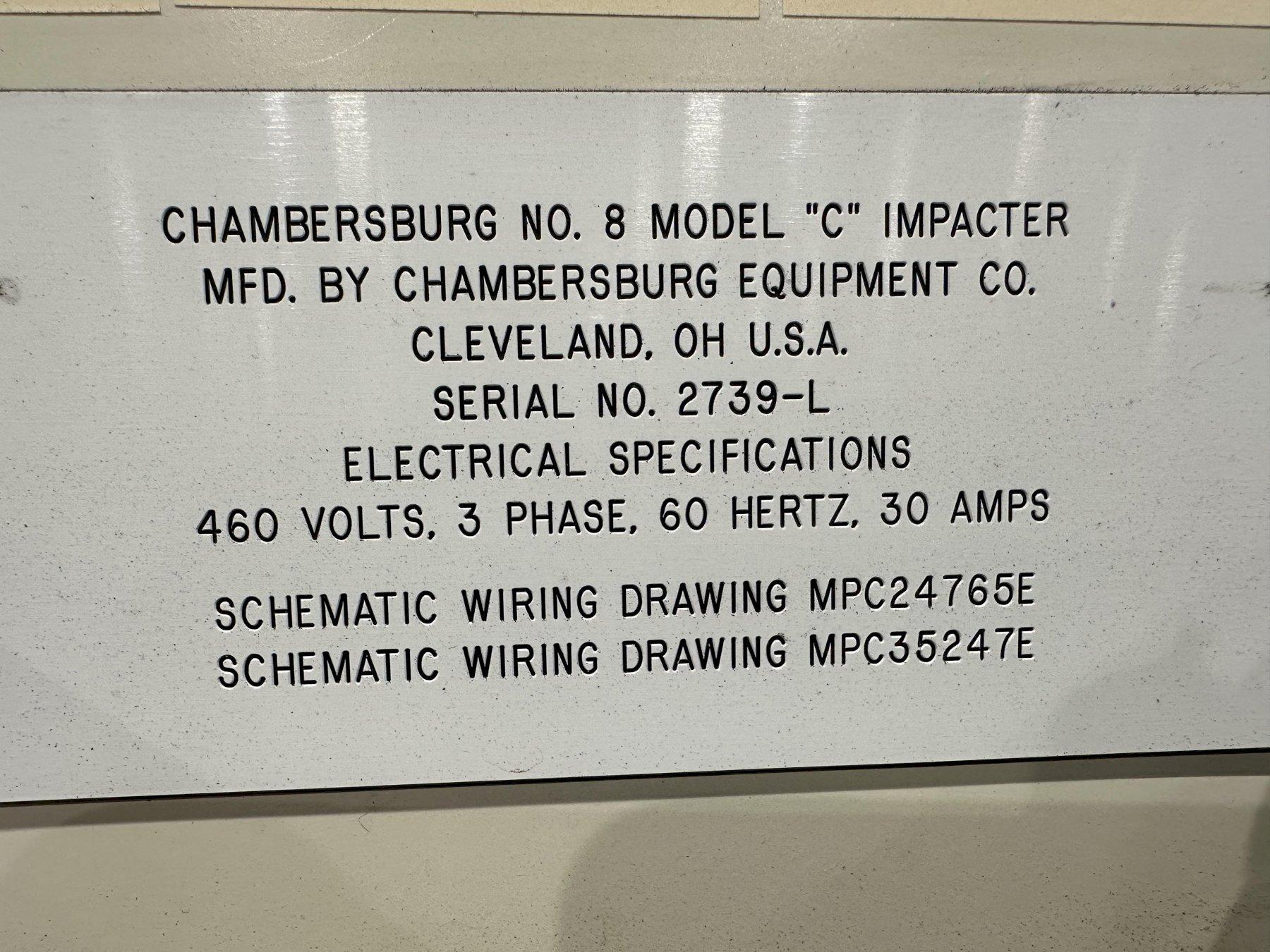

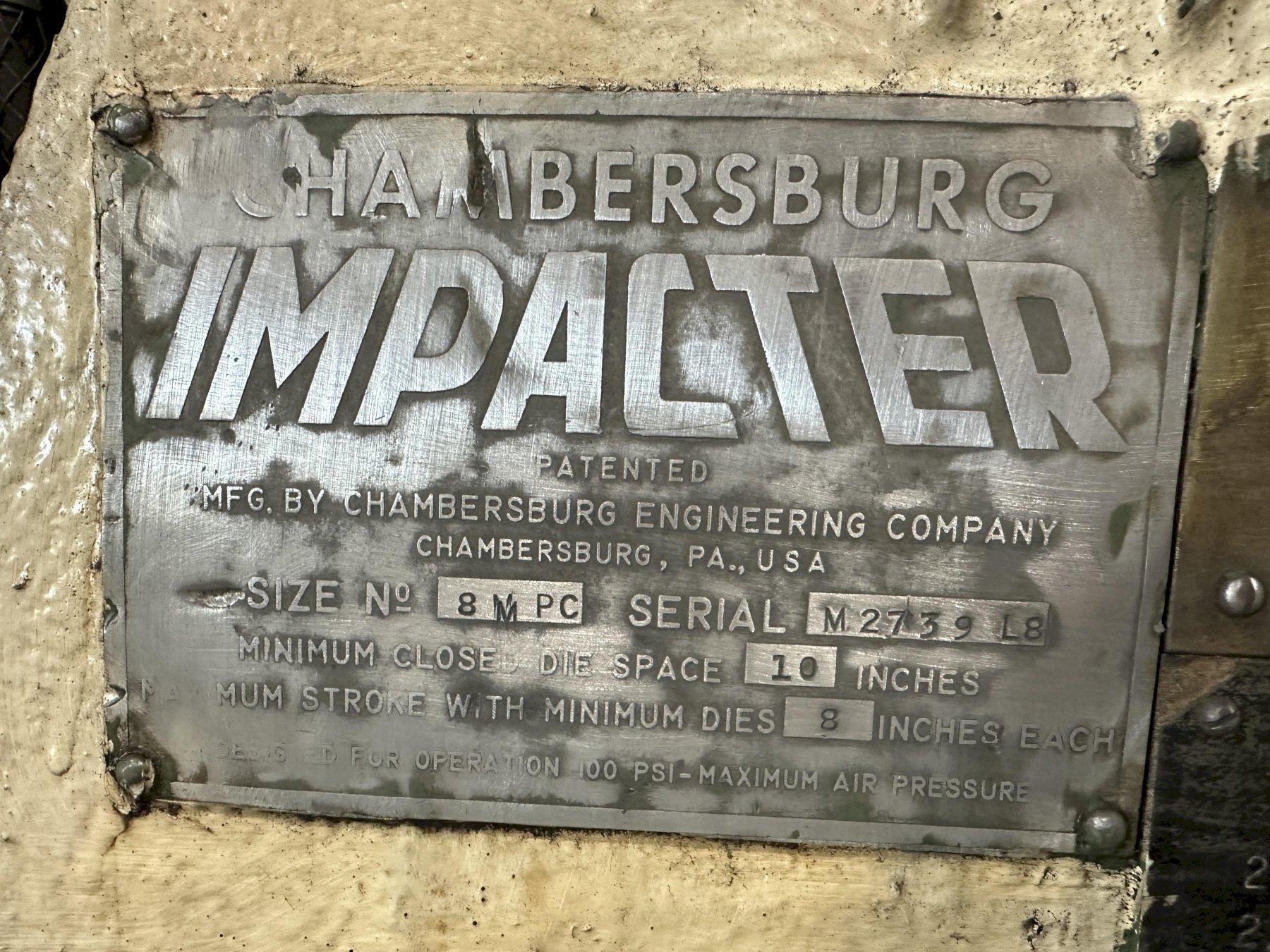

SERIAL ..................... 2739-L
YEAR REBUILT ............... 2016
UPDATED CONTROLS ........... 2016

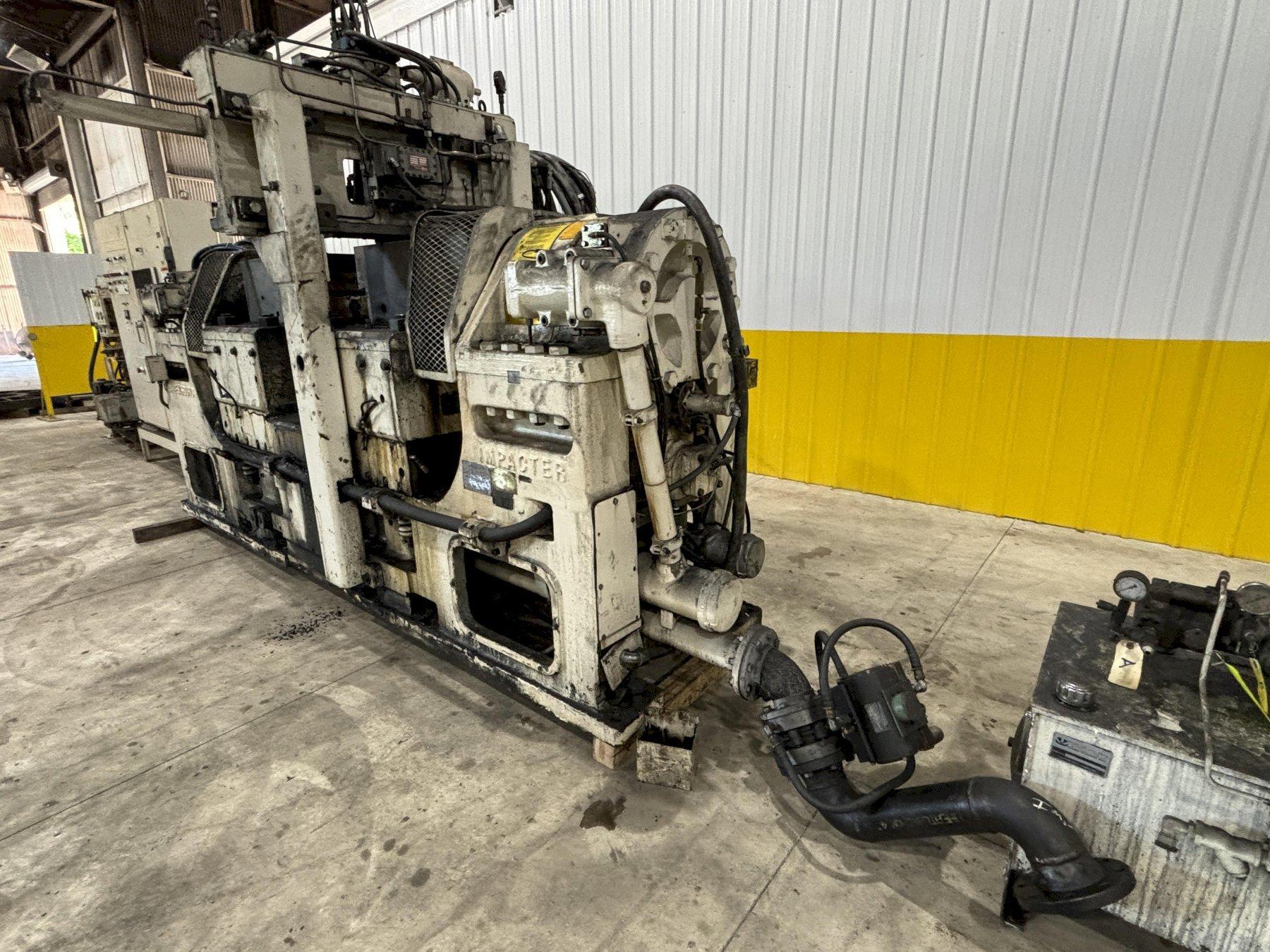

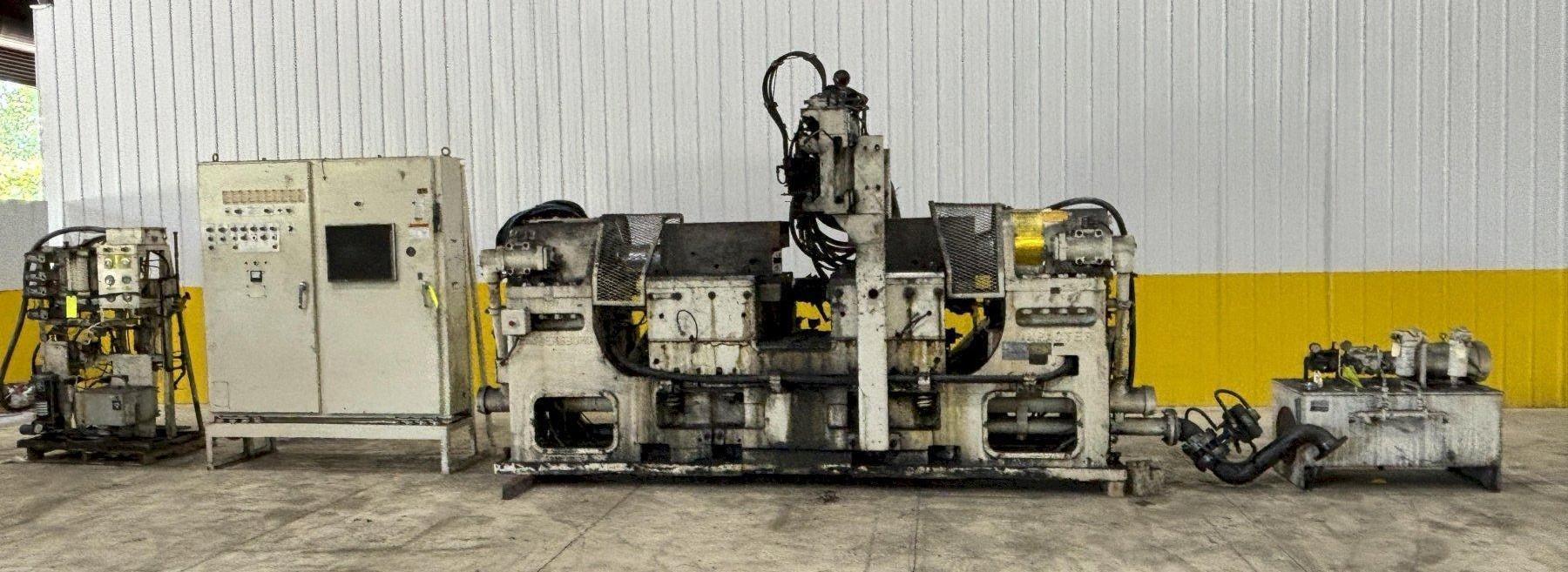

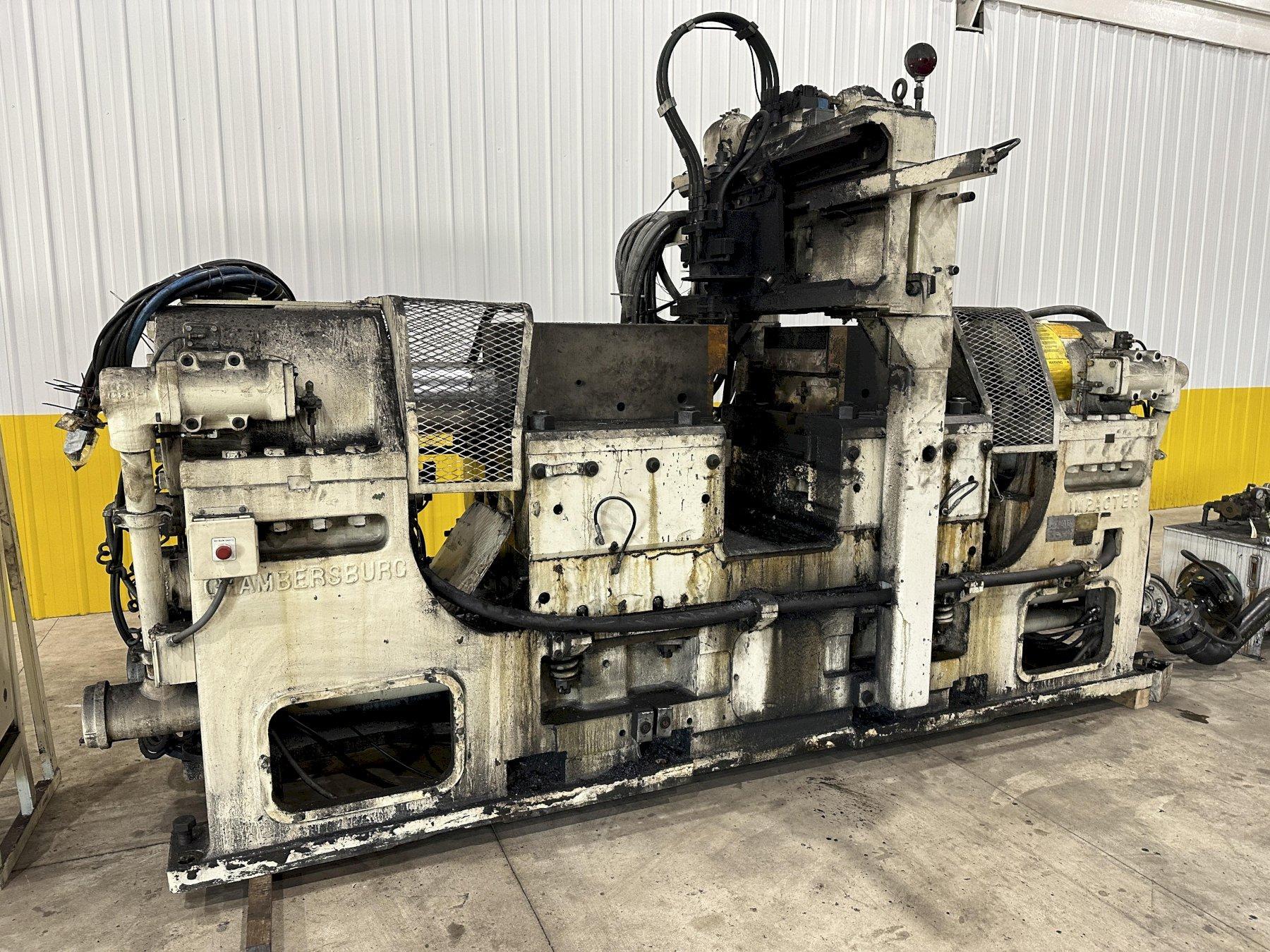

MODEL ...................... #8MP"C"
BLOW FORCE ................. 8,000 LBS
BORE DIAMETER .............. 18"
STROKE ..................... 8"
DAYLIGHT BETWEEN DIES ...... 10" TO 15"

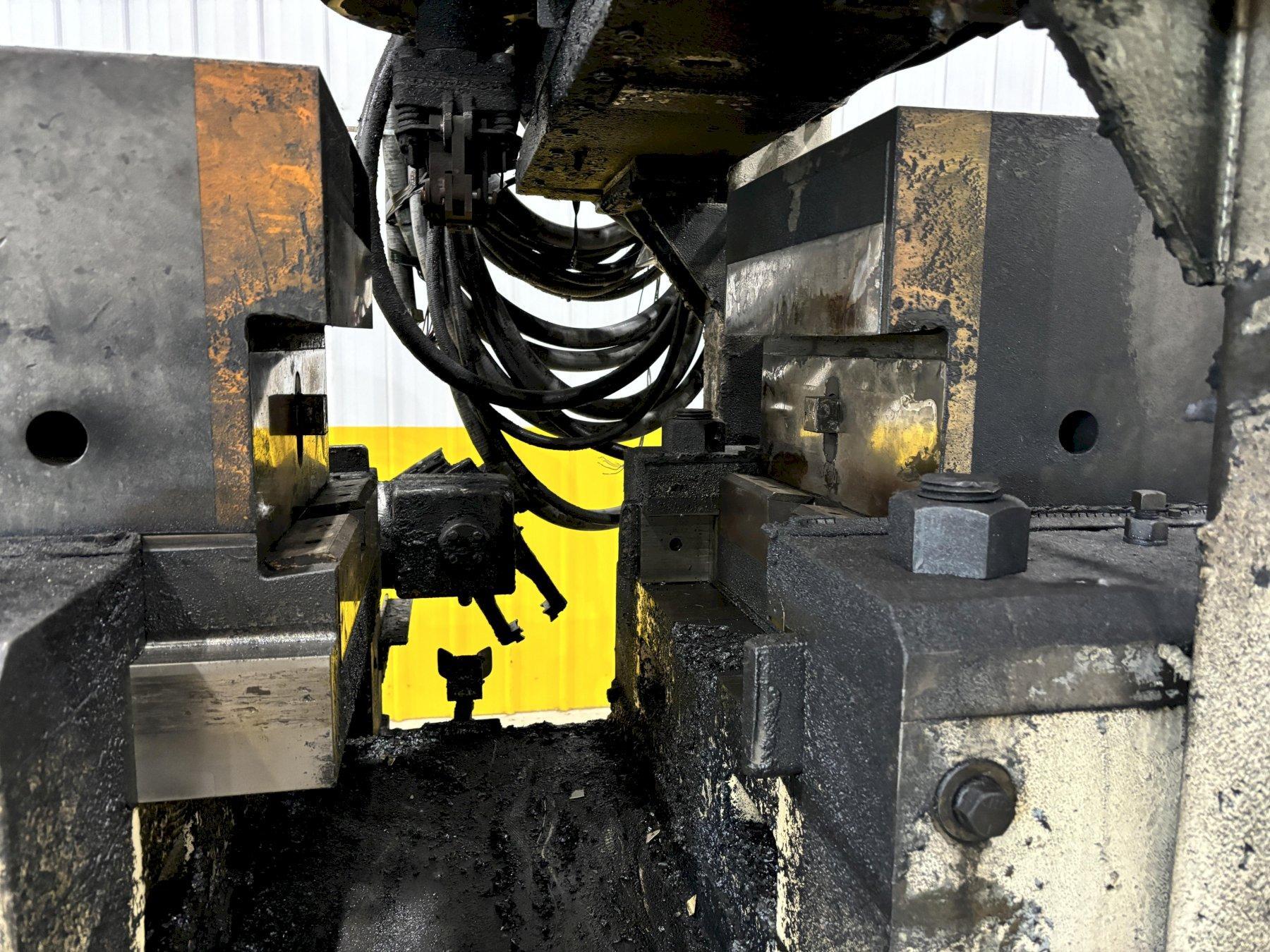

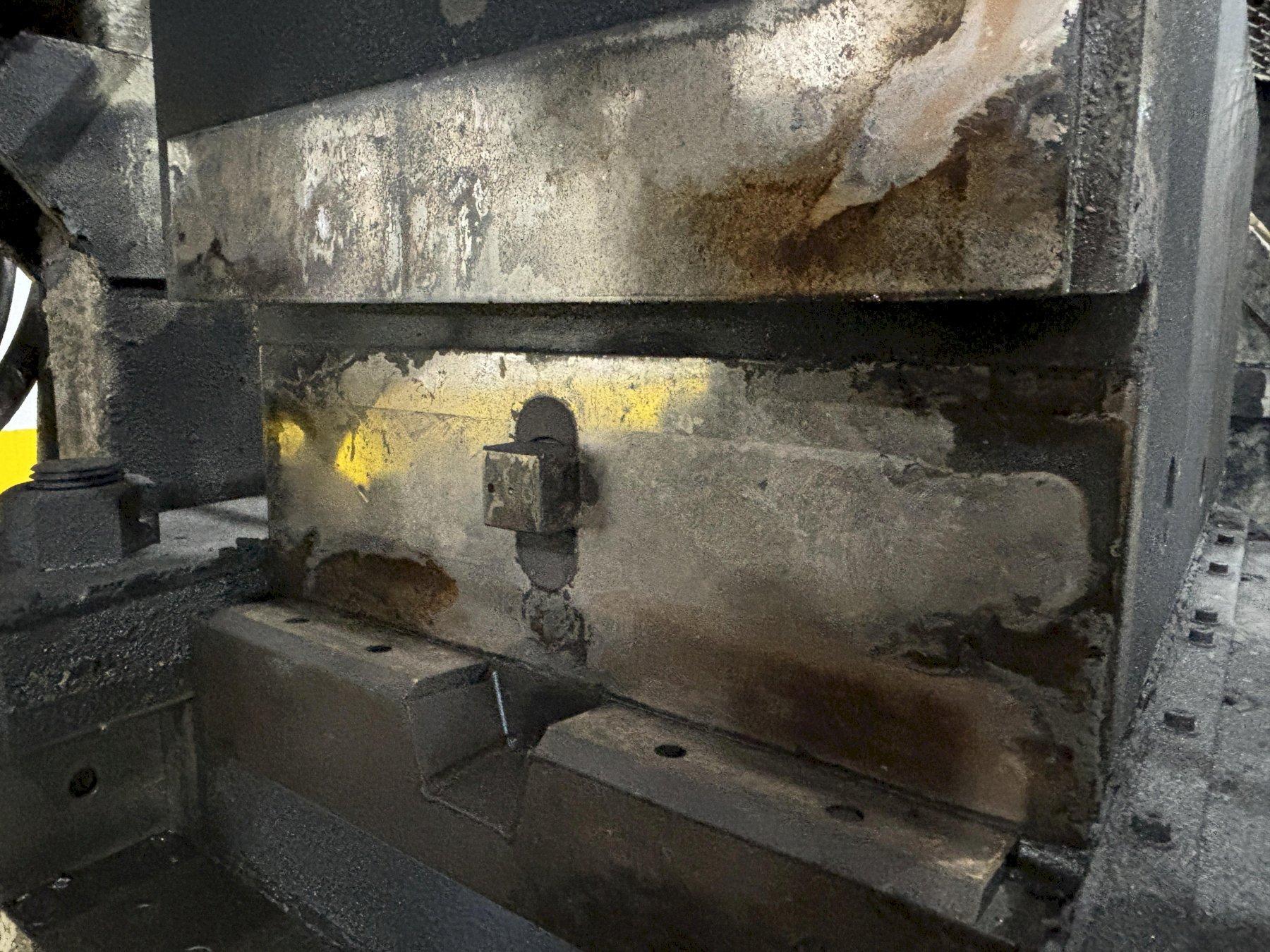

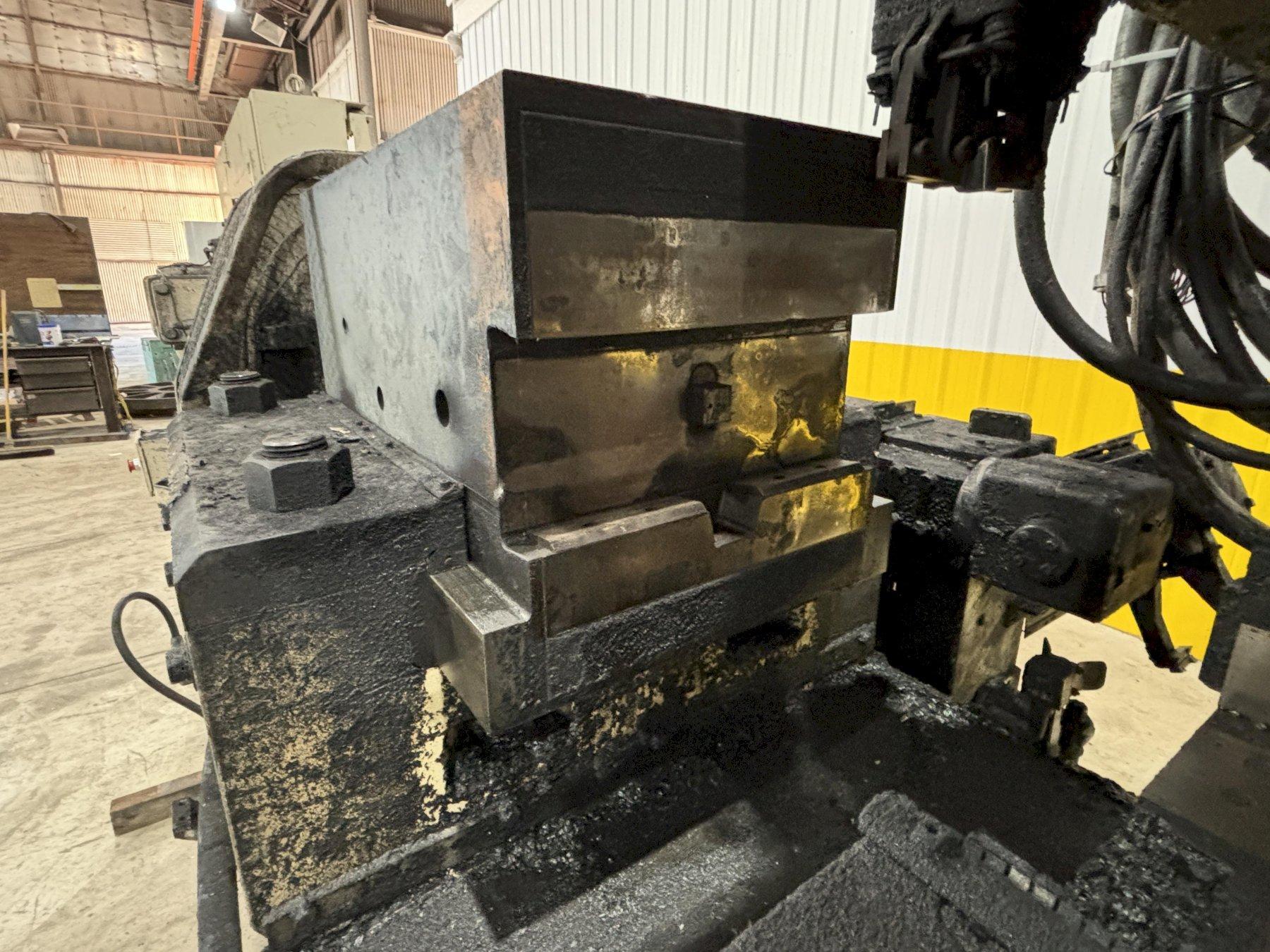

DIE AREA ................... 19" X 20"
BLOWS PER MINUTE ........... 140 MAX
INTAKE ..................... 4"
EXHAUST (EACH END) ......... 4"
GUIDE PLATE ................ YES
DIE LUBE SYSTEM ............ AUTOMATIC

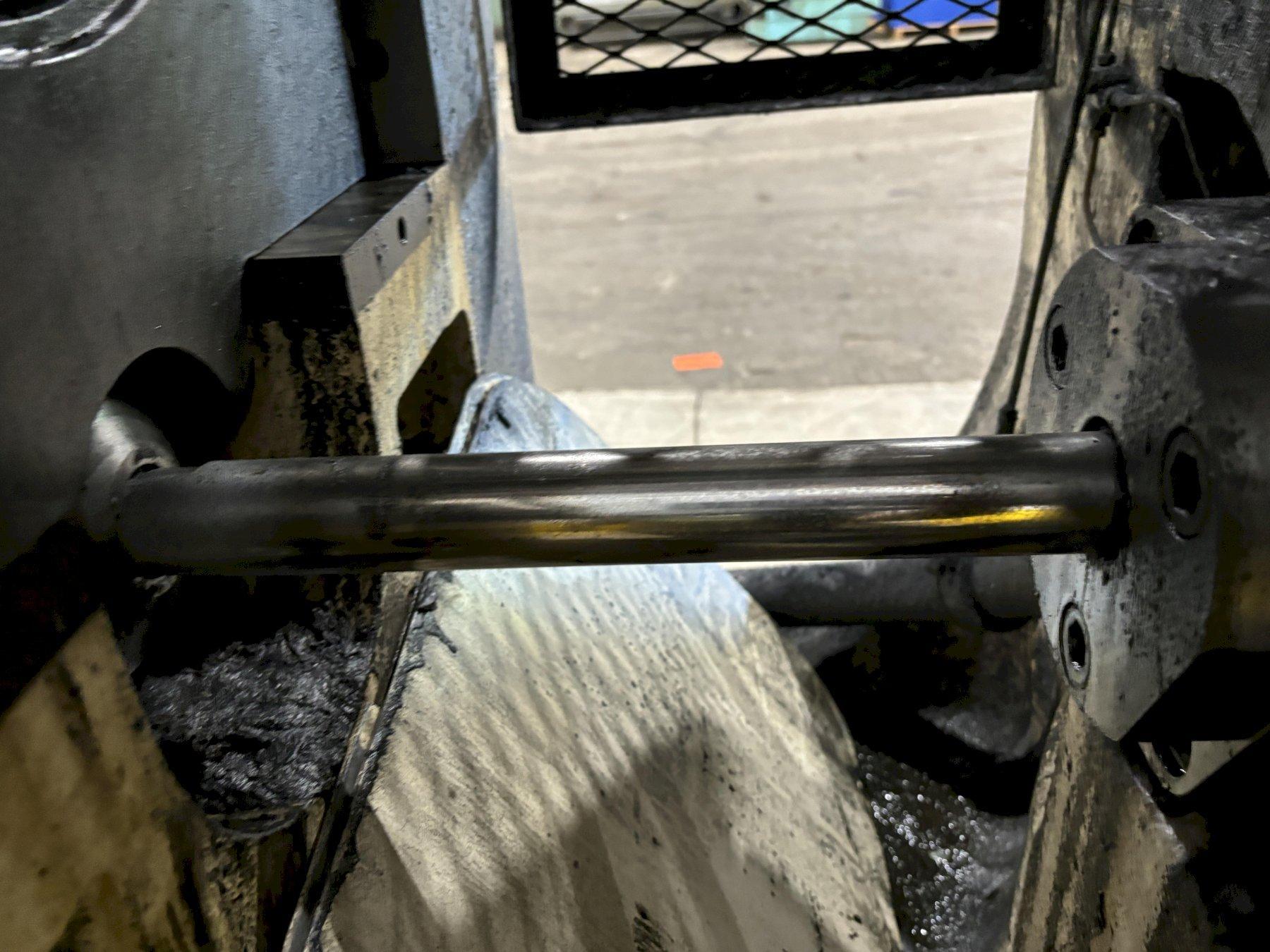

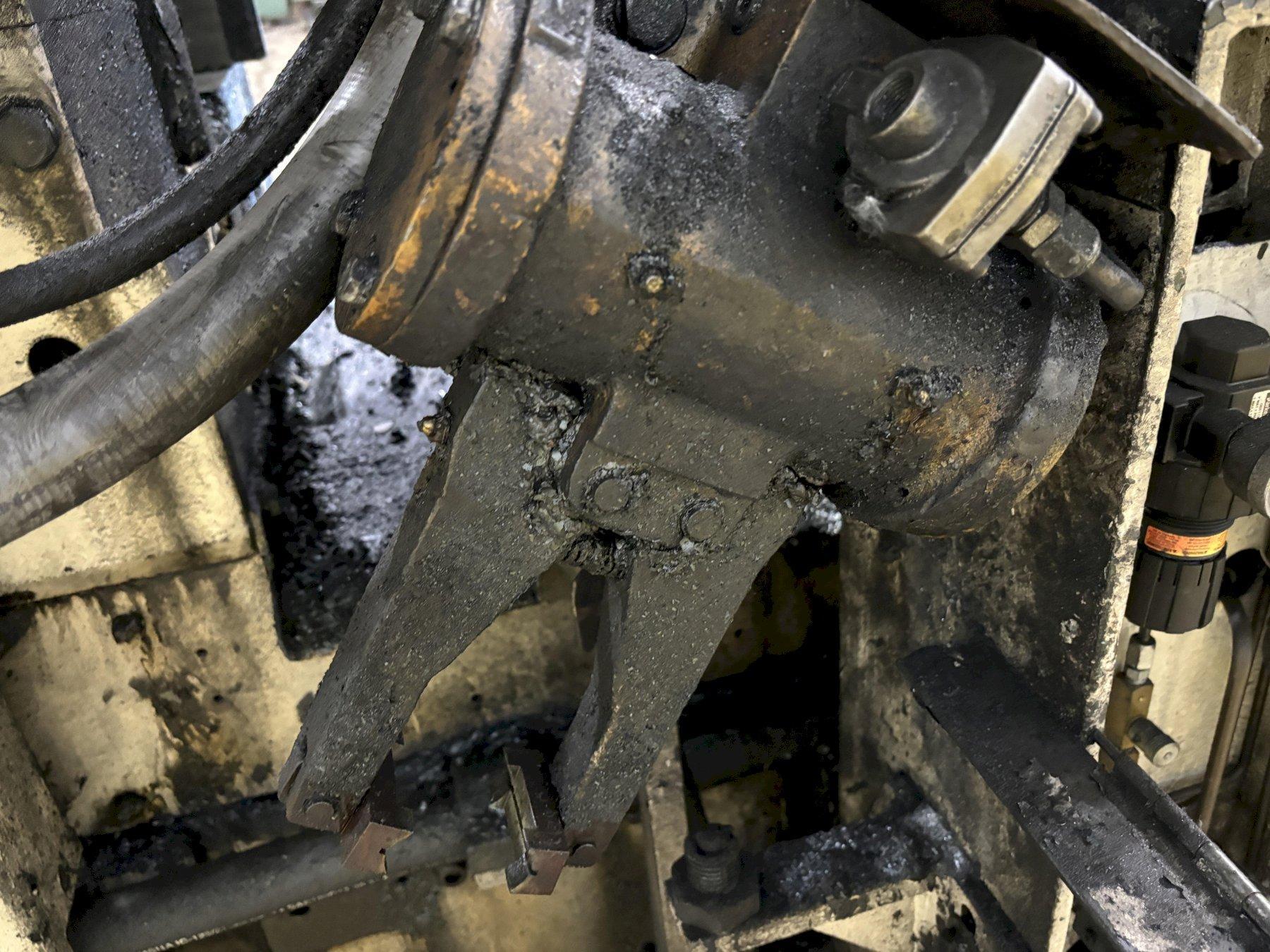

TRANSFER INDEX ARM ......... AUTOMATIC

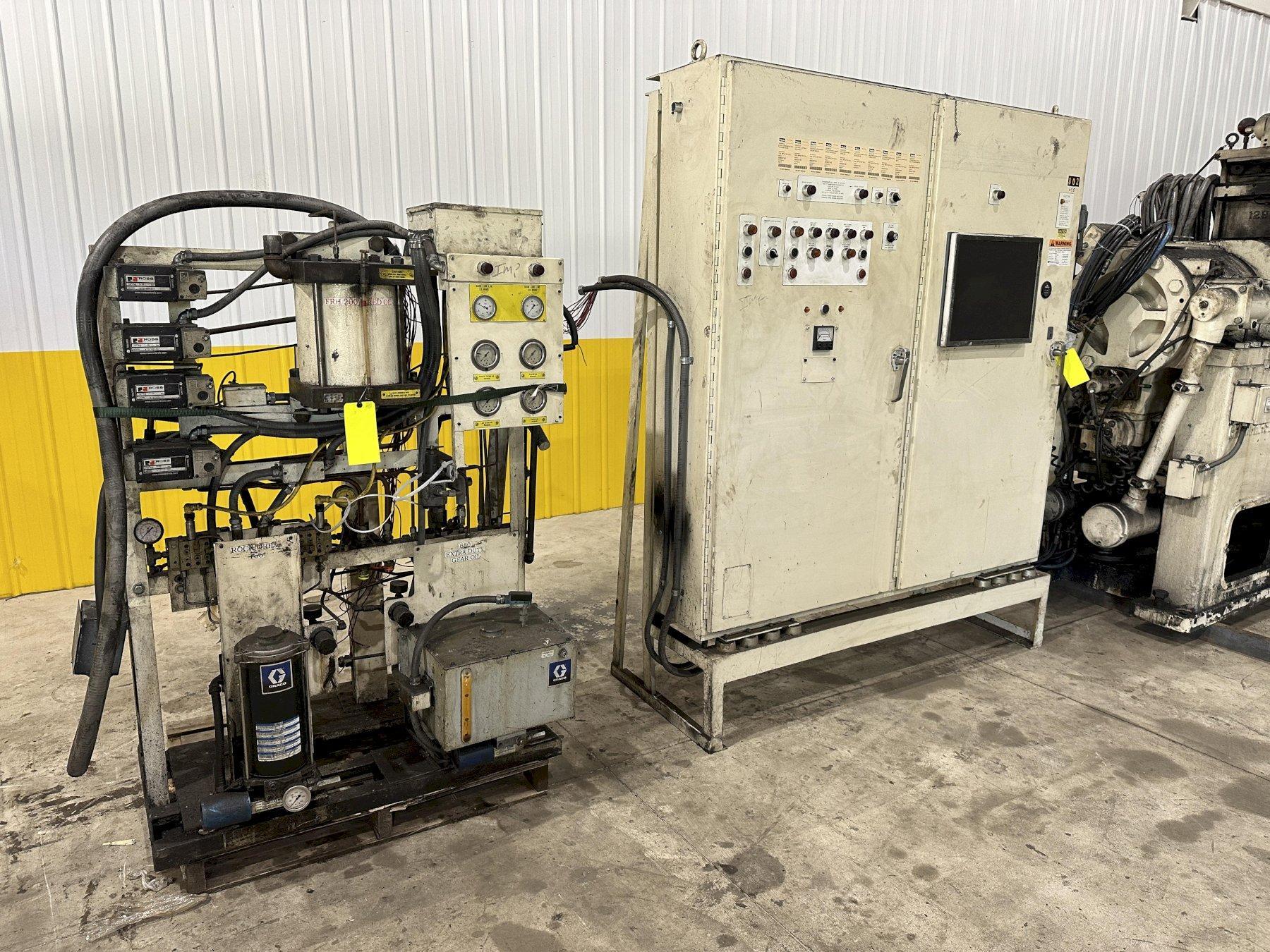

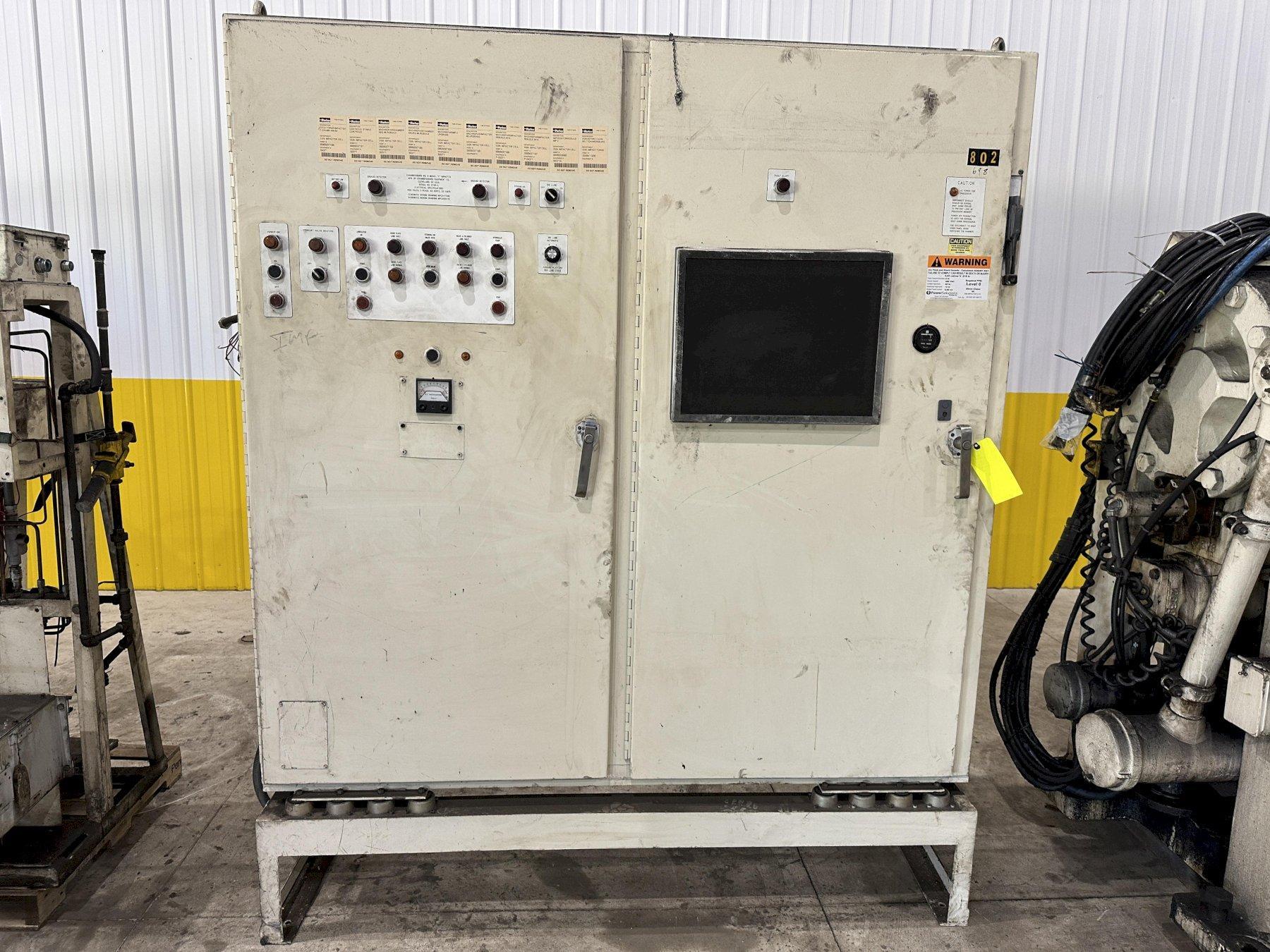

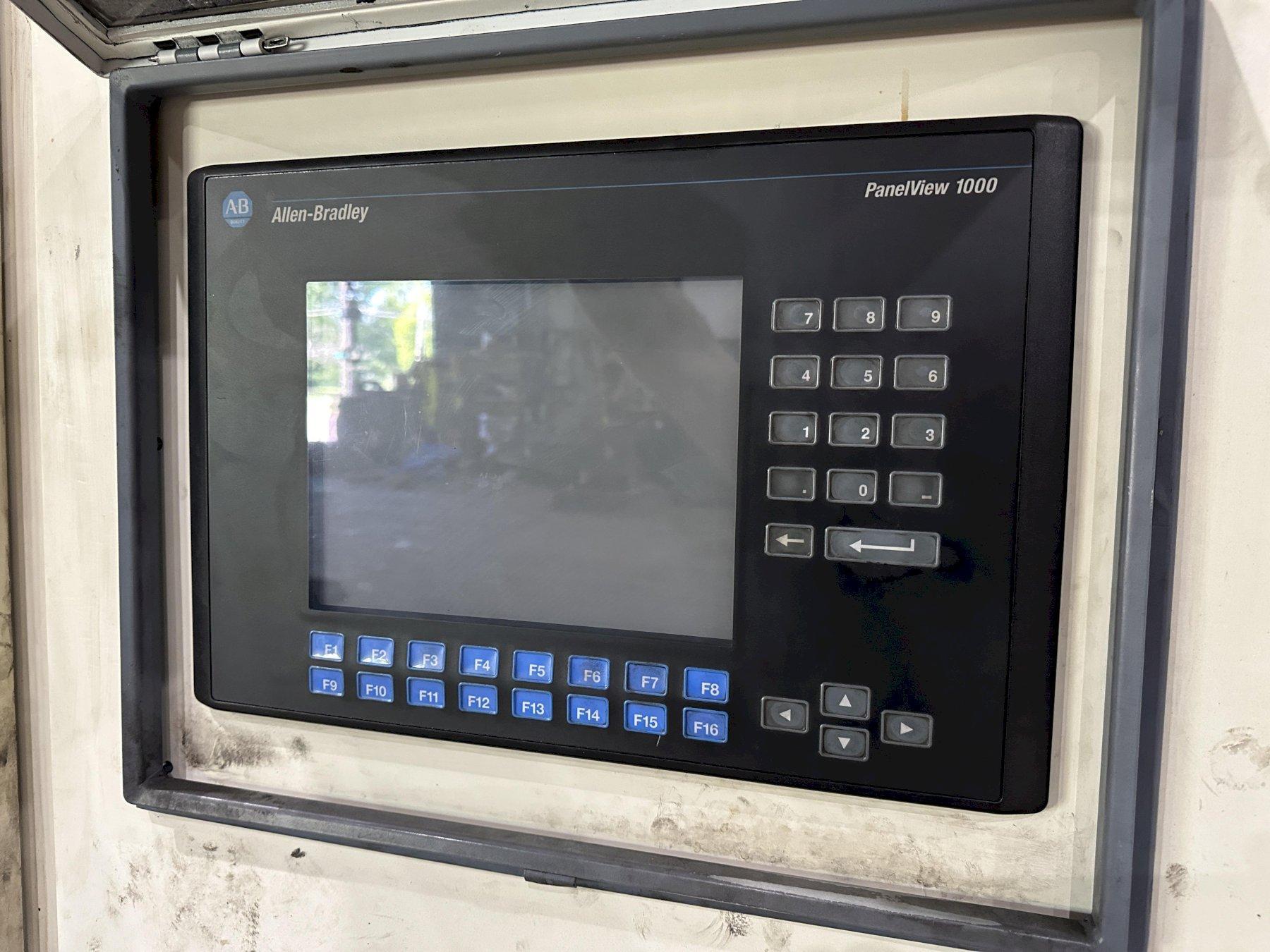

CONTROL PANEL .............. YES, ALLEN BRADLEY
OPERATOR CONTROL STATION ... YES

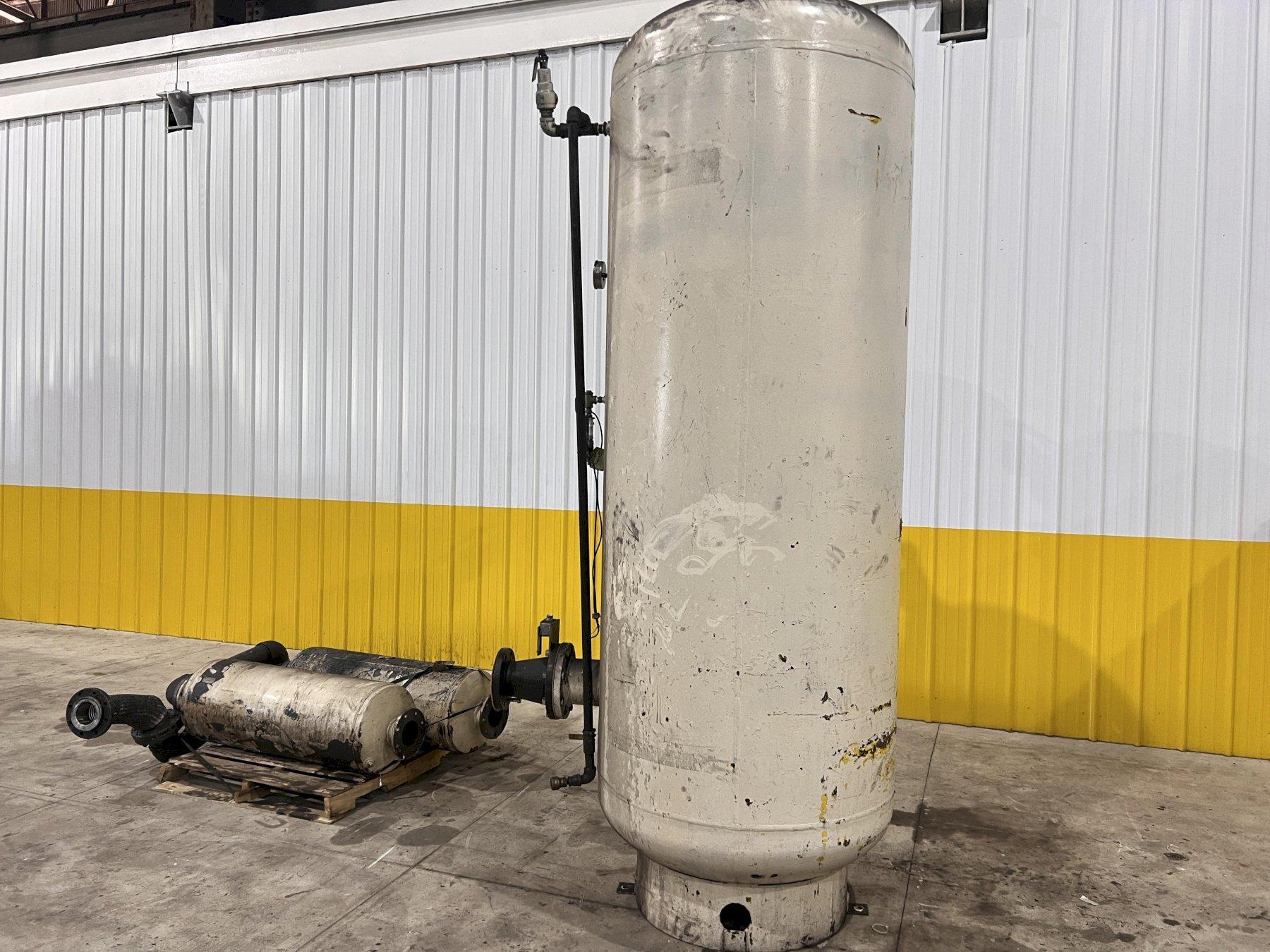

AIR SURGE TANKS ............ YES
DISCHARGE CONVEYOR ......... YES

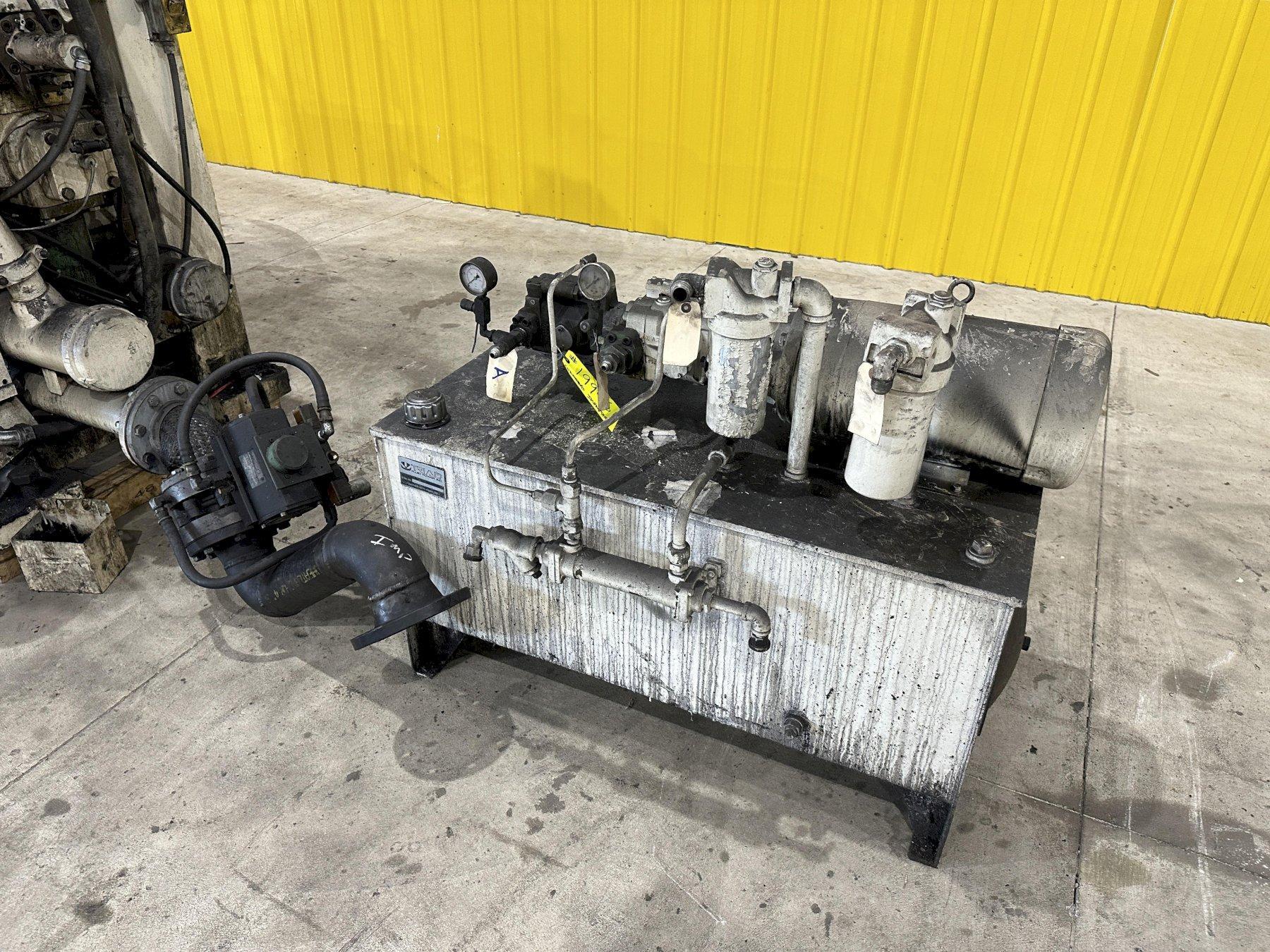

HYDRAULIC UNIT ............. 25 HP

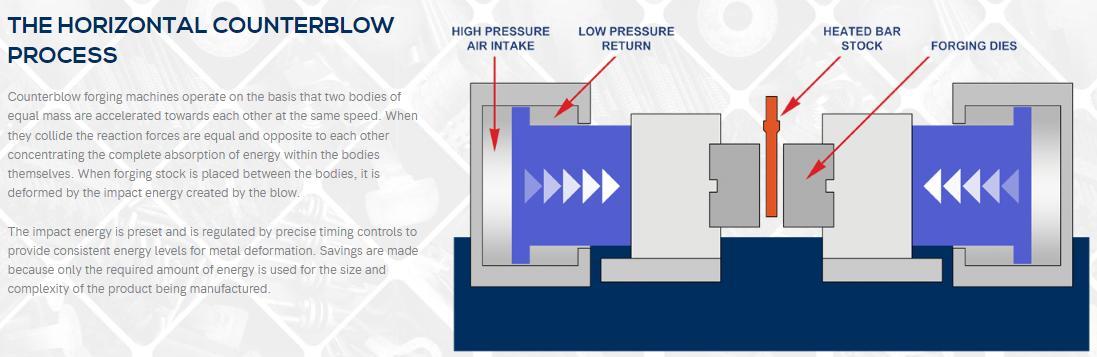

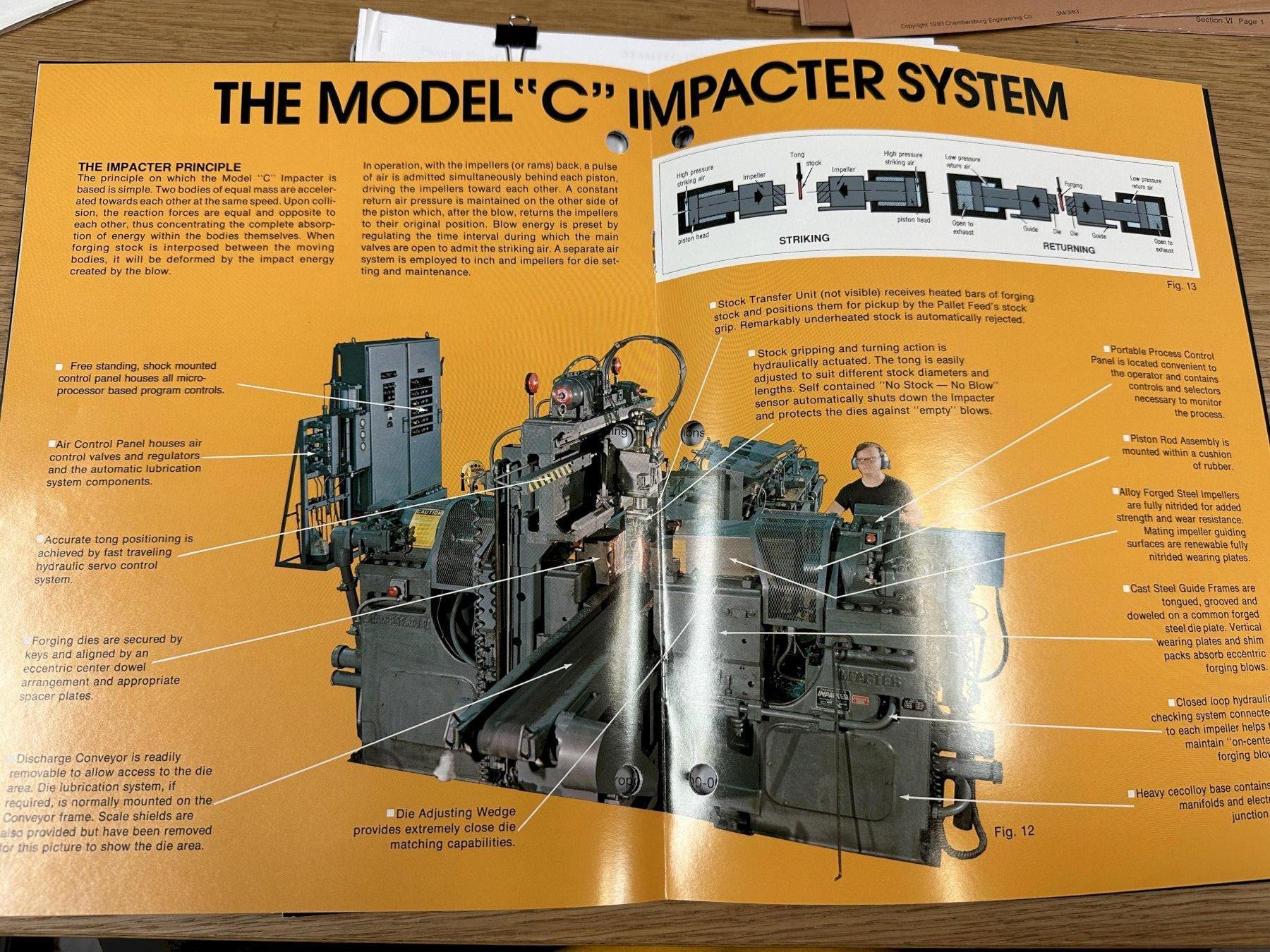

IMPACTOR FORGING WAS DEVELOPED WHERE THE FORCE(COUNTER-BLOW)
OF IMPACT IS ABSORBED BY THE IMPACT ELEMENTS, THEREBY
ELIMINATION THE NECESSITY FOR HEAVY FOUNDATIONS AND
ANVIL STRUCTURES ORDINARILY ASSOCIATED WITH SUCK APPARATUS.
FEATURES LIKE PROGRAMMABLE ENERY LEVELS, BLOW PATTERNS, AND
AUTOMATIC STOCK HANDLING PRODUCE A MORE UNIFORM AND
HIGHER VOLUME PRODUCTION.
Brand

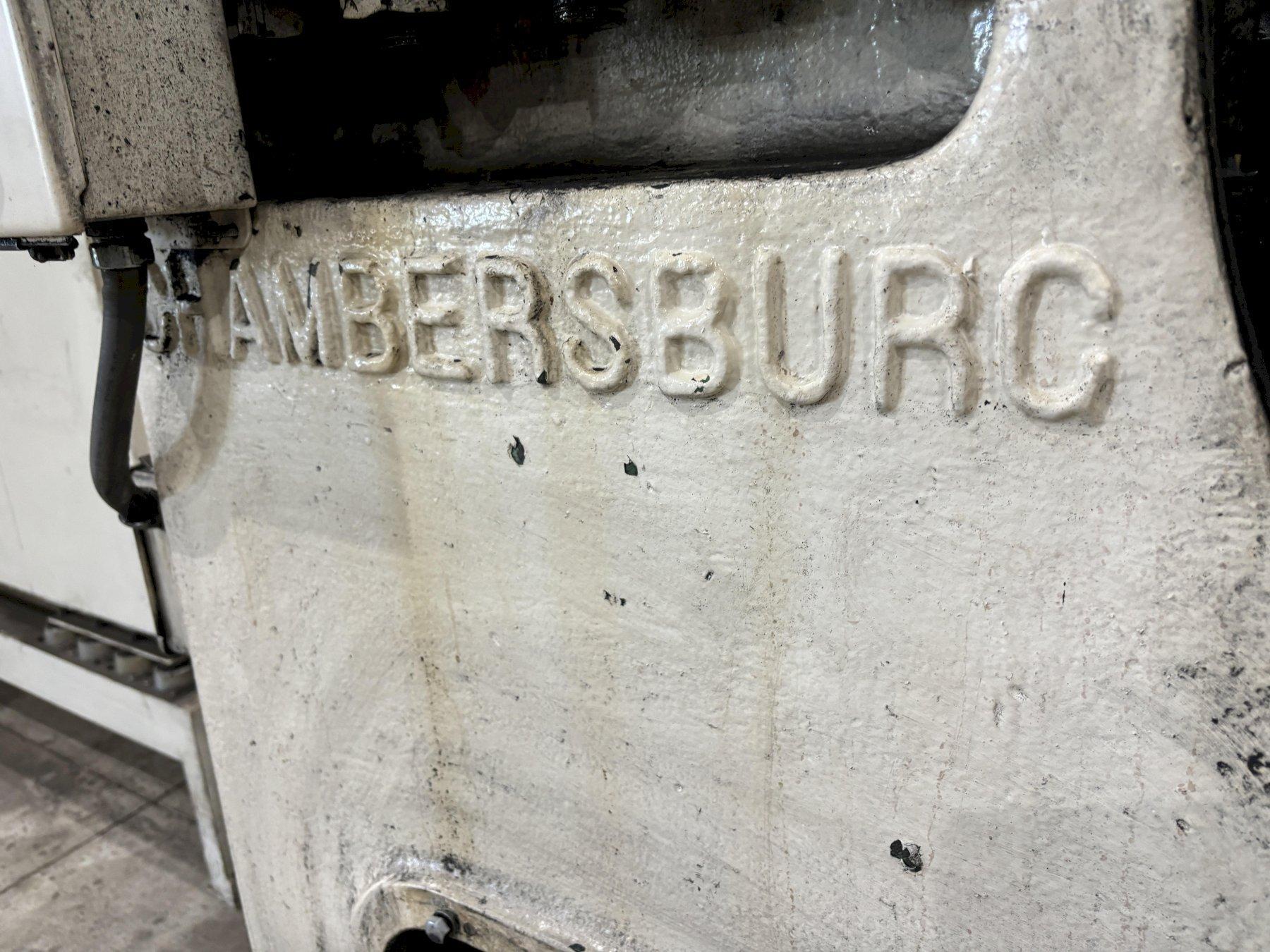

CHAMBERSBURG
Type
Forging Presses
Stock No.
19946
 |
