Brand
O-M
Type

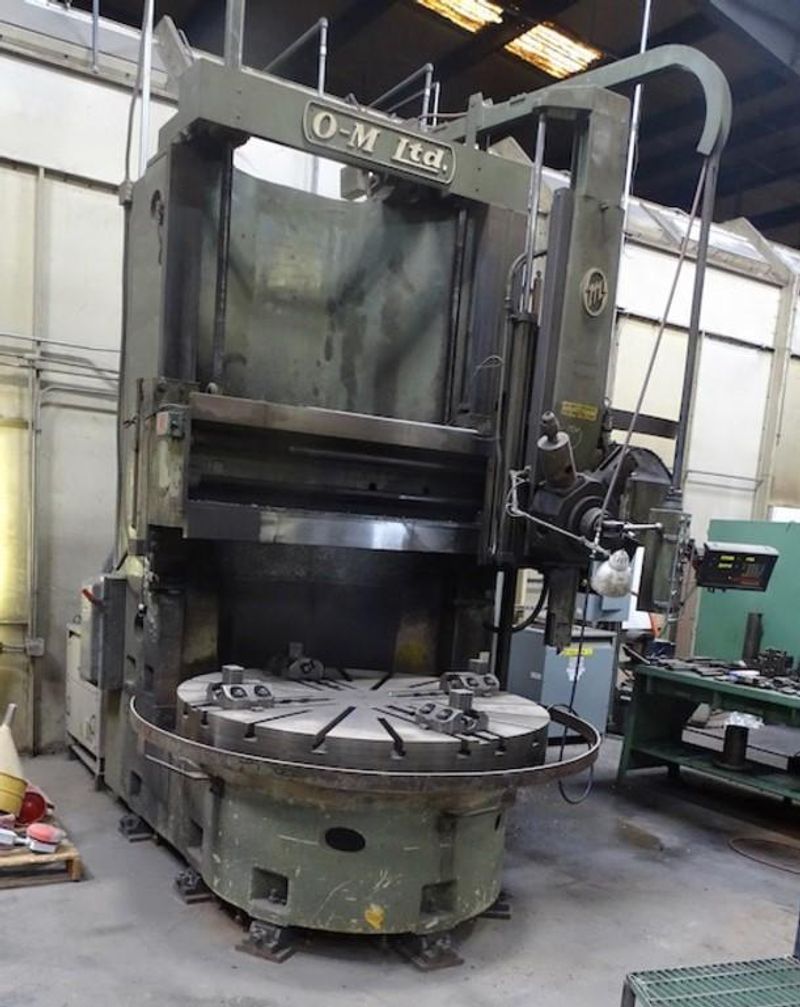

Lathes, VTL (Vertical Turret Lathe)
Stock No.
15580
 |
419-269-2000 |
Stock #: 15580
SERIAL ........................ MN-823557
YEAR NEW ...................... 1982MODEL ......................... VT-16BTABLE DIAMETER ................ 63"
TABLE WEIGHT CAPACITY ......... 24,000 LBS
TABLE SPEEDS .................. 5 TO 250 RPM
CHUCK JAWS ON TABLE ........... 4
MAXIMUM SWING ................. 75"
TURRET RAM POSITIONS .......... 5
TURRET RAIL HEAD TRAVEL ....... 50"
TURRET VERTICAL RAM TRAVEL .... 39"HEIGHT TABLE TO RAM ...........PENDANT CONTROL ............... YESDIGITAL READ OUTS ............. YESMOTOR ......................... 40 HORSEPOWER
