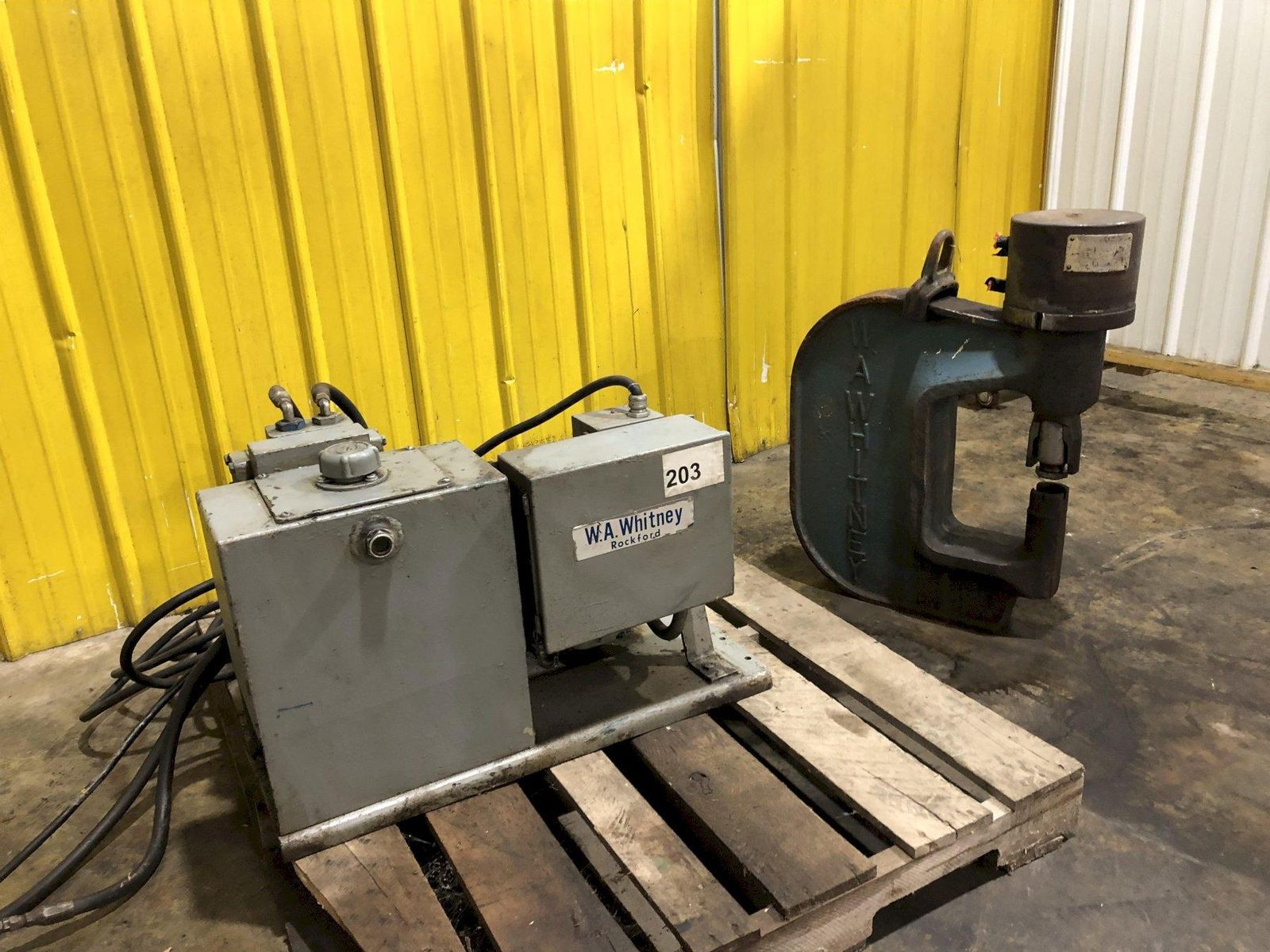

70 TON WA WHITNEY MODEL #771 C-FRAME WEB HYDRAULIC PUNCH W/ 3 HP POWER UNIT: STOCK #18977

Overview

WA WHITNEY WEB PUNCH
SERIAL ..................... 807-699-19819
MODEL ...................... 771-012
CAPACITY ................... 70 TON
HOLE CAPACITY .............. 1-1/8" IN 5/8" PLATE
STROKE ..................... 1-3/8"
DEPTH OF THROAT ............ 8"
DIE OPENING ................ 1-3/32"
CYCLE TIME ................. 5.9 SECONDS FULL STROKE
OPENING OF C ............... 12"
LOWER DIE TO BOTTOM PUNCH .. 12-1/4"

W A WHITNEY HYDRAULIC POWER UNIT
SERIAL ..................... 700-358-14068
MODEL ...................... 700-358
MOTOR ...................... 3 HP

70 TON WA WHITNEY MODEL #771 C-FRAME WEB HYDRAULIC PUNCH W/ 3 HP POWER UNIT: STOCK #18977

Brand
WHITNEY

Type
Punches, Portable

Stock No.
18977

Price: $5950.00
