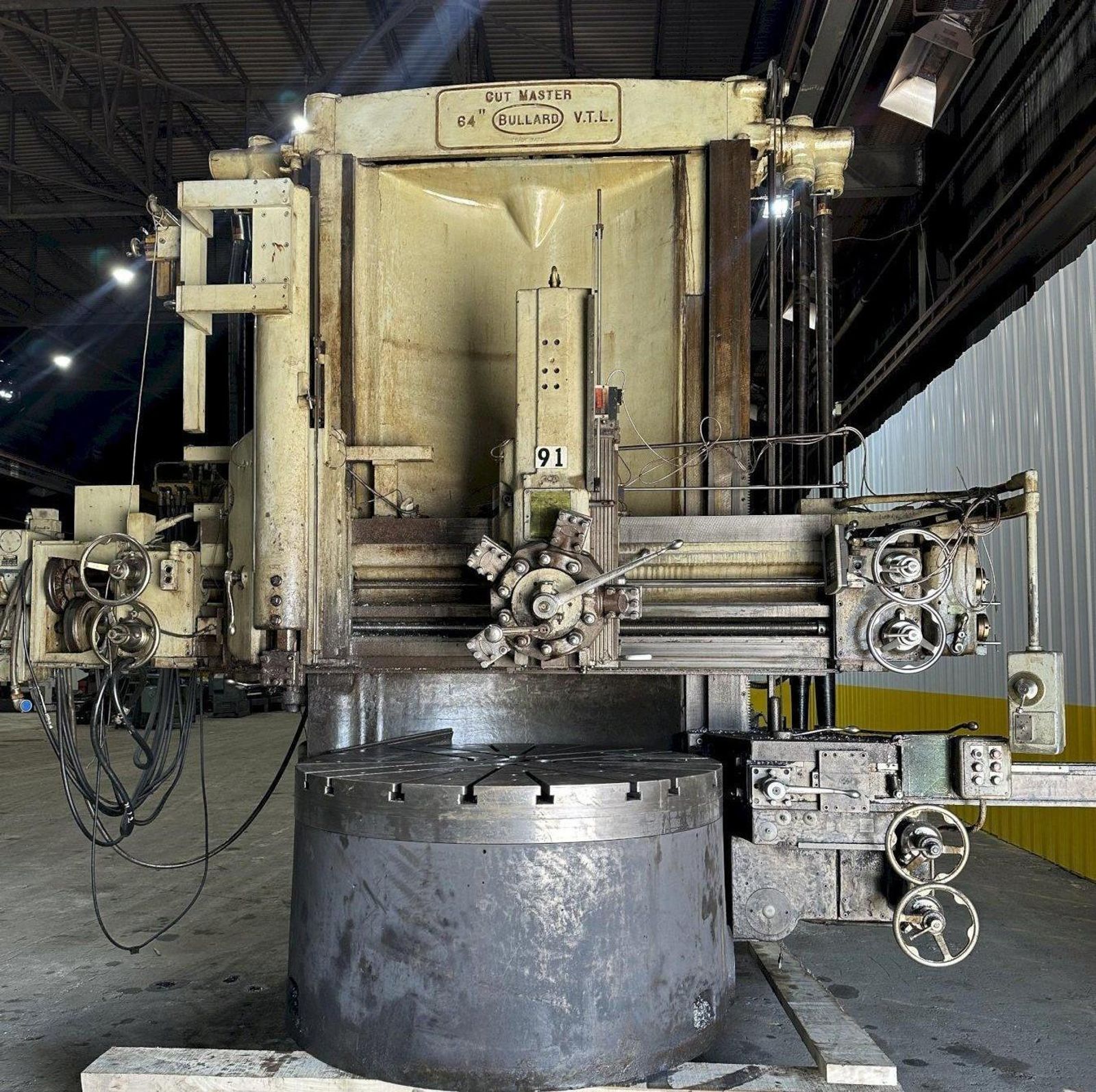

64" BULLARD CUTMASTER "HIGH COLUMN" 3-HEAD VTL / VERTICAL TURRET LATHE: STOCK #20271

Overview

SERIAL ....................... 25737
MODEL ........................ 64" CUTMASTER - HIGH COLUMN
DIAMETER OF TABLE / CHUCK .... 64"
CHUCK T-SLOTTED .............. YES

MAXIMUM SWING DIAMETER ....... 72" (W/OUT SIDE HEAD)

MAXIMUM TURNING DIAMETER ..... 67" (WITH SIDE HEAD)

TABLE SPEEDS ................. (20) 2.741 TO 100.1 RPM

FEEDS (16) ................... (16) .0026 TO .500 IPR
RAPID TRAVERSE ............... YES

VERTICAL RAIL TRAVEL ......... 60"
VERT DISTANCE TABLE TO RAIL .. 78" (EXTRA HIGH COLUMN)

FLOOR TO TOP OF TABLE ........ 36"
DIGITAL READOUTS ............. YES
PENDANT CONTROL .............. YES
MOTOR ........................ 50 HP

NUMBER OF HEADS .............. (3) TURRET, RAM & SIDE
TURRET HEAD:

VERTICAL STROKE TRAVEL ....... 30-3/8"

HORIZONTAL TRAVEL ON RAIL .... 40-3/8"

NUMBER OF TOOLING POSITIONS .. 5

RAM HEAD:

VERTICAL STROKE TRAVEL ....... 54"

HORIZONTAL TRAVEL ON RAIL .... 40-3/8"

SIDE HEAD:

VERTICAL TRAVEL .............. 54"

HORIZONTAL STROKE TRAVEL ..... 32"

NUMBER OF TOOLING POSITIONS .. 5
